Bosch SMS4ETW02EB Series 4 Freestanding dishwasher User Manual

new device on

MyBosch now and

get free benefits:

bosch-home.com/

welcome

Dishwasher

SMS4ETW02E

[en] Information for Use

Connect

your

dishwasher

with Home

Connect today!

Get the app Scan QR code

Google Play and the Google Play

logo are trademarks of Google

LLC. Apple and the Apple logo

are trademarks of Apple Inc.

Further information and explanations are

available online:

Table of contents

1 Safety ...........................................4

1.1 General information................... 4

1.2 Intended use.............................. 4

1.3 Restriction on user group.......... 4

1.4 Safe installation ......................... 4

1.5 Safe use .................................... 6

1.6 Damaged appliance.................. 7

1.7 Risk to children ......................... 8

2 Preventing material damage ....10

2.1 Safe installation ....................... 10

2.2 Safe use .................................. 10

3 Environmental protection and

saving energy............................11

3.1 Disposing of packaging .......... 11

3.2 Saving energy.......................... 11

3.3 Efficient Dry ............................. 11

4 Installation and connection......11

4.1 Scope of supply ...................... 11

4.2 Installing and connecting the

appliance................................. 12

4.3 Drainage connection ............... 12

4.4 Drinking water connection ...... 12

4.5 Electrical connection ............... 13

5 Familiarising yourself with

your appliance...........................14

5.1 Appliance ................................ 14

5.2 Controls ................................... 16

6 Programmes ..............................19

6.1 Information for test institutes ... 20

6.2

Favourite ............................. 20

7 Additional functions .................22

8 Features.....................................23

8.1 Top basket............................... 23

8.2 Knife shelf................................ 24

8.3 Etagere .................................... 24

8.4 Bottom basket ......................... 24

8.5 Folding prongs ........................ 25

8.6 Cutlery basket ......................... 25

9 Before using for the first time ..25

9.1 Performing the initial config-

uration...................................... 25

10 Water softening system..........26

10.1 Overview of water hardness

settings .................................. 26

10.2 Setting the water softening

system ................................... 26

10.3 Special salt ............................ 27

10.4 Switching off the water

softening system ................... 27

10.5 Regeneration of the water

softening system ................... 28

11 Rinse aid system.....................28

11.1 Rinse aid ............................... 28

11.2 Setting the amount of rinse

aid.......................................... 29

11.3 Switching the rinse aid sys-

tem off ................................... 29

12 Detergent .................................29

12.1 Suitable detergents ............... 29

12.2 Unsuitable detergents ........... 30

12.3 Information on detergents ..... 31

12.4 Adding detergent................... 31

13 Tableware ................................32

13.1 Damage to glass and table-

ware....................................... 32

13.2 Arrange tableware ................. 33

13.3 Removing tableware.............. 34

14 Basic operation .......................34

14.1 Switching on the appliance ... 34

14.2 Setting a programme ............ 34

14.3 Setting additional functions ... 34

14.4 Setting timer programming ... 35

14.5 Starting the programme ........ 35

14.6 Activating button lock............ 35

14.7 Deactivate button lock........... 35

14.8 Interrupting programme ........ 35

14.9 Terminate programme........... 35

14.10 Switching off appliance ....... 35

15 Basic settings..........................37

15.1 Overview of the basic set-

tings....................................... 37

15.2 Changing basic settings........ 39

16 HomeConnect ........................39

16.1 HomeConnect quick start .... 40

16.2

Remote Start ...................... 40

16.3 Data protection...................... 41

17 Cleaning and servicing...........41

17.1 Cleaning the tub .................... 41

17.2 Cleaning products ................. 41

17.3 Tips on appliance care.......... 42

17.4

Machine Care .................... 42

17.5 Filter system .......................... 43

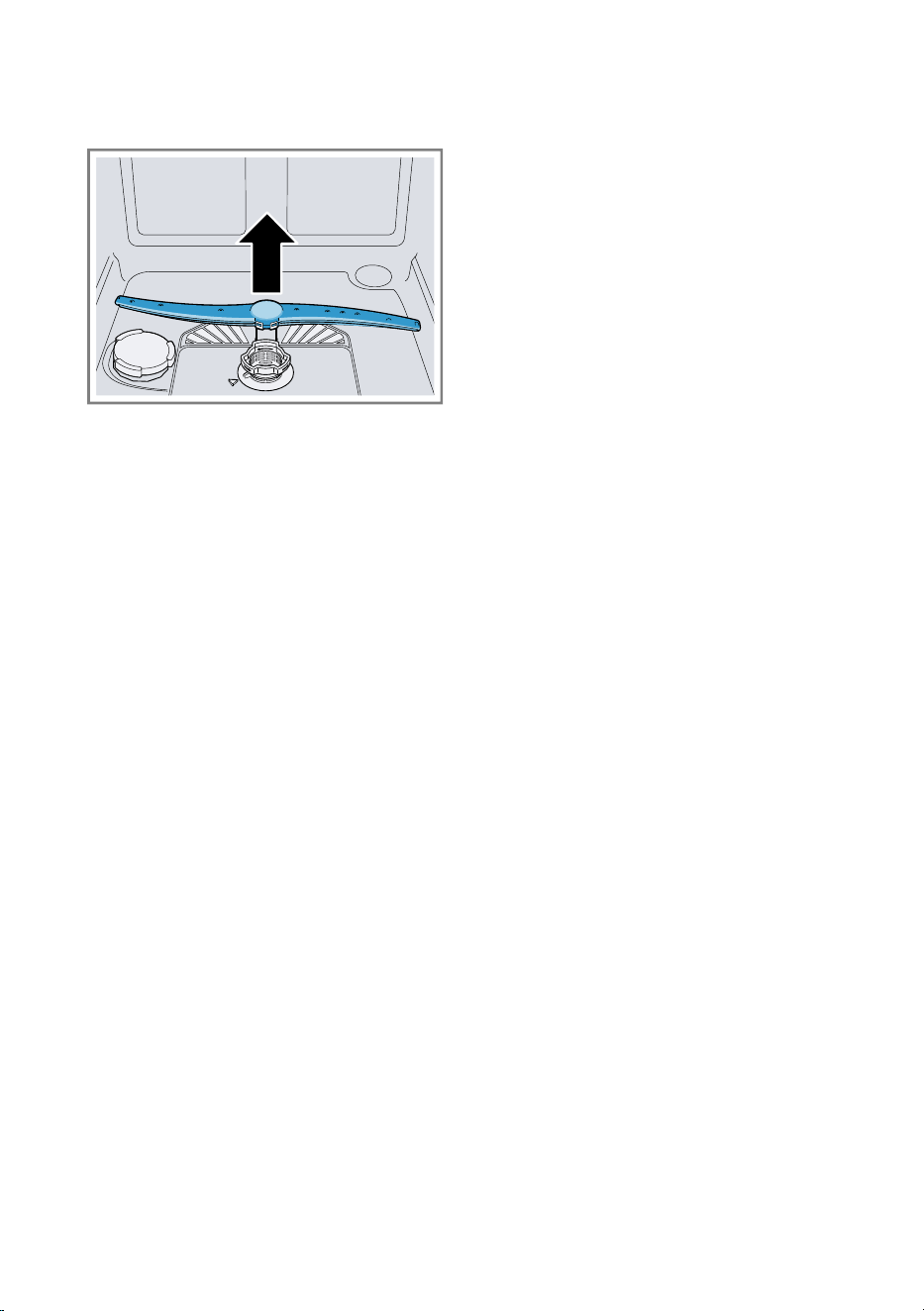

17.6 Cleaning spray arms ............. 44

18 Troubleshooting......................46

18.1 Clean wastewater pump........ 52

19 Transportation, storage and

disposal ...................................52

19.1 Removing the appliance ....... 52

19.2 Protect appliance from frost.. 53

19.3 Transporting the appliance ... 53

19.4 Disposing of old appliance ... 53

20 Customer Service....................53

20.1 Product number (E-Nr.),

production number (FD)

and consecutive numbering

(Z-Nr.) .................................... 54

20.2 AQUA-STOP guarantee ......... 54

21 Technical specifications.........55

21.1 Information regarding Free

and Open Source Software... 55

22 Declaration of Conformity ......56

en Safety

1 Safety

Observe the following safety instructions.

1.1 General information

¡ Read this instruction manual carefully.

¡ Keep the instruction manual and the product information safe

for future reference or for the next owner.

¡ Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

Only use this appliance:

¡ For cleaning household tableware.

¡ in private households and in enclosed spaces in a domestic en-

vironment.

¡ Up to an altitude of 4000 m above sea level.

1.3 Restriction on user group

This appliance may be used by children aged 8 or over and by

people who have reduced physical, sensory or mental abilities or

inadequate experience and/or knowledge, provided that they are

supervised or have been instructed on how to use the appliance

safely and have understood the resulting dangers.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by chil-

dren unless they are being supervised.

Keep children under the age of 8 years away from the appliance

and power cable.

1.4 Safe installation

WARNING‒Risk of injury!

Improper installation may cause injury.

▶ When installing and connecting the appliance, follow the instruc-

tions in the manual and installation instructions.

Safety en

WARNING‒Risk of electric shock!

Incorrect installation is dangerous.

▶ Connect and operate the appliance only in accordance with the

specifications on the rating plate.

▶ Always use the supplied power cable for the new appliance.

▶ Connect the appliance to a power supply with alternating cur-

rent only via a properly installed socket with earthing.

▶ The protective conductor system of the domestic electrical in-

stallation must be properly installed.

▶ Never equip the appliance with an external switching device,

e.g. a timer or remote control.

▶ When the appliance is installed, the mains plug of the power

cord must be freely accessible. If free access is not possible, an

isolating switch must be integrated into the permanent electrical

installation according to the installation regulations.

▶ When installing the appliance, check that the power cable is not

trapped or damaged.

Cutting through the supply hose or immersing the Aqua-Stop

valve in water is dangerous.

▶ Never immerse the plastic housing in water. The plastic housing

on the supply hose contains an electric valve.

▶ Never cut through the supply hose. The supply hose contains

electric power cables.

WARNING‒Risk of fire!

It is dangerous to use an extended power cord and non-approved

adapters.

▶ Do not use extension cables or multiple socket strips.

▶ Only use adapters and power cords approved by the manufac-

turer.

▶ If the power cord is too short and a longer one is not available,

please contact an electrician to have the domestic installation

adapted.

en Safety

Contact between the appliance and installation lines may lead to a

defect in these lines, e.g. gas pipes and power lines. Gas from a

corroded gas pipe can ignite. A damaged power line can cause a

short circuit.

▶ Check that there is a distance of at least 5cm between the ap-

pliance and installation lines.

WARNING‒Risk of burns!

If the appliance is not installed properly, this may result in burns.

▶ With free-standing appliances, ensure that they are installed with

the back panel against a wall.

1.5 Safe use

WARNING‒Risk of serious harm to health!

Failure to comply with safety instructions and directions for use on

packagings of detergent and rinse aid products may cause seri-

ous harm to health.

▶ Follow the safety instructions and directions for use on the

packagings of detergent and rinse aid products.

WARNING‒Risk of explosion!

Adding solvents to the interior of the appliance may cause explo-

sions.

▶ Never add solvents to the interior of the appliance.

Highly caustic alkaline or highly acidic cleaning agents in conjunc-

tion with aluminium parts in the interior of the appliance may

cause explosions.

▶ Never use highly caustic alkaline or highly acidic cleaning

agents, in particular commercial or industrial products, in con-

junction with aluminium parts (e.g. grease filters of extractor

hoods or aluminium pans), e.g. for the Machine Care pro-

gramme.

WARNING‒Risk of injury!

Leaving the appliance door open may result in injury.

▶ Only open the appliance door to load or unload tableware in or-

der to prevent accidents, e.g. through tripping.

Safety en

▶ Do not sit or stand on the appliance door when open.

Knives and utensils with sharp points can cause injuries.

▶ Arrange knives and utensils with sharp points in the cutlery bas-

ket with the points downwards, on the knife shelf or in the cut-

lery drawer.

WARNING‒Risk of scalding!

If you open the appliance door while the programme is running,

hot water may splash out of the appliance.

▶ Open the appliance door carefully if the programme is still run-

ning.

WARNING‒Risk of tipping!

Overfilling the Baskets may cause the appliance to tip up.

▶ Never overfill the Baskets with free-standing appliances.

WARNING‒Risk of electric shock!

An ingress of moisture can cause an electric shock.

▶ Only use the appliance in enclosed spaces.

▶ Never expose the appliance to intense heat or humidity.

▶ Do not use steam- or high-pressure cleaners to clean the appli-

ance.

If the insulation of the power cord is damaged, this is dangerous.

▶ Never let the power cord come into contact with hot appliance

parts or heat sources.

▶ Never let the power cord come into contact with sharp points or

edges.

▶ Never kink, crush or modify the power cord.

1.6 Damaged appliance

WARNING‒Risk of electric shock!

If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.

▶ Never operate an appliance with a cracked or fractured surface.

▶ Never pull on the power cord to unplug the appliance. Always

unplug the appliance at the mains.

en Safety

▶ If the appliance or the power cord is damaged, immediately un-

plug the power cord or switch off the fuse in the fuse box and

turn off the water tap.

▶ Call customer services. →Page53

Incorrect repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained

specialist staff.

▶ Only use genuine spare parts when repairing the appliance.

▶ If the power cord or the appliance power cable of this appliance

is damaged, it must be replaced with a special power cord or

special appliance power cable, which is available from the man-

ufacturer or its Customer Service.

1.7 Risk to children

WARNING‒Risk of suffocation!

Children may put packaging material over their heads or wrap

themselves up in it and suffocate.

▶ Keep packaging material away from children.

▶ Do not let children play with packaging material.

Children may breathe in or swallow small parts, causing them to

suffocate.

▶ Keep small parts away from children.

▶ Do not let children play with small parts.

Children may become trapped in the appliance and suffocate.

▶ Use the childproof lock if fitted.

▶ Never let children play with or operate the appliance.

WARNING‒Risk of harm to health!

Children can lock themselves in the appliance, thereby putting

their lives at risk.

▶ With redundant appliances, unplug the power cord. Then cut

through the cord and damage the lock on the appliance door

beyond repair so that the appliance door will no longer close.

Safety en

WARNING‒Risk of crushing!

With higher-level appliances, children can become crushed

between the appliance door and cabinet doors underneath.

▶ Keep an eye on children when opening and closing the appli-

ance door.

WARNING‒Risk of chemical burns!

Rinse aid and detergent may cause chemical burns to the mouth,

throat and eyes.

▶ Keep children away from detergent and rinse aid products.

▶ Keep children away from the appliance when open. The water in

the interior of the dishwasher is not drinking water. It may con-

tain residues of detergents and rinse aid.

WARNING‒Risk of injury!

Children may get their fingers caught in the slots of the tablet col-

lecting tray and injure themselves.

▶ Keep children away from the appliance when open.

en Preventing

Preventing

2 Preventing material

damage

Preventing

2.1 Safe installation

ATTENTION!

Improper installation of the appliance

may cause damage.

▶ If the dishwasher is installed above

or below other domestic appli-

ances, follow the information on in-

stallation in combination with a

dishwasher in the installation in-

structions for the individual appli-

ances.

▶ If there is no information or if the

installation instructions do not in-

clude the relevant information, con-

tact the manufacturer of these ap-

pliances to check that the dish-

washer can be installed above or

below these appliances.

▶ If no information is available from

the manufacturer, the dishwasher

should not be installed above or

below such appliances.

▶ To ensure the safe operation of all

domestic appliances, continue fol-

lowing the installation instructions

for the dishwasher.

▶ Do not install the dishwasher un-

der a hob.

▶ Do not install the dishwasher near

heat sources, e.g. radiators, heat

storage tanks, ovens or other ap-

pliances that generate heat.

Contact between the appliance and

water pipes may lead to corrosion of

these pipes, possibly causing them

to leak.

▶ Check that there is a distance of at

least 5cm between the appliance

and the water pipe. The pipes sup-

plied for the drinking water and

waste water connections are not

affected here.

Modified or damaged water hoses

may result in material damage and

damage to the appliance.

▶ Never kink, crush, modify or cut

through water hoses.

▶ Only use the water hoses supplied

with the appliance or genuine

spare hoses.

▶ Never re-use water hoses that

have been used before.

If the water pressure is too high or

too low, the appliance may not be

able to operate properly.

▶ Make sure that the water pressure

in the water supply system is min.

50kPa (0.5bar) and max.

1000kPa (10bar).

▶ If the water pressure exceeds the

maximum value specified, a pres-

sure-reducing valve must be in-

stalled between the drinking water

connection and the hose set of the

appliance.

2.2 Safe use

ATTENTION!

Escaping water vapour can damage

fitted units.

▶ When the programme ends, leave

the appliance to cool down for a

while before opening the door.

Special salt for dishwashers can

damage the tub due to corrosion.

▶ To make sure that any special salt

that escapes is washed out of the

tub, add the special salt to the dis-

penser for special salt immediately

before the programme starts.

Detergent may damage the water

softening system.

▶ Only fill the dispenser of the water

softening system with special dish-

washer salt.

Unsuitable cleaning agents may dam-

age the appliance.

▶ Do not use a steam cleaner.

Environmental protection and saving energy en

▶ So as not to scratch the finish on

the appliance, do not use sponges

with a rough surface or abrasive

cleaning agents.

▶ To prevent corrosion, do not use

sponge cloths on dishwashers with

a stainless steel front or rinse such

cloths thoroughly several times be-

fore using them for the first time.

3 Environmental protec-

tion and saving energy

3.1 Disposing of packaging

The packaging materials are environ-

mentally compatible and can be re-

cycled.

▶ Sort the individual components by

type and dispose of them separ-

ately.

3.2 Saving energy

If you follow these instructions, your

appliance will use less electricity and

less water.

Use the Eco50° programme.

The Eco50° programme is en-

ergy-efficient and environmentally

friendly.

→"Programmes", Page19

If you do not have much tableware to

wash, use the additional Half Load

function.

The programme will adjust to a

lower load and consumption will

be reduced.

→"Additional functions", Page22

3.3 Efficient Dry

The appliance door opens automatic-

ally during the drying phase. This en-

sures a particularly economical dry-

ing result.

For best drying results wait until the

end of programme before unloading

the tableware. The programme has

ended when the display shows

"0h:00m".

If automatic door opening is deactiv-

ated, energy consumption increases

and the drying phase is usually

shortened.

→"Overview of the basic settings",

Page37

→"Additional functions", Page22

4 Installation and con-

nection

To ensure proper operation, connect

the appliance to the power and water

supply correctly. Observe the spe-

cified criteria and the installation in-

structions.

4.1 Scope of supply

After unpacking all parts, check for

any damage in transit and complete-

ness of the delivery.

If you have any complaints, contact

the dealer who sold you the appli-

ance or our Customer Service.

Note:The appliance has been tested

at the factory to check it is in working

order. It is possible that water has left

marks on the appliance. These

marks will disappear after the first

wash cycle.

The delivery consists of the following:

¡ Dishwasher

Depending on the appliance specifications

en Installation and connection

¡ Operating instructions

¡ Installation Instructions

¡ Further information documents

¡ Installation material

¡ Mains cable

¡ Quick reference guide

4.2 Installing and connecting

the appliance

You can position your built-under or

integrable appliance in a fitted kit-

chen between wooden and plastic

walls. If you subsequently install your

dishwasher as a free-standing appli-

ance, you must stop it from tipping

over, e.g. by screwing it to the wall or

installing it under a continuous work-

top that is securely connected to ad-

jacent cabinets.

1. Follow the safety instructions.

→Page4

2. Follow the instructions for electrical

connection.

3. Check the Scope of supply and

the condition of the appliance.

4. Consult the installation instructions

for the installation dimensions re-

quired.

5. Make the appliance level using the

height-adjustable feet.

Make sure that the appliance is

standing on the floor securely.

6. Install the drainage connection.

→Page12

7. Install the drinking water connec-

tion. →Page12

8. Connect the appliance to the

power supply.

4.3 Drainage connection

Connect your appliance to drainage

connection so dirty water is dis-

charged via the wash cycle.

Installing the drainage connection

1. Consult the installation instructions

supplied for the steps required

here.

2. Connect the wastewater hose to

the outlet connection of the siphon

using the enclosed parts.

3. When doing so, check that the

wastewater hose is not kinked,

crushed or twisted.

4. Also check that there is no cover

in the drainage system preventing

the wastewater from being dis-

charged.

4.4 Drinking water connec-

tion

Connect your appliance to a drinking

water connection.

Installing the drinking water

connection

Note

¡ If you are replacing the appliance,

you must use a new water supply

hose.

1. Consult the installation instructions

supplied for the steps required

here.

2. Connect the appliance to the drink-

ing water connection using the en-

closed parts.

Observe the Technical data.

3. When doing so, check that the

drinking water connection is not

kinked, crushed or twisted.

Installation and connection en

4.5 Electrical connection

Connecting the appliance to the

electricity supply

Notes

¡ Follow the Safety instructions

→Page4.

¡ Please note that the water safety

system is only functional if there is

a power supply.

1. Insert the non-heating appliance

plug of the power cable into the

appliance.

2. Insert the mains plug of the appli-

ance's power cable in a socket

nearby.

The connection data of the appli-

ance can be found on the rating

plate.

3. Check the mains plug is inserted

properly.

en Familiarising yourself with your appliance

5 Familiarising yourself with your appliance

5.1 Appliance

You can find an overview of the parts of your appliance here.

7 8

Rating plate Rating plate with E number and FD num-

ber →Page54.

The data you need for Customer Service

→Page53.

Depending on the appliance specifications

Familiarising yourself with your appliance en

Detergent dispenser Add detergent to the detergent dispenser.

→"Detergent", Page29

Bottom basket

Bottom basket →Page24

Dispenser for special salt Add special salt to the dispenser for spe-

cial salt.

→"Water softening system", Page26

Lower spray arm The lower spray arm washes the table-

ware in the bottom basket.

If the tableware has not been washed

properly, clean the spray arms.

→"Cleaning spray arms", Page44

Tablet collecting tray During the wash cycle tablets automatic-

ally fall out of the detergent dispenser into

the tablet collecting tray where they can

fully dissolve.

Top basket

Top basket →Page23

Cutlery shelf

Cutlery shelf →Page24

Upper spray arm The upper spray arm washes the table-

ware in the top basket.

If the tableware has not been washed

properly, clean the spray arms.

→"Cleaning spray arms", Page44

Filter system

Filter system →Page43

Cutlery basket

Cutlery basket →Page25

Dispenser for rinse aid Add rinse aid to the dispenser for rinse

aid.

→"Rinse aid system", Page28

Depending on the appliance specifications

en Familiarising yourself with your appliance

5.2 Controls

You can use the control panel to configure all functions of your appliance and

to obtain information about the operating status.

With some buttons you can perform different functions.

1 2 3 4 5 6 7 8

910111213

ON/OFF button and reset

button

Switching on the appliance

→Page34

Switching off the appliance

→Page35

Terminating the programme

→Page35

Programme buttons

Programmes →Page19

Special salt refill indicator Water softening system

→"Adding special salt", Page27

Rinse aid refill indicator Rinse aid system

→"Adding rinse aid", Page28

WLAN display

Home Connect →Page39

Water supply display Display for water supply

button If you press for approx. 3

seconds, you can open the basic set-

tings.

→"Changing basic settings",

Page39

Start button

Starting the programme →Page35

Depending on the appliance specifications

Familiarising yourself with your appliance en

Programme buttons and addi-

tional functions

Programmes

→"Programmes", Page19

Additional functions

→"Additional functions", Page22

Remote Start

→"Remote Start ", Page40

Timer programming Setting timer programming

→Page35

Display The display shows information about

the remaining running time or the ba-

sic settings. You can change the ba-

sic settings via the display and the

setting buttons.

→"Changing basic settings",

Page39

Door handle

Open the appliance door.

Depending on the appliance specifications

Symbols on the display

The display shows the following sym-

bols depending on the model. See

here for an explanation.

Symbol Description

If the symbol for ma-

chine care lights up on

the display, run machine

care.

→"Machine Care ",

Page42

If the rinse aid refill indic-

ator lights up on the dis-

play, top up with rinse

aid.

→"Adding rinse aid",

Page28

Symbol Description

If the special salt refill in-

dicator lights up on the

display, add special salt

to the dispenser for spe-

cial salt just before the

programme starts.

→"Adding special salt",

Page27

If the appliance is con-

nected to a wireless

WLAN home network,

the symbol lights up on

the display.

→"HomeConnect ",

Page39

If you have activated the

button lock, the symbol

lights up on the display.

→"Activating button

lock", Page35

If the water inflow or

drainage malfunctions,

the symbol lights up or

Depending on the appliance specifications

en Familiarising yourself with your appliance

Symbol Description

flashes on the display.

→"Troubleshooting",

Page46

Programmes en

6 Programmes

You can find an overview of the pro-

grammes that can be selected here.

Different programmes, which can be

found on the control panel of your

appliance, are available depending

on the appliance configuration.

The running time may vary depend-

ing on the programme selected. The

running time depends on the water

temperature, the quantity of table-

ware, the level of soiling and the Ad-

ditional function →Page22 selec-

ted. The running time will change if

the rinse aid system is switched off

or rinse aid needs to be added.

The consumption values can be

found in the quick reference guide.

The consumption values relate to

normal conditions and a water hard-

ness of 16 - 20°E. Different influen-

cing factors such as water temperat-

ure or pipe pressure may result in

deviations.

Programme Use Programme se-

quence

Intensive 70°

Tableware:

¡ Pots and pans, non-fragile

tableware and cutlery

Level of soiling:

¡ Stubborn, burned or dried-on

food remnants containing

starch and protein

Intensive:

¡ Pre-Rinse

¡ Cleaning 70°C

¡ Intermediate rinse

¡ Final rinse 69°C

¡ Dry

Auto 45-65°

Tableware:

¡ Mixed tableware and cutlery

Level of soiling:

¡ Common household food rem-

nants lightly dried on

Sensor-controlled:

¡ Optimised by

sensors depending

on the soiling of the

washing water.

Eco 50°

Tableware:

¡ Mixed tableware and cutlery

Level of soiling:

¡ Common household food rem-

nants lightly dried on

Most economical pro-

gramme:

¡ Pre-Rinse

¡ Cleaning 50°C

¡ Intermediate rinse

¡ Final rinse 48°C

¡ Drying

Silence 50

Tableware:

¡ Mixed tableware and cutlery

Level of soiling:

¡ Common household food rem-

nants lightly dried on

Reduced noise:

¡ Pre-Rinse

¡ Cleaning 50°C

¡ Intermediate rinse

¡ Final rinse 63°C

¡ Dry

en Programmes

Programme Use Programme se-

quence

Express 65° - 1h

Tableware:

¡ Mixed tableware and cutlery

Level of soiling:

¡ Common household food rem-

nants lightly dried on

Time-optimised:

¡ Cleaning 65°C

¡ Intermediate rinse

¡ Final rinse 69°C

¡ Dry

Machine Care

Use only if appliance is unloaded. Machine Care 70°C

Favourite

→"Favourite ", Page20

Note:The relatively long running time

in the Eco50° programme is due to

longer soaking and drying times. This

results in optimal consumption val-

ues.

6.1 Information for test insti-

tutes

Test institutes are provided with in-

formation for comparability tests, e.g.

according to EN60436.

These are the conditions for conduct-

ing the tests, however they are not

the results or consumption values.

Request by e-mail to:

[email protected]

The product number (E-Nr.) and the

production number (FD) are required

here. They can be found on the rat-

ing plate on the appliance door.

6.2 Favourite

You can save a combination of a pro-

gramme and an additional function to

the button.

Save the programme via the

HomeConnect app or on the appli-

ance.

The pre-rinse program is saved to

this button at the factory. Pre-rinse is

suitable for all types of tableware.

The tableware undergoes intermedi-

ate cleaning via cold rinsing.

When programmes have been down-

loaded and on delivery of the appli-

ance, the name of the programme

will be displayed in the app. The dis-

play alternately shows "APP" and the

remaining running time.

Tip:You can use the HomeConnect

app to download additional pro-

grammes and save them to the

button.

Save Favourite on the

appliance.

1. Press ⁠.

2. Press the right programme button.

3. Press the button for the relevant

additional function.

4. Press for 3 seconds.

a The selected programme and the

additional function will flash.

a flashes.

a The programme and the additional

function are saved.

Depending on the appliance specifications

Programmes en

Tip:To reset the programme to the

pre-rinse programme stored at the

factory, use the HomeConnect app

or reset your appliance to the factory

settings.

Depending on the appliance specifications

en Additional functions

7 Additional functions

You can find an overview of the additional functions that can be selected here.

Different additional functions, which can be found on the control panel of your

appliance, are available depending on the appliance configuration. You can se-

lect certain additional functions depending on the programme.

Symbol Additional func-

tion

Use

EfficientDry ¡ The appliance door opens automatically

during the drying phase.

¡ Depending on the basic setting selected,

automatic door opening is activated or de-

activated by the additional function. The ad-

ditional function button lights up when auto-

matic door opening is activated.

¡ With the setting "o02", automatic door

opening cannot be deactivated in the Eco

50°C program.

→"Efficient Dry", Page11

Half Load ¡ Switch on with small loads.

¡ It is recommended adding less detergent to

the detergent dispenser than for a full ma-

chine load.

¡ The running time is shortened.

¡ Water and energy consumption are re-

duced.

SpeedPerfect+ ¡ The run time is shortened by 15% to 75%

depending on the rinse programme.

¡ The additional function can be activated be-

fore the start of the programme and at any

time when the programme is running.

¡ Energy and water consumption are in-

creased.

If you select this additional function, automatic

door opening in the "o02" setting is deactiv-

ated.

Depending on the appliance specifications

Features en

8 Features

You can find an overview of the pos-

sible features of your appliance and

how to use them here.

These features depend on the model

of your appliance.

8.1 Top basket

Arrange cups, glasses and small

items of tableware in the top basket.

Knife shelf

You can adjust the height of the top

basket to make room for larger items

of tableware.

Adjusting top basket with side

levers

To wash large items of tableware in

the baskets, adjust the shelf position

of the top basket.

1. Pull out the top basket.

2. To prevent the basket from sud-

denly dropping down, hold the

side of the basket by the top edge.

3. Press in the levers on the right and

left on the outside of the basket.

4. Raise or lower the basket evenly to

the right level.

Check that the basket is level on

both sides.

5. Release the levers.

a The basket clicks into position.

6. Slide the basket back in.

Depending on the appliance specifications

en Features

8.2 Knife shelf

Use the shelf for knives and long

items of cutlery.

8.3 Etagere

Use the cutlery shelf and space un-

derneath for small cups and glasses

or for large items of cutlery, e.g.

cooking spoons or serving cutlery.

If you do not need the cutlery shelf,

you can fold it up.

8.4 Bottom basket

Arrange pans and plates in the bot-

tom basket.

Cutlery basket

Large plates up to a diameter of

31cm can be arranged in the bottom

basket as shown.

Depending on the appliance specifications

first time en

8.5 Folding prongs

Use the folding prongs to position

tableware securely, e.g. plates.

You can fold the prongs down to po-

sition pans, bowls and glasses

better.

Folding down prongs

If you do not need the prongs, fold

them down.

1. Push the lever forwards and fold

down the prongs ⁠.

2. To use the prongs again, fold them

back up.

a The prongs audibly click into posi-

tion.

8.6 Cutlery basket

Arrange cutlery in the cutlery basket,

always without sorting it and with the

sharp points downwards.

first time

9 Before using for the

first time

9.1 Performing the initial con-

figuration

On initial start-up or after a reset to

the factory settings, you will need to

make settings.

Tip:Connect your appliance to a mo-

bile device. You can conveniently

change all settings via the

HomeConnect app.

Requirement:The appliance has

been installed and connected.

→Page11

Add special salt. →Page27

Add rinse aid. →Page28

3. Switch on the appliance.

→Page34

4. Setting the water softening system.

→Page26

Depending on the appliance specifications

en Water softening system

5. Set the amount of rinse aid to be

dispensed. →Page29

Add detergent →Page29.

7. Start the Programme with the

highest cleaning temperature

without tableware.

To remove any marks from water

or other residues, we recommend

you operate the appliance without

tableware before using it for the

first time.

Tip:You can change these settings

and other Basic settings →Page37

at any time.

10 Water softening sys-

tem

Hard water leaves limescale on the

tableware as well as the washing

tank, and parts of the appliance may

become blocked.

To ensure good dishwashing results,

you can treat the water with special

salt and the water softening system.

To avoid damage to the appliance,

water with a hardness above 9°E

must be softened.

10.1 Overview of water hardness settings

You can find an overview of the water hardness values that can be selected

here.

You can find out how hard your water is from your local water company or by

using a water hardness tester.

Water hardness

°E

Hardness range mmol/l Setting value

0 - 8 Soft 0 - 1.1 H00

9 - 10 Soft 1.2 - 1.4 H01

11 - 12 Medium 1.5 - 1.8 H02

13 - 15 Medium 1.9 - 2.1 H03

16 - 20 Medium 2.2 - 2.9 H04

21 - 26 Hard 3.0 - 3.7 H05

27 - 38 Hard 3.8 - 5.4 H06

39 - 62 Hard 5.5 - 8.9 H07

Note:Set the water hardness determ-

ined on your appliance.

→"Setting the water softening sys-

tem", Page26

With a water hardness of 0 - 8°E

you can dispense with special salt for

dishwashers and switch off the water

softening system.

→"Switching off the water softening

system", Page27

10.2 Setting the water soften-

ing system

Set the water hardness on your appli-

ance.

1. Determine the water hardness and

the appropriate setting value.

→"Overview of water hardness set-

tings", Page26

2. Press ⁠.

Water softening system en

3. To open the basic settings, press

for 3 seconds.

a The display shows Hxx.

a The display shows ⁠.

4. Press repeatedly until the

right water hardness has been set.

The value H04 is set at the factory.

5. To save the settings, press

for 3 seconds.

10.3 Special salt

You can use special salt to soften

water.

Adding special salt

If the special salt refill indicator lights

up, add special salt to the dispenser

for special salt just before the pro-

gramme starts. The consumption of

special salt depends on the water

hardness. The higher the water hard-

ness, the greater the consumption of

special salt.

ATTENTION!

Detergent may damage the water

softening system.

▶ Only fill the dispenser of the water

softening system with special dish-

washer salt.

Special salt for dishwashers can

damage the tub due to corrosion.

▶ To make sure that any special salt

that escapes is washed out of the

tub, add the special salt to the dis-

penser for special salt immediately

before the programme starts.

1. Unscrew the lid of the dispenser

for special salt and remove.

2. On initial start-up: Fill the dispenser

right up with water.

3. Note:Only use special salt for

dishwashers.

Do not use salt tablets.

Do not use table salt.

Add the special salt to the dis-

penser.

Fill the dispenser right up with spe-

cial salt. The water in the dis-

penser is displaced and forced

out.

4. Place the lid back on the dis-

penser and turn to close.

10.4 Switching off the water

softening system

If you find the special salt refill indic-

ator irritating, e.g. when using com-

bined detergents with salt replace-

ment substances, you can switch the

indicator off.

Note

To avoid damage to the appliance,

only switch off the water softening

system in the following cases:

¡ The water hardness is max. 26°E

and you are using a combined de-

tergent with salt replacement sub-

stances. According to the manu-

facturers, combined detergents

with salt replacement substances

can generally only be used up to a

water hardness of 26°E without

adding special salt.

en Rinse aid system

¡ The water hardness is 0 - 8°E.

You do not need to use special

salt.

1. Press ⁠.

2. To open the basic settings, press

for 3 seconds.

a The display shows Hxx.

a The display shows ⁠.

3. Press repeatedly until the dis-

play shows H00.

4. To save the settings, press

for 3 seconds.

a The water softening system is

switched off and the salt refill indic-

ator is deactivated.

10.5 Regeneration of the wa-

ter softening system

In order to obtain fault-free function of

the water softening system, the appli-

ance performs regeneration of the

water softening system at regular in-

tervals.

Regeneration of the water softening

system takes place before the end of

the main rinse cycle in all pro-

grammes. It will increase the run time

and consumption values, e.g. water

and electricity.

Overview of consumption values

with regeneration the water

softening system

Here you can find an overview of the

maximum additional running time and

consumption values during regenera-

tion of the water softening system.

Regeneration of the water

softening system after x

washing programmes

Additional running time in

minutes

Additional water consump-

tion in litres

Additional power consump-

tion in kWh

0.05

The consumption values specified

are laboratory measurements determ-

ined in accordance with the currently

applicable standard using the Eco

50° programme and with the factory

value of the water hardness set to 16

- 20°E.

11 Rinse aid system

11.1 Rinse aid

For optimum drying results, use rinse

aid.

Only use rinse aid for domestic dish-

washers.

Adding rinse aid

If the rinse aid refill indicator lights

up, top up with rinse aid. Only use

rinse aid for domestic dishwashers.

1. Press the catch on the lid of the

dispenser for rinse aid and lift

⁠.

Detergent en

2. Add rinse aid up to the max mark.

max

3. If rinse aid spills out, remove it

from the tub.

Spilled rinse aid can cause ex-

cessive frothing during the wash

cycle.

4. Close the lid of the dispenser for

rinse aid.

a The lid clicks into position.

11.2 Setting the amount of

rinse aid

If there are streaks or water marks on

tableware, change the amount of

rinse aid.

1. Press ⁠.

2. To open the basic settings, press

for 3 seconds.

a The display shows Hxx.

a The display shows ⁠.

3. Press repeatedly until

the display shows the value r05

set at the factory.

4. Press repeatedly until the

right amount of rinse aid has been

set.

– A low setting adds less rinse aid

during the wash cycle and re-

duces streaking on tableware.

– A higher setting adds more

rinse aid during the wash cycle,

reduces water marks and im-

proves the drying result.

5. To save the settings, press

for 3 seconds.

11.3 Switching the rinse aid

system off

If you find the rinse aid refill indicator

irritating, e.g. when using combined

detergents with a rinse aid compon-

ent, you can switch the rinse aid sys-

tem off.

Tip:The function of rinse aid is lim-

ited with combined detergents. You

will generally get better results using

rinse aid.

1. Press ⁠.

2. To open the basic settings, press

for 3 seconds.

a The display shows Hxx.

a The display shows ⁠.

3. Press repeatedly until

the display shows the value r05

set at the factory.

4. Press repeatedly until the dis-

play shows r00.

5. To save the settings, press

for 3 seconds.

a The rinse aid system is switched

off and the rinse aid refill indicator

is deactivated.

12 Detergent

12.1 Suitable detergents

Only use detergents that are suitable

for dishwashers. Both separate and

combined detergents are suitable.

For optimum washing and drying res-

ults, use separate detergent, adding

Special salt →Page27 and Rinse aid

→Page28 separately.

Modern, powerful detergents mainly

use a low-alkaline formulation with

enzymes. Enzymes break down

en Detergent

starch and remove protein. Oxygen-

based bleaching agents are generally

used to remove coloured marks, e.g.

tea or ketchup.

Note:Follow the manufacturer's in-

structions for each detergent.

Tip:Suitable detergents are available

online via our website or from Cus-

tomer Service →Page53.

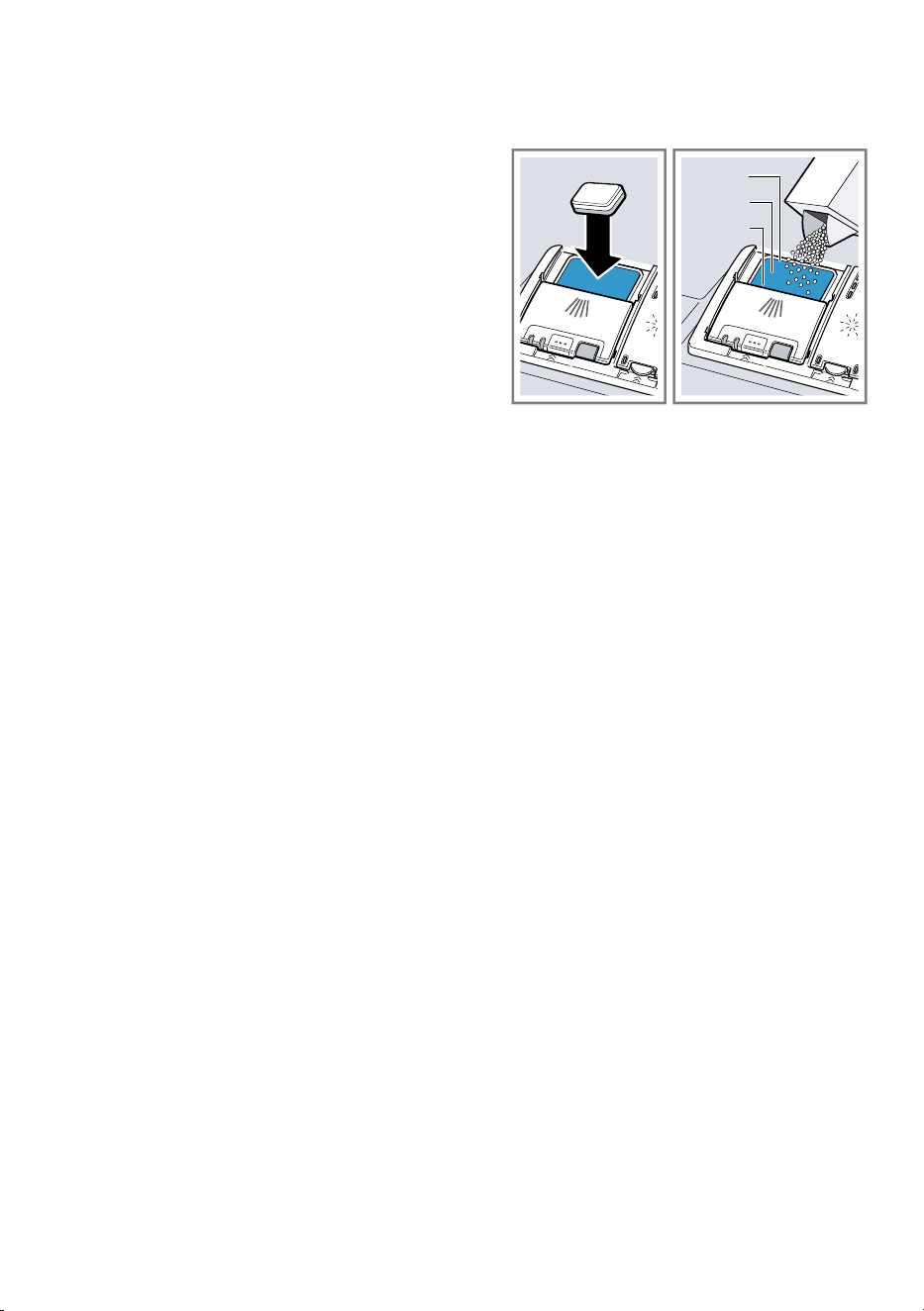

Tabs

Tabs are suitable for all cleaning

functions and do not need to be

measured out.

With shorter programmes tabs some-

times do not dissolve entirely and

leave residues of detergent. This may

impair the cleaning effect.

Powder detergent

Powder detergent is recommended

for shorter programmes.

The dosage can be adjusted to the

level of soiling.

Liquid detergent

Liquid detergent works faster and is

recommended for shorter pro-

grammes without PreRinse.

Sometimes liquid detergent may leak

out despite the detergent dispenser

being closed. This is not a fault and

is non-critical if you remember the

following:

¡ Only choose a programme without

PreRinse.

¡ Do not select timer programming

for starting the programme.

The dosage can be adjusted to the

level of soiling.

Separate detergents

Separate detergents are products

that do not contain components other

than detergent, e.g. powder deter-

gent or liquid detergent.

With powder and liquid detergent the

dosage can be individually adjusted

to the level of soiling of the table-

ware.

For better washing and drying results

and to avoid damage to the appli-

ance, please additionally use Special

salt →Page27 and Rinse aid

→Page28.

Combined detergent

Besides conventional separate deter-

gents, a number of products are

available with additional functions.

These products contain not only de-

tergent but also rinse aid and salt re-

placement substances (3in1) and,

depending on the combination (4in1,

5in1,...), additional components such

as glass protection or stainless steel

cleaner.

According to the manufacturers,

combined detergents generally only

function up to a water hardness of

26°E. With a water hardness above

26°E you will need to add special

salt and rinse aid. For the best wash-

ing and drying results we recom-

mend using special salt and rinse aid

from a water hardness of 17°E. If

you are using combined detergent,

the washing programme is adjusted

automatically to ensure the best pos-

sible washing and drying result.

12.2 Unsuitable detergents

Do not use detergent which could

cause damage to the appliance or

present a risk to health.

Hand washing-up liquid

Hand washing-up liquid can cause in-

creased frothing and damage the ap-

pliance.

Detergent containing chlorine

Chlorine residue on tableware may

present a risk to health.

Detergent en

12.3 Information on deter-

gents

Follow the instructions on detergents

in everyday use.

¡ Detergents marked as "organic" or

"ecological" (environmentally

friendly) generally contain lower

levels of active agents or com-

pletely dispense with certain sub-

stances. The cleaning effect may

be restricted here.

¡ Set the rinse aid and the water

softening system to the separate

detergent or combined detergent

in use.

¡ According to the manufacturers,

combined detergents with salt re-

placement substances can only be

used up to a certain water hard-

ness, usually 26°E, without

adding special salt. For the best

washing and drying results we re-

commend using special salt from a

water hardness of 17°E.

¡ To prevent sticking, only touch de-

tergents in a water-soluble pouch

with dry hands and only ever place

them in a dry detergent dispenser.

¡ Even if the rinse aid and special

salt refill indicators light up, wash-

ing programmes will run properly

with combined detergents.

¡ The function of rinse aid is limited

with combined detergents. You will

generally get better results using a

separate rinse aid.

¡ Use tablets with a special drying

performance.

12.4 Adding detergent

1. To open the detergent dispenser,

press the locking latch.

2. Add the detergent to the dry deter-

gent dispenser.

15 ml

25 ml

50 ml

If you are using tablets, one is

enough. Insert the tablets in a hori-

zontal position.

If you are using powder or liquid

detergent, follow the manufac-

turer's instructions and quantities

for dosage in the detergent dis-

penser.

20ml–25ml detergent is suffi-

cient for normal soiling. If table-

ware is only lightly soiled, slightly

less than the amount of detergent

specified is usually sufficient.

en Tableware

3. Close the lid of the detergent dis-

penser.

a The lid clicks into position.

a The detergent dispenser will open

automatically at the optimum time

during the programme. Powder or

liquid detergent will spread around

the washing tank and dissolve

there. Tablets will fall into the tablet

collecting tray and dissolve in the

right dosage. In order to ensure

that tablets can dissolve evenly, do

not place any other objects in the

tablet collecting tray.

Tip:If you use powder detergent and

select a program with pre-rinse, you

can also add a little detergent to the

interior door of the appliance.

13 Tableware

Only clean tableware that is suitable

for dishwashers.

Note:Decorated glassware and parts

made of aluminium or silver may

fade or discolour with dishwashing.

Delicate types of glass may turn

cloudy after a few washing cycles.

13.1 Damage to glass and

tableware

Only put glasses and china in the

dishwasher if it is marked as dish-

washer-safe by the manufacturer.

Avoid damage to glass and table-

ware.

Cause Recommenda-

tion

The following

tableware is not

dishwasher-safe:

¡ Items of cut-

lery and table-

ware made

from wood

¡ Decorated

glassware, an-

tique and

hand-crafted

tableware

¡ Plastic parts

not resistant to

heat

¡ Tableware

made from

copper or tin

¡ Tableware

soiled with

ash, wax, lub-

ricating grease

or paint

¡ Very small

items of table-

ware

Only put table-

ware in the dish-

washer if it is

marked as dish-

washer-safe by

the manufacturer.

The chemical

composition of

detergent causes

damage.

Use a detergent

marked by the

manufacturer as

gentle on table-

ware.

Tableware en

Cause Recommenda-

tion

Highly caustic al-

kaline or highly

acidic cleaning

solutions, in par-

ticular commer-

cial or industrial

cleaners, are not

safe to use in the

dishwasher with

aluminium.

If you are using

highly caustic al-

kaline or highly

acidic cleaning

agents, in partic-

ular commercial

or industrial

cleaning agents,

do not put alu-

minium parts in

the dishwasher

interior.

The water tem-

perature of the

programme is

too high.

Select a pro-

gramme with

lower temperat-

ures.

After the pro-

gramme has

ended, take

glassware and

cutlery out of the

appliance without

delay.

13.2 Arrange tableware

Arrange tableware correctly to optim-

ise the dishwashing result and pre-

vent damage to both the appliance

and tableware.

Tips

¡ Using the appliance allows you to

save energy and water compared

to washing-up by hand.

¡ See our website for examples of

how to load your appliance effi-

ciently.

¡ To save energy and water, load

the machine with the number of

place settings specified (standard

load with tableware and cutlery).

→"Technical specifications",

Page55

¡ For better washing and drying res-

ults, position items with curves or

recesses at an angle so water can

run off.

1. Remove large remnants of food

from tableware.

To save resources, do not pre-

rinse tableware under running wa-

ter.

2. Observe the following when arran-

ging tableware:

– Put heavily soiled tableware in

the bottom basket, e.g. pans.

The more powerful the spray jet,

the better the dishwashing result

will be.

– To prevent damage to table-

ware, arrange it so it is stable

and cannot tip over.

– To prevent injury, arrange cut-

lery with the points and sharp

edges facing down.

– Position containers with the

openings facing down so no wa-

ter can collect in them.

– Do not block the spray arms -

make sure that they can turn

freely.

– Do not place small parts in the

tablet collecting tray and do not

block it with tableware so as not

to obstruct the lid of the deter-

gent dispenser.

en operation

13.3 Removing tableware

WARNING

Risk of injury!

Hot tableware can cause burns to the

skin. When hot, tableware is sensitive

to shock, may crack and can result in

injury.

▶ When the programme has ended,

do not empty the appliance until

the tableware has cooled down for

a while.

1. To prevent water dripping on the

tableware, unload it starting at the

bottom and working up.

2. Check the washing tank and ac-

cessories for soiling and clean if

necessary.

→"Cleaning and servicing",

Page41

operation

14 Basic operation

operation

14.1 Switching on the appli-

ance

▶ Press ⁠.

The Eco 50° programme is set by

default.

The Eco 50° programme is espe-

cially environmentally friendly and

ideal for normally soiled tableware.

It is the most efficient programme

for the combination of energy/wa-

ter consumption for this type of

tableware and evidences conform-

ity with the EU Ecodesign Direct-

ive.

If you do not perform any actions

on the appliance for 10 minutes,

the appliance will automatically

switch off.

14.2 Setting a programme

To adjust the washing programme to

the soiling level of the tableware, se-

lect a suitable programme.

▶ Press the right programme button.

a The programme is set and the pro-

gramme button flashes.

a The remaining running time of the

programme appears on the dis-

play.

14.3 Setting additional func-

tions

You can set additional functions to

complete the washing programme

selected.

Note:The additional functions which

can be used depend on the pro-

gramme selected.

▶ Press the button for the relevant

additional function.

→"Additional functions", Page22

a The additional function is set and

the additional function button

flashes.

operation en

14.4 Setting timer program-

ming

You can delay the start of the pro-

gramme by up to 24hours.

1. Press ⁠.

a "h:01" appears in the display.

2. Use to set the required start

time for the programme.

3. Press ⁠.

a This activates timer programming.

Tip:To deactivate timer program-

ming, press repeatedly until "h:00"

appears in the display.

14.5 Starting the programme

▶ Press .

a The programme has ended when

the display shows "0h:00m".

Notes

¡ If you want to add more tableware

while the appliance is running, do

not use the tablet collecting tray as

a handle for the top basket. You

might touch the partially dissolved

tablet.

¡ You can only change a pro-

gramme when running if you can-

cel it.

→"Terminate programme",

Page35

¡ The appliance switches off auto-

matically 1minute after the end of

the programme to save energy. If

you open the appliance door im-

mediately after the programme has

ended, the appliance will switch off

after 4 seconds.

14.6 Activating button lock

The button lock prevents the appli-

ance from being operated accident-

ally or incorrectly while running.

▶ Press for approx. 3seconds.

a The button lock is activated and

will be automatically deactivated at

the end of the programme.

a When the appliance is operated,

flashes on the display.

a The button lock remains activated

with a power failure.

14.7 Deactivate button lock

▶ Press for approx. 3seconds.

14.8 Interrupting programme

Note:When you open the appliance

door once the appliance has heated

up, leave the door slightly ajar for a

few minutes and then close it. This

will help prevent excess pressure

building up in the appliance and stop

the appliance door bursting open.

1. Press ⁠.

a The programme is saved and the

appliance switches off.

2. Press to resume the pro-

gramme.

14.9 Terminate programme

To end a programme early or to

switch from a programme that has

already started, you will need to can-

cel it first.

▶ Press for approx.

4seconds.

a All displays light up.

a As soon as the displays are off,

the display shows "0h:01m" and

the residual water is pumped out.

a The programme is cancelled and

ends after approx. 1minute.

14.10 Switching off appliance

1. Please note the information on

Safe use →Page10.

2. Press .

en operation

Tip:If you press during the wash

cycle, the programme currently run-

ning will be interrupted. When you

switch the appliance back on, the

programme continues automatically.

Basic settings en

15 Basic settings

You can configure the basic settings for your appliance to meet your needs.

15.1 Overview of the basic settings

The basic settings depend on the features of your appliance.

Basic setting Display text Selection Description

Water hardness H04

H00 - H07 Set the water softening sys-

tem to your water hardness.

→"Setting the water soften-

ing system", Page26

Level H00 switches the wa-

ter softening system off.

Rinse aid dis-

pensing

r05 

r00 - r06 Set the amount of rinse aid

to be dispensed.

Switch the rinse aid system

off with level r00.

Intensive drying d00

d00 - d01 The temperature is in-

creased during the final

rinse, which improves the

drying result. This may in-

crease the run time slightly.

Note:Not suitable for delic-

ate items of tableware.

Switch Extra Dry on "d01" or

off "d00".

Hot water A00

A00 - A01 Set cold water or hot water

connection. Only set the ap-

pliance to hot water if this

can be prepared with little

energy and a suitable install-

ation is available, e.g. solar

heating system with circula-

tion line. The water temperat-

ure should be at least 40°C

and max. 60°C.

Switch hot water on "A01" or

off "A00".

Factory setting (may vary according to model)

en Basic settings

Basic setting Display text Selection Description

Efficient Dry o02

o00 - o02 Activate or deactivate auto-

matic opening of the appli-

ance door during the drying

phase.

If the function has been ac-

tivated, the running time may

increase.

The following settings are

possible:

¡ With the setting "o00"

automatic door opening is

deactivated in all pro-

grammes.

¡ With the setting "o01"

automatic door opening is

activated in all pro-

grammes.

¡ With the setting "o02"

automatic door opening is

activated only in the Eco

50°C programme.

→"Efficient Dry", Page11

Wi-Fi Cn0 Cn0 - Cn1 Switch the wireless network

connection on or off.

Level "Cn0" switches the

wireless network connection

off.

This basic setting is not

available until you have con-

nected the appliance with

the HomeConnect app.

→"HomeConnect ",

Page39

Factory setting (may vary according to model)

HomeConnect en

Basic setting Display text Selection Description

Remote Start rc1 rc0 - rc2 Activate or deactivate

→"Remote Start ",

Page40.

The following settings are

possible:

¡ With the setting "rc0", the

function is permanently

deactivated.

¡ With the setting "rc1", the

function can be selected

via the button.

→"Activating Remote

Start ", Page40

¡ With the setting "rc2", the

function is permanently

activated.

This basic setting is not

available until after you have

connected the device with

the HomeConnect app.

→"HomeConnect ",

Page39

Factory setting rE Start with

YES

Confirm with

Restore changed settings to

the factory settings.

The settings for initial start-

up must be configured.

Factory setting (may vary according to model)

15.2 Changing basic settings

Tip:Connect your appliance to a mo-

bile device. You can conveniently

change all settings via the

HomeConnect app.

1. Press ⁠.

2. To open the basic settings, press

for 3 seconds.

a The display shows Hxx.

a The display shows ⁠.

3. Press repeatedly until

the display shows the required set-

ting.

4. Press repeatedly until the dis-

play shows the right value.

You can change several settings.

5. To save the settings, press

for 3 seconds.

HomeConnect

16 HomeConnect

HomeConnect

This appliance is network-capable.

Connect your appliance to a mobile

device to control its functions via the

HomeConnect app.

The HomeConnect services are not

available in every country. The avail-

ability of the HomeConnect function

depends on the availability of

en HomeConnect

HomeConnect services in your coun-

try. You can find information about

this at: www.home-connect.com.

To be able to use HomeConnect,

you must first set up the connection

to the WLAN home network (Wi-Fi

)

and to the HomeConnect app.

The HomeConnect app guides you

through the entire login process. Fol-

low the instructions in the HomeCon-

nect app to configure the settings.

Tips

¡ Please consult the documents sup-

plied by HomeConnect.

¡ Please also follow the instructions

in the HomeConnect app.

Note:Please note the safety precau-

tions in this instruction manual and

make sure that they are also ob-

served when operating the appliance

via the HomeConnect app.

→"Safety", Page4

16.1 HomeConnect quick

start

Connect your appliance to a mobile

device quickly and easily.

Setting up the HomeConnect app

1. Install the HomeConnect app on

your mobile device.

2. Start the HomeConnect app and

set up access for HomeConnect.

The HomeConnect app guides

you through the entire login pro-

cess.

Setting up HomeConnect

Requirements

¡ The HomeConnectapp has been

installed on your mobile device.

¡ The appliance is receiving signals

from the WLAN home network (Wi-

Fi) at its installation location.

¡ The appliance door is closed.

1. Open the HomeConnect app and

scan the following QR code.

2. Follow the instructions in the

HomeConnect app.

16.2 Remote Start

You can use the HomeConnect app

to start the appliance with your mo-

bile device.

Tip:If you select "rc2" in the Basic

settings →Page39 of this function,

the function is permanently activated

and you can start your appliance with

a mobile device at any time.

Activating Remote Start

When you have selected "rc1" in the

basic settings of this function, activ-

ate the function on your appliance.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Apple App Store und the Apple App Store logo are trademarks of Apple Inc.

Google Play and the Google Play logo are trademarks of Google LLC.

Cleaning and servicing en

Requirements

¡ The appliance is connected to your

WLAN home network.

¡ The appliance is connected to the

HomeConnect app.

¡ "rc1" is selected in the Basic set-

tings →Page39 of this function.

¡ A programme is selected.

▶ Press ⁠.

If you open the appliance door, the

function is automatically deactiv-

ated.

a button lights up.

Tip:To deactivate the function, press

⁠.

16.3 Data protection

Please see the information on data

protection.

The first time your appliance is

registered on a home network

connected to the Internet, your

appliance will transmit the following

types of data to the HomeConnect

server (initial registration):

¡ Unique appliance identification

(consisting of appliance codes as

well as the MAC address of the

Wi-Fi communication module in-

stalled).

¡ Security certificate of the Wi-Fi

communication module (to ensure

a secure data connection).

¡ The current software and hardware

version of your appliance.

¡ Status of any previous reset to

factory settings.

This initial registration prepares the

HomeConnect functions for use and

is only required when you want to

use the HomeConnect functions for

the first time.

Note:Please note that the

HomeConnect functions can only be

utilised with the HomeConnect app.

Information on data protection can be

retrieved in the HomeConnect app.

17 Cleaning and servi-

cing

To keep your appliance working effi-

ciently for a long time, it is important

to clean and maintain it carefully.

17.1 Cleaning the tub

WARNING

Risk of harm to health!

Using detergents containing chlorine

may result in harm to health.

▶ Never use detergents containing

chlorine.

1. Remove any coarse soiling in the

interior with a damp cloth.

2. Add detergent to the detergent dis-

penser.

3. Select the programme with the

highest temperature.

4. Start the programme without table-

ware. →Page35

17.2 Cleaning products

Only use suitable cleaning products

to clean your appliance.

→"Safe use", Page10

en Cleaning and servicing

17.3 Tips on appliance care

Follow the tips on appliance care to

make sure your appliance functions

properly at all times.

Action Benefit

Wipe the door

seals, the front of

the dishwasher

and the control

panel regularly

This ensures the

parts of the appli-

ance will remain

clean and hy-

gienic.

Action Benefit

using a damp

cloth and wash-

ing-up liquid.

If the appliance

is not going to

be used for a

while, leave the

door slightly ajar.

This will prevent

unpleasant

odours.

17.4 Machine Care

Deposits, e.g. from remnants of food

and limescale, can cause your appli-

ance to malfunction. To avoid such

faults and reduce odours, we recom-

mend cleaning your appliance at reg-

ular intervals.

Machine Care combined with ma-

chine care products and machine

cleaners is the right programme for

the care of your appliance.

Tip:You can get our tested and ap-

proved Dishwasher Care and Ma-

chine Cleaner for Dishwashers online

at https://www.bosch-home.com/

store or from customer service.

Machine Care is a programme which

removes various deposits in one

washing cycle. Cleaning takes place

in two phases:

Phase Removal of Detergent Placement

1 Grease and limes-

cale

Liquid machine care

product or machine

descaler in powder

form.

Appliance interior, e.g.

bottle hung in the cut-

lery basket or powder

in the interior.

2 Food remnants and

deposits

Machine cleaner Detergent dispenser

To ensure optimum cleaning perform-

ance, the programme doses the de-

tergents independently of each an-

other during the relevant cleaning

phase. Correct placement of the de-

tergents is necessary here.

Run Machine Care without tableware

if the indicator for Machine Care

lights up on the control panel or if ad-

vised to do so by the display. The in-

dicator will go out after you have run

Machine Care. If your appliance does

not have a reminder function, we re-

commend performing Machine Care

every 2months.

RunningMachine Care

Notes

¡ Run the Machine Care programme

without any tableware in the dish-

washer.

¡ Only use machine care products

and machine cleaners specially

designed for dishwashers.

Cleaning and servicing en

¡ Make sure that there are no alu-

minium parts, e.g. extractor hood

grease filters or aluminium pans, in

the interior of the appliance.

¡ If you have not run Machine Care

after 3 washing cycles, the indic-

ator for Machine Care will go out

automatically.

¡ For optimum cleaning perform-

ance, ensure the correct place-

ment of cleaners.

¡ Follow the safety instructions given

on the packagings of the machine

care products and machine clean-

ers.

1. Remove any coarse soiling in the

interior with a damp cloth.

2. Clean the filters.

3. Place the machine care product in

the appliance interior.

Only use machine care products

specially designed for dishwash-

ers.

4. Pour the machine cleaner into the

detergent dispenser until it is filled

completely.

Do not place any additional ma-

chine cleaner in the appliance in-

terior.

5. Press ⁠.

6. Press ⁠.

a Machine Care is run.

a Once the programme has ended,

the indicator for Machine Care

goes out.

17.5 Filter system

The filter system removes coarse

soiling from the dishwashing cycle.

Micro filter

Fine filter

Coarse filter

Cleaning filters

Soiling in the dishwashing water may

block the filters.

1. After each wash check the filters

for residue.

2. Turn the coarse filter anticlockwise

and remove the filter system ⁠.

‒ Check that no foreign objects

fall into the sump.

en Cleaning and servicing

3. Pull down the micro filter to re-

move.

4. Press the locking catches to-

gether and lift the coarse filter out

⁠.

5. Clean the filter elements under run-

ning water.

Carefully clean the rim of dirt

between the coarse and the fine fil-

ter.

6. Re-assemble the filter system.

Make sure that the locking catches

on the coarse filter click into posi-

tion.

7. Insert the filter system into the ap-

pliance and turn the coarse filter

clockwise.

‒ Make sure that the arrow mark-

ings match up.

17.6 Cleaning spray arms

Limescale and soiling in the dish-

washing water may block the nozzles

and bearings on the spray arms.

Clean the spray arms regularly.

1. Unscrew the upper spray arm

and pull down to remove ⁠.

Cleaning and servicing en

2. Pull up the lower spray arm to re-

move.

3. Check the outlet nozzles on the

spray arms for blockages under

running water and remove any for-

eign bodies.

4. Insert the lower spray arm.

a The spray arm clicks into position.

5. Insert the upper spray arm and

screw it firmly in place.

en Troubleshooting

18 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshoot-

ing information before contacting after-sales service. This will avoid unneces-

sary costs.

Tip:You can find further information and explanations on troubleshooting on-

line by scanning the QR code in the table of contents and on our website

www.bosch-home.com.

WARNING

Risk of electric shock!

Incorrect repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained specialist

staff.

▶ Only use genuine spare parts when repairing the appliance.

▶ If the power cord of this appliance is damaged, it must be replaced with a

special connection cable, which is available from the manufacturer or his

Customer Service.

Fault Cause and troubleshooting

E:30-00 will light up

alternately.

Water protection system is activated.

1. Turn off the water tap.

Call Customer Service →Page53.

E:31-00 will light up

alternately.

Water protection system is activated.

1. Turn off the water tap.

Call Customer Service →Page53.

E:32-00 will light up

alternately or indicator

for water supply lights

up.

Supply hose is kinked.

▶ Install the supply hose without kinks.

Water tap is turned off.

▶ Turn on the water tap.

Water tap is jammed or furred up.

▶ Turn on the water tap.

The flow rate must be at least 10 l/min when the

water supply is open.

The filters in the water connection of the supply or

AquaStop hose are blocked.

1. Switch off the appliance.

2. Pull out the mains plug.

3. Turn off the water tap.

4. Unscrew the water connection.

Troubleshooting en

Fault Cause and troubleshooting

E:32-00 will light up

alternately or indicator

for water supply lights

up.

5. Remove the filter from the supply hose

6. Clean the filter.

7. Re-insert the filter in the supply hose.

8. Screw the water connection back on.

9. Check the water connection for leaks.

10.Restore the power supply.

11.Switch the appliance on.

E:34-00 will light up

alternately.

Water is continuously running into the appliance.

1. Turn off the water tap.

Call Customer Service →Page53.

E:61-02 will light up

alternately.

Not an appliance fault. Wastewater pump is blocked

or the cover of the wastewater pump is loose.

1. Clean the wastewater pump.

→"Clean wastewater pump", Page52

2. Secure the cover of the wastewater pump so it

clicks into position.

→"Clean wastewater pump", Page52

en Troubleshooting

Fault Cause and troubleshooting

E:61-03 will light up

alternately. Water is

not drained.

Not an appliance fault. Siphon connection is still

closed or the wastewater hose is kinked or blocked.

1. Check the connection to the siphon and open if ne-

cessary.

2. Install wastewater hose without kinks.

3. Remove residues.

Not an appliance fault. Wastewater pump is blocked

or the cover of the wastewater pump is loose.

1. Clean the wastewater pump.

→"Clean wastewater pump", Page52

2. Secure the cover of the wastewater pump so it

clicks into position.

→"Clean wastewater pump", Page52

E:92-40 will light up

alternately.

Filters are soiled or blocked.

▶ Clean the filters.

→"Cleaning filters", Page43

Troubleshooting en

Fault Cause and troubleshooting

All LEDs lit up or

flashing.

Electronics have detected a fault.

1. Press the main switch button for approx.

4seconds.

The appliance is reset and restarted.

2. If the problem occurs again:

‒ Switch off the appliance.

‒ Pull out the mains plug or switch off the fuse in

the fuse box.

‒ Wait at least 2minutes.

‒ Switch on the fuse in the fuse box or insert the

mains plug.

‒ Switch the appliance on.

3. If the problem occurs again:

‒ Contact customer service.

→"Customer Service", Page53

Remnants of food on

tableware.

Tableware is placed too close together or basket is

overfilled.

1. Arrange tableware with sufficient space in between.

The spray jets must reach the surfaces of the table-

ware.

2. Avoid points of contact.

Spray arm rotation of the lower spray arm is blocked.

▶ Arrange tableware so that it does not obstruct

spray arm rotation.

Spray arm nozzles are blocked.

▶

Clean the Spray arms →Page44.

Filters are soiled.

▶ Clean the filters.

→"Cleaning filters", Page43

en Troubleshooting

Fault Cause and troubleshooting

Remnants of food on

tableware.

Filters are inserted incorrectly and/or not engaged.

1. Insert the filters properly.

→"Filter system", Page43

2. Engage the filters.

Washing programme selected too weak.

▶ Select a more intensive washing programme.

→"Programmes", Page19

Tableware has been precleaned too intensely. The

sensors chose a weaker programme. Stubborn soiling

cannot be entirely removed.

▶ Only remove large remnants of food and do not

prerinse tableware.

Tall narrow receptacles in corner areas are not rinsed

adequately.

▶ Do not position tall narrow receptacles at too great

an angle or in corner areas.

Top baskets on right and left are not set to same

height.

▶ Set the upper basket on the left and right to the

same height.

→"Top basket", Page23

Removable streaks

are present on

glasses, glassware

with a metallic appear-

ance and cutlery.

Amount of rinse aid to be dispensed is set too high.

▶ Set the rinse aid system to a lower setting.

→"Setting the amount of rinse aid", Page29

No rinse aid has been added.

▶ Add rinse aid.

→"Adding rinse aid", Page28

Detergent residue is present in the final rinse. Lid of

the detergent dispenser is blocked by tableware items

and will not open fully.

1. Arrange tableware in the top basket tableware so

the tab collecting tray is not obstructed by table-

ware.

→"Arrange tableware", Page33

Items of tableware are blocking the dispenser lid.

2. Do not place tableware or fragrance dispensers in

the tablet collecting tray.

Tableware has been precleaned too intensely. The

sensors chose a weaker programme. Stubborn soiling

cannot be entirely removed.

▶ Only remove large remnants of food and do not

prerinse tableware.

Troubleshooting en

Fault Cause and troubleshooting

Rust spots on cutlery. Cutlery is not sufficiently rust-resistant. Knife blades

are often more severely affected.

▶ Use rust-resistant tableware.

Cutlery may also rust if washed together with rusting

items.

▶ Do not wash rusting items.

Salt content in washing water is too high.

1. Remove any spilled special salt from the tub.

2. Screw the cap of the special salt dispenser on tight.

Detergent residue is

present in the deter-

gent dispenser or the

tablet collecting tray.

Spray arms were blocked by tableware so detergent

was not rinsed out.

▶ Check that the spray arms are not blocked and can

rotate freely.

Detergent dispenser was damp when detergent was

added.

▶ Only add detergent to a detergent dispenser when

dry.

Special salt refill indic-

ator lights up.

Insufficient special salt.

▶

Add Special salt →Page27.

Sensor does not detect special salt tablets.

▶ Do not use special salt tablets.

en Transportation, storage and disposal

18.1 Clean wastewater pump

Large remnants of food or foreign

bodies can block the waste water

pump. As soon as the rinsing water

no longer drains properly, the waste

water pump must be cleaned.

WARNING

Risk of injury!

Sharp and pointed objects or frag-

ments of glass may block the waste

water pump and cause injury.

▶ Remove any foreign bodies care-

fully.

1. Disconnect the appliance from the

power supply.

2. Remove the top and bottom bas-

ket.

3. Remove the filter system.

4. Scoop out any water.

Use a sponge if necessary.

5. Prise off the pump cover using a

spoon and grip it by the

crosspiece.

6. Lift the pump cover inwards at an

angle and remove.

a You can now reach the impeller

with your hand.

7. Remove any remnants of food and

foreign bodies in the area of the

impeller.

8. Insert the pump cover and press

down ⁠.

a The pump cover clicks into posi-

tion.

9. Install the filter system.

10.Insert the top and bottom basket.

19 Transportation, stor-

age and disposal

19.1 Removing the appliance

1. Disconnect the appliance from the

mains power supply.

2. Turn off the water tap.

3. Detach the drainage connection.

4. Detach the drinking water connec-

tion.

5. Loosen any screws fastening the

appliance to cabinet parts.

6. Remove the base panel if fitted.

7. Pull the appliance out carefully,

along with the hose behind it.

Customer Service en

19.2 Protect appliance from

frost

If there is a risk of frost where the ap-

pliance will be standing, e.g. in a holi-

day home, empty the appliance com-

pletely.

▶ Empty the appliance.

→"Transporting the appliance",

Page53

19.3 Transporting the appli-

ance

To avoid damage to the appliance,

empty it before transporting.

Note:Always transport the dish-

washer upright to prevent residual

water getting into the machine's con-

trols and damaging the appliance.

1. Remove tableware from the appli-

ance.

2. Secure loose parts.

3. Switch on the appliance.

→Page34

4. Select the programme with the

highest temperature.

→"Programmes", Page19

Start the programme. →Page35

6. To drain the appliance, terminate

the programme after approx.

4minutes.

→"Terminate programme",

Page35

7. Switch off the appliance.

→Page35

8. Turn off the water tap.

9. To empty the residual water out of

the appliance, detach the supply

hose and let the water drain out.

19.4 Disposing of old appli-

ance

Valuable raw materials can be re-

used by recycling.

WARNING

Risk of harm to health!

Children can lock themselves in the

appliance, thereby putting their lives

at risk.

▶ With redundant appliances, unplug

the power cord. Then cut through

the cord and damage the lock on

the appliance door beyond repair

so that the appliance door will no

longer close.

1. Unplug the appliance from the

mains.

2. Cut through the power cord.

3. Dispose of the appliance in an en-

vironmentally friendly manner.

Information about current disposal

methods are available from your

specialist dealer or local authority.

This appliance is la-

belled in accordance

with European Directive

2012/19/EU concerning

used electrical and elec-

tronic appliances (waste

electrical and electronic

equipment - WEEE).

The guideline determ-

ines the framework for

the return and recycling

of used appliances as

applicable throughout

the EU.

20 Customer Service

Function-relevant genuine spare parts

according to the corresponding Eco-

design Order can be obtained from

en Customer Service

Customer Service for a period of at

least 10 years from the date on

which your appliance was placed on

the market within the European Eco-

nomic Area.

Note:Under the terms of the manu-

facturer's warranty the use of Cus-

tomer Service is free of charge.

Detailed information on the warranty

period and terms of warranty in your

country is available from our after-

sales service, your retailer or on our

website.

If you contact Customer Service, you

will require the product number (E-

Nr.), the production number (FD) and

the consecutive numbering (Z-Nr.) of

your appliance.

The contact details for Customer Ser-

vice can be found in the enclosed

Customer Service directory or on our

website.

20.1 Product number (E-Nr.),

production number (FD)

and consecutive num-

bering (Z-Nr.)

You can find the product number (E-

Nr.), the production number (FD) and

the consecutive numbering (Z-Nr.) on

the appliance's rating plate.

The rating plate is located inside the

appliance door.

Make a note of your appliance's de-

tails and the Customer Service tele-

phone number to find them again

quickly.

20.2 AQUA-STOP guarantee

In addition to warranty claims against

the seller under the purchase agree-

ment and in addition to our manufac-

turer's warranty, we offer compensa-

tion under the following conditions.

¡ If our Aqua-Stop system is defect-

ive and causes water damage, we

will make good the damage for

private users. To ensure protection

from water damage, the appliance

must be connected to the power

supply.

¡ The liability guarantee is valid for

the service life of the appliance.

¡ A claim can only be made under

the guarantee if the appliance has

been correctly installed and con-

nected with Aqua-Stop according

to our instructions; this also in-

cludes correctly fitting the Aqua-

Stop extension (genuine access-

ory). Our guarantee does not cover

defective supply lines or fittings up

to the Aqua-Stop connection on

the tap.

¡ If your appliance is fitted with

Aqua-Stop, you can in principle

leave your appliance unattended

during operation and the tap

turned on afterwards. The tap only

needs to be turned off if you are

away from home for a long period,

e.g. on holiday for several weeks.

Technical specifications en

21 Technical specifications

Weight Max.: 60kg

Voltage 220 - 240V, 50Hz or 60Hz

Power rating 2000 - 2400W

Fuse 10-16A

Water pressure ¡ min. 50kPa (0.5bar)

¡ max. 1000kPa (10bar)

Inlet rate Min. 10l/min

Water temperature Cold water.

Hot water max.: 60°C

Capacity 13place settings

You can find more information about

your model online at https://

eprel.ec.europa.eu/

. This web ad-

dress is linked to the official EU

EPREL product database. Please

then follow the instructions on

searching for the model. The model

identifier is made up of the charac-

ters before the slash in the product

number (E-Nr.) on the rating plate. Al-

ternatively, you can also find the

model identifier in the first line of the

EU energy label.

21.1 Information regarding

Free and Open Source

Software

This product includes software com-

ponents that are licensed by the

source software.

The applicable licence information is

stored on your home appliance. You

can also access the applicable li-

cence information via your

HomeConnect app: "Profile -> Legal

information -> Licence Information".

You can download the licence in-

formation on the brand product web-

site. (Please search on the product

website for your appliance model

and additional documents). Alternat-

ively, you can request the relevant in-

formation from oss-

[email protected] or BSH Hausger-

äte GmbH, Carl-Wery-Str. 34, 81739

Munich, Germany.

The source code will be made avail-

able to you on request.

Please send your request to oss-

[email protected] or BSH Hausger-

äte GmbH, Carl-Wery-Str.34, 81739

Munich, Germany.

Subject: „OSSREQUEST“

The cost of performing your request

will be charged to you. This offer is

valid for three years from the date of

purchase or at least as long as we

offer support and spare parts for the

relevant appliance.

Only applies to countries in the European Economic Area

Depending on the appliance specifications

en Declaration of Conformity

22 Declaration of Con-

formity

BSH Hausgeräte GmbH hereby de-

clares that the appliance with Home

Connect functionality conforms to the

essential requirements and other rel-

evant provisions of Directive

2014/53/EU.

A detailed RED Declaration of Con-

formity can be found online at

www.bosch-home.com among the

additional documents on the product

page for your appliance.

Hereby, BSH Hausgeräte GmbH de-

clares that the appliance with

HomeConnect functionality is in

compliance with relevant statutory

requirements.

A detailed Declaration of Conformity

can be found online at www.bosch-

home.co.uk among the additional

documents on the product page for

your appliance.

2.4 GHz band (2400–2483.5MHz):

Max. 100mW

5-GHz band (5150–5350MHz +

5470–5725MHz): max. 150mW

BE BG CZ DK DE EE IE EL ES

FR HR IT CY LI LV LT LU HU

MT NL AT PL PT RO SI SK FI

SE NO CH TR IS UK (NI)

5GHz WLAN (Wi-Fi): For indoor use only.

AL BA MD ME MK RS UK UA

5GHz WLAN (Wi-Fi): For indoor use only.

Only applies to Great Britain

Thank you for buying a

Bosch Home Appliance!

• Expert tips & tricks for your appliance

• Warranty extension options

• Discounts for accessories & spare-parts

• Digital manual and all appliance data at hand

• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones:

www.bosch-home.com/welcome

Looking for help?

You'll find it here.

Expert advice for your Bosch home appliances, help with problems

or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you:

www.bosch-home.com/service

Contact data of all countries are listed in the attached service direct-

ory.

*9001859389*

9001859389 (030412) 642 V1

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

www.bosch-home.com

A Bosch Company

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

Bosch SMS4ETW02EB Series 4 Freestanding dishwasher

Product's Documents

Information for Use

Specifications

Bosch SMS4ETW02EB Questions and Answers
