Portable Power Station R150
User Manual
AC Socket
It can be carried to anywhere, charge your devices anytime and get recharged easily from a
compatible solar panel.
WHAT YOU NEED TO KNOW?
Q: What devices can R150 power?
A:
Please kindly note it can only charge/power your devices that less than 150 Watts, please
check the operating power of your device before use.
Q:
How long can it power my exact device?
A:
Working time = Fully charged 155Wh* 0.85 / operating power of your device.
For your information, if the power consumption of your device was 30W, the running time will
be 155Wh*0.85/30W= 4.4 hrs (rough calculated).
Q:
Can I charge this power station while supplying power at same time?
A:
The USB ports can work through charging, but the AC output and DC
outputs can't
provide power to other devices while R150 is being charged.
Q
: What kind of solar panel can pair with this power bank?
A
: This unit can accept 13V-23V, 2.4A max input, you only need to buy a solar panel with an
output that this power bank can accept.
Battery Type: Lithium-ion
Capacity: 155Wh
Input:
Charging Port: DC 5.5 x 2.1mm, 13V-23V, 2.4A Max
Output:
AC Output(x1): 110V, 60HZ, 150W
DC Output(x2): 9 ~ 12.6V; 10A(max)
USB1 + USB2: 5V/3.1A max in total
USB-C: 5V/3A, 9V/2A
Bulb Type: LED Flashlight with 3 Modes: Light, Strobe, SOS
Lifecycle:
＞
1000 Times
Working Temperature Range: 0°C - 40°C / 32°F - 104°F
Weight: 4 lbs / 1.8 kg
Dimensions: 7.5 x 4.5 x 6.5 in / 19 x 11.5 x 16.5 cm
Package Included:
1 x Portable Power Station R150
1 x Power Adapter
1 x Car Charging Cable
1 x User Manual
Power Your Outdoors!
PRODUCT SPECIFICATIONS
PRODUCT DIAGRAM
PRODUCT OPERATING GUIDE
【Display Screen】
尺寸：400x280mm
四折页(100x140mm)
材质：157g铜版纸
DANGER
NONCOMPLIANCE MAY VERY LIKELY LEAD TO SERIOUS INJURY
* DO NOT disassemble, repair or modify the unit or the battery.
* DO NOT charge, use or store the unit in a bathroom or in an area exposed to rain or moisture.
* Only use the output socket to power external devices. Never connect the output to mains power
under any circumstances.
* DO NOT touch the unit or the plug-in points if your hands are wet.
* DO NOT connect any metallic objects to the AC input or output.
* DO NOT rub your eyes if fluid from inside the unit should get in your eyes.
* DO NOT dispose the unit together with household waste.
* DO NOT use any inappropriate power cords.
* DO NOT operate the unit above the specified input voltage.
* DO NOT use the unit if it is not functioning correctly.
* DO NOT move the unit if it is recharging or in use.
* DO NOT put fingers or hands into the product.
* DO NOT use a battery pack or appliance that is damaged or modified. The damaged or modified
battery may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
* DO NOT disassemble the power pack, take it to a qualified service person when service or repair is
required. Incorrect reassembly may result in a risk of fire or electric shock.
CAUTION
NONCOMPLIANCE MAY LEAD TO INJURY OR PROPERTY DAMAGE
* If rust, peculiar odors, overheating or other abnormal circumstances are observed, stop using the
unit immediately and contact the dealer or our customer service team.
* The unit complies with all legal requirements for transport of dangerous goods.
* Make sure that the unit is properly secured when transporting it in a motor vehicle.
* Only charge, use and store the unit within an ambient temperature range of 0
℃
- 40
℃
/ 32°F -
104°F.
* Switch the unit off immediately if it has accidentally fallen, dropped or exposed to vibrations.
* Carefully read the instructions for the electric devices that you intend to connect to your power
supply unit.
* Make sure that the device you are connecting is switched off before you connect it.
FCC Statement

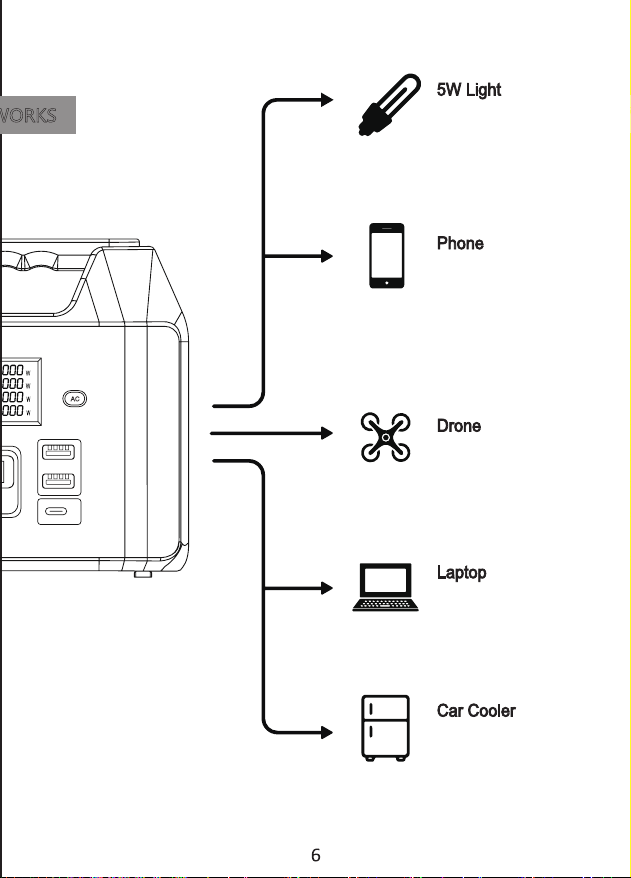

HOW IT WORKS
This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions:
* This device may not cause harmful interference.
* This device must accept any interference received, including interference that may cause undesired
operation.
PERSONAL PRECAUTION
* Never smoke or allow a spark or flame in vicinity of the unit.
* Be extra cautious to reduce risk of dropping a metal tool onto the unit, it might spark or short-circuit
battery or other electrical part that may cause explosion.
* DO NOT expose a power pack to fire or excessive temperature, exposure to fire or temperature
above 130°C/ 266°F may cause explosion.
ATTENTION
* Not permitted on airplanes.
* To preserve the battery lifespan, please use and recharge at least once in every 3 months.
* Use original or certified charger and cables.
* Avoid extreme temperature.
* Avoid dropping.
* Do not disassemble.
* It's not waterproof, do not expose to liquids.
* Please dispose of batteries and electronic goods in accordance with local regulations.
DISCLAIMER
PRODUCT WARRANTY
* Our company cannot be held liable for damages caused by fire, earthquake, use by a third party,
other accidents, intentional misconduct on the part of the customer, abuse or other abnormal
conditions.
* Do not repair any damage devices on your own.
* Our company assumes no liability for damages caused by incorrect use or non-compliance with this
instruction manual.
The warranty period is 12 months from the date of purchase. We warrant to all original customers that
the product will be free from defects in workmanship and material under normal use. The warranty
does not apply to any misuse, abuse, modification, accidental damage or any other non-normal
consumer use.
* Single click "
" the power button to turn on the unit, the outputs of DC, USB-A and USB-C are ON,
it won't automatically turn off until run out of all power.
* Single click the " " button to turn on the unit, then single click the "AC" button to turn on/off the AC
output, they will not turn off automatically until the power run out.
* In any case, long press the "
" button for 3 seconds will turn off all outputs and turn off the unit.
WARNING
NONCOMPLIANCE MAY LEAD TO SERIOUS INJURY
* DO NOT use and store the unit in dusty and wet environment. Use and store the unit only in a clean
and dry environment.
* DO NOT use the unit if it is damaged or broken, check the unit before every use.
* DO NOT use the unit if the power cord is damaged or broken.
* DO NOT let children use or play with the unit, keep the unit away from the children, keep the unit
away from pets.
* DO NOT use or store the unit in an area or environment with high temperature.
* If fluid from inside of the unit come in contact with your skin or clothing, wash the affected area with
tap water.
* In a storm, unplug the power cord from the socket.
* DO NOT charge the unit via power supply systems that operate outside of 100V-240V.
* DO NOT place the unit on its side or upside down while in use or storage.
* DO NOT use accessories for other usage.
5-6Hrs
4-5Hrs
6-7Hrs
25+Hrs
10+ Recharges
3+ Recharges
2+ Recharges
4+ Hrs
support@enginstar.com
Customer Support
Handle
ON/OFF
LED Display
AC ON/OFF
USB-A Output
USB-C Output
AC Outlet
DC Input
DC Output
【
Left
】
【
Front
】 【
Back
】
【
Right
】
LED Flashlight Switch
LED Flashlight
Self-Cooling Fan
Vent
Specification Label
DC Output Indicator
USB Output Indicator
Charging Input Indicator
Remaining Power
AC Output Indicator
Temperature Overheat Warning
Equipment Failure Warning
