BAUMR-AG CCVDRUBMH3CA BVB-300 Concrete Vibrator Drive Unit User Manual

User Manual

[Revision 2.0]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to add

adequat

e engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

BVB-300 Concrete Vibrator Drive Unit

E&OE © Baumr-AG 2

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases, or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

•

Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

•

Wear appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol, or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory, or

mental capabilities.

General Fuel Safety

•

Petrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start, or run the

engine until all leaks are fixed.

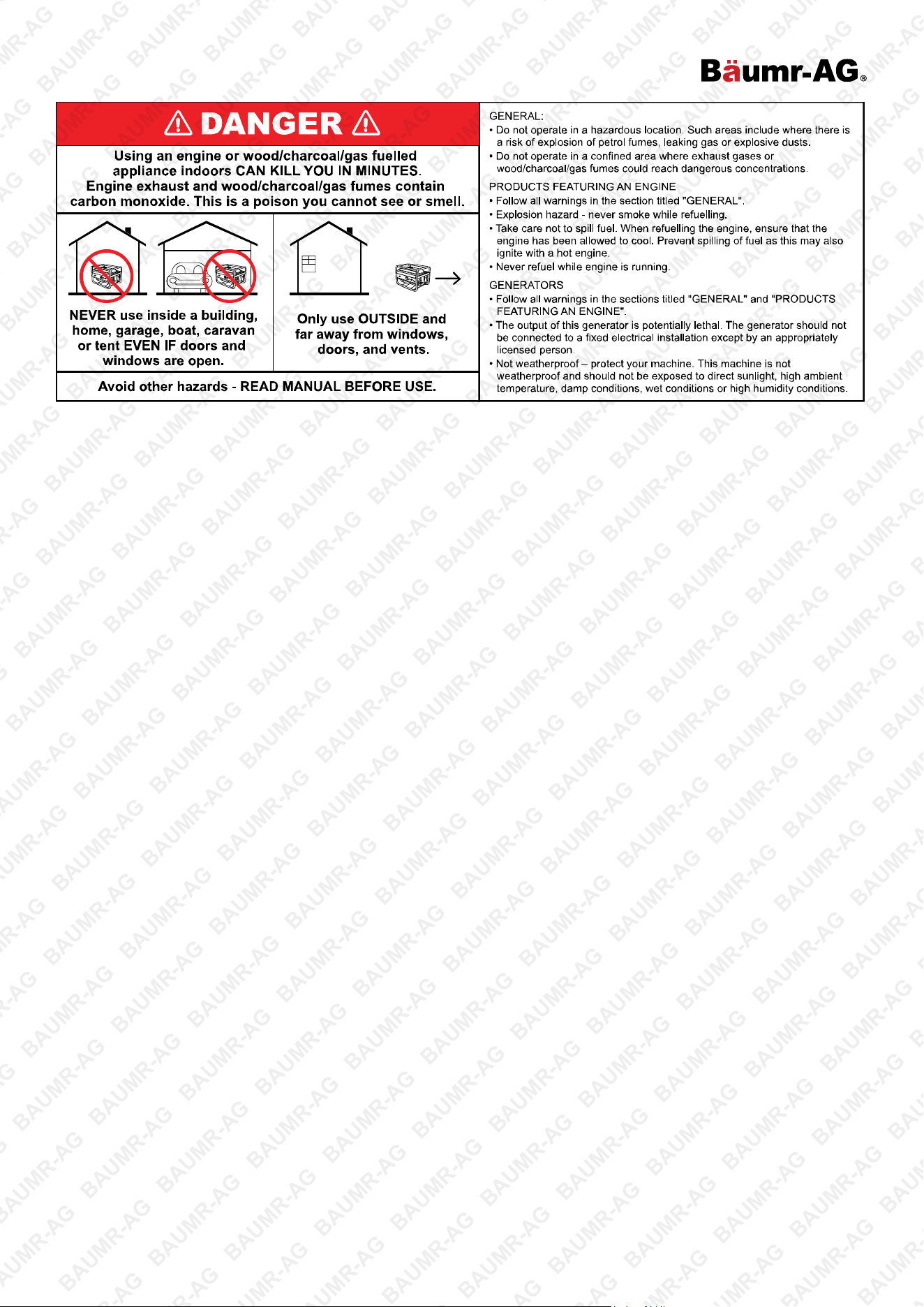

General Carbon-Monoxide Safety

•

Using a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors, and

vents.

General Equipment Use and Care

•

The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage, or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases, or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids, or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

E&OE © Baumr-AG 3

General Electrical Safety

•

Inspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Always use a Residual Current Device

(RCD) (GFCI) / Earth Leakage Circuit

Breaker / Safety Switch when operating this

item (electrical items only).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

•

Electrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

•

The equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories, or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service-related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Child Choking Hazard!

• W

ARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT

SUPERVISION REQUIRED.

• Carefully inspect anything a baby or child could gain access to, including this product & packaging.

• Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys,

buttons, keys, and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces

of packaging, staples, tape etc.

• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Safety Instructions, Hazards, and Risks

•

Never allow any person to operate a machine without adequate instruction.

• Ensure all operators read, understand, and follow the operating instructions.

• Serious injury may result from improper or careless use of this machine.

Mechanical Hazards

•

Do not operate the machine unless all protective guards are in place.

• Keep hands and feet clear of rotating and moving parts as they will cause injury if contacted.

• Be careful not to come in contact with the muffler when the engine is hot, since it can cause severe burns.

• Ensure that the motor operation switch is in the OFF position and the spark plug ignition lead is disconnected before removing guards or making

adjustments.

• Ensure both the machine and the operator are stable by setting up on level terrain and the machine will not move or fall while in operation or

unattended.

• Do not leave the machine in operation while it is unattended.

• Keep bystanders and animals clear of the work area.

• Ensure that repairs to the motor and machine are carried out by competent personnel.

Fire and Explosion Hazards

•

Petrol is extremely flammable and explosive under certain conditions.

• Ensure that petrol is only stored in an approved storage container.

• Do not refuel the motor while it is in operation or hot.

• Do not refuel the motor in the vicinity of sparks, a naked flame or a person smoking.

• Do not overfill the fuel tank and avoid spilling petrol when refuelling. Spilled petrol or petrol vapour may ignite. If spillage occurs, ensure that the

area is dry before staring the motor.

• Ensure that the fuel tank cap is securely fitted after refuelling.

Chemical Hazards

•

Do no operate or refuel a petrol motor in a confined area without adequate ventilation.

• Carbon monoxide exhaust gases from internal combustion motor driven units can cause death in confined spaces.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

E&OE © Baumr-AG 4

Noise Hazards

•

Excessive noise can lead to temporary or permanent loss of hearing.

Additional Hazards

•

Slip/trip/fall is a major cause of serious injury or death.

• Beware of excess hose, the flexible shaft and water left on the walking or work surface.

• Do not allow waste water to accumulate under foot.

• Exercise caution and ensure that the perimeter of elevated formwork or platforms is protected.

• Exercise care when working in the vicinity of unprotected holes or excavations.

Engine Safety

•

Most accidents with engines can be prevented if you follow all instructions in this manual and on the engine. Some of the most common hazards

are discussed below, along with the best way to protect yourself and others.

• Owner Responsibilities:

• The engines are designed to give safe and dependable service if operated according to instructions. Read and understand this owner’s manual

before operating the engine. Failure to do so could result in personal injury or equipment damage.

• Know how to stop the engine quickly and understand the operation of all controls. Never permit anyone to operate the engine without proper

instructions.

• Do not allow children to operate the engine. Keep children and pets away from the area of operation.

• Refuel With Care

• Gasoline is extremely flammable, and gasoline vapor can explode. Refuel outdoors, in a well-ventilated area, with the engine stopped. Never

smoke near gasoline and keep other flames and sparks away. Always store gasoline in an approved container. If any fuel is spilled, make sure

the area is dry before starting the engine.

• Hot Exhaust

• The muffler becomes very hot during operation and remains hot for a while after stopping the engine. Be careful not to touch the muffler while it

is hot. Let the engine cool before storing it indoors.

• To prevent fire hazards and to provide adequate ventilation for stationary equipment applications, keep the engine at least 3 feet (1 meter)

away from building walls and other equipment during operation. Do not place flammable objects close to the engine.

• Carbon Monoxide Hazard

• Exhaust gas contains poisonous carbon monoxide. Avoid inhalation of exhaust gas. Never run the engine in a closed garage or confined area.

• Other Equipment

• Review the instructions provided with the equipment powered by this engine for any additional safety precautions that should be observed in

conjunction with engine startup, shutdown, operation, or protective apparel that may be needed to operate the equipment.

Maintenance Safety

•

Some of the most important safety precautions are as follows: However, we cannot warn you of every conceivable hazard that can arise in

performing maintenance. Only you can decide whether or not you should perform a given task.

• Failure to properly follow maintenance instructions and precautions can cause you to be seriously hurt or killed. Always follow the procedures

and precautions in the owner’s manual.

• Make sure the engine is off before you begin any maintenance or repairs. This will eliminate several potential hazards:

• Carbon monoxide poisoning from engine exhaust.

• Be sure there is adequate ventilation whenever you operate the engine.

• Burns from hot parts. Let the engine and exhaust system cool before touching.

• Injury from moving parts.

• Do not run the engine unless instructed to do so.

• Read the instructions before you begin, and make sure you have the tools and skills required.

• To reduce the possibility of fire or explosion, be careful when working around gasoline. Use only a non-flammable solvent, not gasoline, to clean

parts. Keep cigarettes, sparks, and flames away from all fuel-related parts.

• Remember that your servicing dealer knows your engine best and is fully equipped to maintain and repair it.

• To ensure the best quality and reliability, use only new, genuine parts or their equivalents for repair and replacement.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

E&OE © Baumr-AG 5

•

Be aware that the equipment may include hazardous components, such as blades, hot surfaces and

moving parts.

•

Moving blades can cause serious injury and even death if used improperly or without sufficient PPE.

•

Do not use this equipment on uneven surfaces and always maintain good balance when using this

equipment. Failure to do so may cause serious injury.

•

Maintain a secure grip of the trigger assembly at all times.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

E&OE © Baumr-AG 6

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases, or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases, or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing, and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

E&OE © Baumr-AG 7

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp, or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

Choking Hazard

Children under 8 yrs. Can choke

or suffocate on small parts. Adult

supervision required.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

E&OE © Baumr-AG 8

Table of Contents

Safety ............................................................................................................................................................. 2

Safety Symbols ........................................................................................................................................................... 6

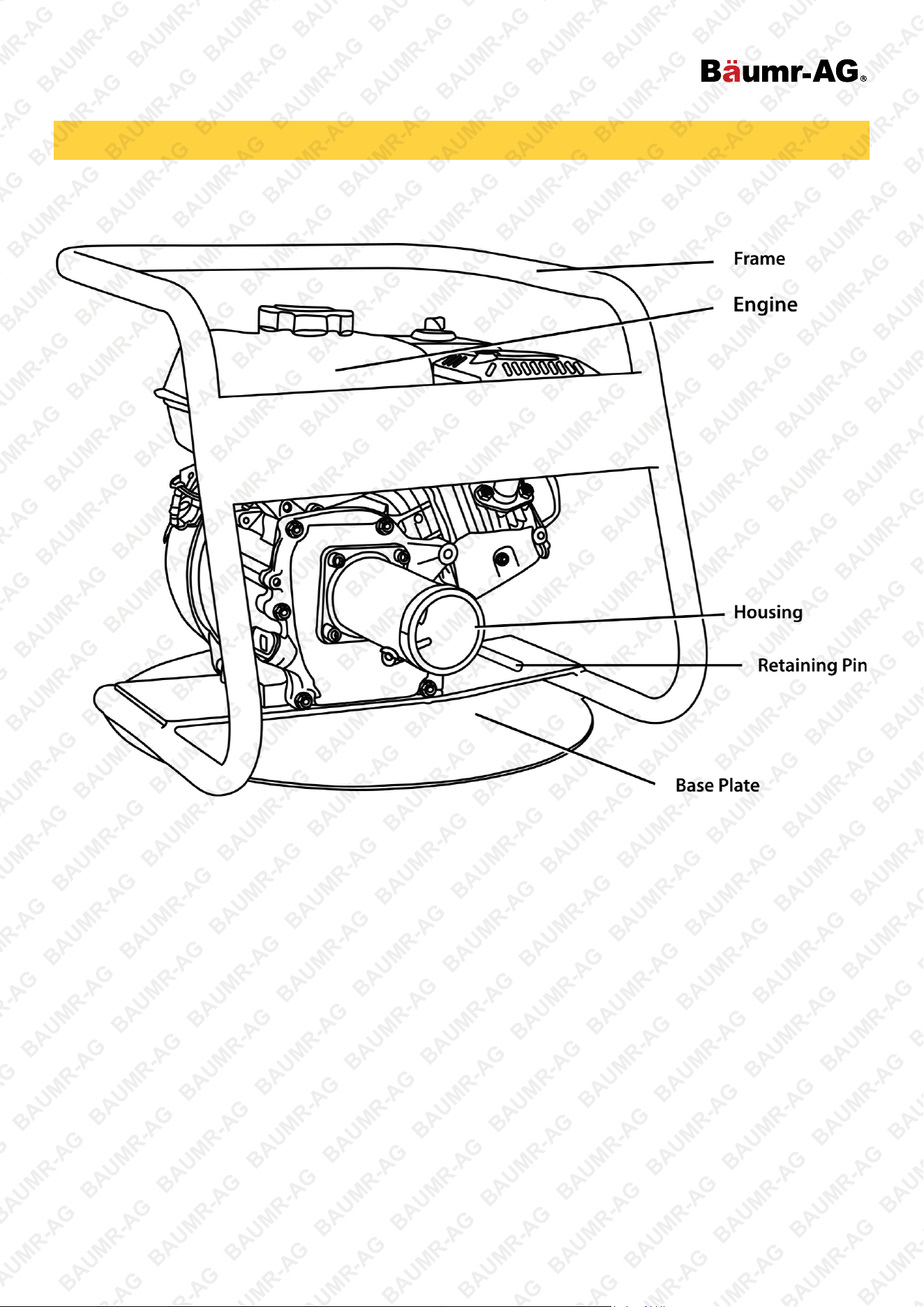

Parts Identification ....................................................................................................................................... 9

Checks Before Operation ........................................................................................................................... 10

Operation ..................................................................................................................................................... 11

Safe Operating Precautions ..................................................................................................................................... 11

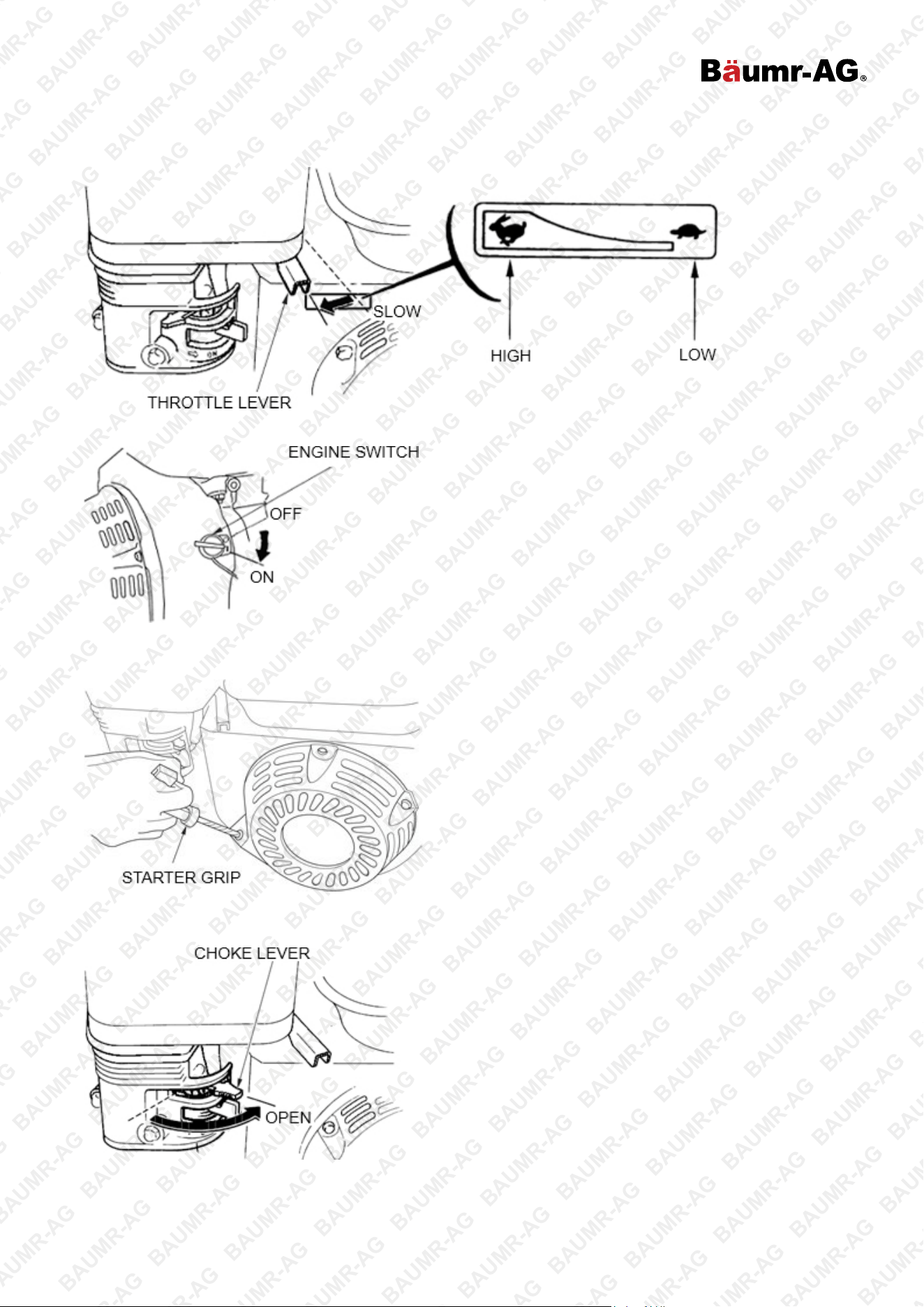

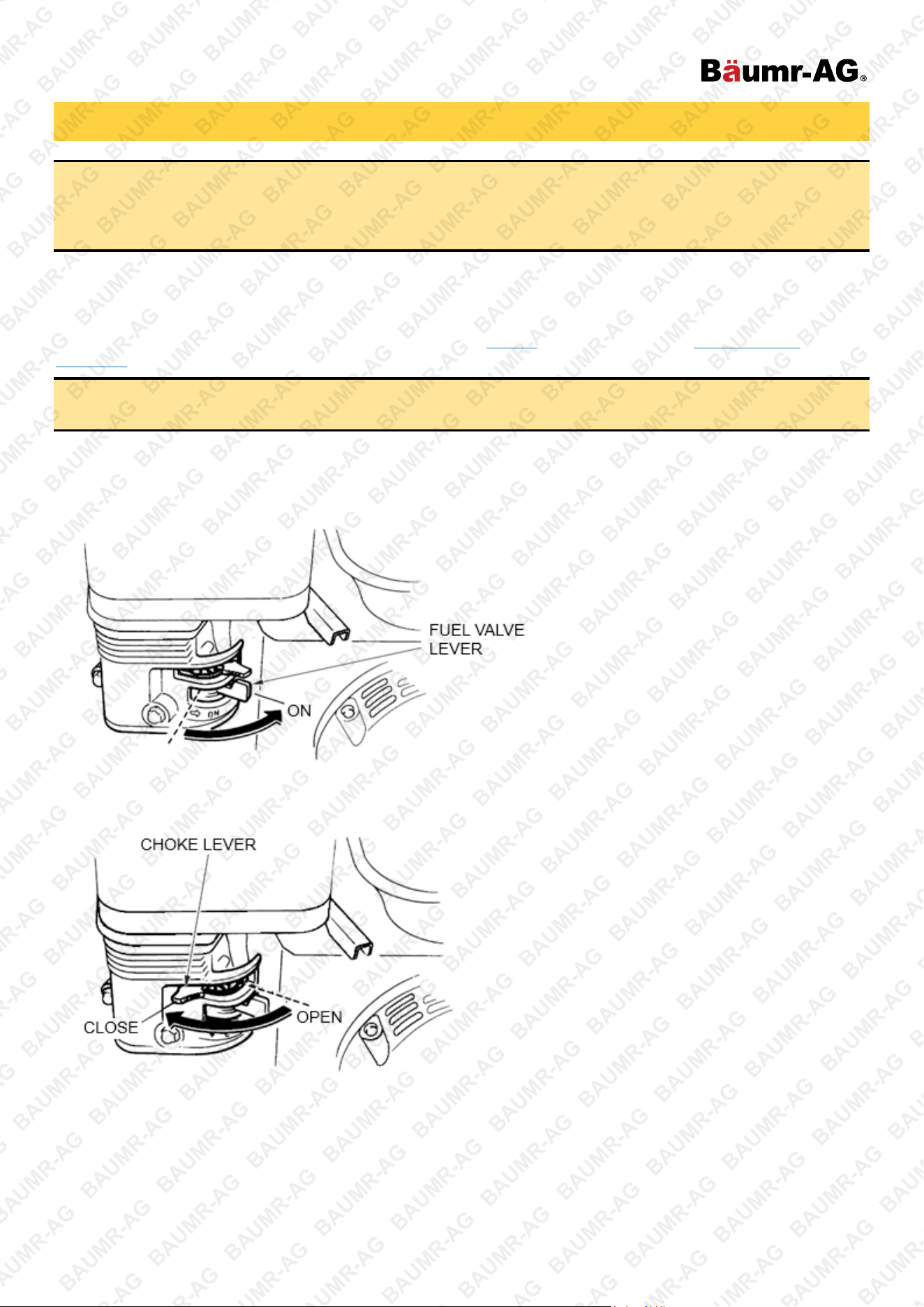

Starting the Engine ................................................................................................................................................... 11

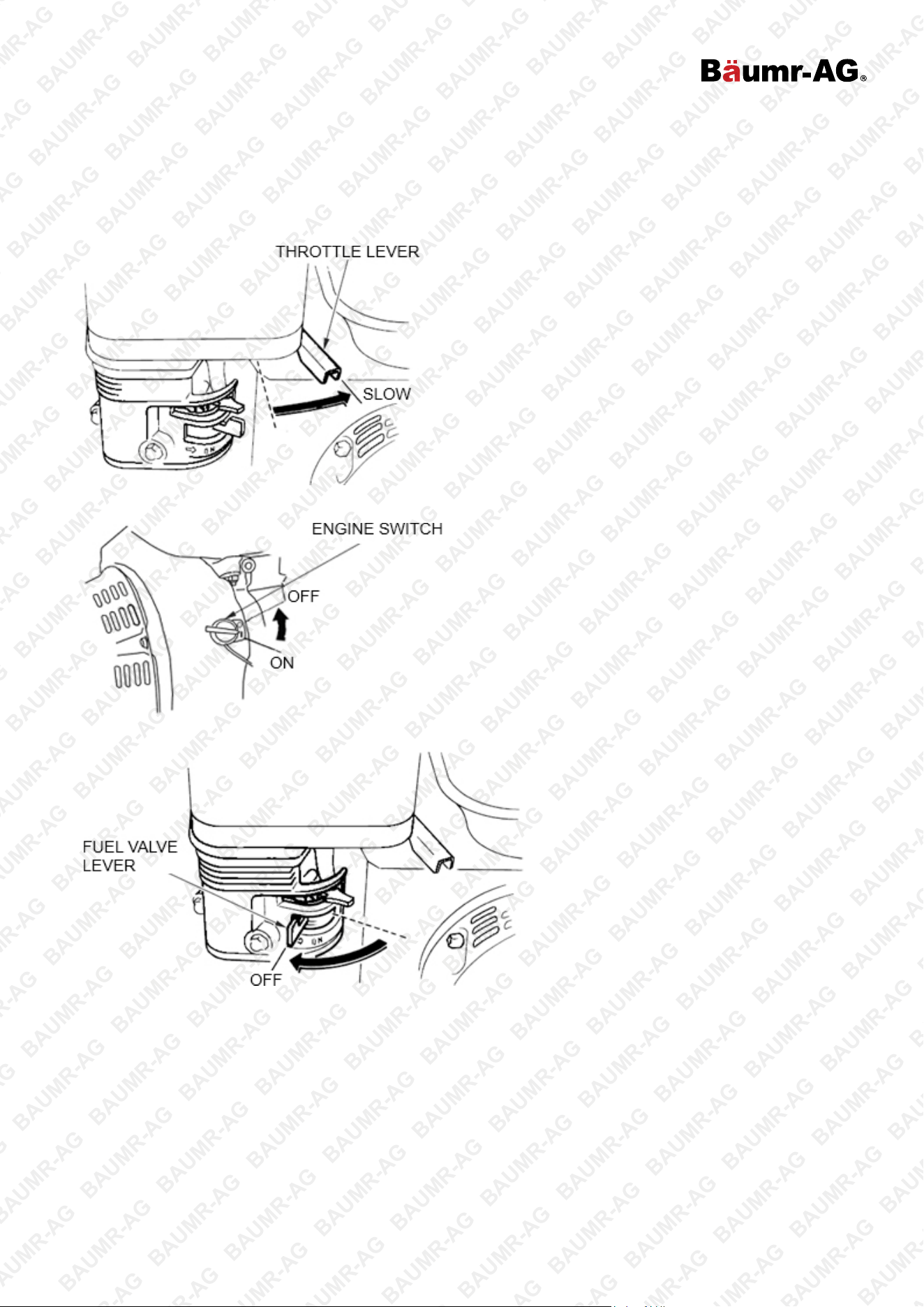

Stopping the Engine ................................................................................................................................................. 13

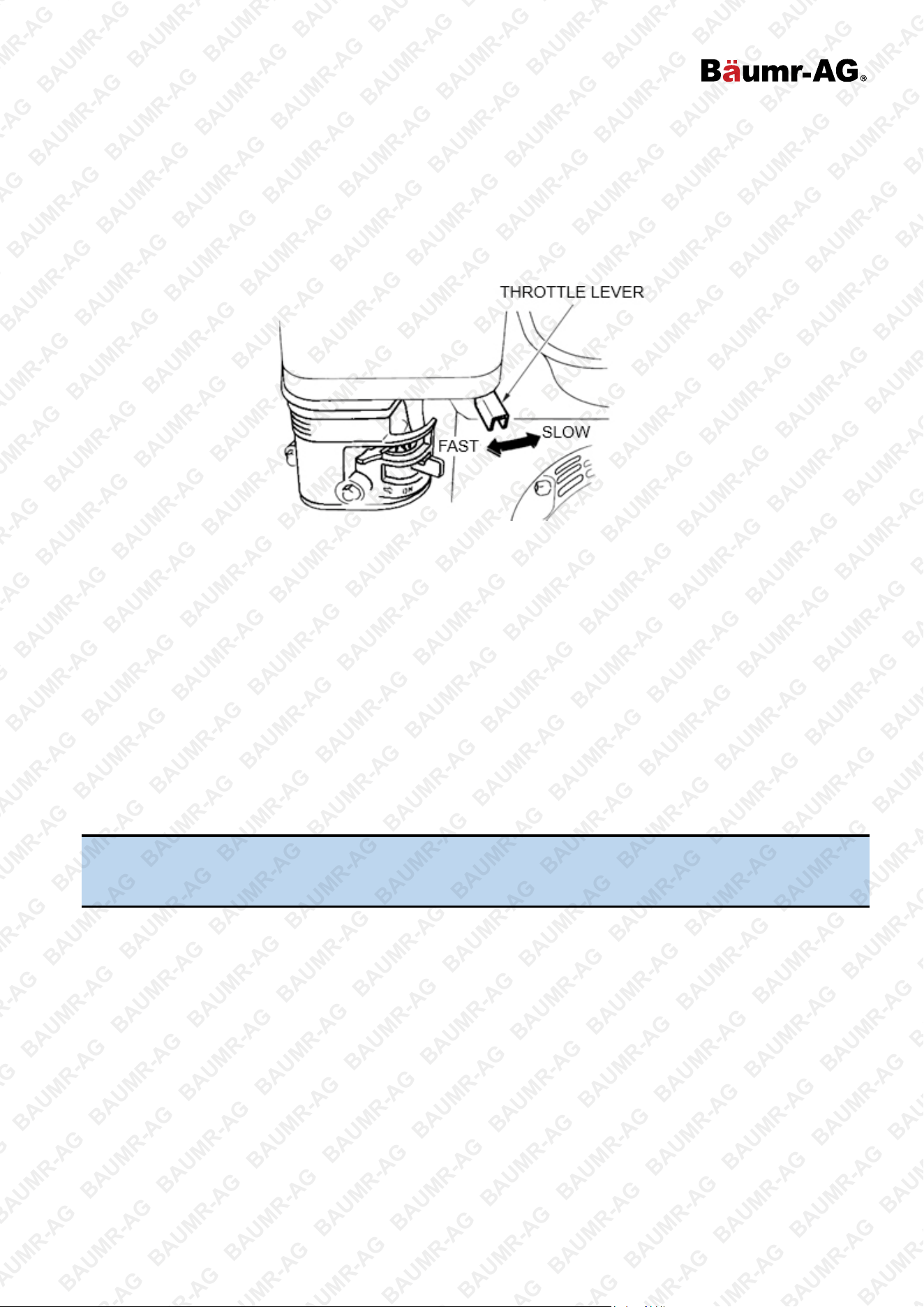

Setting Engine Speed ............................................................................................................................................... 14

Concrete Vibrator Operation ..................................................................................................................................... 14

Maintenance ................................................................................................................................................ 15

Concrete Vibrator Maintenance ................................................................................................................................ 15

Engine Maintenance ................................................................................................................................................. 15

The Importance of Maintenance ........................................................................................................................ 15

Maintenance Schedule ....................................................................................................................................... 15

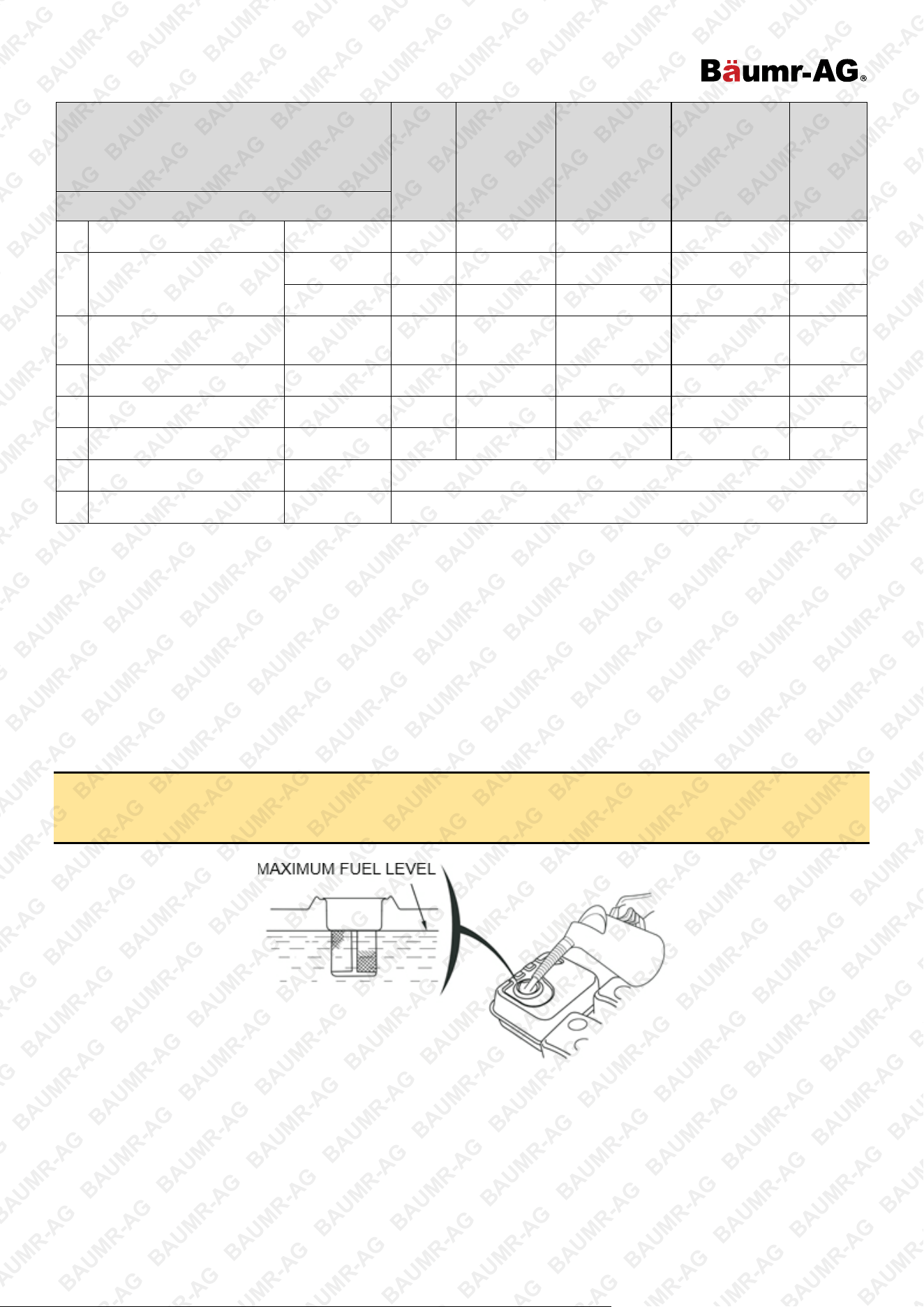

Refuelling ........................................................................................................................................................... 16

Fuel Recommendations ..................................................................................................................................... 17

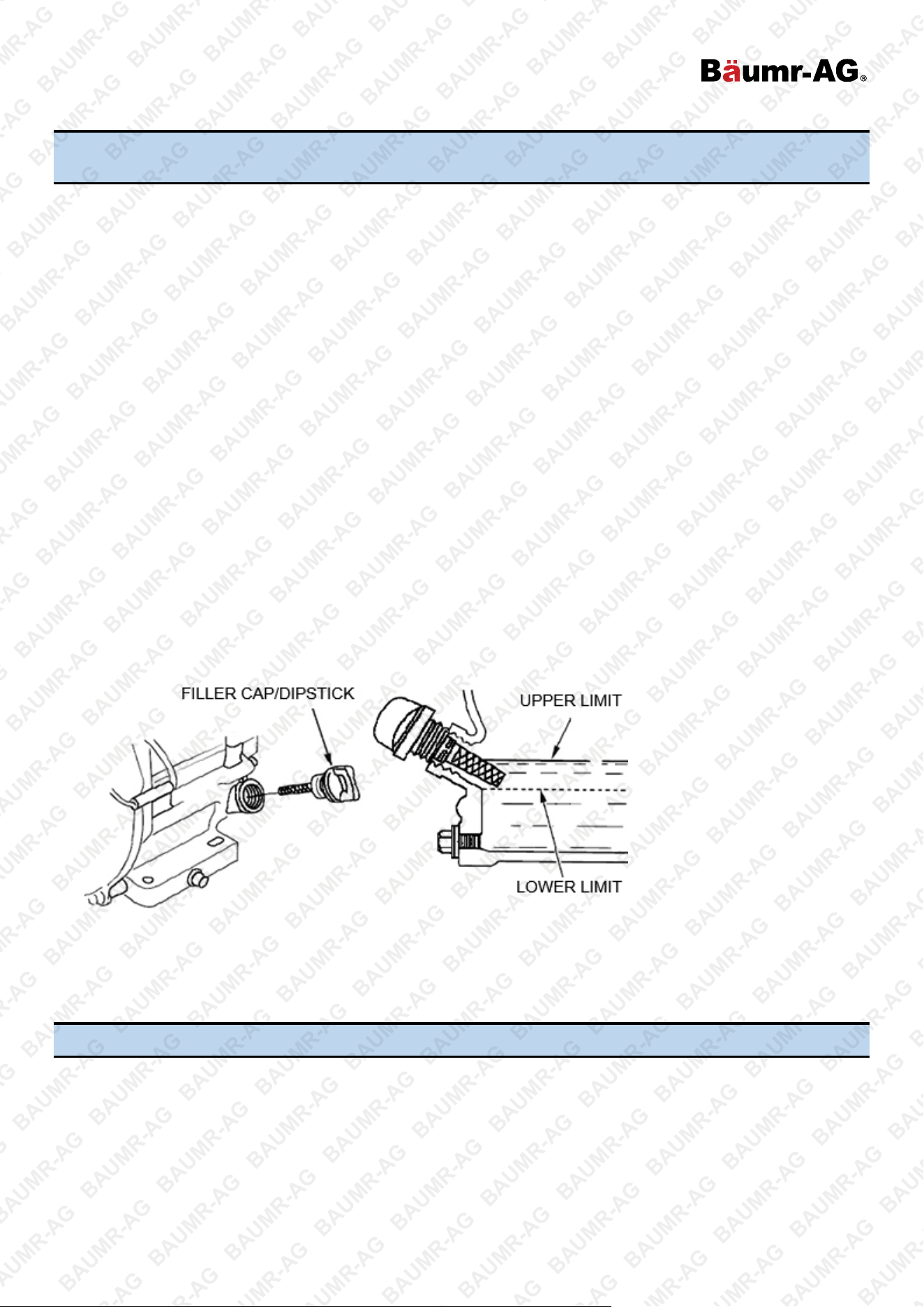

Engine Oil Level Check ...................................................................................................................................... 17

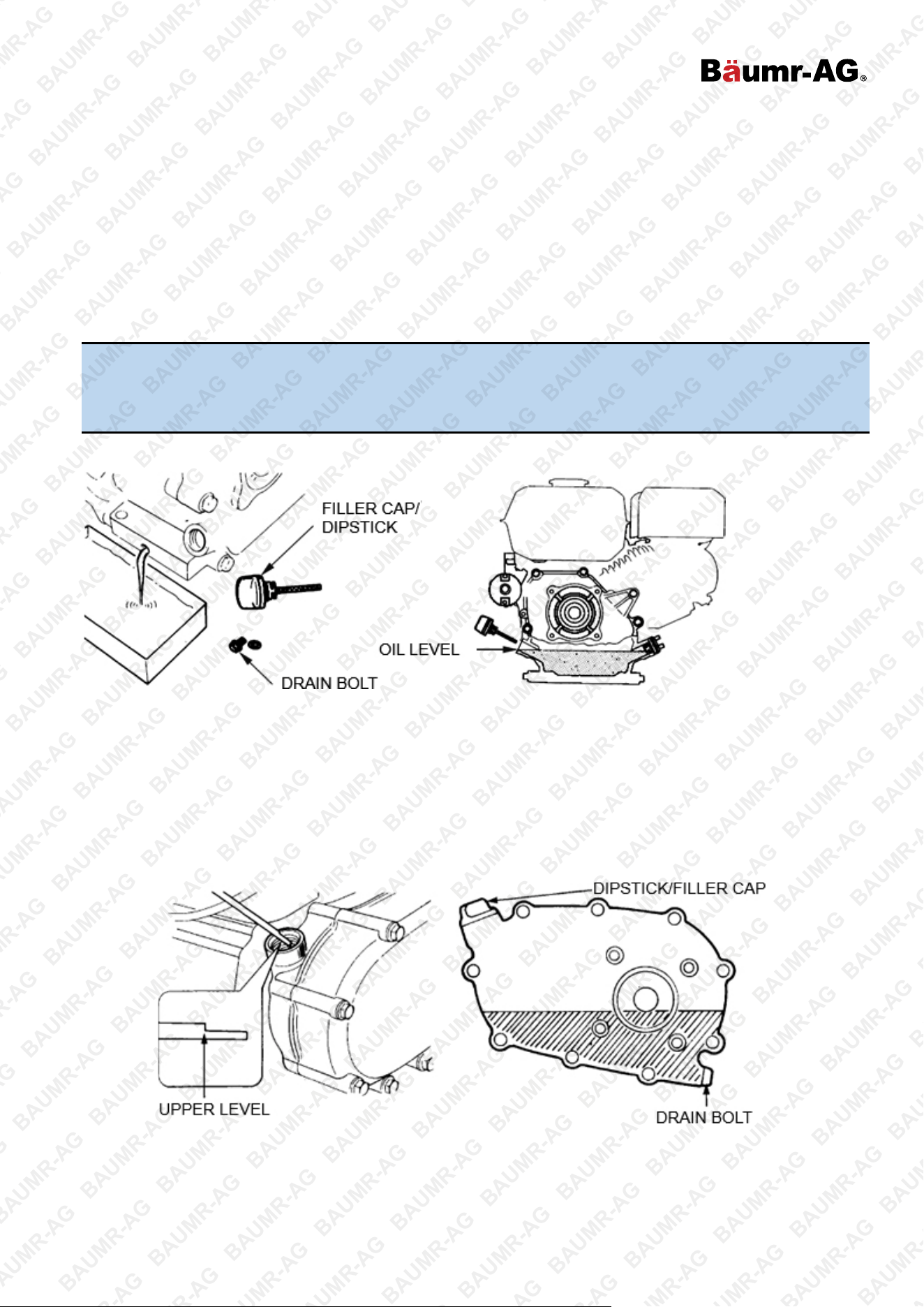

Engine Oil Change ............................................................................................................................................. 18

Reduction Gear Oil (Only on equipped models) ................................................................................................ 18

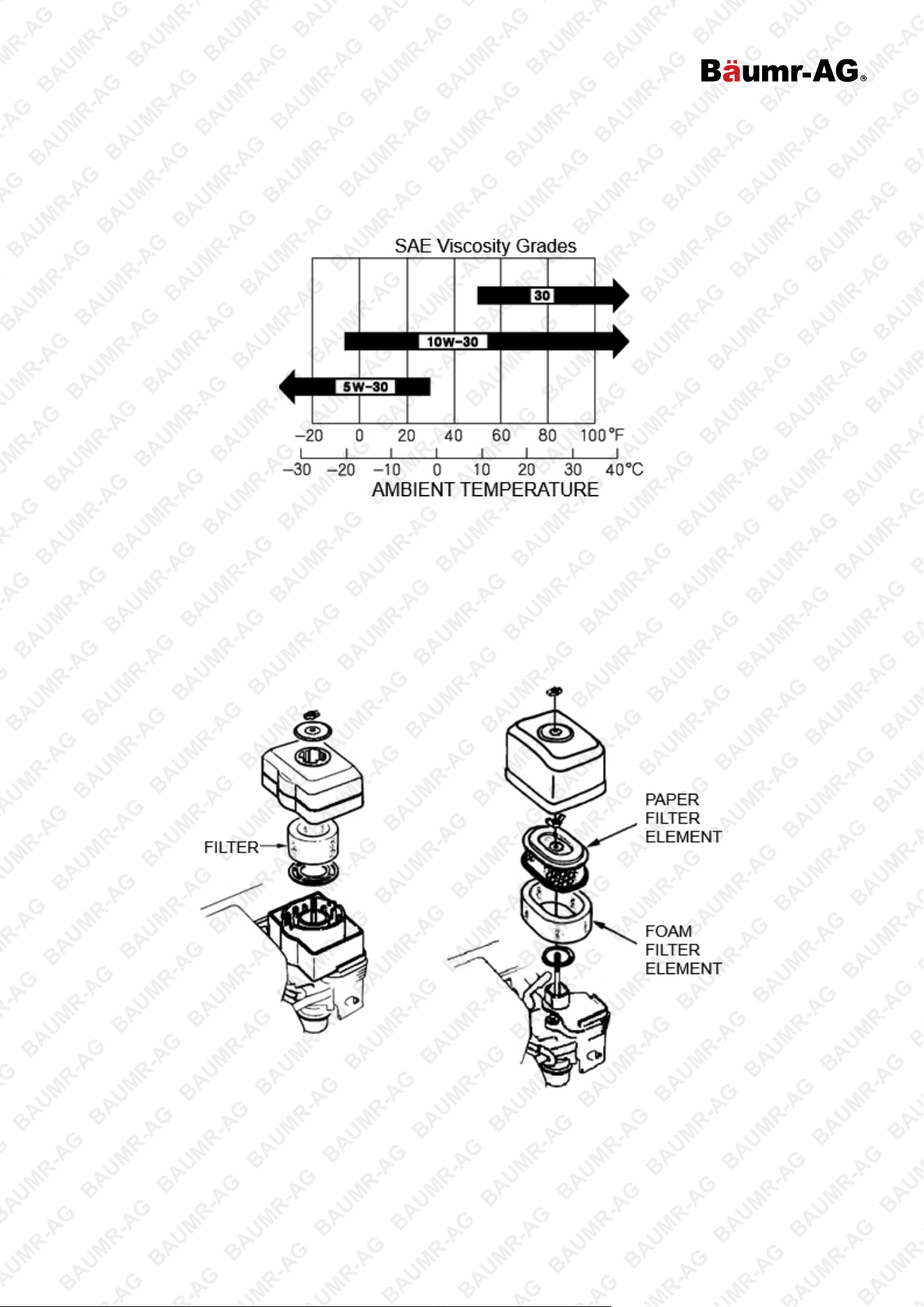

Servicing Your Engine - Engine Oil Recommendations .................................................................................... 19

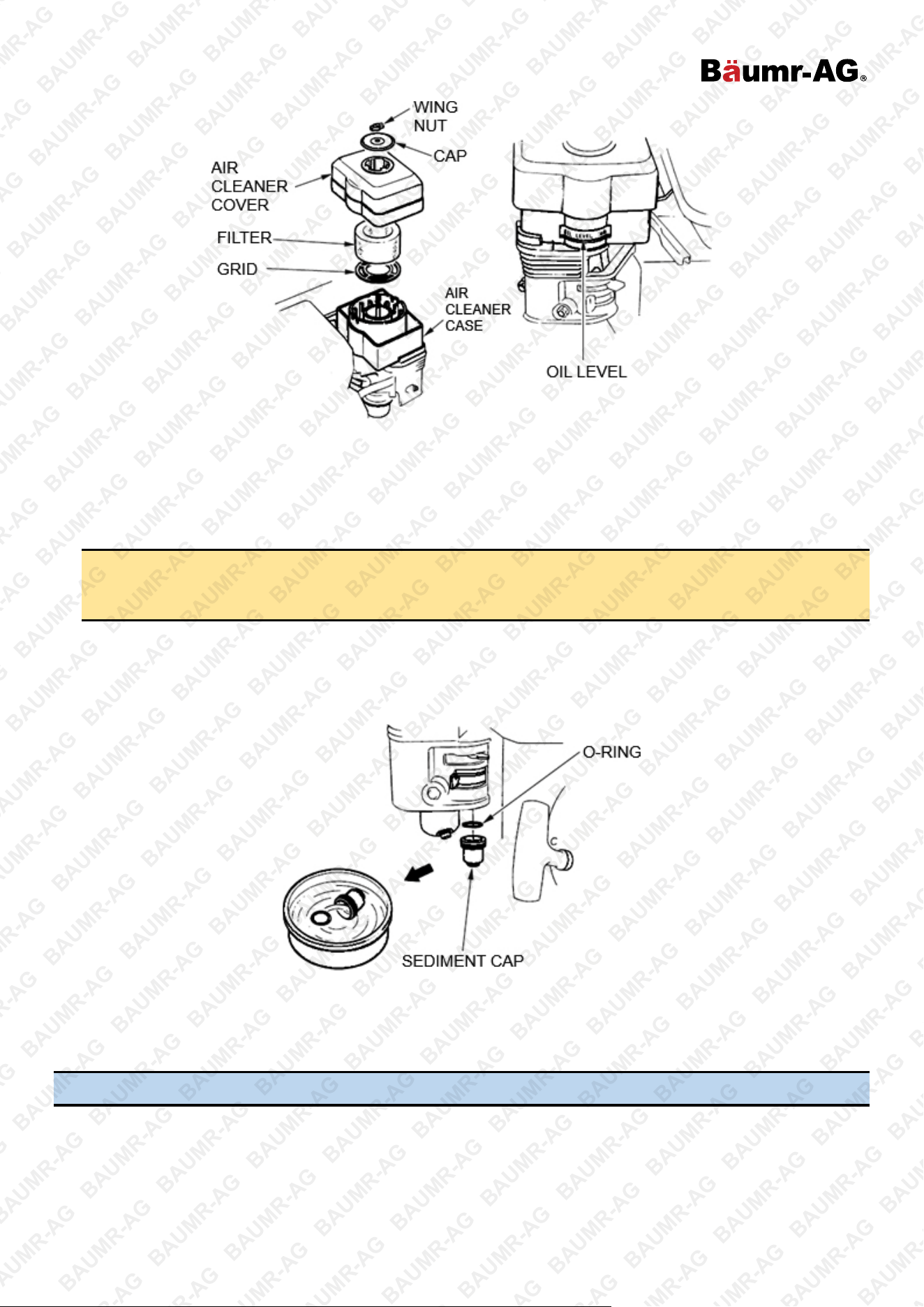

Air Filter Inspection ............................................................................................................................................ 19

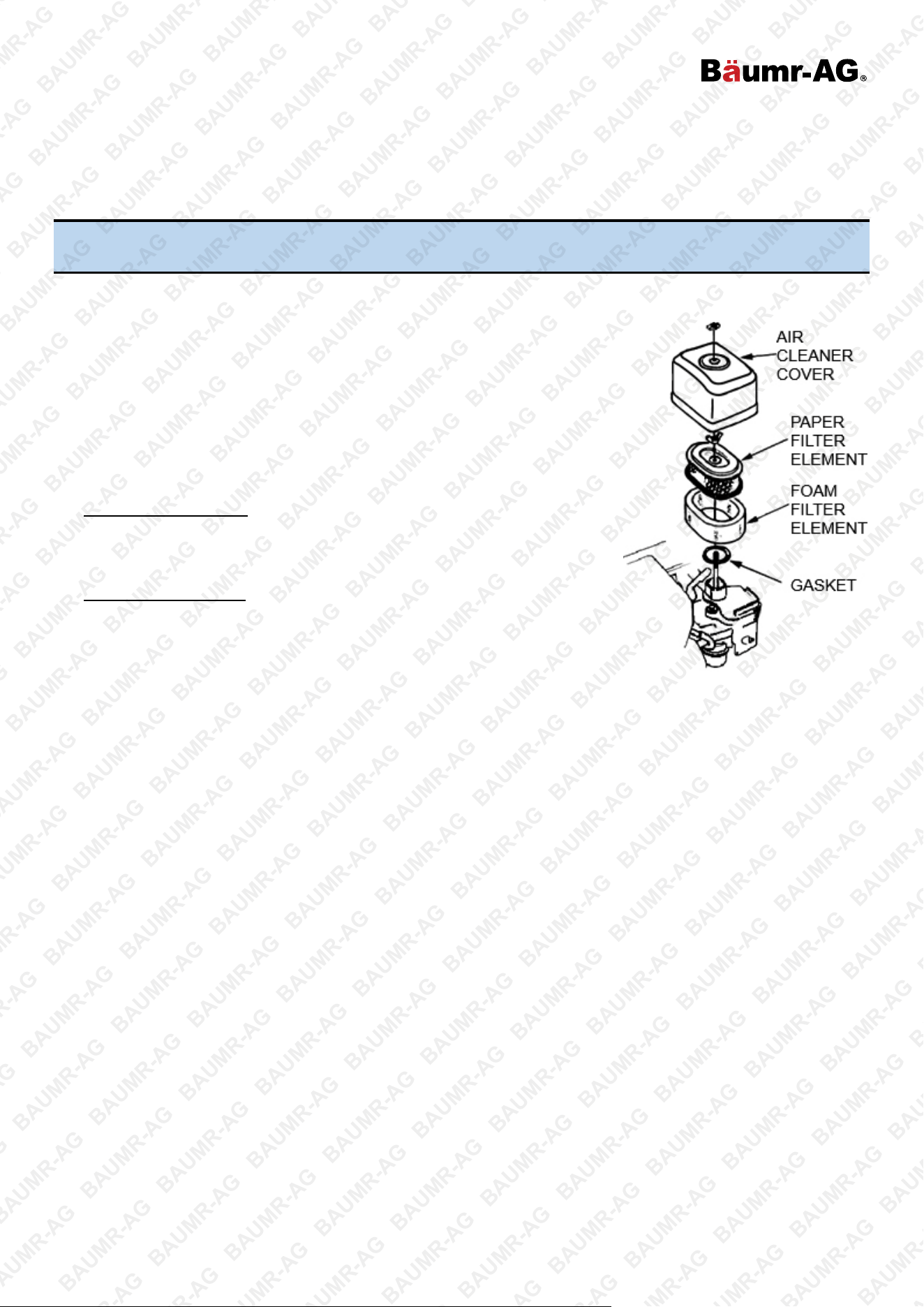

Air Cleaner Service ............................................................................................................................................ 20

Sediment Cup Cleaning ..................................................................................................................................... 21

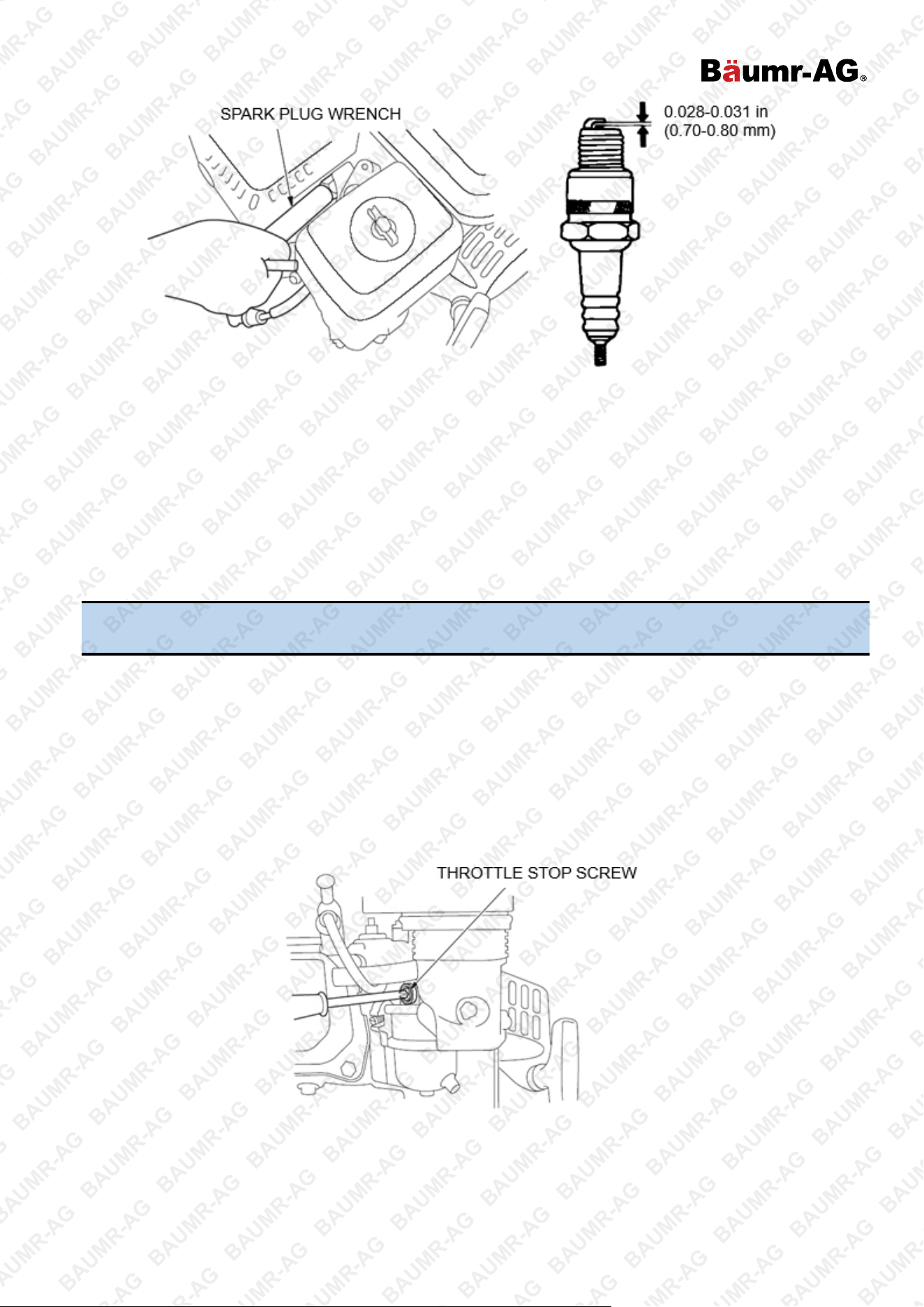

Spark Plug Service ............................................................................................................................................. 21

Idle Speed Adjustment ....................................................................................................................................... 22

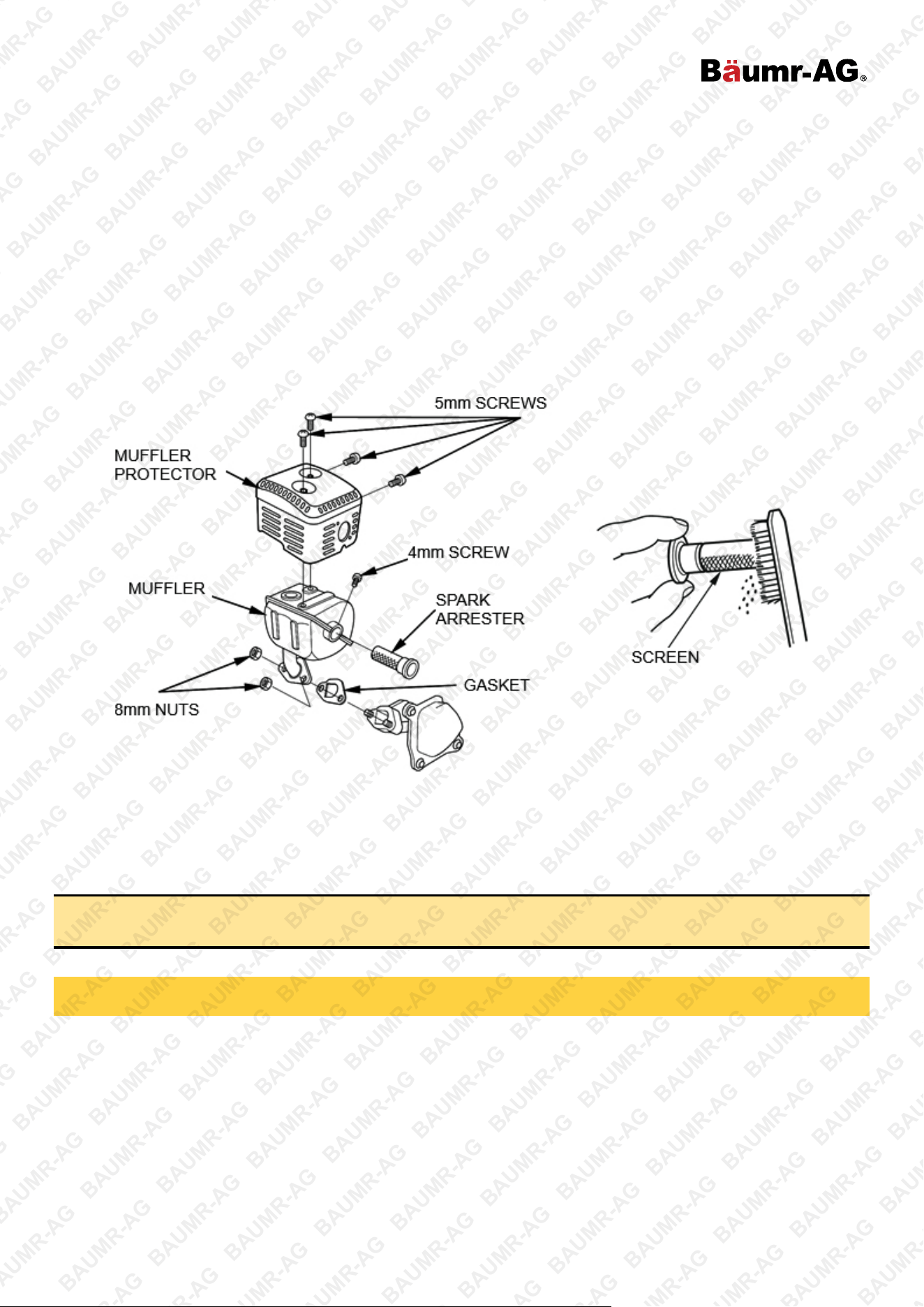

Spark Arrester Service (optional equipment) ..................................................................................................... 23

Service ......................................................................................................................................................... 23

Cleaning and Storage ................................................................................................................................. 24

Troubleshooting ......................................................................................................................................... 24

Specifications ............................................................................................................................................. 25

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

E&OE © Baumr-AG 9

Parts Identification

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

E&OE © Baumr-AG 10

Checks Before Operation

Is your engine ready to go?

For your safety, and to maximize the service life of your equipment, it is very important to take a few moments

before you operate the engine to check its condition. Be sure to take care of any problem you find, or have your

servicing dealer correct it before you operate the engine.

WARNING! Improperly maintaining this engine, or failing to correct a problem before operation, could

cause a malfunction in which you could be seriously injured. Always perform a pre-operation inspection

before each operation and correct any problem.

Before beginning your pre-operation checks, be sure the engine is level, and the engine switch is in the OFF

position.

Check the General Condition of the Engine

•

Look around and underneath the engine for signs of oil or gasoline leaks.

•

Remove any excessive dirt or debris, especially around the muffler and recoil starter.

•

Look for signs of damage.

•

Check that all shields and covers are in place, and all nuts, bolts, and screws are tightened.

Check the Engine

•

Check the engine oil level. Running the engine with a low oil level can cause engine damage.

•

The Oil Alert system (applicable engine types) will automatically stop the engine before the oil level falls

below safe limits. However, to avoid the inconvenience of an unexpected shutdown, always check the

engine oil level before startup.

•

Check the air filter. A dirty air filter will restrict air flow to the carburettor, reducing engine performance.

•

Check the fuel level. Starting with a full tank will help to eliminate or reduce operating interruptions for

refuelling.

Check the Equipment Powered by This Engine

•

Review the instructions provided with the equipment powered by this engine for any precautions and

procedures that should be followed before engine startup.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

E&OE © Baumr-AG 11

Operation

WARNING! To reduce the risk of injury, all operators and maintenance personnel must read and

understand these instructions before operating, changing accessories, or performing maintenance on

equipment. All possible situations cannot be covered in these instructions. Care must be exercised by

everyone using, maintaining or work near this equipment.

Safe Operating Precautions

Before operating the engine for the first time, please review Safety and the chapter titled Checks Before

Operation.

WARNING! Carbon monoxide gas is toxic. Breathing it can cause unconsciousness and even kill you.

Avoid any areas or actions that expose you to carbon monoxide.

Starting the Engine

1. Move the fuel valve lever to the ON position.

2. To start a cold engine, move the choke lever to the CLOSE position. To restart a warm engine, leave the

choke lever in the OPEN position. Some engine applications use a remotely mounted choke control rather

than the engine-mounted choke lever shown here.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

E&OE © Baumr-AG 12

3. Move the throttle lever away from the SLOW position, about 1/3 of the way toward the FAST position. Some

engine applications use a remotely mounted throttle control rather than the engine-mounted throttle lever

shown here.

4. Turn the engine switch to the ON position.

5. Operate the starter. Pull the starter grip lightly until you feel resistance, then pull briskly. Return the starter

grip gently.

6. If the choke lever has been moved to the CLOSE position to start the engine, gradually move it to the OPEN

position as the engine warms up.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

E&OE © Baumr-AG 13

Stopping the Engine

To stop the engine in an emergency, simply turn the engine switch to the OFF position. Under normal conditions,

use the following procedure.

1. Move the throttle lever to the SLOW position. Some engine applications use a remotely mounted throttle

control rather than the engine-mounted throttle lever shown here.

2. Turn the engine switch to the OFF position.

3. Turn the fuel valve lever to the OFF position.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

E&OE © Baumr-AG 14

Setting Engine Speed

•

Position the throttle lever for the desired engine speed.

•

Some engine applications use a remotely mounted throttle control rather than the engine-mounted throttle

lever shown here.

•

For engine speed recommendations, refer to the instructions provided with the equipment powered by this

engine.

Concrete Vibrator Operation

1. Before installing the flex shaft onto the petrol drive unit, turn on the ON/OFF switch mounted on the motor

below the fuel tank and start the motor.

2. Increase the speed to full throttle using the throttle lever mounted below the air cleaner and allow the engine

to warm up for a few minutes.

3. Stop the engine using the ON/OFF switch and ensure it comes to a complete stop. The coupling can now be

inserted.

4. Turn the housing locating pin 180 degrees to open the housing.

5. Push the coupling into the housing and twist the flexible shaft until the drive dogs are fully engaged and the

locating pin returns to the horizontal position.

6. The motor may now be started, and operation begin.

Note: Drive unit should be operated on a level surface. If the surface is not level the drive unit should

be restrained to ensure that it does not move due to vibration or the weight of a pump and hose or

vibrator.

7. When the operation is finished, stop the motor using the ON/OFF switch.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

E&OE © Baumr-AG 15

Maintenance

ATTENTION: Surface corrosion will occur on metal surfaces over time and the rate of oxidation

depends on factors such as proximity to the ocean and humidity or condensation of water

vapour on metal surfaces. To mitigate this, WD40 can be used to remove surface corrosion then, when

applied periodically, it will prevent rust from forming.

Concrete Vibrator Maintenance

•

Check the drive condition of drive dog regularly and that the 3-Tooth drive dogs are fully meshed.

•

Worn coupling housings and poorly operating locating pins with worn grooves in the shaft coupling will lead

to a shorter operating life and should be replaced before they have worn excessively.

•

Check the oil level in the petrol motor crankcase regularly.

Engine Maintenance

The Importance of Maintenance

Good maintenance is essential for safe, economical, and trouble-free operation. It will also help reduce air

pollution.

WARNING! Improperly maintaining this engine, or failure to correct a problem before operation, can

cause a malfunction in which you can be seriously hurt or killed. Always follow the inspection and

maintenance recommendations and schedules in this manual.

To help you properly care for your engine, the following pages include a maintenance schedule, routine

inspection procedures, and simple maintenance procedures using basic hand tools. Other service tasks that are

more difficult, or require special tools, are best handled by professionals, and are normally performed by a

technician or other qualified mechanic.

The maintenance schedule applies to normal operating conditions. If you operate your engine under unusual

conditions, such as sustained high-load or high-temperature operation, or use in unusually wet or dusty

conditions, consult your servicing dealer for recommendations applicable to your individual needs and use.

Maintenance Schedule

REGULAR SERVICE PERIOD

Performed at every indicated month or

operating hour interval, whichever

comes first.

Each

use

First

month or

20 Hrs.

Every 3

months or

50 Hrs.

Every 6

months or

100 Hrs.

Every

year or

300

Hrs.

ITEM

● Engine oil

Check level ○

Change ○ ○

● Air cleaner

Check ○

Clean ○ (1)

Replace

○

☆

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

E&OE © Baumr-AG 16

•

Emission-related items.

•

☆ Replace the paper element type only.

•

(1) Service more frequently when used in dusty areas.

•

(2) These items should be serviced by your servicing dealer unless you have the proper tools and are

mechanically proficient. Refer to manual for service procedures.

Refuelling

With the engine stopped, remove the fuel tank cap, and check the fuel level. Refill the tank if the fuel level is low.

WARNING! Gasoline is highly flammable and explosive. You can be burned or seriously injured when

handling fuel. Stop the engine and keep heat, sparks, and flame away. Handle fuel only outdoors. Wipe

up spills immediately.

Refuel in a well-ventilated area before starting the engine. If the engine has been running, allow it to cool. Refuel

carefully to avoid spilling fuel. Do not fill above the fuel strainer shoulder. After refuelling, tighten the fuel tank

cap securely.

Never refuel the engine inside a building where gasoline fumes may reach flames or sparks. Keep gasoline

away from appliance pilot lights, barbecues, electric appliances, power tools, etc.

REGULAR SERVICE PERIOD

Performed at every indicated month or

operating hour interval, whichever

comes first.

Each

use

First

month or

20 Hrs.

Every 3

months or

50 Hrs.

Every 6

months or

100 Hrs.

Every

year or

300

Hrs.

ITEM

● Sediment Cup Clean ○

● Spark plug

Check-Clean ○

Replace ○

Spark arrester (optional

parts)

Clean ○

● Idle speed Check-Adjust ○ (2)

● Valve clearance Check-Adjust ○ (2)

● Fuel tank and strainer Clean ○ (2)

● Combustion chamber Clean After every 300 Hrs. (2)

● Fuel line Check Every 2 years (Replace if necessary) (2)

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

E&OE © Baumr-AG 17

Spilled fuel is not only a fire hazard, but it also causes environmental damage. Wipe up spills immediately.

Fuel can damage paint and plastic. Be careful not to spill fuel when filling your fuel tank. Damage

caused by spilled fuel is not covered under warranty.

Fuel Recommendations

•

Use unleaded gasoline with a pump octane rating of 86 or higher.

•

These engines are certified to operate on unleaded gasoline. Unleaded gasoline produces fewer engine and

spark plug deposits and extends exhaust system life.

•

Never use stale or contaminated gasoline or an oil/gasoline mixture. Avoid getting dirt or water in the fuel

tank.

•

Occasionally you may hear a light ‘‘spark knock’’ or ‘‘pinging’’ (metallic rapping noise) while operating under

heavy loads. This is no cause for concern.

•

If spark knock or pinging occurs at a steady engine speed, under normal load, change brands of gasoline. If

spark knock or pinging persists, see an authorized servicing dealer.

•

Running the engine with persistent spark knock or pinging can cause engine damage.

•

Running the engine with persistent spark knock or pinging is considered misuse, and the Distributor’s

Limited Warranty does not cover parts damaged by misuse.

Engine Oil Level Check

Check the engine oil level with the engine stopped and in a level position.

1. Remove the filler cap/dipstick and wipe it clean.

2. Insert and remove the dipstick without screwing it into the filler neck. Check the oil level shown on the

dipstick.

3. If the oil level is low, fill to the edge of the oil filler hole with the recommended oil.

4. Screw in the filler cap/dipstick securely.

NOTE: Running the engine with a low oil level can cause engine damage.

The Oil Alert system (applicable engine types) will automatically stop the engine before the oil level falls below

safe limit. However, to avoid the inconvenience of an unexpected shutdown, always check the engine oil level

before startup.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

Engine Oil Change

Drain the used oil while the engine is warm. Warm oil drains quickly and completely.

1. Place a suitable container below the engine to catch the used oil, and then remove the filler cap/dipstick and

the drain plug.

2. Allow the used oil to drain completely, and then reinstall the drain plug, and tighten it securely.

Please dispose of used motor oil in a manner that is compatible with the environment. We suggest you take

used oil in a sealed container to your local recycling centre or service station for reclamation. Do not throw it

in the trash; pour it on the ground; or down a drain.

3. With the engine in a level position, fill to the outer edge of the oil filler hole with the recommended oil.

Running the engine with a low oil level can cause engine damage. The Oil Alert system (applicable

engine types) will automatically stop the engine before the oil level falls below the safe limit.

However, to avoid the inconvenience of an unexpected shutdown, fill to the upper limit, and check

the oil level regularly.

4. Screw in the filler cap/dipstick securely.

Reduction Gear Oil (Only on equipped models)

<1/2 reduction with automatic centrifugal clutch>

1. Remove the oil filler cap and wipe the dipstick clean.

2. Insert the dipstick into the filler neck but do not screw it in.

3. If the level is low, fill to the upper-level mark with the same oil recommended for the engine.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

Servicing Your Engine - Engine Oil Recommendations

Oil is a major factor affecting performance and service life. Use 4-stroke automotive detergent oil.

SAE 10W-30 is recommended for general use. Other viscosities shown in the chart may be used when the

average temperature in your area is within the recommended range.

The SAE oil viscosity and service classification are in the API label on the oil container. We recommend that you

use API SERVICE Category SE or SF oil.

Air Filter Inspection

Remove the air cleaner cover and inspect the filter. Clean or replace dirty filter elements. Always replace

damaged filter elements. If equipped with an oil-bath air cleaner, also check the oil level.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

Air Cleaner Service

•

A dirty air filter will restrict air flow to the carburettor, reducing engine performance.

•

If you operate the engine in very dusty areas, clean the air filter more often than specified in the

MAINTENANCE SCHEDULE.

Operating the engine without an air filter, or with a damaged air filter, will allow dirt to enter the engine,

causing rapid engine wear. This type of damage is not covered by the Distributor’s Limited Warranty.

Dual-Filter-Element Types:

1. Remove the wing nut from the air cleaner cover and remove the air

cleaner cover.

2. Remove the wing nut from the air filter and remove the filter.

3. Remove the foam filter from the paper filter.

4. Inspect both air filter elements and replace them if they are damaged.

Always replace the paper air filter element at the scheduled interval.

5. Clean the air filter elements if they are to be reused.

Paper air filter element: Tap the filter element several times on a hard

surface to remove dirt or blow compressed air [not exceeding 30 psi

(207 kPa)] through the filter element from the inside. Never try to brush

off dirt; brushing will force dirt into the fibres.

Foam air filter element: Cl

ean in warm soapy water, rinse, and allow

drying thoroughly. Or clean in non-flammable solvent and allow drying.

Dip the filter element in clean engine oil, and then squeeze out all

excess oil. The engine will smoke when started if too much oil is left in

the foam.

6. W

ipe dirt from the inside of the air cleaner base and cover, using a moist rag. Be careful to prevent dirt from

entering the air duct that leads to the carburettor.

7. Place the foam air filter element over the paper element and reinstall the assembled air filter. Be sure the

gasket is in place beneath the air filter. Tighten the air filter wing nut securely.

8. Install the air cleaner cover and tighten the cover wing nut securely.

Oil-Bath Type:

1. Remove the wing nut and remove the air cleaner cap and cover.

2. Remove the air filter from the cover, Wash the cover and filter in warm, soapy water, rinse, and allow drying

thoroughly. Or clean in non-flammable solvent and allow drying.

3. Dip the filter in clean engine oil, and then squeeze out all excess oil. The engine will smoke if too much oil is

left in the foam.

4. Empty the used oil from the air cleaner case, wash out any accumulated dirt with non-flammable solvent,

and dry the case.

5. Fill the air cleaner case to the OIL LEVEL mark with the same oil that is recommended for the engine. Oil

capacity: 2.0 US oz (60 cm

3

).

6. Reassemble the air cleaner and tighten the wing nut securely.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

Sediment Cup Cleaning

1. Move the fuel valve to the OFF position, and then remove the fuel sediment cup and O-ring.

WARNING! Gasoline is highly flammable and explosive. You can be burned or seriously injured when

handling fuel. Keep heat, sparks and flame away. Handle fuel only outdoors. Wipe up spills

immediately.

2. Wash the sediment cup and O-ring in non-flammable solvent and dry them thoroughly.

3. Place the O-ring in the fuel valve and install the sediment cup. Tighten the sediment cup securely.

4. Move the fuel valve to the ON position, and check for leaks. Replace the O-ring if there is any leakage.

Spark Plug Service

Recommended spark plugs: F7RTC or other equivalents.

An incorrect spark plug can cause engine damage.

1. Disconnect the spark plug cap and remove any dirt from around the spark plug area.

2. Remove the spark plug with a spark plug wrench.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

3. Inspect the spark plug. Replace it if the electrodes are worn, or if the insulator is cracked or chipped.

4. Measure the spark plug electrode gap with a suitable gauge.

The gap should be 0.028 in -0.031 in (0.70 mm - 0.80 mm). Correct the gap, if necessary, by carefully

bending the side electrode.

5. Install the spark plug carefully, by hand, to avoid cross-threading.

6. After the spark plug seats, tighten with a spark plug wrench to compress the water.

If reinstalling the used spark plug, tighten 1/8 - 1/4 turn after the spark plug seats.

If installing a new spark plug, tighten 1/2 turn after the spark plug seats.

A loose spark plug can overheat and damage the engine. Over tightening the spark plug can damage

the threads in the cylinder head.

7. Attach the spark plug cap.

Idle Speed Adjustment

1. Start the engine outdoors and allow it to warm up to operating temperature.

2. Move the throttle lever to its slowest position.

3. Turn the throttle stop screw to obtain the standard idle speed.

Standard idle speed: 1800±150 rpm

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

Spark Arrester Service (optional equipment)

Your engine is not factory-equipped with a spark arrester. In some areas, it is illegal to operate an engine without

a spark arrester. Check local laws and regulations. A spark arrester is available from authorized servicing

dealers.

The spark arrester must be serviced every 100 hours to keep it functioning as designed.

If the engine has been running, the muffler will be very hot. Allow the muffler to cool before servicing the spark

arrester.

1. Remove the three 4 mm screws from the exhaust deflector and remove the deflector.

2. Remove the four 5 mm screws from the muffler protector and remove the muffler protector.

3. Remove the 4 mm screw from the spark arrester and remove the spark arrester from the muffler.

4. Use a brush to remove carbon deposits from the spark arrester screen. Be careful to avoid damaging the

screen.

The spark arrester must be free of breaks and holes. Replace the spark arrester if it is damaged.

5. Install the spark arrester, muffler protector, and exhaust deflector in the reverse order of disassembly.

WARNING! Never use an engine without an appropriate spark arrester in the forest areas! Doing so may

cause a fire!

Service

•

Change the oil in the petrol motor crankcase regularly to minimise wear.

•

Inspect, clean and/or replace the motor air cleaner regularly, particularly when operating in a dusty

environment.

•

Inspect, clean and/or replace the spark plug regularly.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

Cleaning and Storage

•

Keep the unit clean and free of concrete residue.

•

Ensure the cooling fins on the motor are kept unobstructed.

Troubleshooting

Engine will not start:

Possible Cause Correction

Electric starting: check

battery

Battery discharged. Recharge battery.

Check control positions

Fuel valve OFF. Move lever to ON.

Choke OPEN.

Move lever to CLOSE unless engine is

warm.

Engine switch OFF. Turn engine switch to ON.

Check fuel.

Out of fuel. Refuel

Bad fuel. Engine stored without treating or

draining gasoline or refuelled with bad

gasoline.

Drain fuel tank and carburettor. Refuel

with fresh gasoline.

Remove and inspect

spark plugs.

Spark plugs faulty, fouled, or improperly

gapped.

Gap, or replace spark plugs.

Spark plugs wet with fuel (flooded engine).

Dry and reinstall spark plugs. Start

engine with throttle lever in FAST

position.

Take engine to an

authorised servicing

dealer.

Fuel filter clogged, carburettor malfunction,

ignition malfunction, valve stuck, etc.

Replace or repair faulty components as

necessary.

Engine lacks power:

Possible Cause Correction

Check air filter Filter element(s) clogged. Clean or replace filter element(s).

Check fuel.

Out of fuel. Refuel

Bad fuel. Engine stored without treating or draining

gasoline or refuelled with bad gasoline.

Drain fuel tank and carburettor.

Refuel with fresh gasoline.

Take engine to an

authorized servicing dealer.

Fuel filter clogged, carburettor malfunction, ignition

malfunction, valve stuck, etc.

Replace or repair faulty

components as necessary.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BVB-300 Concrete Vibrator Drive Unit

Specifications

Engine 4-Stroke Petrol

Power 6.5hp

Displacement 196cc

Start Recoil

Outlet coupling 50mm (2") 3-Claw Dog

Fuel Type Unleaded Petrol

Fuel Tank Volume 3.6L

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging,

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,

wear, or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear, or leaks.



Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business,

or employee, or financially affect the user, business, or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement, or service by a

technician may cause financial loss, loss of employee

time or an inconvenience requiring compensation.



If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.
