FOLDING WHEEL STEP
MODEL NO: STS01
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
I
MPORTANT:
PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
Ensure the folding step is in good order and condition.
Apply vehicle handbrake and chock wheels before attaching or using the wheel step (put automatics in ‘Park’).
Ensure that the vehicle is stable before using the wheel step.
Ensure that the wheel step is mounted level on the wheel/tyre.
DO NOT use if damaged.
DO NOT heavily load the vehicle causing the suspension to depress whilst the wheel step is in place.
WARNING! The warnings, cautions and instructions discussed in this manual cannot cover all possible conditions and situations that
may occur. It must be understood that common sense and caution are factors which cannot be built into this product, but must be
applied by the operator.
2. INTRODUCTION
Heavy-duty wheel step gives safe and easy-access to engine or top of vehicle, ideal for 4x4s. Heavy gauge all steel construction folds for
easy storage. Suitable for wheel diameters between 14” and 20” and will fit tyres up to 10” deep. Rubber topped platform for added grip
and safety. Platform is height-adjustable (three mounting points 90mm apart).
3. SPECIFICATION
Model No: ............................................................ STS01
Maximum Capacity: ............................................... 225kg
Platform Size:.............................................210 x 560mm
Wheel Diameter: ................................................. 14”-20”
4. OPERATION
WARNING! To prevent personal accident and/or damage to the vehicle, it is imperative that the vehicle does not move during the fi tting
or use of the wheel step. Chock the wheels and ensure that the vehicle handbrake is on. Put automatics in ‘park’.

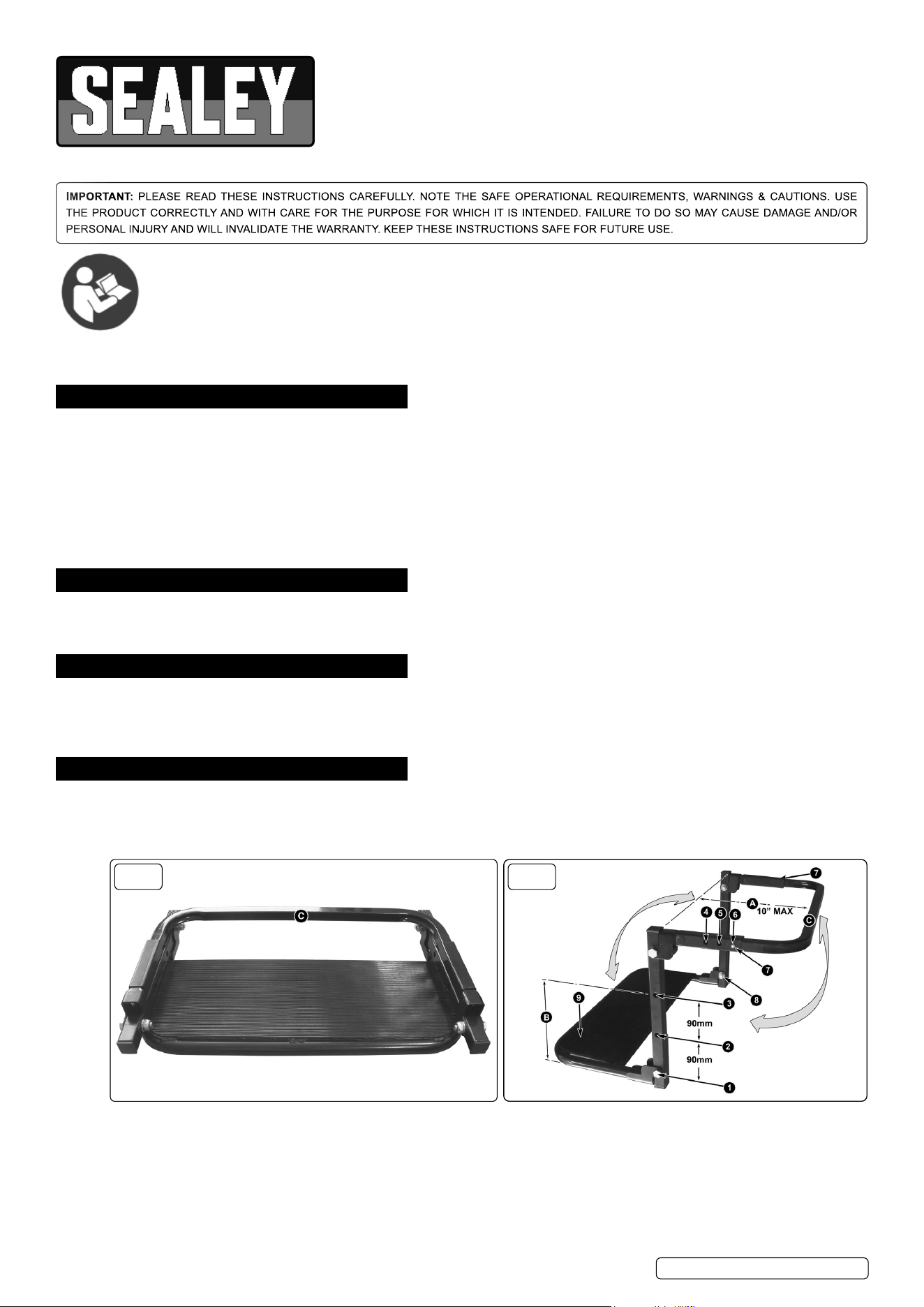

4.1. Unfold the step frame. Take the step in its fl at condition as shown in fi g.1 and pull the adjustable wheel bar (C) into position.
4.1.1. Using bar (C), lift the whole frame away from the step into the fully open confi guration shown in fi g.2.
4.2. Adjust bar (C) to suit tyre depth (A): Bar (C) can be set to one of three positions as indicated at 4, 5 & 6 in fi g.2. These holes occur on
both sides of the frame. To move the bar to the next set of holes, depress the sprung chrome buttons (7) on either side into the frame
and slide the frame in or out until the buttons ‘pop out’ into the next set of holes.
4.3. Adjust height of step (B): There are three positions for the step as indicated at 1, 2, & 3 in fi g.2. Loosen and remove nut (8) on both
sides of the step. Withdraw the two bolts and reassemble the step at the height required ensuring that the nuts are not so tight as to
prevent the hinges operating when it is required to fold the frame fl at. The step height can be changed either before or after hanging the
frame onto a vehicle wheel/tyre.
4.4. Hang frame on tyre: Ensure that the handbrake is on and the wheels are chocked before positioning the wheel step.
Refer to
instruction
manual
FIG.1 FIG.2
STS01 Issue 2 (H,F) 14/08/23
Original Language Version
© Jack Sealey Limited
STS01 Issue 2 (H,F) 14/08/23
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifi cations and component parts without
prior notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
4.4.1. Check that there is suffi cient clearance between the wheel arch and the tyre and then insert bar (C) into the space above the tyre and
drop it down over the top of the tyre ensuring that it is securely hooked over the back. If not, adjust the position of bar (C). Ensure that
the step is level and the vertical parts of the frame are resting securely onto the face of the wheel/tyre.
4.4.2. Adjust the height of the step if necessary.
4.4.3. When using the step be aware of your surroundings. Do not become so engrossed in what you are doing that you forget you are
standing on a step.
4.5. Removing the step: Remove the step immediately after use and certainly before the vehicle is next used.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When
the product becomes completely unserviceable and requires disposal, drain any fl uids (if applicable) into approved
containers and dispose of the product and fl uids according to local regulations.
