Thermal TandemVu Camera
User Manual
Legal Information
© Hangzhou Microimage Software Co., Ltd. All rights reserved.
About this Manual
The Manual includes instructions for using and managing the Product. Pictures, charts,
images and all other information hereinafter are for description and explanation only. The
information contained in the Manual is subject to change, without notice, due to rmware
updates or other reasons. Please nd the latest version of this Manual at the HIKMICRO
website (
http://www.hikmicrotech.com
).
Please use this Manual with the guidance and assistance of professionals trained in
supporting the Product.
Trademarks
and other HIKMICRO's trademarks and logos are the properties
of HIKMICRO in various jurisdictions.
Other trademarks and logos mentioned are the properties of their respective owners.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE
PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE
PROVIDED "AS IS" AND "WITH ALL FAULTS AND ERRORS". HIKMICRO MAKES NO
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE.
THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKMICRO
BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT
DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF
DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING
NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF
THE PRODUCT, EVEN IF HIKMICRO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT
SECURITY RISKS, AND HIKMICRO SHALL NOT TAKE ANY RESPONSIBILITIES FOR
ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM
CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY
RISKS; HOWEVER, HIKMICRO WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND
YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE
APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A
MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING
Thermal TandemVu Camera User Manual
i
WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR
DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT
FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF
WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL
OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY
NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN
RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW,
THE LATTER PREVAILS.
Thermal TandemVu Camera User Manual
ii
Symbol Conventions
The symbols that may be found in this document are
dened as follows.
Symbol Description
Danger
Indicates a hazardous situation which, if not avoided, will or
could result in death or serious injury.
Caution
Indicates a potentially hazardous situation which, if not avoided,
could result in equipment damage, data loss, performance
degradation, or unexpected results.
Note
Provides additional information to emphasize or supplement
important points of the main text.
Thermal TandemVu Camera User Manual
iii
Safety Instruction
These instructions are intended to ensure that user can use the product correctly to avoid
danger or property loss.
Laws and Regulations
●
In the use of the product, you must be in strict compliance with the electrical safety
regulations of the nation and region.
Transportation
●
Keep the device in original or similar packaging while transporting it.
●
Keep all wrappers after unpacking them for future use. In case of any failure occurred,
you need to return the device to the factory with the original wrapper. Transportation
without the original wrapper may result in damage on the device and the company shall
not take any responsibilities.
●
DO NOT drop the product or subject it to physical shock. Keep the device away from
magnetic interference.
Power Supply
●
Check the input voltage before powering on the device to avoid damage.
●
CAUTION: If the fuse of the device can be replaced, replace it only with the same model
to reduce the risk of
re or electric shock.
●
If a fuse is connected to the neutral wire and a double pole/neutral fusing occurs, parts
of the device that remain energized might represent a hazard during servicing after
operation of the fuse.
●
If the device uses a 3-prong power supply plug, it must be connected to an earthed
mains socket-outlet properly.
●
Do not touch the bare components (such as the metal contacts of the inlets) and wait
for at least 5 minutes, since electricity may still exist after the device is powered off.
●
For the permanently connected device without a disconnect equipment, a readily
accessible disconnect equipment shall be incorporated into the electrical installation of
the connected building.
●
For the permanently connected device without an overcurrent protection equipment, an
overcurrent protection equipment shall be incorporated into the electrical installation of
the connected building. The
specications of the overcurrent protection equipment shall
not exceed that of the building.
●
For the permanently connected device without an all-pole mains switch, an all-pole
mains switch shall be incorporated into the electrical installation of the connected
building.
●
If the device is powered by terminals connected to the power cord, ensure correct
voltage and wiring of the terminals for connection to mains supply.
Thermal TandemVu Camera User Manual
iv
●
Please purchase the charger by yourself. Input voltage should meet the Limited Power
Source (24 VDC, or 24 VAC) according to the IEC62368 standard. Please refer to
technical
specications for detailed information.
●
Make sure the plug is properly connected to the power socket.
●
The socket-outlet shall be installed near the equipment and shall be easily accessible.
●
DO NOT connect multiple devices to one power adapter, to avoid over-heating or
re
hazards caused by overload.
●
DO NOT touch the bare metal contacts of the inlets after the circuit breaker is turned off.
Electricity still exists.
●
+ identies the positive terminal(s) of equipment which is used with, or generates direct
current. - identies the negative terminal(s) of equipment which is used with, or
generates direct current.
Battery
●
Risk of explosion if the battery is replaced by an incorrect type. Dispose of used
batteries according to the instructions.
●
The built-in battery cannot be dismantled. Please contact the manufacture for repair if
necessary.
●
For long-term storage of the battery, make sure it is fully charged every half year to
ensure the battery quality. Otherwise, damage may occur.
●
This equipment is not suitable for use in locations where children are likely to be
present.
●
Improper replacement of the battery with an incorrect type may defeat a safeguard (for
example, in the case of some lithium battery types).
●
DO NOT dispose of the battery into
re or a hot oven, or mechanically crush or cut the
battery, which may result in an explosion.
●
DO NOT leave the battery in an extremely high temperature surrounding environment,
which may result in an explosion or the leakage of
ammable liquid or gas.
●
DO NOT subject the battery to extremely low air pressure, which may result in an
explosion or the leakage of
ammable liquid or gas.
Installation
●
This device is suitable for use above 2 m only.
●
Install the device according to the instructions in Quick Start Guide. To prevent injury,
this device must be securely attached to the installation surface in accordance with the
installation instructions.
●
Never place the device in an unstable location. The device may fall, causing serious
personal injury or death.
●
The additional force shall be equal to three times the weight of the device but not less
than 50 N. The device and its associated mounting means shall remain secure during
the installation. After the installation, the device, including any associated mounting
plate, shall not be damaged.
Thermal TandemVu Camera User Manual
v
●
Never place the equipment in an unstable location. The equipment may fall, causing
serious personal injury or death.
●
This equipment is for use only with corresponding brackets. Use with other (carts,
stands, or carriers) may result in instability causing injury.
●
The interface varies with the models. Please refer to the product datasheet for details.
●
If the device needs to be wired by yourself, select the corresponding wire to supply
power according to the electric parameters labeled on the device. Strip off wire with a
standard wire stripper at corresponding position. To avoid serious consequences, the
length of stripped wire shall be appropriate, and conductors shall not be exposed.
●
Make sure that the power has been disconnected before you wire, install, or disassemble
the device.
System Security
●
You acknowledge that the nature of Internet provides for inherent security risks, and our
company shall not take any responsibilities for abnormal operation, privacy leakage or
other damages resulting from cyber attack, hacker attack, however, our company will
provide timely technical support if required.
●
Please enforce the protection for the personal information and the data security as the
device may be confronted with the network security problems when it is connected to
the Internet. Please contact us when the device might exist network security risks.
●
Please understand that you have the responsibility to
congure all the passwords and
other security settings about the device, and keep your user name and password.
Maintenance
●
If the product does not work properly, please contact your dealer or the nearest service
center. We shall not assume any responsibility for problems caused by unauthorized
repair or maintenance.
●
Wipe the device gently with a clean cloth and a small quantity of ethanol, if necessary.
●
If the equipment is used in a manner not
specied by the manufacturer, the protection
provided by the device may be impaired.
●
To reduce the risk of re, replace only with the same type and rating of fuse.
●
The serial port of the equipment is used for debugging only.
Using Environment
●
Make sure the running environment meets the requirement of the device. The operating
temperature shall be -40°C to 60°C (-40°F to 140°F), and the operating humidity shall be
95% or less, no condensing.
●
DO NOT expose the device to high electromagnetic radiation or dusty environments.
●
DO NOT aim the lens at the sun or any other bright light.
●
The equipment shall not be exposed to dripping or splashing and that no objects
lled
with liquids, such as vases, shall be placed on the equipment.
●
No naked ame sources, such as lighted candles, should be placed on the equipment.
Thermal TandemVu Camera User Manual
vi
●
For the device with ventilation openings, the ventilation openings should not be impeded
by covering the ventilation openings with items, such as newspapers, table-cloths, and
curtains. The openings shall never be blocked by placing the device on a bed, sofa, rug,
or other similar surface.
●
Keep a proper distance around the device for
sufcient ventilation.
●
This device is suitable for mounting on concrete or other non-combustible surface only
to avoid
re hazard.
●
This equipment is not suitable for use in locations where children are likely to be
present.
●
Provide a surge suppressor at the inlet opening of the equipment under special
conditions such as the mountain top, iron tower, and forest.
●
Burned
ngers when handling the parts with symbol . Wait one-half hour after
switching off before handling the parts.
Emergency
●
If smoke, odor, or noise arises from the device, immediately turn off the power, unplug
the power cable, and contact the service center.
COMPLIANCE NOTICE: The thermal series products might be subject to export controls in
various countries or regions, including without limitation, the United States, European
Union, United Kingdom and/or other member countries of the Wassenaar Arrangement.
Please consult your professional legal or compliance expert or local government
authorities for any necessary export license requirements if you intend to transfer, export,
re-export the thermal series products between different countries.
Thermal TandemVu Camera User Manual
vii
Contents
Chapter 1 Overview ................................................................................................................... 1
1.1 Brief Description ............................................................................................................ 1
Chapter 2 Device Activation and Accessing ............................................................................ 2
2.1 Activate the Device via SADP ........................................................................................ 2
2.2 Activate the Device via Browser ................................................................................... 2
2.3 Login ............................................................................................................................... 3
2.3.1 Plug-in Installation ................................................................................................ 3
2.3.2 Illegal Login Lock .................................................................................................. 4
Chapter 3 Network Settings ...................................................................................................... 5
3.1 TCP/IP ............................................................................................................................ 5
3.1.1 Multicast Discovery .............................................................................................. 6
3.2 Access to Device via Domain Name ............................................................................. 6
3.3 Access to Device via PPPoE Dial Up Connection ........................................................ 7
3.4 Port ................................................................................................................................. 7
3.5 Port Mapping ................................................................................................................. 8
3.5.1 Set Auto Port Mapping ......................................................................................... 9
3.5.2 Set Manual Port Mapping ..................................................................................... 9
3.6 Multicast ......................................................................................................................... 9
3.7 SNMP ............................................................................................................................ 10
3.8 Accessing via Mobile Client ........................................................................................ 10
3.8.1 Enable Hik-Connect Service on Camera ............................................................ 10
3.8.2 Set Up Hik-Connect ............................................................................................. 11
3.8.3 Add Camera to Hik-Connect ............................................................................... 12
3.9 Set ISUP ........................................................................................................................ 12
3.10 Set Alarm Host ........................................................................................................... 13
3.11 Set Open Network Video Interface ........................................................................... 13
Thermal TandemVu Camera User Manual
viii
3.12 Set Network Service .................................................................................................. 13
3.13 Set Alarm Server ........................................................................................................ 14
3.14 Set SRTP .................................................................................................................... 15
Chapter 4 Live View ................................................................................................................. 16
4.1 Live View Parameters .................................................................................................. 16
4.1.1 Window Division .................................................................................................. 16
4.1.2 Live View Stream Type ....................................................................................... 16
4.1.3 Enable and Disable Live View ............................................................................ 16
4.1.4 View Previous/Next Page ................................................................................... 16
4.1.5 Full Screen ........................................................................................................... 17
4.1.6 Conduct Regional Focus .................................................................................... 17
4.1.7 Light ..................................................................................................................... 17
4.1.8 Operate Wiper ..................................................................................................... 17
4.1.9 Lens Initialization ................................................................................................ 18
4.1.10 Auxiliary Focus .................................................................................................. 18
4.1.11 Quick Set Live View .......................................................................................... 18
4.1.12 Lens Parameters Adjustment .......................................................................... 19
4.1.13 Conduct 3D Positioning .................................................................................... 19
4.2 Set Transmission Parameters .................................................................................... 19
Chapter 5 Video and Audio ..................................................................................................... 21
5.1 Video Settings .............................................................................................................. 21
5.1.1 Stream Type ........................................................................................................ 21
5.1.2 Video Type ........................................................................................................... 21
5.1.3 Resolution ........................................................................................................... 22
5.1.4 Bitrate Type and Max. Bitrate ............................................................................. 22
5.1.5 Video Quality ....................................................................................................... 22
5.1.6 Frame Rate .......................................................................................................... 22
5.1.7 Video Encoding ................................................................................................... 22
Thermal TandemVu Camera User Manual
ix
5.1.8 Smoothing ........................................................................................................... 23
5.1.9 Display VCA Info ................................................................................................. 24
5.2 Audio Settings .............................................................................................................. 24
5.2.1 Audio Input .......................................................................................................... 24
5.2.2 Two-way Audio .................................................................................................... 24
5.3 Set ROI .......................................................................................................................... 25
5.4 Metadata ...................................................................................................................... 26
5.5 Display Settings ........................................................................................................... 26
5.5.1 Image Adjustment .............................................................................................. 26
5.5.2 Image Adjustment (Thermal Channel) .............................................................. 26
5.5.3 Exposure Settings ............................................................................................... 27
5.5.4 Day/Night Switch ................................................................................................ 27
5.5.5 Set Supplement Light ......................................................................................... 28
5.5.6 BLC ...................................................................................................................... 28

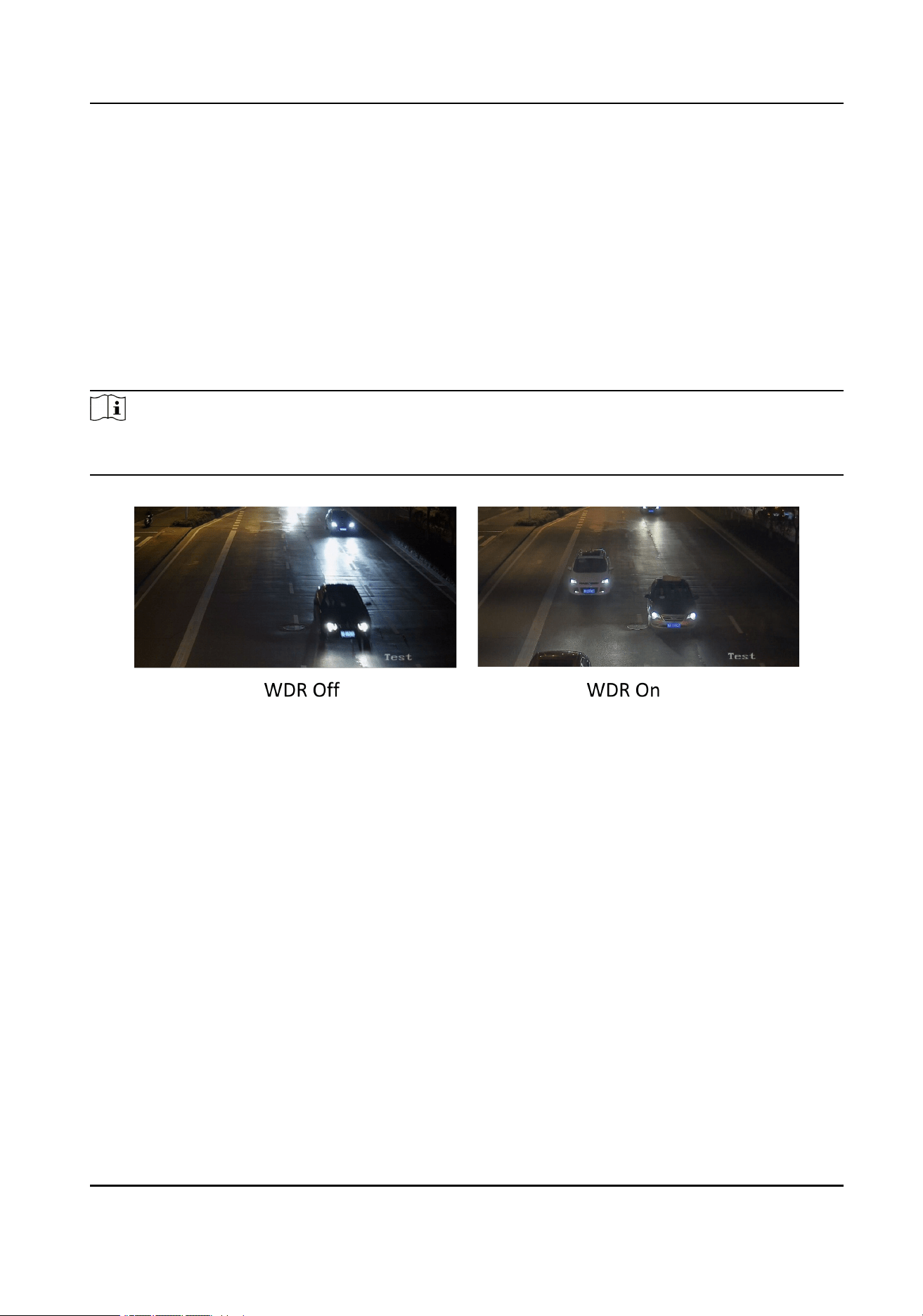

5.5.7 WDR ..................................................................................................................... 29
5.5.8 HLC ...................................................................................................................... 29

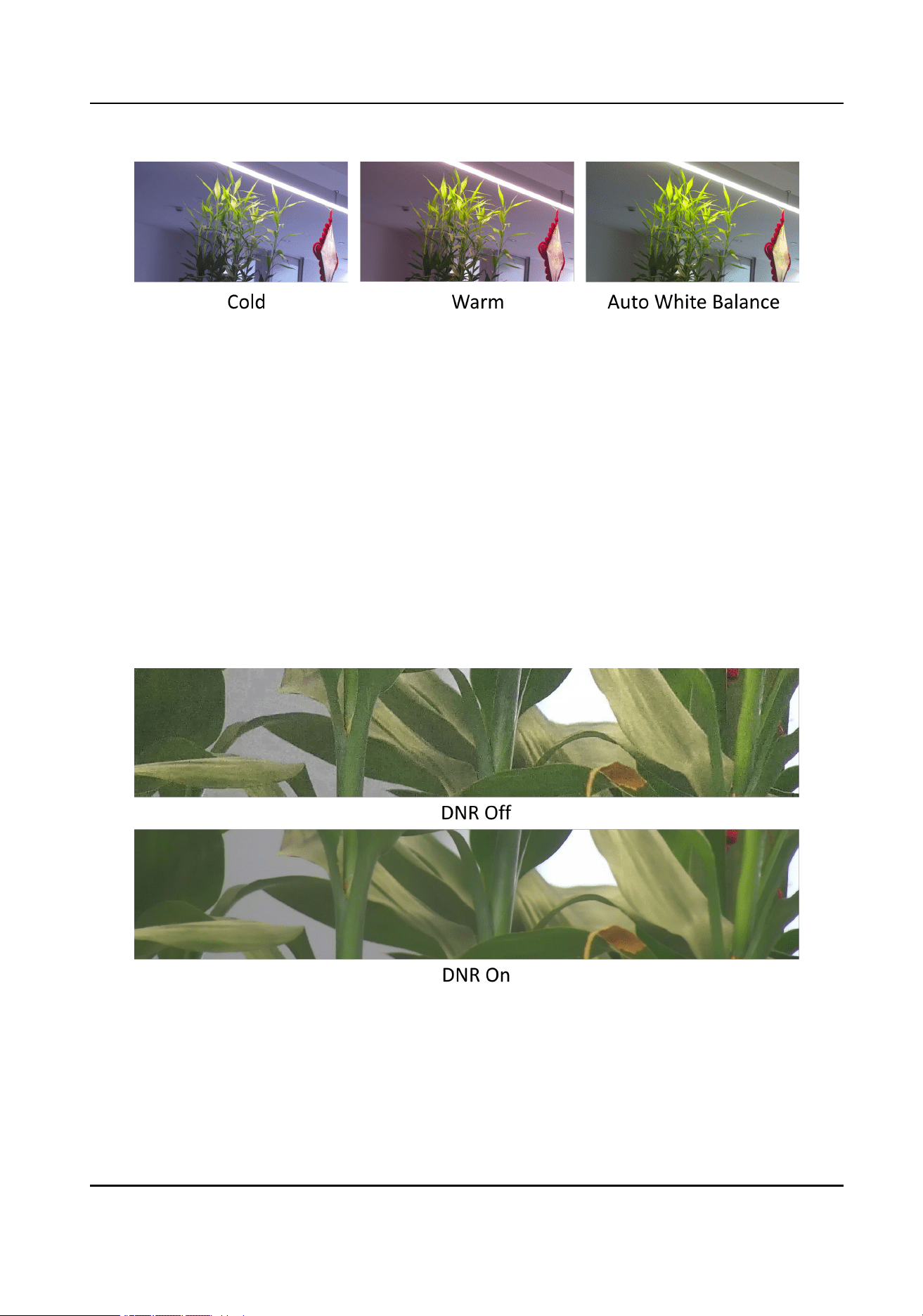

5.5.9 White Balance ..................................................................................................... 29
5.5.10 DNR .................................................................................................................... 30

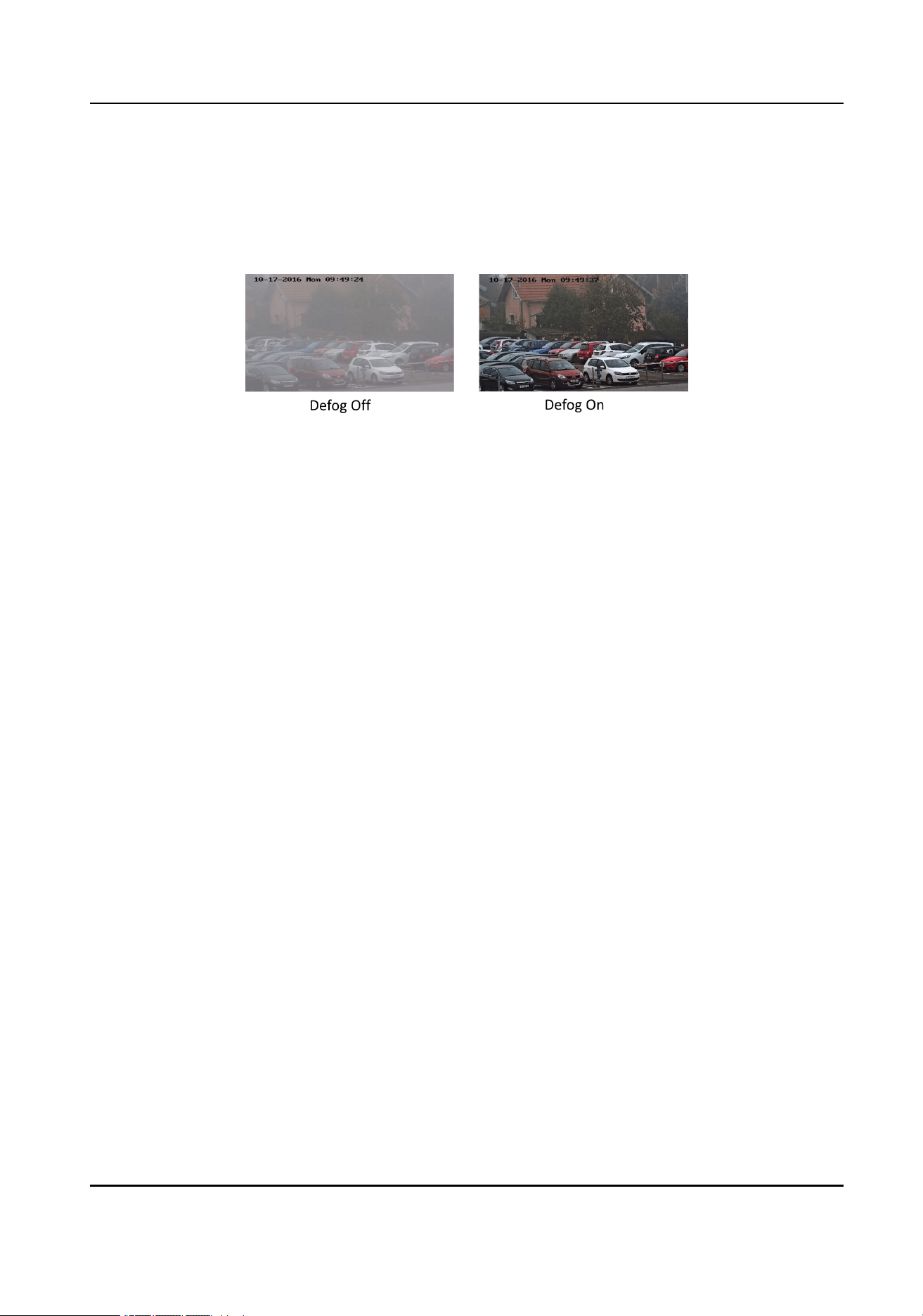

5.5.11 Defog ................................................................................................................. 31
5.5.12 EIS ...................................................................................................................... 31
5.5.13 Gray Scale ......................................................................................................... 31
5.5.14 SuperIR .............................................................................................................. 31
5.5.15 Set Palette ......................................................................................................... 31
5.5.16 DDE .................................................................................................................... 32
5.5.17 Brightness Sudden Change .............................................................................. 32
5.5.18 Enhance Regional Image .................................................................................. 32
5.5.19 Mirror ................................................................................................................. 32
5.5.20 Scene Mode ...................................................................................................... 33
Thermal TandemVu Camera User Manual
x
5.5.21 Video Standard ................................................................................................. 33
5.5.22 Digital Zoom ...................................................................................................... 33
5.5.23 Local Video Output ........................................................................................... 33
5.6 OSD ............................................................................................................................... 33
5.7 Overlay Picture ............................................................................................................. 34
5.8 Set Manual DPC (Defective Pixel Correction) ............................................................ 34
5.9 Set Picture in Picture ................................................................................................... 35
Chapter 6 Video Recording and Picture Capture ................................................................... 36
6.1 Storage Settings .......................................................................................................... 36
6.1.1 Set Memory Card ................................................................................................ 36
6.1.2 Set NAS ............................................................................................................... 36
6.1.3 Set FTP ................................................................................................................ 37
6.1.4 Set Cloud Storage ............................................................................................... 38
6.2 Video Recording .......................................................................................................... 38
6.2.1 Record Automatically ......................................................................................... 38
6.2.2 Record Manually ................................................................................................. 40
6.2.3 Playback and Download Video .......................................................................... 40
6.3 Capture
Conguration ................................................................................................. 41
6.3.1 Capture Automatically ........................................................................................ 41
6.3.2 Capture Manually ................................................................................................ 41
6.3.3 View and Download Picture ............................................................................... 42
Chapter 7 Perimeter Protection .............................................................................................. 43
7.1 Set Perimeter Protection Rules ................................................................................... 43
7.2 Set Perimeter Protection Shield Region ..................................................................... 45
7.3 Set Overlay & Capture Parameters ............................................................................. 45
7.4 Alarm Double Check .................................................................................................... 46
7.5 Set Advanced
Conguration Parameters ................................................................... 46
Chapter 8 Event and Alarm ..................................................................................................... 47
Thermal TandemVu Camera User Manual
xi
8.1 Set Motion Detection ................................................................................................... 47
8.1.1 Normal Mode ...................................................................................................... 47
8.1.2 Expert Mode ........................................................................................................ 48
8.2 Set Video Tampering Alarm ........................................................................................ 48
8.3 Set Alarm Input ............................................................................................................ 49
8.4 Set Exception Alarm .................................................................................................... 50
8.5 Detect Audio Exception ............................................................................................... 50
Chapter 9 Arming Schedule and Alarm Linkage .................................................................... 52
9.1 Set Arming Schedule ................................................................................................... 52
9.2 Linkage Method Settings ............................................................................................ 52
9.2.1 Trigger Alarm Output .......................................................................................... 52
9.2.2 Set Flashing Alarm Light Output ........................................................................ 54
9.2.3 Set Audible Alarm Output ................................................................................... 54
9.2.4 FTP/NAS/Memory Card Uploading ................................................................... 55
9.2.5 Send Email ........................................................................................................... 55
9.2.6 Notify Surveillance Center .................................................................................. 56
9.2.7 Trigger Recording ............................................................................................... 56
Chapter 10 PTZ ........................................................................................................................ 57
10.1 PTZ Control ................................................................................................................ 57
10.2 Set Preset ................................................................................................................... 59
10.2.1 Special Presets ................................................................................................. 59
10.3 Set Patrol Scan .......................................................................................................... 60
10.3.1 Set One-Touch Patrol ........................................................................................ 61
10.4 Set Pattern Scan ........................................................................................................ 61
10.5 Set Linear Scan .......................................................................................................... 62
10.6 Set Limit ..................................................................................................................... 63
10.7 Set Initial Position ...................................................................................................... 63
10.8 Set Park Action .......................................................................................................... 64
Thermal TandemVu Camera User Manual
xii
10.9 Set Privacy Mask ....................................................................................................... 64
10.10 Set Scheduled Tasks ............................................................................................... 65
10.11 Set PTZ Priority ........................................................................................................ 65
10.12 Set Device Position ................................................................................................. 66
10.12.1 Set Manual Compass ..................................................................................... 67
10.12.2 Set Auto Compass .......................................................................................... 67
10.13 Set Power Off Memory ............................................................................................ 67
10.14 Panorama Tracking ................................................................................................. 68
10.14.1 Set Panorama Tracking – Manual Calibration .............................................. 68
10.14.2 Set Panorama Tracking – Auto Calibration .................................................. 69
Chapter 11 System and Security ............................................................................................ 71
11.1 View Device Information ........................................................................................... 71
11.2 Time and Date ............................................................................................................ 71
11.2.1 Synchronize Time Manually ............................................................................. 71
11.2.2 Set NTP Server .................................................................................................. 71
11.2.3 Set DST .............................................................................................................. 72
11.3 Set RS-232 .................................................................................................................. 72
11.4 Set RS-485 .................................................................................................................. 72
11.5 View Open Source Software License ....................................................................... 73
11.6 Set Same Unit ............................................................................................................ 73
11.7 Reboot ........................................................................................................................ 73
11.8 Restore and Default ................................................................................................... 73
11.9 Import and Export
Conguration File ....................................................................... 74
11.10 Export Diagnose Information .................................................................................. 74
11.11 Upgrade .................................................................................................................... 74
11.12 Device Auto Maintenance ....................................................................................... 75
11.13 Search and Manage Log ......................................................................................... 75
11.14 Security .................................................................................................................... 75
Thermal TandemVu Camera User Manual
xiii
11.14.1 Security Audit Log .......................................................................................... 76
11.14.2 Authentication ................................................................................................ 77
11.14.3 Set IP Address Filter ....................................................................................... 77
11.14.4 Set MAC Address Filter .................................................................................. 78
11.14.5 Set SSH ........................................................................................................... 78
11.14.6 Control Timeout Settings ............................................................................... 79
11.14.7
Certicate Management ................................................................................ 79
11.14.8 Set HTTPS ....................................................................................................... 81
11.14.9 Set QoS ............................................................................................................ 81
11.14.10 Set IEEE 802.1X ............................................................................................ 82
11.15 User and Account .................................................................................................... 82
11.15.1 Set User Account and Permission ................................................................. 82
11.15.2 Online Users .................................................................................................... 83
Chapter 12 Appendix ............................................................................................................... 84
12.1 Common Material Emissivity Reference .................................................................. 84
Thermal TandemVu Camera User Manual
xiv
Chapter 1 Overview
1.1 Brief Description
Thermal TandemVu Camera is integrated by one bi-spectrum bullet camera offering
perimeter protection and one optical PTZ camera smartly tracking moving targets to
provide details. Thermal TandemVu Camera is popularly applied in infrastructure such as
airports, railway, city streets, campus, etc., in which smart tracking and perimeter
protection are needed.
Thermal TandemVu Camera User Manual
1
Chapter 2 Device Activation and Accessing
To protect the security and privacy of the user account and data, you should set a login
password to activate the device when access the device via network.
Note
Refer to the user manual of the software client for the detailed information about the client
software activation.
2.1 Activate the Device via SADP
Search and activate the online devices via SADP software.
Before You Start
Access
https://www.hikmicrotech.com
to get SADP software to install.
Steps
1.
Connect your computer to the same Wi-Fi network that the device is in.
2.
Run SADP software to search the online devices of the LAN.
3.
Check Device Status from the device list, and select Inactive device.
4.
Create and input the new password in the password
eld, and conrm the password.
Caution
We highly recommend you create a strong password of your own choosing (using a
minimum of 8 characters, including upper case letters, lower case letters, numbers, and
special characters) in order to increase the security of your product. And we recommend
you reset your password regularly, especially in the high security system, resetting the
password monthly or weekly can better protect your product.
5.
Click OK.
Device Status changes into Active.
6.
Optional: Change the network parameters of the device in Modify Network Parameters.
2.2 Activate the Device via Browser
You can access and activate the device via the browser.
Steps
1.
Connect the device to the PC using the network cables.
2.
Change the IP address of the PC and device to the same segment.
Thermal TandemVu Camera User Manual
2
Note
The default IP address of the device is 192.168.1.64. You can set the IP address of the
PC from 192.168.1.2 to 192.168.1.253 (except 192.168.1.64). For example, you can set
the IP address of the PC to 192.168.1.100.
3.
Input
192.168.1.64
in the browser.
4.
Set device activation password.
Caution
We highly recommend you create a strong password of your own choosing (using a
minimum of 8 characters, including at least three of the following categories: upper case
letters, lower case letters, numbers, and special characters) in order to increase the
security of your product. And we recommend you reset your password regularly,
especially in the high security system, resetting the password monthly or weekly can
better protect your product.
5.
Click OK.
6.
Input the activation password to log in to the device.
7.
Optional: Go to
Conguration > Network > Basic > TCP/IP to change the IP address of
the device to the same segment of your network.
2.3 Login
Log in to the device via Web browser.
2.3.1 Plug-in Installation
Certain operation systems and web browser may restrict the display and operation of the
device function. You should install plug-in or complete certain settings to ensure normal
display and operation. For detailed restricted function, refer to the actual device.
Operating System
Web Browser Operation
Windows Internet Explorer 10+ Follow pop-up prompts to
complete plug-in installation.
Google Chrome 57+
Mozilla Firefox 52+
Microsoft Edge 79.0.309+
Click to
download and install plug-in.
Go to Conguration >
Network > Advanced
Settings > Network Service
to enable WebSocket or
WebSockets for normal view
Thermal TandemVu Camera User Manual
3
Operating System Web Browser Operation
if plug-in installation is not
required. Display and
operation of certain
functions are restricted. For
example, Playback and
Picture are not available. For
detailed restricted function,
refer to the actual device.
Mac OS 10.13+ Mac Safari 12+ Plug-in installation is not
required.
Go to
Conguration >
Network > Advanced
Settings > Network Service
to enable WebSocket or
WebSockets for normal
view. Display and operation
of certain functions are
restricted. For example,
Playback and Picture are not
available. For detailed
restricted function, refer to
the actual device.
Note
The device only supports Windows and Mac OS system and does not support Linux
system.
2.3.2 Illegal Login Lock
It helps to improve the security when accessing the device via Internet.
Go to Conguration > System > Security > Security Service , and enable Enable Illegal Login
Lock, Illegal Login Attempts and Locking Duration are congurable.
Illegal Login Attempts
When your login attempts with the wrong password reach the set times, the device is
locked.
Locking Duration
The device releases the lock after the setting duration.
Thermal TandemVu Camera User Manual
4
Chapter 3 Network Settings
3.1 TCP/IP
TCP/IP settings must be properly congured before you operate the device over network.
IPv4 and IPv6 are both supported. Both versions can be congured simultaneously without
conicting to each other.
Go to Conguration > Basic Conguration > Network > TCP/IP for parameter settings.
NIC Type
Select a NIC (Network Interface Card) type according to your network condition.
IPv4
Two IPv4 modes are available.
DHCP
The device automatically gets the IPv4 parameters from the network if you check
DHCP. The device IP address is changed after enabling the function. You can use
SADP to get the device IP address.
Note
The network that the device is connected to should support DHCP (Dynamic Host
Conguration Protocol).
Manual
You can set the device IPv4 parameters manually. Input IPv4 Address, IPv4 Subnet
Mask, and IPv4 Default Gateway, and click Test to see if the IP address is available.
IPv6
Three IPv6 modes are available.
Route Advertisement
The IPv6 address is generated by combining the route advertisement and the device
Mac address.
Note
Route advertisement mode requires the support from the router that the device is
connected to.
DHCP
The IPv6 address is assigned by the server, router or gateway.
Manual
Thermal TandemVu Camera User Manual
5
Input IPv6 Address, IPv6 Subnet, IPv6 Default Gateway. Consult the network
administrator for required information.
MTU
It stands for maximum transmission unit. It is the size of the largest protocol data unit
that can be communicated in a single network layer transaction.
The valid value range of MTU is 1280 to 1500.
DNS
It stands for domain name server. It is required if you need to visit the device with
domain name. And it is also required for some applications (e.g., sending email). Set
Preferred DNS Server and Alternate DNS server properly if needed.
3.1.1 Multicast Discovery
Check the Enable Multicast Discovery, and then the online network camera can be
automatically detected by client software via private multicast protocol in the LAN.
3.2 Access to Device via Domain Name
You can use the Dynamic DNS (DDNS) for network access. The dynamic IP address of the
device can be mapped to a domain name resolution server to realize the network access
via domain name.
Before You Start
Registration on the DDNS server is required before
conguring the DDNS settings of the
device.
Steps
1.
Refer to
TCP/IP
to set DNS parameters.
2.
Go to the DDNS settings page:
Conguration > Network > Basic Settings > DDNS .
3.
Check Enable DDNS and select DDNS type.
DynDNS
Dynamic DNS server is used for domain name resolution.
NO-IP
NO-IP server is used for domain name resolution.
4.
Input the domain name information, and click Save.
5.
Check the device ports and complete port mapping. Refer to
Port
to check the device
port, and refer to
Port Mapping
for port mapping settings.
6.
Access the device.
By Browsers
Enter the domain name in the browser address bar to access the
device.
Thermal TandemVu Camera User Manual
6
By Client Software Add domain name to the client software. Refer to the client
manual for
specic adding methods.
3.3 Access to Device via PPPoE Dial Up Connection
This device supports the PPPoE auto dial-up function. The device gets a public IP address
by ADSL dial-up after the device is connected to a modem. You need to congure the
PPPoE parameters of the device.
Steps
1.
Go to
Conguration > Network > Basic Settings > PPPoE .
2.
Check Enable PPPoE.
3.
Set the PPPoE parameters.
Dynamic IP
After successful dial-up, the dynamic IP address of the WAN is displayed.
User Name
User name for dial-up network access.
Password
Password for dial-up network access.
Conrm
Input your dial-up password again.
4.
Click Save.
5.
Access the device.
By Browsers
Enter the WAN dynamic IP address in the browser address bar to
access the device.
By Client
Software
Add the WAN dynamic IP address to the client software. Refer to
the client manual for details.
Note
The obtained IP address is dynamically assigned via PPPoE, so the IP address always
changes after restarting the camera. To solve the inconvenience of the dynamic IP, you
need to get a domain name from the DDNS provider (e.g., DynDns.com). Refer to
Access
to Device via Domain Name
for detail information.
3.4 Port
The device port can be modied when the device cannot access the network due to port
conicts.
Thermal TandemVu Camera User Manual
7
Caution
Do not modify the default port parameters at will, otherwise the device may be
inaccessible.
Go to Conguration > Network > Basic Settings > Port for port settings.
HTTP Port
It refers to the port through which the browser accesses the device. For example, when
the HTTP Port is modied to 81, you need to enter
http://192.168.1.64:81
in the browser
for login.
HTTPS Port
It refers to the port through which the browser accesses the device with certicate.
Certicate
verication is required to ensure the secure access.
RTSP Port
It refers to the port of real-time streaming protocol.
SRTP Port
It refers to the port of secure real-time transport protocol.
Server Port
It refers to the port through which the client adds the device.
WebSocket Port
TCP-based full-duplex communication protocol port for plug-in free preview.
WebSockets Port
TCP-based full-duplex communication protocol port for plug-in free preview. Cer ticate
verication is required to ensure the secure access.
Note
●
Enhanced SDK Service Port, WebSocket Port, and WebSockets Port are only supported
by certain models.
●
For device models that support that function, go to
Conguration > Network > Advanced
Settings > Network Service to enable it.
3.5 Port Mapping
By setting port mapping, you can access devices through the specied port.
Before You Start
When the ports in the device are the same as those of other devices in the network, refer to
Port
to modify the device ports.
Thermal TandemVu Camera User Manual
8
Steps
1.
Go to
Conguration > Network > Basic Settings > NAT .
2.
Select the port mapping mode.
Auto Port Mapping Refer to
Set Auto Port Mapping
for detailed information.
Manual Port Mapping Refer to
Set Manual Port Mapping
for detailed information.
3.
Click Save.
3.5.1 Set Auto Port Mapping
Steps
1.
Check Enable UPnP™, and choose a friendly name for the camera, or you can use the
default name.
2.
Select the port mapping mode to Auto.
3.
Click Save.
Note
UPnP™ function on the router should be enabled at the same time.
3.5.2 Set Manual Port Mapping
Steps
1.
Check Enable UPnP™, and choose a friendly name for the device, or you can use the
default name.
2.
Select the port mapping mode to Manual, and set the external port to be the same as the
internal port.
3.
Click Save.
What to do next
Go to the router port mapping settings interface and set the port number and IP address to
be the same as those on the device. For more information, refer to the router user manual.
3.6 Multicast
Multicast is group communication where data transmission is addressed to a group of
destination devices simultaneously.
Go to
Conguration > Network > Basic Settings > Multicast for the multicast settings.
For a device with more than one channel, multicast can be set independently for each
channel.
IP Address
It stands for the address of multicast host.
Thermal TandemVu Camera User Manual
9
Stream Type
The stream type as the multicast source.
Video Port
The video port of the selected stream.
Audio Port
The audio port of the selected stream.
3.7 SNMP
You can set the SNMP (Simple Network Management Protocol) to get device information
in network management.
Before You Start
Before setting the SNMP, you should download the SNMP software and manage to receive
the device information via SNMP port.
Steps
1.
Go to
Conguration > Network > Advanced Settings > SNMP .
2.
Check Enable SNMPv1, Enable SNMP v2c or Enable SNMPv3.
Note
The SNMP version you select should be the same as that of the SNMP software.
And you also need to use the different version according to the security level required.
SNMP v1 is not secure and SNMP v2 requires password for access. And SNMP v3
provides encryption and if you use the third version, HTTPS protocol must be enabled.
3.
Congure the SNMP settings.
4.
Click Save.
3.8 Accessing via Mobile Client
Hik-Connect is an application for mobile devices. Using the App, you can view live image,
receive alarm
notication and so on.
Note
Hik-Connect service should be supported by the camera.
3.8.1 Enable Hik-Connect Service on Camera
Hik-Connect service should be enabled on your camera before using the service.
You can enable the service through SADP software or Web browser.
Thermal TandemVu Camera User Manual
10
Enable Hik-Connect Service via Web Browser
Follow the following steps to enable Hik-Connect Service via Web Browser.
Before You Start
You need to activate the camera before enabling the service.
Steps
1.
Access the camera via web browser.
2.
Enter platform access
conguration interface. Conguration > Network > Advanced
Settings > Platform Access
3.
Select Hik-Connect as the Platform Access Mode.
4.
Check Enable.
5.
Click and read "Terms of Service" and "Privacy Policy" in pop-up window.
6.
Create a
verication code or change the old verication code for the camera.
Note
The verication code is required when you add the camera to Hik-Connect service.
7.
Save the settings.
Enable Hik-Connect Service via SADP Software
This part introduce how to enable Hik-Connect service via SADP software of an activated
camera.
Steps
1.
Run SADP software.
2.
Select a camera and enter Modify Network Parameters page.
3.
Check Enable Hik-Connect.
4.
Create a
verication code or change the old verication code.
Note
The verication code is required when you add the camera to Hik-Connect service.
5.
Click and read "Terms of Service" and "Privacy Policy".
6.
Conrm the settings.
3.8.2 Set Up Hik-Connect
Steps
1.
Download Hik-Connect from
https://www.hik-connect.com
and install it on your mobile
device.
2.
Start the application and register for a Hik-Connect user account.
Thermal TandemVu Camera User Manual
11
3.
Log in after registration.
3.8.3 Add Camera to Hik-Connect
Steps
1.
Connect your mobile device to a Wi-Fi.
2.
Log into the Hik-Connect app.
3.
In the home page, tap "+" on the upper-right corner to add a camera.
4.
Scan the QR code on camera body or on the
Quick Start Guide
cover.
Note
If the QR code is missing or too blur to be recognized, you can also add the camera by
inputting the camera's serial number.
5.
Input the verication code of your camera.
Note
●
The required verication code is the code you create or change when you enable Hik-
Connect service on the camera.
●
If you forget the
verication code, you can check the current verication code on
Platform Access conguration page via web browser.
6.
Tap Connect to a Network button in the popup interface.
7.
Choose Wired Connection or Wireless Connection according to your camera function.
Wireless
Connection
Input the Wi-Fi password that your mobile phone has connected to,
and tap Next to start the Wi-Fi connection process. (Locate the
camera within 3 meters from the router when setting up the Wi-Fi.)
Wired
Connection
Connect the camera to the router with a network cable and tap
Connected in the result interface.
Note
The router should be the same one which your mobile phone has connected to.
8.
Tap Add in the next interface to nish adding.
For detailed information, refer to the user manual of the Hik-Connect app.
3.9 Set ISUP
When the device is registered on ISUP platform (formerly called Ehome), you can visit and
manage the device, transmit data, and forward alarm information over public network.
Steps
1.
Go to Conguration > Network > Advanced Settings > Platform Access .
2.
Select ISUP as the platform access mode.
Thermal TandemVu Camera User Manual
12
3.
Select Enable.
4.
Select a protocol version and input related parameters.
5.
Click Save.
Register status turns to Online when the function is correctly set.
3.10 Set Alarm Host
The device can send the alarm signal to the remote alarm host when an event occurs. The
alarm host refers to the PC installed with client software.
Steps
1.
Go to
Conguration > Network > Other .
2.
Enter the alarm host IP and port.
3.
Click Save.
3.11 Set Open Network Video Interface
If you need to access the device through Open Network Video Interface protocol, you can
congure the user settings to enhance the network security.
Steps
1.
Go to Conguration > Network > Advanced Settings > Integration Protocol .
2.
Check Enable Open Network Video Interface.
3.
Select an authentication mode.
-
If you select Digest, the device only supports digest authentication.
-
If you select Digest&ws-username token, the device supports digest authentication or
ws-username token authentication. You can check Time
Verication to verify the client
time based on your needs.
4.
Click Add to
congure the Open Network Video Interface user.
Delete
Delete the selected Open Network Video Interface user.
Modify Modify the selected Open Network Video Interface user.
5.
Click Save.
6.
Optional: Repeat the steps above to add more Open Network Video Interface users.
3.12 Set Network Service
You can control the ON/OFF status of certain protocol as desired.
Thermal TandemVu Camera User Manual
13
Steps
Note
This function varies according to different models.
1.
Go to Conguration > Network > Advanced Settings > Network Service .
2.
Set network service.
WebSocket & WebSockets
WebSocket or WebSockets protocol should be enabled if you use Google Chrome 57
and its above version or Mozilla Firefox 52 and its above version to visit the device.
Otherwise, live view, image capture, and digital zoom function cannot be used.
If the device uses HTTP, enable WebSocket.
If the device uses HTTPS, enable WebSockets.
TLS (Transport Layer Security)
The device offers TLS1.1 and TLS1.2. Enable one or more protocol versions
according to your need.
Bonjour
Bonjour is a
zero-conguration protocol used to automatically nd devices in a
network or create networks between devices. You can disable it when not using the
protocol.
3.
Click Save.
3.13 Set Alarm Server
The device can send alarms to destination IP address or host name through HTTP, HTTPS,
or ISUP protocol. The destination IP address or host name should support HTTP, HTTP, or
ISUP data transmission.
Steps
1.
Go to
Conguration > Network > Advanced Settings > Alarm Server .
2.
Enter Destination IP or Host Name, URL, and Port.
3.
Select Protocol.
Note
HTTP, HTTPS, and ISUP are selectable. It is recommended to use HTTPS, as it encrypts
the data transmission during communication.
4.
Click Test to check if the IP or host is available.
5.
Click Save.
Thermal TandemVu Camera User Manual
14
3.14 Set SRTP
The Secure Real-time Transport Protocol (SRTP) is a Real-time Transport Protocol (RTP)
internet protocol, intended to provide encryption, message authentication and integrity,
and replay attack protection to the RTP data in both unicast and multicast applications.
Steps
1.
Go to
Conguration > Network > Advanced Settings > SRTP .
2.
Select Server Certicate.
3.
Select Encrypted Algorithm.
4.
Click Save.
Note
Only certain device models support this function.
Thermal TandemVu Camera User Manual
15
Chapter 4 Live View
It introduces the live view parameters, function icons and transmission parameters
settings.
4.1 Live View Parameters
The supported functions vary depending on the model.
Note
For multichannel devices, select the desired channel rst before live view settings.
4.1.1 Window Division
●
refers to 1 × 1 window division.
●
refers to 2 × 2 window division.
●
refers to 3 × 3 window division.
●
refers to 4 × 4 window division.
4.1.2 Live View Stream Type
Select the live view stream type according to your needs. For the detailed information
about the stream type selection, refer to
Stream Type
.
4.1.3 Enable and Disable Live View
This function is used to quickly enable or disable live view of all channels.
●
Click to start live view of all channels.
●
Click to stop live view of all channels.
4.1.4 View Previous/Next Page
When the number of channels surpasses that of live view window division, this function
can switch live view among multiple channels.
Click
to switch live view among multiple channels.
Thermal TandemVu Camera User Manual
16
4.1.5 Full Screen
This function is used to view the image in full screen mode.
Click to start full screen mode and press ESC button to exit.
4.1.6 Conduct Regional Focus
You can enable the function to focus on certain area.
Steps
1.
Click to enable regional focus.
2.
Drag the mouse on the live view to draw a rectangle as the desired focus area.
3.
Click
to disable this function.
4.1.7 Light
Click to turn on or turn off the illuminator.
4.1.8 Operate Wiper
For the device that has a wiper, you can control the wiper via web browser.
Note
Wiper operation and settings vary on device models.
Steps
1.
Go to
Conguration > PTZ > Wiper .
2.
Select a wiper mode.
One
Time
The wiper wipes one time when you click on live view page.
Cycle The wiper works on schedule at set wiping interval. Click on live view to
start wiping.
Duration
The schedule in which the wiper is ready to work.
Interval
The interval between two successive wiping actions.
Thermal TandemVu Camera User Manual
17
Auto
Note
Auto mode is only available for device that supports rain-sensing auto
wiper.
In auto mode, the wiper works when rain drops on the window.
4.1.9 Lens Initialization
Lens initialization is used on the device equipped with motorized lens. The function can
reset lens when long time zoom or focus results in blurred image. This function varies
according to different models.
Manual Lens Initialization
Click
to operate lens initialization.
Auto Lens Initialization
Go to Conguration > System > Maintenance > Lens Correction to enable this function.
You can set the arming schedule, and the device will correct lens automatically during
the
congured time periods.
4.1.10 Auxiliary Focus
Click to enable automatic focus. This function is subject to the actual device model.
4.1.11 Quick Set Live View
It offers a quick setup of PTZ, display settings, OSD, and video/audio settings on live view
page.
Steps
1.
Click
to show quick setup page.
2.
Set PTZ, display settings, OSD, and video/audio parameters.
-
For PTZ settings, see
Lens Parameters Adjustment
.
-
For display settings, see
Display Settings
.
-
For OSD settings, see
OSD
.
-
For audio and video settings, see
Video and Audio
.
Note
The function is only supported by certain models.
Thermal TandemVu Camera User Manual
18
4.1.12 Lens Parameters Adjustment
It is used to adjust the lens focus, zoom and iris.
Zoom
●
Click , and the lens zooms in.
●
Click
, and the lens zooms out.
Focus
●
Click , then the lens focuses far and the distant object gets clear.
●
Click
, then the lens focuses near and the nearby object gets clear.
PTZ Speed
●
Slide
to adjust the speed of the pan/tilt movement.
Iris
●
When the image is too dark, click to enlarge the iris.
●
When the image is too bright, click
to stop down the iris.
4.1.13 Conduct 3D Positioning
3D positioning is to relocate the selected area to the image center.
Steps
1.
Click to enable the function.
2.
Select a target area in live image.
-
Left click on a point on live image: the point is relocated to the center of the live
image. With no zooming in or out effect.
-
Hold and drag the mouse to a lower right position to frame an area on the live: the
framed area is zoomed in and relocated to the center of the live image.
-
Hold and drag the mouse to an upper left position to frame an area on the live: the
framed area is zoomed out and relocated to the center of the live image.
3.
Click the button again to turn off the function.
4.2 Set Transmission Parameters
The live view image may be displayed abnormally according to the network conditions. In
different network environments, you can adjust the transmission parameters to solve the
problem.
Steps
1.
Go to Conguration > Local .
Thermal TandemVu Camera User Manual
19
2.
Set the transmission parameters as required.
Protocol
TCP
TCP ensures complete delivery of streaming data and better video quality, yet the
real-time transmission will be affected. It is suitable for the stable network
environment.
UDP
UDP is suitable for the unstable network environment that does not demand high
video
uency.
MULTICAST
MULTICAST is suitable for the situation that there are multiple clients. You should
set the multicast address for them before selection.
Note
For detailed information about multicast, refer to
Multicast
.
HTTP
HTTP is suitable for the situation that the third-party needs to get the stream from
the device.
Play Performance
Shortest Delay
The device takes the real-time video image as the priority over the video
uency.
Balanced
The device ensures both the real-time video image and the
uency.
Fluent
The device takes the video uency as the priority over teal-time. In poor network
environment, the device cannot ensures video uency even the uency is enabled.
Custom
You can set the frame rate manually. In poor network environment, you can reduce
the frame rate to get a
uent live view. But the rule information may cannot display.
Auto Start Live View
●
Yes means the live view is started automatically. It requires a high performance
monitoring device and a stable network environment.
●
No means the live view should be started manually.
3.
Click OK.
Thermal TandemVu Camera User Manual
20
Chapter 5 Video and Audio
This part introduces the
conguration of video and audio related parameters.
5.1 Video Settings
This part introduces the settings of video parameters, such as, stream type, video
encoding, and resolution.
Go to setting page:
Conguration > Video/Audio > Video .
Note
For device with multiple camera channels, select a channel before other settings.
5.1.1 Stream Type
For device supports more than one stream, you can specify parameters for each stream
type.
Main Stream
The stream stands for the best stream performance the device supports. It usually
offers the best resolution and frame rate the device can do. But high resolution and
frame rate usually mean larger storage space and higher bandwidth requirements in
transmission.
Sub Stream
The stream usually offers comparatively low resolution options, which consumes less
bandwidth and storage space.
5.1.2 Video Type
Select the content (video and audio) that should be contained in the stream.
Video
Only video content is contained in the stream.
Video & Audio
Video content and audio content are contained in the composite stream.
Thermal TandemVu Camera User Manual
21
5.1.3 Resolution
Select video resolution according to actual needs. Higher resolution requires higher
bandwidth and storage.
5.1.4 Bitrate Type and Max. Bitrate
Constant Bitrate
It means that the stream is compressed and transmitted at a comparatively xed
bitrate. The compression speed is fast, but mosaic may occur on the image.
Variable Bitrate
It means that the device automatically adjust the bitrate under the set Max. Bitrate. The
compression speed is slower than that of the constant bitrate. But it guarantees the
image quality of complex scenes.
5.1.5 Video Quality
When Bitrate Type is set as Variable, video quality is congurable. Select a video quality
according to actual needs. Note that higher video quality requires higher bandwidth.
5.1.6 Frame Rate
The frame rate is to describe the frequency at which the video stream is updated and it is
measured by frames per second (fps).
A higher frame rate is advantageous when there is movement in the video stream, as it
maintains image quality throughout. Note that higher frame rate requires higher bandwidth
and larger storage space.
5.1.7 Video Encoding
It stands for the compression standard the device adopts for video encoding.
Note
Available compression standards vary according to device models.
H.264
H.264, also known as MPEG-4 Part 10, Advanced Video Coding, is a compression
standard. Without compressing image quality, it increases compression ratio and reduces
the size of video
le than MJPEG or MPEG-4 Part 2.
Thermal TandemVu Camera User Manual
22
H.265
H.265, also known as High Efciency Video Coding (HEVC) and MPEG-H Part 2, is a
compression standard. In comparison to H.264, it offers better video compression at the
same resolution, frame rate and image quality.
Prole
This function means that under the same bitrate, the more complex the prole is, the
higher the quality of the image is, and the requirement for network bandwidth is also
higher.
I-Frame Interval
I-frame interval denes the number of frames between 2 I-frames.
In H.264 and H.265, an I-frame, or intra frame, is a self-contained frame that can be
independently decoded without any reference to other images. An I-frame consumes more
bits than other frames. Thus, video with more I-frames, in other words, smaller I-frame
interval, generates more steady and reliable data bits while requiring more storage space.
SVC
Scalable Video Coding (SVC) is the name for the Annex G extension of the H.264 or H.265
video compression standard.
The objective of the SVC standardization has been to enable the encoding of a high-quality
video bitstream that contains one or more subset bitstreams that can themselves be
decoded with a complexity and reconstruction quality similar to that achieved using the
existing H.264 or H.265 design with the same quantity of data as in the subset bitstream.
The subset bitstream is derived by dropping packets from the larger bitstream.
SVC enables forward compatibility for older hardware: the same bitstream can be
consumed by basic hardware which can only decode a low-resolution subset, while more
advanced hardware will be able decode high quality video stream.
5.1.8 Smoothing
It refers to the smoothness of the stream. The higher value of the smoothing is, the better
uency of the stream will be, though, the video quality may not be so satisfactory. The
lower value of the smoothing is, the higher quality of the stream will be, though it may
appear not
uent.
Thermal TandemVu Camera User Manual
23
5.1.9 Display VCA Info
VCA information can be displayed by Player and Video.
Player
Player means the VCA info can be displayed by the dedicated player provided by the
manufacturer.
Video
Video means the VCA info can be displayed by any general video player.
5.2 Audio Settings
It is a function to set audio parameters such as audio encoding, environment noise
ltering.
Go to the audio settings page: Conguration > Video/Audio > Audio .
5.2.1 Audio Input
If a built-in microphone or an external audio pick-up device is available, audio encoding,
audio input mode and input volume are congurable.
Audio Encoding
The device offers several compression standard. Select according to your need.
Audio Input
Select MicIn for the built-in microphone, and LineIn for external audio pick-up device.
Note
MicIn is only supported by certain models.
Input Volume
Adjust the volume of the audio input.
Environmental Noise Filter
Set it as OFF or ON. When the function is enabled, the noise in the environment can be
ltered to some extent.
5.2.2 Two-way Audio
It is used to realize the two-way audio function between the monitoring center and the
target in the monitoring screen.
Thermal TandemVu Camera User Manual
24
Before You Start
●
Make sure the audio input device (pick-up or microphone) and audio output device
(speaker) connected to the device is working properly. Refer to
specications of audio
input and output devices for device connection.
●
If the device has built-in microphone and speaker, two-way audio function can be
enabled directly.
Steps
1.
Click Live View.
2.
Click
on the toolbar to enable two-way audio function of the camera.
3.
Click , disable the two-way audio function.
5.3 Set ROI
ROI (Region of Interest) encoding helps to assign more encoding resource to the region of
interest, thus to increase the quality of the ROI whereas the background information is less
focused.
Before You Start
Please check the video coding type. ROI is supported when the video coding type is H.264
or H.265.
Steps
1.
Go to
Conguration > Video/Audio > ROI .
2.
Check Enable.
3.
Select the channel No. according to your need.
4.
Select Stream Type.
5.
Select Region No. in Fixed Region to draw ROI region.
1)Click Draw Area.
2)Click and drag the mouse on the view screen to draw the
xed region.
3)Click Stop Drawing.
Note
Select the xed region that needs to be adjusted and drag the mouse to adjust its
position.
6.
Input the Region Name and ROI Level.
7.
Click Save.
Note
The higher the ROI level is, the clearer the image of the detected region is.
8.
Optional: Select other region No. and repeat the above steps if you need to draw multiple
xed regions.
Thermal TandemVu Camera User Manual
25
5.4 Metadata
Metadata is the raw data that the device collects before algorithm processing. It is often
used for the third party integration.
Go to Conguration > Video/Audio > Metadata Settings to enable metadata uploading of
the desired function for the camera channels.
5.5 Display Settings
It offers the parameter settings to adjust image features.
Go to
Conguration > Image > Display Settings .
For device that supports multiple channels, display settings of each channel is required.
The settings for different channels may be different. This part introduces all possible
parameters among the channels.
Click Default to restore settings.
5.5.1 Image Adjustment
By adjusting the Brightness, Saturation, Contrast and Sharpness, the image can be best
displayed.
5.5.2 Image Adjustment (Thermal Channel)
You can optimize the image display effect of thermal channel by manual correction.
Manual Correction
Click Correct to optimize the image once.
Note
It is a normal phenomenon that short video freezing might occur during the process of
Manual Correction.
Thermal AGC Mode
Choose the AGC mode according to different scenes to balance and improve the image
quality.
Thermal TandemVu Camera User Manual
26
●
Histogram: Choose for scene with obvious WDR and high temperature difference, can
improve image contrast and enhance image. E.g. the scene contains both indoor and
outdoor scenes.
●
Linear: Choose for scene with low temperature difference and the target is not
obvious, can improve image contrast and enhance image. E.g. the bird in forest.
●
Self-Adaptive: Choose AGC mode automatically according to current scene.
5.5.3 Exposure Settings
Exposure is controlled by the combination of iris, shutter, and gain. You can adjust image
effect by setting exposure parameters.
Exposure Mode
Auto
The iris, shutter, and gain values are adjusted automatically.
You can limit the changing ranges of iris, shutter and gain by setting Max. Iris Limit,
Min. Iris Limit, Max. Shutter Limit, Min. Shutter Limit and Limit Gain for better
exposure effect.
Iris Priority
The value of iris needs to be adjusted manually. The shutter and gain values are
adjusted automatically according to the brightness of the environment.
You can limit the changing ranges of the shutter and gain by setting Max. Shutter
Limit, Min. Shutter Limit and Limit Gain for better exposure effect.
Shutter Priority
The value of shutter needs to be adjusted manually. The iris and gain values are
adjusted automatically according to the brightness of the environment.
You can limit the changing ranges of the iris by setting Max. Iris Limit, Min. Iris Limit
and Limit Gain for better exposure effect.
Manual
You need to set Iris, Shutter, and Gain manually.
Slow Shutter
The higher the slow shutter level is, the slower the shutter speed is. It ensures full
exposure in underexposure condition.
5.5.4 Day/Night Switch
Day/Night Switch function can provide color images in the day mode and turn on
ll light in
the night mode. Switch mode is congurable.
Day
Thermal TandemVu Camera User Manual
27
The image is always in color.
Night
The image is black/white or colorful and the supplement light will be enabled to ensure
clear live view image at night.
Auto
The camera switches between the day mode and the night mode according to the
illumination automatically.
Scheduled-Switch
Set the Start Time and the End Time to
dene the duration for day mode.
Note
●
Day/Night Switch function varies according to models.
●
You can turn on the smart supplement light in auto, night, and schedule-switch modes
for better image effect.
5.5.5 Set Supplement Light
Steps
1.
Go to Conguration > Maintenance > System Service .
2.
Check Enable Supplement Light.
3.
Click Save.
4.
Go to
Conguration > Image > Display Settings > Day/Night Switch to set supplement
light parameters.
Smart Supplement Light
This feature uses smart image processing technology to reduce overexposure caused
by supplement light.
Light Brightness Control
Control supplement light brightness automatically or manually.
Auto
The brightness adjusts according to the actual environment automatically.
Manual
You can drag the slider or set value to adjust the brightness.
5.5.6 BLC
If you focus on an object against strong backlight, the object will be too dark to be seen
clearly. BLC (backlight compensation) compensates light to the object in the front to make
Thermal TandemVu Camera User Manual
28

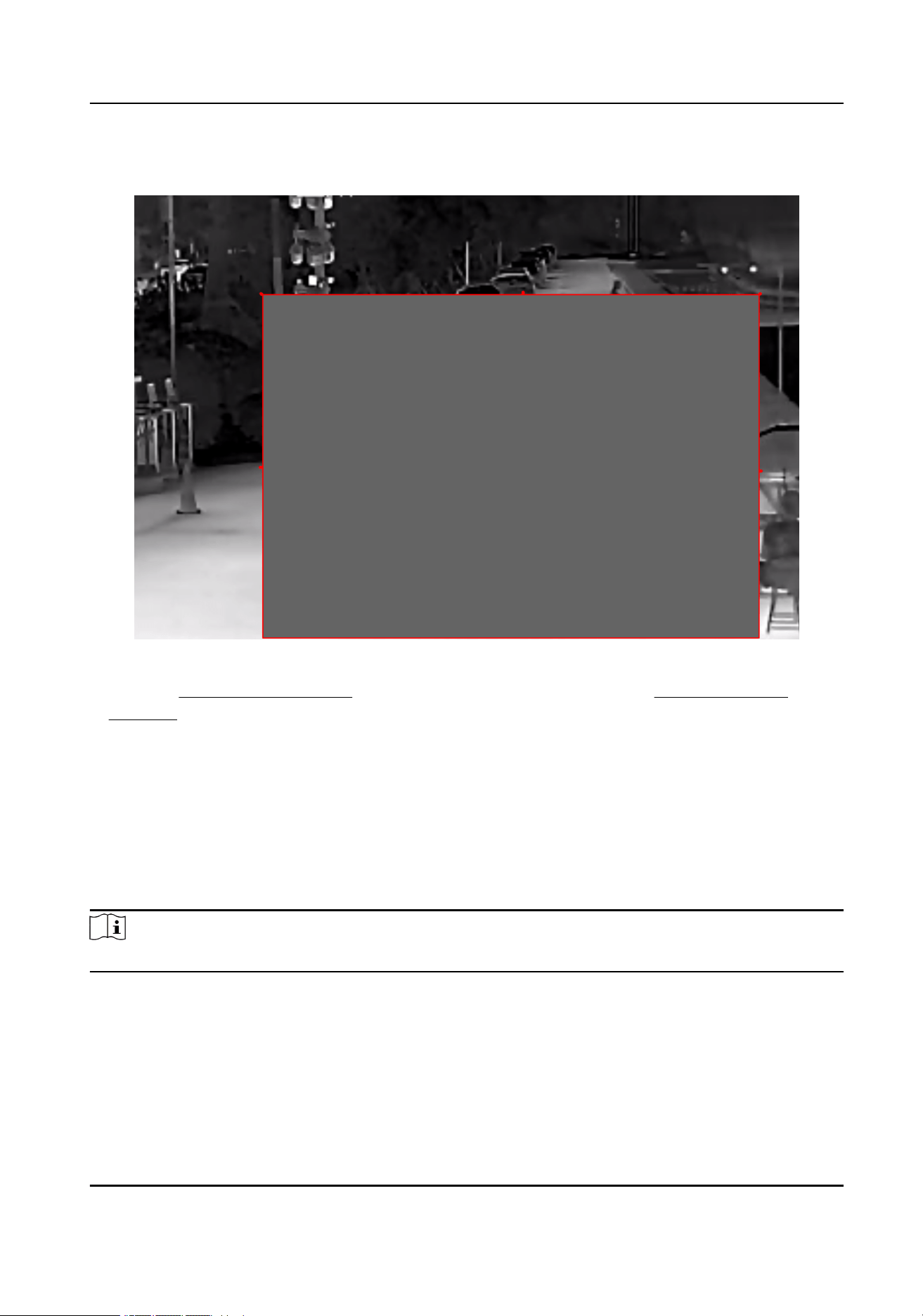

it clear. If BLC mode is set as Custom, you can draw a red rectangle on the live view image
as the BLC area.
5.5.7 WDR
The WDR (Wide Dynamic Range) function helps the camera provide clear images in
environment with strong illumination differences.
When there are both very bright and very dark areas simultaneously in the
eld of view, you
can enable the WDR function and set the level. WDR automatically balances the brightness
level of the whole image and provides clear images with more details.
Note
When WDR is enabled, some other functions may be not supported. Refer to the actual
interface for details.
Figure 5-1 WDR
5.5.8 HLC
When the bright area of the image is over-exposed and the dark area is under-exposed, the
HLC (High Light Compression) function can be enabled to weaken the bright area and
brighten the dark area, so as to achieve the light balance of the overall picture.
5.5.9 White Balance
White balance is the white rendition function of the camera. It is used to adjust the color
temperature according to the environment.
Thermal TandemVu Camera User Manual
29
Figure 5-2 White Balance
5.5.10 DNR
Digital Noise Reduction is used to reduce the image noise and improve the image quality.
Normal and Expert modes are selectable.
Normal
Set the DNR level to control the noise reduction degree. The higher level means stronger
reduction degree.
Expert
Set the DNR level for both space DNR and time DNR to control the noise reduction
degree. The higher level means stronger reduction degree.
Figure 5-3 DNR
Thermal TandemVu Camera User Manual
30
5.5.11 Defog
You can enable the defog function when the environment is foggy and the image is misty.
It enhances the subtle details so that the image appears clearer.
Figure 5-4 Defog
5.5.12 EIS
Increase the stability of video image by using jitter compensation technology.
5.5.13 Gray Scale
This section introduces the gray scale function in optical channel.
You can choose the range of the grey scale as [0-255] or [16-235].
5.5.14 SuperIR
Resolution of images with SuperIR (Super Image Resolution) is better than the original one.
5.5.15 Set Palette
You can select the palette mode to display the thermal grayscale image to colored image.
Steps
1.
Go to Conguration > Image > Display Settings .
2.
Select the thermal channel.
3.
Select a palette mode in Image Enhancement according to your need.
Result
The live view displays the image with palette.
Thermal TandemVu Camera User Manual
31
5.5.16 DDE
Digital Detail Enhancement is used to adjust the details of the image. OFF and Normal
modes are selectable.
OFF
Disable this function.
Normal
Set the DDE level to control the details of the image. The higher the level is, the more
details shows, but the higher the noise is.
5.5.17 Brightness Sudden Change
When the brightness of target and the background is hugely different (the temperature
difference of target and background is huge), the system reduces the difference for
viewing.
5.5.18 Enhance Regional Image
You can select the desired area of image to improve the coding quality. The regional image
will be more detailed and clear.
Steps
1.
Go to Conguration > Image > Display Settings > Image Enhancement .
2.
Select the area of regional image enhancement. You can select OFF to disable this
function, or select Custom Area to draw a desired area.
A red rectangle shows on the display, in which the image quality is improved.
5.5.19 Mirror
When the live view image is the reverse of the actual scene, this function helps to display
the image normally.
Select the mirror mode as needed.
Note
The video recording will be shortly interrupted when the function is enabled.
Thermal TandemVu Camera User Manual
32
5.5.20 Scene Mode
There are several sets of image parameters predened for different installation
environments. Select a scene according to the actual installation environment to speed up
the display settings.
5.5.21 Video Standard
Video standard is an ability of a video card or video display device that denes the amount
of colors that are shown and the resolution. The two most common video standard used
are NTSC and PAL. In NTSC, 30 frames are transmitted each second. Each frame is made
up of 525 individual scan lines. In PAL, 25 frames are transmitted each second. Each frame
is made up of 625 individual scan lines. Select video signal standard according to the
video system in your country/region.
5.5.22 Digital Zoom
You can zoom in the image. The larger the zoom size is, the more blurred the image is.
5.5.23 Local Video Output
If the device is equipped with video output interfaces, such as BNC, CVBS, HDMI, and SDI,
you can preview the live image directly by connecting the device to a monitor screen.
Select the output mode as ON/OFF to control the output.
5.6 OSD
You can customize OSD (On-screen Display) information such as device name, time/date,
font, and text overlay displayed on video stream.
Go to OSD setting page:
Conguration > Image > OSD Settings . Set the corresponding
parameters, and click Save to take effect.
Character Set
Select character set for displayed information. If Korean is required to be displayed on
screen, select EUC-KR. Otherwise, select GBK.
Displayed Information
Set camera name, date, week, and their related display format.
Thermal TandemVu Camera User Manual
33
Text Overlay
Set customized overlay text on image.
OSD Parameters
Set OSD parameters, such as Display Mode, OSD Size, and Alignment.
5.7 Overlay Picture
Overlay a customized picture on live view.
Before You Start
The picture to overlay has to be in BMP format with 24-bit, and the maximum picture size
is 128 × 128 pixel.
Steps
1.
Go to
Conguration > Image > Picture Overlay .
2.
Select a channel to overlay picture.
3.
Check Enable.
4.
Click Upload to select a picture and open it.
The picture with a red rectangle will appear in live view after successfully uploading.
5.
Drag the red rectangle to adjust the picture position.
6.
Click Save.
5.8 Set Manual DPC (Defective Pixel Correction)
If the amount of defective pixels in the image is comparatively small and accurate
correction is needed, you can correct these pixels manually.
Steps
1.
Go to
Conguration > Image > DPC .
2.
Select the thermal channel.
3.
Select manual mode.
4.
Click the defective pixel on the image, then a cursor shows on the live view.
5.
Click Up, Down, Left, Right to adjust the cursor position to the defective pixel position.
6.
Click
, then click to correct defective pixel.
Note
If multiple defective pixels need to be corrected, click after locating a defective pixel.
Then after locating other pixels, click
to correct them simultaneously.
7.
Optional: Click to cancel defective pixel correction.
Thermal TandemVu Camera User Manual
34
5.9 Set Picture in Picture
You can overlay the images of two channels and view the image of two channels at the
same time.
Steps
1.
Select a channel number.
2.
Select the picture in picture mode.
Overlap Mode Partial image of thermal channel is displayed on the full screen of
optical channel. This mode is only supported in Camera 01.
Details Overlay The device displays the details of optical channel on thermal
channel. This mode is only supported in Camera 02.
Optimized
Details Overlay
The device displays more optical details on thermal channel with
less palettes color which mainly focuses on the high temperature
target. This mode is only supported in Camera 02.
Note
The function varies according to different models.
3.
In Details Overlay or Optimized Details Overlay, set the Fusion Distance of the target to
get the best view of bi-spectrum fusion. It is recommended to use the default value.
4.
Optional: In Optimized Details Overlay, set the Image Fusion Ratio to adjust the ratio of
optical details displayed on thermal channel.
5.
Click Save.
Note
Not all models support this function. Please take the actual product for reference.
Thermal TandemVu Camera User Manual
35
Chapter 6 Video Recording and Picture Capture
This part introduces the operations of capturing video clips and snapshots, playback, and
downloading captured
les.
6.1 Storage Settings
This part introduces the
conguration of several common storage paths.
6.1.1 Set Memory Card
If you choose to store the les to memory card, make sure you insert and format the
memory card in advance.
Before You Start
Insert the memory card to the camera. For detailed installation, refer to
Quick Start Guide
of the camera.
Steps
1.
Go to storage management setting page: Conguration > Storage > Storage
Management > HDD Management .
2.
Select the memory card, and click Format to start initializing the memory card.
The Status of memory card turns to Normal from Uninitialized, which means the
memory card can be used normally.
3.
Optional:
Dene the Quota of the memory card. Input the quota percentage for different
contents according to your need.
4.
Click Save.
6.1.2 Set NAS
Take network server as network disk to store the record les, captured images, etc.
Before You Start
Get the IP address of the network disk rst.
Steps
1.
Go to NAS setting page:
Conguration > Storage > Storage Management > Net HDD .
2.
Click HDD No.. Enter the server address and le path for the disk.
Server Address
The IP address of the network disk.
File Path
Thermal TandemVu Camera User Manual
36
The saving path of network disk les.
Mounting Type
Select
le system protocol according to the operation system.
Enter user name and password of the net HDD to guarantee the security if SMB/CIFS
is selected.
3.
Click Test to check whether the network disk is available.
4.
Click Save.
6.1.3 Set FTP
You can congure the FTP server to save images which are captured by events or a timed
snapshot task.
Before You Start
Get the FTP server address
rst.
Steps
1.
Go to Conguration > Network > Advanced Settings > FTP .
2.
Congure FTP settings.
FTP Protocol
FTP and SFTP are selectable. The
les uploading is encrypted by using SFTP
protocol.
Server Address and Port
The FTP server address and corresponding port.
User Name and Password
The FTP user should have the permission to upload pictures.
If the FTP server supports picture uploading by anonymous users, you can check
Anonymous to hide your device information during uploading.
Note
If SFTP is used, logging into the FTP server anonymously is now allowed.
Directory Structure
The saving path of snapshots in the FTP server.
3.
Click Upload Picture or Upload Video to enable uploading snapshots or videos to the
FTP server.
4.
Click Test to verify the FTP server.
5.
Click Save.
Thermal TandemVu Camera User Manual
37
6.1.4 Set Cloud Storage
It helps to upload the captured pictures and data to the cloud. The platform requests
picture directly from the cloud for picture and analysis. The function is only supported by
certain models.
Steps
Caution
If the cloud storage is enabled, the pictures are stored in the cloud video manager rstly.
1.
Go to Conguration > Storage > Storage Management > Cloud Storage .
2.
Check Enable Cloud Storage.
3.
Set basic parameters.
Protocol Version The protocol version of the cloud video manager.
Server IP The IP address of the cloud video manager. It supports IPv4
address.
Serve Port The port of the cloud video manager. You are recommended to
use the default port.
AccessKey The key to log in to the cloud video manager.
SecretKey The key to encrypt the data stored in the cloud video manager.
User Name and
Password
The user name and password of the cloud video manager.
Picture Storage
Pool ID
The ID of the picture storage region in the cloud video manager.
Make sure storage pool ID and the storage region ID are the
same.
4.
Click Test to test the congured settings.
5.
Click Save.
6.2 Video Recording
This part introduces the operations of manual and scheduled recording, playback, and
downloading recorded
les.
6.2.1 Record Automatically
This function can record video automatically during congured time periods.
Thermal TandemVu Camera User Manual
38
Before You Start
Select Trigger Recording in event settings for each record type except Continuous. See
Event and Alarm
for details.
Steps
Note
The function varies according to different models.
1.
Go to Conguration > Storage > Schedule Settings > Record Schedule .
2.
Select channel No.
3.
Check Enable.
4.
Select a record type.
Note
The record type is vary according to different models.
Continuous
The video will be recorded continuously according to the schedule.
Motion
When motion detection is enabled and trigger recording is selected as linkage
method, object movement is recorded.
Alarm
When alarm input is enabled and trigger recording is selected as linkage method, the
video is recorded after receiving alarm signal from external alarm input device.
Motion | Alarm
Video is recorded when motion is detected or alarm signal is received from the
external alarm input device.
Motion & Alarm
Video is recorded only when motion is detected and alarm signal is received from the
external alarm input device.
Event
The video is recorded when
congured event is detected.
5.
Set schedule for the selected record type. Refer to
Set Arming Schedule
for the setting
operation.
6.
Click Advanced to set the advanced settings.
Overwrite
Enable Overwrite to overwrite the video records when the storage space is full.
Otherwise the camera cannot record new videos.
Pre-record
The time period you set to record before the scheduled time.
Thermal TandemVu Camera User Manual
39
Post-record
The time period you set to stop recording after the scheduled time.
Stream Type
Select the stream type for recording.
Note
When you select the stream type with higher bitrate, the actual time of the pre-record
and post-record may be less than the set value.
Recording Expiration
The recordings are deleted when they exceed the expired time. The expired time is
congurable. Note that once the recordings are deleted, they can not be recovered.
7.
Click Save.
6.2.2 Record Manually
Steps
1.
Go to
Conguration > Local .
2.
Set the Record File Size and saving path to for recorded les.
3.
Click Save.
4.
Click in the live view interface to start recording. Click to stop recording.
6.2.3 Playback and Download Video
You can search, playback and download the videos stored in the local storage or network
storage.
Steps
1.
Click Playback.
2.
Select channel No.
3.
Set search condition and click Search.
The matched video
les showed on the timing bar.
4.
Click to play the video les.
-
Click to clip video les.
-
Click to play video les in full screen. Press ESC to exit full screen.
Note
Go to Conguration > Local , click Save clips to to change the saving path of clipped
video
les.
5.
Click on the playback interface to download les.
1)Set search condition and click Search.
2)Select the video
les and then click Download.
Thermal TandemVu Camera User Manual
40
Note
Go to Conguration > Local , click Save downloaded les to to change the saving path
of downloaded video
les.
6.3 Capture Conguration
The device can capture the pictures manually or automatically and save them in
congured saving path. You can view and download the snapshots.
6.3.1 Capture Automatically
This function can capture pictures automatically during congured time periods.
Steps
1.
Go to
Conguration > Storage > Schedule Settings > Capture > Capture Parameters .
2.
Select a channel to set capture parameters.
3.
Set the capture type.
Timing
Capture a picture at the congured time interval.
Event-Triggered
Capture a picture when an event is triggered. You should
congure related linkage
methods in event settings rst. Refer to
Event and Alarm
for event settings.
4.
Set the Format, Resolution, Quality, Interval, and Capture Number.
5.
Refer to
Set Arming Schedule
for conguring schedule time.
6.
Click Save.
6.3.2 Capture Manually
Steps
1.
Go to Conguration > Local .
2.
Set the Image Format and saving path to for snapshots.
JPEG
The picture size of this format is comparatively small, which is better for network
transmission.
BMP
The picture is compressed with good quality.
3.
Click Save.
4.
Click
near the live view or play back window to capture a picture manually.
Thermal TandemVu Camera User Manual
41
6.3.3 View and Download Picture
You can search, view and download the pictures stored in the local storage or network
storage.
Steps
1.
Click Picture.
2.
Select channel No.
3.
Set search condition and click Search.
The matched pictures showed in the
le list.
4.
Select the pictures then click Download to download them.
Note
Go to Conguration > Local , click Save snapshots when playback to change the saving
path of pictures.
Thermal TandemVu Camera User Manual
42
Chapter 7 Perimeter Protection
The function is used to detect whether there is any target breaking the perimeter
protection rules. The optical camera will track the target and the device will alarm when the
perimeter protection rule is triggered.
7.1 Set Perimeter Protection Rules
The device can detect whether there is any target breaking the perimeter protection rules.
The device will alarm when the rule is triggered.
Steps
1.
Go to
Conguration > Perimeter Protection > Rule .
2.
Check Intelligent Analysis.
3.
Optional: Check Enable Fusion to view optical and thermal image.
4.
Set perimeter protection rules.
1)Click
to add a new rule.
2)Enter the rule name, and click the drop down menu to select Rule Type.
Line Crossing
If any target moves across the setting line, the alarm will be triggered. You can set
the crossing direction.
Intrusion
If any target intrudes into the
pre-dened region longer than the set duration, the
alarm will be triggered.
Region Entrance
If any target enters the
pre-dened region, the alarm will be triggered.
Region Exiting
If any target exits the pre-dened region, the alarm will be triggered.
3)Draw the detection rule.
Line Crossing
a. Click
to draw a line in the live view.
b. You can drag end points of the line to adjust the position and length.
c. Set the crossing direction. Bidirectional, A-to-B, or B-to-A are selectable.
d. Set Sensitivity. The higher the value is, the easier the target can be detected.
Intrusion
Thermal TandemVu Camera User Manual
43
a. Click to draw an area in the live view. Right click the mouse to nish drawing.
b. Set Duration. When a target intrudes into the set area and stays in the area for
more than the set duration, the device triggers an intrusion alarm.
c. Set Sensitivity. The higher the value is, the easier the target can be detected.
Region Entrance and Region Exit
a. Click
to draw an area in the live view. Right click the mouse to nish drawing.
It is recommended to draw three different areas covering the whole detection
scene from near to far.
Note
The recommended drawing is optional for some camera models, refer to the
pop-up operation guide after you checked Intelligent Analysis.
b. Target that enters or exits the set area triggers the region entrance or region exit
alarm.
4)Set other parameters for the rule.
Target Detection
You are recommended to select the target as Human & Vehicle.
Scene Mode
The scene mode is set to be General by default. Select Leaves Interfered View
when there are shaking targets in the scene, such as leaves.
Filter by Pixel
Check to enable Filter by Pixel. Draw max. size and min. size rectangles to
lter the
target among human, vehicle, animal, and others. Only the target whose size is
between the Max. Size and Min. Size value will trigger the alarm.
Note
●
The lter conguration is optional for some camera models, refer to the pop-up
operation guide after you checked Intelligent Analysis.
●
You can draw the max. size and min. size rectangles according to the real target
in the scene. The recommended size is 1.2 times of the target.
5)Repeat steps above to congure other rules.
Note
You can click to copy the same settings to other rules.
6)Click Save.
5.
Set Arming Schedule
and
Linkage Method Settings
for each rule.
6.
Optional: You can shield certain areas from being detected. Refer to
Set Perimeter
Protection Shield Region
for detailed settings.
7.
Optional: Set displayed information on stream or picture. Refer to
Set Overlay & Capture
Parameters
for detailed settings.
Thermal TandemVu Camera User Manual
44
7.2 Set Perimeter Protection Shield Region
You can
congure areas from being detected.
Steps
1.
Go to Conguration > Local , and enable Display Shield Area.
2.
Go to
Conguration > Perimeter Protection > Shield Region .
3.
Click .
4.
Drag the mouse in the live view to draw the area. You can drag the corners of the red
rectangle area to change its shape and size.
5.
Right click the mouse to stop drawing.
6.
Optional: Select one area and click
to delete it.
7.
Click Save.
7.3 Set Overlay & Capture Parameters
Steps
1.
Go to Conguration > Perimeter Protection > Overlay & Capture .
Display VCA Info. on Stream
Select to display target info and rule on stream, the information will be added to the
video stream, and the overlay will be displayed if you get live view or play back by the
VS Player.
Display Trajectory
The target's moving path will be shown in live view.
Display Target Info. on Alarm Picture
Select to display the target information on the alarm picture.
Display Rule Info. on Alarm Picture
Select to display the rule information on the alarm picture.
Display Size Info. on Alarm Picture
Select to display the size information of the target on the alarm picture.
Snapshot Settings
Select to upload the picture to the surveillance center when the alarm occurs. You can
also set the quality and resolution of the picture separately.
2.
Click Save.
Go to
Conguration > Local , check Enable rules to display rules information on the live
view.
Thermal TandemVu Camera User Manual
45
7.4 Alarm Double Check
When the perimeter protection rule alarm is triggered in camera channel 01/02, the camera
channel 03 will be linked to double check the target authenticity and judge to upload the
alarm information or not.
Steps
1.
Go to
Conguration > Perimeter Protection > Alarm Double Check .
2.
Check Enable.
3.
Drag the time bar to draw desired valid time.
4.
Adjust the time period.
-
Click on the selected time period, and enter the desired value. Click Save.
-
Click on the selected time period. Drag the both ends to adjust the time period.
-
Click on the selected time period, and drag it on the time bar.
5.
Optional: Click Copy to... to copy the same settings to other days.
6.
Click Save.
7.5 Set Advanced
Conguration Parameters
Go to Conguration > Perimeter Protection > Advanced Conguration and congure the
parameters.
Detection Parameters
Single Alarm
The system only sends alarm once for one target triggering. Otherwise, the alarm will be
triggered continuously until the target disappears.
Restore Parameters
Restore Default
Click Restore to restore the parameters to the default.
Restart VCA
Click Restart to restart the VCA function.
Note
The settings vary according to different models.
Thermal TandemVu Camera User Manual
46
Chapter 8 Event and Alarm
This part introduces the
conguration of events. The device takes certain response to
triggered alarm. Certain events may not be supported by certain device models.
8.1 Set Motion Detection
It helps to detect the moving objects in the detection region and trigger the linkage actions.
Steps
1.
Go to
Conguration > Event > Basic Event > Motion Detection .
2.
Select the channel No.
3.
Check Enable Motion Detection.
4.
Optional: Highlight to display the moving object in the image in green.
1)Check Enable Dynamic Analysis for Motion.
2)Go to
Conguration > Local .
3)Set Rules to Enable.
5.
Select
Conguration Mode, and set rule region and rule parameters.
-
For the information about normal mode, see
Normal Mode
.
-
For the information about expert mode, see
Expert Mode
.
6.
Set the arming schedule and linkage methods. For the information about arming
schedule settings, see
Set Arming Schedule
. For the information about linkage
methods, see
Linkage Method Settings
.
7.
Click Save.
8.1.1 Normal Mode
You can set motion detection parameters according to the device default parameters.
Steps
1.
Select normal mode in Conguration.
2.
Set the sensitivity of normal mode. The higher the value of sensitivity is, the more
sensitive the motion detection is. If the sensitivity is set to
0
, motion detection and
dynamic analysis do not take effect.
3.
Click Draw Area. Click and drag the mouse on the live video, then release the mouse to
nsh drawing one area.
Stop Drawing
Stop drawing one area.
Clear All Clear all the areas.
4.
Optional: You can set the parameters of multiple areas by repeating the above steps.
Thermal TandemVu Camera User Manual
47
8.1.2 Expert Mode
You can congure the motion detection parameters of day/night switch according to the
actual needs.
Steps
1.
Select expert mode in Conguration.
2.
Set parameters of expert mode.
Scheduled Image Settings
OFF: Switch is disabled.
Auto-Switch: The system switches day/night mode automatically according to
environment. It displays colored image at day and black and white image at night.
Scheduled-Switch: The system switches day/night mode according to the schedule. It
switches to day mode during the set periods and switches to night mode during the
other periods.
Note
This function is not supported in the expert mode of thermal channel.
Sensitivity
The higher the value of sensitivity is, the more sensitive the motion detection is. If the
sensitivity is set to
0
, motion detection and dynamic analysis do not take effect.
3.
Select an Area and click Draw Area. Click and drag the mouse on the live video, then
release the mouse to
nish drawing one area.
Stop Drawing
Finish drawing one area.
Clear All Delete all the areas.
4.
Optional: Repeat the above steps to set multiple areas.
8.2 Set Video Tampering Alarm
When the congured area is covered and cannot be monitored normally, the alarm is
triggered and the device takes certain alarm response actions.
Steps
1.
Go to Conguration > Event > Basic Event > Video Tampering .
2.
Select the channel number.
3.
Check Enable.
4.
Set the Sensitivity. The higher the value is, the easier to detect the area covering.
5.
Click Draw Area and drag the mouse in the live view to draw the area.
Stop Drawing
Finish drawing.
Thermal TandemVu Camera User Manual
48
Clear All Delete all the drawn areas.
Figure 8-1 Set Video Tampering Area
6.
Refer to
Set Arming Schedule
for setting scheduled time. Refer to
Linkage Method
Settings
for setting linkage method.
7.
Click Save.
8.3 Set Alarm Input
Alarm signal from the external device triggers the corresponding actions of the current
device.
Before You Start
Note
This function is only supported by certain models.
Make sure the external alarm device is connected. See
Quick Start Guide
for cable
connection.
Steps
1.
Go to Conguration > Event > Basic Event > Alarm Input .
2.
Check Enable Alarm Input Handling.
Thermal TandemVu Camera User Manual
49
3.
Select Alarm Input NO. and Alarm Type from the dropdown list. Edit the Alarm Name.
4.
Refer to
Set Arming Schedule
for setting scheduled time. Refer to
Linkage Method
Settings
for setting linkage method.
5.
Click Copy to... to copy the settings to other alarm input channels.
6.
Click Save.
8.4 Set Exception Alarm
Exception such as network disconnection can trigger the device to take corresponding
action.
Steps
1.
Go to
Conguration > Event > Basic Event > Exception .
2.
Select Exception Type.
HDD Full The HDD storage is full.
HDD Error Error occurs in HDD.
Network Disconnected The device is ofine.
IP Address Conicted The IP address of current device is same as that of other
device in the network.
Illegal Login Incorrect user name or password is entered.
Voltage Instable The power supply voltage is uctuating.
PT Locking The panning and tilting movements are stuck.
3.
Refer to
Linkage Method Settings
for setting linkage method.
4.
Click Save.
8.5 Detect Audio Exception
Audio exception detection function detects the abnormal sound in the scene, such as the
sudden increase/decrease of the sound intensity, and some certain actions can be taken
as response.
Steps
1.
Go to
Conguration > Event > Smart Event > Audio Exception Detection .
2.
Select one or several audio exception detection types.
Audio Loss Detection
Detect sudden loss of audio track.
Sudden Increase of Sound Intensity Detection
Thermal TandemVu Camera User Manual
50
Detect sudden increase of sound intensity. Sensitivity and Sound Intensity Threshold
are
congurable.
Note
●
The lower the sensitivity is, the more signicant the change should be to trigger the
detection.
●
The sound intensity threshold refers to the sound intensity reference for the
detection. It is recommended to set as the average sound intensity in the
environment. The louder the environment sound, the higher the value should be.
You can adjust it according to the real environment.
Sudden Decrease of Sound Intensity Detection
Detect sudden decrease of sound intensity. Sensitivity is congurable.
3.
Refer to
Set Arming Schedule
for setting scheduled time. Refer to
Linkage Method
Settings
for setting linkage methods.
4.
Click Save.
Note
The function varies according to different models.
Thermal TandemVu Camera User Manual
51
Chapter 9 Arming Schedule and Alarm Linkage
Arming schedule is a customized time period in which the device performs certain tasks.
Alarm linkage is the response to the detected certain incident or target during the
scheduled time.
9.1 Set Arming Schedule
Set the valid time of the device tasks.
Steps
1.
Click Arming Schedule.
2.
Drag the time bar to draw desired valid time.
Note
Up to 8 periods can be congured for one day.
3.
Adjust the time period.
-
Click on the selected time period, and enter the desired value. Click Save.
-
Click on the selected time period. Drag the both ends to adjust the time period.
-
Click on the selected time period, and drag it on the time bar.
4.
Optional: Click Copy to... to copy the same settings to other days.
5.
Click Save.
9.2 Linkage Method Settings
You can enable the linkage functions when an event or alarm occurs.
9.2.1 Trigger Alarm Output
If the device has been connected to an alarm output device, and the alarm output No. has
been congured, the device sends alarm information to the connected alarm output device
when an alarm is triggered.
Steps
Note
This function is only supported by certain models.
1.
Go to Conguration > Event > Basic Event > Alarm Output .
2.
Set alarm output parameters.
Automatic Alarm
For the information about the conguration, see
Automatic Alarm
.
Thermal TandemVu Camera User Manual
52
Manual Alarm For the information about the conguration, see
Manual Alarm
.
3.
Click Save.
Manual Alarm
You can trigger an alarm output manually.
Steps
1.
Set the manual alarm parameters.
Alarm Output No.
Select the alarm output No. according to the alarm interface connected to the
external alarm device.
Alarm Name
Edit a name for the alarm output.
Delay
Select Manual.
2.
Click Manual Alarm to enable manual alarm output.
3.
Optional: Click Clear Alarm to disable manual alarm output.
Automatic Alarm
Set the automatic alarm parameters, then the device triggers an alarm output
automatically in the set arming schedule.
Steps
1.
Set automatic alarm parameters.
Alarm Output No.
Select the alarm output No. according to the alarm interface connected to the
external alarm device.
Alarm Name
Custom a name for the alarm output.
Delay
It refers to the time duration that the alarm output remains after an alarm occurs.
2.
Set the alarming schedule. For the information about the settings, see
Set Arming
Schedule
.
3.
Click Copy to… to copy the parameters to other alarm output channels.
4.
Click Save.
Thermal TandemVu Camera User Manual
53
9.2.2 Set Flashing Alarm Light Output
Steps
1.
Go to Conguration > Event > Basic Event > Flashing Alarm Light Output .
2.
Set Flashing Duration, Flashing Frequency and Brightness.
Flashing Duration
The time period the
ashing lasts when one alarm happens.
Flashing Frequency
The ashing speed of the light. High, Medium, and Low are selectable.
Brightness
The brightness of the light.
3.
Edit the arming schedule.
4.
Click Save.
Note
Only certain camera models support the function.
9.2.3 Set Audible Alarm Output
When the device detects targets in the detection area, audible alarm can be triggered as a
warning.
Steps
1.
Go to Conguration > Event > Basic Event > Audible Alarm Output .
2.
Select an Alarm Type.
3.
Select Sound Type and set related parameters.
-
Select Warning and its contents. Set the alarm times you need.
-
Select Custom Audio. You can select a custom audio
le from the drop-down list. If no
le is available, you can click Add to upload an audio le that meets the requirement.
Up to six audio
les can be uploaded, and each audio le shall not exceed 512 KB.
4.
Optional: Click Test to play the selected audio le on the device.
5.
Set arming schedule for audible alarm. See
Set Arming Schedule
for details.
6.
Click Save.
Note
The function is only supported by certain device models.
Thermal TandemVu Camera User Manual
54
9.2.4 FTP/NAS/Memory Card Uploading
If you have enabled and congured the FTP/NAS/memory card uploading, the device
sends the alarm information to the FTP server, network attached storage and memory card
when an alarm is triggered.
Refer to
Set FTP
to set the FTP server.
Refer to
Set NAS
for NAS conguration.
Refer to
Set Memory Card
for memory card storage conguration.
9.2.5 Send Email
Check Send Email, and the device sends an email to the designated addresses with alarm
information when an alarm event is detected.
For email settings, refer to
Set Email
.
Set Email
When the email is congured and Send Email is enabled as a linkage method, the device
sends an email notication to all designated receivers if an alarm event is detected.
Before You Start
Set the DNS server before using the Email function. Go to Conguration > Network > Basic
Settings > TCP/IP for DNS settings.
Steps
1.
Go to email settings page:
Conguration > Network > Advanced Settings > Email .
2.
Set email parameters.
1)Input the sender's email information, including the Sender's Address, SMTP Server,
and SMTP Port.
2)Optional: If your email server requires authentication, check Authentication and input
your user name and password to log in to the server.
3)Set the E-mail Encryption.
●
When you select TLS, and disable STARTTLS, emails are sent after encrypted by
TLS. The SMTP port should be set as 465.
●
When you select TLS and Enable STARTTLS, emails are sent after encrypted by
STARTTLS, and the SMTP port should be set as 25.
Note
If you want to use STARTTLS, make sure that the protocol is supported by your
email server. If you check the Enable STARTTLS while the protocol is not supported
by your email sever, your email is sent with no encryption.
Thermal TandemVu Camera User Manual
55
4)Optional: If you want to receive notication with alarm pictures, check Attached
Image. The
notication email has 3 attached alarm pictures about the event with
congurable image capturing interval.
5)Congure Alarm E-mail Attachment Settings.
Select the number of captures of the corresponding channel.
●
0: It will not upload the image of the selected channel.
●
1: It will only upload the image captured when the alarm is triggered.
●
3: It will upload the images captured about 1 s before and after the alarm is
triggered, as well as the image captured when the alarm is triggered.
Video
Select the video channel and video duration as required.
●
0 s: It will not upload the video of the selected channel.
●
3 s: Upload the video that is recorded about 1 s before and 2 s after the alarm is
triggered.
●
5 s: Upload the video that is recorded about 2 s before and 3 s after the alarm is
triggered.
●
7 s: Upload the video that is recorded about 2 s before and 5 s after the alarm is
triggered.
6)Input the receiver's information, including the receiver's name and address.
7)Click Test to see if the function is well
congured.
3.
Click Save.
9.2.6 Notify Surveillance Center
Check Notify Surveillance Center, the alarm information is uploaded to the surveillance
center when an alarm event is detected.
9.2.7 Trigger Recording
Check Trigger Recording, and the device records the video about the detected alarm event.
For device with more than one camera channels, you can set one or more channels to take
recordings if needed.
For recording settings, refer to
Video Recording and Picture Capture
.
Thermal TandemVu Camera User Manual
56
Chapter 10 PTZ
PTZ is an abbreviation for pan, tilt, and zoom. It means the movement options of the
camera.
10.1 PTZ Control
In live view interface, you can use the PTZ control buttons to control the device panning,
tilting, and zooming.
PTZ Control Panel
Click and hold the directional button to pan/
tilt the device.
Note
●
You can set Keyboard Control Speed in
Conguration > PTZ > Basic Settings .
The speed of pan/tilt movement in live
view is based on this speed level.
●
You can set Max. Tilt-angle in
Conguration > PTZ > Basic Settings to
limit tilt movement range.
Click the button, then the device keeps
panning.
Note
You can set Auto Scan Speed in
Conguration > PTZ > Basic Settings . The
higher the value you set, the faster the
device pans.
Drag the slider to adjust the speed of pan/
tilt movement.
Note
●
You can set Manual Control Speed in Conguration > PTZ > Basic Settings .
Thermal TandemVu Camera User Manual
57
Compatible The control speed is same as Keyboard
Control Speed.
Pedestrian Choose Pedestrian when you monitor the
pedestrians.
Non-motor Vehicle Choose Non-motor Vehicle when you
monitor the non-motor vehicles.
Motor Vehicle Choose Motor Vehicle when you monitor
the motor vehicles.
Auto You are recommended to set it as Auto
when the application scene of the speed
dome is complicated.
●
To avoid blurred image resulted from fast zoom, you can check Enable Proportional Pan
in Conguration > PTZ > Basic Settings . If you enable this function, the pan/tilt speed
change according to the amount of zoom. When there is a large amount of zoom, the
pan/tilt speed will be slower for keeping the image from moving too fast on the live view
image.
Zoom in/out
Click the button, and the lens zooms in.
Click the button, and the lens zooms out.
Note
●
You can set Zooming Speed in Conguration > PTZ > Basic Settings . The higher the
value is, the faster the zooming speed is.
●
You can set Zoom Limit in
Conguration > Image > Display Settings > Other to limit the
maximum value of the total zoom (digital zoom and optical zoom).
●
You can set Synchronized Zoom in Conguration > PTZ > Basic Settings to synchronize
the zoom settings in the optical channel and the thermal channel.
Focus
Click the button, then the lens focuses near
and the object nearby gets clear.
Click the button, then the lens focuses far
and the object far away gets clear.
Thermal TandemVu Camera User Manual
58
Iris
When the image is too dark, click the button
to enlarge the iris.
When the image is too bright, click the
button to stop down the iris.
10.2 Set Preset
A preset is a predened image position. For the dened preset, you can call the preset No.
to view the position.
Steps
1.
Click
to show the setting panel, and click .
2.
Use the PTZ control buttons to move the lens to the desired position.
3.
Select a preset number from the preset list, and click to nish the setting.
Note
Some presets are predened with special command. You can only call them but not
congure them.
4.
Repeat the steps above to set multiple presets.
Click the button to call the preset.
Click the button to delete the preset.
Note
You can delete all presets in Conguration > PTZ > Clear Cong . Click Clear All Presets,
and click Save.
What to do next
Go to
Conguration > PTZ > Basic Settings to set preset freezing and preset speed.
After enabling preset freezing, the live image switches directly from one preset to another,
without showing the areas between these two scenes. It also guarantees the masked area
will not be seen when the device is moving.
10.2.1 Special Presets
You can call the following presets with special demands to enable corresponding
functions.
Thermal TandemVu Camera User Manual
59
Preset No. Function Preset No. Function
33 Auto Flip 92 Set manual limits
34 Back to origin 93 Save manual limits
35 Call patrol 1 94 Remote restart
36 Call patrol 2 95 Call OSD menu
37 Call patrol 3 96 Stop a scan
38 Call patrol 4 97 Start random scan
39 Day mode 98 Start frame scan
40 Night mode 99 Start auto scan
41 Call pattern 1 100 Start tilt scan
42 Call pattern 2 101 Start panorama scan
43 Call pattern 3 102 Call patrol 5
44 Call pattern 4 103 Call patrol 6
45 One-touch patrol 104 Call patrol 7
46 Call area scan 105 Call patrol 8
47 Call area scan 1
Note
Not all models support the presets above. Please take the actual product for reference.
10.3 Set Patrol Scan
Patrol scan is a function to automatically move among multiple presets.
Before You Start
Note
This function is only supported by certain models.
Make sure that you have dened more than one presets. See
Set Preset
for detailed
conguration.
Steps
1.
Click
to show the setting panel, and click to enter patrol setting interface.
2.
Select a patrol number from the list and click .
3.
Click
to add presets.
Thermal TandemVu Camera User Manual
60
Preset
Select
predened preset.
Speed
Set the speed of moving from one preset to another.
Time
It is the duration staying on one patrol point.
Delete the presets in patrol.
Adjust the preset order.
Note
A patrol can be congured with 32 presets at most, and 2 presets at least.
4.
Click OK to nish a patrol setting.
5.
Repeat the steps above to
congure multiple patrols.
6.
Operate patrols.
Call the patrol.
Stop patrolling.
Delete the patrol.
Set the patrol.
Note
You can delete all patrols in Conguration > PTZ > Clear Cong . Click Clear All Patrols,
and click Save.
10.3.1 Set One-Touch Patrol
The device automatically adds presets to one patrol path and starts patrol scan.
Steps
1.
Set two or more presets except special presets. For setting presets, refer to
Set Preset
.
The device will automatically add presets to patrol path No.8.
2.
Choose one of the following methods to enable the function.
-
Click
.
-
Call patrol path No.8.
-
Select and call preset No.45.
10.4 Set Pattern Scan
The device can move as the recorded pattern.
Thermal TandemVu Camera User Manual
61
Steps
Note
This function is only supported by certain models.
1.
Click to show the PTZ control panel, and click .
2.
Select one pattern scan path that needs to be set.
3.
Click
to start recording pattern scan.
4.
Click PTZ control buttons as demands.
Note
Recording stops when the space for pattern scan is 0%.
5.
Click to complete one pattern scan path settings.
6.
Click
to call pattern scan.
Stop pattern scan.
Reset pattern scan path.
Delete the selected pattern scan.
Note
If you need to delete all the pattern scans, go to Conguration > PTZ > Clear Cong , and
check Clear All Patterns, and click Save.
10.5 Set Linear Scan
The device can perform auto scan in setting area for VCA detection.
Steps
1.
Go to Conguration > PTZ > Linear Scan .
2.
Select the camera channel.
3.
Zoom in and zoom out the camera to the appropriate zoom ratio, and click Save Ratio.
Note
Click Enable Saved Ratio to set the camera to the saved zoom ratio.
4.
Check Enter Area Settings.
5.
Set the left/right/up/down limits with the PTZ control panel, and click to conrm
settings.
6.
Optional: Click Clear to delete the saved scan area.
7.
Click Save.
8.
Click Call Linear Scan to start linear scan, and click Stop Linear Scan to stop linear scan.
Thermal TandemVu Camera User Manual
62
Note
When setting the linear scan area, make sure the target area is both included in the
optical channel and the thermal channel.
10.6 Set Limit
The device can only move within the limited range.
Steps
1.
Go to
Conguration > PTZ > Limit .
2.
Select Limit Type.
Manual Stops
It refers to the movement range limit when you control the device manually.
Scan Stops
It refers to the movement range limit when the device scans automatically.
Note
Scan limit is only supported by the device that has scan function.
3.
Click Set and set limits according to the prompt on the live image.
4.
Optional: Click Clear to clear the limit settings of the selected mode.
5.
Click Save.
6.
Check Enable Limit.
Note
If you need to cancel all the set patrol paths, go to Conguration > PTZ > Clear Cong ,
select Clear All PTZ Limited, and click Save.
Result
The device can only move within the set region after saving the settings.
10.7 Set Initial Position
Initial position refers to the relative initial position of the device azimuth. You can set the
initial position if you need to select one point in the scene as the base point.
Steps
1.
Go to
Conguration > PTZ > Initial Position .
2.
Move the device to the needed position by manually controlling the PTZ control buttons.
3.
Click Set to save the information of initial position.
Call
The device moves to the set initial position.
Thermal TandemVu Camera User Manual
63
Clear Clear the set initial position.
10.8 Set Park Action
You can set the device to perform an action (for example, preset or patrol) or return to a
position after a period of inactivity (park time).
Before You Start
Set the action type rst. For example, if you want to select patrol as park action, you should
set the patrol. See
Set Patrol Scan
for details.
Steps
1.
Go to Conguration > PTZ > Park Action .
2.
Check Enable Park Action.
3.
Set Park Time: the inactive time before the device starts park action.
4.
Select Action Type according to your needs.
Note
The VCA Type varies according to different action types.
5.
Select an Action Type ID, if you select patrol or preset as action type.
When the action type is patrol, action type ID stands for patrol No. When the action type
is preset, action type ID stands for preset No.
6.
Click Save.
10.9 Set Privacy Mask
Privacy masks cover certain areas on the live image to protect personal privacy from being
live viewed and recorded.
Steps
1.
Go to Conguration > PTZ > Privacy Mask .
2.
Select a channel.
3.
Adjust the live image to the target scene via PTZ control buttons.
4.
Draw the area.
Draw Area
Click Draw Area, and click on the live view
image to determine the boundary of the
mask.
Stop Drawing Click Stop Drawing after drawing the mask.
5.
Click Add.
It is listed in Privacy Mask List.
Thermal TandemVu Camera User Manual
64
6.
Edit Name, Type, and Active Zoom Ratio on your demand.
Active Zoom Ratio
When the actual zoom ratio is less than the set active zoom ratio, the set area cannot
be covered. When the actual zoom ratio is greater than the set active zoom ratio, the
privacy mask is valid. The maximum value of active zoom ratio depends on the
camera module.
Note
Active zoom ratio is only supported for the PTZ channel.
7.
Repeat the steps above to set other privacy masks.
8.
Check Enable Privacy Masks.
10.10 Set Scheduled Tasks
You can set the device to perform a certain task during a certain period.
Steps
1.
Go to Conguration > PTZ > Scheduled Tasks .
2.
Check Enable Scheduled Task.
3.
Select the task type from the drop-down list and draw a time bar on the schedule table.
4.
Click the set time bar and set the action ID and smart event or VCA type.
Note
Not all task types support the settings of action ID and smart event or VCA function.
Please take the actual product for reference.
5.
Repeat step 3 and step 4 to set more than one scheduled tasks.
6.
Set Park Time. During the set task period, if you operate the device manually, the
scheduled task will be suspended. When the manual operation is over, the device will
continue to perform the scheduled task after the set park time.
Note
Up to 30 time periods can be congured per day.
7.
Click Save.
Note
If you want to clear all scheduled tasks, go to Conguration > PTZ > Clear Cong , check
Clear All Scheduled Tasks, and click Save.
10.11 Set PTZ Priority
The function can set the PTZ priority of different signals.
Thermal TandemVu Camera User Manual
65
Steps
1.
Go to
Conguration > PTZ > Prioritize PTZ .
2.
Set the priority signal and delayed time.
Network
The network signal controls the device with priority.
RS-485
The RS-485 signal controls the device with priority.
Delay
It refers to the time interval of PTZ operation controlled by different signals. When the
operation with high priority is
nished, the low priority signal controls the device after
the setting interval.
3.
Click Save.
10.12 Set Device Position
Before You Start
Go to Conguration > PTZ > Basic Settings > PTZ OSD to enable PT Status display.
Steps
1.
Go to the setting page: Conguration > PTZ > Position Settings .
2.
Select a PT Mode.
Manual
Use a direction indicating device to determine the North at the device
location, and set the North for the device. For details, see
Set Manual
Compass
.
Auto For the device that has built-in e-compass, the compass can automatically
tell the north direction for the device. For details, see
Set Auto Compass
.
3.
Optional: Check Display Position Diagram to display the position diagram on the live
view.
4.
Set Vandal-proof alarm.
After enabling the function, the device triggers alarms once its position changes
because of shock or vandalism.
Sensitivity
The higher the value is, the easier the alarm will be triggered.
Upload Vandal-proof Alarm
The device uploads the alarm information when the alarm is triggered.
5.
Get the device location information in advance, and input the longitude and latitude of
the device manually.
6.
Click Save.
Thermal TandemVu Camera User Manual
66
What to do next
If you lost direction when operating the device, you can click Point to North to call the
north position that is saved in the device.
10.12.1 Set Manual Compass
Use a direction indicating device to determine the North at the device location, and set the
North for the device.
Before You Start
Use a direction indicating device to determine the north at the device location.
Steps
1.
Select the PT Mode as Manual.
2.
Adjust the tilt position of the device to 0 by controlling the up arrow and down arrow on
the PTZ panel.
3.
Adjust the pan position to show the live view of the north direction by controlling the left
arrow and right arrow on the PTZ panel.
4.
Click Set as North.
10.12.2 Set Auto Compass
For the device that has built-in e-compass, the compass can automatically tell the north
direction for the device.
Before You Start
Electromagnetic interference may affect the accuracy of the e-compass. Use manual
compass if electromagnetic interference occurs in the device installation environment.
Steps
1.
Select the PT Mode as Auto.
2.
Click Calibrate to synchronize the north of the device with that of the e-compass.
10.13 Set Power Off Memory
This function can resume the previous PTZ status of device after it restarting from a
power-off.
Steps
1.
Go to
Conguration > PTZ > Basic Settings .
2.
Select Resume Time Point. When the device stays at one position for the set resume
time point or more, the position is saved as a memory point. The device returns to the
last memory point when it restarts.
3.
Click Save.
Thermal TandemVu Camera User Manual
67
10.14 Panorama Tracking
This function links panoramic channel with PTZ channel through calibration. The PTZ
channel tracks moving objects in panoramic channel and automatically adjusts its PTZ
positions to keep the target in the center of PTZ view for more details.
10.14.1 Set Panorama Tracking – Manual Calibration
Steps
1.
Go to Conguration > PTZ > Panorama Tracking > Scene Conguration . Use the PTZ
control buttons to select a scene and click Save.
2.
Go to
Conguration > PTZ > Panorama Tracking > Calibration .
3.
Check Track.
4.
Select Calibration Mode as Manual. Click Start Calibration.
5.
Add calibration points.
1)Select a No. in Calibration Parameter list. Click
.
A numbered green cross displayed on the live image.
2)Drag the green cross to a certain position.
3)Repeat the steps above to add more calibration points.
Note
●
It is recommended to add at least 9 calibration points in one scene. For higher
tracking precision, up to 12 calibration points can be added. Calibration points should
be distributed evenly in live image, for example, 3 points at far range, middle range,
and close range each.
●
It is recommended to put calibration points at distinct positions in live image (for
example, corners). If no distinct position is available, you can place something (for
example, box, stool, or people) to mark the position.
6.
Link the PTZ channel to the calibration points in panorama view.
1)Select a calibration point in panorama view.
2)Adjust the PTZ channel to set the center of the close-up view at the same position as
the calibration point in panorama view by using the PTZ control buttons or by clicking
and then clicking or dragging an area on live image.
3)Click to link the current PTZ positions to the calibration point.
4)Repeat the steps above to link other calibration points.
7.
Click Start Calibration to
nish the calibration for the current scene.
8.
When calibration is completed, click Complete Manual Calibration to exit.
9.
Set tracking initial position. Use the PTZ buttons to adjust close-up view. Click Set
Tracking Initial Position to
nish setting.
Tracking Initial Position
Thermal TandemVu Camera User Manual
68
When tracking nishes or timed out, PTZ channel returns to the tracking initial
position. When tracking initial is not set, PTZ channel stays where tracking
nishes or
timed out.
10.
Set the tracking duration and zooming ratio. Click Save.
Tracking Duration
It is used to set the duration of tracking. The PTZ channel switches to next target
after the set duration time. When tracking duration is set to 0, tracking continues
until the target leaves the scene.
Zooming Ratio
It is used to set the zooming ratio for tracking. The higher the value is, the larger the
target is in the close-up view.
10.14.2 Set Panorama Tracking – Auto Calibration
Before You Start
Avoid using auto calibration for vast similar scenes (for example, lake, lawn, or public
square) or dark scenes (for example, night scenes).
Steps
1.
Go to
Conguration > PTZ > Panorama Tracking > Scene Conguration . Use the PTZ
control buttons to select a scene and click Save.
2.
Go to
Conguration > PTZ > Panorama Tracking > Calibration .
3.
Check Track.
4.
Select Calibration Mode as Auto (Fast). Click Start Calibration.
5.
Select a method for auto calibration.
One-touch
Calibration
If all scenes in panoramic channel have good stitching effect, it is
recommended to use One-touch Calibration to calibrate all scenes.
Click One-touch Calibration. When calibration for all scenes is
complete, click Stop Calibration to exit.
6.
When calibration is completed, click Auto Calibrating succeeded to exit.
7.
Set tracking initial position. Use the PTZ control buttons to adjust close-up view. Click
Set Tracking Initial Position to
nish setting.
Tracking Initial Position
When tracking nishes or timed out, the PTZ channel returns to the tracking initial
position. When tracking initial is not set, PTZ channel stays where tracking
nishes or
timed out.
8.
Set the tracking duration and zooming ratio. Click Save.
Tracking Duration
Thermal TandemVu Camera User Manual
69
It is used to set the duration of tracking. The PTZ channel switches to next target
after the set duration time. When tracking duration is set to 0, tracking continues until
the target leaves the scene.
Zooming Ratio
It is used to set the zooming ratio for tracking. The higher the value is, the larger the
target is in the close-up view.
Thermal TandemVu Camera User Manual
70
Chapter 11 System and Security
It introduces system maintenance, system settings and security management, and
explains how to
congure relevant parameters.
11.1 View Device Information
You can view device information, such as Device No., Model, Serial No. and Firmware
Version.
Enter Conguration > System > System Settings > Basic Information to view the device
information.
11.2 Time and Date
You can congure time and date of the device by conguring time zone, time
synchronization and Daylight Saving Time (DST).
11.2.1 Synchronize Time Manually
Steps
1.
Go to Conguration > System > System Settings > Time Settings .
2.
Select Time Zone.
3.
Click Manual Time Sync..
4.
Choose one time synchronization method.
-
Select Set Time, and manually input or select date and time from the pop-up calendar.
-
Check Sync. with computer time to synchronize the time of the device with that of the
local PC.
5.
Click Save.
11.2.2 Set NTP Server
You can use NTP server when accurate and reliable time source is required.
Before You Start
Set up a NTP server or obtain NTP server information.
Steps
1.
Go to Conguration > System > System Settings > Time Settings .
2.
Select Time Zone.
3.
Click NTP.
Thermal TandemVu Camera User Manual
71
4.
Set Server Address, NTP Port and Interval.
Note
Server Address is NTP server IP address.
5.
Click Test to test server connection.
6.
Click Save.
11.2.3 Set DST
If the region where the device is located adopts Daylight Saving Time (DST), you can set
this function.
Steps
1.
Go to
Conguration > System > System Settings > DST .
2.
Check Enable DST.
3.
Select Start Time, End Time and DST Bias.
4.
Click Save.
11.3 Set RS-232
RS-232 can be used to debug device or access peripheral device. RS-232 can realize
communication between the device and computer or terminal when the communication
distance is short.
Before You Start
Connect the device to computer or terminal with RS-232 cable.
Steps
1.
Go to
Conguration > System > System Settings > RS-232 .
2.
Set RS-232 parameters to match the device with computer or terminal.
3.
Click Save.
11.4 Set RS-485
RS-485 is used to connect the device to external device. You can use RS-485 to transmit
the data between the device and the computer or terminal when the communication
distance is too long.
Before You Start
Connect the device and computer or terminal with RS-485 cable.
Steps
1.
Go to
Conguration > System > System Settings > RS-485 .
2.
Set the RS-485 parameters.
Thermal TandemVu Camera User Manual
72
Note
You should keep the parameters of the device and the computer or terminal all the
same.
3.
Click Save.
11.5 View Open Source Software License
Go to Conguration > System > System Settings > About , and click View Licenses.
11.6 Set Same Unit
Set the same distance unit. When you enable this function, the unit cannot be congured
separately in other setting pages
Steps
1.
Go to
Conguration > System > System Settings > Unit Settings .
2.
Check Use Same Unit.
3.
Set the distance unit.
4.
Click Save.
11.7 Reboot
You can restart the device via browser.
Go to
Conguration > System > Maintenance > Upgrade & Maintenance , and click Reboot.
11.8 Restore and Default
Restore and Default helps restore the device parameters to the default settings.
Steps
1.
Go to Conguration > System > Maintenance > Upgrade & Maintenance .
2.
Click Restore or Default according to your needs.
Restore
Reset device parameters, except user information, IP parameters and video
format to the default settings.
Default Reset all the parameters to the factory default.
Note
Be careful when using this function. After resetting to the factory default, all
the parameters are reset to the default settings.
Thermal TandemVu Camera User Manual
73
11.9 Import and Export Conguration File
It helps speed up batch
conguration on other devices with the same conguration.
Steps
1.
Export conguration le.
1)Go to Conguration > System > Maintenance > Upgrade & Maintenance .
2)Click Device Parameters and input the encryption password to export the current
conguration le.
3)Click Device Common Parameters, check desired common parameters and input the
encryption password to export the current conguration le.
4)Optional: Set the saving path to save the conguration le in local computer.
2.
Import
conguration le.
1)Access the device that needs to be congured via web browser.
2)Go to
Conguration > System > Maintenance > Upgrade & Maintenance .
3)Select the imported le type from the drop-down list.
Note
You can import the exported Device Common Parameters to devices of the same
series.
4)Click Browse to select the saved conguration le.
5)Input the encryption password you have set when exporting the conguration le.
6)Click Import.
11.10 Export Diagnose Information
Diagnose information includes running log, system information, hardware information.
Go to
Conguration > System > Maintenance > Upgrade & Maintenance , and click
Diagnose Information to export diagnose information of the device.
11.11 Upgrade
Before You Start
You need to obtain the correct upgrade package.
Caution
DO NOT disconnect power during the process, and the device restarts automatically after
upgrade.
Steps
1.
Go to Conguration > System > Maintenance > Upgrade & Maintenance .
2.
Choose one method to upgrade.
Thermal TandemVu Camera User Manual
74
Firmware Locate the exact path of the upgrade le.
Firmware Directory Locate the directory which the upgrade le belongs to.
3.
Click Browse to select the upgrade le.
4.
Click Upgrade.
11.12 Device Auto Maintenance
Set the auto maintenance schedule and the device will automatically restart on schedule,
which helps avoid problems such as network anomaly and outage during continuous
operation, etc.
Steps
1.
Go to
Conguration > System > Maintenance > Upgrade & Maintenance .
2.
Check Enable Auto Maintenance.
3.
Read the prompt information and click OK.
4.
Select the date and time when the device automatically restart.
5.
Click Save.
Note
This function is only available for Administrator.
11.13 Search and Manage Log
Log helps locate and troubleshoot problems.
Steps
1.
Go to Conguration > System > Maintenance > Log .
2.
Set search conditions Major Type, Minor Type, Start Time, and End Time.
3.
Click Search.
The matched log
les will be displayed on the log list.
4.
Optional: Click Export to save the log
les in your computer.
11.14 Security
You can improve system security by setting security parameters.
Thermal TandemVu Camera User Manual
75
11.14.1 Security Audit Log
The security audit logs refer to the security operation logs. You can search and analyze the
security log les of the device so as to nd out the illegal intrusion and troubleshoot the
security events.
Security audit logs can be saved on device internal storage. The log will be saved every
half hour after device booting. Due to limited storage space, you can also save the logs on
a log server.
Search Security Audit Logs
You can search and analyze the security log les of the device so as to nd out the illegal
intrusion and troubleshoot the security events.
Steps
Note
This function is only supported by certain camera models.
1.
Go to Conguration > System > Maintenance > Security Audit Log .
2.
Select log types, Start Time, and End Time.
3.
Click Search.
The log
les that match the search conditions will be displayed on the Log List.
4.
Optional: Click Export to save the log les to your computer.
Set Log Server
The log server should support syslog (RFC 3164) over TLS.
Before You Start
●
Install client and CA cer ticates before conguration. Refer to
Certicate Management
for detailed information.
●
Select
certicates according to the requirement of the log server. If two-way
authentication is required, select the CA certicate and the client certicate. If one-way
authentication is required, select the CA certicate only.
Steps
1.
Check Enable Log Upload Server.
2.
Optional: Check Enable Encrypted Transmission if you want the log data to be encrypted.
3.
Input Log Server IP and Log Server Port.
4.
Optional: Select client
certicate.
5.
Select CA certicate to the device.
6.
Click Test to test the settings.
Thermal TandemVu Camera User Manual
76
7.
Click Save.
Certicate Management
It helps to manage the server/client certicates and CA certicate, and to send an alarm if
the certicates are close to expiry date, or are expired/abnormal.
Note
The function is only supported by certain device models.
11.14.2 Authentication
You can improve network access security by setting RTSP and WEB authentication.
Go to Conguration > System > Security > Authentication to choose authentication
protocol and method according to your needs.
RTSP Authentication
Digest and digest/basic are supported, which means authentication information is
needed when RTSP request is sent to the device. If you select digest/basic, it means the
device supports digest or basic authentication. If you select digest, the device only
supports digest authentication.
WEB Authentication
Digest and digest/basic are supported, which means authentication information is
needed when WEB request is sent to the device. If you select digest/basic, it means the
device supports digest or basic authentication. If you select digest, the device only
supports digest authentication.
Note
Refer to the specic content of protocol to view authentication requirements.
11.14.3 Set IP Address Filter
IP address lter is a tool for access control. You can enable the IP address lter to allow or
forbid the visits from the certain IP addresses.
IP address refers to IPv4.
Steps
Note
IP Address Filter is mutually exclusive with MAC Address Filter.
1.
Go to Conguration > System > Security > IP Address Filter .
Thermal TandemVu Camera User Manual
77
2.
Check Enable IP Address Filter.
3.
Select the type of IP address
lter.
Forbidden IP addresses in the list cannot access the device.
Allowed Only IP addresses in the list can access the device.
4.
Edit the IP address lter list.
Add
Add a new IP address or IP address range to the list.
Modify Modify the selected IP address or IP address range in the list.
Delete Delete the selected IP address or IP address range in the list.
5.
Click Save.
11.14.4 Set MAC Address Filter
MAC address lter is a tool for access control. You can enable the MAC address lter to
allow or forbid the visits from the certain MAC addresses.
Steps
Note
MAC Address Filter is mutually exclusive with IP Address Filter.
1.
Go to Conguration > System > Security > MAC Address Filter .
2.
Check Enable MAC Address Filter.
3.
Select the type of MAC address
lter.
Forbidden
MAC addresses in the list cannot access the device.
Allowed Only MAC addresses in the list can access the device.
4.
Edit the MAC address lter list.
Add
Add a new MAC address to the list.
Modify Modify the selected MAC address in the list.
Delete Delete the selected MAC address in the list.
5.
Click Save.
11.14.5 Set SSH
SSH is a protocol to ensure security of remote login. This setting is reserved for
professional maintenance personnel only.
Steps
1.
Go to
Conguration > System > Security > Security Service .
2.
Check Enable SSH.
Thermal TandemVu Camera User Manual
78
3.
Click Save.
11.14.6 Control Timeout Settings
If this function is enabled, you will be logged out when you make no operation (not
including viewing live image) to the device via web browser within the set timeout period.
Go to
Conguration > System > Security > Advanced Security to complete settings.
11.14.7 Certicate Management
It helps to manage the server/client certicates and CA certicate, and to send an alarm if
the
certicates are close to expiry date, or are expired/abnormal.
Note
The function is only supported by certain device models.
Create Self-signed Certicate
Steps
1.
Click Create Self-signed
Certicate.
2.
Follow the prompt to enter Certicate ID, Country/Region, Hostname/IP, Validity and
other parameters.
Note
The certicate ID should be digits or letters and be no more than 64 characters.
3.
Click OK.
4.
Optional: Click Export to export the
certicate, or click Delete to delete the certicate to
recreate a certicate, or click Certicate Properties to view the certicate details.
Create
Certicate Request
Before You Start
Select a self-signed certicate.
Steps
1.
Click Create Certicate Request.
2.
Enter the related information.
3.
Click OK.
Thermal TandemVu Camera User Manual
79
Import Certicate
Steps
1.
Click Import.
2.
Click Create Certicate Request.
3.
Enter the
Certicate ID.
4.
Click Browser to select the desired server/client certicate.
5.
Select the desired import method and enter the required information.
6.
Click OK.
7.
Optional: Click Export to export the
certicate, or click Delete to delete the certicate to
recreate a certicate, or click Certicate Properties to view the certicate details.
Note
●
Up to 16 certicates are allowed.
●
If certain functions are using the
certicate, it cannot be deleted.
●
You can view the functions that are using the certicate in the functions column.
●
You cannot create a certicate that has the same ID with that of the existing
certicate and import a certicate that has the same content with that of the existing
certicate.
Server Certicate/Client Certicate
Note
The device has default self-signed server/client cer ticate installed. The certicate ID is
default
.
Install CA Certicate
Steps
1.
Click Import.
2.
Enter the
Certicate ID.
3.
Click Browser to select the desired server/client
certicate.
4.
Select the desired import method and enter the required information.
5.
Click OK.
Note
Up to 16 certicates are allowed.
Thermal TandemVu Camera User Manual
80
Enable Certicate Expiration Alarm
Steps
1.
Check Enable Certicate Expiration Alarm. If enabled, you will receive an email or the
camera links to the surveillance center that the certicate will expire soon, or is expired
or abnormal.
2.
Set the Remind Me Before Expiration (day), Alarm Frequency (day) and Detection Time
(hour).
Note
●
If you set the reminding day before expiration to 1, then the camera will remind you the
day before the expiration day. 1 to 30 days are available. Seven days is the default
reminding days.
●
If you set the reminding day before expiration to 1, and the detection time to 10:00,
and the
certicate will expire in 9:00 the next day, the camera will remind you in 10:00
the rst day.
3.
Click Save.
11.14.8 Set HTTPS
HTTPS is a network protocol that enables encrypted transmission and identity
authentication, which improves the security of remote access.
Steps
1.
Go to
Conguration > Network > Advanced Settings > HTTPS .
2.
Check Enable.
3.
Optional: Check HTTPS Browsing to access the device only via HTTPS protocol.
4.
Select a server
certicate.
Note
●
Complete certicate management before selecting server certicate. Refer to
Certicate Management
for detailed information.
●
If the function is abnormal, check if the selected certicate is abnormal in Certicate
Management.
5.
Click Save.
11.14.9 Set QoS
QoS (Quality of Service) can help improve the network delay and network congestion by
setting the priority of data sending.
Thermal TandemVu Camera User Manual
81
Note
QoS needs support from network device such as router and switch.
Steps
1.
Go to Conguration > Network > Advanced Conguration > QoS .
2.
Set Video/Audio DSCP, Alarm DSCP and Management DSCP.
Note
Network can identify the priority of data transmission. The bigger the DSCP value is, the
higher the priority is. You need to set the same value in router while
conguration.
3.
Click Save.
11.14.10 Set IEEE 802.1X
IEEE 802.1x is a port-based network access control. It enhances the security level of the
LAN/WLAN. When devices connect to the network with IEEE 802.1x standard, the
authentication is needed.
Go to
Conguration > Network > Advanced Settings > 802.1X , and enable the function.
Set Protocol and EAPOL Version according to router information.
Protocol
EAP-TLS and EAP-MD5 are selectable
EAP-MD5
If you use EAP-MD5, the authentication server must be
congured. Register a user
name and password for 802.1X in the server in advance. Input the user name and
password for authentication.
EAP-TLS
If you use EAP-TLS, input Identify, Private Key Password, and upload CA
Certicate,
User Certicate and Private Key.
EAPOL Version
The EAPOL version must be identical with that of the router or the switch.
11.15 User and Account
11.15.1 Set User Account and Permission
The administrator can add, modify, or delete other accounts, and grant different
permission to different user levels.
Thermal TandemVu Camera User Manual
82
Caution
To increase security of using the device on the network, please change the password of
your account regularly. Changing the password every 3 months is recommended. If the
device is used in high-risk environment, it is recommended that the password should be
changed every month or week.
Steps
1.
Go to Conguration > System > User Management > User Management .
2.
Click Add. Enter User Name, select Level, and enter Password. Assign remote
permission to users based on needs.
Administrator
The administrator has the authority to all operations and can add users/operators and
assign permission.
User
Users can be assigned permission of viewing live video, setting parameters, and
changing their own passwords, but no permission for other operations.
Operator
Operators can be assigned all permission except for operations on the administrator
and creating accounts.
Modify
Select a user and click Modify to change the password and permission.
Delete Select a user and click Delete.
Note
The administrator can add up to 31 user accounts.
3.
Click General to set the allowed number of multi-user simultaneous login.
Note
Only the administrator has the authority to the operation.
4.
Click OK.
11.15.2 Online Users
The information of users logging into the device is shown.
Go to Conguration > System > User Management > Online Users to view the list of online
users.
Thermal TandemVu Camera User Manual
83
Chapter 12 Appendix
12.1 Common Material Emissivity Reference
Material Emissivity
Human Skin 0.98
Printed Circuit Board 0.91
Concrete 0.95
Ceramic 0.92
Rubber 0.95
Paint 0.93
Wood 0.85
Pitch 0.96
Brick 0.95
Sand 0.90
Soil 0.92
Cloth 0.98
Hard Paperboard 0.90
White Paper 0.90
Water 0.96
Thermal TandemVu Camera User Manual
84
