EN
User manual
Dishwasher
HSGP15FB
HSGP15FS
Contents
4Your dishwasher .....................................................................................................................
5Safety instructions ..................................................................................................................
6Automatic child lock - CL ........................................................................................................
6Child lock - CL .........................................................................................................................
6Installation .................................................................................................................................
7Overflow guard function ...........................................................................................................
7Winter storage/transport ...........................................................................................................
7Packaging .................................................................................................................................
7Disposal ....................................................................................................................................
7Symbols ....................................................................................................................................
8Before washing for the first time ...........................................................................................
8Water hardness .........................................................................................................................
8Basic settings ...........................................................................................................................
8Top up with rinse aid ................................................................................................................
9Greener dishwashing ..............................................................................................................
9Save energy and water .............................................................................................................
10Loading the dishwasher .........................................................................................................
10Fragile dishes ............................................................................................................................
10Loading affects the results ........................................................................................................
10The dishwasher's baskets ........................................................................................................
10Top cutlery tray .........................................................................................................................
11Upper basket ............................................................................................................................
12Lower basket ............................................................................................................................
13Using the dishwasher .............................................................................................................
13Add detergent ...........................................................................................................................
14On/Off .......................................................................................................................................
14Select program .........................................................................................................................
15Select option .............................................................................................................................
16Start/Pause/Stop ......................................................................................................................
17If you want to load more dishes ................................................................................................
17Power failure .............................................................................................................................
17Once the program has finished .................................................................................................
17For the best drying results ........................................................................................................
17Unloading the dishwasher ........................................................................................................
18Program chart .........................................................................................................................
19WiFi connection .......................................................................................................................
19ConnectLife ...............................................................................................................................
19Preparations ..............................................................................................................................
19Connect to a network and pair .................................................................................................
20Remote control the dishwasher ................................................................................................
20Remote start the dishwasher ....................................................................................................
20Pair more devices .....................................................................................................................
20Deactivate/activate WiFi connection ........................................................................................
20Remove devices .......................................................................................................................
21Settings ....................................................................................................................................
2
23Care and cleaning ...................................................................................................................
23Top up with rinse aid ................................................................................................................
23Clean the filters .........................................................................................................................
24Cleaning the spray arms ...........................................................................................................
25Clean the outside of the dishwasher ........................................................................................
25CLn - Run the Clean (Self-clean) program ..............................................................................
25Remove blockages ...................................................................................................................
27Troubleshooting ......................................................................................................................
27General ......................................................................................................................................
32WiFi ...........................................................................................................................................
33Installation ...............................................................................................................................
33Safety instructions ....................................................................................................................
33Transport protection for the door .............................................................................................
34Placing the dishwasher .............................................................................................................
34Adjust the height and slide the dishwasher into place .............................................................
34Drainage connection .................................................................................................................
35Connection to water supply ......................................................................................................
36Electrical connection .................................................................................................................
36Install the sound insulation .......................................................................................................
36Remove dishwasher worktop ...................................................................................................
37Service .....................................................................................................................................
37Number of program cycles .......................................................................................................
38Technical information .............................................................................................................
38Information on energy labelling .................................................................................................
38Technical data ...........................................................................................................................
38Information for test institute ......................................................................................................
3
Your dishwasher
To install the dishwasher see the chapter, Installation. Press .
The first time the dishwasher is switched on, it is important that you choose the right settings to ensure
good dishwashing results. See the chapter Before washing for the first time.
Display
Start/Pause/StopOn/Off
WiFi
OptionsProgram
UV Technology
Auto 45-65°
Auto Dry
Eco 55°
Delayed start
1h 65°
Speed wash
Intensive 70°
Glass 40°
Hygiene 70°
Night 55°
Clean (Self-clean)
Remote (WiFi)
Information on the display
See the chapter Care and cleaning.
Connected to the cloud (will flash when connecting)
Top up with rinse aid
CLn Run the Clean (Self-clean) program
NOTE!
The display only reacts to use when the door is closed.
4
Safety instructions
• Read the operating instructions and keep them in a safe
place!
• Number of place settings: 15
• Never use the dishwasher for any purpose other than that
specified in these operating instructions.
• Do not load the dishwasher door or dishwasher baskets with
anything other than dishes.
• Never leave the dishwasher door open as someone could
trip over it. Push the baskets in to avoid the risk of the
dishwasher tipping over.
• Use only dishwasher detergent!
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
• Any damaged cords must only be replaced by the
manufacturer's service centre or someone with similar
professional qualifications.
• This appliance is intended to be used in household and
similar applications such as:
- staff kitchen areas in shops, offices and other working
environments;
- farm houses;
- by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments.
• Never place dishes with solvent residues in the dishwasher
due to the risk of explosion. Nor may dishes that contain
ash, wax or lubricants be washed in the dishwasher.
5
• Children must be watched. Do not allow children to use or
play with the dishwasher. Be especially vigilant when the
door is open. Some detergent may remain inside! After
adding detergent, always start the dishwasher immediately.
• The dishwasher is equipped with a UVC light source.
• A damaged or defective UVC light source must only be
replaced by the manufacturer's service centre or someone
with similar professional qualifications.
WARNING!
Knives and other sharp items must be placed horizontally
in the dishwasher's special cutlery baskets.
WARNING!
Dishwasher detergents are strongly alkaline. They can be
extremely dangerous if swallowed. Avoid contact with skin
and eyes and keep children away from the dishwasher when
the door is open. Seek medical attention if swallowed.
Check that the detergent compartment is empty after
completion of the wash cycle.
Automatic child lock - CL
You can activate the Automatic child lock setting to prevent children from being able to start the
dishwasher. See the chapter, Settings. CL (Child Lock) will be shown on the display when pressing
the control panel. (To unlock, press and hold for three seconds.)
Child lock - CL
To prevent children from stopping the current dishwashing program, you can activate the child lock
function. Once you have started a program, press and hold for three seconds. CL (Child Lock) will
be shown on the display when pressing the control panel. (To unlock, press and hold for three
seconds.)
Installation
See the chapter Installation.
6
Overflow guard function
The overflow guard starts pumping water out of the machine and turns the water supply off if the water
level in the dishwasher exceeds the normal level. If the overflow guard is triggered, F54 (Overfilling
water) appears on the display. Turn the water tap off and contact your nearest service centre. (To
avoid water leaking outside the dishwasher, do not remove the plug from the wall socket until the
water tap to the supply line has been turned off!)
Winter storage/transport
Store the dishwasher above freezing temperature and avoid long transport distances in very cold
weather. Transport the dishwasher upright or laying on its back.
Water must be removed from the machine before the dishwasher is transported anywhere or before
being stored for long periods.
Packaging
The outer packaging protects the product during transport. The packaging material is recyclable.
Separate the different packaging materials to help reduce raw material use and waste. Your dealer
can take the packaging for recycling or direct you to the nearest recycling centre. The packaging is
comprised of:
• Corrugated cardboard made from up to 100% recycled material.
• Expanded polystyrene (EPS) with no added chlorine or fluorine.
• Supports made from untreated wood.
• Protective plastic made from polyethylene (PE).
Disposal
The dishwasher is manufactured and labelled for recycling. When the dishwasher has reached the
end of its service life and is to be disposed of, it should immediately be made unusable. Pull the power
cable out and cut it to the shortest length possible.
Contact your local authority for information about where and how your dishwasher should be correctly
recycled.
Symbols
Explanation of symbols appearing on the appliance.
Recycle as electrical waste.
Read the User Manual.
7
Before washing for the first time
Water hardness
In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral
content). Hard water leaves a white coating on dishes and the dishwasher.
Checking water hardness
Contact the local water utility to check the water hardness in your area. This is important with regard
to how much detergent and rinse aid to use.
Basic settings
The first time the dishwasher is switched on, it is important that you choose the right settings to ensure
good dishwashing results. See the chapter Settings.
Set up:
• Rinse aid
• TAB
Top up with rinse aid
By using rinse aid you will improve your drying result. You will also achieve a better dishwashing result
with glassware and dishes.
Top up the rinse aid compartment with rinse aid if you have selected Rinse aid 01 - 05.
Lift up to open
Press to close
1. Open the rinse aid compartment lid.
2. Carefully top the rinse aid up to the marked level MAX.
3. Wipe up any splashes of rinse aid around the compartment.
4. Close the lid firmly.
For water with a hardness greater than 10–12 °dH, you ought to use rinse aid with citric acid (known
as acid rinse aid).
8
Greener dishwashing
Save energy and water
When using a dishwasher in a residential setting, less energy and water are generally used compared
to washing the dishes by hand.
Do not rinse under running water
Do not rinse the dishes under running water as this will lead to increased energy and water consumption.
Simply scrape off large food particles before loading the dishwasher.
Choose a green detergent
Read the environmental declaration on the packaging!
Too much detergent and rinse aid can result in less effective dishwashing and also entail greater
environmental impact.
Run a fully loaded dishwasher
Save energy and water by waiting until the dishwasher is full before running a program. Use the
1h 65° program with the Speed wash rinse option if there are any unpleasant odours.
Run programs at a lower temperature
If the dishes are only slightly dirty, you can select a program with a low temperature.
Select dishwashing program – Eco 55°
Use when you want to save water and energy. For normally soiled load, such as plates, serving dishes,
cups, glasses and so on.
This dishwashing program is designed for an effective wash using as little energy and water as possible.
The program washes at a low temperature for a long time.
Select option – Auto Dry
A shorter dishwashing program and better drying results are achieved if you use the Auto Dry option,
which automatically opens the dishwasher door. Wait until the dishwasher indicates that the program
has ended and the dishes have cooled before unloading the dishwasher. (If the dishwasher is built-in,
the surrounding furnishings must be resistant to any condensation from the dishwasher.)
Connect to cold water
Connect the dishwasher to the cold water supply if the building is heated using oil, electricity or gas.
Connection to hot water supply
Connect the dishwasher to the hot water supply (max. 70 °C) if the building is heated using an
energy-efficient means such as district heating, solar power or geothermal power. Choosing a hot
water connection cuts the dishwashing time and reduces the energy consumption.
NOTE!
Do not exceed the permitted water supply temperature. Certain materials used in some cookware
cannot withstand high heat. See Fragile dishes in the chapter, Loading the dishwasher.
9
Loading the dishwasher
Fragile dishes
Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot
withstand high heat, others can be damaged by dishwasher detergent.
Exercise caution with, for example, handmade items, fragile decoration, crystal/glassware, silver,
copper, tin, aluminium, wood and plastic. Look for the "Dishwasher safe" marking.
Loading affects the results
Load the dishes carefully to ensure the best washing and drying results with the lowest possible energy
and water consumption. Give your dishwasher the best chance to reach and clean all surfaces, as
well as to dry the dishes as thoroughly as possible.
• All dirty surfaces should face inwards and downwards!
• Dishes should not be placed in or on each other.
• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important
for plastic items.
• Make sure small items cannot fall through the dishwasher basket; place them in the top cutlery
tray.
NOTE!
Check that the spray arms can rotate freely.
The dishwasher's baskets
The dishwasher is equipped with a top cutlery tray, an upper basket and a lower basket.
The appearance of the baskets may differ depending on the dishwasher setup.
WARNING!
Be careful with fully loaded dishwasher baskets. Push the baskets in to avoid risking the
dishwasher tipping over.
Top cutlery tray
The top cutlery tray has space for cutlery, ladles, whisks, serving cutlery and similar items.
10
The top cutlery tray has three parts that can be
moved sideways to better accommodate the
dishes.
Upper basket
Place glasses, cups, bowls, side plates and saucers in the upper basket. All dirty surfaces should face
inwards and downwards! Place wine glasses on the wine glass shelf and knives in the knife stand on
the right.
Knife stand
3 positions
Raising and lowering the upper basket
1. Pull out the upper basket.
2. Grab the sides of the upper basket with both hands and lift it up.
3. If the upper basket is raised while in the top position, it will drop to the bottom position.
Note that both sides of the basket must always be set to the same height.
11

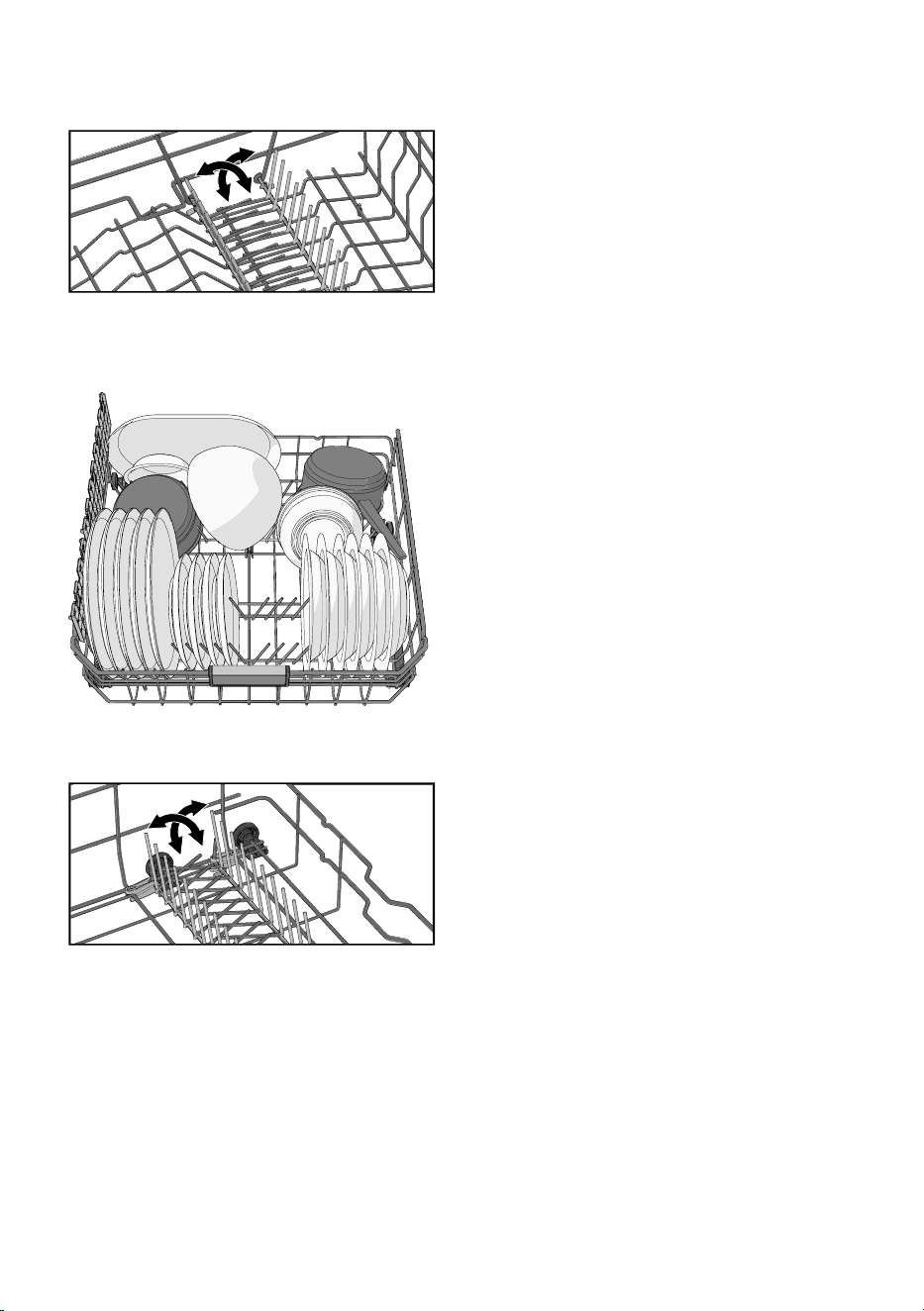

Adjustable plate supports
The adjustable plate supports can be folded down to make it easier to load pots, bowls and glasses.
Lower basket
Place plates, side plates, serving dishes and pots in the lower basket.
Adjustable plate supports
The adjustable plate supports can be folded down to make it easier to load pots and bowls.
12
Using the dishwasher
Add detergent
Follow the instructions on the detergent packaging.
Too much detergent can result in less effective dishwashing and also entails greater environmental
impact.
Detergent compartment
The detergent compartment must be dry when adding detergent.
If powder or liquid dishwasher detergent is
used, add a small amount of the detergent to
the prewash detergent compartment.
Press to open Close the lid
Prewash detergent
Main wash detergent
NOTE!
Use only dishwasher detergent! Washing up liquid must not be used as the foam that forms
prevents the dishwasher from operating effectively.
All-in-one detergent
There are many types of all-in-one detergents on the market. Read the directions for these products
carefully.
Activate the TAB setting when using an all-in-one detergent that contains rinse aid.
Dishwasher tablets are not recommended for short programs (less than 75 minutes). Use powder or
liquid dishwasher detergent instead.
NOTE!
Optimum washing and drying results are achieved by using normal dishwasher detergent together
with separately dispensed rinse aid.
Contact the detergent manufacturer if you have any questions about the detergent.
13
Display
Start/Pause/StopOn/Off
WiFi
NOTE!
The display only reacts to use when the door is closed.
On/Off
Close the door properly, otherwise the dishwasher will not start. Press . Also turn the water tap on
if it is turned off.
Select program
Select a program to suit the type of dishes and how dirty they are.
Press the desired program until it is activated, which is indicated by an indicator light.
Auto 45-65°
The dishwasher can measure how dirty the dishes are and adjust water consumption and temperature
accordingly. When newly installed, the program needs to be run five times before it is fully adapted
and can provide the best results.
Eco 55°
Use when you want to save water and energy. For normally soiled load, such as plates, serving dishes,
cups, glasses and so on.
You can read more about greener dishwashing in the chapter Greener dishwashing.
1h 65°
A short program for slightly soiled dishes. (This program is not intended for burnt food such as on
oven dishes.)
The Auto Dry option is important for ensuring the best drying results.
Intensive 70°
A program with a high temperature for dissolving grease on very dirty dishes such as pans, casserole
dishes and oven dishes. If these dishes do not completely fill the dishwasher, you can add plates and
other dishes.
14
Glass 40°
Use a gentle dishwashing program with a low temperature for washing fragile items made of
crystal/glass. Remember to use a small amount of detergent and to place items so that they do not
touch each other during the wash. See also Fragile dishes in the chapter, Loading the dishwasher.
Porcelain that has just been used without dried leftovers can also be washed using this program.
Hygiene 70°
This program is designed to meet strict hygiene demands.
Night 55°
A quieter dishwashing program, suitable for running at night. The program time is extended.
Clean (Self-clean)
Self-cleaning program for hygienic cleaning of the dishwasher tub, spray arms and spray pipes.
This program should be run (with no dishes in the machine) using normal dishwasher detergent or
citric acid. Special dishwasher cleaners are also available on the market. For the removal of lime scale
deposits, see Dishwasher tub in Chapter Care and cleaning.
The dishwasher will indicate at regular intervals that Self-clean needs to be run.
Remote (WiFi)
You can remote control this dishwasher with your smartphone/tablet. Connect the dishwasher to your
wireless network to be able to remote control and start the dishwasher using the ConnectLife app.
See the chapter, WiFi connection.
To remote start the dishwasher, close the door and press , then press . APP will flash on the
dishwasher display.
In the ConnectLife app, select and start a program. The remaining time will appear on the dishwasher
display when a program is remote started.
If the door is not closed within 2 minutes, the machine switches off.
Select option
Press the options to activate them. (The available options vary between programs.)
UV Technology
The water in the final rinse is sanitised with UV light and heat to kill microorganisms. The dishwasher
uses more energy and the program time is extended.
Press to activate the option, which is indicated by an indicator light.
Not available for: Quick 35°
Auto Dry
The dishwasher door opens automatically, which shortens the program time and improves drying
results. Wait until the dishwasher indicates that the program has ended and the dishes have cooled
before unloading the dishwasher. (If the dishwasher is built-in, surrounding furnishings must be resistant
to any condensation from the dishwasher.)
The drying time for the Auto Dry option varies (from 5 to 90 minutes) depending on the model, program
and temperature of the final rinse.
15
Press to activate the option, which is indicated by an indicator light.
The Auto Dry option is pre-selected for some programs.
Not available for: Hygiene 70°, Self-clean
NOTE!
For the best drying results, do not close the door before the drying phase has finished and the
machine has automatically switched off.
WARNING!
The dishwasher door must not be blocked or closed when opened automatically. Doing so may
damage the door lock mechanism. Wait at least 5 minutes before closing the door.
Delayed start
When you select Delayed start, the dishwasher will start 1–24 hours after you press the or .
1. Press or once to activate Delayed start. Press several times or hold it in to set the desired
number of hours. The time for Delayed start is shown on the display.
2.
Press . The timer counts down and the dishwasher starts after the selected delay.
If you want to cancel the Delayed start option, press and hold for three seconds.
Not available for: Self-clean
Speed wash
This option shortens the program time, but uses more energy and water.
Press to activate the option. The program time is updated on the display.
Not available for: Auto 45-65°, Glass 40°, Hygiene 70°, Self-clean
Start/Pause/Stop
Press . The display starts counting down.
To remote start the dishwasher, see the chapter, WiFi connection.
Stopping or changing a program
Press and hold for three seconds to pause the program. If you want to interrupt or change the
program after starting the dishwasher, press and hold for another five seconds.
Open the door and top up with new detergent if the lid of the detergent dispenser has opened. Close
the door. Then select a new program and press .
Time remaining
Once you have chosen a program and options, the time the program took when last used is displayed.
Once you have started the dishwasher, the display shows the remaining program time. The remaining
time is updated during the drying phase.
This may differ somewhat from time to time depending on the temperature of the water supply, the
amount of dishes, the ambient temperature and other factors.
16
If you want to load more dishes
1)
Press and hold for three seconds to pause the program. Open the door. Add the dishes and close
the door. Press .
If the dishwashing program was remote started, the interrupted program will continue once the door
is closed. You can monitor the dishwasher using the ConnectLife app and remote stop the program,
although you will not be able to remote start it again.
Power failure
If the dishwasher is turned off due to a power failure when a dishwashing program is running, the
program continues when power is restored. If the power is cut during drying, the program is interrupted.
If the dishwashing program was remote started and has not ended, the program will continue once
power is restored. You can monitor the dishwasher using the ConnectLife app and remote stop the
program, although you will not be able to remote start it again.
If the door is open for more than 2 minutes during drying, the program is interrupted.
Once the program has finished
Once the program has finished, “End” appears on the display.
At the end of the program, you will hear a short beep. Chapter Settings describes how to change this
function.
The dishwasher switches off automatically after the program ends. Turn off the water tap after each
use.
For the best drying results
• Fully load the dishwasher.
• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important
for plastic items.
• Top up with rinse aid or increase the rinse aid dose setting.
•
Activate the Auto Dry option.
• Open the door a little once the program has finished.
• Allow the dishes to cool before unloading the dishwasher.
Unloading the dishwasher
Hot porcelain is more fragile. Leave the dishes to cool in the dishwasher before unloading them.
Unload the lower basket first to avoid any water drops from the upper basket falling onto the dishes
in the lower basket.
1)
You should not load more dishes if the lid of the detergent dispenser has been opened.
17
Program chart
Consumption values
1)
Final
rinse
Number
of rinses
Main washNumber
of prewash-
es
OptionsDetergent
(ml)
Program
Water
cons. (liter)
Energy
(approx.
kWh)
Dishwash-
ing time
(approx.
hrs:min)
11.5-19.00.9-1.42:10-3:1060 °C2-345-65 °C1-2
3)
25Auto 45-65°
10.90.642:4539 °C255 °C1
3)
25
Eco 55°
2)
15.01.11:0065 °C365 °C
3)
251h 65°
16.01.62:5065 °C270 °C225Intensive 70°
10.00.71:4050 °C240 °C20Glass 40°
11.01.31:0565 °C270 °C25Hygiene 70°
14.01.45:3565 °C255 °C125Night 55°
1) Consumption values vary depending on the temperature of the incoming water, room temperature, load size, selected additional functions and
more.
2) The energy label performance figures are based on this program which is recommended for normally soiled load at the rated capacity.
3) Auto Dry
18
WiFi connection
ConnectLife
You can remote control this dishwasher with your smartphone/tablet. Connect the dishwasher to your
wireless network to be able to remote control and start the dishwasher using the ConnectLife app.
The app can be used to find information, change settings, start a program and monitor the dishwasher.
(The dishwasher can always be used without the app.)
Display
Start/Pause/StopOn/Off
WiFi
Preparations
• Your smartphone/tablet must be connected to the internet.
• The router in your wireless network must be connected to the internet and the dishwasher must
be in range of your wireless network.
• Use your smartphone/tablet to download the ConnectLife app from the appropriate app store or
scan the QR code below.
• You will find the dishwasher QR code (and the AUID code) on the serial number plate.
QR code
AUID code (37 digits)
Connect to a network and pair
Connect the dishwasher to your wireless network and pair with your smartphone/tablet.
• Open the ConnectLife app and register an account.
• Go to Appliances. Click on Add appliances or the + button. Select Home appliances.
• Scan the dishwasher QR code (see the serial number plate). Follow the further instructions in the
app.
•
Press on the dishwasher.
•
On the dishwasher's control panel: Press to activate the WiFi module.
•
On the dishwasher display: Press and hold for 3 seconds to start connecting. C appears on
the display, after which the display starts counting down.
19
Network symbol on the display
The dishwasher is ready to be connected to your wireless network or
paired with your smartphone/tablet.
Flashing 0.5 sec on/off
The dishwasher is connected to your wireless network.Flashing 1.0 sec on/off
The dishwasher is connected to your wireless network and the cloud.Glows
Remote control the dishwasher
The dishwasher’s network symbol is shown on the display when the dishwasher is paired with a
smartphone/tablet. You can use the ConnectLife app to monitor the dishwasher and change settings.
Remote start the dishwasher
To remote start the dishwasher, close the door and press , then press . APP will flash on the
dishwasher display.
In the ConnectLife app, select and start a program. The remaining time will appear on the dishwasher
display when a program is remote started.
If the door is not closed within 2 minutes, the machine switches off.
NOTE!
The dishwasher can always be used without the app. When the dishwasher display is pressed,
commands from the ConnectLife app are blocked for 10 seconds.
Pair more devices
Pair more devices/users with the dishwasher.
• Open the ConnectLife app and log in to your account or register a new account.
• Go to Appliances. Click on Add appliances or the + button. Select Home appliances.
• Scan the dishwasher QR code (see the serial number plate). Follow the further instructions in the
app.
•
Press on the dishwasher.
•
On the dishwasher display: Press and hold for 4 seconds to start connecting. P appears on
the display, after which the display starts counting down.
Deactivate/activate WiFi connection
After connecting the dishwasher to your local network, you can deactivate the WiFi connection. You
can then reactivate the WiFi connection to reconnect to the same network.
•
On the dishwasher display: Press and hold for 8 seconds to deactivate the WiFi connection.
Off appears on the display.
•
On the dishwasher display: Briefly press to reactivate the WiFi connection. On appears on the
display.
Remove devices
Remove all connected devices/users.
•
On the dishwasher display: Press and hold for 4 seconds, then press and hold for 3 seconds.
UnP appears on the display, after which the display starts counting down.
20
Settings
1.
Press .
2.
To open the dishwasher settings menu, press and hold and until SEt is shown on the display.
3.
Press to move through the settings menu.
4.
Press to move through the alternatives.
5.
Use to confirm selected setting.
6.
To exit the menu, skip through it or press .
Confirm / Next settingSelect alternative
Open the dishwasher settings menu
AlternativesSettings
You can activate the Automatic child lock setting to prevent
children from starting the dishwasher.
1:00 (Off)
1:01 (On)
Automatic child lock
CL
To temporarily deactivate or activate the Automatic child
lock setting, press and hold for three seconds.
CL (Child Lock) will be shown on the display when pressing
the control panel. (To unlock, press and hold for three
seconds.)
A beep confirms that the display has been pressed.2:00 - 2:03Sounds
The buzzer indicates when a dishwashing program has
ended.
(00 Off)
Error messages are always indicated by a loud buzzer.
Setting for rinse aid dosage. The rinse aid dispenser can
be adjusted between 00 (Off) and 05 (High dosage).
3:00 - 3:05
(00 Off)
Rinse aid
Increase the rinse aid dosage:
• If the dishes have water marks.
Decrease the rinse aid dosage:
• If the dishes have a sticky white/blue film.
• If the dishes are streaked.
• Build-up of foam. If you have very soft water, the rinse
aid can be diluted 50:50 with water.
Pre-selected at factory: 04
Activate this setting when using an all-in-one detergent that
contains rinse aid.
5:00 (Off)
5:01 (On)
TAB
21
AlternativesSettings
This setting reduces the rinse aid dose.
Pre-selected at factory: 00
Select whether the interior light is to be switched on when
the dishwasher is turned off and the door is opened. (If the
dishwasher is turned on, the interior light is always switched
on when the door is opened.)
8:00 (Off)
8:01 (On)
Interior light when the
dishwasher is switched
off
Any error messages.F--Error readout
When contacting the service department, you may be asked
to provide the most recent error messages.
Restores all settings to the factory defaults.rStRestore factory de-
faults
Select rSt and confirm by pressing .
To exit the dishwasher settings menu, select End and press
.
EndExit
(The menu closes automatically after three seconds.)
22
Care and cleaning
Top up with rinse aid
When the rinse aid needs topping up, the above symbol lights on the display.
Lift up to open
Press to close
1. Open the rinse aid compartment lid.
2. Carefully top the rinse aid up to the marked level MAX.
3. Wipe up any splashes of rinse aid around the compartment.
4. Close the lid firmly.
After topping up, it may take a while before the symbol goes out.
NOTE!
For water with a hardness greater than 10–12 °dH, you ought to use rinse aid with citric acid
(known as acid rinse aid).
Clean the filters
Coarse filter
The coarse filter traps larger food particles, which cannot get past the drainage pump. Empty the
coarse filter when necessary. It should be cleaned at regular intervals depending on how often the
dishwasher is used.
Coarse filter
1. Lift the coarse filter by the handle.
2. Empty the coarse filter.
3. Refit the coarse filter. Press it down until it clicks into place.
23
Fine filter
Debris that collects on the fine filter is automatically rinsed away during each wash. Clean the fine
filter when necessary. It should be cleaned at regular intervals depending on how often the dishwasher
is used.
Fine filter
1. Turn the locking ring anticlockwise and lift the fine filter straight up.
2. Clean the fine filter.
3. Refit the fine filter and turn the locking ring clockwise to its stop position. Check that the edges
seal properly.
Remember to refit the coarse filter!
NOTE!
Dishwashing results may be affected if the coarse and fine filters are incorrectly fitted. The
dishwasher must not be used without the filters in place!
Check that the yellow
drainage pump stop (on the
right in the bottom drain) is in
place.
Cleaning the spray arms
Holes and bearings can sometimes become blocked. Remove any debris using a pin or something
similar. The spray arms also have holes on their undersides.
To facilitate cleaning, you can remove the spray arms. Remember to fit them firmly back into place
after cleaning.
Upper spray arm
• Pull out the upper basket.
• Unscrew the spray arm bearings counterclockwise to remove the spray arm from the upper basket.
24
Lower spray arm
• Pull the lower spray arm straight up to release it.
Clean the outside of the dishwasher
Door and door seal
Open the door. Clean the sides of the door and the door seal regularly with a slightly damp cloth.
Clean the door seal at the lower front edge of the dishwasher with a washing-up brush.
Display
Keep the display and the buttons clean. If necessary, wipe them with a dry or slightly damp cloth.
Never use cleaning products – they may scratch the surface.
CLn - Run the Clean (Self-clean) program
Dishwasher tub
The dishwasher tub is made of stainless steel and is kept clean through normal use (when used
regularly).
If you have hard water, limescale deposits may build up in the dishwasher. If this happens, run the
Self-clean program with two tablespoons of citric acid in the detergent compartment (with no dishes
in the machine). Special dishwasher cleaners are also available on the market.
Remove blockages
Unblocking the drainage pump
If the dishwasher still contains water after the program has finished, something may be blocking the
drainage pump, which results in the Water outlet faulterror message.
1.
Turn the machine off using and remove the plug from the wall socket.
2. Remove the coarse filter and the fine filter.
3. Scoop out the water from the dishwasher tub.

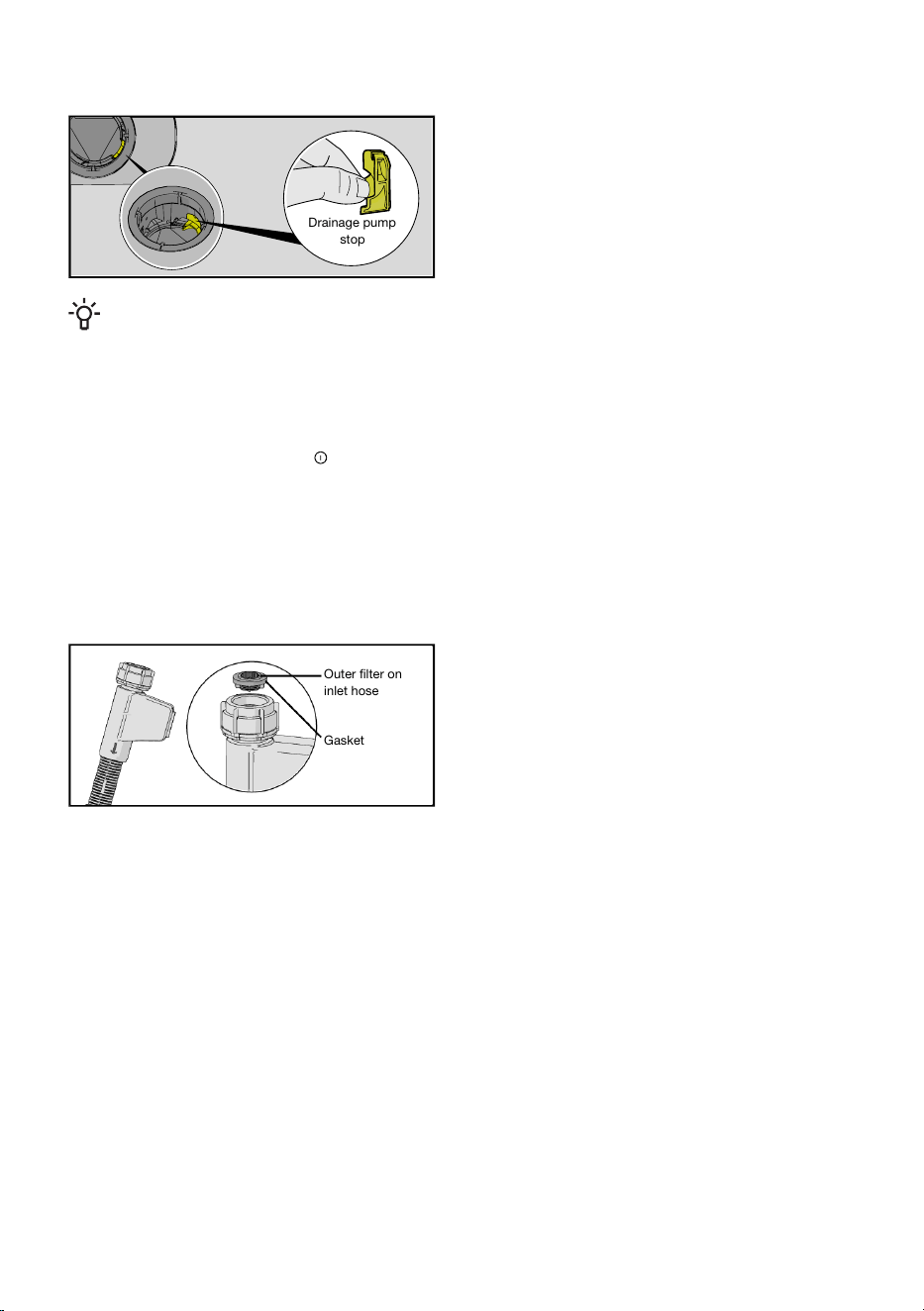

4. In order to inspect the drainage pump, remove the yellow drainage pump stop on the right in the
bottom drain. (Use a pair of pliers if necessary.)
5. Turn the pump wheel located behind the drainage pump stop by hand. Carefully remove any items.
6. Refit the drainage pump stop along with the fine and coarse filters.
25
7. Plug the machine in again.
Drainage pump
stop
NOTE!
Do not forget to refit the drainage pump stop.
Unblocking the inlet hose filter
If the water supply contains small particles, the outer filter on the inlet hose may become blocked,
which results in the Water inlet fault error message.
1.
Turn the machine off using and remove the plug from the wall socket.
2. Turn off the water tap.
3. Unscrew the inlet hose.
4. Carefully remove the outer filter from the inlet hose and clean it.
5. Refit the filter and check that the gasket is correctly positioned.
6. Screw the inlet hose firmly into place.
7. Plug the machine into the wall socket and turn on the water tap. Allow the pressure to settle for
a while and check that the connection is watertight.
Outer filter on
inlet hose
Gasket
26
Troubleshooting
ActionError messages
Unblocking the drainage pump. See the chapter, Care and clean-
ing. If the problem persists, contact your nearest service centre.
Overfilling waterF10
See "Water remains in the dishwasher" under "Problem" in the
table below. If the problem persists, contact your nearest service
centre.
Water outlet faultF11
Check whether dishwasher inlet hose is connected to a pressure
limiting valve (some pressure limiting valves may restrict the supply
of water to the dishwasher).
Water inlet faultF12
Check that the water tap is on. Check that the outer filter on the
inlet hose is not blocked. See Unblocking the inlet hose filter in
the chapter, Care and cleaning. If the problem persists, contact
your nearest service centre.
Turn the water tap off and contact your nearest service centre.Inlet valve leakageF40
Turn the water tap off. Remove the plug from the wall socket and
contact your nearest service centre.
Heater fault 1F41
Contact your nearest service centre.Diverter faultF45
Clean the coarse and fine filters. Check that the outer filter on the
inlet hose is not blocked. If the problem persists, contact your
nearest service centre.
Water level faultF52
Turn the water tap off and contact your nearest service centre.Overfilling waterF54
To avoid water leaking outside the dishwasher, do not remove the
plug from the wall socket until the water tap on the supply line
has been turned off!
Contact your nearest service centre.Circulation pump faultF56
Check whether dishwasher inlet hose is connected to a pressure
limiting valve (some pressure limiting valves may restrict the supply
of water to the dishwasher).
Water inlet faultF67
Check that the water tap is on. Check that the outer filter on the
inlet hose is not blocked. See Unblocking the inlet hose filter in
the chapter, Care and cleaning. If the problem persists, contact
your nearest service centre.
Contact your nearest service centre.BLDC drain pump faultF68
Press any button to clear the error message.
General
ActionPossible causesProblem
Wait a moment then try again.You have pressed the display
too soon after closing the door.
The display does not react when
pressed.
The display only reacts to use
when the door is closed.
The door is open.
27
ActionPossible causesProblem
See the chapter Safety instruc-
tions.
Child lock or Automatic child
lock is activated.
Clean with a dry or slightly
damp cloth.
Dirt on the display.
Check that the baskets are cor-
rectly positioned horizontally.
The baskets are not correctly
positioned.
Cannot close door.
Check that the dishes are not
blocking the baskets from slid-
ing properly into place.
Check the door lock. If it does
not click into place and lock,
open the door.
The door lock does not click in-
to place and lock.
Press and hold Auto Dry until
the display starts counting
down. Wait until the countdown
ends (60 seconds). Close the
door. Check that the door lock
clicks into place and locks.
Press . The display starts
counting down.
has not been pressed.
The dishwasher does not start.
Check.The door is not properly closed.
Close the door and press .
You have opened the dishwash-
er to add more dishes while a
program is in progress.
Check the door lock. If it does
not click into place and lock,
open the door.
The door lock has not clicked
into place and locked.
Press and hold Auto Dry until
the display starts counting
down. Wait until the countdown
ends (60 seconds). Close the
door. Check that the door lock
clicks into place and locks.
Press and hold for three
seconds if you want to cancel
the Delayed start option.
Check that the Delayed start
option has been selected.
Check.The plug is not plugged into the
wall socket.
Check.A fuse/circuit breaker has been
tripped.
Check that the dishes are not
blocking the spray arms.
The spray arms do not rotate.The dishes are not clean.
Clean the spray arms. See
Chapter Care and cleaning.
Spray arm holes or bearings
blocked.
28
ActionPossible causesProblem
Select a program with a high
temperature to dissolve grease
on very dirty dishes, such as In-
tensive 70°.
Unsuitable dishwashing pro-
gram.
Dose according to water hard-
ness. Far too much or far too
little detergent results in poorer
dishwashing results.
Incorrect detergent dosage.
Avoid large packages.Old detergent. Detergent is a
perishable product.
Do not cover porcelain with
large bowls or similar. Avoid
placing very tall glasses in the
corners of the baskets. See the
chapter, Loading the dishwash-
er.
Dishes loaded incorrectly.
Place dishes to sit steady.Glasses and cups have toppled
over during the program.
Clean the coarse and fine filters.The filters are clogged.
Check that the filters are fitted
correctly. See the chapter, Care
and cleaning.
The filters are not fitted correct-
ly.
Check that the yellow drainage
pump stop (on the right in the
bottom drain) is in place. See
the chapter, Care and cleaning.
Drainage pump stop missing.
Rinse off these types of food-
stuffs if not starting the dish-
washer immediately. Consider
using 1h 65° with the Speed
wash option.
Some foodstuffs, such as mus-
tard, mayonnaise, lemon, vine-
gar, salt and dressings, can
cause spots on stainless steel
if left for too long.
Spots on stainless steel or sil-
ver.
In order to avoid marks and tar-
nishing, separate dishes made
from different metals, such as
silver, stainless steel and alu-
minium.
All stainless steel can cause
spots on silver if they come into
contact during dishwashing.
Aluminium can also cause spots
on dishes.
See the chapter Settings.Incorrect rinse aid dosage set-
ting.
Spots or films on the dishes.
Change all-in-one detergents or
deactivate the TAB setting and
top up with separate rinse aid.
See Rinse aid in the chapter,
Settings.
The setting TAB is activated and
all-in-one detergent with insuffi-
cient drying effect is being used.
29
ActionPossible causesProblem
Wash crystal at a low tempera-
ture and with a conservative
amount of detergent. Contact
the detergent manufacturer.
Too high temperature and/or
too much detergent can cause
etching on crystal. Unfortunate-
ly, this cannot be repaired, only
prevented.
Reduce the dosage. See the
chapter Settings. If you have
very soft water, you may want
to dilute the rinse aid 50:50 with
water.
Rinse aid dosage setting too
high.
The dishes have a sticky
white/blue film.
Use a detergent with a bleach-
ing agent.
Lipstick and tea can be difficult
to wash off.
Spots left after washing.
The detergent compartment
must be dry when adding deter-
gent.
The detergent compartment
was damp when adding deter-
gent.
Detergent residue in the deter-
gent compartment after dish-
washing.
Check that the dishes are not
preventing the detergent com-
partment from opening.
The detergent compartment is
blocked.
Check that the dishes are
placed securely. Spin the spray
arms to make sure they can ro-
tate.
The dishes are not correctly
placed or the spray arms are not
rotating.
Rattling sound when dishwash-
ing.
No action. The program time is
stored and next time the pro-
gram is run the corrected time
will be displayed.
The program is taking longer
than estimated.
1 minute is shown for a longer
period on the display.
Clean the coarse and fine filters.The filters are clogged.Water remains in the dishwash-
er.
Check that the filters are fitted
correctly. See the chapter, Care
and cleaning.
The filters are not fitted correct-
ly.
Clean the drainage pump. See
the chapter Care and cleaning.
Debris in the drainage pump.
Check that the yellow drainage
pump stop (on the right in the
bottom drain) is in place. See
the chapter, Care and cleaning.
Drainage pump stop missing.
Check that the hose is free from
kinks and sharp bends.
Kink in drainage hose.

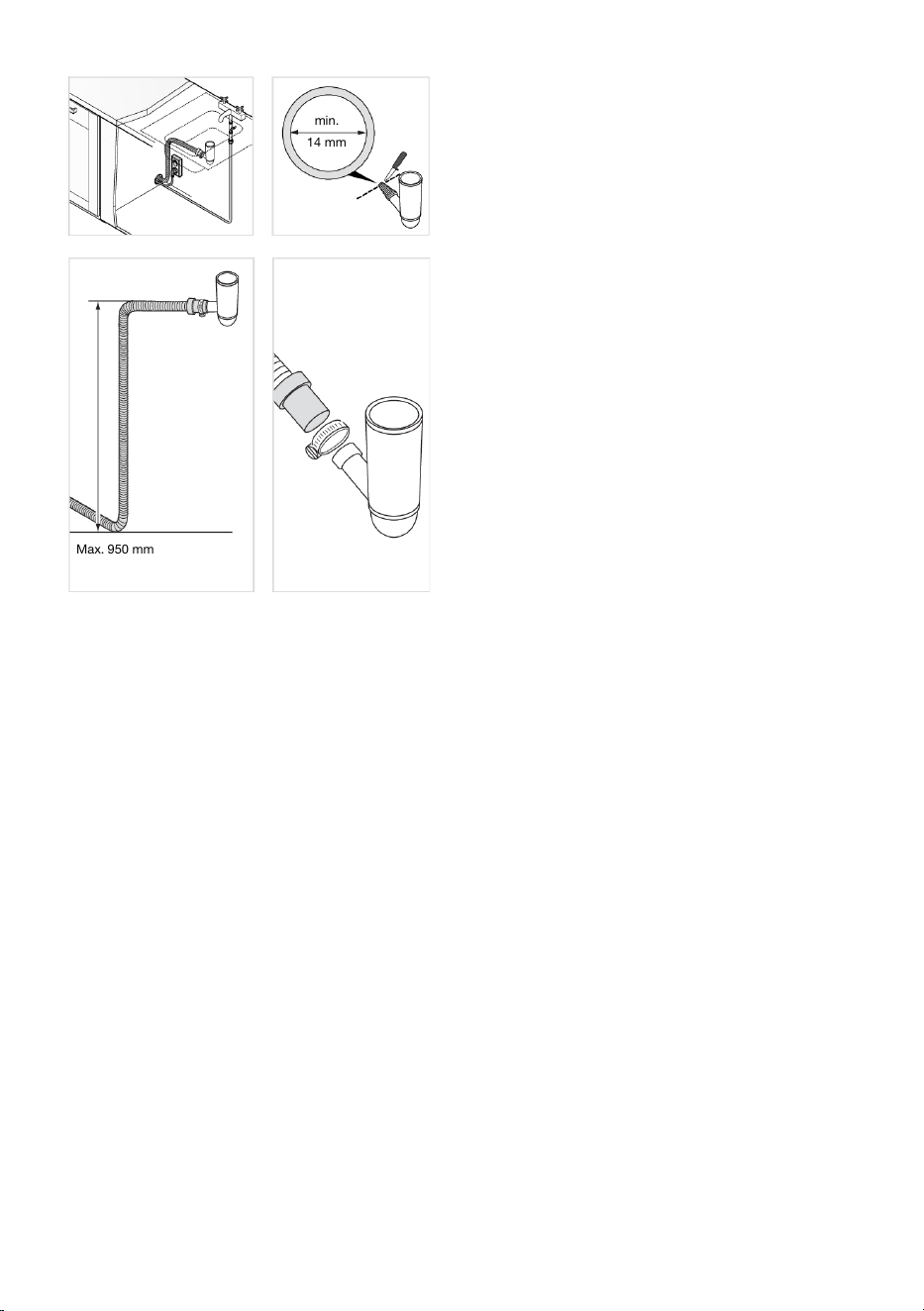

Disconnect the drainage hose
where it connects to the sink
unit's water trap. Check that no
debris has fastened and that the
connection has an inner diame-
ter of at least 14 mm.
Blocked drainage hose.
Clean with washing-up brush
and low foaming cleaner.
Dirt around the seals and in
corners.
Bad odour in dishwasher.
30
ActionPossible causesProblem
Run a program with a high tem-
perature once or twice a month.
Or run a self-cleaning program.
See Self-clean in the chapter
Using the dishwasher.
Low temperature programs
have been selected for a pro-
longed period.
Select a program with a high
temperature to dissolve grease
on very dirty dishes, such as In-
tensive 70°. Or run a self-clean-
ing program. See Self-clean in
the chapter Using the dishwash-
er.
Low temperature programs
have been selected for a pro-
longed period.
Grease deposits in the dish-
washer.
Activate the Auto Dry option.The Auto Dry option is not
activated.
The dishes are not dry enough.
Fully load the dishwasher.The dishwasher is not fully
loaded.
Top up with rinse aid or in-
crease the rinse aid dose set-
ting.
Rinse aid needs topping up or
dosage is set too low.
Change all-in-one detergents or
deactivate the TAB setting and
top up with separate rinse aid.
See Rinse aid in the chapter,
Settings.
The setting TAB is activated and
all-in-one detergent with insuffi-
cient drying effect is being used.
31
WiFi
ActionPossible causesProblem
Connect the dishwasher to your
wireless network. See the
chapter, WiFi connection.
The dishwasher is not connect-
ed to your wireless network.
The dishwasher’s network sym-
bol does not appear on the
display.
Activate the WiFi connection.The WiFi connection is deactivat-
ed. See Deactivate/activate WiFi
connection in the chapter, WiFi
connection.
Check that the router is connect-
ed to the internet.
The dishwasher cannot access
your wireless network. Or the
router is not connected to the
internet.
WiFi connection failed
Make sure your wireless net-
work is using 2.4 GHz and is
visible. Try moving the router
closer to the dishwasher if the
signal is too weak.
See also troubleshooting at
www.connectlife.io.
If the problem persists, contact
your nearest service centre.
Check that the router is connect-
ed to the internet.
The dishwasher cannot access
your wireless network. Or the
router is not connected to the
internet.
Pairing failed
Check that your smart-
phone/tablet is connected to
your wireless network.
See also troubleshooting at
www.connectlife.io.
If the problem persists, contact
your nearest service centre.
Activate the WiFi connection.The WiFi connection is deactivat-
ed
The dishwasher is shown as
disconnected in the ConnectLife
app.
See Deactivate/activate WiFi
connection in the chapter, WiFi
connection.
See also troubleshooting at
www.connectlife.io.
If the problem persists, contact
your nearest service centre.
Make sure that the power sup-
ply is not interrupted and that
the network connection is stable
before trying again. If the prob-
lem persists, contact your near-
est service centre.
The network connection was
lost or the dishwasher lost
power due to a power failure.
Software update failed.
32

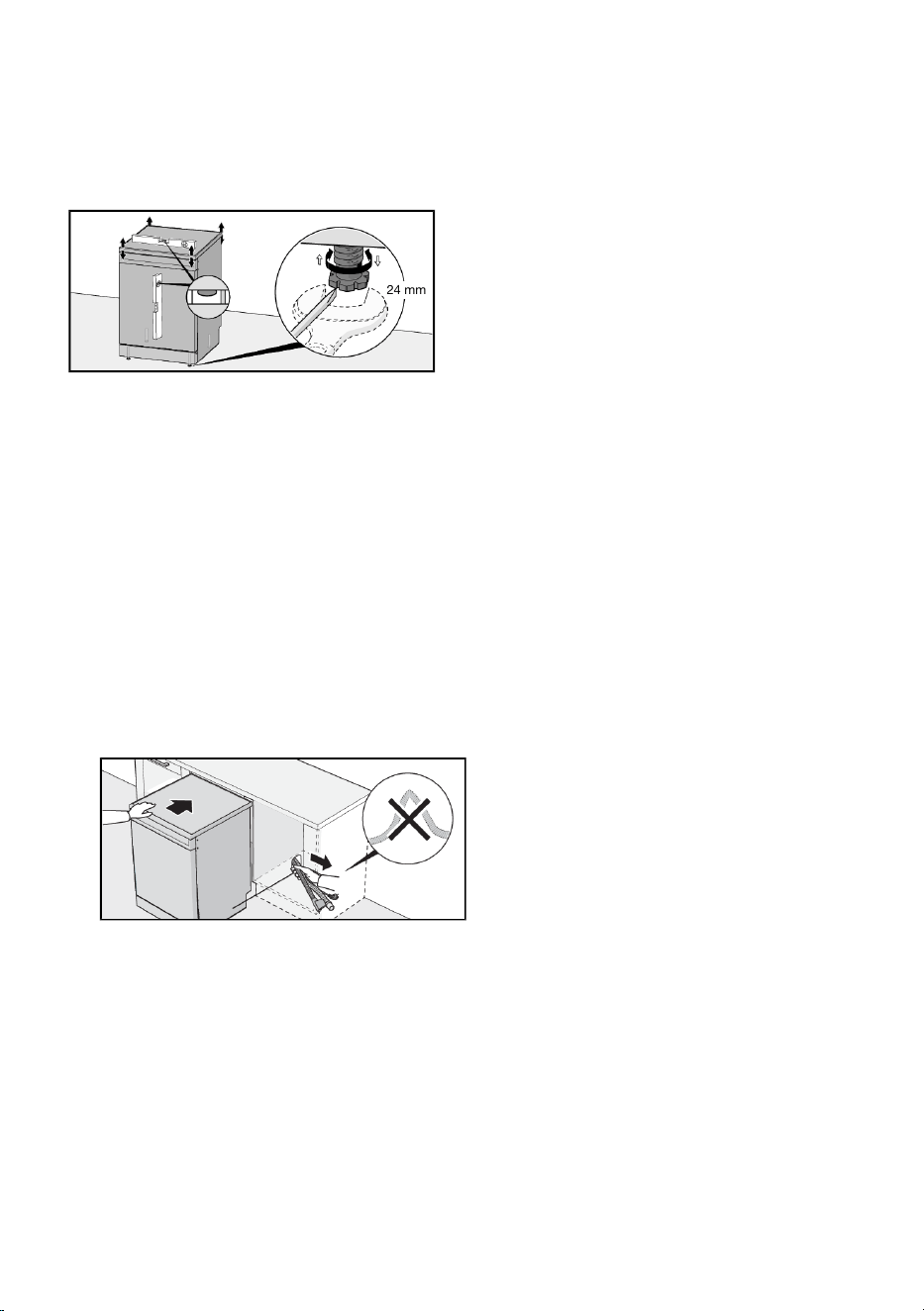

Installation
[mm]
Nominal dimensions. Actual measurements may vary.
Safety instructions
• Connections to electricity, water and drainage must be performed by a qualified professional.
• Always follow applicable regulations for water, drainage and electricity.
• Take care during installation! Wear protective gloves! There must always be two people!
• Place a watertight protective tray on the floor under the dishwasher to prevent damage from any
water leaks.
• Before screwing the dishwasher into place, test the dishwasher by running the 1h 65° program
with the Speed wash option. Check that the dishwasher fills with water and drains. Also check
that none of the connections leak.
WARNING!
Turn off the water supply when installing the dishwasher!
The plug must be disconnected or power to the socket turned off while the work is carried out!
Transport protection for the door
Do not forget to remove the transport protection for the door when unpacking the dishwasher.
33
Placing the dishwasher
The dishwasher can be installed under a worktop or freestanding. Make sure the area on which the
dishwasher is to be installed is firm.
Adjust the height and slide the dishwasher into place
24 mm
Freestanding
• Make sure the surface on which the dishwasher is to be installed is firm. Adjust the dishwasher's
height using its four feet so that the dishwasher is level. The dishwasher may not lean more than
5 mm.
Built-in
1. Start by measuring the height from the floor to the bottom edge of the worktop.
2. Measure the height from the floor to the top edge of the dishwasher.
3. Adjust the dishwasher's feet by turning them clockwise to raise or anticlockwise to lower the
machine.
4. Check that there is an air gap of at least 3 mm between the underside of the worktop and the top
edge of the dishwasher.
5. Slide the dishwasher into place.
• Pull through the drainage and supply hoses when the machine is slid into place.
• Check that the hoses have no kinks or sharp bends, and check that there is nothing that can
damage the hoses.
• Check that the machine is installed such that the door opens freely, otherwise door lock
functionality may be disrupted.
6. Make any final adjustments to the front feet (the dishwasher may not lean more than 5 mm).
The dishwasher can also be installed in a recess without its worktop. See Remove dishwasher worktop.
Drainage connection
This dishwasher is suitable for installing in a raised recess (to attain an ergonomic working height).
This means that the dishwasher can be placed so that the drainage hose runs to a lower level than
the bottom of the dishwasher, such as by routing it directly to a floor drain. The dishwasher is fitted
with an integrated anti-siphon device to prevent the machine from being emptied of water during the
wash cycle.
34
min.
14 mm
Max. 950 mm
The drainage hose can also be connected to a connection nipple on the sink unit’s water trap. The
connection nipple must have an internal diameter of at least 14 mm.
The drainage hose may be extended by a maximum of 3 m (the total length of the drainage hose must
not exceed 4.5 m). Any joins and connecting pipes must have an internal diameter of at least 14 mm.
However, the drainage hose should ideally be replaced with a new hose without joins.
No part of the drainage hose may be more than 950 mm above the bottom of the dishwasher.
Attach the drainage hose with a hose clamp. Ensure that the drainage hose has no kinks.
Connection to water supply
Use only the inlet hose supplied with the dishwasher. Do not re-use old or other spare hoses.
The supply pipe must be fitted with a water tap (stopcock). The water tap must be easily accessible,
so that the water can be shut off if the dishwasher has to be moved.
Once the installation is complete, turn on the water tap and allow the pressure to settle for a while.
Check that all connections are watertight.
Connection to cold water supply
Connect the dishwasher to the cold water supply if the building is heated using oil, electricity or gas.
Connection to hot water supply
Connect the dishwasher to the hot water supply (max. 70 °C) if the building is heated using an
energy-efficient means such as district heating, solar power or geothermal power. Choosing a hot
water connection cuts the dishwashing time and reduces the energy consumption.
35
NOTE!
Do not exceed the permitted water supply temperature. Certain materials used in some cookware
cannot withstand high heat. See Fragile dishes in the chapter, Loading the dishwasher.
NOTE!
The water pressure must be between 0.03 and 1.0 MPa.
Connecting a dishwasher to the water supply via certain types of pressure limiting valves may
restrict the water supply! This may cause the error message “Water inlet fault” to be displayed.
If the water pressure is higher than 1.0 MPa a pressure limiting valve must be fitted.
Electrical connection
Information about the electrical connection can be found on the compliance plate. This specification
must match the electricity supply.
The dishwasher must be connected to an earthed wall socket.
The electric wall socket must be placed outside of the installation area to be easily accessible after
installing the dishwasher. Do not use an extension cord!
Install the sound insulation
(only certain models)
Sound insulation
Remove dishwasher worktop
The dishwasher can be installed in a recess without its worktop. If the dishwasher's worktop is removed,
the dishwasher must be installed under a separate worktop.
36
Service
Read the chapter Troubleshooting before contacting the service centre. If you have encountered a
problem that you cannot resolve, please contact your nearest service centre for professional help.
When making contact, provide the details on the serial number plate. Include the article number (1)
and the serial number (2).
Please note that non-professional repairs may risk user safety and affect the warranty.
1
2
Number of program cycles
Press and hold and for 3 seconds to show Number of program cycles on the display.
(If the dishwasher has completed more than 999 cycles, the number of thousands is displayed followed
by the number of cycles up to 999. For example: 1234 cycles is displayed as 001 followed by 234.)
37
Technical information
Information on energy labelling
Australian standard:
Number of place settings:
Dishwashing programs:
Program time:
Connection:
AS/NZS 2007
15
Eco 55°
1)
2:45 hours:minutes
Cold water 20 °C
IEC 60704-2-3
Test method for noise measurement:
1)
This dishwashing program is the standard cleaning cycle used to compile the energy labelling information. It is intended for washing
normally dirty dishes and is the most effective program in terms of combined energy and water consumption.
Technical data
846-896 mmHeight:
599 mmWidth:
598 mmDepth:
40 kg
1)
Weight:
0.03-1.0 MPaWater pressure:
See compliance plateElectrical connection:
See compliance plateRated power:
1)
Weight can vary due to different specifications.
Information for test institute
The request should include the details on the product’s serial number plate. Include the article number
(1) and the serial number (2).
1
2
38
We reserve the right to make changes.
879617-a25DRAFT
