THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Adirondack Chair
NP10510
USER’S MANUAL
NOTICE
TOOLS REQUIRED
Do not over-tighten screws. (Insert all screws before
tightening screws.)
• Please do not exceed the weight limitations of this item.
• Do not stand on or use any part of this item as a step ladder.
• Firmly secure all bolts, screws and nuts before use.
• Reconfirm that all bolts, screws, and nuts are secure every 90 days.
• Do not use or store this item in the proximity of open flame or
flammable/combustible chemicals.
• Be aware that some parts are heavy and have sharp edges.
• Be very careful when folding the chair to avoid smashing your
hands or fingers.
WRENCH
(PROVIDED)
ALLEN
WRENCH
(PROVIDED)
UP TO 30
MIN
ASSEMBLY
1 PERSON
ASSEMBLY
CHAIR
330 LBS
CAPACITY
02
HARDWARE
M6x30mm
BOLT
2pcs
1
M6x40mm
BOLT
8pcs
2
M6x60mm
BOLT
2pcs
3
M6x80mm
SCREW
2pcs
4
M6x50mm
SCREW
8pcs
5
M6 NUT
4pcs
6
M6 WASHER
4pcs
7
MRENCH
1pc
8
ALLEN
WRENCH
1pc
9
03
PARTS
CHAIR
BACKREST
1pc
A
CHAIR SEAT
1pc
B
UPPER
CHAIR ARM
1pc
C
CHAIR LEG
1pc
D
BACK RAIL
1pc
E
FRONT RAIL
1pc
F
FOOTREST
1pc
G
04
PRODUCT ASSEMBLY - OVERALL VIEW
PRODUCT ASSEMBLY

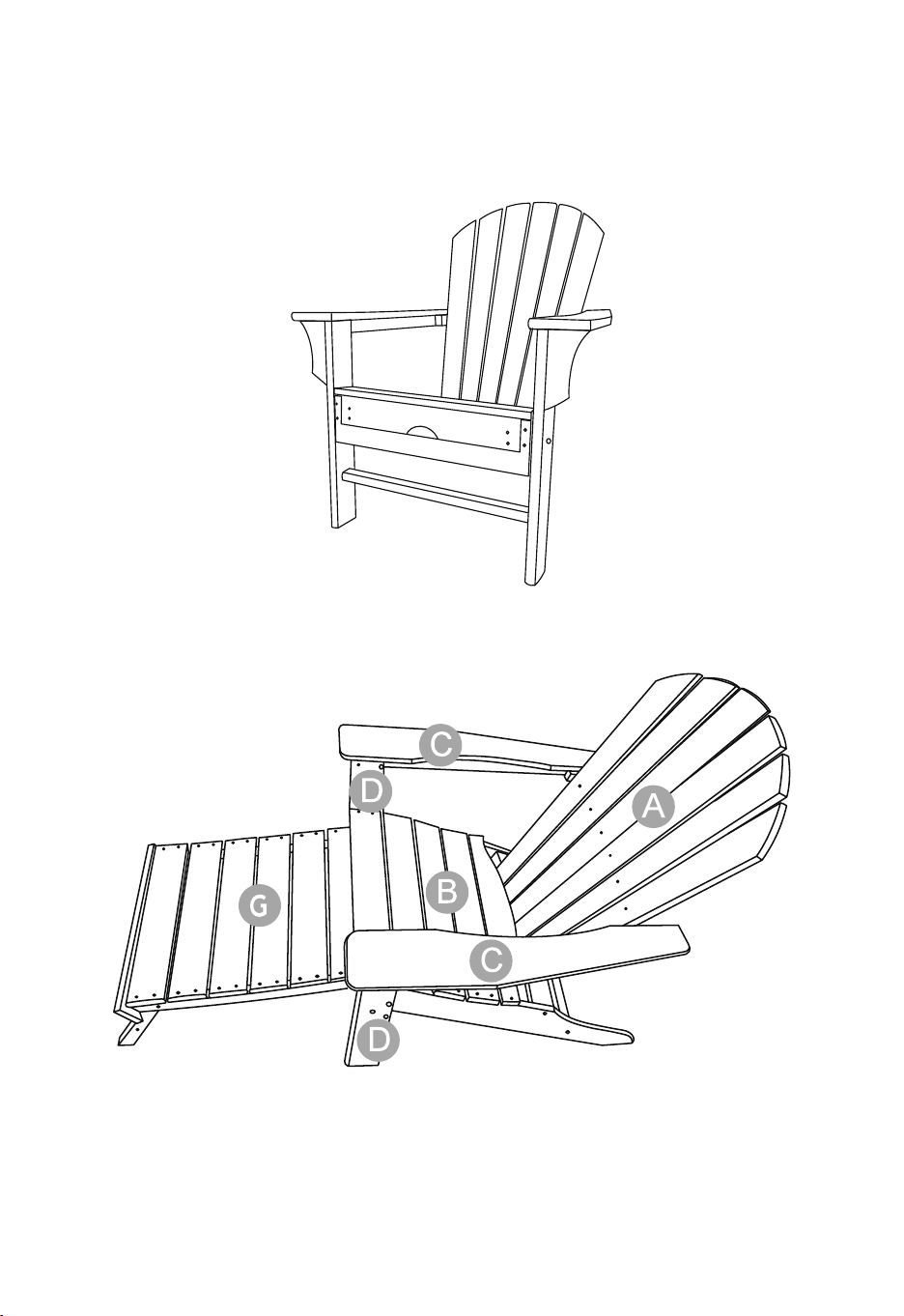

Look at following overall view of this chair and learn the exact
position of each part to be assembled.
2
2
2
5
5

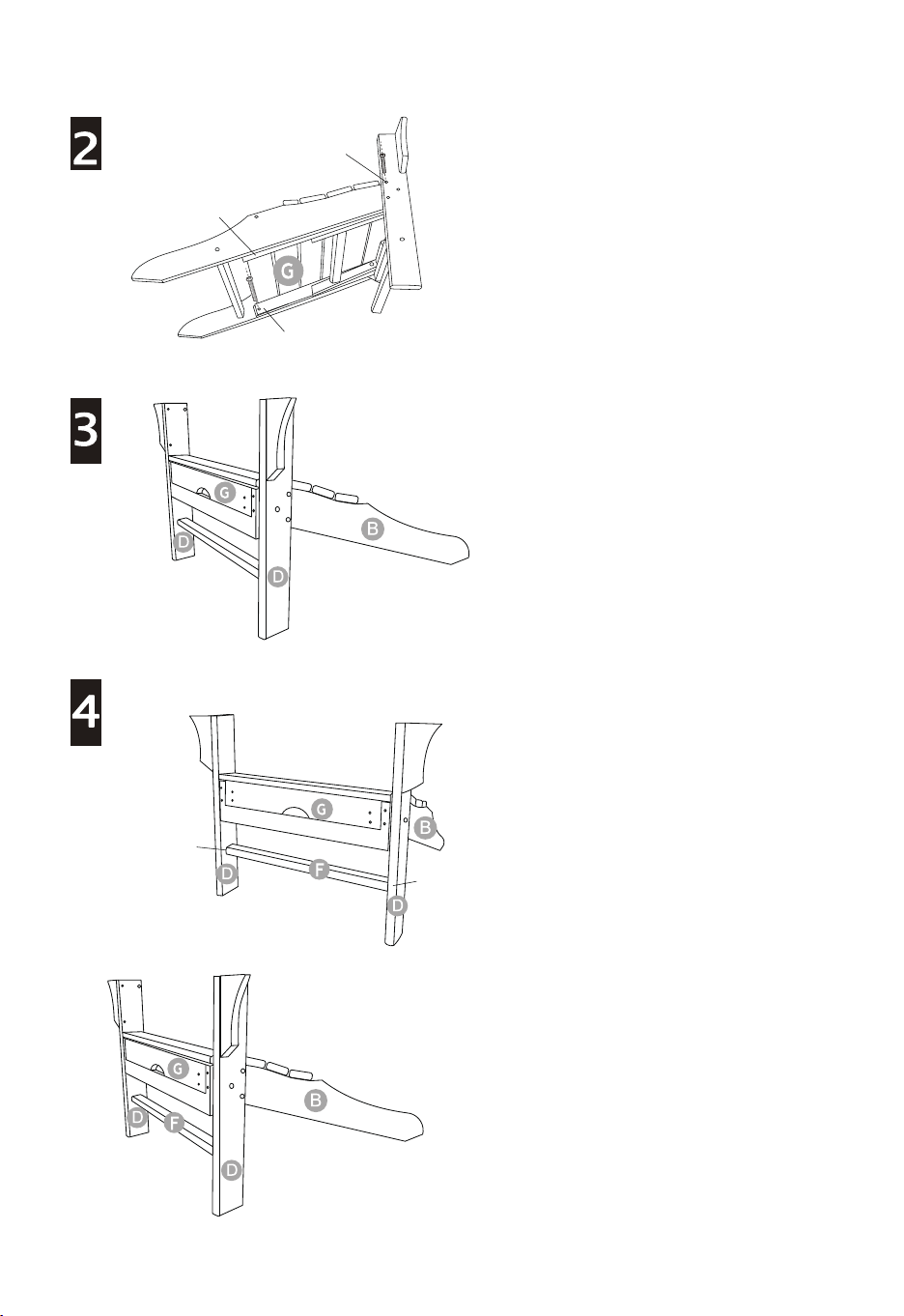

1. Attach part D to part B
Chair Seat with 3pcs of No 2
bolt. Attach G with 2pcs of No
2 bolt, No 7 washer and No 6
Nut. Attach G with 2pcs of No
5 bolt.
05
5
5
2. Same as step 1, attach part
D to part B Chair Seat with
3pcs of No 2 bolt. Attach part
G with 2pcs of No 1 bolt.
3. After completing steps 1
and 2, stand the chair up.
4. Attach part F to part D with
2pcs of No 5 bolt.
Effect after completing the
first 4 steps.
2
1
1
06

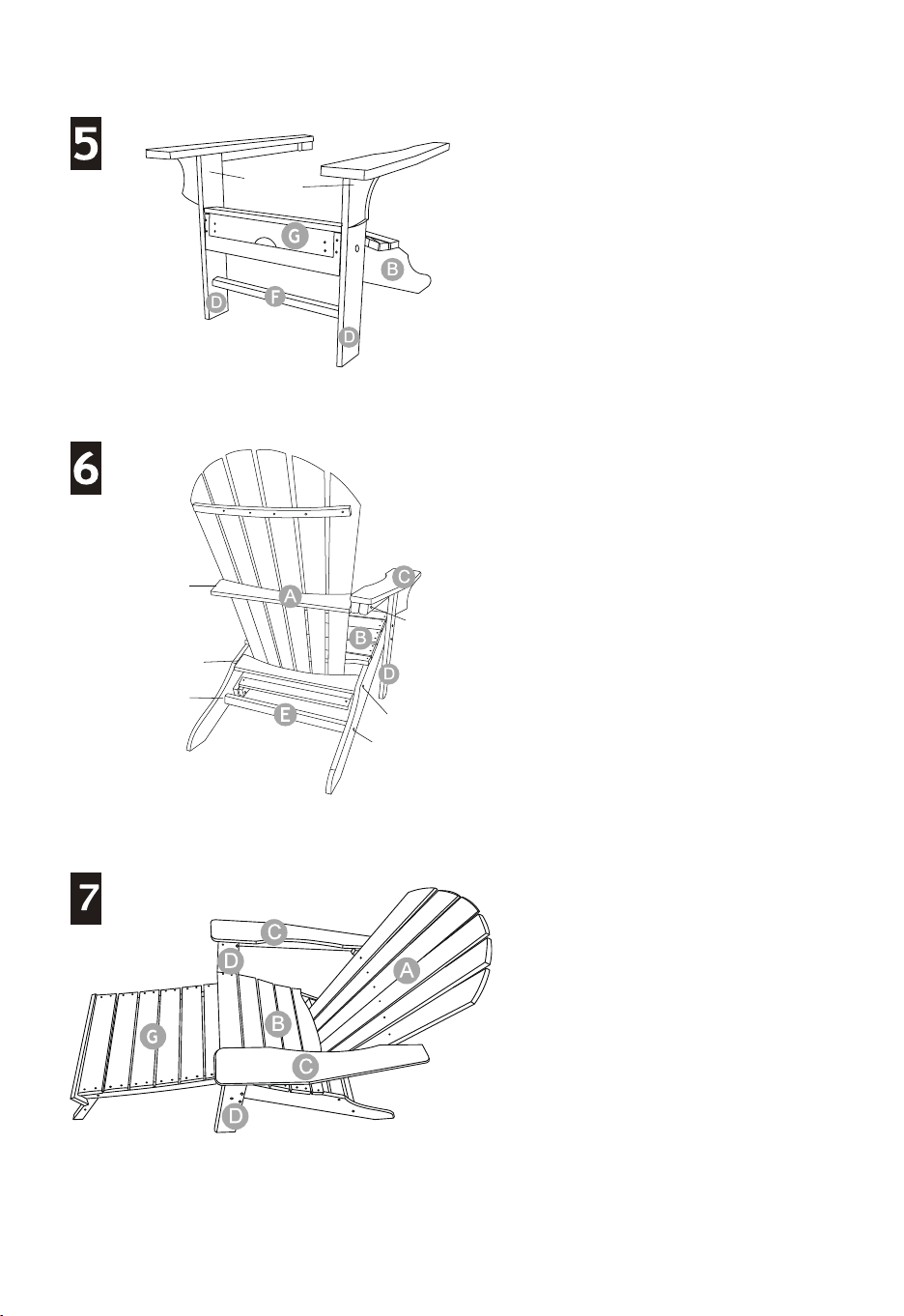

5. Attach part C to part D
Chair Leg with 2pcs of No 3
bolt, No 7 washer and No 6
Nut.
6. Attach part A to part C with
2pcs of No 4 bolt. Attach part
A and part B with 2pcs of No 5
bolt. Attach part E to part B
Chair Seat with 2pcs of No 5
bolt.
7. Attach part G to part B
Chair Seat and part D Chair
Leg with 2pcs of part D own
bolt.
3
3
4
4
5
5
5
5
07
08
EN
DE
FR
ES
IT
PL
