wood block
Recommended Tools
Entry
(Keyed)
*Tools will depend on install type
This manual can be used to install a variety of dead bolt.
Please determine your function type prior to installation.
Door Prep: If you need help in preparing your door
1
Installation and Reference Guide
54897-001
Rev 01
English
www.kwikset.com
1-800-327-5625
Welcome to the Kwikset family!
This guide will get you ready to install
your new low profile dead bolt.
If you have any issues, please visit our
support center:
kwikset.com/support
or call us at 1-800-327-5625.

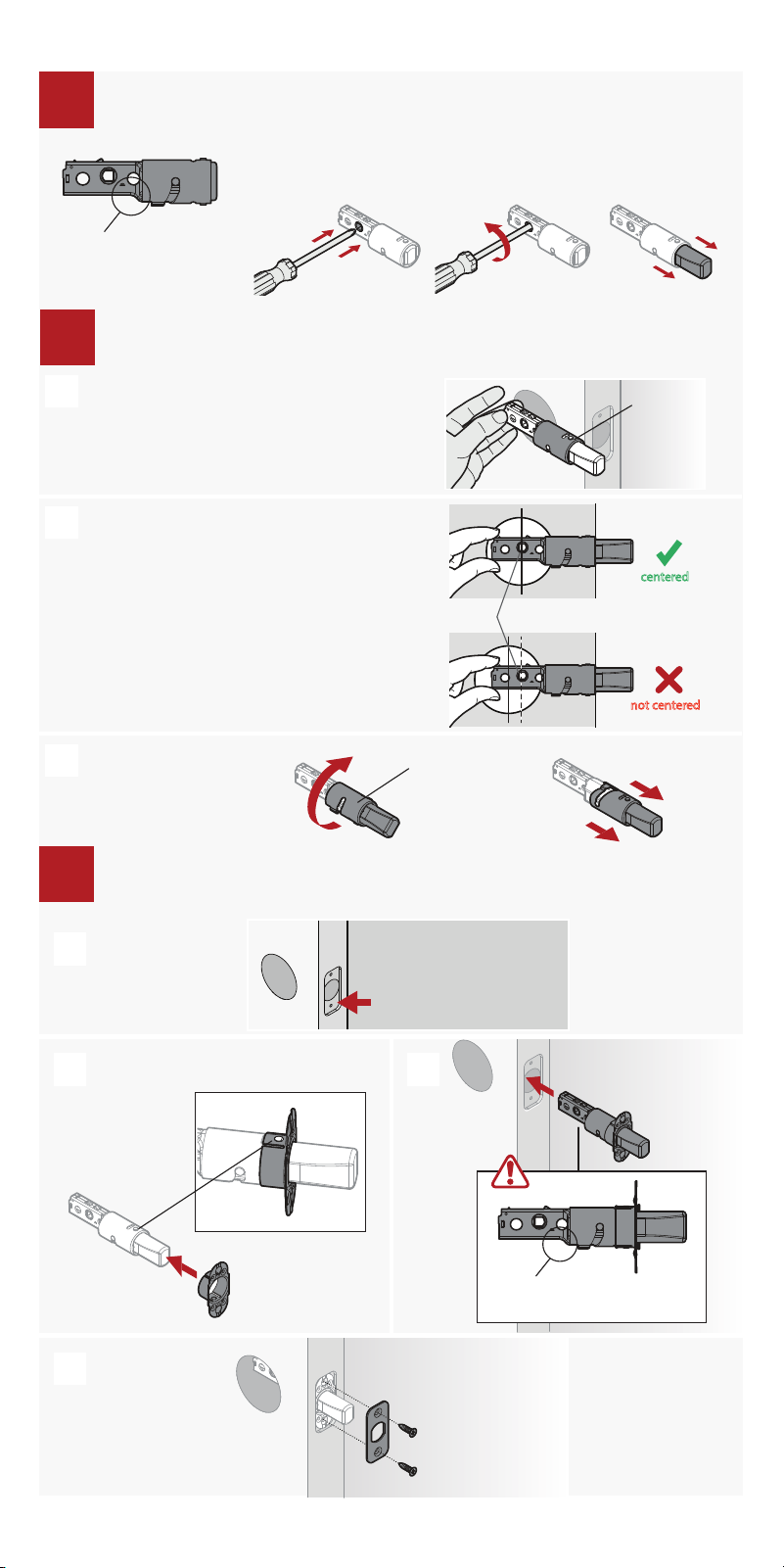

Drilling template: If you need help in drilling your door
1
Extend latch bolt
Door edge chiseled
Install latch (chiseled door)
2
3
A
B
180°
Use a screwdriver to extend the latch bolt.
Make sure the curve is on
the bottom of the latch.
A
B
C
Install backplate.
Install
faceplate.
Make sure the curve is on
the bottom of the latch.
Hold the latch in front of the door
hole, with the latch case flush against
the door edge.
latch case
If the D-shaped hole is centered
in the door hole, no adjustment
is required. Proceed to step 3.
If the D-shaped hole is NOT
centered, adjust latch. See
“Latch Adjustment”
(step C).
Latch Adjustment
(only if needed)
180°
Rotate the front
of the latch to
extend it.
centered
not centered
D-shaped hole

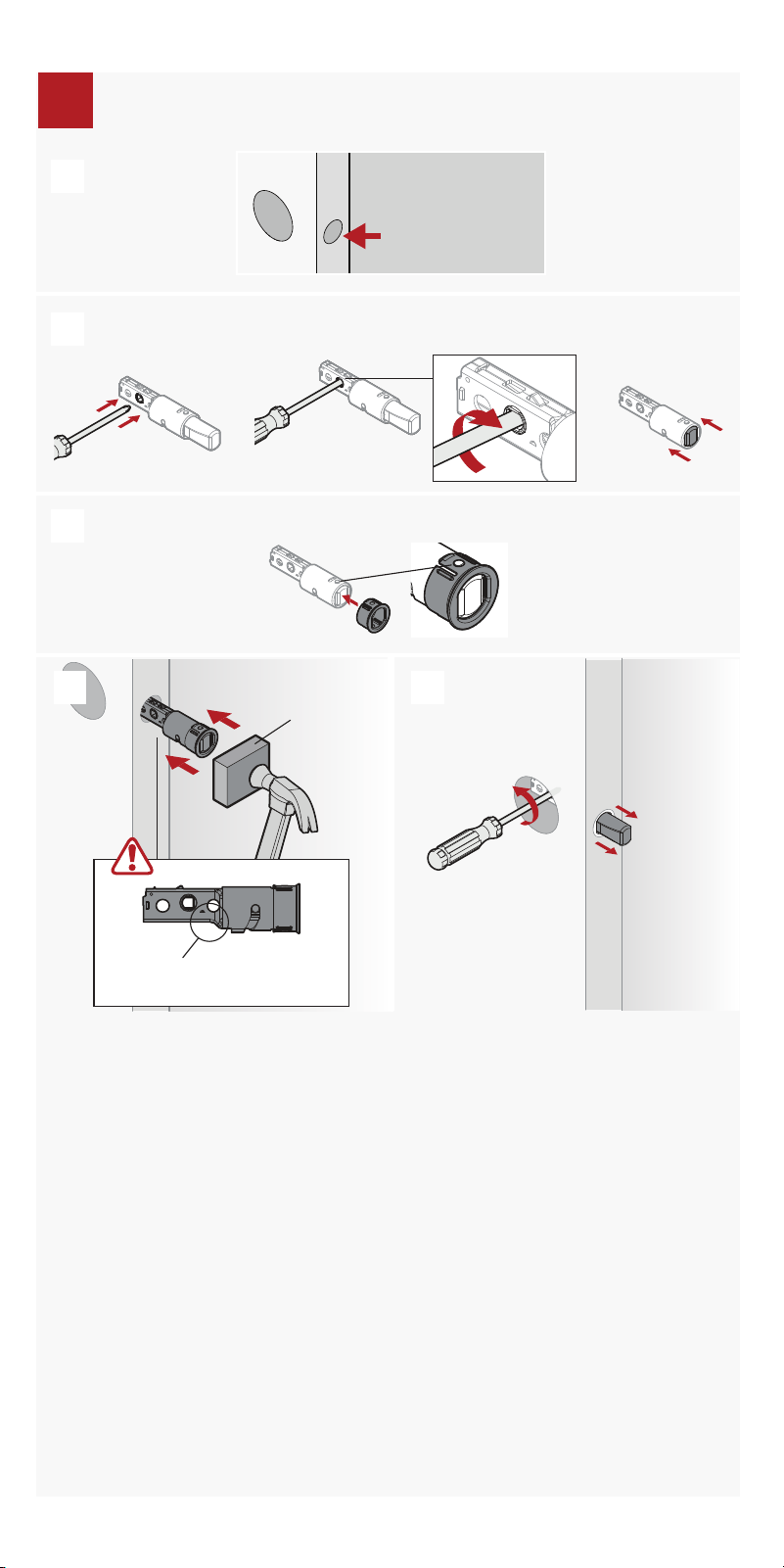

Adjust backset of the latch (if needed)
2
D
C
Door edge NOT
chiseled
Install latch (non-chiseled door)
3
3
A
B
C
Use a screwdriver to retract the latch bolt.
Extend the
latch bolt.
Make sure the curve is on
the bottom of the latch.
wood block
Install drive-in collar.
D
E
4

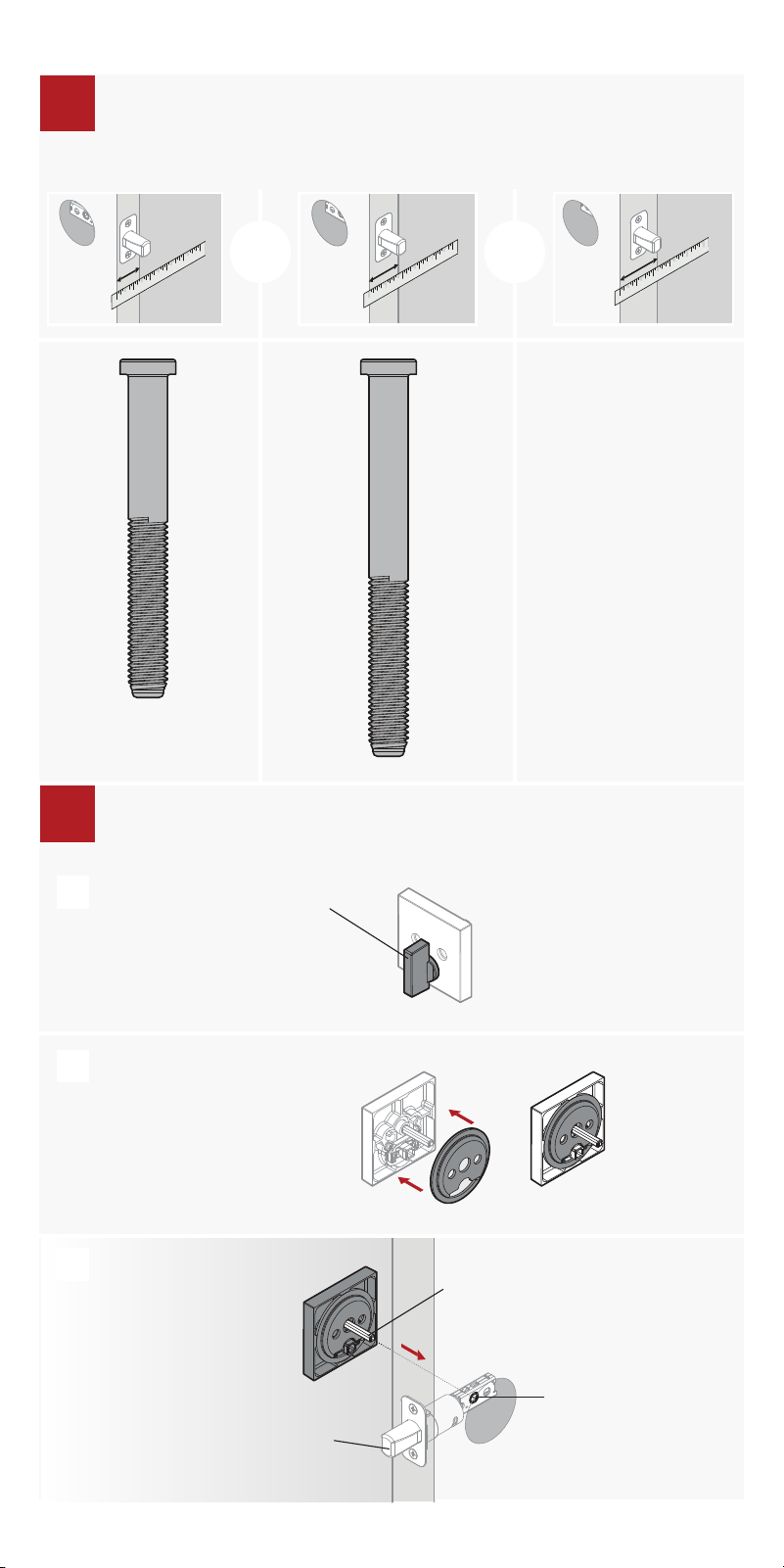

Determine mounting screws
4
Measure the thickness of your door to determine the required mounting
screws for step 6.
Make sure turnpiece is vertical.
torque blade
latch cam
interior
Mounting plate should be
pre-installed on interior.
If removed, re-install.
Make sure latch bolt is fully extended.
A
B
C
Install deadbolt interior
5
or
or
Call Kwikset to order a
service kit for 2-1/4”
(57 mm) thick doors.
Use the screws provided in
the kit.
(2x)
(2x)
35 mm 44 mm 57 mm
1-3/8” 1-3/4” 2-1/4”
5

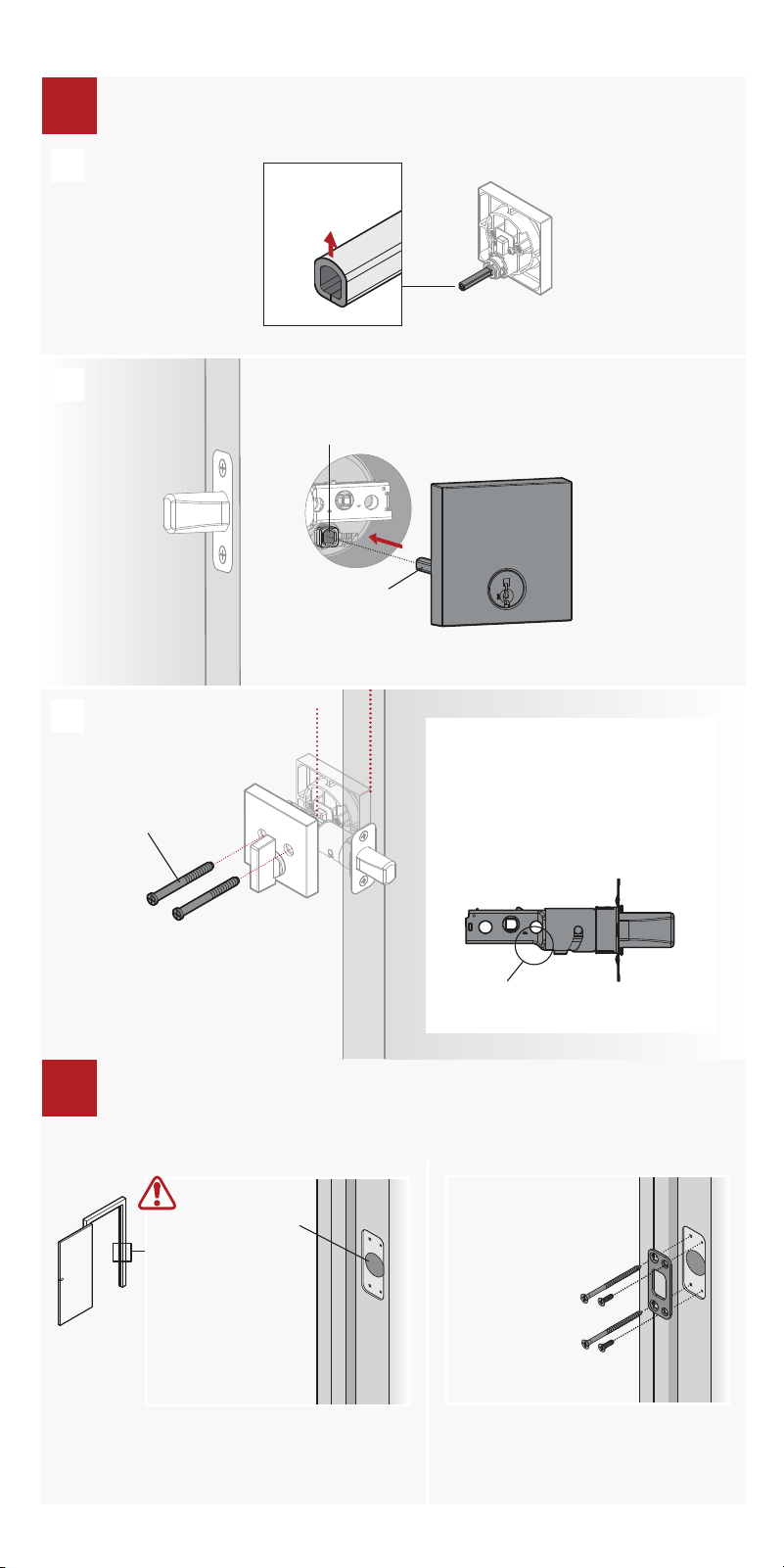

Install deadbolt exterior
6
Install strike on door frame
7
torque blade
turnpiece
exterior
Support deadbolt
interior while
installing exterior.
Use screws from step 4.
Keep parallel.
Curve points
up.
Troubleshooting
curve on bottom
A
B
C
If the screws are difficult to
tighten, make sure the latch is
installed correctly.
Make sure hole
in door frame is
drilled a minimum
of 1” (25 mm)
deep.
Note: The longer screws, 3" ( 76 mm)
must be used to maintain highest
security.
Longer screws install
closest to jamb.
Copyright © 2024 ASSA ABLOY Americas Residential Inc. All rights reserved

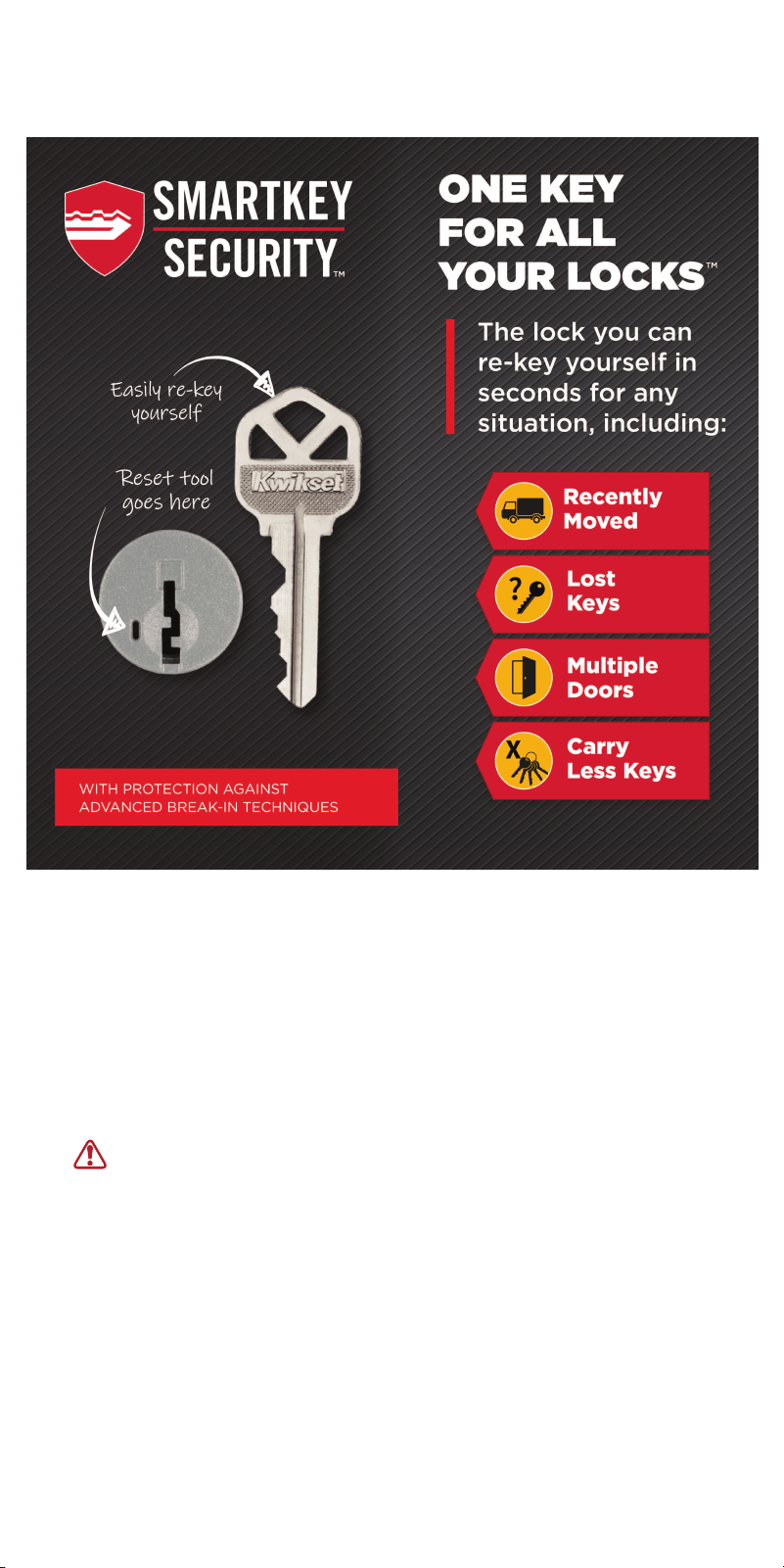

SmartKey Rekeying Instructions
For rekeying instructions, you can also visit:
https://www.kwikset.com/support/answers/how-to-re-key-your-smartkey-security-locks
WARNING: This Manufacturer advises that no lock can provide
complete security by itself. This lock may be defeated by forcible or
technical means, or evaded by entry elsewhere on the property. No
lock can substitute for caution, awareness of your environment, and
common sense. Builder’s hardware is available in multiple
performance grades to suit the application. In order to enhance
security and reduce risk, you should consult a qualified locksmith or
other security professional.
