5-Piece Patio Furniture Set
HW69537
USER’S MANUAL
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
US:cs.us@costway.com
UK:cs.uk@costway.com
US office: Fontana UK office: Ipswich AU office: Truganina
03
Before You Start
02
Read each step carefully before starting. It is very important
to ensure each step followed in correct order, otherwise
assembly difficulties may occur.
Most of board parts are labeled or stamped on the raw
edges. Have a check to make sure all parts are included.
Work in a spacious area, preferably on a carpet close to
where the unit will be used.
Keep the handtools close at hand. Do not use power tools to
assemble your furniture. They may scratch or damage the
parts.
3. Tighten up all screws with tools gradually.
4. If the screws are not aligned with holes during assembly, please
loosen all the other screws to 50% and continue the assembly
process.
5. If the item is not stable, please loosen all the screws, adjust it on
a flat ground and tighten up all screws again.
6. Note: If one or several screws are fully tightened during
assembly, there is a chance that the other screws will not align with
the holes. However, all holes are designed to be larger to provide
more room for screw adjustment.
Notice:
1.50% Tighten before fixing all
screws, Allen wrench is
recommended instead of an
electric drill.
2. Place the item on a flat
ground to adjust and make sure
it remains stable.
F
E
x 2
x 2
03
Before You Start
02
Read each step carefully before starting. It is very important
to ensure each step followed in correct order, otherwise
assembly difficulties may occur.
Most of board parts are labeled or stamped on the raw
edges. Have a check to make sure all parts are included.
Work in a spacious area, preferably on a carpet close to
where the unit will be used.
Keep the handtools close at hand. Do not use power tools to
assemble your furniture. They may scratch or damage the
parts.
3. Tighten up all screws with tools gradually.
4. If the screws are not aligned with holes during assembly, please
loosen all the other screws to 50% and continue the assembly
process.
5. If the item is not stable, please loosen all the screws, adjust it on
a flat ground and tighten up all screws again.
6. Note: If one or several screws are fully tightened during
assembly, there is a chance that the other screws will not align with
the holes. However, all holes are designed to be larger to provide
more room for screw adjustment.
Notice:
1.50% Tighten before fixing all
screws, Allen wrench is
recommended instead of an
electric drill.
2. Place the item on a flat
ground to adjust and make sure
it remains stable.
F
E
x 2
x 2
04 05

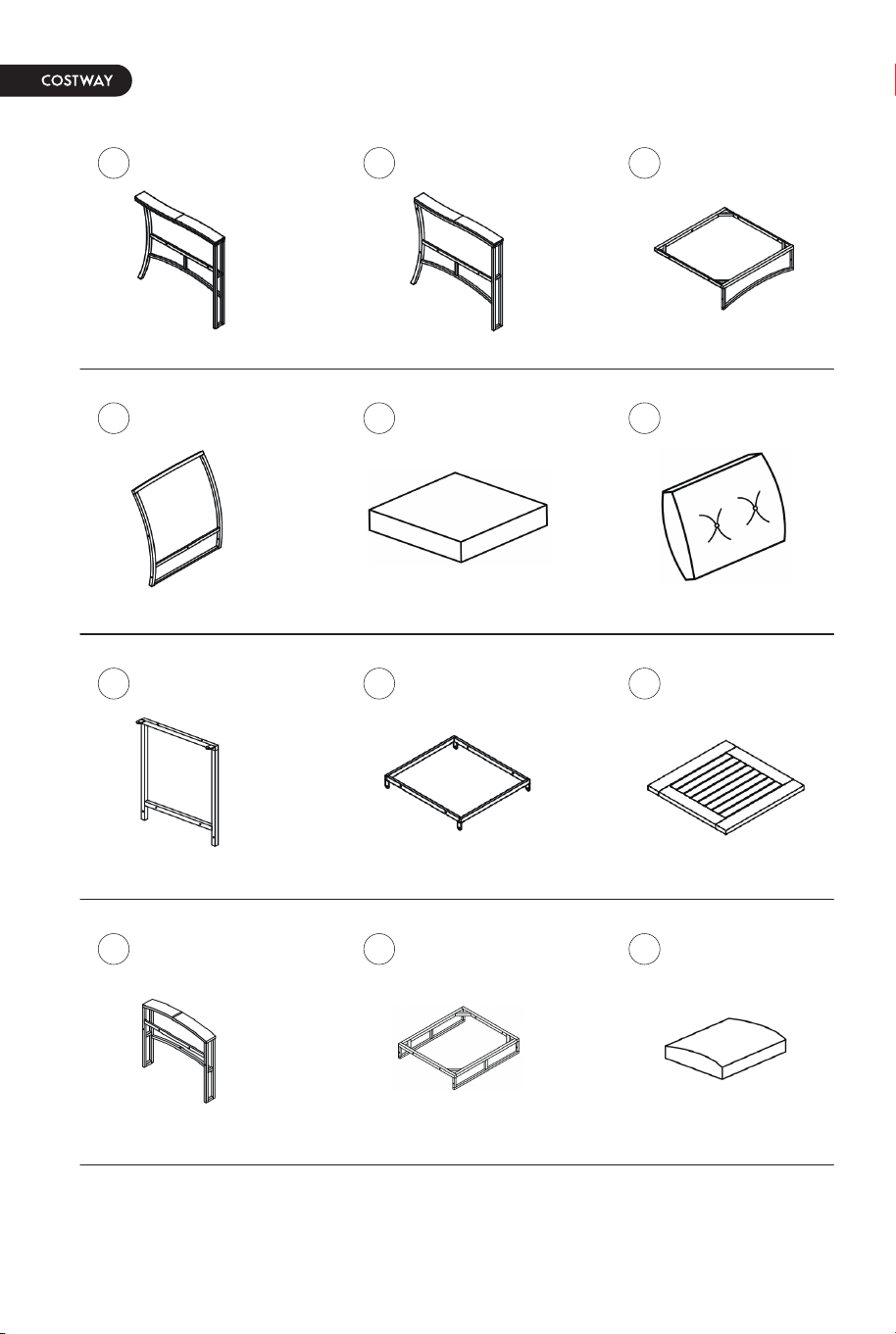

x2A x2Cx2B
x2D x2E x2F
x2G x1H x1I
x4J x2K x2L
Right frame Left frame Seat frame
Back frame Seat cushion Back cushion
Table leg frame Table bottom frame Wooden table top
Leg frame Seat frame Seat cushion
x81 x142 x203
x46x44 x465
x47 x28

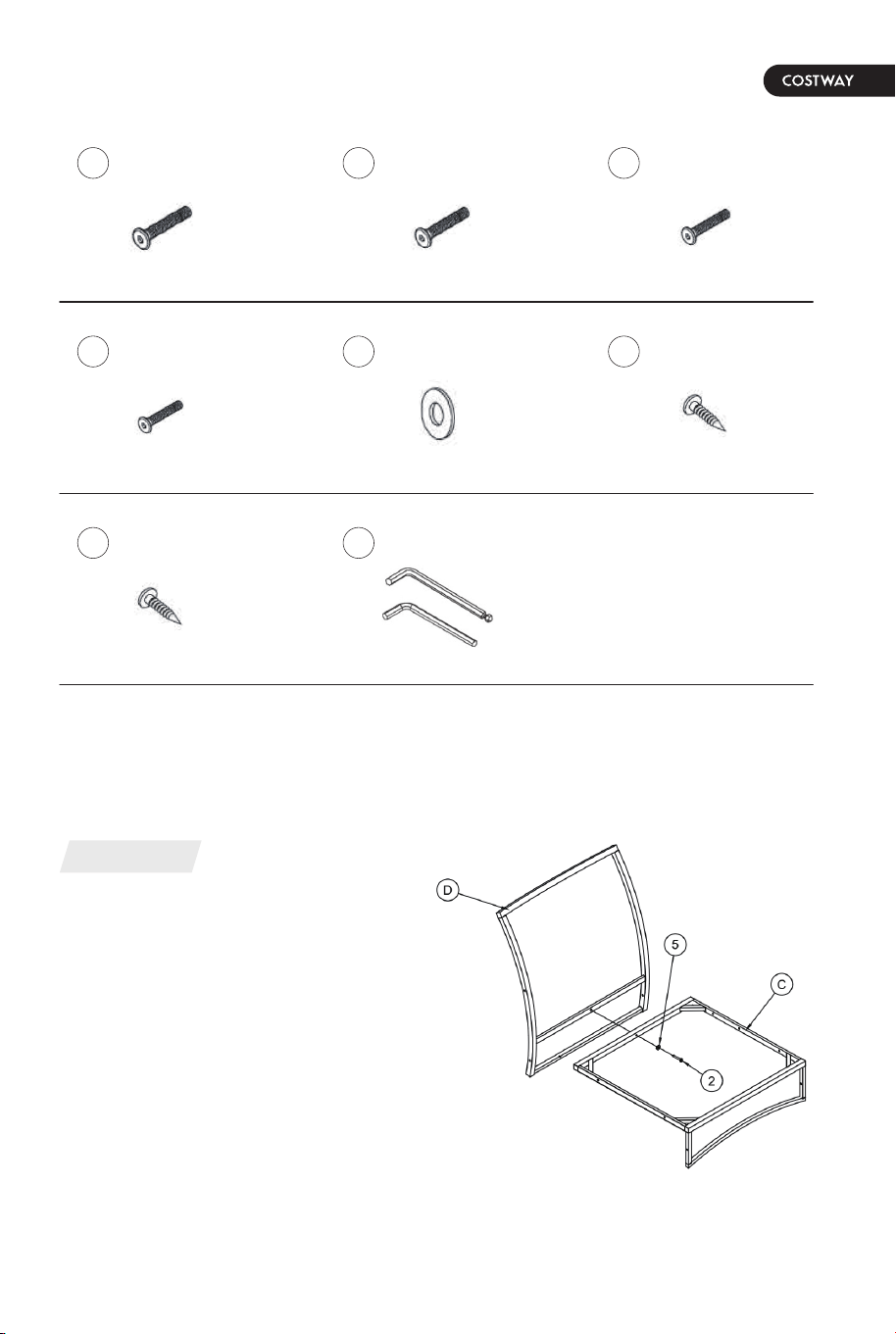

Bolt M6x40 mm Bolt M6x35 mm Bolt M6x25 mm
Bolt M6 x 20mm M6x 1 Washers
Screw M6x15mm Allen key M4
Screw M6x25mm
Step 01
( 2x Chair assembly )
Connect Back frame (D) & Seat
frame (C) with Bolt (2) &
Washer (5)
04 05
x2A x2Cx2B
x2D x2E x2F
x2G x1H x1I
x4J x2K x2L
Right frame Left frame Seat frame
Back frame Seat cushion Back cushion
Table leg frame Table bottom frame Wooden table top
Leg frame Seat frame Seat cushion
x81 x142 x203
x46x44 x465
x47 x28
Bolt M6x40 mm Bolt M6x35 mm Bolt M6x25 mm
Bolt M6 x 20mm M6x 1 Washers
Screw M6x15mm Allen key M4
Screw M6x25mm
Step 01
( 2x Chair assembly )
Connect Back frame (D) & Seat
frame (C) with Bolt (2) &
Washer (5)
06 07

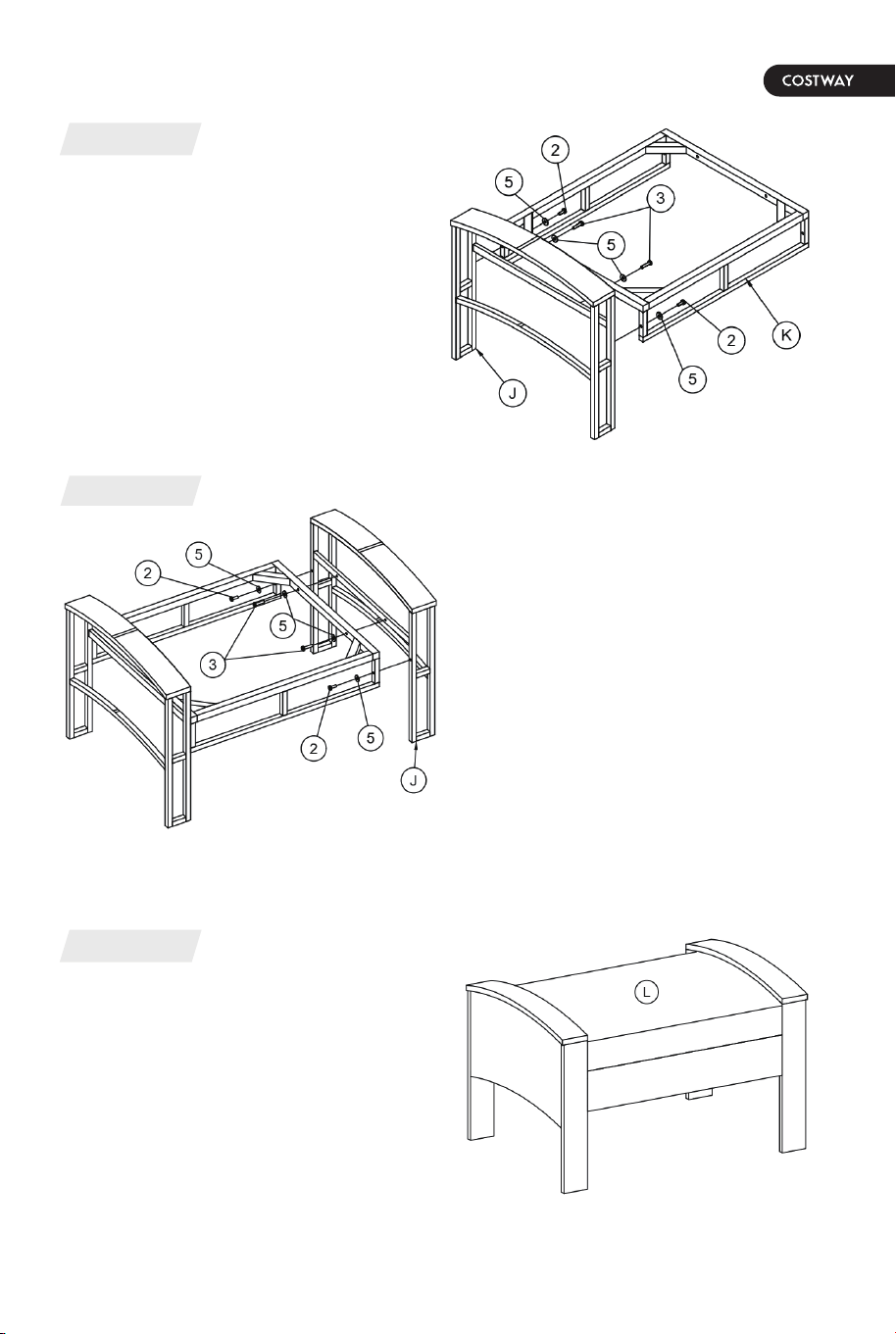

Step 05
Step 06
Step 07
( 2x Ottoman assembly )
Connect Leg frame (J) & Seat
frame (K) with Bolt (2), Bolt (3)
& Washer (5).
Step 03
Connect part from Step 2 &
Left arm (B) with Bolt (1), Bolt
(2), Bolt (3) & Washers (5).
Connect part from Step 5 &
Leg frame (J) with Bolt(2),
Bolt (3) & Washers (5).
Step 02
Connect part from Step 1 &
Right arm (A) with Bolt (1), Bolt
(2), Bolt (3) & Washers (5).
Step 04

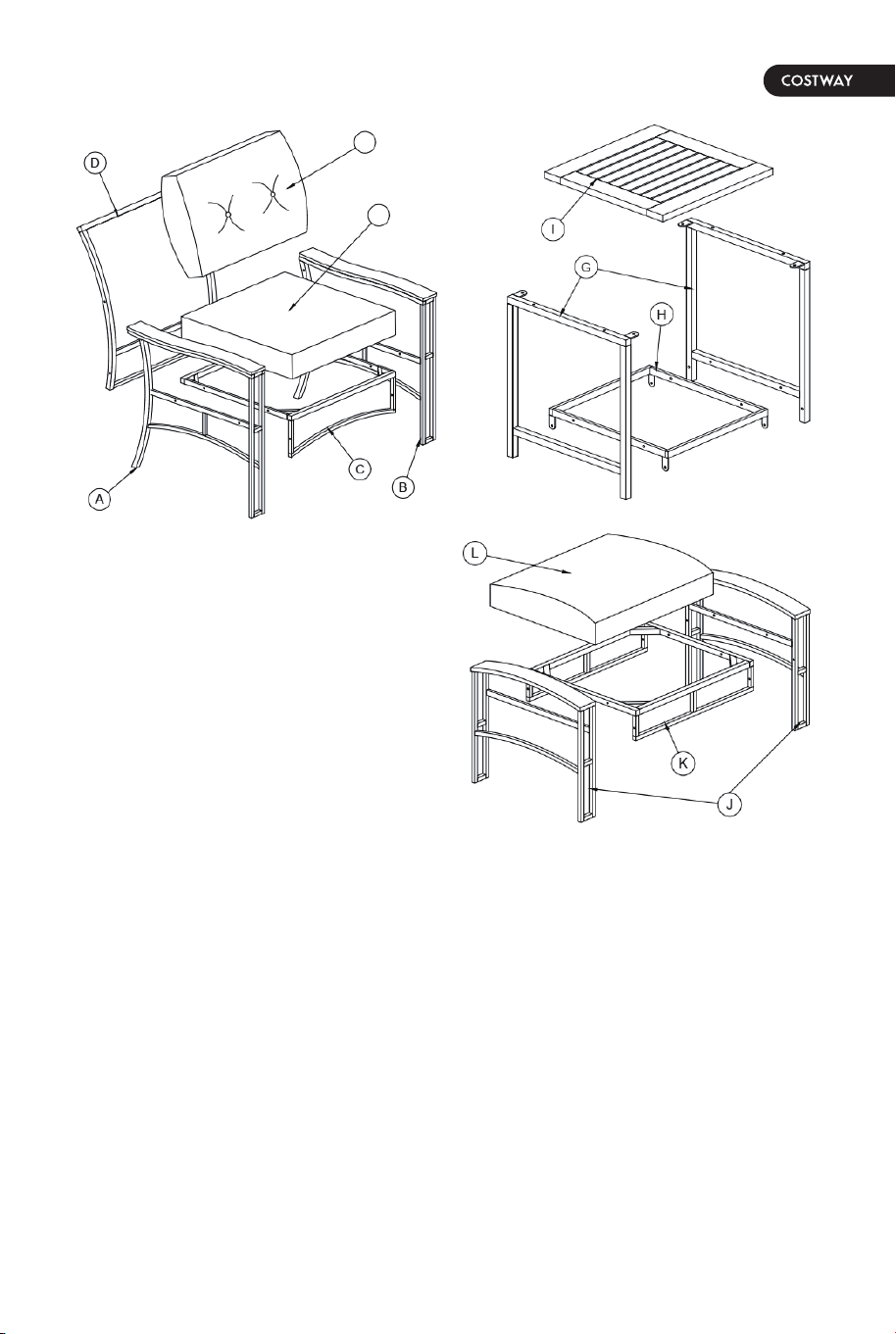

Put on Seat cushion (E) and Back
cushion (F) to complete single chair.
Put on Seat cushion (L) to
complete the ottoman bench.
06 07
Step 05
Step 06
Step 07
( 2x Ottoman assembly )
Connect Leg frame (J) & Seat
frame (K) with Bolt (2), Bolt (3)
& Washer (5).
Step 03
Connect part from Step 2 &
Left arm (B) with Bolt (1), Bolt
(2), Bolt (3) & Washers (5).
Connect part from Step 5 &
Leg frame (J) with Bolt(2),
Bolt (3) & Washers (5).
Step 02
Connect part from Step 1 &
Right arm (A) with Bolt (1), Bolt
(2), Bolt (3) & Washers (5).
Step 04
Put on Seat cushion (E) and Back
cushion (F) to complete single chair.
Put on Seat cushion (L) to
complete the ottoman bench.
Connect part from step 8 & Wooden
table top (I) with Screw (6) and
Screw (7).
08 09
Finished
Step 09
Step 08
Step 10
( Table assembly )

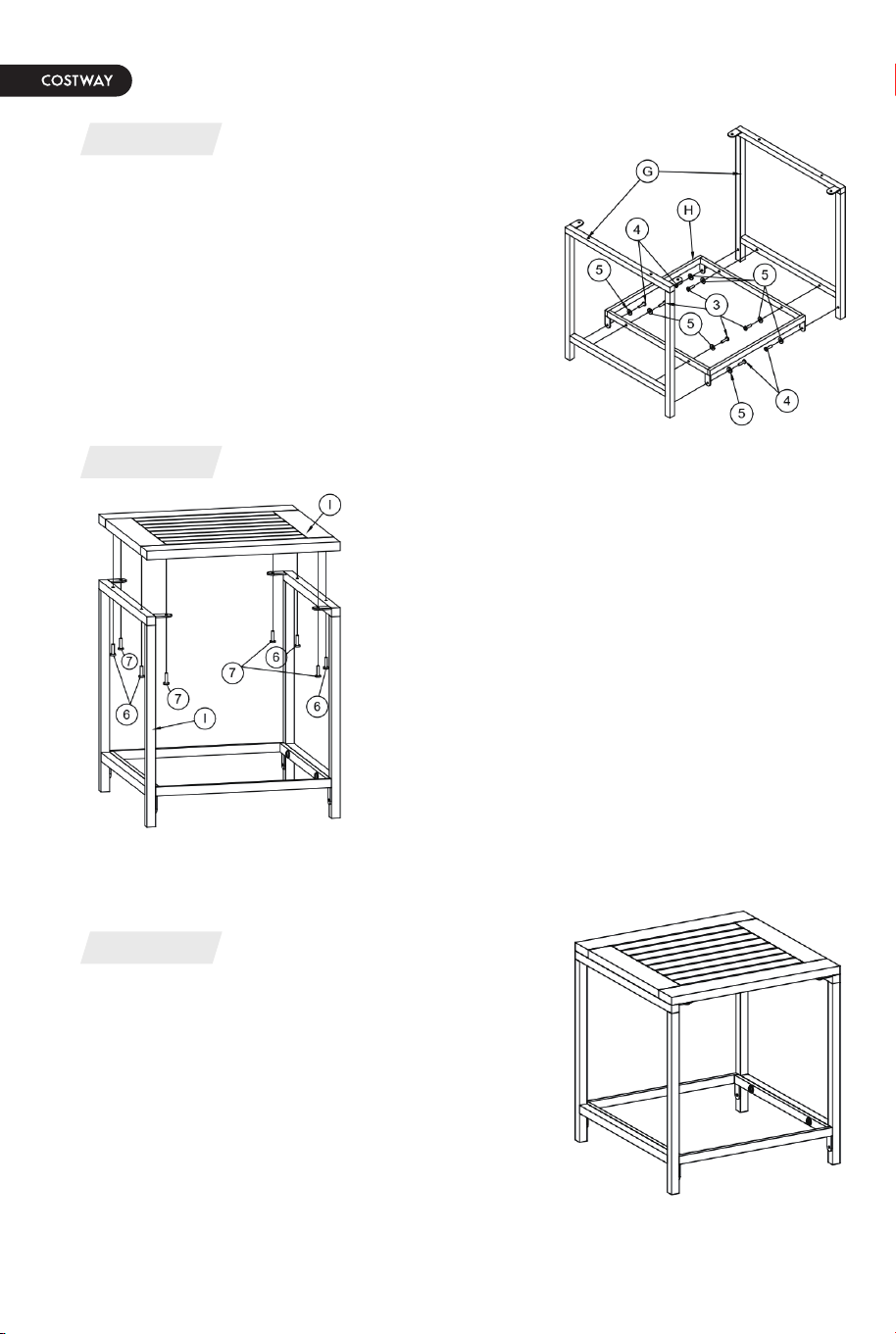

Connect table leg frame (G) & Table
bottom frame (H) with Bolt (3), Bolt
(4) & Washers (5).
Complete the Table.
Connect part from step 8 & Wooden
table top (I) with Screw (6) and
Screw (7).
08 09
Finished
Step 09
Step 08
Step 10
( Table assembly )
Connect table leg frame (G) & Table
bottom frame (H) with Bolt (3), Bolt
(4) & Washers (5).
Complete the Table.
Care and Maintenance
Use a soft, clean cloth that will not scratch the surface when dusting.
Use of furniture polish is not necessary.
Should you choose to use polish, test first in an inconspicuous area.
Using solvents of any kind on your furniture may damage the finish.
Never use water to clean your furniture as it may cause damage to the
finish.
Liquid spills should be removed immediately. Using a soft clean cloth, blot
the spill gently. Avoid rubbing.
Check bolts/screws periodically and tighten them if necessary.
Please protect your outdoor furniture with a cover when not in use since
long-term sunlight exposure will result in the damage on the surface.
In addition to sunlight damage, wood and metal frame suffers when
exposed to extremes in temperature and humidity.
Proper care and cleaning at home will extend the life of your purchase.
Following these important and helpful tips will enhance your furniture as
it ages.
Further advice about wood
furniture care
10
