1
SDD2ELEMIC
INTEGRATED DOWNDRAFT INSTALLATION
INSTRUCTIONS FOR
SEM 11, SEM 21, SEM 71, SEM 81 & DDFMEL motors
Congratulations on your purchase!
Thank you for choosing a Sirius product.
SDD2ELEMIC58 EAN #9351116005375
SDD2ELEMIC88 EAN #9351116005382
SDD2ELEMIC118 EAN #9351116005399
2
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
3
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
3
The symbol on the product or on its packaging indicates that this product
may not be treated as house-hold waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed information about
recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the
product. This appliance is marked according to the European directive
2002/96/EC on waste electrical and electronic equipment (WEEE).
BEFORE YOU INSTALL - DUCTING INFORMATION 4
TO THE ATTENTION OF THE USER 5
INSTALLATION GUIDELINES 5
APPLIANCE DIAGRAMS 6
PRE-INSTALLATION CHECKS 7
INSTALLING THE RANGEHOOD 8

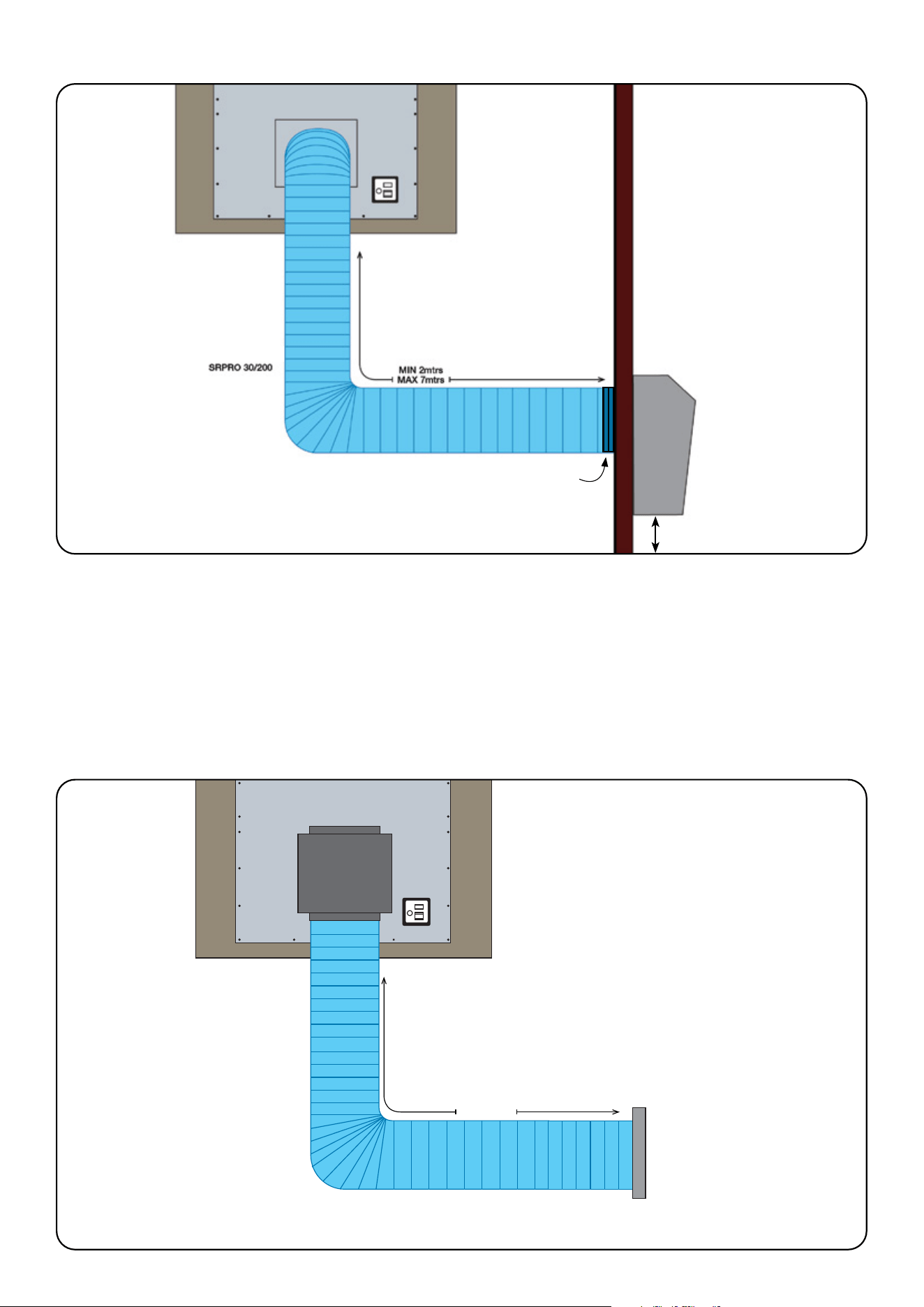

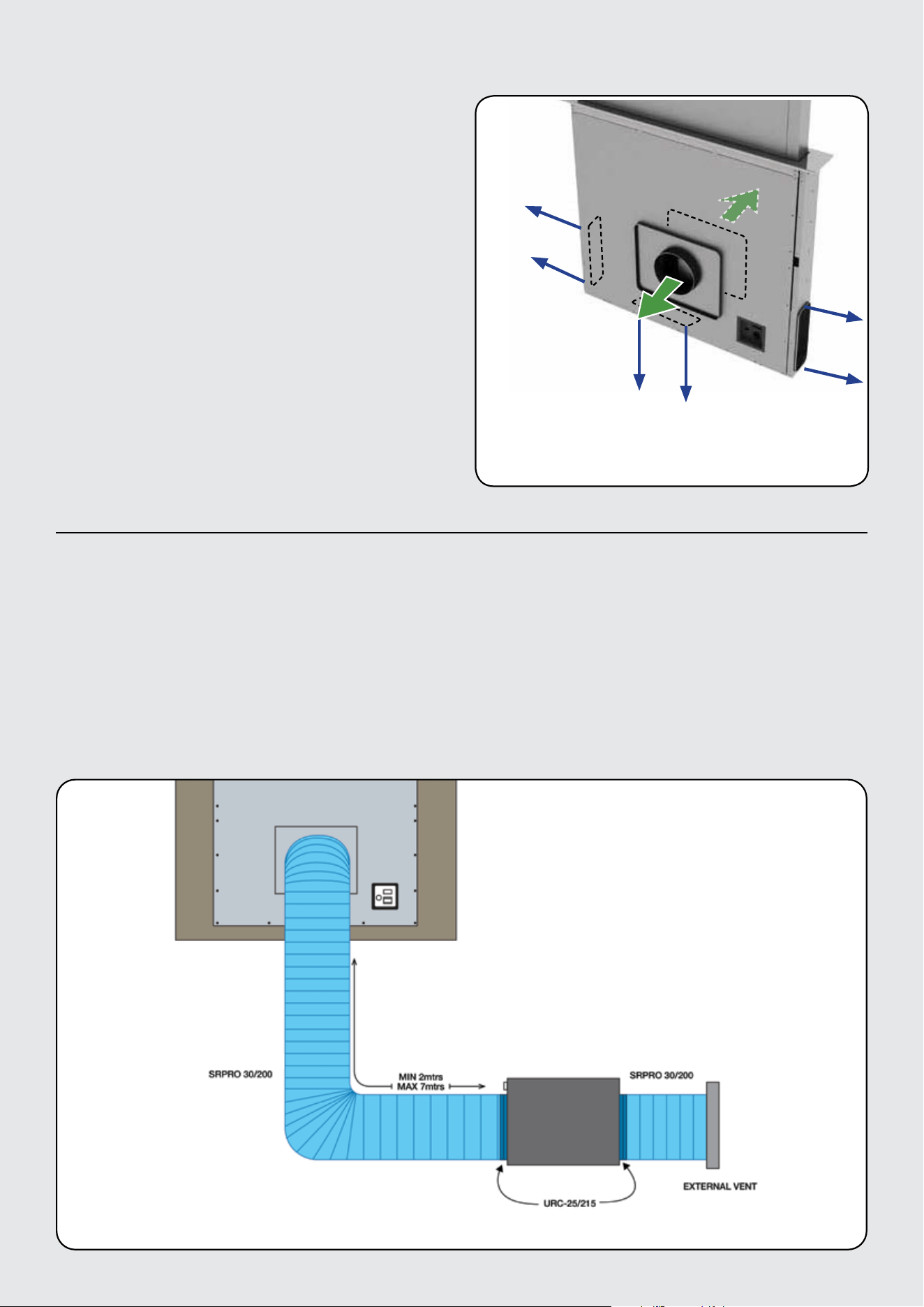

FOR SEM 71 AND SEM 81
200MM SIDE OR BOTTOM VENTING
16

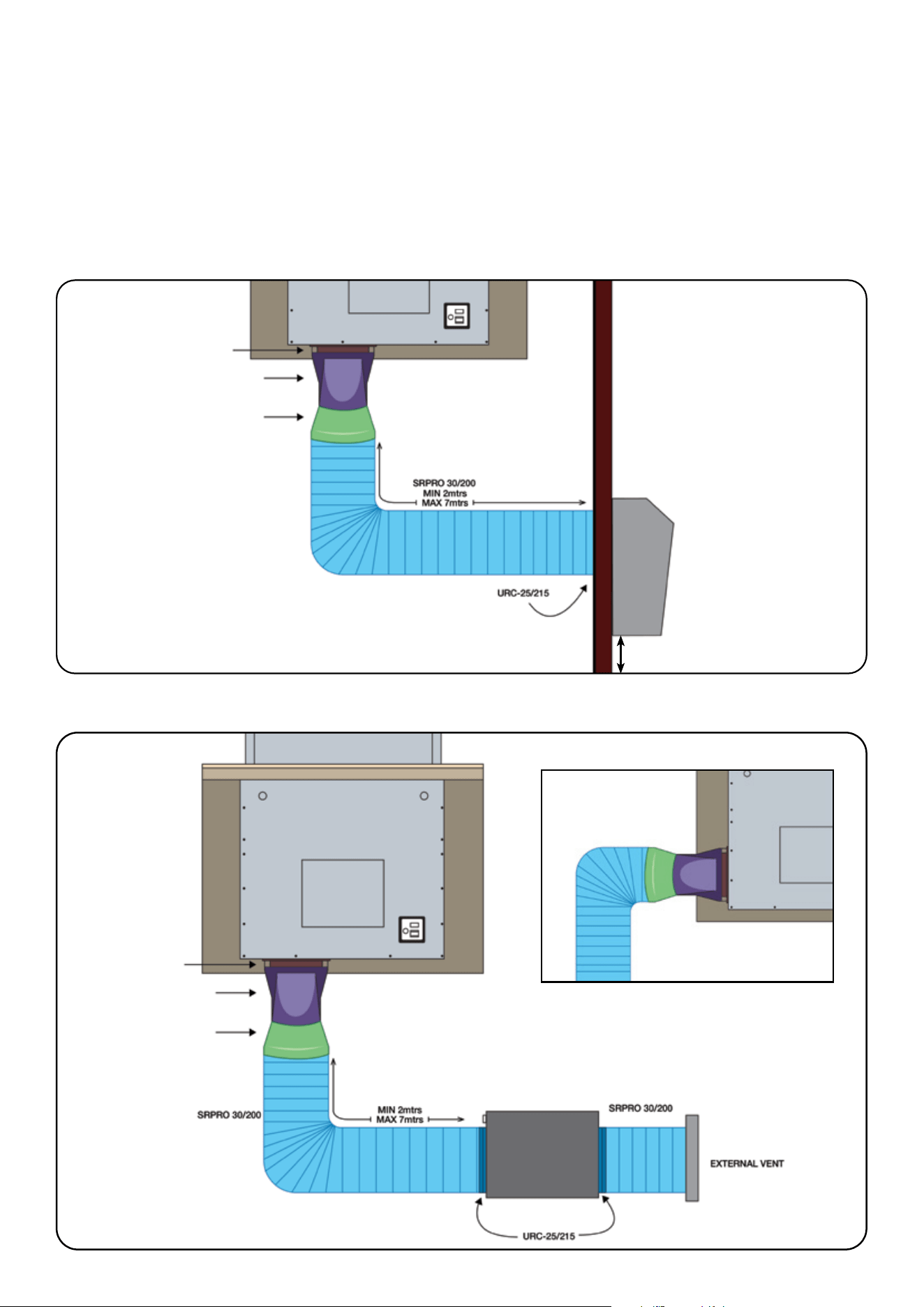

FOR SEM 71, AND SEM 81
200MM FRONT OR REAR VENTING
18
FOR DDFMEL
150MM BOTTOM VENTING
19
DUCTING FROM MOTOR TO VENT SEM 8 ONLY) 20
ELECTRICAL CONNECTION 20

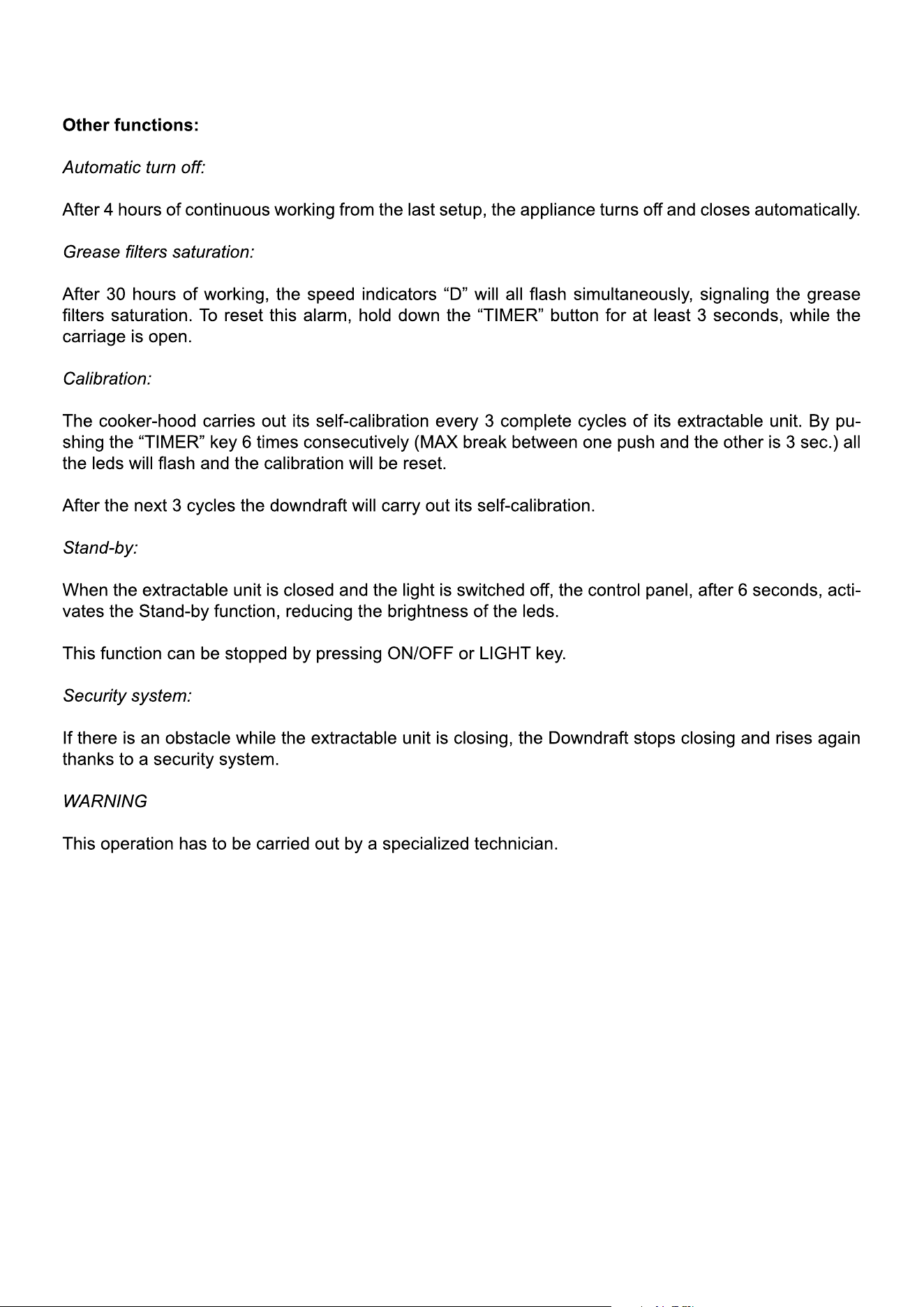

HOW THE RANGEHOOD WORKS 22
CLEANING THE RANGEHOOD 27
TROUBLESHOOTING 28
REPLACING THE LIGHT 29

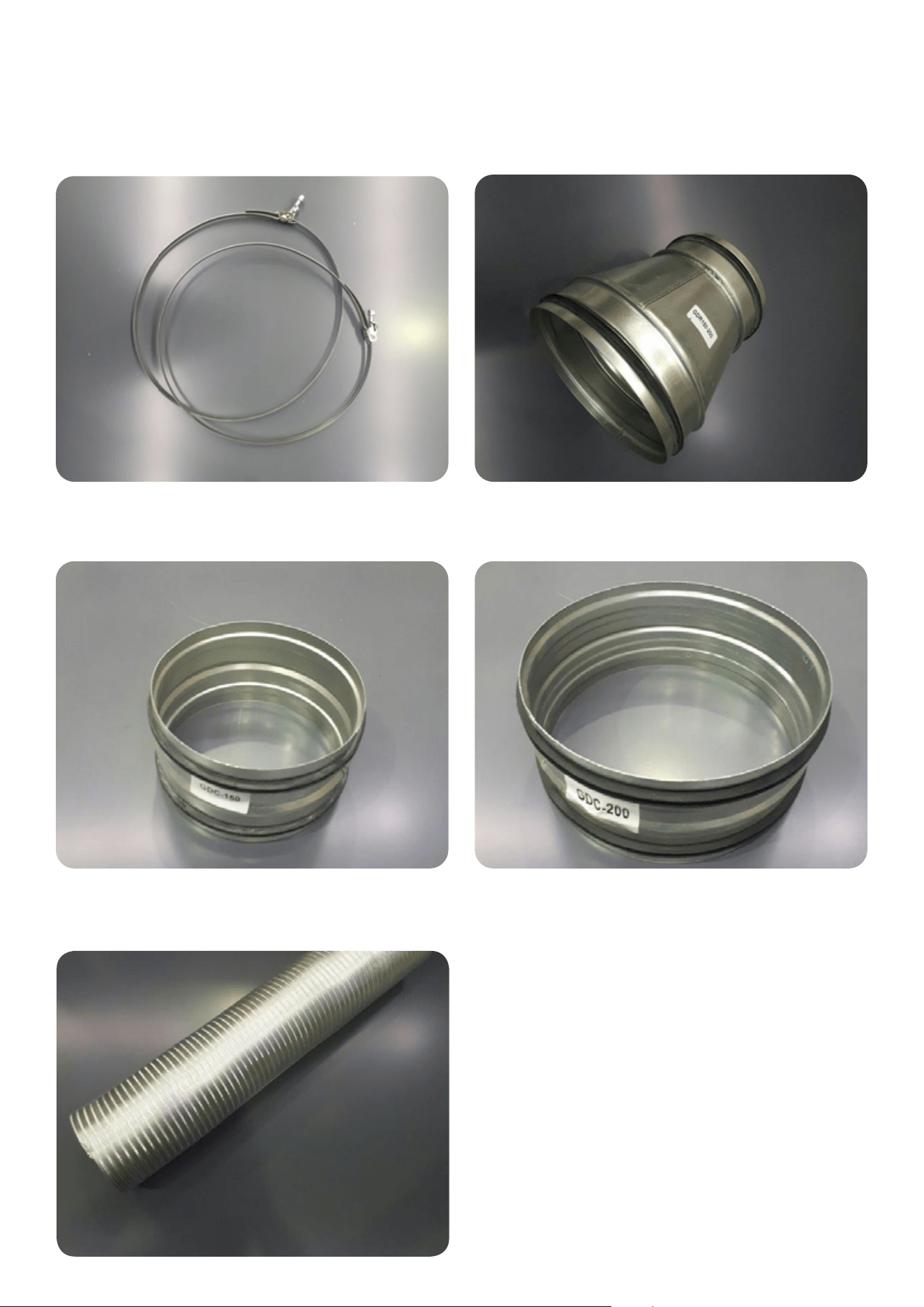

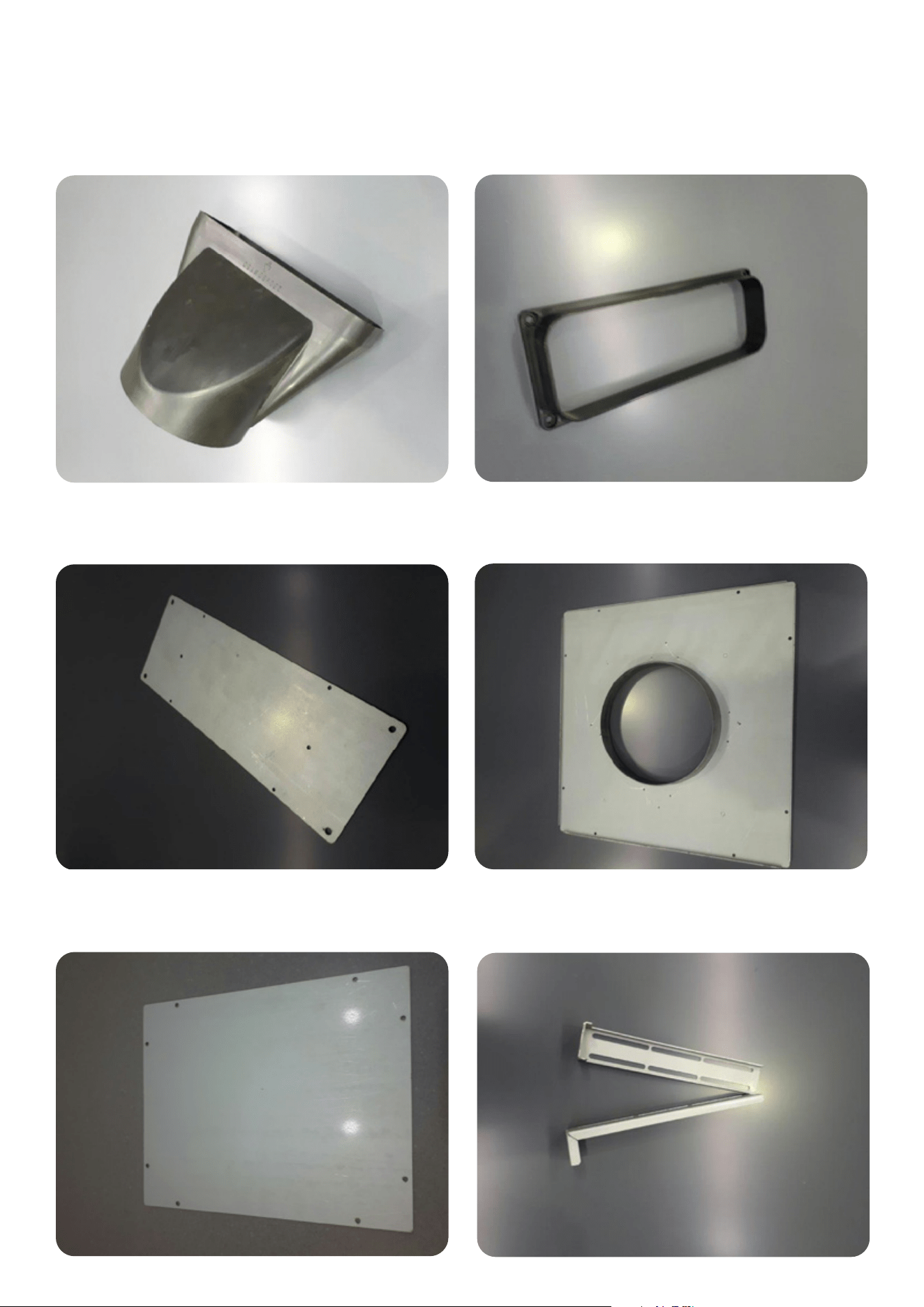

PARTS LIST 31

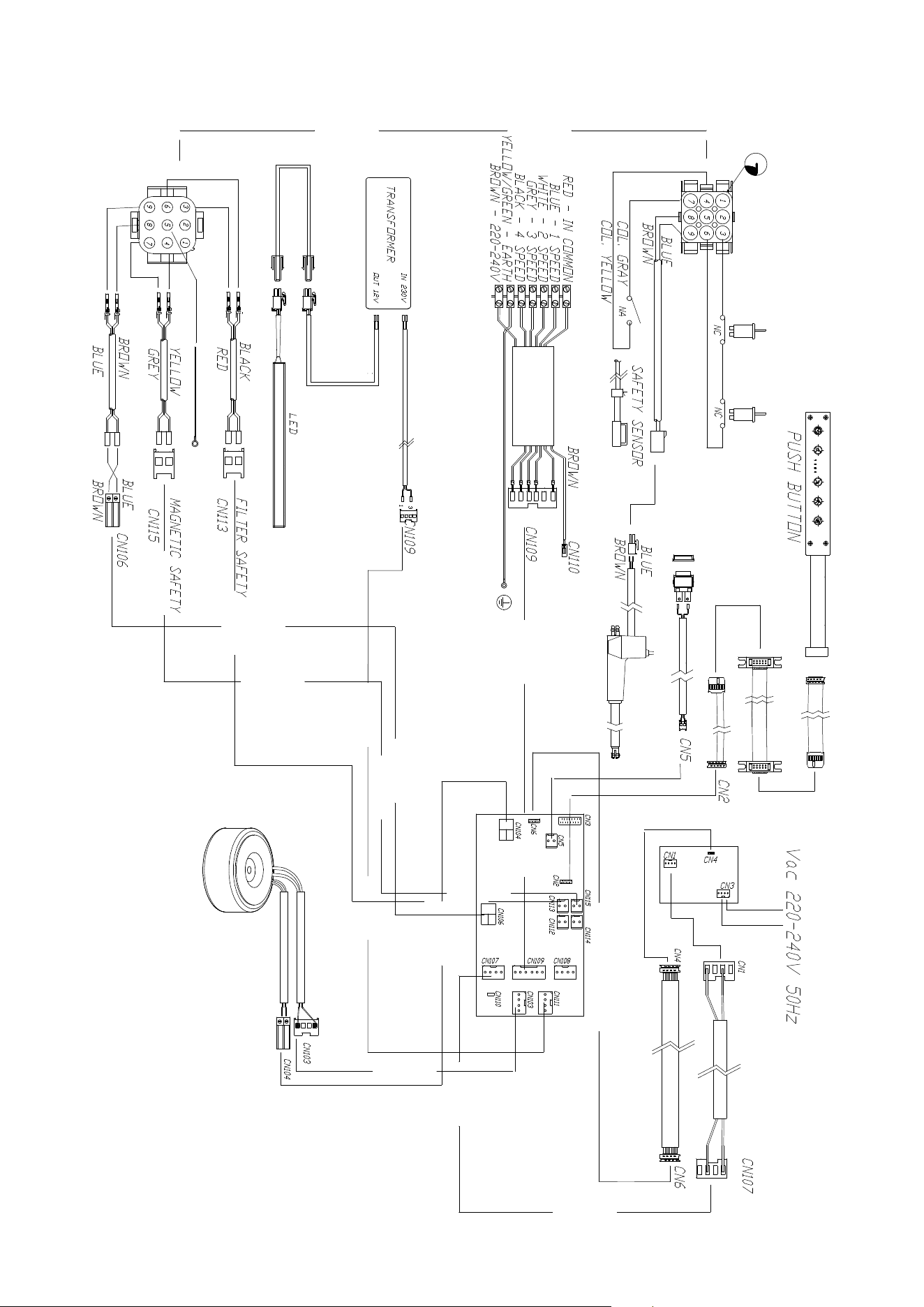

WIRING DIAGRAM 34
WARRANTY INFORMATION 35
4
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
The symbol on the product or on its packaging indicates that this product
may not be treated as house-hold waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed information about
recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the
product. This appliance is marked according to the European directive
2002/96/EC on waste electrical and electronic equipment (WEEE).
Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory
such as flexible ducting, Sirius will only warrant the rangehood and motor. If installation is found to be
the cause of failure or issue then charges will apply for service and parts.

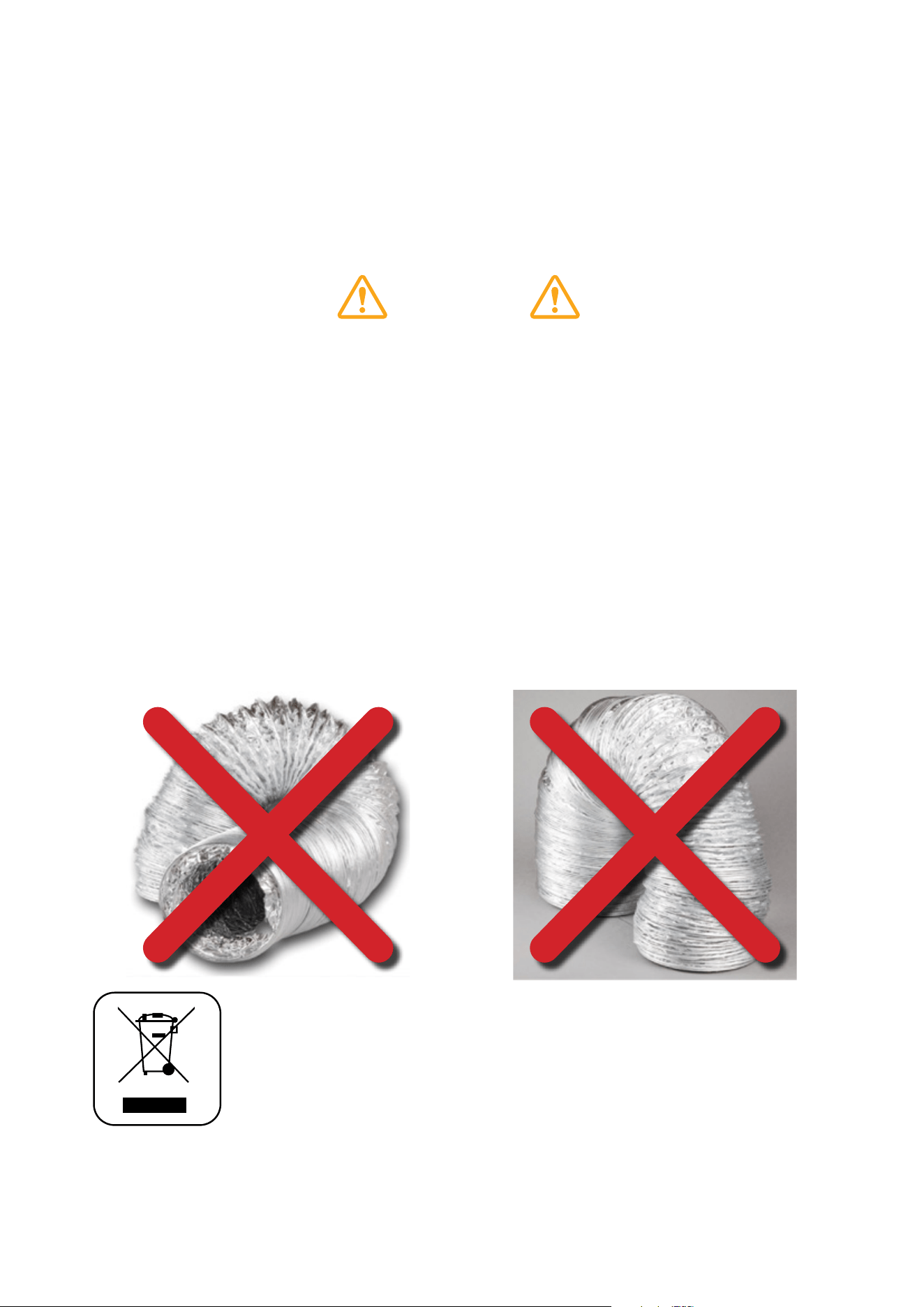

Flexible ducting is not permitted under any circumstances. Flexible ducting has been found to
increase noise levels, increase vibration and reduce airflow. Sirius Semi-rigid or solid ducting can be
used in lieu. There is a range available to suit any application.
Ducting available at www.siriusbrand.com
6 Year Warranty when Sirius Ducting is used. Full replacement warranty on parts and labour.
See website for terms & conditions.
A reduction in the duct diameter from stated ducting size will void warranty.
If you are in doubt about the ducting, please contact Sirius on 1300 762 219 prior to installation
WARNING
The appliance must be installed and
connected to the power supply only by a
qualified technician.
• There should be adequate ventilation of the room when the rangehood is used at the same time as
appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the
room)
• The details concerning the method and frequency of cleaning
• There is a fire risk if cleaning is not carried out in accordance with the instructions;
• Do not flambé under the range hood;
• CAUTION: Accessible parts may become hot when used with cooking appliances.
BEFORE YOU INSTALL - DUCTING INFORMATION
5
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
TO THE ATTENTION OF THE USER
This rangehood is designed to be ducted to outside
the house.
Keep these instructions for use with the appliance. If
the appliance should be sold or passed on to others,
make sure that the instructions are passed on with
it. We thank you for taking note of these suggestions
before installing and using the appliance. They have
been written for your personal safety and the safety
of others.
SAFETY INSTRUCTIONS
These hoods have been designed for personal
use in the home. The appliance must be used by
adults. Make sure that the appliance is out of reach
of children and that they do not use it to play with.
Make sure that children do not operate the controls.
INSTALLATION GUIDELINES FOR
ELECTRIC HOB
Minimum 20mm to 60mm maximum distance
between liner of downdraft and edge of hob.
• When the appliance is delivered, check the overall
appearance of the packaging. Check PARTS
LIST on page 31-33 for all included parts
prior to discarding packaging.
Any remarks should be written on the delivery
coupon, of which you keep a copy.
Your appliance is designed for normal domestic
use. It is not designed for commercial or industrial
use, or for purposes other than those for which it
was designed.
• Any consequences of or damage from incorrect
installation or incorrect use of the appliance will
not be covered by the manufacturer’s guarantee.
• Do not ever change or try to change the
characteristics of this appliance. This would be
a danger. Repairs must be performed only by an
authorised technician.
• Always disconnect the hood before carrying out
cleaning or maintenance operations.
• Adequately ventilate the room when a rangehood
and other appliances, powered by energy other
than electricity, are used simultaneously, so that
the hood does not suck any combustion fumes.
• It is not allowed to cook food over open flames
(flambé) or operate gas hobs without pots
or pans on them under the hood itself (the
flames sucked into the hood might damage the
appliance).
• Frying under the appliance must be done under
constant supervision as hot oils and fats may
ignite.
• Respect the guidelines for cleaning and
replacement of grease filters. Accumulated
deposits of grease are a fire hazard.
WARNING

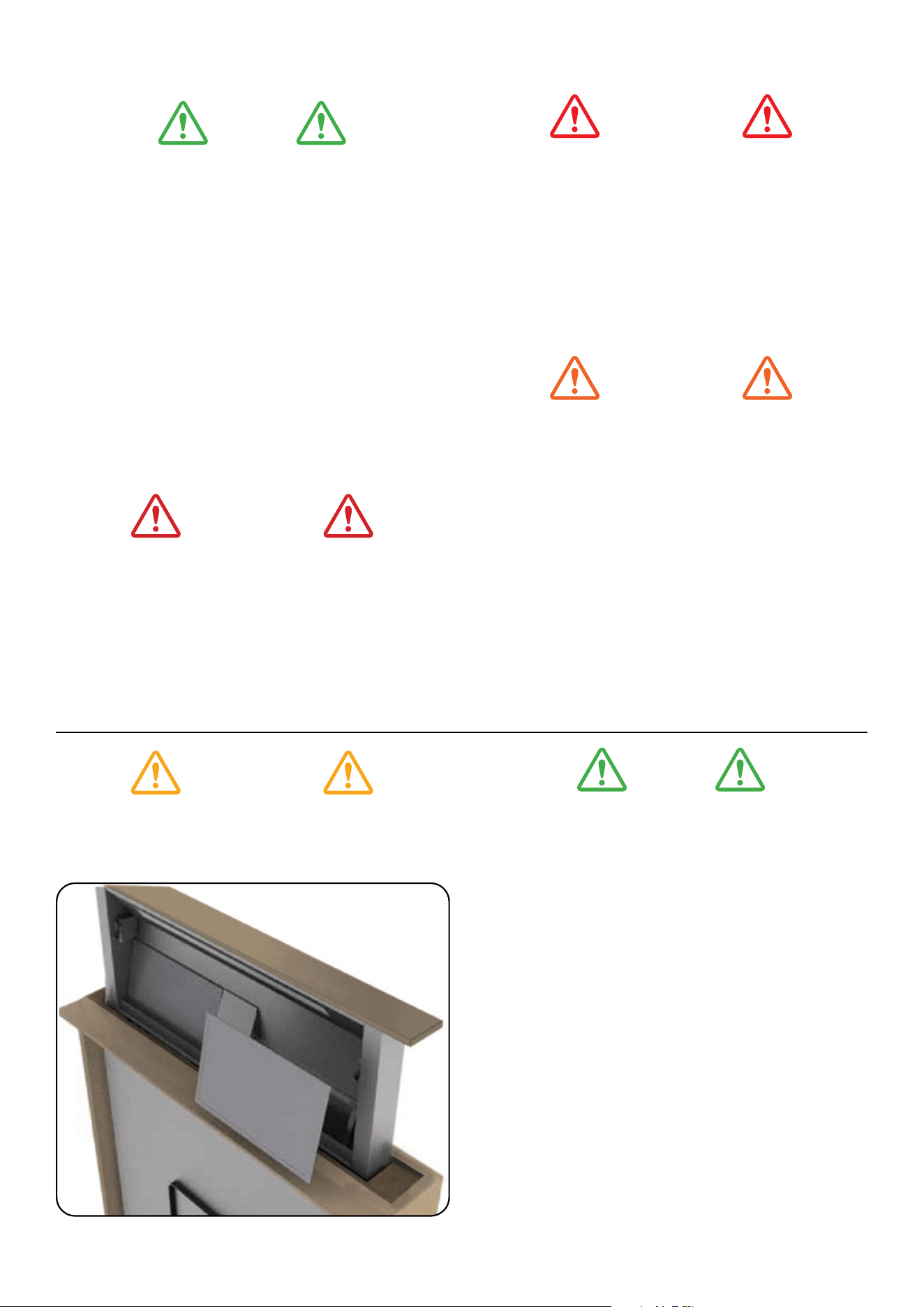

INSTALLATION GUIDELINES FOR GAS
COOKTOP APPLICATIONS
• A minimum 150mm space between liner of
downdraft, and edge of hob burner

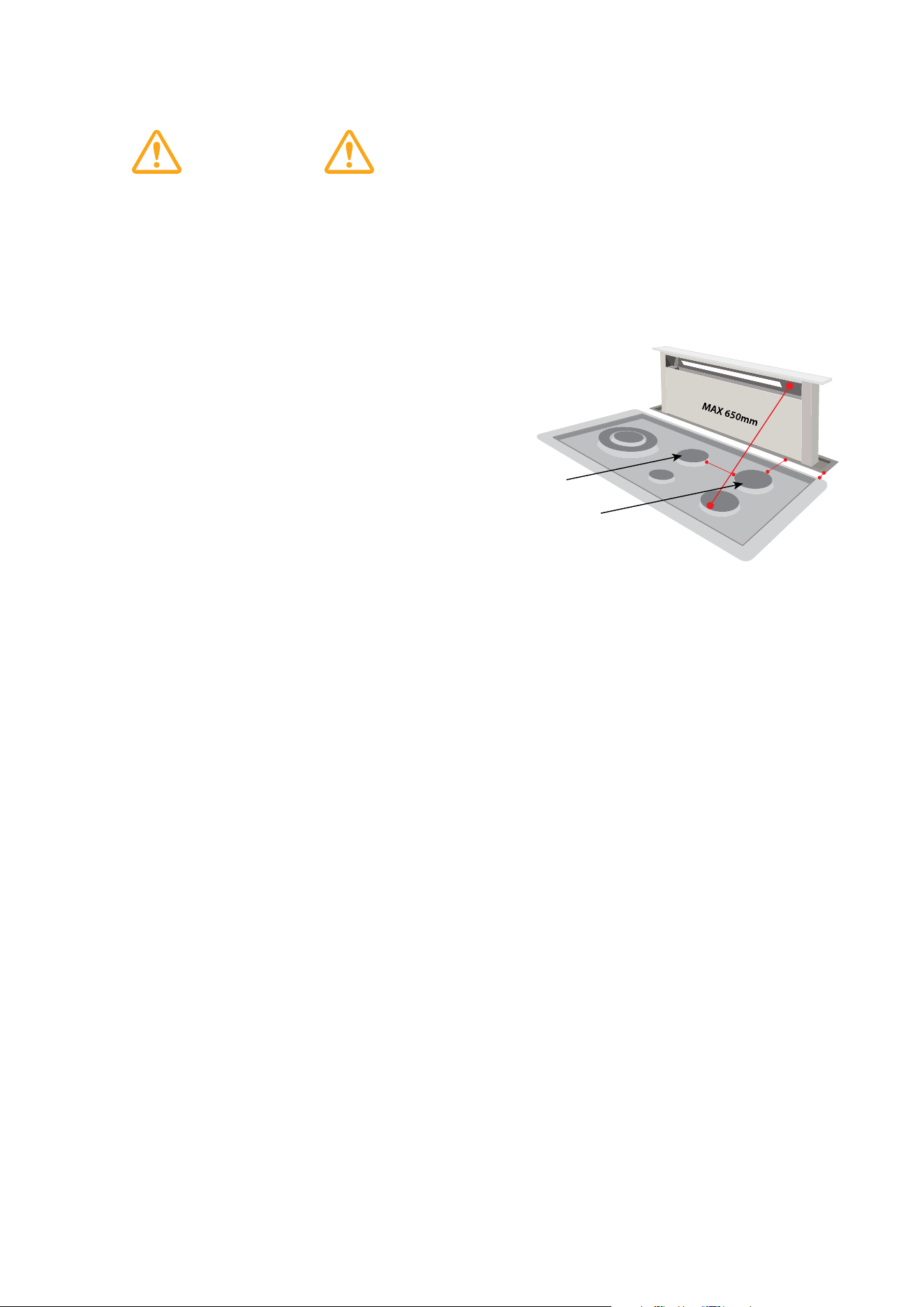

• For the downdraft to operate at a premium, the
distance between the downdraft opening and the
furthest burner shall not exceed 650mm.
• Distance between the burners on the side closest
to the downdraft shall not be closer than 165mm.
• This appliance must not be used over cooktops
powered by wood or coal or in any case, over
cook tops with power levels that could damage
the appliance.
• Never use steam or high-pressure devices
for cleaning your hood (regulations regarding
electrical safety).
• Never use the rangehood without the grease
filters.
• The minimum distance between the Downdraft
(closed) and the surface above it must be at
least 800 mm. Cabinetry lower than 800mm will
prevent the removal of the downdraft should
servicing be required.
• When handling the downdraft, never put your
hands in the field of action of the extractable unit.
• Downdraft must be removable for serviceability.
At Sirius, we are constantly seeking to improve
our products. We reserve the right to modify their
technical, functional, or aesthetic characteristics
deriving from their upgrading.
Motors manufactured and approved by Sirius only
are to be used at all times. Failure to comply with this
will result in the forfeit of the manufacturer warranty.
The air collected must not be conveyed into a flue
used for smoke or fumes from appliances powered
by anything other than electricity (central heating
systems, bathroom and toilet exhausts, etc.). As
far as discharging exhaust air is concerned, please
follow the guidelines given by competent authorities.
165mm
• Max mj
3
/H rating total for gas cooktop is 58.32 mj
3
/H
150mm
Max 18 mj
3
/h
Max 18 mj
3
/h
6

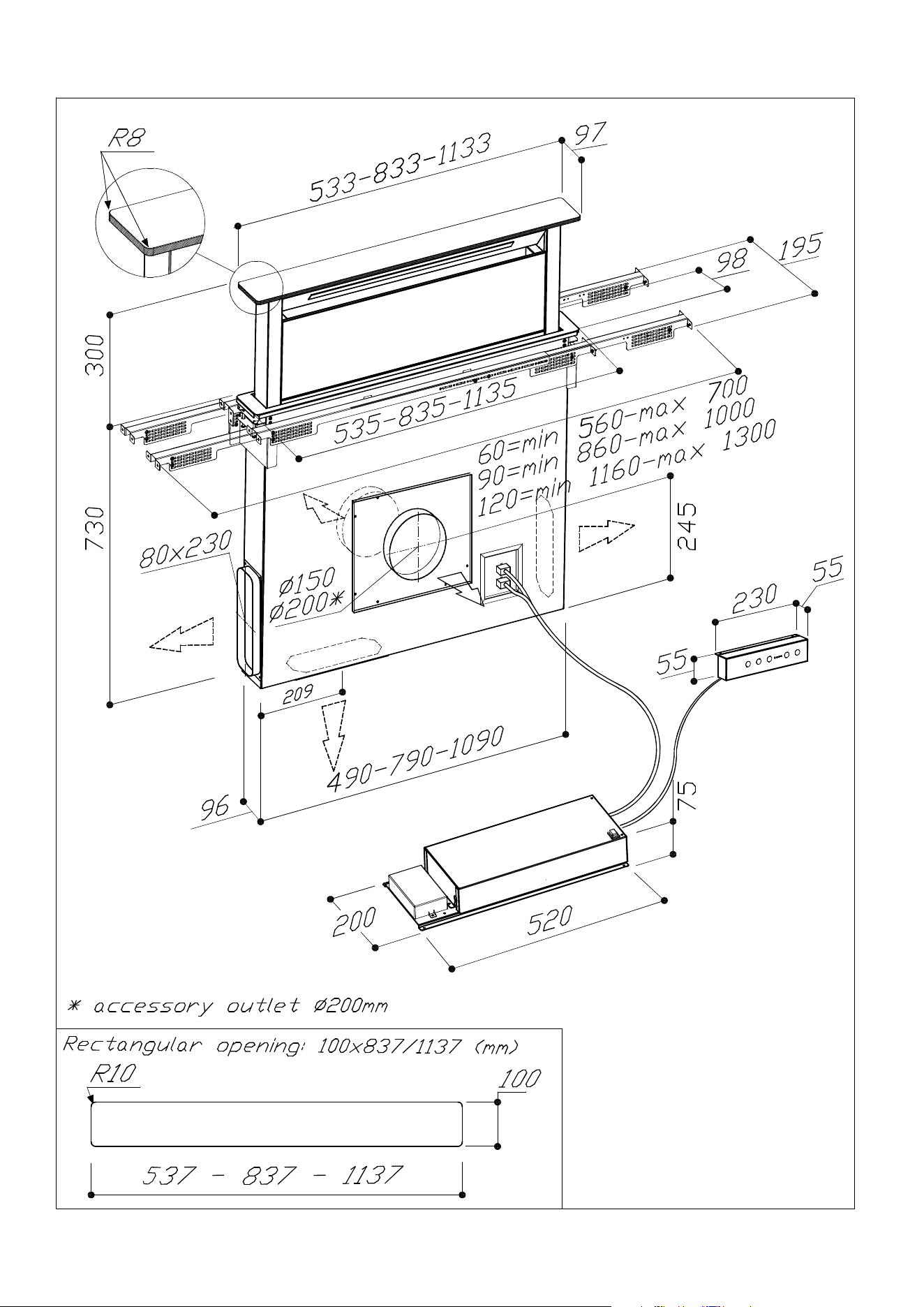

APPLIANCE DIAGRAMS
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
7
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
7
PRE-INSTALLATION CHECKS

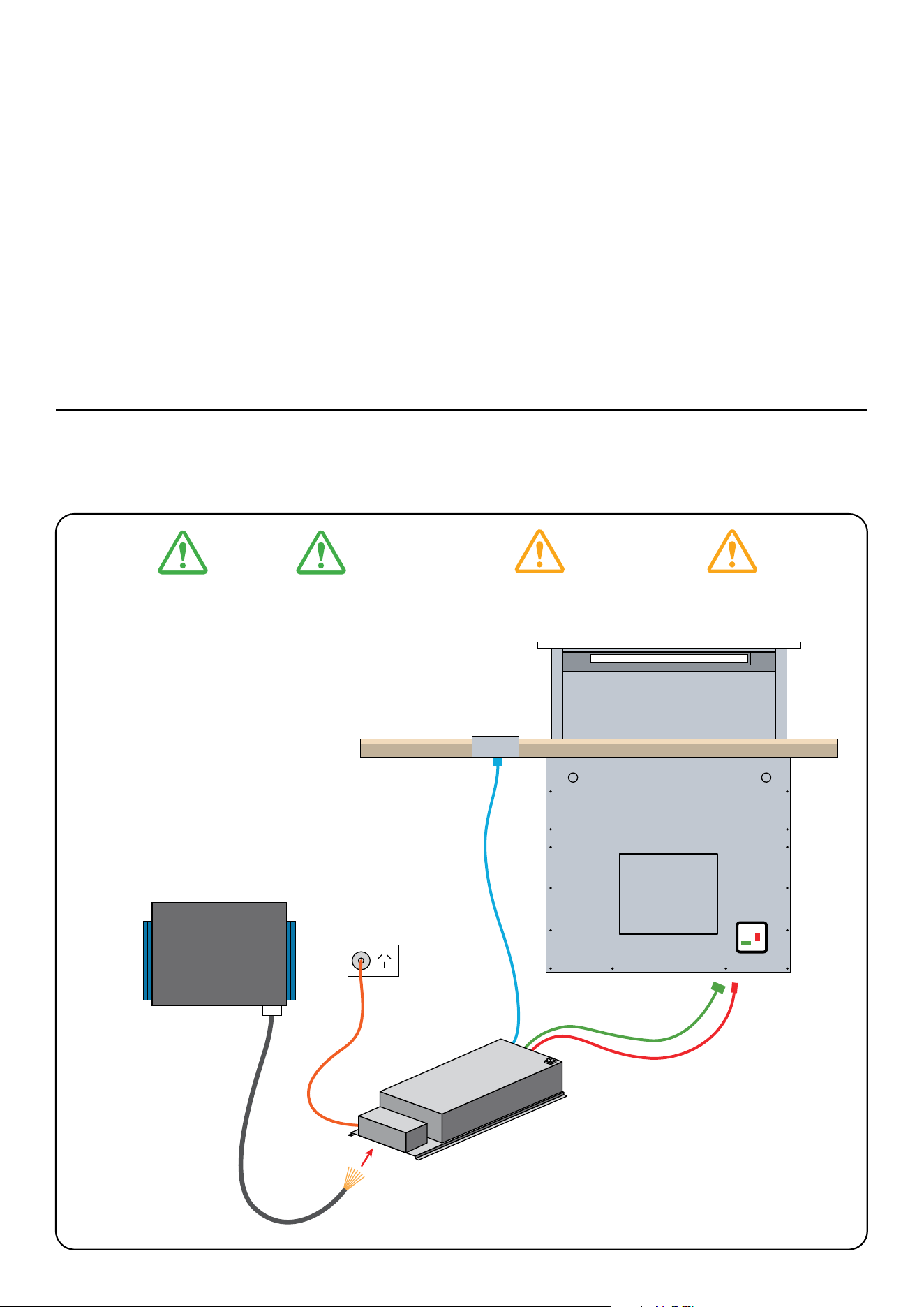

Plug the main control box into a 10 amp GPO and connect the motor by removing the 4 screws on the black
section of the control box. Connect the corresponding coloured wires to the connections. Plug in the manual
hand control box and test that the unit raises and lowers and that the motor is operational. If the unit works as
it should, disconnect this and proceed with installation
BEFORE YOU INSTALL
Installation must comply with the regulations in force regarding the ventilation of enclosed environments.
In particular, discharged air must not be conveyed into a duct used for fumes discharge or discharge from
appliances using gas or other combustible materials. Air cannot be ducted into roof space.
The use of discontinued ducts is not allowed without the approval of a qualified technician.
Check PARTS LIST on page 31-33 for all
included parts prior to discarding packaging.
Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory such as
flexible ducting, Sirius will only warrant the hood and motor. If installation is found to be the cause of failure or
issue then charges will apply for service and parts.
Flexible ducting is not permitted under any circumstances. Flexible ducting has been found to increase noise
levels, increase vibration and reduce airflow. Sirius Semi-rigid or solid ducting can be used in lieu. There is a
range available to suit any application.
Using Sirius ducting gives you an additional 3 years warranty making a total of 6 years.
SEM offboard motors have a 10 year warranty.
Available at www.siriusbrand.com
A reduction in the duct diameter from stated ducting size will void warranty.
If you are in doubt about the ducting, please contact Sirius on 1300 762 219 prior to
installation.
CAUTION
NOTE
8
Technical specifications and product sizes
can be varied by the manufacturer without
notice. Cut out dimensions are indicitive only
and physical measurement should be taken as
a precautionary measure to ensure no issues
arise with fitment.

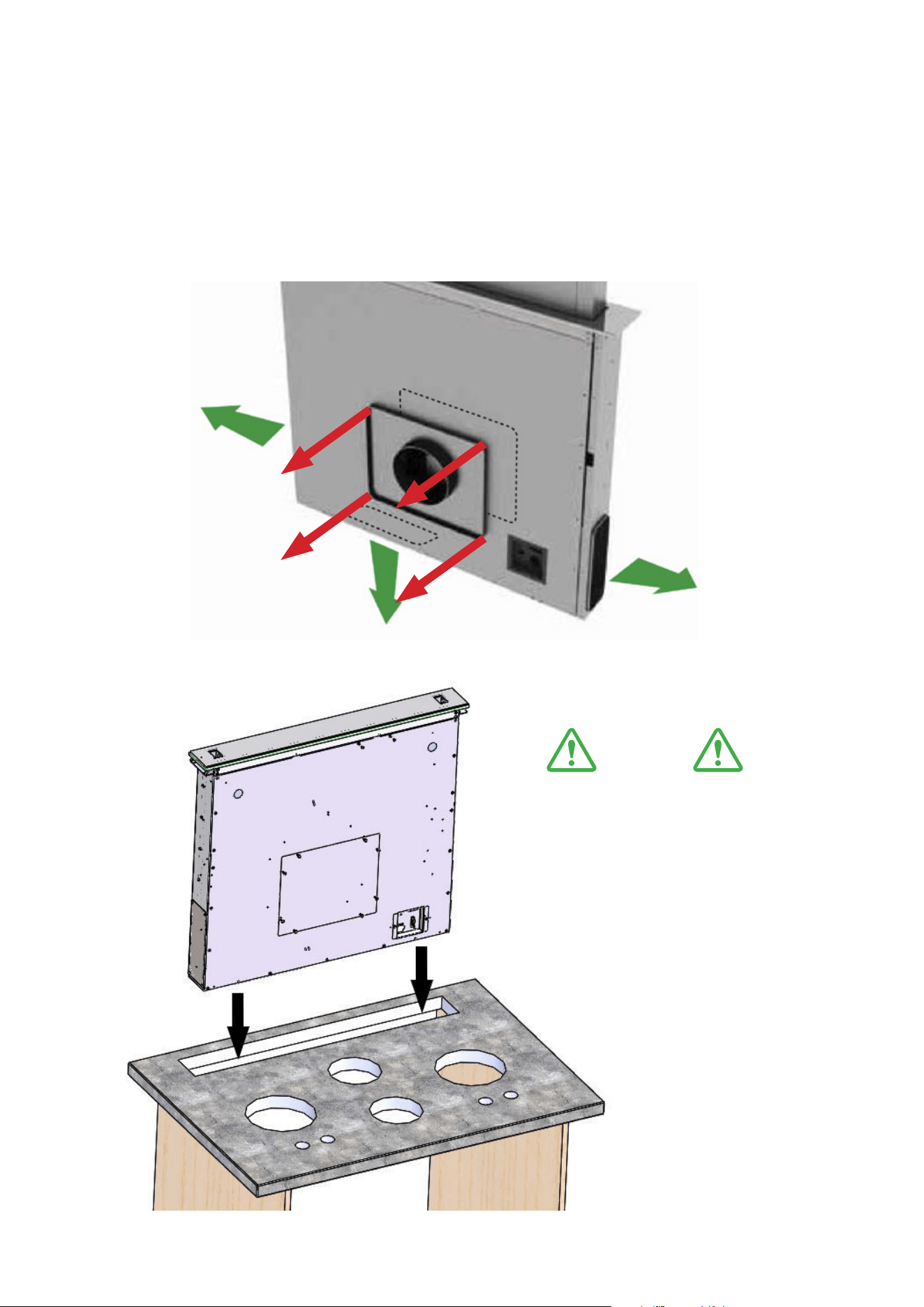

Front 200mm duct adapter will need to be
removed to allow the unit to clear
Certain installations will require ducting
provisions to be completed prior to this stage.
See Pages 16-19 for applicable motor
installations

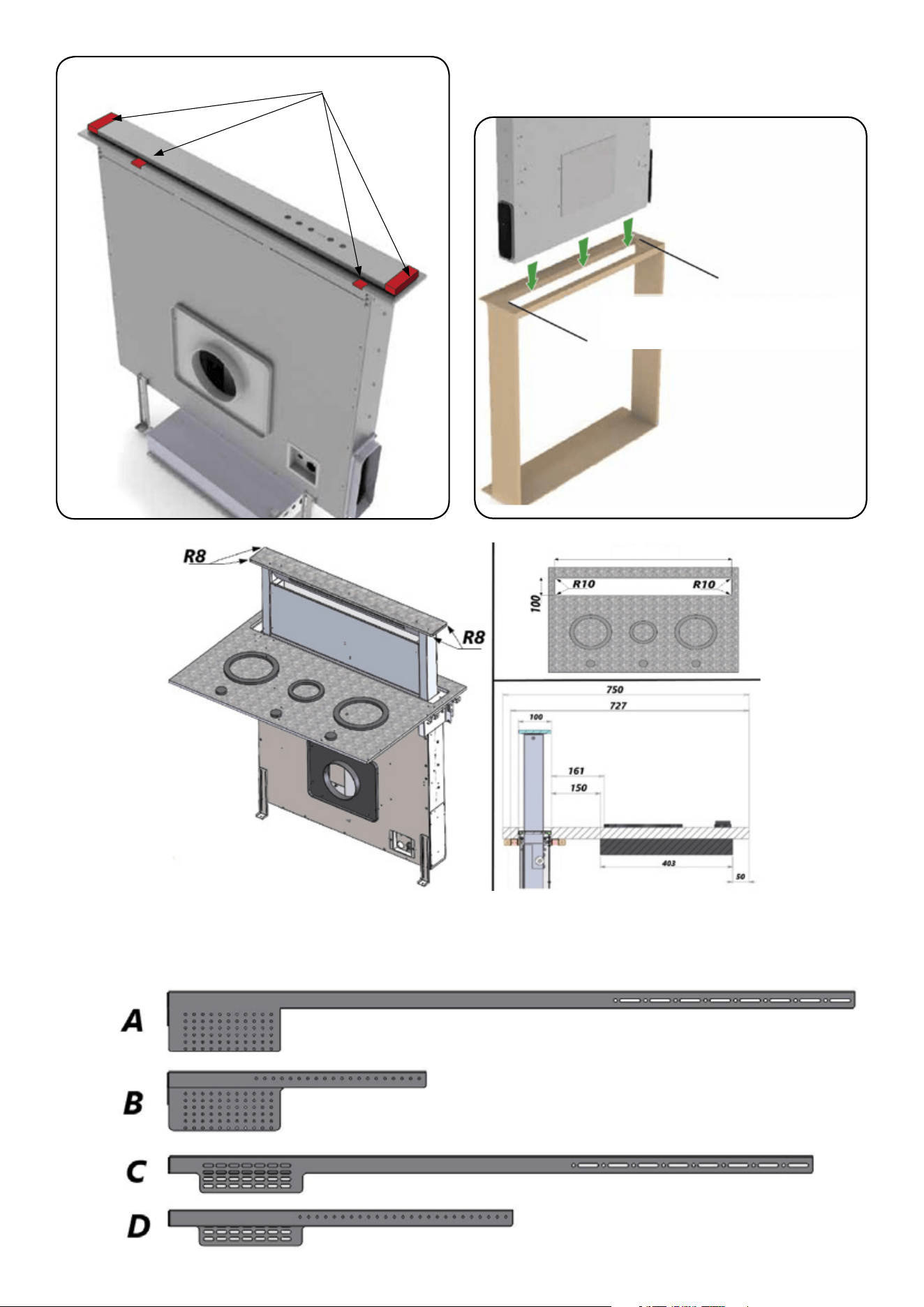

STEP 1:
Refer to cutout dimensions required per unit as they
vary for each unit.
WARNING
NOTE
NOTE
INSTALLING THE RANGEHOOD
• Before carrying out the appliance installation,
please check that all components are not
damaged, in such a case contact your retailer
and do not carry out any installation operation.

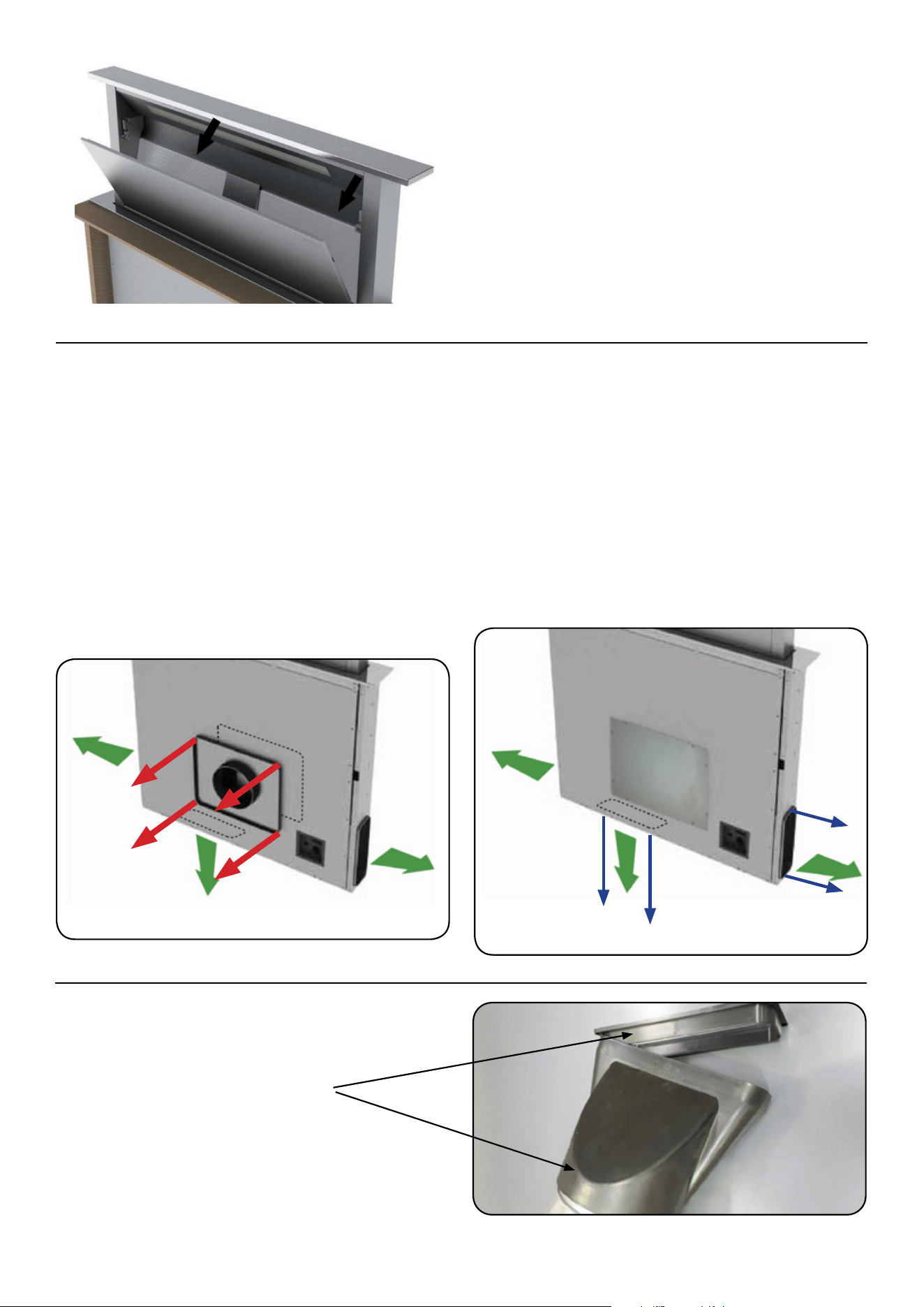

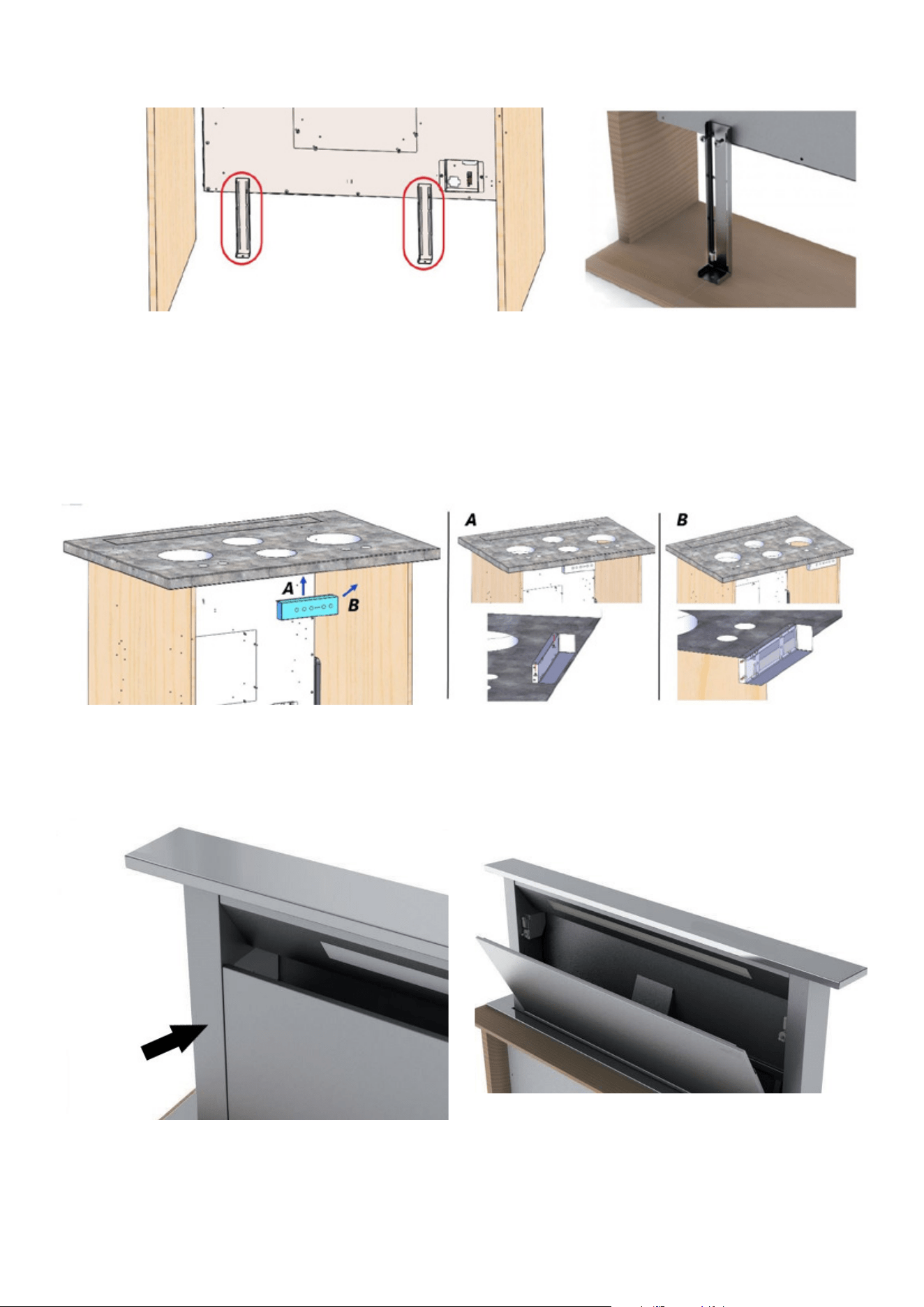

Before the installation of the downdraft, please
remove the safety piece you can see in the
picture (Fig. 1a). Leave all other protective
tape in place at this point. Furthermore, please
read carefully all of the following installation
instructions.
• Use Sirius ducting with a maximum length of 7
metres to the motor.
• Limit the number of elbows in the ducting, since
each elbow reduces the air capacity of 1 linear
meter. (Ex: if you use no. 2 x 90° elbows, the
length of piping should not exceed 5 meters).
• Avoid abrupt direction changes. (Optimum angle
45° when required)
• Use a 200mm ducting - constant diameter pipe
for the whole length.
Use ducting approved by standards enforced - see
www.siriusbrand.com.au for approved ducting
The manufacturer shall not be deemed responsible
for air capacity or noise problems caused by failure to
comply with the above instructions and no warranty
on the product shall be provided.
1. Before making the cutout, check that there are no
structural or other parts inside the cabinet where
the appliance is to be placed which could hinder
a proper installation. Check that the dimensions
of the downdraft and the cooktop are compatible
with the cabinet so that the installation can be
carried out properly.
2. Make a rectangular cutout, with a radius of 10 on
each corner, at the rear of the cooktop location:
• 537mm x 100mm for the 580mm model
• 837mm x 100mm for the 880mm model
• 1137mm x 100mm for the 1180mm model.
(Fig. 2)
3. Lower the downdraft section into the cut out to
ensure clearance is sufficient for installation.
(Fig. 1b)
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
NOTE
The cutout MUST be done by a professional. It is vital that the cutout is perfectly made so
as not to have fitment issues with the product. The cutout section can be used (thickness
dependent, Min. 10mm - 32mm Max.) as the top of the downdraft so it matches the
benchtop perfectly.
Should these instructions be ignored, the manufacturer or agent will not be held
responsible for any damage caused to either downdraft, benchtops or cabinetry.
9
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
(Fig. 1a)
(Fig. 2)
(Fig. 1b)
NB: Remove only red parts
580mm downdraft - 537mm x 100mm
880mm downdraft - 837mm x 100mm
1180mm downdraft - 1137mm x 100mm
9

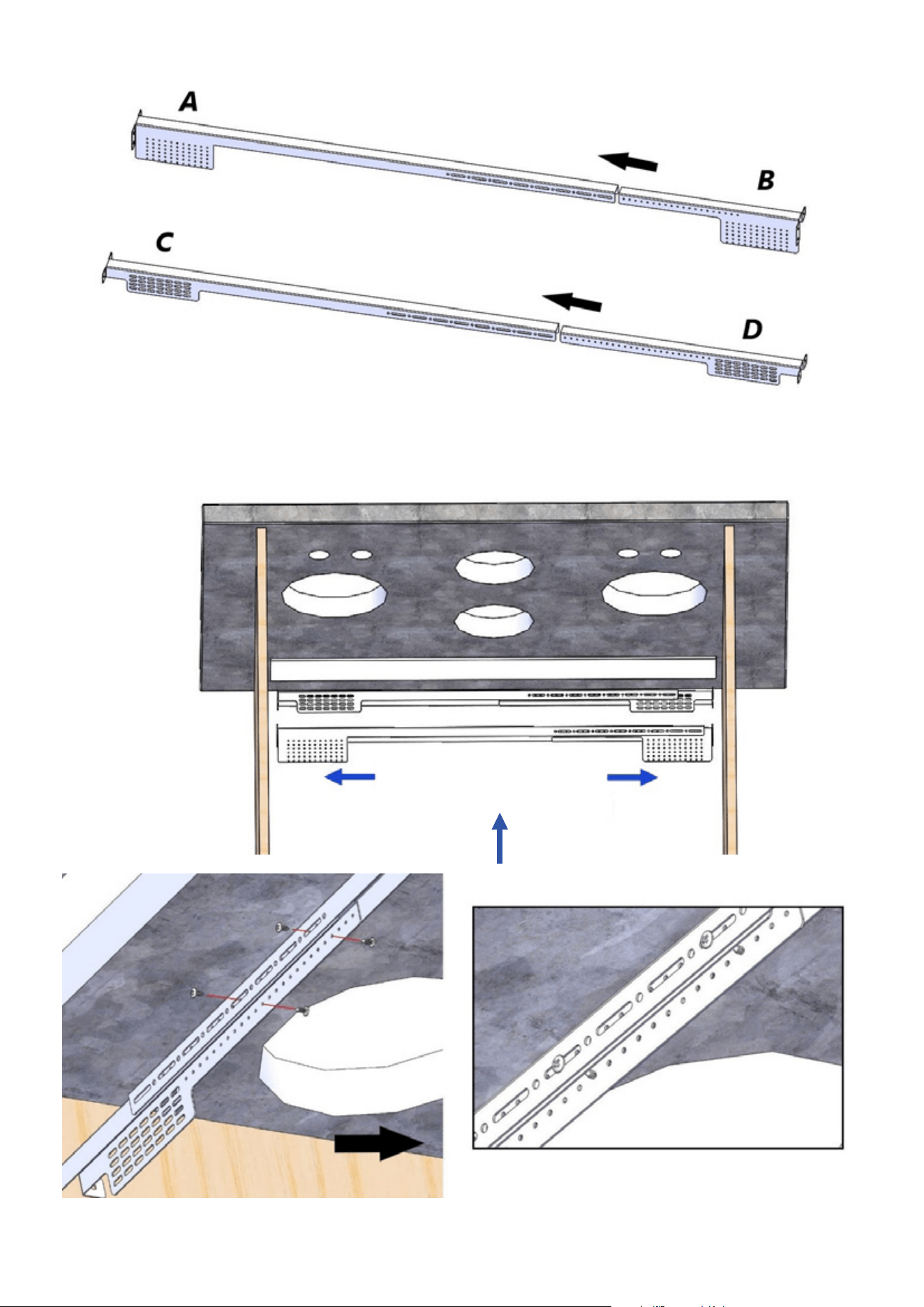

Internal Support Frame Assembly
4. Take the accessories supplied in the package (A-B-C-D see Fig 5)
(Fig. 5)
537 - 837 - 1137
10
Slot the two corresponding part A with B and C with D together (fig 4).
5. Measure the desired length these two sections need to be in correspondence with the internal cabinetry
(Fig. 5). Note: Min 860mm – Max 1000mm for 880 units and Min 1160mm – Max 1300mm for 1180 units.
Secure the two sections A and B + C and D together using 4 x 10mm supplied screws (Fig. 6)
(Fig. 4)
(Fig. 5)
(Fig. 6)
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
min 560 - max 700
min 860 - max 1000
min 1160 - max 1300
11
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE

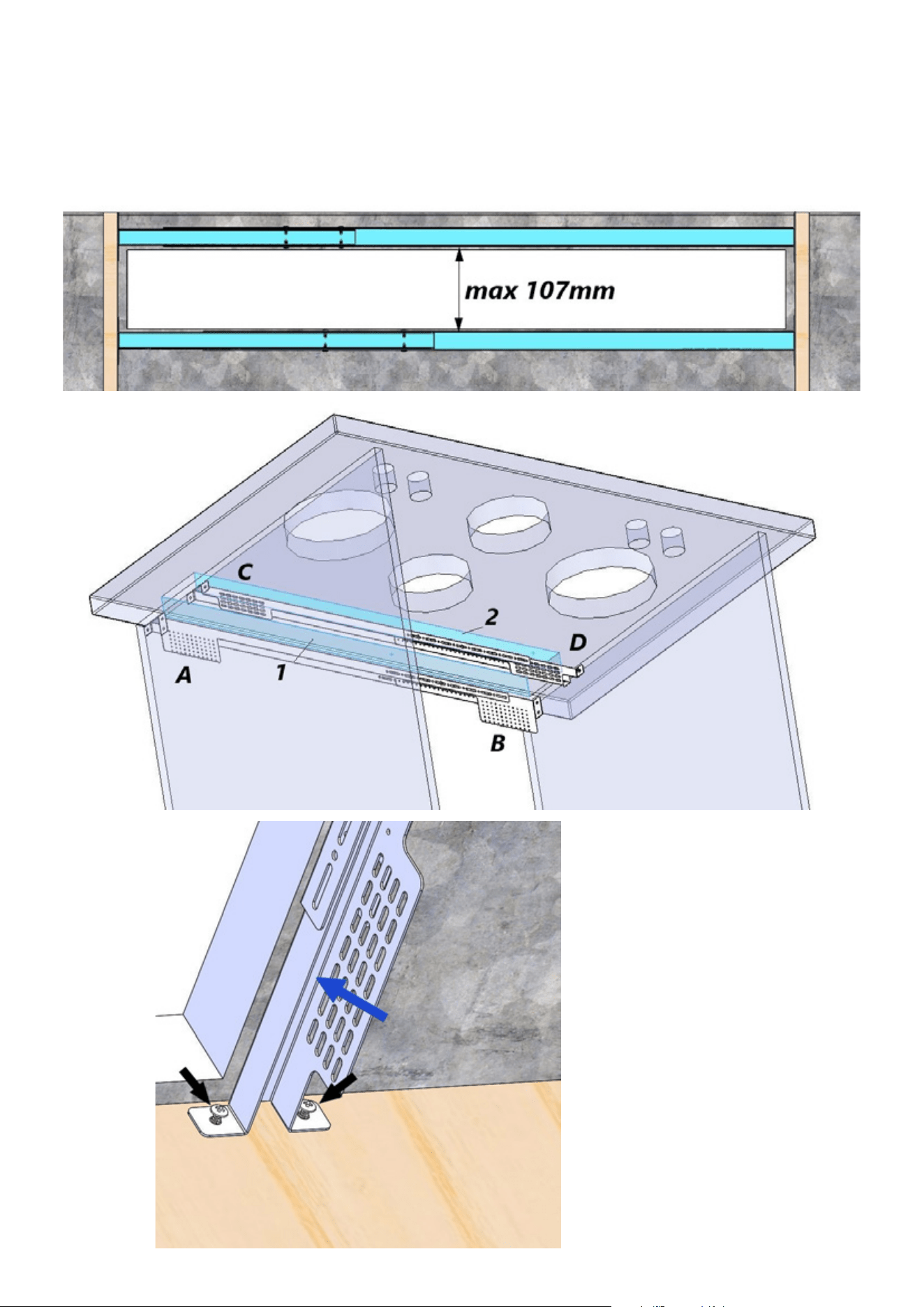

Line up the edges of the of the two sections of frame with the benchtop cutout and secure in place as per
(Fig. 7), (Fig. 8) & (Fig. 9). Note: The screws put in place in (Fig. 6) cannot sit inside the width of the benchtop
cutout as they will obstruct the downdraft body when lowered into place.
Warning: the accessories must be fixed in correspondence with the rectangular hole (each pair on
each long side) at a maximum distance of 107mm (Fig. 7).
(Fig. 7)
(Fig. 8)
(Fig. 9)
12
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE

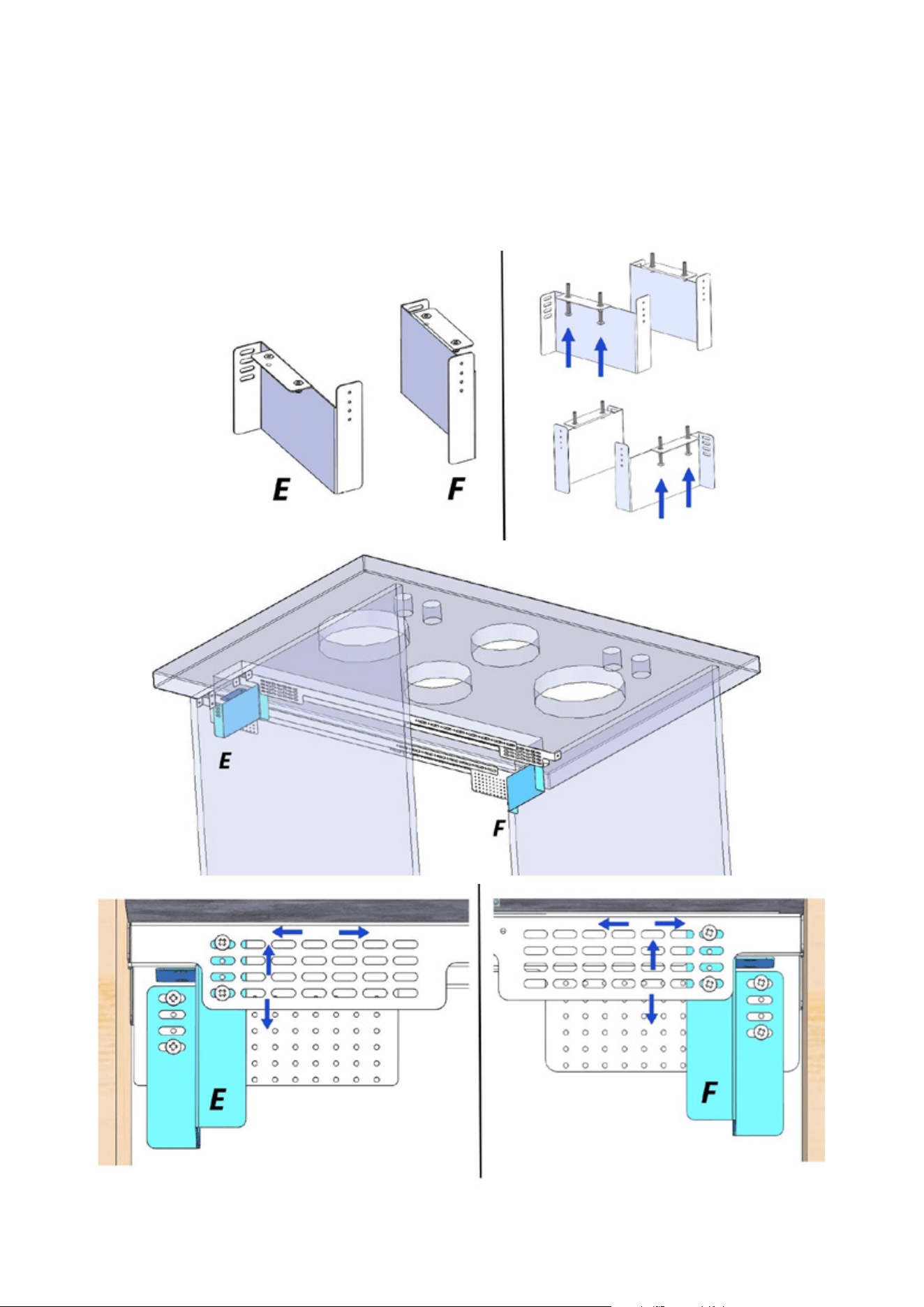

Note: The bracketing system has several slots to allow adjustments of the downdraft both on the basis of its
width (left - right) and on the thickness of the top to be glued on the downdraft (top - bottom) Fig. 12
Support and Height Adjustable Brackets (Fig. 10)
These brackets are fixed in between the horizontal length brackets and are put into position as per (Fig.11)
Insert one at either end ensuring that the slotted holes and the round holes correspond with the horizontal
bracket allowances. Slotted holes of parts E & F will be at the rear side (furthest from cooktop) and the round
holes to the front side (nearest to cooktop). (Fig 11)
Fasten in place with two x 10mm Screws on either side of ‘E&F’ as per (Fig.12)
(Fig. 10)
(Fig. 11)
(Fig. 12)
13
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
13
Support and Height Adjustable Brackets (Fig. 10)
Remove the 200mm Diameter Front Section by removing the screws securing it in place. If not using this outlet
for ducting, replace with the solid flat cover plate (SPS-75059000082) and fix back in place. If ducting from
this outlet, the connection can be put back on once the downdraft is in its set position. (Fig. 14a). If using the
bottom outlet to vent the range hood out it is advised to fit Part ‘B’ (SPS-51070102735) to the unit at this
stage as fitting it after the unit is lowered may be difficult.
7. Install the downdraft in the hole made, inserting it from above (Fig. 14b), (note, two people will be required
for this step as it is quite heavy.
The downdraft will sit onto the height adjustable brackets ‘E & F’ at either end of the cutout.
Remove & replace
with Part ‘E’
(Fig. 14a)
(Fig. 14b)
Make sure the unit is around the
correct way. Electrical connections
will be located as per diagram.
NOTE
14
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE

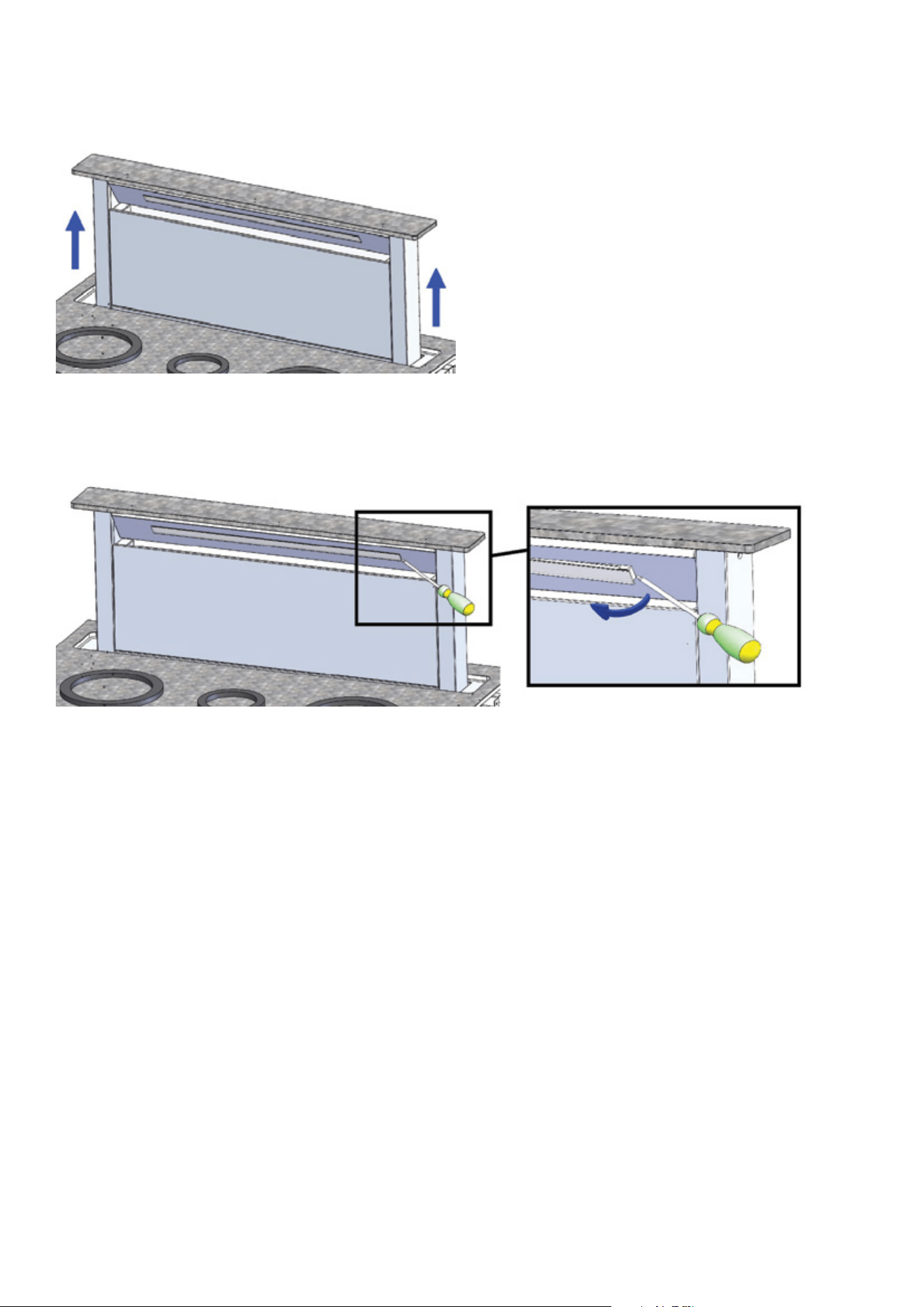

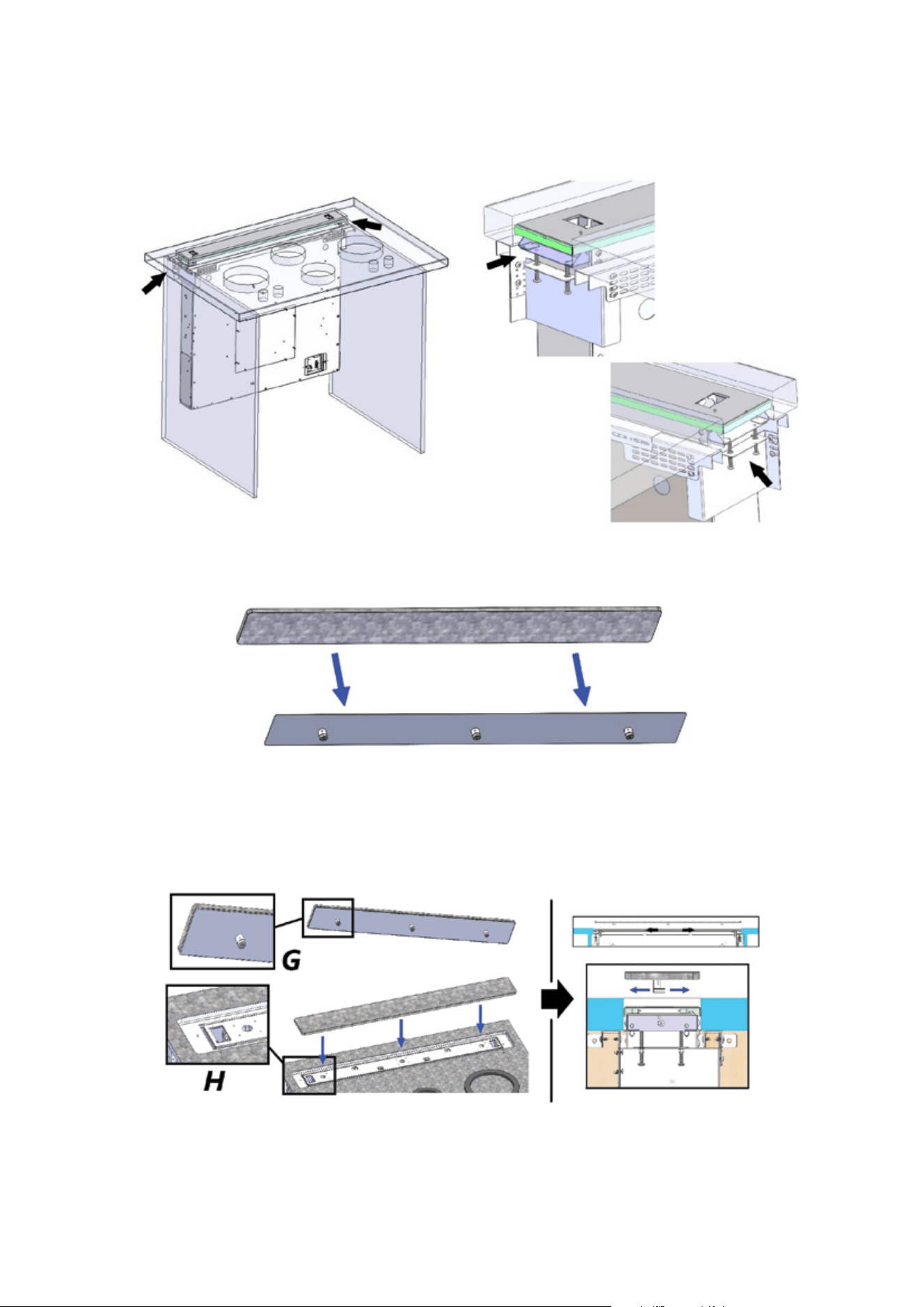

Adjusting the height of the benchtop insert section
The height of the downdraft insert can be adjusted up and down to ensure a seamless flush finish with the
benchtop. Using a Phillips head screwdriver, adjust the threaded screws up or down to according to the
desired thickness of the insert. (Fig.15)
To determine the correct line-up of the downdraft, place the part (glued in the previous step) inside the
rectangular niche, making the magnets (G) coincide with the seat (H) and check that the two surfaces are
perfectly at the same level (fig. 16.2)
(Fig. 15)
(Fig. 16.1)
(Fig. 16.2)
15
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
15
Having verified the correct position and stability of the product, proceed to glue the additional surface on the
top of the downdraft.
8. After completion of the downdraft installation, the push button control buttons need to be fitted. These
can be positioned below the overhang of the bench top or recessed into the cabinetry (see fig.18A for central
installation, fig.18B for lateral installation). Before fixing the push-button panel, ensure that the controls do not
prevent any doors from closing.
Once the unit is fixed in position and the control buttons are fixed in place. Press the up and down arrows on
the controls to raise the downdraft up from the bench. Pop the front panel forward and insert the metal grease
filters. To close, push the panel forward until the magnets engage tightly.
Note: Any of the screws on the body of the downdraft can be used to secure these brackets in place.
(Fig. 17)
(Fig. 18)
(Fig. 19a) (Fig. 19b)
16
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
(Fig. 20)
Remove & replace
with Part ‘E’
STEP 2A:
STEP 3A:
1. Remove side or bottom cover plate (Part C).
(Fig. 4)
2. Connect air outlet collar (Part ‘B’) to the same
fixing points as removed from side or bottom
cover plate (Part ‘C’) and tighten.
1. Remove front adapter plate (Part D). (Fig. 4)
2. Connect air outlet collar (Part ‘B’) to the same
fixing points as removed from side or bottom
cover plate (Part ‘C’) and tighten. Depending on
sub floor clearances this step may be required
prior to fixing the downdraft into place.
Remove & replace
with Part ‘B’
Remove & replace
with Part ‘B’
(Fig. 3)
(Fig. 4)
STEP 1A:
INSTALLATION INSTRUCTIONS
SIDE OR BOTTOM VENTING
Components list at rear of Installation Guide
• Connect rectangular to round adaptor (Part ‘A’) to
air outlet (Part ‘B’), (Fig. 6).
• Secure both ends with duct tape
17
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
This step covers ducting for SDD2ELEMIC 88 and 118 models.
17
For SEM 81 motor with SDD2ELEMIC88/118 - 200mm option only.
1B: Connect a duct expander (Part ‘H’) to rectangular to round adapter (Part ‘A’), then connect
length of ducting (Part ‘K.2’) to the 200mm outlet.
2B: Secure to the motor with a universal ring clamp (Part ‘G’).
• See page 12 for ducting to vent (N/A for SEM 71 motor)
STEP 4A: Ducting to SEM 71 motor (200mm ducting)
STEP 4B: Ducting to SEM 81 motor (200mm ducting)
PART ‘B’
PART ‘B’
PART ‘A’
PART ‘A’
PART ‘H’
PART ‘H’
SIDE VENT
OPTION
PART ‘G ’
PART ‘K.2’
PART ‘K.2’
OUTSIDEINSIDE
BOTTOM VENT
OPTION
WALL
MIN HEIGHT FROM GROUND
500mm - 2mtrs
SEM 71 MOTOR
SEM 81 MOTOR
18
INSTALLATION INSTRUCTIONS
FOR SEM 71, SEM 81
FRONT OR REAR VENTING
• If venting from the rear, remove 200mm adaptor
plate (Part ‘D’) and replace with front cover plate
(Part ‘E’).
If venting from front, check to see if front adaptor
plate (Part ‘D’) is attached.
STEP 1B:
Remove & replace with
cover plate (Part ‘C’)
Remove & replace with
cover plate (Part ‘C’)
Remove &
replace with
cover plate
(Part ‘C’)
(Fig. 7)
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
STEP 2B:
1. Use 200mm ducting (Part ‘K.2’) for SDD2ELEMIC 880 and 1180 versions.
2. The ducting fits directly onto the collar on the front adaptor plate (Part ‘D’).
3. Fix in place using a universal ring clamp (Part ‘G’).
PART ‘G’
PART ‘K.2’
PART ‘K.2’
Ducting to SEM 81 motor (internal motor)
SEM 81 MOTOR
19
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
19
PART ‘G’
PART ‘K.2’
SEM 7
OUTSIDEINSIDE
WALL
Ducting to SEM 71 motor (external motor)
URC-25/325
MIN HEIGHT FROM GROUND
500mm - 2mtrs
SEM 71 MOTOR
MAX 5 mtrs
SRPRO 30/150 -SRPRO 30/150 -
EXTERNAL VENT
DDFMEL Motor
Ducting to DDFMEL motor (internal motor)
PART ‘K.1’ PART ‘K.1’
20
CABLES TO DOWNDRAFT
POWER TRANSFORMER
10AMP
GPO
POWER
MOTOR
7 METRE POWER CORD
CONTROL PANEL
DOWNDRAFT
Power transformer can be located anywhere beneath
the bench. It must be accessible for servicing.
ELECTRICAL CONNECTION
DUCTING FROM MOTOR TO WALL VENT: (SEM 81)
1. Run the length of ducting to the motor. (Additional lengths of ducting can be attached using an
additional internal connector pieces.)
NOTE: No connector required as it connects directly to the collar of the motor.
2. Secure with another universal ring clamp (Part ‘G’).
NOTE: The location of the motor is to be no less than 2 metres away from the downdraft. Failure to
do so may result in additional noise level of the downdraft. Maximum distance is 7 metres, however
3 - 5 metres is optimum to minimise noise and maximise performance.
3. Using another length of semi-rigid duct run from the exit collar on the SEM 81 to a predetermined exit point
and connect to weatherproof vent with a clamp.
See www.siriusbrand.com for multiple vent options or see our nearest retail partner.
WARNING
Place the power transformer at a distance of no
less than 65 cm from gas cooktops.
NOTE
We recommend installing the power transformer
at least 10 cm above floor level and at a suitable
distance from all heat sources (e.g. oven sides or
cook top).
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
21
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
21
WARNING
After having replaced the filters, reinstall
the front stainless steel panel, otherwise
the Downdraft is not enabled to function.
Water splashing against the enclosure from any
direction shall have no harmful effect, utilizing either:
a) an oscillating fixture, or b) A spray nozzle with no
shield.
Test a) is conducted for 10 minutes. Test b) is
conducted (without shield) for 5 minutes minimum.
Oscillating tube: Test duration: 10 minutes, or spray
nozzle (same as IPX3 spray nozzle with shield
removed).
(Fig. 8)
ELECTRICAL CONNECTION
CAUTION
DANGER
NOTE
While installing the appliance and carrying
maintenance operation, make sure it is disconnected
from the electrical network or the fuses are cut out or
removed.
Check that:
• Power is connected.
• Feeder lines (mains) are in good conditions.
• The cables diameter complies with installation
regulations.
This appliance is fitted with an H05 VVF 3 conductor,
0.75 mm2 (neutral, phase, and ground) power cord.
This can be connected up to a 220 - 240 V
monophase electrical network through a CEI 60083
approved power socket (10AMP power socket),
which must remain accessible after installation, in
compliance with installation regulations. We decline
any responsibility in case of accidents caused by
a lack of ground connection or incorrect ground
connection. The appliance must be fed through a
differential protection device (RCD), with a nominal
residual current not exceeding 30mA. If the power
cord is damaged, call the after-sales service to avoid
any risk.
If the appliance has no plug or if the plug is not
easily accessible, then a device needs to be fitted to
disconnect off from the electric network; this device
must have an opening distance between contacts on
all poles of at least 3 mm.
This appliance complies with the European
Directives 2006/95/EC (Low Voltage
Directive) and 2004/108/EC (Electromagnetic
Compatibility).
If the rangehood presents any anomaly,
disconnect the appliance or remove the
fuse corresponding to the appliance
power disconnecting line.
WARNING
The downdraft connection to the electrical
network must be carried out only by
professional and qualified technicians.
The downdraft must be connected to a properly
installed and suitable electrical network.
The electrical system must comply with VDE0100
standard.
NOTE
22
HOW THE RANGEHOOD WORKS
A: Light ON/OFF key
The light switches on and off only when the carriage
is fully OPEN.
Pressing this button with the carriage closed will
cause the carriage to open and then the light will
switch on .
The button also serves to switch off the light if it is on.
B: ON/OFF key
This starts the extraction carriage upward movement
and when it is fully open, it sets the second extraction
speed.
With the carriage open: it switches off the motor and
if on, the light; then it retracts the extraction carriage.
Automatic turn off:
After 4 hours of continuous working from the
last setup, the appliance turns off and closes
automatically. This ensures the unit cannot
accidentally be left running whilst away.
Grease filters saturation:
After 30 hours of working, the speed indicators “D”
will all flash simultaneously, signaling the grease filters
saturation.
To reset this alarm, hold down the “TIMER” button
for at least 3 seconds, while the carriage is open.
Calibration:
The rangehood carries out its self-calibration every 3
complete cycles of its extractable unit.
By pushing the “TIMER” key 6 times consecutively
(MAX break between one push and the other is 3
sec.) all the LEDs will flash and the calibration will be
reset.
After the next 3 cycles the downdraft will carry out its
self-calibration.
Stand-by:
When the extractable unit is closed and the light
is switched off, the control panel, after 6 seconds,
activates the Stand-by function, reducing the
brightness of the leds.
This function can be stopped by pressing ON/OFF
or LIGHT key.
Safety close function:
If an obstacle is preventing the downdraft from
lowering completely, the downdraft will automatically
raise to prevent damage to the unit.
C: Decrease fan speed key
This reduces the speed of the extractor motor from
the 4th speed until the motor switches off, without
closing the pullout carriage.
D: Fan speed Indicators
• This signals the speed setting, by only the
relevant LED switching on.
• Lights flashing signals reminder to wash mesh
grease filters. (see grease filter saturation)
E: Increase fan speed key
This increases the speed of the extractor motor, from
1st to 4th speed, without moving the extractor panel.
F: 10 Minute shut-off timer
10 min after setting, it serves to stop the extractor
motor, close the carriage and switch the lights off,
if they are on. The set function is signalled by the
flashing LEDs “D” for the set speed. The timer can
be cancelled by pressing the key again.
Light On/Off Decrease fan
speed
Fan speed
indicators
Increase fan
speed
10 min shut-off
timer
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
23

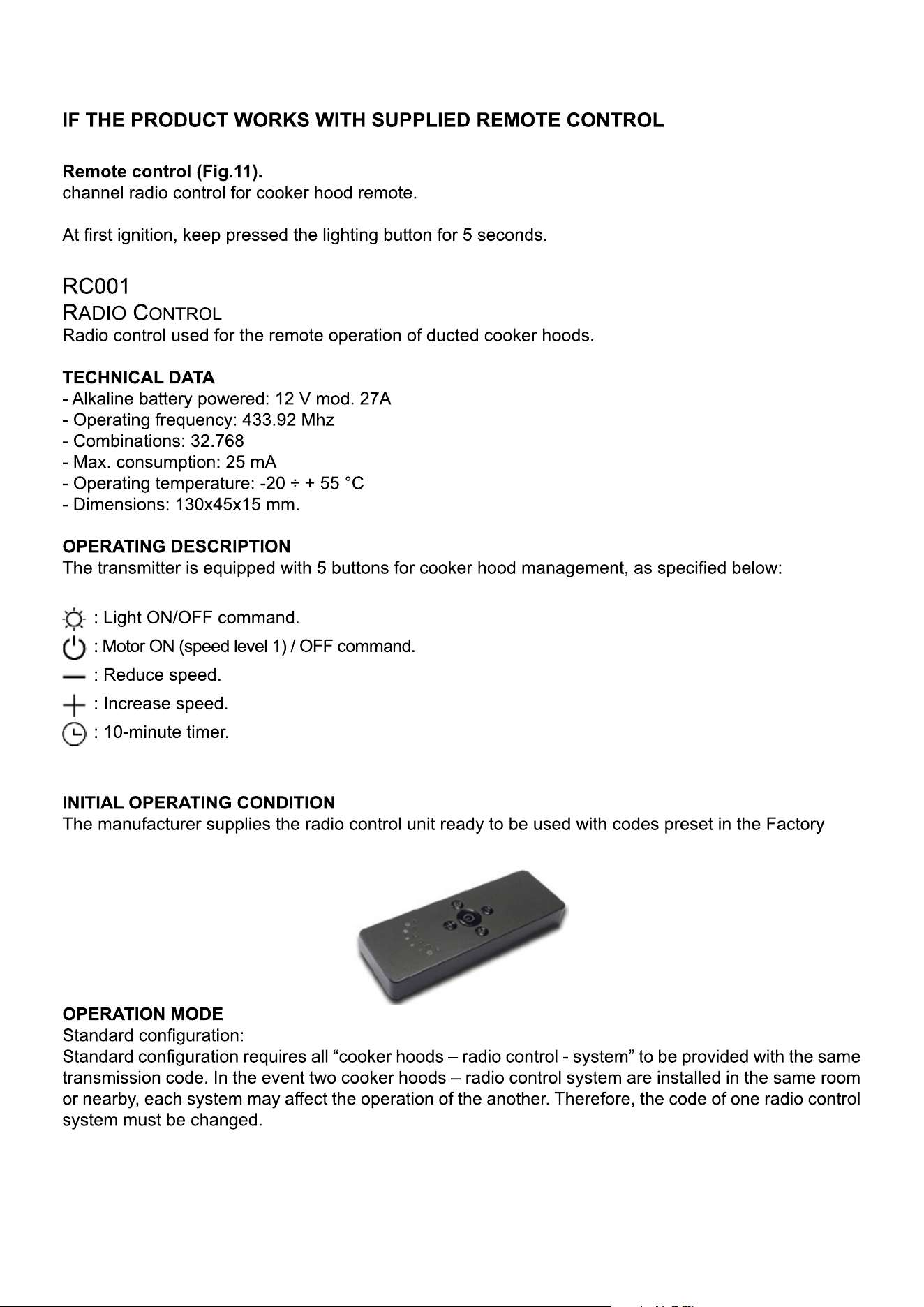

SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE

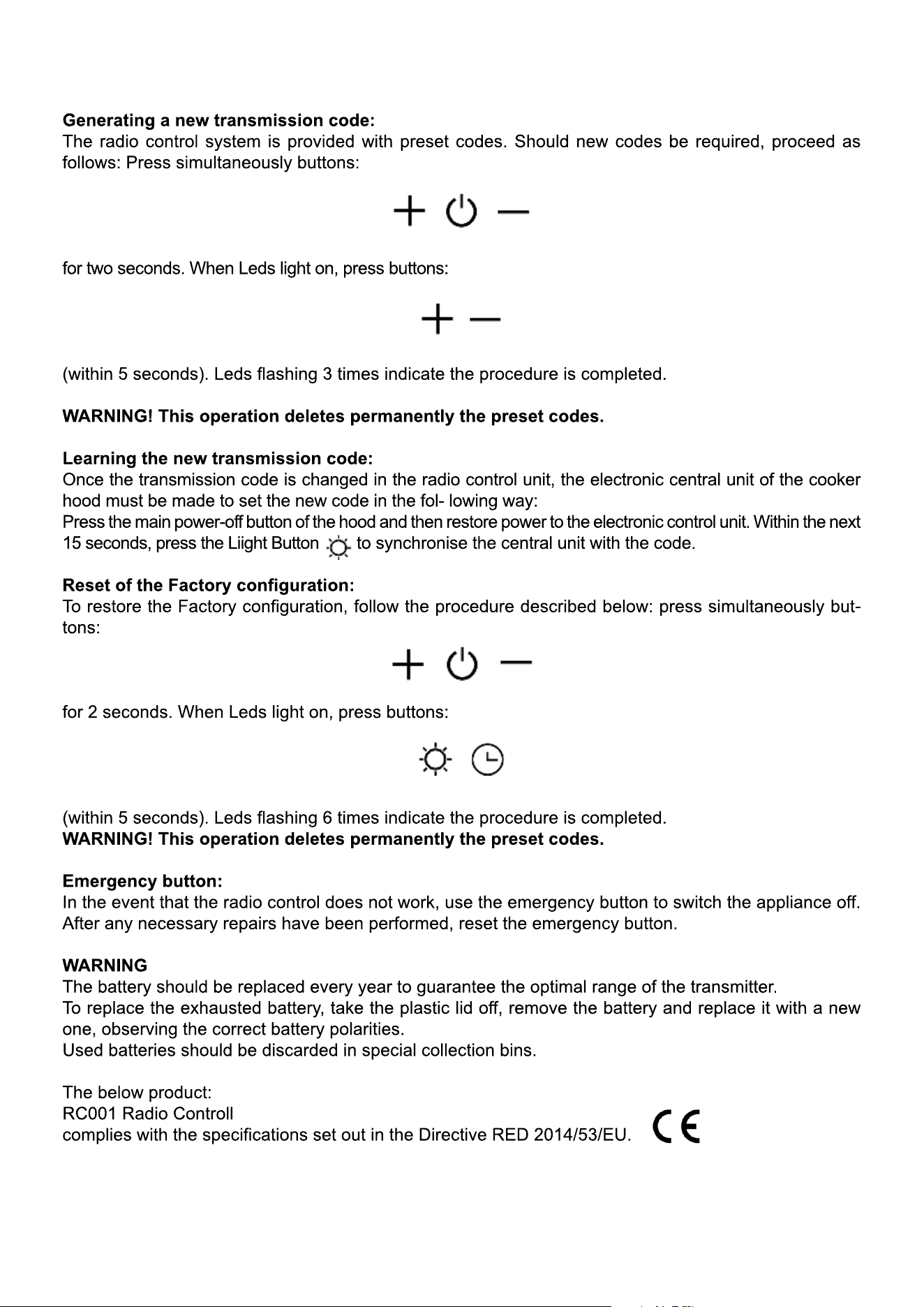

24
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD

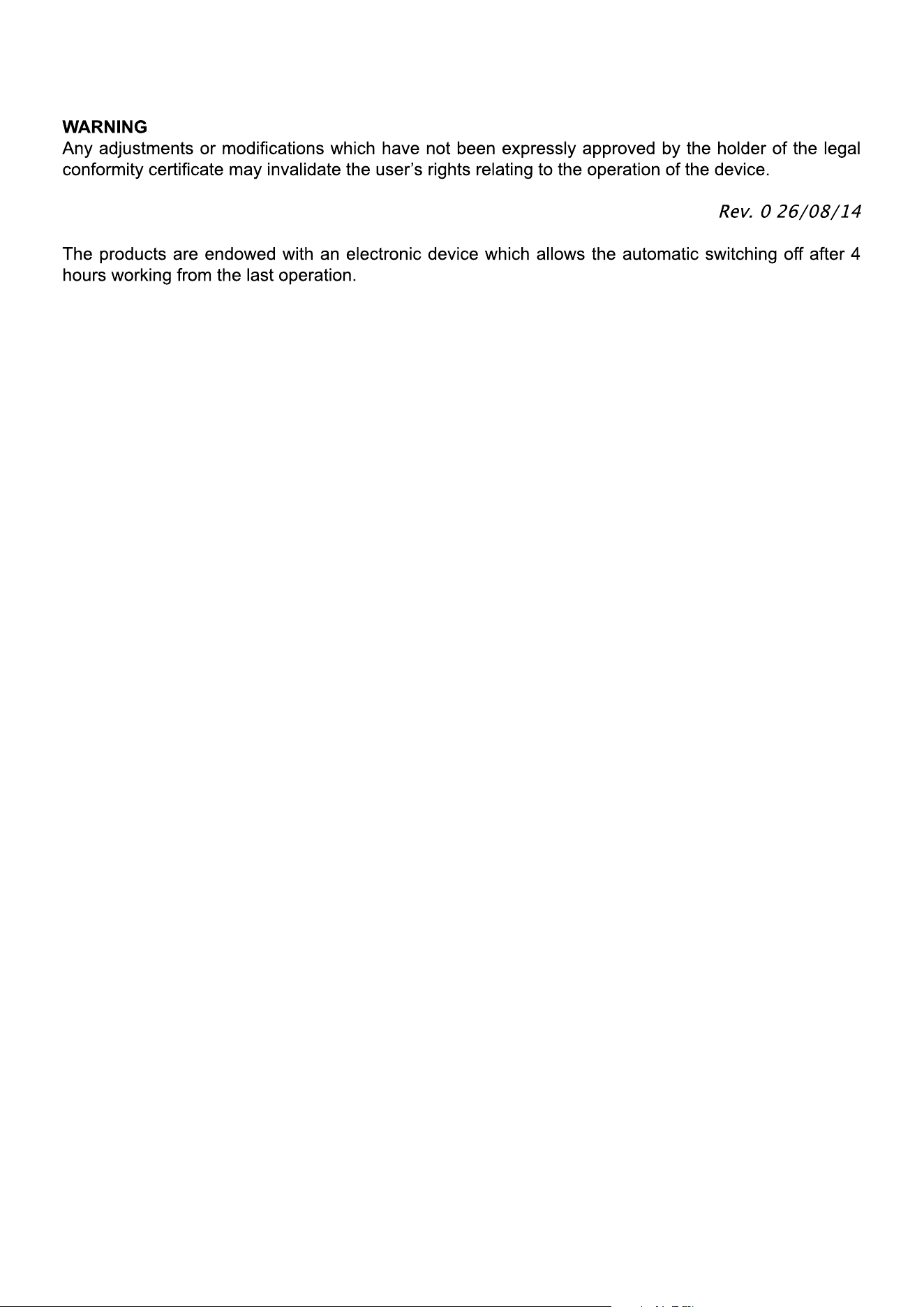

INSTALLATION GUIDE
25
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
26
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
27
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
27
CLEANING THE RANGEHOOD
Careful maintenance ensures proper operation and
good performances over time.
CAUTION
The hood must be disconnected from the electrical network, both by unplugging
the appliance from the socket and activating the magnetic circuit breaker (safety
cut-out), before removing the metal grease filters. After cleaning operations,
replace the metal grease filters as outlined in the installation instructions.
MAINTENANCE HOW TO PROCEED? ACCESSORY PRODUCTS TO USE
External
surfaces and
accessories
Do not use metallic
scrubbers, abrasive products,
or hard brushes.
To clean the external surfaces of the rangehood
and the light housing screen use only commercially
available household detergents diluted in water. Then
rinse with clean water and dry with a soft cloth.
Filter cleaning After 30 hours of operation,
the downdraft will signal the
grease filter saturation.
The saturation is signaled by
the blinking of the 4 central
leds. To reset, hold down the
timer button for at least
3 seconds, while the carriage
is open.
The grease filters can be washed by hand or in the
dishwasher. These filters need to be cleaned on a
regular basis, otherwise they may represent a fire
risk. If frying or cooking with oil, the filers need to be
cleaned more regularly.
Refit the grease filters and front panel, making sure
that the panel is properly fitted at the sides so that it it
does not cause the downdraft to stop operating.
NB: Filters should be replaced approximately every 6 months, depending on style and frequency of
cooking. For high fat cooking it is recommended the clean the filters every 2 weeks.
28
PROBLEM SOLUTION
The rangehood
does not work.
Check that:
• There is not a power outage.
• A specific speed has actually been selected.
• The 6 pin connection is inserted properly.
• The red reset key, found over the electrical system box, is pushed.
• Make sure that the wires of the 9 pole connection are inserted properly in the
connector itself (during the connection phase, an excessive pressure could bend the
contacts).
The rangehood
has low
performance.
Check that:
• The motor speed selected is sufficient for the quantity of fumes and vapors present
in the room.
• The kitchen is ventilated well enough to allow air for intake.
• The non-return valves of the suctioning unit are free to rotate.
• The ducting is clear and not obstructed.
• Unit is only working on 2 speeds - refer to page 5.
• The correct minimum diameter ducting has been used
The rangehood
stops in the
middle of
operation.
Check that:
• There is not a power outage.
• The safety switch has not tripped (RCD or safety switch).
TROUBLESHOOTING
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
29
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
29
REPLACING THE LIGHT
1. Lift the unit, then press the red button on the power transformer - cutting power to the unit.
2. Using an appropriate tool, remove the LED bar from its seat, disconnect it electronically throught the
appropriate connector then replace it with a LED bar with same characteristics.
30
AFTER SALES SERVICE
Any maintenance operation on your appliance should
be carried out by:
• Either Arisit Pty Ltd;
• Or a qualified professional technician, authorized
for that brand if out of warranty.
Contact www.siriusbrand.com
1300 762 219
NOTE

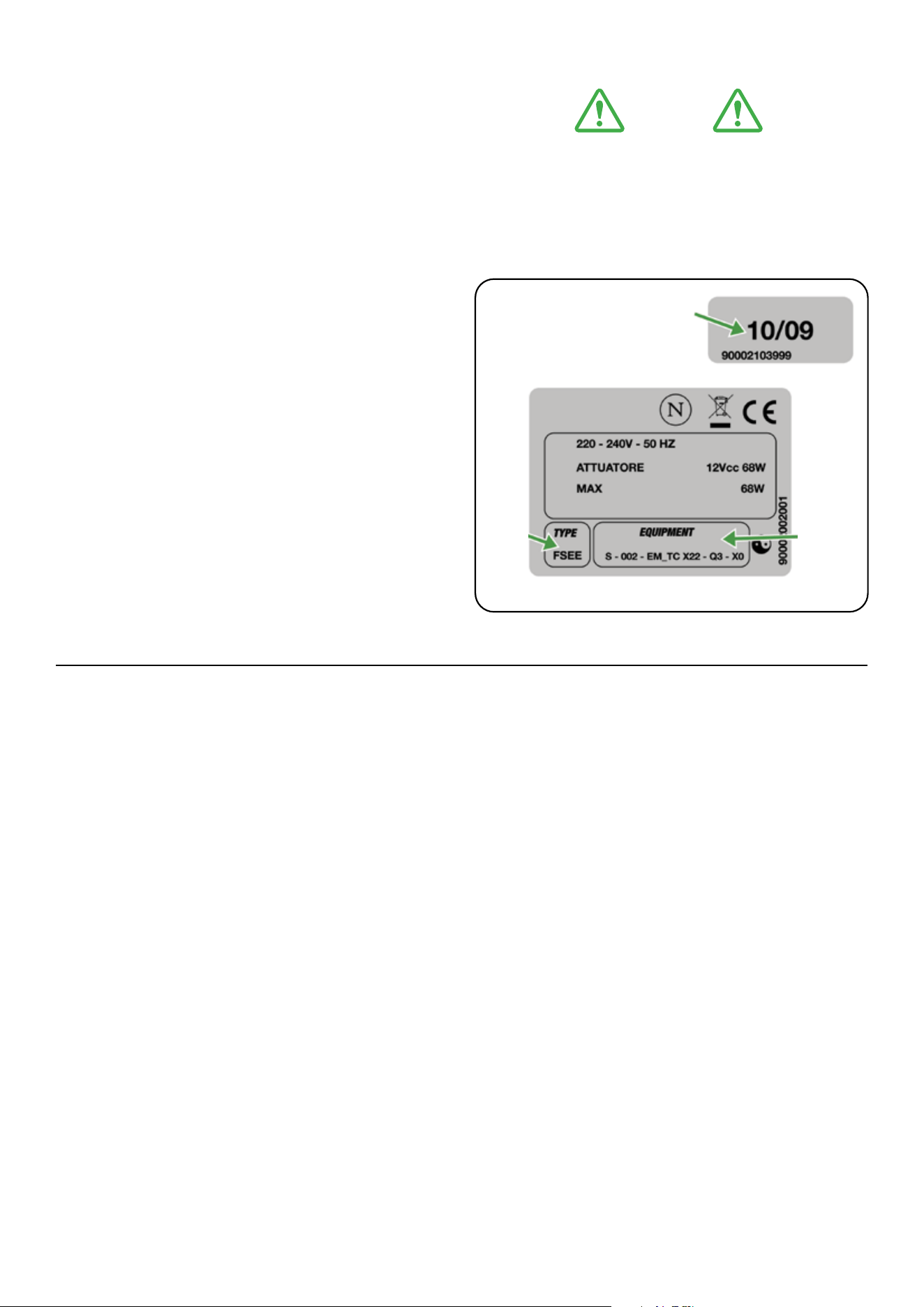

When calling, please mention the appliance
details: Production date, (Fig. 9A), Type (Fig. 9B)
and equipment (Fig. 9C).
This information is mentioned on the rating
label and the production date one placed on the
lower side of the downdraft.
(Fig. 9)
(Fig. 9A)
(Fig. 9B)
(Fig. 9C)
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
31
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
A RECTANGULAR TO ROUND DUCTING ADAPTOR SPS-75000081020
B BOTTOM/SIDE COVER COLLAR SPS-75070102735
C
BOTTOM/SIDE EXIT PLATE SPS-75070100094
D
FRONT/REAR VENT ADAPTOR - 58 MODEL SPS-75070100311
D
FRONT/REAR VENT ADAPTOR - 88/118 MODEL SPS-75070100071
E
FRONT/REAR VENT COVER PLATE SPS-75059000082
F
UPRIGHT FIXING BRACKETS SPS-75070100112
G
UNIVERSAL RING CLAMP URC25-215
H
150MM TO 200MM DUCT EXPANDER GDR 150/200
I
150MM DIAMETER CONNECTOR PIECE GDC-150
J
200MM DIAMETER CONNECTOR PIECE GDC-200
K
K.1 - DUCTING 150MM
K.2 - DUCTING 200MM
SRPRO 30/150
SRPRO 30/200
PARTS LIST
32
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
PARTS LIST - INCLUDED PIECES
PART A
Rectangular to round ducting adaptor
SPS-75000081020
PART B
Bottom/side cover collar
SPS-75070102735
PART C
Bottom/side exit connector
SPS-75070100094
PART D
Front/rear vent adaptor
SPS-75070100311 (For 58 Model)
SPS-75070100071 (For 88/118 Model)
PART FPART E
Upright fixing brackets
SPS-75070100112
Front/rear vent cover plate
SPS-75059000082
33
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
33
PART G
Universal ring clamp
URC25-215/325
PARTS LIST - OPTIONAL PIECES
To be purchased separately
PART H
150mm to 200mm Duct expander
GDR 150/200
PART I
150mm diameter connector piece
GDC-150
PART J
200mm diameter connector piece
GDC-200
Part K.1 / K.2
Semi rigid aluminium ducting 150mm / 200mm
SRPRO 30/150 or SRPRO 30/200
34
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
WIRING DIAGRAMS
35
SDD2ELEMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
WARRANTY INFORMATION
Dear Customer,
Thank you for choosing this Sirius Rangehood.
We are sure that it will provide you with many years of excellent service. At Arisit Pty Limited we are dedicated to ensuring
that our customers receive the best possible after-sales care.
The Sirius ‘Protection Plan’ has been devised to give you added peace of mind. Should you encounter any problems with your
appliance, our nationwide team of specially trained technicians will deal with your call swiftly and efficiently.
Warranty
By registering your ownership NOW, you qualify for
Sirius’s Total Peace of Mind Protection Plan.
Australian & New Zealand 3 / 6 Year Protection Plan*
This guarantees your appliance for a full 3 years parts and labour & 10 years for the off-board motors (covering
manufacturing defects only) from the date of purchase, subject to the Terms and Conditions overleaf.
*3 Year warranty is extended to a 6 year period only when Sirius ducting is installed.
Year Warranty
when Sirius ducting is used*
www.siriusbrand.com
AUSTRALIA
ARISIT PTY LIMITED
40-50 Mark Anthony Drive, Dandenong South,
VIC 3175, Australia
Phone: 1300 762 219
Email: consumer[email protected]
NEW ZEALAND
ARISIT PTY LIMITED
1A Howe Street, Newton,
Auckland 1145, New Zealand
Phone: (09) 306 1020
Email: [email protected]
PRIORITY SERVICE, ACCESSORIES & SPARE PARTS
08/2023
ARISIT PTY LIMITED (Australia)
ABN 23 091 515 294
40-50 Mark Anthony Drive
Dandenong South VIC 3175
P: Sales & Service: 1300 762 219
F: Sales & Service: (03) 9768 0838
ARISIT PTY LIMITED (New Zealand)
1A Howe Street Newton, Auckland 1145
PO Box 68-140 Newton, Auckland 1145
P: (09) 306 1020 - Fax: (09) 302 0077
Sirius Hoods and ducting products are only available
from our select group of Sirius Professional Stockists
nationwide. For the latest list of Sirius Stockists
near you, please refer to www.siriusbrand.com
All efforts have been made to ensure that the
information provided in this brochure is correct at
the time of printing. Due to continuous product
improvement and ongoing development, Sirius
reserves the right to make changes to the
products and technical data without prior notice.
Some products appearing in this brochure may
be for illustrative purposes only. Diagrams are
indicative measures only. Prior to commencing
cabinetry cutouts the operating/installation
instructions accompanying the product must
be referred to at www.siriusbrand.com
www.arisit.com
www.siriusbrand.com
when Sirius ducting is used.
Full replacement warranty on parts and labour. Check website for T&Cs.
10 year warranty on SEM motors.
Year
Warranty
Your Warranty
Register now to qualify.
www.arisitwarranties.com.au/Customer-Registration.aspx
or scan the QR code.
Terms & Conditions
These Terms and Conditions apply only to
Sirius products distributed in Australia and
New Zealand by Arisit Pty Limited.
1. This warranty applies for a period of 3
years on all products.
a) Warranty is extended to a 6 year
period when Sirius ducting is
installed.
b) All off-board motors are covered
under warranty for a 10 year period
for manufacturing defects only.
2. Warranty applies for parts and labour in
Australia and New Zealand, commencing
from date of purchase.
3. This warranty applies only to the original
purchaser/hire purchaser of this appliance
and cannot be assigned or transferred.
Failure to produce documentary proof
of the date of original acquisition by the
original purchaser will result in a charge
being levied for work done, labour and
parts supplied.
4. This warranty does not apply to:
a) Consumable items such as filters,
fuses, and light bulbs.
b) Damage to body work, paint work,
glass, and plastic items (such as, but
not limited to windows, covers,
baskets, trays, worktops, door
handles, control and kick panels.)
c) Corrosion & rust damage.
A fee may be charged following warranty
claims where no fault is found with the
appliance.
5. This warranty will not apply where:
a) The fault is caused by accident,
misuse, an infestation of insect
and or vermin, fire, flood or the use
of products not approved by Arisit
Pty Limited.
b) There has been a failure to comply
with the manufacturer’s operating
and installation instructions.
c) Service, modification or repair has
been carried out by anybody
other than an approved Arisit Service
Technician.
d) The appliance has been used/
installed anywhere other than a
private dwelling, or where it has
been used other than
for domestic use.
e) The appliance is subject to a rental
agreement.
6. Any defective part that has been replaced
becomes the property of Arisit Pty.
Limited.
7. This warranty applies only to Sirius
appliances purchased and installed in
Australia and New Zealand.
8. Loss of use of the appliance or
consequential loss of any nature is not
covered.
9. A charge may be levied at the discretion
of Arisit Pty Limited if the call is deemed
unnecessary or if the cause of failure is
traced to external sourced such as, but
not limited to: blown fused, power failure,
faulty installation, customer misuse or
negligence, etc
10. Where the appliance, the subject of
a warranty claim or repair, is used
or installed more than TWENTY (20)
kilometres from the nearest Arisit Service
Division or Authorised Service Agent, the
cost of delivery to the nearest Service
Division or travel costs for a technician or
Authorised Service Agent shall be for the
account of the Purchaser. Where a built-in
appliance is located or installed outside
the Arisit Authorised Service Agent’s
normal service area, additional travel and
labour costs shall be the account of the
Purchaser.
11. Service is offered during normal business
hours only, also appliances to have a
clear access in a serviceable area
12. Arisit Pty Limited shall not under any
circumstances be responsible in terms of
this warranty for the replacement or repair
of any part of the equipment which may
have been damaged in transit, during and
after installation or imperfections after
installation.
13. Losses caused by act of God, failure to
obtain spare parts, strikes or lockouts are
not covered.
14. External off board motors must be
installed a minimum of 2 metres and
maximum of 7 metres away from the
rangehood. This is for optimum sound
and performance.
15. All motors must be accessible for
servicing purposes and if installed above
2 metres from ground height additional
cost will be incurred due to OH&S
standards for service agents. Prior to
install please check minimum & maximum
installation details on the Sirius website,
FAQ under support tab.
We reserve the right to amend any of the
above without prior notice.
16. This warranty does not affect your
statutory rights.
To register for your warranty, please visit:
