Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS
INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.
PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
INSTRUCTIONS FOR:
TRAILING ARM BUSH TOOL VOLVO AND
FORD
MODEL No: VSE4786
1.1. GENERAL SAFETY
IMPORTANT! These instructions are offered as a guide only, albeit compiled with good practical user advice. Always refer to the vehicle
manufacturer's service instructions, or a proprietary manual to establish the current procedure and data.
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this tool.
WARNING! Familiarise yourself with the specific applications and limitations of the kit, as well as any potential hazards.
WARNING! This tool is heavy, over 8.25kg, two people recommended for some tasks.
This kit should be used in conjunction with inspection maintenance procedures recommended in the vehicle manufacturer’s manual.
Ensure that the kit is correct for the task.
Wear the appropriate personal protective equipment for the task. A full range is available from your Sealey dealer.
DO NOT use the kit for any purpose other than that for which it is designed.
Ensure that the vehicle is properly supported with axle stands before working under the vehicle.
Ensure there is adequate lighting prior to using the kit. A range of inspection lamps are available from your Sealey dealer.
Keep children and unauthorised persons away from the working area.
DO NOT use the kit if any parts are damaged or missing, as this may cause failure and/or personal injury.
DO NOT use the kit when you are tired, or under the influence of alcohol, drugs or intoxicating medication.
After use, store in a safe, dry childproof area.
WARNING! The warnings, cautions and instructions in this manual cannot cover all possible conditions and situations that
may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into
this product, but must be applied by the operator.
Warning! Failure to adhere to safety and warning instructions may result in personal injury or damage which would invalidate the
warranty. The bush extraction and insertion screw maximum recommended torque is 180Nm. Exceeding this torque value may shorten
the life of the thrust screw and distort other components. The thrust screw is considered to be a consumable item and is NOT
covered under warranty. Always lubricate the threads male and female with a molybdenum/copper based grease after removing
from the carry case.
VSE4786 Issue No.1 - 10/12/15
Original Language Version
© Jack Sealey Limited
ALWAYS KEEP FORCE SCREW
WELL LUBRICATED. MOLYBDENUM
COPPER BASED RECOMMENDED.
DO NOT USE AIR TOOLS
TO OPERATE FORCE SCREW
1. SAFETY
Refer to instruction manual
Wear eye protection
Suitable for the removal/installation of the rear trailing arm mounting bushes on Ford/Volvo vehicles. Can be used in situ without removing the arm
from the vehicle. Supplied in carry-case.
2. INTRODUCTION
3. SPECIFICATION
Make Model Year
Ford Mondeo Mk IV 2007 Onward
Ford S-Max 2006 Onward
Ford Galaxy 2006 Onward
Volvo S80 II (1.6, 2.0, 2.4, 3.2) 2007 Onward
Volvo S80 II (Flexifuel Sedan (2.5) 2007 Onward
Volvo V70 III (1.6, 2.0, 2.4, 2.5, 3.2) 2008 Onward
Volvo V70 III Flexifuel (2.0) 2008 Onward
Volvo V60 D6 Hybrid (2.4) 2014 Onward
Volvo V60 (1.6, 2.0, 2.4) 2012 Onward
Volvo S60 II (1.6, 2.0, 2.4) 2010 Onward
Volvo XC70 III (2.0, 2.4, 3.2) 2008 Onward
Fig.2
Fig.4
Fig.3
Fig.5
Item Part Number Description Qty
1 VSE4786-01 Adaptor 1
2 VSE4786-02 Depth Control Legs 2
3 VSE4786-03 15mm 'C' Ring 1
4 VSE4786-04 35mm 'C' Ring 1
5 VSE4786-05 Press Fame Top Plate 1
6 VSE4786-06 Press Frame Bottom Plate 1
7 VSE4786-07 Distance Studs 2
8 VSE4786-08 Spacer 2
9 VSE4786-09 Thrust Screw (M20 X 1.5) 1
10 VSE4786-10 Nut M12 4
11 VSE4786-11 Plain Washer ø12 4
12 VSE4786-12 M8 X 16 Screw 2

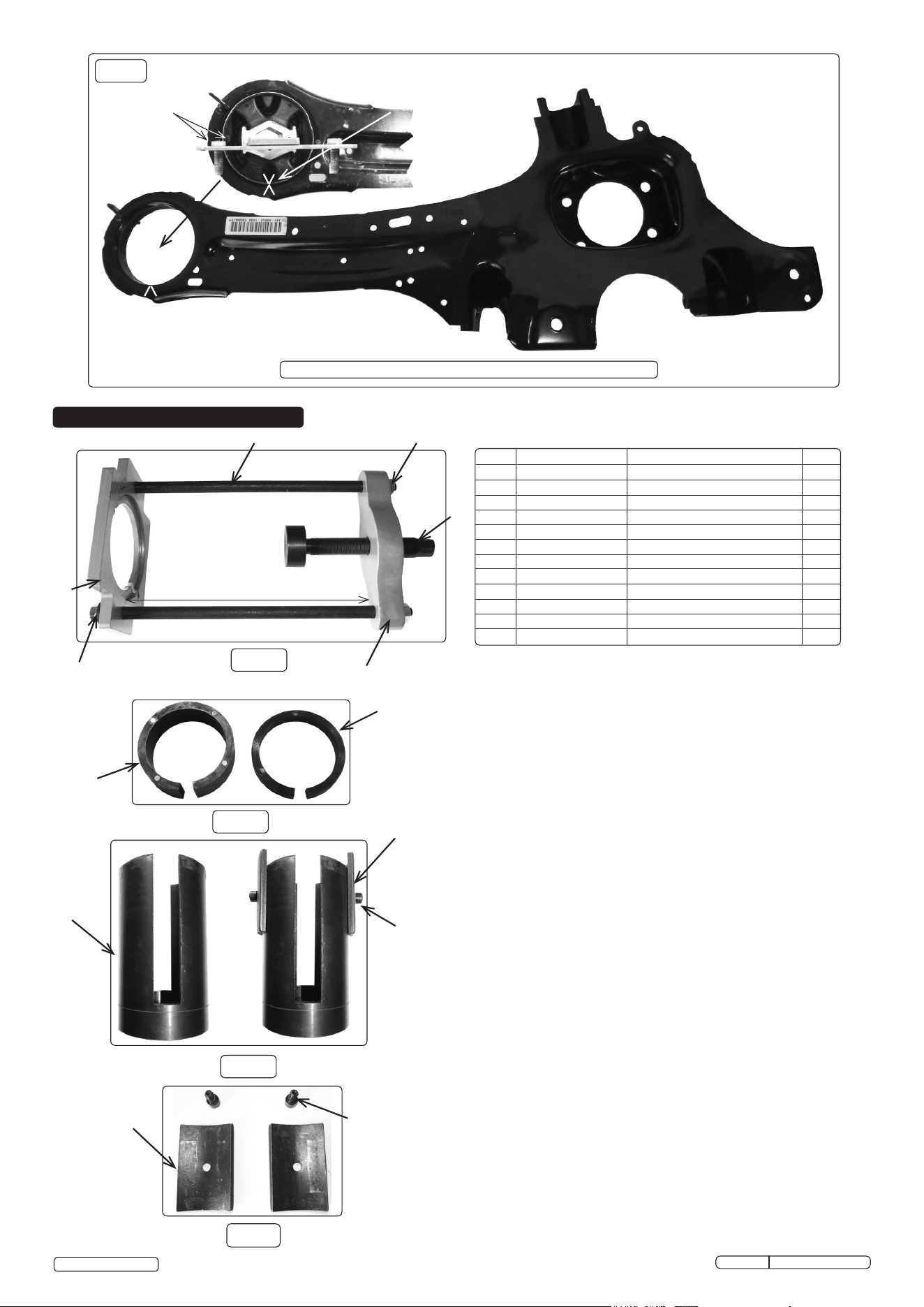

Nearside Trailing Arm Removed From Vehicle C/W Bush Assembly
4. CONTENTS
Fig.1
Bush Assembled
7
10,11
8
6
5
9
4.1 15mm Magnetic 'C' Ring (Fig.3 item 3)
A distance piece used in the bush extraction process only,
integral magnets holds the ring in place.The slot in the ring clears
the obstruction of the hose bracket.
4.2 35mm Magnetic 'C' Ring (Fig.3 item 4)
A distance piece used in the new bush insertion process only,
integral magnets holds the ring in place. The slot in the ring
clears the obstruction of the hose bracket.
3
4
4.3 Adaptor (Fig.4 item 1)
90mm Diameter x 155 long. Slotted, counterbored and recessed
to accommodate extraction and insertion of the bush.
4.4 Depth Control Legs (Fig.5 item 2)
TwoSegmentsnesteithersideoftheadaptorxedwithM8
screws. Only used when inserting a new bush to correct
depth.
1
2
12
1
VSE4786 Issue No.1 - 10/12/15
Original Language Version
© Jack Sealey Limited
Orientation marks see
Fig.7 and note 5.1.4
Manufacturer's
orientation method
270mm Clear Opening Ref.
2
12
5. BUSH REMOVAL
C/L
Trailing
Arm (Fig.1)
Bush
steel
sleeve
Fig.7
15mm 'C' ring
Fig.8
5.1. PLEASE NOTE! Volvo nearside bush assembly is designed to mount
the exhaust hanger (3 studs). See Fig.6 and Fig.14. Refer also to
respective manufacturer's service manual, or proprietary manual when
using these instructions.
5.1.1 Jack up the vehicle, placing the jack clear of the rear suspension allowing it
to swing down.
5.1.2 Support the rear suspension whilst removing the trailing arm bush mounting
nuts,boltsandwashers.Unclipthehandbrakehoseandassociatedxings.
It may be necessary to remove further fastenings to allow the trailing arm
to fully sweep beneath the vehicle, enabling maximum access and
clearance for the bush extraction tool. Continue supporting the trailing arm
and controlling during lowering.
5.1.3 With the area around the suspension now clear we suggest a thorough
cleantoavoidaccumulateddebrisinterferringwithprecisiontting
processes.Sprayingaproprietory'freerelease'uidontothebushsleeve
and housing may assist with removal in 5.1.7.
5.1.4 Note the orientation of the existing bush before removal. The method of
marking is best decided by the engineer. A scribed line on the bush
sleeve><and a mirrored orientation mark on the housing would give an
accurate orientation, for example see Fig.7. See also Fig.1 (notch in the
arm) and the manufacturer's instructions.
5.1.5 Offer the 15mm 'C' ring on to the pressed steel housing, aligning the gap
with the handbrake cable bracket. This will be held in place (Fig.8) by the
three permanent magnets inserted in the ring. Ensure it is seated correctly
on a grit free face.
5.1.6 Access and adequate clearance is essential for offering the bush press
assembly over the trailing arm and bush housing. Weave the bottom plate
end over the "Tee" plate (Fig.9) and locate the counterbore with the 'C' ring
(Fig.10). Continue to support the opposite end with your hand (Fig.11).
It may be necessary to disassemble and reassemble the press
frame insitu when access is limited.
5.1.7 Two people are now recommended, with one continuing to support the
press frame and the other positioning the adaptor (Fig.12), stepped end
inside the bush sleeve. The shoulder of the stepped end will offer thrust
to the steel bush sleeve. Please note for the removal of the bush, 360°
orientation of the adaptor is not important and the side 'depth control legs'
arenottted.Thesecondpersoncannowwindinthethrustscrew
ensuring concentricity and squareness of both the press frame and the
cylindrical adaptor. With a 16mm socket increase the torque and observe
the bush sleeve projection from the housing, through to removal. Excessive
torque, above 180NM, is not envisaged, but if this occurs, stop and check
alignments. There may be some resistance initially. Continued support to
the press is required throughout, especially when the bush is removed
from the housing as the bush is then free to fall. Remove the old bush, the
press frame and prepare details for insertion of a new bush assembly. An

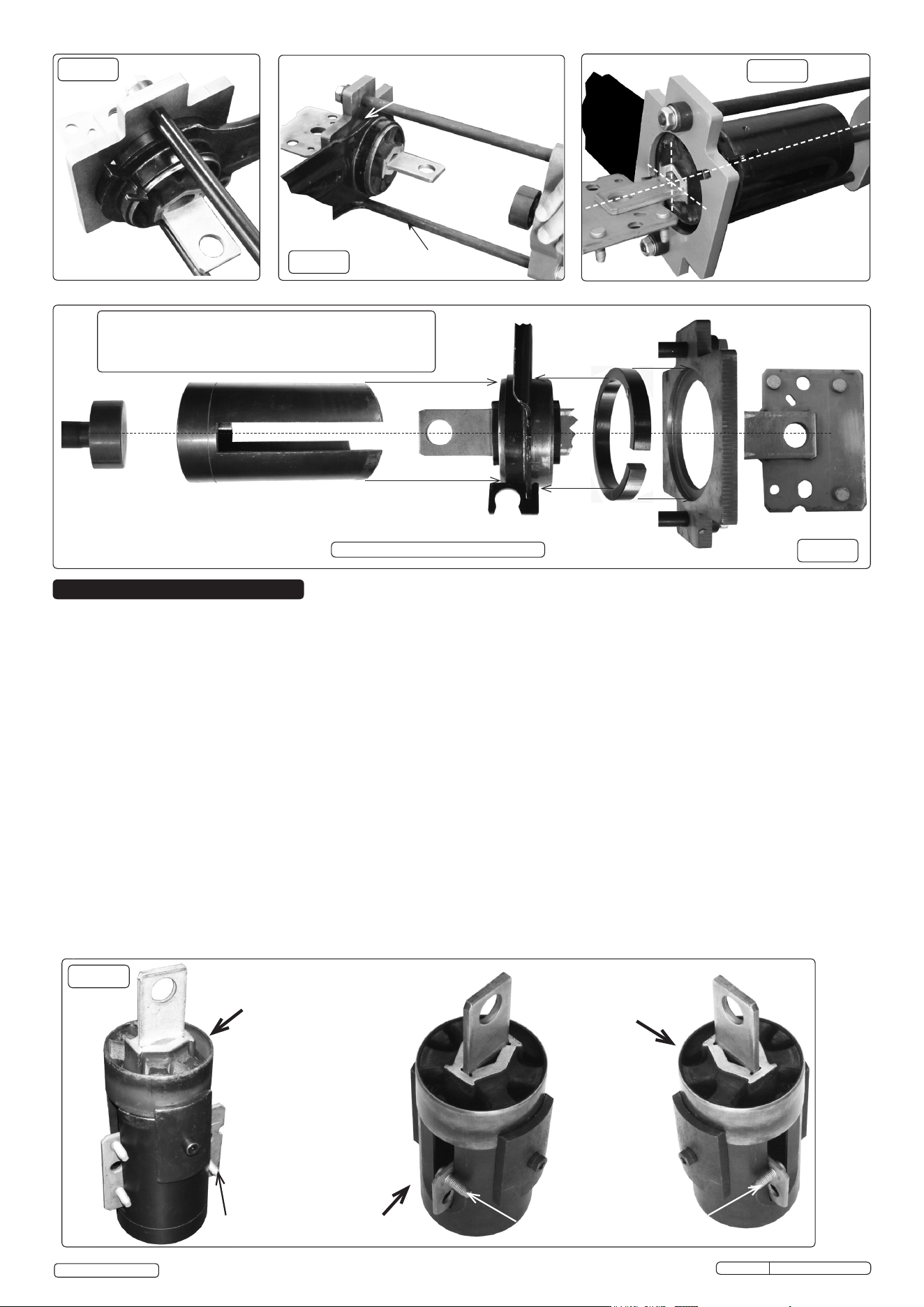

"exploded" view (Fig.13) supports actions shown in (Fig.8) through (Fig.12)
1 Rivet stud
3 Rivet studs
R
L

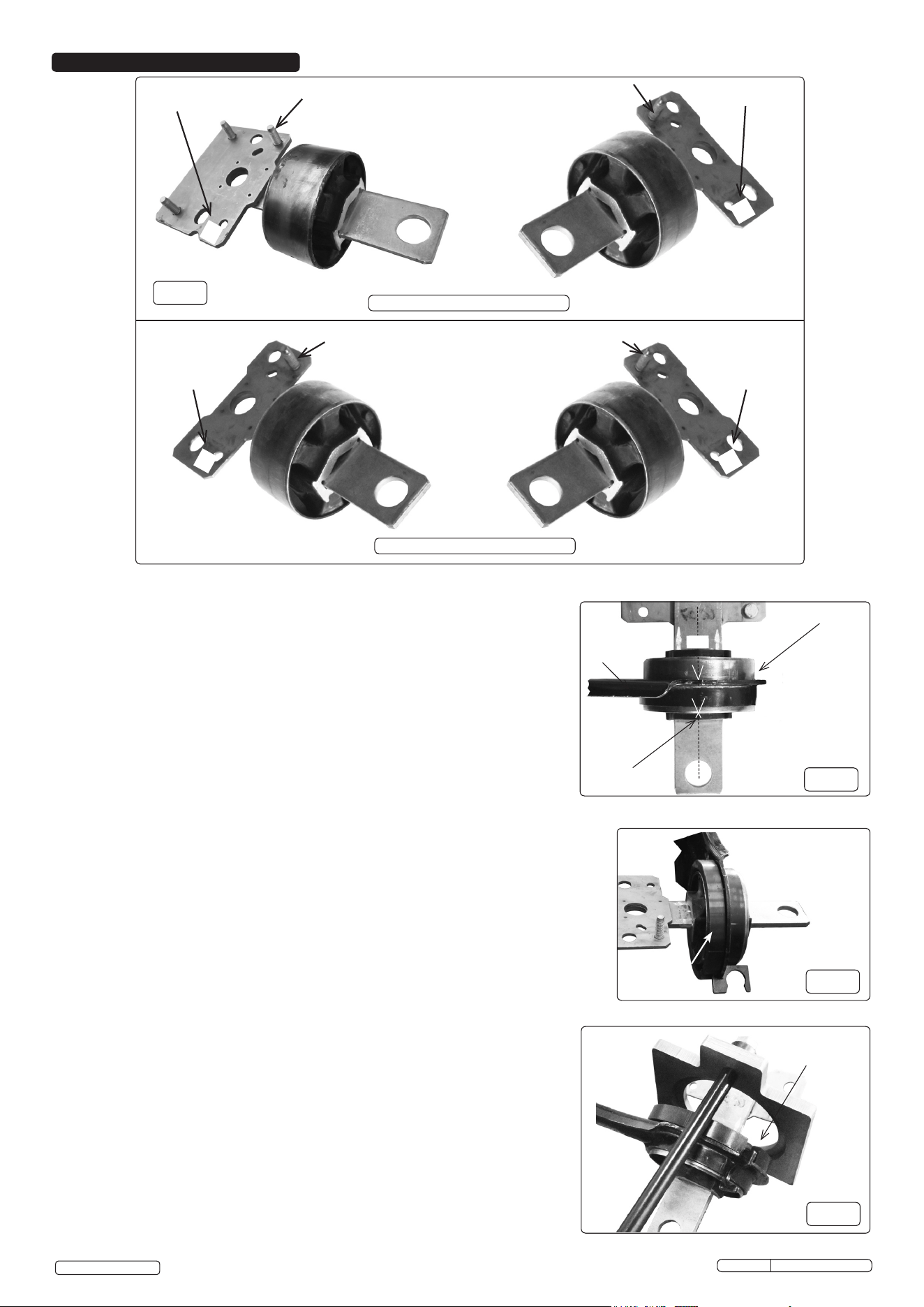

VolvoBushAssemblyIdentication
Nearside
Offside
Fig.6
I/D Stamped
I/D Stamped
Fig.9
Orientation marks
Locate 'C' ring
in counterbore
VSE4786 Issue No.1 - 10/12/15
Original Language Version
© Jack Sealey Limited
1 Rivet stud1 Rivet stud
I/D StampedI/D Stamped
FordBushAssemblyIdentication
Nearside
Offside
R
L
15mm 'C' ring
registers in
c'bore
Cylindrical ram
concentric and
square with
bush sleeve.
Press Frame Studs
Fig.12
NOTE! It may be necessary to disassemble and reassemble
the press frame insitu when access is limited. A 17mm
spanner only required, the clear opening height is
governed by the studs.
6.1. PLEASE NOTE! Volvo nearside bush assembly is designed to mount the exhaust hanger (3 studs). See Fig.6 and Fig.14. Refer
also to respective manufacturer's service manual, or proprietary manual when using these instructions.
6.1.1 Cleantheboreofpressedsteelbushhousingofanyresidualoilorgrit.Nolubricantor'freereleaseuid'istobepresentonthebush
sleeve or the housing bore.
6.1.2 Placethenewbush"Tee"plateinsidetheadaptorandlocatethebushsleeveoverreduceddiameterandshoulder.Itwillonlytsquarely
one way. The slots in the cylinder are offset about the axis, with the smallest adaptor segment the same side as the rivet stud shown in
(Fig.14). Clamp the depth control side legs (Fig.14) using the supplied M8 screws with a 6mm hexagon key. The legs should be
symmetricalaboutthexinghole,butitisworthcheckingthatthereisequalprojectiontoobtaineventhrust.Checkthatthebushis
gripped and that datums (Fig.7) are clearly marked.
6.1.4 Place the 35mm 'C' ring on to the trailing arm (Fig.16), rotate the ring to clear the handbrake bracket. The four integral permanent magnets
will hold the ring in place.
6.1.5 Two people are now recommended, with one placing the adaptor and bush in (Fig.14) over the housing bore. See the orientation datums
for correct alignment (Fig.7). The second person can offer the press frame over the entire group of items shown in (Fig.16) ensuring the
bottom plate locates over the "C" ring. The second person can now wind in the thrust screw ensuring concentricity and squareness of
both the press and the adaptor. With a 17mm socket increase the torque and observe the bush sleeve progress through to correct depth
insertion. Excessive torque, above 180NM, is not envisaged, but if this occurs, stop and check alignments. Observe closely the depth
control legs, when they touch the trailing arm face resistance will increase abruptly, the bush is now fully inserted, see (Fig.15) telescopic
view. DO NOT attempt to tighten any further.
6.1.6 With the possibility of heavy objects falling, special caution is required whilst unscrewing the press and removing the entire kit.
6.1.7 Clean and lubricate components before returning the kit to the carry case.
6.1.8 Referto5.1.1,5.1.2andmanufacturer'sorproprietarymanualtoretthesuspension,trailingarm,handbrakecableandreturnthevehicle
to the road for test drive.
6. INSERTING NEW BUSH
Fig.14
Old Bush Assembly Removal Details
Fig.10
Fig.11
Fig.13
Thrust Screw
Cylindrical Adaptor
15mm "C" Ring
Bottom Plate
3 Rivet
Studs
L
Trailing
Arm (Fig.1)
VSE4786 Issue No.1 - 10/12/15
Original Language Version
© Jack Sealey Limited
R
L
VOLVO Only
FORD Only
VOLVO
and FORD
1 Rivet Stud
1 Rivet Stud
Depth
control
legs
Housing bush
orientation datums
from Fig.7
Trailing
Arm (Fig.1)
Adaptor
(rotate to clear "Tee" plate see 5.1.2)
New Bush Assembly
C/L

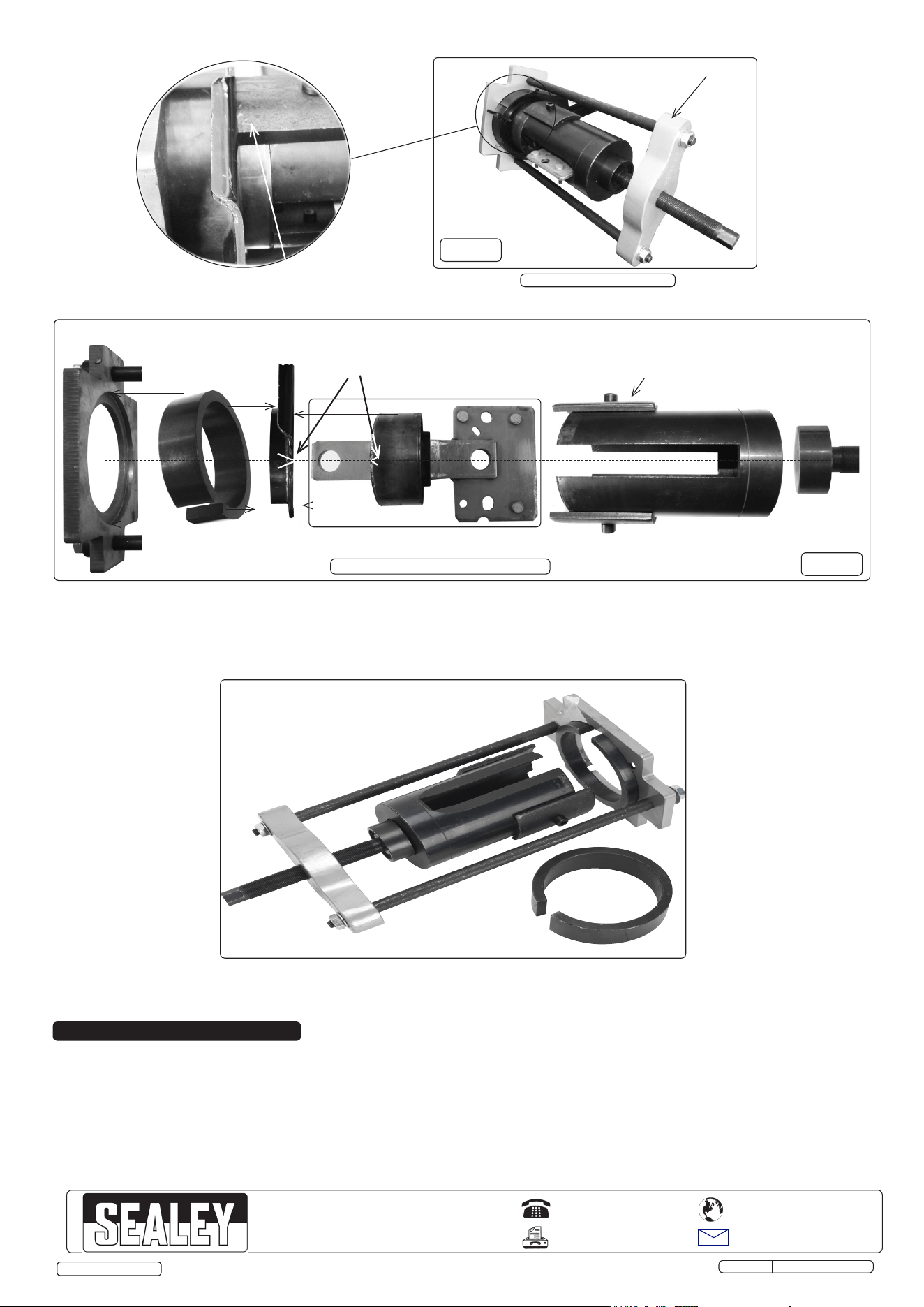

New Bush Assembly Insertion Details
Bottom Plate
Thrust Screw
Segmentedgeushwith
housing face, bush is
now inserted to correct depth.
7. MAINTENANCE
7.1. It is essential to keep the kit dry and free of swarf and grit. After use clean all components thoroughly ensuring thrust screw threads are
cleared with an air line, internal theads and external threads.
7.2. Inspectallcomponentsforsignsofdistortion,especiallythescrewthreadsandregistrationplateatness.Seewarningsontorque,
misalignment and concentricity in operation, included to prevent damage.
7.3. Before returning the kit to the carry case smear blackened components and unpainted surfaces with an oiled cloth.
7.4. To avoid condensation store indoors with carry case closed.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
01284 757500
01284 703534
sales@sealey.co.uk
Sole UK Distributor, Sealey Group,
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk,
IP32 7AR
www.sealey.co.uk
Web
New Bush Insertion Mode
35mm "C" Ring
Fig.15
Fig.16
Top Plate
VSE4786 Issue No.1 - 10/12/15
Original Language Version
© Jack Sealey Limited
The Kit (Complete)
