Model No’s DH112, DH113
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
www.dellonda.co.uk
Baridi 46” Wall Mounting Electric Fireplace, LED Flame Effects
DH112, DH113 Issue:1 27/08/24
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Refer to
instruction
manual
DO NOT cover Warning:
hot
surface
Specication
• Electrical Class: Class 1
• Heated Area: 20-25m²
• Weight: DH112: 24kg, DH113: 22kg
• Heat Settings: 2
• Plug Type: 3-Pin BS
• Power Cable Length: 1.5m
• Dimensions (W X D X H): 1320 x 210 x 580mm
• Rated Power: 2 settings 1000/2000W
• Supply: 230V~50Hz
Safety Instructions
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to check the following:
• Check all electrical equipment and appliances to ensure that they are safe before using.
• Inspect power supply leads, plugs and all electrical connections for wear and damage.
• Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
• DO NOT use worn or damaged cables, plugs or connectors.
• Ensure that any faulty item is repaired or is replaced immediately by a qualied electrician.
• If the cable or plug is damaged during use, switch off the electricity supply and remove from use. If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.
• Dellonda recommend that an RCD (Residual Current Device) is used with all electrical products.
• Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the correct fuse.
• DO NOT pull or carry the appliance by the power cable.
• DO NOT pull the plug from the socket by the cable.
• The heater must not be located under an electrical socket; the socket must always be accessible in order to disconnect the heater from the
electrical supply for maintenance and cleaning.
• GENERAL SAFETY
• IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible
electric shock or re hazard and will void the warranty.
• WARNING! In order to avoid overheating, DO NOT cover the heater.
• Children from age 8 years and above, persons with reduced physical, sensory, or mental capabilities those with lack of experience and knowledge
can use the appliance, if they have been given supervision or instruction concerning use of the appliance in a safe way to understand the
hazards involved.
• Children shall NOT play with the appliance.
• Cleaning and user maintenance on the appliance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and
less than 8 years shall not plug in, regulate, and clean the appliance or perform user maintenance.
• The removal of the plug has to be such that an operator can check from any of the points to which he has access that the plug remains removed.
• CAUTION! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable
people are present.
• DO NOT use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically,
since a fire risk exists if the heater is covered or positioned incorrectly.
• To avoid burns, do not let bare skin touch any hot surfaces.
• WARNING! The heater must not be used if the glass panels are damaged.
• DO NOT attempt to repair, disassemble or modify the appliance. This unit contains no user-serviceable parts.
• Always unplug or disconnect the appliance from the mains power supply when not in use, or when moving or cleaning it.
• Keep the heater clean. DO NOT allow any object to enter the ventilation or exhaust opening as this may cause electric shock, re, or damage to
the heater.
• DO NOT use the appliance for anything other than its intended use. It is designed for domestic indoor use only.
• There may be a trace of odour during the rst few minutes of initial use, or after a period of storage. This is normal and will quickly disappear.
• Avoid the use of an extension cord, as the cord may overheat and cause a risk of re.
• This replace is hot when in use. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 1 metre
from the front and sides of this appliance.
• This appliance is designed for indoor use only and is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate
this appliance where it may become exposed to water.
• DO NOT place this re directly onto a carpeted surface to avoid discolouration due to the heat.
• DO NOT run the cord under carpeting. DO NOT cover the cord with throw rugs, runners or the like.
• Ensure the cord is kept away from trafc areas, and kept in a position which would not present a trip hazard.
• To disconnect this appliance, press the On/Off button to turn off, then remove the plug from the outlet.
• This appliance has hot and arcing or sparking parts inside. DO NOT use it in areas where petrol, paint, or any ammable liquids are used or
stored.
• This appliance should not be used as a drying rack for clothing, nor should Christmas decorations be hung on or near it.
• Clean the re regularly to prevent the build-up of hairs, dust or lint around the re, as this may cause the outlet to become blocked.
• DO NOT use aerosols or steam cleaners on or around the re.
Manual Handling
• The heater must not be moved while in use. Please allow a suitable amount of time for the unit to cool before attempting to move it.
• Two people should lift the heater.

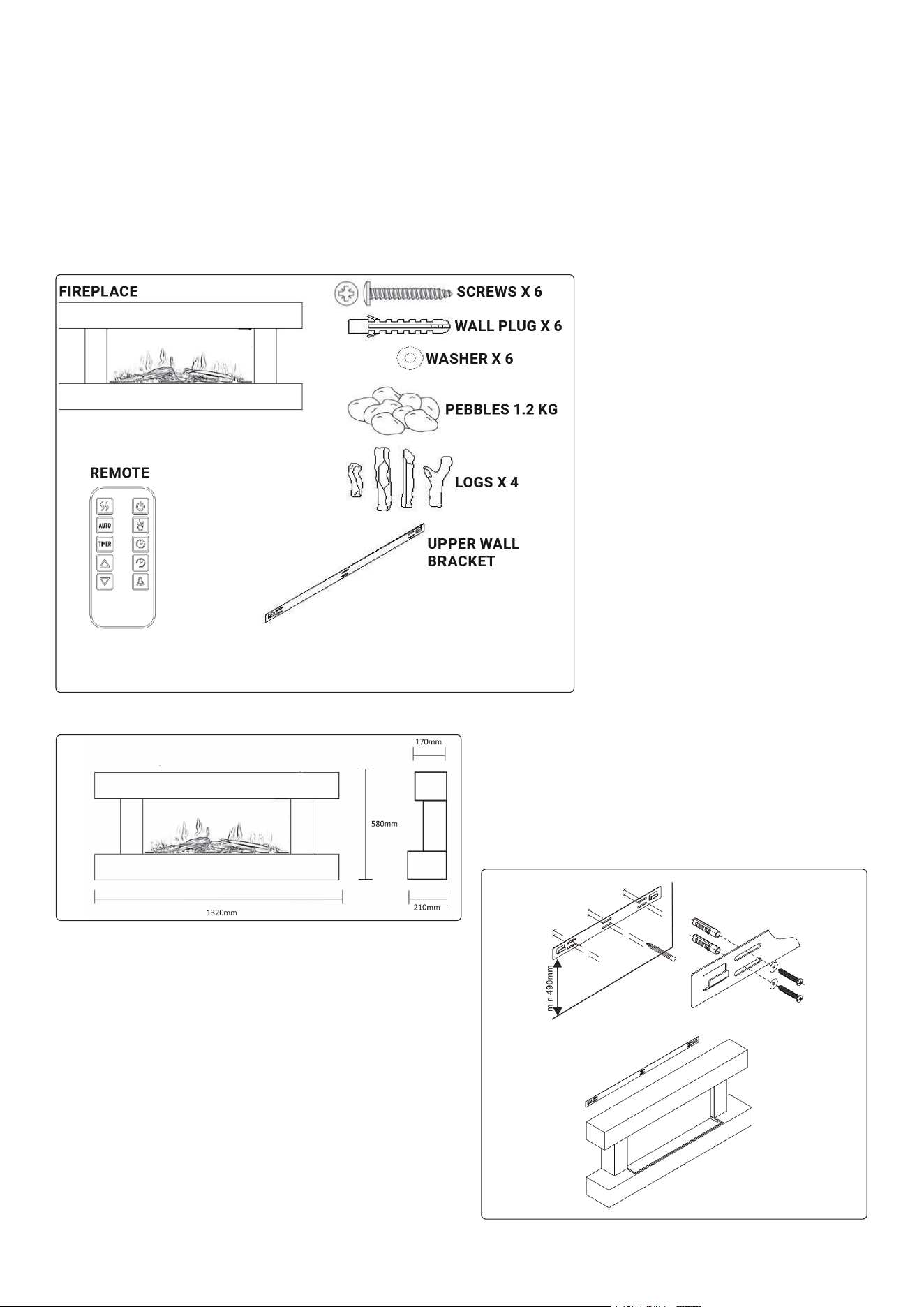

Contents
Dimensions
Installation
• This product is designed to be mounted flat to the wall.
• Before installation please ensure that the floor and wall are flat,
and there is nothing that would prevent the fire fitting flush.
• 1. The fire is designed to be permanently fixed to a wall with a minimum
distance of 300mm between the base of the fire and the floor.
• A distance of 600mm is recommended for the optimum height on
the wall.
• 2. The upper bracket should be placed against the wall 490mm above
the planned position of the base of the fire.
• 3. While ensuring that the bracket is level (using a spirit level) mark
the position of the six screw holes in the wall.
• 4. Put the bracket to one side, drill the holes marked in step 3 with an
8mm drill bit to a depth of around 35mm.
• 5. Clean any dust and debris from drilling, and insert a wall plug into each
hole, ensuring they are flush with the surface of the wall.
• 6. Hold the bracket in position and attach to the wall using 6 screws.
• 7. Two people should carefully lift the fire into position, ensuring the top
edge of the fire engages with the bracket.
• 8. Spread the supplied pebbles/branches (model dependant) in position on the light at the front of the unit.
• NOTE:
• The wall plugs supplied are designed for solid walls, and so depending on the type of wall, a different type of plug may be required (but not
included).
• Before drilling into the wall, you must ensure that there is no pipework or wiring behind the wall which may be damaged during installation.
• The fire must be installed by a competent person, if in any doubt about installation, the suitability of the wall, or wall plugs supplied, professional
advice should be sought.

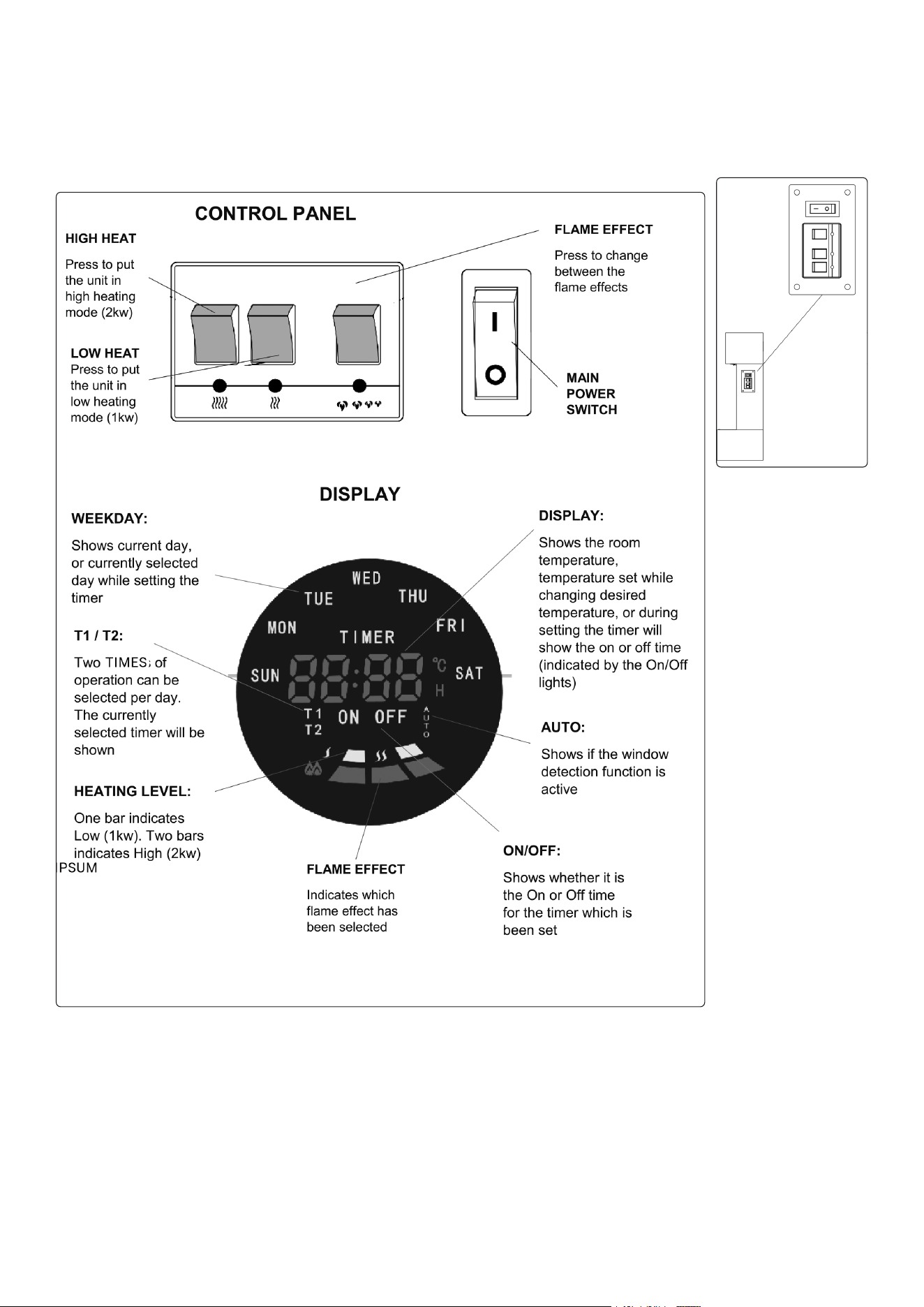

Operation
Maintenance
• WARNING! Before cleaning the appliance, the power supply should be disconnected and the unit should be allowed to cool.
• Dust can be removed by lightly wiping the glass surface with clean, lint free cloth or paper towel.
• To remove fingerprints or other marks, use a damp cloth with a good quality household glass cleaner. The front glass panel should be completely
dried and cooled down, before reusing the heater.
• CAUTION:
• DO NOT use abrasive cleaner on the glass panel.
• DO NOT spray liquids directly onto any surface of the unit.
• DO NOT clean the glass on the inside of the unit as this may cause damage to the surface.

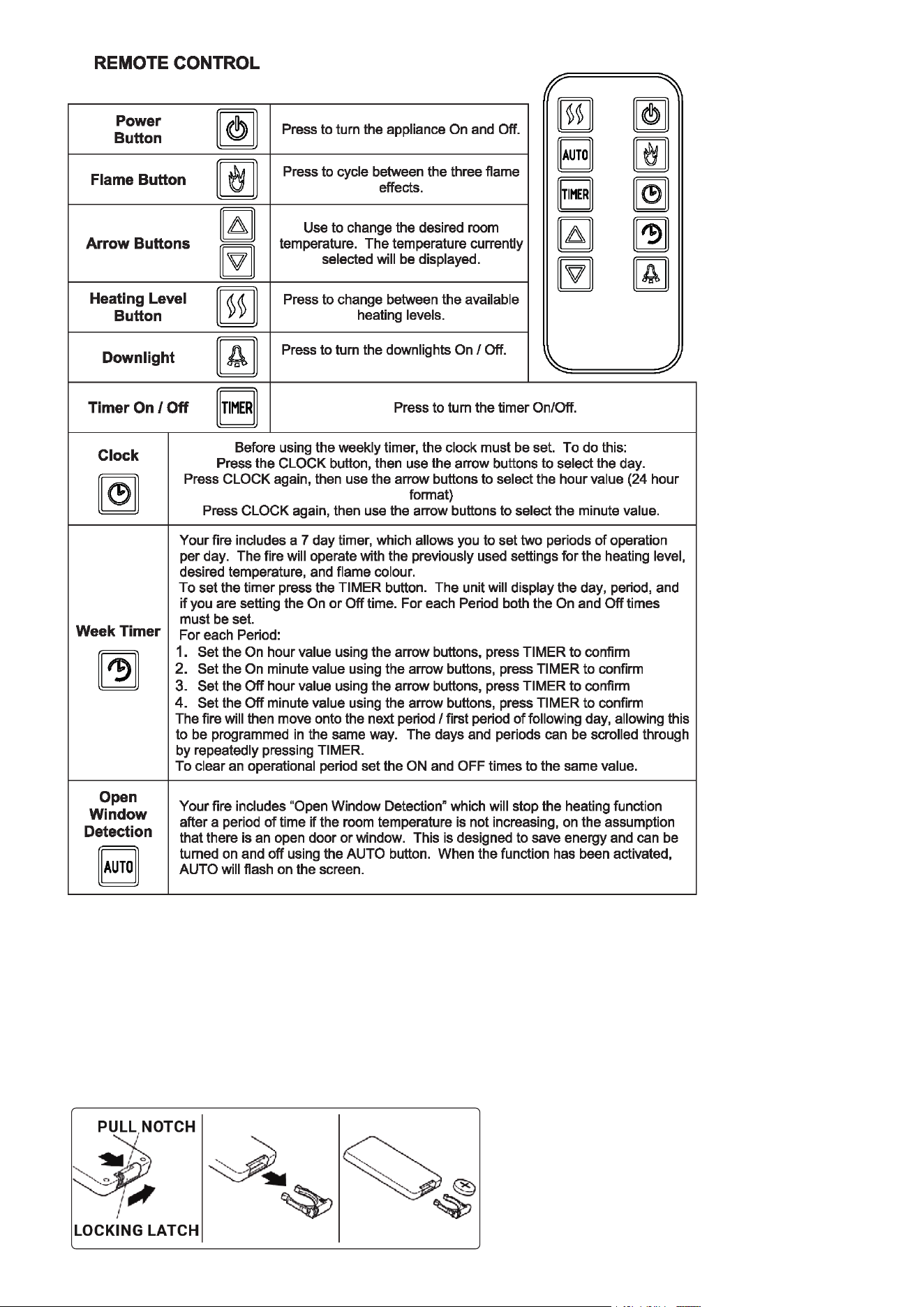

• REPLACING THE BATTERIES IN THE REMOTE CONTROL
• The remote control takes a CR2025 battery. If the remote becomes unresponsive, change the battery with a new battery, as shown in the image
below.
Problem Cause Solution
Fire has stopped working. The re has overheated and the thermal
safety device has activated or a circuit
breaker has tripped.
Check there is power to the socket where the
re is connected, check the fuse in the plug,
check the main power switch on the unit is
turned on and leave for 10 minutes in case of
thermal cut-out.
Flame is not moving. Flame motor defective. Contact Dellonda.
Environment Protection, Waste Electrical and Waste Electronic Equipment
Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of its
useful life, please dispose of in an environmentally friendly way. Drain any uids (if applicable) into approved
containers, in accordance with local waste regulations. It is our policy to continually improve products and we
reserve the right to alter data, specications and parts without prior notice. No liability is accepted for incorrect
use of this product. Guarantee is 12 months from purchase date, proof of which is required for any claim.
BATTERY REMOVAL
Under the Waste Batteries and Accumulators Regulations 2009, Dellonda Ltd are required to inform potential
purchasers of products containing batteries (as dened within these regulations), that they are registered
with Valpak’s registered compliance scheme. Dellonda Ltd Batteries Producer Registration Number (BPRN)
is BPRN00705. Batteries should be removed from remote control and disposed of according to local waste
regulations.
Information requirements for electric local space heaters
* Enter gure or NA
Model identier(s):
Item Symbol Value Unit Item Unit
Heat output
Type of heat input, for electric storage local space heaters
only (select one)
Nominal heat output
P
nom
kW
Manual heat charge control, with
Yes No
integrated thermostat
Minimum heat output (indicative)* P
min
kW
Manual heat charge control with room
Yes No
and/or outdoor temperature feedback
Maximum continuous heat output
P
max,c
kW
Electronic heat charge control with room
Yes No
and/or outdoor temperature feedback
Fan assisted heat output Yes No
Type of heat output/room temperature control (select one)
Single stage heat output and no room
Yes No
temperature control
Two or more manual stages, no room
Yes No
temperature control
With mechanic thermostat room
Yes No
temperature control
With electronic room temperature control Yes No
Electronic room temperature control plus
Yes No
day timer
Electronic room temperature control plus
Yes No
week timer
Other control options (multiple selections possible)
Room temperature control, with presence
Yes No
detection
Room temperature control, with open
Yes No
window detection
With distance control option Yes No
With adaptive start control Yes No
With working time limitation Yes No
With black bulb sensor Yes No
Contact details: Dellonda Ltd, Farney Street, Carrickmacross, Co. Monaghan, A81 PK68 Ireland www.dellonda.co.uk
ERP Table 2
Auxiliary electricity consumption
At nominal heat output el
max
kW
At minimum heat output el
min
kW
In standby mode el
SB
kW
DH112 v1 DH113 v1
1.898
0.990
0.0043
1.9
1.0
2.0
v1
