Monitor • User Manual
I
About this Document
●
This Document includes instructions for using and managing the Product. Pictures, charts, images and all other
information hereinafter are for description and explanation only.
●
The information contained in the Document is subject to change, without notice, due to firmware updates or other
reasons. Please find the latest version of the Document at the Hikvision website (https://www.hikvision.com).
Unless otherwise agreed, Hangzhou Hikvision Digital Technology Co., Ltd. or its affiliates (hereinafter referred to as
"Hikvision") makes no warranties, express or implied.
●
Please use the Document with the guidance and assistance of professionals trained in supporting the Product.
About this Product
This product can only enjoy the after-sales service support in the country or region where the purchase is made.
Acknowledgment of Intellectual Property Rights
●
Hikvision owns the copyrights and/or patents related to the technology embodied in the Products described in this
Document, which may include licenses obtained from third parties.
●
Any part of the Document, including text, pictures, graphics, etc., belongs to Hikvision. No part of this Document
may be excerpted, copied, translated, or modified in whole or in part by any means without written permission.
●
and other Hikvision's trademarks and logos are the properties of Hikvision in various
jurisdictions.
●
Other trademarks and logos mentioned are the properties of their respective owners.
●
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
LEGAL DISCLAIMER
●
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS DOCUMENT AND THE PRODUCT DESCRIBED,
WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND "WITH ALL FAULTS AND ERRORS".
HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY,
SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR
OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR
INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS
INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED
ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION
WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES
OR LOSS.
●
YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND
HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER
DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY
RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
●
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY
Monitor • User Manual
II
RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE
RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD
PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA
PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES,
INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR
PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY
NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
●
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS DOCUMENT AND THE APPLICABLE LAW, THE LATTER PREVAILS.
© Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
Monitor • User Manual
III
Applicable Models
This manual is applicable to monitor.
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Safety Instructions
Caution: The device may generate radio interference in indoor environment. Necessary
precautions may be required.
In the use of the product, you must be in strict compliance with the electrical safety
regulations of the nation and region.
Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power
Source with 100 to 240 VAC or 12 VDC/2 A according to the IEC60950-1 standard.
CAUTION: Replace the fuse only with the same model to reduce the risk of fire or electric
shock.
The device must be connected to an earthed mains socket-outlet.
Make sure that the power has been disconnected before you wire, install, or disassemble the
device.
CAUTION: This device is for use only with specified bracket (Hikvision's monitor stand). Use
with other (carts, stands, or carriers) may result in instability causing injury.
To prevent possible hearing damage, do not listen at high volume levels for long periods.
If the device is not working properly, contact the store where the device was purchased or the
nearest service center and do not remove or modify the device in any way. (Our company is
not responsible for problems caused by unauthorized modifications or repairs.)
Symbol
Description
Provides additional information to emphasize or supplement
important points of the main text.
Indicates a potentially hazardous situation, which if not avoided,
could result in equipment damage, data loss, performance
degradation, or unexpected results.
Indicates a hazard with a high level of risk, which if not avoided, will
result in death or serious injury.
Monitor • User Manual
IV
Do not connect several devices to one power adapter as adapter overload may cause over-
heating or a fire hazard.
The device shall not be exposed to water dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the equipment.
Ensure correct wiring of the terminals for connection to an AC mains supply.
The device has been designed, when required, modified for connection to an IT power
distribution system.
identifies the battery holder itself and identifies the positioning of the cell(s) inside the
battery holder.
+ identifies the positive terminal(s) of equipment which is used with, or generates direct
current. - identifies the negative terminal(s) of device which is used with, or generates direct
current.
No naked flame sources, such as lighted candles, should be placed on the equipment.
The ventilation should not be impeded by covering the ventilation openings with items, such
as newspapers, tablecloths, curtains, etc. The openings shall never be blocked by placing the
equipment on a bed, sofa, rug or other similar surface.
Keep product surface clean and dry. Do not operate in humid or explosive environment.
Avoid contact with exposed circuits. Do not touch exposed contacts or components when
powering on the product.
The USB port of the device is used for connecting to a mouse, a keyboard, or a USB flash drive
only.
Install the device according to the instructions in this manual.
To prevent injury, this device must be securely attached to the floor/wall in accordance with
the installation instructions.
Do not cause objects to fall on the device or shake the device vigorously, and keep the device
away from areas where magnetic field interference exists. Avoid installing the device in a place
where the surface vibrates or is vulnerable to shock.
Do not install the device at high temperatures (above 40 ° C) or low temperatures (below -10 °
C) or high humidity.
Keep vertical when moving or using the device.
Proper configuration of all passwords and other security settings is the responsibility of the
installer and/or end-user.
Monitor • User Manual
1
Chapter 1 Product Introduction

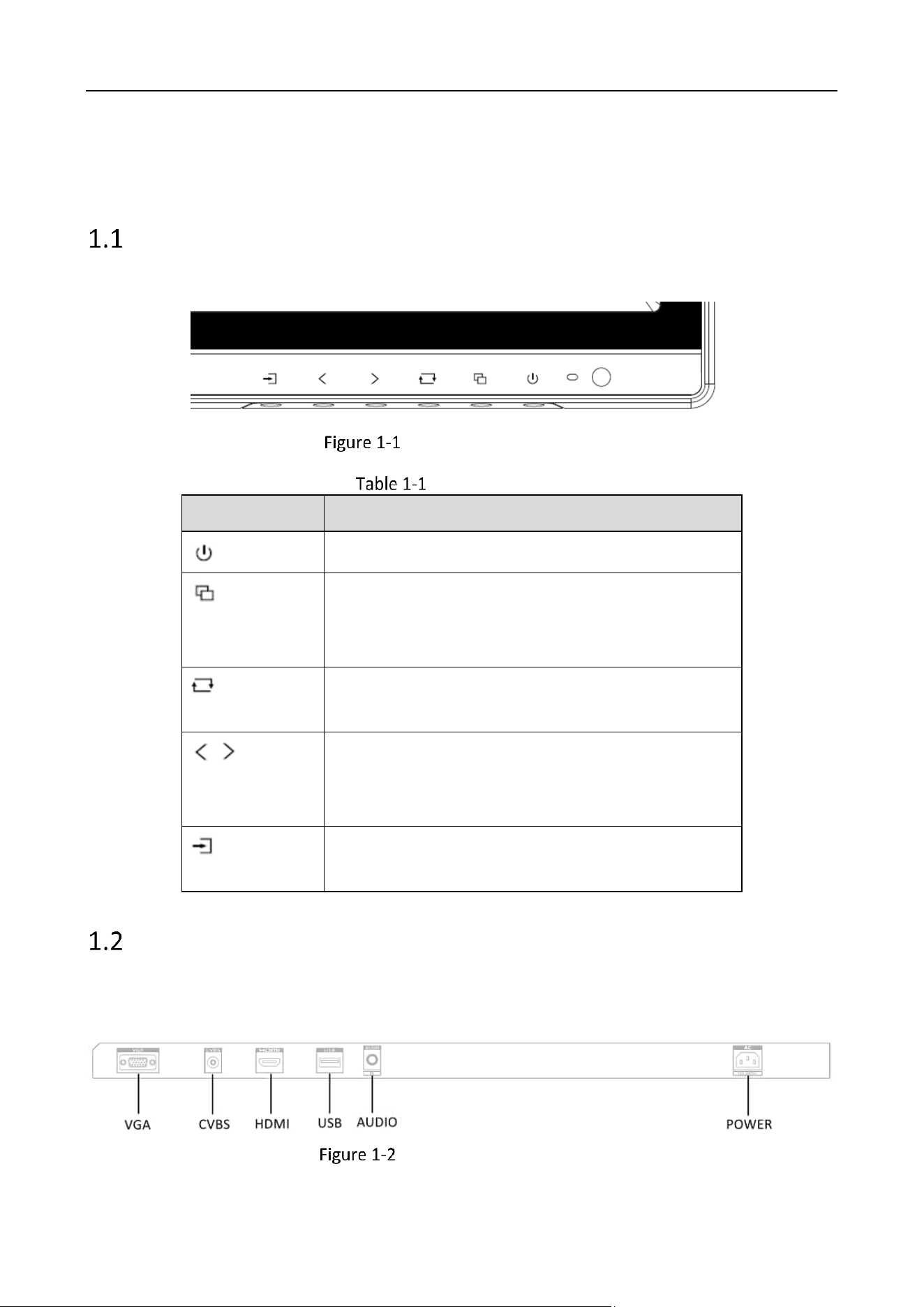

Buttons on the Front Panel
The buttons at the bottom-right corner of the front panel are shown as follows.
Buttons on the Front Panel
Button Description
Button
Description
Power On/Off
Second level menu page: Exit menu.
File selection for USB playing: Play
Other pages: Display main menu page.
Display the current input source.
All the menu pages: OK
First-level page: Previous/Next
Second-level page: Add/Reduce
USB playing page: Volume up/down
Display all the input sources.
All the menu pages: Switch to next one.
Interfaces on the Rear Panel
The interfaces that may be found on the rear panel of the device are defined as follows.
Type 1
Interfaces on the Rear Panel
Monitor • User Manual
2

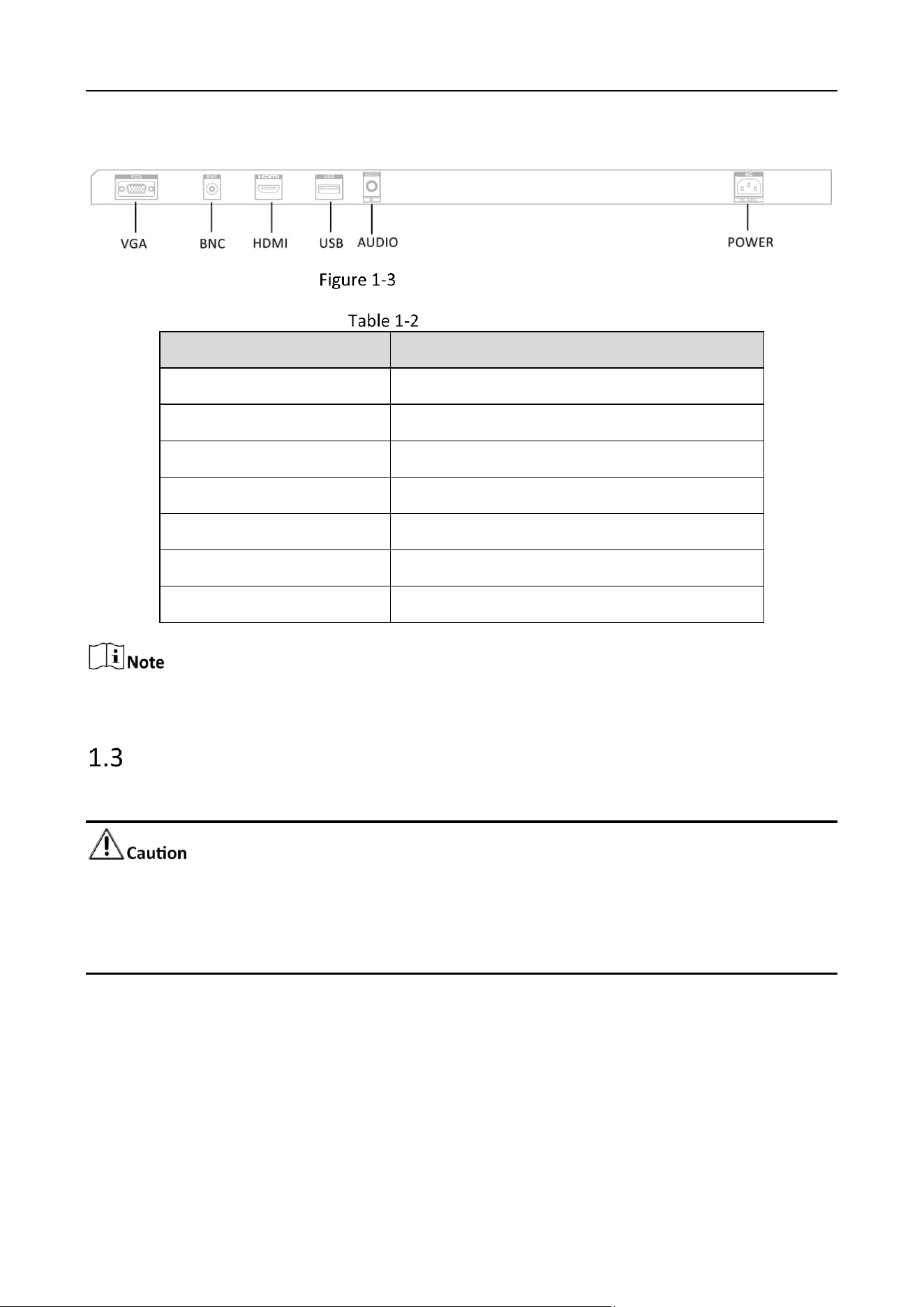

Type 2
Interfaces on the Rear Panel
Interface Description
Interface
Description
VGA
VGA analog signal input interface
CVBS
CVBS signal input interface
BNC
BNC signal input interface
HDMI
HDMI digital signal input interface
USB
USB 2.0 input interface
AUDIO
Audio input interface
POWER
Power supply
CVBS input interface is available to type 1. BNC input interfaces is available to types 2.
Power On
Connect the device to an earthed mains socket-outlet, and press the power button.
Power Supply: 220 VAC~, 50/60 Hz.
Power off the device and disconnect the plug if it is not in use for a long time.
The device cannot be connected to DC power supply.
Monitor • User Manual
3
Chapter 2 Installation
The installation drawings are for reference only.

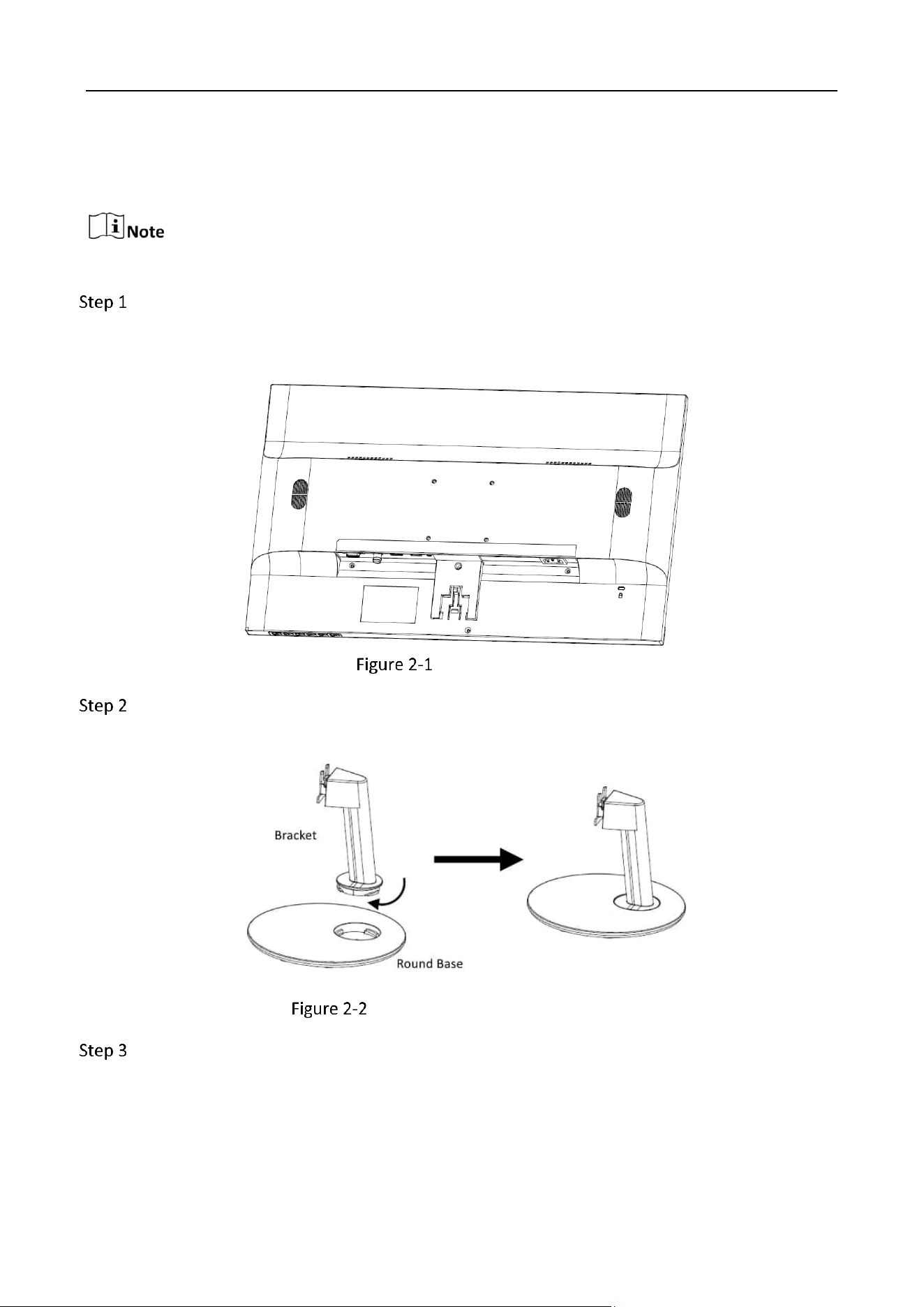

Gently lift the device. Place the screen down on a stable surface covered with a thick soft
cloth so that the bottom of the device is close to the edge of the surface for mounting the
bracket.
Place the Monitor
Take out the bracket and round base from the packing box. Align the bracket with the buckle
on the base and fix the bracket clockwise.
Fix the Bracket with the Round Base

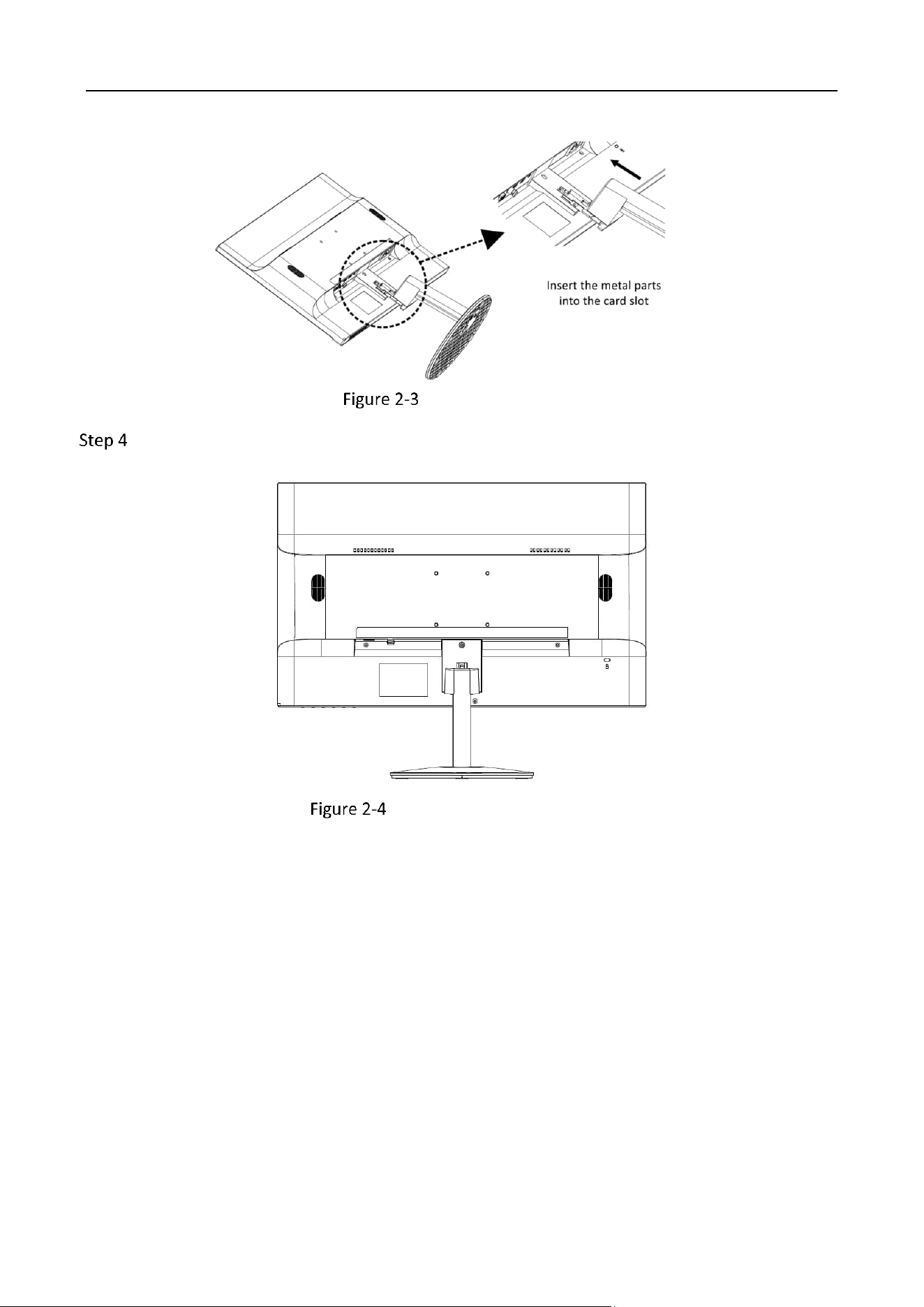

Align the metal parts on the bracket of round base with the slots at the back of the device
and insert them.
Monitor • User Manual
4
Insert the Metal Parts
Installation finished.
Fix the Bracket with the Device
Monitor • User Manual
5
Chapter 3 Remote Control

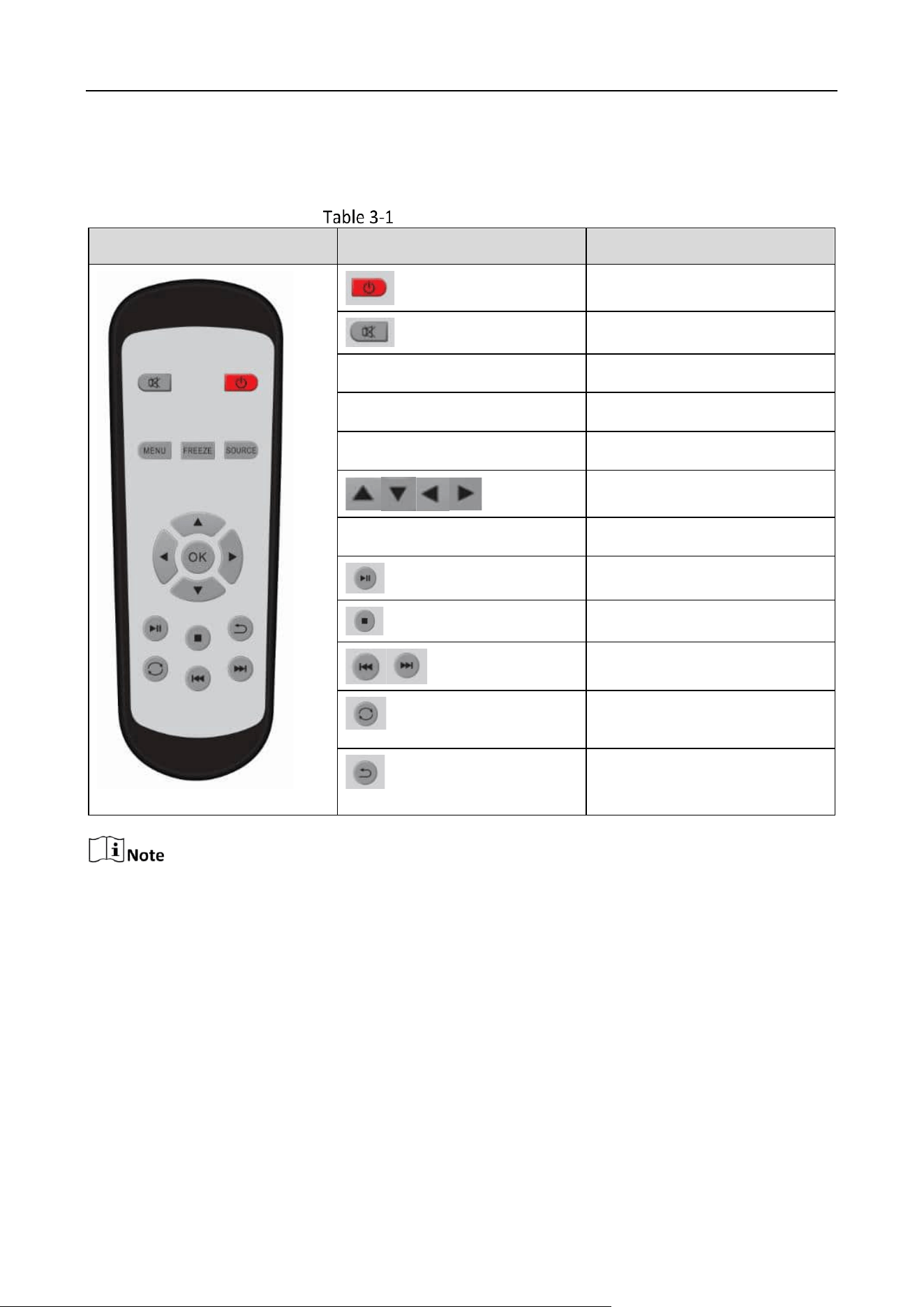

Remote Control Description
Appearance
Button
Description
Power on/off
Mute/Unmute
【FREEZE】
Freeze the current display
【MENU】
Go to menu settings
【SOURCE】
Check or select a signal source.
Up/Down/Left/Right
【OK】
OK
Play/Pause
Stop
Previous/Next
Repeat
Return
The remote control is not available to all kinds of devices. Whether your device is equipped
with a remote control depends on the actual situation.
Please choose and equip the remote control according to your actual needs.
Monitor • User Manual
6
Chapter 4 Basic Operations
The interfaces vary with different models. The figures followed are for illustration purpose only.

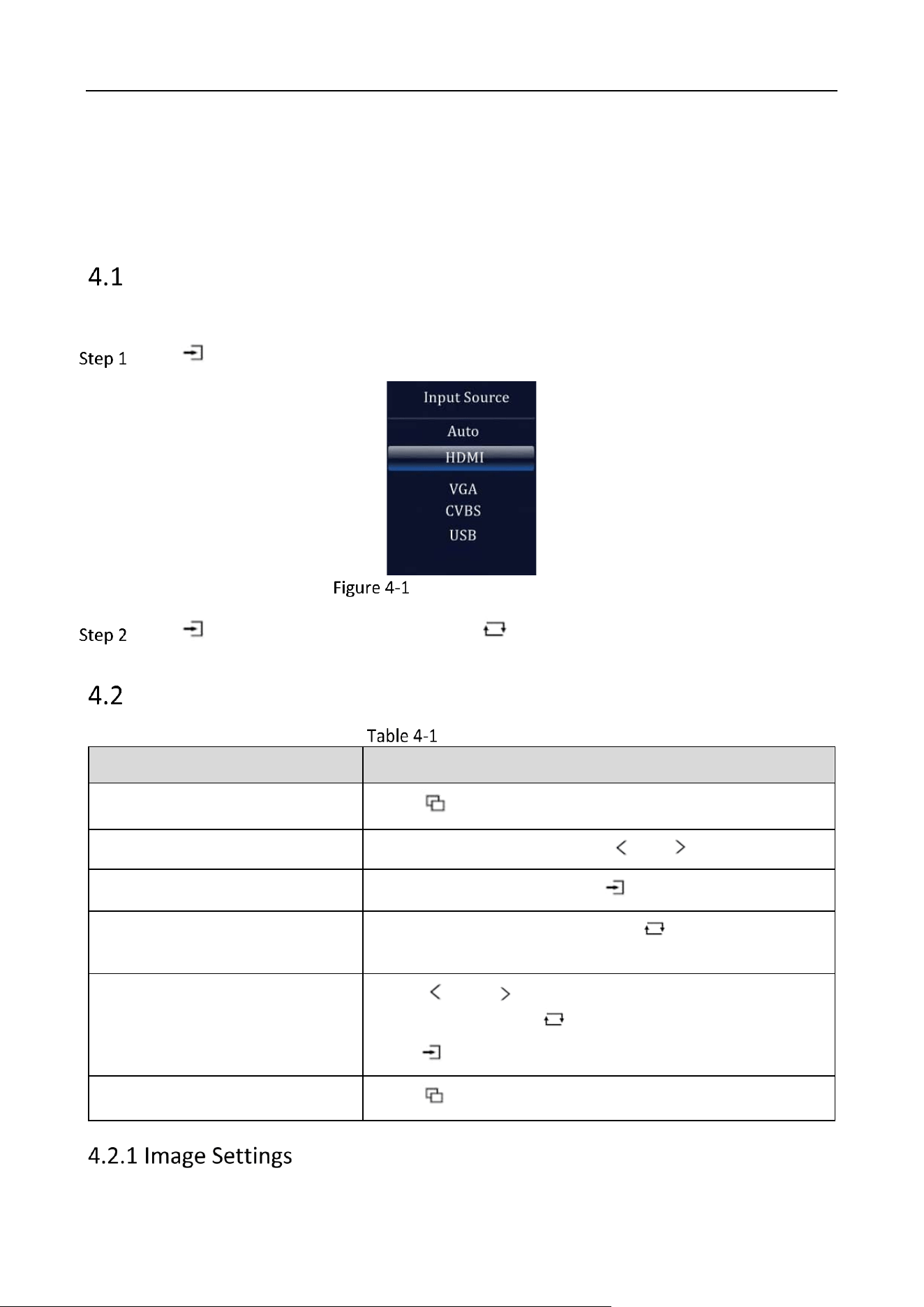

Switch the Signal Source
Connect the device to power source and signal source, and power on the device.
Press to enter the signal source page.
Switch the Signal Source
Press to switch input sources, and press to confirm.
Menu Operation
Basic Operation
Operation
Description
Enter main menu page
Press .
Check first-level menu
On the main menu page, press or to switch.
Check second-level menu
On the first menu page, press to switch.
Check parameters
On the second menu page, press to enter and check
different parameters.
Configure parameters
Press or to adjust the value of the selected
parameter, and press to confirm.
Press to switch to other parameters.
Return to the upper menu
Press on any pages.
Monitor • User Manual
7

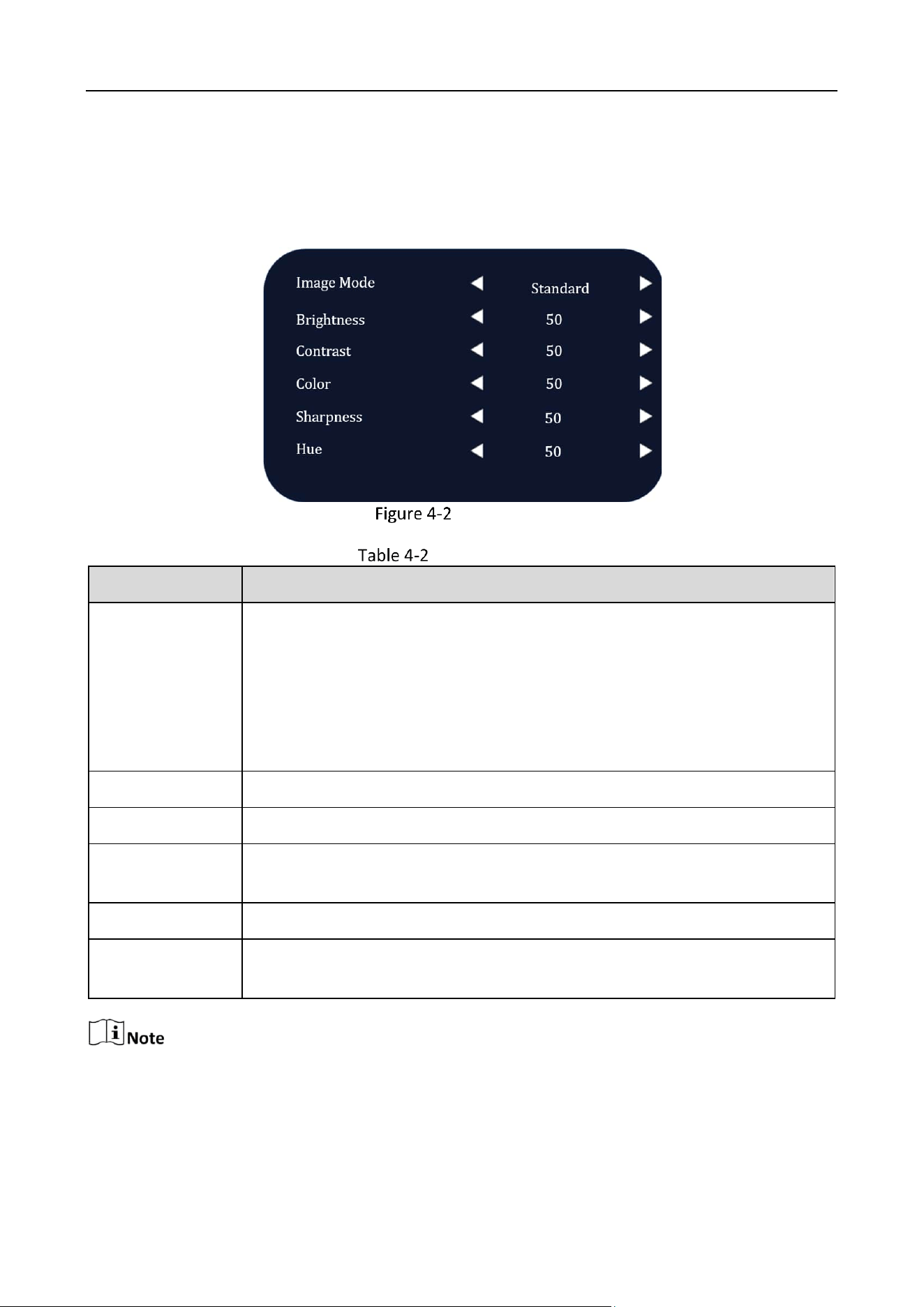

Image Mode
You can switch image modes and adjust image parameters including contrast, brightness, color,
sharpness, and hue. The adjustable parameters will change when you switch from one image
mode to another.
Image Mode
Image Parameters
Parameter
Descrption
Image Mode
Standard: Suitable for a normal environment. It is set as default picture
mode.
Gentle: Suitable for a dark room.
Dynamic: Suitable for a bright room
User: Set the brightness, contrast, color, sharpness or hue to adjust
display effect.
Brightness
Ranges from 0 to 100. The higher the value is, the brighter the display will be.
Contrast
Ranges from 0 to 100. The higher the value is, the clearer the display will be.
Color
Ranges from 0 to 100. The higher the value is, the more colorful the display
will be.
Sharpness
Ranges from 0 to 100. Rise the value up to make the image more vivid.
Hue
Ranges from 0 to 100. It determines the contrast degree between the bright
and dark.
If the user mode selected, the adjustable parameters are determined by the input signal.
− For VGA input, brightness and contrast are adjustable.
− For HDMI input, brightness, contrast, color, and sharpness are adjustable.
Monitor • User Manual
8
− For BNC input, brightness, contrast, color, and sharpness, and hue are adjustable.
− For USB, brightness, contrast, color, and sharpness are adjustable.
Parameters in white bar are adjustable. If the parameter bar is gray it indicates that the
parameters is not adjustable under the current mode or input source.
On USB playing page, you can play the selected file.

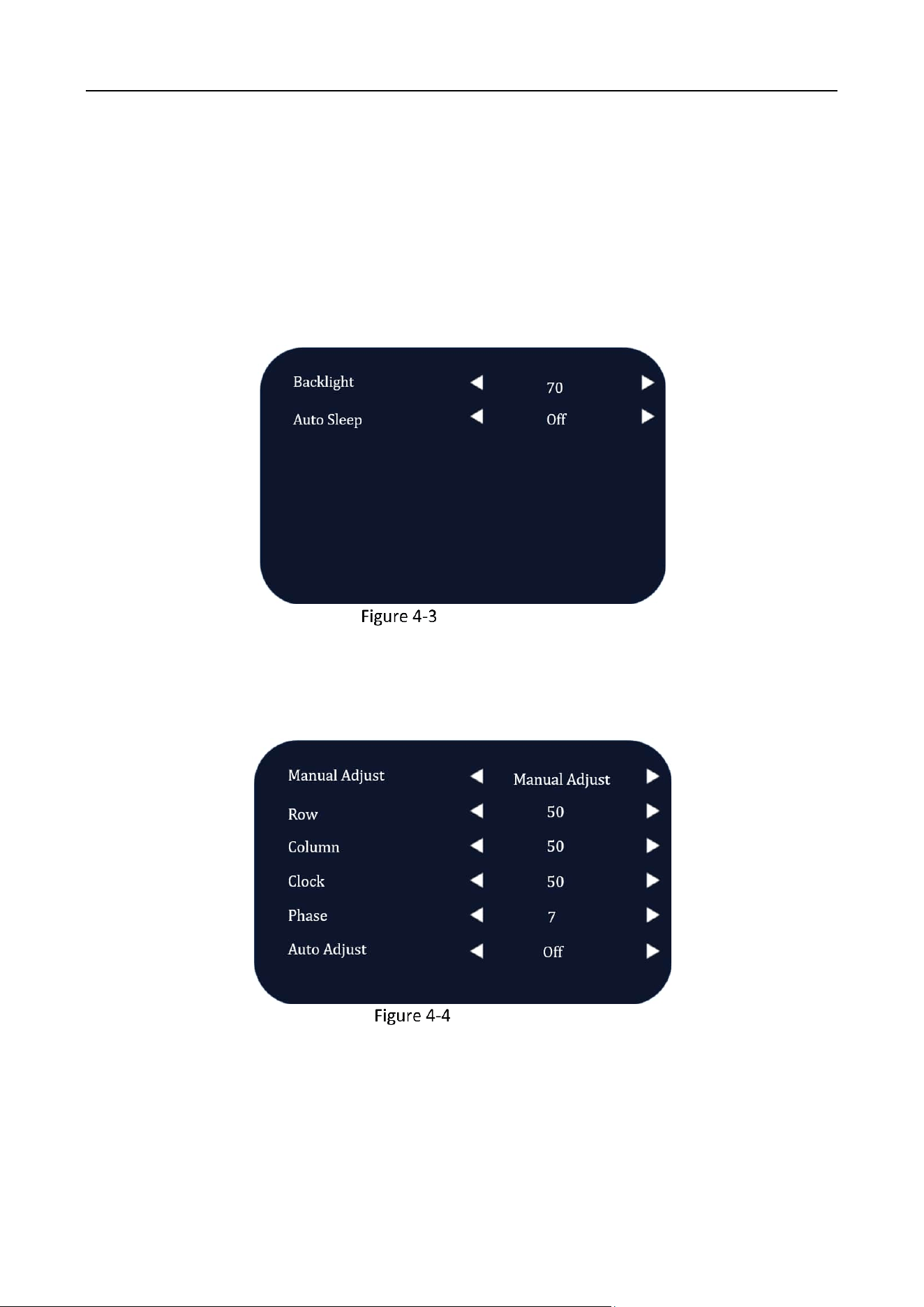

Backlight
The backlight value range from 0 to 100.
Backlight Setting
VGA Parameter
When you select VGA as the input source, you can adjust VGA parameters to make the picture
show in the correct position.
VGA Settings
Monitor • User Manual
9
VGA Parameters
Parameter
Description
Manual Adjust
Press or to adjust. Adjust the size and position of the image.
Row
Ranges from 0 to 100. Move the image position to the left or right.
Column
Ranges from 0 to 100. Move the image position to the top or bottom.
Phase
Ranges from 0 to 100. Adjusting the value of Phase will change the
image position in a slight extent at the horizontal level.
Clock
Ranges from 0 to 100. Changing the value of Clock will stretch or narrow
the image.
Auto Adjust
Press or to turn off or turn on. If Auto Adjust is enabled, the
related parameters will self-adjust under the following 3 circumstances.
The device is restarted, a VGA input source is accessed, and the input
source is switched to VGA. VGA parameters cannot be changed when
Auto Adjust is disabled.

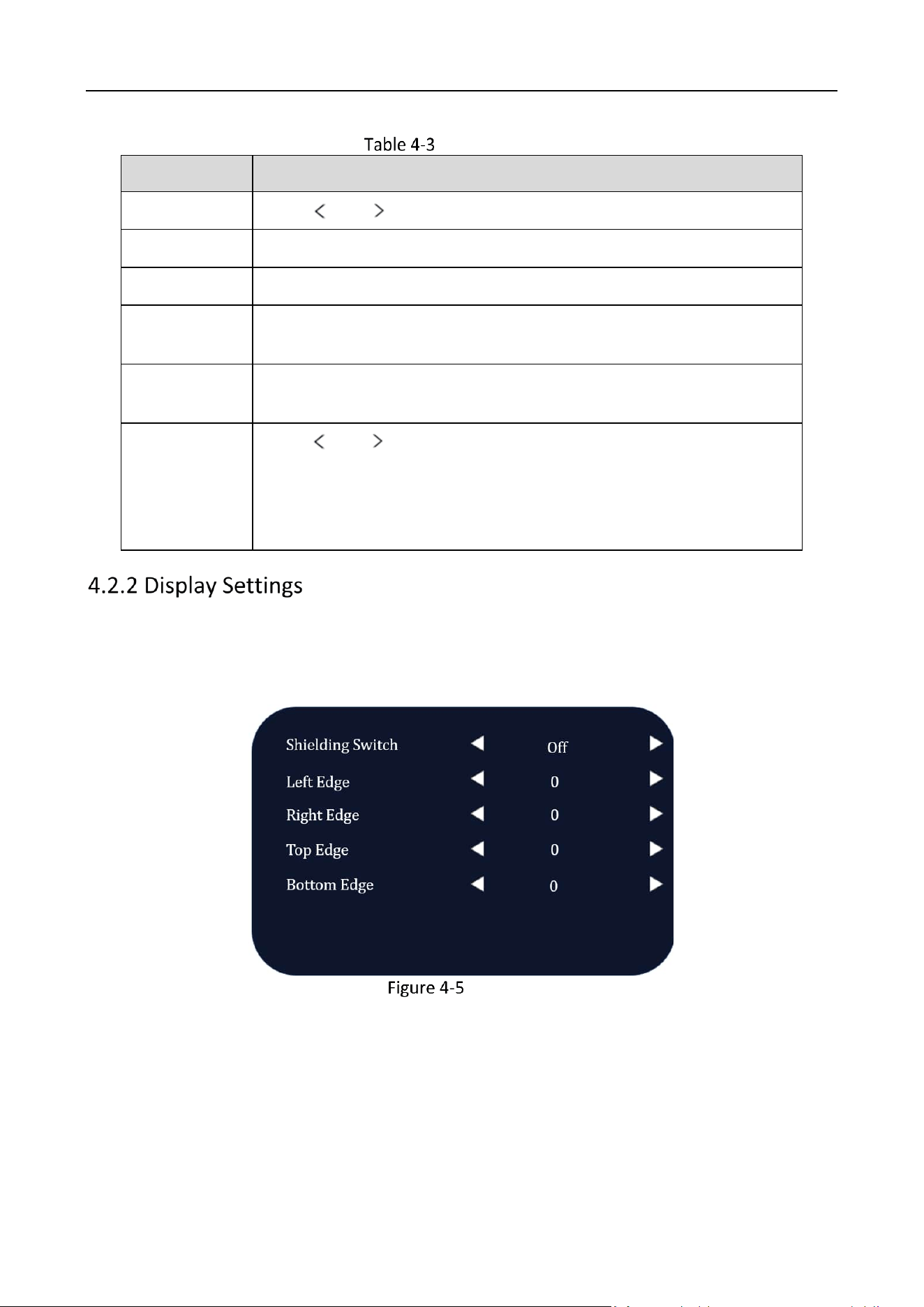

Shielding Switch
If Shielding Switch is on, you can set the value of the top, bottom, left, right edge. The value
indicates the covered units of different directions.
Overscan
Monitor • User Manual
10
Overscan Parameters
Parameter
Description
Shielding Switch
On/Off
Left Edge
Ranges from 0 to 100
Right Edge
Ranges from 0 to 100
Top Edge
Ranges from 0 to 100
Bottom Edge
Ranges from 0 to 100

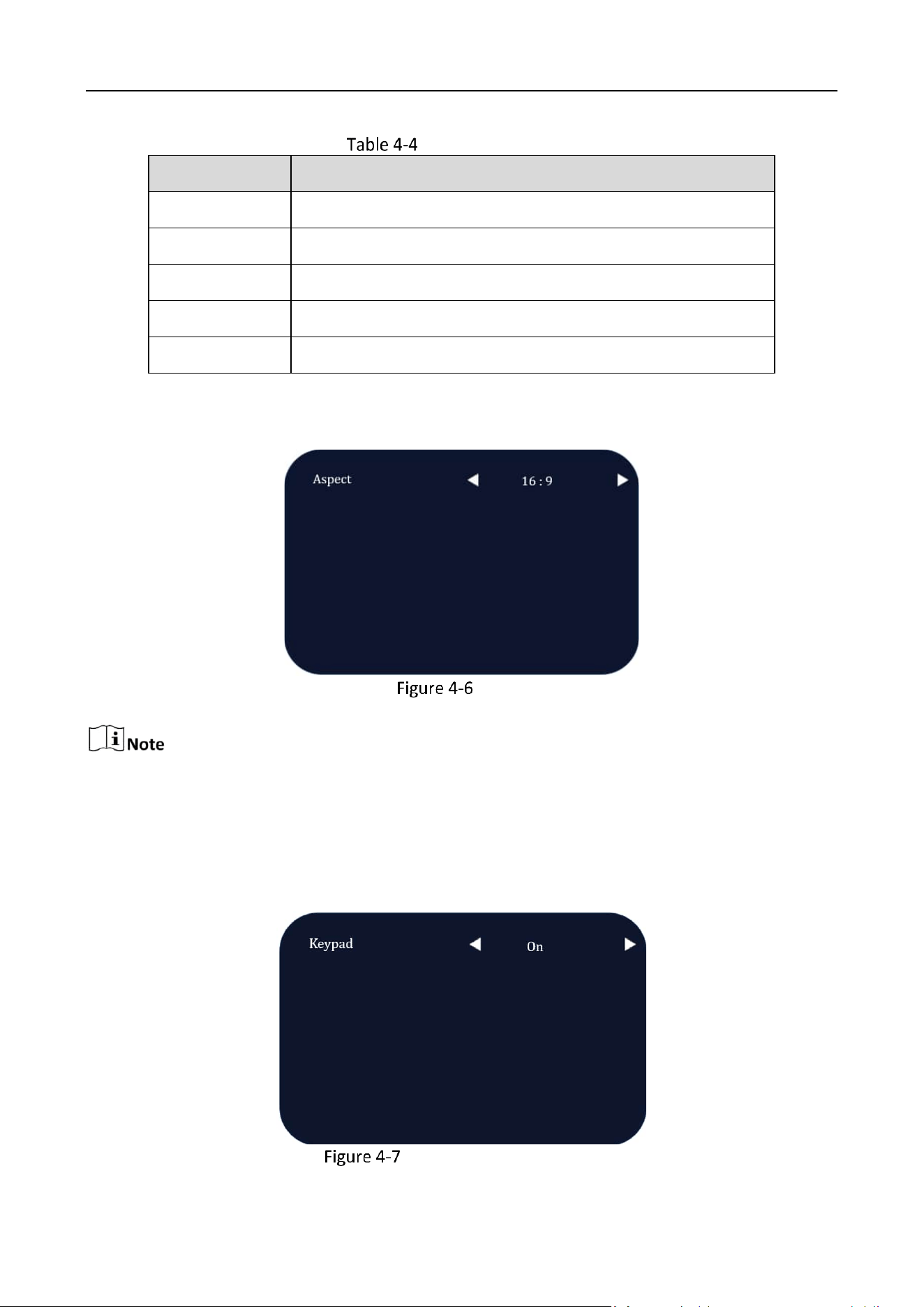

Aspect
Scale up/down the image. Three kinds of aspects are available: 16:9, 4:3, and point to point.
Aspect
Point to Point mode is only available when a VGA or HDMI signal is accessed.
Keypad
You can enable or disable the keypad of the device. If there is no need to use the keypad or the
keypad is squeezed in the installation environment, you can turn off the keypad to disable the
buttons on it. You can enable the keypad by long pressing the MENU button on remote control.
Enable/Disable the Keypad
Monitor • User Manual
11

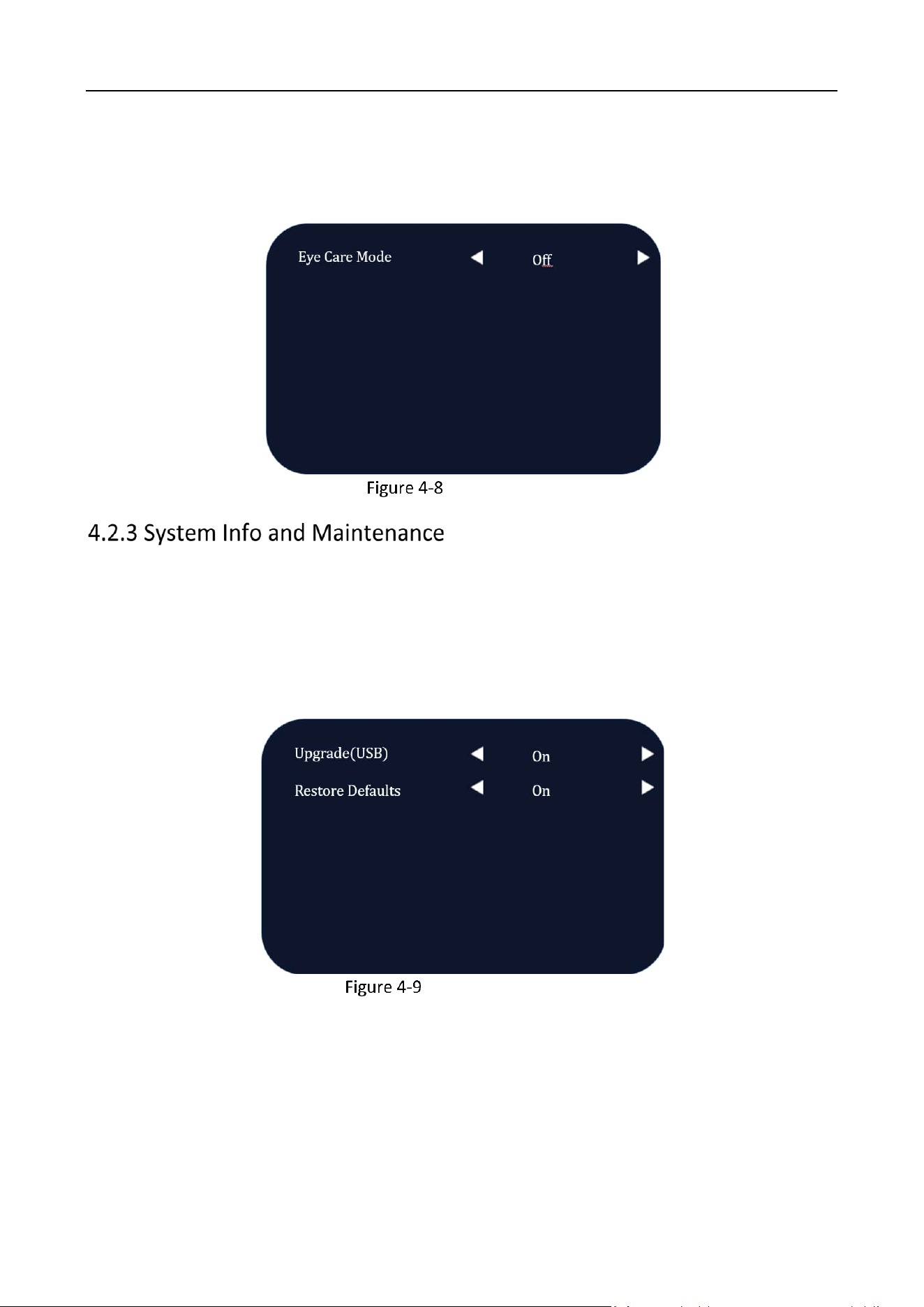

Eye Care Mode
You can enable or disable the Eye Care Mode of the device. Once enabled the mode, it can
effectively reduce blue light radiation, alleviate eye fatigue, and protect your vision.
Eye Care Mode
System Maintenance
Contact our technical support personnel for upgrade program and USB driver.
Upgrade: Insert the USB driver to the USB interface, and set Upgrade (USB) as On. Follow the
instructions on the screen to upgrade.
Restore Defaults: Restore all the settings to the default value.
System Maintenance

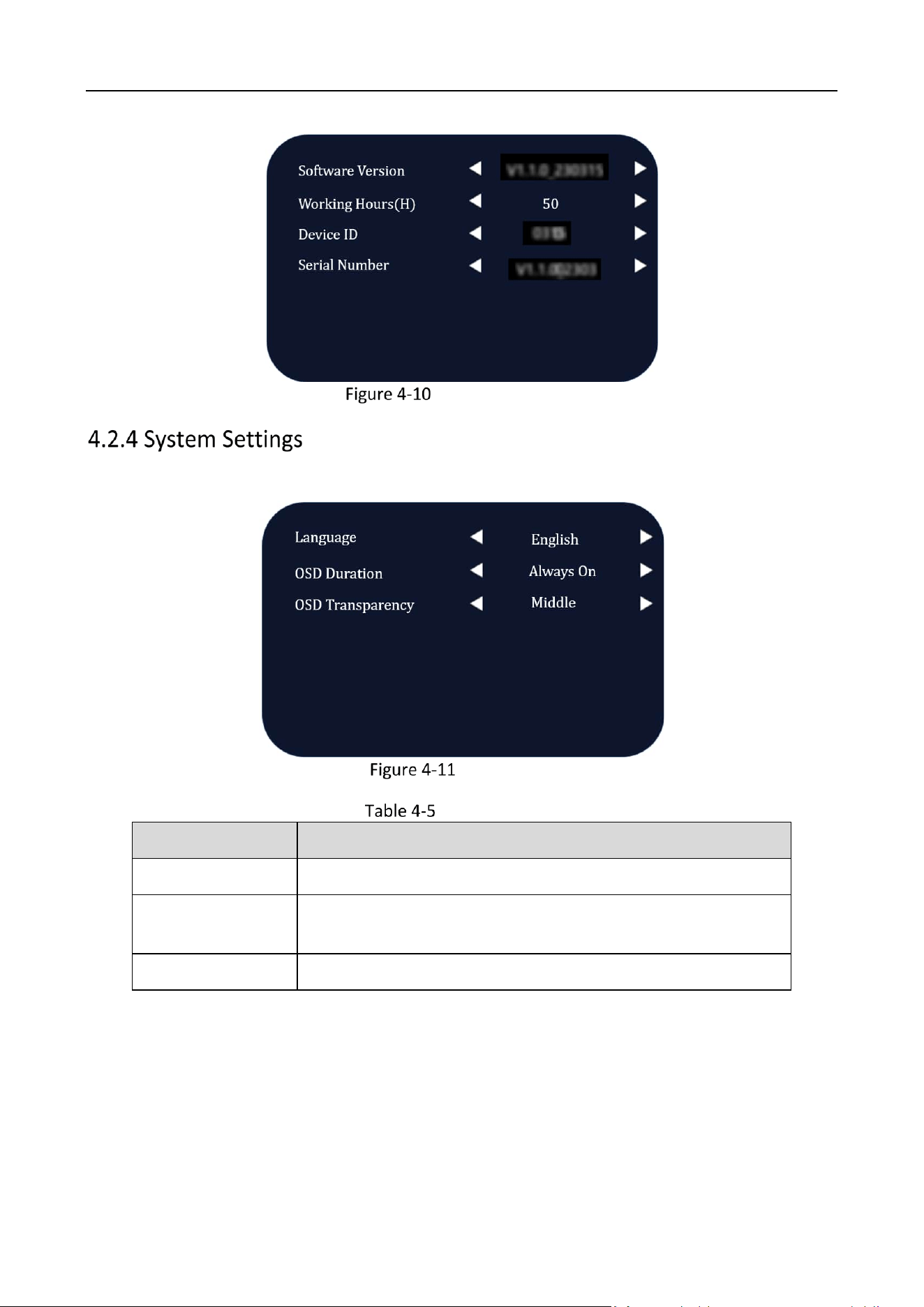

System Info
Check the software version, working hours, ID, and serial number of the device.
Monitor • User Manual
12
System Information
OSD Settings
OSD Settings
OSD Parameters
Parameter
Description
Language
Chinese/English
OSD Duration
Always On/5 s/15 s/30 s. The displaying time for OSD menu
when no operation is done.
OSD Transparency
Low/Middle/High/Off

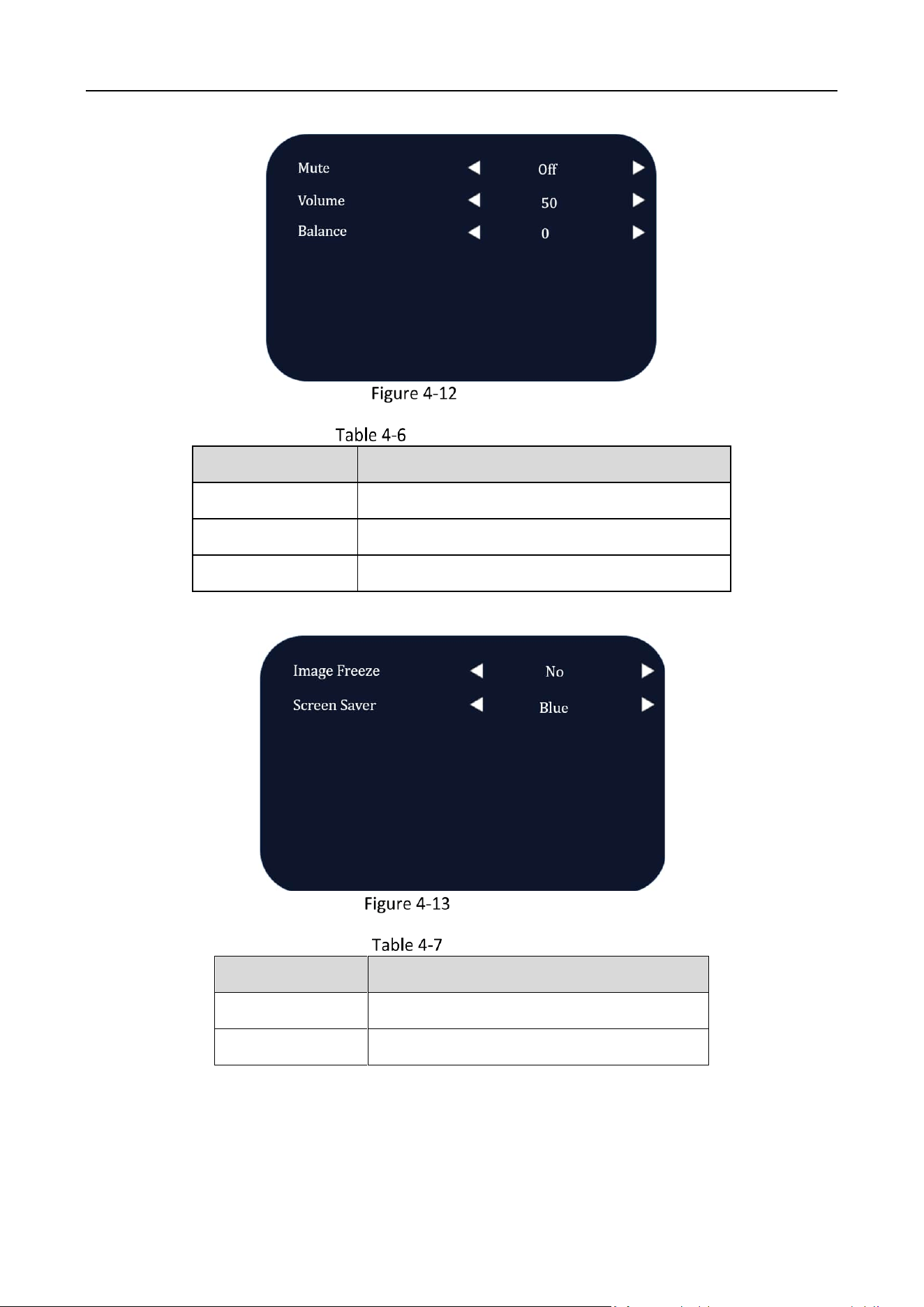

Audio Mode
You can set the volume as desired or mute/unmute the playing.
Monitor • User Manual
13
Audio Mode
Audio Mode Parameters
Parameter
Description
Mute
Off/On. Off by default.
Volumn
Ranges from 0 to 100.
Balance
Ranges from 0 to 100.
Other Settings
Other Settings
Other Settings
Parameters
Description
Image Freeze
Yes/No
Screen Saver
Logo/Blue/Black Screen
Monitor • User Manual
14

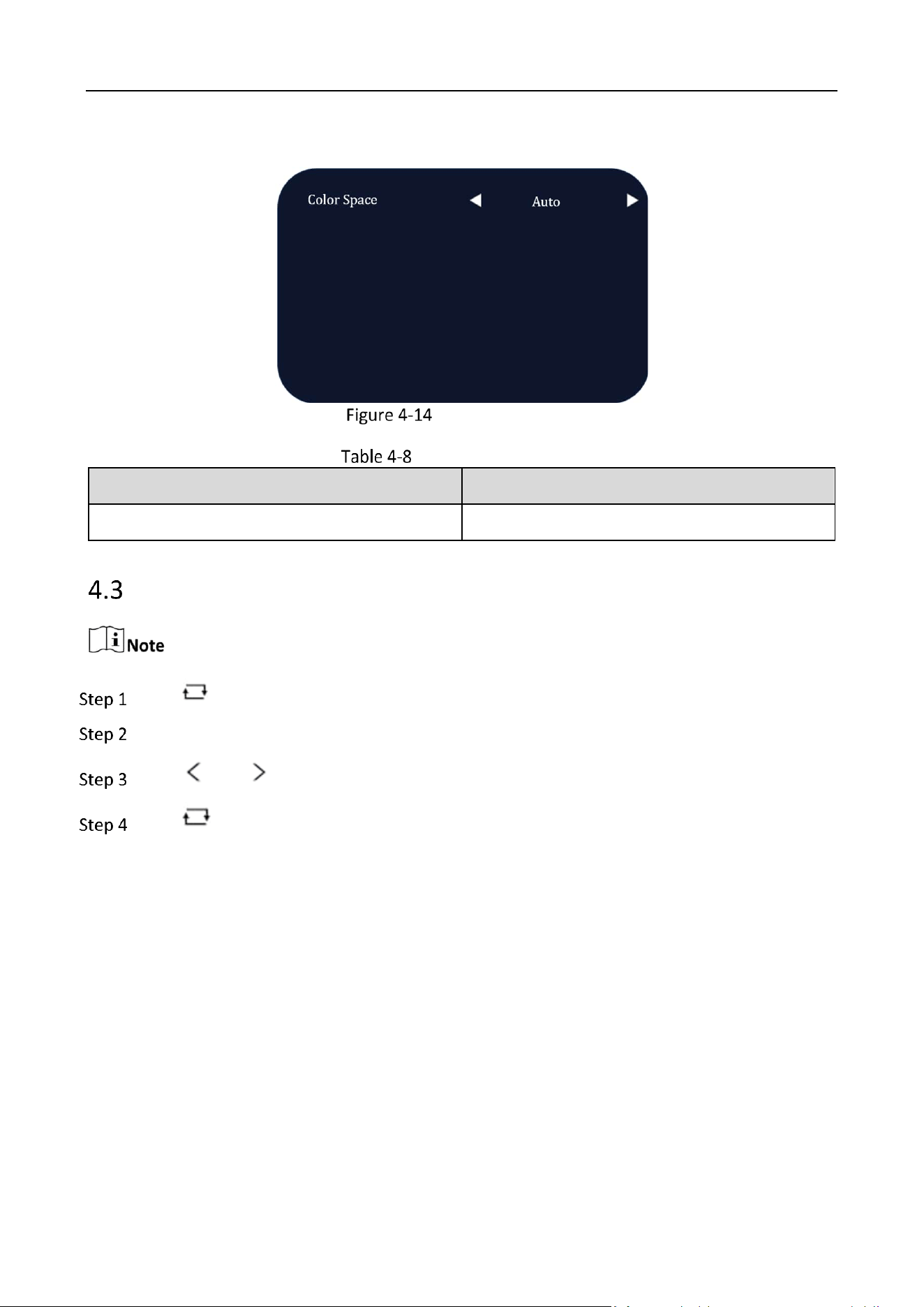

Color Space Setting
Color Space Setting
Color Space Parameter
Parameter
Description
Color Space
Auto/16-235/0-255
USB Menu
Press , and insert your removable storage device into the USB interface of the device.
Select USB as the input signal source, and then the USB menu displays.
Press or to select your desired file type for playing.
Press to confirm.
0
UD36815B
