TURBO HD
Full Time Color Series
Turret Camera
User Manual
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Model
DS-2CE72DFT-F
DS-2CE72DFT-F28
This manual may contain technical incorrect places or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or
update the products or procedures described in the
manual.
0100001091227
Regulatory Information
FCC Information
Please take attention that changes or modification not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
FCC compliance: This equipment has been tested and
found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
EU Conformity Statement
This product and - if applicable - the
supplied accessories too are marked with
"CE" and comply therefore with the
applicable harmonized European
standards listed under the Low Voltage Directive
2014/35/EU, the EMC Directive 2014/30/EU, the RoHS
Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products
marked with this symbol cannot be
disposed of as unsorted municipal waste in
the European Union. For proper recycling,
return this product to your local supplier
upon the purchase of equivalent new
equipment, or dispose of it at designated collection
points. For more information see: www.recyclethis.info.
2006/66/EC (battery directive): This product contains
a battery that cannot be disposed of as
unsorted municipal waste in the European
Union. See the product documentation for
specific battery information. The battery is
marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb),
or mercury (Hg). For proper recycling, return the
battery to your supplier or to a designated collection
point. For more information see:
www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A)
standards requirements.
Warning
This is a class A product. In a domestic environment this
product may cause radio interference in which case the
user may be required to take adequate measures.
Safety Instruction
These instructions are intended to ensure that user can
use the product correctly to avoid danger or property
loss.
The precaution measure is divided into “Warnings” and
“Cautions”.
Warnings: Serious injury or death may occur if any of
the warnings are neglected.
Cautions: Injury or equipment damage may occur if any
of the cautions are neglected.
Warnings
In the use of the device, you must be in strict
compliance with the electrical safety regulations of
the nation and region.
Input voltage should meet both the SELV (Safety Extra
Low Voltage) and the Limited Power Source with 12
VDC according to the IEC60950-1 standard. Refer to
technical specifications for detailed information.
Do not connect multiple devices to one power
adapter to avoid over-heating or a fire hazard caused
by overload.
Make sure that the plug is firmly connected to the
power socket.
Make sure that the device is firmly fixed if wall
mounting or ceiling mounting is adopted.
If smoke, odor or noise rise from the device, turn off
the power at once and unplug the power cord, and
then contact the service center.
Never attempt to disassemble the camera by
unprofessional personal.
Cautions
Do not drop the camera or subject it to physical
shock.
Do not touch senor modules with fingers.
Do not place the camera in extremely hot, cold (the
operating temperature shall be -40°C to 60°C), dusty
or damp locations, and do not expose it to high
electromagnetic radiation.
If cleaning is necessary, use clean cloth with a bit of
ethanol and wipe it gently.
Do not aim the camera at the sun or extra bright
places.
The sensor may be burned out by a laser beam, so
when any laser equipment is in using, make sure that
the surface of sensor will not be exposed to the laser
beam.
Do not expose the device to high electromagnetic
radiation or extremely hot, cold, dusty or damp
environment.
To avoid heat accumulation, good ventilation is
required for the operating environment.
Warnings Follow
these safeguards to
prevent serious injury
or death.
Cautions Follow these
precautions to prevent
potential injury or
material damage.
Keep the camera away from liquid while in use for
non-water-proof device.
While in delivery, the camera shall be packed in its
original packing, or packing of the same texture.
Mark Description
Table 0-1 Mark Description
Mark
Description
DC Voltage
1 Introduction
1.1 Product Features
The main features are as follows:
High performance CMOS sensor
Full time color
OSD menu with configurable parameters
Auto white balance
Internal synchronization
Smart light mode
3-axis adjustment
1.2 Overview
DC12VIN
Enclosure
Main Body
Mounting
Base
Switch Button
Power Cord
(12 VDC)
Video Cable
Figure 1-1 Overview of Type I Camera
Note:
Press and hold the switch button for 5 seconds to
switch the video output. Four kinds of video outputs
are available: TVI, AHD, CVI, and CVBS.
2 Installation
Before you start:
Make sure that the device in the package is in good
condition and all the assembly parts are included.
Make sure that all the related equipment is power-off
during the installation.
Check the specification of the products for the
installation environment.
Check whether the power supply is matched with
your required output to avoid damage.
Make sure the wall is strong enough to withstand
three times the weight of the camera, and the
mount.
If the wall is cement, insert expansion screws before
installing the camera. If the wall is wooden, use
self-tapping screw to secure the camera.
If the product does not function properly, contact
your dealer or the nearest service center. Do NOT
disassemble the camera for repair or maintenance by
yourself.
2.1 Ceiling/Wall Mounting without Junction Box
Steps:

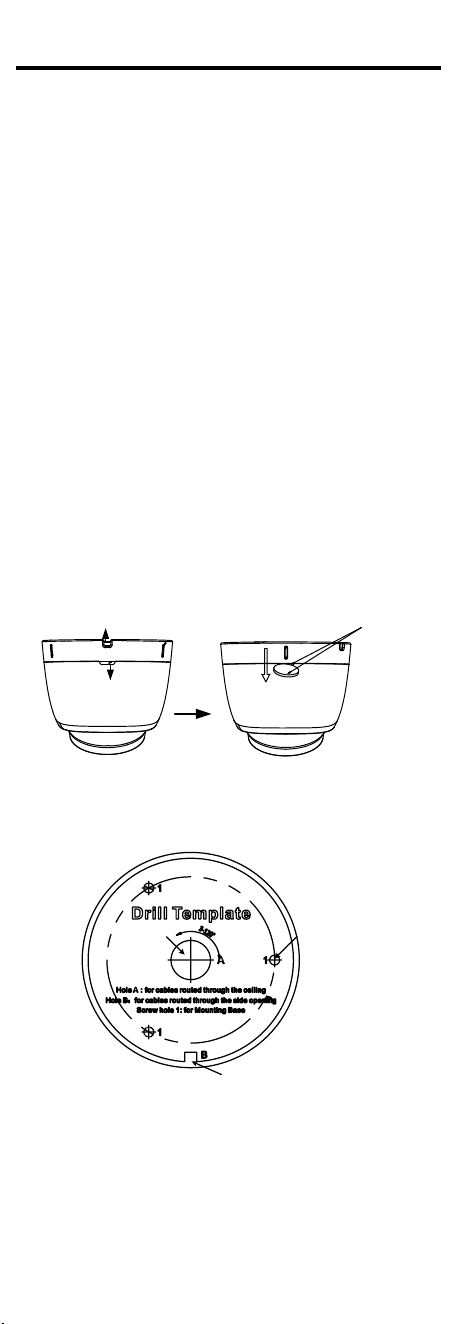

1. Disassemble the camera.
1). Rotate the camera to align the notch to one of the
marks.
2). Pry the mounting base to remove the mounting base
with the camera body with a flat object, e.g., a coin.
Notch
Mark
Coin
2. Paste the drill template (supplied) to the place
where you want to install the camera.
3. Drill the screw holes, and the cable hole (optional)
in the ceiling/wall according to the drill template.
Screw
Hole
Side
Opening
Cable
Hole
Figure 2-1 Drill Template
Note:
Drill the cable hole, when adopting the ceiling outlet
to route the cable
4. Attach the mounting base to the ceiling/wall, and
secure them with supplied screws
Self-tapping Screws
Expansion Bolts
Figure 2-2 Attach the Mounting Base
to the Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall/ceiling, expansion bolts are
required to fix the camera. For wooden wall/ceiling,
self-tapping screws are required.
5. Route the cables through the cable hole, or the side
opening.
6. Align the camera with the mounting base, and
secure the camera on the mounting base.
Figure 2-3 Secure the Camera with
Mounting Base
7. Connect the corresponding cables, such as power
cord, and video cable.
8. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.
Pan Position
[0° to 360°]
Tilt Position
[0°to 75°]
Rotation Position
[0°to 360°]
Figure 2-4 3-axis Adjustment
1). Hold the camera body and rotate the enclosure
to adjust the pan position [0° to 360°].
2). Move the camera body up and down to adjust
the tilt position [0° to 75°].
3). Rotate the camera body to adjust the rotation
position [0° to 360°].
2.2 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box separately.
Steps:
1. Paste the drill template on the ceiling/wall.
2. Drill screw holes and the cable hole (optional) in the
ceiling/wall according to the holes of the drill
template.
Figure 2-5 Drill Template of the
Junction Box
Note:
Drill the cable hole, when adopting the ceiling outlet
to route the cable.
3. Take apart the junction box, and align the screw
holes of the turret camera’s mounting base with
those on junction box’s cover.
4. Fix the mounting base on junction box’s cover by
supplied screws.
Figure 2-6 Install Turret Camera’s
Mounting Base
5. Secure the junction box’s body with supplied screws
on the ceiling/wall.
Figure 2-7 Install the Junction Box’ Camera Body on
Ceilling/Wall
6. Combine the junction box’s cover with the junction
box’s body.
7. Repeat steps 5 to 8 of 2.1.1 Ceiling/Wall Mounting
without Junction Box to install the camera to the
junction box.
Figure 2-8 Fix the Camera to the Junction Box
3 Menu Description
Purpose:
Call the menu by clicking button on the PTZ Control
interface, or call the preset No.95.
Steps:
1. Connect the camera with the TVI DVR, and the
monitor, shown as the figure 3-1.
Camera
TVI DVR
Monitor
Figure 3-1 Connection
2. Power on the analog camera, TVI DVR, and the
monitor to view the image on the monitor.
3. Click PTZ Control to enter the PTZ Control interface.
4. Call the camera menu by clicking button, or call
the preset No. 95.
EXPOSURE
MAIN MENU
VIDEO
SETTINGS
FUNCTIONS
FACTORY
DEFAULT
EXIT
EXPOSURE MODE
AGC
SLOW SHUTTER
CONTRAST
SHARPNESS
SATURATION
3 DNR
MIRROR
BACK
BACK
SAVE & EXIT
BACK
FORMAT
EXIT
SAVE & EXIT
BRIGHTNESS
WHITE BALANCE
SMART
LIGHT
PRIVACY
MOTION
DPC
EXIT
SAVE & EXIT
EXIT
SAVE & EXIT
IMAGE MODE
LIGHT
BACK
EXIT
SAVE & EXIT
THRESHOLD
LEVEL
MODE
Figure 3-2 Main Menu Overview
5. Click the direction arrow to control the camera.
1). Click up/down direction button to select the
item.
2). Click Iris + to confirm the selection.
3). Click left/right direction button to adjust the
value of the selected item.
3.1 FORMAT
You can set the video format as 2MP@25fps, or 2
MP@30fps.
3.2 EXPOSURE
EXPOSURE describes the brightness-related parameters,
which can be adjusted by EXPOSURE MODE, AGC, and
SLOW SHUTTER.
EXPOSURE
EXPOSURE MODE
AGC
SLOW SHUTTER
BACK
EXIT
SAVE & EXIT
GLOBAL
MEDIUM
OFF
Figure 3-3 EXPOSURE
EXPOSURE MODE
You can set the EXPOSURE MODE as GLOBAL, BLC, or
WDR.
GLOBAL
GLOBAL refers to the normal exposure mode which
adjusts lighting distribution, variations, and
non-standard processing.
BLC (Backlight Compensation)
BLC (Backlight Compensation) compensates light to the
object in the front to make it clear, but this may cause
the over-exposure of the background where the light is
strong.
WDR (Wide Dynamic Range)
The wide dynamic range helps the camera provide clear
images even under backlight circumstances. WDR
balances the brightness level of the whole image and
provides clear images with details.
AGC (Auto Gain Control)
It optimizes the clarity of the image in poor light
conditions. The AGC level can be set as HIGH, MEDIUM,
or LOW. Select OFF to disable the AGC function.
Note:
The noise will be amplified when the AGC is on.
SLOW SHUTTER
SLOW SHUTTER increases the exposure time on a single
frame, which makes a camera more sensitive to the
light so it can produce images even in low lux
conditions.
You can set the SLOW SHUTTER function as OFF, x2, x4,
x6, x8, x10, x12, x14, or x16 according to the different
light conditions.
3.3 VIDEO SETTINGS
Move the cursor to VIDEO SETTINGS and click Iris+ to
enter the sub-menu. IMAGE MODE, WHITE BALANCE,
BRIGHTNESS, CONTRAST, SHARPNESS, SATURATION, 3
DNR, and MIRROR are adjustable.
VIDEO SETTINGS
IMAGE MODE STD
WHITE BALANCE
BRIGHTNESS
CONTRAST
SHARPNESS
SATURATION
3DNR
MIRROR
BACK
EXIT
SAVE & EXIT
5
5
5
5
5
OFF
Figure 3-4 VIDEO SETTINGS
IMAGE MODE
IMAGE MODE is used to adjust the image saturation,
and you can set it to STD (Standard) or HIGH-SAT (High
Saturation).
WHITE BALANCE
White balance, the white rendition function of the
camera, is to adjust the color temperature according to
the environment. It can remove unrealistic color casts in
the image. You can set WHITE BALANCE mode as AUTO,
or MANUAL.
AUTO
Under the AUTO mode, white balance is being adjusted
automatically according to the color temperature of the
scene illumination.
MANUAL
You can set the R-GAIN/B-GAIN value from 1 to 255 to
adjust the shades of red/blue color of the image.
WHITE BALANCE
MODE
R-GAIN
B-GAIN
BACK
EXIT
SAVE & EXIT
MANUAL
5
5
Figure 3-5 MANUAL MODE
BRIGHTNESS
Brightness refers to the brightness of the image.
You can set the BRIGHTNESS value from 1 to 9 to
darken or brighten the image. The greater the value is,
the brighter the image is.
CONTRAST
This feature enhances the difference in color and light
between parts of an image. You can set the CONTRAST
value from 1 to 9.
SHARPNESS
Sharpness determines the amount of detail an imaging
system can reproduce. You can set the SHARPNESS
value from 1 to 9.
SATURATION
Adjust this feature to change the saturation of the color.
The value ranges from 1 to 9.
3 DNR (Digital Noise Reduction)
The 3 DNR function can decrease the noise effect,
especially when capturing moving images in poor light
conditions, and delivering more accurate and sharper
image. You can set the 3 DNR value from 1 to 9.
MIRROR
OFF, H, V, and HV are selectable for mirror.
OFF: The mirror function is disabled.
H: The image flips 180° horizontally.
V: The image flips 180° vertically.
HV: The image flips 180° both horizontally and
vertically.
3.4 SMART LIGHT
SMART LIGHT is used to control the integrated white
light and avoid overexposure when the light is on. You
can set the light as AUTO or OFF.
SMART LIGHT
LIGHT
THRESHOLD
LEVEL
MODE
BACK
EXIT
SAVE & EXIT
AUTO
2
5
MODE1
Figure 3-6 SMART LIGHT
AUTO
Under the AUTO mode, the white light turns on
automatically as the environment becomes dark.
The THRESHOLD is the environmental light level at
which the white light turns on. The greater the value is,
the darker the environment is when the light is
activated.
The value of LEVEL controls the brightness of the white
light. The greater the value is, the brighter the light is.
OFF
The white light is always off except when alarm is set
and triggered.
MODE
You can set the MODE as MODE1 to get a brighter
image in low light conditions.
3.5 FUNCTIONS
In the FUNCTIONS sub-menu, you can set the privacy
mask, the motion detection, and DPC of the camera.
PRIVACY
The privacy mask allows you to cover certain areas
which you don’t want to be viewed, or recorded. Up to
4 privacy areas are configurable.
PRIVACY
MODE
AREA 0
AREA 1
AREA 2
AREA 3
COLOR
TRANSPARENCY
BACK
EXIT
SAVE & EXIT
ON
RED
OFF
Figure 3-7 PRIVACY
Select a PRIVACY area. Set the MODE as ON. Click
up/down/left/right button to define the position, and
the size of the area.
MOTION
In the user-defined motion detection surveillance area,
the moving object can be detected and the alarm will
be triggered. Up to 4 motion detection areas can be
configured.
MOTION
MODE
AREA 0
AREA 1
AREA 2
AREA 3
SENSITIVITY
COLOR
TRANSPARENCY
BACK
EXIT
SAVE & EXIT
OFF
50
RED
OFF
Figure 3-8 MOTION
Select a MOTION area. Set the MODE as ON. Click the
up/down/left/right button to define the position, and
the size of the area. Set the SENSITIVITY from 0 to 100.
DPC (Defective Pixel Correction)
Defective pixels are pixels in a CMOS image sensor,
which fail to sense light levels correctly.
This series of camera supports defective pixel correction.
You can set the DPC as ON or OFF.
3.6 FACTORY DEFAULT
Reset all the settings to the factory default.
3.7 SAVE & EXIT
Move the cursor to SAVE & EXIT and click Iris+ to save
the setting, and exit the menu.
UD10217B-B
