ECAM22X.6Y - 22X.8Y
BEAN TO CUP ESPRESSO AND
CAPPUCCINO MACHINE
Instructions for Use
2
A3
A1
A2
A14
A15
A19
A3 A4
A1
A6
A2
A15
A16
A14A14
A18
A5
A7
A8
A9
A
A14A17
A14A12
A14A13
A14A11
A10
3
EN
page 4
MAX
50°C
✕ ✕ ✕
✓ ✓
✓ ✓ ✓ ✓ ✓
De’Longhi Appliances s.r.l.
Via L. Seitz, 47 31100 Treviso - ITALY
Tel. +39 0422 4131
5413218631/04.15
Decalcificante per macchine da caffè
Descaler for coffee machines
Détartrant pour machines à café
Entkalker für Kaffeemaschinen
B-C
D* E
D1 D3
E 7
D4 D5
D2
E4
E5
E6
E3
E2E1
1 2 3 4 5
C1
C2 C4
C3
C5
B1B2B3
B4
B5
B7
B8*
B6
4
CONTENTS
1. INTRODUCTION ....................................... 5
1.1 Letters in brackets ................................... 5
1.2 Troubleshooting and repairs ....................5
2. DESCRIPTION ......................................... 5
2.1 Description of the appliance - A ..............5
2.2 Description of control panel - B ...............5
2.3 Description of indicator lights - C ............5
2.4 Description of accessories - D* ................5
2.5 Description of milk carafe - E ................... 5
3. SETTING UP THE APPLIANCE .................... 6
4. WATER SOFTENER FILTER ........................ 6
4.1 Replacing the lter ..................................7
4.2 Removing the lter .................................7
5. MEASURING WATER HARDNESS ............... 7
6. TURNING THE MACHINE ON ..................... 8
7. TURNING THE MACHINE OFF .................... 8
7.1 Switching o for extended periods: ........8
8. MAKING COFFEE DRINKS ......................... 8
8.1 Making
coee using
coee beans ............8
8.2 Making 2 cups of coee .......................... 9
8.3 Making coee using pre-ground coee .. 9
8.4 General indications for making coee-based
drinks ...................................................... 9
8.5 Varying the intensity of the coee ..........9
8.6 Rinsing ................................................10
8.7 Tips for a hotter coee...........................10
8.8 Adjusting the coee mill .......................10
8.9 Customizing the quantity
in the
cup ......10
9. MAKING MILK-BASED DRINKS ................10
9.1 What milk to use? .................................10
9.2 How much milk? ...................................11
9.3 Filling and attaching the milk carafe ..... 11
9.4 Selection of coee intensity or use of pre-
ground coee ........................................ 11
9.5 Delivering milk-based drinks .................12
9.6 Cleaning the milk carafe after each use . 12
9.7 Customizing the quantity in the cup .....12
10. DELIVERING HOT WATER ........................13
10.1 Customizing the quantity of hot water ..13
11. TIPS FOR ENERGY SAVING .......................13

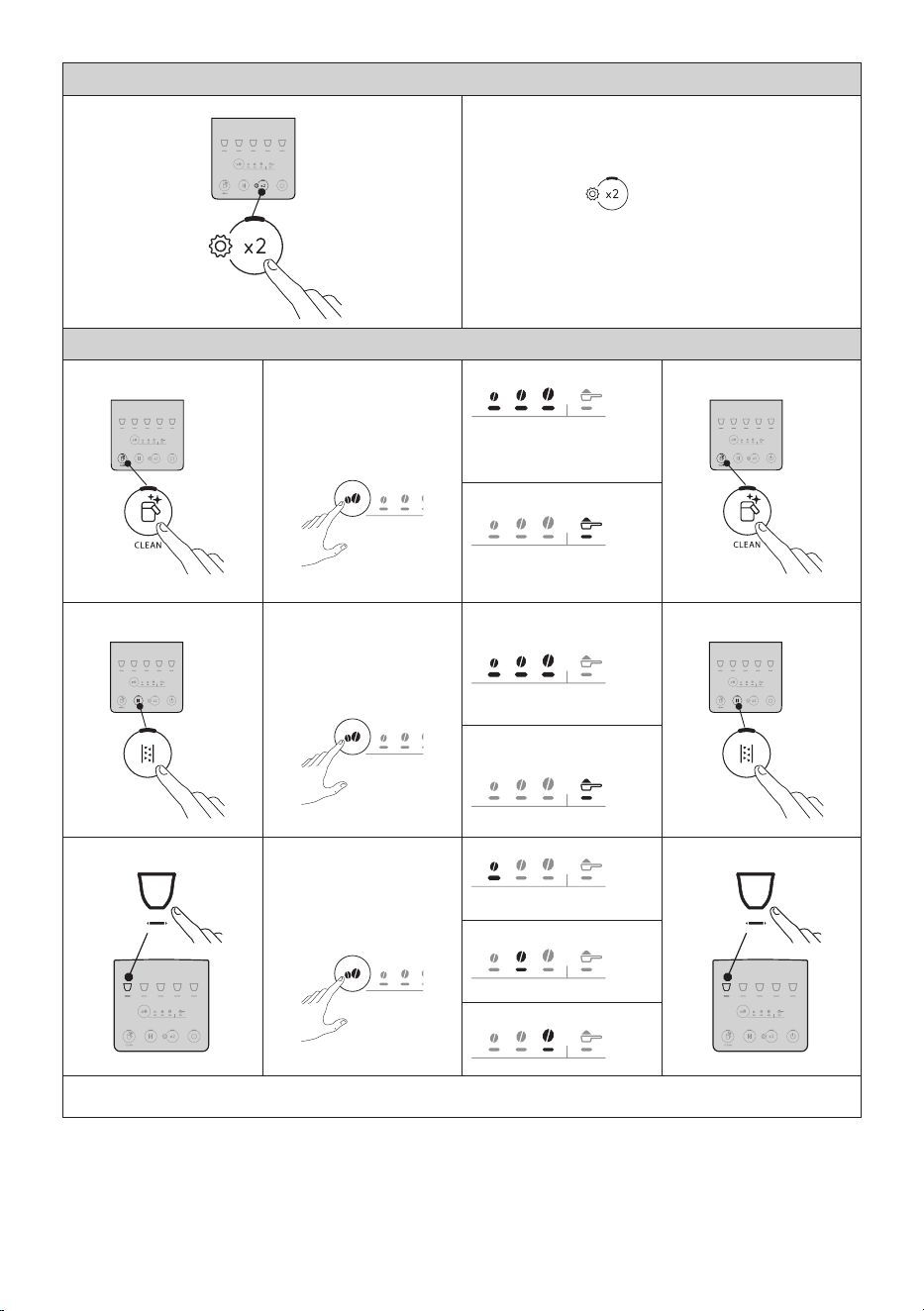

12. SETTINGS MENU ....................................13
12.1 Restore factory settings.........................16
14. THOROUGH CLEANING OF MILK CARAFE ..18

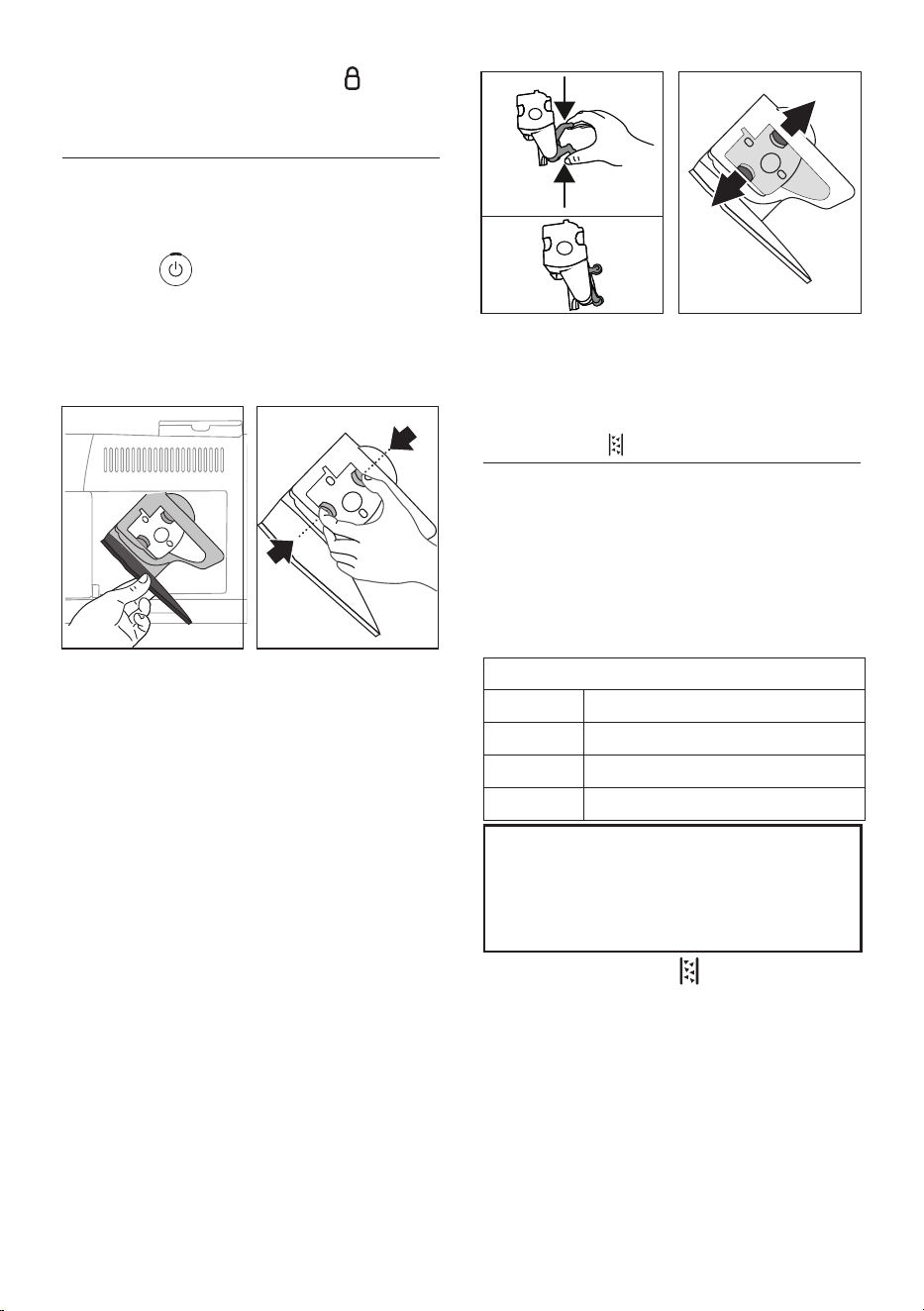

15. CLEANING THE INFUSER .........................19
16. DESCALING ...........................................19

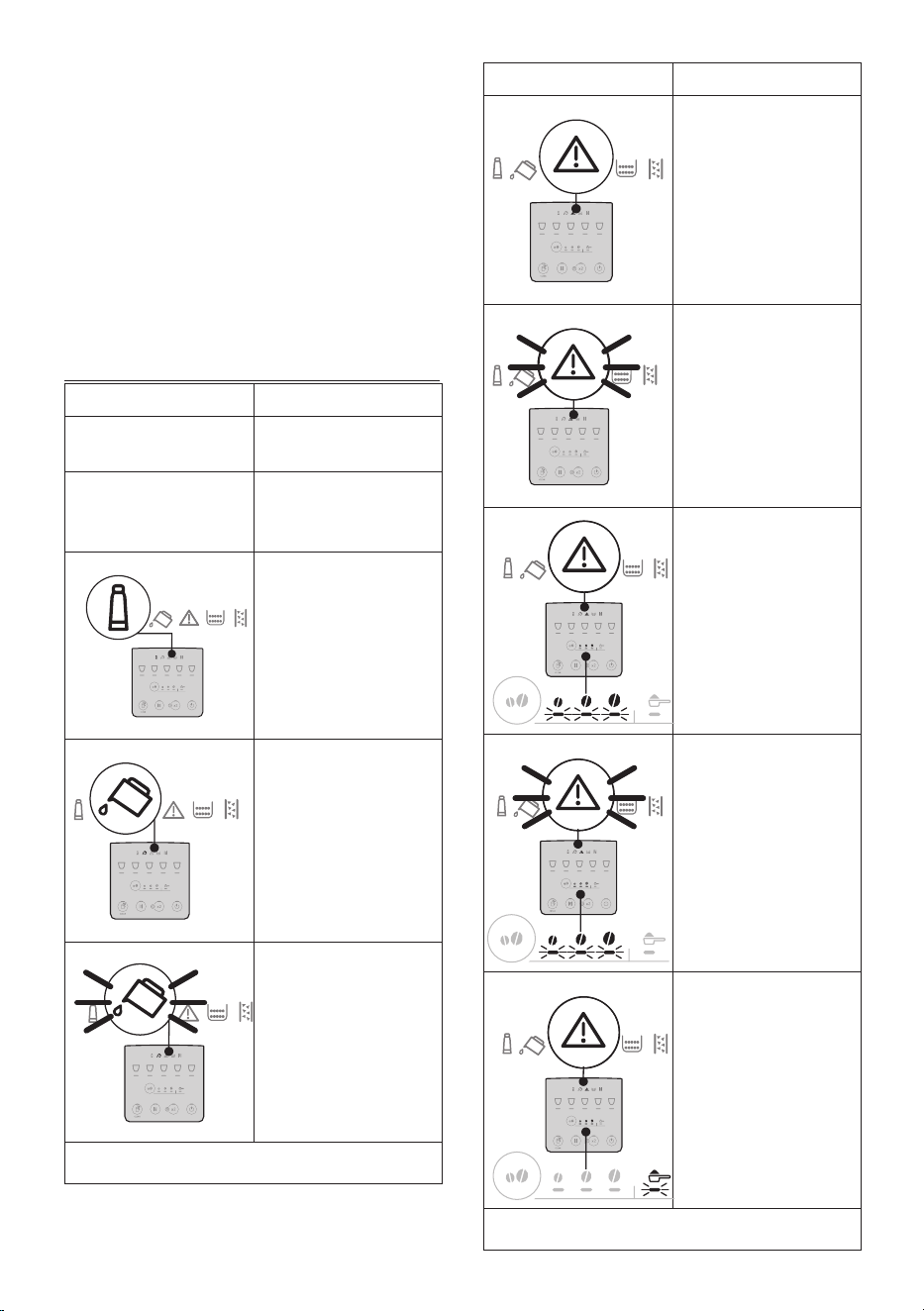

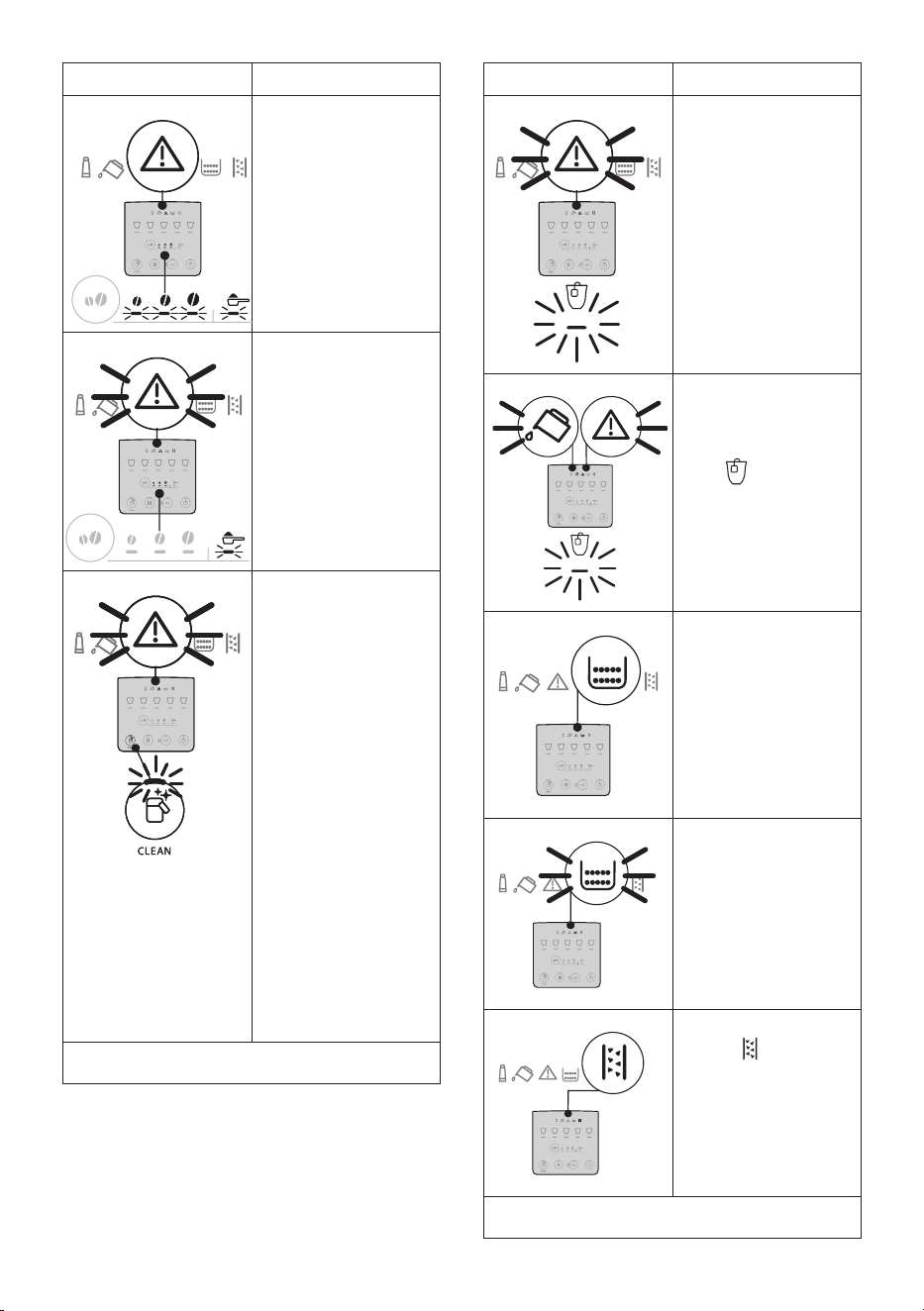

17. EXPLANATION OF LIGHTS ........................21
18. TROUBLESHOOTING ..............................23
19. TECHNICAL DATA ....................................25
5
Before using the appliance for the rst time, be
sure to read the safety warnings.
1. INTRODUCTION
Take a few minutes to read these Instructions for Use. This will
avoid all risks and damage to the appliance.
The Leds and indicator lights on the panel will help in ensuring
correct interaction with the machine:
O --
Permanently
alight
Function
available
Blinking
Function in
progress
Blinking rapidly
User action
required
The same symbols are also used in the Quick Guide provided
with the product.
1.1 Letters in brackets
The letters in brackets refer to the description of the appliance
on pages 2- 3.
1.2 Troubleshooting and repairs
In the event of problems, rst try and resolve them by reading
the information given in sections “17. Explanation of lights”
and “18. Troubleshooting”.
If this does not resolve the problem or further information is
required, consult the customer services department at the
numbers indicated on the website www.delonghi.com.
If repairs are required, contact De’Longhi customer services
only. Addresses can be found on the website www.delonghi.
com.

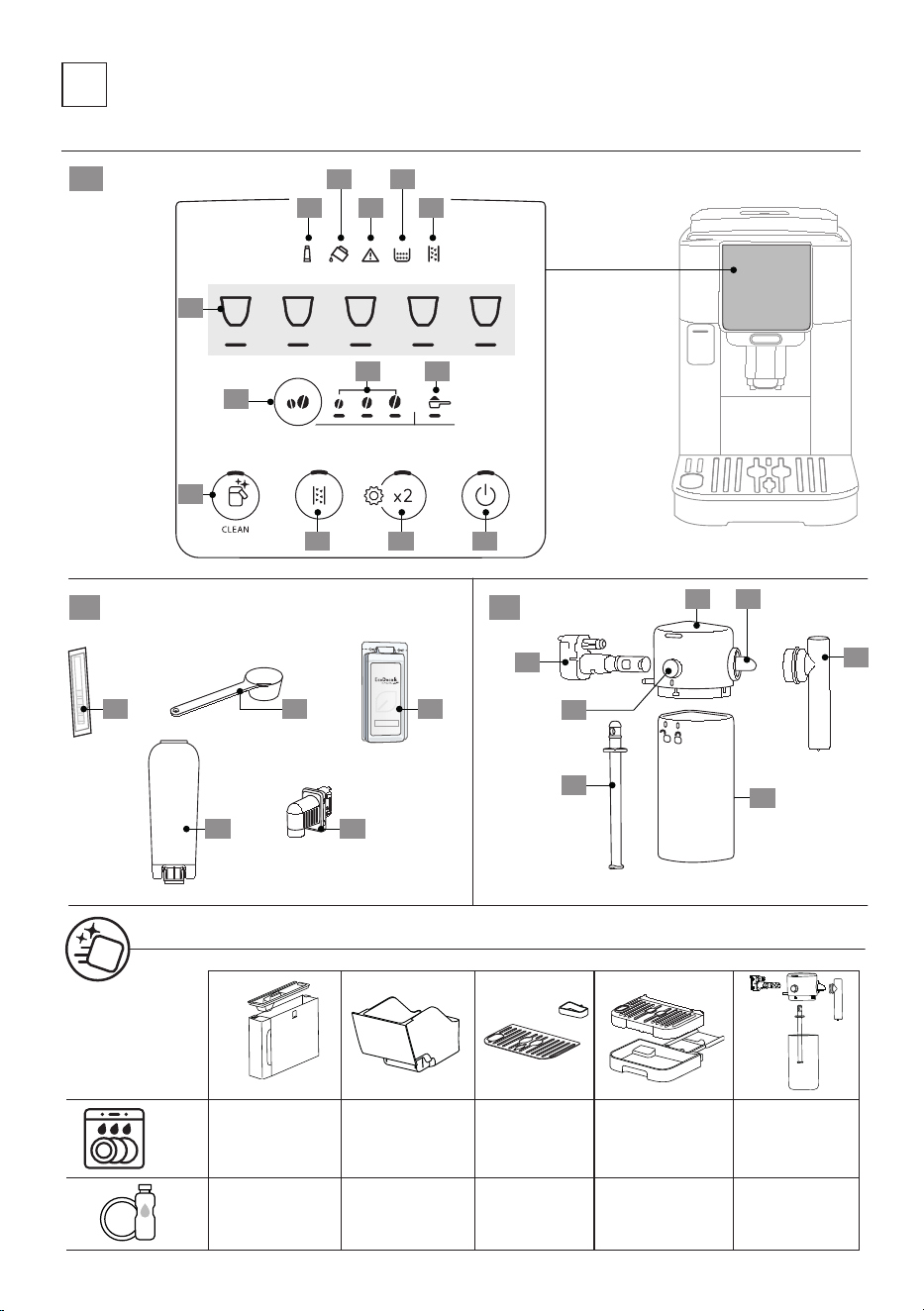

2. DESCRIPTION

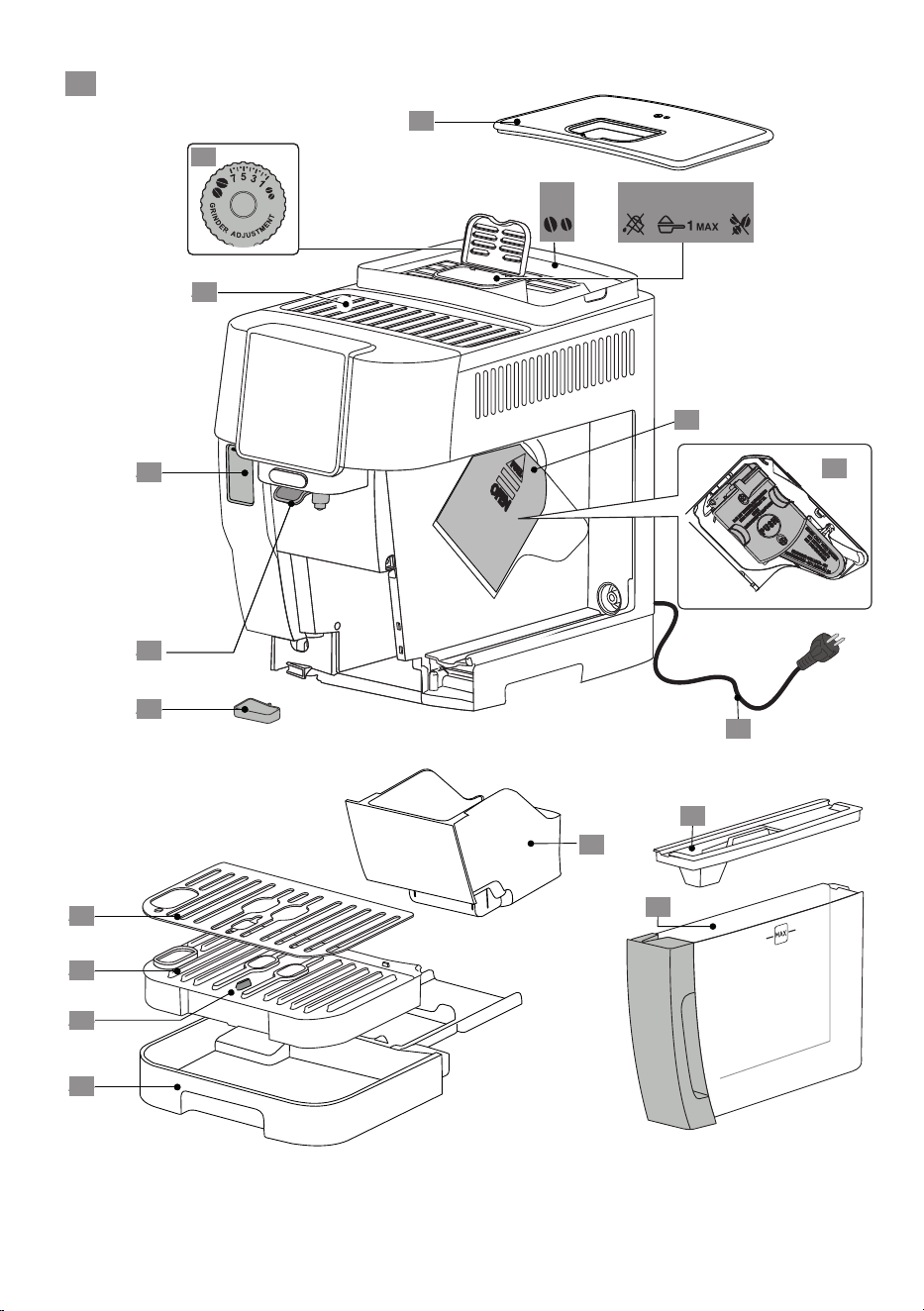

2.1 Description of the appliance - A
A1. Beans container lid
A2. Coee mill adjustment dial
A3. Beans container
A4. Pre-ground coee funnel
A5. Infuser ap
A6. Removable infuser
A7. Power cord
A8. Water tank lid
A9. Water tank
A10. Coee grounds container
A11. Cup tray
A12. Drip tray grille
A13. Drip tray water level indicator
A14. Drip tray
A15. Condensate tray
A16. Height-adjustable coee spouts
A17. Accessories connector access ap
A18. Cup shelf
2.2 Description of control panel - B
B1. ON/standby button with built-in Led
B2. X2 button with built-in Led (if pressed and held for 5 sec-
onds, accesses the settings menu)
B3. Descale cycle selection button
B4. Clean button (milk carafe) with built-in Led (if pressed
and held for 5 seconds, activates manual rinse)
B5. Intensity or pre-ground selection button
B6. Intensity selection Led
B7. Pre-ground selection Led
B8. Drink selection button (*number and type of drinks dier
according to models)
2.3 Description of indicator lights - C
C1. Filter exhausted:
Indicator permanently alight: lter must be replaced
Indicator blinking: lter installation in progress
C2. No water:
Indicator permanently alight: insucient water in the
tank (A9)
Indicator blinking: tank not in position
C3. General alarm indicator
C4. Grounds container indicator:
Indicator permanently alight: grounds container (A10)
needs emptying
Indicator blinking: grounds container not in position
C5. Descale indicator:
Indicator permanently alight: machine needs descaling
Indicator blinking: descaling in progress
2.4 Description of accessories - D*
(*number and type dier according to model)
D1. "Total Hardness Test" strip
D2. Pre-ground coee measure
D3. Descaler
D4. Water softener lter
D5. Hot water spout
2.5 Description of milk carafe - E
E1. Lid with milk frother
E2. Milk spout connector (non removable)
E3. Frothed milk spout
6
E4. Milk intake tube
E5. Remove carafe/remove carafe connector button
E6. Milk carafe connector
E7. Milk container
3. SETTING UP THE APPLIANCE
Please note:
• When using the machine for the rst time, all removable
accessories making contact with water or milk should
be rinsed with hot water. It is advisable to wash the milk
carafe (E) (see section”14. Thorough cleaning of milk
carafe”).
• Any traces of coee that may be found in the mill are left
by the factory tests carried out on the machine before it
goes on sale — evidence of the meticulous care we have
for the product.
• The rst time the machine is used, the water circuit will
be empty and the appliance could be very noisy.The noise
becomes less as the circuit lls.
• When starting the machine for the rst time, make cer-
tain that the water spout (D5) is tted.

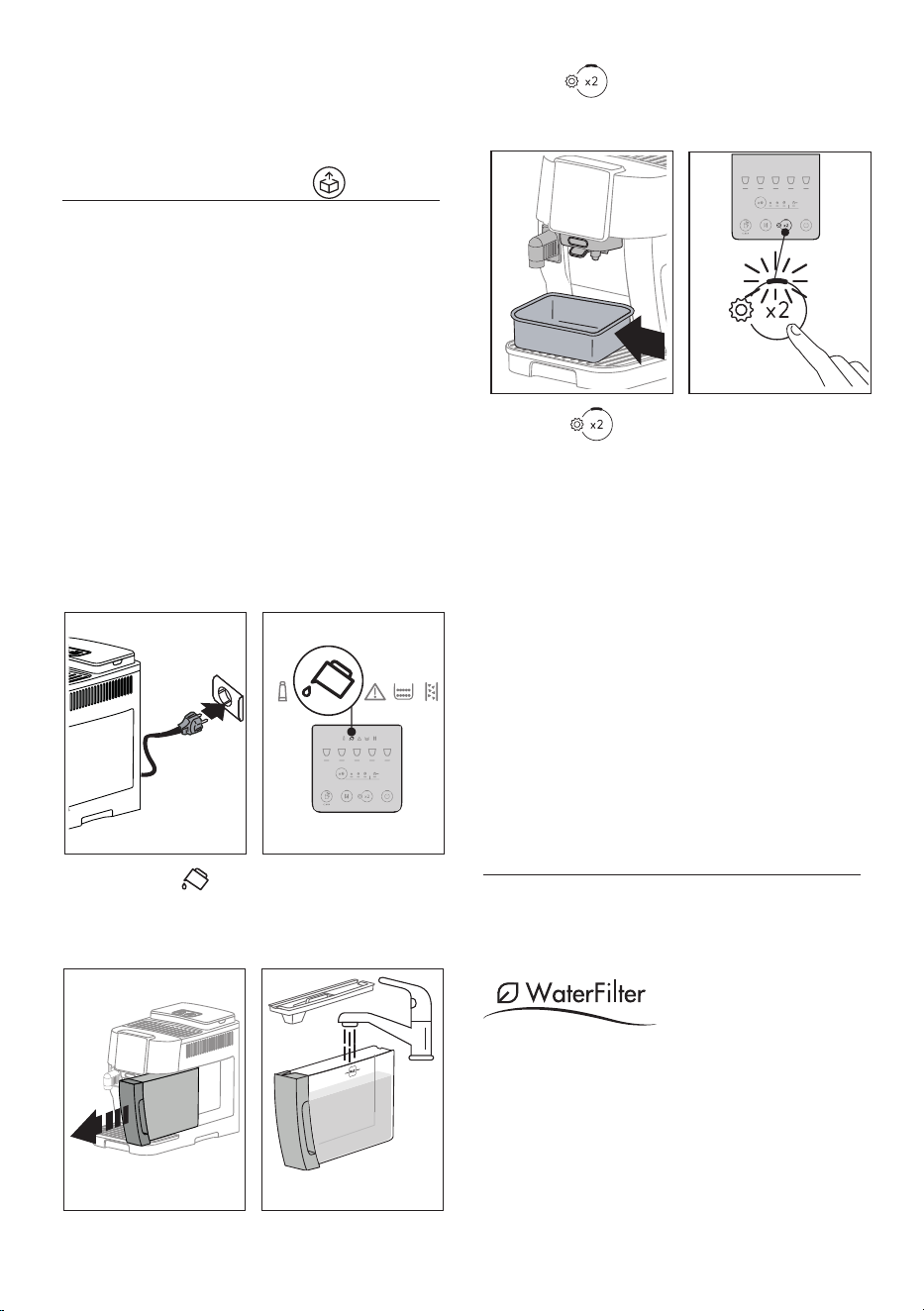

1. Connect the appliance to the mains supply (g. 1).
1 2
1 2 3 4 5
2. The indicator (C2)
will light up on the control panel
(B) (g. 2)
: remove the water tank (A9)
(g. 3)
, ll up to
the MAX level with fresh drinking water (
g. 4)
, then
reposition in the appliance.
3 4
3. The Led (B2)
on the control panel will blink rapidly.
4. Position a container under the coee spout
(A16) and
water spout (D5) (g. 5).
5
1 2 3 4 5
6
5. Press the
button (g. 6): the internal water circuits
start to ll
and the appliance will release hot water from
the water spout.
6. The ow will be interrupted, then after a few seconds, the
machine releases water from the coee spout.
When the ow of water stops completely,
the machine is ready
for use.
Please note:
• The rst time the appliance is used, it will be necessary to
make 4-5 cappuccinos before the drink in the cup tastes
as it should.
• It is recommended that the water lter supplied be in-
stalled immediately. After two months (see date indica-
tor), or after 3 weeks if the appliance has not been used,
the lter should be replaced or removed even if the warn-
ing indicator (C1)is not alight.
• Select the appropriate water hardness setting as soon as
possible (section “5. Measuring water hardness”).
4. WATER SOFTENER FILTER
To ensure the performance of the machine remains constant
over time, we recommend using a De’Longhi water softener
lter.
For more information, visit the www.delonghi.com website.
EAN: 8004399327252
To use the lter correctly, follow the instructions below.

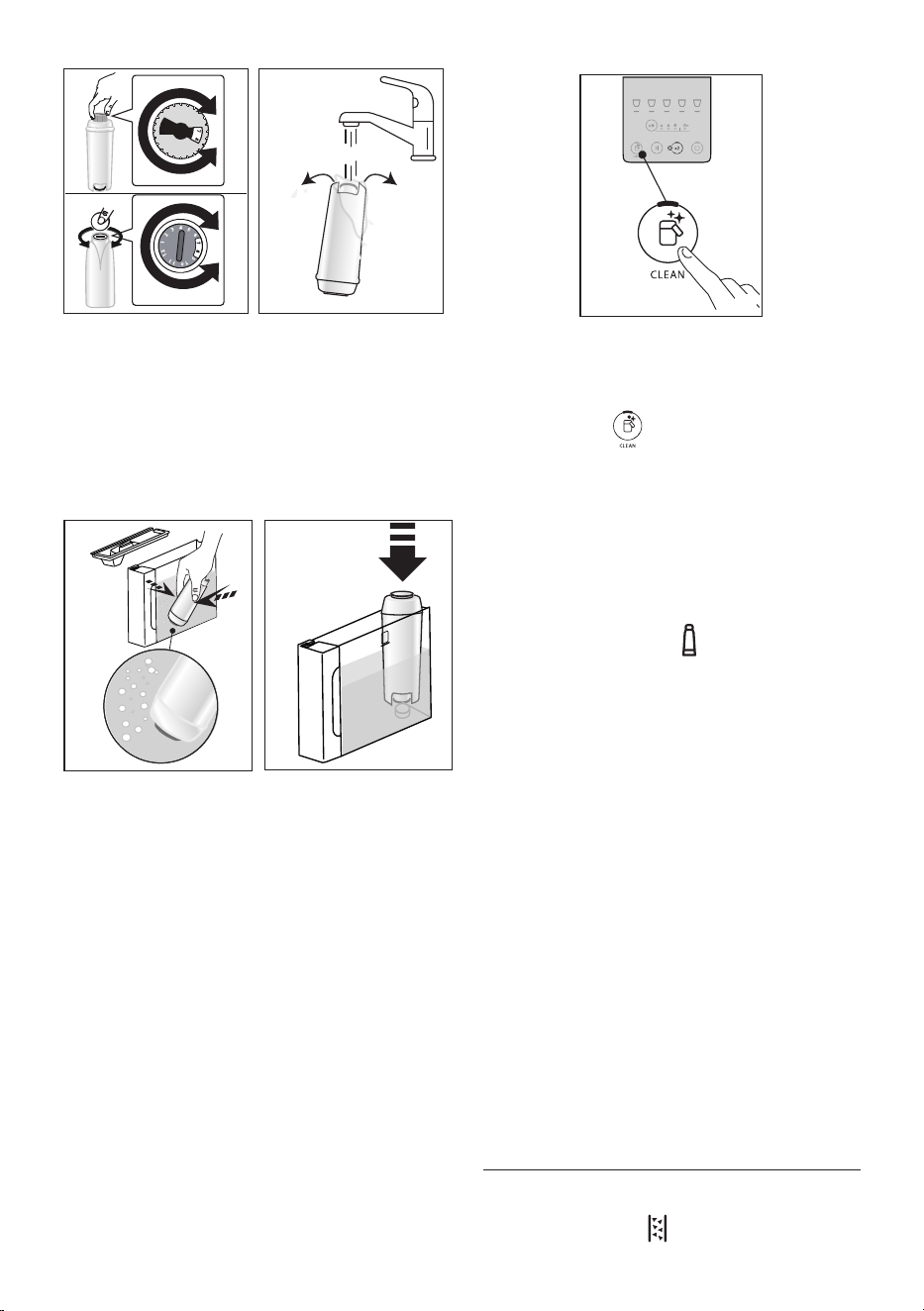

1. Remove the lter (D4) from the pack and turn the date
indicator so that it shows the next 2 months (g. 7);
7
87
0,5 L
2. To activate the lter, run drinking water through the hole
in the centre of the lter until water comes out of the
openings at the side for more than a minute (g. 8);
3. Remove the tank (A9)from the machine (g. 4) and ll with
fresh drinking water; insert the lter in the water tank, im-
mersing it completely for about ten seconds, while tilting it
and applying light pressure so that the air bubbles are able
to escape (g. 9);
9
MAX
10
MAX
4. Insert the lter in the relative housing
and press fully
home (g. 10);
5. Close
the tank with the lid (A8), then reposition the tank
in the machine;
6. If not already in place, t the water spout (D5).
7. Place an empty container of at least 0.5 litres capacity
under the hot water spout (g. 5).
8. See instructions in section “12. Settings menu” for instal-
lation of the lter;
9. On the control panel, the lter indicator light (C1) blinks
steadily and the Led of the clean carafe/manual rinse but-
ton (B4) blinks rapidly;
10. Press the clean carafe/manual rinse button (g. 11);
1 2 3 4 5
11
11. The appliance delivers hot water, stopping automatically;
12. When the ow stops, the lter indicator light extinguish-
es: the lter is now active and the machine can be used.
Please note:
• If the Led of the
button (B4) blinks rapidly, press the
button. This will cause the internal circuits of the machine
to start lling up, expelling the air bubbles that have been
formed and allowing the installation to proceed.
• With installation completed, the drinks Leds blink to
indicate that the machine is heating up in readiness for
normal use.
4.1 Replacing the lter
Replace the lter (D4) when the
indicator (C1) lights up.
1. Remove the water tank (A9) and the spent lter;
2. Follow the operations described in the previous section to
activate the lter;
3. See instructions in section “12. Settings menu” to set the
machine and repeat steps 9 to 12 of the preceding section.
Please note:
After two months (see date indicator), or after 3 weeks if the
appliance has not been used, the lter should be replaced even
if the warning message has not yet been displayed.
4.2 Removing the lter
If the intention is to use the appliance without the lter (D4),
its removal must be indicated in the machine settings.
1. Remove the water tank (A9) and the spent lter;
2. See instructions in section “12. Settings menu” to set the
machine accordingly.
Please note:
After two months (see date indicator), or after 3 weeks if the ap
-
pliance has not been used, the lter should be replaced even if the
warning message has not yet been displayed.
5. MEASURING WATER HARDNESS
Setting the water hardness as soon as possible will enable the
machine to optimize the frequency of descaling. This means
that the descale indicator (C5) will light up as necessary
8
according to the actual hardness of the local water supply.
Proceed as follows:
12 13

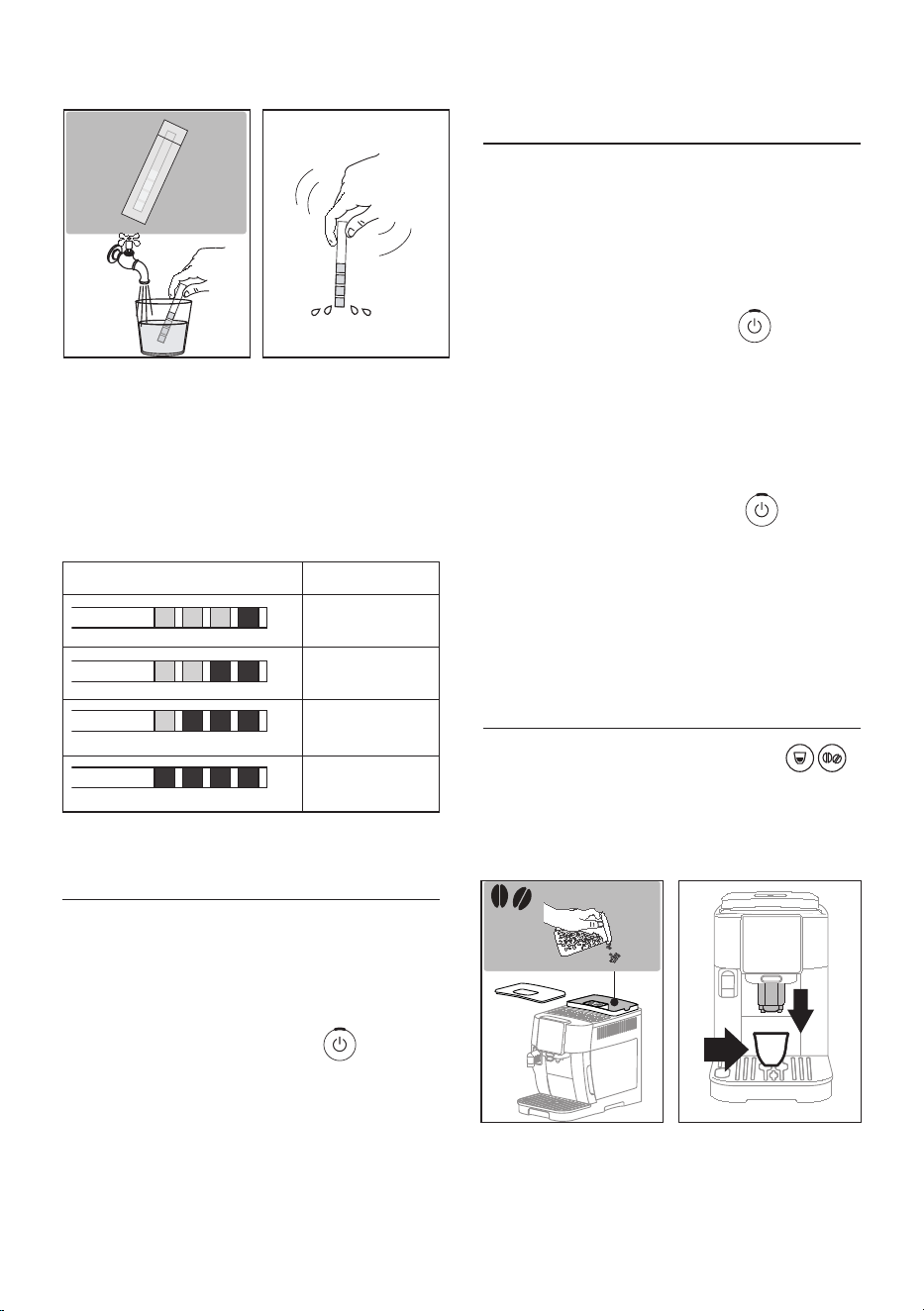

1. If a total hardness test strip (D1) is supplied with the
model of machine in question, remove it from its wrapper.
2. Immerse the strip completely in a glass of water for about
one second (g. 12).
3. Remove the strip from the water and shake lightly (g.
13). After about a minute, 1, 2, 3, or 4 red squares appear,
depending on the hardness of the water. Each square cor-
responds to one level.
Total Hardness Test Hardness
1
Low
2
Medium
3
Medium/High
4
High
See instructions in section “12. Settings menu” to set the ma-
chine accordingly.
6. TURNING THE MACHINE ON
Danger of scalding!
During the rinse, a little hot water ows from the coee spouts
(A16). Take care to avoid contact with splashes of water. To
avoid the need for frequent emptying of the drip tray (A14),
place a container under the spouts to collect the rinse water.
• To switch on the machine, press the
button (B1):
the Led of the on/o button lights up and the drinks Leds
blink on the control panel (B) to indicate that the machine
is warming up.
During this step, the machine performs a rinse cycle. Besides
heating up the boiler, this also serves to circulate hot water
through the internal circuits so they too are brought up to
temperature.
The appliance is ready for use when the drinks and intensity
Leds remain permanently alight.
7. TURNING THE MACHINE OFF
Whenever the machine is turned o after being used to make
coee, it performs an automatic rinse cycle.
Danger of scalding!
During the rinse, a little hot water ows from the coee spouts
(A16). Take care to avoid contact with splashes of water. To
avoid the need for frequent emptying of the drip tray (A14),
place a container under the spouts to collect the rinse water.
• To switch the machine o, press the
button (B1);
• the drinks indicator Leds on the control panel will now
blink: the appliance performs a rinse cycle, if envisaged,
and then switches o (stand-by).
7.1 Switching o for extended periods:
If the machine is not going to be used for any length of time
(e.g. holidays, periods of absence), proceed as follows:
• turn o the machine by pressing the
button (B1);
• empty out and clean the grounds container (A10) and the
water tank (A9);
• unplug the power cord (A7) from the socket.
Please note:
When turning the machine on again, ll the water tank and,
before making any kind of drink, run 3 rinse cycles as indicated
in section “8.6 Rinsing”.
8. MAKING COFFEE DRINKS
8.1 Making
coee using
coee beans
Important!
Do not use green, caramelized or candied coee beans as they
could stick to the coee mill and make it unusable.
1. Fill the container (A3) with coee beans (g. 14);
14
15
2. Place a cup under the coee spouts (A16) (g. 15);
3. Lower the spouts as near as possible to the cup: this
makes a creamier coee (g. 15);

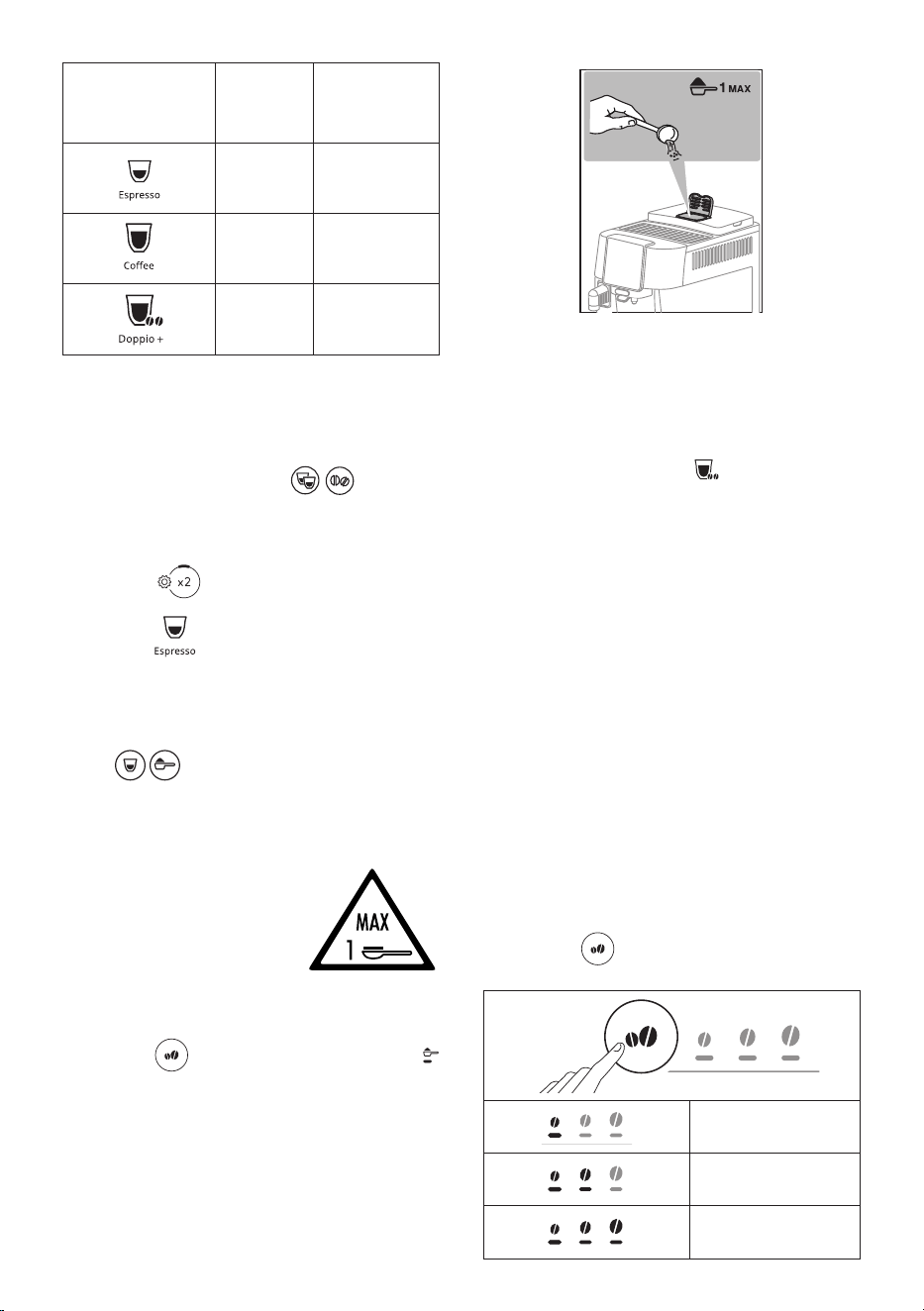

4. Select the required drink:
9
Drink
(*)
Default
quantity
(ml)
Programmable
quantity (ml)
40
from ≃ 20 to ≃
180
180
from ≃ 100 to ≃
240
120
from ≃ 80 to ≃
180
(*)
Numbers and types of drinks dier according to model.
5. Preparation begins and the Led corresponding to the se-
lection blinks on the control panel (B).
8.2 Making 2 cups of coee
1. Place the cups under the coee spouts (A16);
2. Lower the spouts as near as possible to the cups: this
makes a creamier coee;
3. Press the
button (B2): the corresponding Led
lights up;
4. Press the button (B8);
5. Preparation begins and the Led corresponding to the Es-
presso button blinks on the control panel (B).
8.3 Making coee using pre-ground coee
Important!
• Never add pre-ground coee when the machine is o, or
it could spread through and soil the inside of the machine.
This could cause damage to the machine.
• Never use more than 1 level
measure (D2), as this could soil
the inside of the machine or
block the funnel (A4).
Please note:
When using pre-ground coee, only one cup can be made at
a time.
1. Press the button (B5) repeatedly until the Led
lights up (B7).
2. Make sure the funnel is not blocked, then add one level
measure of pre-ground coee (g. 16).
3
16
3. Place a cup under the coee spouts (A16) (g. 15);
4. Select the required drink (B8);
5. Preparation begins and the Led corresponding to the se-
lection blinks on the control panel (B).
Important!
• It is not possible to make a
Doppio+ coee using
pre-ground coee.
8.4 General indications for making coee-
based drinks
• Indicator lights may appear on the control panel (B) dur-
ing use. Their meaning is given in section “17. Explanation
of lights”.
• To make a hotter coee, see section “8.7 Tips for a hotter
coee”.
• If the coee is delivered a drop at a time, too weak and
not creamy enough or too cold, read the tips in section
“18. Troubleshooting”.
• To customize drinks according to personal taste, see sec-
tions “8.5 Varying the intensity of the coee” and “8.9
Customizing the quantity in the cup”.
Please note:
In energy saving mode, a few seconds may elapse before the
rst coee is delivered as the machine must heat up again.
8.5 Varying the
intensity of the coee
1. Press the
button (B5) repeatedly until the Leds
relative to the desired intensity light up (B6):
Mild
Medium
Strong
10
2. Select the desired coee drink.
Please note:
• When the next coee is made, the machine will show the
last intensity setting selected.
• In the event of power failure, the machine will revert to
the default setting: medium.
8.6 Rinsing
Using this function, hot water can be delivered from the coee
spouts to clean and heat the internal circuit of the machine.
1. Place a container of at least 100ml capacity under the cof-
fee spouts (A16) (g. 5).
2. Press the
button
(B4) and hold for at least 5 seconds:
the cycle will start and stop automatically (to terminate
the cycle sooner, press this same button a second time).
Please note:
• If the machine is not used for more than 3-4 days it is
highly advisable, when switching on again, to run 2/3
rinse cycles before preparing any drinks;
• It is normal for the grounds container (A10) to contain
water following a rinse cycle.
8.7 Tips for a hotter coee
To make a hotter coee, proceed as follows:
• run a rinse cycle (see section “8.6 Rinsing”);
• warm the cups using the Hot water function;
• set a higher coee temperature via the menu (see section
“12. Settings menu”).
8.8 Adjusting the coee mill
The coee mill does not require any adjustment, at least initial-
ly, as it has been factory set to ensure that coee is prepared
correctly.
Please note:
The adjustment dial must be turned only when the coee mill
is in operation during the initial step of coee preparation.
To make an adjustment while the coee mill is in operation,
turn the dial (A2) as follows:
If the coee is delivered too
slowly, or not at all.
The eect of this adjustment will
not be noticeable until at least 2
further coees have been made.
Turn one click toward num-
ber “7”
For a fuller bodied and
creamier coee
The eect of this adjustment will
not be noticeable until at least 2
further coees have been made.
Turn one click toward num-
ber “1”
Please note:
• To interrupt delivery, press any drink selection button.
• At the end of delivery, to increase the quantity of coee in
the cup, simply press and hold the drink selection button
(within 3 seconds); the Led will blink rapidly.
8.9 Customizing the quantity
in the
cup
1. Press the button relative to the drink being programmed
and hold for a few seconds: when the Led corresponding
to the selection blinks rapidly, the machine is in program-
ming mode. Delivery begins;
2. Once the cup is lled to the desired level, press the button
again: delivery ceases and the quantity is stored.
Please note:
To cancel the current setting, press a button corresponding to an
-
other drink.
9. MAKING MILK-BASED DRINKS
Please note:
• Before using the carafe, check that all the components are
cleaned and assembled as described in section “14. Thor-
ough cleaning of milk carafe”
• To ensure that milk is not under-frothed or topped with
large bubbles, always clean the milk container lid (E1)
and the carafe connector (E6) as described in sections “9.6
Cleaning the milk carafe after each use”, and “14. Thor-
ough cleaning of milk carafe”.
9.1 What milk to use?
The quality of the froth will vary depending on:
• the temperature of the milk or vegetable drink used (for
best results, always use milk or vegetable drink straight
from the fridge, 5 °C);
• type of milk or vegetable drink;
• the brand used;
• ingredients and nutritional values.
Cow's milk
→
11
Whole
(fat >3,5%)
✓
Semi-skimmed
(fat between 1.5 and 1.8%)
Skimmed
(fat <0.5%)
Vegetable drinks
Soya
✓
Almond
✓
Oatmeal
✓
Please note:
For best results when using vegetable drinks, select “Barista”
versions of these products to optimize the quality of the froth.

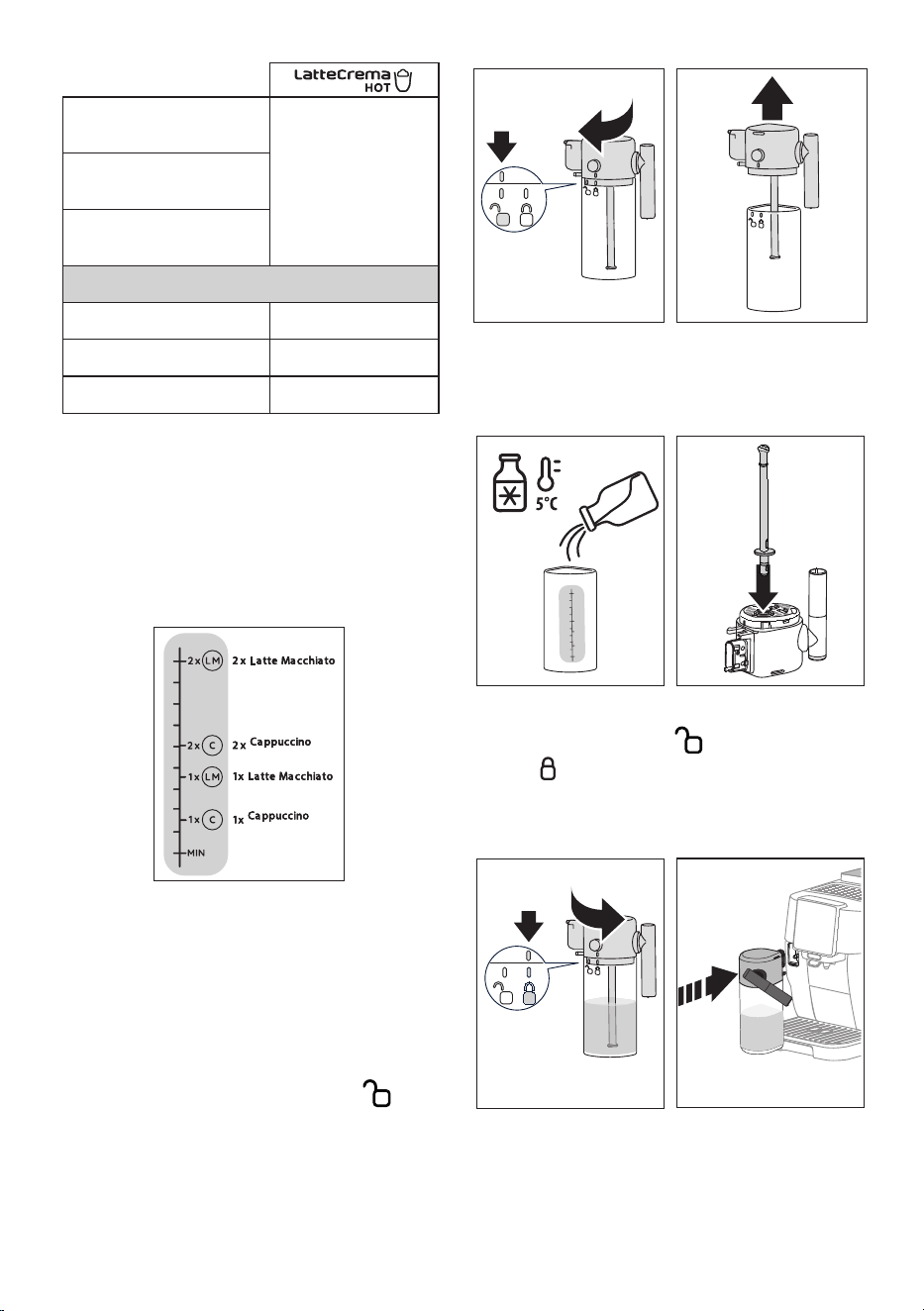

9.2 How much
milk?
The milk container (E7) is marked with a graduated scale (g.
17) to help ensure that the ideal quantity of milk will be poured
when preparing the drink.
The intermediate marks correspond to increments of ≃ 20ml.
17
/
Cappuccino Mix
/
Cappuccino Mix
Please note:
• Depending on the type and temperature of the milk used,
the recipe can dier slightly from one drink to another.
• If there is insucient milk in the carafe, the milk spout
will produce a dry pu.
9.3 Filling and attaching the milk carafe
1. Release the lid (E1)by turning clockwise: the reference
mark on the lid must be aligned with the
symbol
(g. 18);
2. Then lift the lid (g.19)
18
19
3. Fill the milk container (E7) with suitable quantity of milk
(g. 17 and 20);
4. Make sure the milk intake tube (E4) is secured correctly to
the socket on the underside of the milk carafe lid (g. 21);
20
21
5. Close the carafe: ret the lid (the reference mark on the lid
must be aligned with the
symbol) then turn toward
the symbol until locked in position (g. 22);
6. Lower the ap and attach the carafe to the connector,
pushing it fully home (g. 23). The machine emits a beep
(if the beep function is enabled).
23
22
9.4 Selection of coee intensity or use of pre-
ground coee
Once the milk carafe has been prepared, before selecting the
desired milk-based drink, the intensity of the coee can be
customized as described in section “8.5 Varying the intensity
12
of the coee” or alternatively, select pre-ground coee (and in
this instance, proceed to add one measure of coee as indicat-
ed in section “8.3 Making coee using pre-ground coee ”).
9.5 Delivering milk-based drinks
1. Place a cup of suitable size under the coee spouts (A16)
and under the frothed milk spout (E3) (g. 24).
2. Select the milk-based drink from the control panel
24
Please note:
If“Energy Saving” mode is activated (see section “12. Settings
menu”), there may be a few seconds delay before the drink is
delivered.

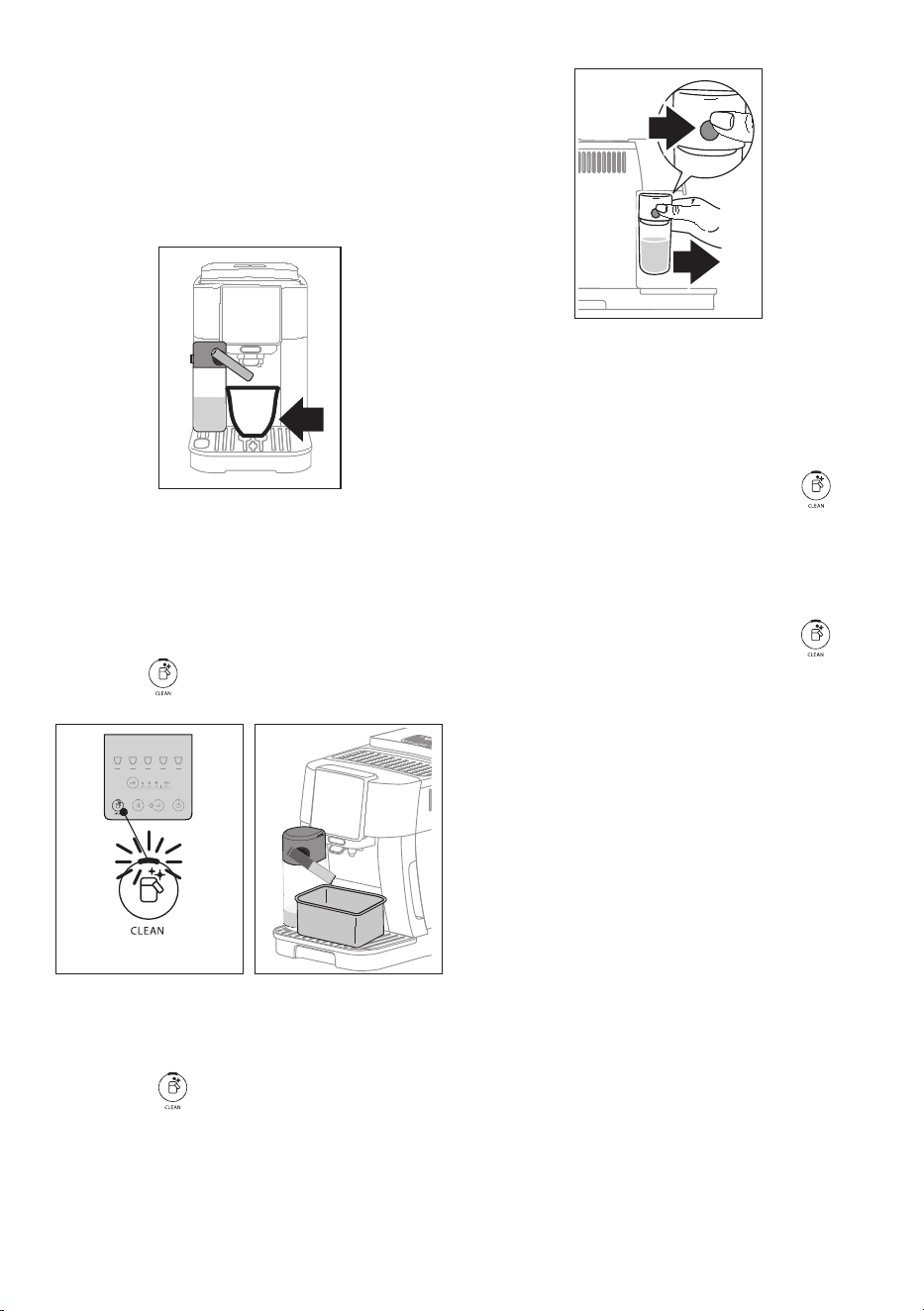

9.6 Cleaning the milk carafe after each use
Following each delivery of a milk-based drink, the Led associ-
ated with the
button will blink on the control panel (B4)
(g. 25).
1 2 3 4 5
25
26
1. Leave the milk carafe in the machine (there is no need to
empty the milk container);
2. Place a cup or other recipient under the milk spout (g.
26);
3. Press the
button: hot water and steam will be re-
leased from the milk spout. Cleaning stops automatically;
4. Press the release button (E5) on the lid (E1) and pull the
carafe to remove it (g. 27).
27
1
2
Where various drinks are prepared in succession:
• Proceed with cleaning of the carafe after the nal
preparation.
After multiple preparations, the milk carafe is empty
or the milk that remains is not enough to make further
drinks
• Having carried out the cleaning step with the
but-
ton, disassemble the milk carafe and clean all compo-
nents, proceeding as described in the section “14. Thor-
ough cleaning of milk carafe”.
After multiple preparations, there is enough milk left in
the carafe to make further drinks
• Having carried out the cleaning step with the
but-
ton, remove the milk carafe and put it straight in the
refrigerator. The carafe still containing milk can be kept
in the refrigerator for no more than 2 days, after which
time all components should be cleaned, proceeding as
described in the section “14. Thorough cleaning of milk
carafe”.
Important:
If the milk carafe is left out of the refrigerator for more than
30 minutes, disassemble and clean all components, proceed-
ing as described in the section
“14. Thorough cleaning of milk
carafe”.
Following preparation of milk-based drinks — general
notes:
• In certain cases, the machine will need to heat up before
cleaning can take place.
• Wait for cleaning to be completed. The function ceases
automatically, It must not be stopped while in progress.
9.7 Customizing the quantity in the cup
1. Press the button relative to the milk-based drink being
programmed, and hold for a few seconds. The light blinks
rapidly to indicate that the programming menu is active.
Delivery of the rst ingredient will start;
13
2. Once the cup is lled to the desired level, press the drink but-
ton a second time: delivery of the rst ingredient stops and
delivery of the second ingredient begins;
3. Once the cup is lled to the desired level, press the button
again: delivery ceases and the quantity is stored.
Please note!
• To cancel the current setting, press a button corre-
sponding to another drink.

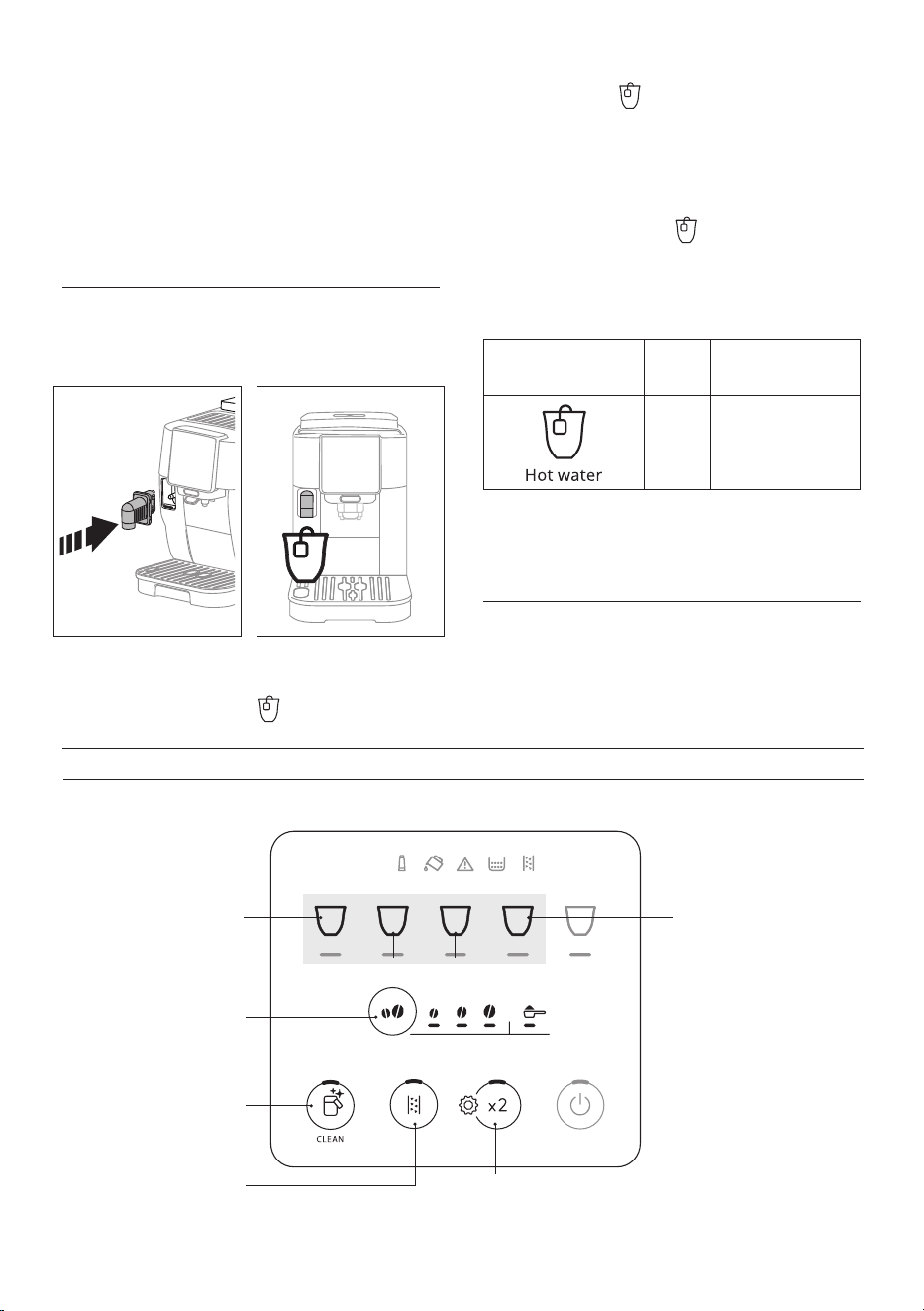

10. DELIVERING HOT WATER
Danger of scalding!
Never leave the machine unattended when hot water is being
released.
1. Lower the ap and t the hot water spout (g. 28).
28
29
2. Place a container under the hot water spout (g. 29) (as
close as possible to avoid splashes).
3. Press the Hot water button .
4. Delivery will stop automatically. To terminate the delivery
sooner, press the button a second time.
Please note:
In energy saving mode, a few seconds may elapse before hot
water emerges as the machine must heat up.
10.1 Customizing the quantity of hot water
1. Press the Hot water button
and hold for a few seconds:
the light blinks rapidly to indicate that the programming
menu is active. Delivery begins;
2. Once the cup is lled to the desired level, press the button
again: delivery ceases and the quantity is stored.
Default
(ml)
Programmable (ml)
250
from ≃ 20 to ≃ 420
Please note!
To cancel the current setting, press a button corresponding to any
drink
11. TIPS FOR ENERGY SAVING
• To reduce energy consumption, remove the milk carafe
after one or more drinks have been delivered;
• Set auto-o to 15 minutes (see “12. Settings menu”);
• Enable Energy Saving (see “12. Settings menu”);
• Always carry out the descaling cycle when prompted by
the machine.
12. SETTINGS MENU
Having accessed the menu, the buttons that remain active can be used to select the corresponding functions:
(*)
Drinks diering according to model
1 2 3 4 5
Access to
settings menu
Selection of
settings
Auto-o
Water hardness
Coee temperature
Energy saving
(*)
Water softener lter
Beep
14

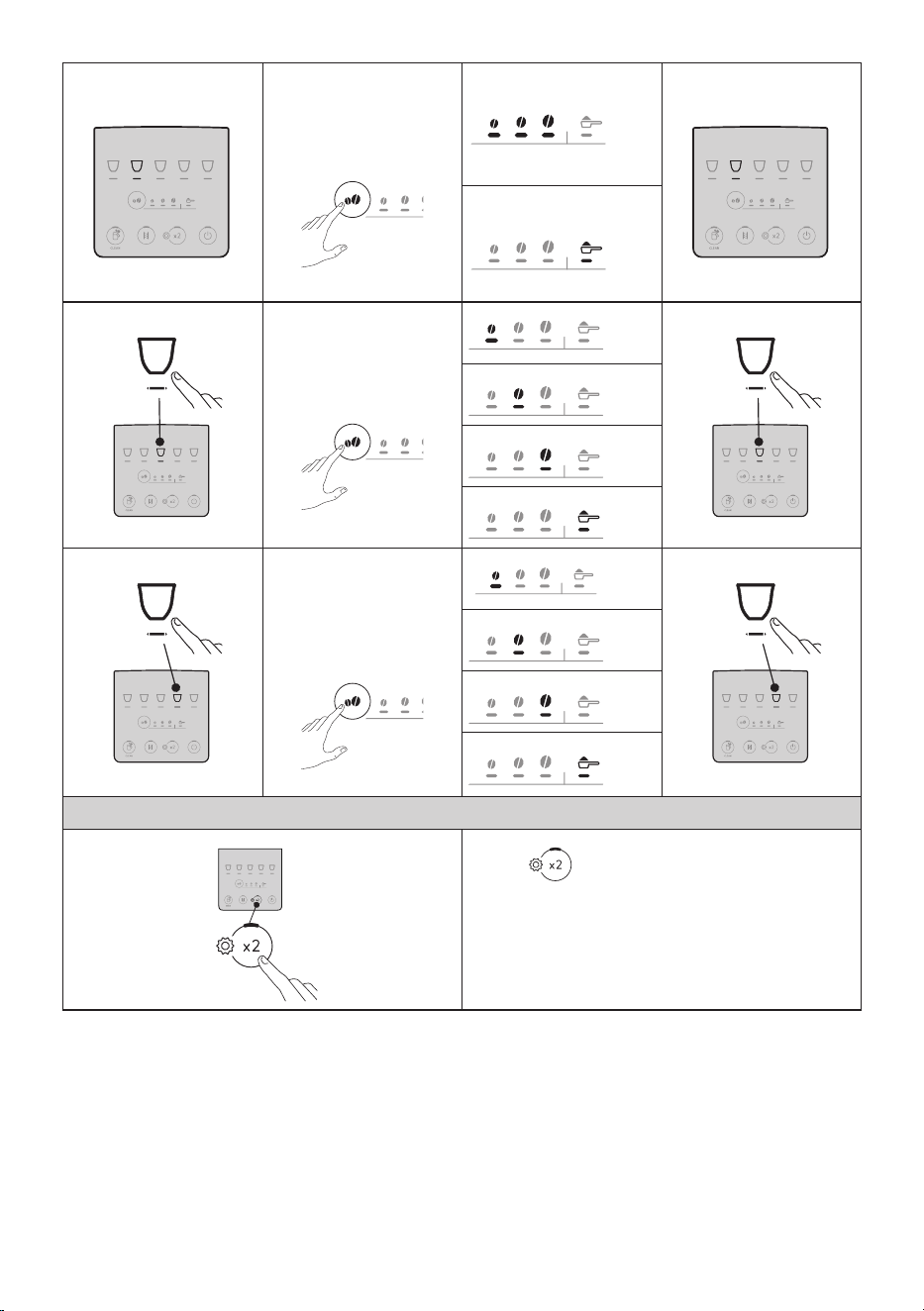

1. Access the menu:
1 2 3 4 5
x 5 sec
Press and hold the button for a few seconds:
the buttons used for selecting settings will light up.
Proceed by pressing the button for the setting to be changed.
2. Change the machine settings:
Water softener lter
1 2 3 4 5
Press the intensity button
repeatedly until the Leds
relative to the desired
setting light up
FILTER IN PLACE
(Ref: “4. Water softener lter”
and “4.1 Replacing the lter”)
Conrm selection
1 2 3 4 5
FILTER REMOVED
(Ref. “4.2 Removing the
lter”)
Beep
1 2 3 4 5
Press the intensity button
repeatedly until the Leds
relative to the desired
setting light up
ENABLED
Conrm selection
1 2 3 4 5
DISABLED
Coee temperature
1
1 2 3 4 5
Press the intensity button
repeatedly until the Leds
relative to the desired
setting light up
LOW
Conrm selection
1
1 2 3 4 5
MEDIUM
HIGH
→
15
Energy saving
1 2 3 4 5
Press the intensity button
repeatedly until the Leds
relative to the desired
setting light up
ENABLED
Conrm selection
1 2 3 4 5
DISABLED
Water hardness
3
1 2 3 4 5
Press the intensity button
repeatedly until the Led
corresponding to the
required level lights up
LEVEL 1
Conrm selection
3
1 2 3 4 5
LEVEL 2
LEVEL 3
LEVEL 4
Auto-o
4
1 2 3 4 5
Press the intensity button
repeatedly until the Led
corresponding to the
required time setting
lights up
15 MINUTES
Conrm selection
4
1 2 3 4 5
30 MINUTES
1 HOUR
3 HOURS
3. Exit the menu:
1 2 3 4 5
Press the button:
The machine is ready for use again.
Please note!
After 30 seconds without a button being pressed, the machine exits
the settings menu automatically.
16

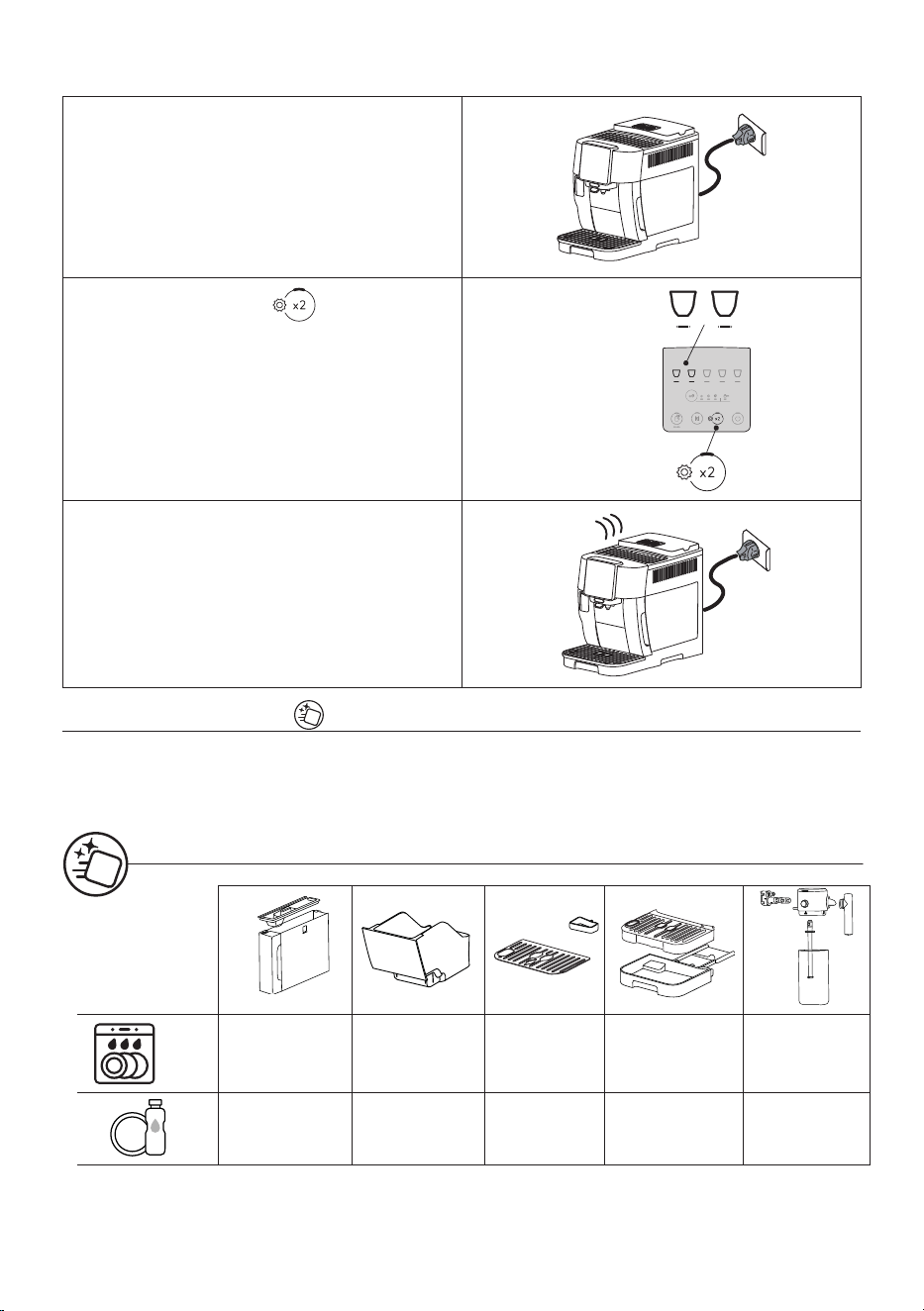

12.1 Restore factory settings
Make sure the machine is in stand-by (o, but connected to the
mains power supply).
Press the drinks buttons 1, 2 and hold for 5 seconds: all
settings and drink quantities will be reset to the default factory
values.
1 2
x 5 sec
1 2 3 4 5
The machine emits a long beep and all indicator lights blink to
conrm the reset
BEEP
13. CLEANING THE MACHINE
Important!
• Do not use solvents, abrasive detergents or alcohol to clean the machine. With De’Longhi superautomatic coee machines, no
chemical additives are required for cleaning purposes.
• Do not use metal objects to remove encrustations or coee deposits as they could scratch metal or plastic surfaces.
MAX
50°C
✕ ✕ ✕
✓ ✓
✓ ✓ ✓ ✓ ✓
17

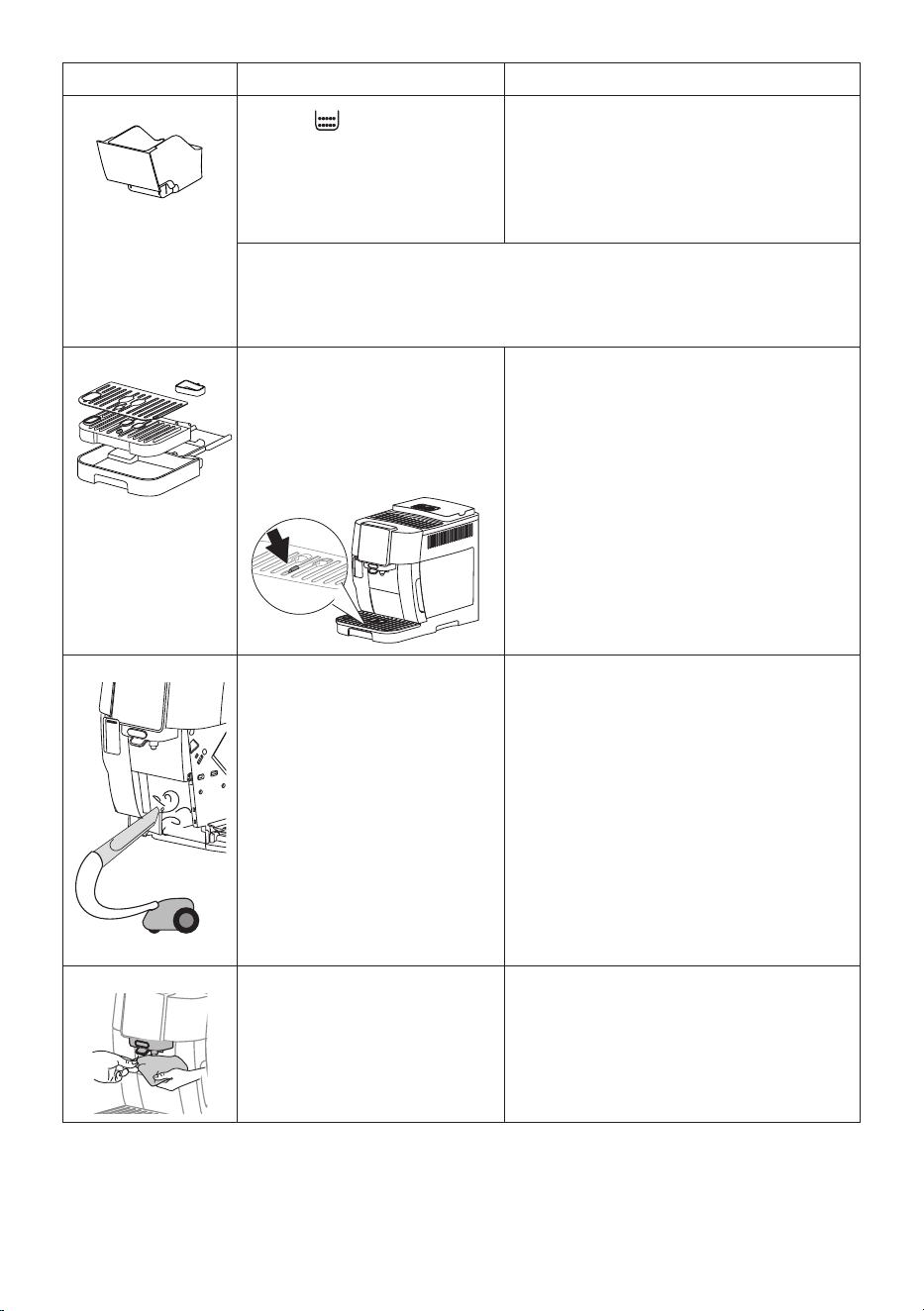

Component Frequency Procedure
Grounds container
When the indicator lights up, the
grounds container must be emptied: the
machine cannot now make coee.
• Remove the drip tray, empty and clean.
• Empty the grounds container and clean thoroughly
to remove all residues that may have collected on
the bottom.
• Check the condensate tray (colour red) and if full,
empty if out.
The appliance cannot be used to make coee again until the grounds container has been cleaned. The
machine will display the message indicating the need to empty the grounds container 72 hours after
the rst coee has been prepared, even if the container is not full (for the 72 hours to be calculated
correctly, the machine must never be disconnected from the mains power supply).
Drip tray components The drip tray is tted with a level indi-
cator (colour red) showing the level of
water it contains.
Before the indicator projects from the cup
tray, the drip tray must be emptied and
cleaned
• Remove the drip tray and the grounds container;
• Remove the cup tray and drip tray grille, then
empty the drip tray and the grounds container and
wash all components;
• Check the red condensate tray and, if full, empty if
out;
• Reposition the drip tray complete with grille, and
the grounds container.
When removing the drip tray, the grounds container
must also be emptied, even if it is not completely full.
Inside of the machine Check periodically (about once a month)
that the inside of the machine (accessible
by removing the drip tray) is not dirty.
Switch the machine o and isolate it from the power
supply. Never immerse the machine in water.
• Remove coee deposits with a brush and sponge;
• Remove all residues with a vacuum cleaner
Coee spouts Clean the coee spouts periodically (once
a month)
• Clean the coee spouts periodically with a sponge
or cloth;
• Check that the holes in the coee spout are not
blocked. If necessary, remove coee deposits with
a toothpick.
18

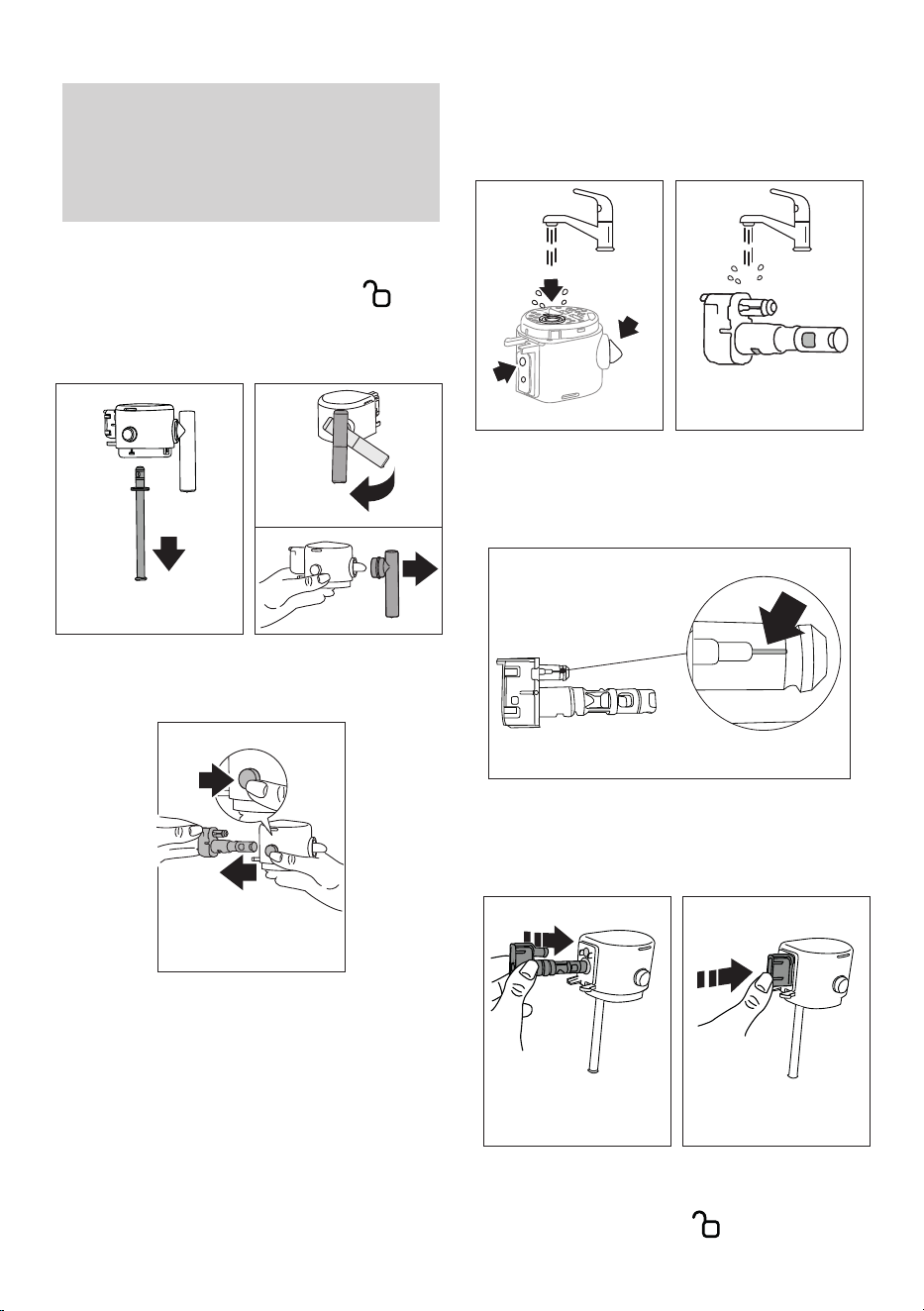

14. THOROUGH CLEANING OF MILK CARAFE
VERY IMPORTANT
To ensure optimum results are obtained from
the Lattecrema system over time, clean the
milk carafe thoroughly on a regular basis.
Clean the milk carafe as described below:
1. Release the lid (E1)by turning clockwise: the reference
mark on the lid must be aligned with the symbol
(g. 18);
2. Now lift the lid (g. 19).
3. Pull out the milk intake tube (30).;
1
30 31
4. Turn the milk spout at right angles to the body and pull
until completely detached (g. 31);
5. Press the button (E5)to separate the connector (g. 32).
32
2
1
6. Wash in a dishwasher (recommended) or by hand as in-
dicated below:
• In a dishwasher: Rinse all the above components and
the milk container under hot running drinking water (at
least 40 °C), then place them in the top basket of the dish-
washer and run a wash programme at 50 °C, e.g. standard
ECO.
• By hand: Rinse all the components and the milk container
thoroughly with hot running drinking water (at least 40 °C)
to remove all visible milk residues, making certain to direct
the water through all the holes of the lid (g. 33). Next,
immerse all the components in a solution of hot drinking
water (at least 40° C) and washing up liquid for at least 30
minutes. Rinse all the components described above thor-
oughly under hot drinking water, rubbing each one individ-
ually between ngers and thumbs.
33 34
7. Rinse the milk carafe connector (E6) thoroughly (g. 34).
Take particular care to ensure that there are no milk res-
idues in the air channel (see enlargement) (g. 35):
free
the channel clean if need be
, using a toothpick;
35
8. Dry all the components with a clean dry cloth;
9. Push the connector fully home (g. 36 and 37): when
securely inserted, the connector can be detached only by
pressing the release button on the lid.
36 37
10. Reassemble all the lid components:
11. Close the carafe: ret the lid (the reference mark on the
lid must be aligned with the symbol marked on the
19
milk container (E7) then turn toward the symbol until
locked (g. 22).
15. CLEANING THE INFUSER
Clean the infuser (A6) regularly, at least once a month.
Important!
The infuser (A6) cannot be removed while the machine is on.
1. Press the
button (B1)to turn the machine o;
2. Remove the water tank (A9);
3. Open the infuser ap, positioned on the right hand side
(g. 38);
4. Press the two coloured release buttons inwards (g. 39), at
the same time pulling the infuser outwards;
PUSH
38 39
PUSH
5. Immerse the infuser in water for about 5 minutes, then
rinse under the tap;
Important!
RINSE WITH WATER ONLY
NO DETERGENTS - NO DISHWASHER
6. Do not use detergents when cleaning the infuser, as they
could damage it.
7. Use a brush to remove any coee residues left in the in-
fuser housing, which can be seen through the infuser ap;
8. After cleaning, replace the infuser by sliding it into its
housing, then apply pressure to the PUSH symbol until it
clicks into place;
Please note:
If the infuser proves dicult to insert, adapt it (before inser-
tion) to the right position by pressing the two levers (g. 40).
40 41
PUSH
9. Once inserted, make sure the two coloured buttons have
snapped out (g. 41);
10. Close the infuser ap;
11. Reposition the water tank in the machine.
16. DESCALING
• Before use, read the instructions and the labelling on the
descaler pack.
• Use only descaler supplied by De’Longhi. Using unsuit-
able descaler and/or performing descaling incorrectly
may result in faults not covered by the manufacturer’s
guarantee.
• Descaler can cause damage to delicate surfaces. If the
product is accidentally spilt, dry immediately.
To descale
Descaler De’Longhi descaler
Container Recommended capacity: 2l
Time ~30min
Accessory Hot water spout (D5)
Important:
If the water softener lter is installed, it must be re-
moved before adding the descaler solution.
Thereafter, reinstate the lter at the start of step 3
Descale the machine when the indicator lights up on the
control panel (C4). This same indicator will blink while the des-
cale cycle is in progress.
Please note:
• Once the descaling cycle has begun, it cannot be inter-
rupted and must be concluded with the full rinse cycle.
With this in mind, make sure there is sucient descaler.
Proceed as follows:
1. Make certain that the water spout (D5) is tted;
20

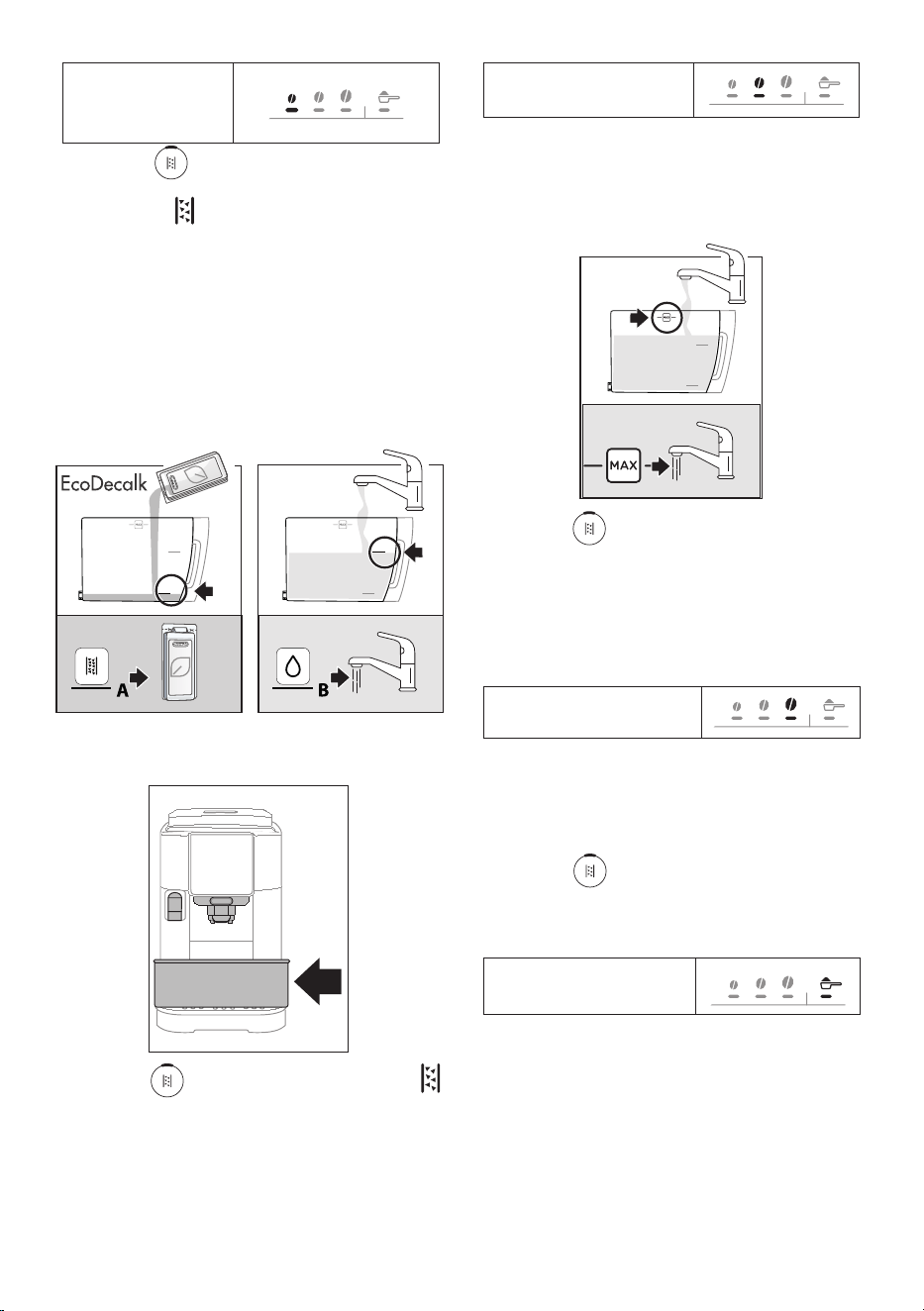

Step 1: Descaling
action
2. Press the button (B5) and hold for at least 5 sec-
onds, until the relative Led starts blinking rapidly. The
indicator Led (C5) blinks to conrm that the descaling
programme is in progress. The mild intensity Led lights up
to indicate that step 1 of the descale cycle is in progress;
3. Empty the drip tray (A14) and the grounds container
(A10) and reposition them; empty the water tank com-
pletely (A9) and remove the softener lter (if installed);
4. Pour the descaler into the water tank up to level A (corre-
sponding to a 100 ml pack) marked on the inner surface
of the tank (g. 42), then add water (1 litre) up to level
B (g. 43) and reposition the water tank in the machine.
42
43
B
A
B
A
5. Place an empty container of at least 2 litres capacity under the
coee spouts (A16) and the water spout (D5) (g. 44).
44
2l
6. Press the button to start the descaling cycle; the
indicator light blinks to conrm that step 1 is in progress;
7. For 15 minutes or so, the machine alternates automati-
cally between pausing and releasing liquid from the hot
water spout and the coee spout.
When the rst step of the descaling cycle has been completed,
the low water level indicator (C2) will light up.
Step 2: First rinse
8. Empty the container used to collect the descaler solution. Re-
move and empty the water tank, rinse under running water,
then ll with fresh drinking water up to the MAX level (g. 45)
and return it to the machine: reposition the container under
the spouts;
45
B
A
9. Press the button (which blinks rapidly) to start the
rinse: the medium intensity Led blinks to indicate that
step 2 of the descale cycle is in progress;
10. The machine will proceed automatically with rinsing of
the coee and hot water spouts;
When the second step of the descaling cycle has been complet-
ed, the low water level indicator (C2) will light up.
Step 3: Second rinse
11. Empty the container used to collect the water from the
rst rinse. Remove and empty the water tank, then ll
with fresh drinking water up to the MAX level (g. 44) and
reinstate the softener lter, if in use; return the tank to the
machine and reposition the container under the spouts;
12. Press the
button (which blinks rapidly) to start the
rinse: the strong intensity Led blinks to indicate that step
3 of the descale cycle is in progress; the rinse uid will
ow from the hot water spout; (*)
Step 4:
Completion of descale
procedure
13. When the Led relative to the pre-ground function lights
up, the descale cycle has been correctly terminated;
14. The indicator of the grounds container (C4)lights up:
remove the container in which the rinse water is collect-
ed and empty it; take out the drip tray and empty the
grounds container, where part of the rinse water will have
been collected. Reposition all the parts in the machine.
21
15. The “no water” indicator (C2)lights up: remove the tank
and ll with fresh drinking water. Reposition the water
tank in the machine.
The machine is ready for use.
Please note:
• It is normal for the grounds container to contain water
following a rinse cycle.
• (*) If the water tank has not been lled to the MAX level,
at the end of descaling, the system requests a third rinse
to guarantee that the descaler solution has been com-
pletely eliminated from the machine's internal circuits. In
this instance, repeat step 3 from point 11.
17. EXPLANATION OF LIGHTS
Indicator/Led Meaning
Drink indicators blinking The machine is warming up:
wait
Drink and settings indicators
permanently alight
The machine is ready for
use: select the desired drink
and the relative options
1 2 3 4 5
Replace the lter (see
section “4. Water softener
lter”)
1 2 3 4 5
Insucient water in tank:
ll the tank
1 2 3 4 5
The water tank is missing, or
is not positioned correctly:
ensure the tank is correctly
in place
→
Indicator/Led Meaning
1 2 3 4 5
General alarm: the inside of
the machine is very dirty.
Clean the machine thor-
oughly. If the message is
still displayed after cleaning,
contact De’Longhi Customer
Services and/or an approved
Service Centre
1 2 3 4 5
The infuser has not been
replaced after cleaning:
reinstate the infuser as
described in section “15.
Cleaning the infuser”
1 2 3 4 5
No coee beans: ll the
beans container, then press
any button to exit the alarm
condition.
1 2 3 4 5
The beans are too nely
ground, so that the coee is
delivered too slowly or not
at all. Adjust the coee mill
(A2) (section “8.8 Adjusting
the coee mill”).
1 2 3 4 5
A selection has been made
using pre-ground coee
without putting the coee
in the relative funnel (A4)
→
22
Indicator/Led Meaning
1 2 3 4 5
Too much coee has been
used. Select a milder inten-
sity or reduce the quantity
of pre-ground coee
1 2 3 4 5
The coee emerges too
slowly or drop-by-drop..
The coee is ground too
nely.
Use coee for espresso
machines.
1 2 3 4 51 2 3 4 5
• A milk drink has been
selected, but the con-
nector (E6) has not
been properly inserted:
check that the milk ca-
rafe is complete with all
components correctly
assembled (see section
“14. Thorough cleaning
of milk carafe”)
• The milk carafe was re-
moved during delivery of
milk. Reposition the milk
carafe: the machine is
ready for use again
• A milk drink has been
requested, but there is
not enough milk in the
container (see section
“9.2 How much milk?” ).
→
Indicator/Led Meaning
1 2 3 4 5
Hot water
Hot water has been select-
ed, but the spout is not in
place: t the water spout
1 2 3 4 5
Hot water
The water circuit is empty.
Deliver hot water by
pressing the corresponding
button Hot Water
1 2 3 4 5
The grounds container
needs emptying (A10)
1 2 3 4 5
The grounds container (A10)
is missing, or not inserted
correctly: insert the drip tray
complete with the grounds
container and press fully
home
1 2 3 4 5
Descaling is required (“16.
Descaling
”” )
→
23

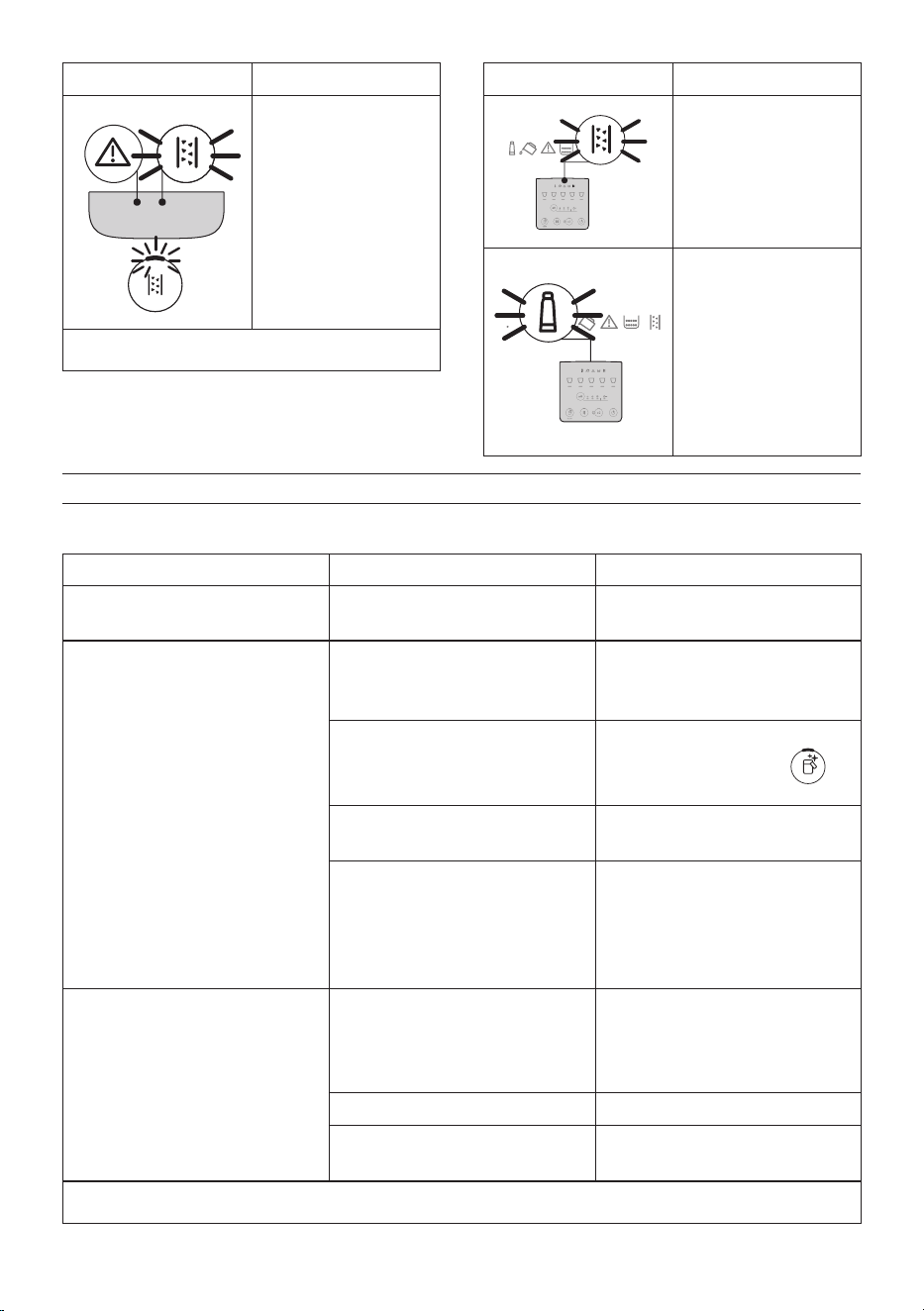

Indicator/Led Meaning
Descaling has been inter-
rupted. Complete the cycle,
restarting from the step
indicated by the intensity
selection Leds.
→
Indicator/Led Meaning
1 2 3 4 5
Descaling in progress
1 2 3 4 5
Installation/Replacement
of water lter softener
progress
18. TROUBLESHOOTING
Possible malfunctions of the machine are listed below.
If the problem cannot be resolved as described, contact Customer Service.
Problem Cause Solution
The appliance does not switch on. The cord is not plugged into the mains
socket.
Plug into the mains socket.
The coee is not hot. The cups were not preheated. Warm the cups by rinsing them with hot
water (Please note: the hot water func-
tion can be used).
The internal circuits of the appliance have
cooled down because 2-3 minutes have
elapsed since the last coee was made.
Before making coee, warm the internal cir-
cuits by pressing and holding the
but-
ton (B4) for a few seconds to run a rinse cycle.
Coee temperature setting too low.
Select a hotter coee temperature in the
settings menu (see “12. Settings menu”).
The machine needs descaling
Run the descale procedure. Next, check
the water hardness (“5. Measuring water
hardness”) and make sure the machine
setting matches the local water supply
hardness (“12. Settings menu”).
The coee is weak or not creamy enough. Coee ground too coarsely. Adjust the grinding level (“8.8 Adjusting
the coee mill”). The eect will not be
noticeable until at least 2 coees have
been made.
Coee not suitable. Use coee for espresso machines.
Coee not fresh. The coee pack has been opened for too
long and has lost its taste.
→
24
Problem Cause Solution
The coee emerges too slowly or
drop-by-drop.
Coee ground too nely. Adjust the grinding level (“8.8 Adjusting
the coee mill”). The eect will not be
noticeable until at least 2 coees have
been made.
The machine does not deliver coee. Impurities have been detected in the in-
ternal circuits
Wait until the machine is ready for use
again, and proceed to select the required
drink. Contact an authorized Service Cen-
tre if the problem persists.
Coee does not come out of one or both
spouts.
Coee nozzles blocked. Clean the nozzles with a cloth. Any en-
crusted deposits can be removed with a
toothpick, if necessary.
The coee delivered is watery. Pre-ground coee funnel clogged. Open the ap and clean the funnel with
the aid of a brush.
The infuser cannot be removed. The machine has not been correctly
switched o.
Switch the machine o by pressing the
button
.
With the descaling procedure completed,
the appliance prompts for a third rinse
During the two rinse cycles, the water
tank was not lled to the MAX level
Restart the descaling procedure from
“Step 3: Second rinse”.
The milk presents large bubbles, or
splashes from the spout(E3) , or is
under-frothed.
Milk is not cold enough, or is not semi-
skimmed or skimmed.
Use skimmed or semi-skimmed milk
straight from the refrigerator (tempera-
ture about 5° C). If the result is still not as
expected, try changing the brand of milk.
Milk carafe lid dirty. Disassemble the components and clean
thoroughly as described in section “9.6
Cleaning the milk carafe after each use”.
Take particular care when cleaning the
milk carafe connector (E6).
Vegetable drinks are being used. The end-result varies widely depend-
ing on the nutritional properties of the
drinks. “Barista” versions of these drinks
are recommended.
Milk-based drinks are not enabled Milk carafe missing or not correctly in
place.
Prepare the milk carafe and position it
correctly in the machine.
Several milk drinks have been prepared
in succession and the machine needs to
heat up to the right temperature in order
to make the next drinks.
Wait until milk-based drinks are again
enabled on the control panel.
The cup tray on top of the machine is hot Several drinks have been prepared in
rapid succession
The machine emits noises or small pus
of steam while not in use
The machine is ready for use or has just
been turned o, and a few drops of
condensate are falling into the steamer,
which is still hot.
This is to be expected as an aspect of
normal operation: to minimize the eect,
empty the drip tray regularly.
→
25
Problem Cause Solution
The machine emits pus of steam from
the drip tray and/or there is water on the
surface where the machine is positioned.
The drip tray grille has not been replaced
after cleaning.
Ensure the grille is repositioned in the
drip tray.
19. TECHNICAL DATA
Voltage: 220-240 V~ 50-60 Hz max. 10 A
Power: 1450 W
Pressure: 1.5 MPa (15 bars)
Water tank capacity: 1.8l
Size LxDxH: 240x440x350 mm
Cord length: 1250 mm
Weight (varies according to model): 8.8 kg
Beans container capacity: 250 g
De'Longhi reserves the right to modify the technical specication
and styling of its products at any moment, without compromis-
ing their functionality and quality.
De’Longhi Appliances via Seitz, 47 31100 Treviso, Italy www.delonghi.com
57132C8477_00_0623
