WWW.ZEPHYRONLINE.COM
JAN21.0101
Stainless Steel Backsplash
AK1710 - 30”
AK1716 - 36”
AK1712 - 42”
Use, Care, and Installation Guide
AK1718 - 48”
AK1714 - 54”
2
Stainless Steel Backsplash Use, Care, and Installation Guide
BACKSPLASH
ACCESSORY
3
Stainless Steel Backsplash Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Contents
Page
List of Materials ................................................................................... 3
Specications ................................................................................... 4-6
Installation Instructions ....................................................................... 7
Maintenance .......................................................................................8
Contact Us ......................................................................................... 8
Parts Supplied
Quantity Part
1 Upper section
1 Lower section
1 Hardware package
Hardware Package Contents
9 #6*1 Wood Screw (for 30” and 36”)
10 #6*1 Wood Screw (for 42” and 48”)
11 #6*1 Wood Screw (for 54”)
To order parts, visit us online at http://store.zephyronline.com.
4
Stainless Steel Backsplash Use, Care, and Installation Guide
BACKSPLASH
ACCESSORY
Specications
30”, 36”
18-1/2”
Adjustable Height
22-3/4” minimum - 38-3/4” maximum
1-3/16”
1-3/16”
9/16”
21-1/16”
20-1/6”
1-3/16”
9/16”
Front View
3/4 View
5
Stainless Steel Backsplash Use, Care, and Installation Guide
ZEPHYRONLINE.COM

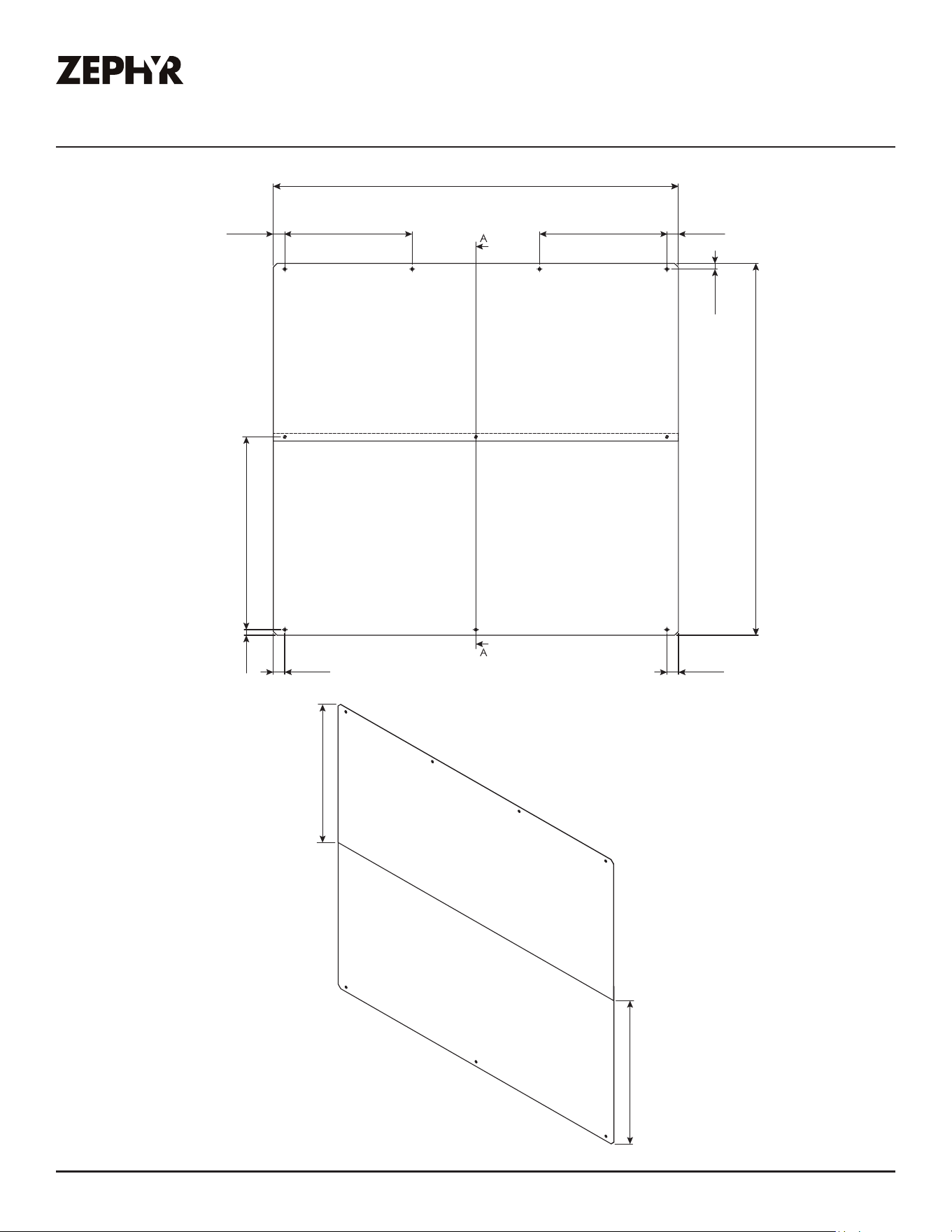

Specications
42”, 48”
1-3/16”
(42”) 13-13/6“
(48”) 15-3/16”
1-3/16”
(42”) 13-13/6“
(48”) 15-3/16”
1-3/16”
9/16” 20-1/6”
1-3/16”
9/16”
Adjustable Height
22-3/4” minimum - 38-3/4” maximum
18-1/2”
21-1/16”
Front View
3/4 View
6
Stainless Steel Backsplash Use, Care, and Installation Guide
BACKSPLASH
ACCESSORY

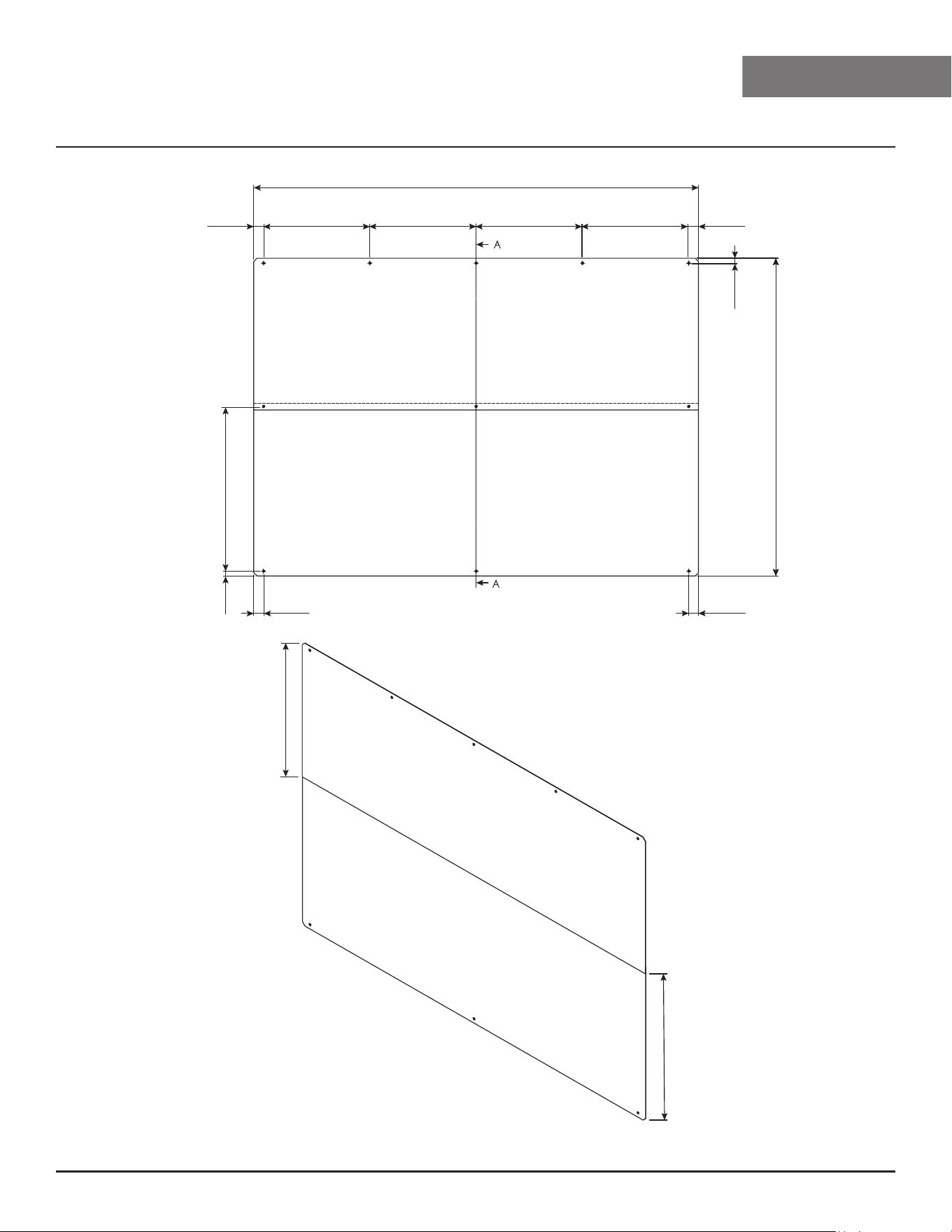

Specications
Adjustable Height
22-3/4” minimum - 38-3/4” maximum
18-1/2”
Front View
3/4 View
21-1/16”
1-3/16” 12-7/8”
12-7/8”
12-7/8” 12-7/8”
1-3/16”
9/16”
53-7/8”
1-3/16”
9/16”
20-1/6”
1-3/16”
7
Stainless Steel Backsplash Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
1. Position the lower section of backsplash on the wall. Center it side to side and mark the holes.
Remove the lower section from the wall.
2. If installing onto drywall only and not onto studs, insert wall anchors (EZ anchors are
recommended) into the marked holes. If installing onto studs, attach screws without EZ anchors.
3. Attach lower section of backsplash to the wall with screws provided.
4. Position upper section of backsplash on the wall. The position of the upper section should be at
least 1” above the bottom of the hood so the recessed screws are covered. Center it side to side
and mark the holes. Remove the upper section from the wall and install wall anchors into marked
holes.
5. Peel o the double-sided tape. Attach upper section to wall with screws provided.
6. Use the double-sided tape to adhere both the upper and lower sections together.
The backsplash should be installed before the hood is installed.
WARNING
8
Stainless Steel Backsplash Use, Care, and Installation Guide
BACKSPLASH
ACCESSORY
Maintenance
Surface Maintenance
► Do not use corrosive detergents, abrasive detergents or oven cleaners.
► Do not use any product containing chlorine bleach or any product containing chloride.
► Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface.
Cleaning Stainless Steel
Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. Always rub
in the direction of the stainless steel grain. To remove heavier grease build up use a liquid degreaser
detergent.
After cleaning use a non-abrasive stainless steel polish/cleaners, to polish and bu out the stainless
luster and grain. Always scrub lightly, with clean cotton cloth or micro fiber cloth and bu in the
direction of the stainless steel grain.
Contact Us
To order parts, visit us online at http://store.zephyronline.com.
Zephyr Ventilation
2277 Harbor Bay Parkway
Alameda, CA 94502
