TOOL CABINET
OPERATING INSTRUCTIONS
Top Chest
Make sure to close all drawers at first. To lock the unit with door, insert
the locating tab of the door into the metering hole and turn left the key.
To lock the unit without door, close lid and turn left the key.
To unlock the unit with door, turn right the key and put the door up. To
unlock the unit without door, turn right the key and slide drawer out.
Intermediate Chest and Roll Cabinet
Make sure to close all drawers at first. To lock the unit with door, draw
out the door and turn left the key. To lock the unit without door, turn left
the key.
To unlock the unit with door, turn right the key and open the door at first.
To unlock the unit without door, turn right the key and slide drawer out.
Do not slam the drawers as they
will not lock, and damage may
occur to lock bar tabs or lock
pockets.
Should damage occur, remove the
drawers (following steps below).With
a screwdriver or pliers straighten out Figure 1
the damaged tabs or lock pockets. (a):Lock Bar Tab , (b):Lock Pocket
To unlock the unit, turn right the key and slide drawer out.
If it becomes necessary to remove drawers, follow these
drawer removal instructions:

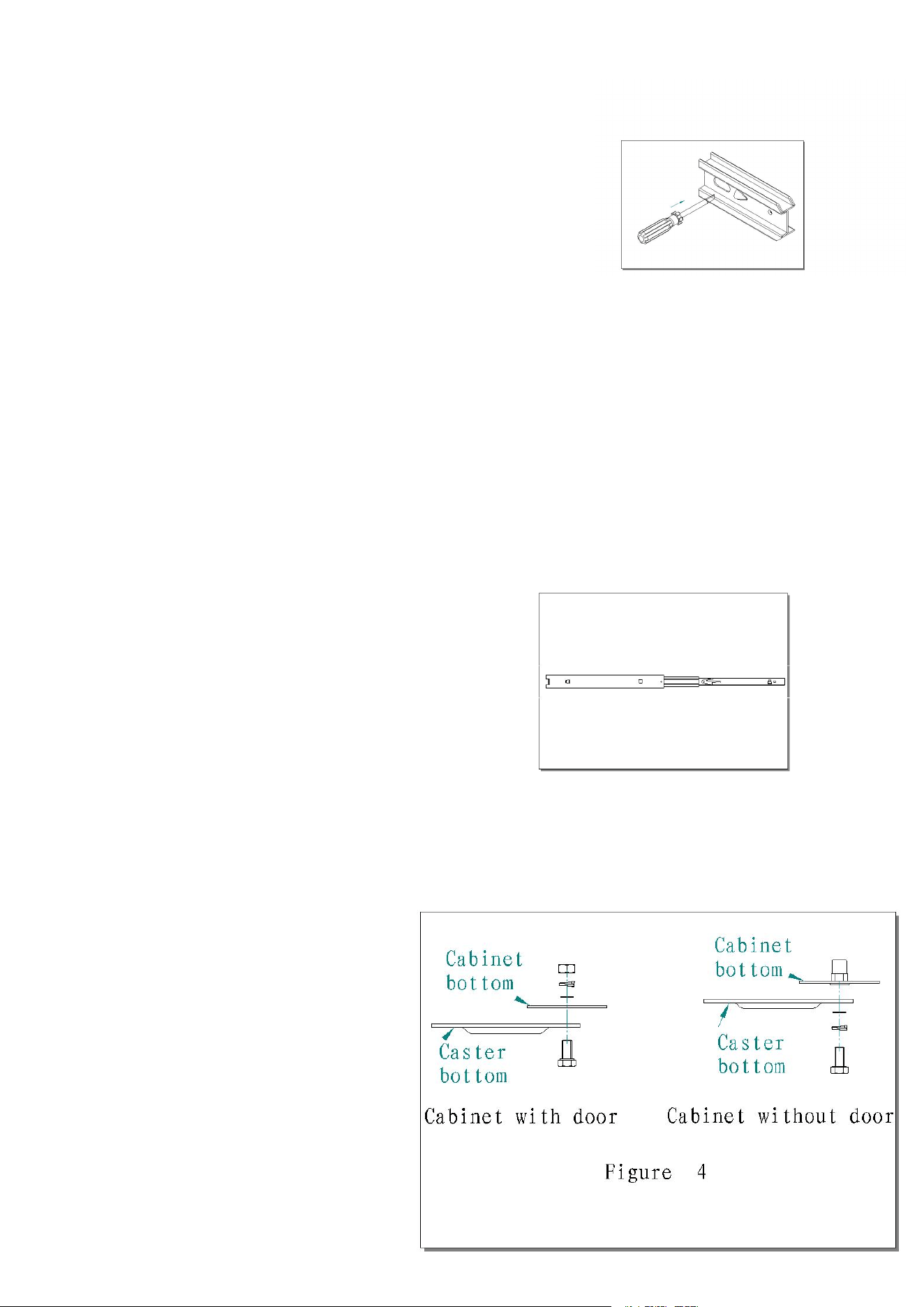

1.Smooth Action Drawer Slides
1)Pull drawer all the way open then push back a
fraction of an inch.
2)Insert a screwdriver into this slot
in the slide and push in on the stop
until it clears the lance. Repeat the
procedure on the other slide and remove drawer. Figure 2
3) To re-install drawer, pry stop far enough out to engage lances
(3/16”to 1/4”) and push drawer onto slide until stops engage lances.
2.Ball Bearing Drawer Slides
Ball bearing slides have black
retaining clips. To remove drawer, the
retaining clips need to be released by
pushing lever up (right hand side of
slide)and down (left hand side of
slide)simultaneously, and pulling
drawer out (Figure 3). Figure 3
To re-install drawers, simply
place drawer onto
slides and push in
fully.
Casters and Side
Handle
Roller cabinet is
supplied with
heavy duty casters, including two swivel casters with brakes and
two fixed casters. The side handle must be fixed on the same
side as the swivel casters.
Warning
1. Do not open more than one loaded drawer at a time.
2. Close lid, lock drawers and door before moving.
3. Do not stand on the product. You may fall which may cause personal
injury.
4. Do not mount the product on truck bed or any other moving object.
5. Apply brakes on swivel casters when not moving unit.
6. Do not pull , push to move.
7. Do not step in the drawers. You may fall which may cause personal
injury.
8. Lubricate the top and bottom channels of the drawer slides at least
twice a year.
