Model No. DH23
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will, if used according to these instructions, and properly
maintained, give you years of trouble free performance.
www.dellonda.co.uk
DH23 Issue:1 27/04/22
Dellonda Standing Vertical Flexible Wire Cable Tidy
Management System 1.3M Ø75mm
2
Important Information
Please read these instructions carefully and note any safe operational requirements, warnings & cautions. Use the product correctly and with
care for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep
these instructions safe for future use.
Contents
Specication
• Height range: 710-1210mm
• Horizontal adjustment: 850-1290mm
• Speed: 25mm/s
• Max. load capacity: 70kg
• Sound level: <50dB
• Supply: 230V
• Recommended desktop dimensions (W x D): 1100-1600/600-800mm
Step 1

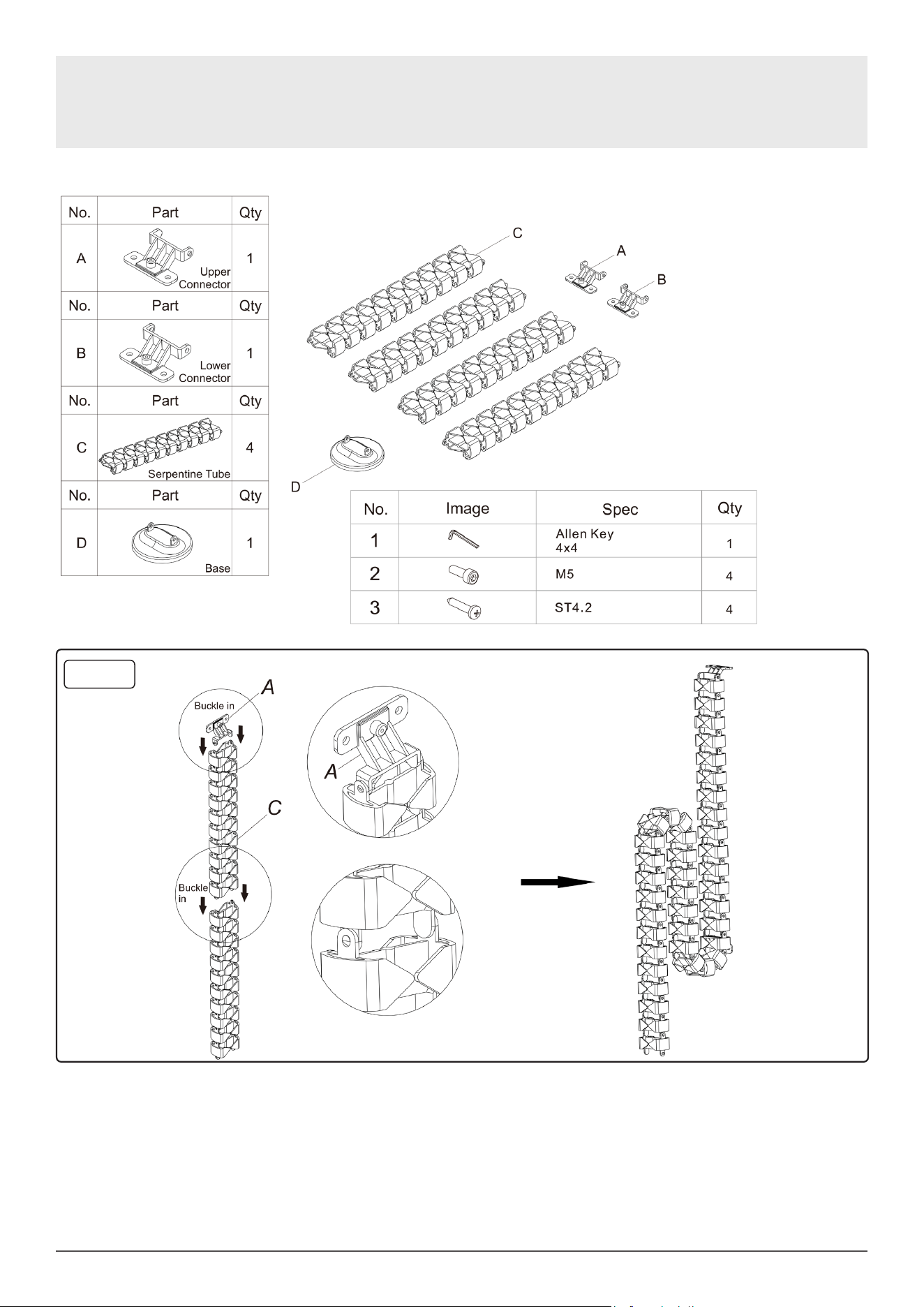

Install the upper connector and the serpentine tube.
3
Step 2
Install the lower connector or the base
Install the lower
connector
Install the base
Step 3
Install the serpentine tube

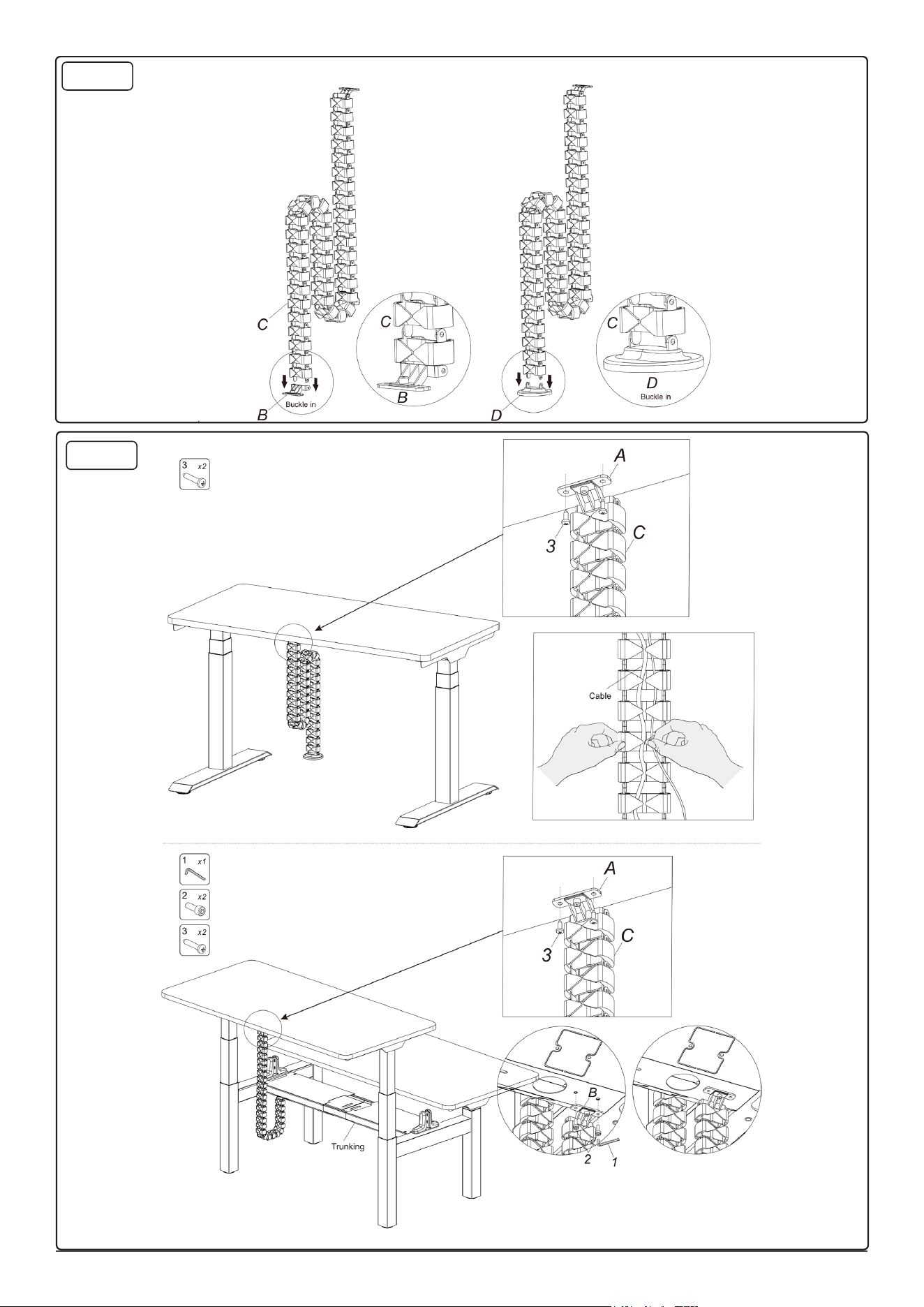

Fix the upper connector (A) on one end of the single-table serpentine
tube on the desk, place the base (D) on the other end on the ground or on
a at surface. Finally, insert the cable into the serpentine tube.
Installation method of lower connector for
single desk
Trunking is an optional part
Schematic diagram
of screw installation
Schematic diagram
of magnetic installation
Fix the upper connector (A) on one end of the double-table serpentine tube on the
desk, the lower connector (B) on the other end, is screwed on the trunking with
screws (2) or attached by magnetism. The lower connector is magnetic.
Base installation method for single desk
4
Environment Protection, Waste Electrical and Waste Electronic Equipment Regulations
(WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of its useful life, please dispose
of in an environmentally friendly way. Drain any uids (if applicable) into approved containers, in accordance with local waste regulations.
It is our policy to continually improve products and we reserve the right to alter data, specications and parts without prior notice. No
liability is accepted for incorrect use of this product. Guarantee is 12 months from purchase date, proof of which is required for any claim.
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
• CAUTION!
• This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children.
• Make Sure these instructions are read and completely understood before attempting installation.
• If you are unsure of any part of this installation, please contact a professional installer for assistance.
• Children are forbidden to play on the product because of unforeseen action when playing.
• Manufacturer will not accept any responsibility for any dangerous consequences caused by this improper action.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Please make sure there is no hazard sources in your operating environment. e.g., do not litter the tools around. Always be careful to treat the
packaging materials in order to avoid any possible danger, e.g. plastic bag may lead to choking hazard to children.
• Keep the original package of the equipment if necessary in case of the future use in transportation.
