4 Installing the License Plate Camera.
3.Connections
5.System Connection
2.Recommended Installation Position
Display
Back Light
Sensors
Camera
OptionA
OptionB
Sensors
1.Rear View License Plate Camera with Built-In parking sensors
2.Power cord
3.Bracket
4.User's Manual
5.Registration Card,Warranty Card
6.License Plate bolts(Stainless) x2,Long screw x2
7.22ft Power wires x1
8.22ft length Sensor buzzer(Small speaker) x1
9.Short Screw x2
10.Plastic Cover(Screw cap) x2(Optional)
Accessories
Specifications
Typical Installation
Please refer to the diagram of "Connections" in the page 5 of the
User's manual.
1.Tools
The rear 45 °o blique to the obstacle
OSD
AV2
AV1
External
buzzer
Wiring Diagram
Red to back light +12V
Black to GND
Red to back light +12V
Black to GND
1 2 3 4
65
Display
A.Need a bracket install on the Trunk
B.No need bracket install on the bumper
Accessory for installation
License plate installed on the trunk:
Step1.Fix the camera firmly in position by using bracket and long
screw.
Step 2. Use short screw to secure the position on the license plate.
Step 3. Place plastic cover onto the license plate frame holes.
7 8
Bracket Short Screw Plastic Cover Long Screw
6.Adjust the camera angle
Adjust the camera angle so that the rear part of the vehicle or the
rear bumper is visible at the bottom of the monitor screen.
Camera
Thank you for choosing
Take the time to read through this instruction manual.
Familarity with installation and operation procedures
will help you obtain the best performance from your
new Rear View License Plate Camera with Built-In
Parking Sensors.
For your records:Record the serial number,found on
the back of the unit,in the spaces designated on the
warranty card.
Refer to the model and serial numbers whenever you
call upon your BOYO dealer for information or service
on the product.
Please note that all specifications and information
contained herein are subject to change without prior
notice.
Any changes will be integrated into the latest release.
The manufacturer assumes no responsibility for any
errors or omissions in this document.
Control box
Camera
Sensor
Sensor
Rated Voltage DC9~16V
Operating current ≦150mA
Ultrasonic frequency 40KHz
Detecting distance 1.0～4.9ft
Camera angle 120 degree
Working temperature -4℉ ~ 158℉
Store temperature
-22
℉
~ 185
℉
Technical Data
Buzzer cable length: 22ft
Power cable length:22ft
1/3.7" Color Image Sensor
Sensors are built-in to the frame
Waterproof IP67
480TVL horizontal resolution
Adjustable camera angle up/down
0.1LUX
Step-up buzzer alarm for audible alert
The distance read out integrated into the camera video
640(H)x480(V) total pixels
Built-in parking gridlines(fixed)
No separate control box needed
The brain module is built-in to the camera
No need to drill holes for sensors
120 degree wide viewing angle
7.Test after installation
Follow below steps to test
may
Caution:This system will not work if it's installed on the license
plate area that is caved in.It will detect part of the bumper and may
not work properly.

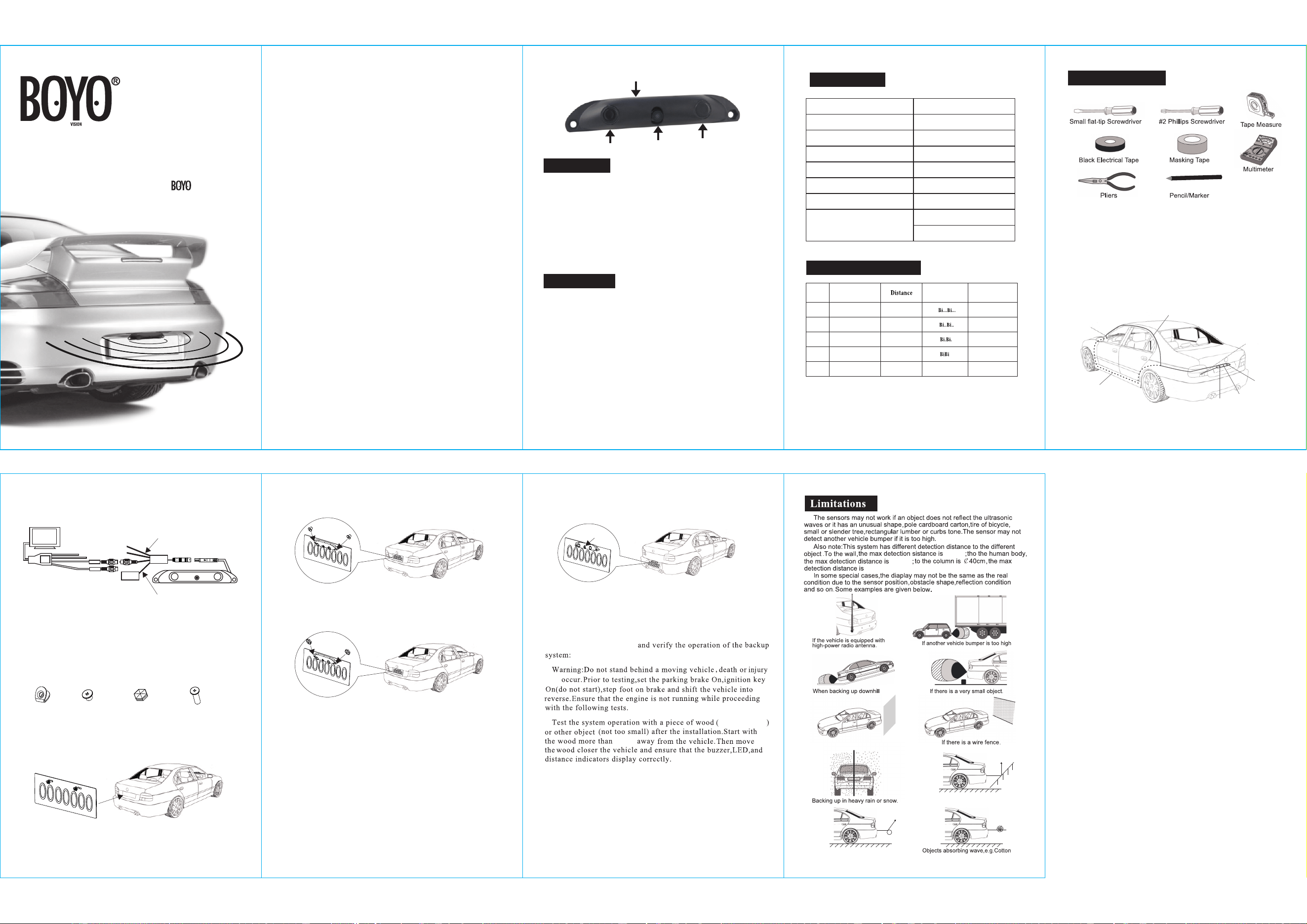

User’s Manual
Model:VTL401SR&VTL421SR
Rear View License Plate Camera with Built-In Parking Sensors
Sensor detection angle
Horizontal: 60°
Vertical: 30°
Sensing Characteristics
2.6ft-4.9ft
2.0ft-2.59ft
1.6ft-1.9ft
1.0ft-1.59ft
0.0ft-0.9ft
2.6ft-4.9ft
2.0ft-2.59ft
1.6ft-1.9ft
1.0ft-1.59ft
0.0ft
ConditionStage
1
2
3
4
5
Safe Mode
Alarm Mode
Alarm Mode
Critical Mode
Danger Mode
Continuous
Audible Alarm
Installation and wiring of this product require specialist
skill and experience.To assure your safety,please request
a specialist technician to install the unit.
Example of correct camera installation.
23.6*11.8*0.4inch
70.9inch
39.4inch
47.2inch
Digital Display
3.28ft
If there is smooth slope
If there is smooth round object
