TURBO HD
D0T Series Bullet Camera
User Manual
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Model
DS-2CE16D0T-I2PFB
DS-2CE16D0T-I2FB
This manual may contain several technical incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to
the new version of this manual. We will readily improve
or update the products or procedures described in the
manual.
0100001090102
Regulatory Information
FCC Information
Please take attention that changes or modification not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
FCC compliance: This equipment has been tested and
found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
EU Conformity Statement
This product and - if applicable - the
supplied accessories too are marked with
"CE" and comply therefore with the
applicable harmonized European
standards listed under the Low Voltage Directive
2014/35/EU, the EMC Directive 2014/30/EU, the RoHS
Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products
marked with this symbol cannot be
disposed of as unsorted municipal waste in
the European Union. For proper recycling,
return this product to your local supplier
upon the purchase of equivalent new
equipment, or dispose of it at designated collection
points. For more information see: www.recyclethis.info.
2006/66/EC (battery directive): This product contains a
battery that cannot be disposed of as
unsorted municipal waste in the European
Union. See the product documentation for
specific battery information. The battery is
marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery
to your supplier or to a designated collection point. For
more information, see: www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A)
standards requirements.
Warning
This is a class A product. In a domestic environment this
product may cause radio interference in which case the
user may be required to take adequate measures.
Safety Instruction
These instructions are intended to ensure that user can
use the product correctly to avoid danger or property
loss.
The precaution measure is divided into “Warnings” and
“Cautions”.
Warnings: Serious injury or death may occur if any of
the warnings are neglected.
Cautions: Injury or equipment damage may occur if any
of the cautions are neglected.
Warnings
In the use of the device, you must be in strict
compliance with the electrical safety regulations of
the nation and region.
Input voltage should meet both the SELV (Safety Extra
Low Voltage) and the Limited Power Source with 12
VDC according to the IEC60950-1 standard. Refer to
technical specifications for detailed information.
Do not connect multiple devices to one power
adapter to avoid over-heating or a fire hazard caused
by overload.
Make sure that the plug is firmly connected to the
power socket.
Make sure that the device is firmly fixed if wall
mounting or ceiling mounting is adopted.
If smoke, odor or noise rise from the device, turn off
the power at once and unplug the power cord, and
then contact the service center.
Never attempt to disassemble the camera by
unprofessional personal.
Cautions
Do not drop the camera or subject it to physical
shock.
Do not touch senor modules with fingers.
Do not place the camera in extremely hot, cold (the
operating temperature shall be -40°C to 60°C), dusty
or damp locations, and do not expose it to high
electromagnetic radiation.
If cleaning is necessary, use clean cloth with a bit of
ethanol and wipe it gently.
Do not aim the camera at the sun or extra bright
places.
The sensor may be burned out by a laser beam, so
when any laser equipment is in using, make sure that
the surface of sensor will not be exposed to the laser
beam.
Do not expose the device to high electromagnetic
radiation or extremely hot, cold, dusty or damp
environment.
To avoid heat accumulation, good ventilation is
required for the operating environment.
Warnings Follow
these safeguards to
prevent serious injury
or death.
Cautions Follow these
precautions to prevent
potential injury or
material damage.
Keep the camera away from liquid while in use for
non-water-proof device.
While in delivery, the camera shall be packed in its
original packing, or packing of the same texture.
Mark Description
Table 0-1 Mark Description
Mark
Description
DC Voltage
1 Introduction
1.1 Product Features
The main features are as follows:
High performance CMOS sensor
IR cut filter with auto switch
OSD menu with configurable parameters
Auto white balance
SMART IR mode
3-axis adjustment
1.2 Overview
DC12VIN
Bracket
Main
Body
Lens
Power Cord
Video Cable
Auxiliary Video Interface
Switch Button
Figure 1-1 Overview of the Camera
Note:
1) Press and hold the switch button for 5 seconds
to switch the video output. Four kinds of video
outputs are available: TVI, AHD, CVI, and CVBS.
2) The Auxiliary Video Interface is for the
professional personnel debugging or
maintenance.
2 Installation
Before you start
Make sure that the device in the package is in good
condition and all the assembly parts are included.
Make sure that all the related equipment is power-off
during the installation.
Check the specification of the products for the
installation environment.
Check whether the power supply is matched with
your power output to avoid the damage.
Make sure the wall is strong enough to withstand
three times the weight of the camera, and the
mount.
If the wall is cement, insert expansion bolts before
installing the camera. If the wall is wooden, use
self-tapping screws to secure the camera.
If the product does not function properly, contact
your dealer or the nearest service center. Do NOT
disassemble the camera for repair or maintenance by
yourself.
2.1 Installation of the Camera
2.1.1 Ceiling/Wall Mounting
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. Drill the screw holes on the ceiling/wall according to
the drill template.
Figure 2-1 The Drill Template
3. You have two ways to install the camera according
to different types of wall/ceiling.
1) Install the camera to the wooden ceiling/wall
with three PA4 × 25 screws.

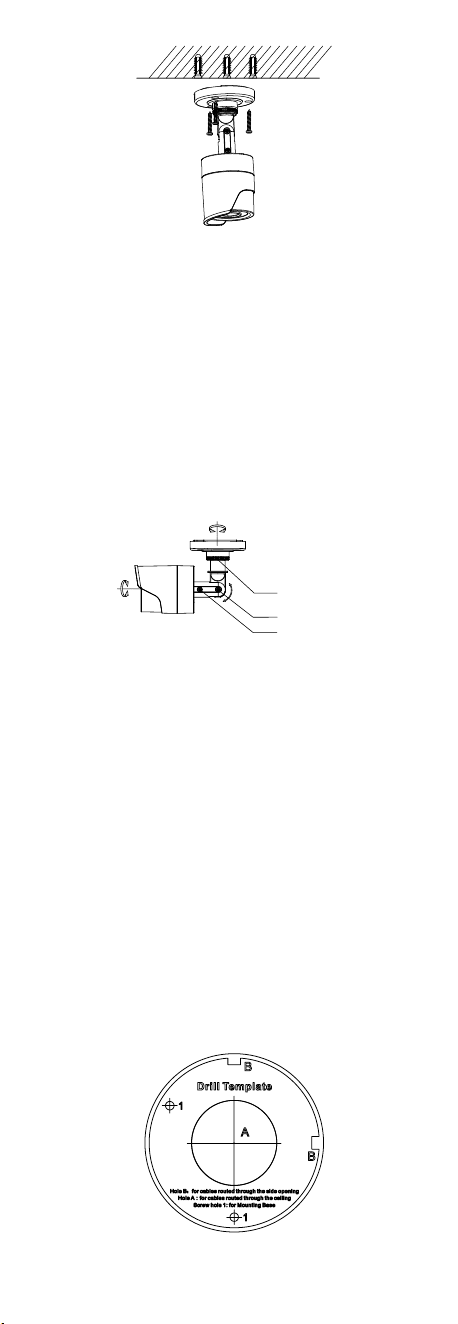

Figure 2-2 Install the Camera to the Wooden Ceiling
2) Install the expansion bolts to the cement
ceiling at first, then secure the camera with
three PA4 × 25 screws.
Figure 2-3 Install the Camera to the Cement Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
4. Route the cables through the cable hole, or the side
opening.
5. Connect the corresponding power cord, and video
cable.
6. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.
Pan Position
[0° to 360°]
P Screw
Tilt Position
[0° to 180°]
T Screw
R Screw
Rotation Position
[0° to 360°]
Figure 2-4 3-axis Adjustment
1). Loosen the P screw to adjust the pan position [0°
to 360°]. Tighten the screw after completing the
adjustment.
2). Loosen the T screw to adjust the tilt position [0°
to 180°]. Tighten the screw after completing the
adjustment.
3). Loosen the R screw and rotate the camera [0° to
360°]. Tighten the screw after completing the
adjustment.
2.1.2 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box in advance.
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. Drill screw holes on the ceiling/wall according to the
drill template.
Figure 2-5 The Drill Template
3. Take apart the junction box, and align the screw
holes of the camera with those on the Junction
box’s cover.
4. Attach the camera to the junction box’s cover with
supplied screws.

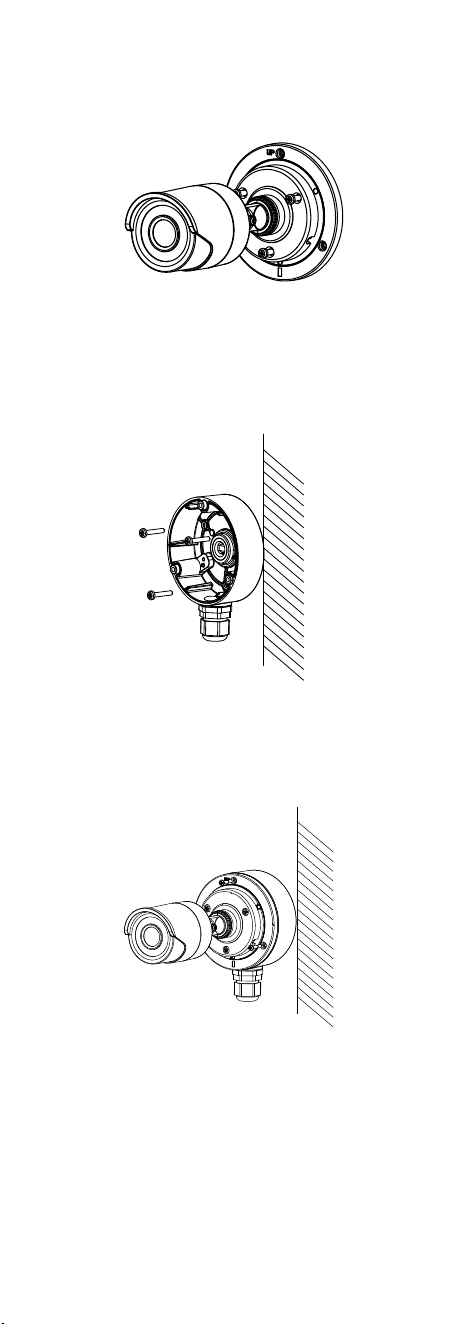

Figure 2-6 Attach the Camera to the Junction Box’s
Cover
5. Attach the junction box’s body to the ceiling/wall by
aligning the screw holes of the junction box.
6. Secure the junction box’s body on the ceiling/wall
with supplied screws.
Figure 2-7 Secure the Junction Box’s Body to the
Wall/Ceiling
7. Route the cables through cable holes, or side
openings.
8. Combine the junction box’s cover with its body.
Figure 2-8 Combine the Junction Box’s Cover with its
Body
9. Repeat the step 5 and 6 of 2.1.1 Ceiling/Wall
Mounting to finish the installation.
3 Menu Description
Follow the steps below to call the menu.
Note:
The actual display may vary with your camera model.
Steps:
1. Connect the camera with the TVI DVR, and the
monitor, shown as the figure 3-1.
Camera
TVI DVR
Monitor
Figure 3-1 Connection
2. Power on the camera, TVI DVR, and the monitor to
view the image on the monitor.
3. Click PTZ Control to enter the PTZ Control interface.
4. Call the camera menu by clicking button, or call
the preset No. 95.
MAIN
MENU
AE
MENU
WB
RESET
LANGUAGE
FORMAT
SAVE & EXIT
DAY/NIGHT
VIDEO
SETTINGS
BRIGHTNESS
EXPOSURE MODE
AGC
DWDR
RETURN
IMAGE MODE
CONTRAST
SHARPNESS
COLOR GAIN
DNR
MIRROR
RETURN
Figure 3-2 Main Menu Overview
5. Click the direction arrow to control the camera.
1). Click up/down direction button to select the
item.
2). Click Iris + to confirm the selection.
3). Click left/right direction button to adjust the
value of the selected item.
3.1 FORMAT
You can set the video format to 1080P@25fps or
1080P@30fps.
3.2 LANGUAGE
English is available.
3.3 MAIN MENU
AE (Auto Exposure)
You can adjust BRIGHTNESS, EXPOSURE MODE, AGC,
DWDR in this section.
BRIGHTNESS
Brightness refers to the brightness of the image. The
higher the value is, and more brighter the image is.
EXPOSURE MODE
You can set the EXPOSURE MODE to GLOBAL, BLC, or
HLC.
GLOBAL
GLOBAL refers to the normal exposure mode which
adjusts lighting distribution, variations, and
non-standard processing.
BLC (Backlight Compensation)
The BLC (backlight compensation) function can
compensate light to the object in the front to make it
clear, but this causes the overexposure of the
background where the light is strong.
HLC (Highlight Compensation)
HLC stands for highlight compensation. The camera
detects the strong spots (the over-exposure portion of
image), then reduce the brightness of the strong spots
to improve the overall images.
AGC (Auto Gain Control)
It optimizes the clarity of the image in poor light
conditions. The AGC level can be set to HIGH, MIDDLE,
or LOW.
Note:
The noise will be amplified when the AGC is on.
DWDR (Digital Wide Dynamic Range)
Digital wide dynamic range gives the camera the ability
to view dark areas of the given image as well as
extremely lighted portions of the image, or areas of
high contrast.
WB (White Balance)
White balance, the white rendition function of the
camera, is to adjust the color temperature according to
the environment. It can remove unrealistic color casts in
the image. You can set WB mode to AUTO (ATW), or
MANUAL (MWB).
AUTO
Under AUTO mode, white balance adjusts automatically
according to the color temperature of the scene
illumination.
MANUAL
You can set the R-GAIN/B-GAIN value to adjust the
shades of red/blue color of the image.
WB
MODE
RGAIN
BGAIN
RETURN
MWB
64
64
Figure 3-1 WB
DAY/NIGHT
You can select the DAY/NIGHT as B/W, SMART, or
COLOR.
B/W
The image is black and white all the time.
SMART
SMART refers to Smart IR. The function is used to adjust
the light to its most suitable intensity, and prevent the
image from overexposure.
DAY/NIGHT
MODE
INFRARED
SMART IR
RETURN
SMART
ON
1
Figure 3-2 DAY/NIGHT
COLOR
The image is colorful in day mode all the time.
VIDEO SETTINGS
Move the cursor to VIDEO SETTINGS and click Iris+ to
enter the submenu. IMAGE MODE, CONTRAST,
SHARPNESS, COLOR GAIN, DNR, and MIRROR are
adjustable.
VIDEO SETTINGS
IMAGE MODE
CONTRAST
SHARPNESS
COLOR GAIN
DNR
MIRROR
RETURN
STD
5
5
5
5
OFF
Figure 3-3 VIDEO SETTINGS
IMAGE MODE
IMAGE MODE is used to adjust the image saturation,
and you can set it to STD (Standard), or HIGH-SAT (High
Saturation).
CONTRAST
This feature enhances the difference in color and light
between parts of an image. You can set the CONTRAST
value from 1 to 10.
SHARPNESS
Sharpness determines the amount of detail an imaging
system can reproduce. You can set the SHARPNESS
value from 1 to 10.
COLOR GAIN
COLOR GAIN is determined by a combination of light
intensity and how much it is distributed across the
spectrum of different wavelengths.
DNR (Digital Noise Reduction)
The DNR function can decrease the noise effect,
especially when capturing moving images in poor light
conditions, and delivering more accurate and sharper
image.
MIRROR
OFF, H, V, and HV are selectable for mirror.
OFF: The mirror function is disabled.
H: The image flips 180° horizontally.
V: The image flips 180° vertically.
HV: The image flips 180° both horizontally and
vertically.
3.4 RESET
Reset all the settings to the factory default.
3.5 SAVE & EXIT
Move the cursor to SAVE & EXIT and click Iris+ to save
the settings, and exit the menu.
UD12862B
