MODEL VT-81004
SKU 23420
POWER 15W
LUMENS 1300 Lm
INPUT VOLTAGE AC: 220-240V, 50/60 Hz
CRI >80
TIME DELAY
Min. 10sec ±3sec
Max. 5min ±1min
DETECTION
DISTANCE
Wall: Max 9M (<24° C)
Ceiling: Max 6M (<24° C)
DETECTION RANGE 160°/ 360°
DETECTION
MOTION SPEED
0.6-1.5m/s
WORKING
TEMPERATURE
-20°C to +40°C
IP RATING IP44
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
INSTRUCTION MANUAL
LED WAL LIGHT WITH PIR SENSOR
TECHNICAL DATA
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product. The products
are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This
product is warranted for manufacturing defects only.
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
AMBIENT LIGHT <3-2000 LUX (Adjustable)
INSTALLATION
HEIGHT
Wall: 1.8-2.5 M
Ceiling: 2.2-4 M
DIMENSION
ØXXxXX mm
FUNCTION
INSTALLATION
WIRING DIAGRAM
• Can identify day and night: The consumer can adjust working state in dierent ambient light. It
can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work
in the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As for the
adjustment pattern, please refer to the testing pattern.
• Time-Delay is added continually: When it receives the second induction signals within the first
induction, it will restart to time from the moment.
• Adjustable Time Delay: the length of time delay could be set according to the customers’ re-
quirement, the minimum time of this item is 10sec±3sec, and the maximum is 5min±1min.
• Switch o the power.
• Unload the plastic cover to open it. (refer to figure1,2)
• Pass the wire through the hole in the bottom and connect the power wire into connection-wire
column according to the connection-wire diagram. Install the sensor lamp in the position
where you need with inflated screws. (refer to figure3)
• Switch on the power and test it.
Remarks: You can slide the switch to adjust the color temperature to 3000K, 4000K or 6000K.
WARNING
1. Please make sure to turn o the power before starting the installation.
2. Installation must be performed by a qualified person.
3. The light source of this luminaire is not replaceable, when the light source reaches its end of life the whole
luminaire should be replaced.
Good Sensitivity

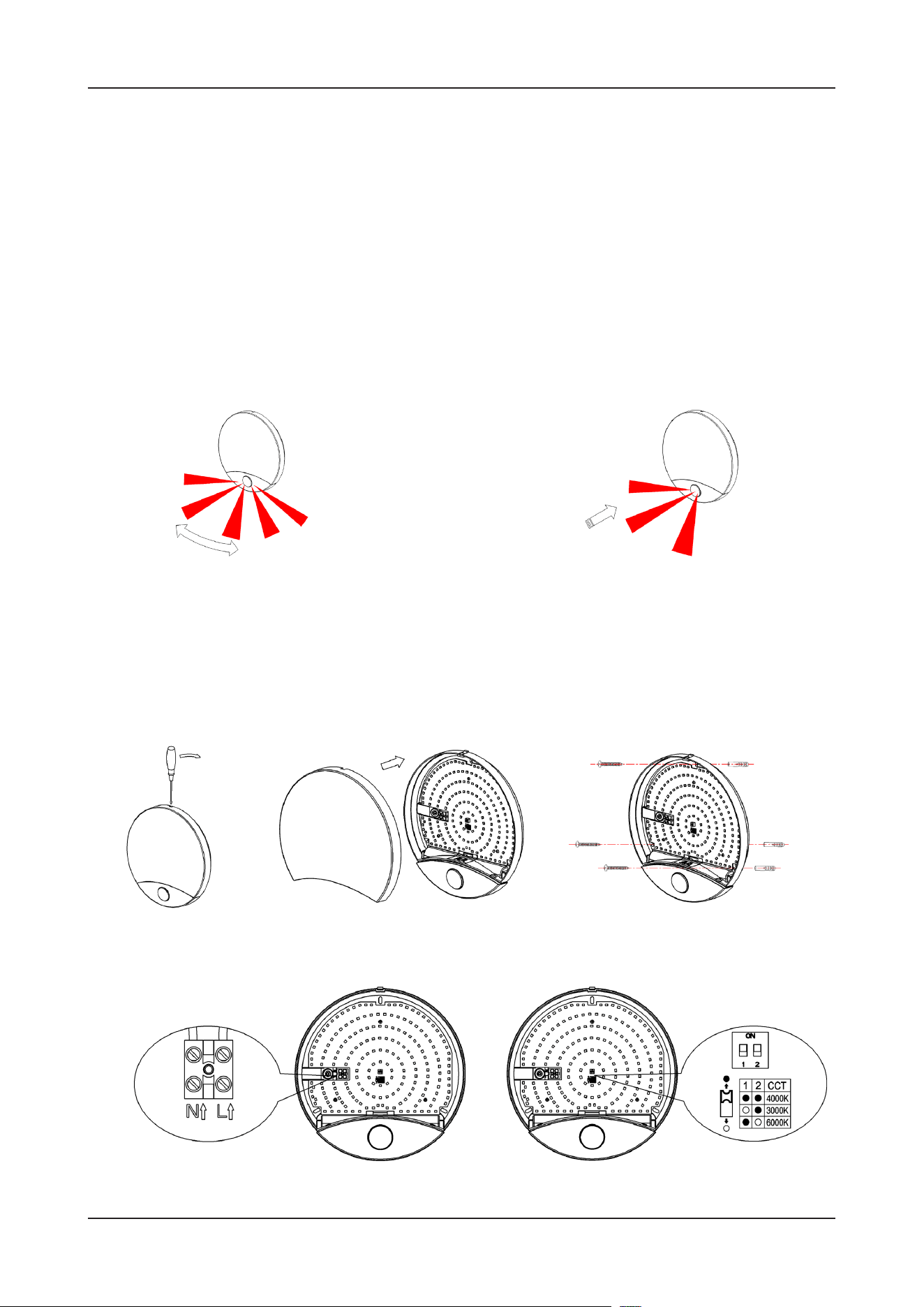

Figure 1 Figure 2 Figure 3
Poor Sensitivity
SENSOR INFORMATION
TEST
NOTE
• Turn the TIME knob anti-clockwise on the minimum. Turn the LUX knob clockwise on the maxi-
mum (sun).
• Switch on the power; the lamp will have no signal at the beginning. Aer Warm-up 30sec, the
lamp can start work .If it receives the induction signal, the lamp will turn on. While there is no
another induction signal any more, the lamp should stop working within 10sec±3sec.
• Turn LUX knob anti-clockwise on the minimum (moon). If the ambient light is more than 3LUX,
the lamp should not work. If the ambient light is less than 3LUX (darkness), the sensor would
work. Under no induction signal condition, the lamp should stop working within 10sec±3sec.
• Should be installed by electrician or experienced person.
• Avoid installing it on the uneven object.
• There should be no hindrance and moving objects in front of the detection windows to aect
detection.
• Avoid installing it near air temperature alteration zones such as air condition, central heating, etc.
• Considering your safety, please do not open the cover when you find the hitch aer installation.
Height of installation:1.8-2.5m Detection Distance: Max.9m
Note: when testing in daylight, please turn LUX knob to ☼ (SUN) position, otherwise the
sensor lamp could not work!
TROUBLESHOOTING
• The load do not work:
a. Please check if the connection-wiring of power and load is correct.
b. Please check if the load is good.
c. Please check if the working light sets correspond to ambient light.
• The sensitivity is poor:
a. Please check if there has any hindrance in front of the detection window to aect to receive the
signal.
b. Please check if the ambient temperature is too high.
c. Please check if the induction signal source is in the detection fields.
d. Please check if the installation height corresponds to the height showed in the instruction.
e. Please check if the moving orientation is correct.
• The sensor can not shut o the load automatically:
a. Please check if there is continual signal in the detection field.
b. Please check if the time delay is the longest.
c. Please check if the power corresponds to the instruction.
