TVI Bullet &Turret Camera
User Manual
Thank you for purchasing our product. If there
are any questions, or requests, please do not
hesitate to contact the dealer.
This manual may contain several technical
incorrect places or printing errors, and the content
is subject to change without notice. The updates
will be added to the new version of this manual.
We will readily improve or update the products or
procedures described in the manual.
Regulatory Information
FCC Information
FCC compliance: This equipment has been
tested and found to comply with the limits for a
digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated in
a commercial environment. This equipment
generates, uses, and can radiate radio
frequency energy and, if not installed and used
in accordance with the instruction manual, may
cause harmful interference to radio
communications. Operation of this equipment in
a residential area is likely to cause harmful
interference in which case the user will be
required to correct the interference at his own
expense.
0100001050912
FCC Conditions
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
EU Conformity Statement
upon the purchase of equivalent new equipment,
or dispose of it at designated collection points.
For more information see:
www.recyclethis.info.
2006/66/EC (battery directive):
This product contains a battery that
cannot be disposed of as unsorted
municipal waste in the European
Union.
See the product documentation for specific
battery information. The battery is marked with
this symbol, which may include lettering to
indicate cadmium (Cd), lead (Pb), or mercury (Hg).
For proper recycling, return the battery to your
supplier or to a designated collection point. For
more information see: www.recyclethis.info.
This series of camera adopts new generation
sensor with high sensitivity and advanced circuit
design technology It features high resolution,.
low image distortion and low noise, etc , which.
makes it suitable for surveillance system and
image processing system.
l
High performance CMOS sensor and high
resolution bring high-quality image;
l
Low illumination;
l
Support auto white balance, auto gain control,
electronic shutter control;
l
Unit transmission control;
l
Advanced 3-axis design meets different
installation requirements;
l
Adopt EXIR LED.
1 Introduction
1.1 Product Features
1.2 Overview
U D.6L0201D2097A01
2012/19/EU (WEEE directive):
Products marked with this symbol
cannot be disposed of as unsorted
municipal waste in the European
Union. For proper recycling, return
this product to your local supplier
Please refer to the product specification for
camera parameters and functions.
This product and - if applicable - the
supplied accessories too are marked
with "CE" and comply therefore with
the applicable harmonized European
standards listed under the Low Voltage Directive
2006/95/EC, the EMC Directive 2004/108/EC,
the RoHS Directive 2011/65/EU.
1.2.1 Overview of Type I Camera
TURBO HD
Type
Type I
Model
DS-2CE16CXT-IT
1.2.2 Overview of Type II Camera
Type II
DS-2CE16CXT-ITX
DS-2CE56CXT-ITX
Privacy Notice
Surveillance laws vary by jurisdiction. Check all
relevant laws in your jurisdiction before using this
product for surveillance purposes to ensure that
your use of this product conforms.
1.2.3 Overview of Type III Camera
Type III

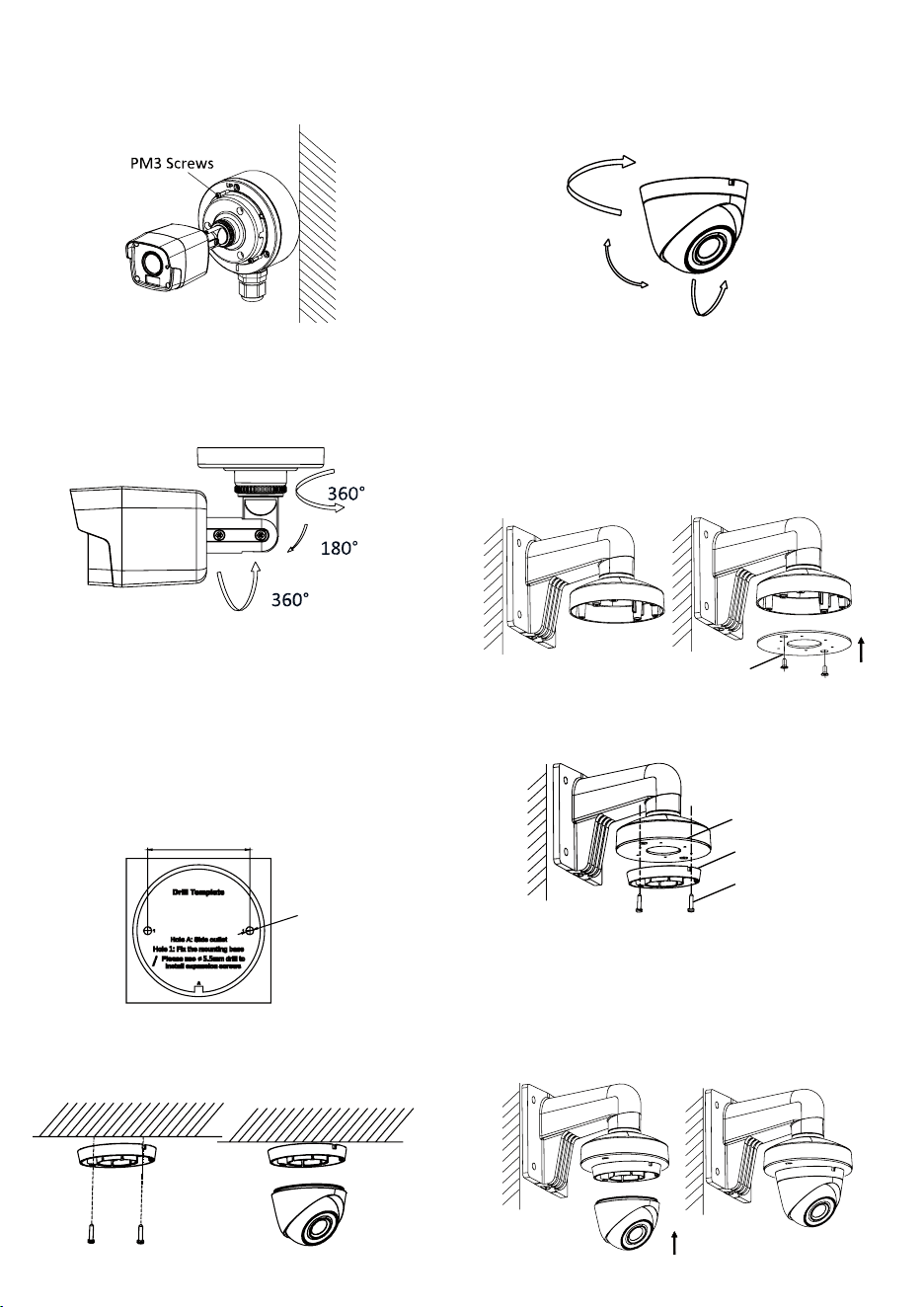

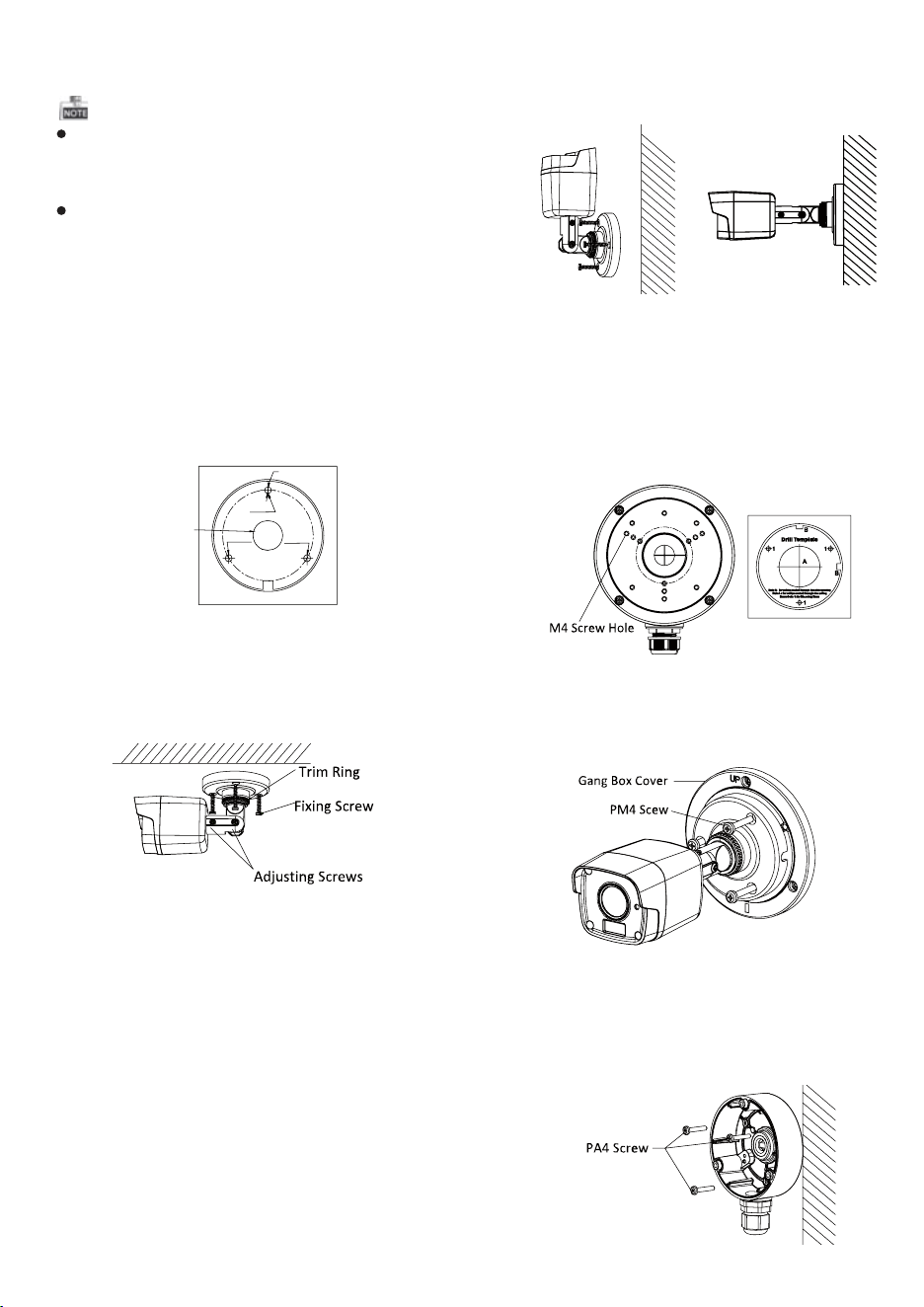

2 Installation
Before you start:
l Please make sure that the device in the package
is in good condition and all the assembly parts
are included.
l Make sure that all the related equipment is
power-off during the installation.
l Check the specification of the products for the
installation environment.
l Check whether the power supply is matched
with your power output to avoid damage.
l Please make sure the wall is strong enough to
withstand three times the weight of the camera
and the mounting.
l If the wall is the cement wall, you need to insert
expansion screws before you install the camera.
If the wall is the wooden wall, you can use
self-tapping screw to secure the camera.
l If the product does not function properly,
please contact your dealer or the nearest
service center. Do not disassemble the camera
for repair or maintenance by yourself.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A)
standards requirements.

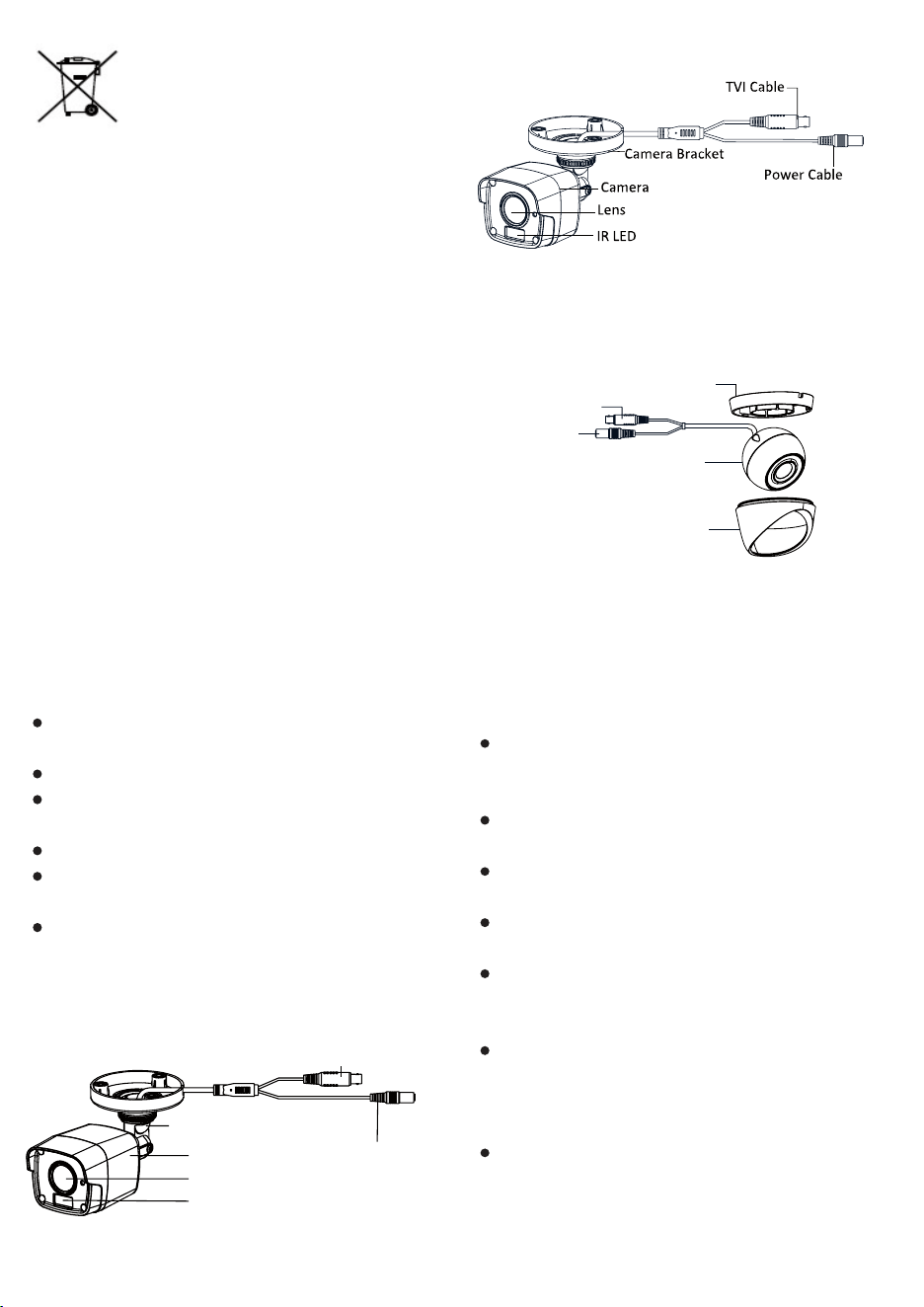

TVI Cable
Power Cable
Camera Bracket
IR LED
Lens
Camera
Figure -1 Overview of Type1I Camera
Camera
Enclosure
Mounting Base
TVI Cable
Power Cable
Figure 1-3 Overview of Type III Camera
Figure 1-2 Overview of Type II Camera
This manual is applicable to the models below (X
indicates certain character(s), e.g.:
DS-2CE16CXT-
ITX can b DS-2CE16C0T-IT DS-2CE16C0T-IT
eP/MM)
