BEVERAGE MERCHANDISERS
Models:
ALBV15
AL57G
SCR1536BG
SCR2464
SCR610BLSD
SCR1400W
SCR1400WLH
SCR610BL
SCR611GLOS
SCR1156
SCR1401
SCR1401LH
ASDG1521
LABV15442
ADBV1551
SDBV2445
SDG1526
LBV1546
SDBV1555
ASDG2411
LABV2430
ADBV2441
SDG2415
LBV2434
User Manual
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Ave
Bronx, New York 10474
www.summitappliance.com
Write Serial Nos. (on lower left corner of
inside cabinet) here:
2
TABLE OF CONTENTS
Appliance Safety 3
Important Safeguards 3-4
Location of Parts 5-9
Installation Instructions 10-15
Before Using your Appliance 10
Installation of your Appliance 10-11
Electrical Connection 12
Reversing the Door Swing of your Appliance 12-14
Adjusting the Kick Plate 14
Installing the Stainless Steel Handle 14-15
Operating your Appliance 15-20
Control Panel 15-16
Settings Mode 16-17
Interior Light 17
Control Panel only for models SCR610BL, SCR610BLSD and SCR1156 17-18
Dynamic Cooling Mode 18
Sabbath Mode 19
Temperature Memory Function 19
Temperature Alarm/Door Alarm 19
Door Lock 19
Shelves 19
Defrosting 19-20
Care and Maintenance 20
Cleaning your Appliance 20
Power Failure 20
Vacations 20
Moving your Appliance 20
Energy-Saving Tips 20
Troubleshooting 21-22
Limited Warranty 24
3
APPLIANCE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read
and obey all safety messages.
This is the Safety Alert Symbol. The symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words "DANGER" or "WARNING".
DANGER means that failure to heed this safety
statement may result in severe personal injury or
death.
WARNING means that failure to heed this safety
statement may result in extensive product damage,
serious personal injury, or death.
All safety messages will alert you about the potential hazard, tell you how to reduce the chance of injury,
and let you know what can happen if the instructions are not followed.
IMPORTANT SAFEGUARDS
Before the appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precautions,
including the following:
• Plug into a grounded 3-prong outlet, do not remove the grounding prong, do not use an adapter, and
do not use an extension cord.
• Replace all panels before operating.
• It is recommended that a separate circuit serving only your appliance be provided. Use receptacles
that cannot be turned off by a switch or pull chain.
• Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in
electrical shock or death.
• Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in
this manual. All other servicing should be referred to a qualified technician.
• This appliance is CFC and HFC-free and contains small quantities of Isobutane (R600a) which is
environmentally friendly, but flammable. It does not damage the ozone layer or increase the
greenhouse effect. Care must be taken during transportation and while setting up the appliance so
that no parts of the cooling system are damaged. Leaking coolant can ignite and may damage the
eyes.
• In the event of any damage:
- Avoid open flames and anything that can create a spark,
- Disconnect from the power supply,
- Air the room in which the appliance is located for several minutes and contact the Service
Department for advice.
4
- The more coolant there is in an appliance, the larger the room it should be installed in. In the event of
a leakage, if the appliance is in a small room, there is the danger of combustible gases building up.
For every ounce of coolant at least 325 cubic feet of room, space is required. The amount of coolant
in the appliance is stated on the data plate inside the appliance. It is hazardous for anyone other than
an Authorized Service Person to carry out servicing or repairs to this appliance.
• Take serious care when handling, moving and using the appliance to avoid either damaging the
refrigerant tubing or increasing the risk of a leak.
• Parts replacements and servicing shall be done by factory authorized service personnel, to minimize
the risk of ignition due to incorrect parts or improper service.
FOLLOW WARNING CALLOUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
• Use two or more people to move and install the appliance. Failure to do so can result in back or other
injuries.
• To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed.
Choose a well-ventilated area with temperatures above 72°F (23°C) and below 78°F (26°C).
• The appliance should not be located next to ovens, grills, or other sources of high heat.
• The appliance must be installed with all electrical, water, and drain connections in accordance with
state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances, is required.
• Do not kink or pinch the appliance’s power supply cord.
• The size of the fuse (or circuit breaker) should be 15 amperes.
• It is important that the appliance be leveled in order for it to work properly. You may need to make
several adjustments to level it.
• All installations must be in accordance with local plumbing code requirements.
• Make certain that the pipes are not pinched, kinked, or damaged during installation.
• Check for leaks after connection.
• Never allow children to operate, play with or crawl inside the appliance.
• Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage
or discolor the interior.
• Use this appliance only for its intended purpose as described in this Instruction Manual.
• Keep fingers out of the “pinch point” areas. Clearances between the door and cabinet are necessarily
small. Be careful closing the door when children are in the area.
Risk of child entrapment!
Child entrapment and suffocation are not problems of the past! Junked or abandoned appliances are
still dangerous, even if they will “just sit for a few days”.
Before discarding your old refrigerator:
• Take off the doors
• Leave the shelves in place so that children may not easily climb inside.
- SAVE THESE INSTRUCTIONS -
5
LOCATION OF PARTS

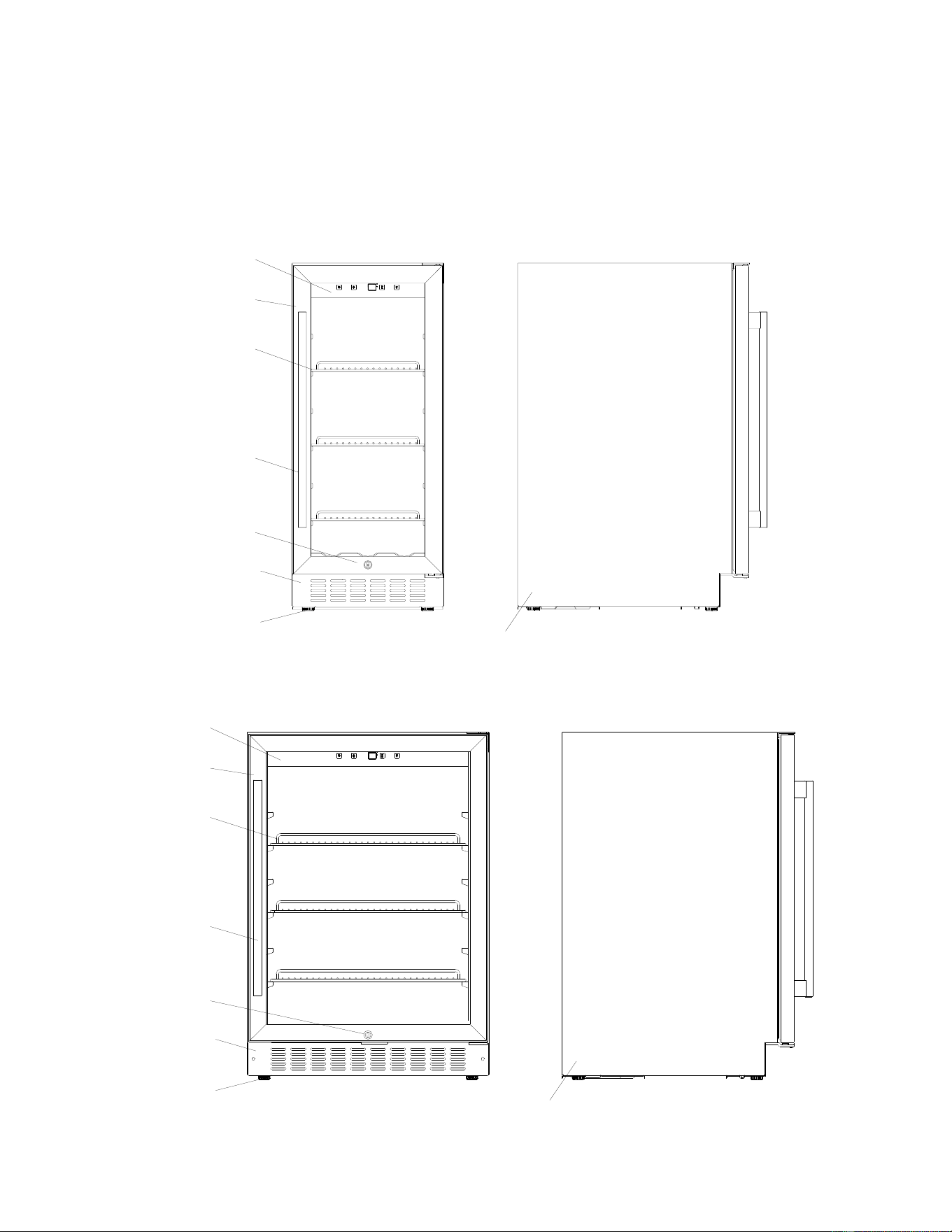

Models ALBV15 / SCR1536BG
Door
Shelves (3)
Digital Control
Handle
Security
Lock
Panel
Kick-Plate
Cabinet
Adjustable
Legs
Model SCR2464
Door
Shelves (3)
Digital Control
Handle
Security
Lock
Panel
Kick-Plate
Adjustable
Legs
Cabinet
6

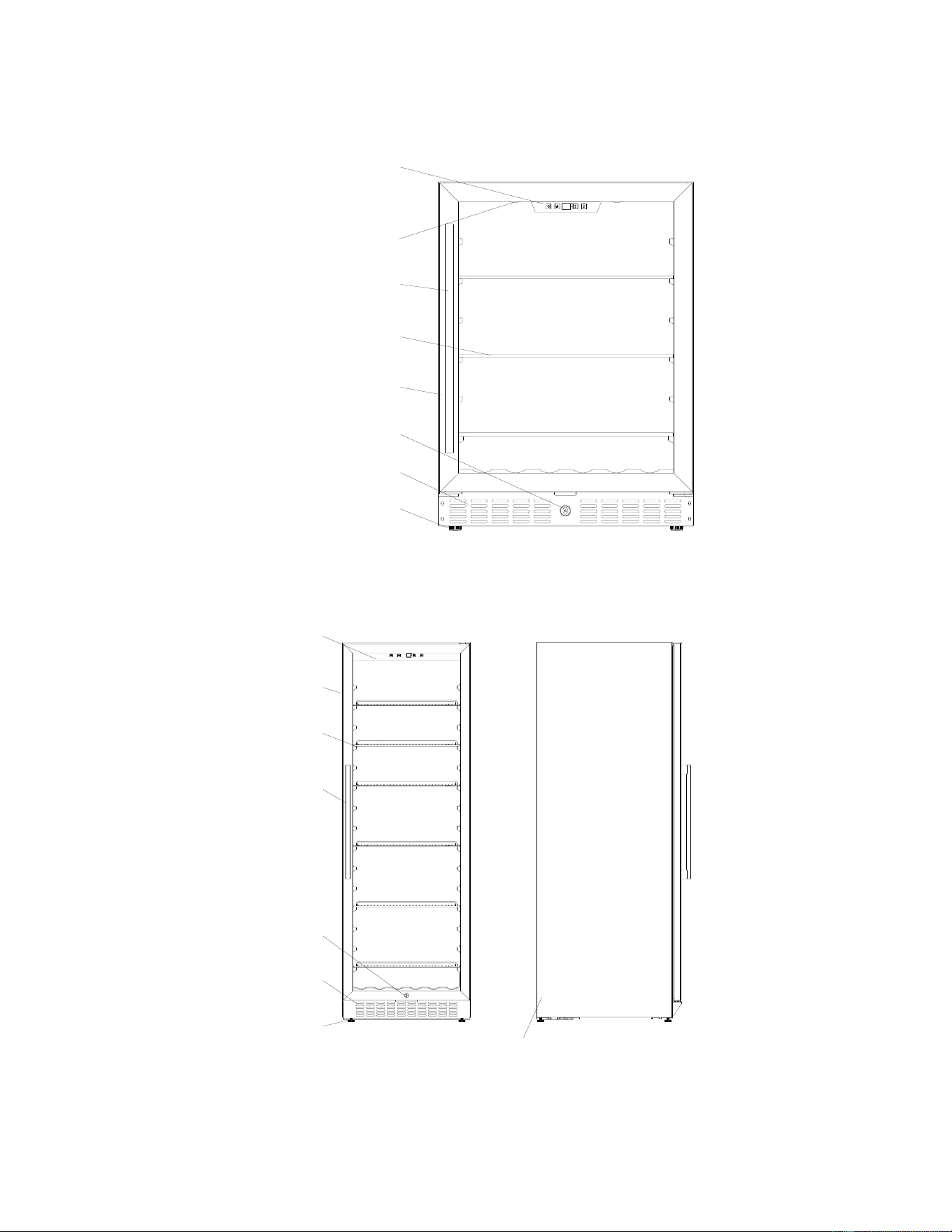

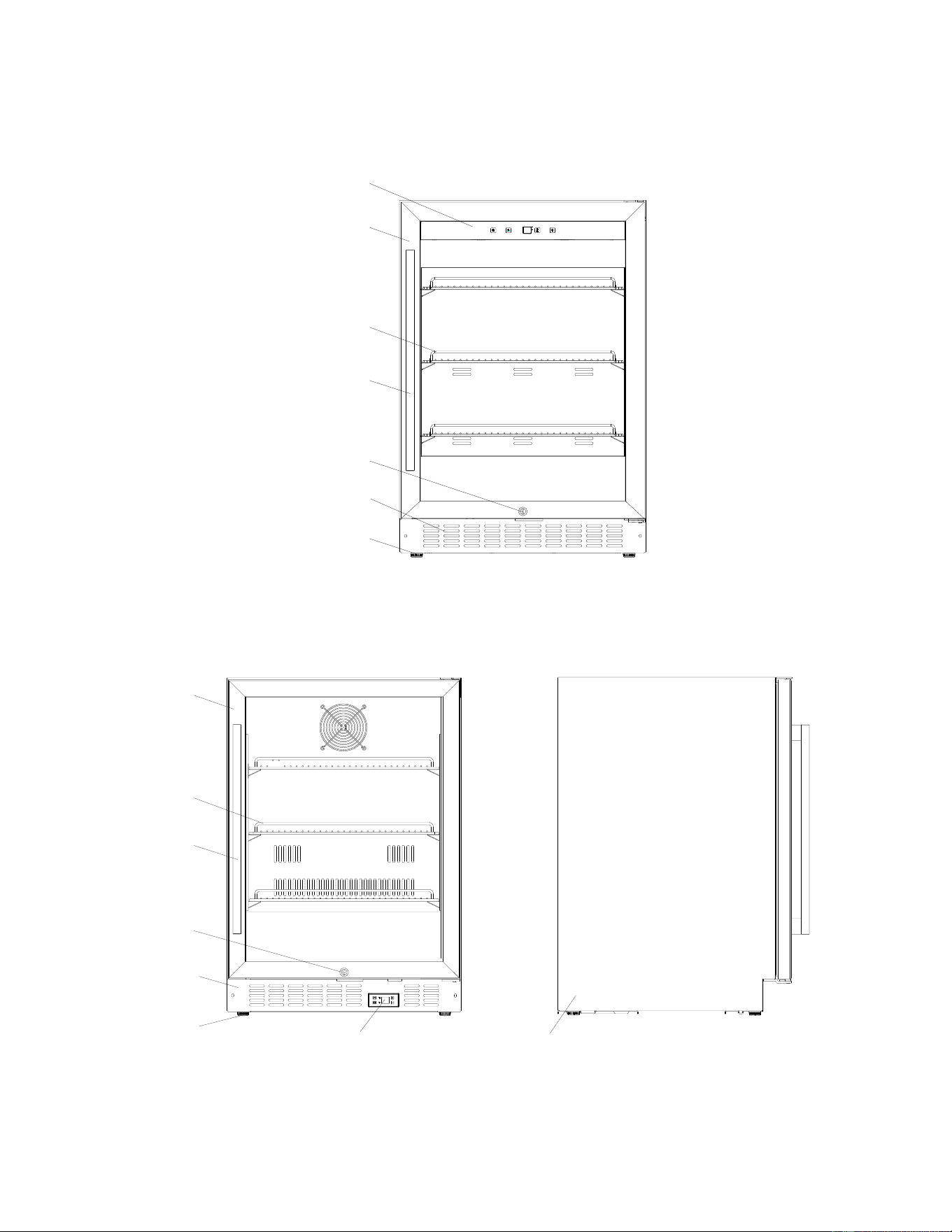

Model AL57G
Door
Shelves (3)
Handle
Kick-Plate
Adjustable Legs
Digital Control Panel
Security Lock
LED Light

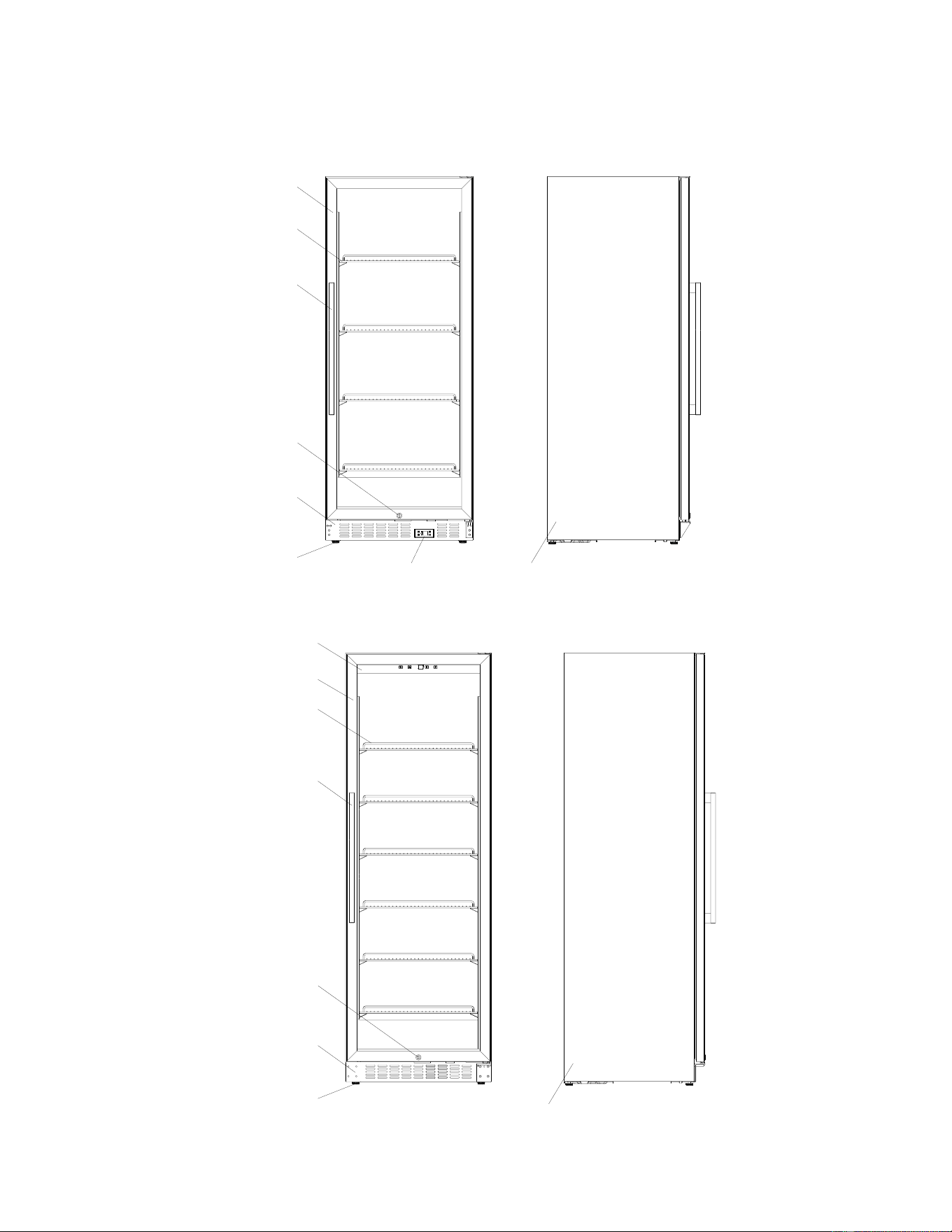

Models SCR1400W / SCR1400WLH*
Door
Shelves (6)
Digital Control
Adjustable
Legs
Handle
Security
Lock
Panel
Cabinet
Kick-Plate
* NOTE: Model SCR1400WLH opens from the right, so the handle is on that side.
7
Model SCR611GLOS
Door
Shelves (3)
Handle
Security
Lock
Kick-Plate
Adjustable
Legs
Digital Control
Panel
Model SCR610BL / SCR610BLSD*
Door
Shelves (3)
Handle
Security
Lock
Kick-Plate
Adjustable
Legs
Cabinet
Digital control panel
* NOTE: Model SCR610BLSD has a solid door.
8
Model SCR1156
Door
Shelves (4)
Handle
Security
Lock
Kick-Plate
Adjustable
Legs
Cabinet
Digital control panel
Models SCR1401 / SCR1401LH*
Door
Shelves (6)
Handle
Security
Lock
Kick-Plate
Adjustable
Legs
Cabinet
Digital Control Panel
9
* NOTE: Model SCR1401LH opens from the right, so the handle is on that side.

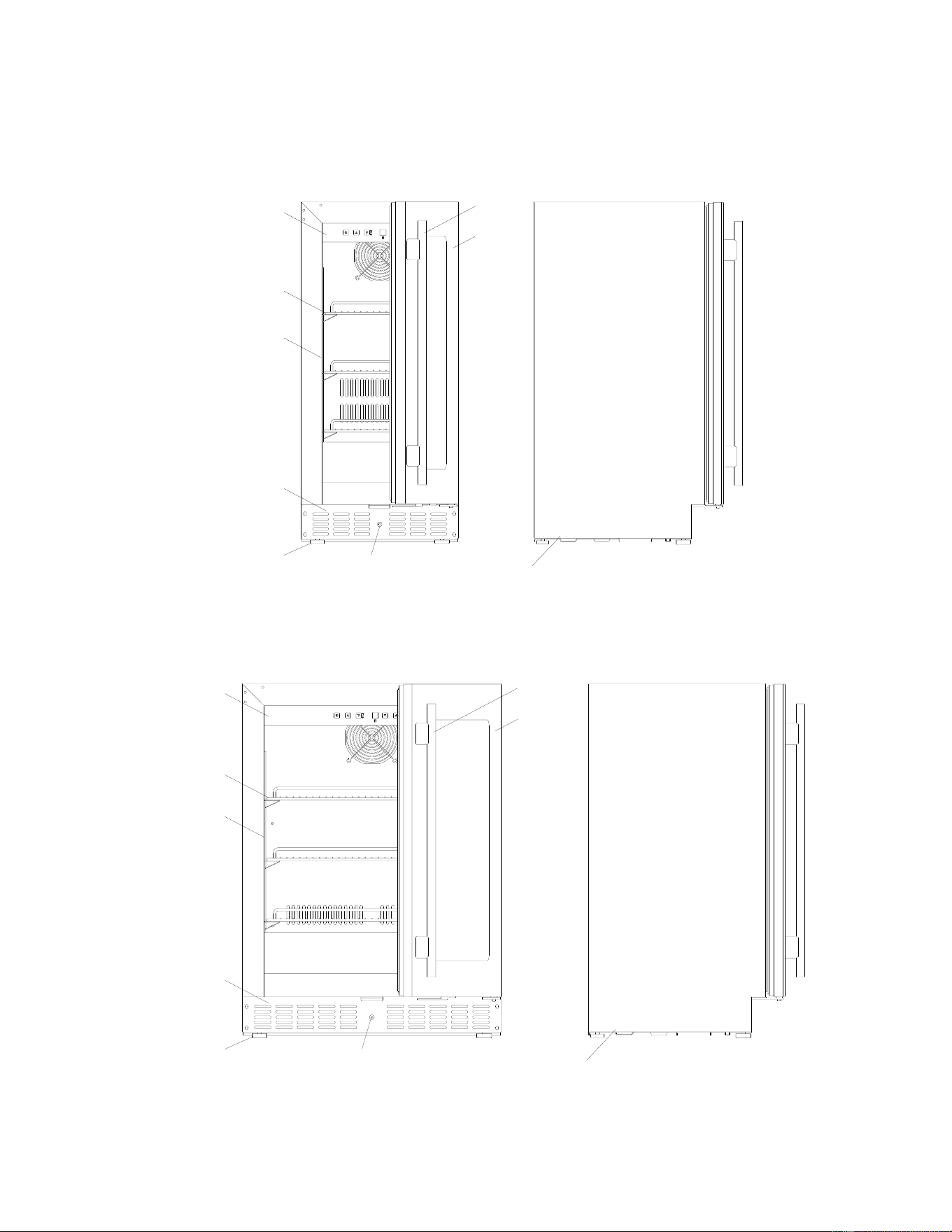

Models ASDG1521 / LABV15442 / ADBV1551 / SDG1526 / LBV1546 / SDBV1555
Shelves (3)
Digital Control
Panel
Handle
Door
Kick-Plate
LED Light
Adjustable
Legs
Cabinet
Security
Lock
Models ASDG2411 / LABV2430 / ADBV2441 / SDG2415 / LBV2434 / SDBV2445
Shelves (3)
Digital Control
Panel
Kick-Plate
LED Light
Handle
Door
Adjustable
Legs
Security
Lock Cabinet
10
INSTALLATION INSTRUCTIONS
Before Using your Appliance
• Remove the exterior and interior packing.
CAUTION: After unpacking you MUST allow this appliance to stand upright for at least 2 hours to
allow the lubricant and refrigerant to drain back into the compressor and stabilize. Failure
to do so may adversely affect performance and the lifetime of this unit.
• Clean the interior surface with lukewarm water using a soft cloth.
• Install the handle on the door. (See Installing the Stainless Steel Handle.)
Installation of your Appliance
CAUTION: This appliance is designed for storing and cooling beverages and drinks. Do not store
perishable food, medicine, or other medical products.
• The appliance is designed for built-in, recessed, or free-standing installation for indoor use only
except for SCR611GLOS. SCR611GLOS can be used outdoor.
NOTE: Do not store or install the appliance outdoors except for SCR611GLOS.
• Place your appliance on a floor that is strong enough to support it when it is fully loaded. To level
the unit, adjust the front leveling legs.
• For freestanding installation, 5” (127mm) of space at the back and sides of the unit and
4“(102mm) at the top are suggested, this allows the proper air circulation to cool the compressor
and condenser for energy saving. Even for built-in installation, it is better to keep at least ¼"
(5mm) of space on each side, 2" (50mm) at the back, and ⅛" (3mm) at the top to ensure proper
service access and ventilation. And the air vent at the front of the appliance must never be
covered or blocked in any way.
CAUTION: Make sure that the socket and ON/OFF switch are easily accessible after the appliance
has been installed.
• Avoid locating the unit in moist areas.
• Plug the appliance into an exclusive, properly grounded wall outlet. Do not under any
circumstances cut or remove the third (grounding) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized service center.
NOTE: It is recommended that you do not install the appliance near an oven, radiator, or another
heating source. Direct sunlight may affect the acrylic coating and heat sources may increase
electrical consumption. Do not install in a location where the temperature will fall below 60°F
(16°C). For best performance, do not install the appliance behind a cabinet door or block the
base grille.
11

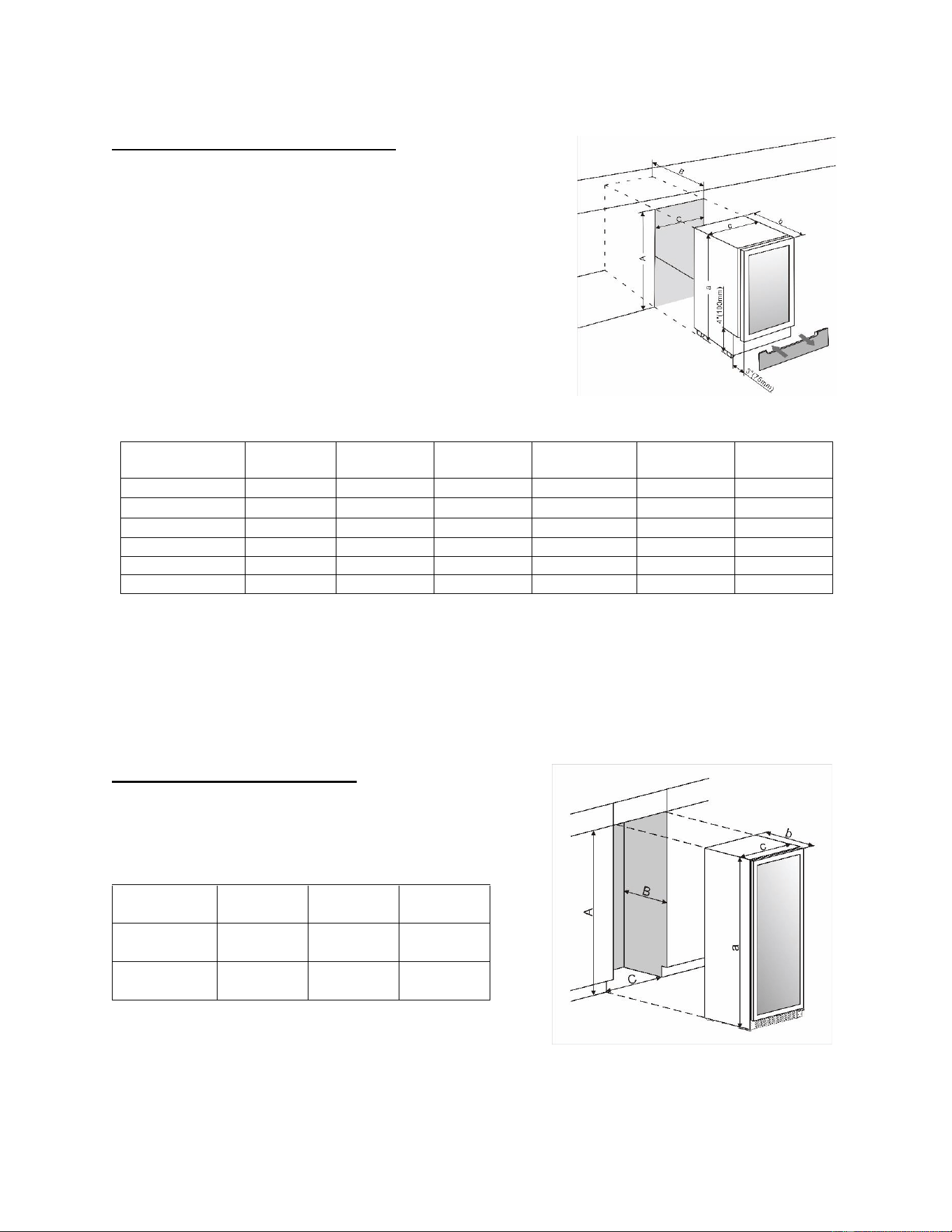

Built-in Under-counter Instructions
Make sure your installation does not block the front ventilation
grille. The unit is designed to fit under worktops, using the
height-adjustable ventilation grille to ensure that the feet are
concealed from the front view.
If the unit is to be installed in an area with a kitchen plink,
make sure that the ventilation gaps in the plinth are at least
300cm
2
(46.5in
2
) and remove the ventilation grilles, so that
warm air can disperse without interruption. Otherwise, the
appliance must work harder, increasing electricity
consumption.
NOTE: When pushing the appliance into the niche, make sure
that the main cable does not get trapped.
Model No.
a
(Inch/mm)
b
(Inch/mm)
c
(Inch/mm)
A
(Inch/mm)
B
(Inch/mm)
C
(Inch/mm)
ALBV15
31½" / 800
23½" / 595
14¾" / 375
31⅝" / 803
23⅝" / 600
15" / 380
SCR1536BG
34" / 864
22¾" / 575
14¾" / 375
34⅛" / 866
22¾" / 575
15" / 380
AL57G
32" / 813
22¾" / 575
23½" / 595
32⅛" / 816
22¾" / 575
23⅝" / 600
SCR2464
34" / 864
23½" / 596
23½" / 595
34⅛" / 866
23⅝" / 600
23⅝" / 600
ASDG1521
32" / 813
18" / 455
14¾" / 375
32⅛" / 816
18" / 455
15" / 380
ASDG2411
32" / 813
18" / 455
23½" / 595
32⅛" / 816
18" / 455
23⅝" / 600
NOTE:
1. Models SCR610BL, SCR610BLSD, and SCR611GLOS have the same size as SCR2464.
2. Models LABV15442, ADBV1551, SDG1526, LBV1546, and SDBV1555 have the same size
as ASDG1521.
3. Models LABV2430, ADBV2441, SDG2415, LBV2434, and SDBV2445 have the same size as
ASDG2411.
Built-in Cabinetry Instructions
Make sure your installation does not block the front
ventilation grille. And be sure the door will open and close
properly in the chosen location.
NOTE:
To ensure proper service access and ventilation, A must be at least ¼"/ 5mm more than a, B must be
at least ¼"/ 5mm more than b and C must be at least ¼"/ 5mm more than c.
Model No.
a
(inch/mm)
b
(inch/mm)
c
(inch/mm)
SCR1156
58⅛" /
1476
22¾" / 575
23½" /
595
SCR1400W
SCR1401
69⅝" /
1768
22¾" / 575
23½" /
595
12
Electrical Connection

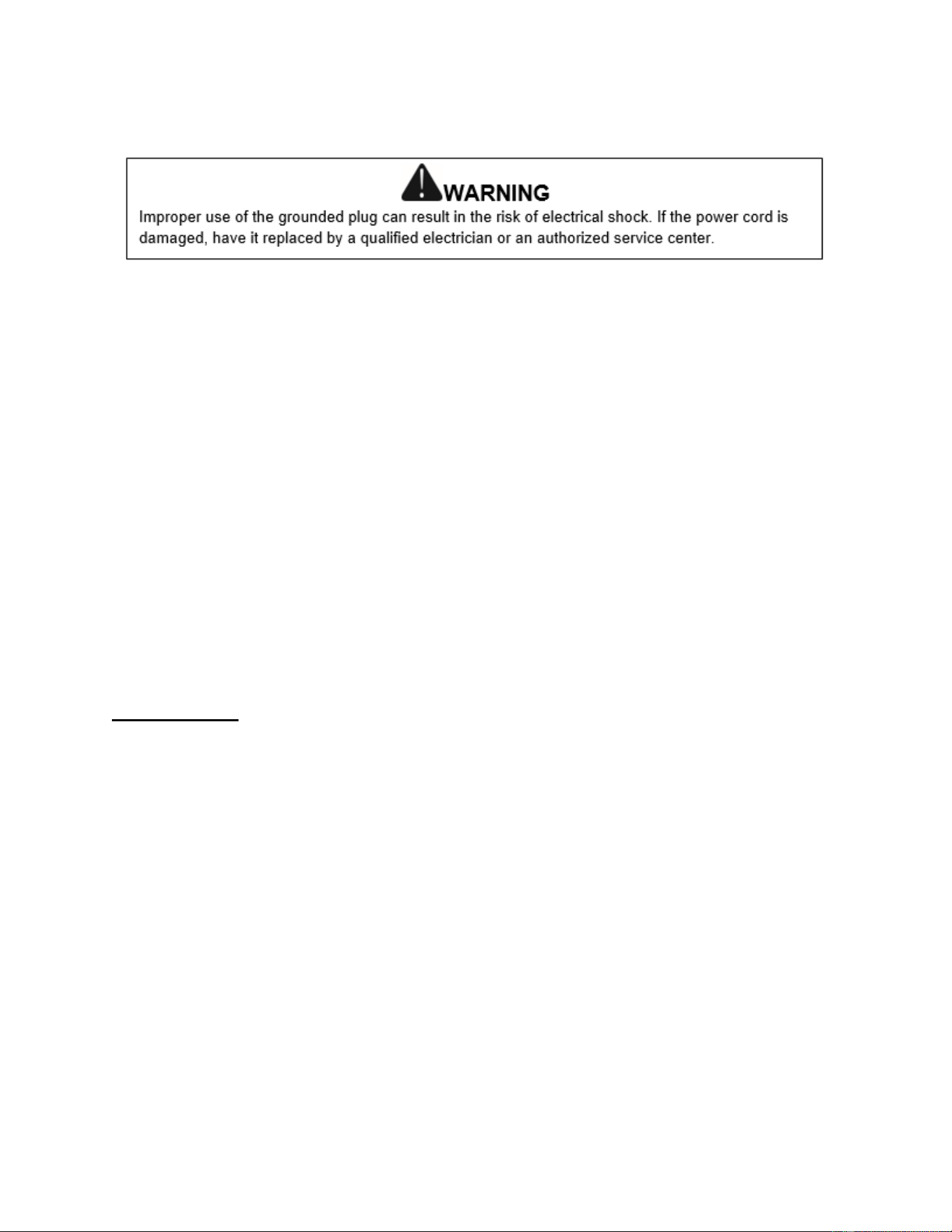

This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug that fits with standard three-prong wall outlets to minimize the
possibility of electrical shock.
Do not under any circumstances cut or remove the third (grounding) prong from the power cord
supplied. For personal safety, this appliance must be properly grounded.
This appliance requires a standard 115/120 Volt AC ~60Hz three-prong grounded electrical outlet.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded 3-prong wall outlet.
To prevent accidental injury, the cord should be secured behind the appliance and not left exposed
or dangling.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and
prevents overloading wiring circuits that could cause a fire hazard from overheating. Never unplug
the appliance by pulling on the power cord. Always grip the plug firmly and pull it straight out from
the outlet. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
Extension Cord
Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this appliance. However, if you must use an extension cord it is
absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord
having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at
least 10 amperes.
Reversing the Door Swing of your Appliance
This unit has the capability of the door opening from either the left or right side. The unit is delivered
to you with the door opening from the left side. Should you desire to reverse the opening direction,
please follow the reversal instructions shown on the following pages.
NOTE: All parts removed must be saved to allow the door swing to be reversed.
13

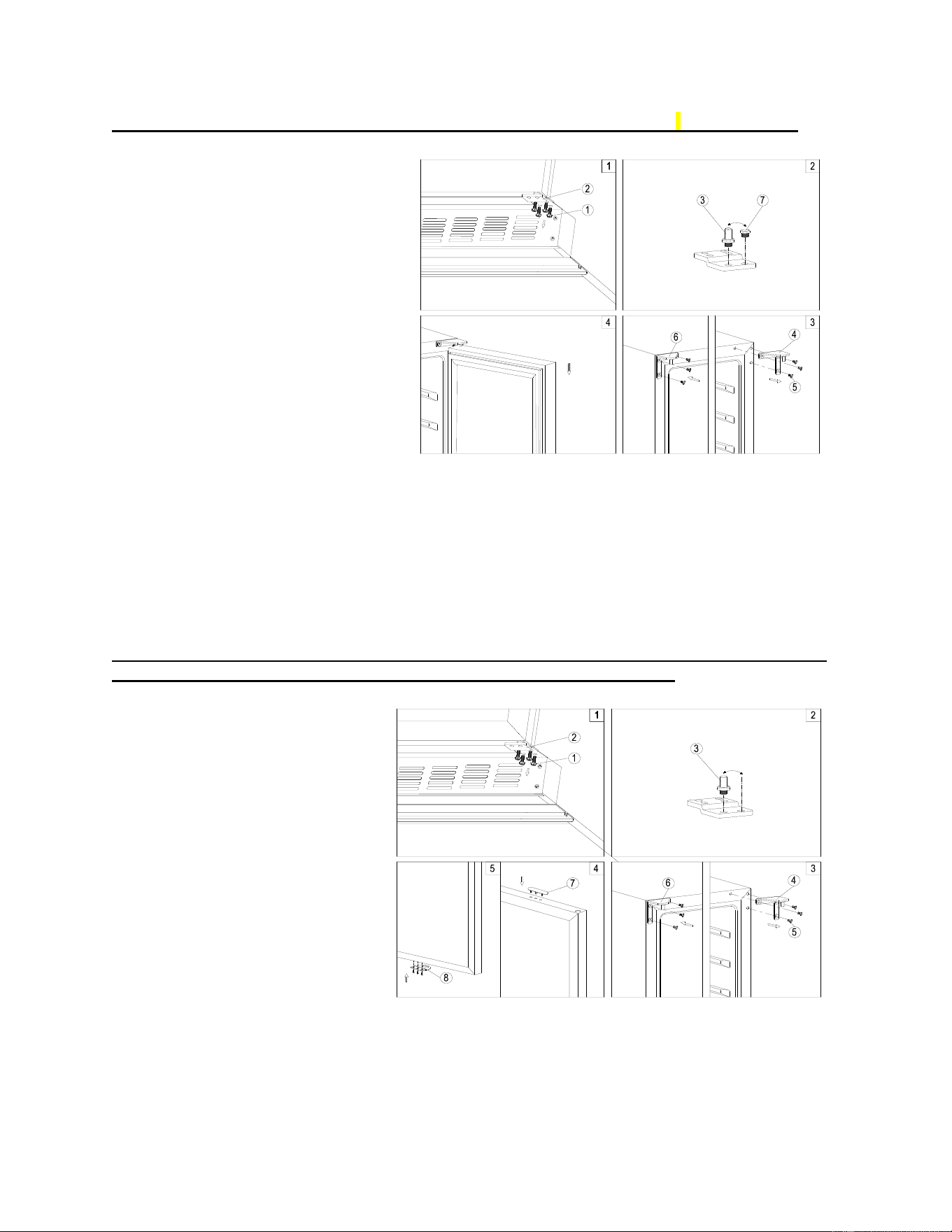

Models ALBV15 / SCR1536BG / SCR2464 / SCR610BL / SCR610BLSD / SCR611GLOS
1. Remove the bottom hinge (2) by
unscrewing the four lock screws
(1). Hold the door firmly after
removing the screws. (Fig. 1)
2. Gently pull down to remove the
door from the right top hinge and
place it on a padded surface to
avoid the risk of damage. Then
remove the right top hinge (4).
(Figs. 3 & 4)
3. Unscrew and transfer pins (3)
and (7) of the hinge plate to the
opposite side. (Fig. 2)
4. Pop out the cover caps on the left
side of the cabinet and use them
to cover the screw holes on the
right-hand side.
5. Screw the alternative left top hinge (6), included in the fittings, on the left hand side of the
cabinet. (Fig. 3)
6. Relocate the door to the designated position. Then screw the bottom hinge assembly on the
left designated position and tighten it after the door is leveled.
7. Remove the handle from the left side of the door and install it on the right side. (See Installing
the Stainless Steel Handle.)
Models AL57G / ASDG1521 / LABV15442 / ADBV1551 / SDG1526 / LBV1546 / SDBV1555 /
ASDG2411 / LABV2430 / ADBV2441 / SDG2415 / LBV2434 / SDBV2445
1. Remove the bottom hinge (2)
by unscrewing the four lock
screws (1). Hold the door firmly
after removing the screws.
(Fig. 1)
2. Gently pull the door down to
remove it from the right top
hinge. Then remove the right
top hinge (4). (Fig. 3)
3. Unscrew and transfer the
hinge pin (3) of the hinge plate
to the opposite side. (Fig. 2)
4. Pop out the cover caps on the
left side of the cabinet and use
them to cover the screw holes
on the right-hand side.
5. Screw the alternative left top
hinge (6), included in the fittings, on the left-hand side of the cabinet. (Fig. 3)
6. Unscrew and transfer the hole cover (7) and lock catch (8) to the opposite side of the glass door.
(Fig. 4)
7. Rotate the door 180° and relocate it to the designated position. Then screw the bottom hinge
assembly on the left designated position and tighten it after the door is leveled.
14

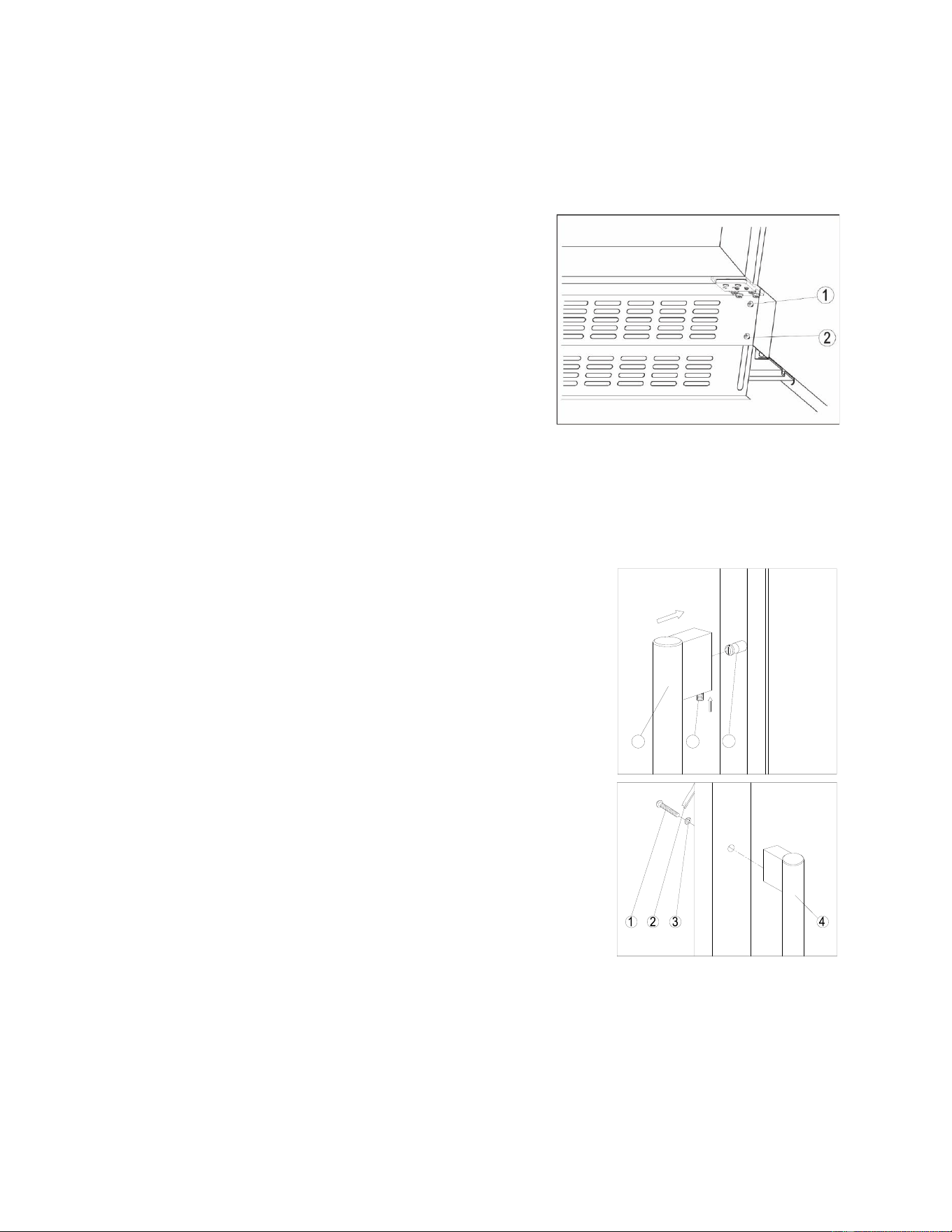

Adjusting the Kick Plate
Only for Models ALBV15 / AL57G / ASDG1521 / LABV15442 / ADBV1551 / SDG1526 / LBV1546 /
SDBV1555 / ASDG2411 / LABV2430 / ADBV2441 / SDG2415 / LBV2434 / SDBV2445.
The pre-fitted kick-plate of the appliance includes an
adjustable kick-plate section that is initially seated behind
the upper section. To adjust the kick-plate height, follow the
instructions below:
1. Remove the screws (1) from both the top left- and top
right-hand sides of the kick-plate.
2. Loosen or remove the screws (2) from both the bottom
left- and bottom right-hand sides of the kick-plate.
Failure to loosen the bottom screws sufficiently may
cause damage to the lower trim when adjusting it.
3. Carefully guide the lower trim down until the desired
height is achieved.
4. Reinsert screws and tighten them.

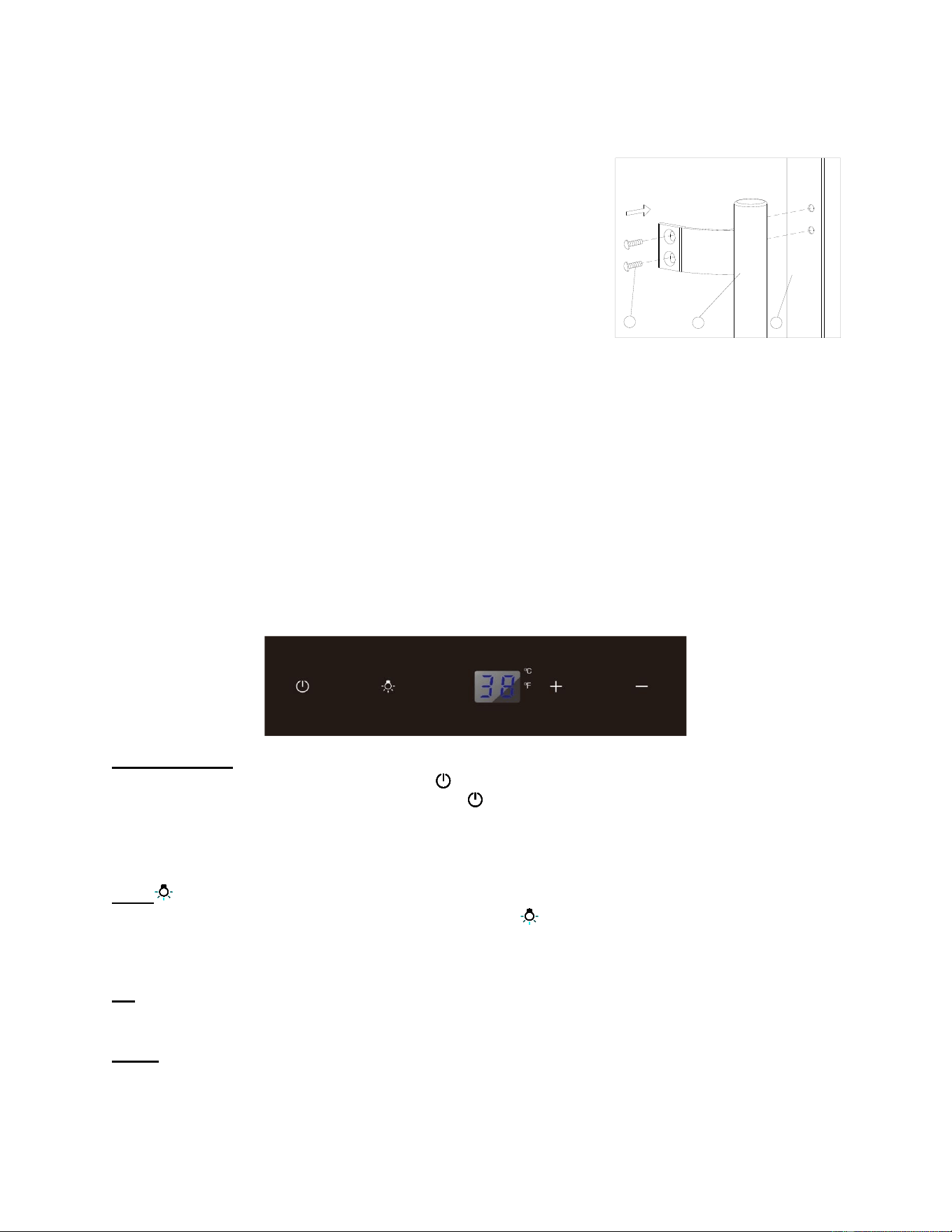

Installing the Stainless Steel Handle
This appliance includes a stainless steel handle that is not required to operate the unit. To install the
handle, follow the instructions below:
Locate the handle (1) over the mounting stub (3) of the door and
using the supplied Allen key, tighten the securing grub screws (2) to
fix the handle.
(Only for models ASDG1521, LABV15442, ADBV1551, SDG1526,
LBV1546, SDBV1555, ASDG2411, LABV2430, ADBV2441,
SDG2415, LBV2434 and SDBV2445.)
Remove the door gasket (2) on the side you wish to install the
handle - you can see two designated holes for handle installation.
1. Install the handle (4) tightly as shown above with the two screws
(1) and flat washers (3) provided.
2. Replace the door gasket.
(Only for models ALBV15, SCR1536BG, SCR2464, SCR610BL,
SCR611GLOS, AL57G, SCR1156, SCR1400W, and SCR1401.)
1
2
3
15
For the SCR610BLSD model:
1. Use a screwdriver to remove the screws on the side of the
door where the handle is to be installed.
2. Align the handle (2) with the screws (1) removed as
above.
3. Tighten the screws using a Phillips head screwdriver until
the handle is both flush and secured tightly against the
door side (3).
NOTE: (DO NOT over-tighten as this will cause damage to the
stainless steel door surface.)
OPERATING YOUR APPLIANCE
It is recommended that you install the appliance in a place where the ambient temperature is
between 72º and 78ºF (23º to 26ºC). If the ambient temperature is above or below the
recommended temperatures, the performance of the unit may be affected. For example, placing your
unit in extremely cold or hot conditions may cause interior temperatures to fluctuate. The expected
temperature setting may not be reached.

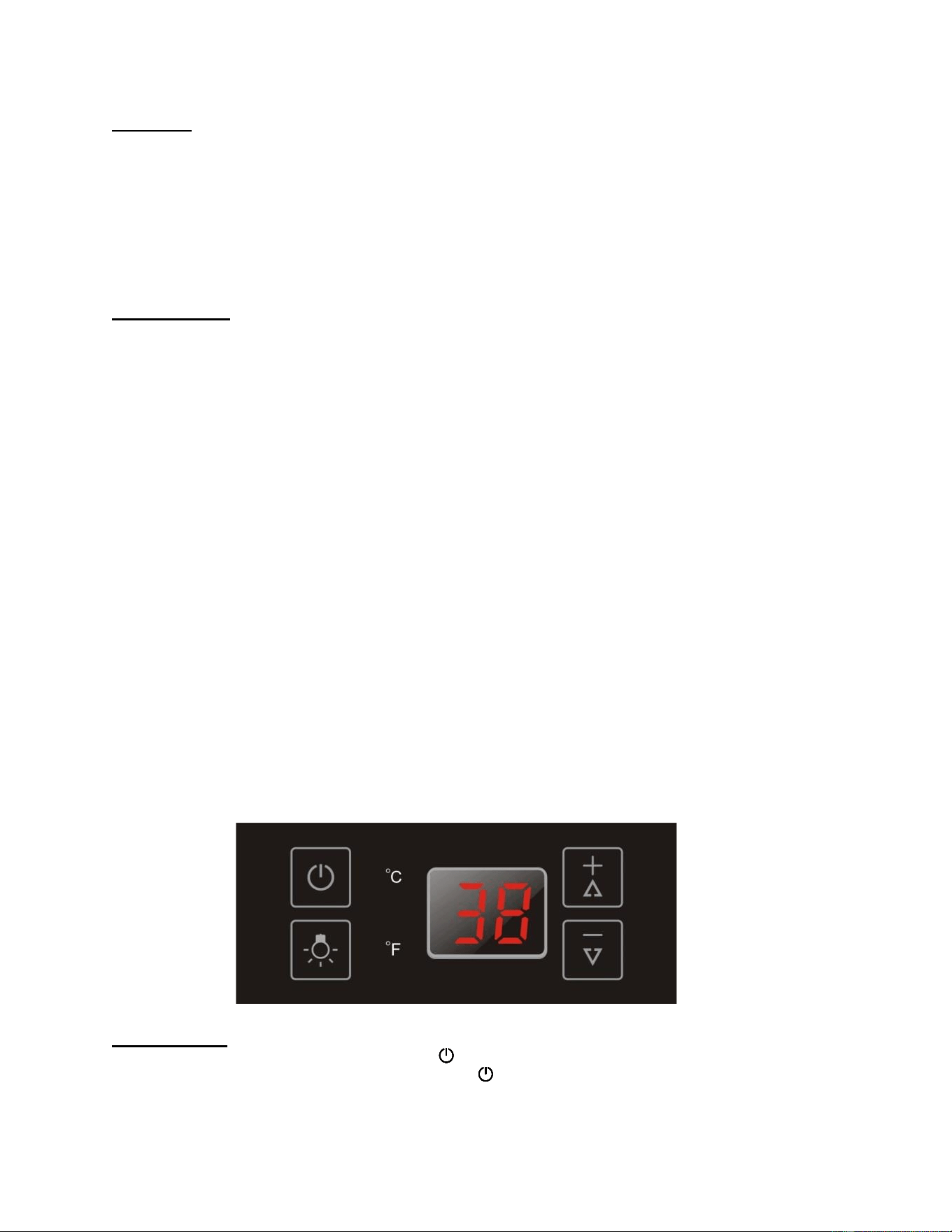

Control Panel
ON/OFF Power
To turn the appliance off, press and hold the key for 5 seconds until the temperature display goes
out. To turn the appliance on, press and hold the key for 1 second until the temperature display
lights up.
NOTE: Pressing this key once can switch off the audible alarm when the alarm is on.
Light
To turn the interior light on/off, lightly touch and hold the key for 5 seconds. The interior light
indicator will light up or go out to confirm the selection. The interior light indicator is the dot at the
bottom right of the display.
Up +
Used to increase (warm) the set temperature by 1°C/1ºF.
Down -
Used to decrease (cool) the set temperature by 1°C/1ºF.
1
2 3
16
Light Indicator / Multi-key Function
The interior light indicator is the dot at the bottom right of the display. The interior light indicator will
light up in showcase mode.
The interior light indicator will flash when the multi-key function is selected. To perform the multi-key
function, lightly touch and hold the first key, then touch the rest key for at least 5 seconds, and then
release all the keys.
Setting the Temperature Control
• You can set the temperature by touching the UP and DOWN symbols. When you push the two
buttons for the first time, the LED readout will show the original temperature set previously. (The
temperature preset at the factory is 38°F or 3°C.)
• The temperature you are setting will increase by one degree each time you touch the UP symbol
and will decrease by one degree each time you touch the DOWN symbol.
• The range of the temperature control is from 36°F to 43°F.
• To view the set temperature at any time, touch the UP or DOWN symbol. The set temperature
will flash in the display window for 5 seconds. After 5 seconds, the temperature inside the unit
will reappear in the display window.
Settings Mode
Certain settings on the appliance can only be selected in settings mode.
ºF/ºC Selection
▪ Lightly touch and hold the UP key for 5 seconds.
▪ Use the UP and DOWN keys to select the temperature display setting in Fahrenheit or Celsius
degrees.
▪ Touch the POWER key to confirm your selection.
▪ Touch and hold the UP key for 5 seconds to leave settings mode. Otherwise, the appliance exits
settings mode automatically after approximately one minute.
Display Brightness
▪ Lightly touch and hold the UP key for 5 seconds and then touch the POWER key once.
▪ Use the UP and DOWN keys to select the brightness of the display. The factory default setting is d1.
d1: dimmest setting
d2: medium setting
d3: brightest setting
▪ Touch the POWER key to confirm your selection.
▪ Touch and hold the UP key for 5 seconds to leave settings mode. Otherwise, the appliance exits
settings mode automatically after approximately one minute.
Interior Lighting Brightness
▪ Lightly touch and hold the UP key for 5 seconds and then touch the POWER key twice.
▪ Use the UP and DOWN keys to select the brightness of the interior lighting. The factory default
setting is L3.
L1: dimmest setting
L2: medium setting
L3: brightest setting
▪ Touch the POWER key to confirm your selection.
▪ Touch and hold the UP key for 5 seconds to leave settings mode. Otherwise, the appliance exits
settings mode automatically after approximately one minute.
17
Fan Mode
▪ Lightly touch and hold the UP key for 5 seconds and then touch the POWER key three times.
▪ Use the UP and DOWN keys to select the fan mode. The factory default setting is F0 or F2.
F0: Silent mode - Energy saving mode
F1: Dynamic Cooling mode - half time
F2: Dynamic Cooling mode - full time
▪ Touch the POWER key to confirm your selection.
▪ Touch and hold the UP key for 5 seconds to leave settings mode. Otherwise, the appliance exits
settings mode automatically after approximately one minute.
Audible Tones
▪ Lightly touch and hold the UP key for 5 seconds and then touch the POWER key four times.
▪ Use the UP and DOWN keys to select the audible tones. The factory default setting is S1.
S0: sensor tone ON, alarm tone OFF
S1: sensor tone ON, alarm tone ON
S2: sensor tone OFF, alarm tone OFF
S3: sensor tone OFF, alarm tone ON
▪ Touch the POWER key to confirm your selection.
▪ Touch and hold the UP key for 5 seconds to leave settings mode. Otherwise, the appliance exits
settings mode automatically after approximately one minute.
Interior Light
The interior light makes it easy to view the inside items and enhances the display of your collection.
Touching and holding the LIGHT key for 5 seconds allows you to toggle between 2 modes of
operation for the internal lights: functional (default) mode and showcase mode. If you are in
functional (default) mode (also named energy-saving mode), the lights will turn on only when the
door is open. If you are in showcase mode, the lights will be on whether or not the door is open.
The unit is equipped with LED-type lights and they are designed for an extremely long life. But they
are not user serviceable. To change them please contact the service department.
NOTE: Please use only the same type of LED light fittings originally provided by the manufacturer.
Control Panel only for Models SCR610BL, SCR610BLSD, and SCR1156
ON/OFF Power
To turn the appliance off, press and hold the key for 5 seconds until the temperature display goes
off. To turn the appliance on, press and hold the key for 1 second until the temperature display
lights up.
18
NOTE: Pressing the POWER key once can switch off the audible alarm when the alarm is on.
Up
Used to increase (warm) the set temperature by 1°C/1ºF.
To switch on the Silent mode, press and hold the UP key for 5 seconds. Three beeps will confirm the
selection.
Down
Used to decrease (cool) the set temperature by 1°C/1ºF.
To switch on the Dynamic Cooling mode, press and hold the DOWN key for about 5 seconds. Five
beeps will confirm the selection.
Light
The interior light makes it easy to view your items. Pressing the LIGHT symbol toggles between 2
modes of operation for the internal lights: functional (default) mode and showcase mode. If you are
in functional (default) mode, the lights will turn on only when the door is open. If you are in showcase
mode, the lights will be on whether or not the door is open.
ºF/ºC Selector
Select the temperature display in Fahrenheit or Celsius degrees. To change the temperature from
Fahrenheit to Celsius or from Celsius to Fahrenheit, press and hold the LIGHT key for 5 seconds.
Setting the Temperature Control
• You can set the temperature by pressing the UP and DOWN symbols. When you press either of
the two buttons for the first time, the LED readout will show the original temperature set
previously. (The temperature preset at the factory is 38°F (3°C).
• The temperature you are setting will increase by one degree each time you press the UP symbol
and will decrease by one degree each time you press the DOWN symbol.
• The range of the temperature control is from 36°F to 43°F.
• To view the set temperature at any time, press the UP or DOWN symbol. The set temperature will
flash in the display window for 5 seconds. After 5 seconds, the temperature inside the unit will
reappear in the display window.
NOTES:
• If the unit is unplugged, or power is lost or turned off, you must wait for 3 to 5 minutes before
restarting the unit. If you attempt to restart before this time delay, the unit will not start.
• When you use the unit for the first time or restart the unit after it has been shut off for a long time,
there could be a few degrees variance between the temperature you select and the one
indicated on the LED readout. This is normal and is due to the length of the activation time.
There should not be a problem once the unit has been running for a few hours.
Dynamic Cooling Mode
When your appliance is first turned on, it operates in Dynamic Cooling mode. If the interior
temperature of the unit must be the same throughout the storage cabinet, you should switch to
Dynamic Cooling mode. This causes the interior fan to circulate the inside air evenly, even after the
set temperature is reached.
19
You can tell whether your unit is in Dynamic Cooling or Silent mode by the sound of the internal fan
motor. When the compressor is OFF if the internal fan motor is working, the unit is in Dynamic
Cooling mode, but if the internal fan motor is also OFF, the unit is working in Silent mode.
Sabbath Mode
• Sabbath mode is available for the observance of certain religious holidays. This mode turns off
the displays, interior light, and audible alarms and prevents them from turning on again. Normal
cooling operations will still take place.
• To initiate Sabbath mode, press the POWER and LIGHT keys at the same time for at least 5
seconds. The displays and interior lights will go out to confirm the Sabbath mode is ON.
• Sabbath mode can be canceled by repeating the above process. The Sabbath mode will
automatically turn off after 48 hours.
Temperature Memory Function
In the event of a power interruption (power surge, breaker switch, etc.), the unit will remember the
previous temperature settings, and when the power is recovered, the cabinet temperature will return
to the same set temperature as before power was lost.
Temperature Alarm/Door Alarm
• An audible alarm sounds if the storage temperature is not cold enough. The temperature display
flashes at the same time.
• The cause of the temperature being too high may be:
o Warm items were placed inside
o Too much warm ambient air flowed in when rearranging and removing contents
o Power failure for some time
o The appliance is faulty.
• The audible alarm is automatically silenced and the temperature display stops flashing when the
temperature is sufficiently cold again.
• If the door has been left open for more than 60 seconds, the alarm will sound. Pressing the
POWER key once will switch off the audible alarm.
Door Lock
If the unit is provided with a lock system, the keys are located inside the plastic bag that contains the
User Manual. Insert the key into the lock and turn it counterclockwise to unlock the door. To lock the
door, do the reverse operation, making sure the metal pin is engaged completely. Remove the key
and put it in a secure place for safekeeping.
Shelves
To prevent damaging the door gasket, make sure to have the door all the way open when pulling the
shelves out of the rail compartment.
• For easy access to the stored contents, you can pull the
shelf approximately halfway out of the rail compartment.
However, this unit was designed with a plastic post on
each side of the shelf track to prevent shelf contents
from falling.
• When removing the shelf from the inner rails, make sure
to remove all shelf contents first. Then move the shelf to
the position where the notches in the shelf are exactly
aligned with the plastic posts and lift the shelf. To
replace the shelf, repeat this procedure in reverse.
20
Defrosting
• The unit defrosts automatically in normal operating conditions.
• The evaporator behind the rear wall of the unit defrosts automatically. The condensate collects in
the drainage channel behind the rear wall of the unit and flows through the drainage hole into the
drip tray near the compressor where it evaporates.
• However, frost may accumulate on the evaporator if the unit is repeatedly opened in high heat or
high humidity location. If this frost pattern does not clear within 24 hours, your unit will require
manual defrosting.
CARE AND MAINTENANCE
Cleaning your Appliance
CAUTION: Failure to unplug the appliance during cleaning could result in electrical shock or other
personal injury.
• Turn off the power, unplug the appliance, and remove all items, including shelves.
• Wash the inside surfaces with a solution of warm water and baking soda (about 2 tablespoons of
baking soda to a quart of water).
• Wash the shelves with a mild detergent solution.
• Wring excess water out of the sponge or cloth when cleaning the area where the controls are
located, or any electrical parts.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry
with a clean, soft cloth.
• Do not use steel wool or a steel brush on the stainless steel.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of your
appliance if you minimize the number of times the door is opened. If the power is going to be off for a
longer period, you need to take the proper steps to protect the contents.
Vacations
• Short vacations: Leave the appliance operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items, and turn
off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave
the door open slightly, blocking it open if necessary.
Moving your Appliance
1. Remove all items.
2. Securely tape down all loose items (shelves) inside your appliance.
3. Turn the adjustable legs up to the base to avoid damage.
4. Tape the door shut.
5. Be sure the appliance stays secure in the upright position during transportation. Also, protect
the outside of the appliance with a blanket or similar item.
Energy-Saving Tips
• The appliance should be located in the coolest area of the room, away from heat-producing
appliances and out of direct sunlight.
• Ensure that the unit is adequately ventilated. Never cover air vents.
• Do not keep the door open any longer than necessary.
21
TROUBLESHOOTING
You can solve many common problems easily, saving you the cost of a service call. Try the
suggestions below to see if you can solve the problem before calling the servicer.
PROBLEM
POSSIBLE CAUSE
REMEDY
Appliance
does not
operate.
Appliance is not connected to a power
supply.
The appliance is turned off.
A tripped circuit breaker or a blown fuse.
Connect the appliance.
Switch on the appliance.
Switch on circuit breaker or replace
fuse.
Appliance is
not cold
enough.
The temperature is not set correctly.
The ambient temperature could require a
lower set temperature setting.
The door was opened too often.
The door was not closed completely.
The door is not hermetically sealed.
The condenser is dirty.
The ventilation opening is blocked or too
dusty.
Check the set temperature.
Set a lower temperature.
Do not open the door more often than
necessary.
Close the door properly.
Check the door seal and clean or
replace it.
Clean the condenser when necessary.
Clear the obstructions and clean off the
dust.
Appliance
turns itself on
and off
frequently.
The room temperature is higher than
average.
A large number of items have been
added to the unit.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
Put the appliance in a cooler place.
Leave the appliance to work for a while
until the set temperature has been
reached.
Do not open the door more often than
necessary.
Close the door properly.
Check the door seal and clean or
replace it.
The light does
not work.
Appliance is not connected to a power
supply.
Tripped circuit breaker or a blown fuse.
The light was switched off on the control
panel.
Connect the appliance.
Switch on circuit breaker or replace
fuse.
Switch on the light.
Vibrations
The appliance is not properly leveled.
Level the appliance with adjustable feet.
The appliance
seems to
make too
much noise.
A rattling noise may come from the flow of the refrigerant, which is normal. As each
cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your
appliance.
If temperature fluctuations occur, the contraction and expansion of the inner walls
may cause popping and crackling noises.
The appliance is not properly leveled.
Level the appliance with adjustable feet.
The door will
not close
properly.
The appliance is not properly leveled.
The door was reversed and not properly
re-installed.
The gasket is dirty.
The shelves are out of position.
Level the appliance with adjustable feet.
Check the door hinge and reassemble it
correctly.
Clean the door gasket.
Check the shelves and refit correctly.
Display “E0”,
“E1”. “E2”,
“E3”, “E4”,
“E5”, “E6” or
“E0” indicates a communication error for
3- zone models.
“E1” or “E2” indicates that the air
temperature sensor has failed.
Call for service.
22
“E7”.
“E3” or “E4” indicates that the defrost
sensor in the evaporator has failed.
“E5” indicates a defrost heater failure.
“E6” indicates a solenoid valve failure.
“E7” indicates a door switch failure.
The alarm
sounds and
the
temperature
display
flashes.
Has the appliance door been open for
longer than 60 seconds? If not, then the
temperature has risen higher or fallen
lower than the set temperature. This
could be due to:
The appliance door has been opened too
often.
The ventilation opening is covered or too
dusty.
A lengthy interruption to the power
supply.
A large number of items have been
added to the unit.
If yes, close the door.
Do not open the door more often than
necessary.
Clear the obstructions and clean off the
dust.
Let the appliance work for a while until
the set temperature has been
reached.
The icon “--”
is lit up and
flashing in the
temperature
display.
The displayed temperature is out of
range.
Only temperatures within the range
0~99°F/-9~37°C can be displayed. If
the temperature is not within this
range, the icon “--” will be displayed
instead. This is normal.
If you have checked the table above and find that you still need help with your appliance, call our
Customer Service facility at 800-932-4267 between 9:00 AM and 5:00 PM ET. We will do our best
to answer your questions.
CALIFORNIA CARB/SNAP DISCLOSURE
This product uses eco-friendly hydrocarbon refrigerant and fully complies with California
CARB regulations.
However, we are required by California Law to provide the following disclosure statement in every
product sold in California.
"This equipment is prohibited from use in California with any refrigerants on the 'List of Prohibited
Substances' for that specific end-use, in accordance with California Code of Regulations, title 17,
section 95374. This disclosure statement has been reviewed and approved by Felix Storch, Inc. and
Felix Storch, Inc. attests, under penalty of perjury, that these statements are true and accurate."
This product does not use any refrigerants on the 'List of Prohibited Substances'"
23
NOTES
24
LIMITED WARRANTY
ONE-YEAR LIMITED WARRANTY
Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is
operated and maintained according to instructions attached to or furnished with the product, the
warrantor will pay for factory specified parts and repair labor to correct defects in materials or
workmanship. Service must be provided by a designated service company. Outside the 48 states, all
parts are warranted for one year from manufacturing defects. Plastic parts, shelves, and cabinets are
warranted to be manufactured to commercially acceptable standards and are not covered from damage
during handling or breakage.
5-YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your
appliance, to replace or repair fuses, or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such
as filters) are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper
installation, installation not in accordance with electrical or plumbing codes, or use of products not
approved by the warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is
not installed in accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
THE CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL
BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR
LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS
AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Ave
Bronx, New York 10474
www.summitappliance.com
For parts and accessory ordering,
troubleshooting and helpful hints, visit:
www.summitappliance.com/support
