Model
DB-130H
Ice Dispensing Bin
Parts Manual
Number: 71205
Issued: 4-12-2002
Revised: 4-21-2016
hoshizakiamerica.com
2
CONTENTS
Auxiliary Codes ...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 3
A. Main Assembly .................................................................................................................. 4
B. Bin Assembly ..................................................................................................................... 6
C. Mechanism Assembly ....................................................................................................... 8
D. Solenoid Assembly .......................................................................................................... 10
E. Accessories & Labels .......................................................................................................11
3
Auxiliary Codes
L-0 September 2001
M-0 February 2002
N-0 January 2003
P-0 December 2003
P-5 October 2004
Q-5 December 2004
R-5 December 2005
S-5 January 2007
S-6 April 2007
S-7 September 2007
T-5 January 2008
T-6 February 2008
U-5 January 2009
V-5 March 2010
A-5 April 2011
B-5 January 2012
B-6 February 2012
C-5 January 2013
D-5 January 2014
E-5 January 2015
F-5 January 2016
Auxiliary Code Breakdown
The auxiliary code is the rst two characters in the serial number. The rst character indicates
the year. Years progress or regress in alphabetical order. The series runs from "A" through "V"
and the letters "I" and "O" are skipped. The second character indicates signicant part changes
within a year. Base is "5" (0 for auxiliary codes P-0 and earlier) and this number advances for
each change.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally must
be ordered separately.
4

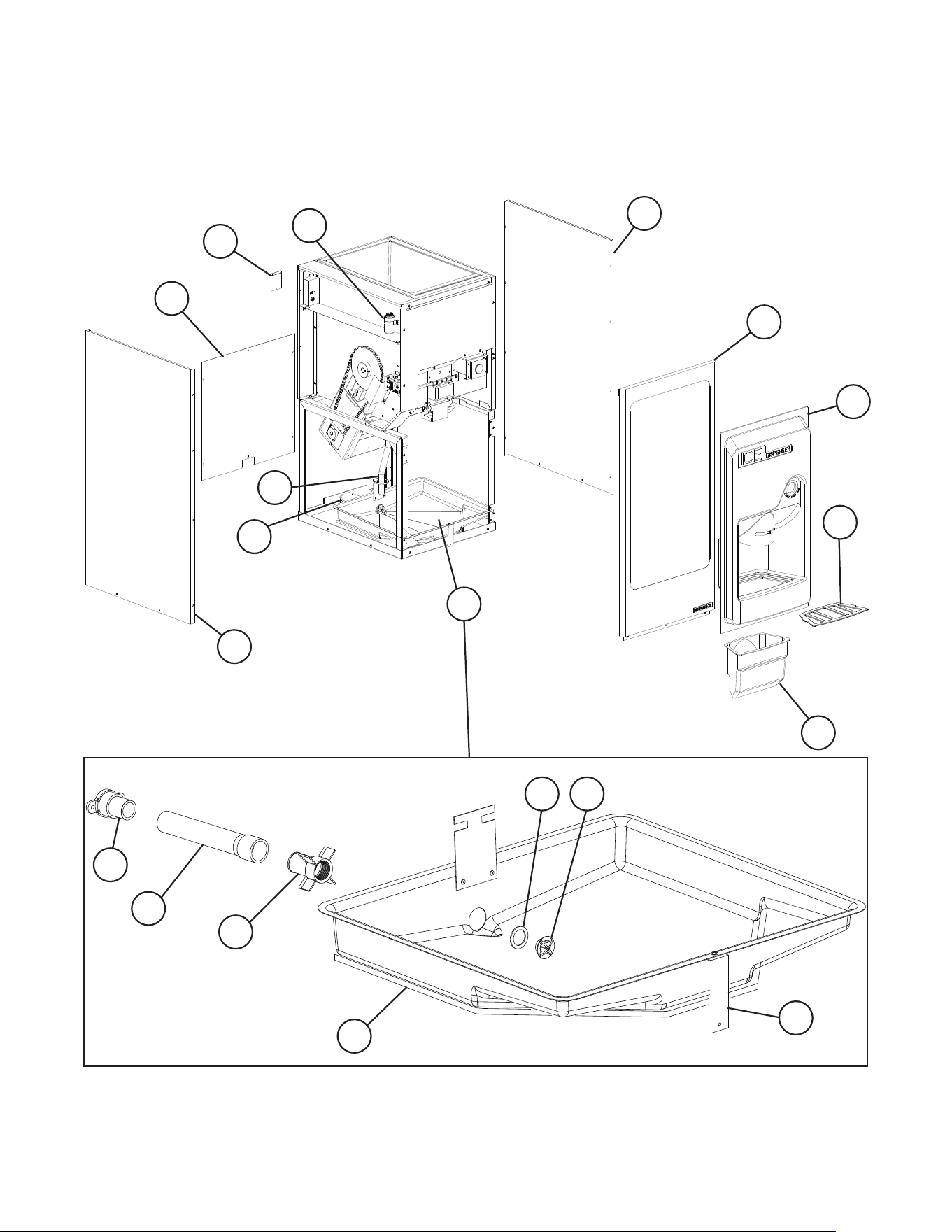

A. Main Assembly
DB-130H
L-0 to F-5
1
3
4
6
16
7
18
5
17
5
2
10
11
14
9
13 12
15
8
5
Title: A. Main Assembly Model: DB-130H
Index
No. Description
Material or
Model Number Part Number
Required Number
L-0
to
T- 5
T- 6
to
B-6
(D)
B-6
(E)
to
F-5
1 Front Panel A 1A0567-01 1 1 1
2 Front Panel B 2A2152-01 1 1 1
3 Chute 2A2371-01 1 1 1
4 Drain Board 3A2145-01 1 1 1
5 Side Panel 214489-02 2 2 2
6 Rear Panel 324904-01 1 1 1
7 Junction Box Cover 433410-01 1 1 1
8 Drain Pan Assembly
(includes items 9 through 16)
214616A02 1 1 1
9 Drain Hose 436315-01 1 1 1
10 Drain Fitting 438729-01 1 1 1
11 Drain 429770-01 1
12 Drain Cap 418294-01 1
13 Rubber Packing 413857-02 1
14 Insulation Sheet 3A0237-01 1 1 1
15 Drain Pan Bracket 435529-01 1 1 1
16 Drain Fitting Pad 4A0144-01 1 1 1
17 Gear Motor Capacitor 25MFD,
370VAC
3A2005-06 1 -
20MFD,
250VAC
4A4319-02 1 1
18 Vinyl Hose L=445 mm 7716-2025 1 1 1
6

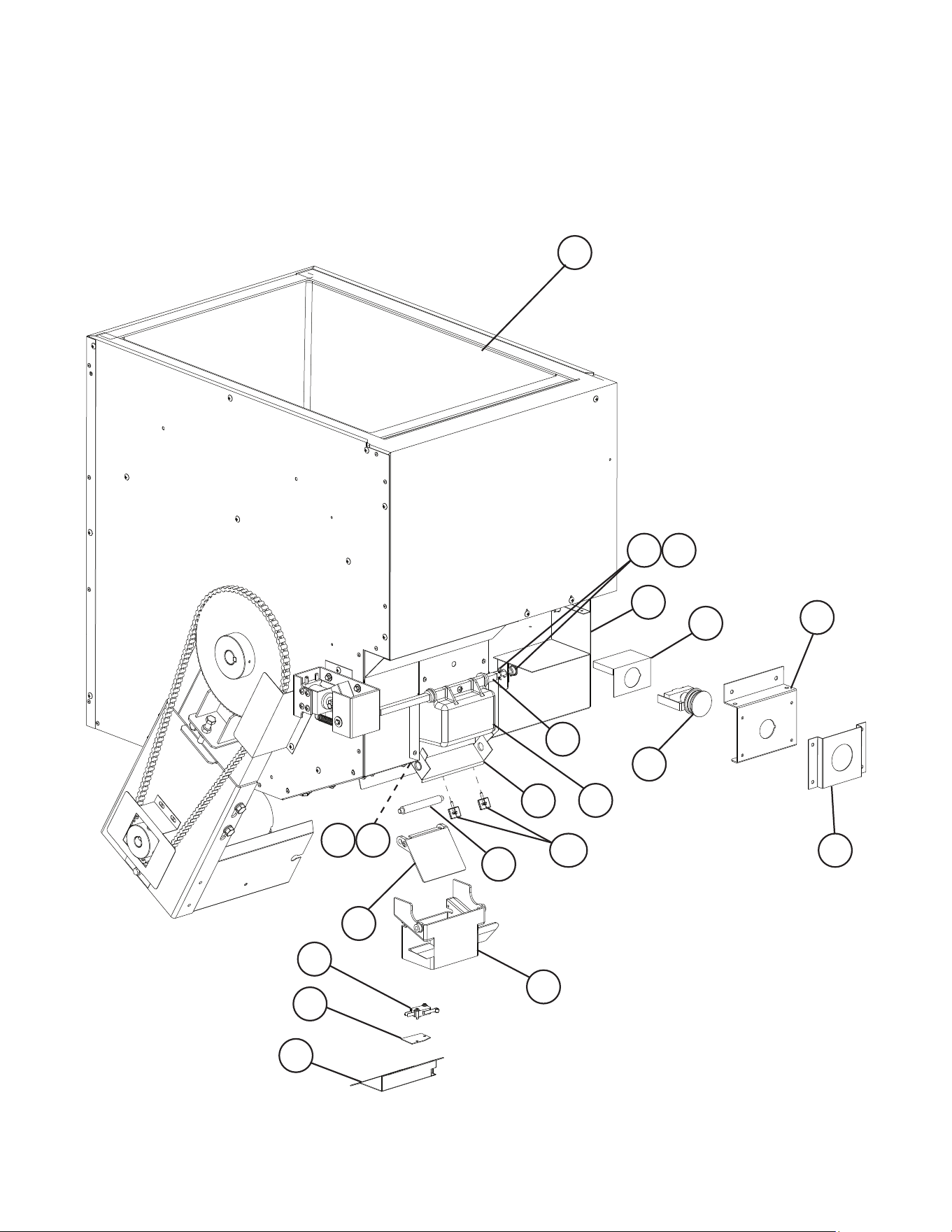

B. Bin Assembly
DB-130H
L-0 to F-5
3
6
7
8
11
12
14
13
9
10
1
2
4
5
12a
1615
17
18
19
7
Title: B. Bin Assembly Model: DB-130H
Index
No. Description
Material or
Model Number Part Number
Required Number
L-0
to
F-5
1 Bin Body 106185G02 1
2 Spout Switch Cover A 3A1950-01 1
3 Safety Cover 3A0415-01 1
4 Push Switch 435745-01 1
5 Spout Switch Bracket 3A1947-01 1
6 Spout Switch Cover B 4A2459-01 1
7 Spout A 325994-01 1
8 Shutter B 435539-01 1
9 Weight 435540-01 1
10 Shaft D 4A1210-01 1
11 Snap Pin 715S-0004 1
12 Hook 439398-01 1
12a Thumbscrew 414949G12 2
13 Shutter (A) 215459-01 1
14 Shaft Shutter 324899-01 1
15 Shutter Collar 435533-01 1
16 Snap Pin 715S-0006 1
17 Safety Switch Cover 324900-01 1
18 Spacer 429933-01 1
19 Micro-Switch 4A2546-01 1
8

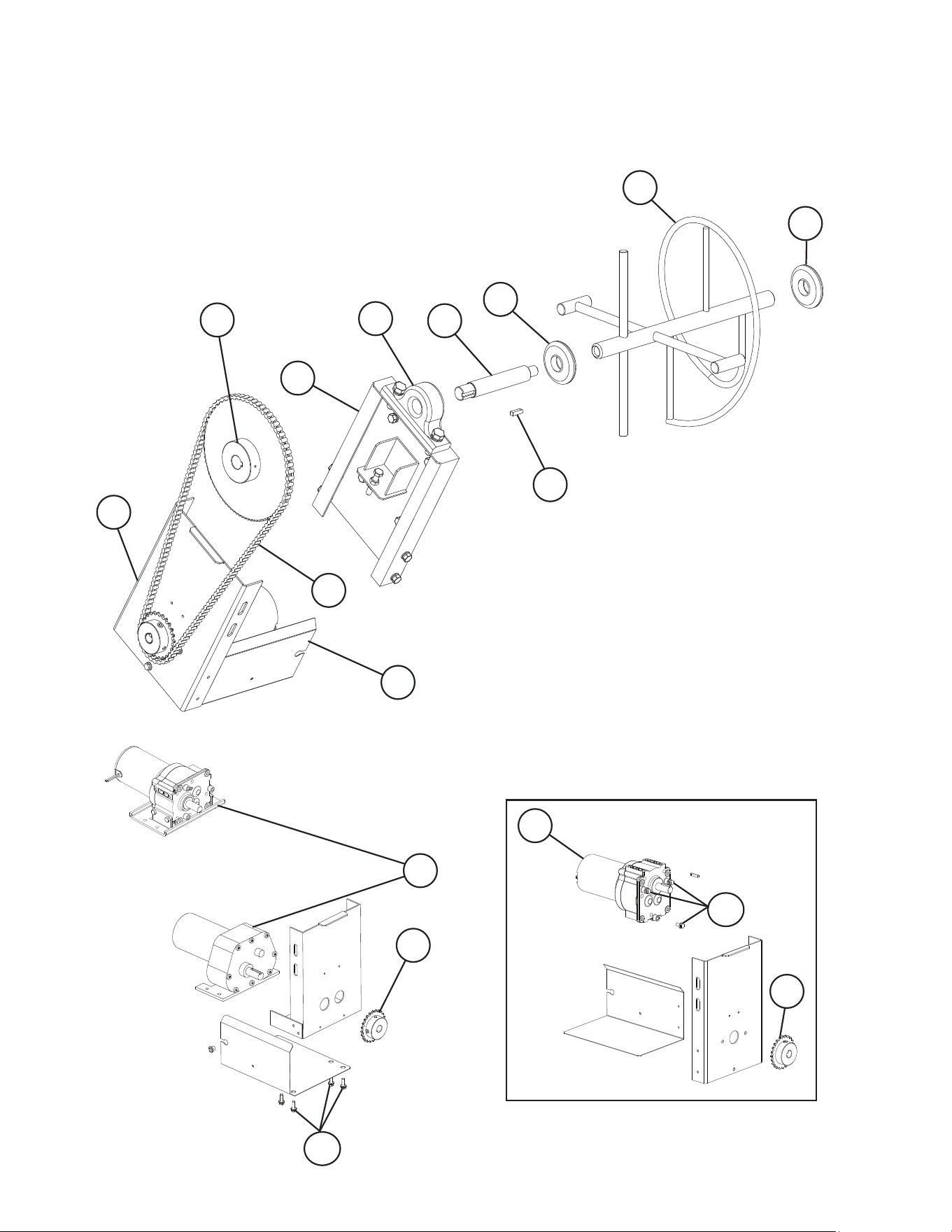

C. Mechanism Assembly
DB-130H
L-0 to F-5
5
11
11
10
8
6
7
12
9
1a
1
L-0 to S-5, S-7 to T-5
S-6, T-6 to V-5
2
1
1a
2
Gear Motor Assembly
A-5 and Later
3
4
9
Title: C. Mechanism Assembly Model: DB-130H
Index
No. Description
Material or
Model Number Part Number
Required Number
L-0
to
S-5 S-6
S-7
to
T- 5
T- 6
to
T- 6
(J)
T- 6
(K)
to
V-5
A-5
to
F-5
1 Gear Motor 4A0183-01 1 - 1 -
4A4264-01 1 - 1 1 -
4A5055-01 1
1a Bolt 6×20 4A1989-01 4 4 4 4 4 -
Hex Head Bolt - Serrated 4A5135-01 3
2 Sprocket A 435557-01 1 1 1 1 -
4A4413-01 1 1
3 Gear Motor Bracket B 2A0123-01 1 1 1 1 1 -
2A5462-01 1
4 Barrier C 3A0398-01 1 1 1 1 1 -
3A5806-01 1
5 Agitator 324892G01 1 1 1 1 1 1
6 Drive Shaft 437928-01 1 1 1 1 1 1
7 Gear Motor Bracket A 2A0450G01 1 1 1 1 1 1
8 Pillow Block Bearing 435553-02 1 1 1 1 1 1
9 Sprocket B 435554-01 1 1 1 1 1 1
10 Key 437265-01 1 1 1 1 1 1
11 Seal B 435558-01 2 2 2 2 2 2
12 Chain 130 pitches 435797-01 1 1 1 1 1 1
10

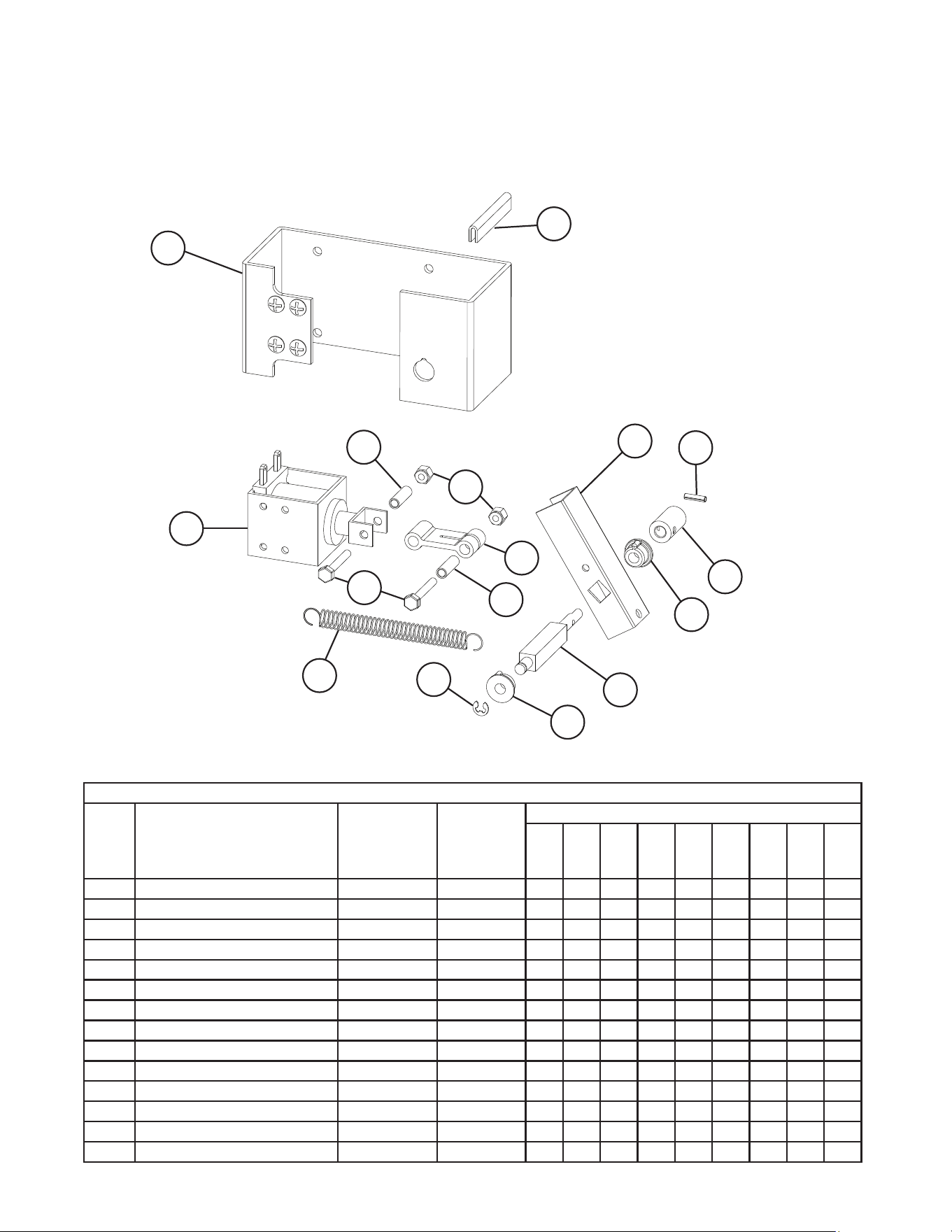

D. Solenoid Assembly
DB-130H
L-0 to F-5
1
2
3
4
4
5
6
7
8
9
10
11
12
3a
3b
7
Title: D. Solenoid Assembly Model: DB-130H
Index
No. Description
Material or
Model Number Part Number
Required Number
L-0
to
F-5
1 Solenoid Bracket 3A0534-01 1
2 Solenoid 4A0856-01 1
3 Link 432232-01 1
3a Hex Head Bolt 4×30, SS 7B02-0430 2
3b Hex Nut 7N110400 2
4 Collar D 432471-01 2
5 Link Solenoid 439397-01 1
6 Shaft 435532-01 1
7 Shutter Collar 435533-01 2
8 Connector 435534-01 1
9 Spring Pin 3x12, SS 712S-0312 1
10 E-Ring 721S-0005 1
11 Spring 432878-01 1
12 Rubber Gasket L=50 mm 4A0662L01 1
11
Title: E. Accessories & Labels Model: DB-130H
Index
No. Description
Material or
Model Number Part Number
Required Number
L-0
to
F-5
1 Naming Label 3A2025-01 1
2 Push Label 4A2472-01 1
3 Spout Label 4A2469-01 1
4 Hoshizaki Emblem 4A0560-01 1
5 Adjustable Leg 4A2526-01 4
6 Leg Protector 3A0134-01 4

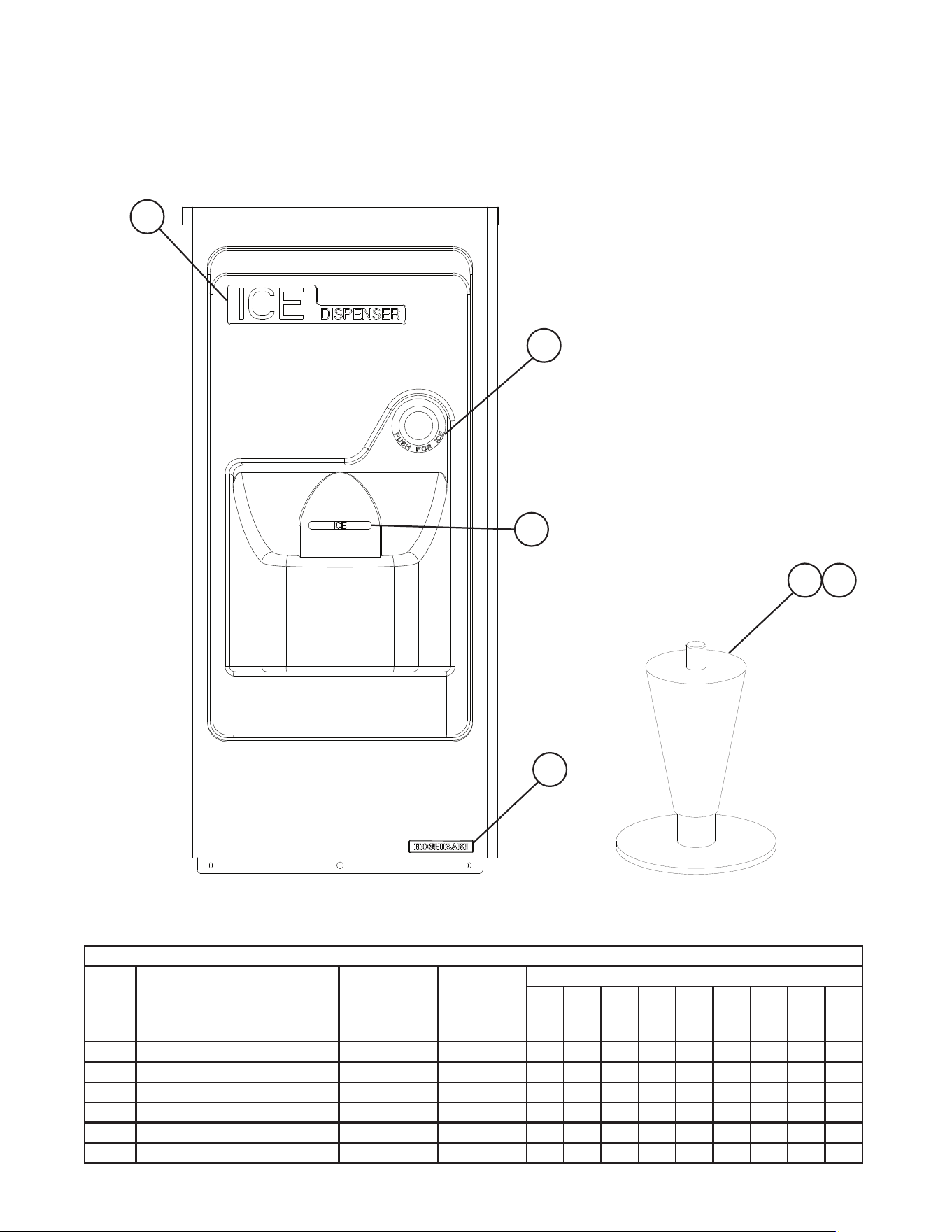

E. Accessories & Labels
DB-130H
L-0 to F-5
1
2
3
4
5 6
