Features:
Installation
MOUNTING THE BRACKET
Pull out half of the key at the back of the speaker, then insert the support through the hole
on the key, and the support is fixed to the wall.
Visit Our Website
SCAN ME
PyleUSA.com
USER GUIDE
3"100 Watt Mini Cube
Speaker Pair
• Full Range Mini Speaker System
• Great for Home Theater Applications
• Video Shielded
• 3" Paper Cone Driver
• Power Handling: 100 Watts Peak
• Frequency Response: 90 Hz - 18 kHz
• 8 Ohm Impedance
• Dimensions: 3.6" (H) x 3.6" (W) x 4.6” (D)
MOUNTING
www.PyleUSA.com
FINAL ADJUSTMENTS
1. After checking that the speaker is in phase and works correctly, angle the speaker for the
best sound.
2. Hand-tighten the bracket knobs only. Power tools may over-tighten the knob and strip
the threads of the insert.
3. Check that the entire installation is safe and secure.
Connecting Your Speakers
California Prop 65 Warning
WARNING:
This product can expose you to chemicals, which is known to
the state of California to cause cancer birth defects and other
reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
Questions or Comments?
We are here to help!
Phone: 1.718.535.1800
PyleUSA.com/ContactUs

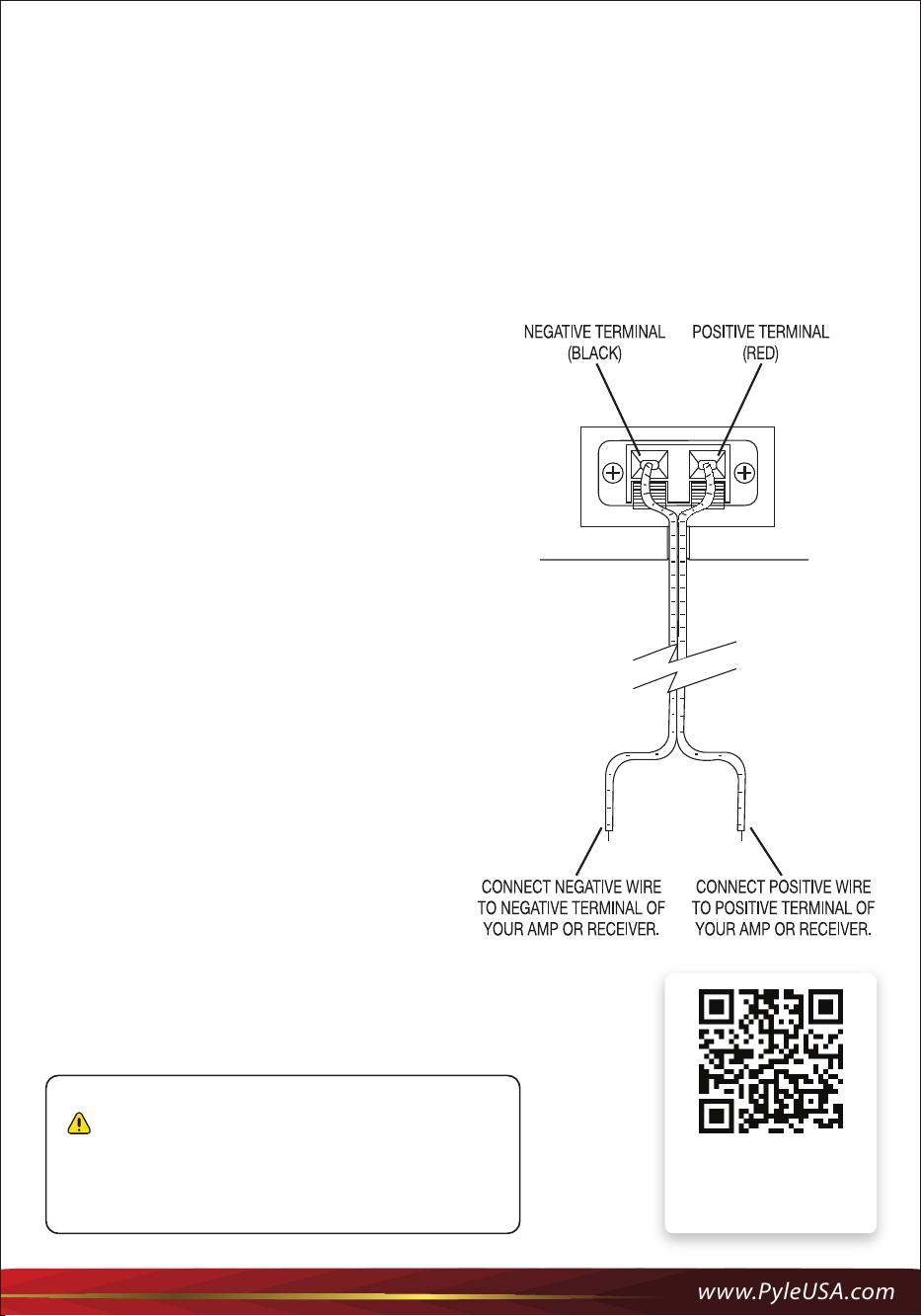

Connecting the speakers to your amplifier
or receiver.
•
First, turn your amplifier off to avoid
damage which may result from accidental
shorting of the speaker leads.
•
Correct phase polarity is critical for proper
stereo imaging and bass performance.
The red (+) terminal on your amplifier or
receiver must be connected to the red (+)
terminal on your speaker; the same applies
to the black (-) terminal.
•
Connect one loudspeaker at a time to
ensure proper connection of left and right
channels. Make sure all wires are firmly
fastened.
•
If you notice a high level of bass or central
image focus, double-check your connections
for proper polarity.
