INSTRUCTIONS FOR:
WINDSCREEN STAND FOLDING
MODEL NO: WK4.V4
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions
and maintained properly, give you years of trouble free performance.
Refer to Instruction
Manual
WK4.V4 Issue: 1 - 14/07/16
1. SAFETY
Rnsure that the stand is on a level floor before loading.
Ensure that all fastenings are tight.
DO NOT use the stand for any other purpose than that for which
it was designed.

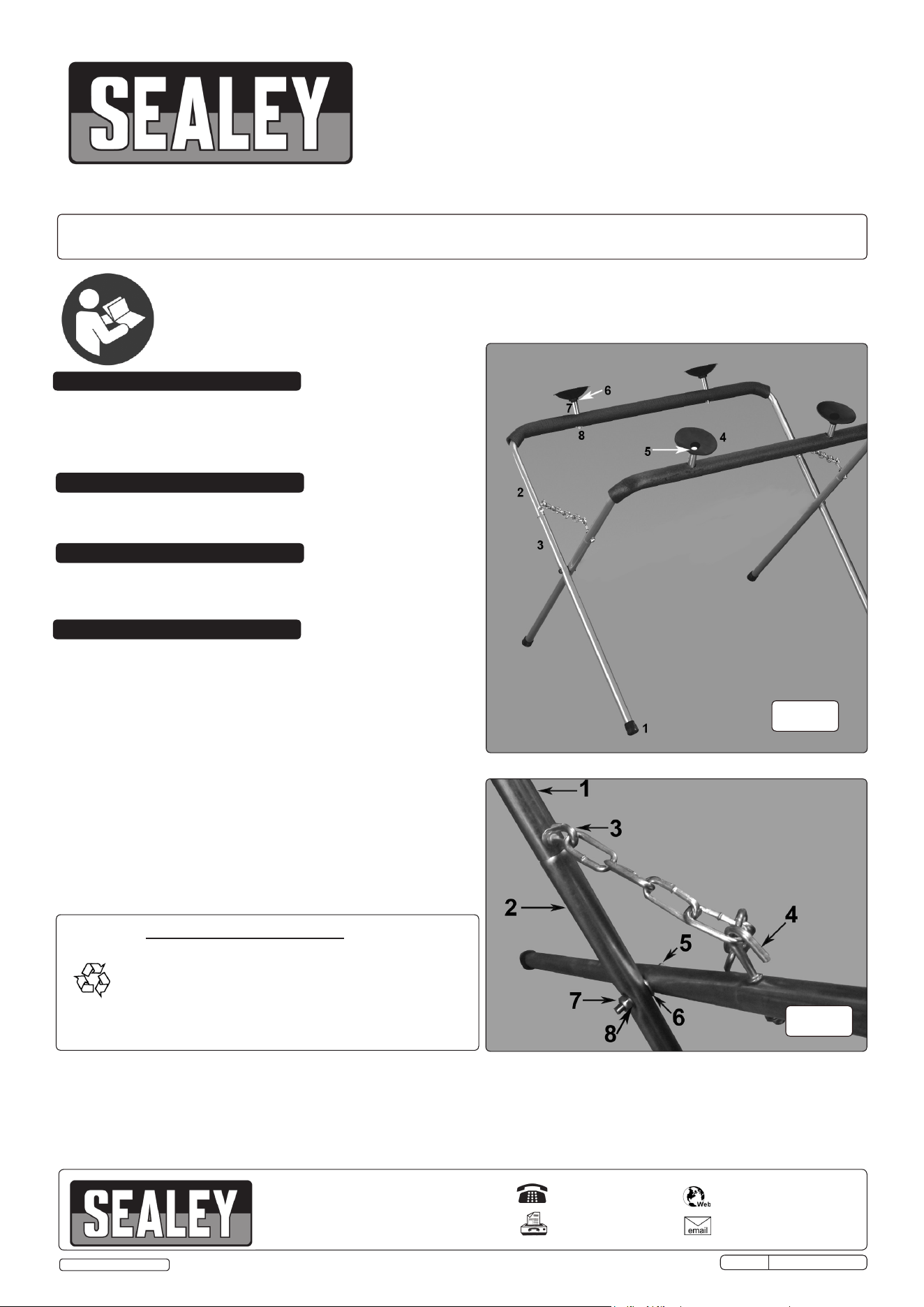

4. ASSEMBLY
g.1
g.2
2. INTRODUCTION
Lightweight tubular steel design with variable height facility. Large rubber
suckers prevent screen from moving during preparation. Folding frame
makes this ideal for both workshop and mobile screen preparation.
3. SPECIFICATION
Model No: .............................. WK4
Width:............................... 1000mm
Folded Height: ........................ 1200mm
4.1. Attach rubber end caps (fig.1.1) to lower legs (fig.1.2).
4.2. Insert lower legs (fig.2.2) into top frame (fig.2.1.) and secure
with eye bolt (fig.2.3), placing an M8 washer either side of the
tube and securing with an M8 nut, the nut being secured on the
outside of the frame.
4.3. Insert the other leg tubes into the top frame and secure with the
eye hooks (fig.2.4), using washers and bolts as in section 4.2.
Ensure that the hooks face inwards.
4.4. Connect the two frame members as in fig.1, using bolts (fig..5),
washers (fig.2.8), centre washer (fig 2.6) and lock nut (fig.2.7).
4.5. Attach rubber cups (fig.1.6) by means of bolts (fig.1.5) washers
(fig.1.6), tubes (fig.1.7) and nuts (fig1.8)
