LOW LEVEL OIL DRAINERS 64LTR

MODELS: AK467D, AK467DXP

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,

and properly maintained, give you years of trouble free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE

THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR

PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

1. SAFETYi

9 Replace damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.

9 Keep the drainer clean, dry and in good condition for best and safest performance.

9 Wear appropriate protective clothing and eye protection.

9 If it is necessary to raise the vehicle ensure that it is properly supported. If the vehicle has been raised with a jack, axle stands must be

put in place before working under the vehicle.

9 Remove the oil drainer and other tools and equipment from underneath the vehicle before lowering it again.

9 Use drainer in a suitable work area. Keep area clean and tidy, and free from unrelated materials and ensure that there is adequate

lighting.

9 The work area should have a flat and level surface capable of supporting the weight of the drainer and it’s contents.

8 DO NOT position the drainer in such a way that it becomes a hazard to others in the work area.

9 Ensure that the floor is not slippery and wear non-slip shoes.

9 Keep children and unauthorised persons away from the work area.

9 Dispose of waste liquids in accordance with local authority regulations.

 WARNING! DO NOT allow uncontrolled discharge of fluids which would pollute the environment.

8 DO NOT use the drainer in wet or damp areas or where condensation is present.

8 DO NOT use the drainer near open flames or other sources of heat.

 WARNING! If draining the oil whilst hot, take precautions to prevent against burns, particularly hands, wrists and arms.

2. INTRODUCTION

 Lowleveldrainerssuitableforuseontheforecourtandworkshopoor.Steelfabricatedunitwithacapacityof64ltr.Fittedwithgravity

 draintapformanualdischarge.ModelNo.AK467DXPttedwithrotarypumpand2.5mhoseforfasterdischarge.Fullyportablewith

 twocastors,twoxedwheelsandhandleformanoeuvringaroundtheworkshop.

3. SPECIFICATION

4. ASSEMBLY

4.1. CASTOR WHEELS (fig.1).BoltacastorwheeltoeachoftheprojectingbracketseithersideofthehandlemountusingtheM12nutsand

washers provided.

4.2. FIXED WHEELS (fig.2). Insert the special axle bolts through each wheel so that the wheel is running on the roller bearing. Mount each

wheel by pushing the axle bolt through each of the tubular axle mounts welded to the back, bottom edge of the casing. Secure each axle

 boltwiththeM12locknutsprovided.

8 DO NOT over tighten.

Refer to

instruction

manual

Wear protective

gloves

Wear eye

protection

Wear protective

clothing

Model No: ................................AK467D...................AK467DXP

Capacity:..................................64ltr ............................64ltr

MaximumPanHeight: .......................285mm........................285mm

GravityFeed: ..............................Yes..............................Yes

Gravity Discharge: ..........................Yes..............................Yes

PumpDischarge: ...........................No ..............................Yes

Nett weight ................................14.77kg ......................20.97kg

fig.1

fig.2

Original Language Version

AK467D,AK467DXPIssue4(4,F)06/07/23

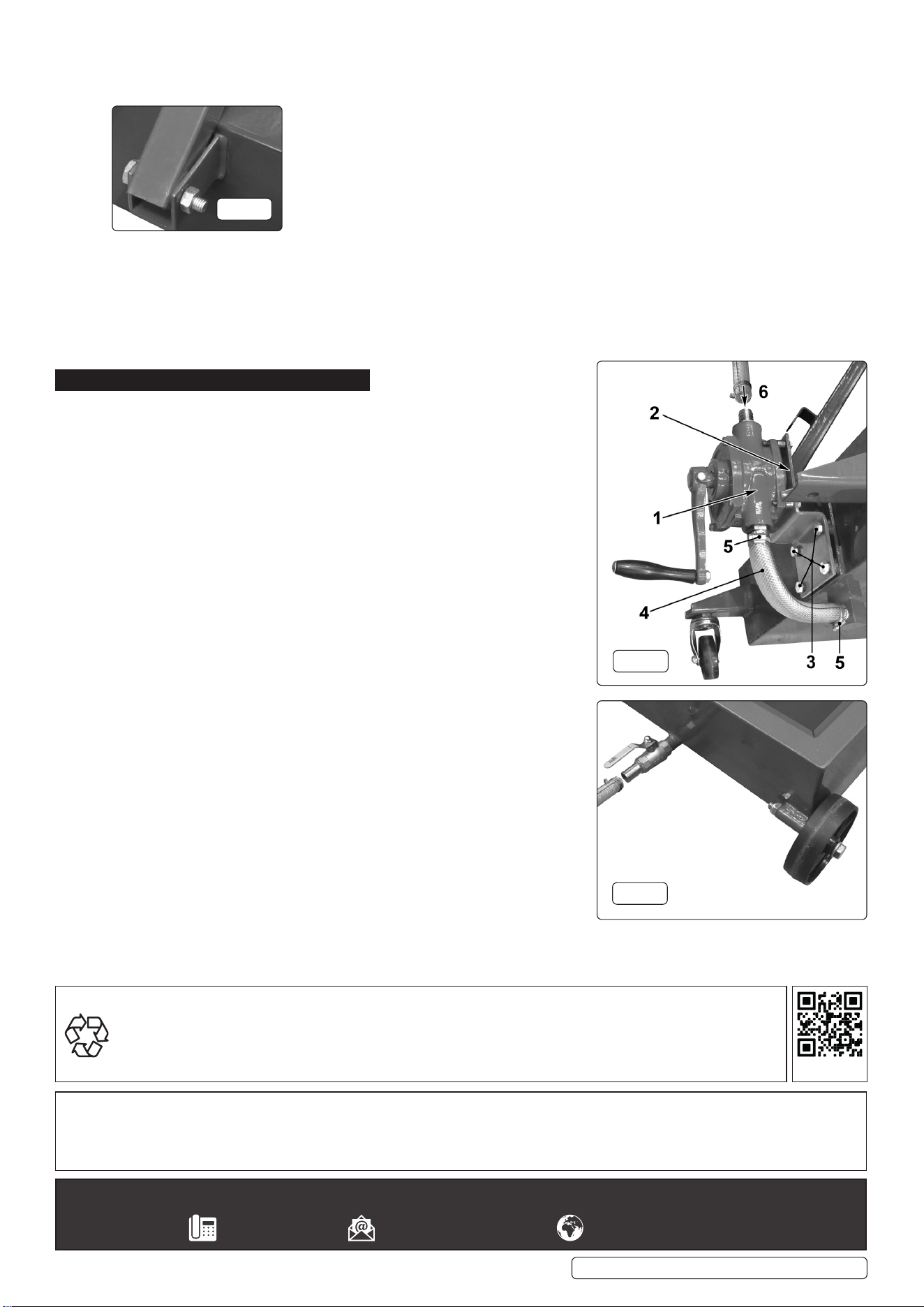

4.3. HANDLE (fig.3)Placethehandleintothecentralbracketsituatedonrearedge.AligntheholesandpasstheØ8mmx40boltthrough

 bothpartsandsecurewiththeM8nutprovided.   

4.4. PUMP (AK467DXP only) fig.4 Thepump(1)comesattachedtothepumpbracket(2).Attachthepumpbrackettothecastorend 

 oftheoildrainerinthepositionindicatedaboveusingthefourM8x16mmbolts(3)provided.Eachboltmusthaveasplitlockwasher

 undertheheadandshouldbetightenedusinga14mmspanner.

4.5. Connect the sump outlet to the underside of the pump using the short length of tube provided. Slide the worm drive clips provided over the

tube first then push the tube onto the fittingsandsecurewiththewormdriveclips(fig.4.6).

  Placetheblackfilterscreenintotheshallowrecessinthetopofthepan.

ASSEMBLY

5. OPERATION

5.1. PREPARATION

5.1.1. Whenpositioningthedrainerensurethattherearenospillsofoilontheoorboth

prior to draining and afterwards. All spills should be cleaned up immediately to

prevent them becoming a slipping hazard.

5.1.2. When positioning the drainer beneath the vehicle consideration should be given to

accessing the sump plug. If necessary loosen the plug before siting the drainer.

Remember that once the sump plug has been removed the escaping oil may be hot.

5.2. COLLECTION OF WASTE OIL

5.2.1. If unit has been used to drain a previous vehicle check to ensure that there is

sufficient spare capacity within the pan before you drain the next vehicle.

5.2.2. Placethepanunderthevehicle’ssump,removethesumpplugandputtooneside.

5.2.3. Allow the engine to drain.

5.2.4. When draining is complete, remove the pan and wipe up any spillage. Remember to

replace and tighten the sump plug using a new sump washer.

5.3. EMPTYING OF WASTE OIL FROM PAN UNIT

 WARNING! Dispose of all waste in accordance with local regulations.

5.3.1. GRAVITY DISCHARGE (AK467D) Attach the discharge hose to the outlet valve

at the rear end of the drainer and secure it with the worm drive clip provided.

 Seeg.5.Placetheotherendofthepipeintoasuitablecontainersetatalower

level than the drainer pan and open the outlet valve. When the drainer pan is

empty close the valve.

5.3.2. MANUAL PUMP DISCHARGE (AK467DXP)Attachthedischargehose(seeg.4)to

the outlet connection on the top of the pump and secure it with the worm drive clip

 provided.Placetheotherendofthepipeintoasuitablecontainerandproceedto

turn the pump handle clockwise until empty.

5.4. After use thoroughly clean the exterior of the drainer and clear up any spills in the

work area. Store the drainer in a suitable clean dry place where it will not be a hazard.

Original Language Version

fig.3

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR

01284 757500 sales@sealey.co.uk www.sealey.co.uk

Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior

notice.

Important: No Liability is accepted for incorrect use of this product.

Warranty:Guaranteeis12monthsfrompurchasedate,proofofwhichisrequiredforanyclaim.

ENVIRONMENT PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,

taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product

becomescompletelyunserviceableandrequiresdisposal,drainanyfluids(ifapplicable)intoapprovedcontainersand

dispose of the product and fluids according to local regulations.

fig.5

fig.4

AK467D,AK467DXPIssue4(4,F)06/07/23
