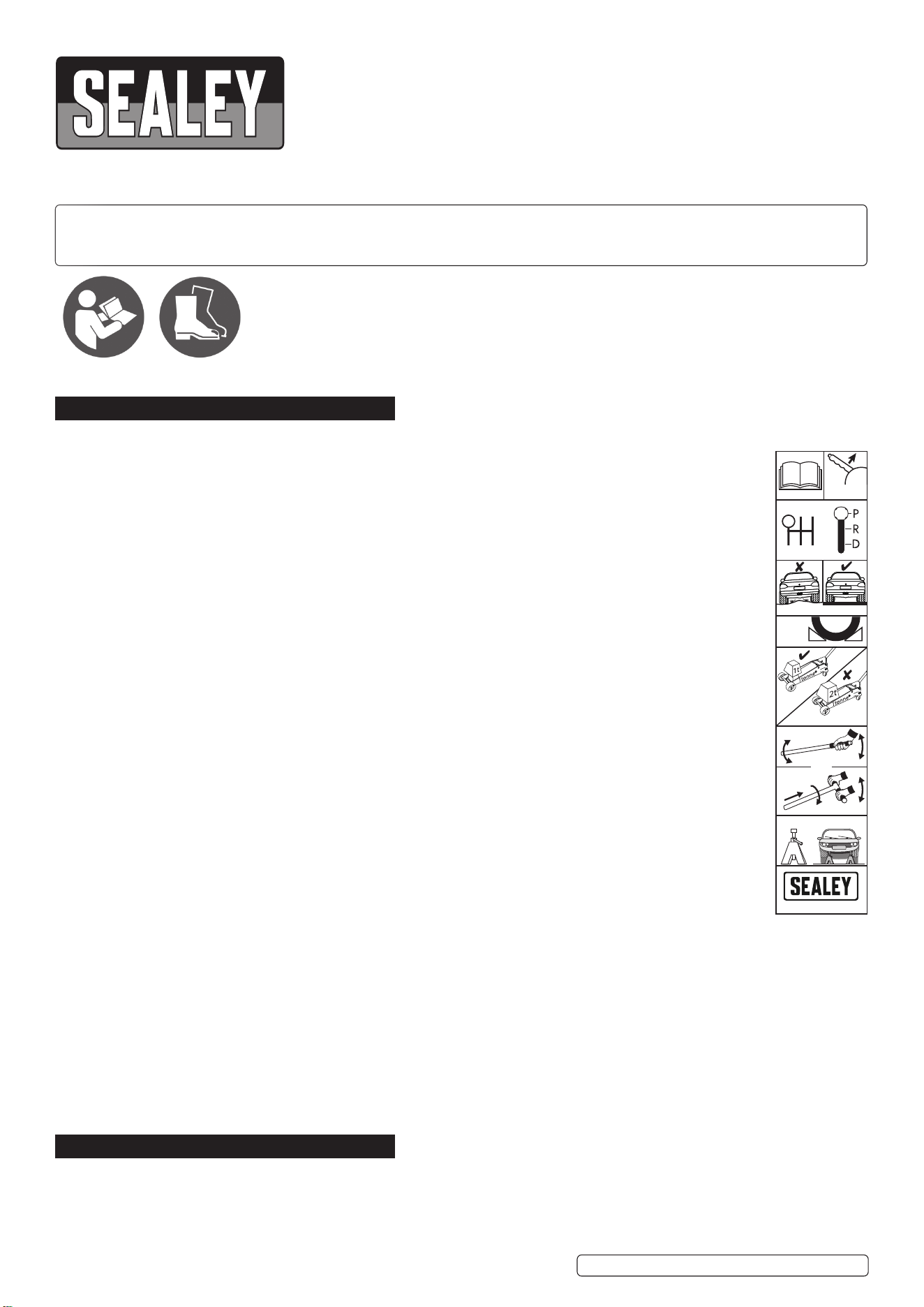

2.5 TONNE TROLLEY JACK CAR JACK LOW
PROFILE WITH ROCKET LIFT
MODEL NO’S: 2500LE.V4, 2501LE.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Please note that the handle socket of this jack is retained under tension and must be released before use. Caution
should be taken when releasing, as the handle socket will suddenly raise to its upright position if not controlled.
9 The user shall work only in accordance with this instruction manual.
9 The operator shall be provided with all necessary information about training and about pumping and
translating forces.
9 Ensure the jack is in sound condition and good working order. Take action for immediate repair or replacement of
damaged parts. Use genuine parts only. DO NOT modify the jack. The use of non-genuine parts may be dangerous
and will invalidate the warranty.
9 Locate the jack in a suitable, well lit working area.
9 Keep working area clean and tidy and free from unrelated materials. Use jack on level and solid ground, preferably
concrete. Avoid tarmacadam as jack may sink in.
9 Chock wheels of vehicle.
9 Ensure the vehicle handbrake is engaged, engine is switched o and transmission is in gear (or “PARK” if automatic).
9 Ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls, etc. to allow for vehicle
tilting.
9 Ensure all non-essential persons keep a safe distance whilst the jack is in use.
9 Ensure there are no passengers in the vehicle.
9 It is necessary that the operator can watch the lifting device and the load during all movements.
9 Place jack under only those lifting points recommended by vehicle manufacturer (see vehicle handbook).
9 Check that the lifting point is stable and centred on the jack saddle.
9 Ensure the jack wheels are free to move and that there are no obstructions.
▲ DANGER: Use the jack for lifting only, NOT for supporting the lifted load.
9 Ensure there are no persons or obstructions beneath the vehicle before lowering.
9 It is not allowed to work under the raised load until it is secured by suitable means. Use suitable axle stands under the
vehicle before proceeding with any task.
9 Use a qualied person to lubricate and maintain the jack.
9 Ensure that only hydraulic jack oil is used in the jack.
8 DO NOT operate the jack if damaged.
8 DO NOT allow untrained persons to operate the jack.
8 DO NOT operate the jack when tired or under the inuence of drugs, alcohol or intoxicating medication.
8 DO NOT exceed the rated capacity of the jack.
8 DO NOT allow the vehicle to move during lifting or lowering, or use the jack to move the vehicle.
8 DO NOT jack vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substances.
8 DO NOT work under the vehicle until appropriately rated axle stands have been correctly positioned.
8 DO NOT use the jack for purposes other than that for which it is intended.
8 DO NOT top up hydraulic system with brake uid. Use hydraulic jack oil only. (Sealey Part No: HJO500MLS or HJO5LS)
8 DO NOT adjust the safety overload valve.
9 When not in use store jack, fully lowered, in a safe, dry, childproof area.
9 If more than 400N of eort is generated in lifting, the eorts shall be lowered by an additional person.
9 Jacks shall be maintained and repaired in accordance with the manufacturer’s instructions. Such maintenance and repair shall be
carried out by qualied persons.
9 No modications shall be carried out which adversely aect the compliance of the jack with the standard.
9 Check the state of the markings and that the markings remain as the initial one.
2. INTRODUCTION
2500LE.V4 & 2501LE.V2: Twin piston Rocket Lift feature brings saddle to maximum height in minimal strokes. Universal joint release
mechanism allows safer, more controlled lowering of jack. Proled lifting arm gives low clearance height of just 88mm making it
suitable for sports and custom cars. Heavy-duty steel chassis provides stability and endurance. Fitted with an overload valve for
added safety. Hydraulic oil by-pass system protects ram from being overextended.
2500LE.V4, 2501LE.V2 Issue 2 (1,3) 11/09/23
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear safety
footwear
1 3 5
2 4 R
TJL3
Chock
wheels
Never
exceed
jack capacity
Close
Raise
Lower
Lift & twist
to lower
OR
Use on a hard level floor
Apply
handbrake
www.sealey.co.uk
Use suitable axle stands
X2
Raise
3. SPECIFICATION
4. OPERATION
WARNING! Before use ensure you have read, understood and applied Section 1 safety precautions.
IMPORTANT: Before use, the operator is to visually inspect the jack for cracked welds, damaged or missing parts or hydraulic leaks.

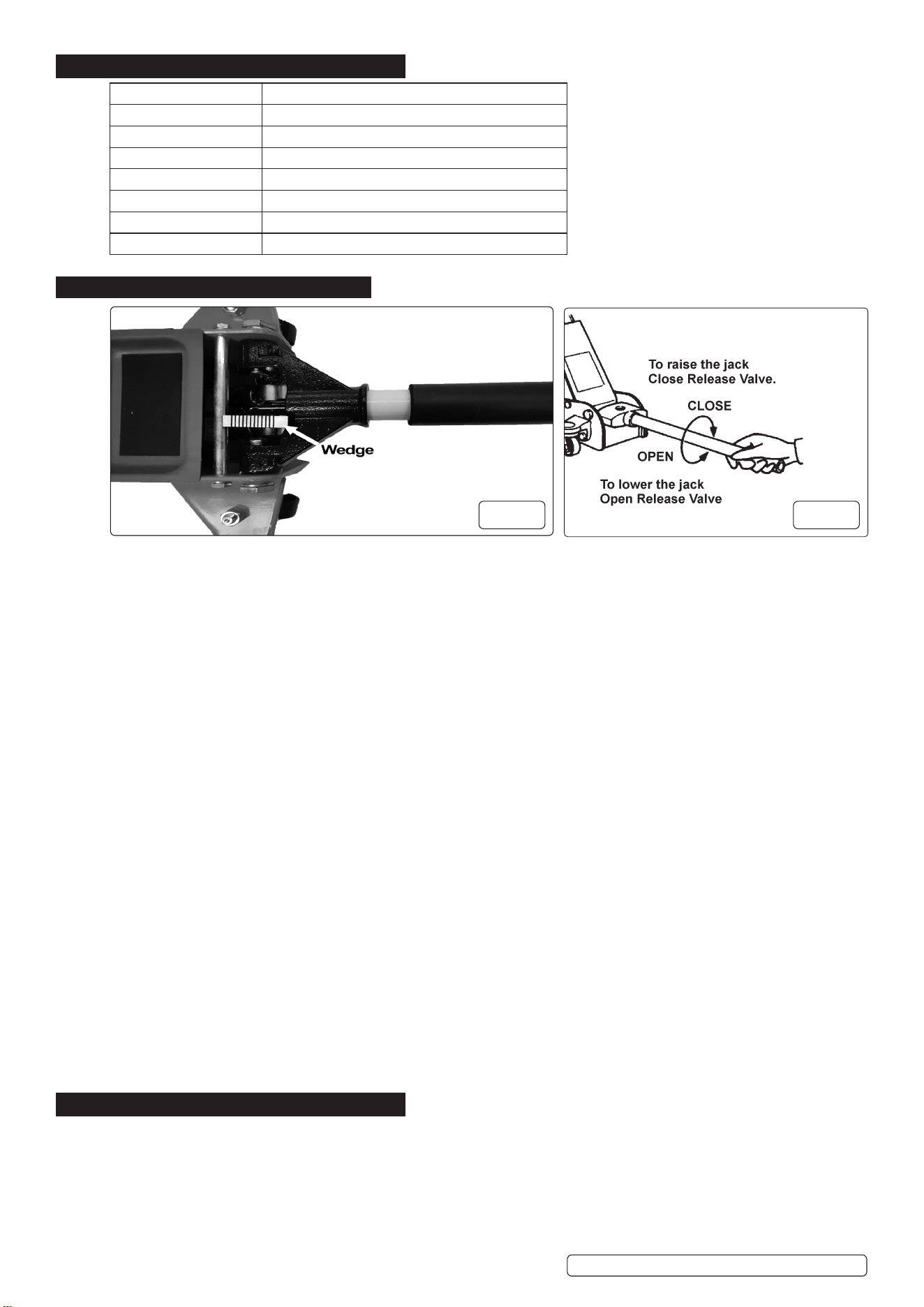

4.1. RELEASING THE RETAINING WEDGE (FIG.1)
4.1.1. Seek assistance from a second person if required.
4.1.2. Insert the lower handle section into the handle socket and secure with the retaining bolt to aid in releasing pressure in the handle socket.
4.1.3. Push down on the handle and hold down while removing the retaining wedge that is securing the handle socket in the down position.
4.1.4. Remove the wedge.
4.1.5. Gently and in a controlled manner slowly allow the lower handle section and handle socket to raise to their upright position.
4.2. BEFORE USE
4.2.1. Insert the upper handle into the lower handle.
4.2.2. Tighten the handle retaining bolt.
4.2.3. Ensure the handle is secure and fully engaged with the release valve.
4.3. HYDRAULIC SYSTEM PURGING
4.3.1. Open the release valve by turning it one full turn counter-clockwise.
4.3.2. Pump the handle 20 times.
4.3.3. Close the release valve by turning it clockwise.
4.4. RAISING A VEHICLE
We recommend that efforts of raising the load shall be reduced by the use of assistance during this operation.
4.4.1. Ensure that the jack and the vehicle are on a hard, level surface.
4.4.2. Ensure that the vehicle handbrake is engaged and that the vehicle wheels are chocked.
4.4.3. Consult the vehicle manual to determine the location of jacking points.
4.4.4. Position the jack under a suitable lifting point.
4.4.5. Turn the slow release valve clockwise, to the closed position. DO NOT over-tighten.
4.4.6. Raise the vehicle to the desired height by pumping the handle up and down.
4.4.7. Place axle stands beneath the locations recommended by the vehicle manufacturer.
4.4.8. Turn the release valve slowly counter-clockwise to lower the vehicle on to the axle stands.
4.5. LOWERING A VEHICLE
4.5.1. Turn the release valve clockwise to the closed position.
4.5.2. Pump the handle to raise the vehicle o the axle stands.
4.5.3. Remove the axle stands from beneath the vehicle.
4.5.4. Turn the release valve counter-clockwise to lower the vehicle to the ground.
NOTE: This jack is fitted with a slow release mechanism for controlled descent.
When not in use, leave the saddle and ram fully retracted.
5. MAINTENANCE
IMPORTANT: Only fully qualified personnel should attempt maintenance or repair. Jacks shall be maintained and repaired in accordance
with the manufacture’s instructions. Such maintenance and repair shall be carried out by qualified persons. No modifications shall be car-
ried out which adversely affect the compliance of the jack with the standard. Check the state of the markings and that the markings
remain as the initial one.
5.1. When the jack is not in use, the ram should be in its lowest position to minimise corrosion. Remove the handle to inactivate jack.
5.2. Keep the jack clean and lubricate all moving parts with oil on a regular basis.
Original Language Version
© Jack Sealey Limited
2500LE.V4, 2501LE.V2 Issue 2 (1,3) 11/09/23
Model 2500LE.V4, 2501LE.V2
Applicable Standards: EN 1494:2000+A1:20082006/42/EC
Capacity 2.5 Tonne
Consumable Parts: Jack Pad- JP17. Polyurethane wheel kit 2500LE.PW
Length 701mm
Max Chassis Height 151mm
Max Saddle Height 495mm
Min Saddle Height 88mm
g.1 g.2
Original Language Version
© Jack Sealey Limited

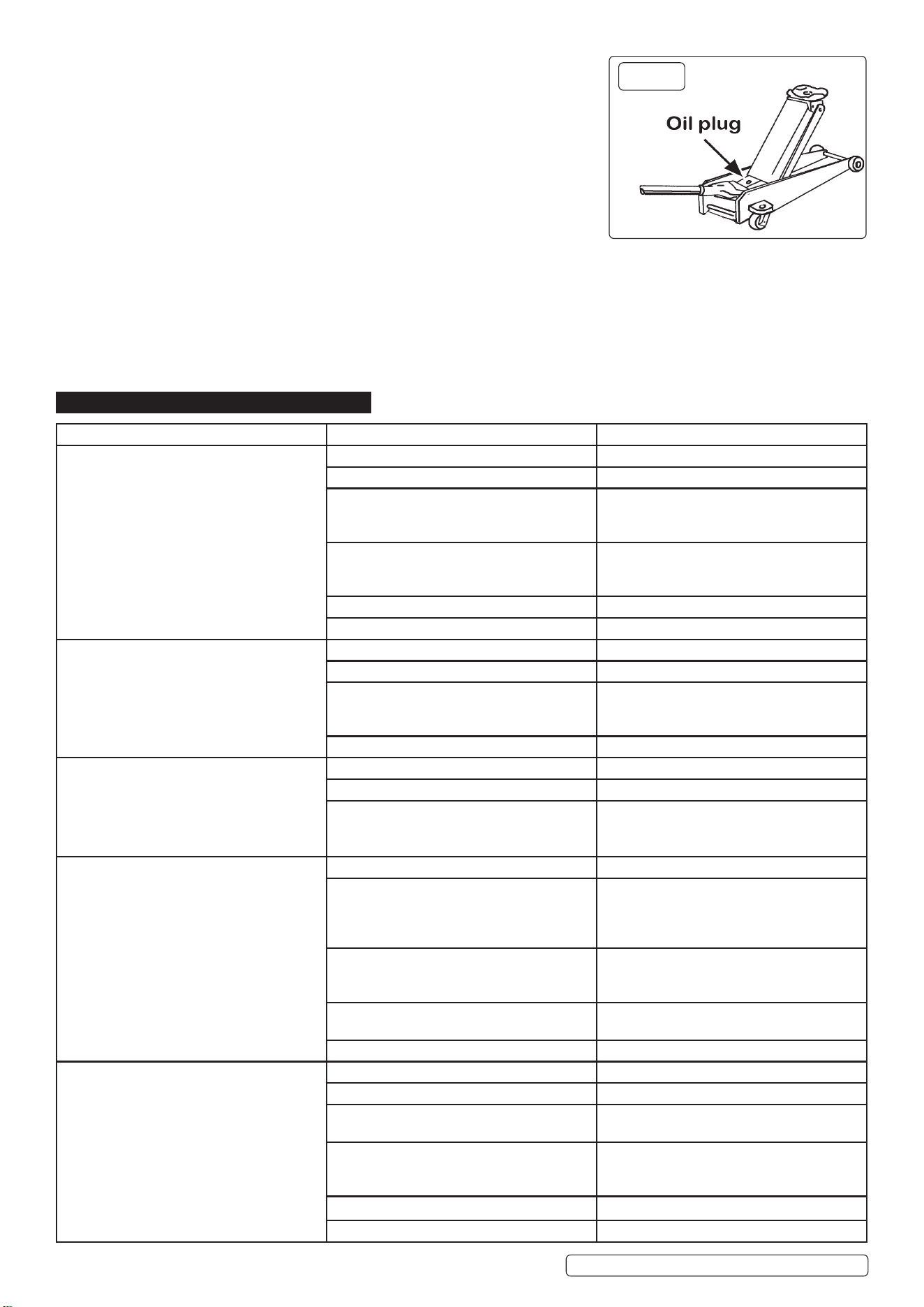

5.3. To check the oil level, fully lower the jack. Remove filler plug (fig.3). The correct oil level
should be approximately 5mm below the filler opening. If oil level is low, fill as required.
Pump unloaded jack 15 to 20 times to expel air and then refit plug.
NOTE: Use a good quality jack oil, such as SEALEY HYDRAULIC JACK OIL.
WARNING: DO NOT use brake fluid, or any fluid other than hydraulic jack fluid as this
may cause serious damage to the jack and will invalidate the warranty!
5.4. Before each use check for broken, cracked, bent, or loose parts, or any visible damage
to welds, ram, pump, saddle, lifting arm, frame and all parts including nuts, bolts, pins
and other fasteners. If any suspect item is found remove jack from service and take
necessary action to remedy the problem. DO NOT use the jack if believed to have been
subjected to abnormal load or shock. Inspect and take appropriate action.
5.5. Every three months remove the locking rings on the caster wheels and lubricate the ball
bearings with acid free grease.
5.6. After a year of extensive use, the oil should be replaced in order to extend the life of your jack. To drain the oil, remove the filler cap and
valve. Make sure that no dirt is allowed to enter the hydraulic system’s oil. Dispose of oil according to local authority regulations.
5.7. Periodically check the pump piston and piston rod for signs of corrosion. Clean exposed areas with a clean oiled cloth.
MPORTANT: NO RESPONSIBILITY IS ACCEPTED FOR INCORRECT USE OF THE JACK.
Hydraulic products are only repaired by local service agents. We have service/repair agents in all parts of the UK.
DO NOT RETURN JACKS TO US. Please telephone us on 01284 757500 to obtain the address and phone number of your local
agent. If jack is under guarantee please contact your stockist.
6. TROUBLESHOOTING
Problem Possible Cause Remedy
Jack will not lift the load Overloaded Be sure to use jack with adequate capacity
Oil level low Top up oil level
Release valve not correctly closed Check and close release valve
Air in system Check and close release valve and air vent
(if tted) and pump the handle 15 to20 times.
Close valve and re-try.
Piston rod not functioning Clean and replace oil
Packing worn or defective Replace packing
Jack does not lift high enough or feels
“spongy”
Oil level too high or too low Fill or remove excess oil
Worn Seals Return jack to local service agent
Air in system Open release valve and air vent (if tted) and
pump the handle 15 to 20 times. Close valve
and re-try
Release valve not closed Check and close release valve and re-try
Jack lifts poorly Pump packing or valves malfunctioning Replace packing and/or clean valves
Oil is dirty Replace oil
Air in the system Open release valve and air vent (if tted) and
pump the handle 15 to 20 times Close valve
and re-try
Jack lifts but will not hold load Release valve partially open Check and close release valve
Dirt on valve seats Lower jack, close release valve. Place foot
on front wheel and pull up lifting arm to it’s
full height by hand. Open the release valve to
lower arm
Air in system Open release valve and air vent (if tted) and
pump the handle 15 to 20 times. Close valve
and re-try
Faulty Seals Replace packing or contact local service
agent
Packing worn or defective Replace packing
Jack will not lower completely Unit requires lubrication Oil all external moving parts
Piston rod bent or damaged Replace rod or contact local service agent
Jack frame/link system distorted due to
overloading/poor positioning
Replace damaged parts or contact service
agent
Air in system Open release valve and air vent (If tted) and
pump the handle 15 to 20 times. Close valve
and re-try
Release valve partially open Check and fully open release valve
Jack spring damaged Replace spring or contact service agent
2500LE.V4, 2501LE.V2 Issue 2 (1,3) 11/09/23
g.3
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call
our technical team on technical@sealey.co.uk or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 36 months from purchase date, proof of which is required for any claim.
REGISTER YOUR
PURCHASE HERE
2500LE.V4, 2501LE.V2 Issue 2 (1,3) 11/09/23
Jack does not lower at all Release valve still closed Check and fully open release valve
