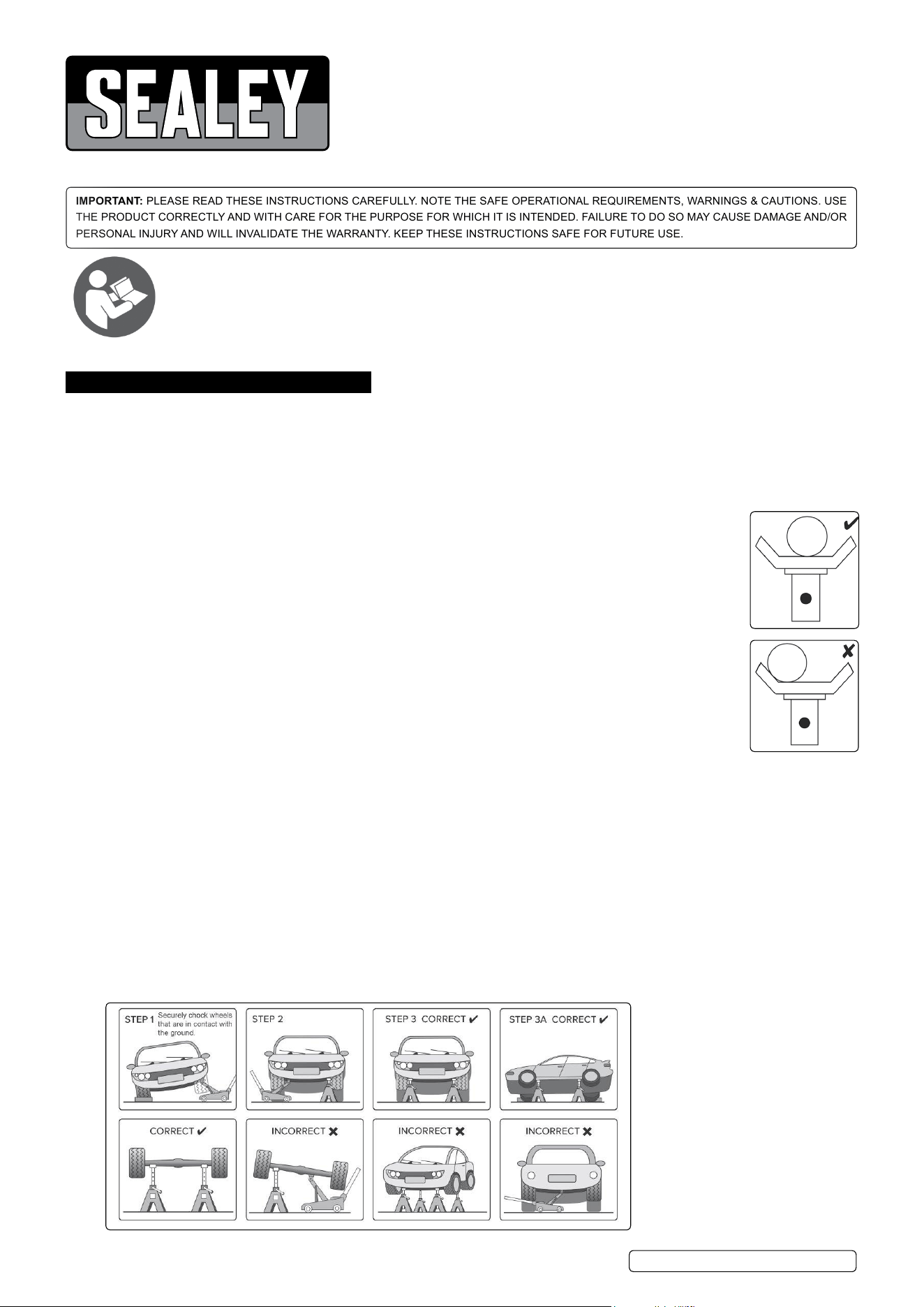

Axle StAndS (pAir)
2tonne cApAcity per StAnd
model no: VS2002HV, VS2002Bl, VS2002or
thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAfety
WArninG! do not oVerloAd Axle StAndS Beyond rAted cApAcity. oVerloAdinG cAn cAUSe dAMAGe to, or
fAilUre of, tHe Axle StAndS. poSition loAd on centre of crUtcH/SAddle only. AlWAyS USe StAndS in pAirS
on HArd leVel SUrfAce cApABle of SUStAininG tHe loAd. USe of StAndS on otHer tHAn HArd leVel SUrfAceS
cAn reSUlt in loAd inStABility And poSSiBle loSS of loAd. do not USe on tArMAcAdAM. fAilUre to folloW
tHeSe inStrUctionS MAy reSUlt in dAMAGe to Axle StAndS, loSS of loAd reSUltinG in property dAMAGe,
SerioUS perSonAl inJUry or loSS of life.
▲ dAnGer! GreAt cAre MUSt Be tAKen to enSUre yoU loWer tHe VeHicle (or otHer loAd)
SloWly And cArefUlly onto tHe centreS of tHe crUtcH/SAddle of tHe Axle StAndS.
9 Use only as specified by the manufacturer.
9 ensure the load does not exceed the maximum capacity as marked on the axle stand, per pair.
9 Use no more than a single pair of stands either on the front, rear or one side of the vehicle. Use in pairs.
9 no alterations or modifications shall be made to this product.
9 Use on a hard, level surface, e.g. concrete. do not use on uneven ground or tarmacadam.
9 Securely chock wheels in contact with the ground. Before jacking and placing the stands, apply vehicle handbrake
(put automatics in ‘Park’).
9 make sure that each stand is securely located under a strong point on the vehicle; consult the vehicle manufacturer’s
handbook for guidance. ensure that height adjust locking mechanism is fully located before applying any load to
the axle stand.
9 ensure that the load is located centrally on the saddle, and that the weight is directed through the vertical axis of
the stand.
9 exercise extra care when using with a three wheeled vehicle or a trailer. Refer to vehicle manufacturer’s
instructions.
9 once vehicle is supported, ensure that the vehicle and stands are stable before starting work. ensure that it is not possible for the
vehicle to move before commencing any work.
9 Inspect stands before each use. do not use if they show signs of damage. do not use if it is suspected that they have been
overloaded.
9 Before commencing any work or going beneath the vehicle, undertake a risk assessment. ensure that a responsible person is aware of
the work about to be undertaken.
9 Replace any labels on the axle stand should they become unreadable. This applies in particular to any warning or operation instruction
labels. If replacement labels are required, contact your Sealey stockist.
8 do not use axle stands on the highway, or anywhere else if it is deemed to be unsafe.
8 do not push or twist the vehicle/load whilst it is supported on stands.
8 do not mix components between stands. Use only as supplied.
8 do not allow children or animals in the vicinity of a vehicle supported on axle stands.
8 do not leave a vehicle on axle stands in an area that could be considered a hazard to others or property.
9 folloW StepS 1, 2, And 3 to correctly plAce VeHicle / loAd onto Axle StAndS.
VS2002HV, Bl,oR Issue 1 31/05/18
Original Language Version
© Jack Sealey limited
Refer to
instructions
2. introdUction
min./max. Working Height: 276/435mm. Capacity: 4tonne per pair. Ratchet type axle stand with cast iron support post and tough steel plate
welded base. Angled teeth in post prevent accidental release of load - the more weight applied, the tighter the post is locked. Sold in pairs.
3. SpecificAtion
model no’s: ................................................VS2002HV/Bl/oR
Capacity each: ......................................... 2 tonnes (2000 kg)
Capacity pair ............................................ 4 tonnes (4000 kg)
minimum Working Height ........................................... 276mm
maximum Working Height .......................................... 435mm
4. ASSeMBly

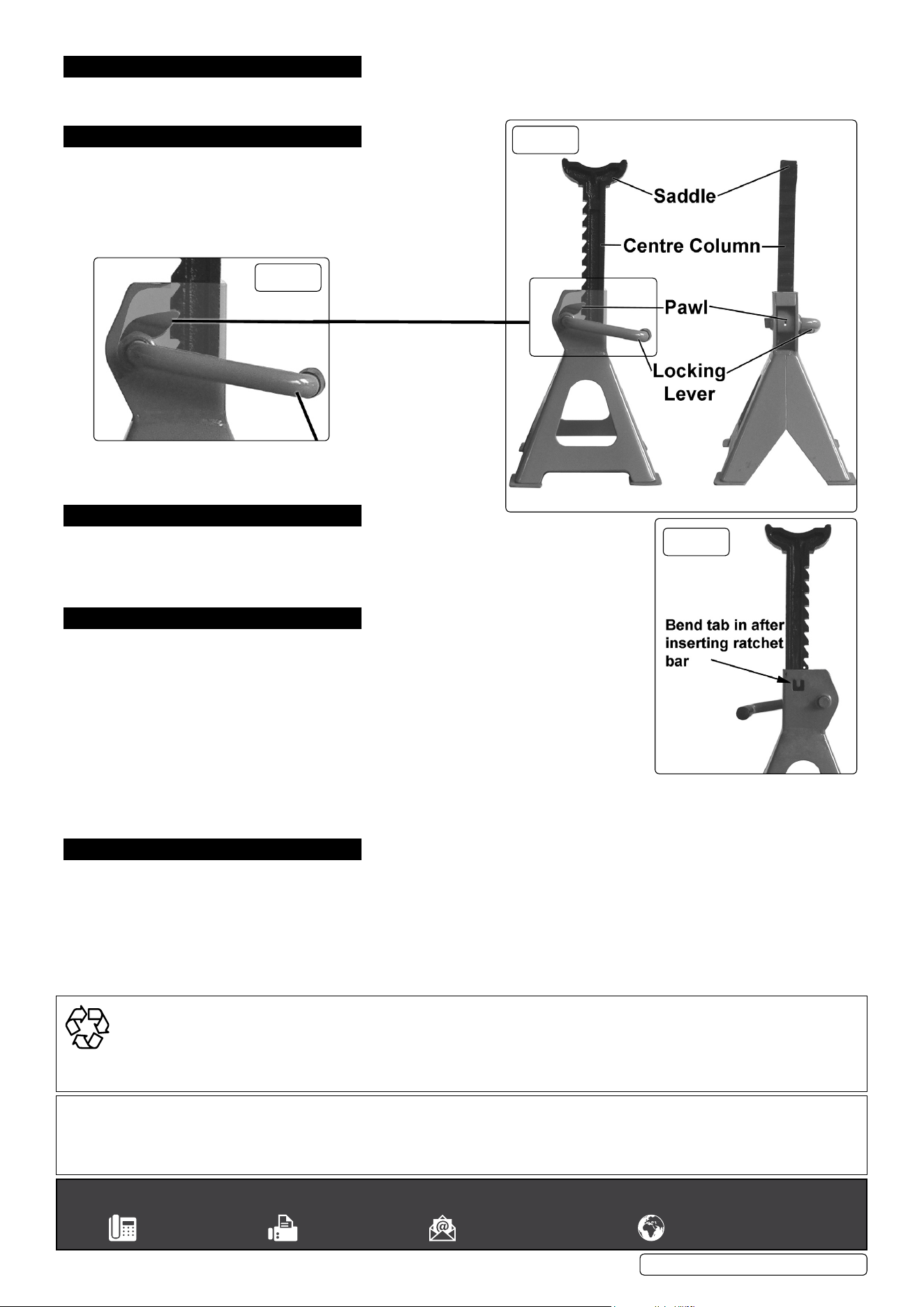

4.1. Insert the centre column into the base frame and stand (fig.1).
4.2. ensure the toothed side of column will engage with the locking lever mechanism (fig.2).
4.3.
Bend in locking tab using a punch or similar and a hammer (fig.3).
4.4. Check the base frame and stand is in good condition and has not suffered damage during transit.
5. operAtion
5.1. Refer to manufactures instructions for recommended jacking/support points.
5.2. Check to ensure jacking/support points are in good condition. Position the stands beneath their
support points.
5.3. To adjust the stands: Hold the control lever up while lifting the centre column to required height.
Push the control lever down to lock the pawl into the central column teeth (fig.1 and fig.2).
WArninG! enSUre pAWl iS fUlly enGAGed WitH teetH.
5.4. Carefully and slowly lower vehicle onto stands. ensure load bearing points sit in the centre of the
saddles and that the stands are stable. Also ensure that there are no objects or persons that
could impede the safe lowering of the vehicle onto the stands.
▲ dAnGer! You must follow instructions carefully and ensure you do not load the stands off centre. Failure to adhere to these
warnings may cause damage, injury or loss of life!
5.5. Insert the locking pin to store the stands in their lowest position.
6. MAintenAnce
6.1. Before each use, check that stands and stand welds are not cracked and that there are no missing or damaged parts.
6.2. Any suspect axle stands must be removed from service immediately.
6.3. due to the potential hazards associated with stands, do not misuse, or make any modification to, the stands or components.
6.4. It is the responsibility of the owner to ensure that the operator has read these instructions together with the safety features on the side
of the stand and that the operator is aware of the stand uses and limitations.
g.1
g.3
Sealey Group, Kempson Way, Suffolk Business park, Bury St edmunds, Suffolk. ip32 7Ar
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
enVironMent protection
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
important: no liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
g.2
Original Language Version
© Jack Sealey limited
VS2002HV, Bl,oR Issue 1 31/05/18
