  3. Boss Audio Systems CRBV9384NV User Manual

Boss Audio Systems CRBV9384NV BV9384NV GPS Car Audio Stereo System

Product's Documents

Below are documents related to this product, you can read online or download:
Main documentSpecificationQuestions and answersRelateds Products
CRBV9384NV photo

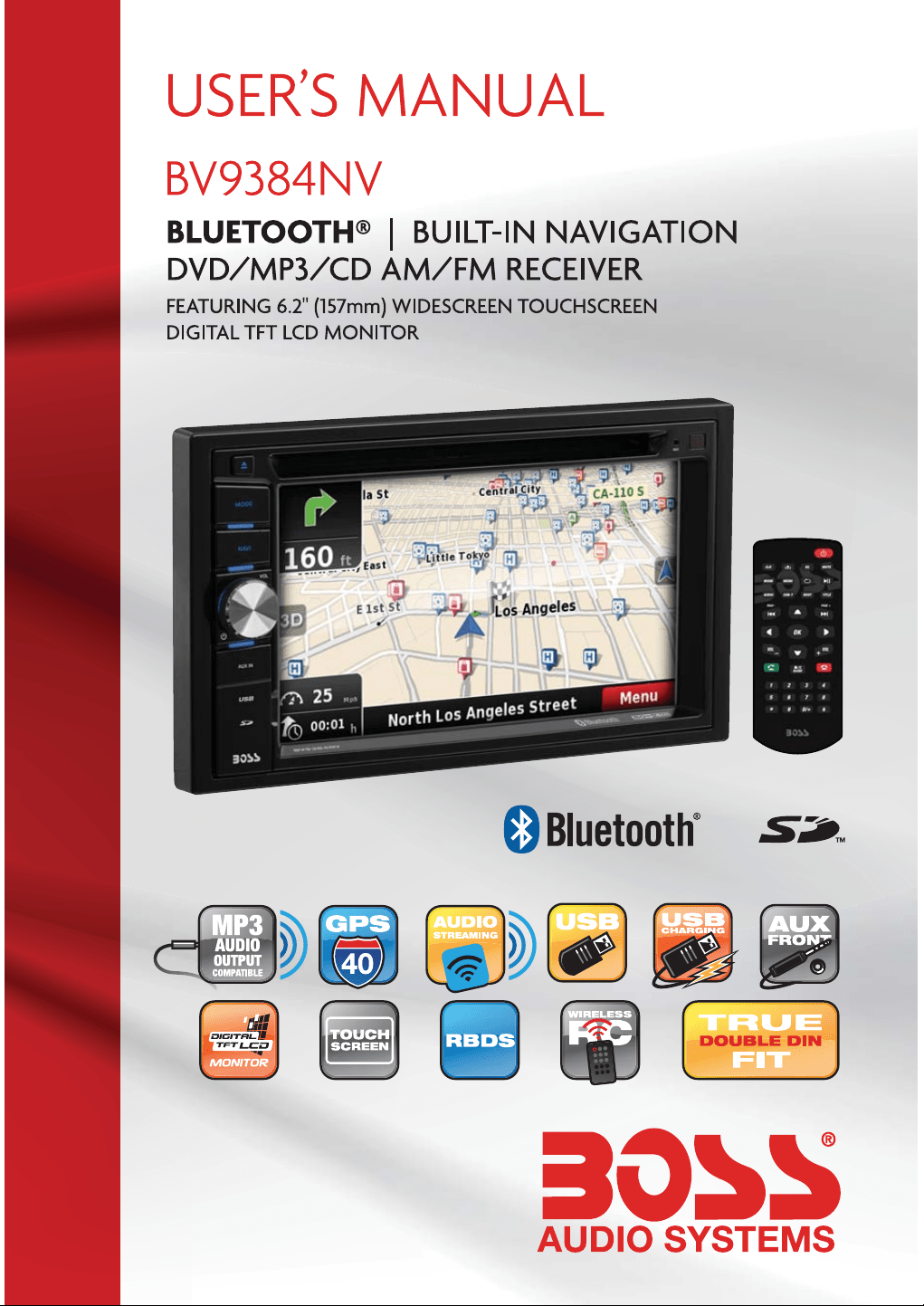

User's Manual

This is the main product document for model CRBV9384NV. Additionally, the document applies to other Boss Audio Systems models: BV9384NV

The file format is pdf, 32 pages, you can download this manual here .

background
background
background

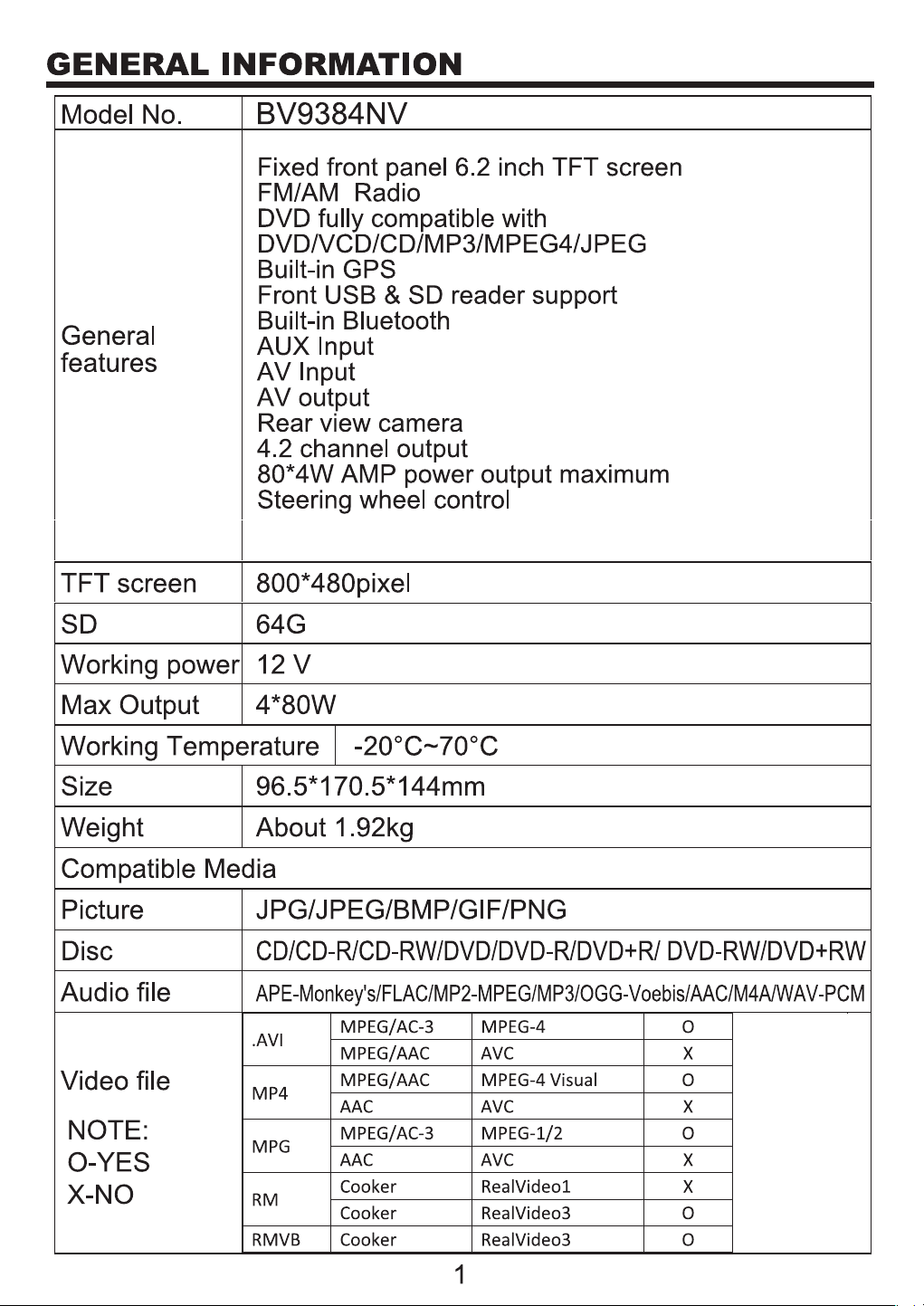

General information..........................................................................1

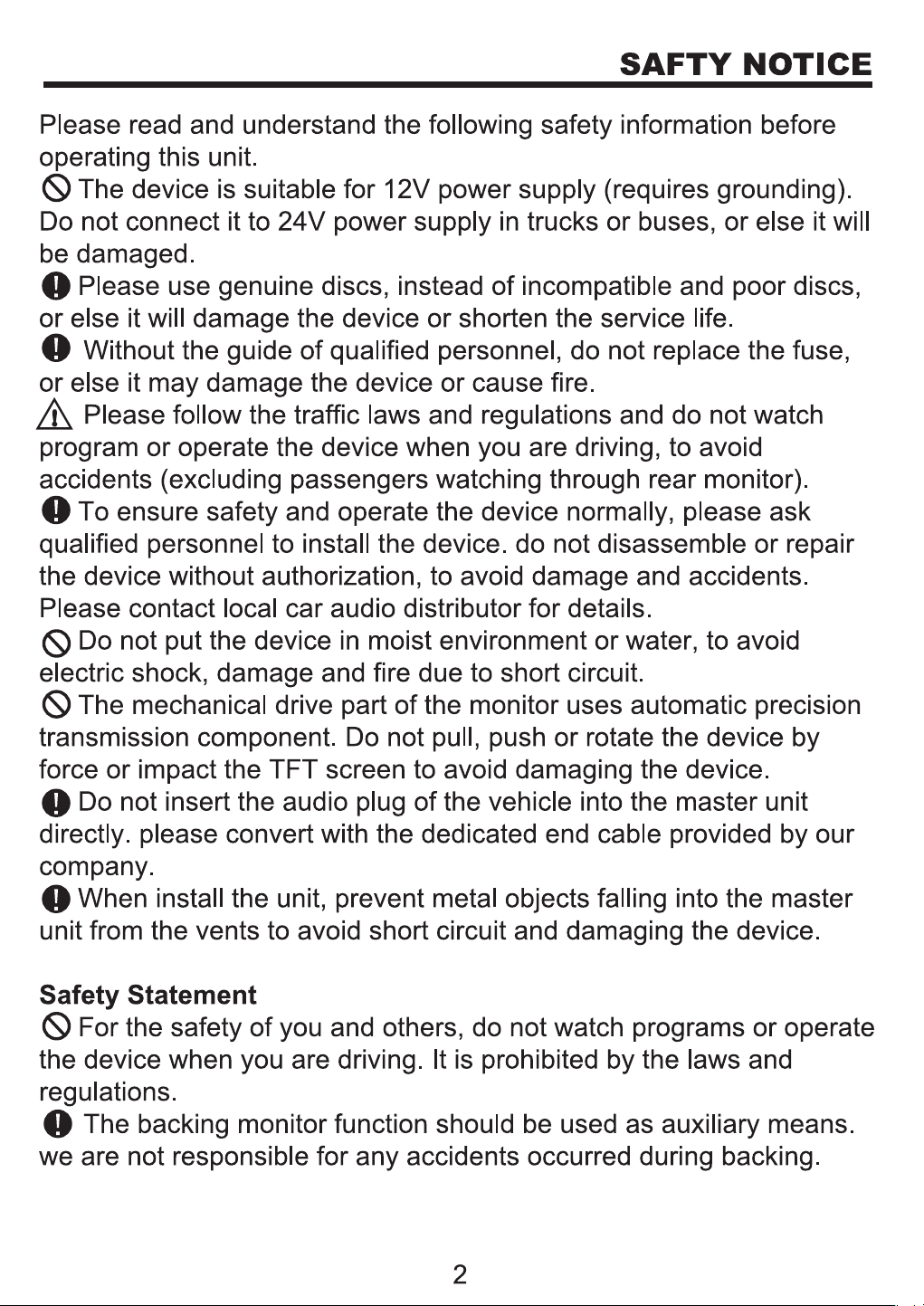

Safety notice ..................................................................................... 2
Accessories........................................................................................3

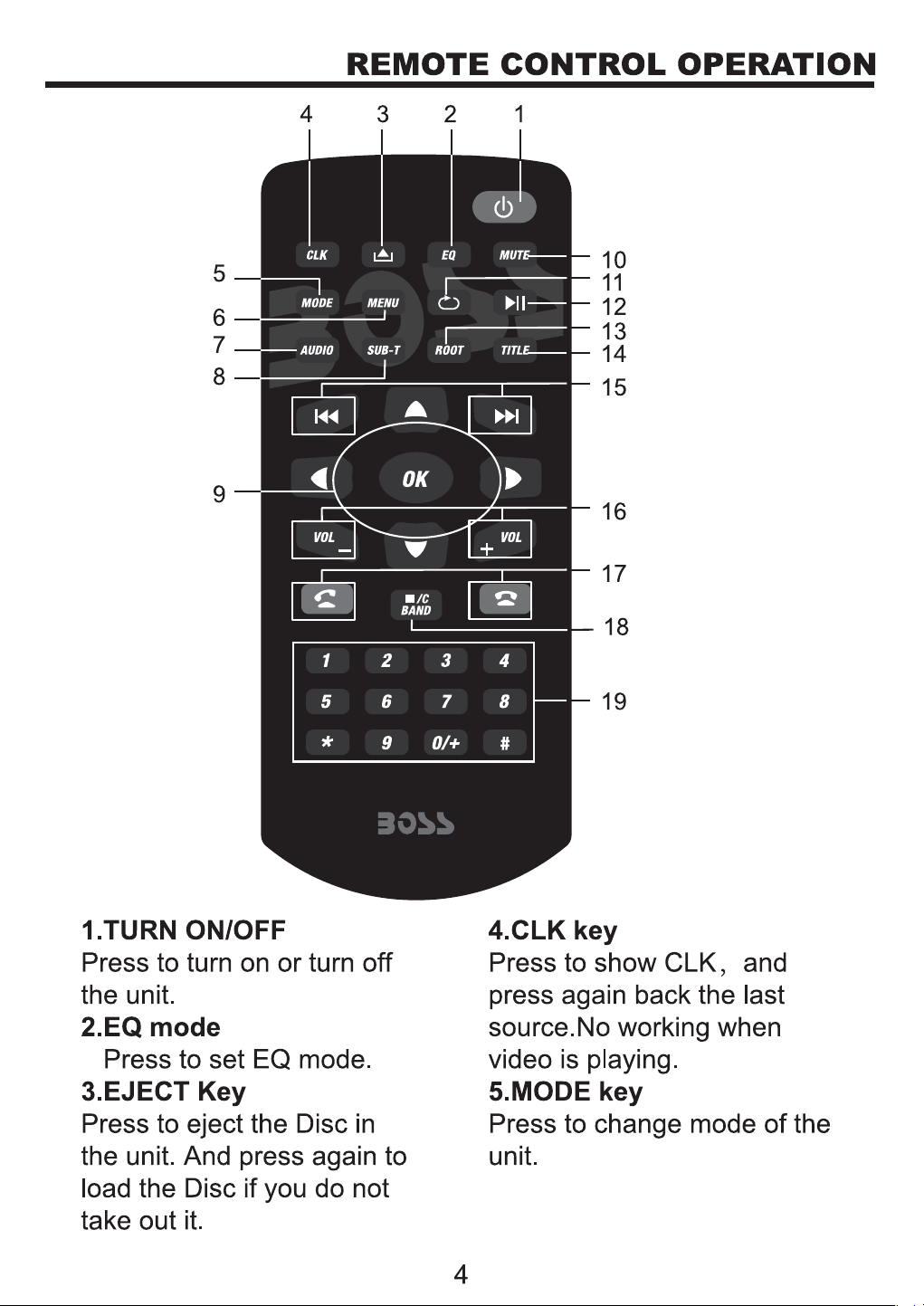

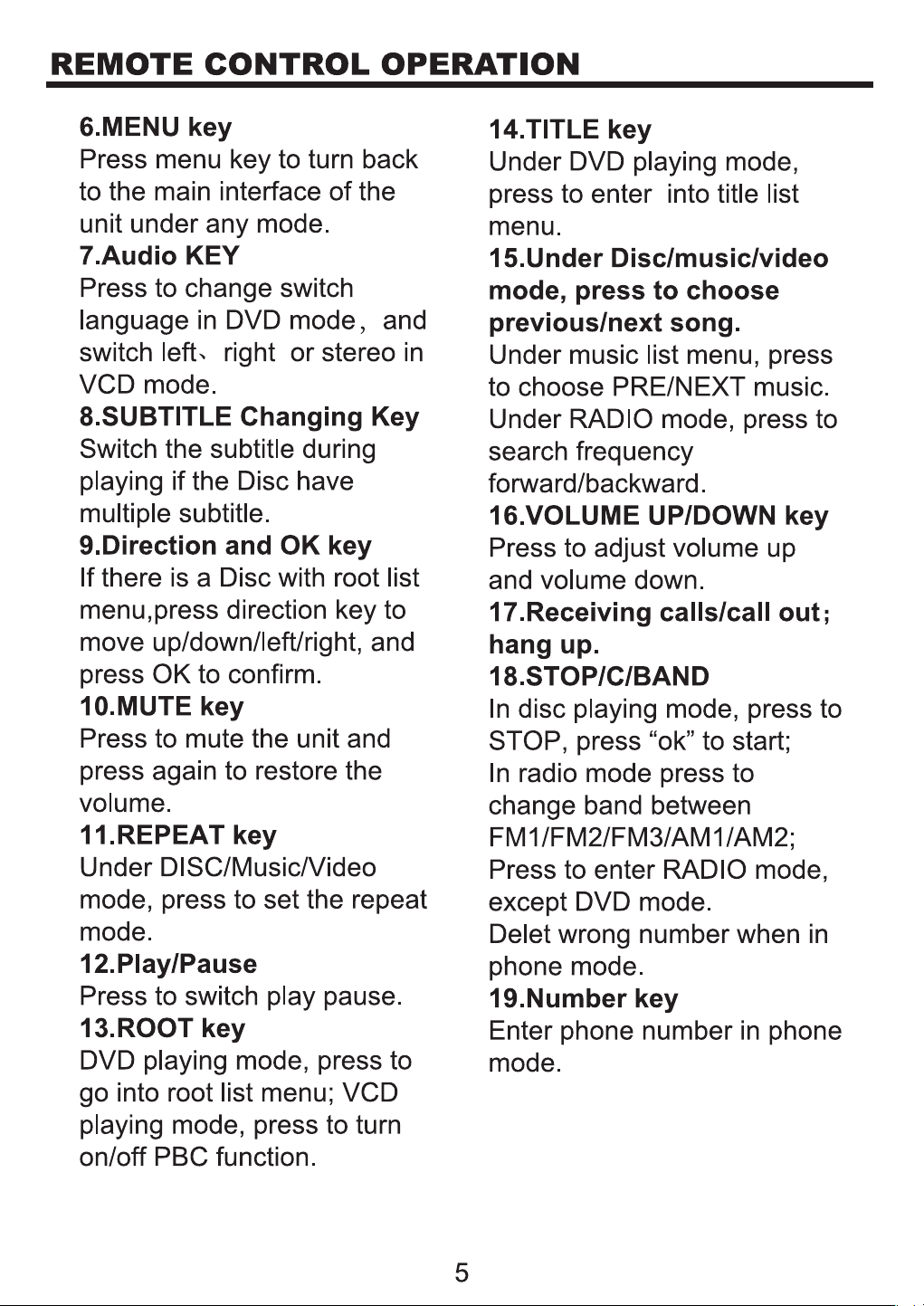

Remote control operation..............................................................
.................................................................................
. 4

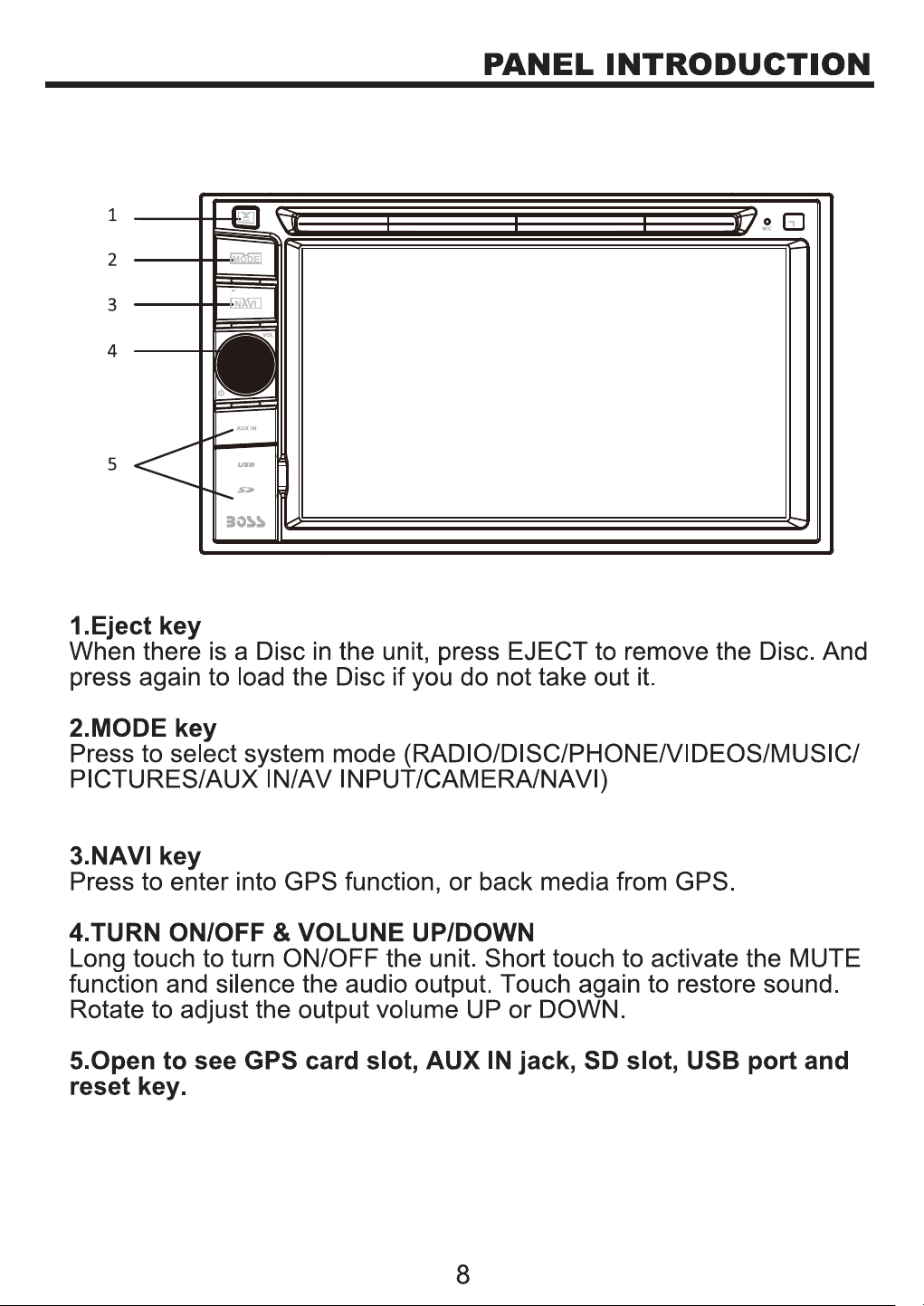

Panel introduction......
Unit Installation
.......................................................
Wires Connection Description
...................................................................... 8
6
7

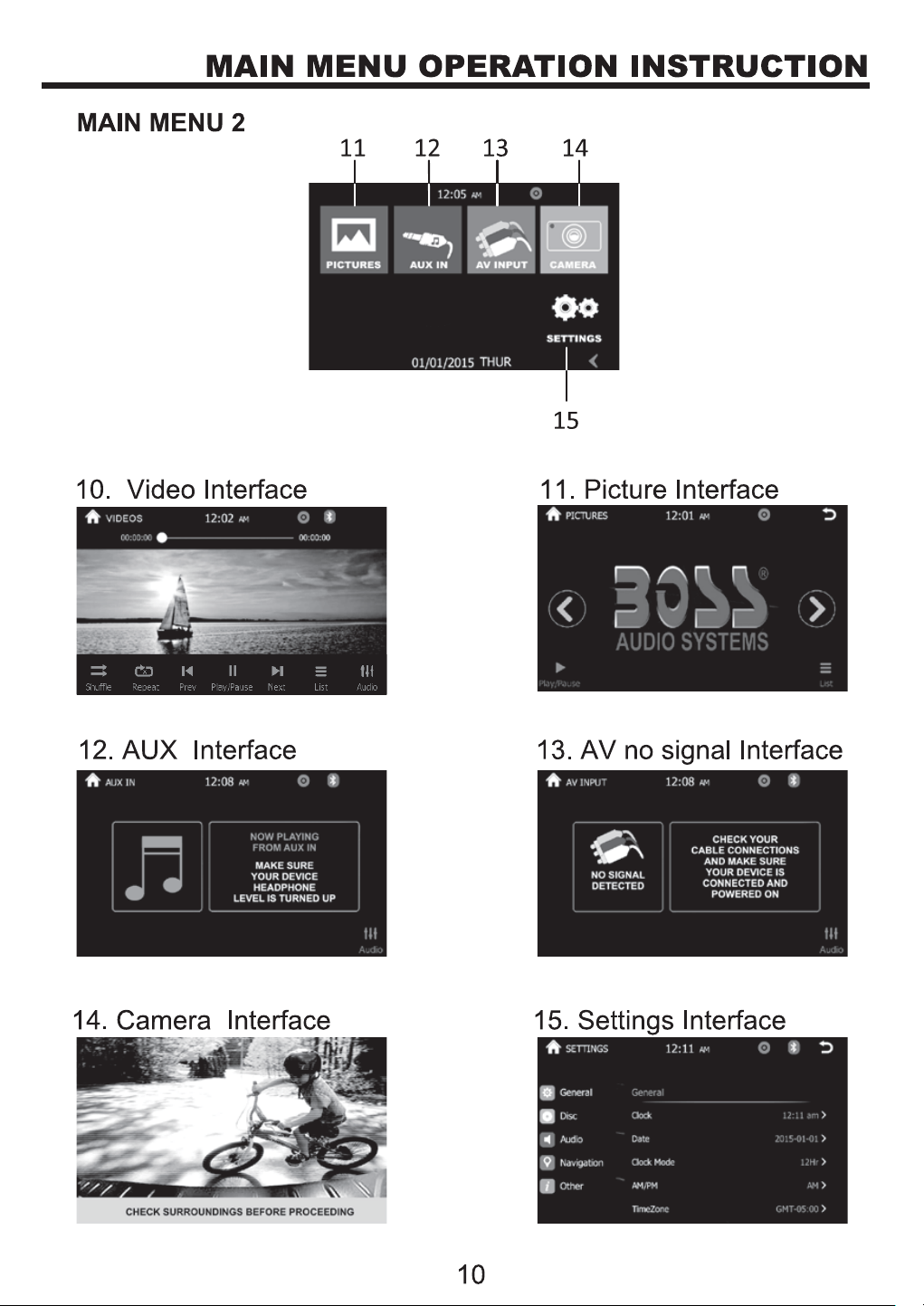

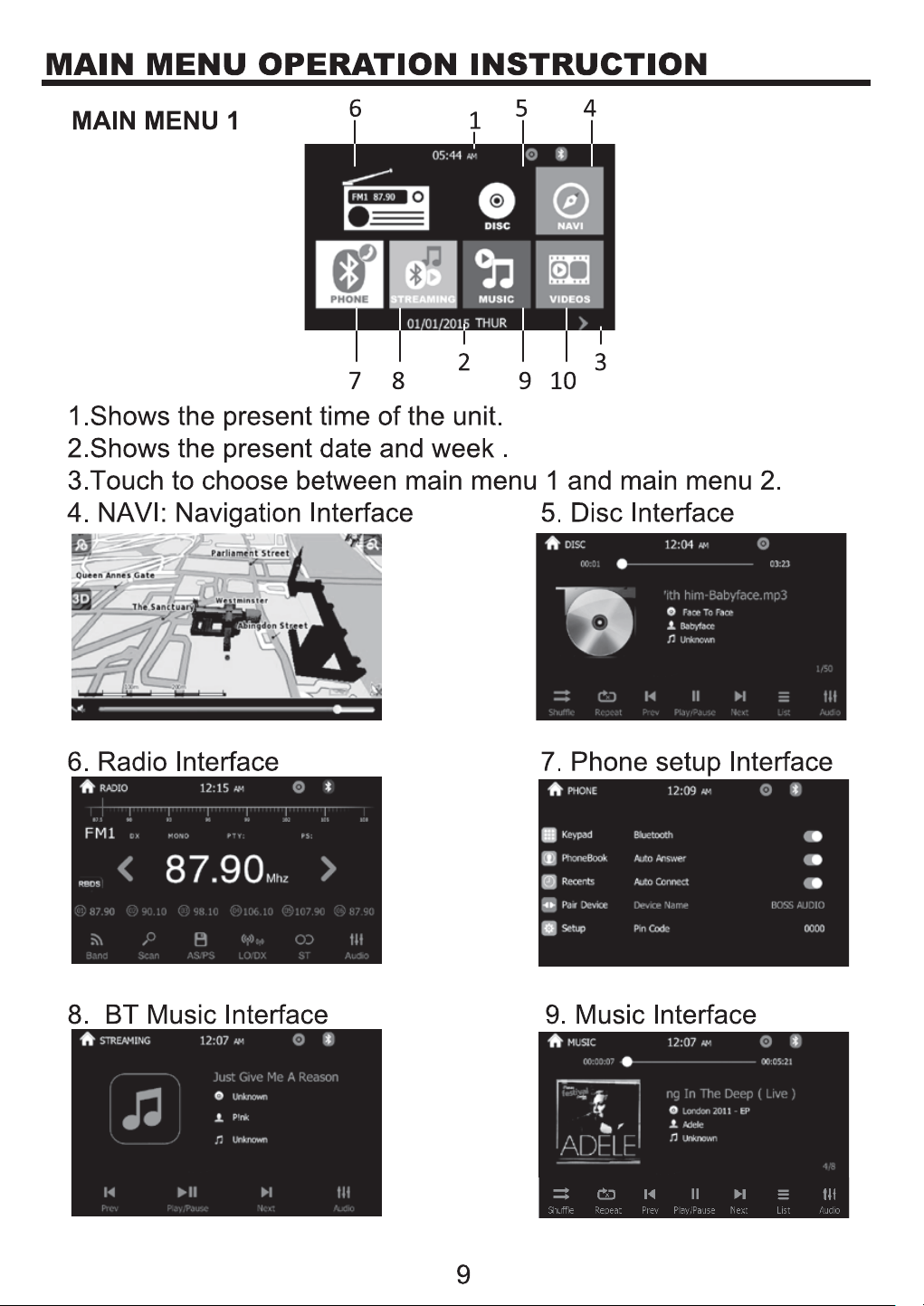

Main menu operation instruction...................................................9

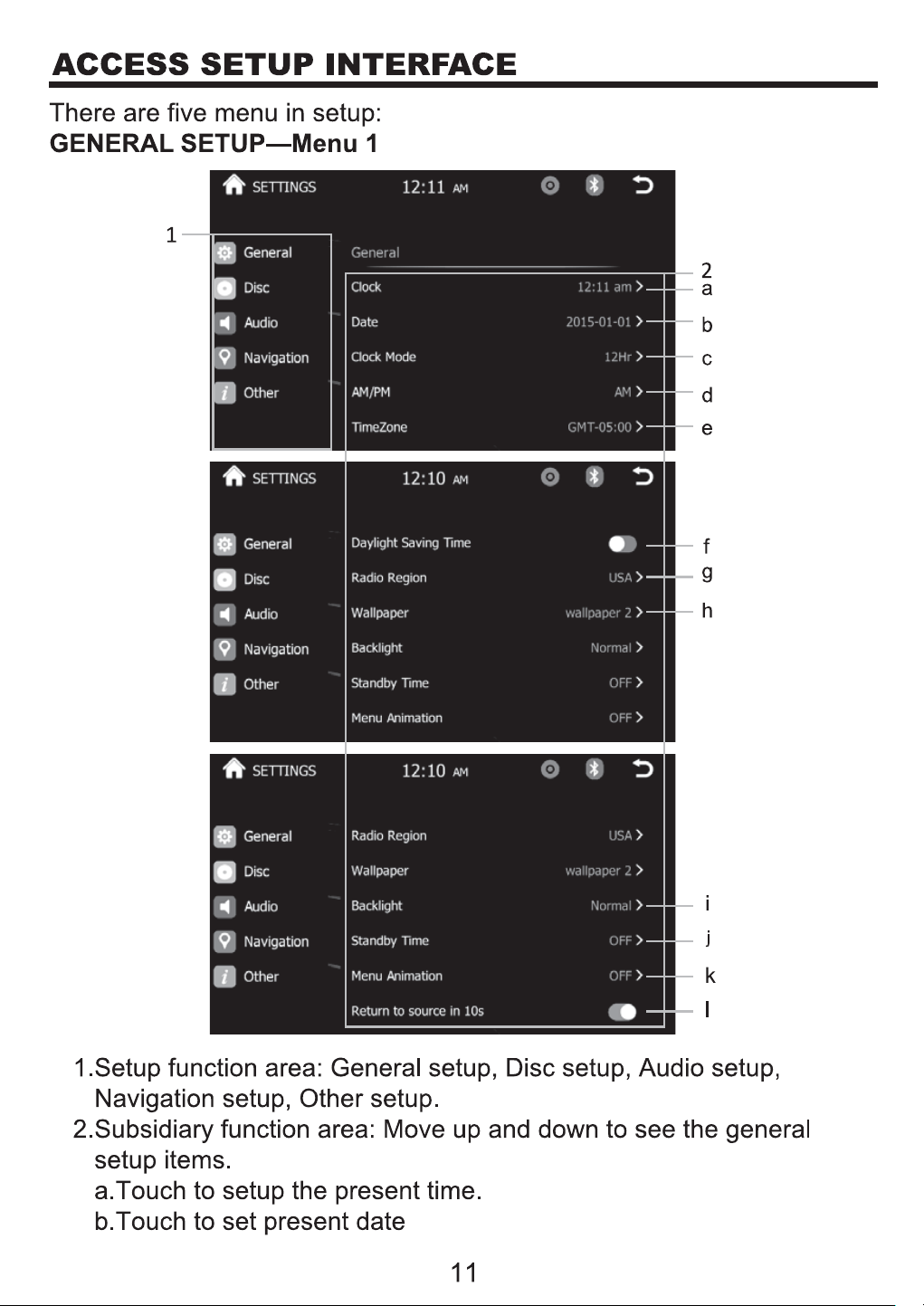

Access setup interface..................................................................11
General setup............................................................................11

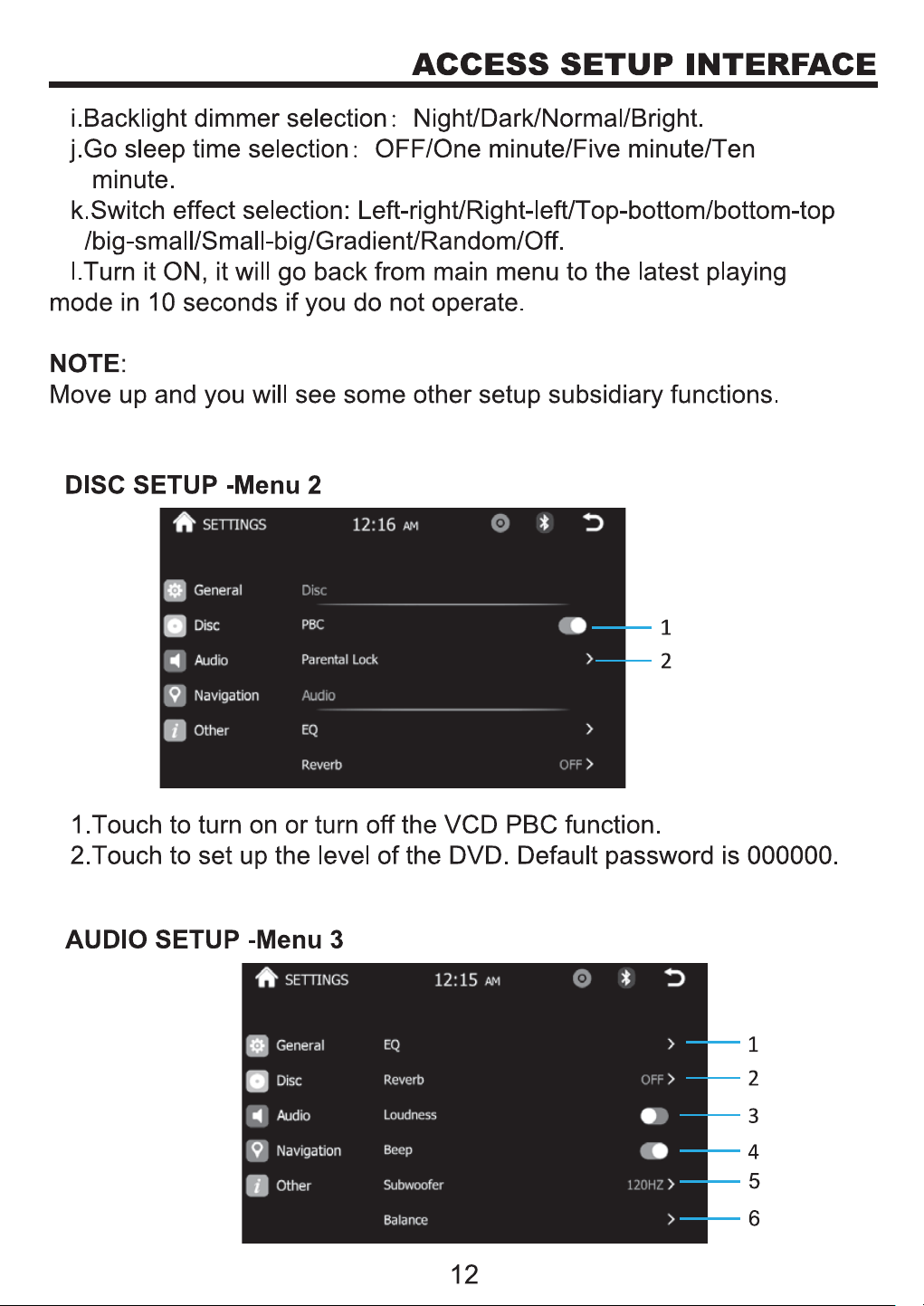

Disc setup.................................................................................12

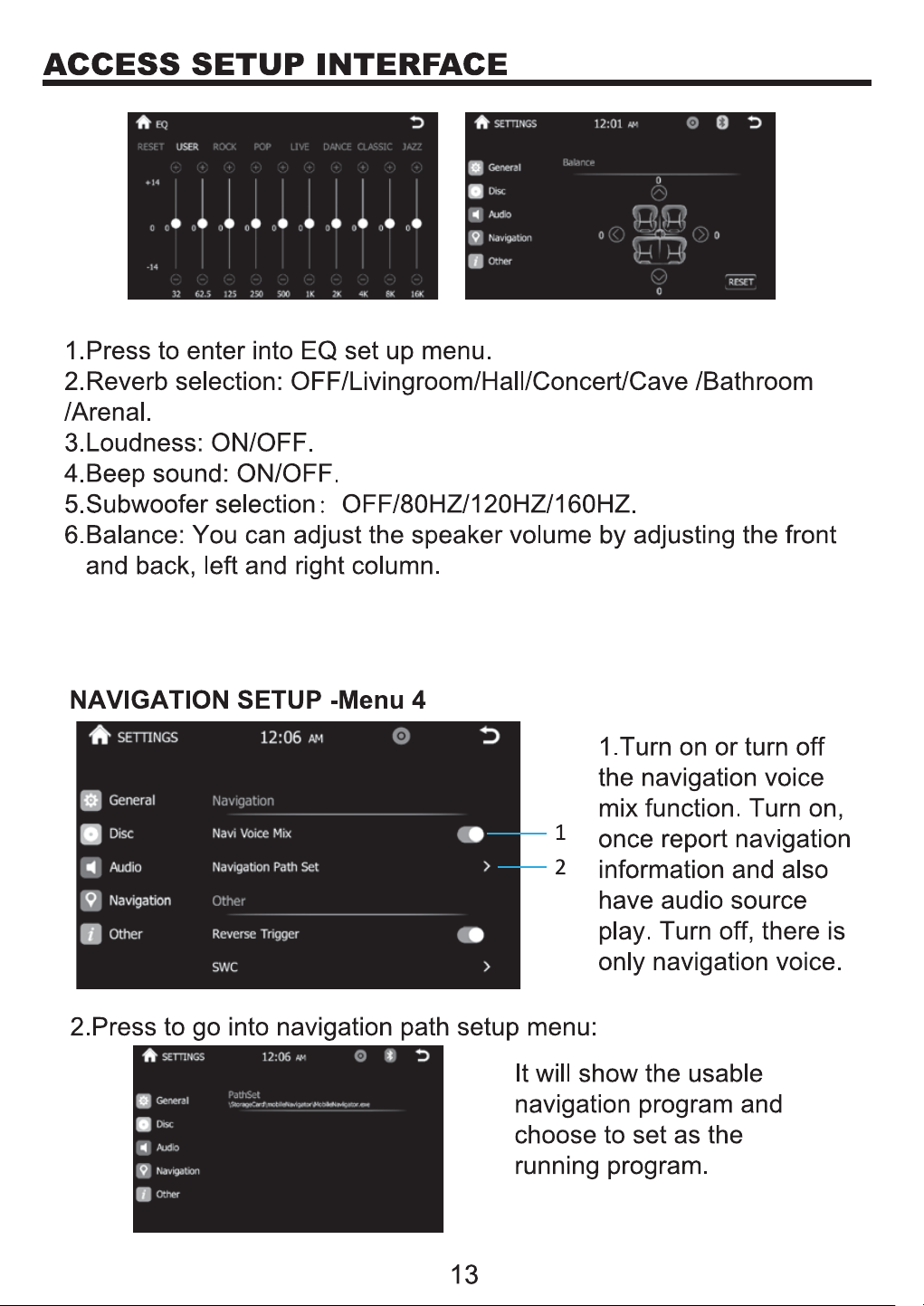

Audio setup..............................................................................12
Navigation setup.....................................................................13
Other setup..............................................................................14

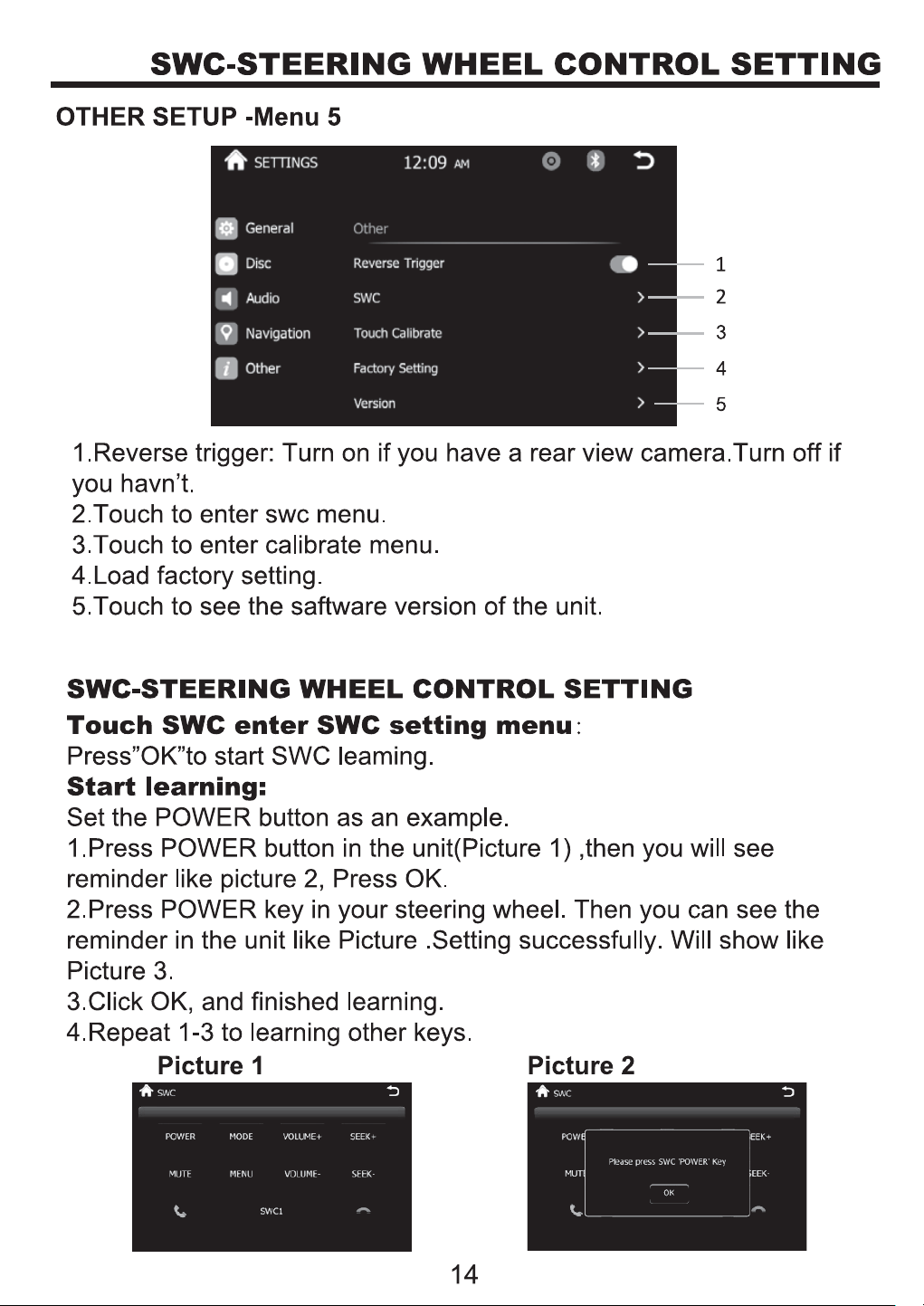

Swc-steering Wheel Control Setting...........................................14

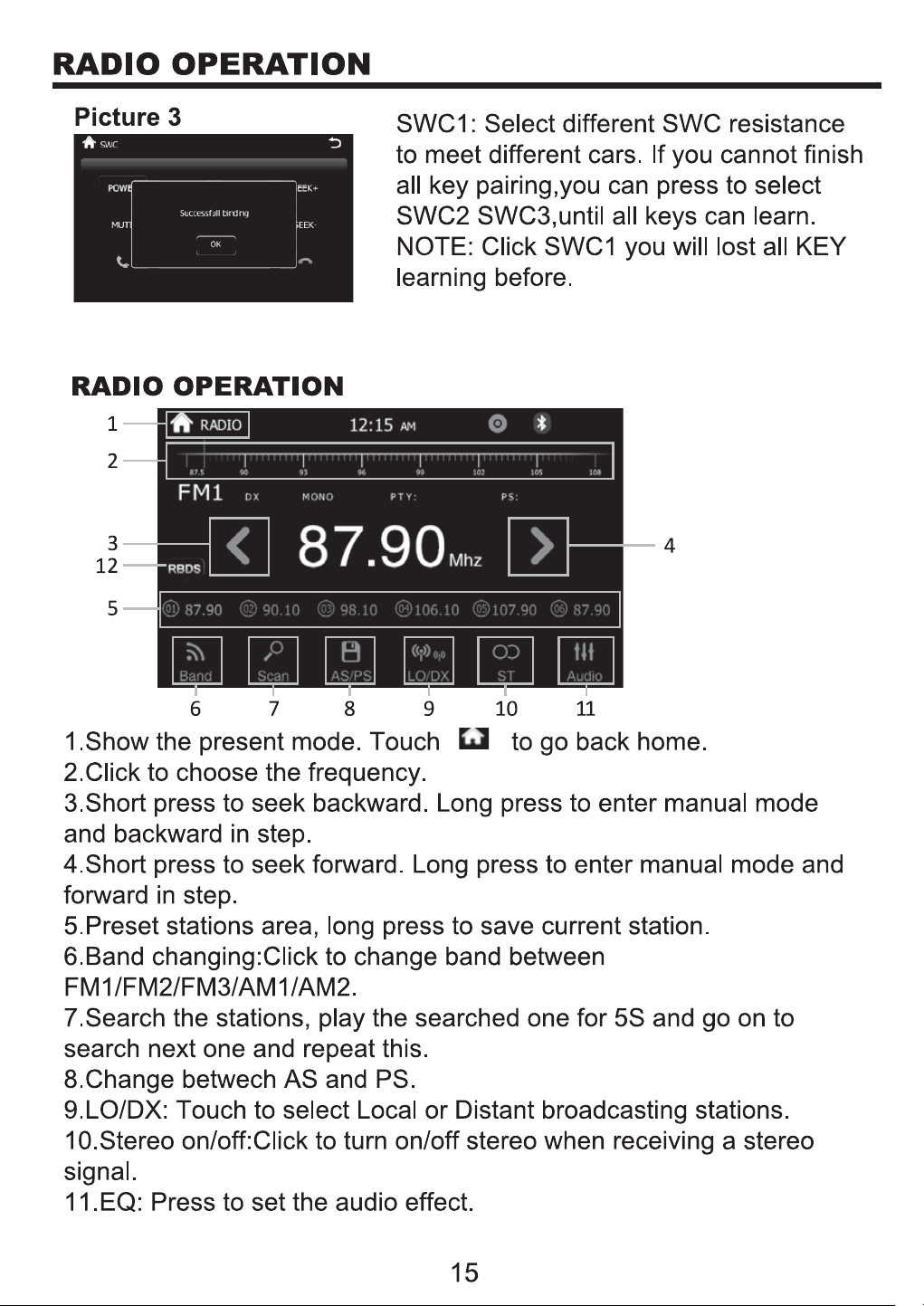

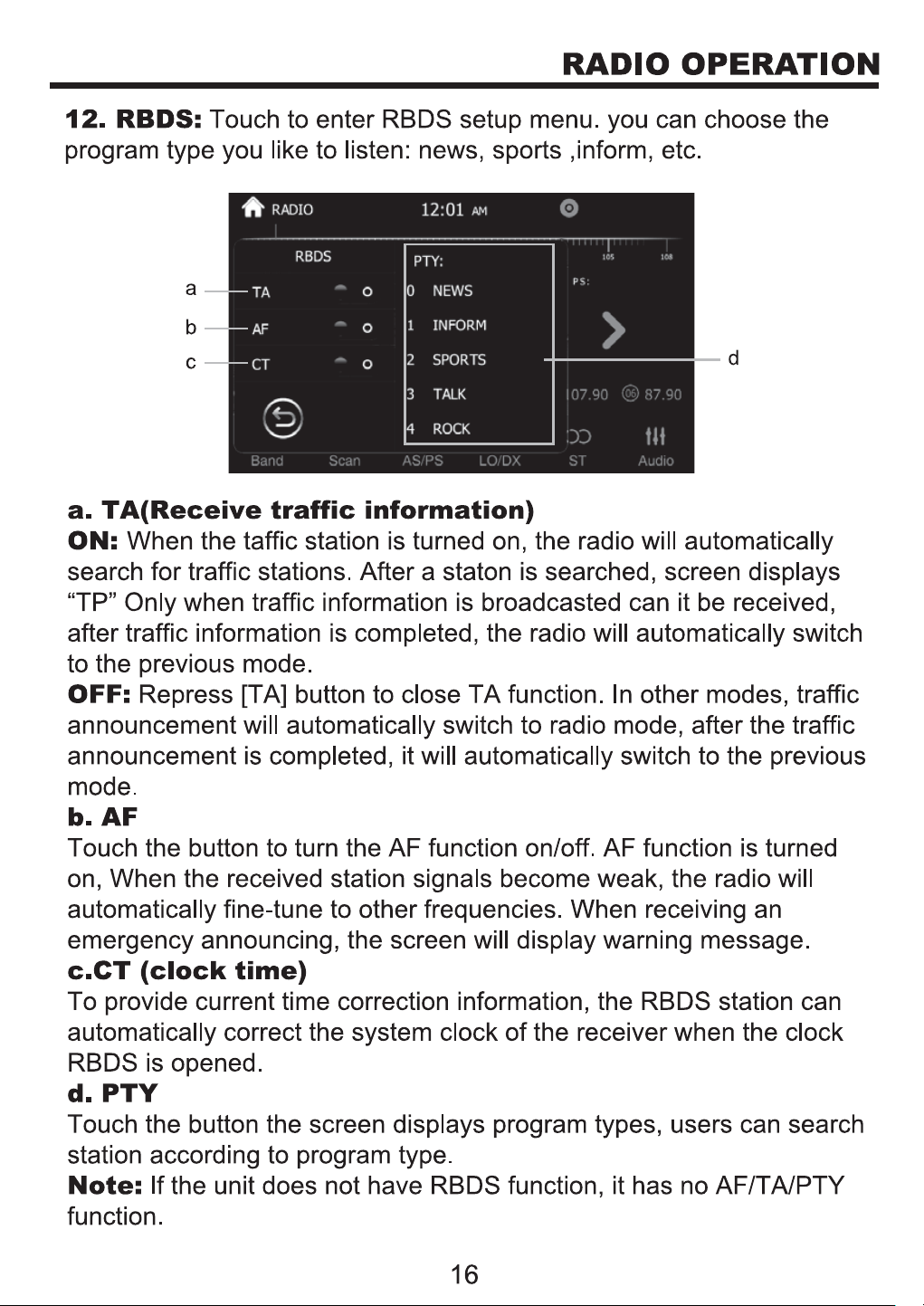

Radio Operation..............................................................................15

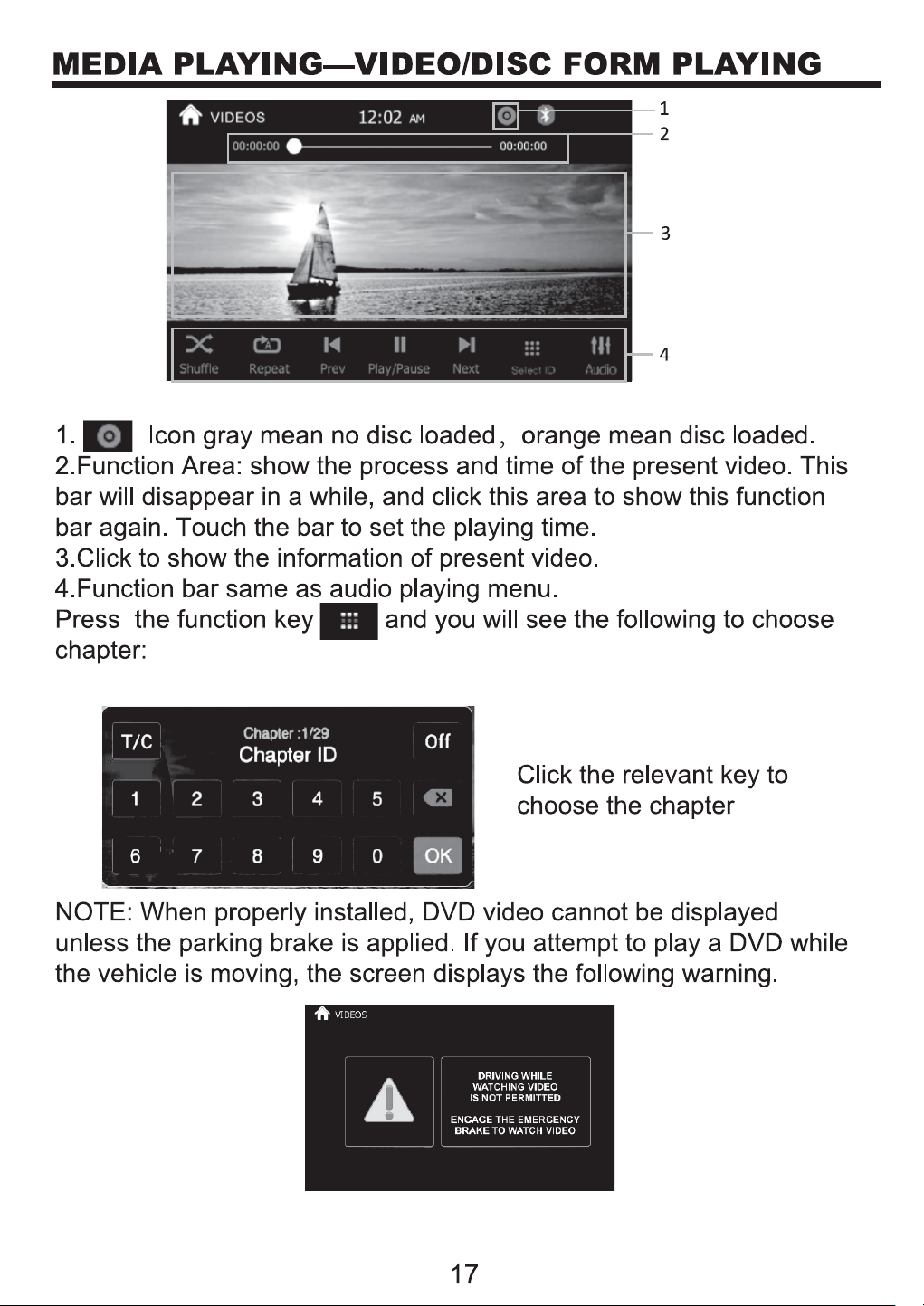

Media Playing—video/disc Form Playing.................................17

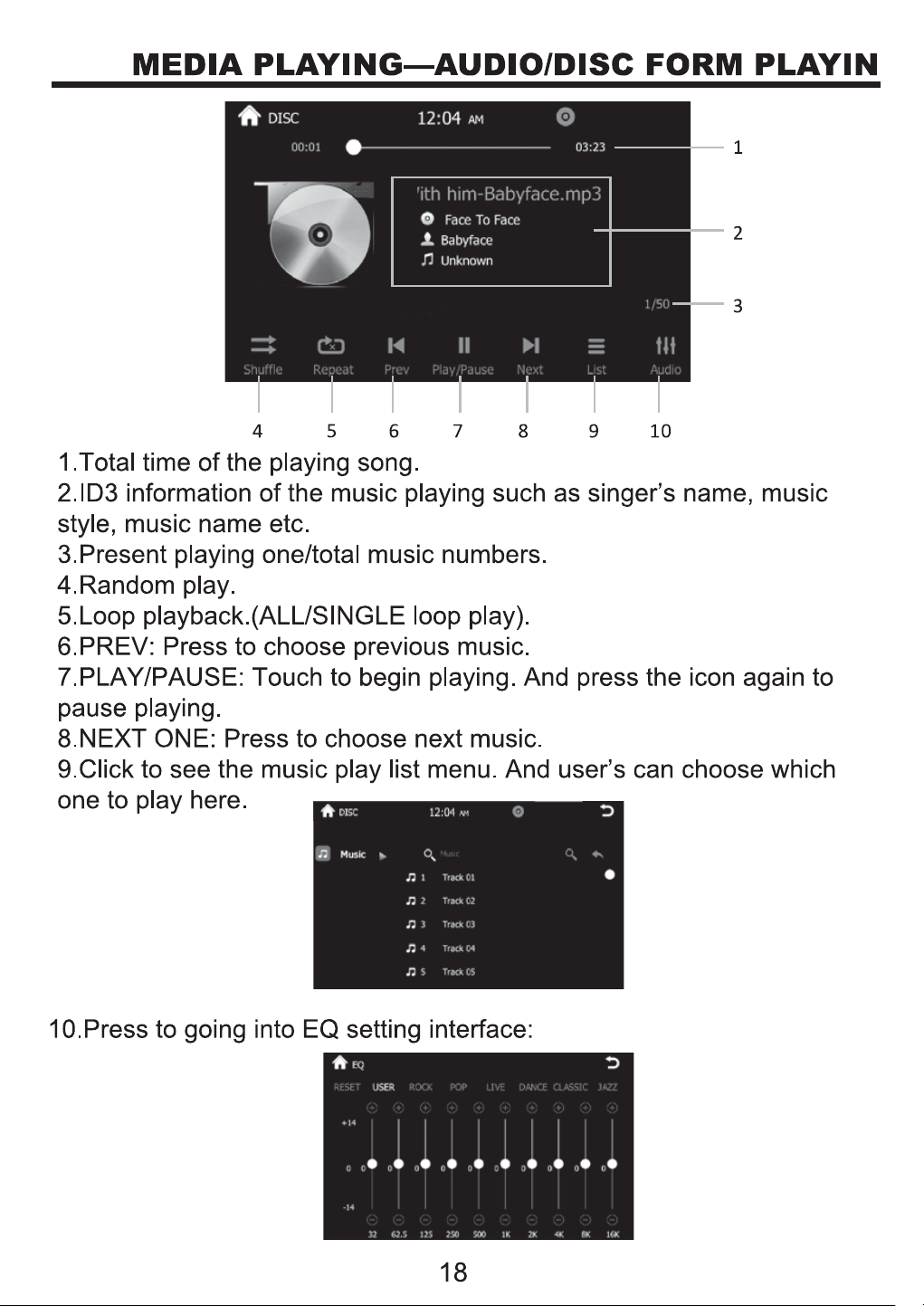

Media Playing—audio/disc Form Playin.................................. 18

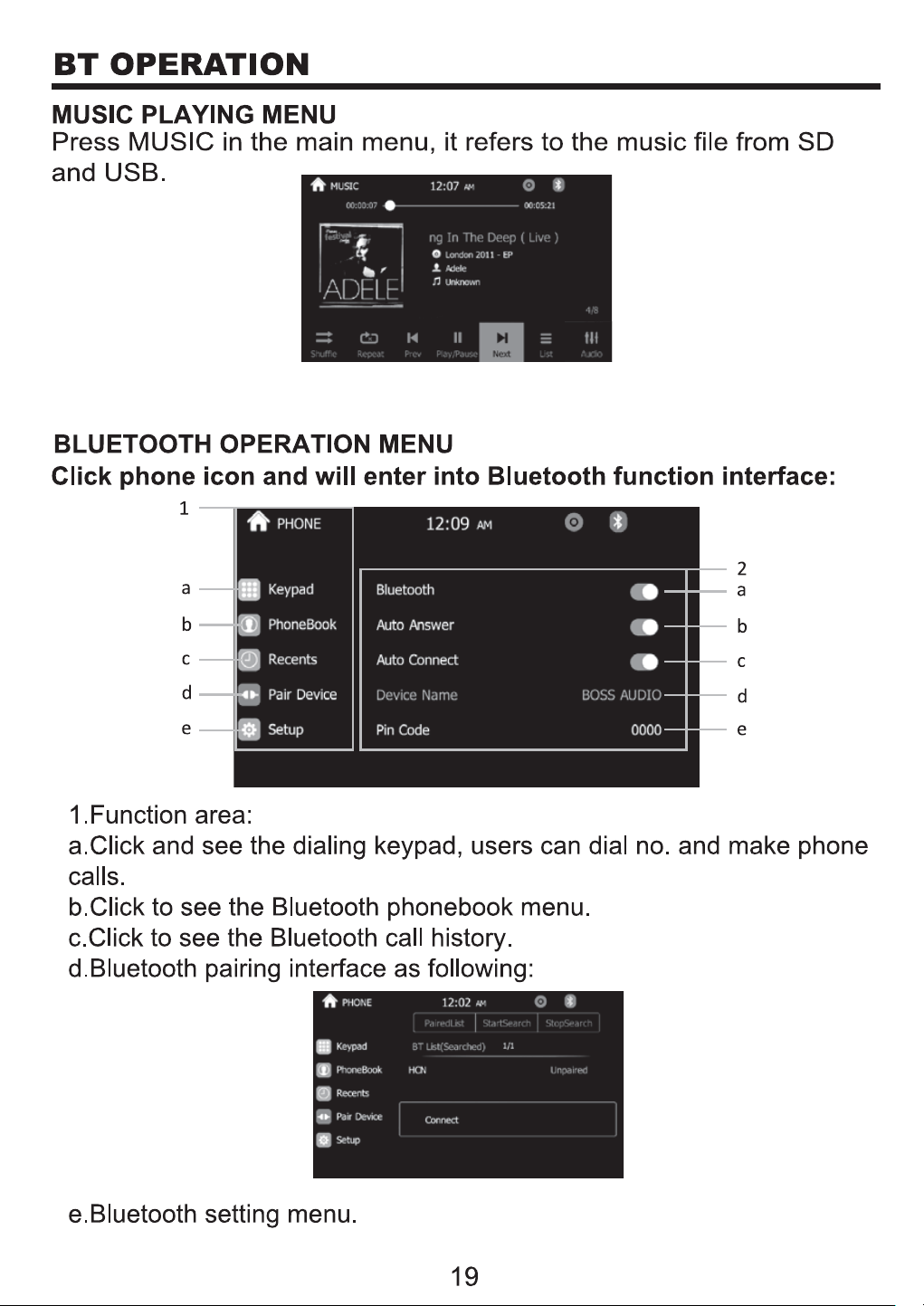

Music Playing Menu.......................................................................19
BT operation...................................................................................19
Bluetooth operation menu...................................................... 19

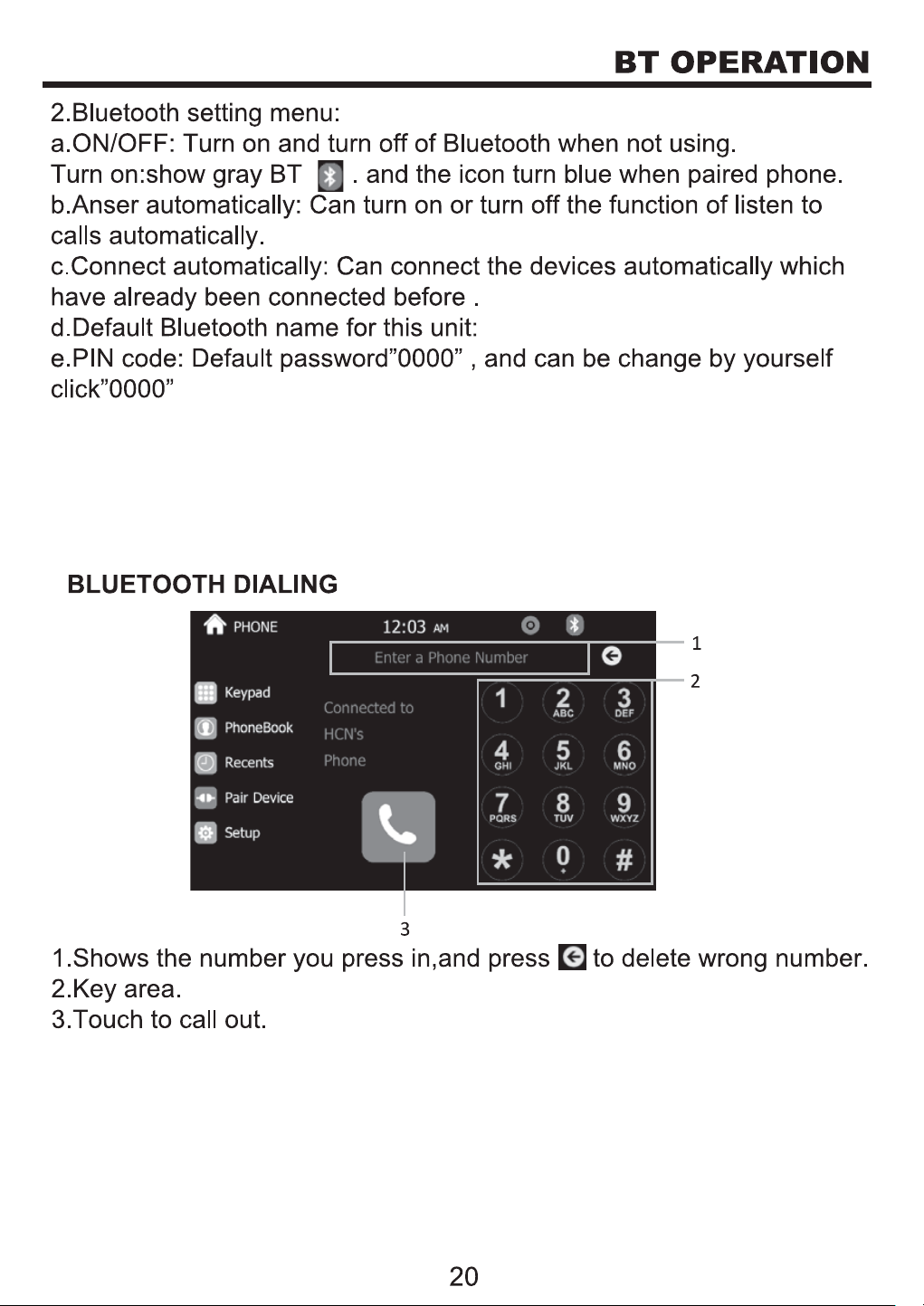

Bluetooth dialing.................................................................... 20

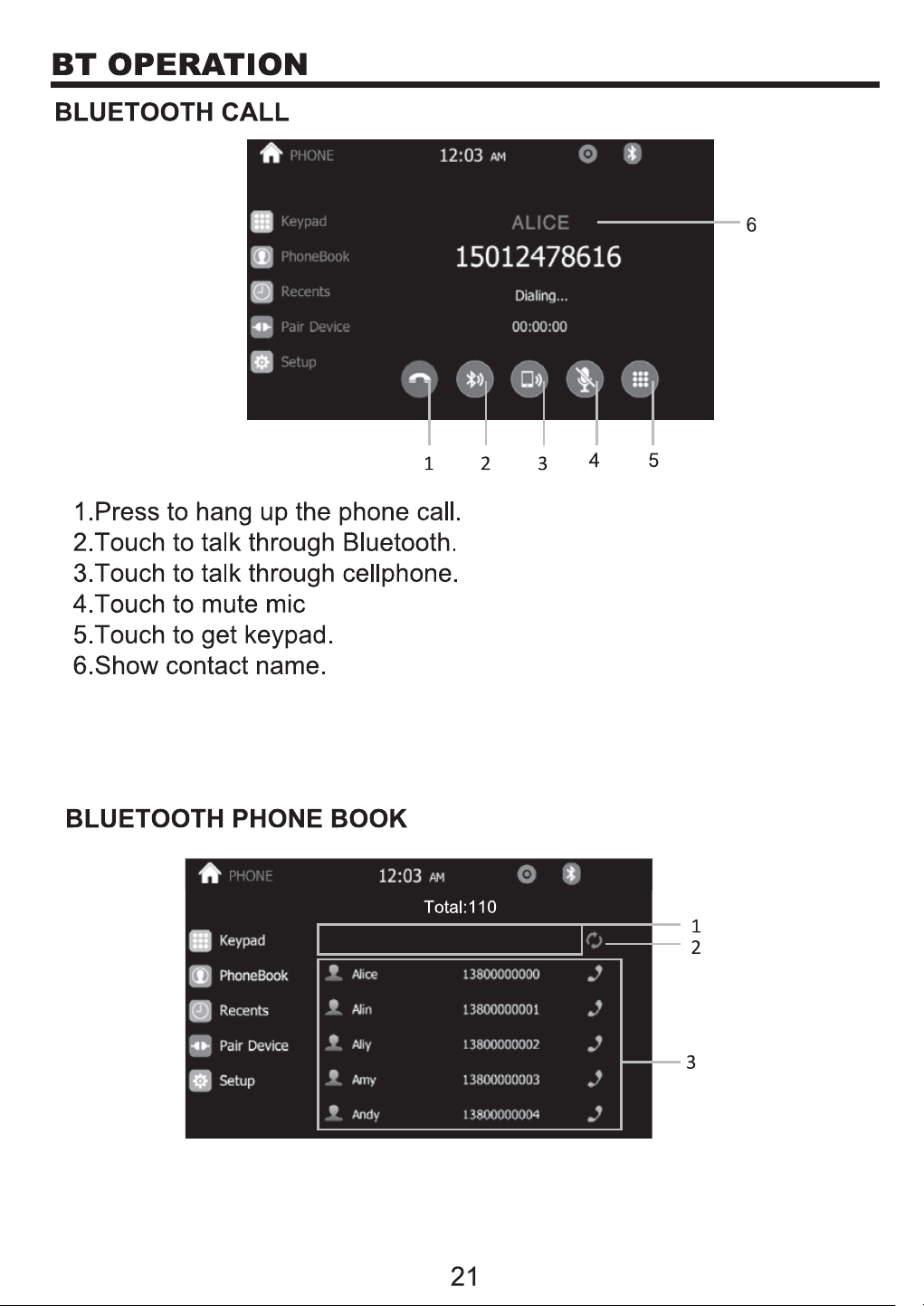

Bluetooth call...........................................................................21
Bluetooth phone book..............................................................21

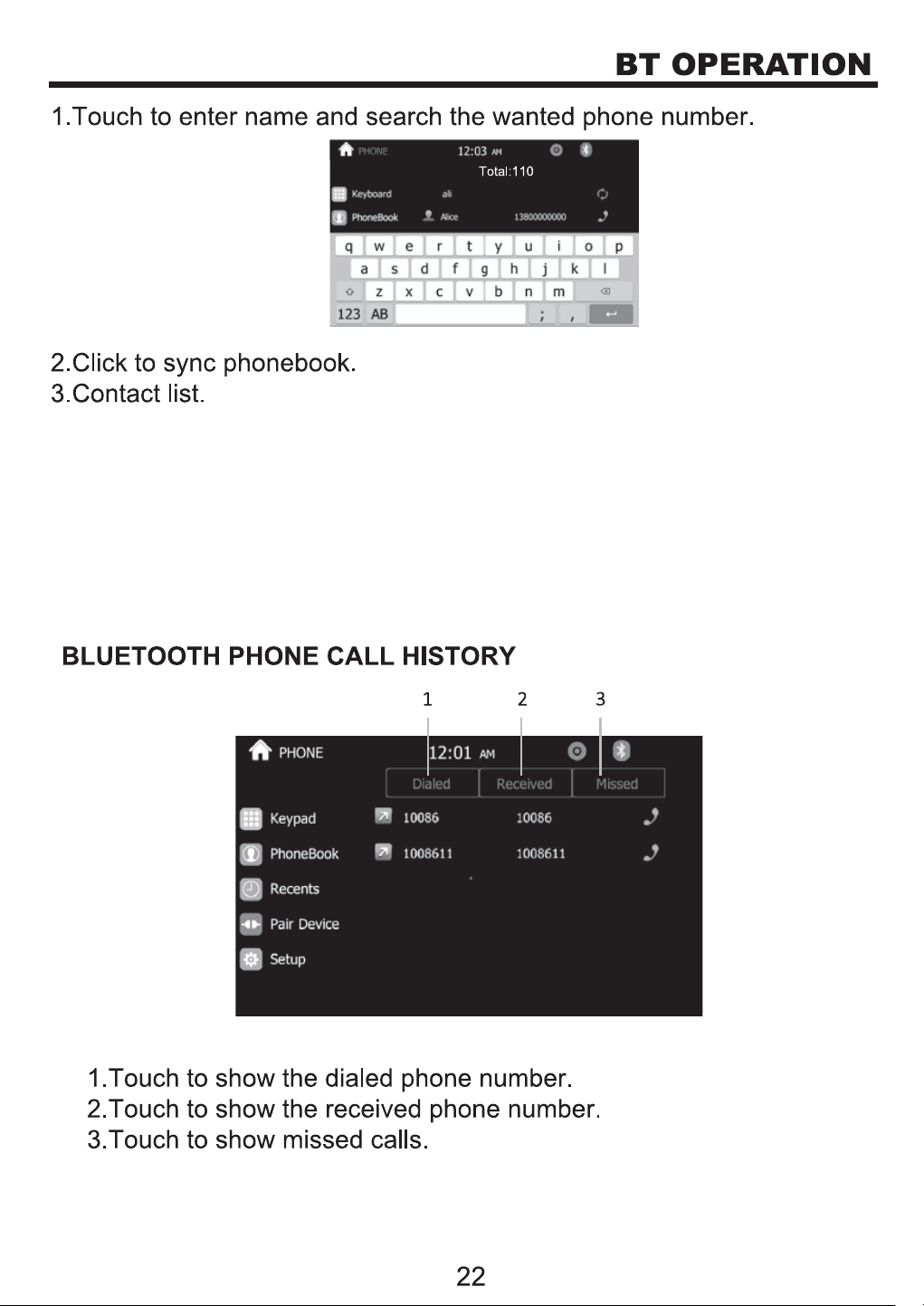

Bluetooth phone call history................................................... 22

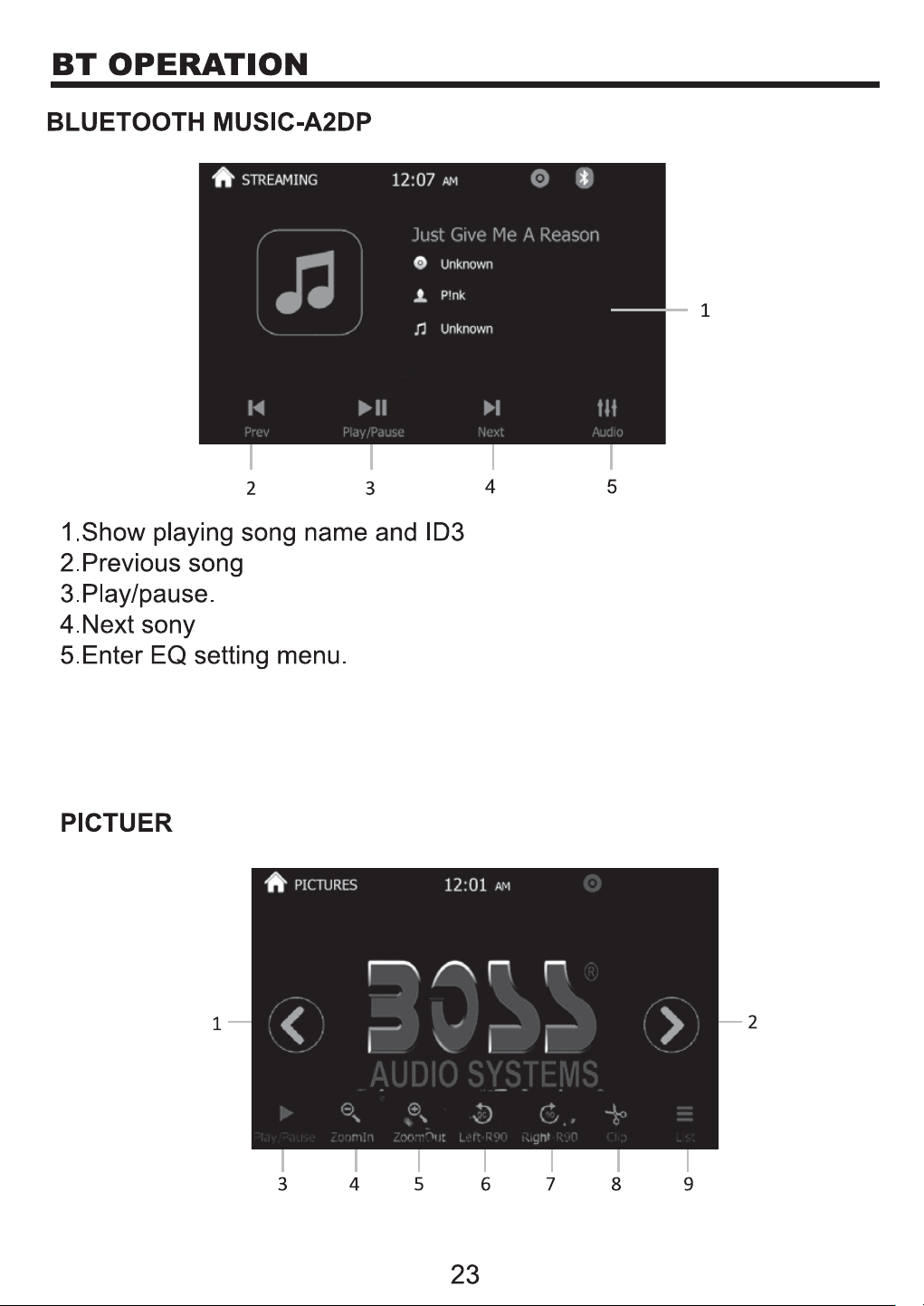

Bluetooth Music-a2dp..............................................................23

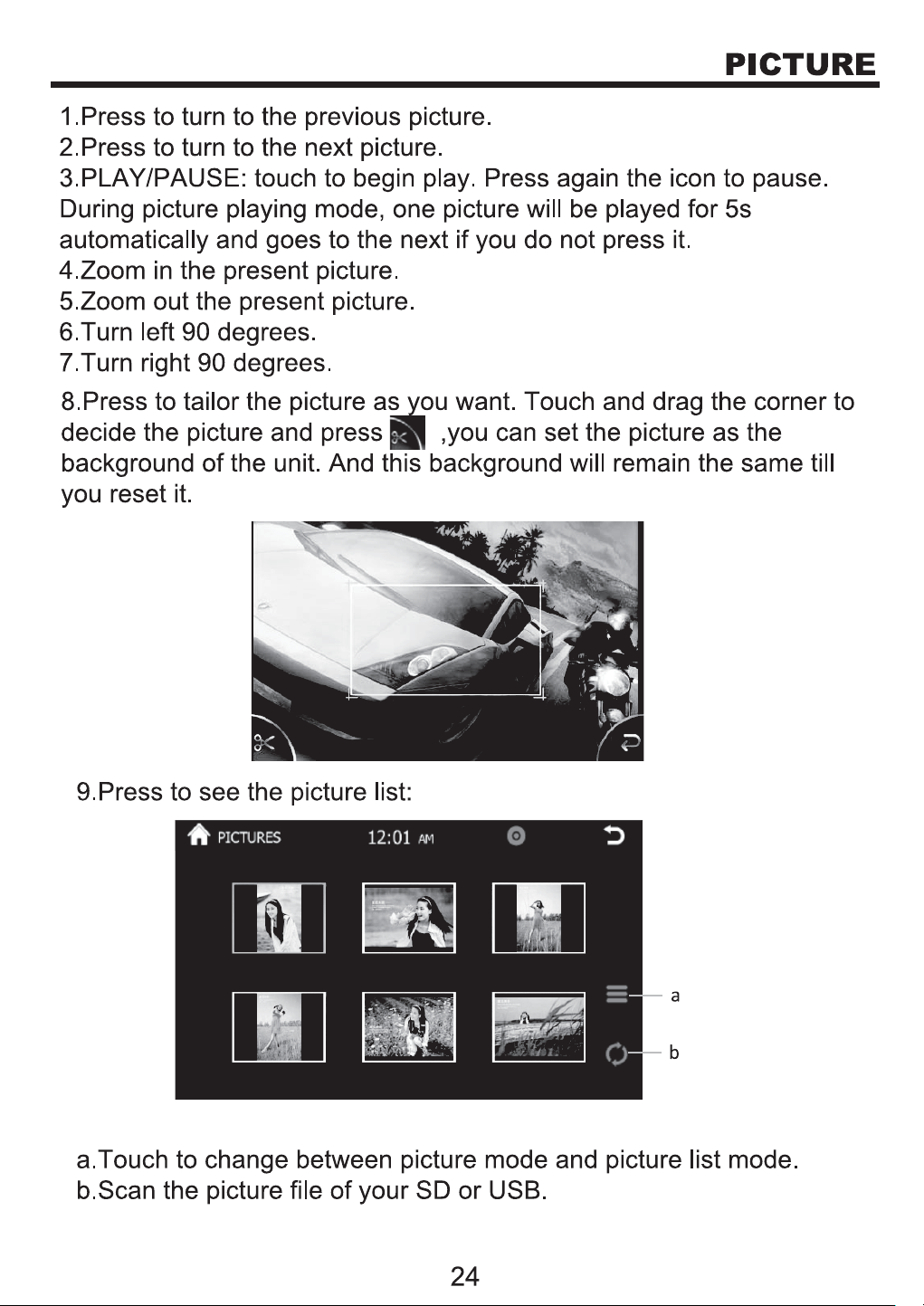

Picture...............................................................................................23

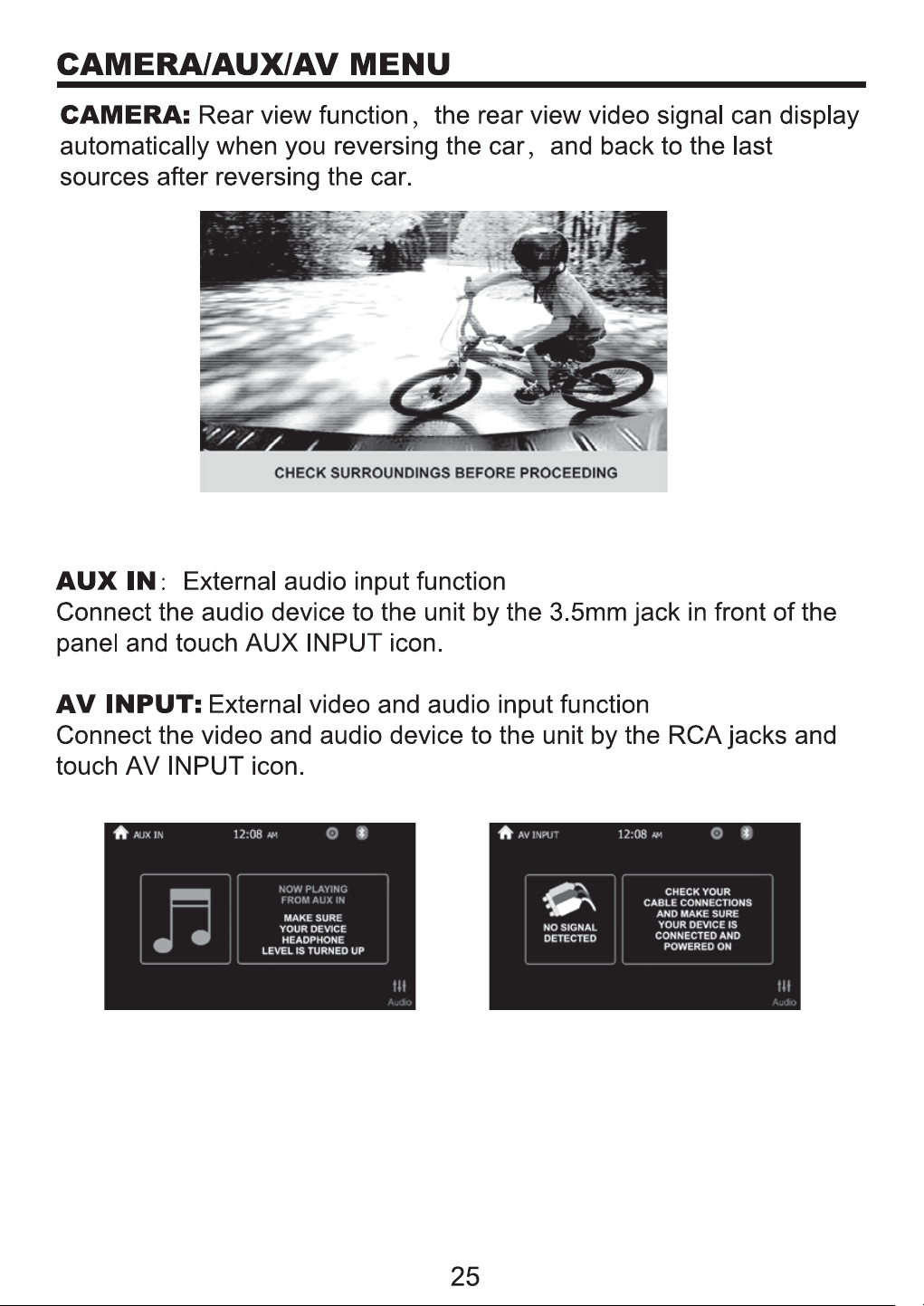

Camera/Aux/Av meun...................................................................25

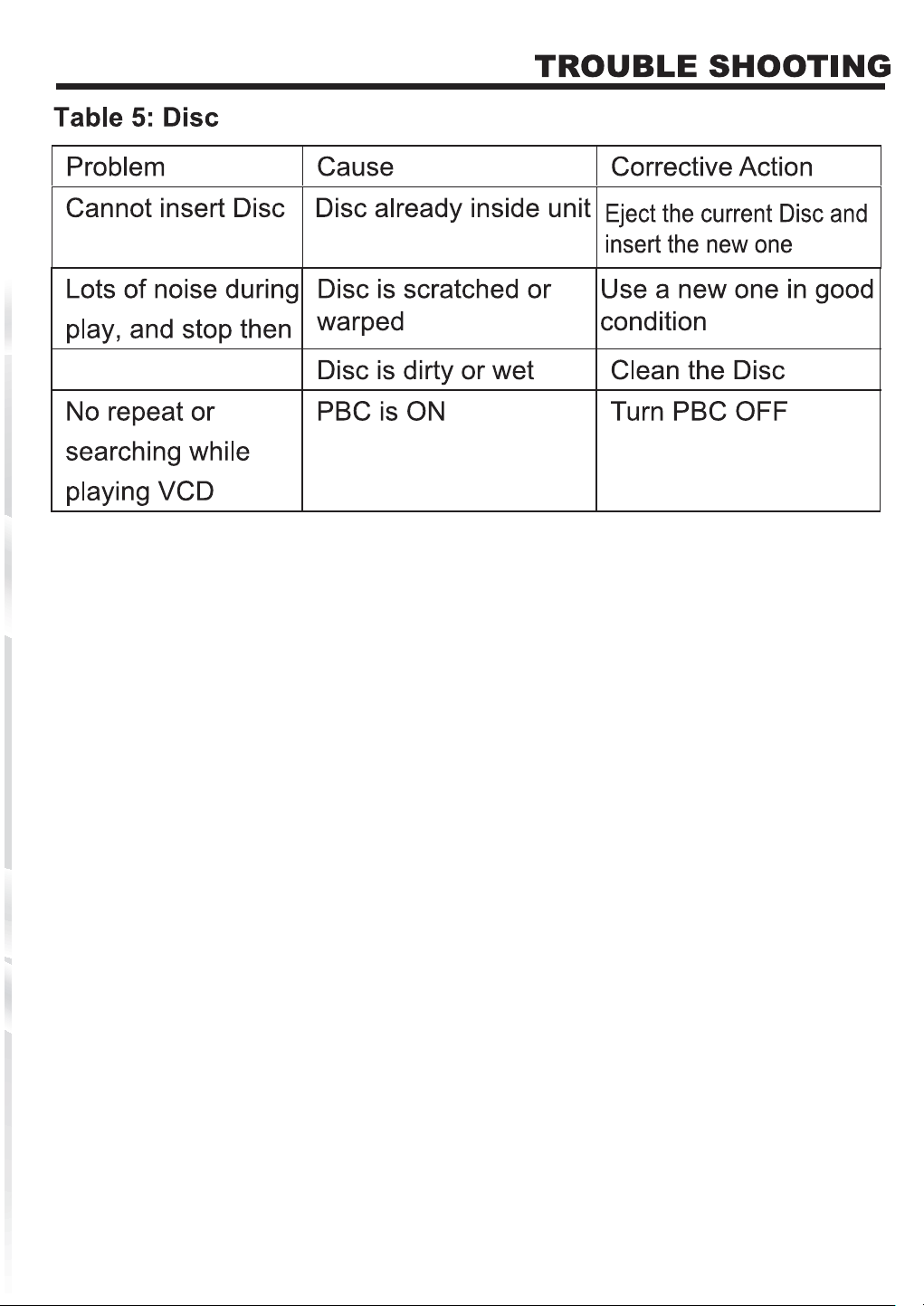

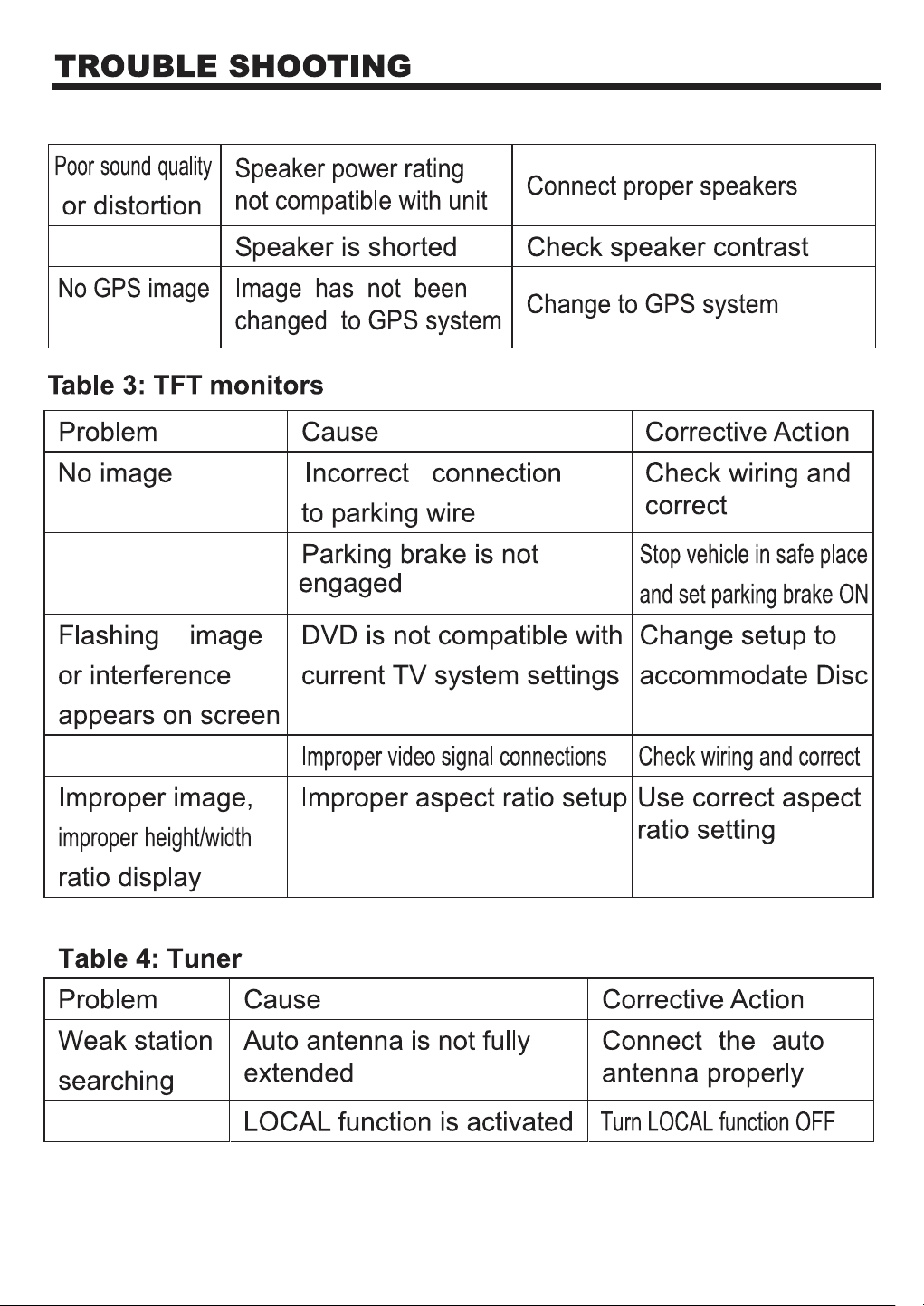

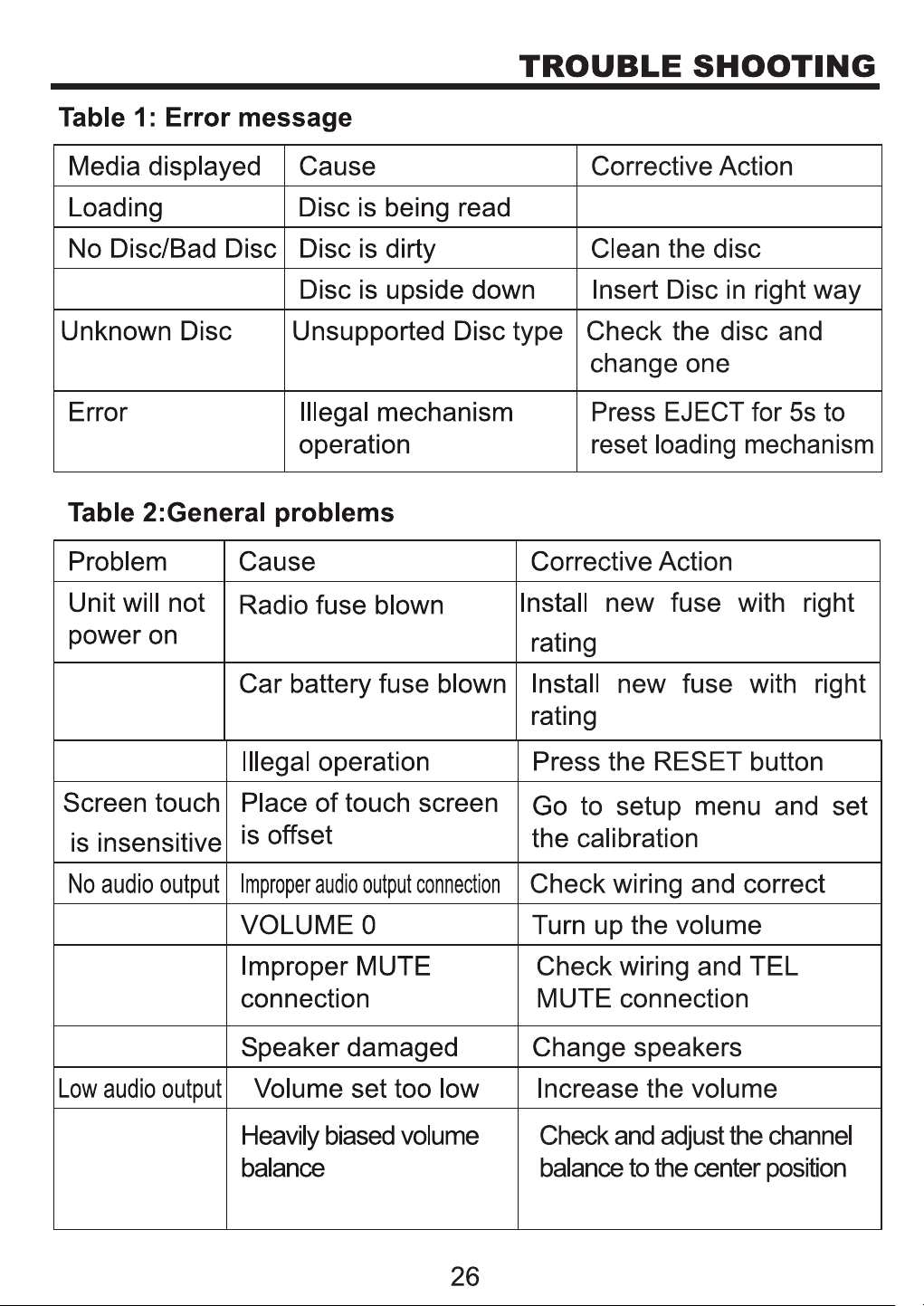

Trouble shooting...............................................................
..............26
background
background
background

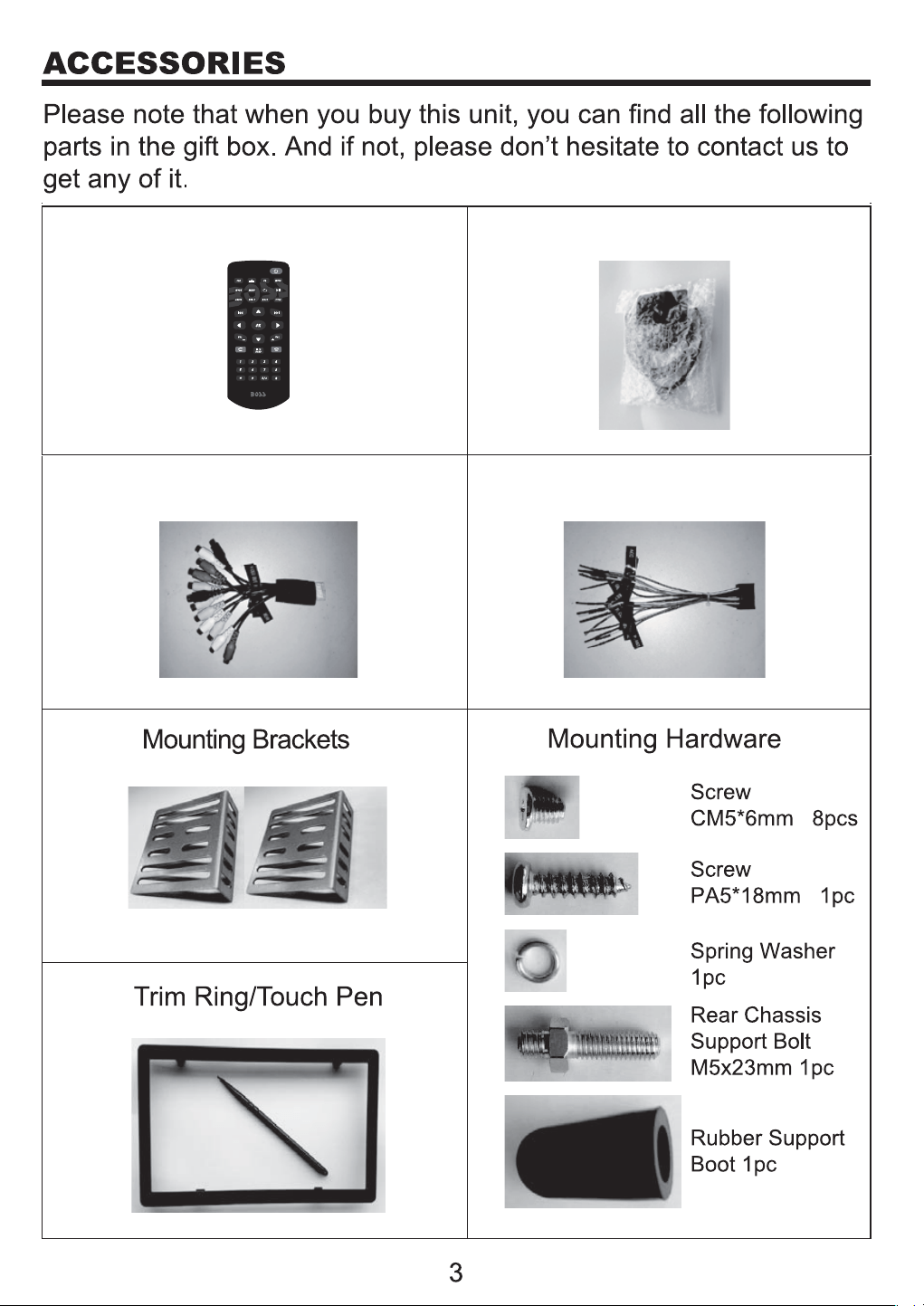

Remote Control
GPS Antenna
Power Cable RCA Cable
background
background
background

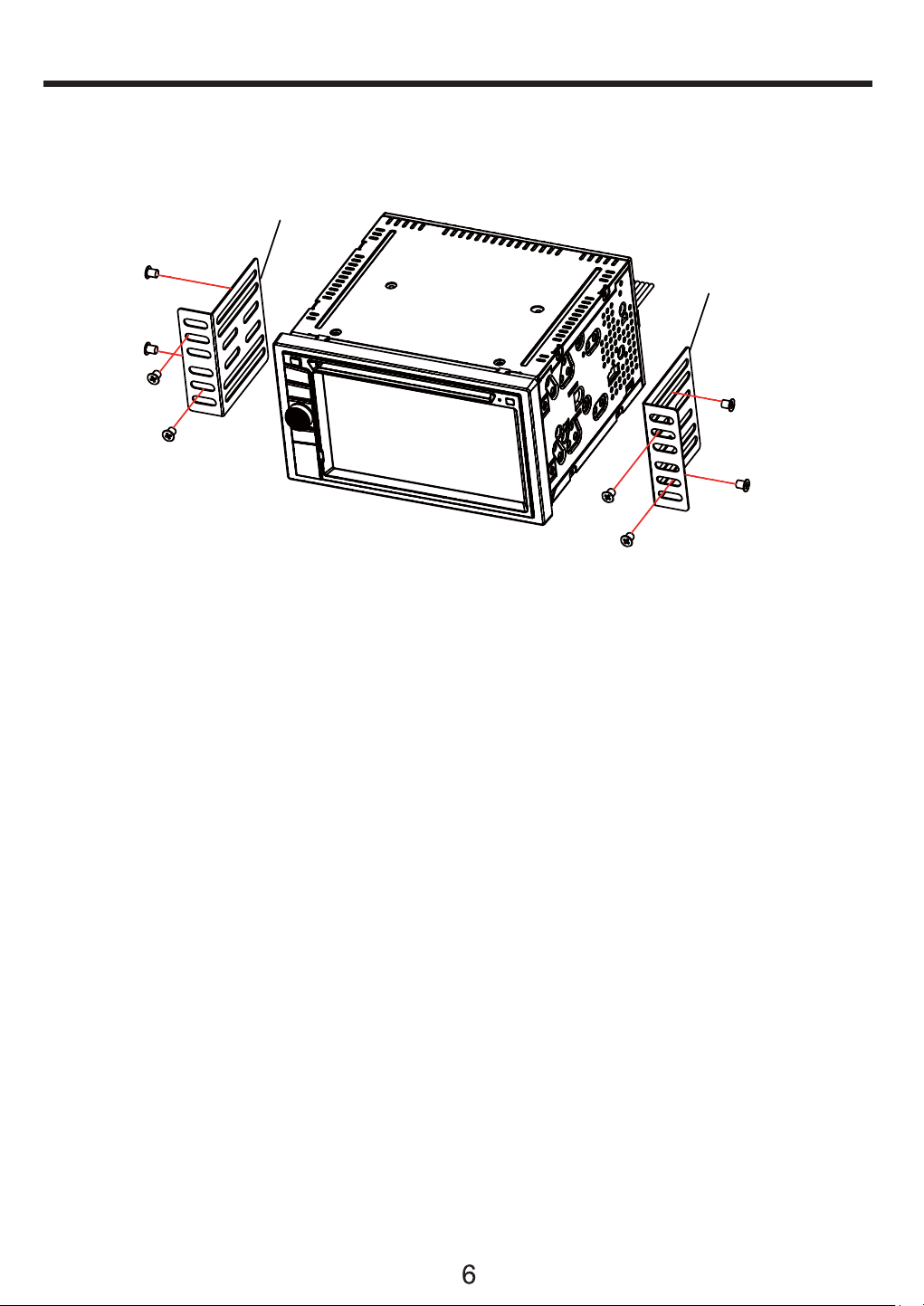

UNIT INSTALLATION
Bracket
Bracket
Screw
1.Put the 2 brackets to the left and right side of the unit;
2.Use screws to fix the brackets to the unit.
3. Once the screws are attached, the brackets can be adjusted
forward or aft depending on the installation requirements.
background

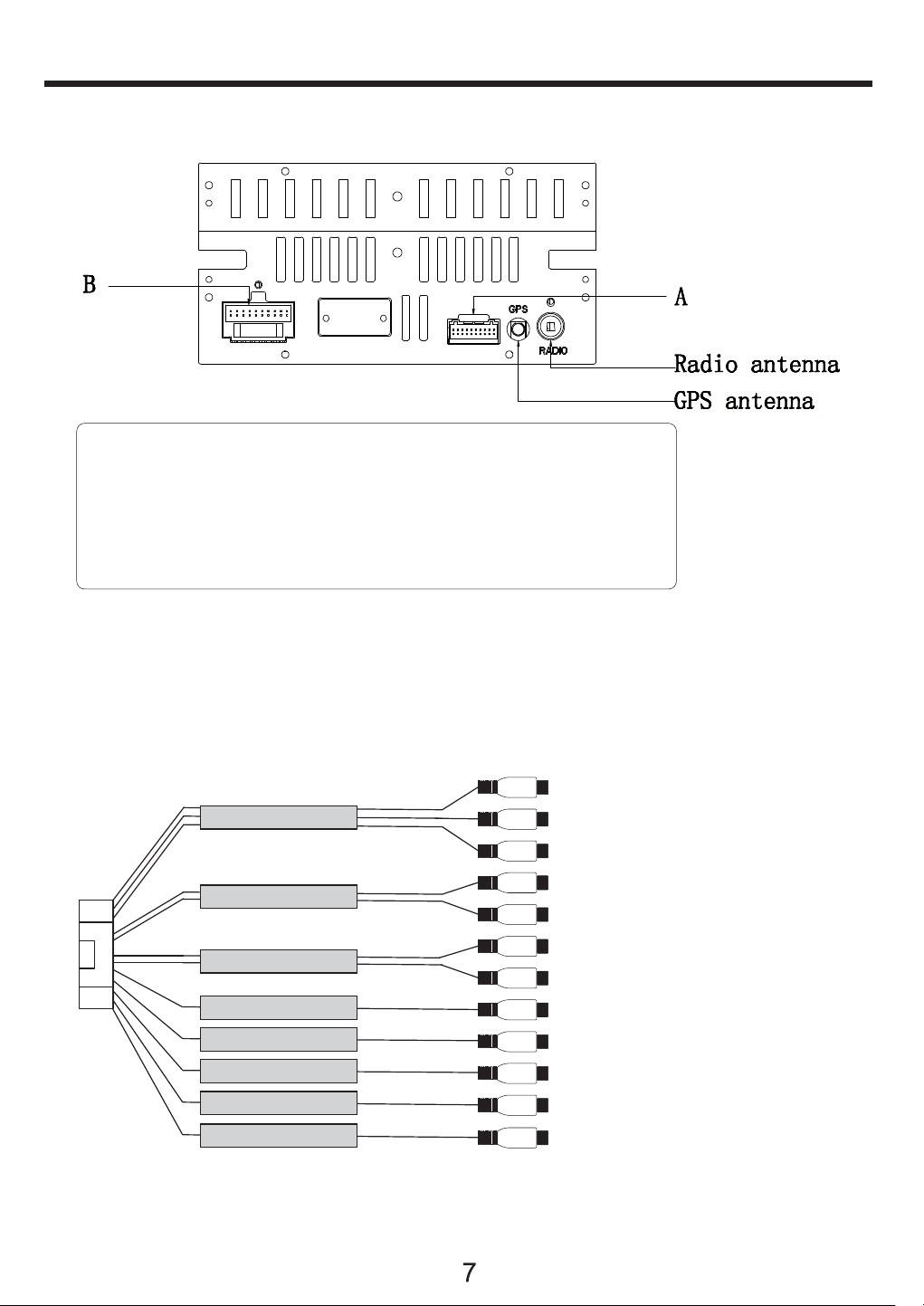

WIRES CONNECTION DESCRIPTION
The Description of the Input/Output Interface
Description of the Wiring Diagram for Socket A
WhiteRCALInput
White
RearLOutput
Yellow
Reverse
Video
Input
YELLOW(B+)12V
REDACC(+12V)
LT.GREENPARKING BRAKE
VIOLET WHITEREVERSE
BLUEANTCONT
BLACKGROUND
BLUE WHITEPCONT
WHITELEFT FRONT(+)
WHITEBLACKLEFT FRONT(-)
GREENLEFT REAR(+)
GREENBLACKLEFT REAR(-)
GREYRIGHT FRONT(+)
GREYBLACKRIGHT FRONT(-)
VIOLET
RIGHT REAR(+)
VIOLETBLACKRIGHTREAR(-)
WHITEKEY A
BROWNKEY B
BLACKKEY GND
STEERINGWHE E LCONTROL
Blue
SubwooferOutput
Blue
SubwooferOutput
Yellow
VideoOutput 1
A
RedRearROutput
White
FrontLOutput
RedFrontROutput
YellowVideoInput
RedRCA RInput
AVIN
SUB OUT
SUB OUT
VIDEO OUT 1
FRONT
REAR
CAMERA
YellowVideoOutput 2
VIDEO OUT 2
background
background
background
background
background
background
background
background
background
background
background
background
background
Boss Audio BV9384NV
background
background
background
background
background
background
background
27
background
28
background
