AXISC8310VolumeController
Usermanual
background
AXISC8310VolumeController
TableofContents
Installation................................................3
Getstarted................................................5
UseAXISC8310VolumeControllerwithAXISAudioManagerEdge.......5
UseAXISC8310VolumeControllerwithAXISAudioManagerPro........5
Specications..............................................6
Productoverview................................................6
Contactsupport............................................7
2
background
AXISC8310VolumeController
Installation
Installation
Towatchthisvideo,gotothewebversionofthisdocument.
help.axis.com/?&piaId=89788&section=install
ConnectyourAXISC8310VolumeControllertotheI/Oconnectorofanydeviceinyoursystem.Werecommendthatyousimply
choosethedevicethatislocatedclosesttoyourAXISC8310VolumeController.
Note
Thehostdevicemusthavermwareversion11.6orlater.
Example:AXISC8310VolumeControllerconnectedtoahostdevice,whichinturnisconnectedtothenetwork.
3
background
AXISC8310VolumeController
Installation
Example:AXISC8310VolumeControllerconnectedtoahostdevice,whichinturnisconnectedtothe
network.Thehostdevicebelongstoaphysicalzone.
Example:AXISC8310VolumeControllerconnectedtoahostdevice,whichinturnisconnectedtothenetwork.Thesystem
containsmultiplespeakersinaphysicalzone,butthehostdevicedoesnotbelongtoanyphysicalzone.
4
background
AXISC8310VolumeController
Getstarted
Getstarted
UseAXISC8310VolumeControllerwithAXISAudioManagerEdge
1.OpenthedeviceinterfaceforthehostdevicebyenteringitsIPaddressinawebbrowser.
2.GotoAudio>Overview.
3.ClickLaunchAXISAudioManagerEdge.
4.Forfurtherinstructions,visitControlaudiowithAXISC8310VolumeControllerintheAXISAudioManagerEdgeusermanual.
UseAXISC8310VolumeControllerwithAXISAudioManagerPro
YouneedtohaveAXISAudioManagerProversion4.4touseitwithanAXISC8310VolumeController.
Forinstructions,visitControlaudiowithAXISC8310VolumeControllerintheAXISAudioManagerProusermanual.
5
background
AXISC8310VolumeController
Specifications
Specifications

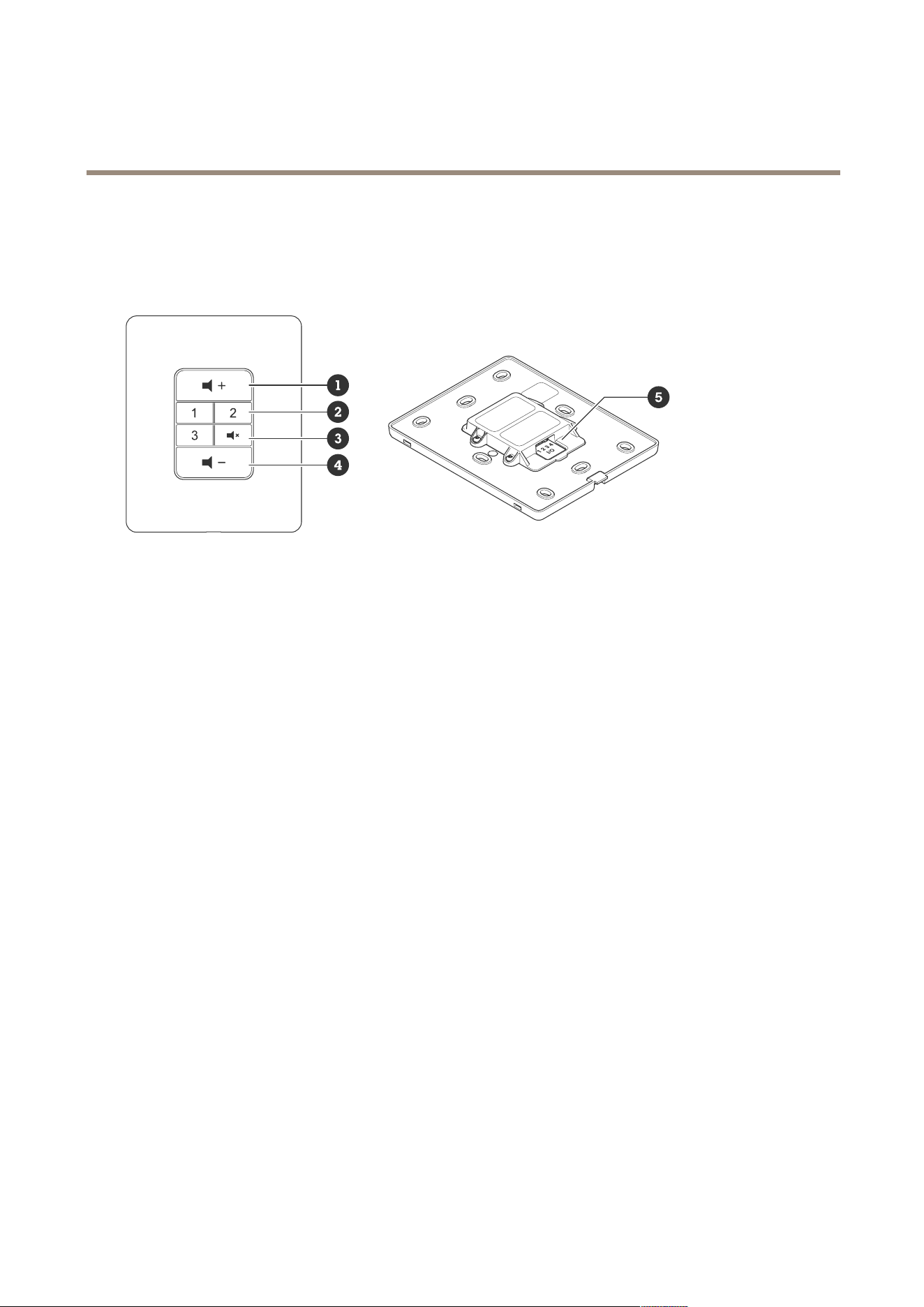

Productoverview
1
Increasevolume
2
Sourcebuttons
3
Muteandunmuteaudio
4
Decreasevolume
5
I/Oconnector
6
background
AXISC8310VolumeController
Contactsupport
Contactsupport
Contactsupportataxis.com/support.
7
background
UsermanualVer.M1.17
AXISC8310VolumeController
Date:November2023
©AxisCommunicationsAB,2023-2023
Partno.T10196055
