PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION
Features:
• Loudspeaker PA System
• Rugged, Durable & Reliable Sound
• Wireless BT Streaming Ability
• Wireless BT Music Streaming Ability
• Speaker System: 2x12.0'' woofer, 2x 1.0'' Tweeter
• Compression Driver with PEI Diaphragm
• 2-Way Full Range Audio Projection
• Built-in Analogue Audio Amplier
• 1/4’’ Jack Microphone Input
• 3.5mmStereo Line Input, RCA(L/R) Out
• Connect & Stream Audio from External Devices
• USB Flash Drive & SD Memory Card Readers
• Digital LCD Display
• Rear Panel Rotary Dial & Button Control Center
• Master Volume, Mic Volume, Line Volume, Treble, Bass Adjustable
• Integrated Carry Handles
• 35mm Speaker Stand Mount Compatible
Wireless BT Streaming:
• Instantly Stream Music from Your BT Devices
• Works with All Your Favorite BT Devices
(iPhone, Android, Smartphone, iPad, Tablet, PC, etc.)
• Wireless BT Version: 5.0
• Wireless BT Range: 100'+ Feet
• Wireless BT Network Name: 'Pyle'
What's in the Box:
• 12'' Wireless BT Active PA Speaker
• 12'' Passive Passive PA Speaker
• (2) Stand
• Power Cable
• Audio Cable 5M (Both sides are speakON)
• Microphone
• Remote Control
Woofer:
• Size: 12'' -inch
• Material: Stamped Steel Basket
• Impendence: 8 Ohm
• Magnet: 30 oz.
• Voice Coil: 38.5mm, 1.5'' -inch
• Sensitivity: 93dB
• Frequency Response: 60Hz-5kHz
Tweeter:
• Size: 1.0'' -inch
• Material: PEI
• Impendence: 8 Ohm
• Sensitivity: 104dB
• Voice Coil: Kapton
• Frequency Response: 800Hz-20kHz
Technical Specs:
• Max Power Output: 400 Watt
• RMS Power Output: 100 Watt
• Amplier Class: AB
• Digital Audio File Compatibility: MP3, WMA
• Maximum USB/SD Flash Memory Support: 32GB
• Inputs/Outputs 3.5mm TRS/Stereo Input with RCA Input
• T.H.D.: 10%
• Crossover Frequency: 3.3kHz
• Power: AC110/220V 50/60HZ
• Product Dimensions (L x W x H): 13.8’’ x 12.6’’ x 26.8’’ -inches
www.PyleUSA.com
2
www.PyleUSA.com
3
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION
Features:
• Loudspeaker PA System
• Rugged, Durable & Reliable Sound
• Wireless BT Streaming Ability
• Wireless BT Music Streaming Ability
• Speaker System: 2x12.0'' woofer, 2x 1.0'' Tweeter
• Compression Driver with PEI Diaphragm
• 2-Way Full Range Audio Projection
• Built-in Analogue Audio Amplier
• 1/4’’ Jack Microphone Input
• 3.5mmStereo Line Input, RCA(L/R) Out
• Connect & Stream Audio from External Devices
• USB Flash Drive & SD Memory Card Readers
• Digital LCD Display
• Rear Panel Rotary Dial & Button Control Center
• Master Volume, Mic Volume, Line Volume, Treble, Bass Adjustable
• Integrated Carry Handles
• 35mm Speaker Stand Mount Compatible
Wireless BT Streaming:
• Instantly Stream Music from Your BT Devices
• Works with All Your Favorite BT Devices
(iPhone, Android, Smartphone, iPad, Tablet, PC, etc.)
• Wireless BT Version: 5.0
• Wireless BT Range: 100'+ Feet
• Wireless BT Network Name: 'Pyle'
What's in the Box:
• 12'' Wireless BT Active PA Speaker
• 12'' Passive Passive PA Speaker
• (2) Stand
• Power Cable
• Audio Cable 5M (Both sides are speakON)
• Microphone
• Remote Control
Woofer:
• Size: 12'' -inch
• Material: Stamped Steel Basket
• Impendence: 8 Ohm
• Magnet: 30 oz.
• Voice Coil: 38.5mm, 1.5'' -inch
• Sensitivity: 93dB
• Frequency Response: 60Hz-5kHz
Tweeter:
• Size: 1.0'' -inch
• Material: PEI
• Impendence: 8 Ohm
• Sensitivity: 104dB
• Voice Coil: Kapton
• Frequency Response: 800Hz-20kHz
Technical Specs:
• Max Power Output: 400 Watt
• RMS Power Output: 100 Watt
• Amplier Class: AB
• Digital Audio File Compatibility: MP3, WMA
• Maximum USB/SD Flash Memory Support: 32GB
• Inputs/Outputs 3.5mm TRS/Stereo Input with RCA Input
• T.H.D.: 10%
• Crossover Frequency: 3.3kHz
• Power: AC110/220V 50/60HZ
• Product Dimensions (L x W x H): 13.8’’ x 12.6’’ x 26.8’’ -inches
www.PyleUSA.com
4
www.PyleUSA.com
5

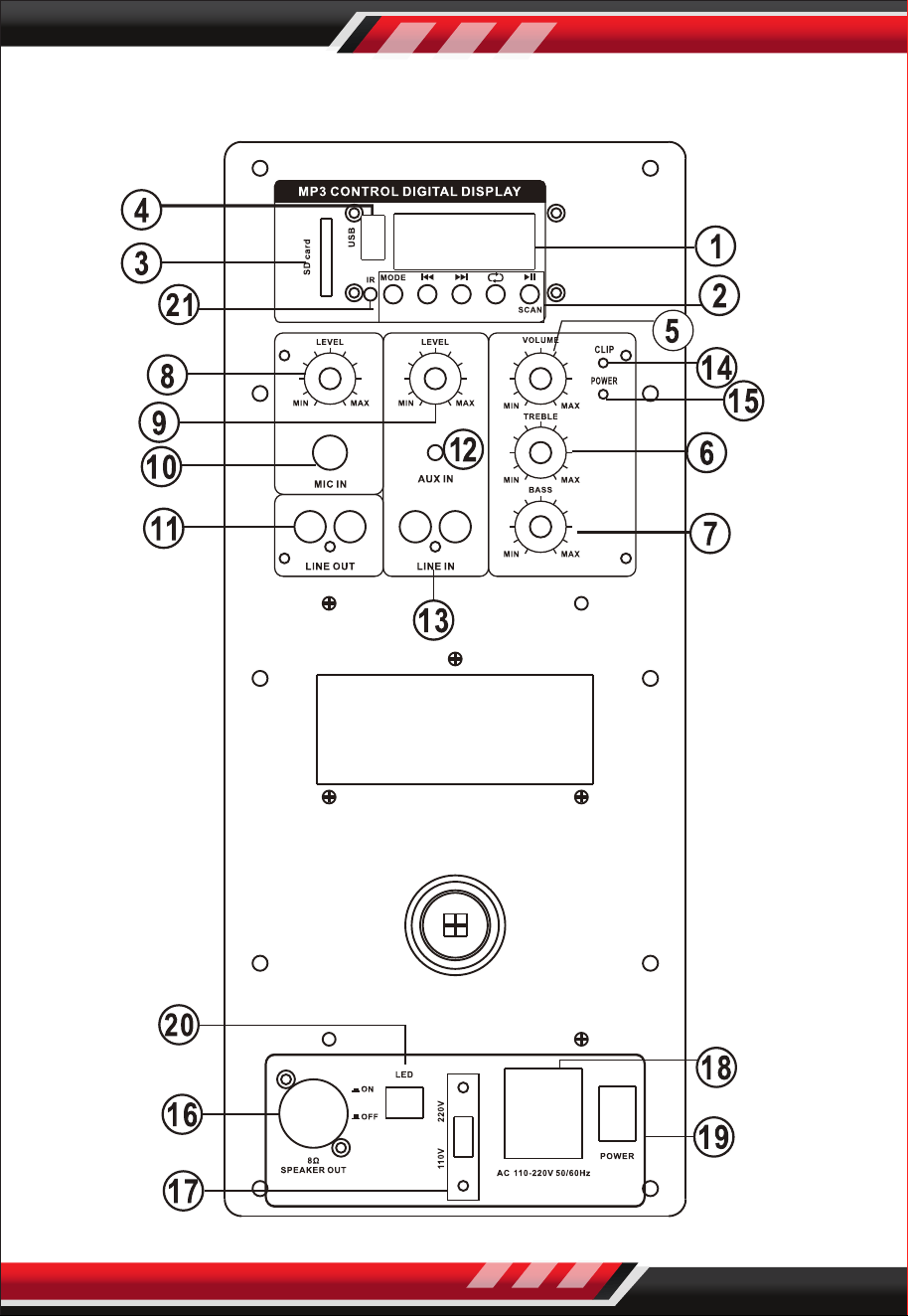

Function Description
1. LCD screen
2. MP3 control
MODE: USB/SD/BT/FM convertor
: Previous Song
Press and hold for fast rewind
: Next Song
Press and hold for fast forward
: Repeat one / Repeat all / Random
: Play / Pause/SCAN
SCAN: Press and hold to auto search under FM radio
FOL: When playing USB/SD songs,
Press and hold to enter folder mode
3. SD card input
4. USB input
5. Master Volume control
6. Treble control for high frequencies
7. Bass control for low frequencies
8. MIC input level control
9. Line input level control
10. 6.35 mm microphone input
11. (R+L) Iine outputs
12. 3.5 mm line input
13. (R+ L) line inputs
14. Clip LED indicator
15. Power LED indicator
16. Speaker out 8 Ohm
17. 110V/220V Switch
18. Fused IEC mains inlet
19. Main power switch
20. LED Light switch
21. IR: Remote control receiver
Function Description
