MICROWAVE DRAWER
www.zlinekitchen.com
Installation Manual
ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your
dreams is never out of reach. Through our unique designs and unparalleled quality, we’re
dedicated to providing you an elevated experience in the heart of your home. With an
endless selection of features and finishes, our inspiration is your reality.
ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end
luxury designs and professional features into everyone’s homes. Because we continually strive
to improve our products, we may change specifications and designs without prior notice.
WARNING: This product can expose you to chemicals including nickel, which is known to the
State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
WARRANTY
COVERAGE
ZLINE Kitchen and Bath microwave parts will be warrantied for two years from the original
purchase date for the original purchaser of the product.
TERMS
This warranty applies only to the original purchaser of the product installed for normal
residential use. This is defined as a single-family, residential dwelling in a non-commercial
setting. Commercial settings include but are not limited to: schools, churches, hotels,
restaurants, vacation rentals such as Airbnb, day care centers, private clubs, fire stations,
common areas in multi-family dwellings, nursing homes, food service locations, and
institutional food service locations such as hospitals or correction facilities. This warranty
is non-transferable and will not be extended based on the date of installation. The
warranty applies only to products installed in the contiguous United States and the District
of Columbia. Warranty shall not apply and ZLINE Kitchen and Bath is not responsible
for damage resulting from negligence, improper maintenance, misuse, abuse, alteration
of or tampering with the appliance, accident, natural disaster, improper electric supply,
unauthorized service or repair, improper installation, or installation not in accordance with
the instructions contained in the manual or the local codes.
WHAT IS NOT COVERED
1. Installation or start-up damages or problems caused by improper installation or use.
2. Damage related to unauthorized service or unauthorized parts.
3. Installation in any commercial or non-residential application.
4. Aesthetic damage, scratches, or natural wear caused by normal use.
5. Second-hand, open box products, or products purchased from an unauthorized retailer.
1
• Installation and service must be performed by a qualified
installer. The oven should not be adjusted or repaired by
anyone except properly qualified service personnel.
• IMPORTANT: Save this installation manual for local
electrical inspector’s use.
• Read and save these instructions for future reference.
• This device complies with part 18 of the FCC Rules
• Do not attempt to operate this oven with the door open
since open-door operation can result in harmful exposure
to microwave energy. It is important not to defeat or
tamper with the safety interlocks.
• Do not place any object between the oven front face and
the door or allows soil or cleaner residue to accumulate on
sealing surfaces.
• Do not operate the oven if it is damaged. It is particularly
important that the oven door closes properly and that there
is no damage to the:
• Door (bent)
• Hinges and latches (broken or loosened)
• Door seals and sealing surfaces
• When using electrical appliances, basic safety precautions
should be followed.
• To reduce the risk of burns, electric shock, fire, personal
injury, or exposure to excessive microwave energy, read
all instructions before using the appliance.
• This appliance must be grounded or connected to a
properly grounded outlet.
• Install this appliance only in accordance with the provided
installation instructions.
• Some products such as whole eggs and sealed containers
(i.e. closed glass jars) should not be heated in this oven.
SAFETY INSTRUCTIONS
WARNING
General Safety
2
SAFETY INSTRUCTIONS
• Use this appliance only for its intended use as described
in the manual. Do not use corrosive chemicals or
vapors in this appliance. This type of oven is specifically
designed to heat, cook, or dry food.
• As with any appliance, close supervision is necessary
when used by children.
• Do not operate this appliance if it has a damaged cord or
plug, if it is not working properly, or if the entire unit has
been damaged.
• Do not cover or block any openings on the appliance.
• Do not immerse cord or plug in water.
• Keep cord away from heated surface.
• Do not let cord hang over edge of table or counter.
• Do not use paper products when appliance is operated in
the toaster mode.
• Do not store this appliance outdoors. Do not use this
product near water - for example, near a kitchen sink,
in a wet basement, near a swimming pool, or similar
locations.
• When cleaning surfaces of door and oven that comes
together on closing the door, use only mild, nonabrasive
soaps, or detergents applied with a sponge or soft cloth.
Do not clean with metal scouring pads. Pieces can burn
off the pad and touch electrical parts involving a risk of
electric shock.
General Safety
3
• To reduce the risk of fire in the oven cavity:
• Do not overcook food. Carefully attend appliance
when paper, plastic, or other combustible
materials are placed inside the oven to facilitate
cooking.
• Remove wire twist-ties from paper or plastic bag
before placing bag in oven.
• If material inside of the oven ignites, keep oven
door closed, turn oven off, and disconnect the
power cord, or shut off power at the fuse or circuit
breaker panel.
• Do not use the cavity for storage purposes. Do not
leave paper products, cooking utensils, or food
in the cavity when not in use. Do not store any
materials, other than manufacturer’s recommended
accessories, in this oven when not in use.
• Liquids, such as water, coffee, or tea are able to be
overheated beyond the boiling point without appearing to
be boiling.
• Visible bubbling or boiling when the container is removed
from the microwave oven is not always present. This could
result in very hot liquid suddenly boiling over when the
container is disturbed.
General Safety
SAFETY INSTRUCTIONS
4
• To reduce the risk of injury to persons:
• Do not overheat liquid.
• Stir the liquid before and halfway through
heating it.
• Do not use straight sided containers with narrow
necks.
• After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
• Use extreme care when inserting a spoon or
other utensils into the container.
• Oversized food or oversized metal utensils should not be
inserted in a microwave oven as they may create a fire or
risk of electric shock.
• Do not cover racks or any other part of the oven with
metal foil. This will cause over-heating of the oven.
• Do not use the microwave if the cavity is empty.
General Safety
SAFETY INSTRUCTIONS
5
A) Control atc
h
B) Control Box
C) Right Mount
ing
D) Cavity
E) Handle
A
B
C
D
E
F
G
H
I
J
K
P
8
A
B
C
D
E
F
G
H
I
J
K
AFTER
Remove the oven and all materials from the carton and oven cavity. Your oven comes
with the following accessories:
NOTE: Defrosting Rack should only be used in
defrosting function and not used for cooking.
Do not use without food.
BEFORE INSTALLATION

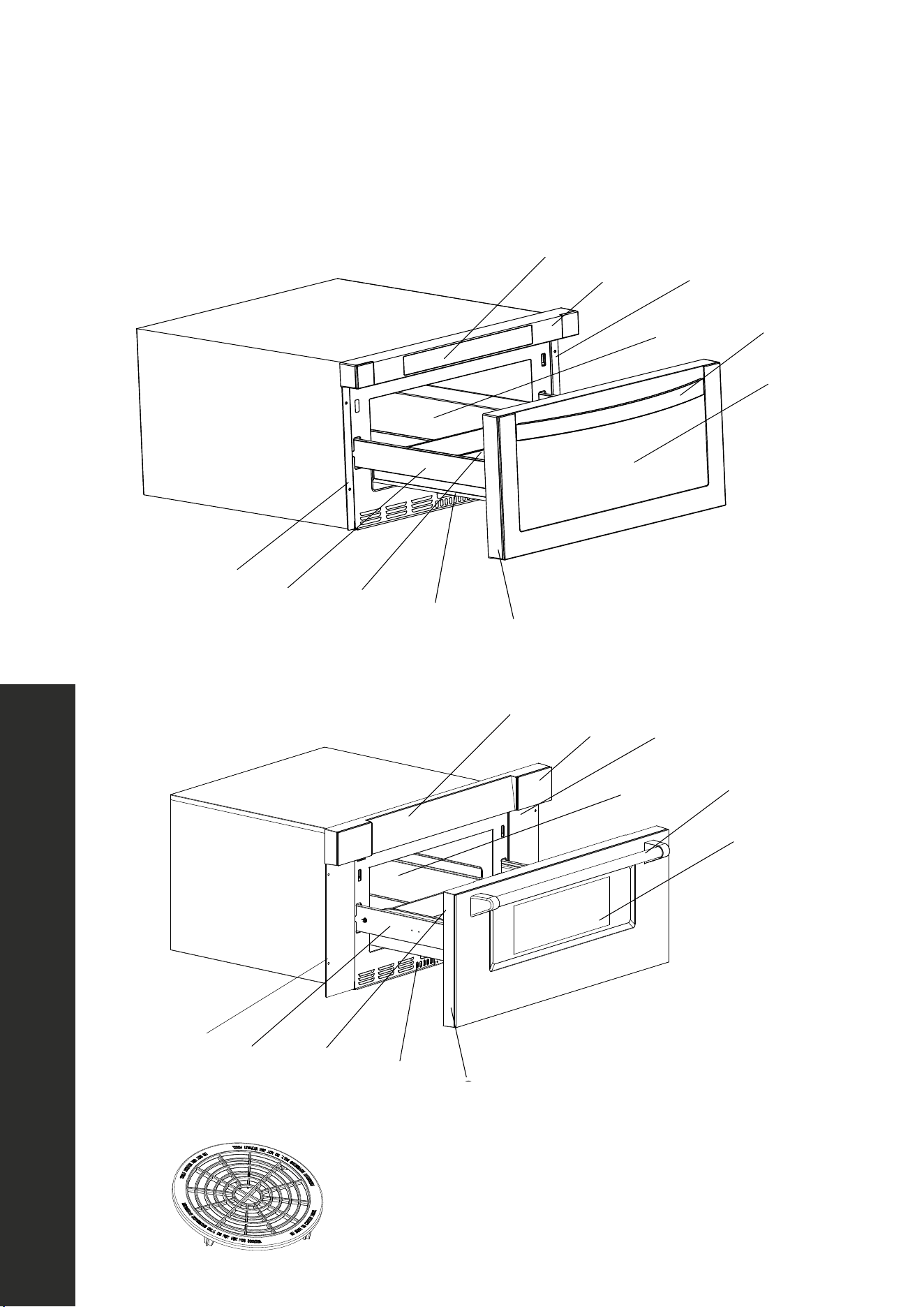

Product Specifications
Control box
Control box
Right
mounting
plate
Right
mounting
plate
Handle
Handle
Window
Window
Drawer front
Drawer front
Drawer
Drawer
Drawer
glide
Drawer
glide
Left
mounting
plate
Left
mounting
plate
Slide rail
Slide rail
Touch pad
Touch pad
Cavity
Cavity
24” Microwaves
30” Microwaves
6
BEFORE INSTALLATION
Product Specifications
24” 30”
Rated Voltage 120V, 60 Hz, 13A 120V, 60 Hz, 13A
Rated Input Power 1500W 1500W
Rated Output Power 1000W 1000W
Oven Capacity 1.2 Cu. Ft. 1.2 Cu. Ft.
External Dimensions 23 1/2”W x 14 7/8”H x 23 5/8”D 29 7/8”W x 15 15/16”H x 24 3/16”D
Internal Dimensions 16”W x 7”H x 16 D” 16”W x 7”H x 16 D”
Net Weight Approx 69.9 Lbs. Approx 76.2 Lbs.
The maximum weight of food placed in the microwave should not exceed 11 lbs
and the height should not exceed 5.7”

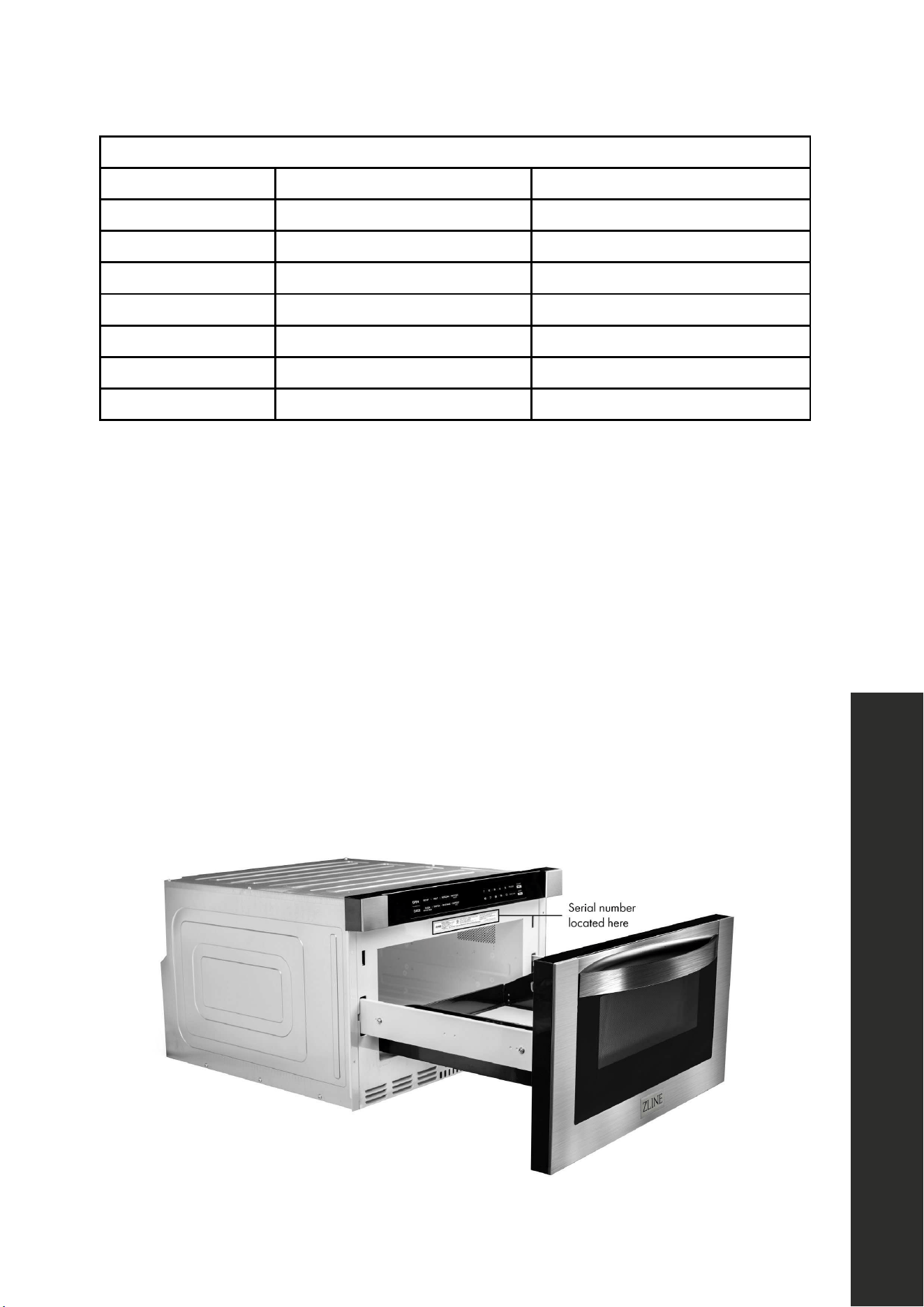

MODEL AND SERIAL NUMBER LOCATION
To locate the model and serial number, open the microwave drawer fully. The label can
be found beyond the back wall of the microwave cavity, facing up from the flat surface.
Product Specifications
7

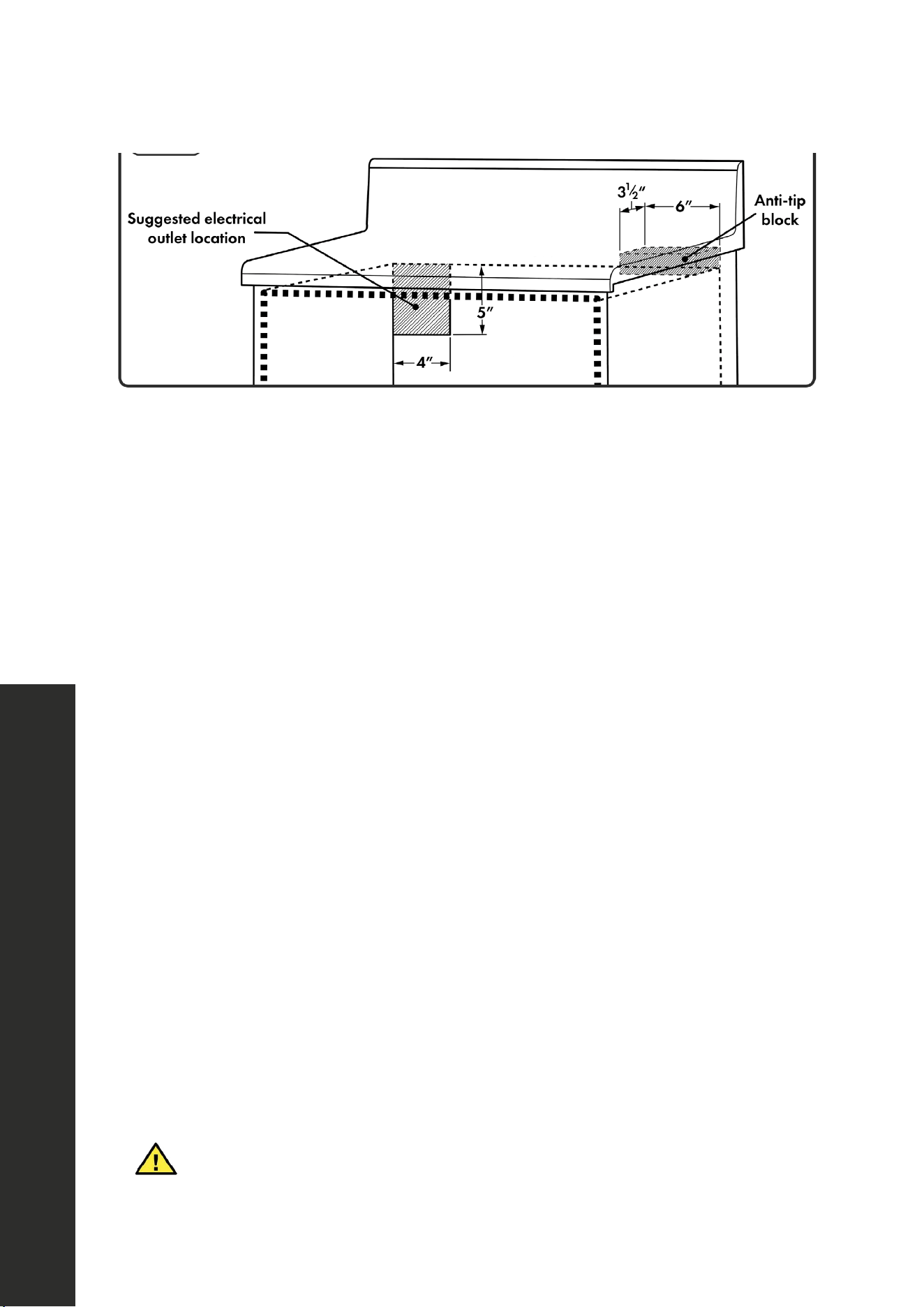

ELECTRICAL CONNECTION
• This appliance must be grounded. In the event of an electrical short circuit,
grounding reduces the risk of electric shock by providing an escape wire
for the electric current. This appliance is equipped with a cord having a
grounding wire with a grounding plug. The plug must be plugged into an
outlet that is properly installed and grounded.
• Improper use of the grounding can result in a risk of electric shock.
• Consult a qualified electrician or serviceman if the grounding instructions
are not completely understood, or if doubt exists as to whether the
appliance is properly grounded. If it is necessary to use an extension cord,
use only a 3-wire extension cord that has a 3-blade grounded plug, and
3-slot receptacle that will accept the plug on the appliance. The marked
rating of the extension cord shall be equal to or greater than the electrical
rating of the appliance.
• Touching some of the internal components can cause serious personal
injury or death. Do not disassemble this appliance. Improper use of the
grounding can result in electric shock. Do not plug into an outlet until
appliance is properly installed and grounded.
• A short power-supply cord is provided to reduce the risks resulting from
becoming entangled in or tripping over a longer cord.
• Longer cord sets or extension cords may be used if care is exercised in their
use. We do not recommend using one.
• If a long cord or extension cord is used:
• The marked electrical rating of the cord set or extension
cord should be at least as great as the electrical rating of the
appliance.
• The extension cord must be a ground-type-3-wire cord.
• The longer cord should be arranged so that it will not drape over
the counter top or tabletop where it can be pulled on by children
or tripped over unintentionally.
WARNING
BEFORE INSTALLATION
Electrical Connection
7
8

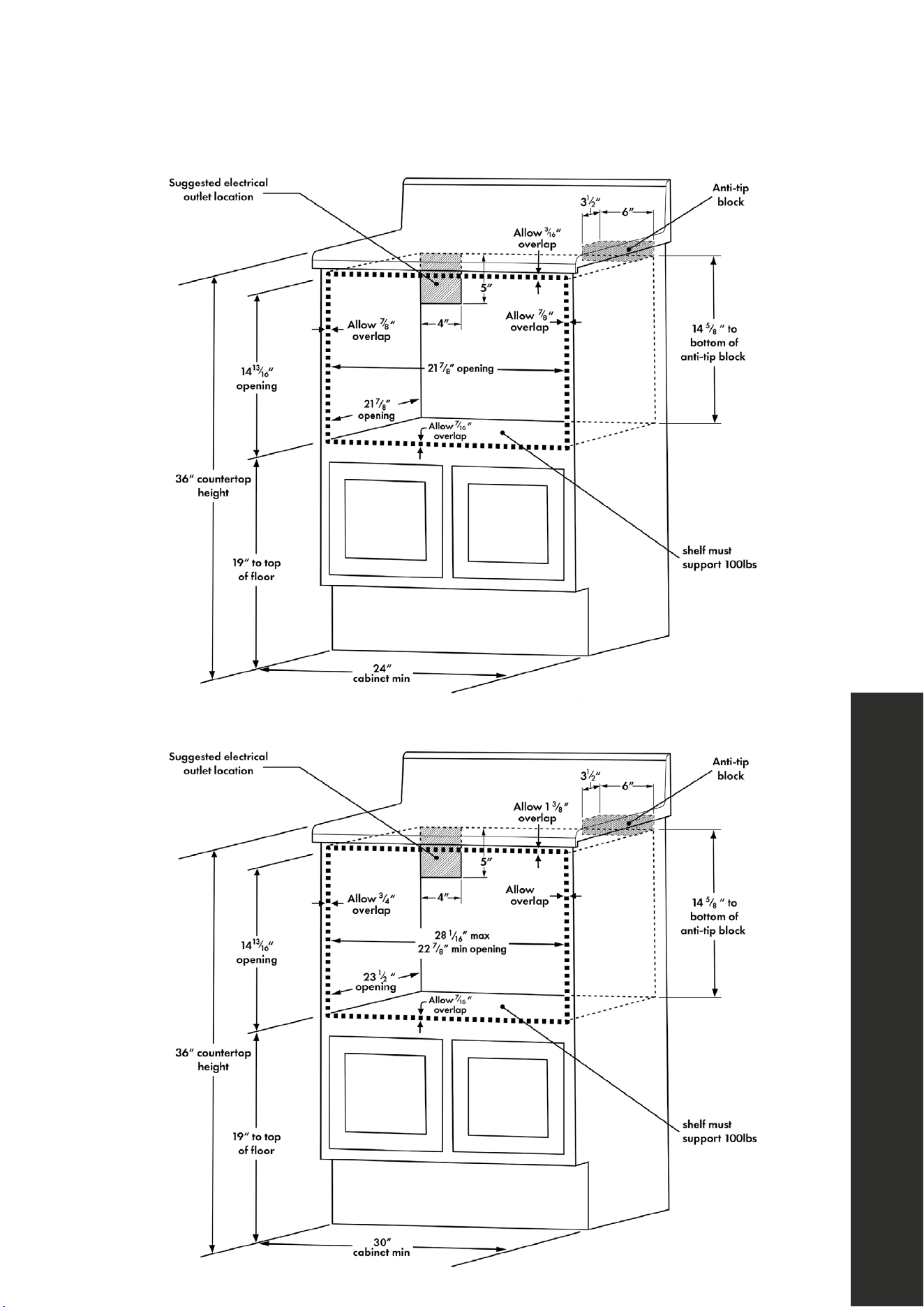

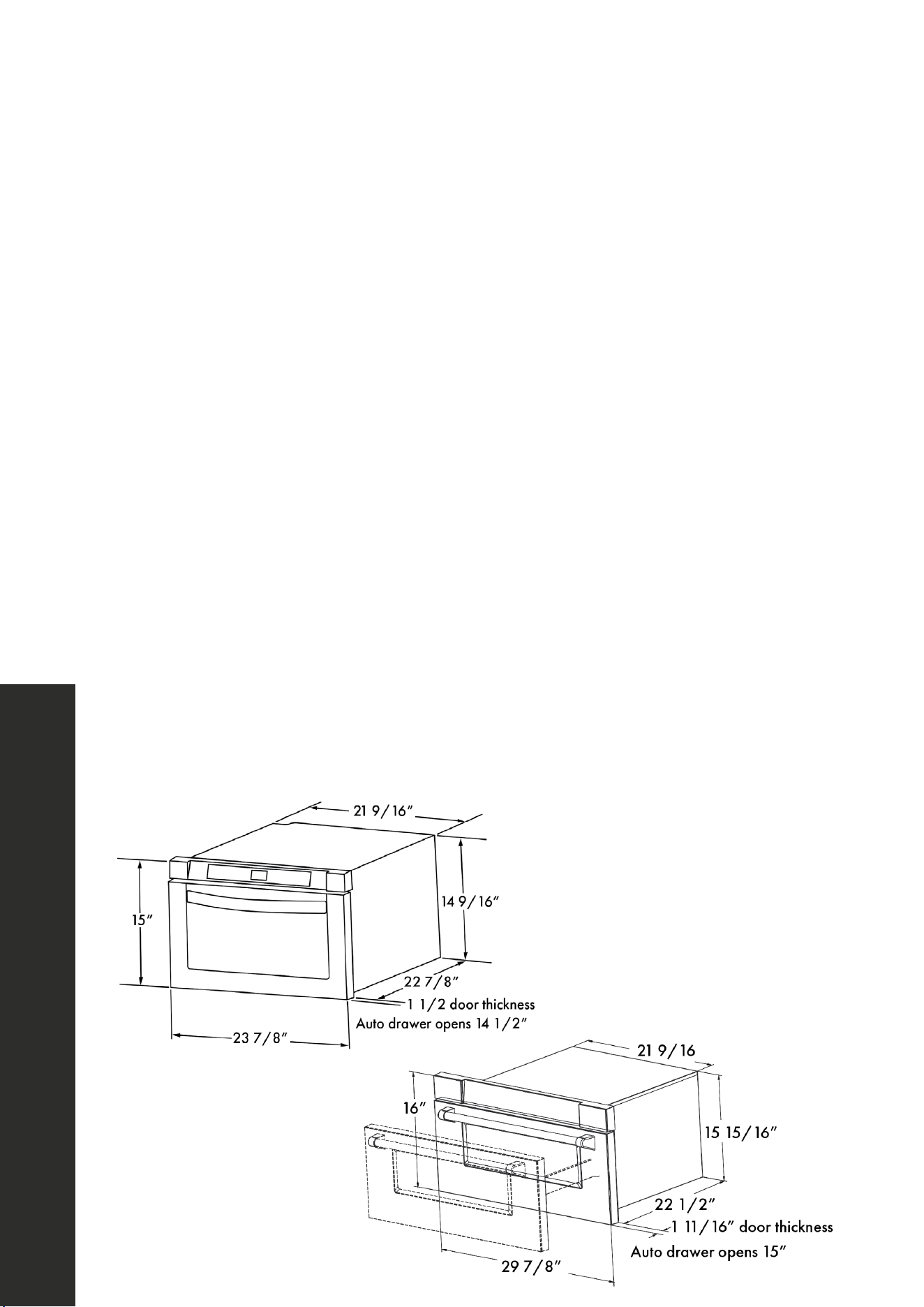

CLEARANCES AND DIMENSIONS NOTICE
For safety considerations, do not install drawer in any combustible cabinetry,
which is not in accordance with the stated clearances.
UNPACKING YOUR MICROWAVE DRAWER
Remove all packing materials from inside the microwave drawer. DO NOT
REMOVE THE WAVEGUIDE COVER, located on the top of the microwave
drawer. Remove the feature sticker, if there is one. Check the drawer for any
damage, such as misaligned or bent drawer, damaged drawer seals and
sealing surfaces, broken or loose drawer guides, and dents inside the cavity
or on the front side of the drawer. If there is any damage, do not operate the
microwave drawer and contact your dealer or ZLINE.
IMPORTANT NOTES TO THE INSTALLER
Read the entire installation portion of the manual before installing the
microwave drawer. Remove all packing materials before connecting the
electrical supply. Observe all governing codes and ordinances. Be sure to
leave these instructions with the consumer.
IMPORTANT NOTES TO THE CONSUMER
Keep this manual for the future reference. With use of any heat generating
microwave oven, there are certain safety precautions you should follow. These
are listed in the operation portion of the manual. Read all and follow carefully.
Be sure your microwave drawer is installed and grounded properly by a
qualified installer or service technician.
IMPORTANT SAFETY INSTRUCTIONS
Fire or electrical shock resulting in property damage, personal injury or death
may occur if the information in this manual is not followed exactly. To reduce
the risk of tipping, the microwave drawer must be secured with a properly
installed Anti-Tip block. This microwave drawer must be electrically grounded
in accordance with local codes. Make sure any wall coverings and/or
cabinets around the microwave drawer can withstand the heat generated by
the microwave drawer. Never leave the drawer open when the microwave is
unattended. Stepping, leaning, or sitting on the drawer may result in serious
injuries and may also cause damage to the microwave.
BEFORE INSTALLATION
WARNING
Installation Notices
8
9
INSTALLATION
INSTALLATION NOTICES
Dimensions that are shown in the figures must be used. Given dimensions provide
minimum clearance. Locate electrical outlet in the shaded area in the upper left-hand
corner of the cutout.
• Contact surface must be solid and level. Pay special attention to the floor on which
the Microwave Drawer will sit. The floor of the opening should be constructed of
plywood strong enough to support the weight of the oven (about 100 pounds).
• Check location where the Microwave Drawer will be installed for proper electrical
supply
• Your oven can be built into a cabinet or wall by itself or under a gas or electric
wall oven.
• Be sure that the clearance of the floor between the wall oven and the microwave
drawer is a minimum of 2”.
• This microwave drawer can be installed below any electric or gas wall oven.
• It can be installed using an electrical outlet in an adjacent cabinet within the area
where the provided electrical cord can reach.
• The power cord access hole inside the cabinet should have a minimum diameter of
1 1/2” and be free of all sharp edges. ALWAYS allow for sufficient power cord
length to the electrical outlet in order to prevent tension.
Installation Notices
24” Microwaves
30” Microwaves
9
10
INSTALLATION
Clearances
24” Microwaves
30” Microwaves
10
11
ELECTRICAL OUTLET AND ANTI-TIP BLOCK
To reduce the risk of tipping the drawer, the anti-tip block must be properly located
14 13/16” above the floor on which the microwave drawer will sit. The 6” anti-tip
block must be provided by the installer. The anti-tip block prevents serious injury that
might result from spilled hot liquids. If the microwave drawer is ever moved to a different
location, the anti-tip block must also be moved and installed. When secured to the wall,
make sure that the screws completely penetrate the dry wall and are secured in wood
or metal so that the block is totally stable. When fastening, be sure that the screws do
not penetrate electrical wiring or plumbing. The electrical requirements are 120 volt,
60 Hz, AC only, 13 amp. It is recommended that a separate circuit serving only this
appliance be provided. The drawer is equipped with a 3-prong grounding plug and
must be plugged into a wall receptacle that is properly installed and grounded. Should
you only have a 2-prong outlet, have a qualified electrician install a correct wall
receptacle.
NOTE: If you have any questions about the grounding or electrical instructions, consult
a qualified electrician or service person. The microwave drawer can also be installed
using an electrical outlet in an adjacent cabinet within the area where the provided
electrical cord can reach. ALWAYS check electrical cord can reach.
GROUNDING INSTRUCTIONS
This appliance must be grounded. The microwave drawer must be plugged into a wall
receptacle that is properly installed and grounded in accordance with the National
Electrical Code along with local codes and ordinances. In the event of an electrical
short circuit, grounding reduces risk of electrical shock by providing an escape wire for
the electrical current.
WARNING
WARNING: Improper use of the grounding plug can result in the risk
of electric shock. Do not use an extension cord. If the power supply
cord is too short, have a qualified electrician or serviceman install an
outlet near the appliance.
INSTALLATION
Electrical Outlet & Anti-Tip Block
12
Figure 5
installation instructions
INSTALLATION

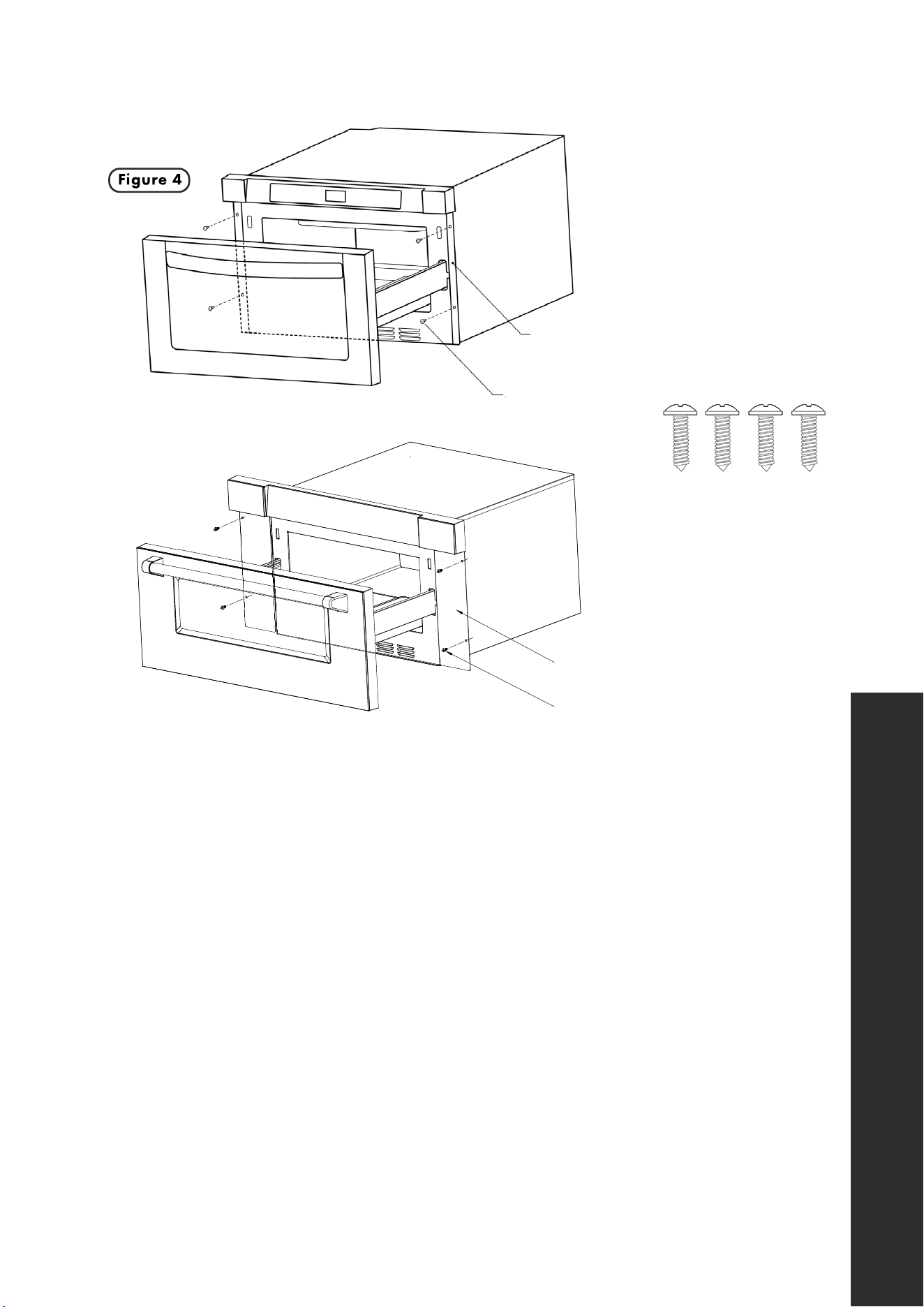

DRAWER INSTALLATION
1. Place the drawer adjacent to the wall or cabinet opening. Plug the power supply
cord into the electrical outlet.
2. Carefully guide the drawer into the prepared opening. Avoid pinching the cord
between the oven and wall.
3. Slide the drawer all the way until the mounting flange is flush with the face of the
cabinet.
4. Open the drawer. Using the four holes on the drawer as a template, pre-drill the
cabinet using a 1/16” bit.
5. Secure the drawer with the four screws supplied.
24” Microwaves
30” Microwaves
Drawer Installation
Mounting Screws
Mounting Flange
Mounting Flange
Mounting Screws
13
TRIM KIT INSTALLATION
• The trim kit is available for purchase as a separate accessory for the MWD-1 in
stainless only (TK-MWD). The trim kit is only available for the MWD-1.
• The trim kit is included with MWD-TK-30.
• Not available in black stainless.
TOOLS NEEDED:
• Air screwdriver
• Marker
TOOLS INCLUDED:
Support beam
Buckle seat
#1 Screw
Front bracket
Buckle
#2 Screw
Rear bracket
Trim kit
#3 Screw
Trim Kit Tools
INSTALLATION Trim Kit
14

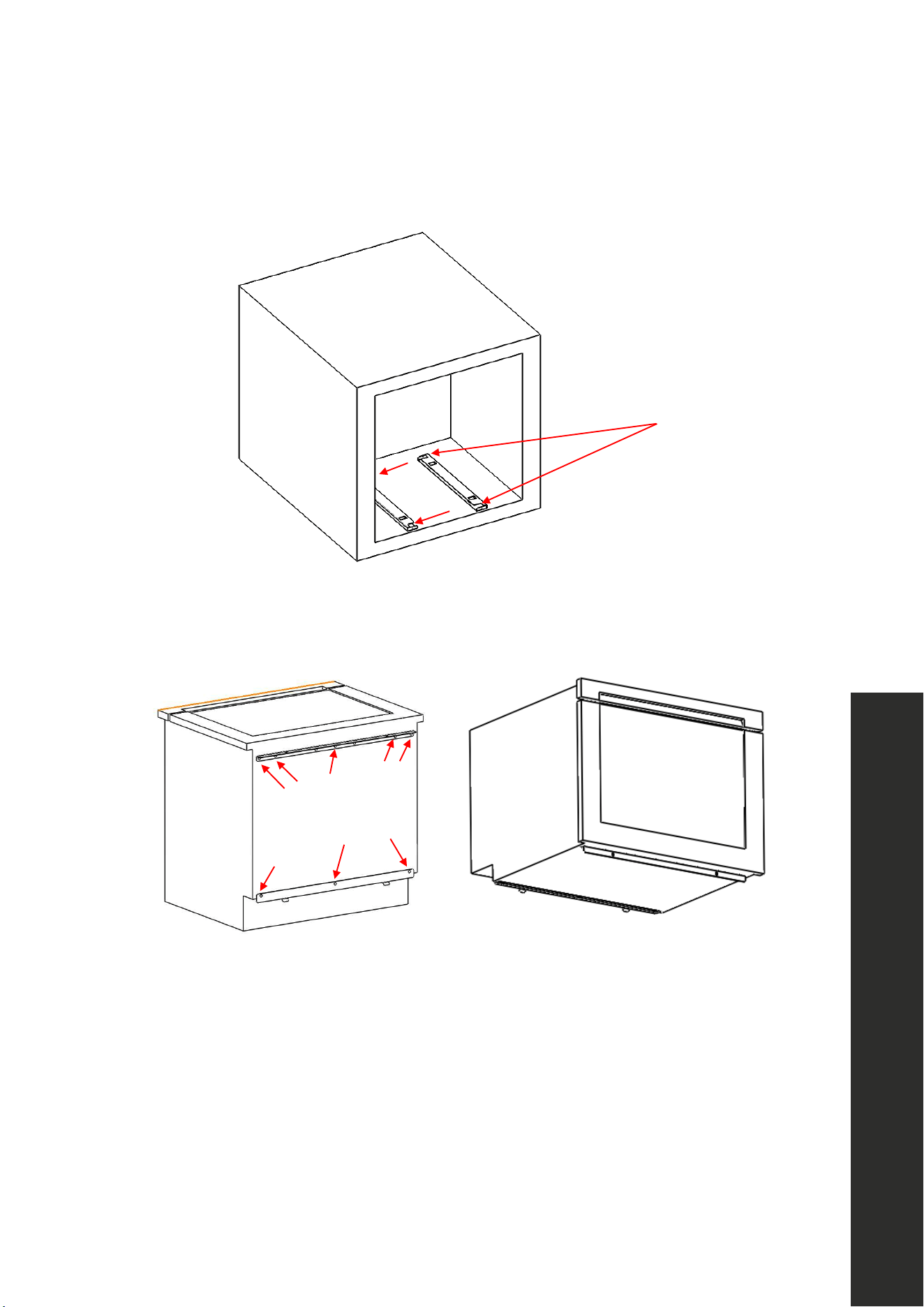

1. Install the support beams using the holes in the front bracket as a guide. Use the
#1 screw.
2.
②
三、 安装步骤
①
用记号笔根据前支架安装孔比对出支撑
横梁安装位置
② Use 1# Screw fi
xing suppor 使用长螺丝垂直安装
①
将微波炉原有螺丝
拆卸；将前支架、后支架安装上去
完成图
Remove the screws holding the microwave in place in order to install the front
bracket and rear bracket.
1
②
三、 安装步骤
①
用记号笔根据前支架安装孔比对出支撑
横梁安装位置
② 使用长螺丝垂直安装
①
将微波炉原有螺丝
拆卸；将前支架、后支架安装上去
omplet 完成图
②
三、 安装步骤
①
用记号笔根据前支架安装孔比对出支撑
横梁安装位置
② 使用长螺丝垂直安装
①
将微波炉原有螺丝
拆卸；将前支架、后支架安装上去
art 完成图
Trim Kit Installation
INSTALLATION Trim Kit
15

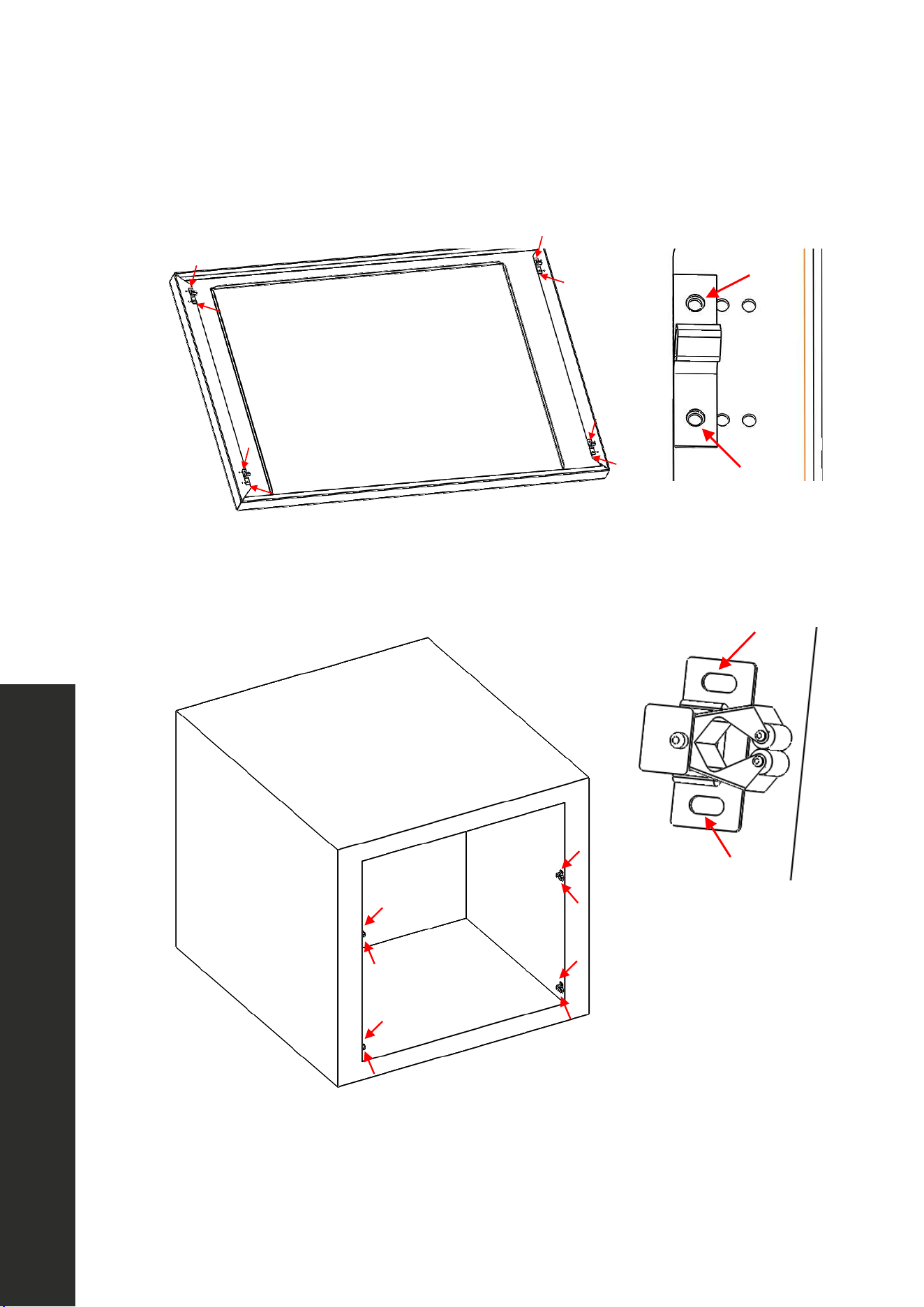

3. Use #2 screws to install the four buckles on the corresponding mounting holes
around the trim kit.
4. Line up the trim kit with the buckle seats.
Trim Kit Installation
① 将安装好卡扣的外观框放在橱柜上作出比对；用记号笔画上安
装位置
② 用 螺丝将卡座安装在对应安装位置上
①
使用 螺丝将四个卡扣安装在外观框四周对
应的安装孔上
① 将安装好卡扣的外观框放在橱柜上作出比对；用记号笔画上安
装位置
② 用 螺丝将卡座安装在对应安装位置上
①
使用 螺丝将四个卡扣安装在外观框四周对
应的安装孔上
① 将安装好卡扣的外观框放在橱柜上作出比对；用记号笔画上安
装位置
② 用 螺丝将卡座安装在对应安装位置上
①
使用 螺丝将四个卡扣安装在外观框四周对
应的安装孔上
ng
① 将安装好卡扣的外观框放在橱柜上作出比对；用记号笔画上安
装位置
② 用 螺丝将卡座安装在对应安装位置上
①
使用 螺丝将四个卡扣安装在外观框四周对
应的安装孔上
INSTALLATION Trim Kit
16

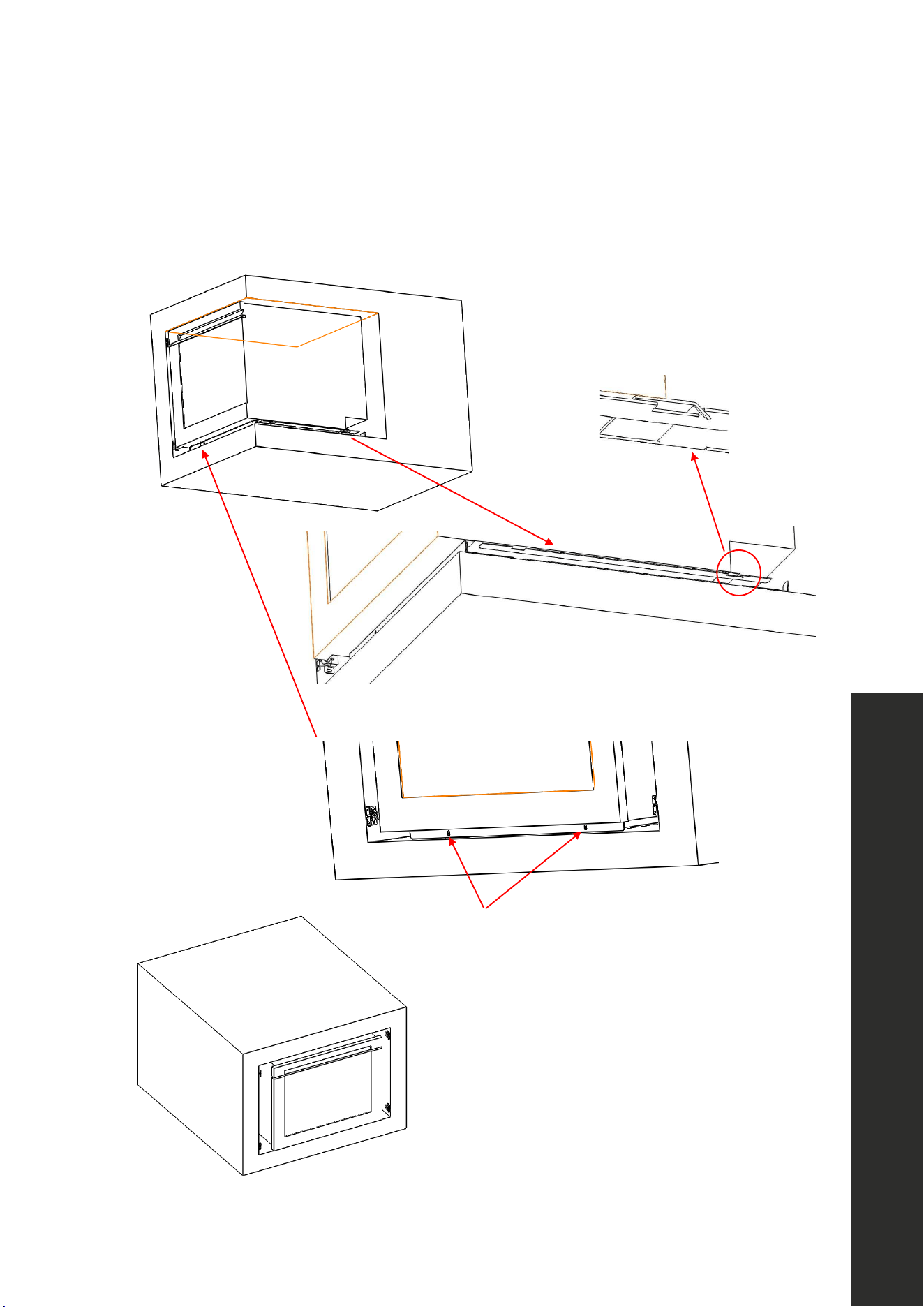

5. Push the microwave into the slot in the rear bracket by extending the support beam
(Figure 1).
6. Use screw #3 to fix the front bracket and support beam (Figure 2).
Trim Kit Installation
①
②
①
将预装好的微波炉顺延着支撑横梁推到后支架卡槽内为止（如图一）
② 再用 螺丝安装前支架与支撑横
梁对应孔位（如图二）
complete
Picture 1
Picture 2
Figure 1
Figure 2
2
1
INSTALLATION Trim Kit
17

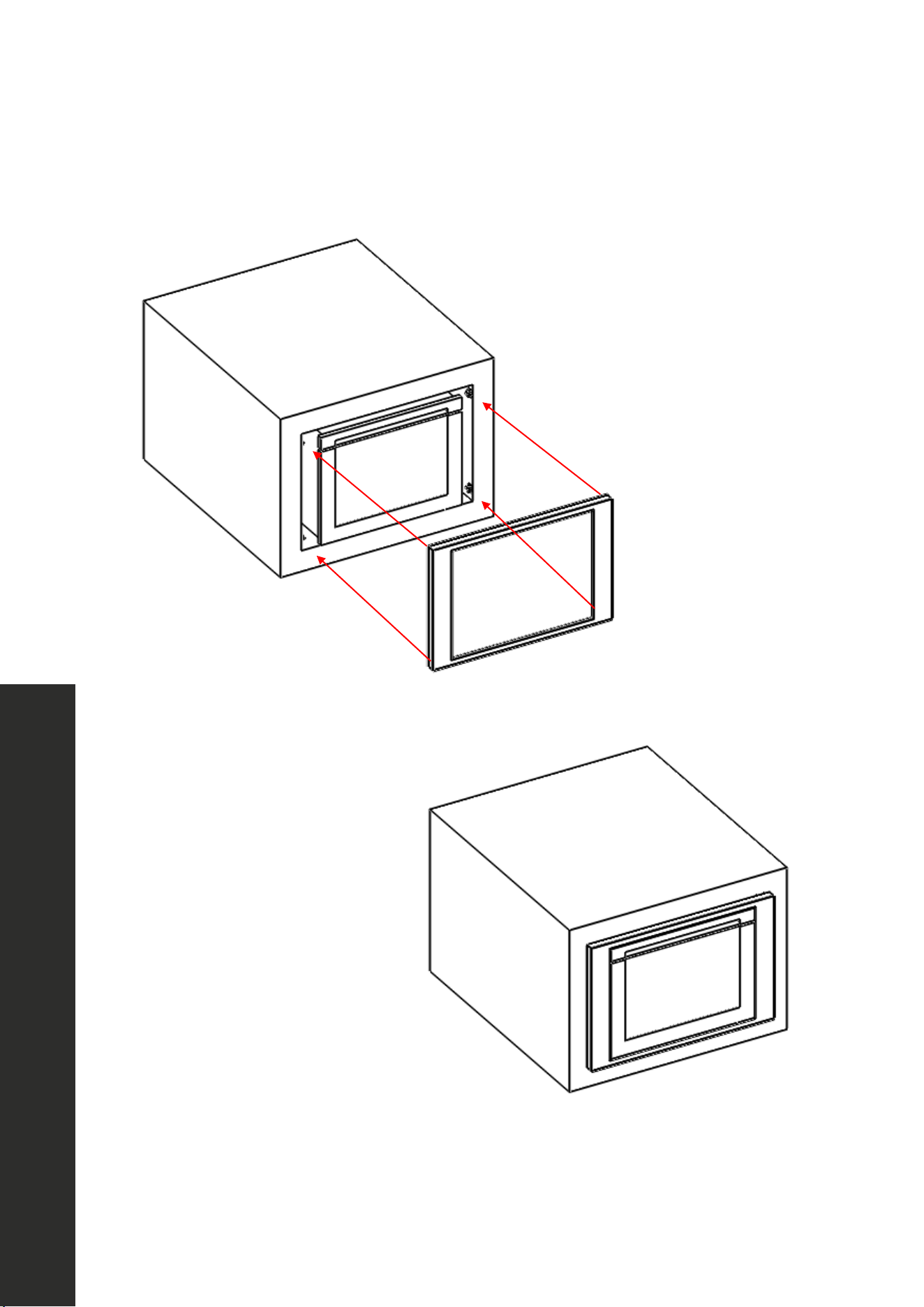

7. Insert the trim kit into the corresponding buckle seat.
① 将
预装好外观框卡进对应卡扣座里
Finish
Trim Kit Installation
INSTALLATION Trim Kit
18
INTERFERENCE
• Operation of the microwave oven may cause interference to your radio, TV,
or similar equipment.
• When there is interference, it may be reduced or eliminated by taking the
following measures:
• Clean door and sealing surface of the oven.
• Reorient the receiving antenna of radio or television.
• Relocate the microwave oven with respect to the receiver.
• Move the microwave oven away from the receiver.
• Plug the microwave oven into a different outlet so that microwave
oven and receiver are on different branch circuits.
CAUTION
UTENSILS
• Tightly-closed utensils could explode. Closed containers should be opened
and plastic pouches should be pierced before cooking.
• See the instructions on materials you can use in microwave oven or to be
avoided in microwave oven.
• There may be certain non-metallic utensils that are not safe to use for
microwaving. If in doubt, you can test the utensil in question by following the
procedure below:
• Fill a microwave-safe container with 1 cup of cold water, along
with the utensil in question.
• Cook on maximum power for 1 minute.
• Carefully feel the utensil. If the empty utensil is warm, do not use it
for microwave cooking.
• Do not exceed 1 minute cooking time.
OPERATION
Interference
19
Material Usage
Browning dish Follow manufacturer instructions.
Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do
not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most
glass jars are not heat resistant and may break.
Oven cooking bags Follow manufacturer instructions. Do not close with metal tie.
Make slits to allow steam to escape.
Paper plates and cups Use for short term cooking/warming only. Do not leave oven
unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with
supervision for a short-term cooking only.
Parchment and
wax paper
Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer* instructions.
Should be labeled “Microwave Safe”. Some plastic containers
soften, as the food inside gets hot. “Boiling bags” and tightly
closed plastic bags should be slit, pierced or vented as directed
by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to
retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers)
OPERATION
WARNING: Do not use aluminum, metal or metal trimmed utensils,
metal twist ties, paper bags, plastic foam, wood, stainless steel mugs,
or frozen meat.
WARNING
Material Usage
20

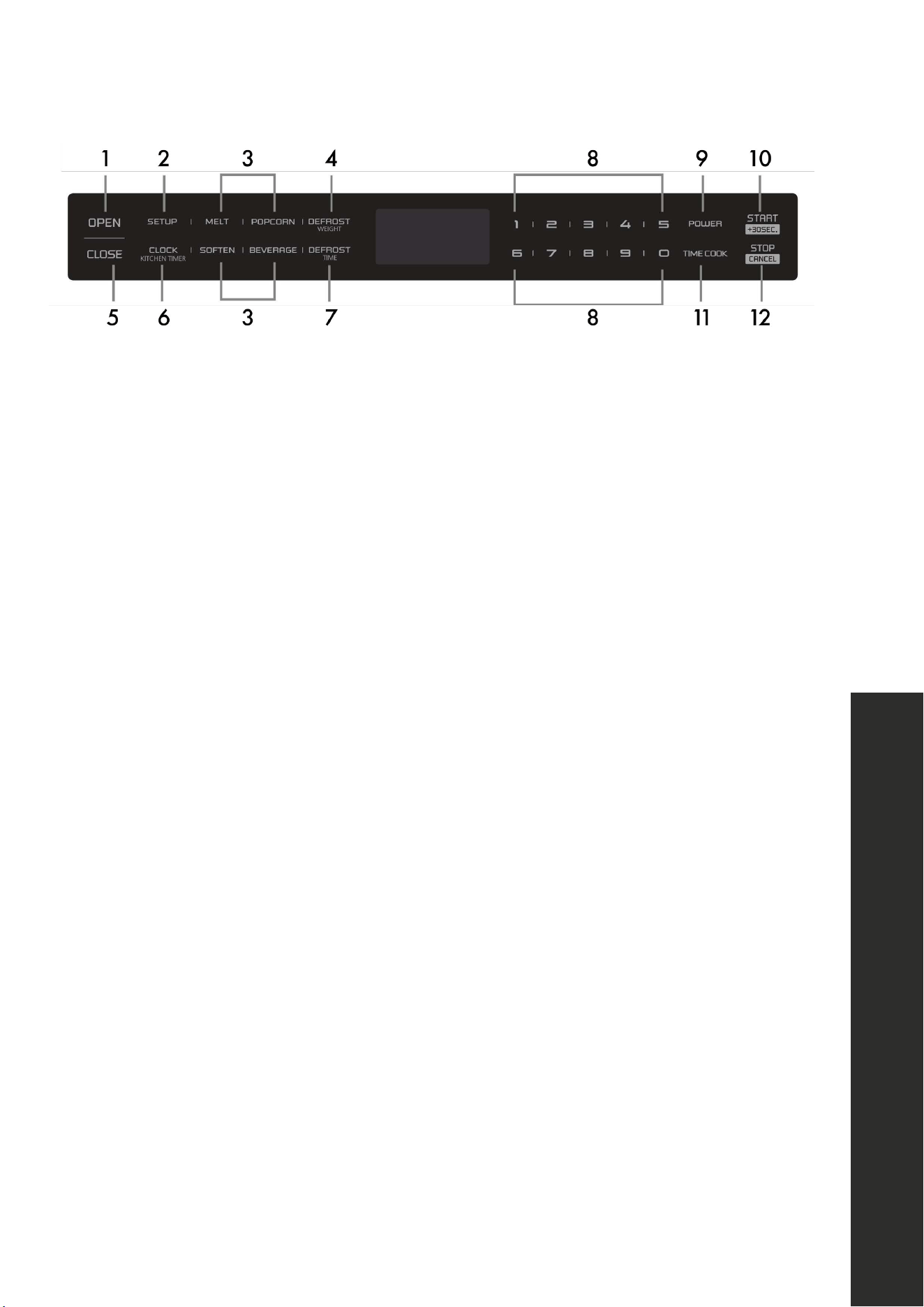

1. Open 2. Setup 3. Auto Menu 4. Defrost Weight 5. Close
6. Clock/Kitchen Timer 7. Defrost Time 8. Number Keys 9. Power
10. Start/+30sec. 11 . Time Cook 12 . Stop/Cancel
POWER ON
• When the microwave oven is plugged into an outlet, buzzer sounds once.
Screen displays “WELCOME”. Then the oven turns into waiting state. The
screen displays “00:00”.
• In waiting state, the screen will display the current time if the clock has been
set. Otherwise, “00:00” will display.
• Press “OPEN” button to open the drawer, and screen displays “OPEN”. The
screen will display “PLEASE CLOSE” when the drawer is fully opened.
• Press “CLOSE” button to close the drawer, and the screen displays “CLOSE”.
The screen will display the current time or “00:00” when the drawer is fully
closed. If there are mistakes to open or close the drawer, buzzer will sound
five times, and the screen will display “OPEN OR CLOSE”.
CLOCK SETTING
• Press “CLOCK/KITCHEN TIMER” button once. The first hour figure will flash
and other “0” will light.
• Press the number buttons to enter the correct time. The input should be between
01:00-12:59.
• Press “CLOCK/KITCHEN TIMER” to finish the setting. “:” will flash.
• Note: In the process of clock setting, if the “STOP/CANCEL” button is pressed
or if there is no operation within 1 minute, the oven will go back to former
setting automatically.
Controls
OPERATION 24” Microwaves
21
KITCHEN TIMER
• Press “CLOCK/KITCHEN TIMER” button twice, Screen will display 00:00.
“FUNCTION” will light.
• Press the number buttons to enter the time. The maximum cooking time is 99
minutes 99 seconds.
• Press “START/+30SEC.” to confirm the setting. . The time begins to count down.
• When the kitchen time arrives, buzzer will ring 5 times. The oven turns into
waiting state. Screen will display the current time if the clock has been set.
Otherwise, Screen will display “00:00”.
• The kitchen timer differs from a 12-hour system. Kitchen Timer is a timer. In the
process of Kitchen Timer operation, any cooking program cannot be operated.
“STOP/CANCEL” can be pressed to cancel the Kitchen Timer.
MICROWAVE COOKING FUNCTION
• 11 power levels are available
• Press “TIME COOK” button, Screen will display “00:00”. “FUNCTION” will
light. Press number buttons to input the cooking time. The maximum cooking time
is 99 minutes 99 seconds.
• Press “POWER” button to set the power. The default power level is “PL100”.
• Press number buttons to select different power levels.
• Press “START/+30SEC.” to start cooking. Buzzer sounds once. The cooking time
begins to count down. When cooking finished, buzzer sounds five times and
“FINISH” displays.
NOTE: In the process of setting, if the “STOP/CANCEL” button is pressed or if
there is no operation within 1 minute, the oven will go back to the former setting
automatically.
Level 10 9 8 7 6 5 4 3 2 1 0
Power 100% 90% 80% 70% 60% 50% 40% 30% 20% 10% 0%
Display PL100 PL90 PL80 PL70 PL60 PL50 PL40 PL30 PL20 PL10 PL00
Cooking Functions
OPERATION 24” Microwaves
22
MICROWAVE COOKING FUNCTION
• In waiting state, instant cooking at 100% power level with 30 seconds cooking
time can be started by pressing “START/+30SEC”. Each press on the same
button will increase cooking time by 30 seconds.
• During microwave and defrost by time, “START/+30SEC.” can be pressed to
increase cooking time. Each press will increase 30 seconds.
• Note: “START/+30SEC.” cannot be pressed to increase cooking time for defrost
by weight and Auto menu cooking.
WEIGHT DEFROST FUNCTION:
• Press “DEFROST WEIGHT” button. Screen displays “WEIGHT DEFROST”.
• And “FUNCTION” will light.
• Press number buttons to input the weight to be defrosted.
• The input weight should be between 0.1-6.0 lbs.
• Press “START/+30SEC.” to start defrosting. Buzzer sounds once. The defrosting
time begins to count down. When cooking finished, buzzer sounds five times and
“FINISH” displays.
TIME DEFROST FUNCTION
• Press “DEFROST TIME” button. Screen displays “TIME DEFROST”. And
“FUNCTION” will light.
• Press number buttons to enter the defrosting time between 00:01-99:99.
• Press “START/+30SEC.” to start defrosting. Buzzer sounds once. The defrosting
time begins to count down. When cooking finished, buzzer sounds five times and
“FINISH” displays.
• NOTE: The defrosting power level is PL30.
AUTO MENU: BEVERAGE
• Press “BEVERAGE” button. Screen displays “1”. “AUTO MENU” and “ “
indicators will light. Continue to press “BEVERAGE” button, “1” or “2” will
display in order.
• Press “START/+30SEC.” to start cooking. Buzzer sounds once. The cooking time
begins to count down. When cooking finished, buzzer sounds five times and
“FINISH” displays.
Cooking Functions
OPERATION 24” Microwaves
23
AUTO MENU: POPCORN
• Press “POPCORN” button. Screen displays “1.75”. “AUTO MENU” and “OZ”
indicators will light.
• Continue to press “POPCORN” button, “1.75”, “3” or “3.5” will display in
order.
• Press “START/+30SEC.” to start cooking. Buzzer sounds once. “OZ” will go out.
The cooking time begins to count down. When cooking finished, buzzer sounds
five times and “FINISH” displays.
AUTO MENU: MELT
• Press “MELT” button. Screen displays “BUTTER”. “AUTO MENU” indicator will
light.
• Continue to press “MELT” button, “BUTTER”, “CHOCOLA”, “CHEESE” or
“MARSHMA” will display in order.
• Press “START/+30SEC.” to confirm the selection.
• Press “MELT” button to select the weight. “OZ” will light except butter menu.
• Press “START/+30SEC.” to start cooking. Buzzer sounds once. “OZ” will go out.
The cooking time begins to count down. When cooking finished, buzzer sounds
five times and “FINISH” displays.
Menu Display Weight
Butter/Margarine BUTTER
1
2
3
Chocolate CHOCOLA
4
8
Cheese CHEESE
8
16
Marshmallows MARSHMA
5
10
Auto Menu
OPERATION 24” Microwaves
24
AUTO MENU: SOFTEN
Press “SOFTEN” button. Screen displays “BUTTER”. “AUTO MENU” indicator will
light.
• Continue to press “SOFTEN” button, “BUTTER”, “ICE-CRE”, or “CHEESE” will
display in order.
• Press “START/+30SEC.” to confirm the selection.
• Press “SOFTEN” button to select the weight. “OZ” will light except butter menu.
• Press “START/+30SEC.” to start cooking. Buzzer sounds once. “OZ” will go out.
The cooking time begins to count down. When cooking finished, buzzer sounds
five times and “FINISH” displays.
BUZZER ON/OFF (MUTE):
• Press “SETUP” button. Screen displays “BUZ OFF”.
• Press “START/+30SEC.” button. The oven will turn to waiting state. Buzzer is
turned off. No beep will sound.
• Press “SETUP” button. Screen displays “BUZ ON”.
• Press “START/+30SEC.” button. The oven will turn to waiting state. Buzzer is
turned on. Buzzer will sound normally.
Menu Display Weight
Butter BUTTER
1
2
3
Ice cream/Frozen juice ICE-CRE
8
16
32
Cream cheese CHEESE
3
8
Auto Menu
OPERATION 24” Microwaves
25
PANEL LOCK
• Lock: In waiting state, press “STOP/CANCEL” for 3 seconds, the oven will enter
into the panel lock state. Screen will display the current time if the clock has been
set. Otherwise, “00:00” will display.
• Lock release: In locked state, press “STOP/CANCEL” for 3 seconds to release
the lock.
INQUIRING FUNCTION
• In cooking state, press “CLOCK/KITCHEN TIMER ” button to check the clock.
The current time will display for 3 seconds.
• In the microwave cooking state, press “POWER” button to inquire the microwave
power. The current microwave power will display for 3 seconds.
OTHER SPECIFICATIONS
• The buzzer sounds once by efficient press, inefficient press will be no response.
• In cooking state, “OPEN” cannot be pressed to open the drawer unless “STOP/
CANCEL” button is pressed to pause the cooking. Press “CLOSE” button to close
the drawer. Then “START/+30SEC.” button must be pressed to continue cooking.
• If the cooking program has been set , “START/+30SEC.” is not pressed in 1
minute, The current time will be displayed. The setting will be canceled.
• If the oven door is open, the lamp will light until the oven is powered off.
Other Specifications
OPERATION 24” Microwaves
26

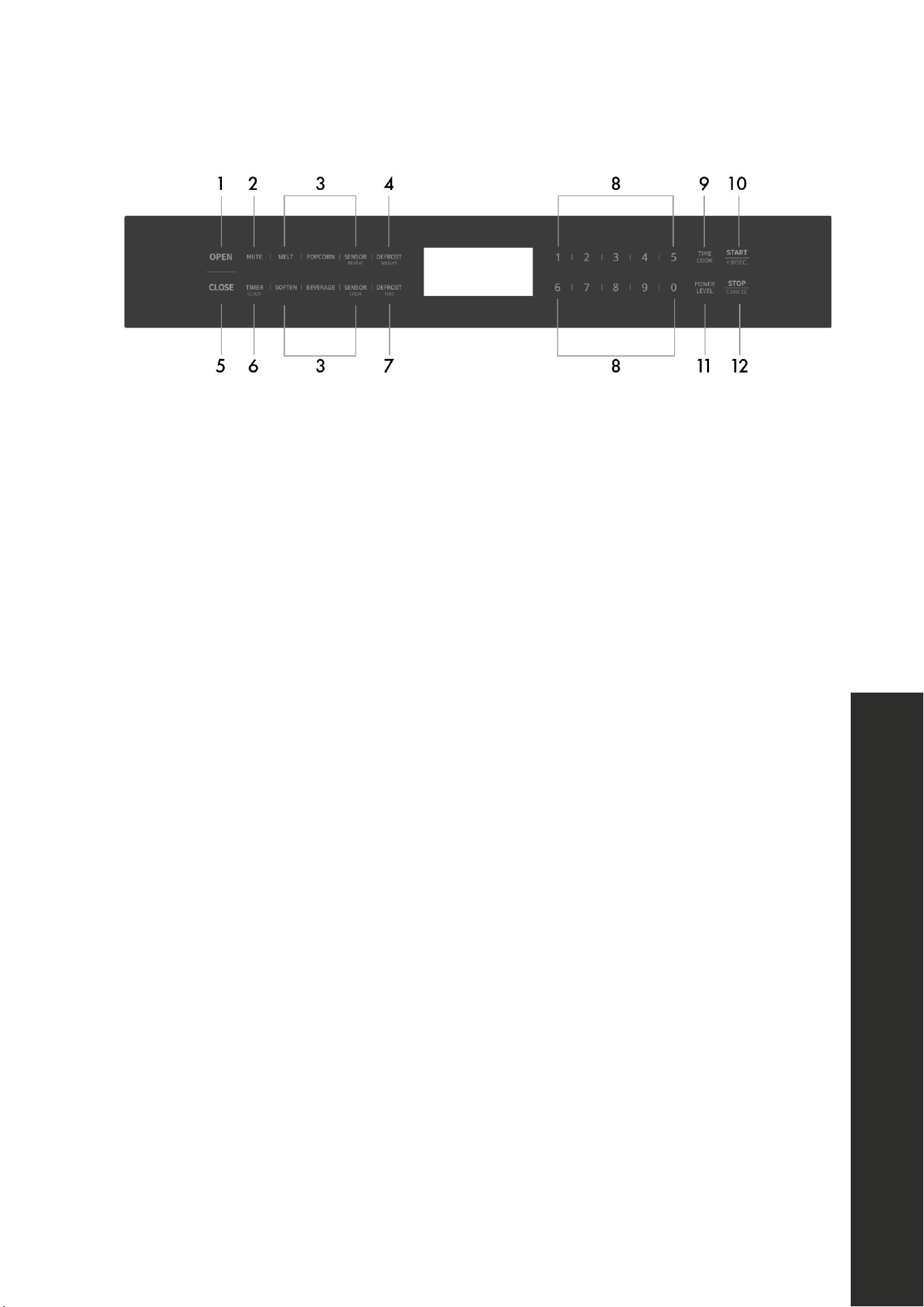

1. Open 2. Mute 3. Auto Menu 4. Defrost Weight 5. Close
6. Clock/Kitchen Timer 7. Defrost Time 8. Number Keys 9. Time Cook
10. Start/+30sec. 11 . Power Level 12 . Stop/Cancel
POWER ON
• When the microwave oven is plugged into an outlet, buzzer sounds once. Then
the oven turns into waiting state. The screen displays “00:00”.
• In waiting state, the screen will display the current time if the clock has been
set. Otherwise, “00:00” will display.
• Press “OPEN” button to open the drawer. The screen will display “PLEASE
CLOSE” when the drawer is fully opened.
• Press “CLOSE” button to close the drawer. The screen will display the current
time or “00:00” when the drawer is fully closed. If there are mistakes to open
or close the drawer, buzzer will sound five times, and the screen will display
“OPEN OR CLOSE”.
CLOCK SETTING
• Press “TIMER/CLOCK” button twice. “12:00” will flash.
• Press number keys to set the clock,it should be within 1:00~12:59.
• Press “START+30SEC.” or “TIMER/CLOCK” to finish the setting.
• Note: In the process of clock setting, if the “STOP/CANCEL” button is pressed
or if there is no operation within 1 minute, the oven will go back to former
setting automatically.
OPERATION 30” Microwaves
Controls
27
KITCHEN TIMER
• Press “TIMER/CLOCK” button once. “00:00” will display.
• Press number keys to set the clock,it should be within 00:01-99:99.
• Press “START+30SEC.” to start counting down .
• When the kitchen time arrives, buzzer will ring 4 times. The oven turns into
waiting state. Screen will display the current time if the clock has been set.
Otherwise, Screen will display “00:00”.
TIME COOK
• 10 power levels are available
• Press “TIME COOK” button, Screen will display “00:00”.
• Press number keys to set the cook time,it should be within 00:01-99:99.
COOK POWER
• Press “POWER LEVEL” once,and then to confirm and then press “POWER LEVEL”
• repeatedly or press number key to set the power level.
• Press “START+30SEC.” to start cooking.
• If no power level is set, the default power level is “PL10.
Level 10 9 8 7 6 5 4 3 2 1
Power 100% 90% 80% 70% 60% 50% 40% 30% 20% 10%
Display PL10 PL09 PL08 PL07 PL06 PL05 PL04 PL03 PL02 PL01
ADD 30 SEC
• In waiting state, instant cooking at 100% power level with 30 seconds’ cooking
time can be started by pressing “START/+30SEC”. Each press on the same
button will increase cooking time by 30 seconds.
• During microwave and defrost time, “START/+30SEC.” can be pressed to
increase cooking time. Each press will increase 30 seconds.
OPERATION 30” Microwaves
Cooking Functions
28
OPERATION 30” Microwaves
WEIGHT DEFROST FUNCTION:
• Press “DEFROST WEIGHT” button. Screen displays the defrost icon. And “0.0
lbs” will light.
• Press number buttons to input the weight to be defrosted. The input weight should
be between 0.1-6.0 lbs.
• Press “START/+30SEC.” to start defrosting. Buzzer sounds once.
NOTE: The buzzer will sound twice to remind you of turning over the food during
defrosting
TIME DEFROST FUNCTION
• Press “DEFROST TIME” button. Screen displays defrost icon and “00:00” will
light.
• Press number buttons to enter the defrosting time between 00:01-99:99.
• Press “START/+30SEC.” to start defrosting.
NOTE: The defrosting power level is PL03. It cannot be changed. The buzzer will
sound twice to remind you of turning over the food during defrosting.
POPCORN
• Press “POPCORN” to start cooking directly.
SENSOR REHEAT
• In waiting state, press “Sensor Reheat” once,”Sr-1” will display.
• Press “Sensor Reheat” repeatedly or press “1-4” to choose the menu.
• Press “START+30SEC.” to start cooking.
Cooking Functions
29
SENSOR COOK
• In waiting state, press “Sensor Cook” once,”Sc-1” will display.
• Press “Sensor Cook” repeatedly or press “1-7” to choose the menu.
• Press “START+30SEC.” to start cooking.
BEVERAGE
• In waiting state, press “Beverage” once,”1”,”01:30” will display.
• Press “Beverage” repeatedly or press “1”or “2” to choose the menu.
• Press “START+30SEC.” to start cooking.
MELT
• In waiting state, press “MELT” once,”1 buTT” will display.
• Press “MELT” repeatedly to choose the menu.
• Press “1”or “2” to choose the correspond weight.
• Press “START+30SEC.” to start cooking.
Potato Sc-1
Chicken Sc-2
Fish Sc-3
Ground meat Sc-4
Fresh veggies Sc-5
Frozen veggies Sc-6
Canned veggies Sc-7
Menu Display Weight
Butter/Margarine
1 buTT 1 (stick)
2 buTT 2 (stick)
3 buTT 3 (stick)
Chocolate
4 oz Choc 4 oz
8 oz Choc 8 oz
Cheese
8 oz CHEE 8 oz
16 oz CHEE 16 oz
OPERATION 30” Microwaves
Cooking Functions
30
SOFTEN
• In waiting state, press “SOFTEN” once,”1 buTT” will display.
• Press “SOFTEN” repeatedly to choose the menu.
• Press “1”or “2” to choose the correspond weight.
• Press “START+30SEC.” to start cooking.
MULTIPLE COOK
• In waiting state, press “DEFROST WEIGHT” once,”0.0 lbs” will display.
• Press number buttons to input the weight to be defrosted. The input weight should
be between 0.1-6.0 lbs.
• Press “TIME COOK” button once. “00:00” will display.
• Press number keys to set the cook time,it should be within 00:01-99:99.
• Press “POWER LEVEL” once,and then to confirm and then press “POWER LEVEL”
repeatedly or press number key to set the power level.
• Press “START+30SEC.” to start cooking.
NOTE: The defrost function only could be one stage of the multiple cook. Two stage
cook can be set at most.
BUZZER ON/OFF
To enter silent mode
• Press “MUTE” button. Screen displays silent icon.
To cancel silent mode
• In silent mode, press “MUTE” button. The buzzer will sound twice.
Menu Display Weight
Butter/Margarine
1 buTT 1 (stick)
2 buTT 2 (stick)
3 buTT 3 (stick)
Ice cream/
Frozen juice
8 oz ICE 8 oz
16 oz ICE 16 oz
32 oz ICE 32 oz
Cream cheese
3 oz CHEE 3 oz
8 oz CHEE 8 oz
OPERATION 30” Microwaves
Cooking Functions
31
LOCK FUNCTION FOR CHILDREN
• Lock: In waiting state, press “STOP/CANCEL” for 3 seconds, then oven will enter
into the children-lock state. Screen will display “Loc.”
• Unlock: In locked state, press “STOP/CANCEL” for 3 seconds to release the
lock. Screen will display “UnLo.”
ECO MODE
To enter eco mode:
• When the oven door is closed, in waiting state, if there is not any operations in 1
minute
• When in eco-mode, the stand-by power will be 0.9W.
To cancel eco mode:
• In eco mode, open the door or press any key to cancel it
INQUIRING FUNCTION
• In cooking state, press “TIMER/CLOCK” button to check the clock. The current
time will display for 3 seconds at most.
OPERATION 30” Microwaves
Cooking Functions
32
Fault Possible Cause Troubleshooting
Oven won’t start.
Electrical cord is unplugged. Plug into the outlet.
Door is open. Close the door and retry.
Wrong operation is set. Check instructions
Arcing or sparking.
Materials to be avoided in
the microwave oven were
used.
Use microwave-safe cookware
only.
The oven is operated when
empty.
Do not operate with oven
empty.
Spilled food is in the cavity. Clean cavity with wet towel.
Certain foods high in iron
can cause a spark.
Example: Broccoli, potatoes,
butter, etc.
Improper defrosting
Materials to be avoided in
microwave oven were used.
Use microwave-safe
cookware only.
Cooking time, power level is
not suitable.
Use correct cooking time,
power level.
Food is not turned or stirred. Turn or stir food.
ZLINE Customer Service is available at 1-614-777-5004.
TROUBLESHOOTING
Troubleshooting
33
TROUBLESHOOTING
Troubleshooting
Fault Possible Cause Troubleshooting
Unevenly cooked food.
Materials to be avoided in
microwave oven were used.
Use microwave-safe cookware
only.
Food is not defrosted
completely.
Completely defrost food.
Cooking time and/or power
level is not suitable.
Use correct cooking time and/
or power level.
Food is not turned or stirred. Turn or stir food.
Overcooked food.
Cooking time and/or power
level is not suitable.
Use correct cooking time and/
or power level.
Undercooked food.
Materials to be avoided in
microwave were used.
Use microwave-safe cookware
only.
Oven ventilation ports are
restricted.
Check to see that oven
ventilation ports are not
restricted.
Cooking time and/or power
level is not suitable.
Use correct cooking time and/
or power level.
Food is not turned or stirred. Turn or stir food.
Need to purchase a part or accessory for your ZLINE product?
Visit ZLINEparts.com, ZLINE's official parts distribution partner.
