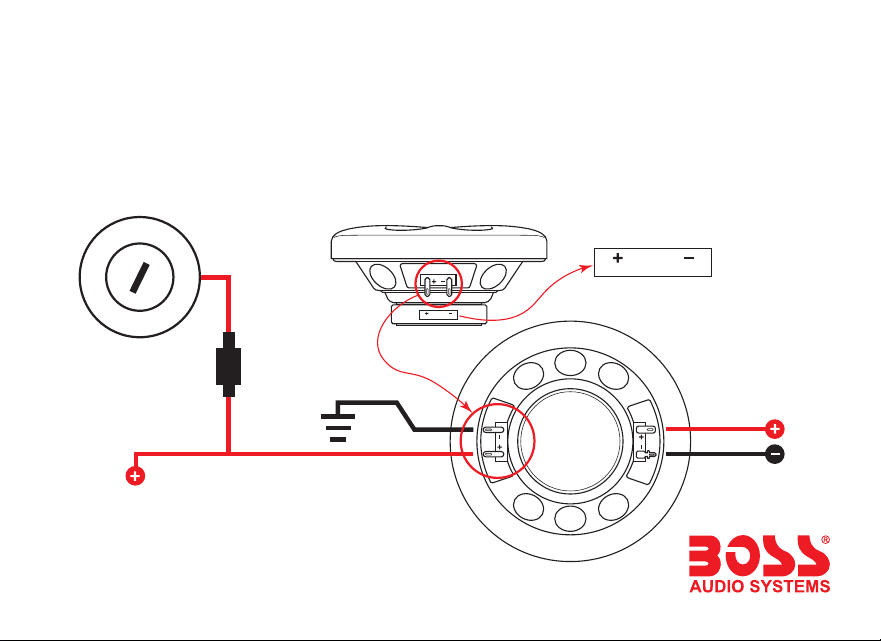

LED CONNECTION OPTION A (Accessory Mode)
LED Power is connected to an accessory circuit, the LED’s will power on when ACC is turned
on. (i.e. Vehicle)
As with any powered accessory, an in-line fuse is always recommended (3A)
Diagram is representation only, each vehicle will differ. Consult a professional installer.
TO OTHER
LED SPEAKER (12 V)
IGNITION
SWITCH
TO RADIO/AMP
NOTE TERMINAL LABELS
3A FUSE
(not included)
GROUND
O
F
F
A
C
C
O
N
S
T
A
R
T
LIGHTS SWITCH
+12 V (when switched on)
GROUND
DC12V
LED POWER
DC12V
LED POWER

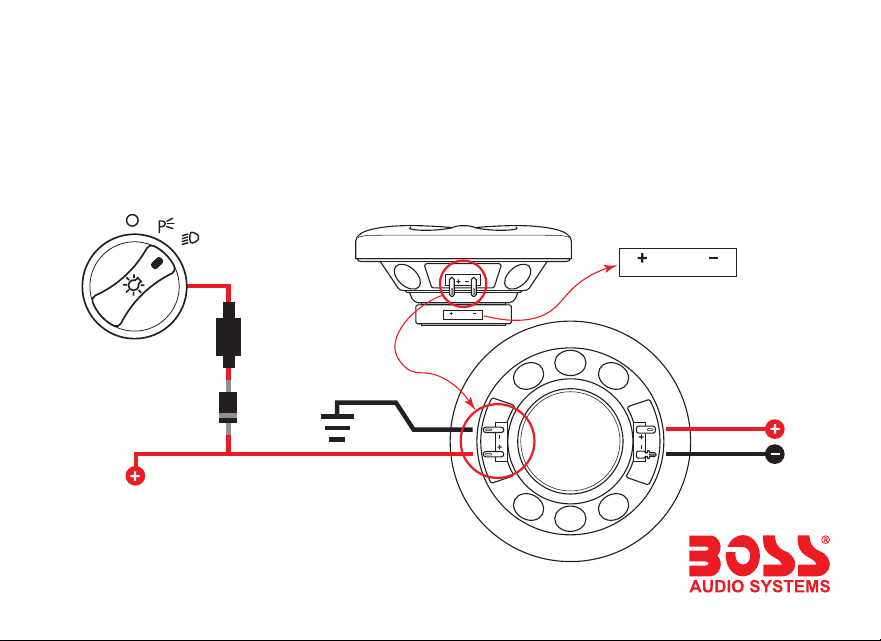

LED CONNECTION OPTION B (Light Mode)
LED Power is connected to an illumination circuit, the LED’s will power on when circuit is
turned on. (i.e. Lights)
As with any powered accessory, an in-line fuse is always recommended (3A)
A diode is recommended to prevent any feedback to the circuit providing power.
Diagram is representation only, each vehicle will differ. Consult a professional installer.
TO OTHER
LED SPEAKER (12 V)
TO RADIO/AMP
NOTE TERMINAL LABELS
3A FUSE
(not included)
DIODE (1N4001)
(not included)
