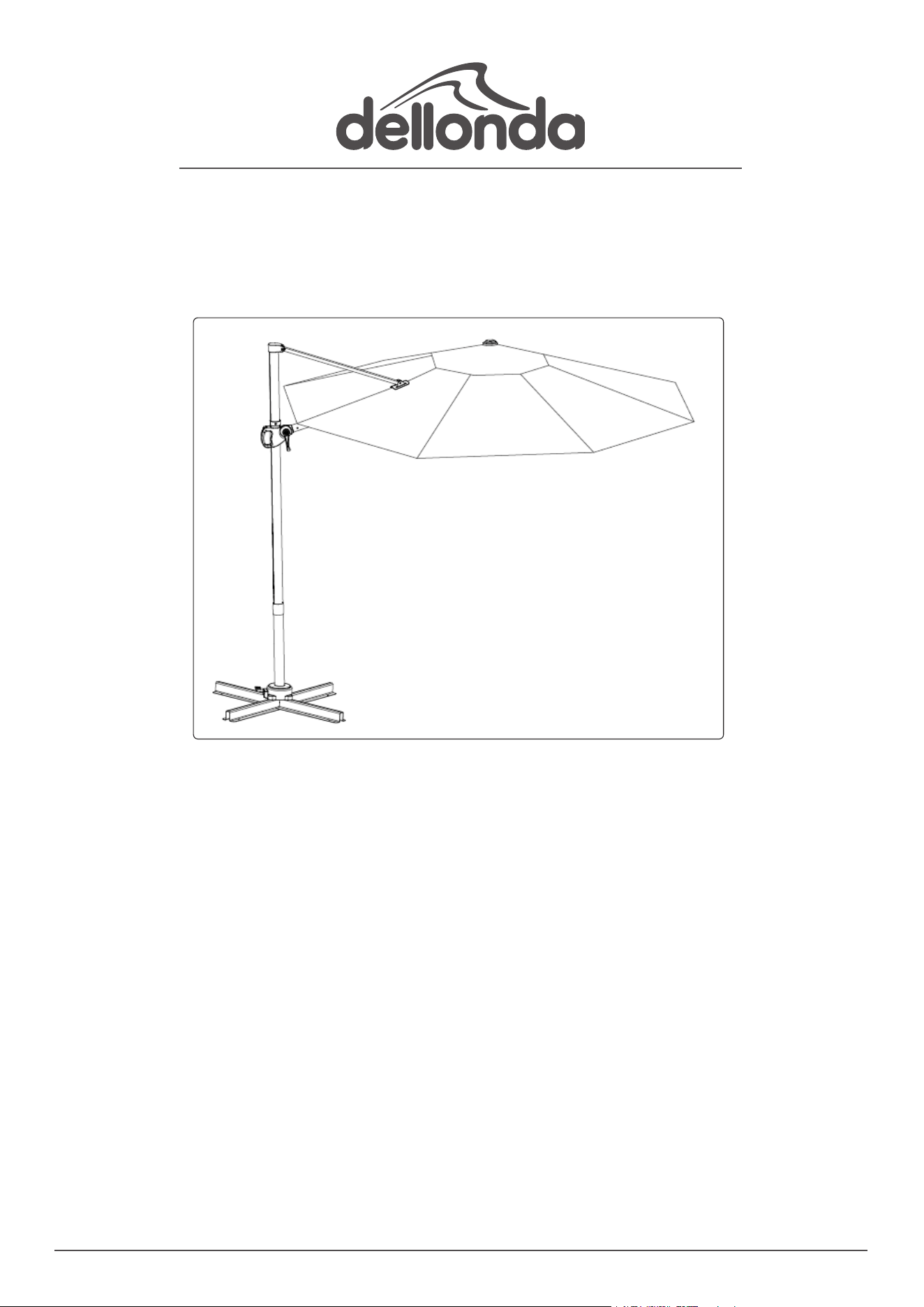

Ø3m Cantilever Parasol with 360° Rotation,
Tilt and Cover
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Refer to
instruction
manual
Specication
Model No’s: DG267 / DG268
Canopy Width: Ø3m
Material: Canopy: DG267 - 220g/m² / DG268 - 180g/m² polyester, Pole: Aluminium
Pole Diameter: Ø58mm
Type: Cantilever Parasol
About the Product
Ø3m Diameter provides full shade for all garden, patio and other outdoor settings. Crank handle makes operation of this cantilever parasol
seamless and effortless. Parasol pole has a diameter of 58mm and is manufactured from durable aluminium . Canopy is supported by 8 strong
steel ribs ensuring stability and shape at all times. Parasol base is available separately under Dellonda Model No. DG269.
Safety Instructions
• GENERAL SAFETY
• WARNING! The warnings, cautions and instructions in this manual cannot cover all possible conditions and situations that may occur. It must be
understood by the operator that common sense and caution are factors which cannot be built into this product, but must be applied by the end
user.
Offset patio umbrellas are designed to provide protection from the sun NOT the wind.
• NEVER open or operate this umbrella in wind conditions greater than 5mph (8kph).
• NEVER use the tilt function in any wind (even a light breeze).
• NEVER use excessive force on the crank handle to open or close the umbrella.
• ALWAYS close and secure the umbrella when not in use or during any strong wind event, especially gusting wind and rain.
• ALWAYS close the umbrella when unattended or not in use. If you are not sitting under it, the umbrella should be closed.
• Base weights are required (additional purchase) to secure this umbrella. NEVER open or operate the umbrella without rst placing base
weights in each open section of the cross base. It is important to use a correctly weighted base; more weight is always better than less weight.
• This model requires a MINIMUM base weight of 192lb (88kg).
FAILURE TO CAREFULLY OBSERVE THESE SAFETY WARNINGS CAN RESULT IN CATASTROPHIC DAMAGE TO YOUR UMBRELLA, POTENTIAL
PERSONAL INJURY AND OR PROPERTY DAMAGE.
• IMPORTANT INFORMATION
If the umbrella is showing ANY signs of stress, or IF the umbrella begins to move around excessively even when properly weighted it indicates
the wind is too strong and the umbrella must be closed and secured immediately.

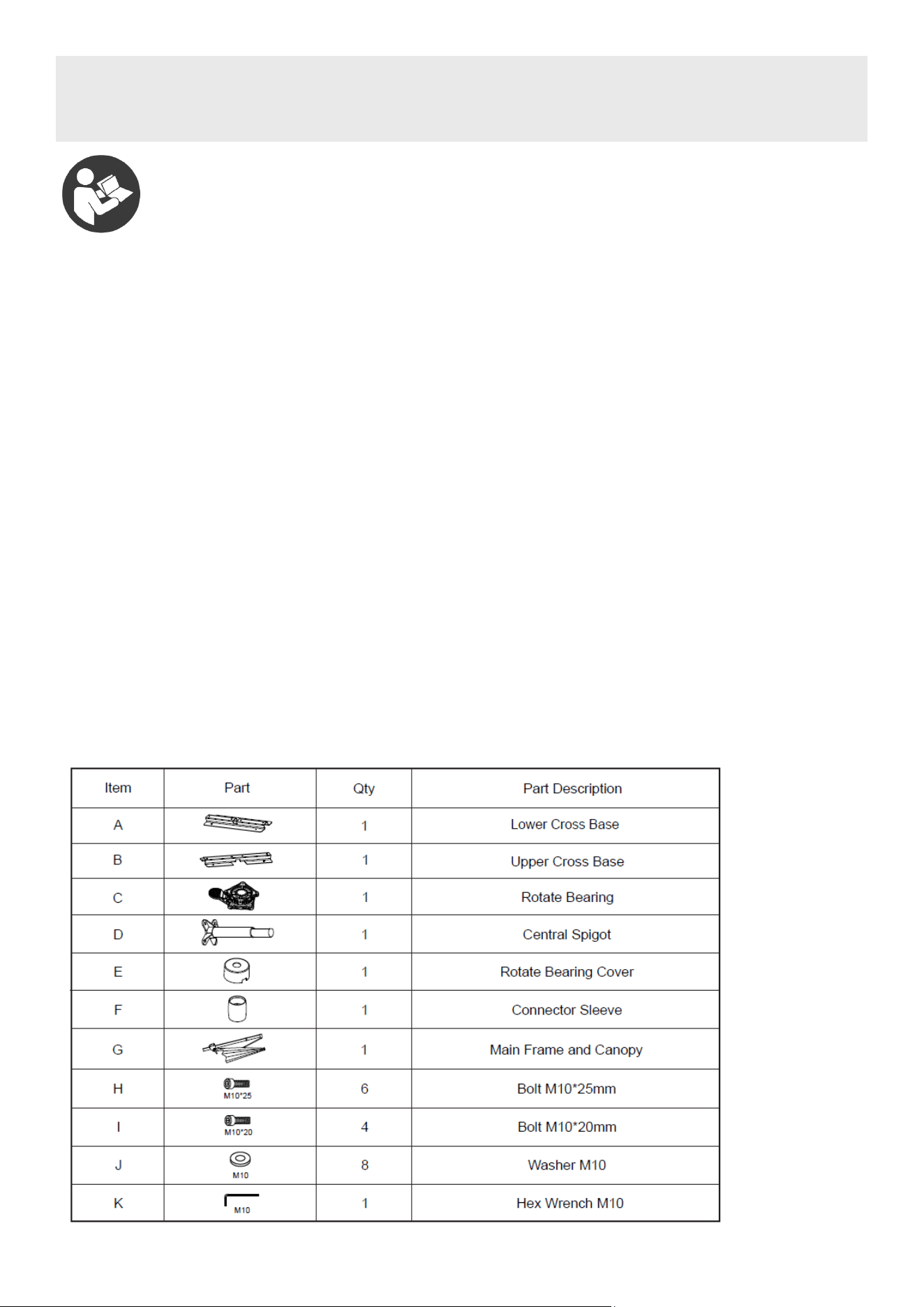

Contents
NOTE:
Also includes: Item L
Part: Not shown
Qty: 1
Part Description:
Parasol cover
Preparation
• Check you have all the listed parts before you start assembly.
• Assemble on a soft surface such as a drop sheet or rug to avoid scratching.
• In the event of missing or damaged parts, contact Dellonda.
Assembly

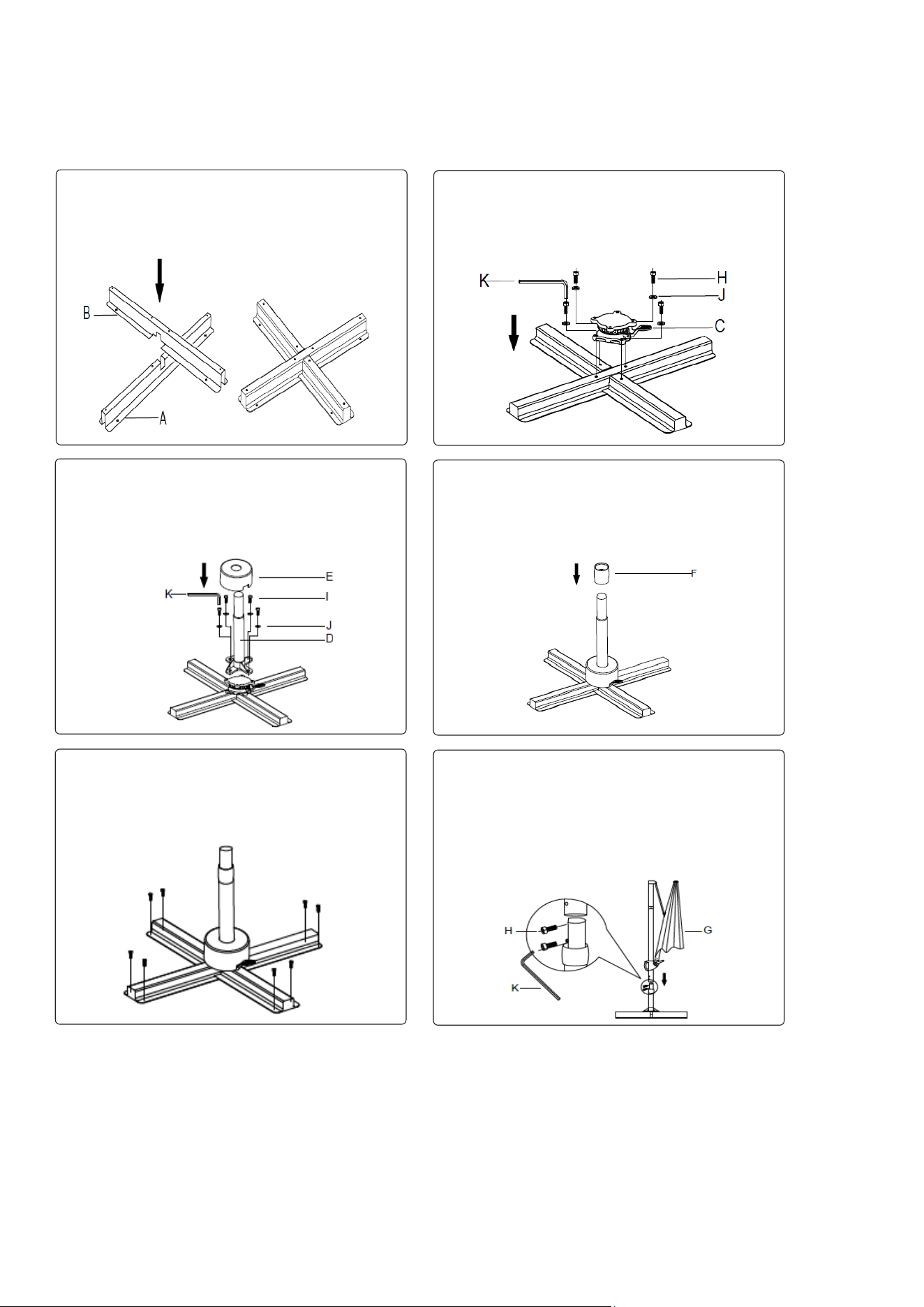

Step 1
Place the upper cross base (B) over the lower
cross base (A).
Step 2
Using the M10 hex wrench to x the rotate bearing to the
assembled cross base with 25mm M10 hex bolts and M10
washers. Tighten rmly.
Step 3
Using the M10 hex wrench x the central spigot to
the rotate bearing with 20mm M10 hex bolts and M10
washers. Tighten rmly. Place the plastic rotate bearing
cover over the rotate bearing.
Step 4
Attach the connector sleeve to the central spigot.
Step 5
Place the assembled cross base in your preferred location
Step 6
Attach the main frame and canopy to the central spigot and
x using 25mm M10 hex bolts. Tighten rmly using the M10
hex wrench.
NOTE: The central spigot is designed with a reverse angle
to ensure the canopy sits level once assembled. It is very
important to correctly locate the crank winder directly above
the tension screws as shown.

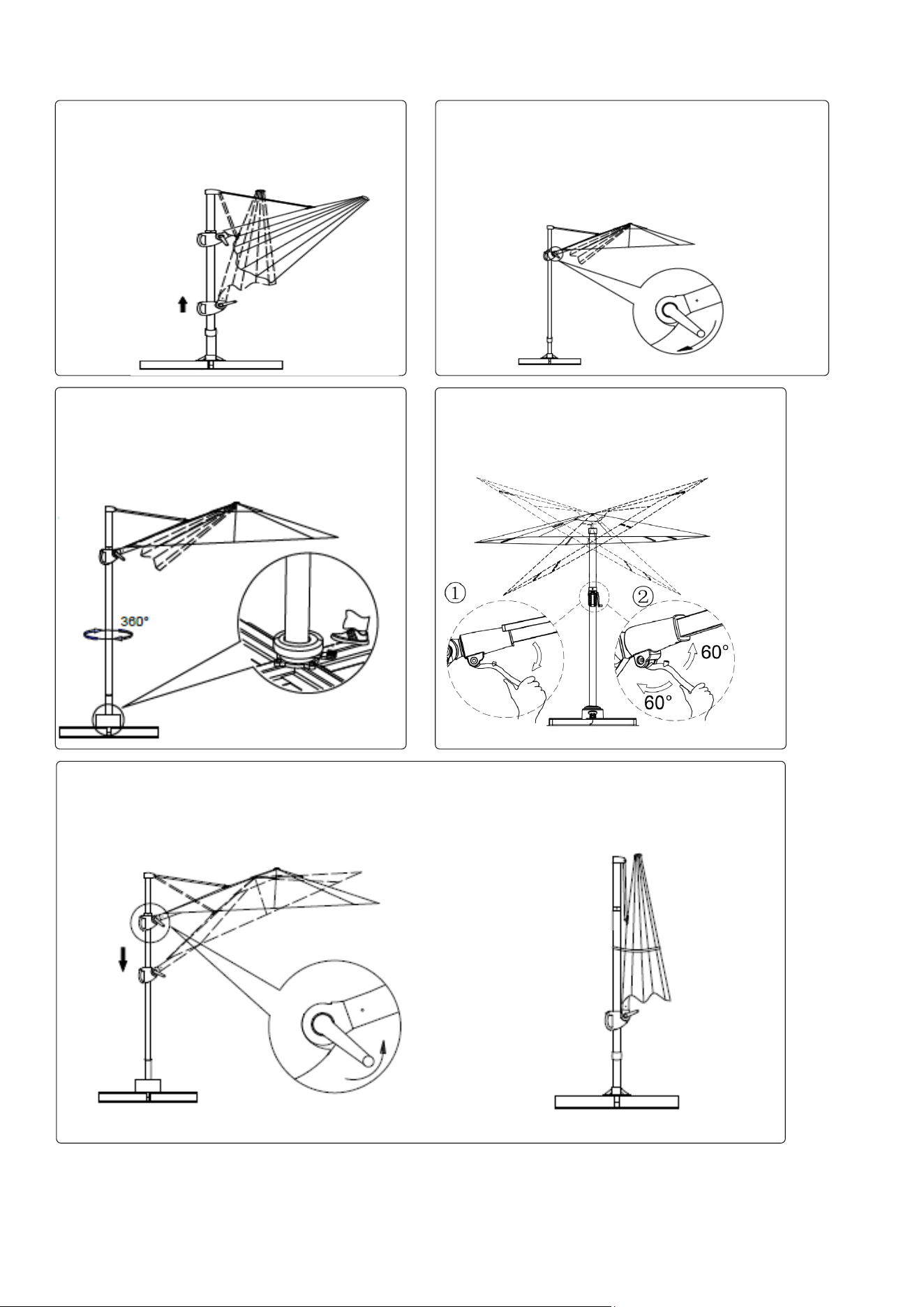

Operation
Step 1
Squeeze the trigger to unlock then slide the handle
upwards until it is fully extended and stops.
Step 2
To open the umbrella canopy turn the crank handle gently in a
clockwise direction. Once the umbrella is fully open you can tilt the
canopy angle by squeezing the trigger and releasing the button to set
the canopy in the desired position. The tilt option should only be used
on days with NO WIND, use of the tilt function even in a light breeze
may damage the umbrella and is not recommended.
Step 3
The umbrella can be rotated 360 degrees by pressing down
the locking mechanism (as shown). To x the umbrella at a
desired position, simply release the foot lock.
NOTE: Periodically, you must use a lubricant on the rotate
bearing to prevent the loss of function of the locking
mechanism.
Step 4
To tilt the parasol, release the crank lever above the crank
handle, tilt the parasol as desired and return lever to original
position to secure.
Step 5
To close the umbrella, rst bring the canopy back to a horizontal position, then gently turn the crank handle in counter-
clockwise direction until the canopy is fully closed. Squeeze the trigger to unlock then slide the handle downwards until it is
fully closed and stops. Secure the canopy to the pole using suitable strapping.
