THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
NP10509
Folding Adirondack Chair
USER’S MANUAL
02
NOTICE
TOOLS REQUIRED
Do not over-tighten screws. (Insert all screws before tightening
screws.)
• Please do not exceed the weight limitations of this item.
• Do not stand on or use any part of this item as a step ladder.
• Firmly secure all bolts, screws and nuts before use.
• Reconfirm that all bolts, screws, and nuts are secure every 90
days.
• Do not use or store this item in the proximity of open flame or
flammable/combustible chemicals.
• Be aware that some parts are heavy and have sharp edges.

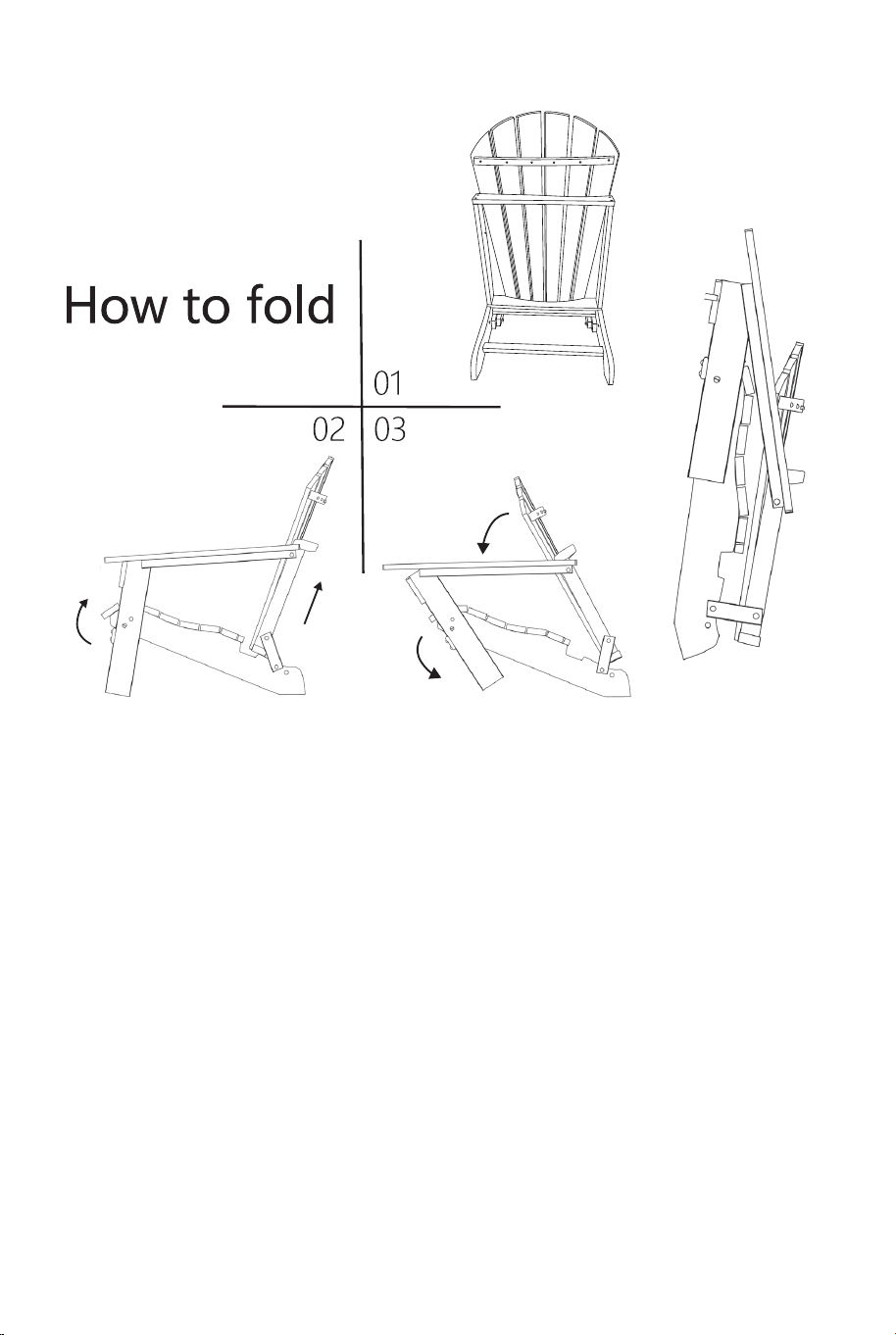

• Be very careful when folding the chair to avoid smashing your
hands or fingers.
ALLEN WRENCH
(PROVIDED)
WRENCH
(PROVIDED)
LBS
CHAIR
330 LBS
CAPACITY
1 PERSON
ASSEMBLY
UP TO
30 MIN.
ASSEMBLY

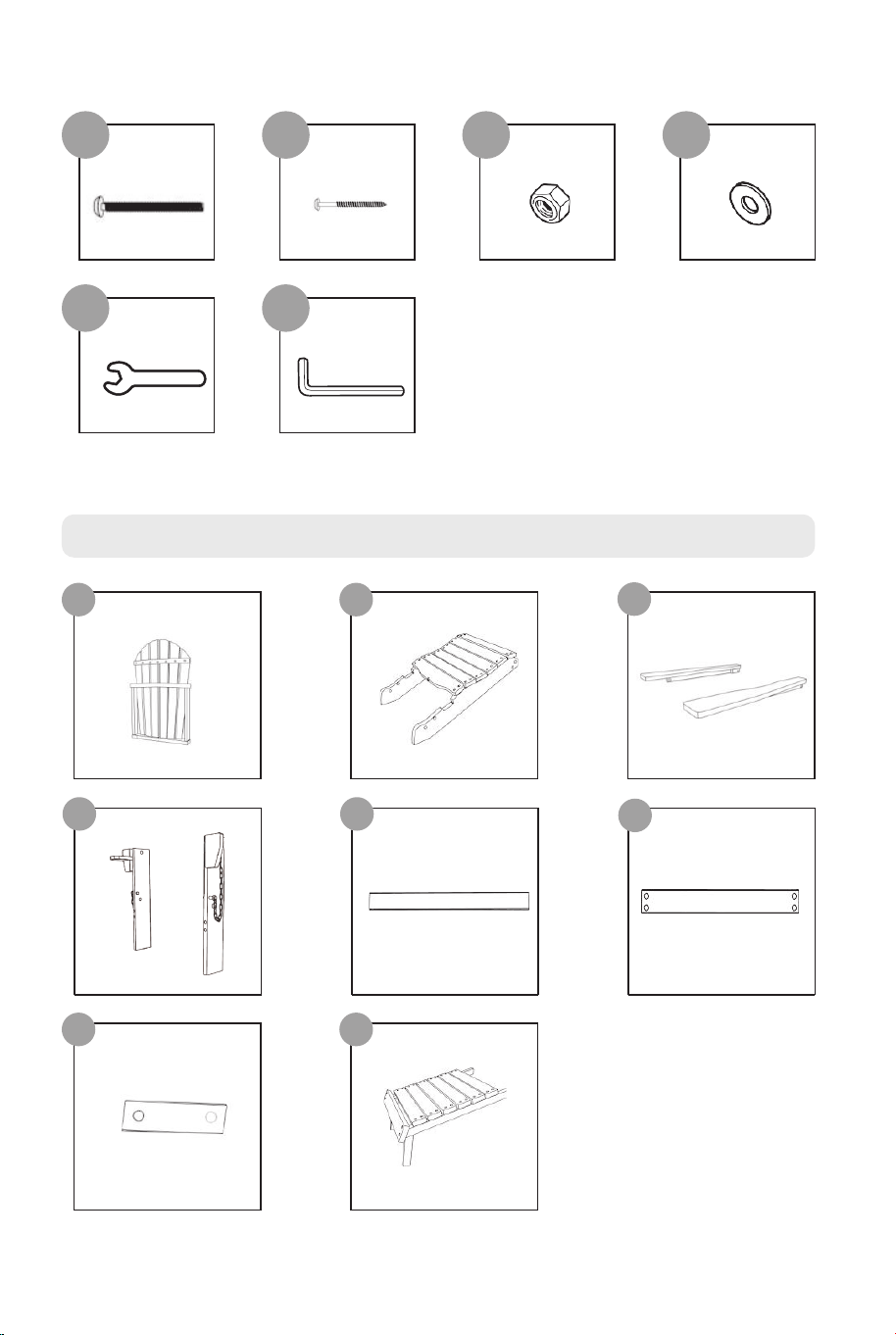

HARDWARE
M6x50mm
BOLT
3
x 4
M6x60mm
BOLT
4
x 4
M6x30mm
BOLT
2
x 2
1
M6x40mm
BOLT
2
x 6
03
PARTS
10
x 1
ALLEN
WRENCH
WRENCH9
x 1
M6
WASHER
2
x 12
87
x 12
M6 NUT
M6x50mm
SCREW
6
x 4
M6x80mm
BOLT
5
x 2
UPPER
CHAIR ARM
x 1
C
FRONT RAIL
x 1
F
x 1
CHAIR BACKREST
A
G
x 1
LOCKING BLOCK
x 1
CHAIR LEG
D
CHAIR SEAT
x 1
B
x 1
H
FOOTREST
x 1
BACK RAIL
E
Look at following overall view of this chair and learn the exact
position of each part to be assembled.

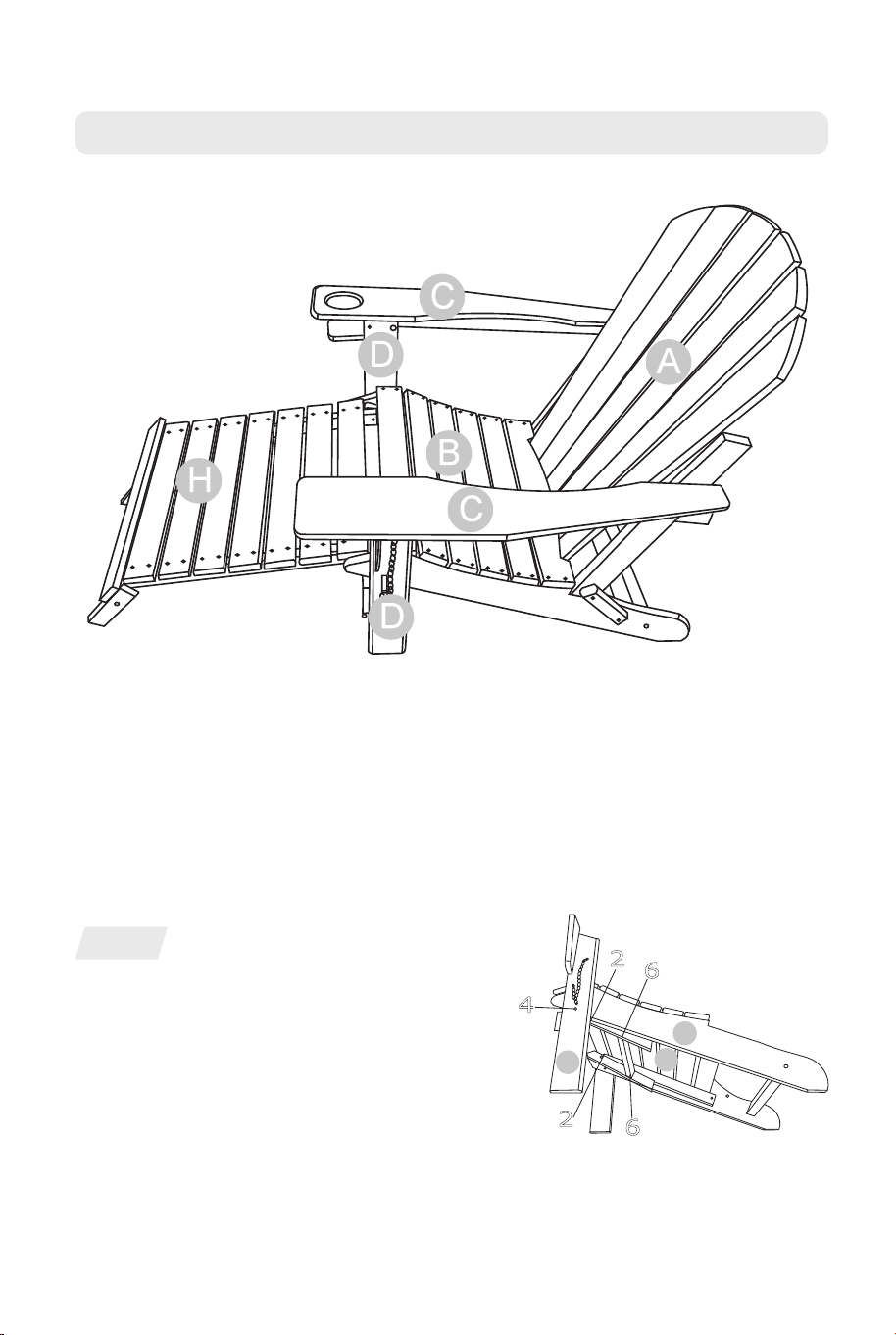

PRODUCT ASSEMBLY - OVERALL VIEW
Attach part D to part B Chair Seat with
1pc of No 4 bolt. Attach H with 2pcs of
No 2 bolt, No 8 washer and No 7 Nut.
Attach H with 2pcs of No 6 bolt.
1
4
2
2
6
6
D
B
H
04
D
F
D
B

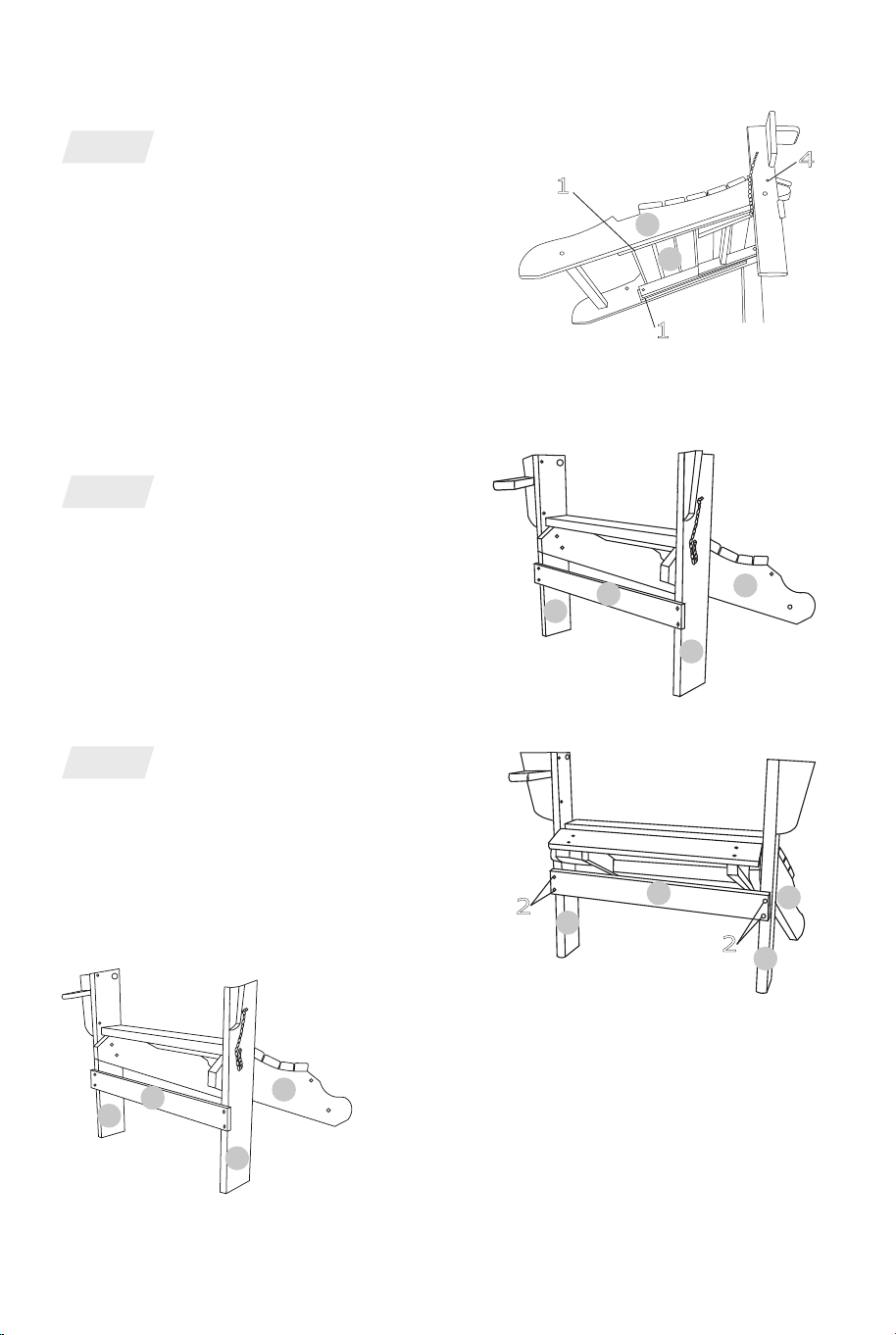

After completing steps 1 and 2, stand
the chair up.
3
Same as step 1, attach part D to part B
Chair Seat with 1pc of No 4 bolt. Attach
part H with 2pcs of No 1 bolt.
2
1
4
1
B
H
Attach part F to part D with 4pcs of No
2 bolt.
4
2
2
F
D
D
B
Effect after completing the first 4 steps
F
B
D
D
05
Attach part H to part B
Chair Seat and part D Chair
Leg with 2pcs of part D own
bolt.
7

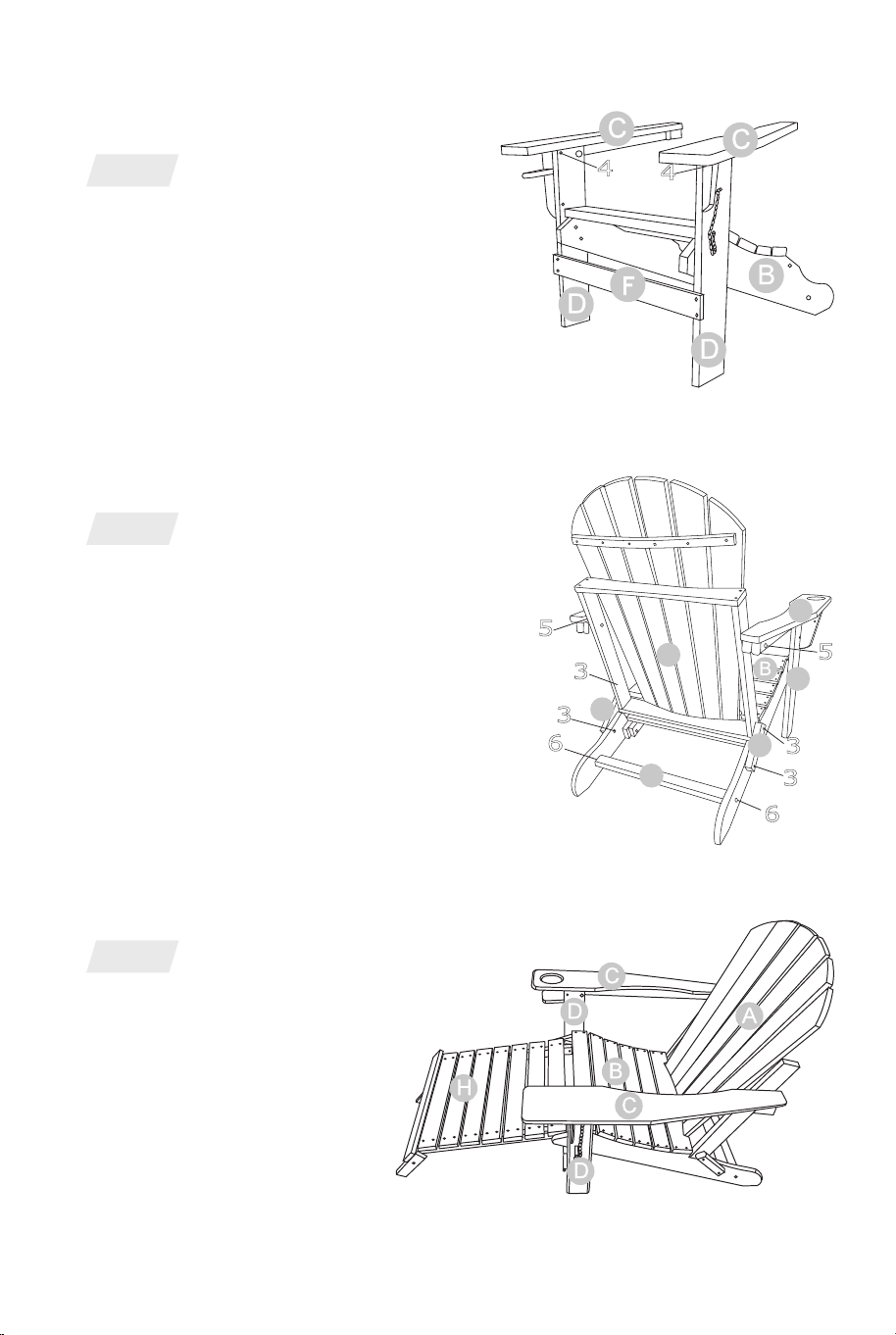

Attach part C to part D Chair Leg
with 2pcs of No 4 bolt, No 8 washer
and No 7 Nut.
5
4
4
Attach part A to part C with 2pcs of
No 5 bolt. Attach part G to part A and
part B with 4pcs of No 3 bolt, No 8
washer and No 7 Nut. Attach part E
to part B Chair Seat with 2pcs of No
6 bolt.
6
5
5
3
3
3
3
6
6
G
G
C
D
A
E
06
