UNDER CABINET RANGE HOOD
WWW.KUCHT.COM
APPLICABLE MODEL: KRH300-GL, KRH300-SS, KRH360-GL, KRH360-SS,
KRH480-GL, KRH480-SS, KRH600-GL, KRH600-SS, KRHG30-GL, KRHG36-GL, KRHG48-GL
INSTALLATION GUIDE AND USER MANUAL
BE A PRO IN YOUR KITCHEN
30” 36” 48”
IMPORTANT:
Read and save these instructions.
NOTICE:
Installer: Leave this guide with the homeowner.
Homeowner: Keep this guide for future reference.
KUCHT Warranty covers defects in Parts and Labor for functional parts that are the result
of normal usage for a period of time of 4 Years for Parts and Labor from date of purchase.
Functional parts are those components parts that are critical to the performance of the
product ’s essential function. Nonfunctional parts are those that are not critical like side
panels, handles, or cosmetic parts. KUCHT will repair or replace the unit or any parts,
therefore, as required, subject to these terms and conditions.
General Conditions:
a. Warranty does not cover failure as a result of misuse, abuse, rust or corrosion, spilled liquids or
foreign objects found inside the unit; repair of damage caused by accident, theft, re, ood, external
causes such as, but not limited to, blow fuses, inadequate electrical power, water and gas lines
beyond the equipment, or any use of the product not authorized by the manufacturer.
b. The maximum liability of the warranty for product replacement or repair shall not exceed the
original purchase price of the product.
c. KUCHT reserves the right to repair or replace the covered product with a comparable feature
model of like kind.
d. Warranty does not cover deterioration of the appearance of the product, any cosmetic part such
as paint, porcelain, glass, dents, scratches, chips, rust or peeling.
e. Any damage resulting from unauthorized replacement parts, improper service, or modications
made to the covered product are not covered.
f. KUCHT is released from all liability due to indirect, consequential, or incidental damages.
g. This warranty does not cover any damage to the product due to lightning, over-voltage,
under-voltage, accident, misuse, abuse, negligence, or any damage caused by the use of the product
by the purchaser or others. This warranty does not cover non-EWP products that have been exposed
to wet or corrosive environments. This warranty does not cover stainless steel surfaces that have not
been properly maintained.
h. Kucht Products are certied for use according to U.S. and Canada standards. The warranty
coverage is limited to U.S. and Canada only. Kucht will not provide technical service or support in
other countries. Replacement parts will only be shipped to continental U.S. and Canada addresses.
Limit of Liability:
Kucht Liability is limited to the original price of the covered equipment. Additional losses, damages,
or injuries caused by product malfunction or defects will not be covered.
For more information, please visit: www.kucht.com/online/warranty/
WARRANTY
INSTALLATION GUIDE AND USER MANUAL
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM
IMPORTANT SAFETY INSTRUCTIONS
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO PERSONS,
READ THE FOLLOWING:
Use this unit only un the manner intended by the
manufacturer. If you have questions, please contact the
manufacturer.
Before servicing or cleaning the unit, switch the power o
and lock the service panel. This will prevent the power for
accidentally turning on. If the service panel does not lock,
secure a warning label, such as tag, to the service panel.
Installation work and electrical wiring must be done by a
qualied proesional(s) in accordance with all applicable
codes, standars, and re-rated constructions.
Do not operate any fans with a damaged cord or plug.
Discard the fn or return it to an autorized service facility for
further examination and/or repair.
To prevent back draft, sucient air is needed for proper
combustion. Gas from fuel burning equipment needs to
exhaust through the ue (chimney). Follow the heating
equipment manufacturer´s guideline and safety standards
such a those published by the National Fire Protection
Association (NFPA), the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE),
and the local code authorities.
When cutting or drilling into walls or ceilings; be aware of
electrical wires, piping, and other utilities.
Ducted fans must always be vented outdoors.
CAUTION: For general ventilation use only. Do
not use to exhaust hazardous or explosive
materials and vapors.
CAUTION: To reduce the risk of fire and to
porperly exhaust air, be sure to duct air
outside. - DO NOT vent exhaust air into attics,
crawl spaces, garages, or within walls and
ceilings.
WARNING: TO REDUCE THE RISK OF A RANGE
TOP GREASE FIRE, READ THE FOLLOWING:
Never leave surface units unatended at high settings,
Boil-over can cause smoke and grease to spill over that
may ignite. Heat oils slowly on low or medium settings.
Always turn the hood ON when cooking at high heat or
when ambeing food (i.e. Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flambé).
Use proper pan size. Always use cookware appropiate for
the size of the surface element.
WARNING: TO REDUCE THE RISK OF INJURY. IN
THE EVENT OF A RANGE TOP GREASE FIRE,
READ THE FOLLOWING:
SMOTHER FLAMES with a close tting lid, cookie sheet, or
metal tray, then turn o the burner. BE CAREFUL TO
PREVENT BURNS. If the ames do not go out imemediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
NEVER PICK UP A FLAMING PAN - you may get burned
DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
Use a re extinguisher ONLY if:
- You know you have a class ABC extinguisher, and you
already know how to operate it.
- The re is small and contained in the area where ir
started.
- The re department is being called.
- You can ght the re with your back to an exit.
Based on “Kitchen Fire Safety Tips” published by NFPA
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRICAL SHOCK, DO NO USE THIS FAN
WITH ANY SOLID-STATE SPEED CONTROL
DEVICE.
1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the
address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power o at service panel and lock the service disconnecting means to
prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualied person(s) in accordance with all applicable codes
and standards, including re-rated construction codes and standards.
4. Sucient air is needed for proper combustion and exhausting of gases through the ue (chimney) of fuel burning
equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guideline and safety standards such
as those published by the National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit Interrupter) - protected
branch circuit (ceiling installation only).
8. This unit must be grounded.
1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. This product can be installed in a wall if mounted 8-ft. or more above the oor.
3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. o
power unit.
4. Please read specication label on product for further information and requirements.
CAUTION
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
INSTALLATION GUIDE AND USER MANUAL
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM
TOOLS & PARTS
REQUIRED FOR
INSTALLATION
LOCATION REQUIREMENTS
CONTENT OF
THE BOX
Electrical drill or ratchet driver
1/2” drill bit for drilling pilot holes
1 1/4” drill bit for drilling electrical wiring access hole
Screwdriver: Phillips & Straight blade
Pliers
Tape Measure or ruler + pencil
Electrical supplies for wiring
Aluminium foil tape and/or HVAC tape
Hammer
Jigsaw or saber saw
Stud nder
Observe all governing codes and local ordinances. Have a qualied technician install the range hood. It is the installer´s
responsibility to comply with installation clearences specied on the model serial rating plate.
Canopy hood´s location should be away from strong draft areas, such as windows, doors, and strong heating vents.

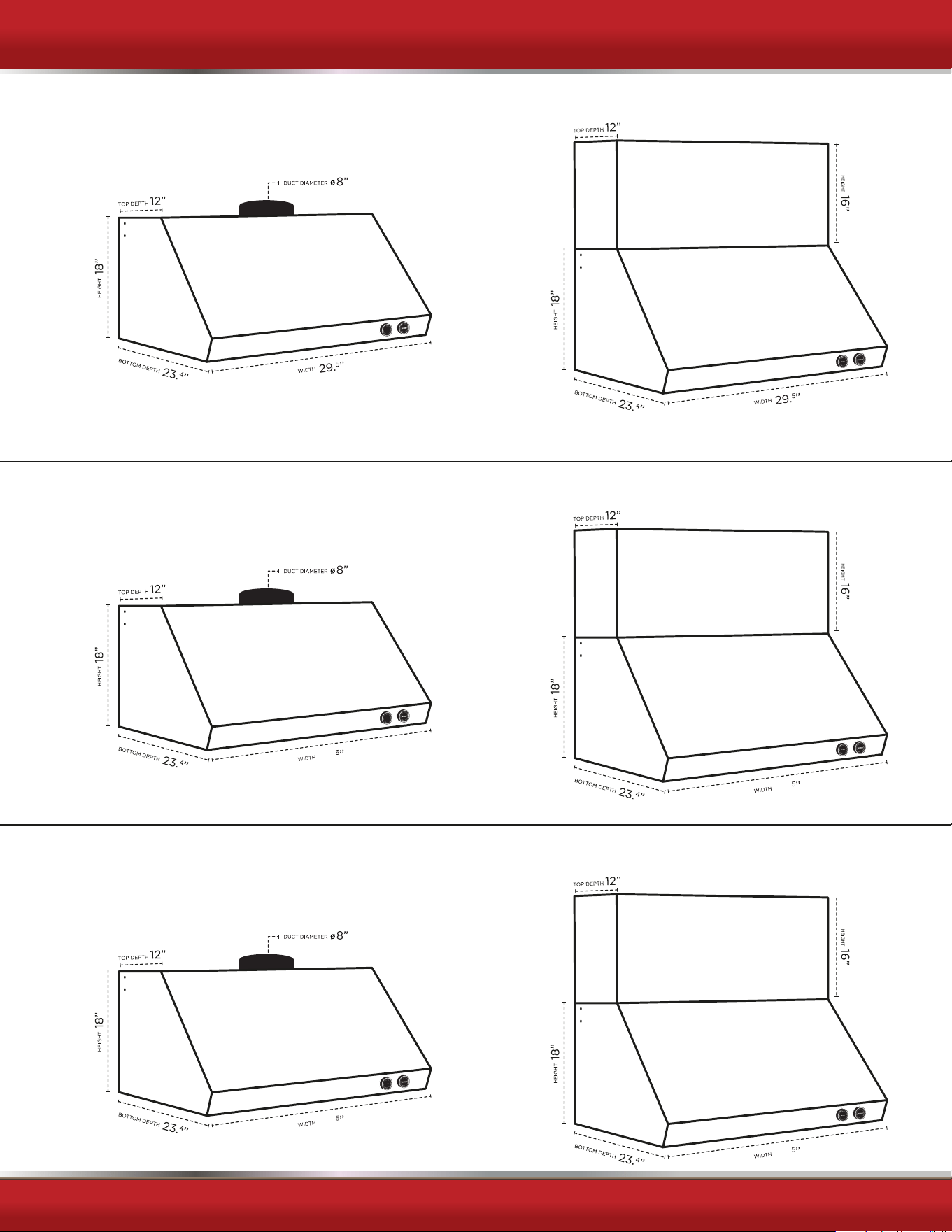

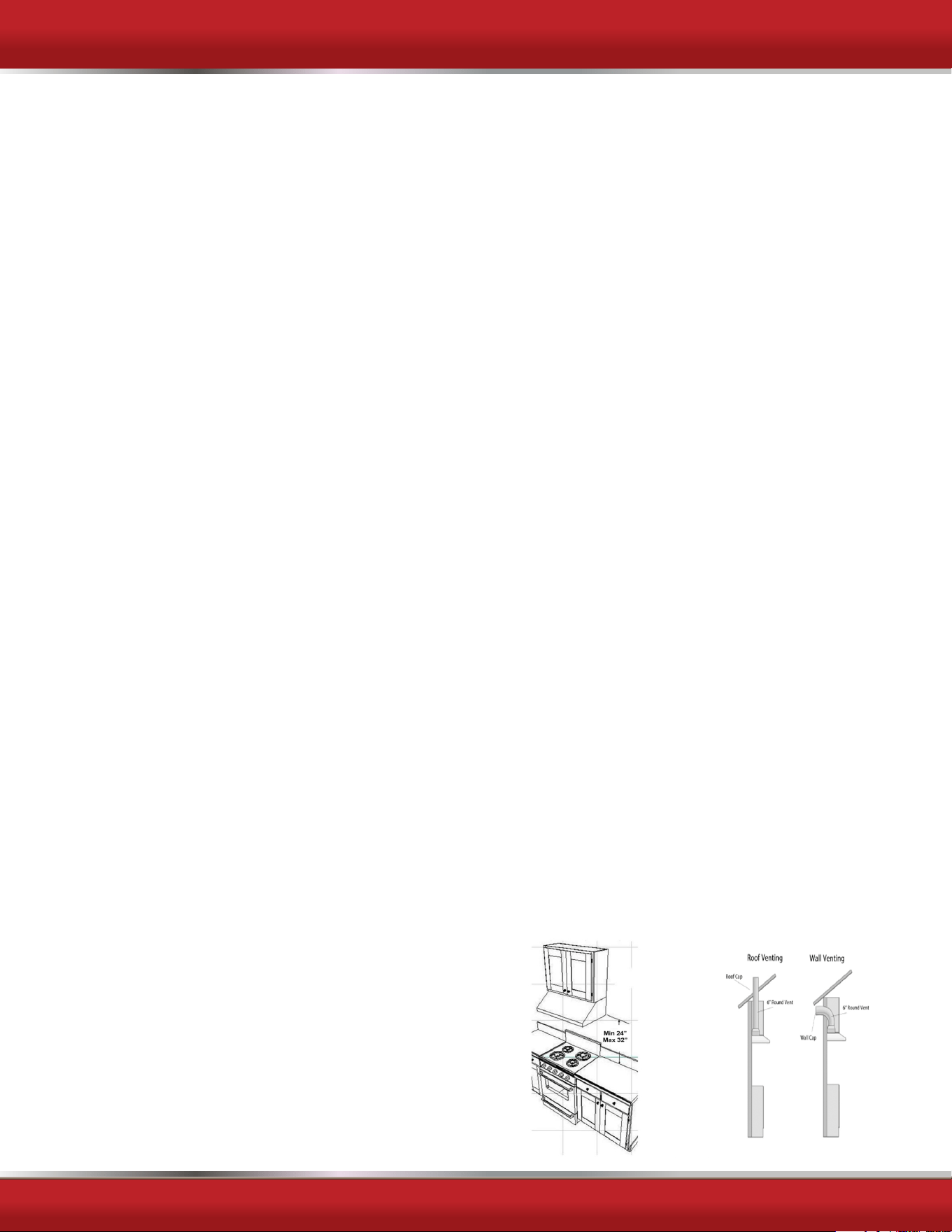

Recommended heights are shown. Given dimensions provide minimum cleareance.
Body (Main Unit): 1 pc
Installation Manual: 1 pc
Metal Grease Filter: 1-4 pcs
Hardware: 1 set
Range hoods must be ventilated to the outdoors, except for non-vented (recirculating) installations.
Do not ventilate the range hood into an arric or other encloed areas.
Do not use 4” (10.2 cm) laundry-type wall caps.
The length of the range hood exhaust and the number of elbows should be kept to a minimum to provde maximum
performance.
Use no more than three 90° elbows.
Make sure there is a minimum of 24” (61 cm) of straight duct between the elbows if more than one elbow is used.
Do not install two elbows together.
Use clamps to seal all joints in the vent system.
The vent system must have a damper. If the roof or wall cap has a damper, do not use the damper supplied with the
range hood.
Use caulking to seal exterior walls or roof openings around the cap.
The size of the vents should be uniform
VENTILATION REQUIREMENTS
Local building codes may require the use of makeup air systems, when using ventilation systems greater than specied
CFM of air movements in your area.
MAKEUP AIR
An additional back draft damper should be installed to minimize backward cold air ow. A thermal break should be
installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold
air side of the thermal break. The break should be as close as possible to where the vent system enters the heated portion
of the house.
COLD WEATHER INSTALLATIONS
This canopy hood is factory set for through the roof wall. A 6” (15.2 cm) round vent system is needed for installation.
The hood exhaust opening is 6” (15.2 cm ) round. To vent through a wall, a 90° elbow is needed. If exhaust ducting with
a diameter of less than 5.91” (150 mm) or if at ducting is used, the noise level of the range hood will increase and
extraction will be less ecient.
VENTING METHOD
A 90° elbow may be installed immediately above the hood.
REAR DISCHARGE
INSTALLATION GUIDE AND USER MANUAL
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM
ELECTRICAL REQUIREMENTS & SPECIFICATIONS
IMPORTANT: Observe all governing codes and ordinances.
It is the customer’s responsibility to contact a qualied electrical installer.
A 120 Volt, 60 Hz, AC only, fused electrical supply is required on a 15-amp circuit.
DO NOT have a fuse in the neutral or ground circuit.
The 3-prong outlet should be grounded. If the power cord plug is not used, the power cord’s green wire should be
connected to ground.
Check with a qualied electrician if you are not sure that the range hood is properly grounded.
DO NOT ground to a gas pipe.
The range hood must be connected with copper wire/plug only.
The range hood should be connected directly to the fused disconnect (or circuit breaker) box through exible armored
or non-metallic sheathed copper cable. ETL listed strain relief must be provided at each end of the power supply cable.
ITEM Unit Parameter
Rated Voltage V 110/120
Rated Frequency Hz 50
Motor Power W 50
Lamp Power W ≤2x1.5
Air Pressure Pa >160
Noise Level dB(A) <67
Air Output Diameter in 8
ATTENTION HOMEOWNER
These installation steps are meant to be a general guideline for mounting and installing your under cabinet range hood.
If you require assistance, please contact your local contractor.
Please exercise extreme caution when handling a range hood to prevent risk of injury and electric shock.
Building codes will vary. It is the buyer or contractor’s responsibility to know local county or state regulations before
installation of this range hood.
PREPARATIONS:
NOTE: To avoid damage to your hood, prevent debris from entering the vent opening
Decide the location of the venting pipe from the hood to the outside. Please see “Venting Method” section.
A straight, short vent will allow the hood to perform more eciently.
Try to avoid as many transitions, elbows, and long run as possible. This may reduce the performance of the hood.
IMPORTANT: Peel white or blue plastic protective lm o the hood.
Use HVAC foil tape / duct tape to seal joints between the pipe sections.

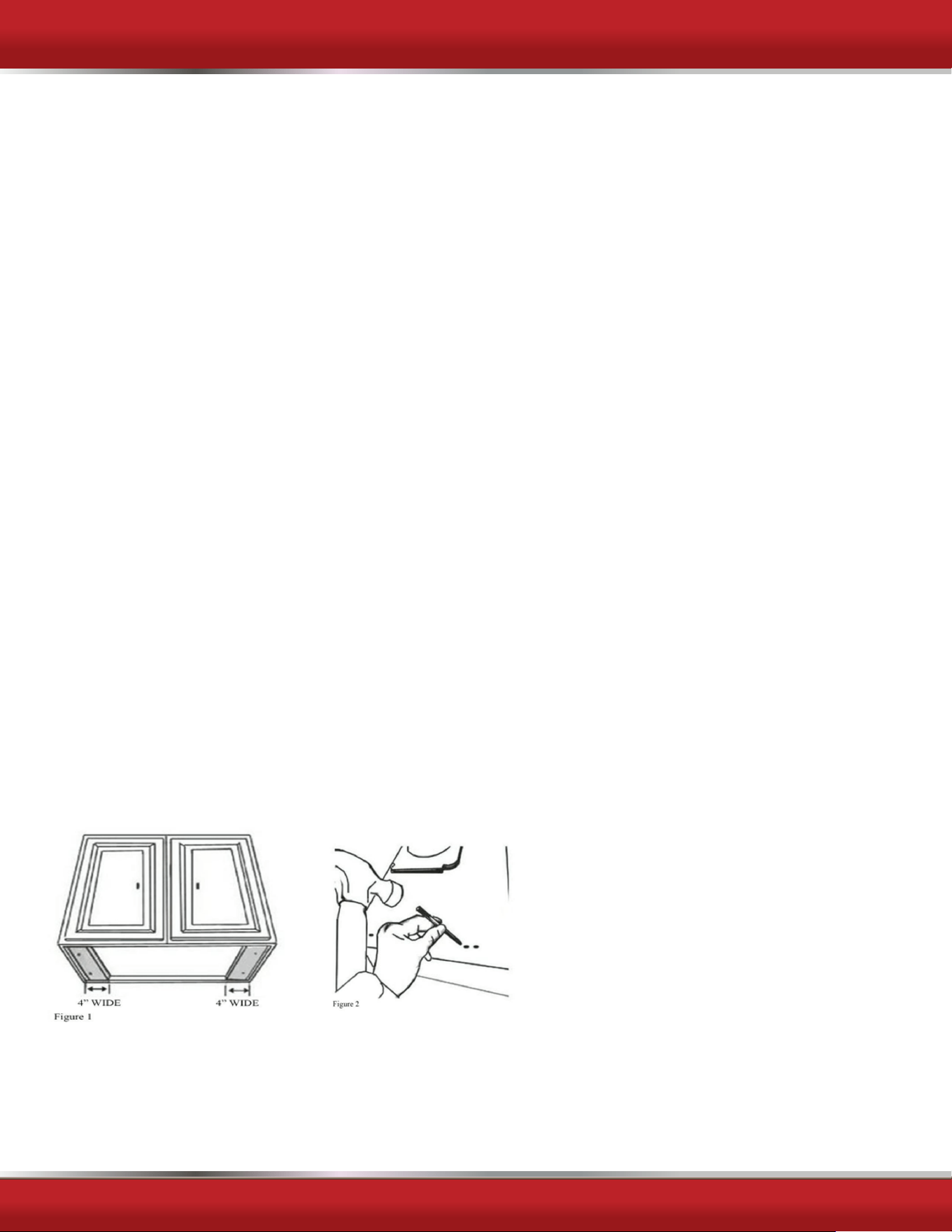

For installing under cabinets with a recessed bottom, attach 4-inch wide wood ller strips (not provided) on each side.
Refer to Figure 1.
Using references in measurements and diagrams provided, create an opening for electrical wires and hood exhaust
under the cabinet
CAUTION: If moving the cooking range is necessary to install the hood, rst turn o the power.
Always turn o the gas before moving a gas range.
Puncture the knockout holes (for mounting under the cabinet) on the hood as shown in Figure 2.
If necessary, attach two rubber panels with adhesive tape to the rear corners of the range hood.
This will help reduce vibrations and shaking when in operation.
Proceed if you would like to mount this range hood using the provided hood mounting bracket (If included).
1. Using references in the Location Requirements section, mark the leveling point of the hood. Position two mounting
screws on the wall, leaving 1/8” space away from the wall. Mounting the hood on wall studs is highly recommended.
2. Attach the hood mounting bracket to the back of the hood with the screws as shown in Figure B1.
3. Puncture the knockout wire access hole at the back of the hood and draw the electrical wires.
4. Align hood-mounting brackets to the screws on the wall and hook the hood into place as shown on the next page.
5. Tighten screws to secure hood to the wall.
CAUTION: Make certain the range hood is fully secured before releasing!
INSTALLATION GUIDE AND USER MANUAL
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM
ATTENTION HOMEOWNER
STEP 1 | METHOD A
Two people will be required to lift and install the main unit. We highly recommend professional help and an extra set of
hands.
Measure the distance between the stove top and the bottom of the range hood. A distance of 24” to 32” is
recommended.
There are two methods (A or B) to mount the range hood, choose the one that better ts your setup and model.
Proceed if you would like to mount this range hood without using the hood mounting bracket.
1. Using references in the Location Requirements section, center the hood beneath the cabinet and ush with the front
of the cabinet.
2. Draw the electrical wires through the cabinet access opening if not done so already.
3. From inside of the hood, place screws into the exact center of each knockout hole and secure to cabinet bottom. Finish
tightening all screws until secure. Be careful when using electrical screwdrivers, they may cause damage to the range
hood.
Skip Method B below and proceed to step 2.
CAUTION: Make certain the range hood is fully secured before releasing!
STEP 1 | METHOD B

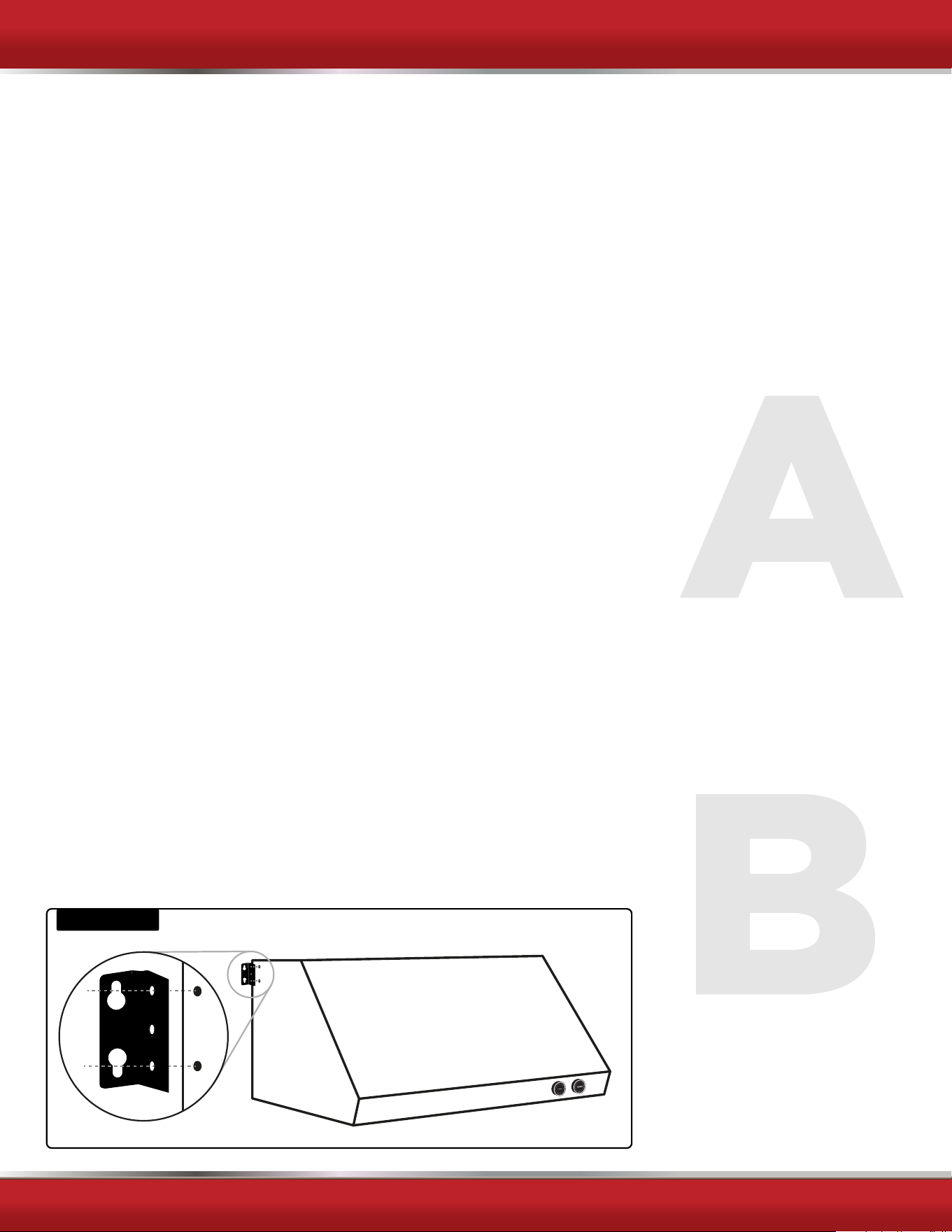

Use the provided screws to hold
the brackets to the sides of the hood
Figure B1
SIZE CHART
KUCHT KRH300-SS | KRH300-GL | KRHG300-GL KUCHT KRH300-SS-C | KRH300-GL-C | KRHG300-GL-C
KUCHT KRH360-SS | KRH360-GL | KRHG360-GL KUCHT KRH360-SS-C | KRH360-GL-C | KRHG360-GL-C
KUCHT KRH480-SS | KRH480-GL | KRHG480-GL KUCHT KRH480-SS-C | KRH480-GL-C | KRHG480-GL-C
35.
35.
47.
47.
INSTALLATION GUIDE AND USER MANUAL
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM
STEP 2
For safety purposes, pre-drilled mounting holes are provided through the back of the hood. For a more secure
installation, use as many mounting holes as needed to secure the unit from the inside of hood. The more the safest.
STEP 3
Use a 8"diameter (size may vary) venting pipe (follow building codes in your area) to connect the exhaust on the hood
to the ductwork above. Use HVAC foil tape / duct tape to make all joints secure and air tight.
SAFETY WARNING: Risk of electrical shock. This range hood must be properly grounded. Make sure this is done by
qualied electrician in accordance with all applicable national and local electrical codes. Before connecting wires, switch
power o to prevent power from being switched on accidentally.
STEP 4
Connect the range hood to a designated standard outlet or cut o the plug and connect three wires (black, white and
green) to house wires and cap with wire connectors. Connect according to colors (i.e. black to black, white to white, and
green to green.) (If applicable).
STEP 5
Store excess wires in the wiring box.
STEP 6

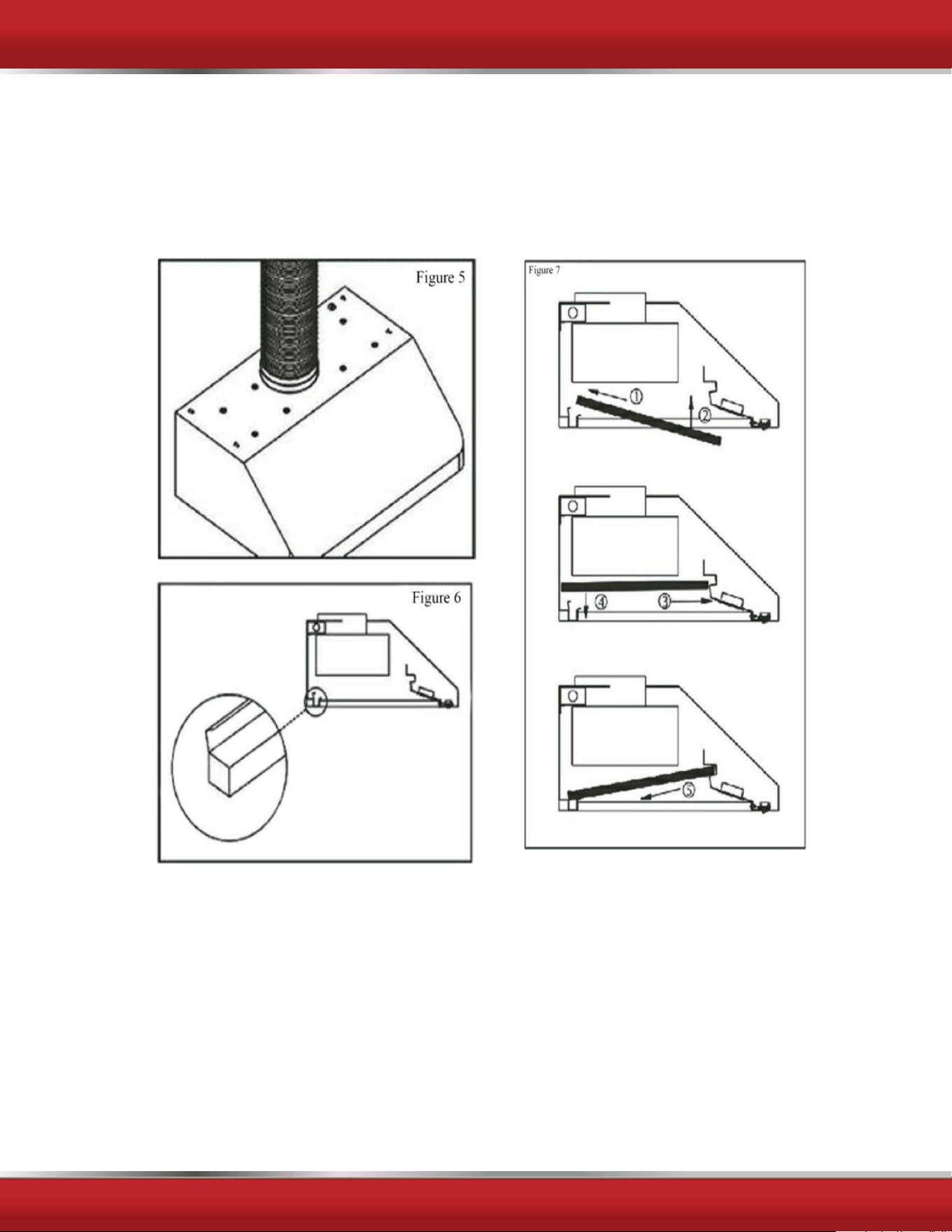

Place oil tray into recess support near the rear of the hood. Refer to Figure 6.
STEP 8
Turn power ON with Control Panel. Check all lights and fan operation
STEP 7
To install bae lters, refer to Figure 7 for placement.
1. Angle bae lter toward the back of hood.
2. Push bae lter up until almost leveled.
3. Slide iforward into recess behind the front of the hood.
4. Lower the bae lter.
5. Slide back until it ts into resting position.
Make sure to leave this installation guide for the homeowner if you are a contractor.
INSTALLATION GUIDE AND USER MANUAL
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM
I. FAN SWITCH:
Motor Speed Adjustment:
Rotate the knob to adjust the motor speed.
The adjustment logic is as follows:
Power Key:
Tap the power key to initiate a 5-minute delay. Tap it again to power off. When the motor is off,
touching the power key activates the motor at speed 1.
II. LIGHT SWITCH:
Light Activation:
With the power off, tap the Lamp key to illuminate the lamp at 50% brightness. Tap the key again
to turn off the lamp.
Knob Functionality:
With the power off, tap the lamp key to turn on the lamp at 50% brightness. Rotate the knob
clockwise to increase brightness and counterclockwise to decrease it. The brightness display
adjusts accordingly.

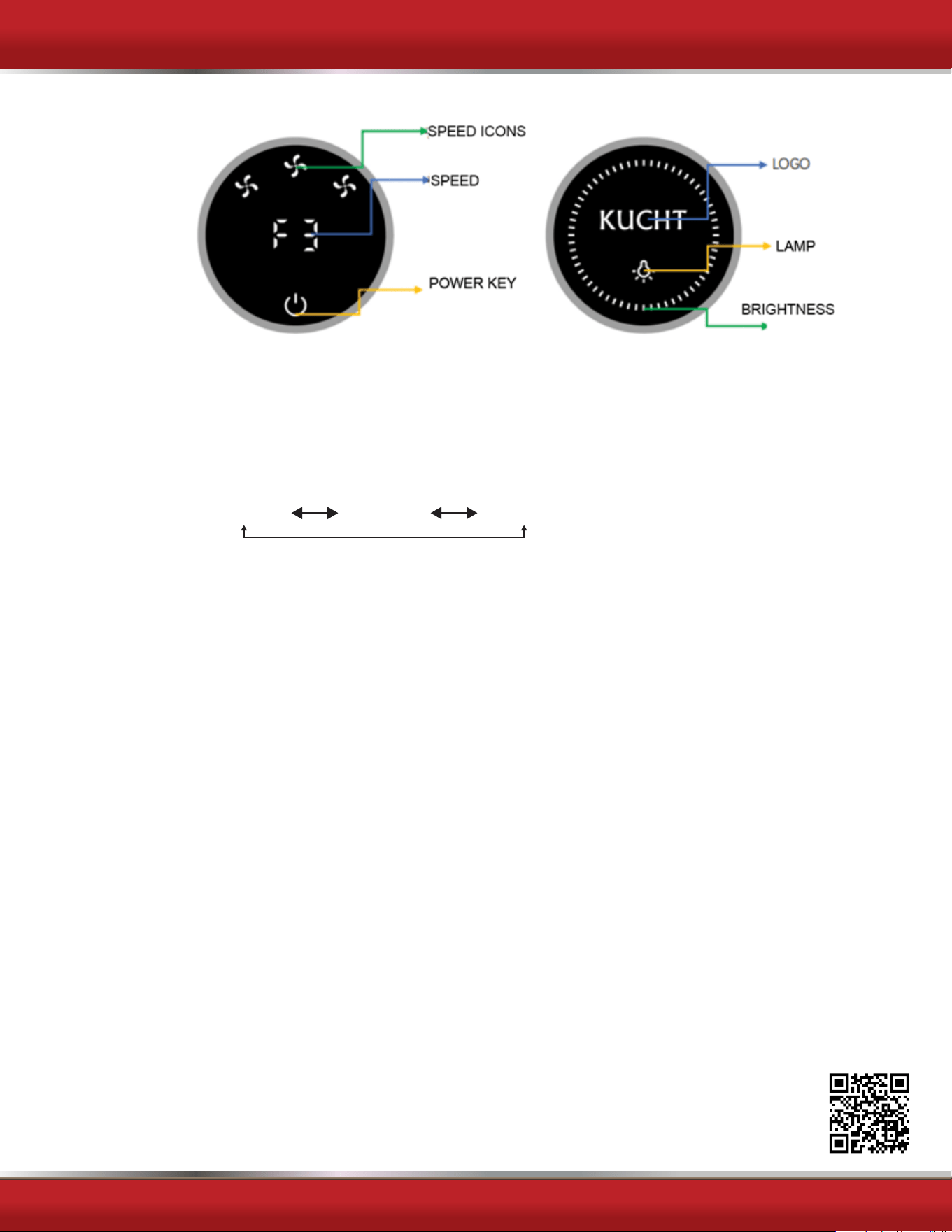

III. STATUS DISPLAY SCREEN:
WHILE POWER IS OFF:
The "Power" key, "Lamp" key, and logo icons are semi-bright.
WHILE POWER IS ON:
All speed icons, the speed key, power key, brightness, logo, and lamp key are fully illuminated.
The brightness display corresponds to the selected brightness level.
SPEED 1 SPEED 2 SPEED 3
FAN SWITCH LIGHT SWITCH
SCAN THIS QR CODE TO
ACCESS AN INSTRUCTIONAL VIDEO
SUPPORT AND SERVICE
This range hood comes with full unlimited lifetime support.
This means that if you come across any problem after the warranty has expired, a qualied Kucht member will assist you
or your trusted technician using video chat in any repair process.
You will also have access to repair videos, tutorials, manuals, and any extra help that is available.
TO ARRANGE FOR SERVICE
Prior approval from Customer Service is required prior to start the service.
To initiate a service claim please submit a Ticket on www.kucht.com
or contact KUCHT for assistance on how to initiate a service claim.
Please have your original order number or Serial Number of the unit available so our customer service representative is
able to quickly arrange for service.
A video assessment call will be required before starting the warranty process. This call is necessary to identify the issue
and ensure that the correct replacement part is sent before a technician is dispatched. This helps reduce the chances of
sending incorrect parts, resulting in a faster and more ecient service process.
FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM
WE TRANSFORM A SIMPLE KITCHEN INTO A PRO ONE.
THIS IS WHY WE CARE ABOUT MAKING VERY HIGH PERFORMANCE
RANGES AND HOODS, TO MAKE YOU FEEL LIKE A PRO AND STYLISH COOKER.
DESIGN: LONDON DC - WWW.LONDON-DC.COM
