TV WALL MOUNT
RF-HTMT15
ASSEMBLY GUIDE
Before using your new product, please read these instructions to prevent any damage.
background
2
Need help? Call 1-800-620-2790 (U.S. and Canada)
Contents
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Tools needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Package contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
LIFETIME LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Introduction
Congratulations on your purchase of a high-quality Rocketfish product. Your RF-HTMT15
represents the state of the art in TV wall-mount design and is designed for reliable and
trouble-free performance.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Improper installation may cause property damage or personal injury. If you do not
understand these directions, or have doubts about the safety of the installation, contact
Customer Service or call a qualified contractor. Rocketfish is not responsible for damage
or injury caused by incorrect installation or use.
The weight of your TV must not exceed 80 lbs. (36.3 kg). The wall must be capable of
supporting five times the weight of your TV and wall mount combined.
This product contains small items that could be a choking hazard if swallowed. Keep
these items away from young children!
CAUTION: Do not use this product for any purpose not explicitly specified by
Rocketfish.
background
3
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTMT15
Features
Fits most TVs with 32 - 55" (81.28 to 139.7 cm) screens and holds up to 80 lbs. (36.3 kg)
Thin profile design mounts the TV only 2.2" from the wall
Tilt adjusts from 5° to -10° to reduce glare without the need for tools
Fingertip tilt technology securely holds the TV at the angle you select
Compatible with VESA patterns 50 mm x 50 mm (min) to 400 mm x 400 mm (max)
Can be installed on wood stud or concrete walls (concrete anchors not included)

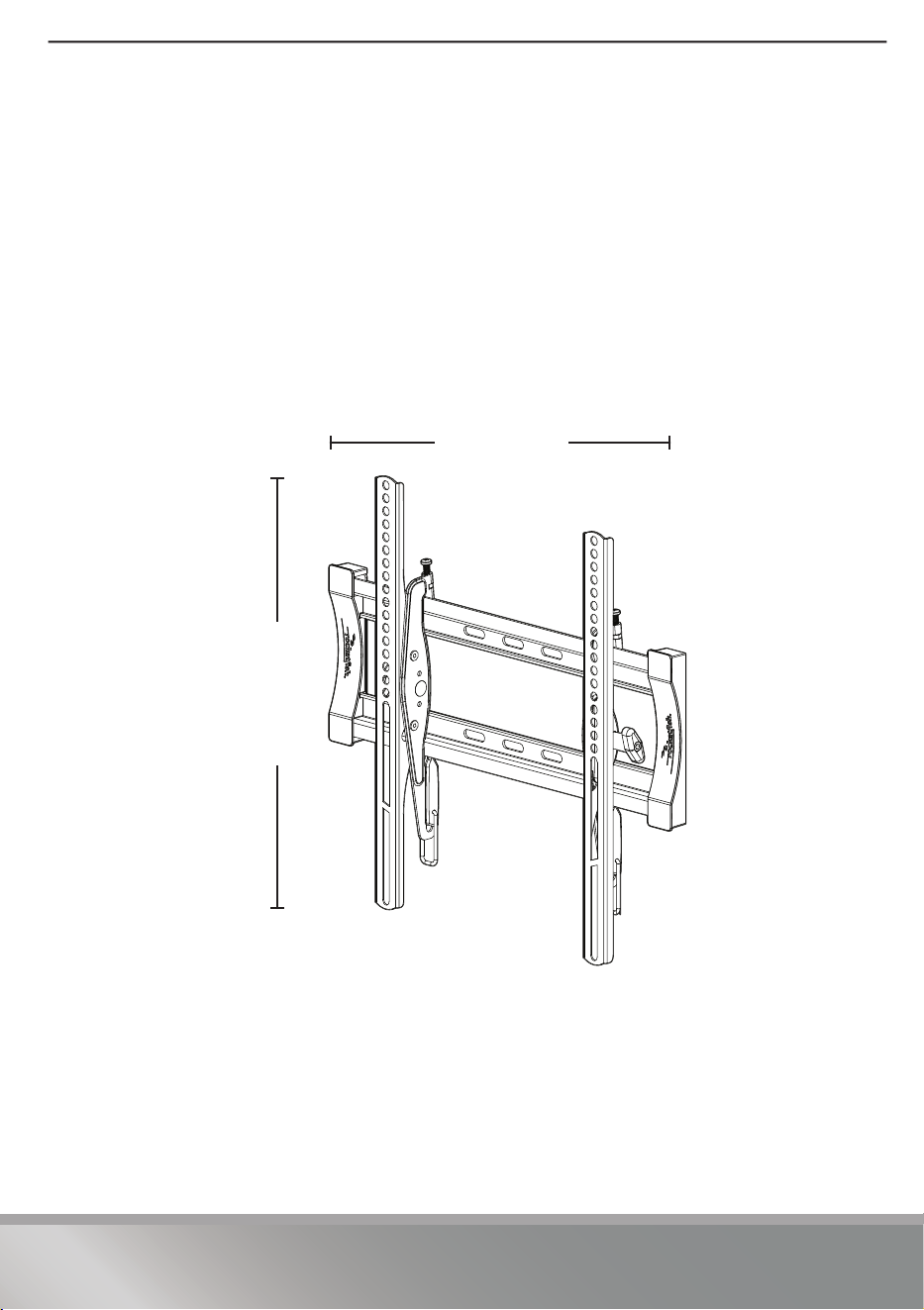

Overall dimensions (H × W × D): 16.4 x 18.1 x 2 in. (41.6 x 46.0 x 5 cm)
Wall-mount weight: 6 lbs. (2.7 kg)
For customer service, call: 1-800-620-2790
16.4" (41.6 cm)
18.1" (46 cm)
background
4
Need help? Call 1-800-620-2790 (U.S. and Canada)

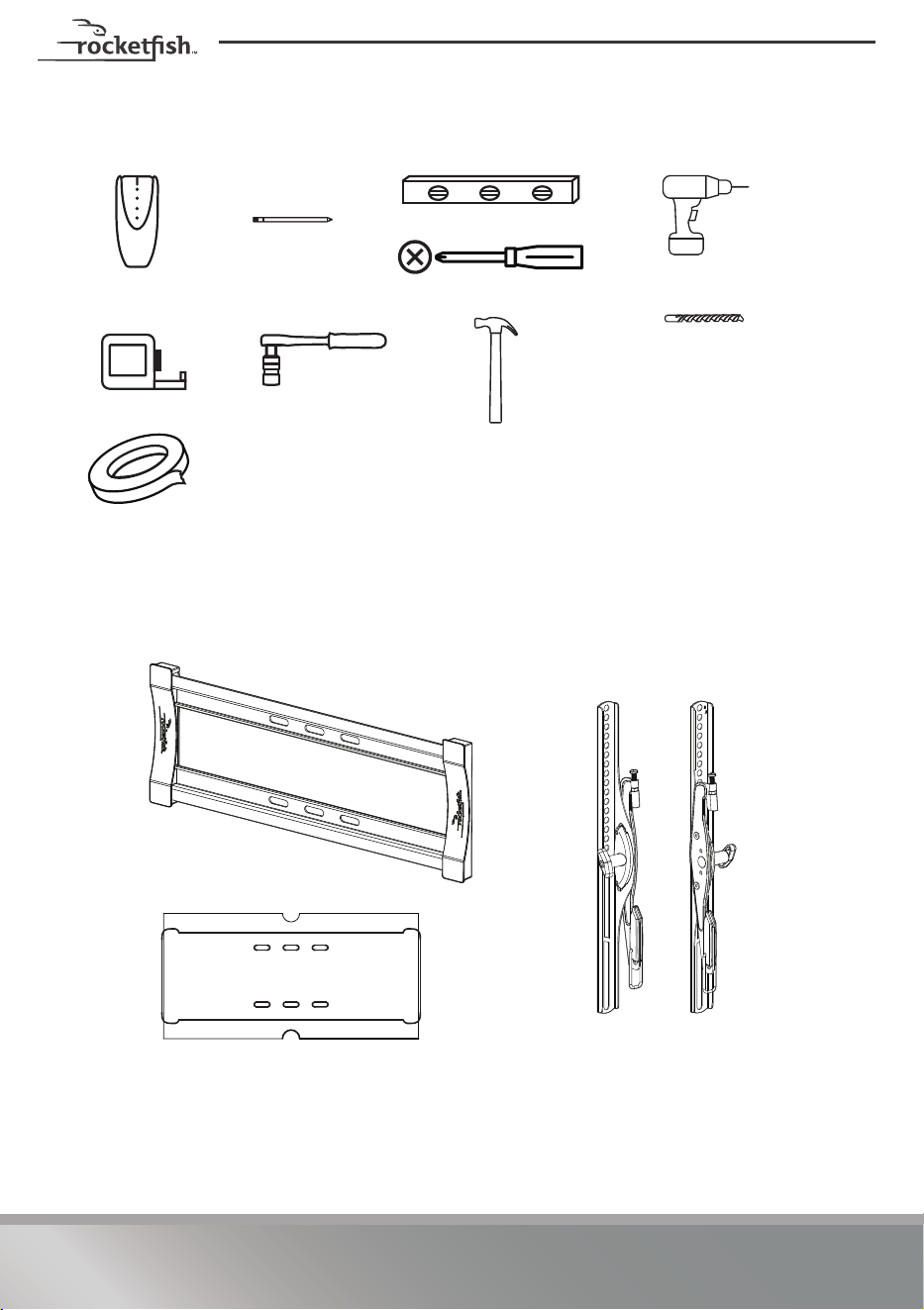

Tools needed
You will need the following tools to assemble your new TV wall mount:
Package contents
Make sure that you have all the hardware necessary to assemble your new TV wall mount:
Edge-to-edge
stud finder
Pencil
Level
Phillips screwdriver
Socket wrench with
1/2” (13 mm) socket or
adjustable wrench
Measuring tape
Drill
Tape
Hammer
7/32” (5.5 mm) wood drill bit
for wood stud wall
OR
3/8” (10 mm) masonry drill
bit for concrete wall
C Right vertical
TV bracket
B Left vertical TV
bracket
A Wall plate
D Template
background
5
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTMT15

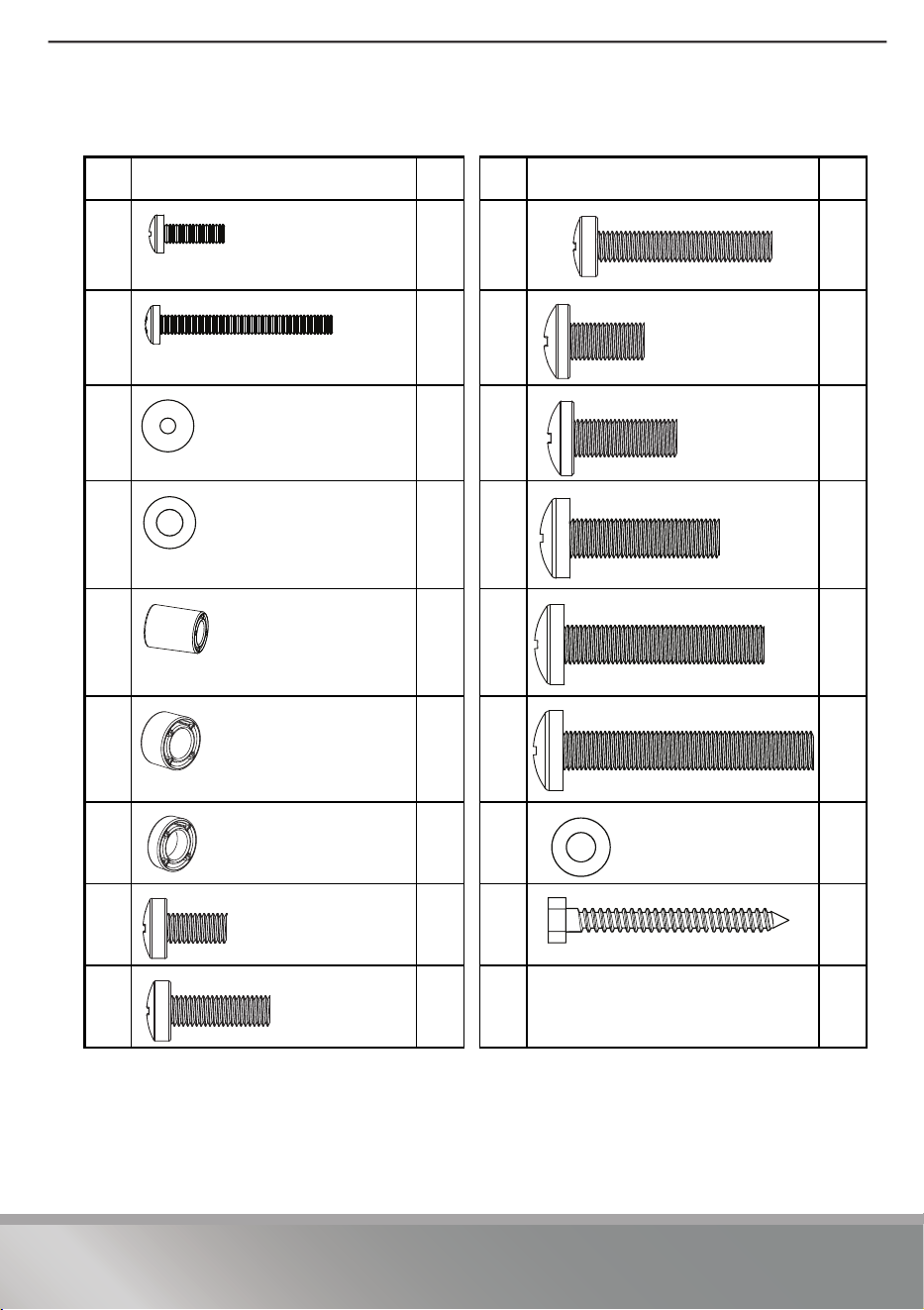

TV hardware bag
Lbl Hardware Qty Lbl Hardware Qty
E4N 4
F4O 4
G4P 4
H4Q 4
I4R 4
J4S 4
K
4T 2
L
4U 2
M
4
M4 × 12 mm screw
M6 × 35 mm screw
M4 × 35 mm screw
M8 × 16 mm screw
M4 washer
M6/M8 washer
M8 × 30 mm screw
22 mm spacer
M8 × 40 mm screw
5 mm spacer
M8 × 50 mm screw
2.5 mm spacer
Lag bolt washer
M6 × 12 mm screw
M6 × 20 mm
screw
background
6
Need help? Call 1-800-620-2790 (U.S. and Canada)
Concrete Installation Kit CMK1 (not included)
Contact customer service at 1-800-620-2790 to inquire about these additional parts.
Installation instructions
STEP 1 - Determining whether your TV has a flat back or an irregular or
obstructed back
1 Carefully place your TV screen face-down on a cushioned, clean surface to protect the
screen from damages and scratches.
2 If your TV has a table-top stand attached, remove the stand. See the documentation that
came with your TV for instructions.
3 Temporarily lay the TV brackets (B and C) on the back of your TV in a vertical orientation.
4 Align the screw holes in the TV brackets with the mounting screw holes on your TV.

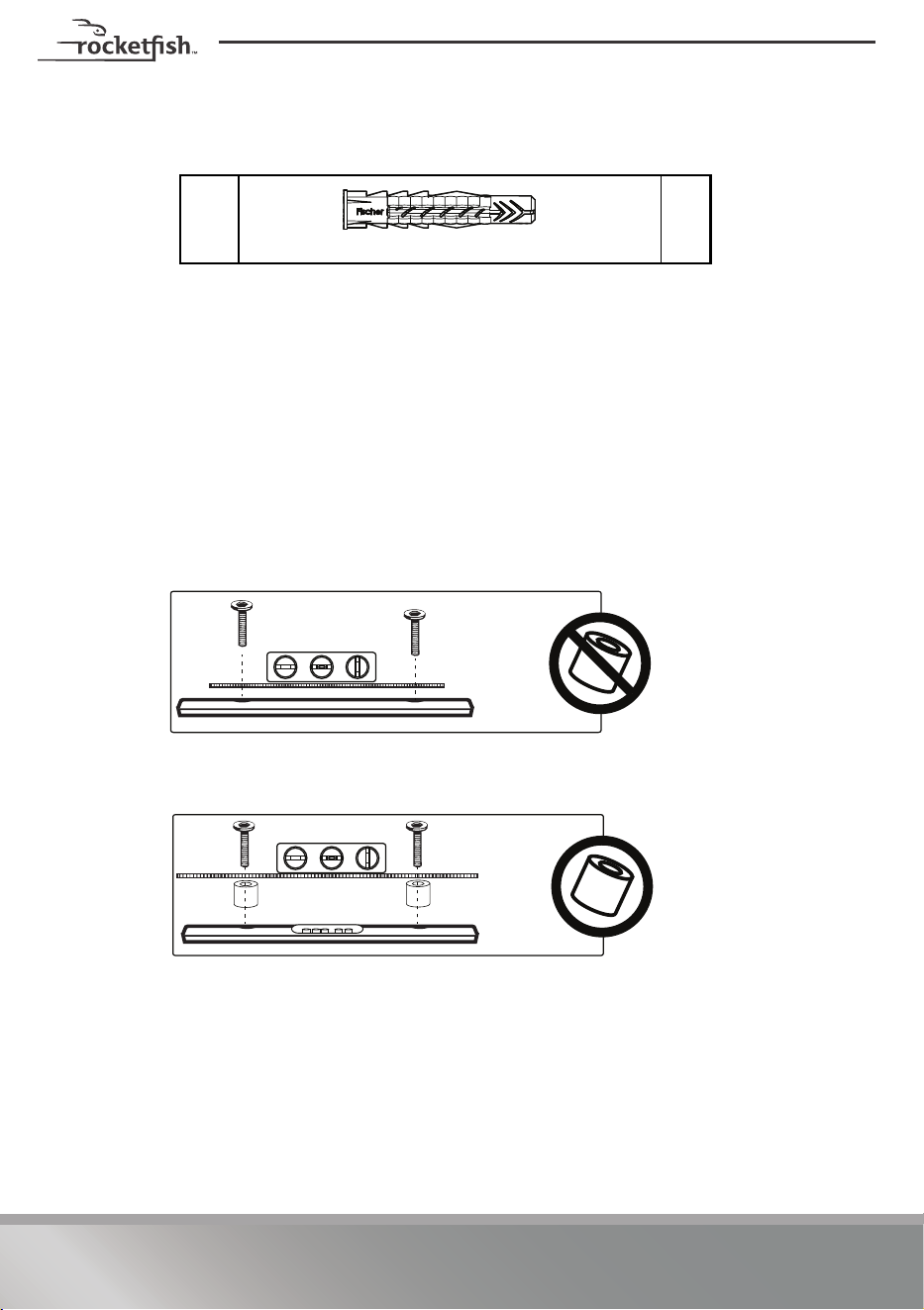

5 Identify which type of back your TV has:
Flat back: The brackets lay flush against the back of your TV and do not block any jacks.
You do not need spacers when assembling the wall mount.
Obstructed back: The brackets block any of the jacks on the back of your TV. You will
need spacers (I or J) when assembling the wall mount.
V
3
Concrete anchors (Fischer UX10 x 60R)
background
7
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTMT15
Irregularly-shaped back: There is a gap between the brackets and some part of the
back of your TV. You will need spacers (I or J) when assembling the wall mount.
6 Remove the TV brackets (B and C).
background
8
Need help? Call 1-800-620-2790 (U.S. and Canada)

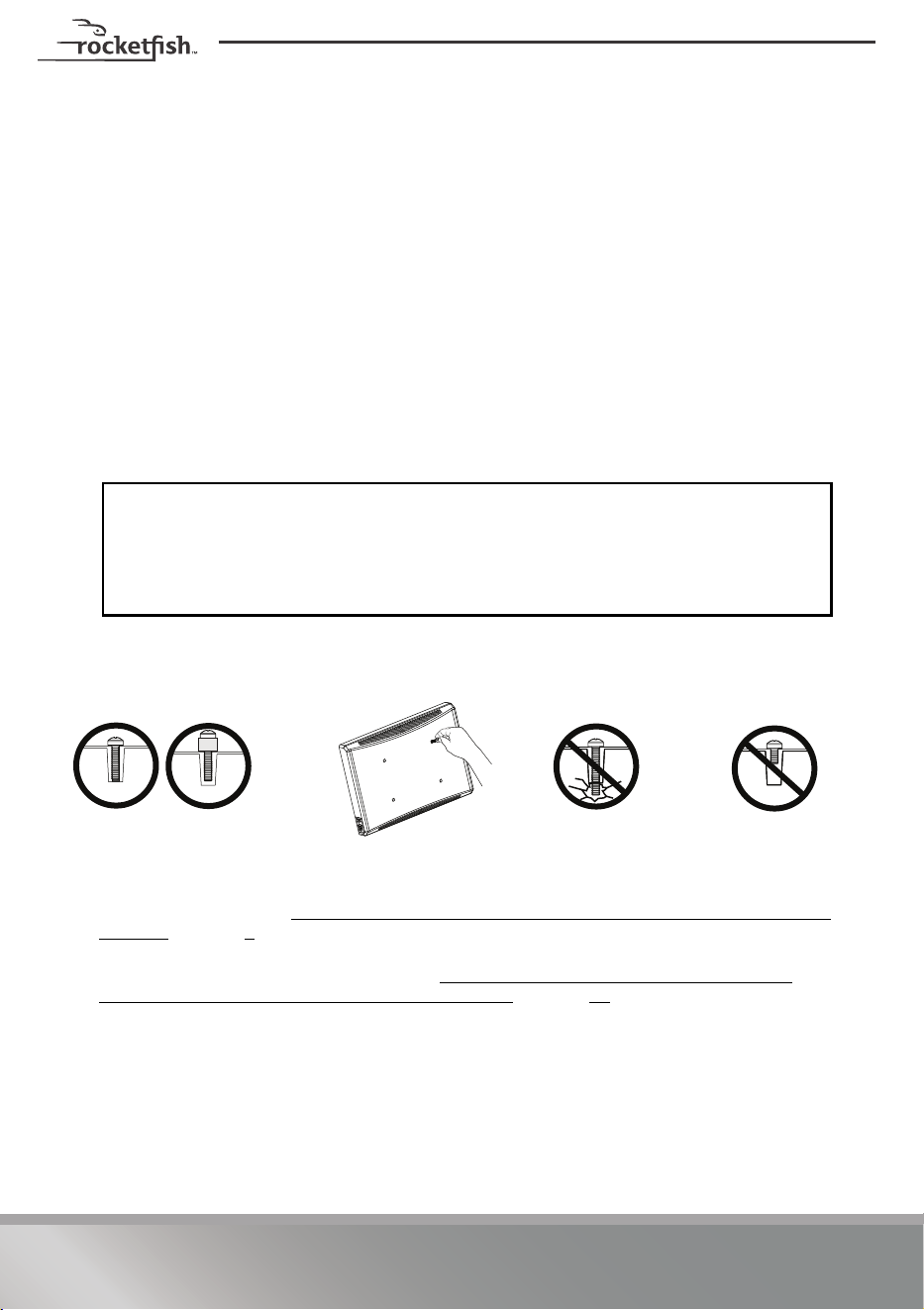

STEP 2 - Selecting screws, washers, and spacers
1 Select the hardware for your TV (screws, washers, and spacers). A limited number of TVs
come with mounting hardware included. (If there are screws that came with the TV, they
are almost always in the holes on the back of the TV.) If you don't know the correct length
of the mounting screws your TV requires, test various sizes by hand threading the screws.
Select one of the following types of screws:
Select M4 washers (G) or M6/M8 washers (H).
For an irregular or obstructed TV back, use the 22 mm spacers (I), 5 mm spacers (J), or
2.5 mm spacers (K).
2 Remove the screws.
3 For a flat back TV, go to STEP 3 - Option 1: Attaching the mounting hardware to TVs with a
flat back on page 9.
-OR-
For an obstructed or irregular back, go to STEP 3 - Option 2: Attaching the mounting
hardware to TVs with irregular or obstructed backs on page 10.
M4 × 12 mm screws (E) M8 × 16 mm screws (O)
M4 × 35 mm screws (F) M8 × 20 mm screws (P)
M6 × 12 mm screws (L) M8 × 30 mm screws (Q)
M6 × 20 mm screws (M) M8 × 40 mm screws (R)
M6 × 35 mm screws (N) M8 × 50 mm screws (S)
CAUTION: To avoid potential personal injuries and property damage, make sure that
there are adequate threads to secure the brackets to your TV. If you encounter
resistance, stop immediately and contact customer service. Use the shortest screw and
spacer combination to accommodate your TV. Using hardware that is too long may
damage your TV. However, using a screw that is too short may cause your TV to fall
from the mount.
Screw
is too
long
Screw fits
correctly
Screw
is too
short
background
9
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTMT15

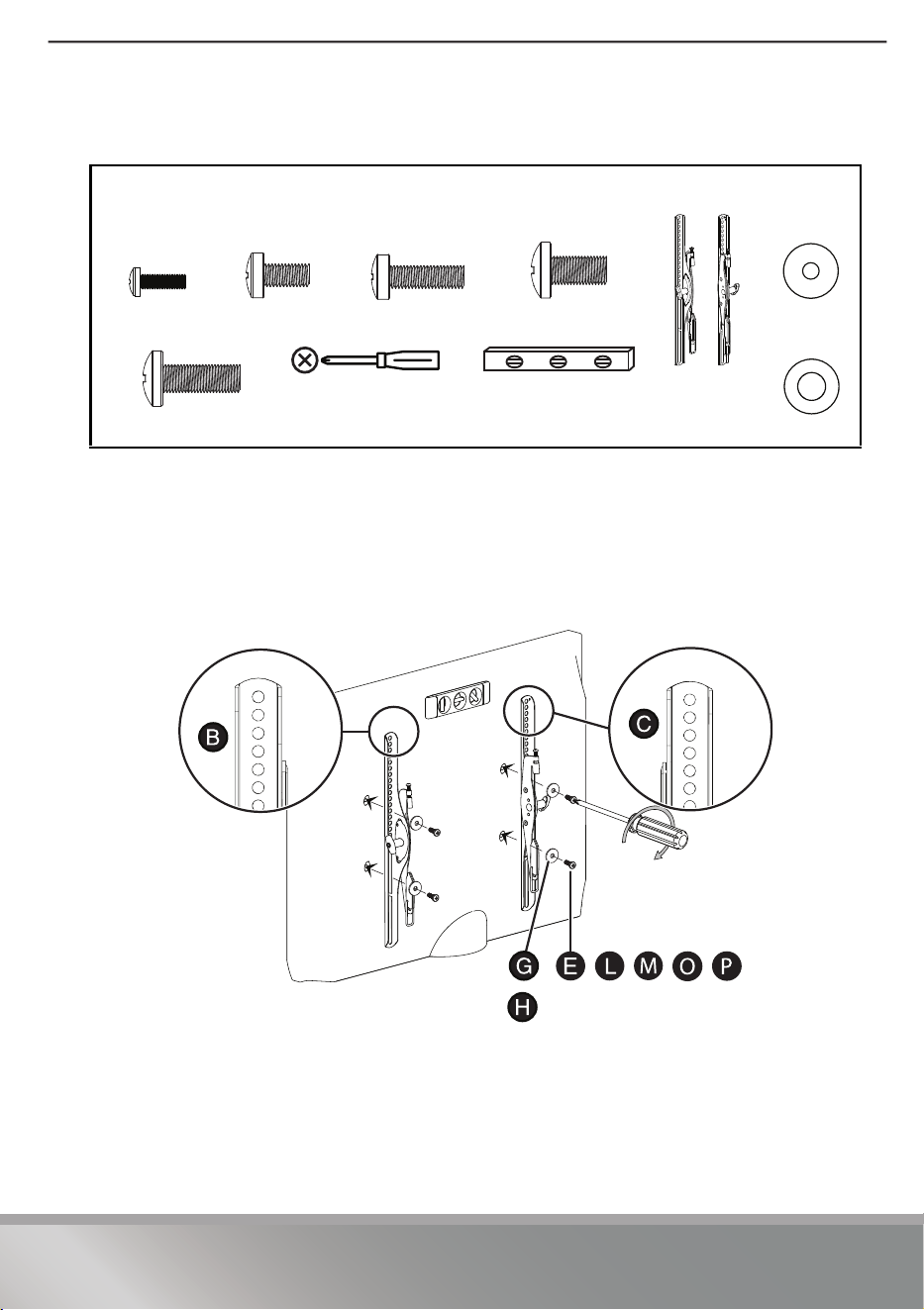

STEP 3 - Option 1: Attaching the mounting hardware to TVs with a flat
back
1 Align the holes you noted on the TV brackets (B and C) with the screw holes on the back
of your TV. The brackets are marked “R” for the right bracket and “L” for the left bracket.
Make sure that the brackets are level.
2 Place the washers (G or H) over the holes in the TV brackets that align with the screw
holes on the back of your TV, then insert the screws (E, L, M, O, or P) through the washers.
3 Tighten the screws until they are snug against the TV bracket. Do not over tighten.
You’ll need
G (4)
H (4)
E (4)
L (4)
M (4)
Phillips screwdriver
oror
or
Screws
or
O (4)
Washers
Level
(B and C) TV
brackets
or
P (4)
R
L
background
10
Need help? Call 1-800-620-2790 (U.S. and Canada)

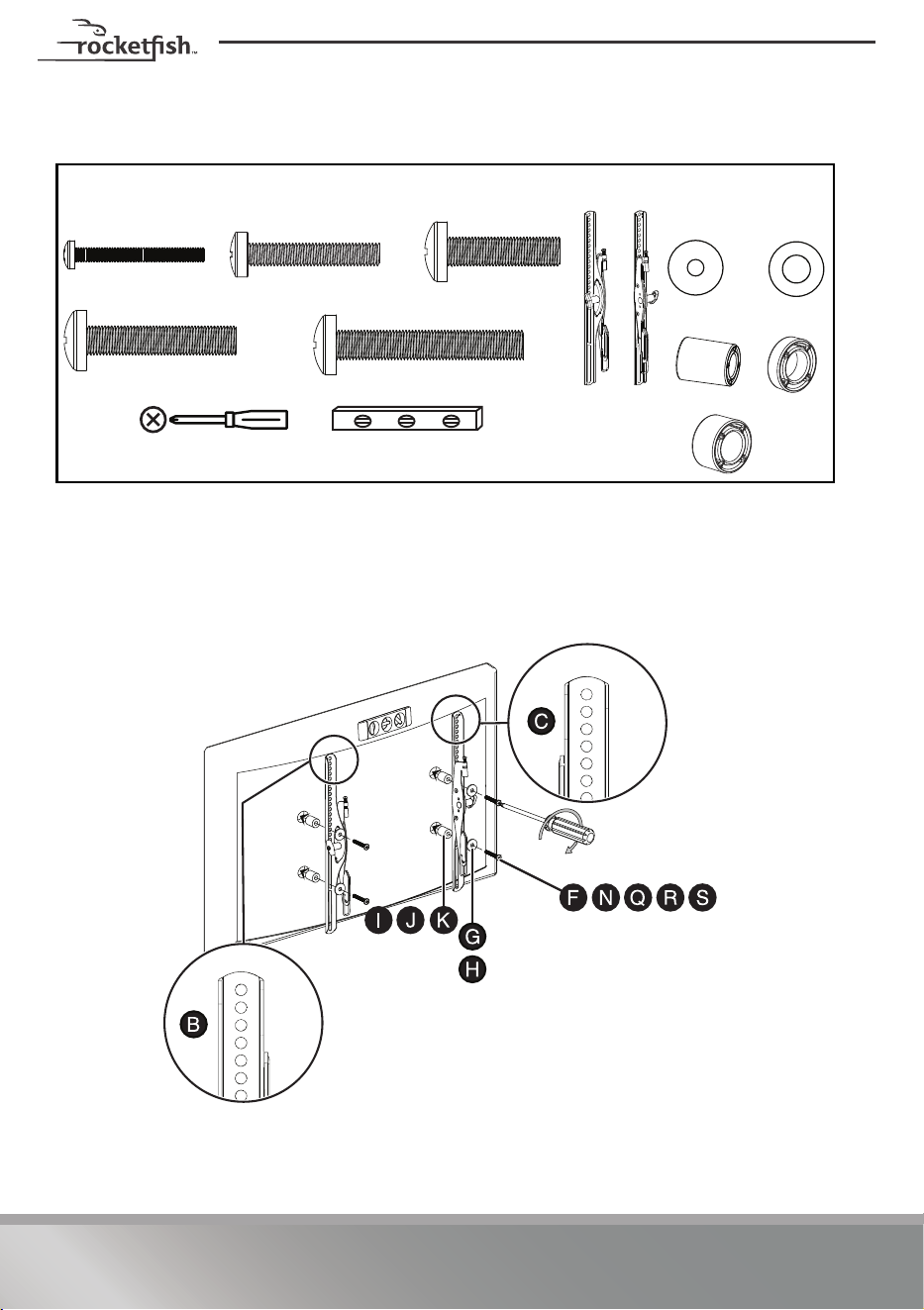

STEP 3 - Option 2: Attaching the mounting hardware to TVs with
irregular or obstructed backs
1 Align the TV brackets (B and C) with the screw holes on the back of the TV.
2 Place spacers (I, J, or K) behind the TV brackets and the washers (G or H) over the holes in
the TV bracket, then insert the screws (F, N, Q, R, or S) through the washers, TV bracket,
and spacers. Make sure the brackets are level.
3 Tighten the screws until they are snug against the TV bracket. Do not over tighten.
You’ll need
G (4)
H (4)
F (4)
N (4)
Q (4)
or
or
or
Screws
Washers
I (4)
(B and C) TV
Brackets
R (4)
or
S (4)
K (4)
Phillips screwdriver
Level
J (4)
R
L
background
11
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTMT15
STEP 4 - Determining wall-mount location
The center of your TV will match the center of the wall plate (A). Before you drill holes in the
wall:
1 Measure the distance from the bottom of your TV to the middle (half of the height of the
TV). This is measurement a.
2 Measure the distance from the floor to where you want the bottom of the TV to be placed
on the wall. Keep in mind that the bottom of the TV should be placed above any furniture
(such as entertainment centers or TV stands). The TV should also be above items placed
on top of the furniture (like a Blu-ray player or cable box). This is measurement b.
3Add a + b. The total measurement is the height where you want the center of the wall
plate to be on the wall.
4 Use a pencil to mark this spot on the wall.
You’ll need
Notes:
For more detailed information on determining where to drill your holes, visit our
online height-finder at: http://mf1.bestbuy.selectionassistant.com/heightfinder
Your TV should be high enough so your eyes are level with the middle of the screen
(normally, 40 to 60 inches from the ground).
Measuring tape
Pencil
A
B
b
a
background
12
Need help? Call 1-800-620-2790 (U.S. and Canada)

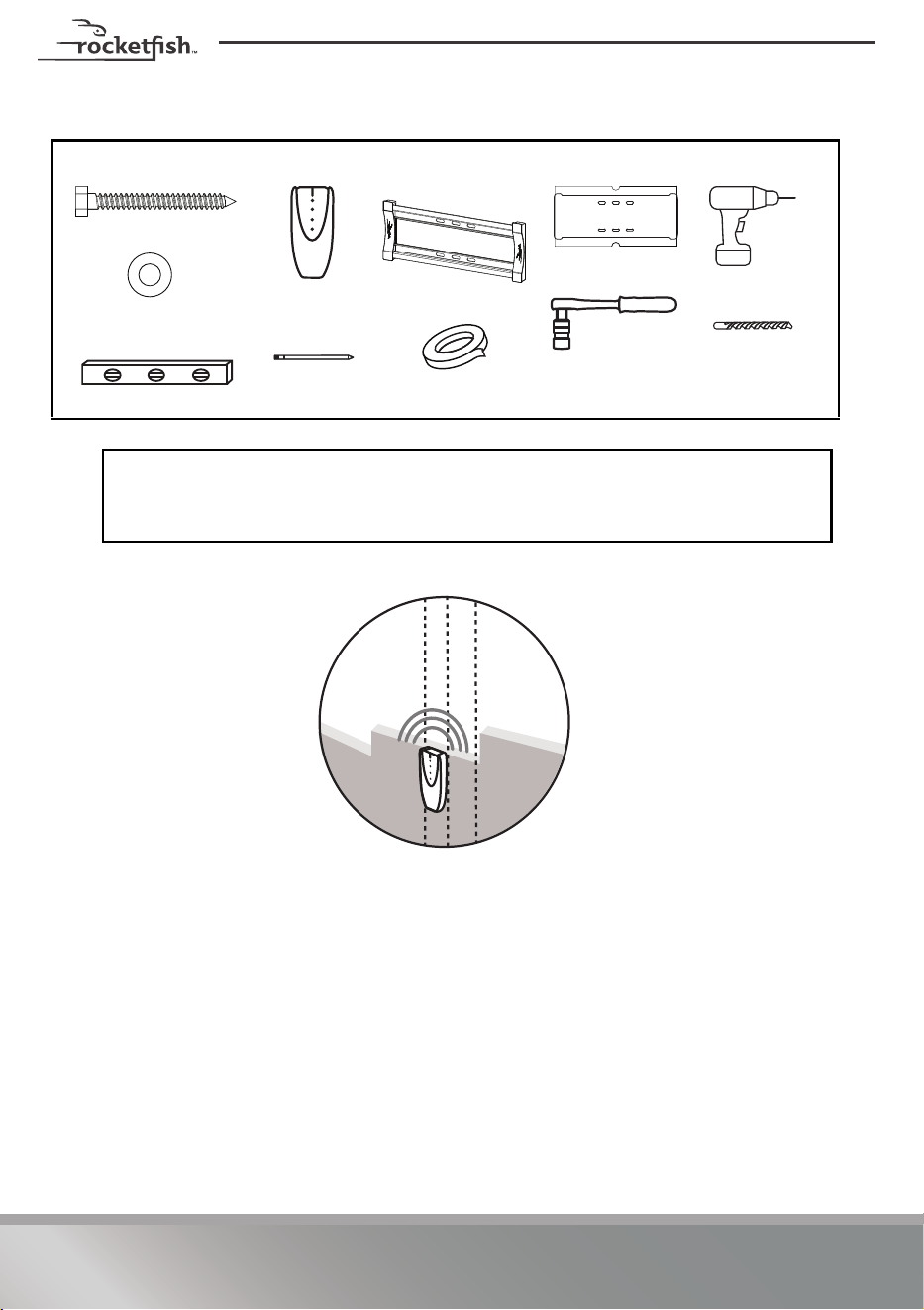

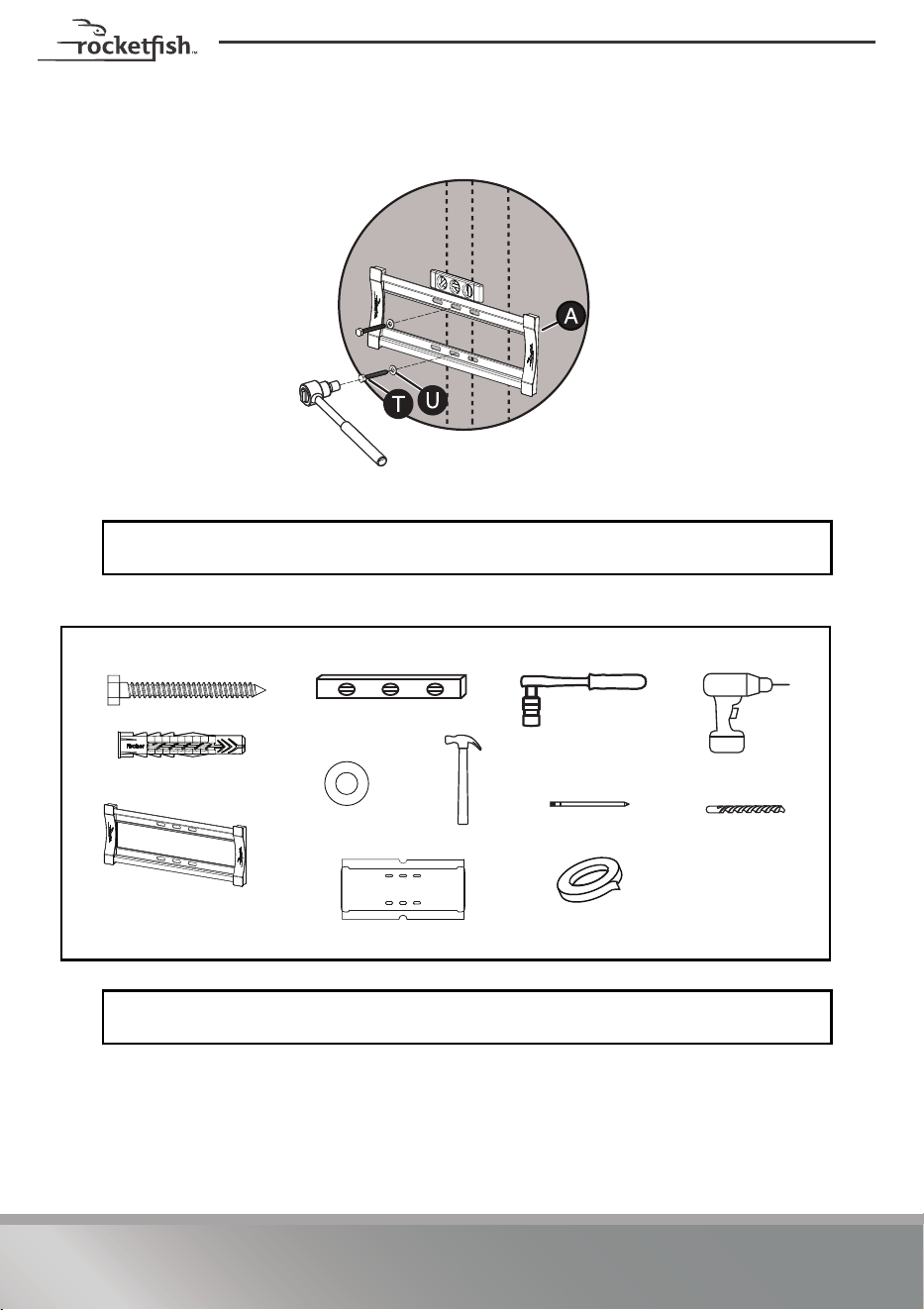

STEP 5 - Option 1: Installing on a wood stud wall
1 Locate the stud. Verify the center of the stud with an edge-to-edge stud finder.
You’ll need
Notes:
Drywall covering the wall must not exceed 5/8 (16 mm).
Minimum wood stud size: Common 2 x 4 in. (51 x 102 mm). Nominal 1.5 x 3.5 in.
(38 x 89 mm)
Edge-to edge
stud finder
Lag bolt (U) (2)
7/32” wood
drill bit
1/2” socket
wrench
Template (D)
Wall plate (A)
Lag bolt washer
(T) (2)
Pencil
Level
Drill
Tape
background
13
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTMT15

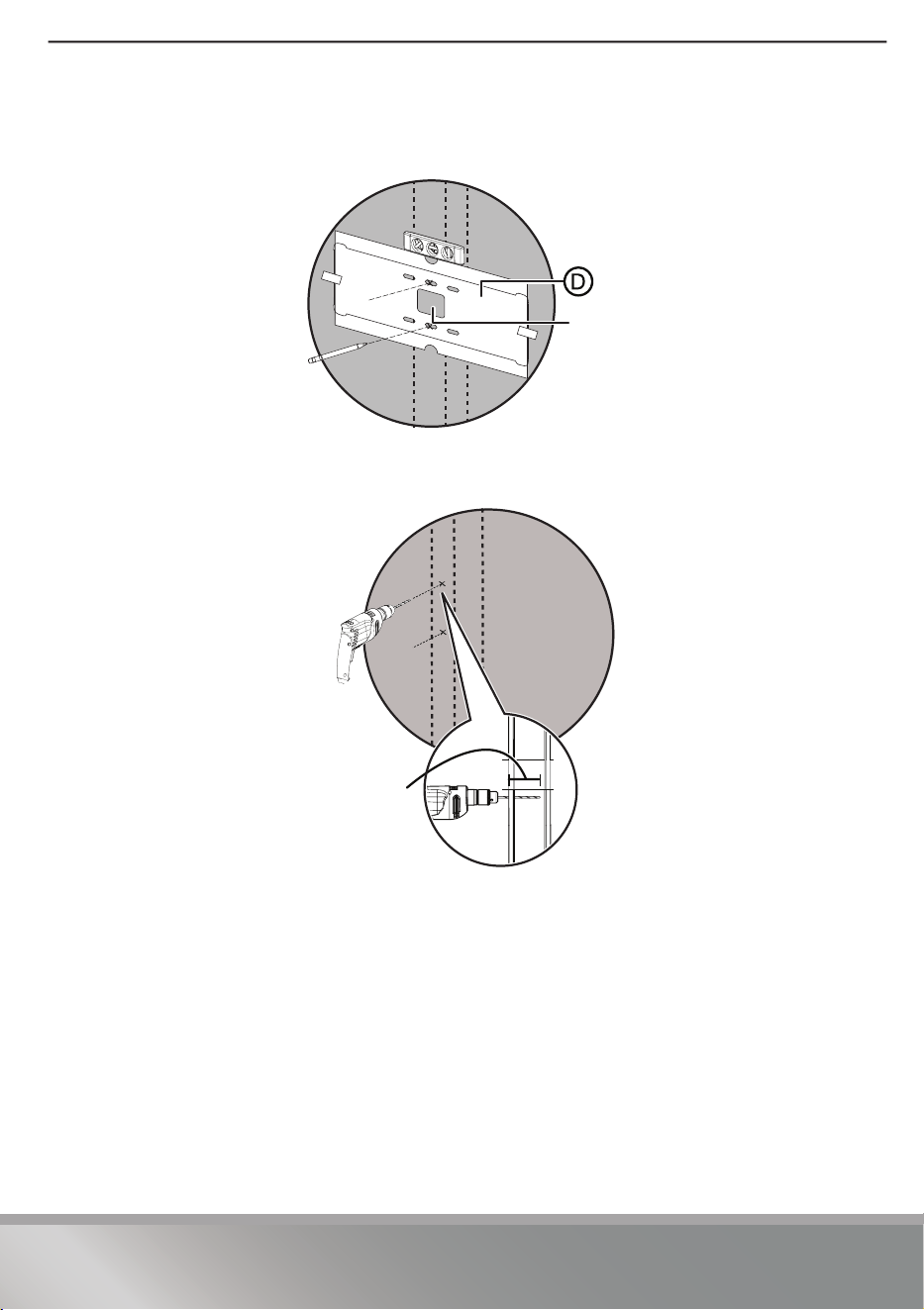

2 Align the wall plate template (D) at the height you determined in the previous step and
make sure that it is level. Tape the wall plate template to the wall, then use a pencil to
mark the lag bolt hole locations (2) on the stud center. Remove the wall plate template.
3 Drill pilot holes to a depth of 3 in. (75 mm) using a 7/32 in. (5.5 mm) diameter drill bit.
Center pencil mark
made in Step 4.
3 in.
(75 mm)
background
14
Need help? Call 1-800-620-2790 (U.S. and Canada)
4 Align the wall plate (A) with the pilot holes, insert the lag bolts (U) through the lag
washers (T) and the holes in the wall plate, then tighten the lag bolts only until they are
firm against the wall plate.
STEP 5 - Option 2: Installing on a solid concrete or concrete block wall
CAUTION: Avoid potential injuries or property damage! DO NOT over-tighten the lag
bolts (U).
You’ll need
Note: Minimum solid concrete thickness: 8 in (203 mm). Minimum concrete block size:
8 x 8 x 16 in. (203 x 203 x 406 mm).
Lag bolt (U) (3)
Hammer
3/8” masonry
drill bit
Template (D)
Wall plate (A)
Lag bolt washer
(T) (3)
Concrete Anchor (V) (3)
1/2” socket
wrench
Level
Drill
Tape
Pencil
background
15
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTMT15

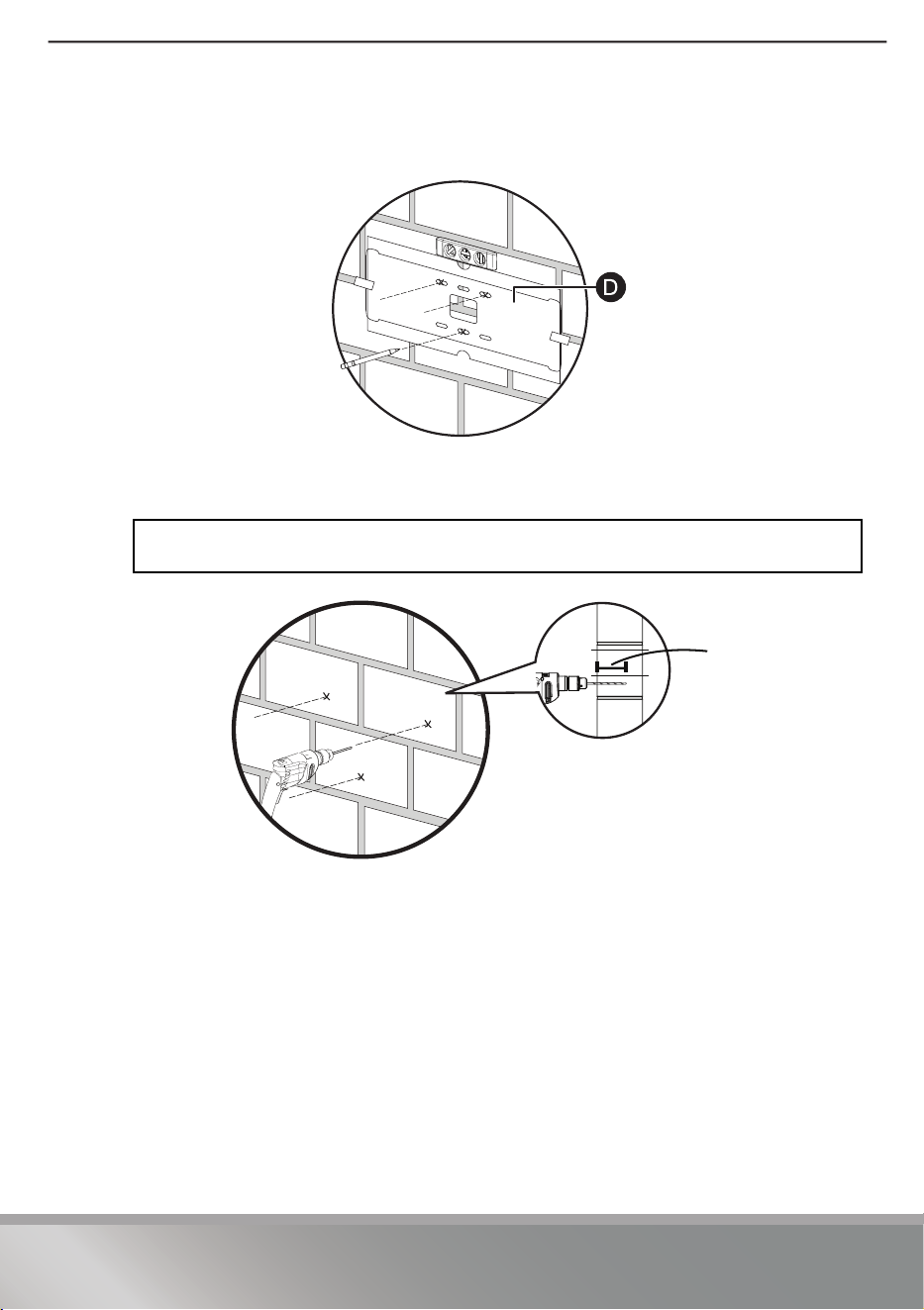

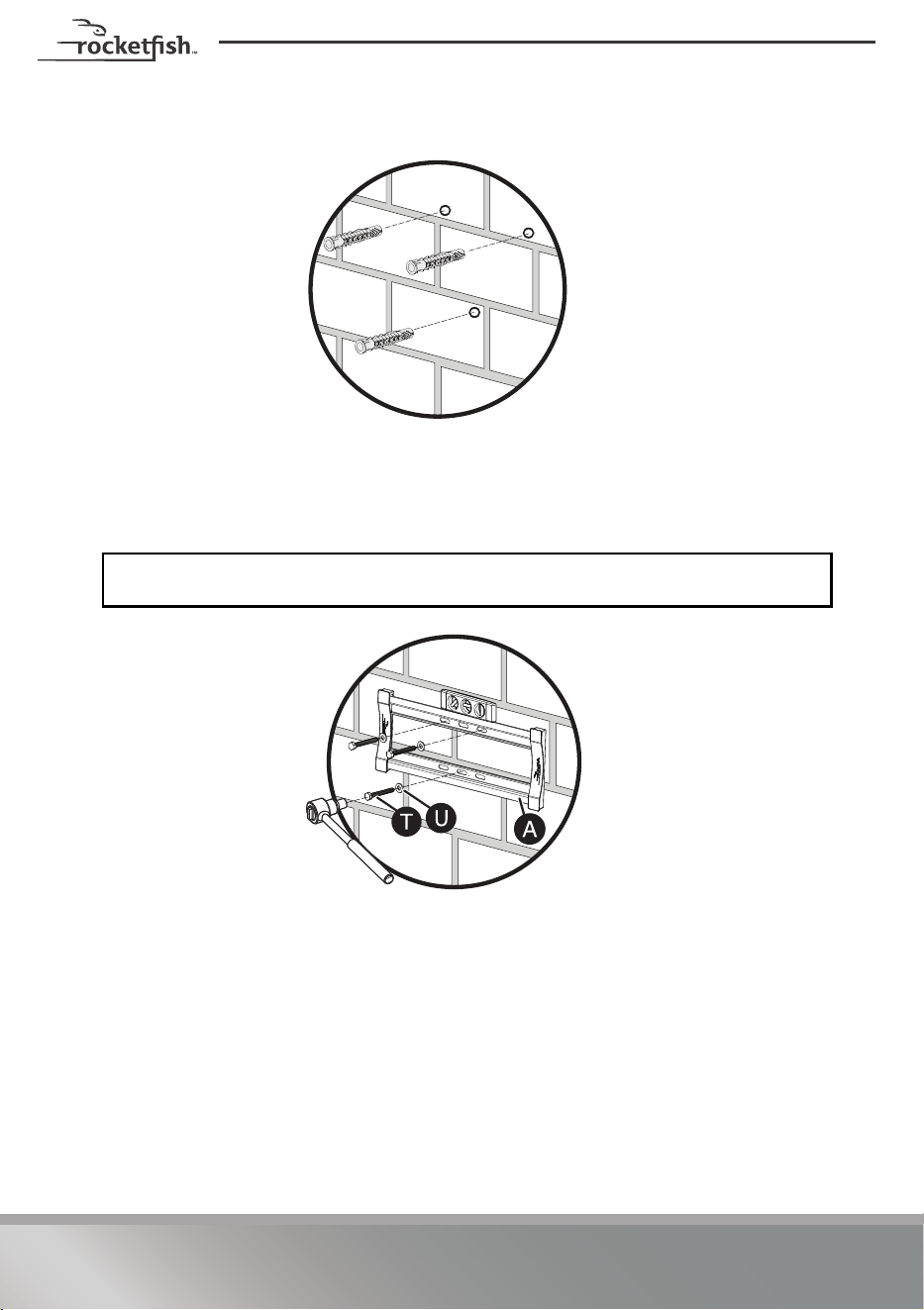

1 Align the wall plate template (D) at the height you determined in the previous step and
make sure that it is level. Tape the wall plate template to the wall, then use a pencil to
mark the lag bolt hole locations (3). Remove the wall plate template.
2 Drill pilot holes to a depth of 3 in. (75 mm) using a 3/8 in. (10 mm) diameter masonry drill
bit.
CAUTION: To prevent property damage or personal injury, never drill into the mortar
between blocks. Mount the wall plate directly onto the concrete surface.
3 in.
(75 mm)
background
16
Need help? Call 1-800-620-2790 (U.S. and Canada)
3 Insert the concrete wall anchors* into the pilot holes and use a hammer to make sure that
the anchors are flush with the concrete surface.
4 Align the wall plate (A) with the anchors, insert the lag bolts (U) through the lag washers
(T) and the holes in the wall plate, then tighten the lag bolts only until they are firm
against the wall plate.
*Not included. Call Customer Service to inquire about the Fischer UX10 x 60R concrete anchor kit.
CAUTION: Avoid potential injuries or property damage! DO NOT over-tighten the lag
bolts (U).
background
17
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTMT15

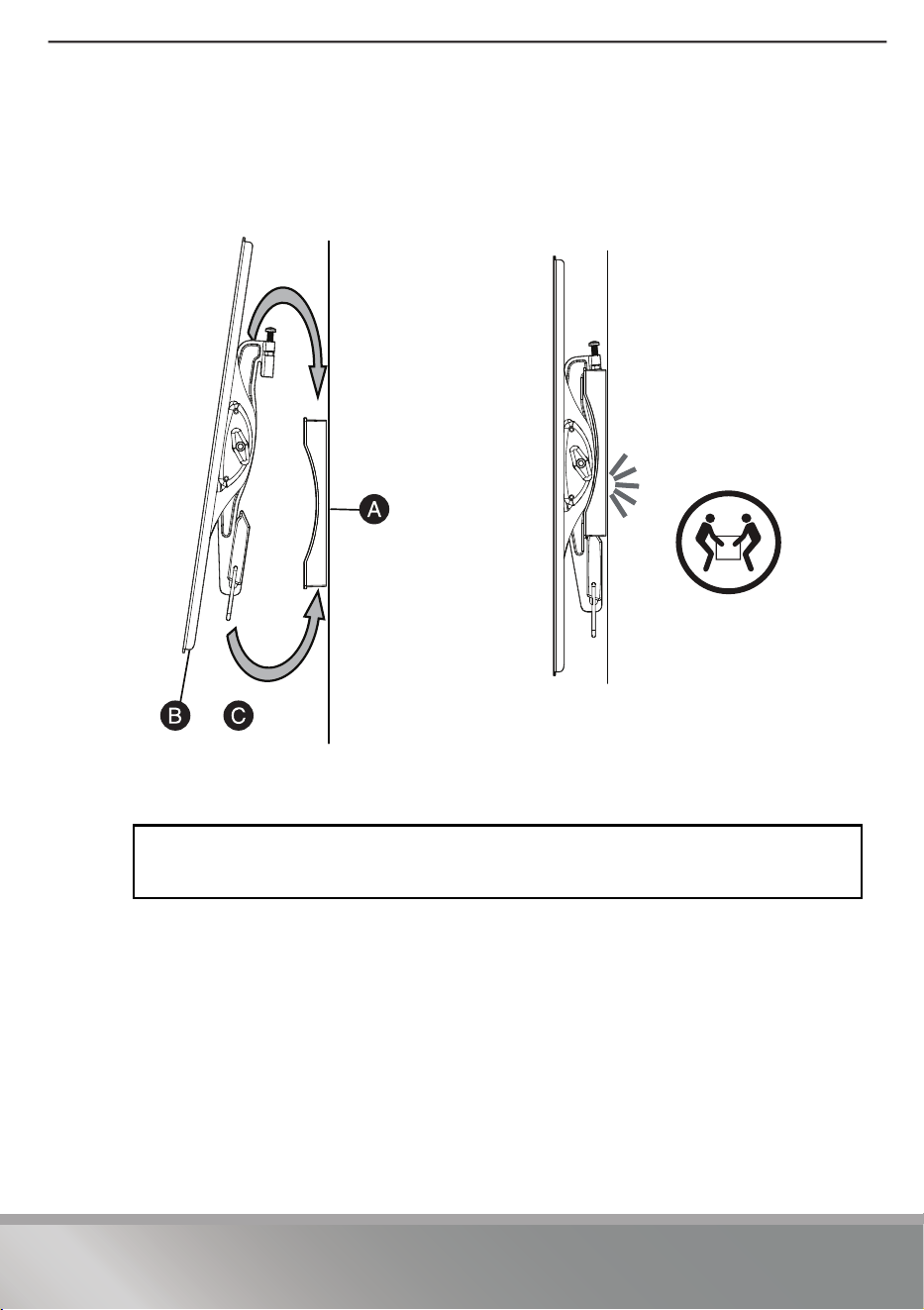

STEP 6 - Attaching your TV to the wall mount
Holding the TV with the top of the screen tilted toward the wall, slide the upper notches
of the right and left TV brackets (B and C) over the upper lip of the wall plate (A). Then,
gently lower the TV until the lock engages the lower lip of the wall plate (A). You will
hear a click when the TV locks into place.
Tip: If you are mounting a very large TV (over 50”), you may want to consider
connecting the cables to the TV before mounting it on the wall, as the ports might be
difficult to reach after it is mounted.
HEAVY! You will
need assistance
with this step.
background
18
Need help? Call 1-800-620-2790 (U.S. and Canada)

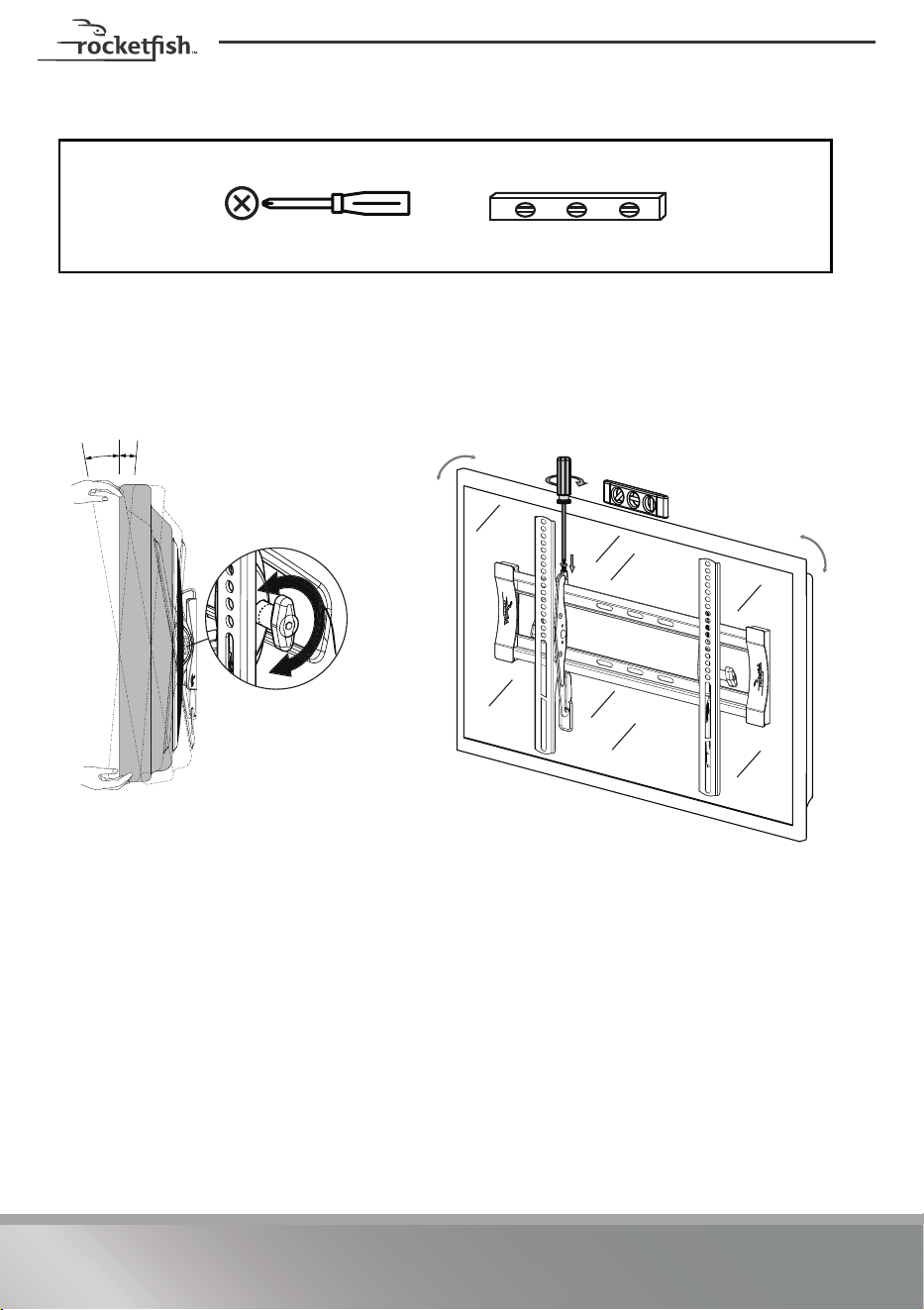

STEP 7 - Adjusting the tilt angle
1 Adjust the swivel tension knob by hand, then adjust the tilt angle by gripping the top and
bottom of the TV and manually moving the TV to the angle you want. When you are done
adjusting the tilt tension, re-tighten the knob, but do not over-tighten.
2 Adjust the level by loosening and tightening the screws on the tops of the vertical
brackets.
You’ll need
Phillips screwdriver
Level
10°
background
19
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTMT15

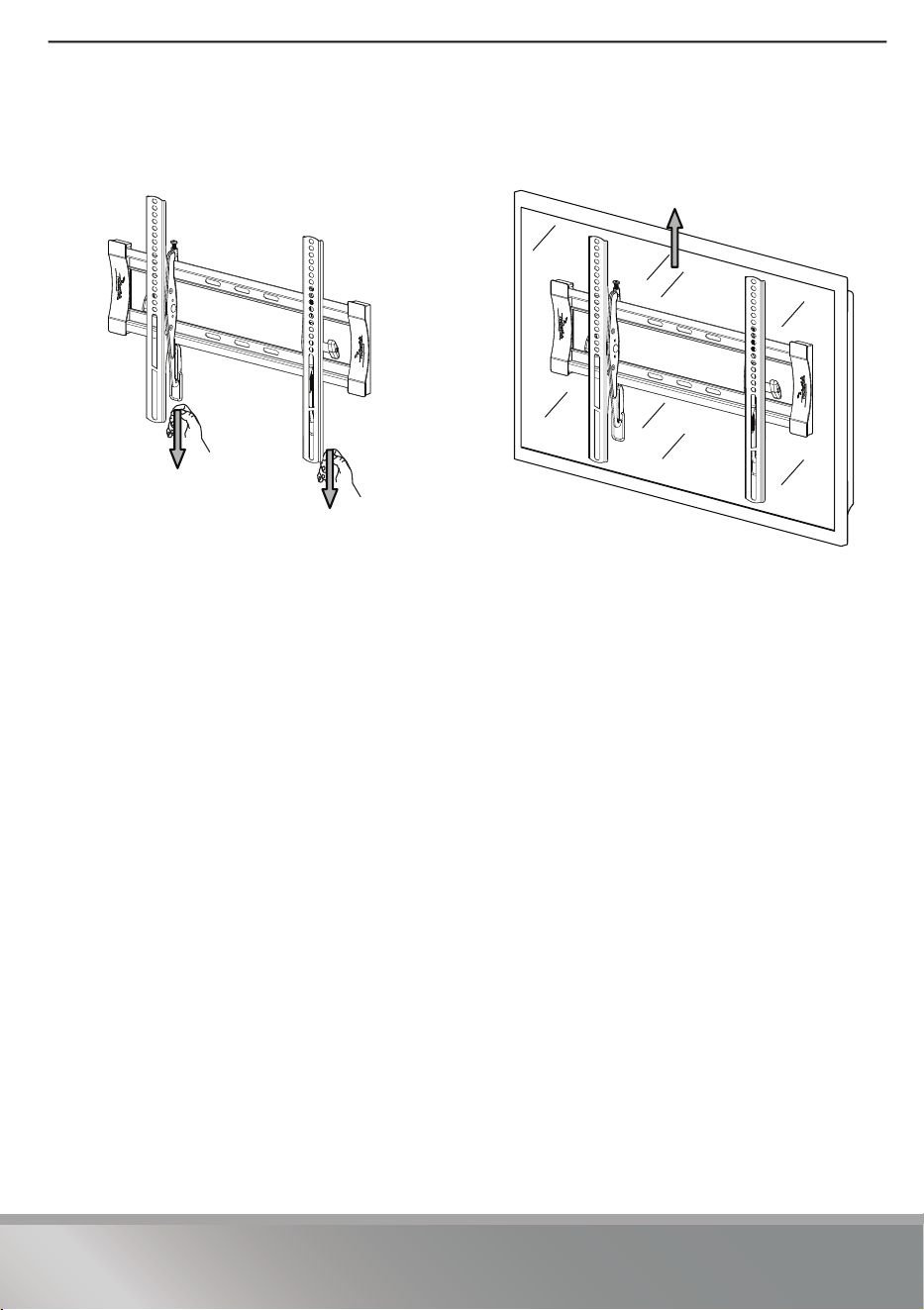

Removing the TV from the wall mount
Pull the latches down to unlock the TV from the wall mount, then pull the bottom of the
TV out from the wall and lift it up and off the wall plate.
For customer service, call: 1-800-620-2790 (U.S. and Canada)
background
20
Need help? Call 1-800-620-2790 (U.S. and Canada)
LIFETIME LIMITED WARRANTY
Definitions:
The Distributor* of Rocketfish branded products warrants to you, the original purchaser of this new
Rocketfish-branded product (“Product”), that the Product shall be free of defects in the original
manufacturer of the material or workmanship for the Product Warranty Period.
For this warranty to apply, your Product must be purchased in the United States or Canada from a Best Buy
branded retail store or online at www.bestbuy.com
or www.bestbuy.ca and is packaged with this warranty
statement.
How long does the coverage last?
The Warranty Period lasts for the useful life of the Product beginning on the date you purchased the
Product. Your purchase date is printed on the receipt you received with the Product. In the event the
Distributor ceases to sell the covered Rocketfish-branded product, this Limited Lifetime Warranty shall
terminate for that product and there shall be no repair or replacement of the Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the Product is
determined to be defective by an authorized Rocketfish repair center or store personnel, Rocketfish will (at
its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with
new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the
property of Rocketfish and are not returned to you. If service of Products or parts are required after the
Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own
your Rocketfish Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise
transfer the Product.
How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location or from a Best Buy online website
(www.bestbuy.com or www.bestbuy.ca), please take your original receipt and the Product to any Best Buy
store. Make sure that you place the Product in its original packaging or packaging that provides the same
amount of protection as the original packaging.
To obtain warranty service, in the United States and Canada call 1-800-620-2790. Call agents may diagnose
and correct the issue over the phone.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to
the original purchaser of the product in the country where the original purchase was made.
What does the warranty not cover?
This warranty does not cover:
Customer instruction/education
•Installation
•Set up adjustments
Cosmetic damage
background
21
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTMT15
Damage due to weather, lightning, and other acts of God, such as power surges
•Accidental damage
•Misuse
•Abuse
•Negligence
Commercial purposes/use, including but not limited to use in a place of business or in communal
areas of a multiple dwelling condominium or apartment complex, or otherwise used in a place of
other than a private home.
Unauthorized modification of any part of the Product, including the antenna
Display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).
Damage due to incorrect operation or maintenance
Connection to an incorrect voltage or power supply
Attempted repair by any person not authorized by Rocketfish to service the Product
Products sold “as is” or “with all faults”
Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)
Products where the factory applied serial number has been altered or removed
Loss or Theft of this product or any part of the product
Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly
illuminated) grouped in an area smaller than one tenth (1/10) of the display size or up to five (5)
pixel failures throughout the display. (Pixel based displays may contain a limited number of pixels
that may not function normally.)
Failures or Damage caused by any contact including but not limited to liquids, gels or pastes.
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH
OF WARRANTY. ROCKETFISH SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT
LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. ROCKETFISH
PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND
IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF
AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN
DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR
IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO
NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Rocketfish:
1-800-620-2790
www.rocketfishproducts.com
Rocketfish is a trademark of Best Buy and its affiliated companies.
*Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2022 Best Buy. All rights reserved.
background
V2 ENGLISH
22-1111
www.rocketfishproducts.com
1-800-620-2790 (U.S. and Canada)
ROCKETFISH is a trademark of Best Buy and its affiliated companies.
Registered in some countries. Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2022 Best Buy. All rights reserved.
Part # 6907-302065

Specifications

Indexed Terms: Wall-Mountable Design

Rocketfish RF-HTMT15 Questions and Answers
