TURBO HD
Motorized Vari-focal IR
Bullet Camera
User Manual
Regulatory Information
FCC Information
FCC compliance: This equipment has been
tested and found to comply with the limits for a
digital device, pursuant to part 15 of the FC C
Rules. These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated in
a commercial environment. This equipment
generates, uses, and can radiate radio
frequency energy and, if not installed and used
in accordance with the instruction manual, may
cause harmful interference to radio
communications. Operation of this equipment in
a residential area is likely to cause harmful
interference in which case the user will be
required to correct the interference at his own
expense.
FCC Conditions
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
EU Conformity Statement
upon the purchase of equivalent new equipment,
or dispose of it at designated collection points.
For more information see:
www.recyclethis.info.
2006/66/EC (battery directive):This
product contains a battery that cannot
be disposed of as unsorted municipal
waste in the European Union.
See the product documentation for specific
battery information. The battery is marked with
this symbol, which may include lettering to
indicate cadmium (Cd), lead (Pb), or mercury (Hg).
For proper recycling, return the battery to your
supplier or to a designated collection point. For
more information see: www.recyclethis.info.
U D.6L0201D2016A01
2012/19/EU (WEEE directive):
Products marked with this symbol
cannot be disposed of as unsorted
municipal waste in the European
Union. For proper recycling, return
this product to your local supplier
This product and - if applicable - the
supplied accessories too are marked
with "CE" and comply therefore with
the applicable harmonized European
standards listed under the Low Voltage Directive
2006/95/EC, the EMC Directive 2004/108/EC,
the RoHS Directive 2011/65/EU.
This series of camera adopts new generation
sensor with high sensitivity and advanced circuit
design technology It features high resolution,.
low image distortion and low noise, etc , which.
makes it suitable for surveillance system and
image processing system.
l HD1080p video output
0.1Lux @ (F1.2,AGC ON), 0 Lux with IR
l
5-50mm motorized VF lens, auto focusl
l SmartIRMode
s are configurablel OSD menu, parameter
Auto white balance, auto gain control, WDR Functionl
High performance 2MP CMOS sensor and highl
resolution bring high-quality image
1 Introduction
1.1 Product Features
1.2 Overview
Thank you for purchasing our product. If there
are any questions, or requests, please do not
hesitate to contact the dealer.
This manual applies to
DS-2CE16D9T-AIRAZH
model motorized vari-focal IR bullet camera.
This manual may contain several technical
incorrect places or printing errors, and the
content is subject to change without notice.
The updates will be added to the new version of
this manual. We will readily improve or update
the products or procedures described in the
manual.
0200001050626
Please refer to the product specification for
camera parameters and functions.
Privacy Notice
Surveillance laws vary by jurisdiction. Check
all relevant laws in your jurisdiction before using
this product for surveillance purposes to ensure
that your use of this product conforms.
Industry Canada ICES-003 Compliance
.
This device meets the CAN ICES-3 (A)/NMB-3(A)
standards requirements.

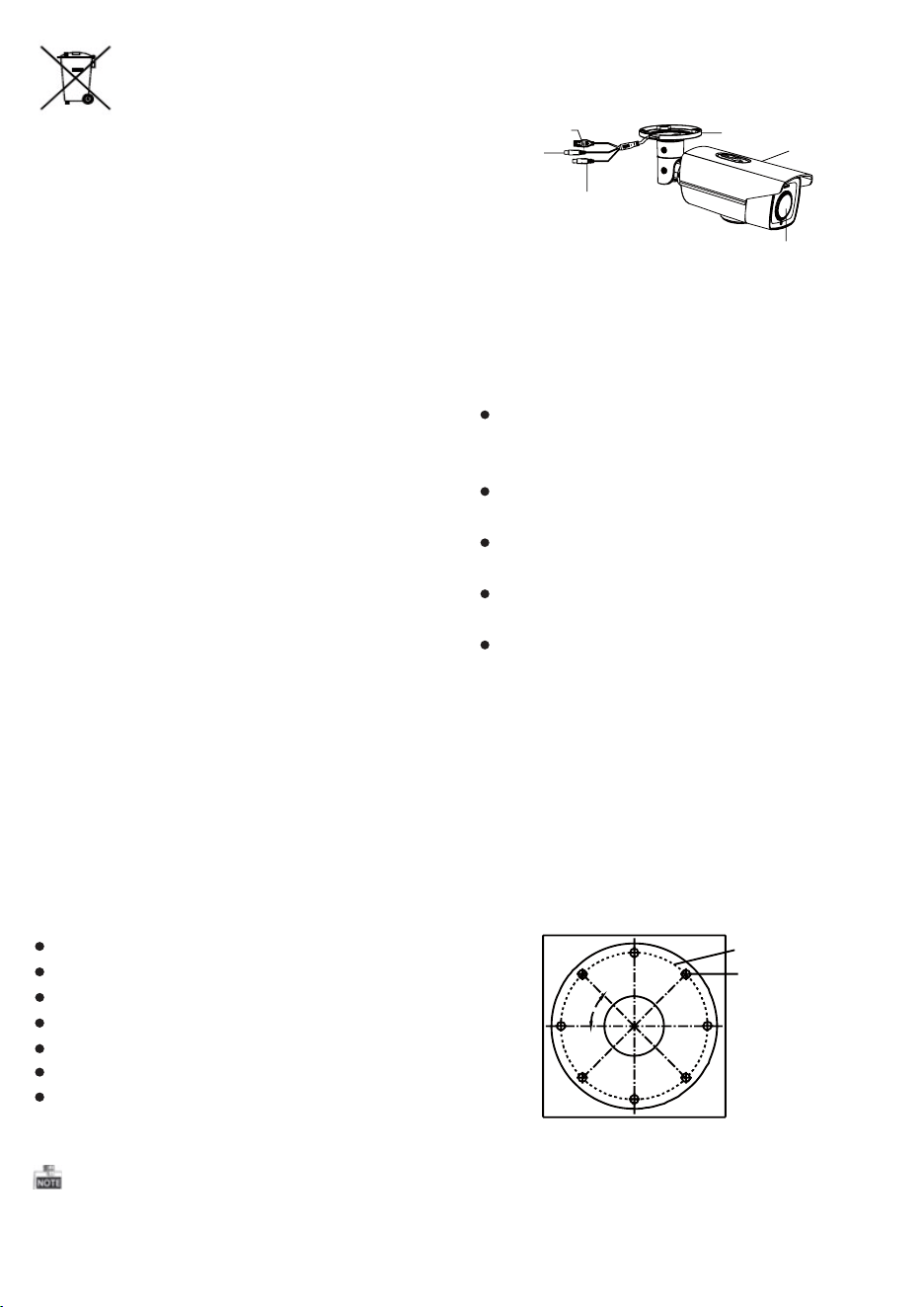

1.2.1 Overview of Vari-Focal IR Bullet Camera
Figure 1-1 Overview of Bullet Camera
Device supports 12V DC and 24V AC power supply.
Heater function will only be enabled with 24V AC.
Power Cable
HD Video
Cable
CVBS Cable
Mounting Base
Sun Shield
Motorized Vari-Focal Lens
2 Installation
Before you start:
l Please make sure that the device in the package
is in good condition and all the assembly parts
are included.
l Make sure that all the related equipment is
power-off during the installation.
l Check the specification of the products for the
installation environment.
l Check whether the power supply is matched
with your power output to avoid damage.
l If the product does not function properly,
please contact your dealer or the nearest
service center. Do not disassemble the camera
for repair or maintenance by yourself.
2.1 Ceiling Mounting
1.Drill the screw holes and the cable hole in the
ceiling according to the supplied drill template.
2.Hammer the supplied plastic expansion bolt into
the screw holes.
Figure 2-1 Drill Template
Steps:
Ceiling Mounting
1
1
1
1
2
22
2
1:Screw Hole for
Bracket
2:Screw Hole for
Mounting Base
4-45°
Φ88.7
8-Φ5.0

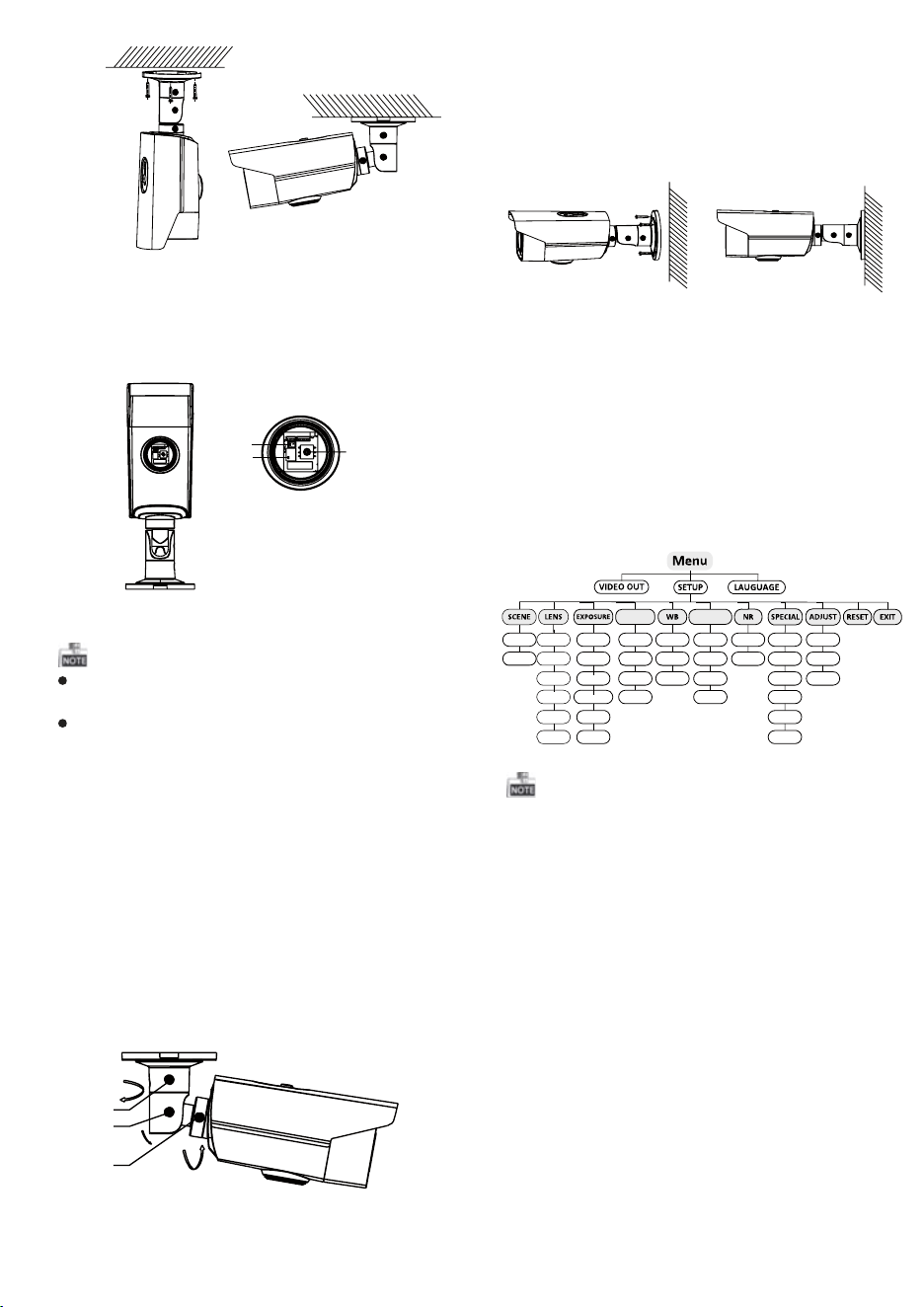

3.Route the cables to the cable hole and connect
the corresponding cables.
4.Fix the camera to the ceiling with the supplied
PA4 screws.
