Naming Definition
GV-DVR / NVR
GeoVision Analog and Digital Video Recording Software. The GV-
DVR also refers to GV-Multicam System or GV-Hybrid DVR.
GV-VMS
GeoVision Video Management System for IP cameras.
vii
Note for Connecting to GV-VMS / DVR / NVR
The GV-IPCAM in this Manual is designed to work with and record on GV-VMS / DVR / NVR,
a video management system. Once the camera is connected to the GV-VMS / DVR / NVR,
the resolution set on the GV-VMS / DVR / NVR will override the resolution set on the
camera’s Web interface. You can only change the resolution settings through the Web
interface when the connection to the GV-VMS / DVR / NVR is interrupted.
Note for Installing Camera Outdoor
When installing the camera outdoor, be sure that:
1. The camera is set up above the junction box to prevent water from entering the camera
along the cables.

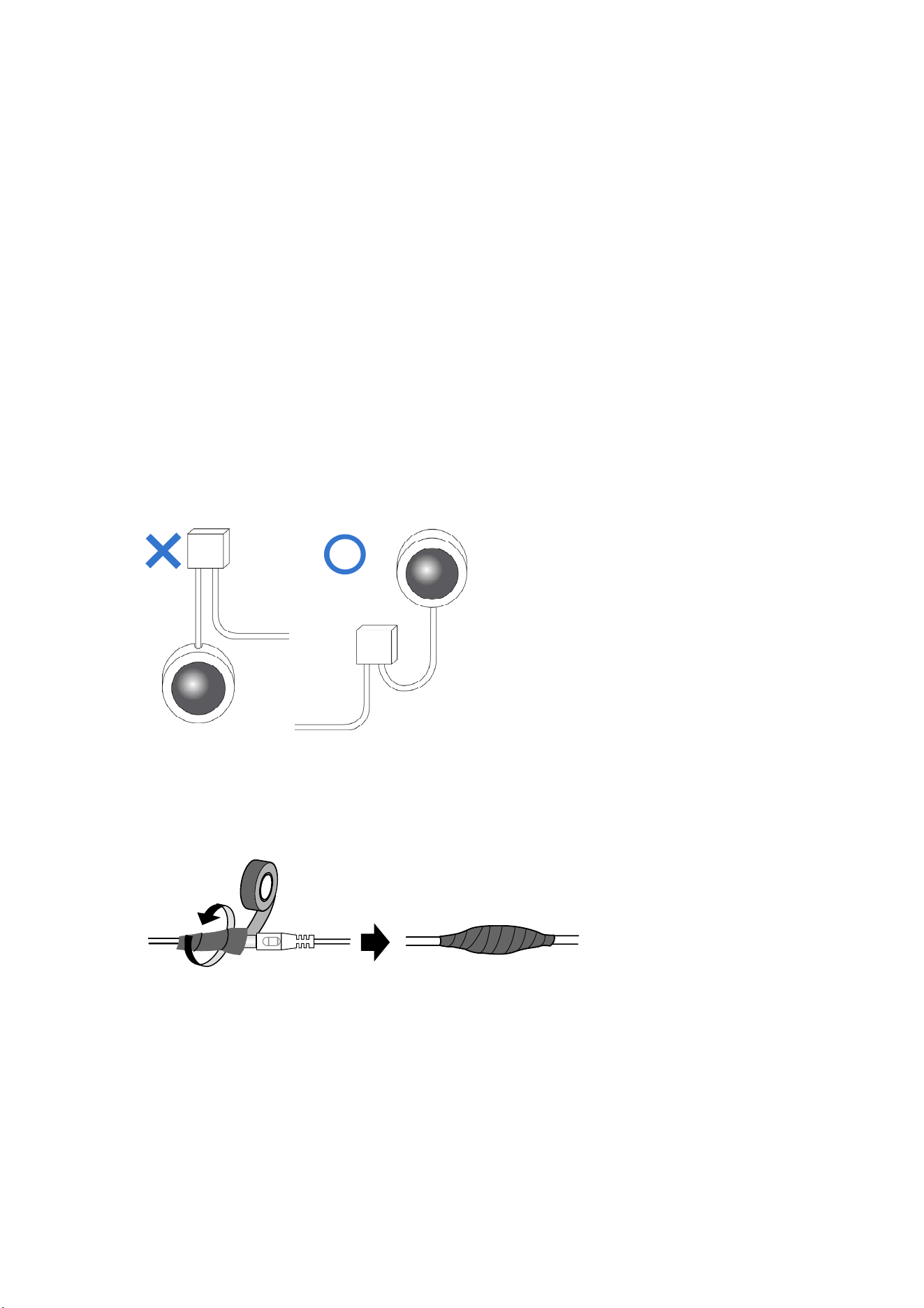

2. Any PoE, power, audio and I/O cables are waterproofed using waterproof silicon rubber
or the like.
3. The screws are tightened and the cover is in place after opening the camera cover.
Note for Powering the Camera
The camera is powered by PoE or a power adapter. If you want to power the camera using
the power connector, an optional power adapter is required.
1
Chapter 1 Introduction
1.1 GV-EBD Series
The H.265 Target Eyeball Dome is an outdoor, network camera equipped with an automatic
IR-cut filter and IR LEDs for day and night surveillance. GV-EBD2702 / 4711 / 8711 adheres
to IP67 standards, whereas GV-EBD4700 adheres to IP66. The camera supports H.265
video codec to achieve better compression ratio while maintaining high quality image at
reduced network bandwidths. With its WDR Pro (WDR for GV-EBD2702), It can process
scenes with contrasting intensity of lights and produce clear image.
For GV-EBD4711 / 8711, with their motorized lenses, the user can zoom and focus the
camera from the Web interface. The camera also provides built-in micro SD card slot for
local storage.
Model No. Specifications Description
GV-EBD2702
2 MP, H.265,
Low Lux, WDR
GV-EBD4700
Fixed lens
Fixed Iris, f: 2.8 mm,
F/1.8, M12 Lens Mount
4 MP, H.265,
Low Lux, WDR Pro
GV-EBD4711
Fixed Iris, f: 2.7 ~ 12 mm,
F/1.4, Ø12 mm Lens
Mount
4 MP, H.265,
Low Lux, WDR Pro
GV-EBD8711
Motorized
varifocal lens
Fixed Iris, f: 2.8 ~ 12 mm
F/1.5, Ø12 mm Lens
Mount
8 MP, H.265,
Super Low Lux,
WDR Pro
2
1.1.1 Packing List

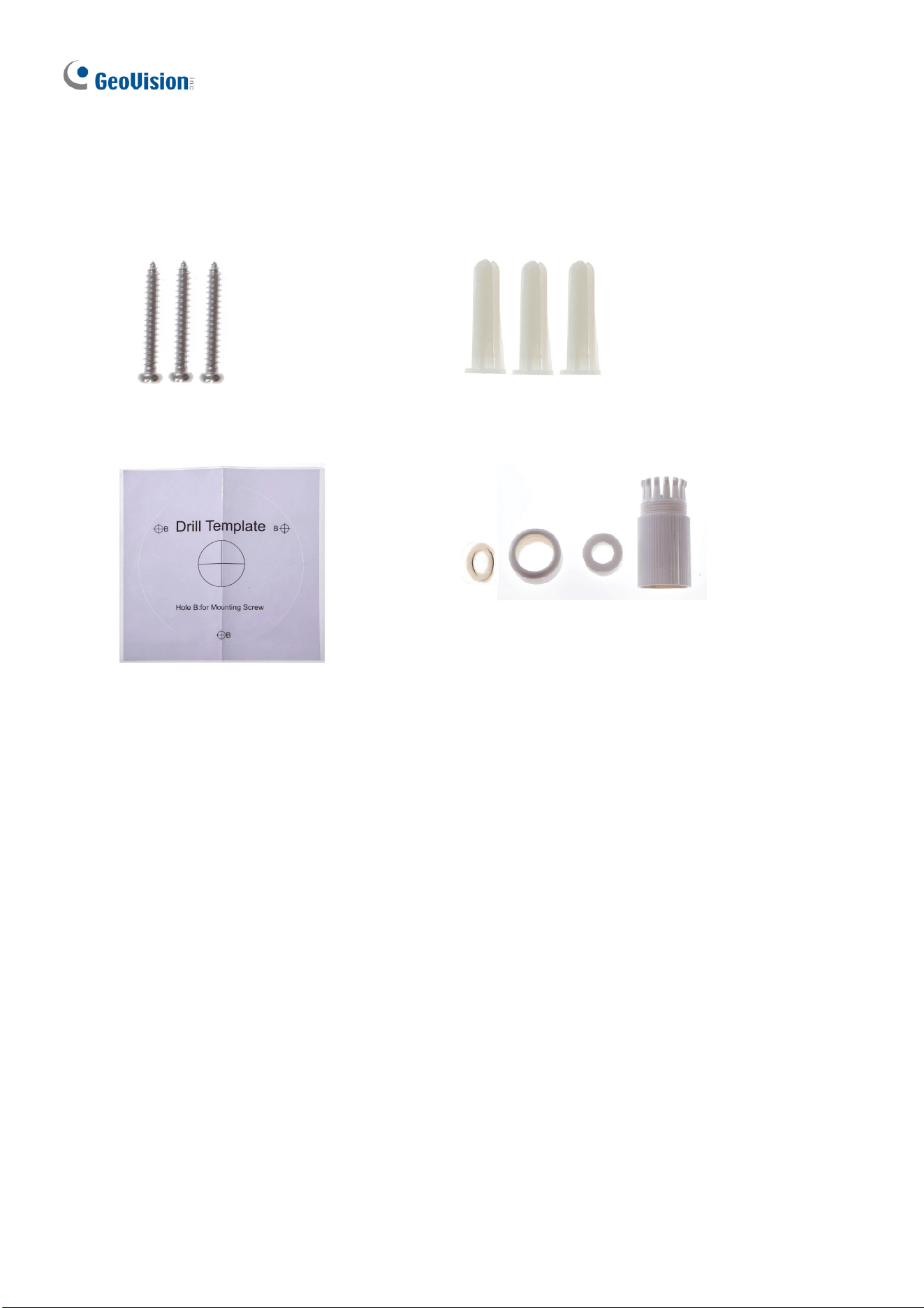

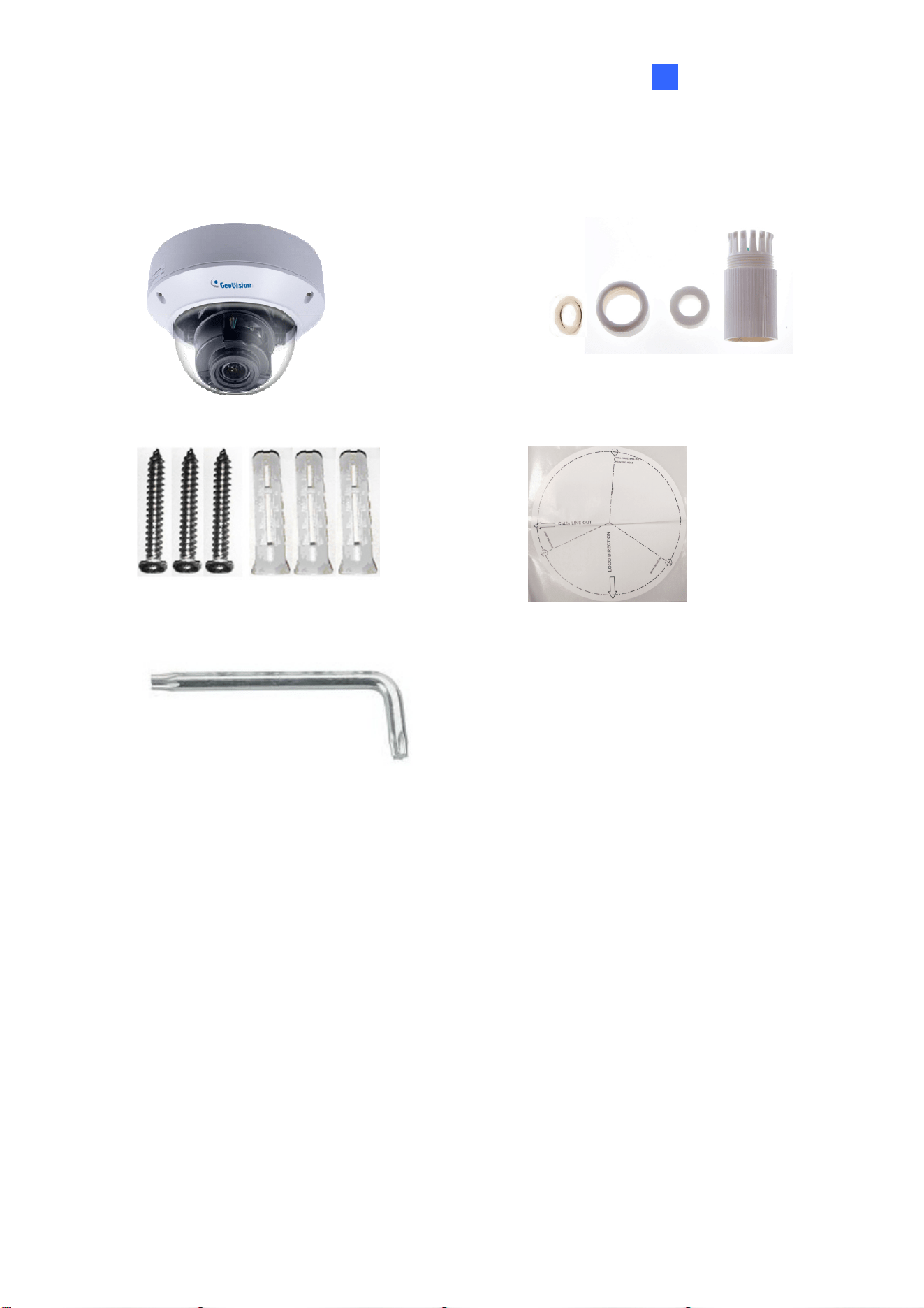

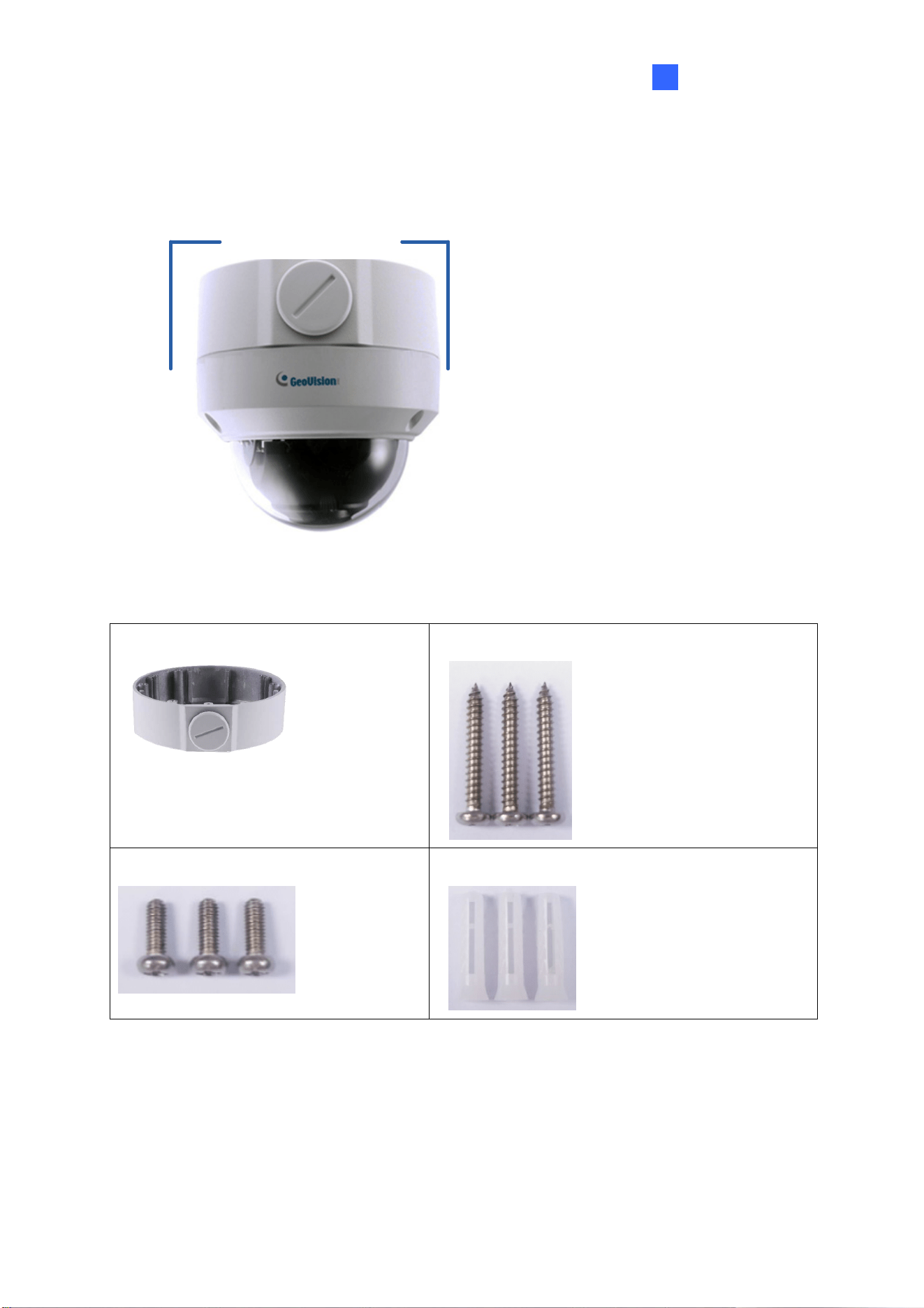

H.265 Target Eyeball Dome
Screw x 3
Screw Anchor x 3

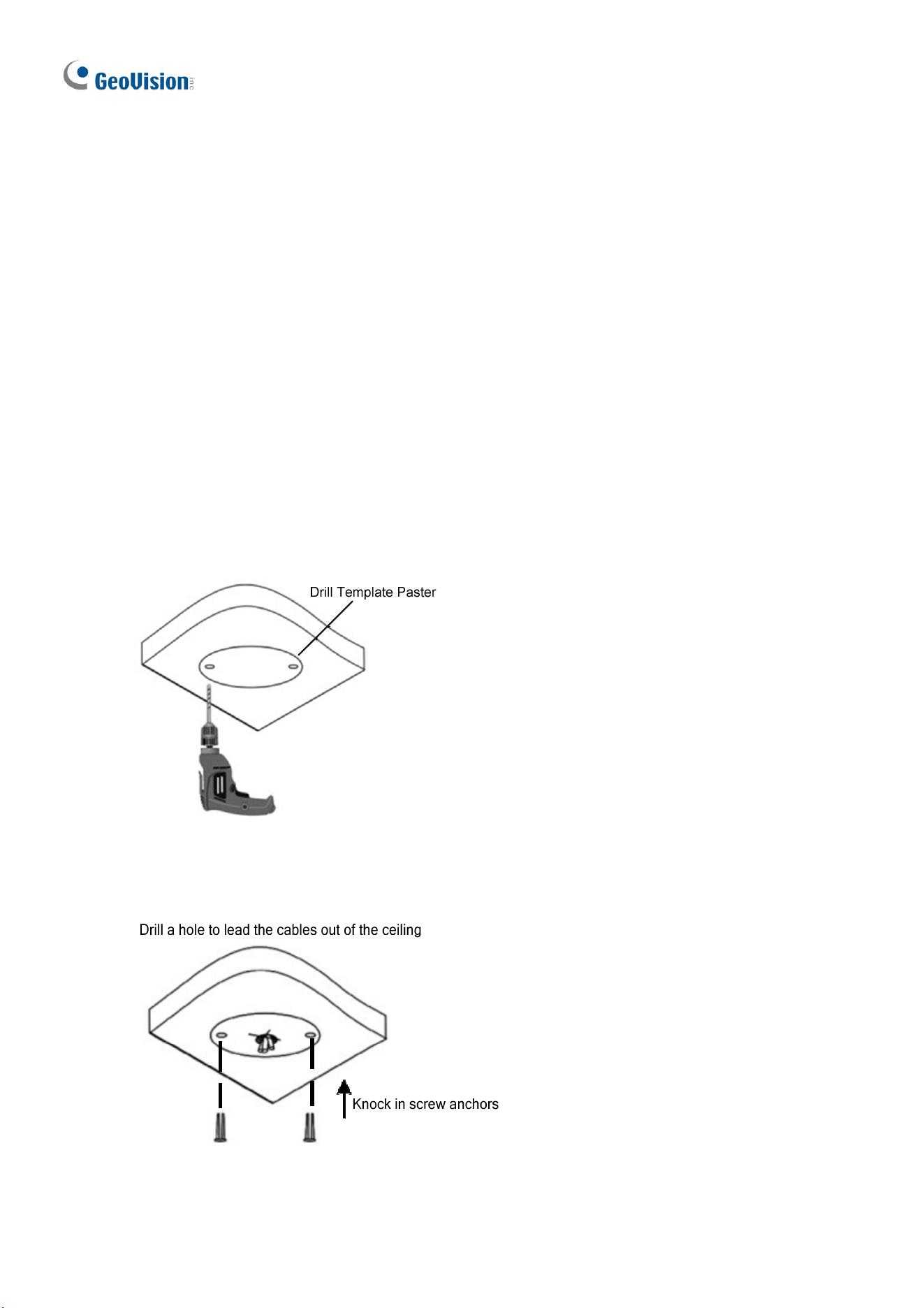

Drill Template Paster
Waterproof Rubber Set
Download Guide Warranty Card
Introduction
3
1
1.1.2 Optional Accessories
Optional accessories can expand the capabilities and versatility of your camera. Contact your
dealer for more information.

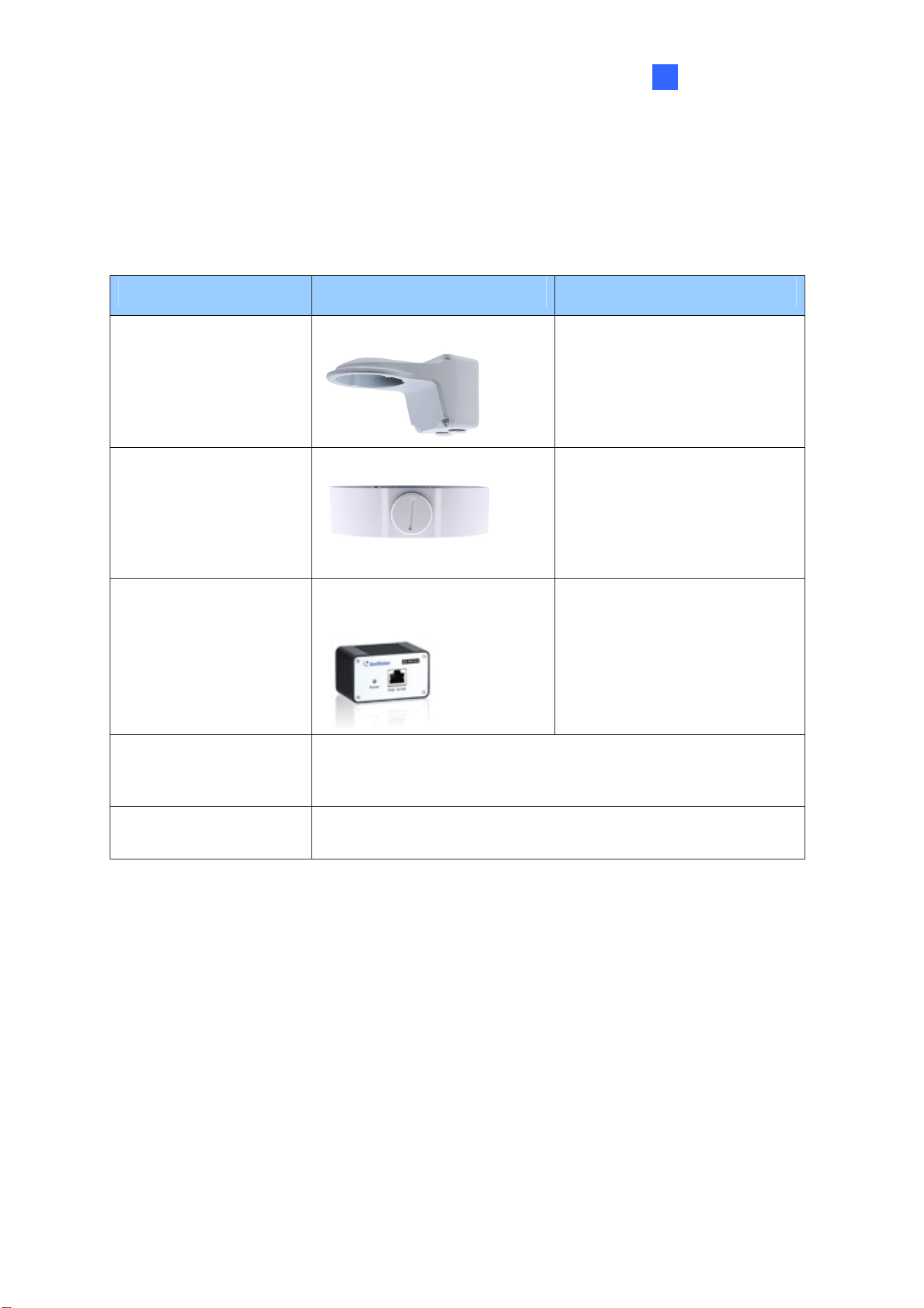

Model Number Name Details

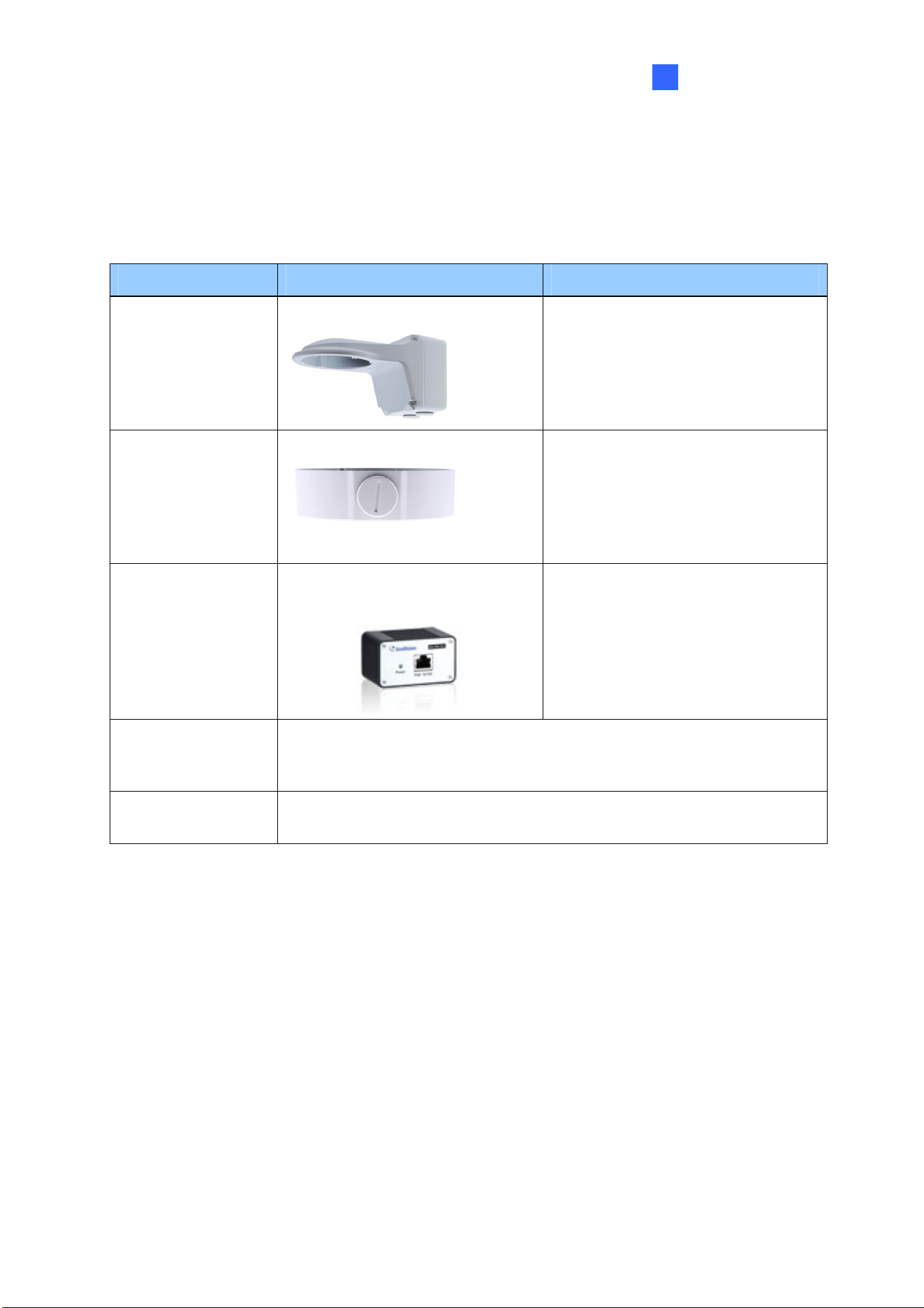

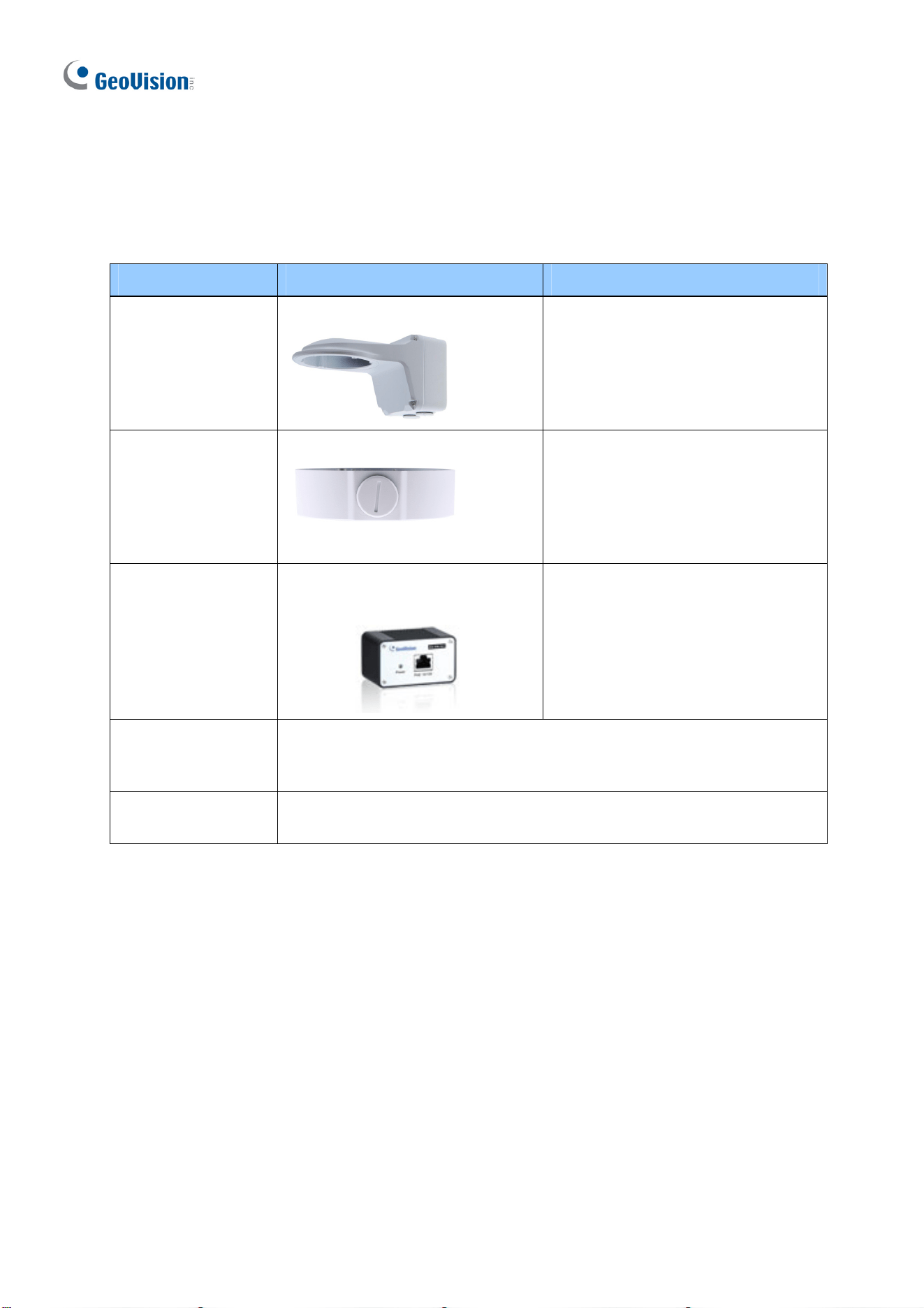

GV-Mount211P Wall Mount Bracket
Dimensions: 233 x 126 x 126 mm
(9.2” x 5” x 5”)
Weight: 1 kg (2.2 lb)
GV-Mount212P Wall Box Mount
Dimensions: Ø 126 x 36 mm (5.0”
x 1.4”)
Weight: 0.22 kg (0.48 lb)
GV-PA191
Power over Ethernet (PoE)
Adapter
GV-PA191 is a Power over
Ethernet (PoE) adapter designed
to provide power to the IP device
through a single Ethernet cable.
GV-POE Switch
GV-POE Switch is designed to provide power along with network
connection for IP devices. GV-POE Switch is available in various
models with different numbers and types of ports.
Power Adapter
Contact our sales representatives for the countries and areas
supported.
4
1.1.3 Overview
1.1.3.1 GV-EBD2702 / 4700
Figure 1-1
No. Description
1 Bottom ring
2 Housing
3 Lens
4 Infrared indicator
5 Power connector (DC 12 V)
6 Ethernet connector / PoE
Introduction
5
1

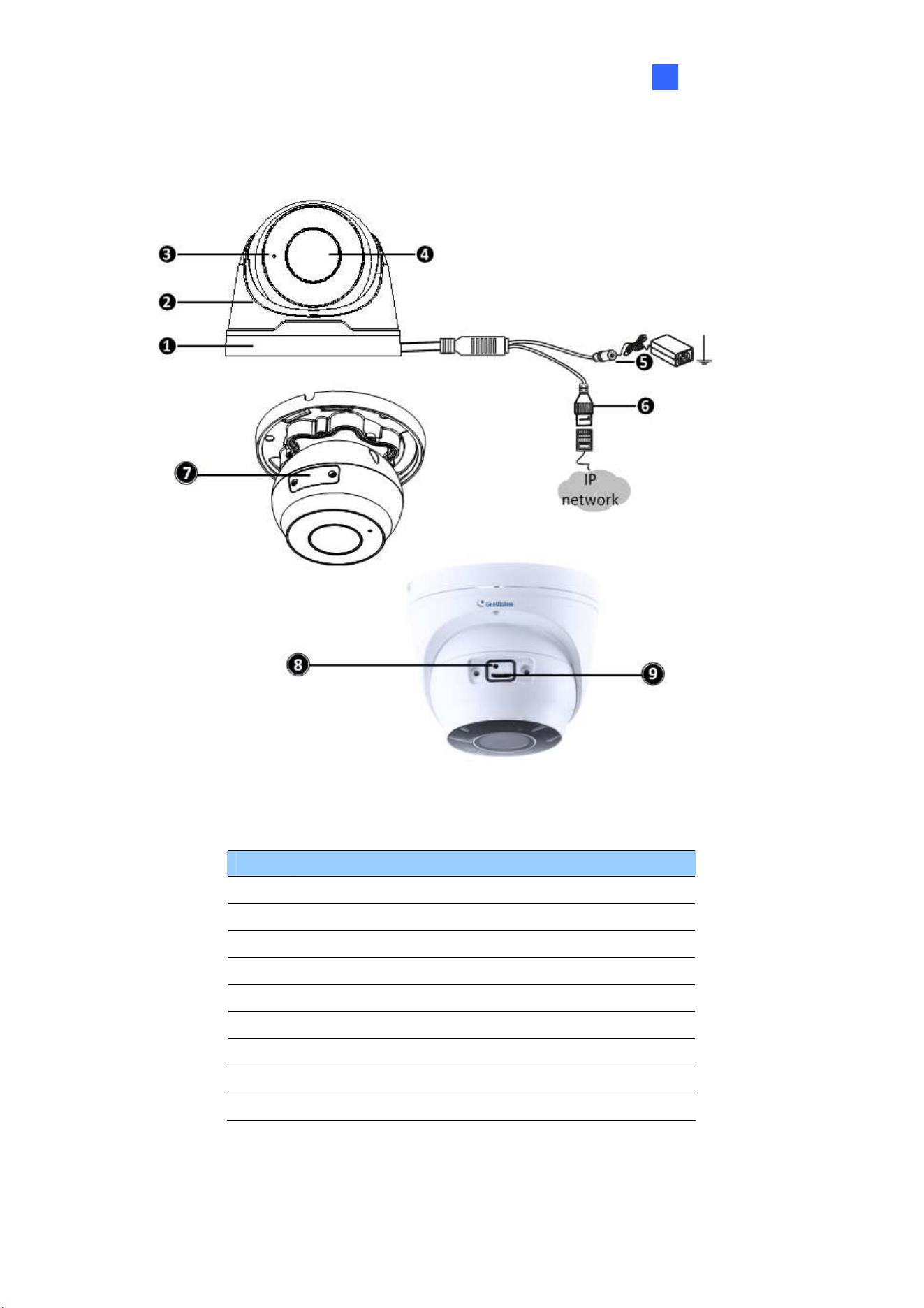

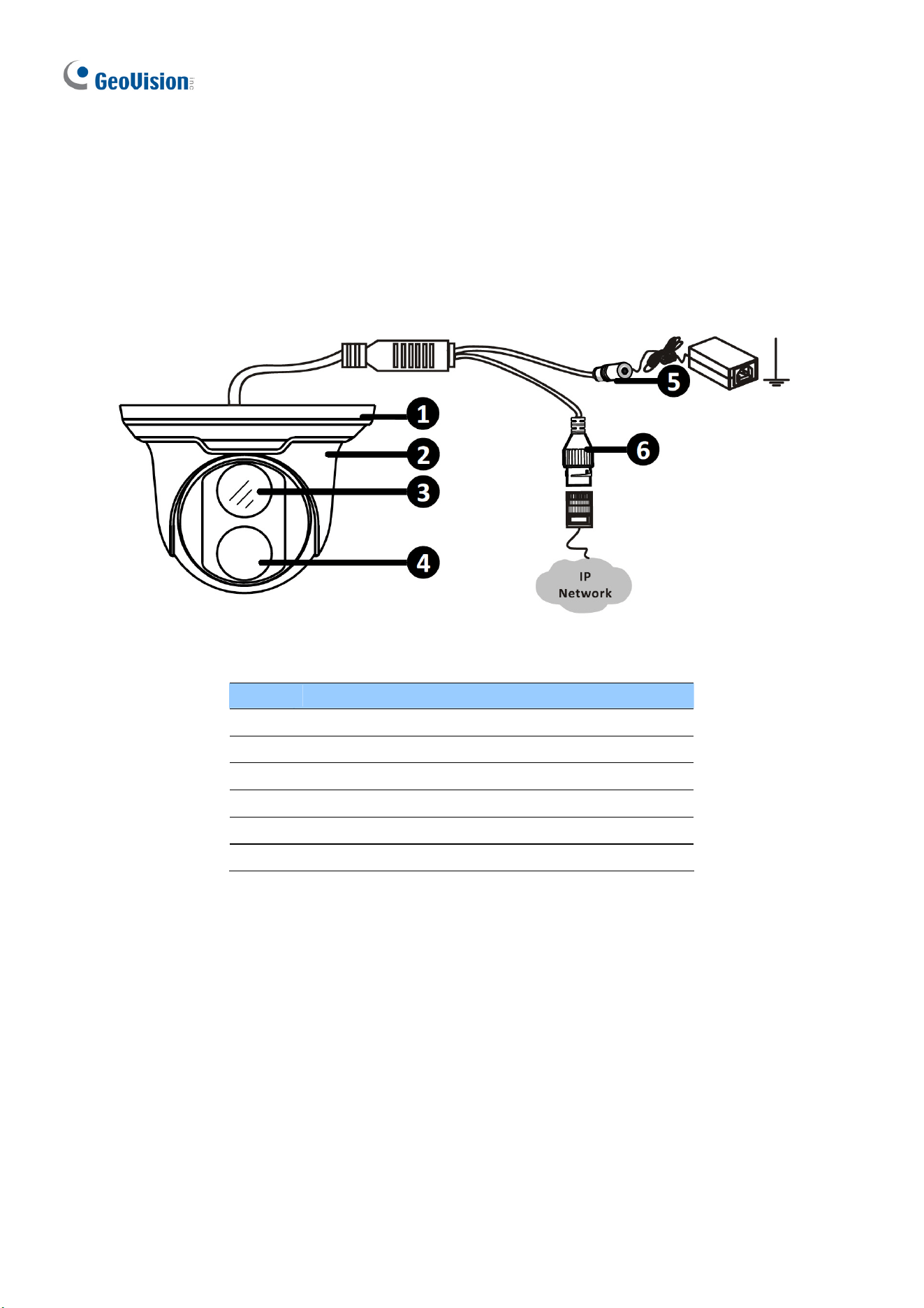

1.1.3.2 GV-EBD4711 / 8711
Figure 1-2
No. Description
1 Bottom ring
2 Housing
3 Microphone
4 Lens
5 Power connector (DC 12 V)
6 Ethernet connector / PoE
7 Micro SD card slot and default button compartment
8 Default button
9 Micro SD card slot
6
1.1.4 Installation
The Target Eyeball Dome is designed for outdoors. With the standard package, you can
install the camera on the ceiling. Alternatively, you can purchase optional mounting
accessories to mount the dome on a wall.
Below are the instructions for Ceiling Mount. There are two kinds of Ceiling Mount:
Concealed Installation and Open Installation. In concealed installation, the cables are
hidden in the ceiling. In Open Installation, the cables are led out from the open slot on the
bottom ring.
1.14.1 GV-EBD2702 / 4700 Standard Installation
For Concealed Installation

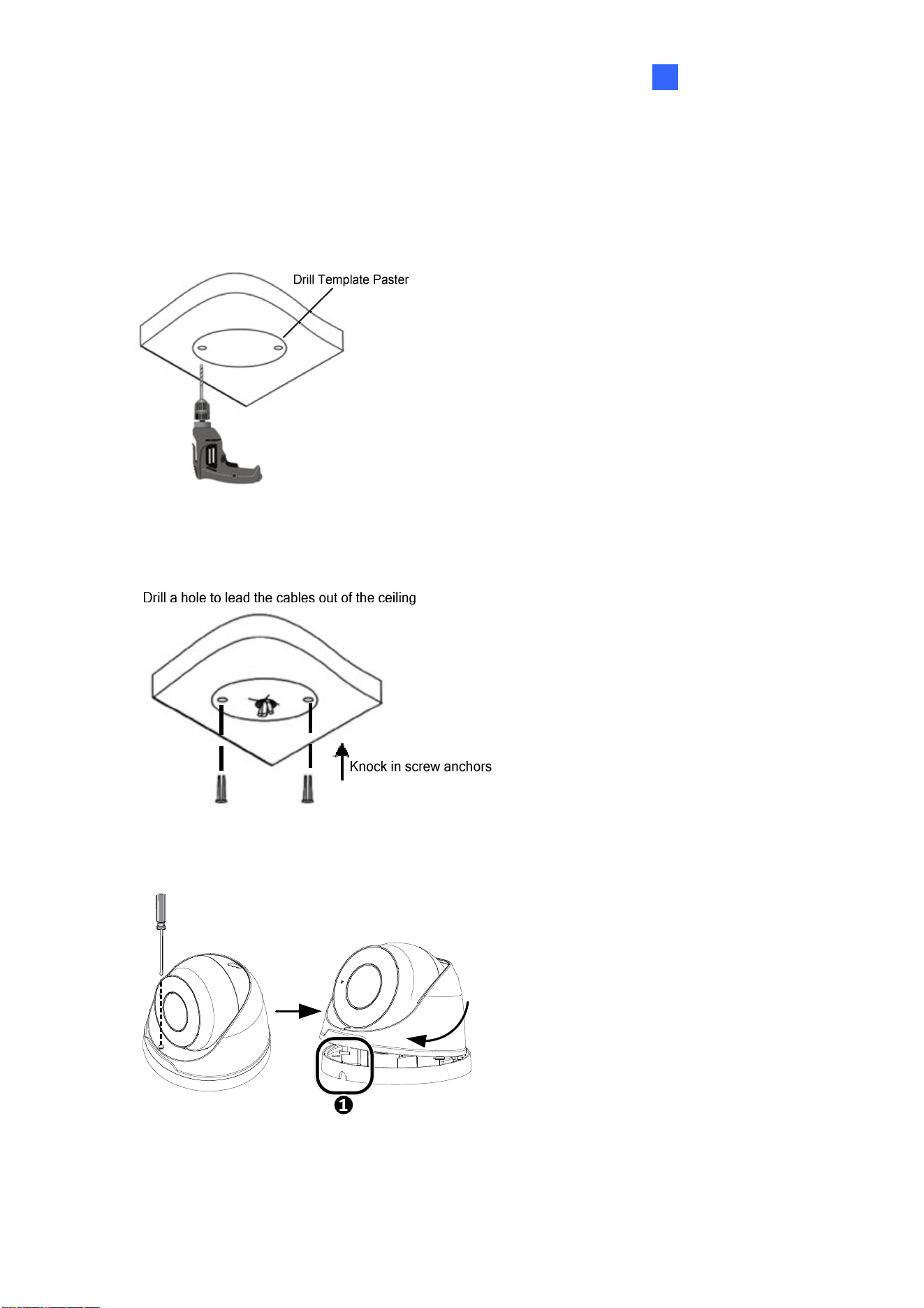

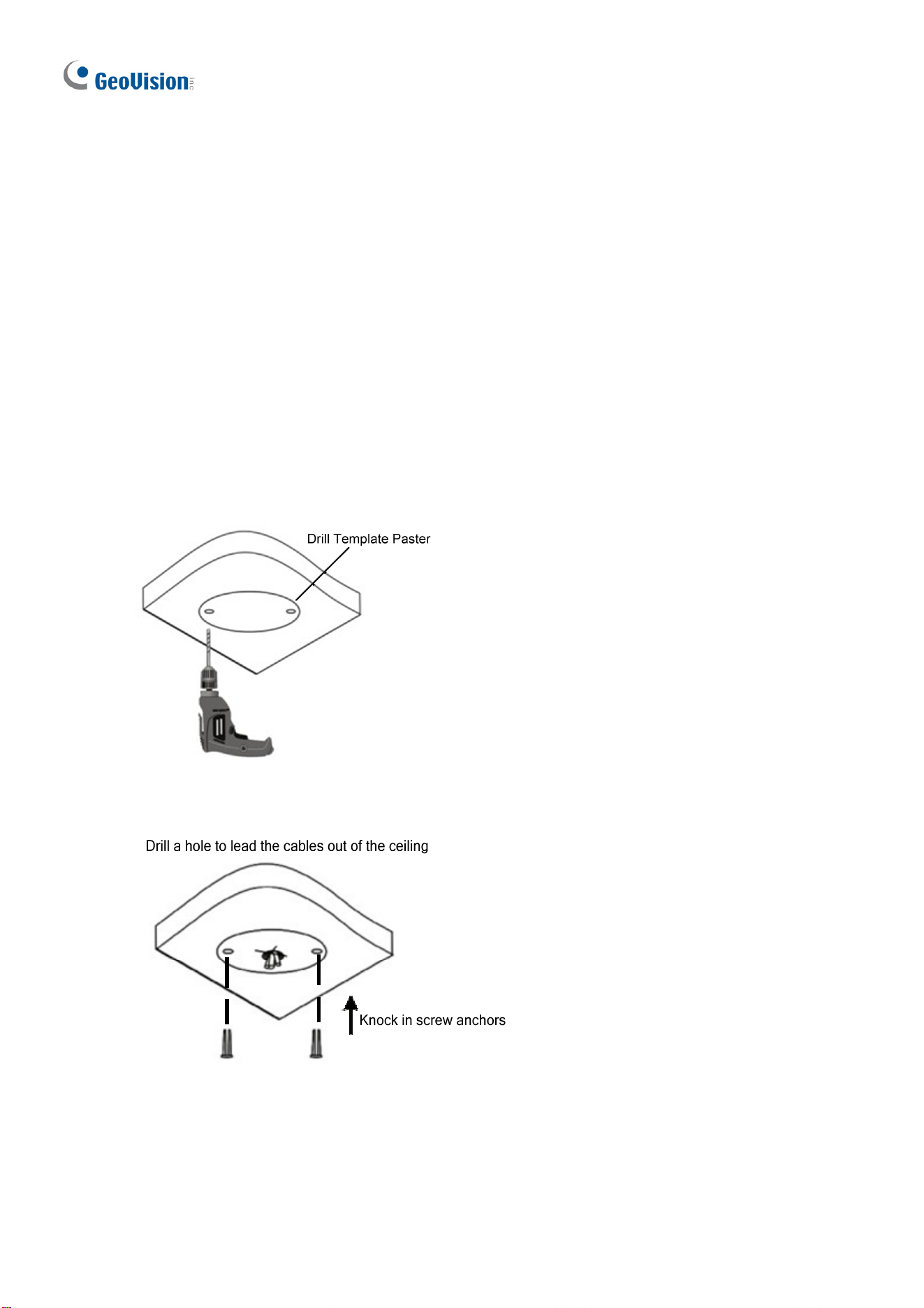

1. Stick the drill template paster to the ceiling and drill three holes according to the drill
template.
Figure 1-3
2. Insert the screw anchors.
Figure 1-4
Introduction
7
1

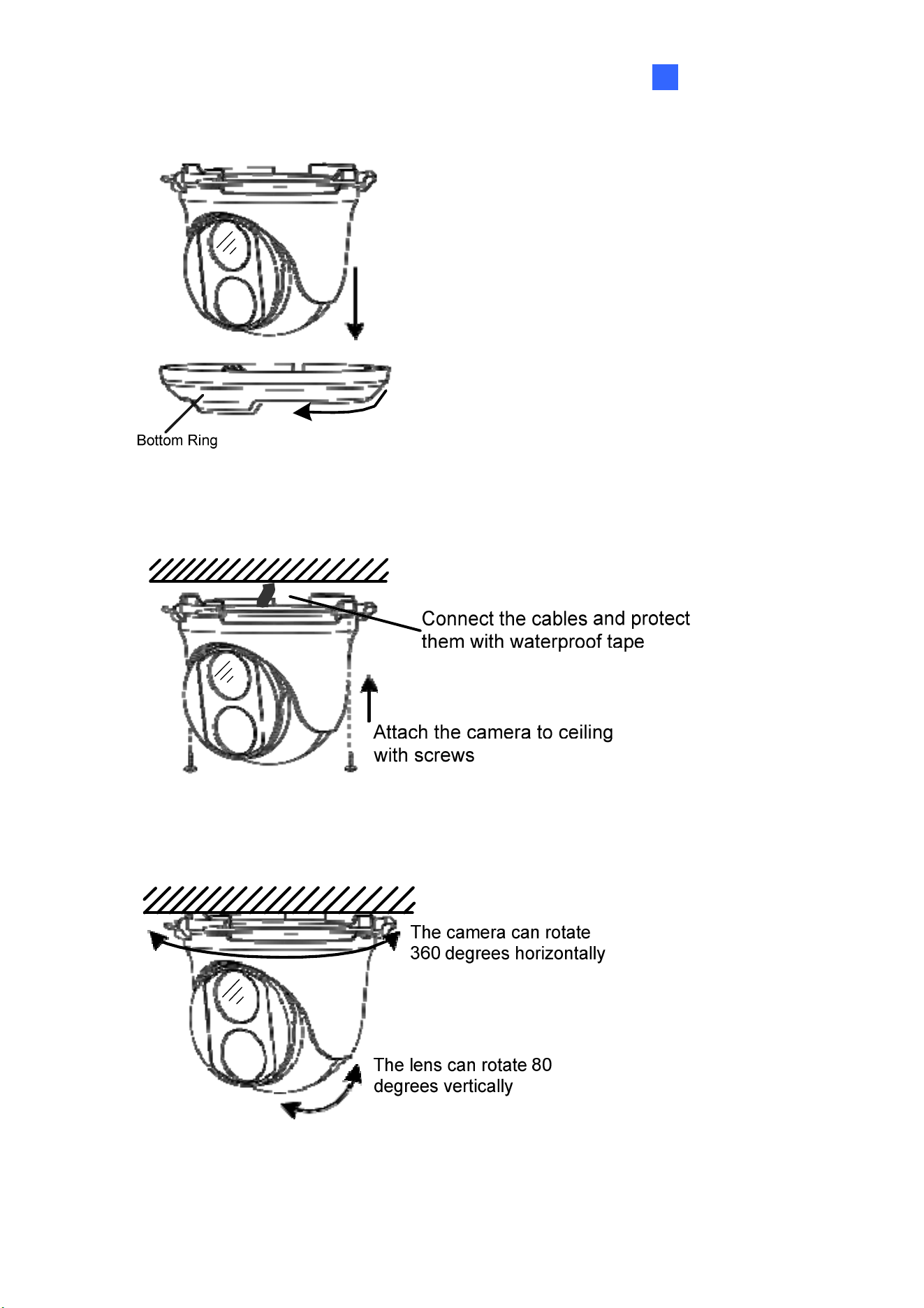

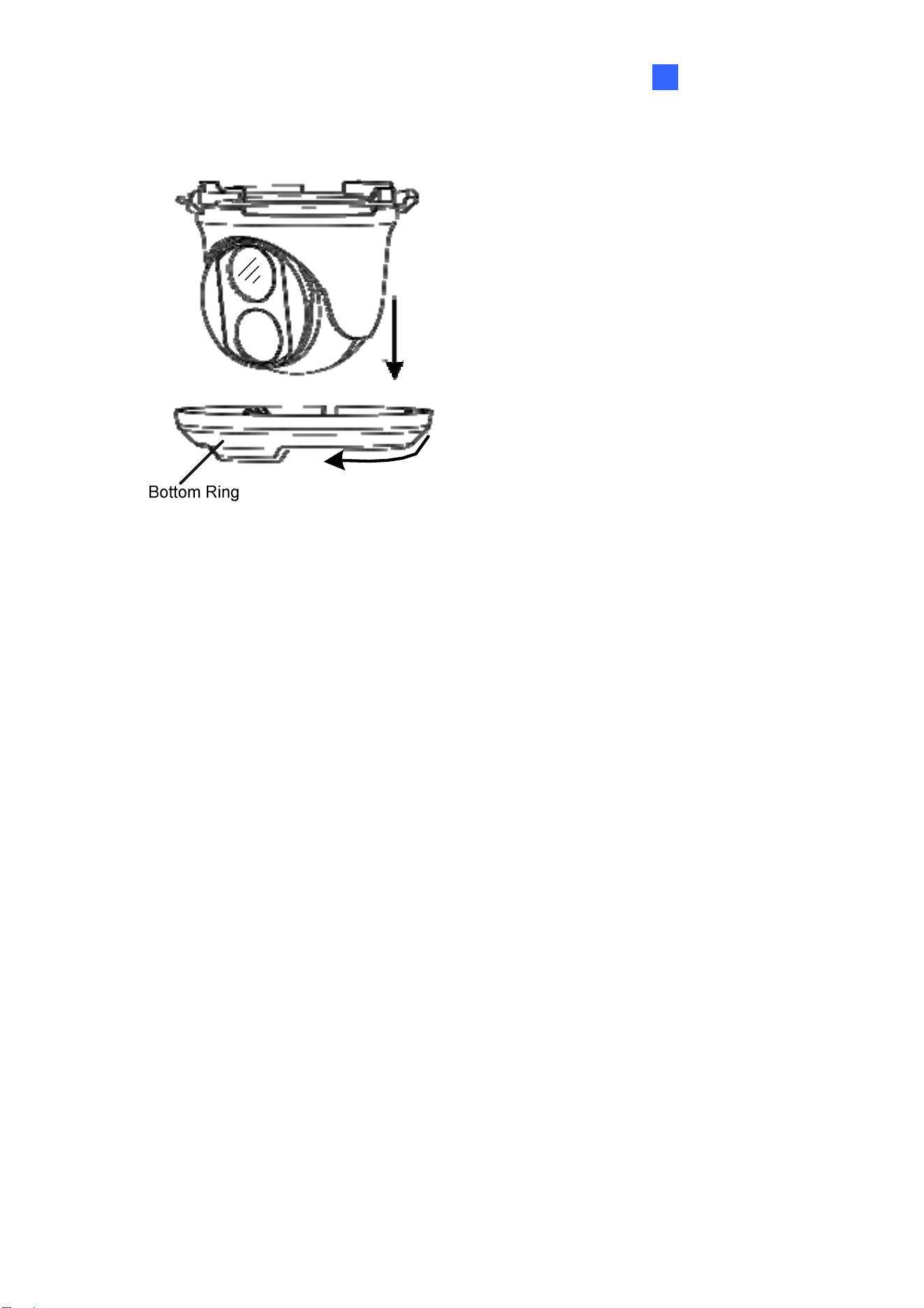

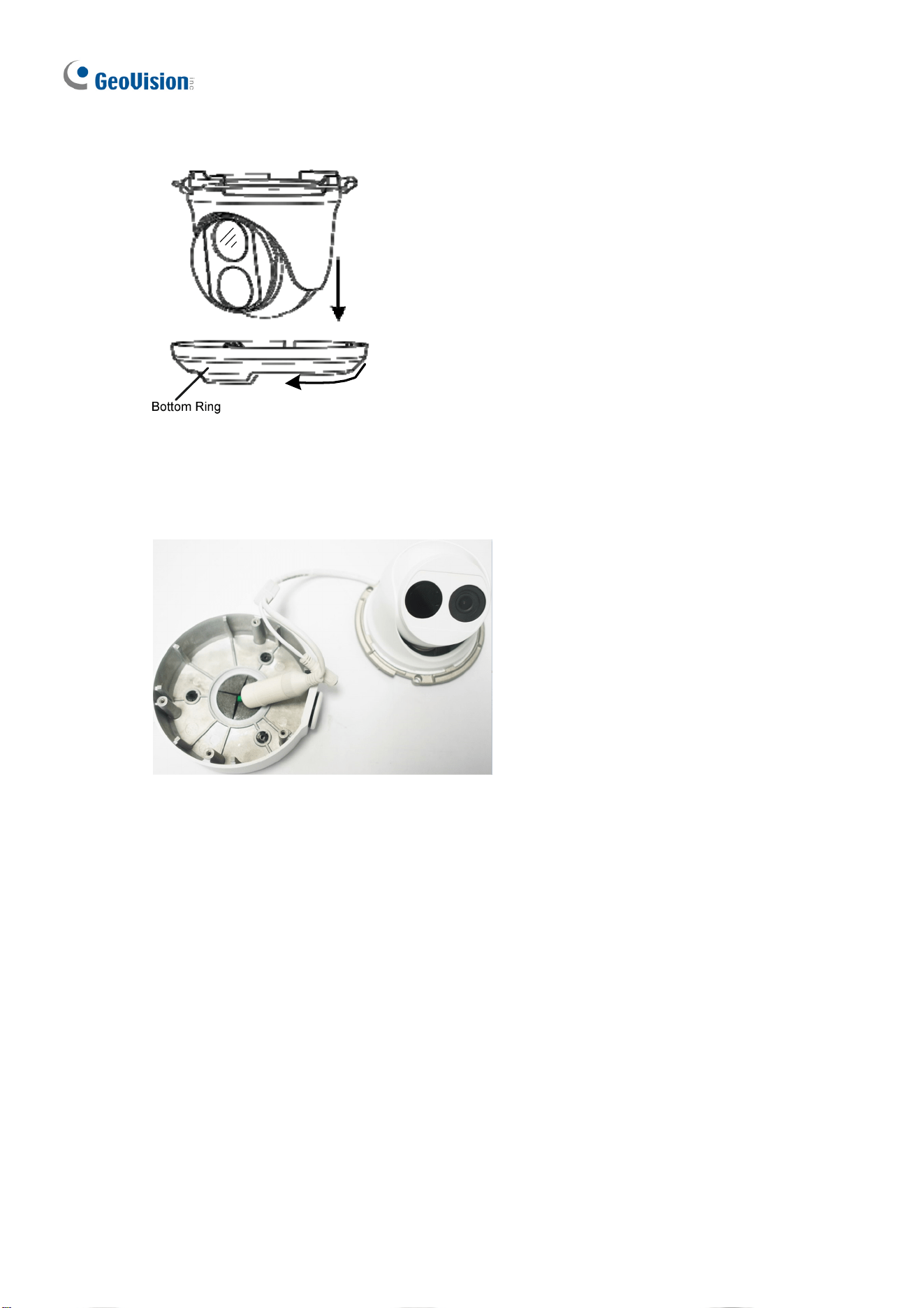

3. Remove the bottom ring by turning it anticlockwise.
Figure 1-5
4. Connect the cables and secure the camera.
Figure 1-6
5. Adjust the monitoring direction.
Figure 1-7
8
6. Mount the bottom ring.
Figure 1-8
For Open Installation

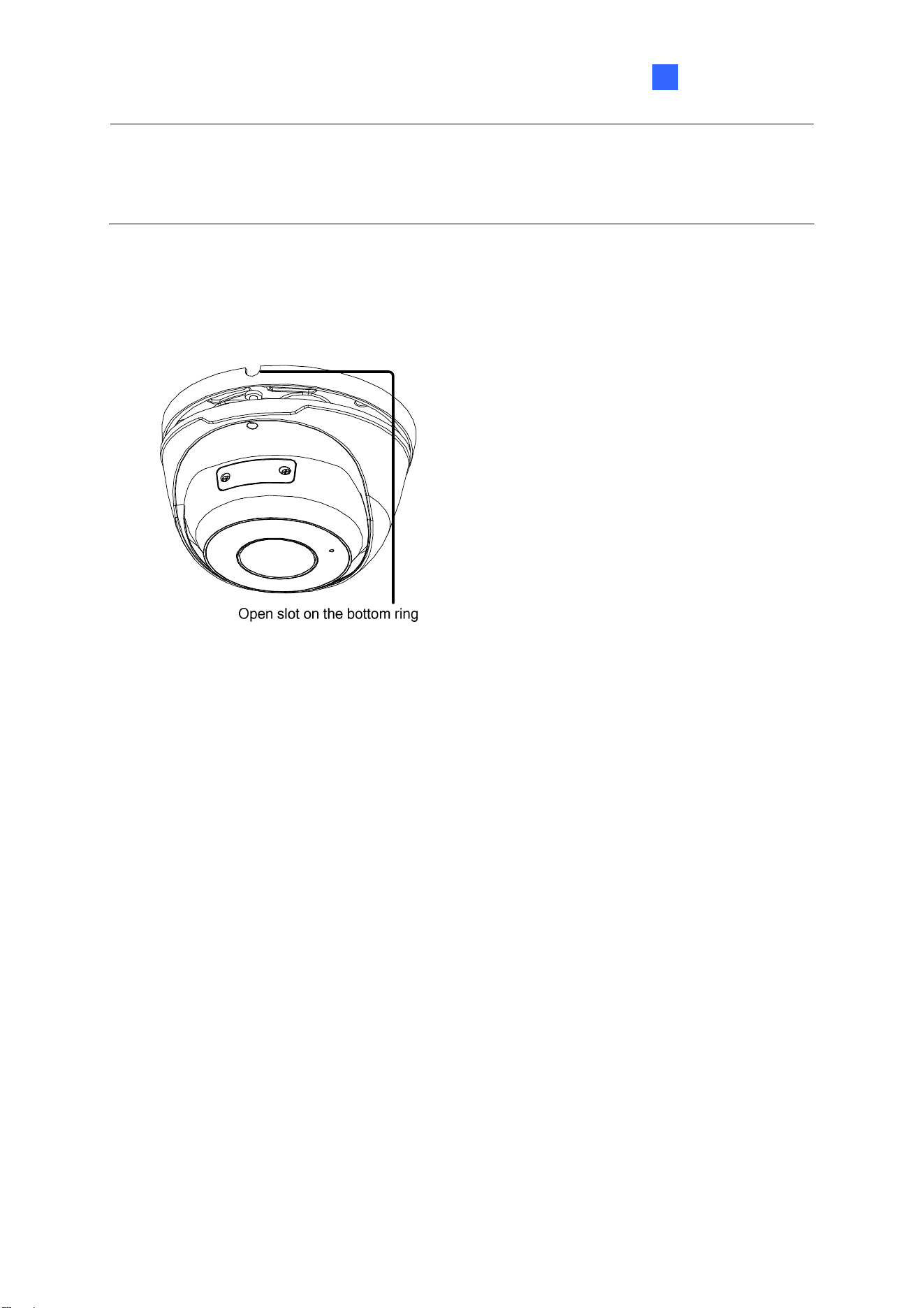

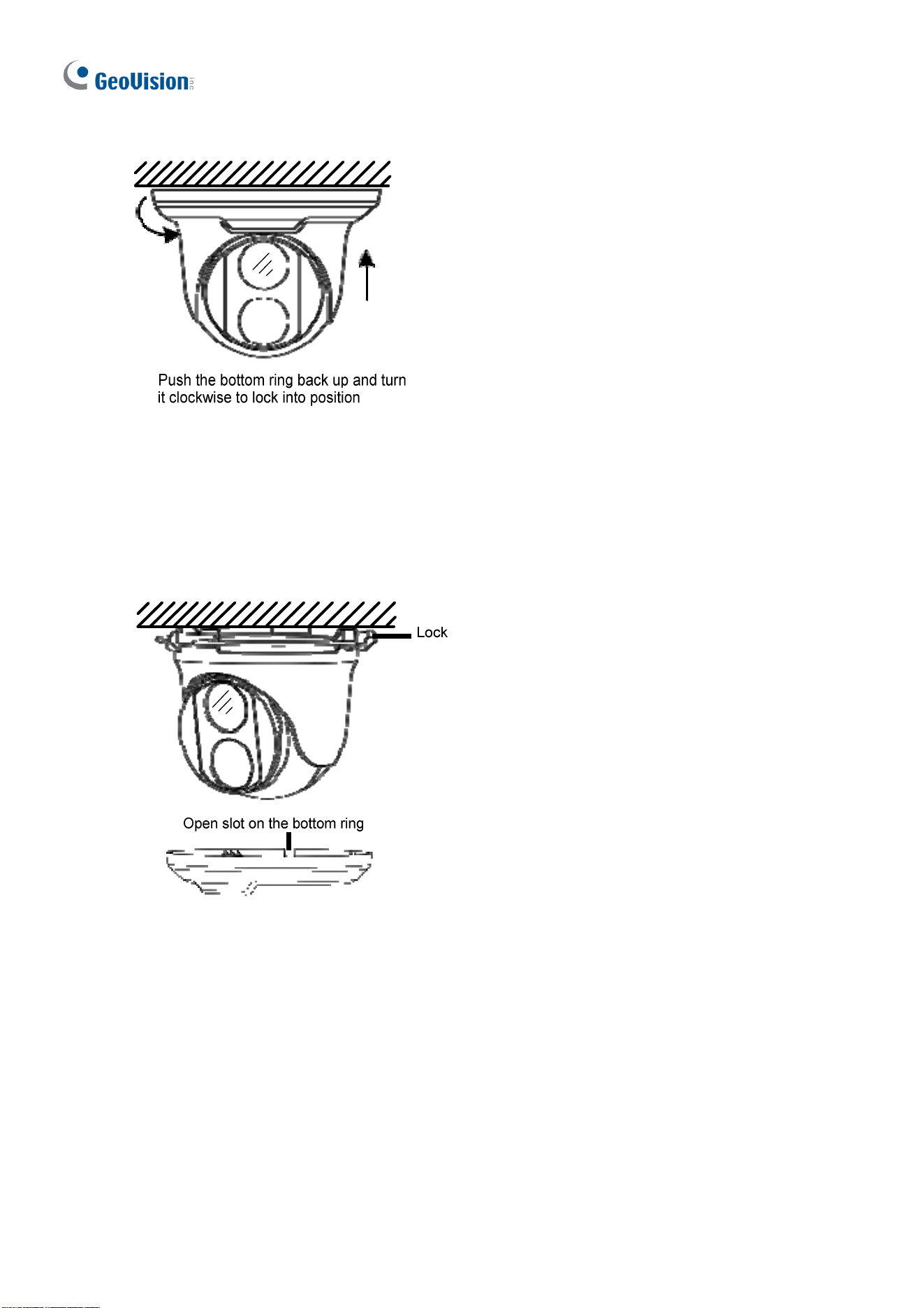

Lead the cables out from the open slot on the bottom ring before screwing the camera to the
ceiling as shown in Figure 1-6.
Figure 1-9
Introduction
9
1
1.1.4.2 GV-EBD4711 / 8711 Standard Installation
For Concealed Installation

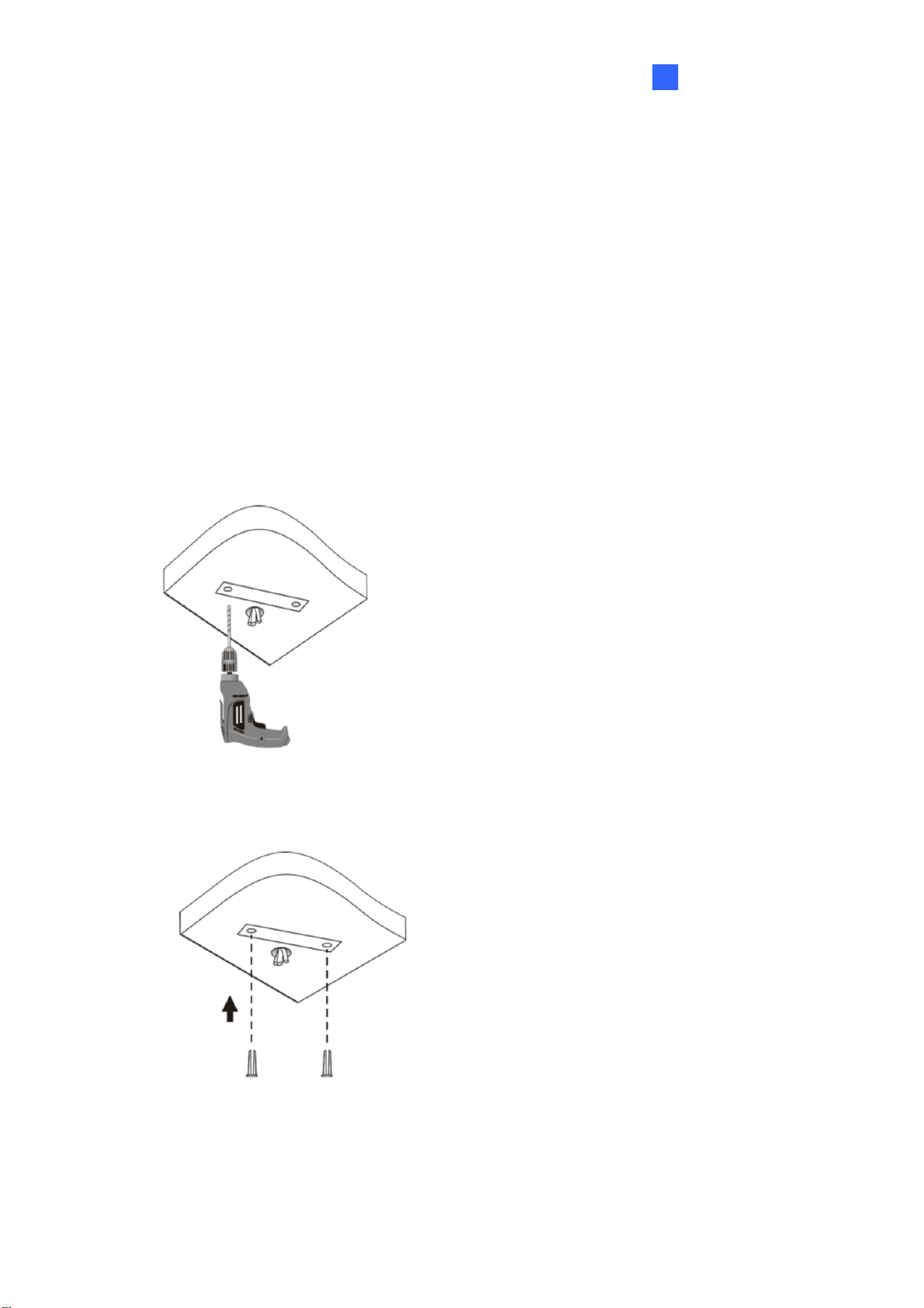

1. Stick the drill template paster to the ceiling and drill three holes according to the drill
template.
Figure 1-10
2. Insert the screw anchors.
Figure 1-11
3. Loosen the fixing screw and remove the housing by turning it to the position as shown.
Figure 1-12
10

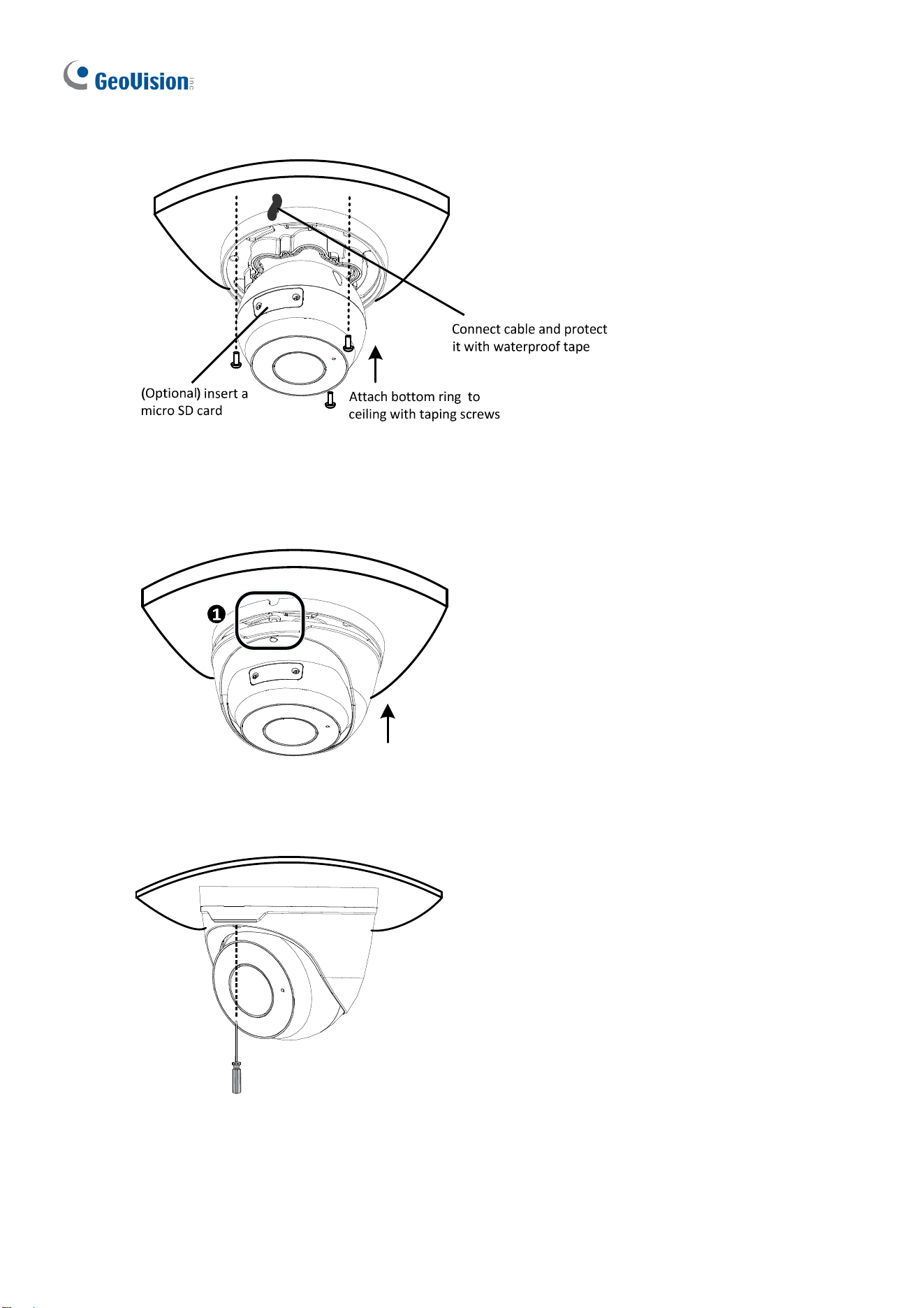

4. Secure the bottom ring to the ceiling with 3 supplied screws and connect the cable.
Figure 1-13
5. Mount the housing by adjusting to the position as shown and press and turn to anywhere
but .
Figure 1-14
6. Adjust the monitoring direction. Then tighten the screw.
Figure 1-15
Introduction
11
1
WARNING: Make sure the housing is not dismounted from the bottom ring when adjusting
the monitoring direction. Unintentional removal of the housing may result in circumstantial
damages.
For Open Installation
Lead the cables out from the open slot on the bottom ring before mounting the housing as
shown in Figure 1-14.
Figure 1-16
12
1.1.5 Optional Installation
You can optionally purchase GV-Mount211P or GV-Mount212P for Wall Box Mount. Follow
the instructions below.

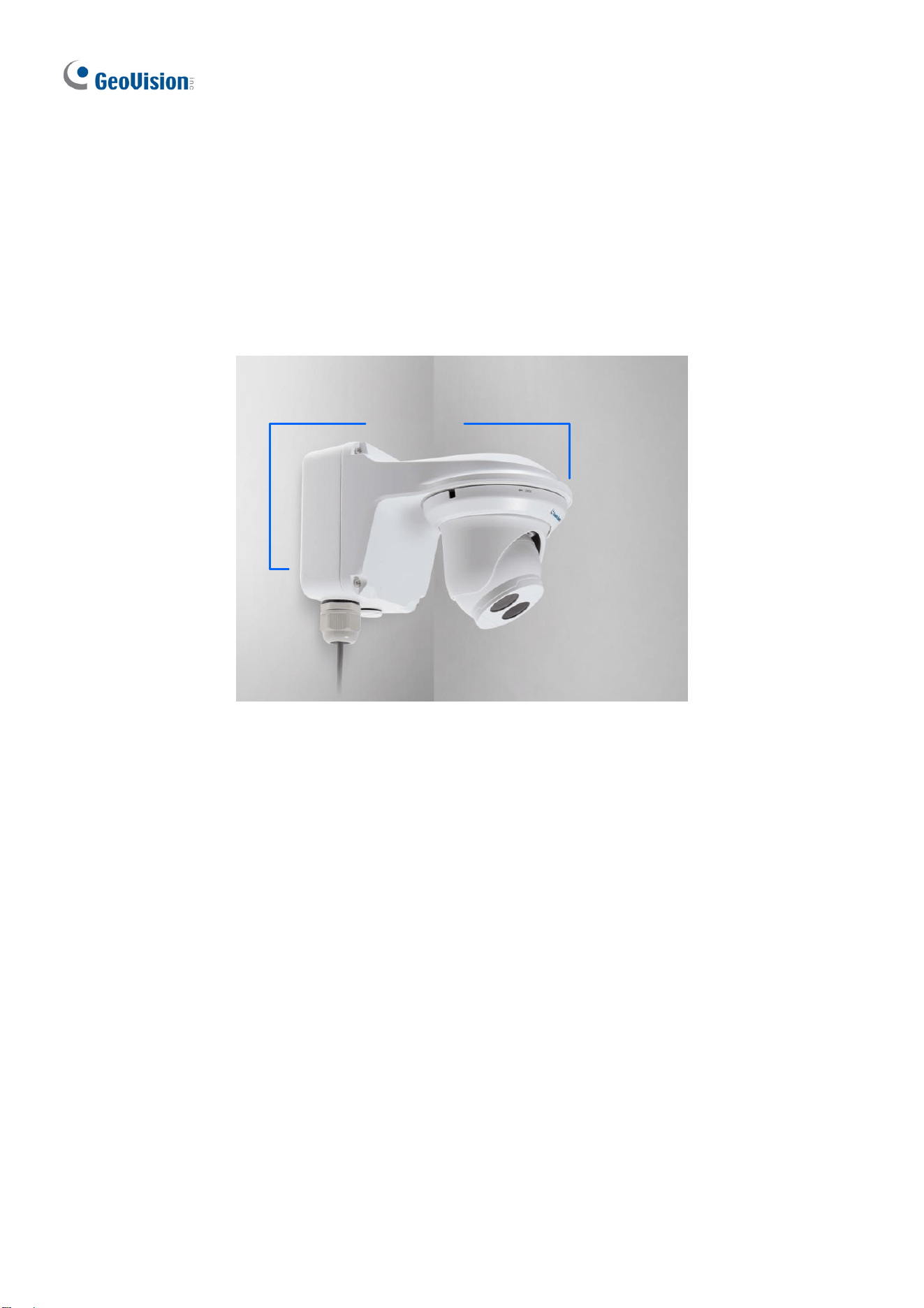

1.1.5.1 GV-Mount211P
GV-Mount211
GV-Mount211P
Figure 1-17
Introduction
13
1

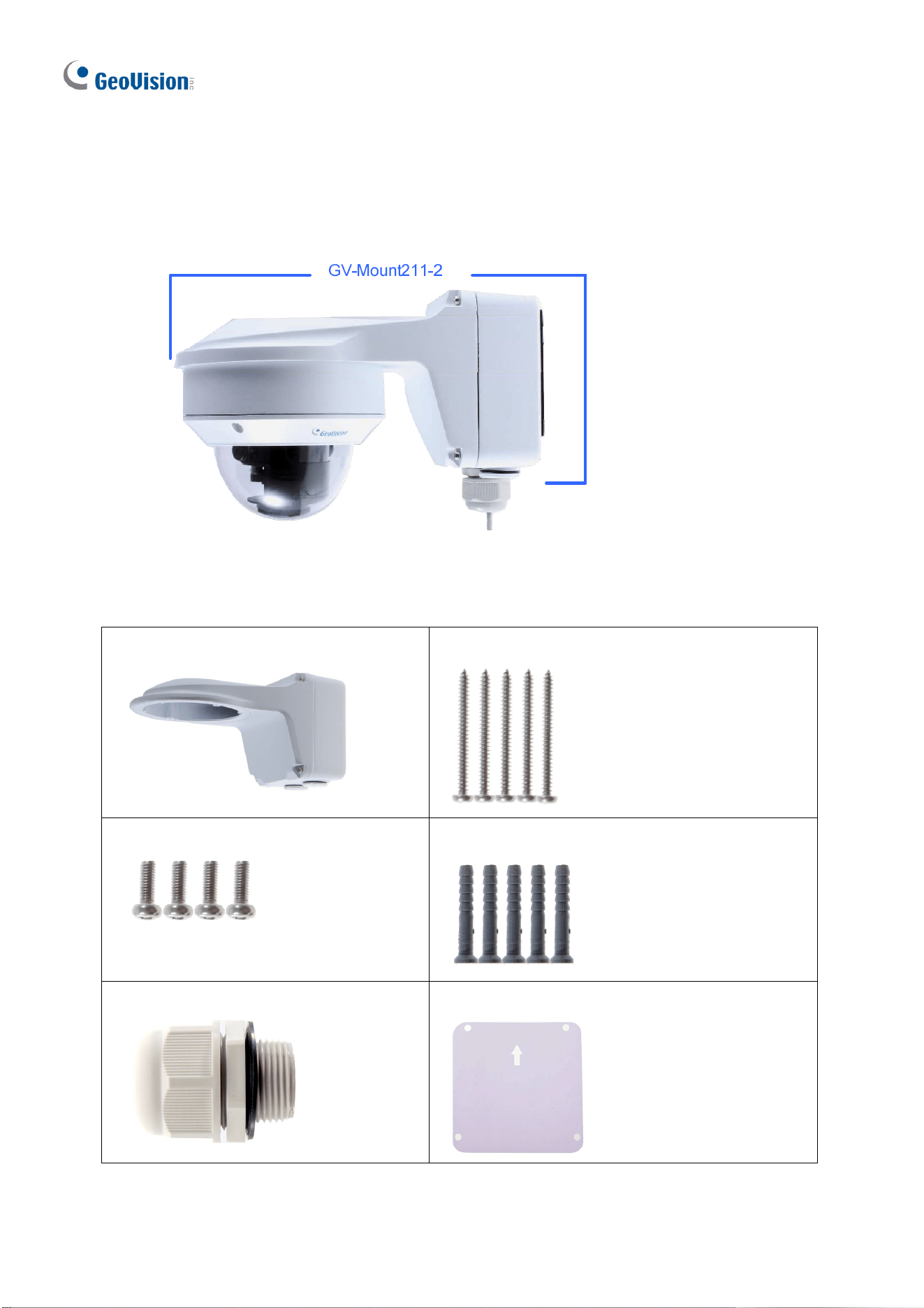

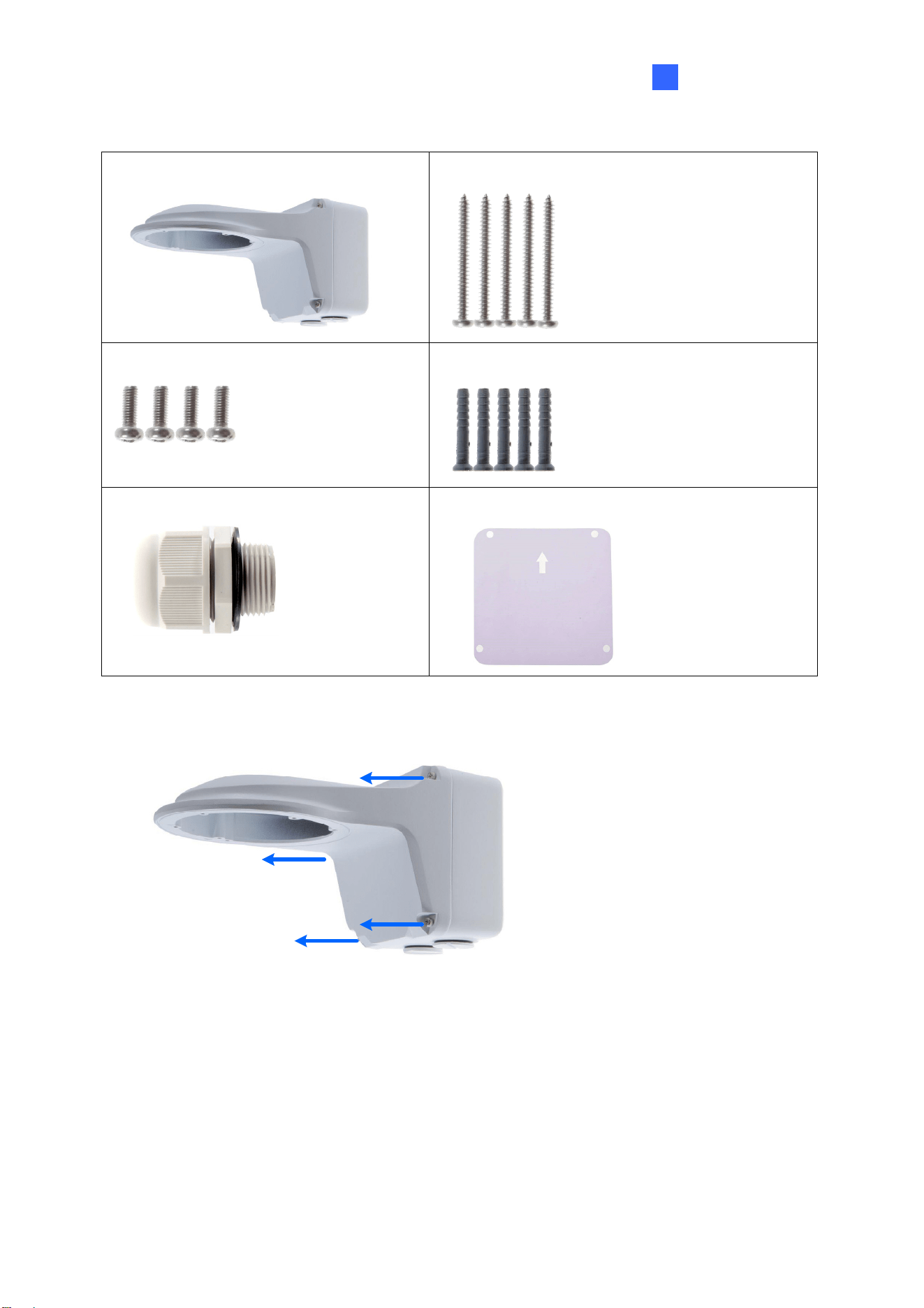

GV-Mount211P Packing List
GV-Mount211P Wall Mount Bracket
Long Screw x 5
Short Screw x 4
Screw Anchor x 5
Plastic PG21 Conduit Connector
Drill Template Paster

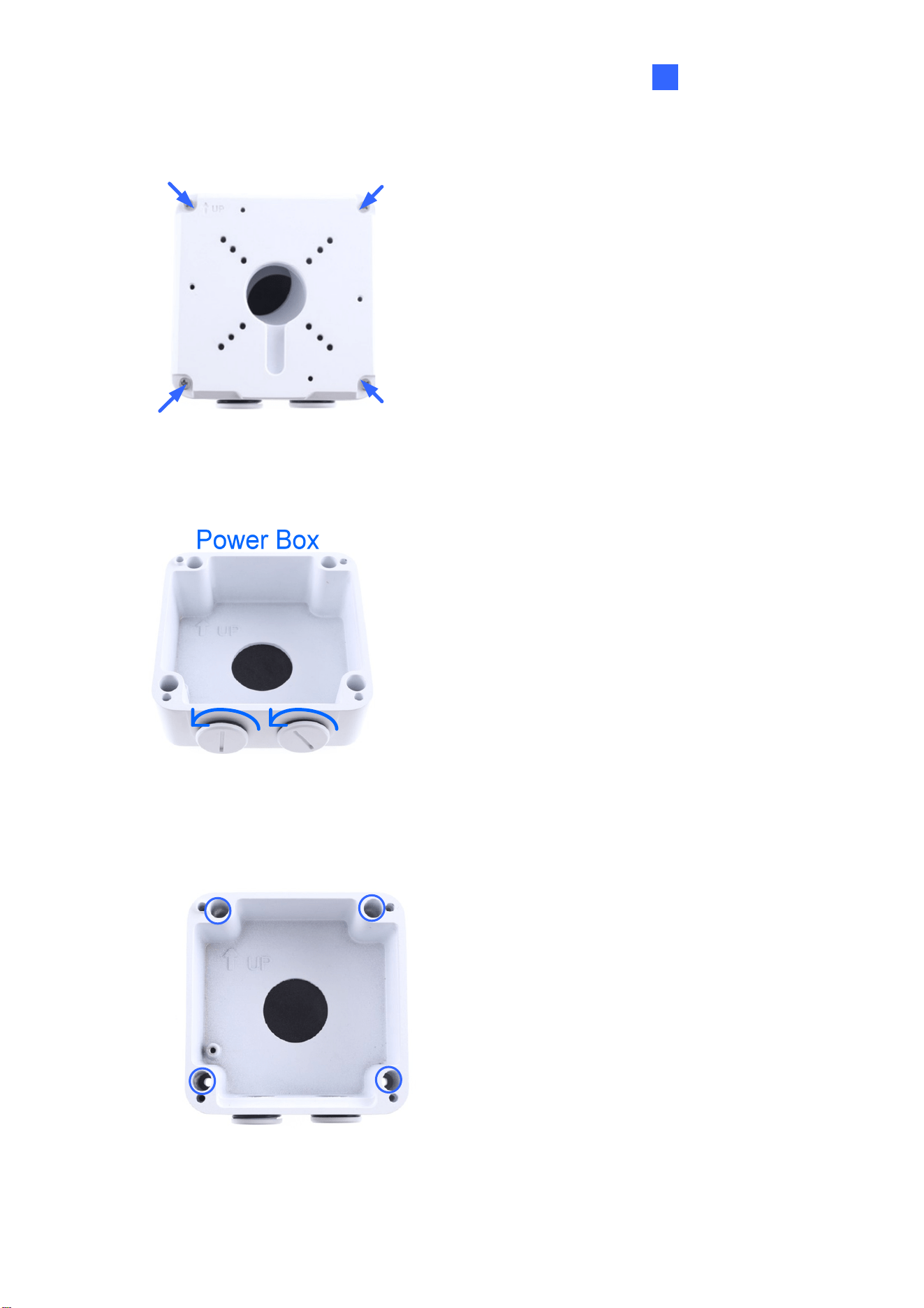

1. Unscrew the bracket.
Figure 1-18
14
2. Loosen the indicated area by turning it anticlockwise.
Figure 1-19
3. Stick the drill template paster to the wall with the arrow pointing up.
4. Drill 4 holes according to the sticker and insert the 4 screw anchors to the 4 holes.
5. Secure the power box to the wall with 4 long screws.
Figure 1-20
Introduction
15
1
6. Remove the bottom ring by turning it anticlockwise.
Figure 1-21
7. Thread the network and power wires through the camera housing.
16

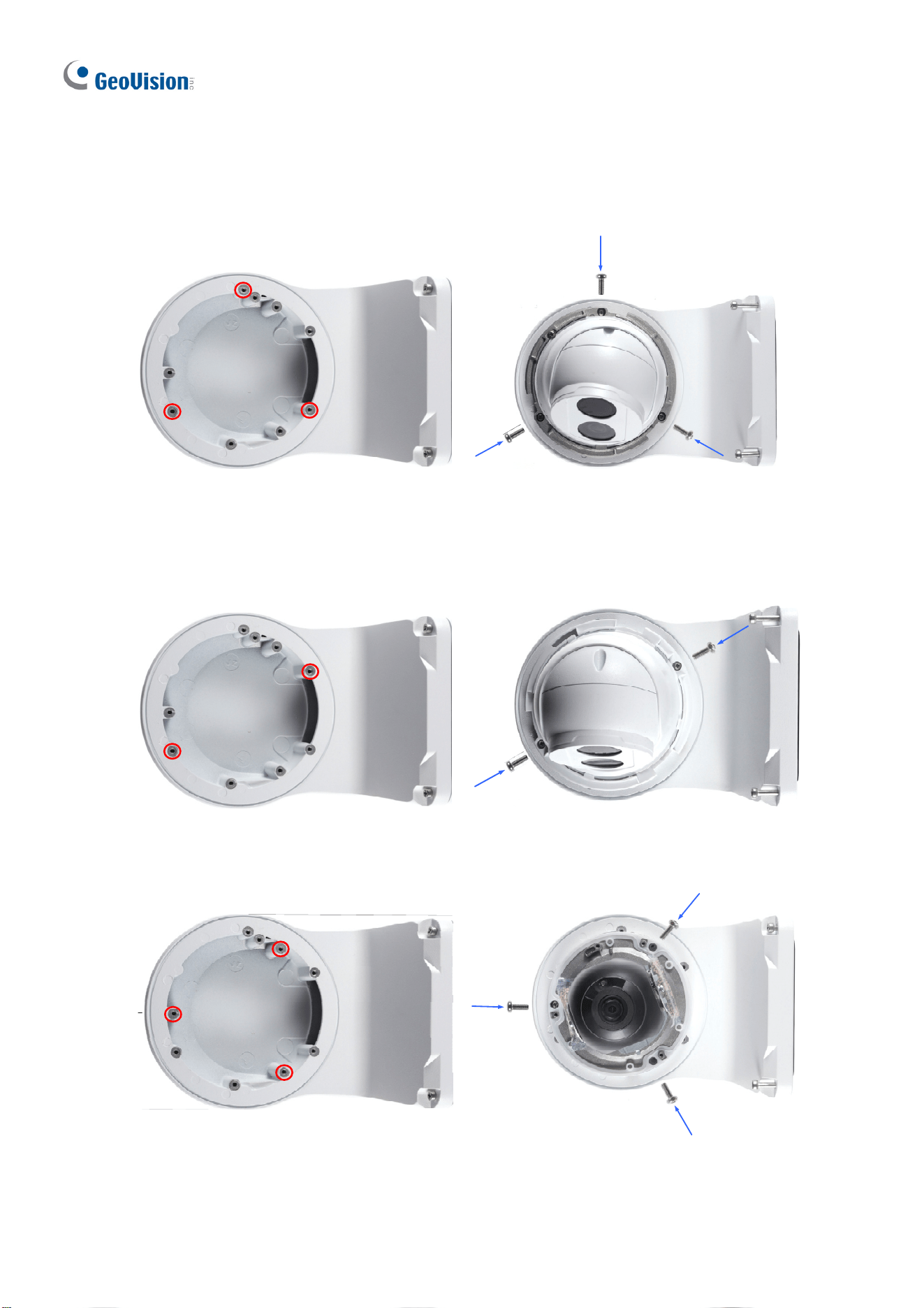

8. Secure the camera to the wall mount bracket with the provided short screws according to
the screw position for each model:
GV-EBD4700 / 4711 / 8711
Figure 1-22
GV-EBD2702
Figure 1-23
GV-ADR2701 / 4701
Figure 1-24
Introduction
17
1

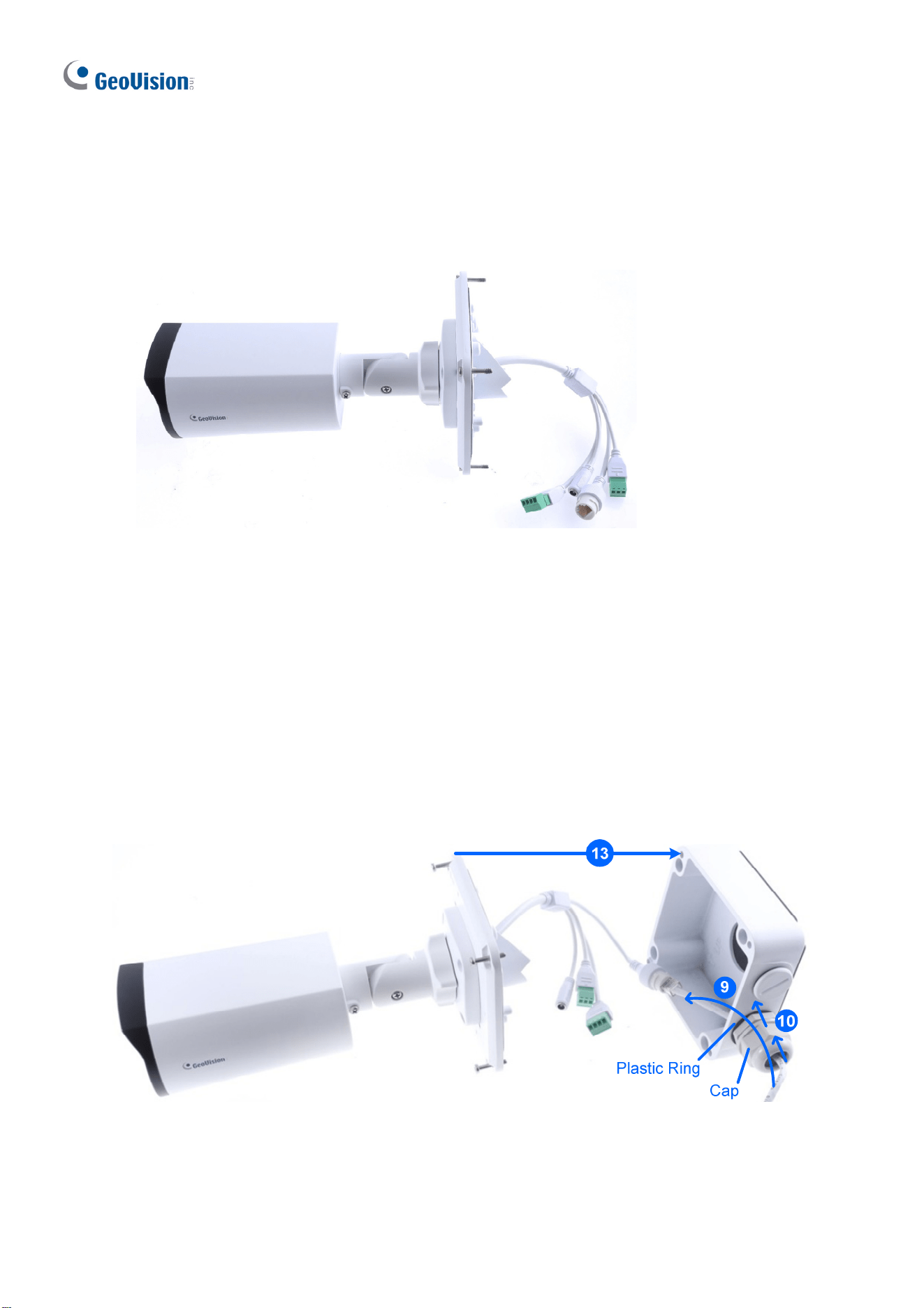

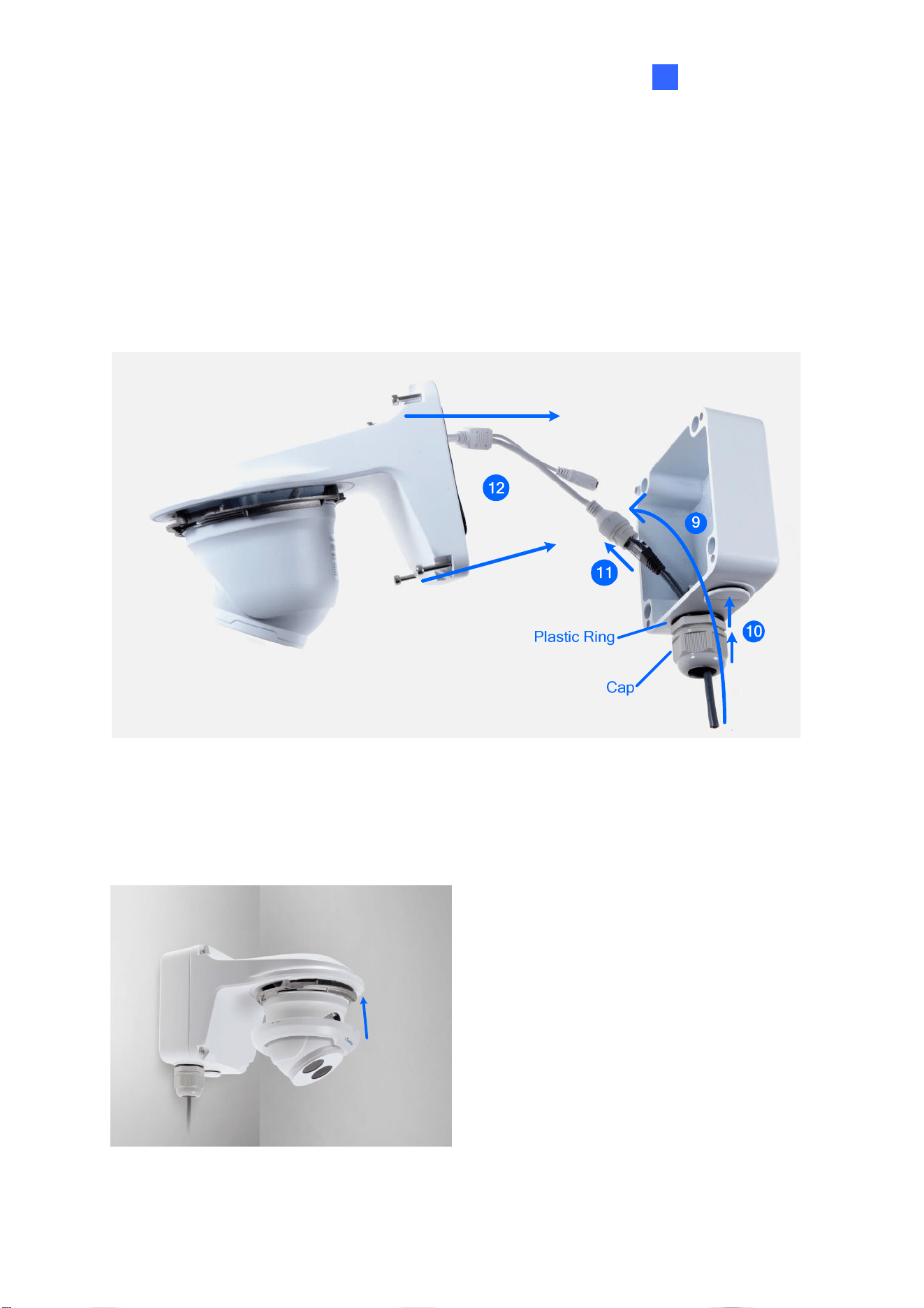

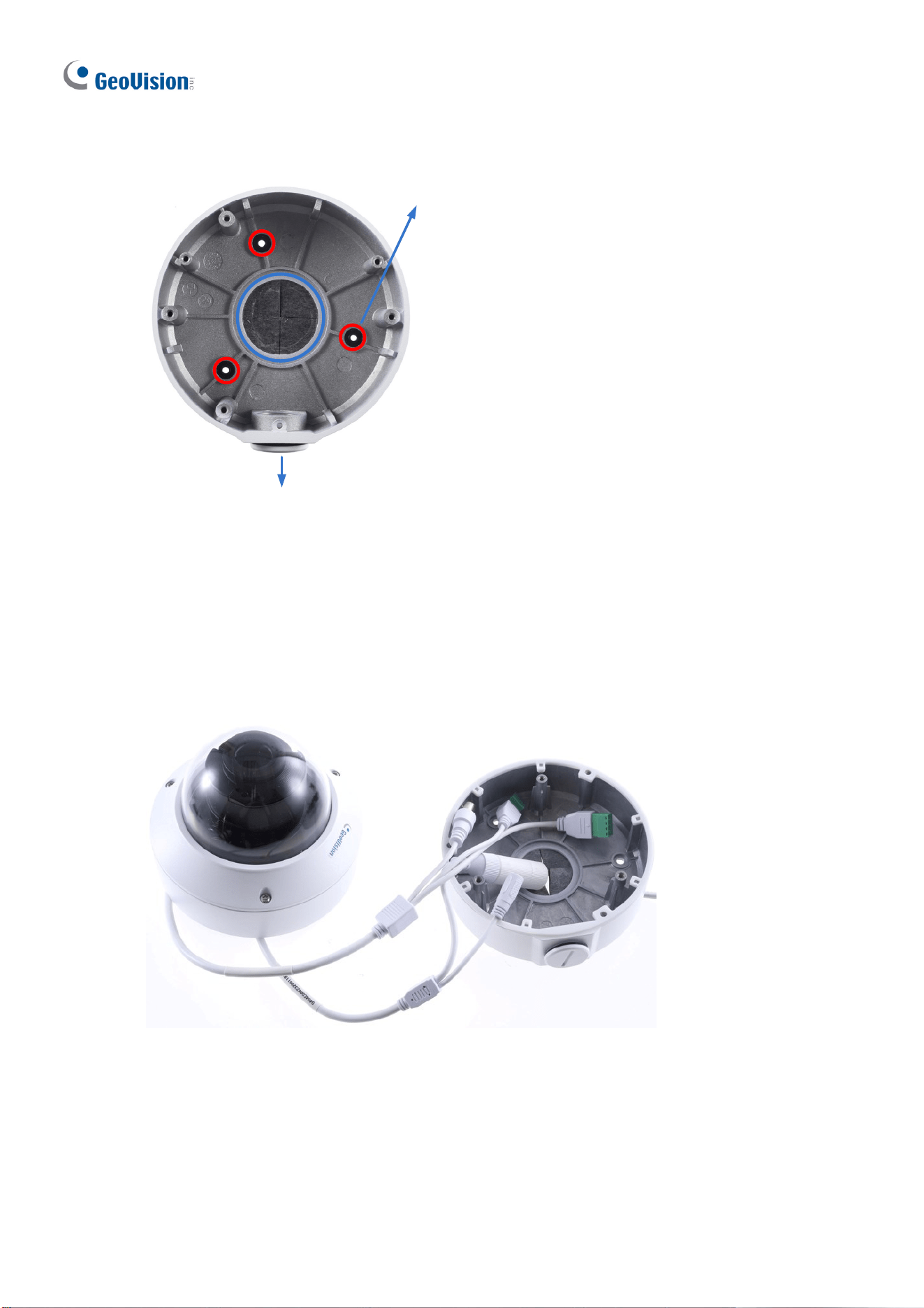

9. Thread the Ethernet cable through the PG21 conduit connector and the power box as
shown in No. 9, Figure 1-25.
10. Rotate the plastic ring to secure the conduit connector to the power box. Screw in the cap
as shown in No. 10, Figure 1-25.
11. Plug the Ethernet cable to the RJ-45 connector of the camera as shown in No. 11, Figure
1-25.
12. Screw the wall mount bracket to the power box as shown in No. 12, Figure 1-25.
Figure 1-25
13. Mount the bottom ring.
Figure 1-26
18

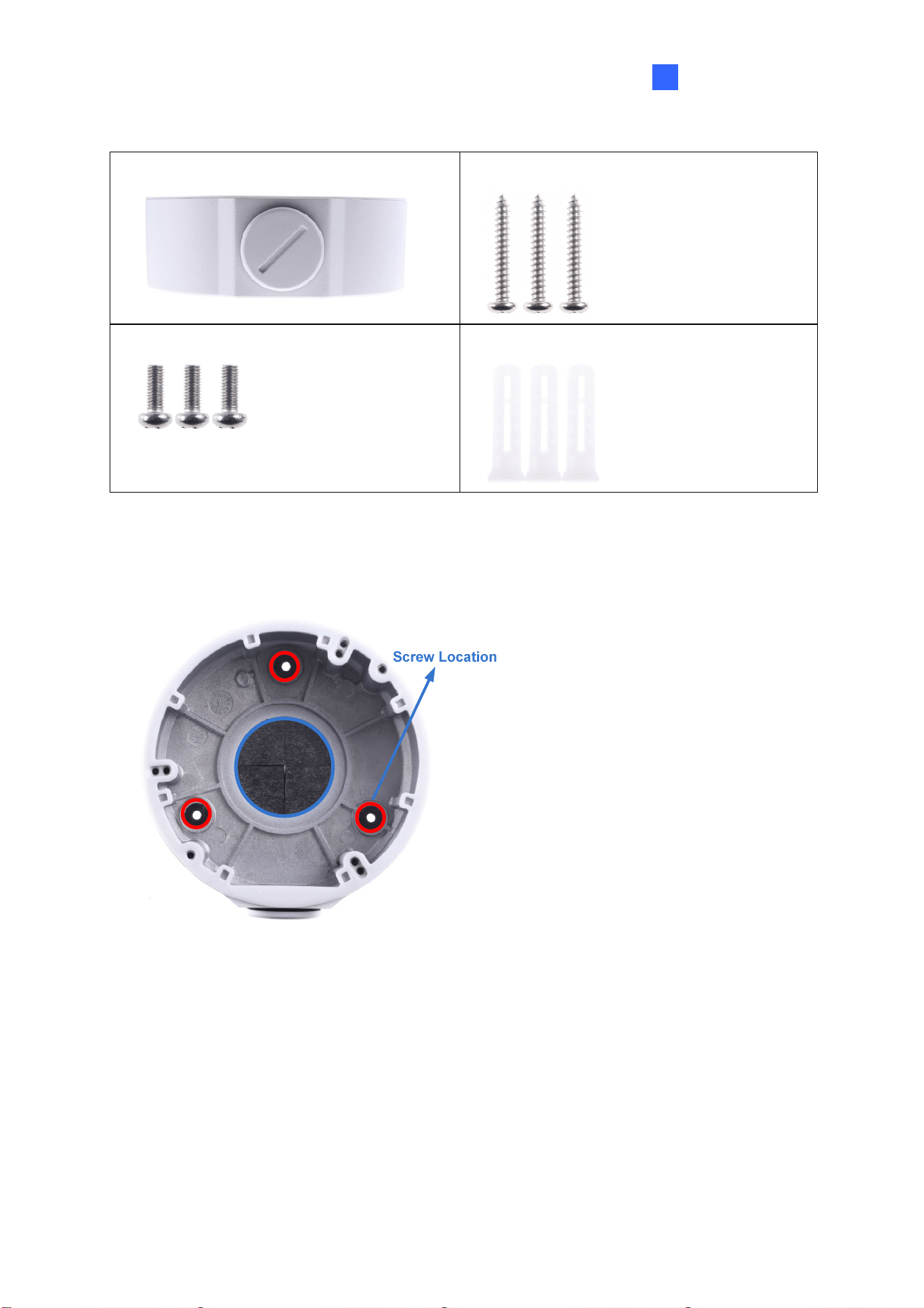

1.1.5.2 GV-Mount212P
GV-Mount212P
Figure 1-27

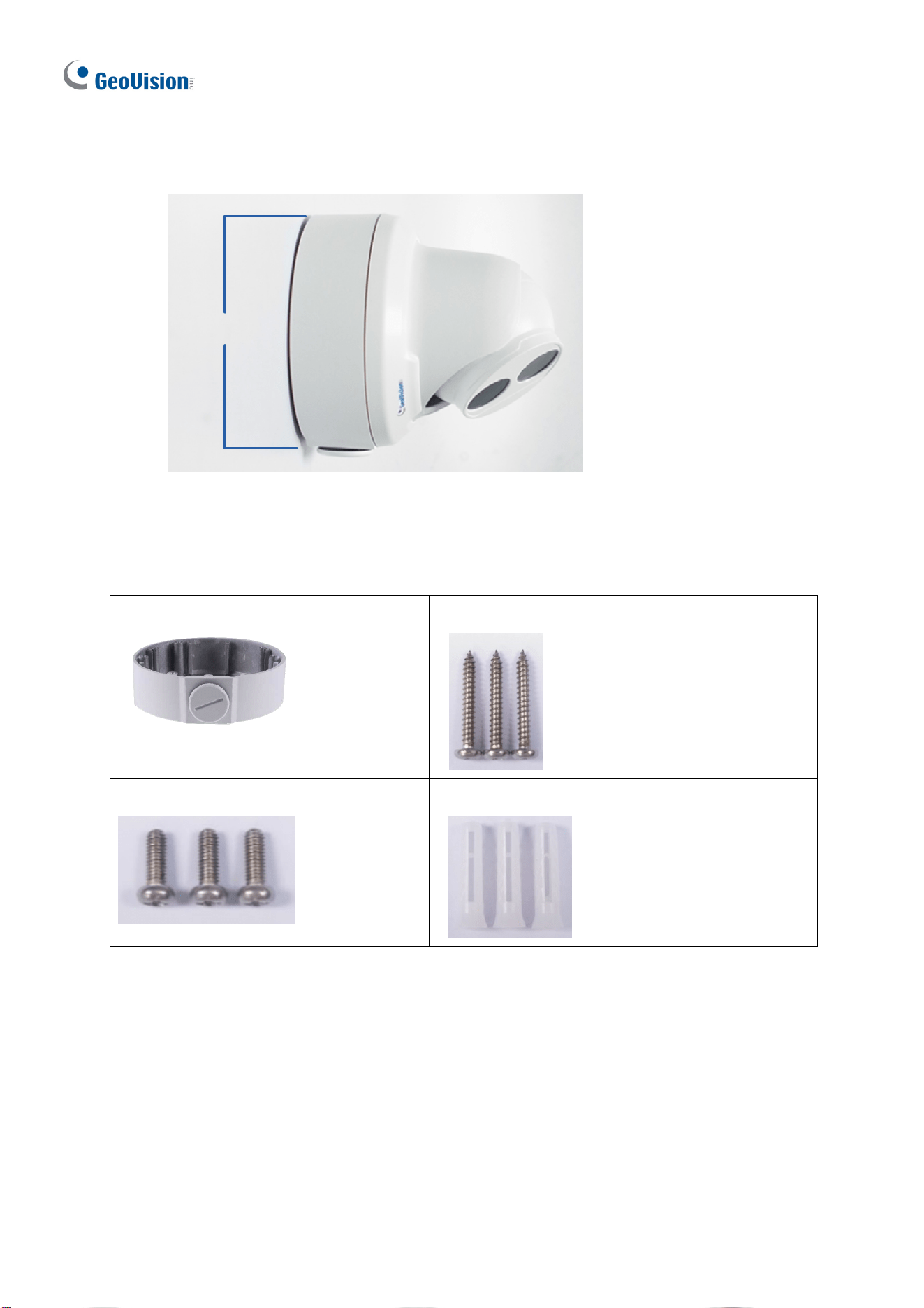

GV-Mount212P Packing List
GV-Mount212P Wall Box Mount
Long Screw x 3
Short Screw x 3
Screw Anchor x 3
Introduction
19
1
Standard Installation

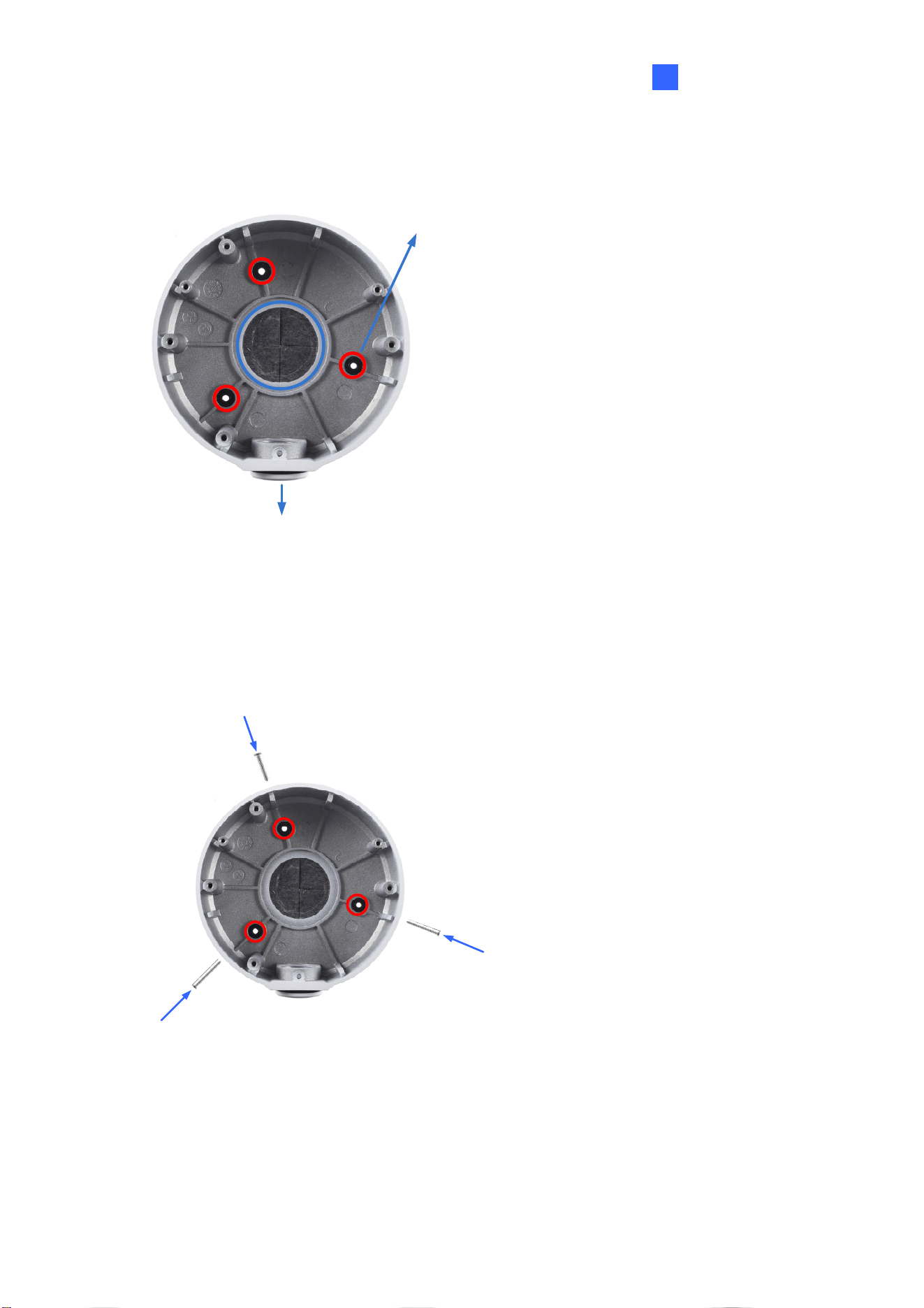

1 Attach the wall box to the wall and use a marker to mark the location for the center
socket and the screws. Make sure the knob points down.
Screw Location
This knob points down
Figure 1-28
2 Drill 3 holes according to the screw location. Then, drill a bigger hole at the center
socket location for the Ethernet cable.
3 Insert 3 screw anchors to the screw location and secure the wall box to the wall with 3
long screws.
Figure 1-29
20
4. Remove the bottom ring by turning it anticlockwise.
Figure 1-30

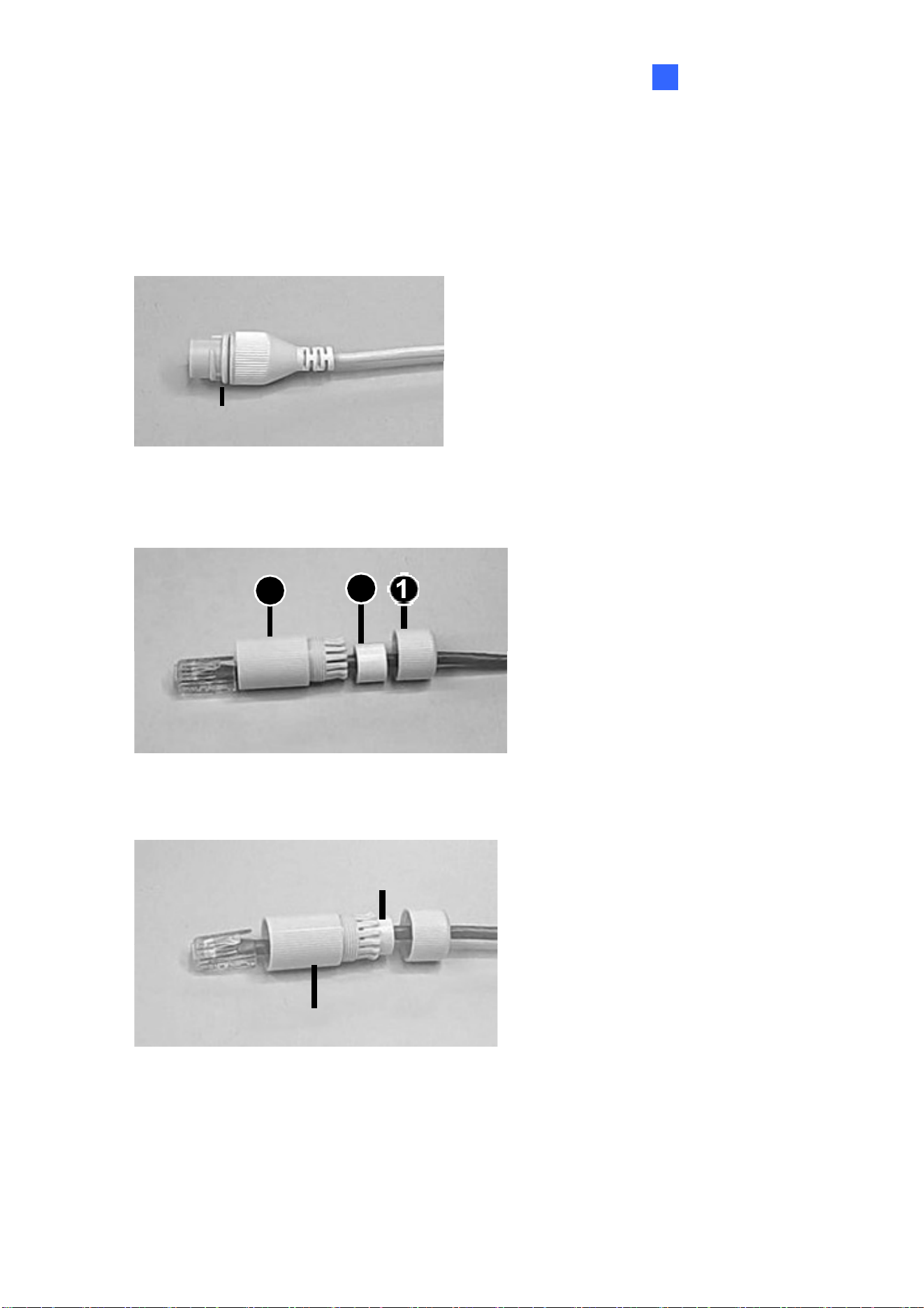

5. Thread the Ethernet cable through the center socket and waterproof the Ethernet cable.
For details, see 1.6 Waterproofing the Cable.
`
Figure 1-31
6 Fit the cable into the wall box.
Introduction
21
1

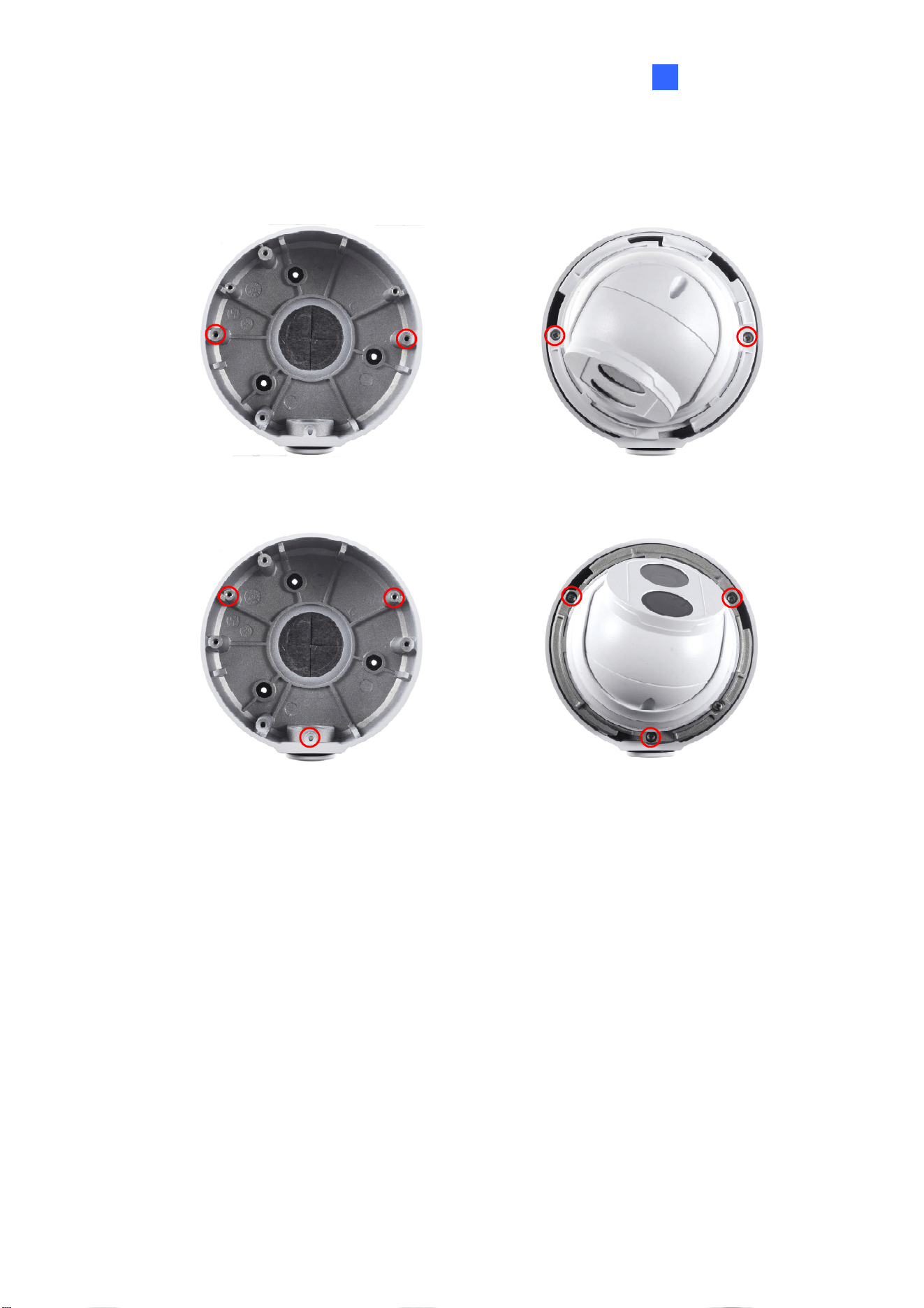

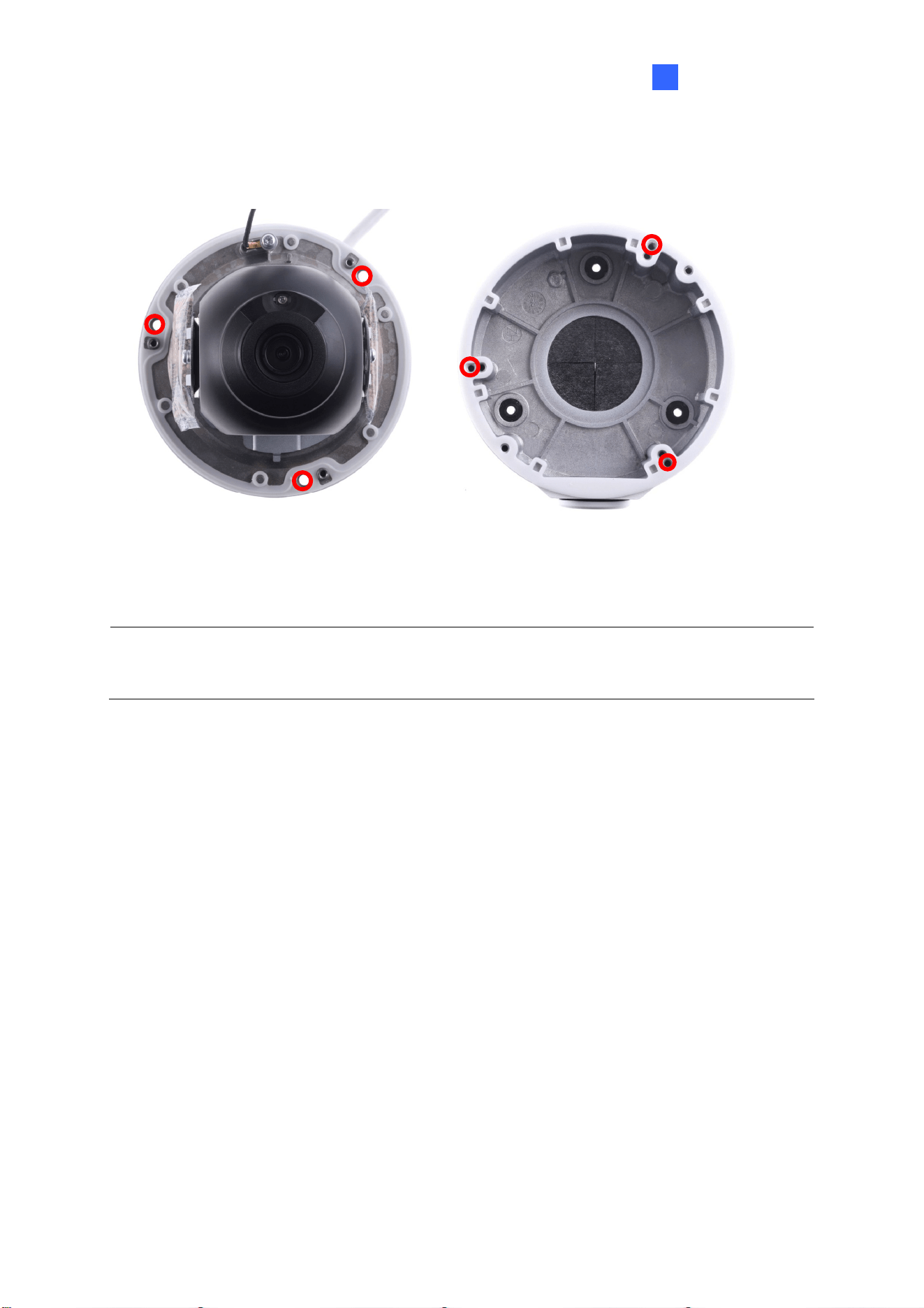

7 Secure the camera by locking the provided short screws to the screw position for each
model:
GV-EBD2702
Figure 1-32
GV-EBD4700 / 4711 / 8711
Figure 1-33
8 Mount the bottom ring.
22

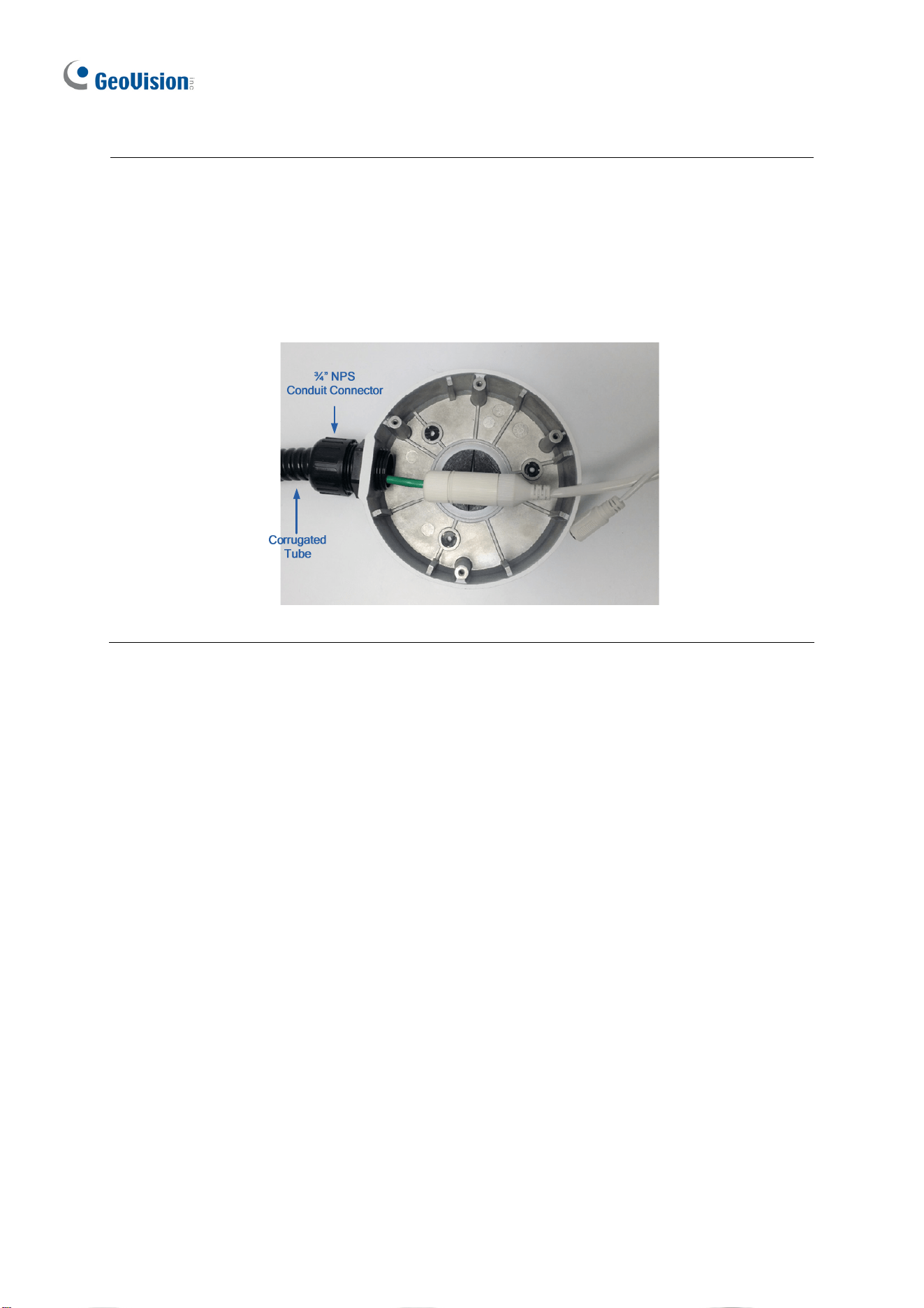

Note: In addition to the Standard Installation, you can also choose to run the Ethernet
cable through a corrugated tube. To do this, you will have to purchase your own conduit
connector and corrugated tube. 3/4” NPS is the recommended type of connector. After you
secure the wall box to the desired location, remove the knob at the bottom and connect the
conduit connector with a self-prepared corrugated tube to the wall box. Then, thread the
Ethernet cable through the corrugated tube and waterproof the Ethernet cable.
Figure 1-34
Introduction
23
1
1.2 GV-ABL Series
The Bullet IP Camera is an outdoor, fixed, network camera equipped with an automatic IR-
cut filter and an IR LED for day and night surveillance. The camera supports H.265 video
codec to achieve better compression ratio while maintaining high quality image at reduced
network bandwidths. The camera adheres to IP66 standards (IP67 for GV-ABL4712 / 8712)
and can be powered through PoE.
Model No. Specifications Description
GV-ABL2701 Fixed lens
Fixed Iris, f: 4.0 mm,
F/1.8, M12 Lens Mount
2 MP, H.265,
Low Lux, WDR
GV-ABL2702
Varifocal
Lens
Fixed Iris, f: 2.8~12 mm,
F/1.4, Ø14 mm Lens
Mount
2 MP, H.265,
Low Lux, WDR Pro
GV-ABL4701 Fixed lens
Fixed Iris, f: 4.0 mm,
F/1.8, M12 Lens Mount
4 MP, H.265
Low Lux, WDR
GV-ABL4712
4 MP, H.265
Low Lux, WDR Pro
GV-ABL8712
Motorized
varifocal lens
Fixed Iris, f: 2.8~12 mm,
F/1.4, Ø14 mm Lens
Mount
8 MP, H.265
Super Low Lux,
WDR Pro
24
1.2.1 Packing List
Bullet IP Camera Waterproof Rubber Set
Screw Kit
Drill Template Paster
Download Guide Warranty Card
Introduction
25
1
1.2.2 Optional Accessories
Optional accessories can expand the capabilities and versatility of your camera. Contact your
dealer for more information.

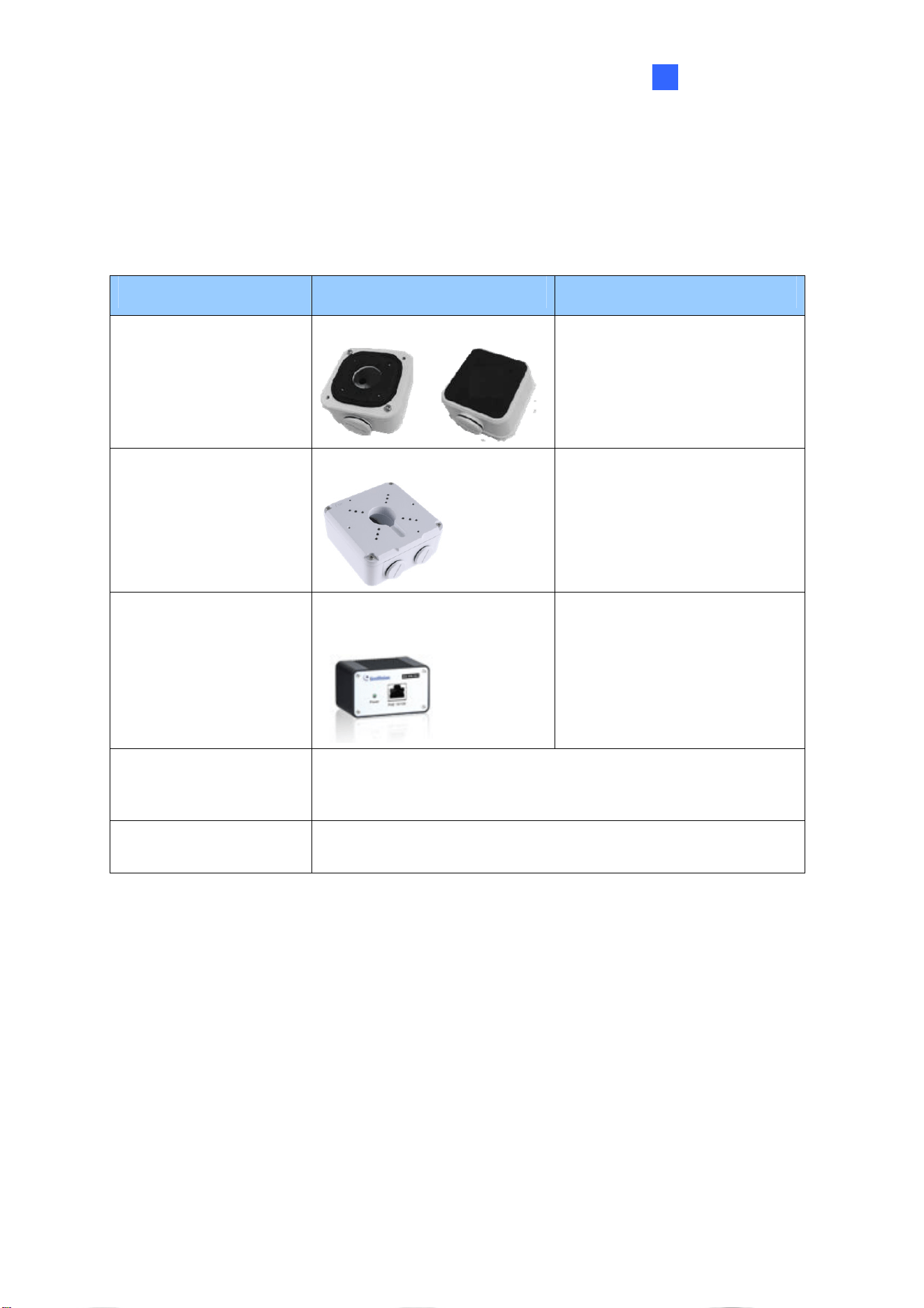

Model Number Name Details
GV-Mount502 (for GV-
ABL2701 / 4701)
Wall Mount Bracket
Dimensions: 93 x 93 x 39 mm
(3.66” x 3.66” x 1.53”)
Weight: 0.235 kg (0.52 lb)
GV-Mount503 (for GV-
ABL2702 / 4712 / 8712)
Wall Mount Bracket
Dimension: 125 x 125 x 55
mm (4.9” x4.9” x2.2”)
Weight: 0.74 kg (1.63lb)
GV-PA191
Power over Ethernet (PoE)
Adapter
GV-PA191 is a Power over
Ethernet (PoE) adapter
designed to provide power to
the IP device through a single
Ethernet cable.
GV-POE Switch
GV-POE Switch is designed to provide power along with
network connection for IP devices. GV-POE Switch is available
in various models with different numbers and types of ports.
Power Adapter
Contact our sales representatives for the countries and areas
supported.
26
1.2.3 Overview
1.2.3.1 GV-ABL2701 / 4701
Figure 1-35
No. Description
1 Power connector (DC 12 V)
2 Ethernet connector / PoE
Introduction
27
1
1.2.3.2 GV-ABL2702 / 4712 / 8712
1
2
3
4
5

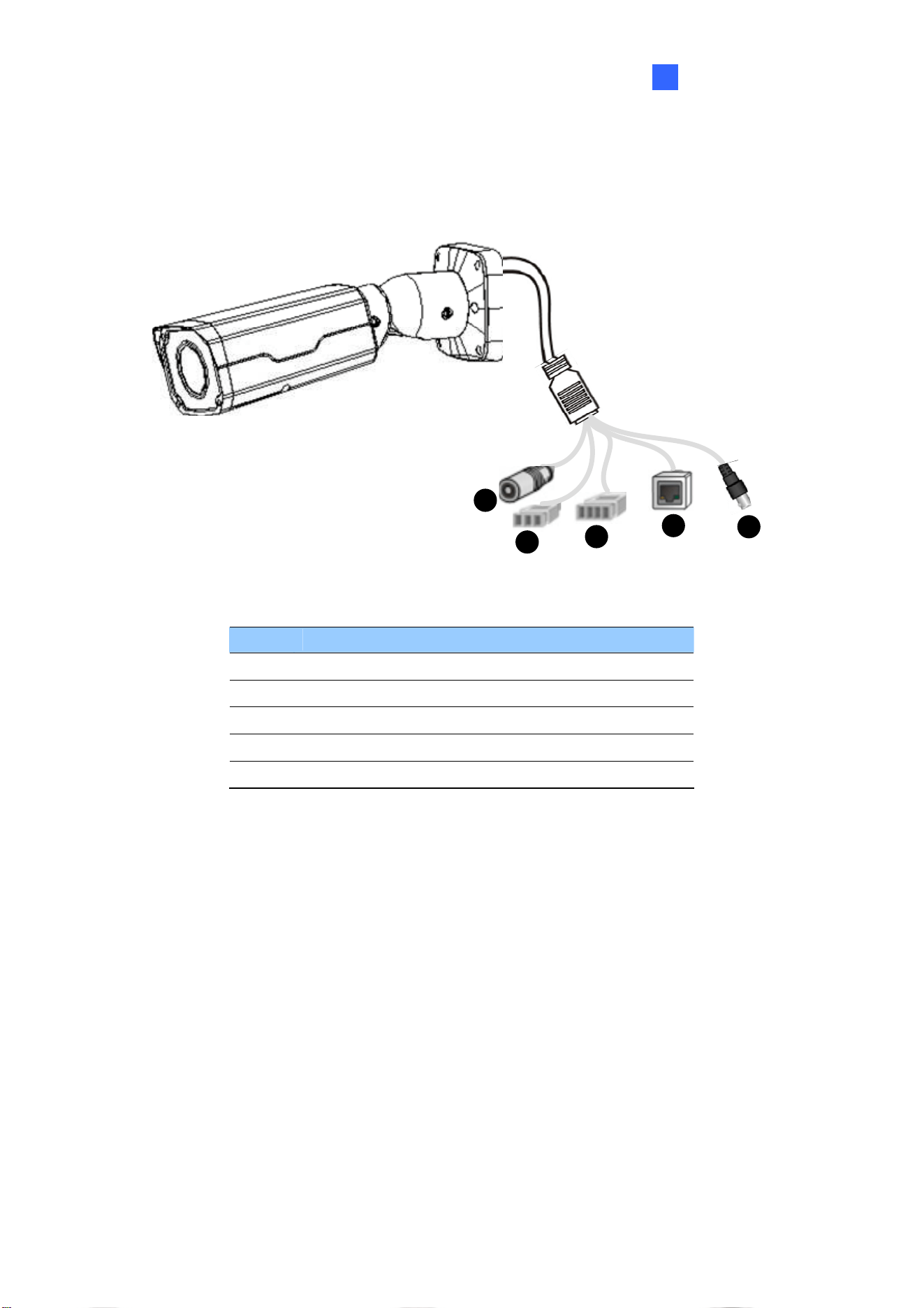

Figure 1-36
No. Description
1 Power connector (DC 12 V)
2 Audio input / Audio output / GND
3 Alarm input (IN, GND) / Alarm output (N,P)
4 Ethernet connector / PoE
5 Video Output (GV-ABL8712 Only)
28
1.2.4 Installation
The Bullet IP Camera is designed for outdoors. With the standard package, you can install
the camera on the wall or ceiling. Or, you can purchase optional mounting accessories to
mount your camera on a wall.
Below are the instructions for Wall Mount. There are two kinds of Wall Mount: Concealed
Installation and Open Installation. In Concealed Installation, the cables are hidden in the
wall. In Open Installation, the cables are led out from the open slot on the base.
For Concealed Installation

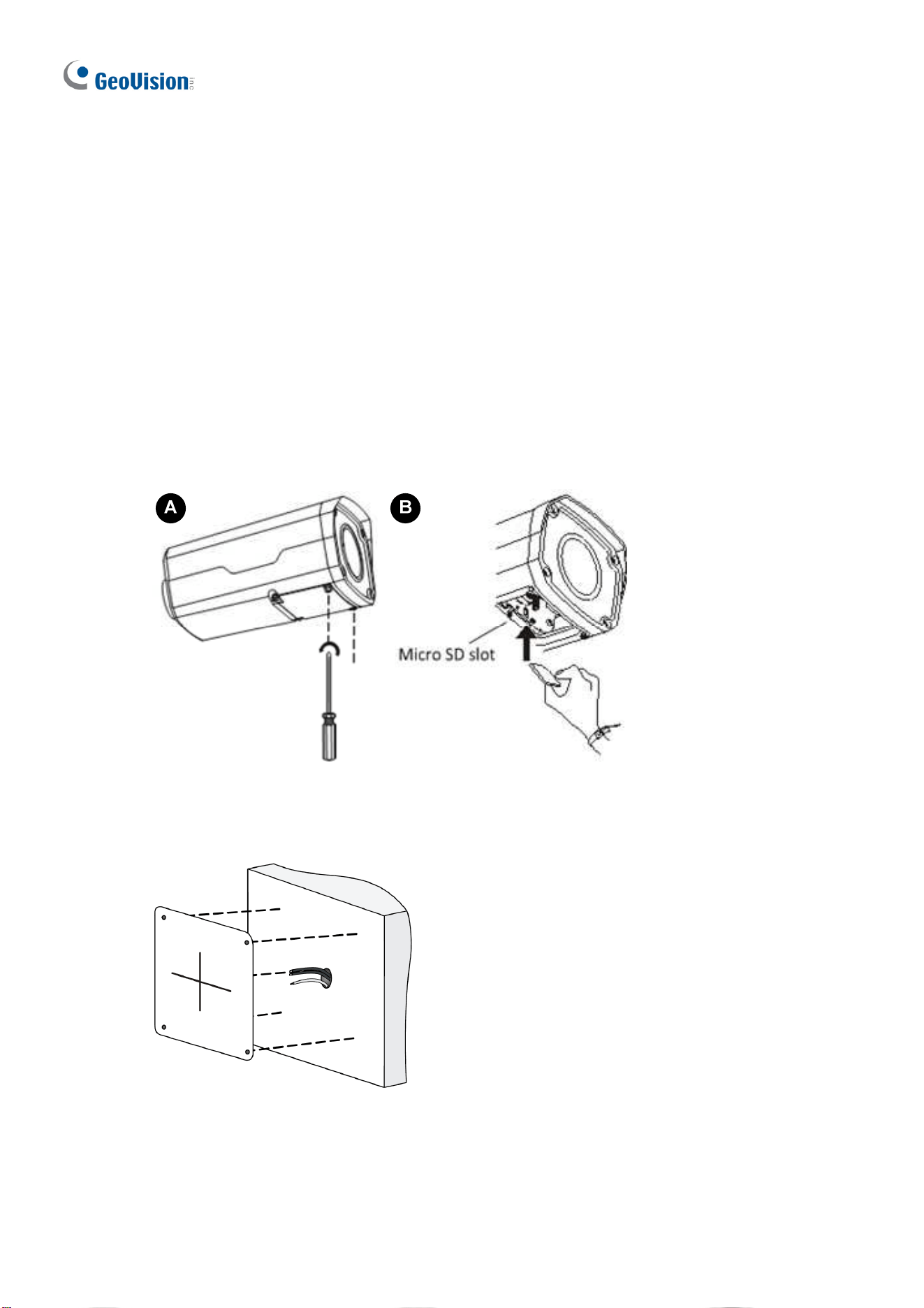

1. For GV-ABL2702 / 4712 / 8712, optionally loosen the two screws at the bottom of the
camera to insert a SD card.
Figure 1-37
2. Stick the drill template paster to the wall and align the cross center to the hole in the wall.
3. Lead the cables across the hole on the wall.
Figure 1-38
Introduction
29
1

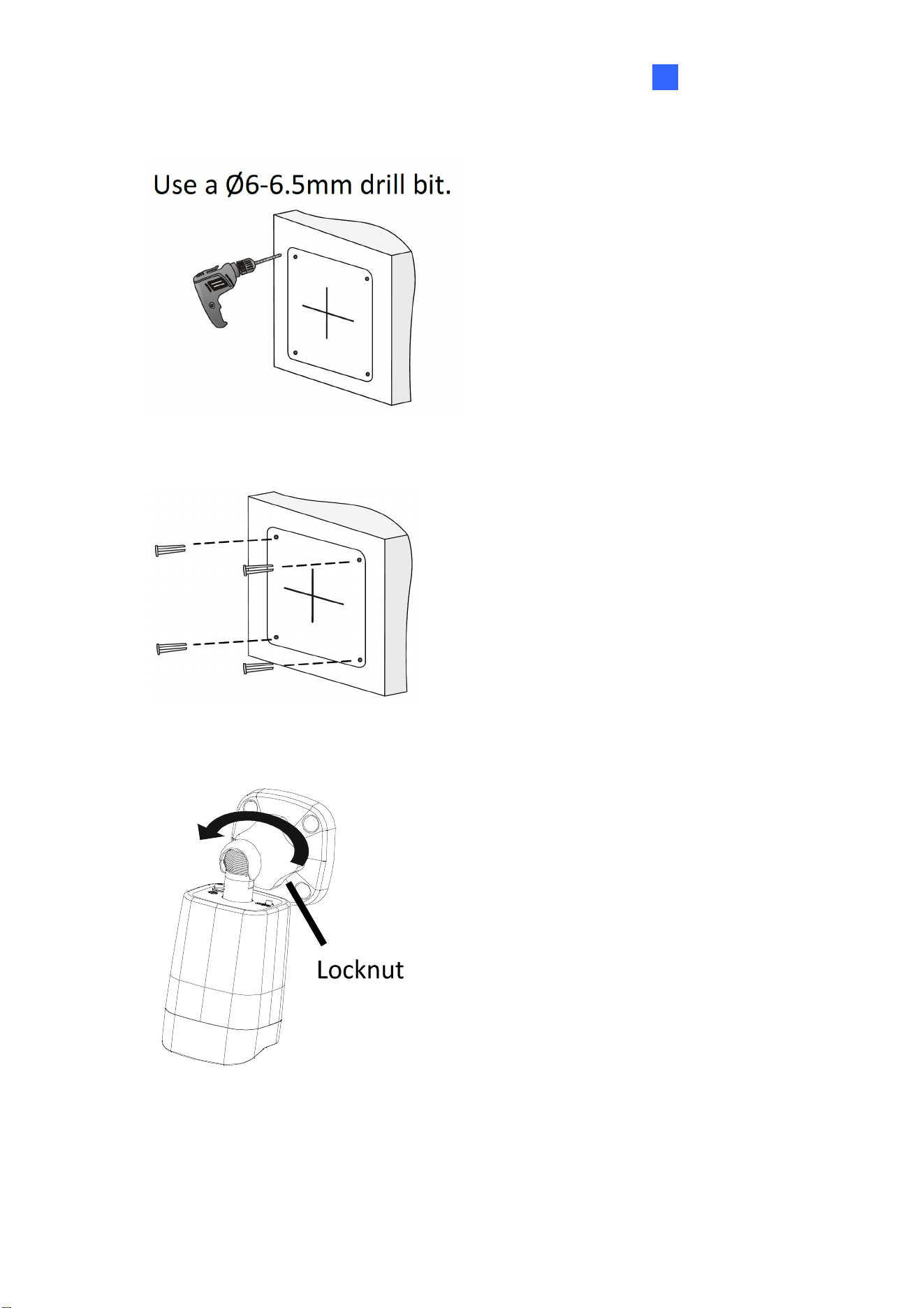

4. Drill four 30-mm deep holes according to the drill template.
Figure 1-39
5. Insert the screw anchors.
Figure 1-40

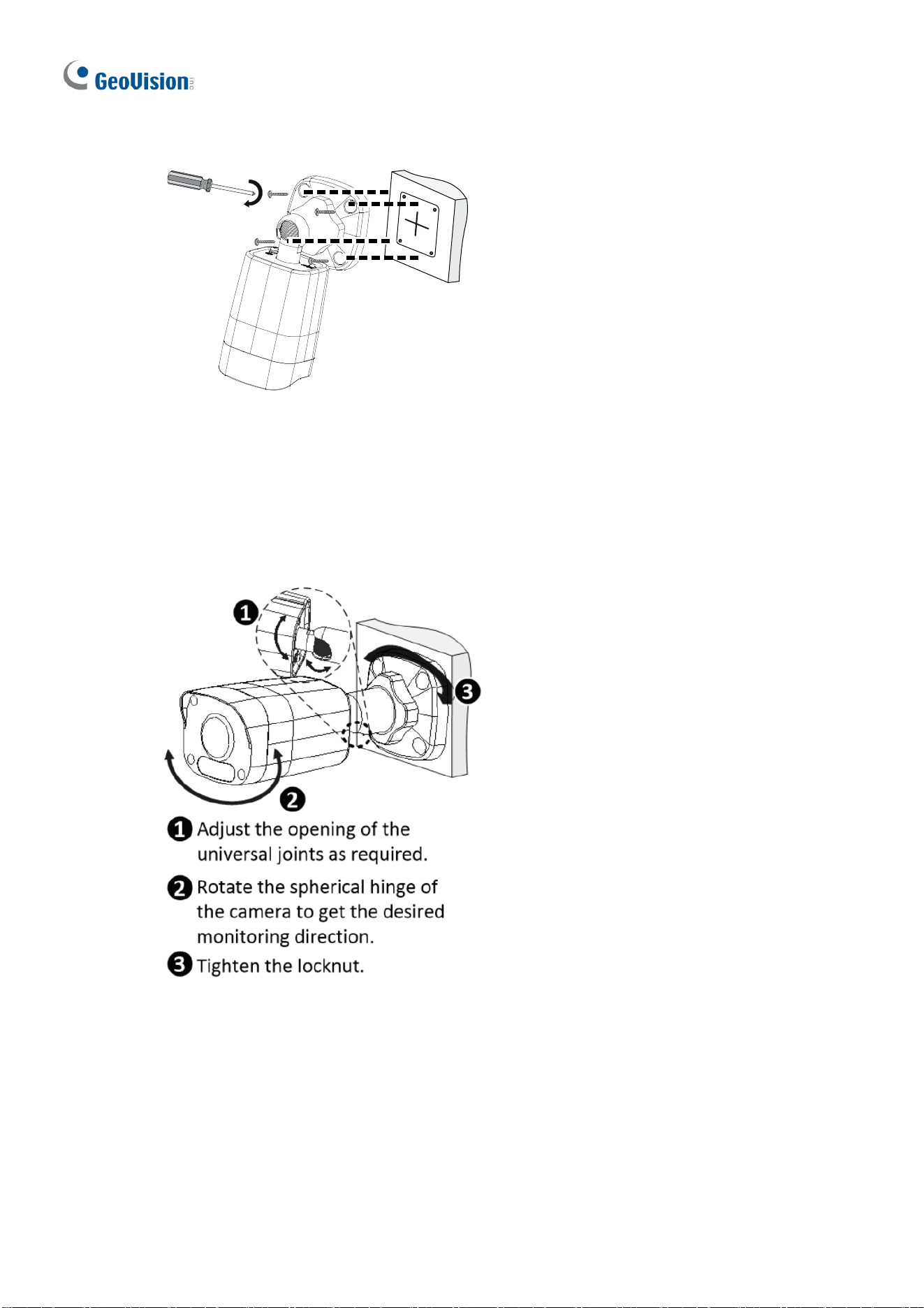

6. Screw the locknut and loosen the universal joint before attaching the camera to the wall.
Figure 1-41
30

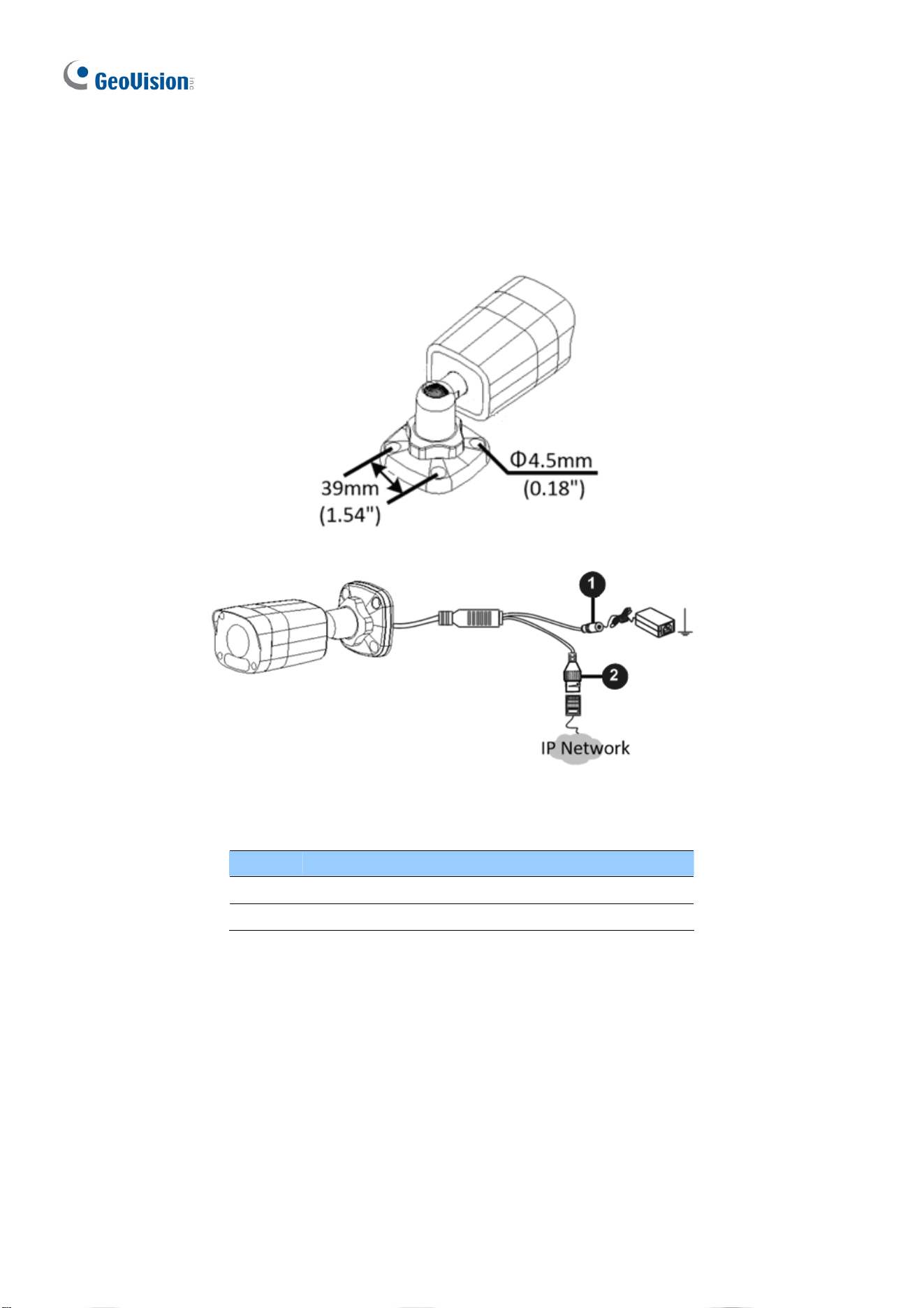

7. Secure the camera to the wall and connect all cables.
Leadtappingscrewsthrough
theguideholesinthebase
andfixthemonthewallby
usingascrewdriver.
Figure 1-42
8. Adjust the monitoring direction.
Figure 1-43
For Open Installation
Lead the cables out from the open slot on the base before screwing the camera to the wall
as shown in Figure 1-42.
Introduction
31
1
1.2.5 Optional Installation

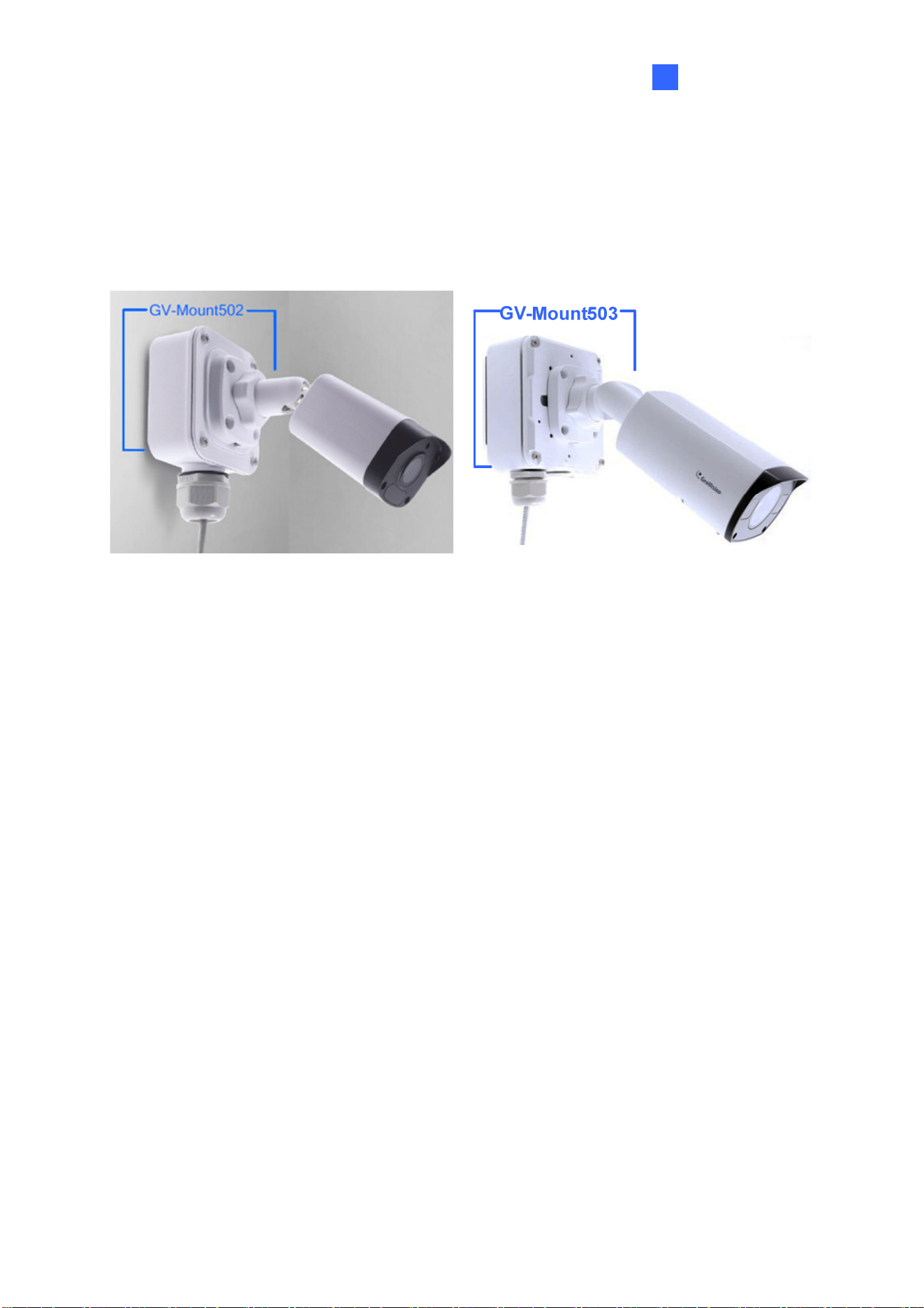

For other installation methods, you can optionally purchase GV-Mount502 for GV-ABL2701 /
4701 or GV-Mount503 for GV-ABL2702 / 4712 / 8712.
Figure 1-44 Figure 1-45
32
1.2.5.1 GV-Mount502

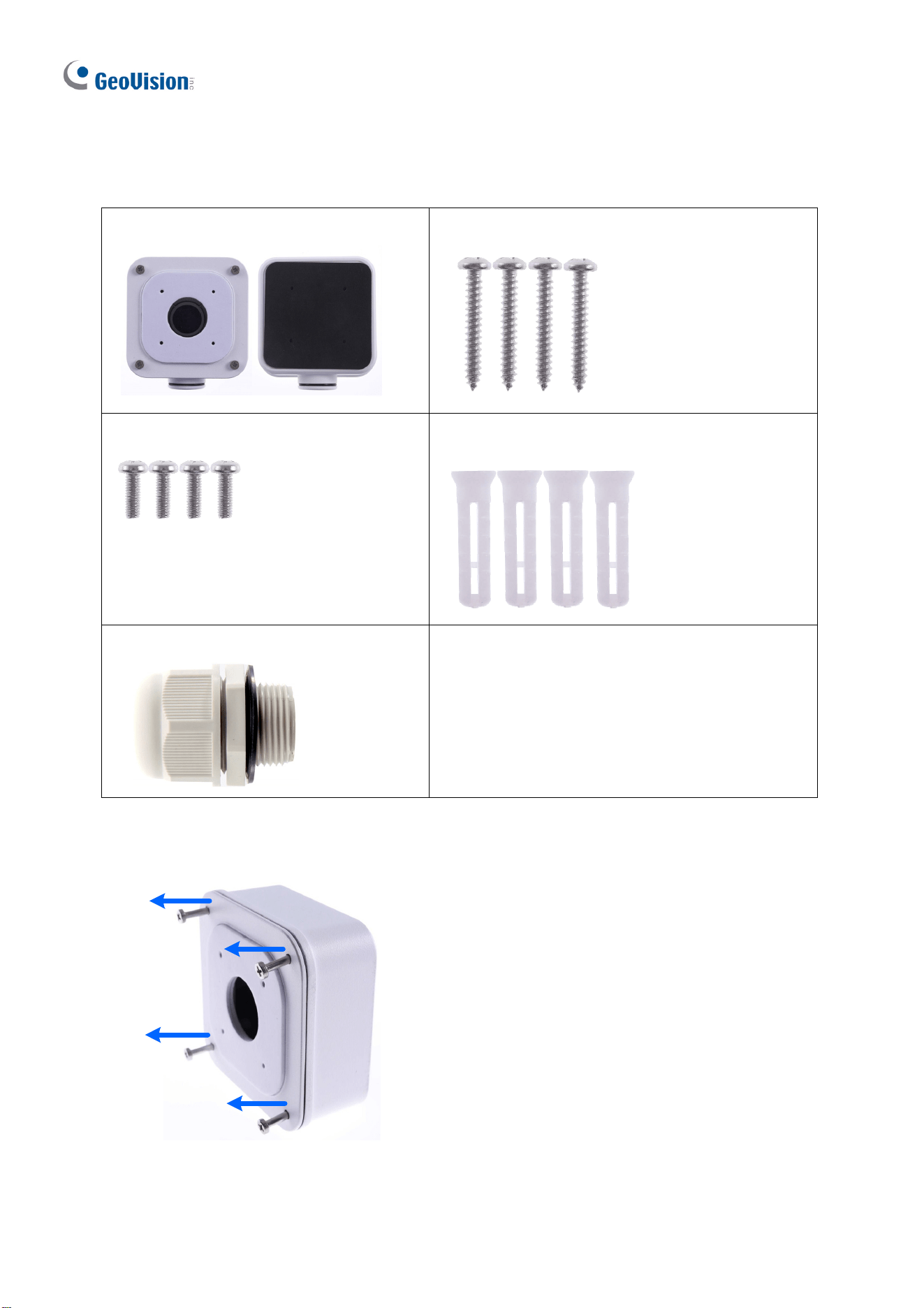

GV-Mount502 Packing List
GV-Mount502 Wall Mount Box
M3 25 mm Screw x 4
M3 12 mm Screw x 4
Screw Anchor x 4
Plastic PG21 Conduit Connector

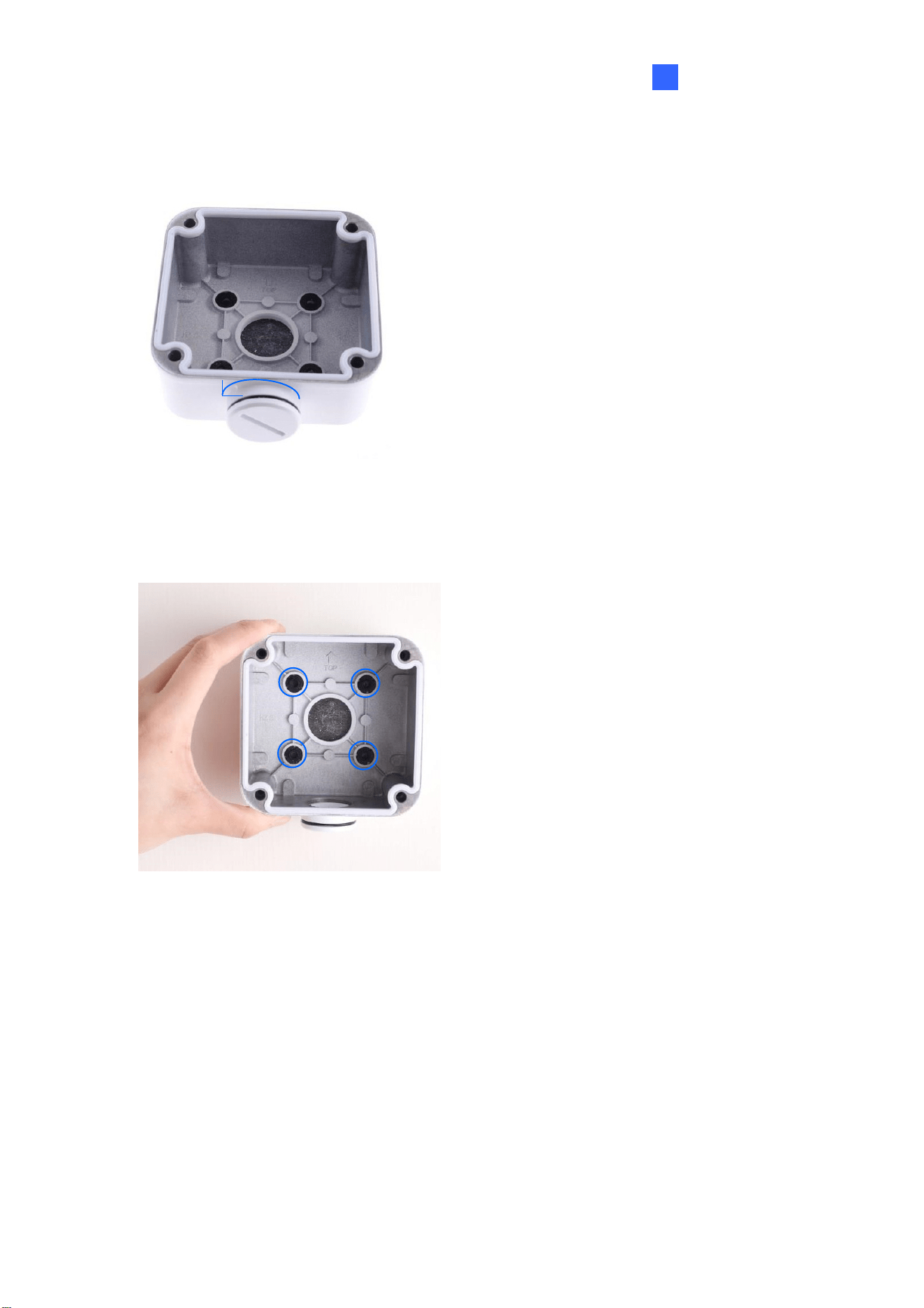

1. Unscrew the box cover.
Figure 1-46
Introduction
33
1
2. Loosen the indicated area by turning it anticlockwise.
Figure 1-47

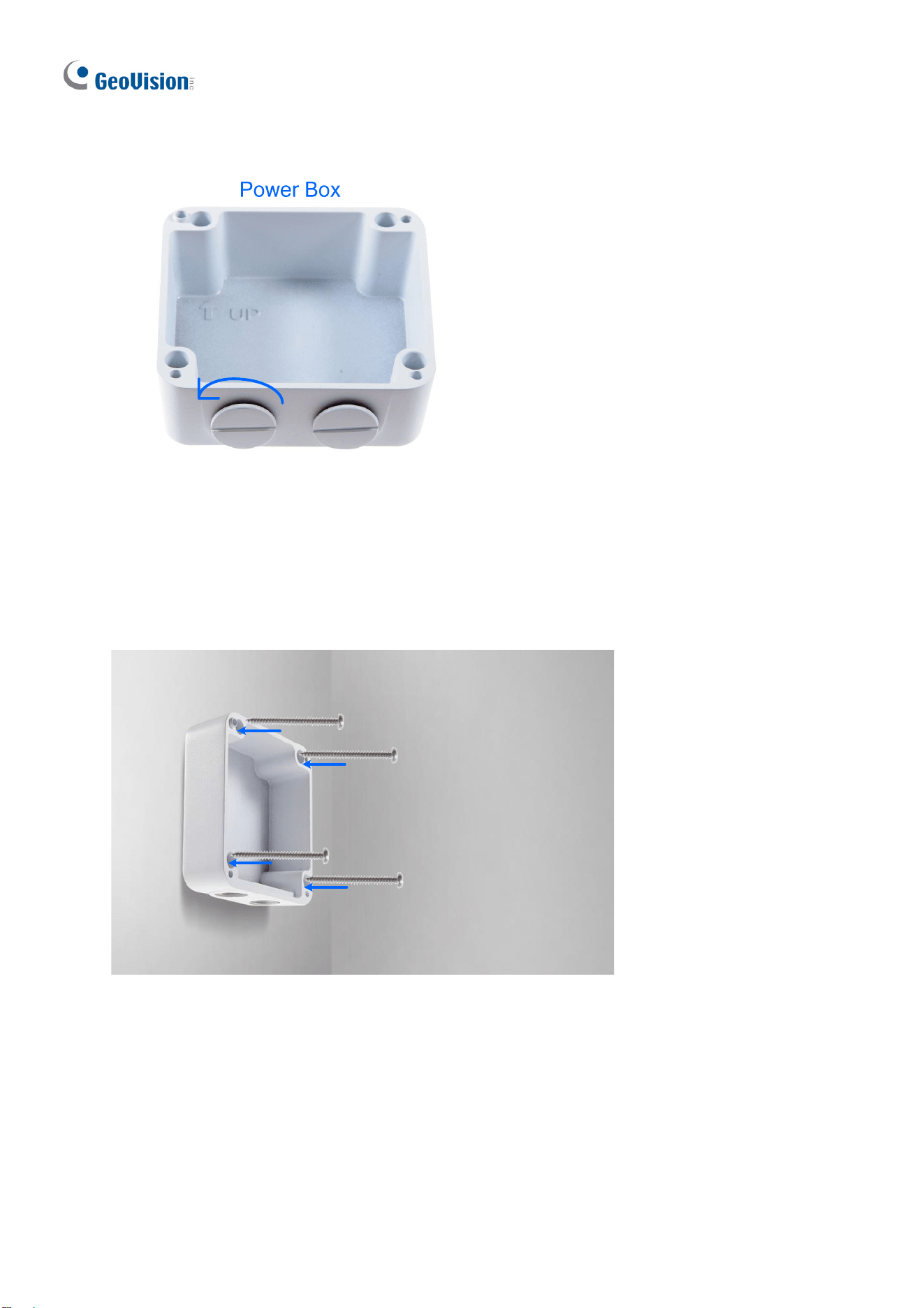

3. Attach the box to the wall with the arrow pointing up and use a marker to mark 4 dots.
Figure 1-48
4. Drill 4 holes according to the marks and insert the 4 screw anchors to the 4 holes.
34
5. Secure the power box to the wall with four M3 25 mm screws.
Figure 1-49
6. Thread the network and power wires through the wall mount box cover.
7. Secure the camera to the wall mount box cover with 4 M3 12 mm screws.
Figure 1-50
Introduction
35
1

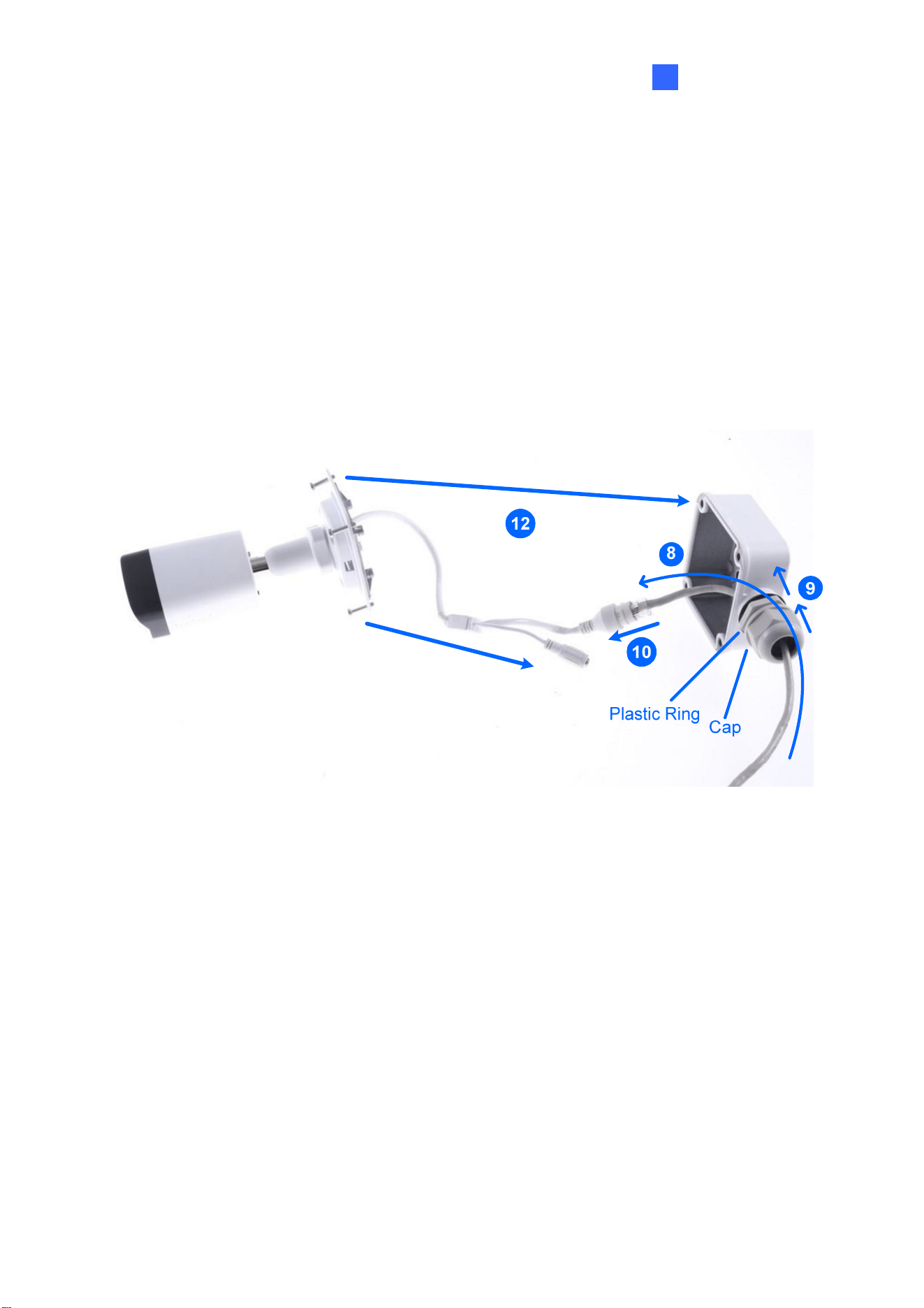

8. Thread the Ethernet cable through the PG21 conduit connector and the wall mount box
as shown in No. 8, Figure 1-51.
9. Rotate the plastic ring to secure the conduit connector to the wall mount box. Screw in
the cap as shown in No. 9, Figure 1-51.
10. Plug the Ethernet cable to the RJ-45 connector of the camera as shown in No. 10, Figure
1-49. To waterproof the Ethernet cable, see 1.6 Waterproofing the Cable.
11. Arrange the cables.
12. Screw the wall mount box cover to the wall mount box as shown in No. 12, Figure 1-51.
Figure 1-51
36
1.2.5.2 GV-Mount503

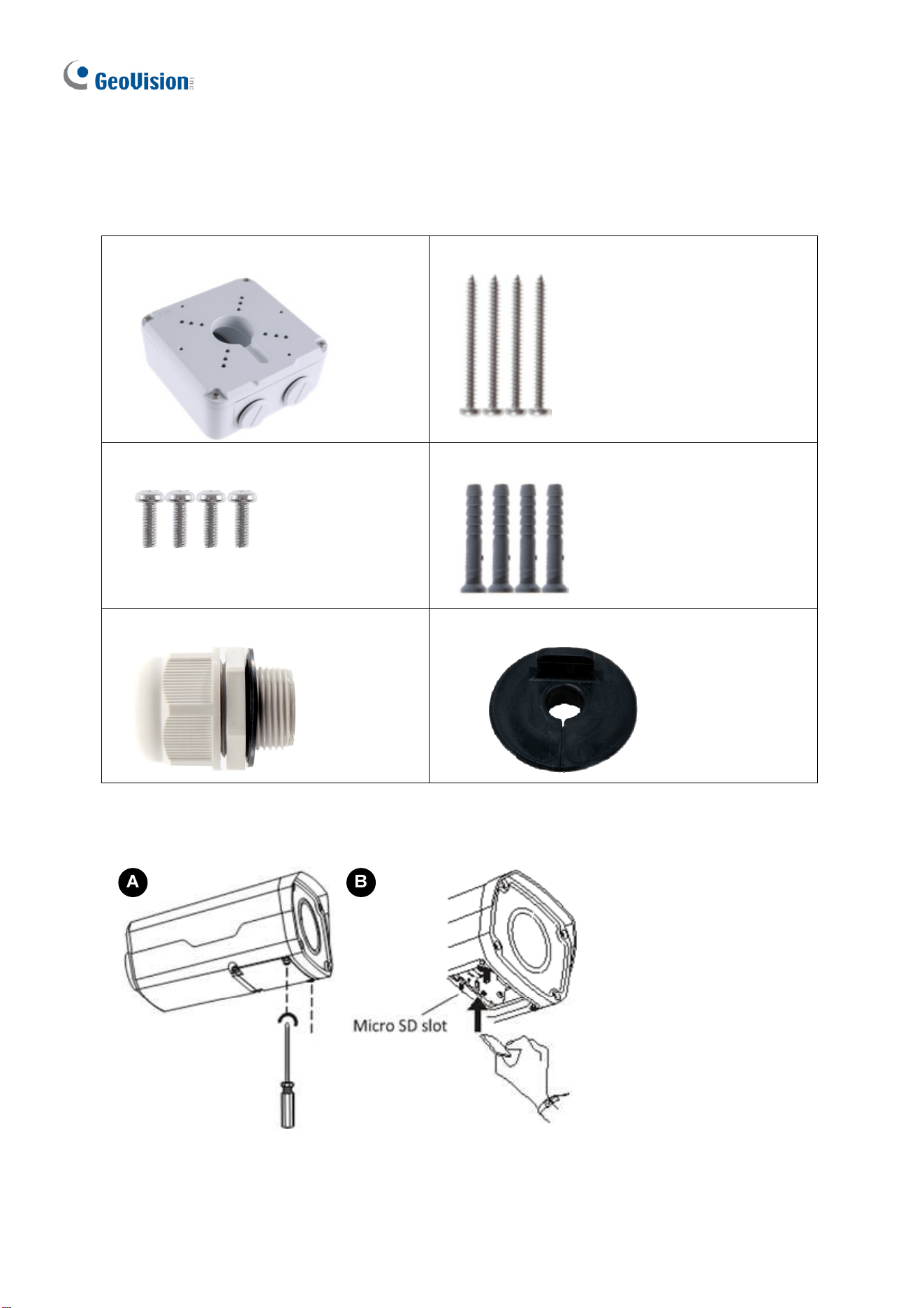

GV-Mount503 Packing List
GV-Mount503 Wall Mount Box
Long Screw x 4
Short Screw x 4
Screw Anchor x 4
Plastic PG21 Conduit Connector
Waterproof Rubber Plug
1. Optionally insert a SD card.
Figure 1-52
Introduction
37
1
2. Unscrew the box cover.
Figure 1-53
3. Loosen the indicated area by turning it anticlockwise.
Figure 1-54
4. Attach the power box to the wall with the arrow pointing up and use a marker to mark 4
dots.
Figure 1-55
38

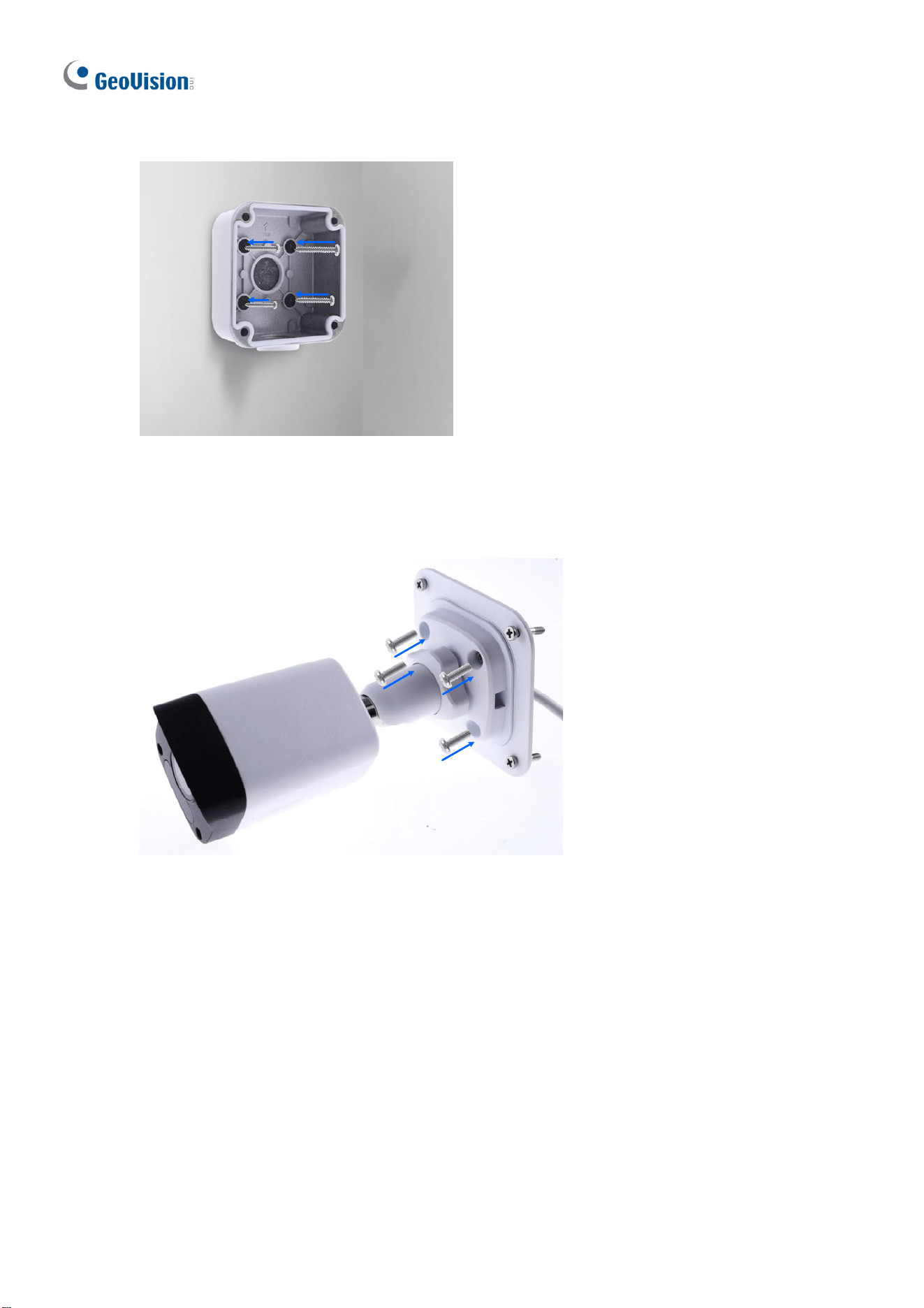

5. Drill 4 holes according to the marks and insert 4 screw anchors to the 4 holes.
6. Secure the power box to the wall with 4 long screws.
7. Thread the camera cable through the box cover.
8. Secure the camera to the box cover with 4 short screws.
Figure 1-56
9. Thread the Ethernet cable through the PG21 conduit connector and the power box as
shown in No 9, Figure 1-57.
10. Rotate the plastic ring to secure the conduit connector to the power box. Secure in the
cap as shown in No 10, Figure 1-57
11. Plug the Ethernet cable to the RJ-45 connector of the camera.
12. Connect other wires to the camera.
13. Secure the box cover to the power box as shown in No 13, Figure 1-57
Figure 1-57
Introduction
39
1
1.3 GV-ADR Series
The IR Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an
automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports
H.265 video codec to achieve better compression ratio while maintaining high quality image
at reduced network bandwidths. The camera adheres to IP66 standard and can be powered
through PoE.
Model No. Specifications Description
GV-ADR2701 Fixed lens
Fixed Iris, f: 2.8 mm,
F/2.2, M12 Lens Mount
2 MP, H.265,
Low Lux, WDR
GV-ADR4701 Fixed lens
Fixed Iris, f: 2.8 mm,
F/1.8, M12 Lens Mount
4 MP, H.265,
Low Lux, WDR
40

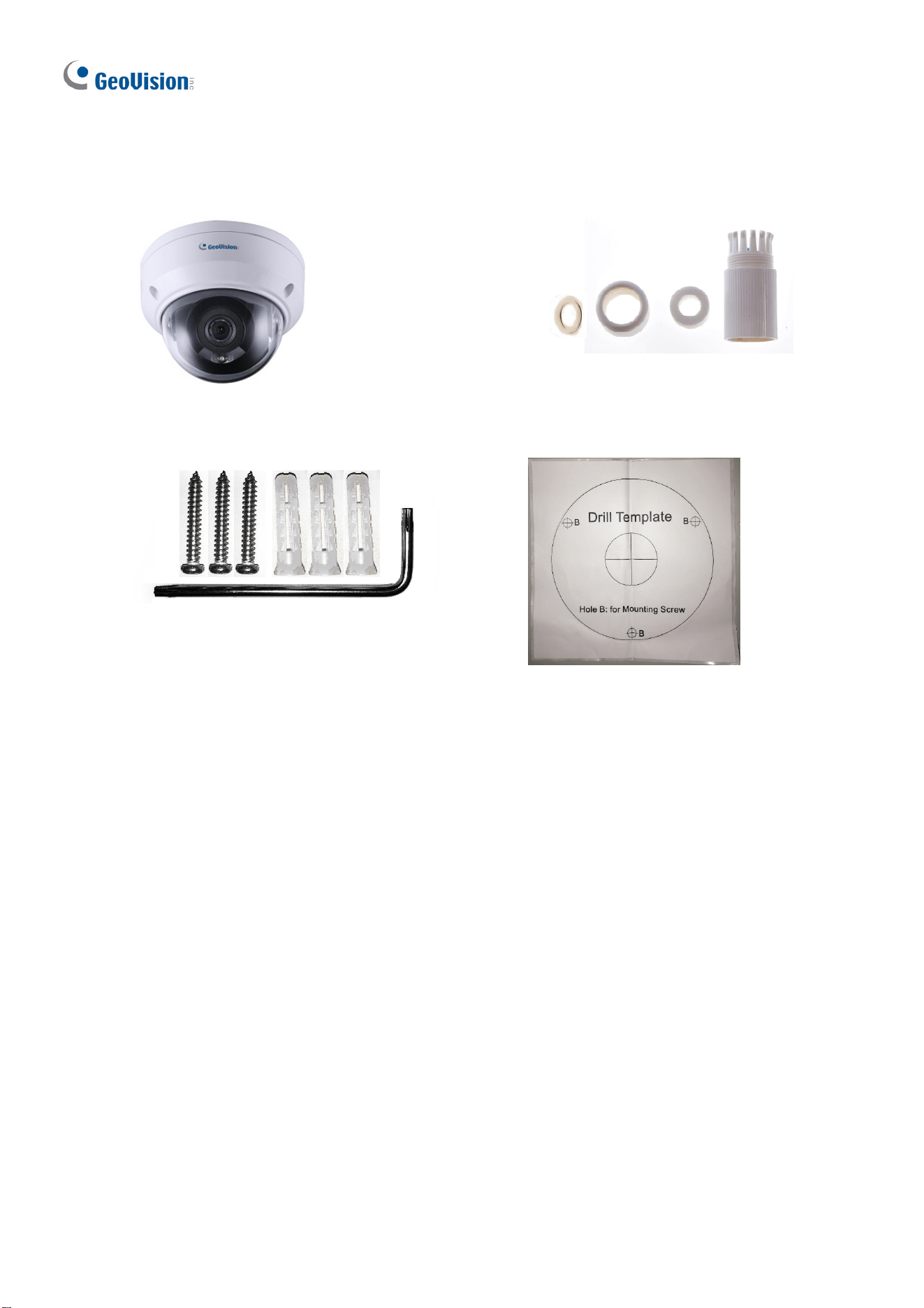

1.3.1 Packing List
IR Mini Fixed Rugged IP Dome
Waterproof Rubber Set
Screw Kit
Drill Template Paster
Download Guide Warranty Card
Introduction
41
1
1.3.2 Optional Accessories
Optional accessories can expand the capabilities and versatility of your camera. Contact your
dealer for more information.
Model Number Name Details
GV-Mount211P Wall Mount Bracket
Dimensions: 233 x 126 x 126
mm (9.2” x 5” x 5”)
Weight: 1 kg (2.2 lb)
GV-Mount213 Wall Box Mount
Dimensions: Ø 109 x 39 mm
(4.3” x 1.5”)
Weight: 0.2 kg (0.44 lb)
GV-PA191
Power over Ethernet (PoE)
Adapter
GV-PA191 is a Power over
Ethernet (PoE) adapter
designed to provide power to
the IP device through a single
Ethernet cable.
GV-POE Switch
GV-POE Switch is designed to provide power along with
network connection for IP devices. GV-POE Switch is available
in various models with different numbers and types of ports.
Power Adapter
Contact our sales representatives for the countries and areas
supported.
42

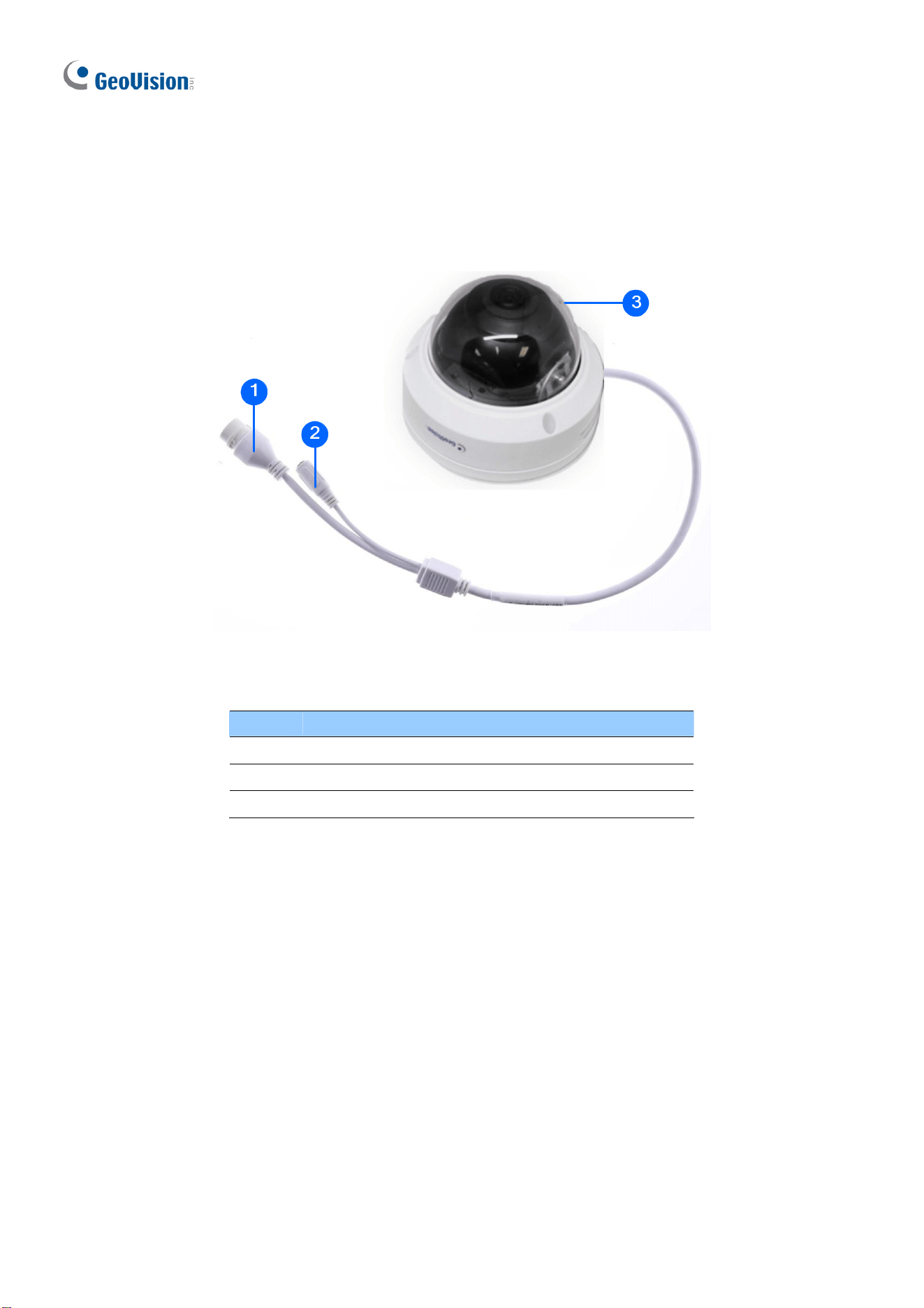

1.3.3 Overview
Figure 1-58
No. Description
1 Ethernet connector / PoE
2 Power connector (DC 12 V)
3 Transparent Dome Cover
Introduction
43
1
1.3.4 Installation
The IR Mini Fixed Rugged IP Dome is designed for outdoors. With the standard package,
you can install the camera on the ceiling.
Below are the instructions for Ceiling Mount. There are two kinds of Ceiling Mount:
Concealed Installation and Open Installation. In Concealed Installation, the cables are
hidden in the ceiling. In Open Installation, the cables are led out from the open slot on the
camera base.
For Concealed Installation
1. Stick the drill template paster to the ceiling and drill 30-mm deep holes according to the
drill template.
Figure 1-59
2. Insert the screw anchors.
Figure 1-60
44

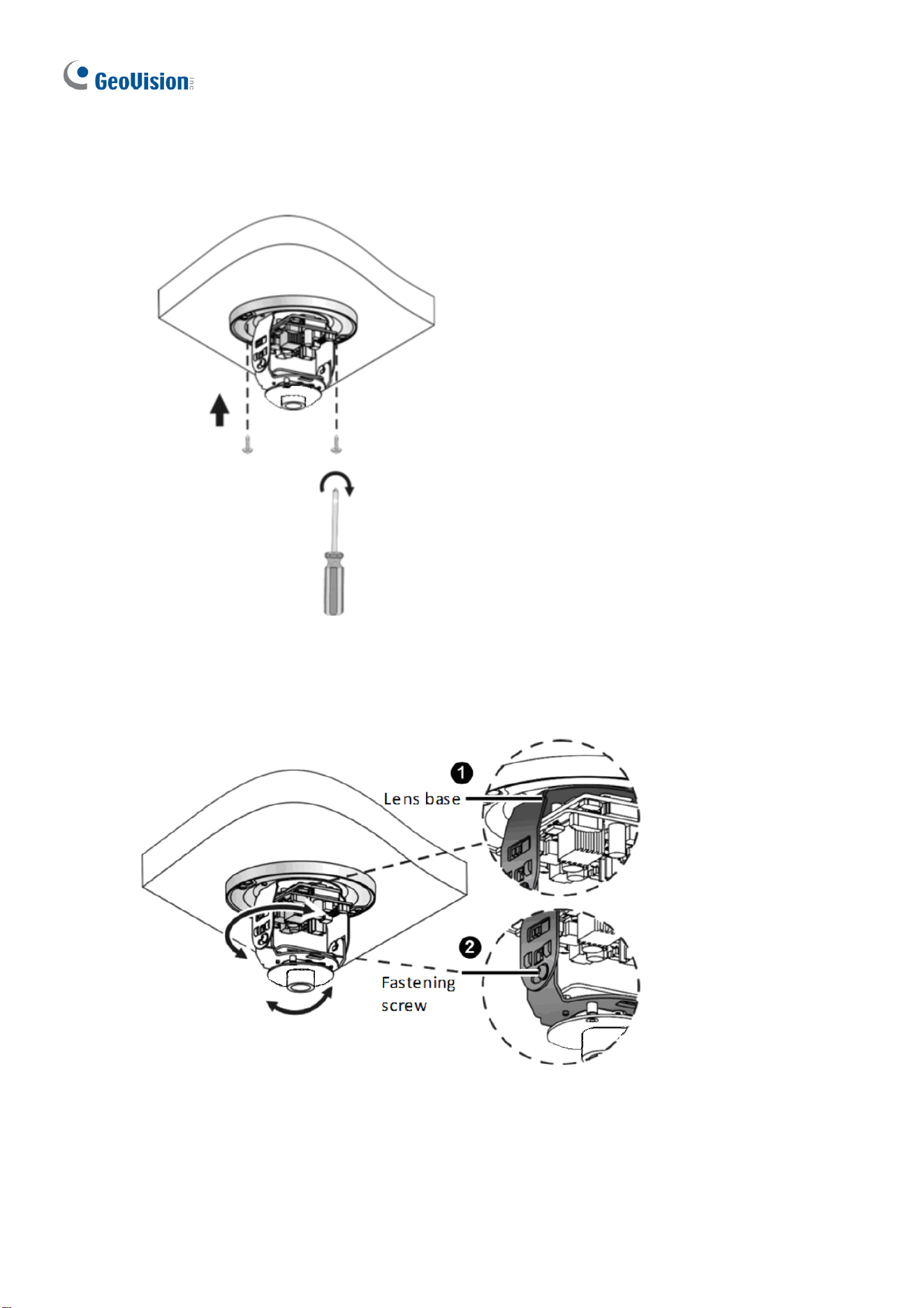

3. Unscrew the transparent dome cover with the supplied torx wrench.
4. Connect the cables and secure the camera.
Figure 1-61
5. Adjust the monitoring direction and tighten the screws after vertically adjusting the lens.
Figure 1-62
Introduction
45
1
6. Secure the transparent dome cover with the supplied torx wrench.
Figure 1-63

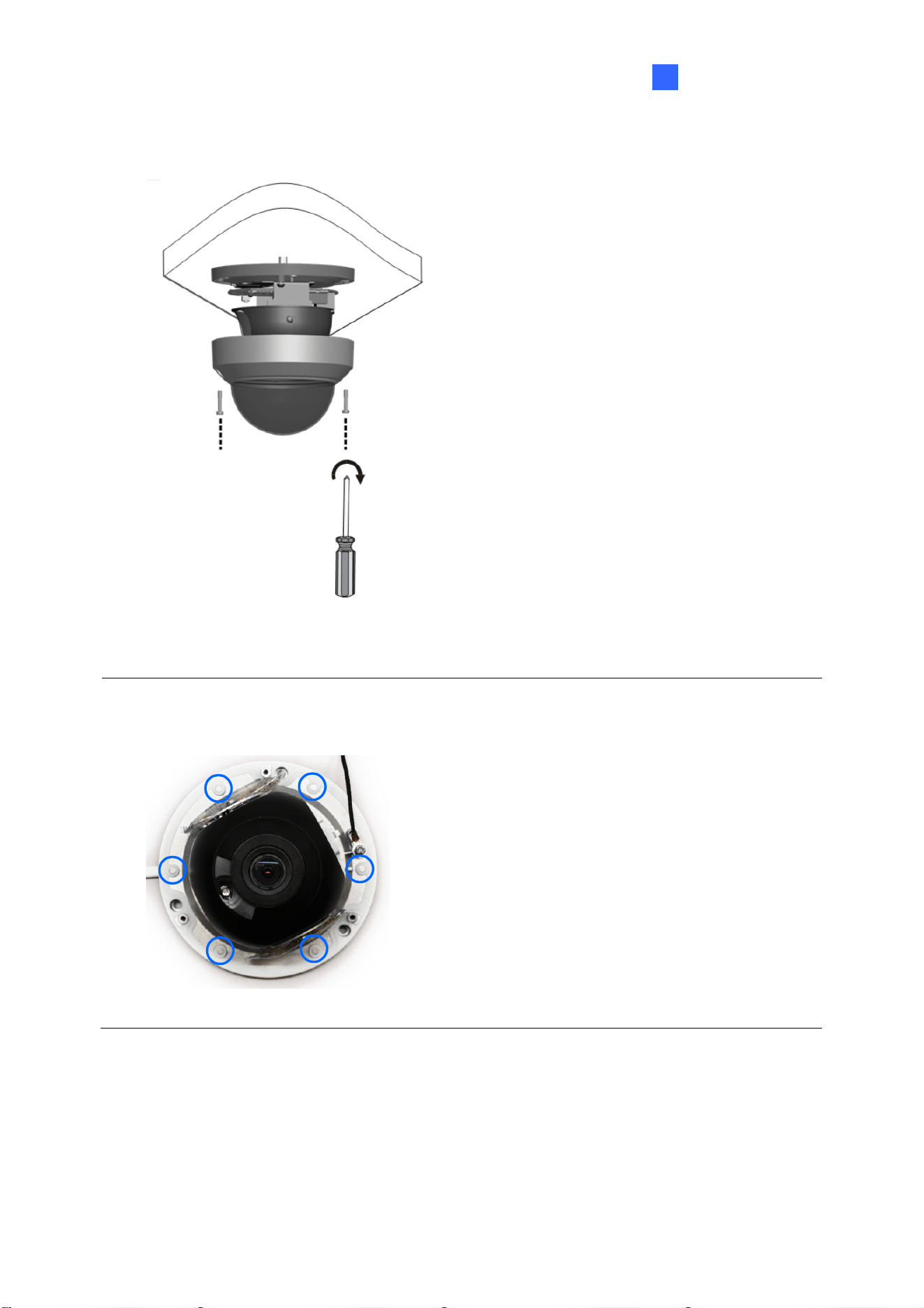

Note: Before securing the transparent dome cover, make sure the waterproof rubber strip is
tightly held by the six retainers on the bottom ring.
Figure 1-64
For Open Installation
Lead the cables out from the open slot on the camera base before screwing the camera to
the ceiling as shown in Figure 1-61.
46
1.3.5 Optional Installation
You can optionally purchase GV-Mount211P or GV-Mount213 to install the camera on the
wall or ceiling. Follow the instructions below.
1.3.5.1 GV-Mount211P
To install GV-Mount211P Wall Box Mount, see 1.1.5.3.1 GV-Mount211P for installation
instructions.
1.3.5.2 GV-Mount213

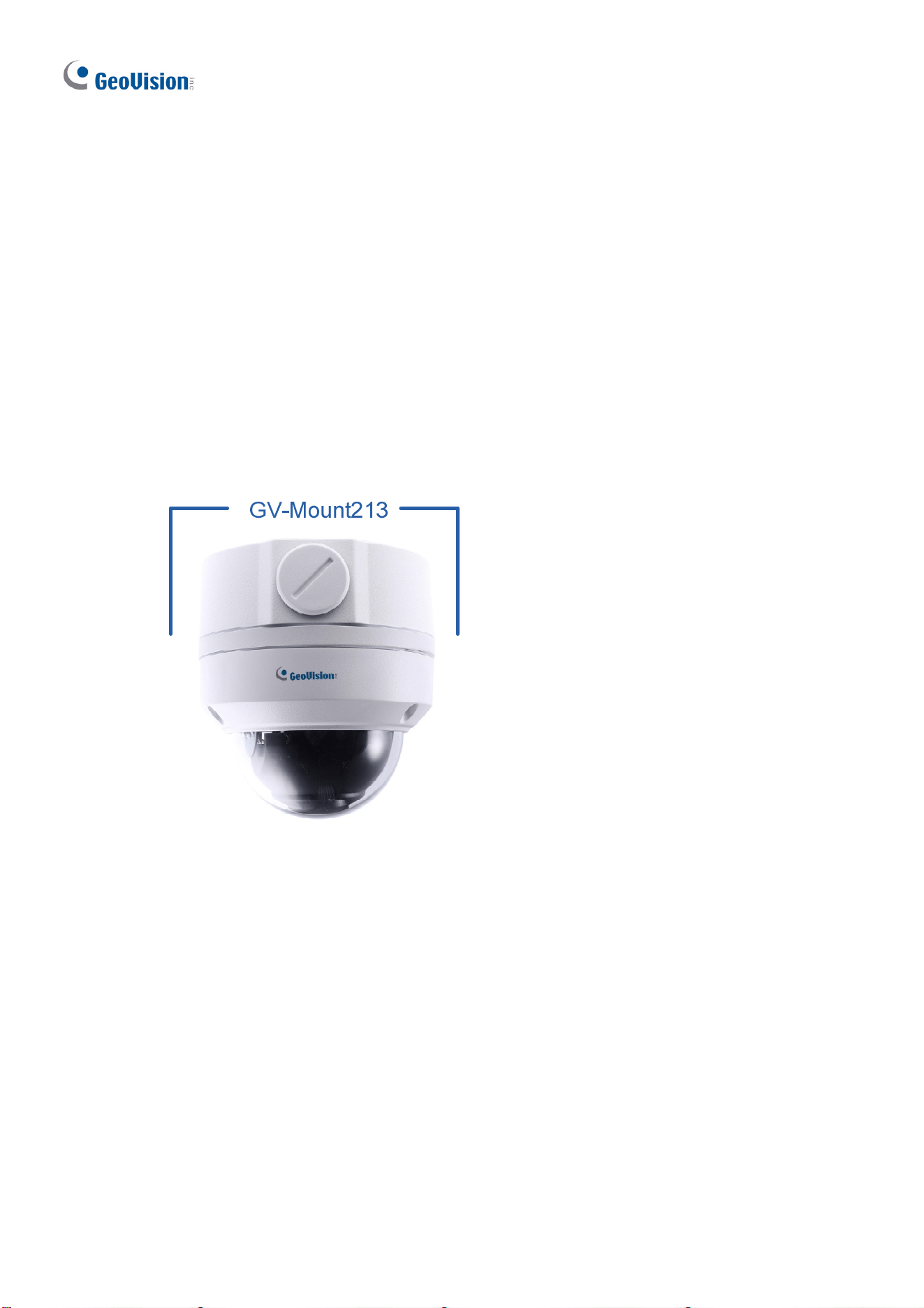

Figure 1-65
Introduction
47
1
GV-Mount213 Packing List
GV-Mount213 Wall Box Mount
Long Screw x 3
Short Screw x 3
Screw Anchor x 3
Standard Installation
1. Attach the wall box to the wall and use a marker to mark the location for the center socket
and the screws.
Figure 1-66
48

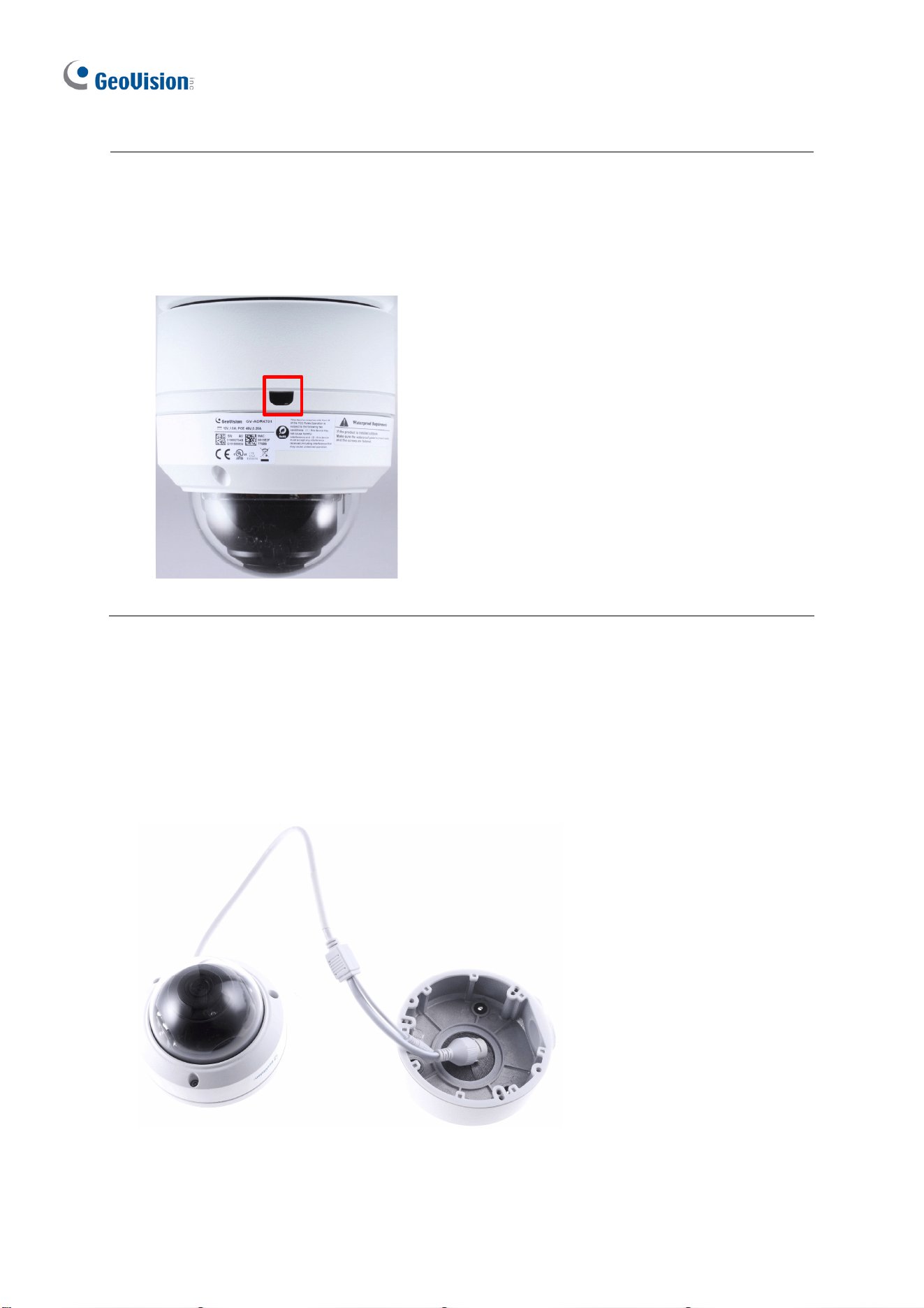

Note: To prevent rain from getting into the camera,
For wall mount installation, make sure the indicated hole points down and towards the
ground.
For ceiling mount installation, turn the indicated hole inwards.
Figure 1-67
2. Drill 3 holes according to the screw locations. Then, drill a bigger hole at the center
socket location for the Ethernet cable.
3. Insert 3 screw anchors to the screw locations and secure the wall box to the wall with 3
long screws.
4. Thread the Ethernet cable through the center socket and waterproof the Ethernet cable.
For details, see 1.6 Waterproofing the Cable.
Figure 1-68
Introduction
49
1
5. Fit the cable into the wall box.

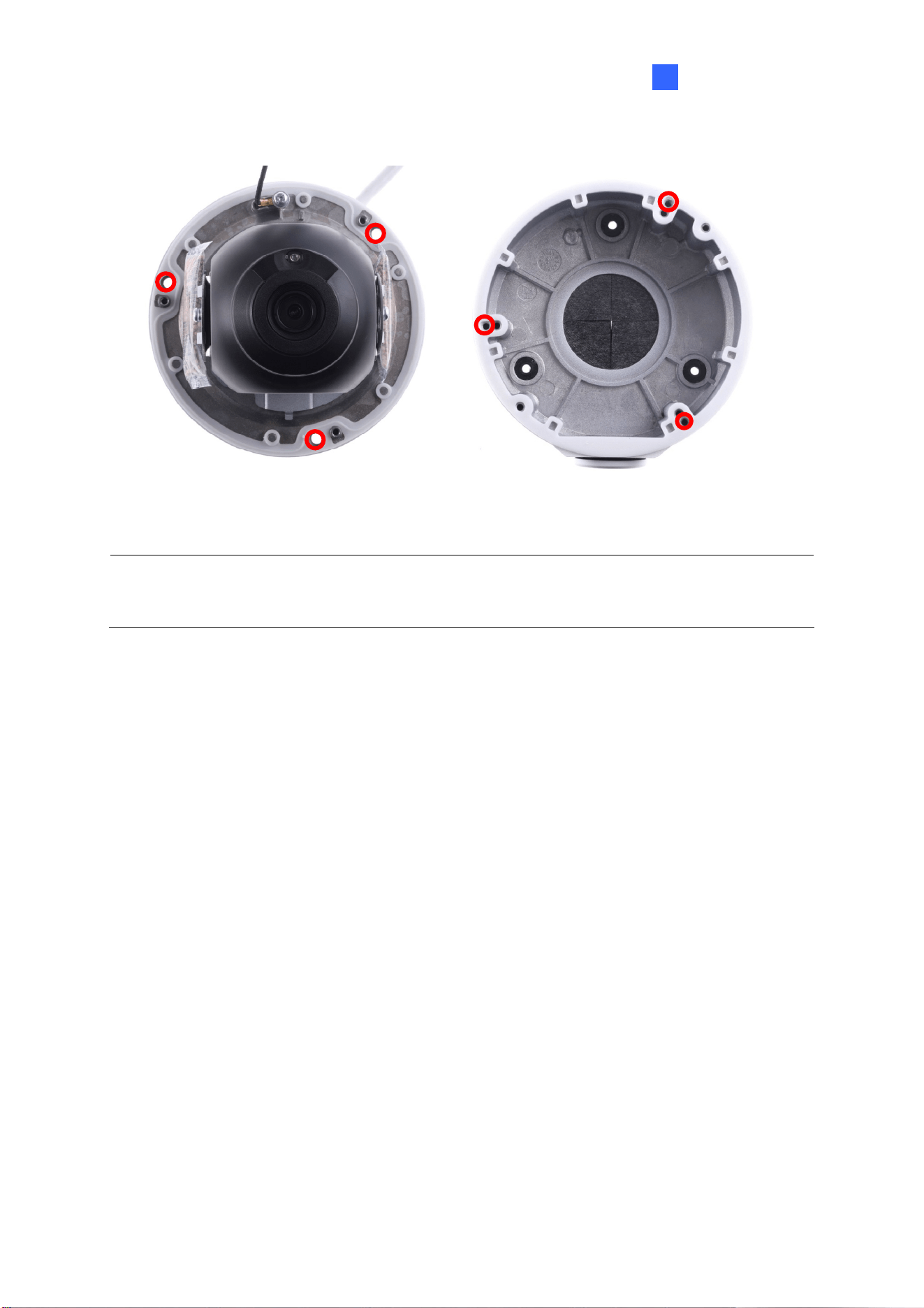

6. Remove the camera cover and fasten the camera to the wall box as indicated below
using the supplied 3 short screws.
Figure 1-69
7. Secure the camera cover.
Note: In addition to the Standard Installation, you can also choose to run the Ethernet
cable through a corrugated tube. To do this, see Figure 1-33 and its related Note.
50
1.4 GV-AVD Series
The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and
IP67 ingress protection. The camera is equipped with an automatic IR-cut filter and IR LEDs
for day and night surveillance. Adjustable in 3 axes (pan, tilt and rotate), it offers an entry-
level surveillance solution with all the essential features and excellent image quality.
Model No. Specifications Description
GV-AVD2700 Varifocal lens
2MP, H.265,
Low Lux, WDR
GV-AVD4710
Fixed Iris, f: 2.8~12 mm,
F/1.4, Ø14 mm Lens
Mount
4 MP, H.265,
Low Lux, WDR Pro
GV-AVD8710
Motorized
varifocal lens
Fixed Iris, f: 2.8~12 mm,
F/1.5, Ø14 mm Lens
Mount
8 MP, H.265,
Super Low Lux,
WDR Pro
Introduction
51
1
1.4.1 Packing List
IR Vandal Proof IP Dome
Waterproof Rubber Set
Screw Kit
Drill Template Paster
Torx Wrench
Download Guide
Warranty Card
52
1.4.2 Optional Accessories
Optional accessories can expand the capabilities and versatility of your camera. Contact your
dealer for more information.
Model Number Name Details
GV-Mount211-2 Wall Mount Bracket
Dimensions: 253 x125 x 125 mm
(10” x 4.9” x 4.9”)
Weight: 0.92 kg (2.02lb)
GV-Mount212-2 Wall Box Mount
Dimensions: Φ145 x 40 mm (5.7” x
1.6”)
Weight: 0.24 kg (0.5lb)
GV-PA191
Power over Ethernet (PoE)
Adapter
GV-PA191 is a Power over
Ethernet (PoE) adapter designed
to provide power to the IP device
through a single Ethernet cable.
GV-POE Switch
GV-POE Switch is designed to provide power along with network
connection for IP devices. GV-POE Switch is available in various
models with different numbers and types of ports.
Power Adapter
Contact our sales representatives for the countries and areas
supported.
Introduction
53
1

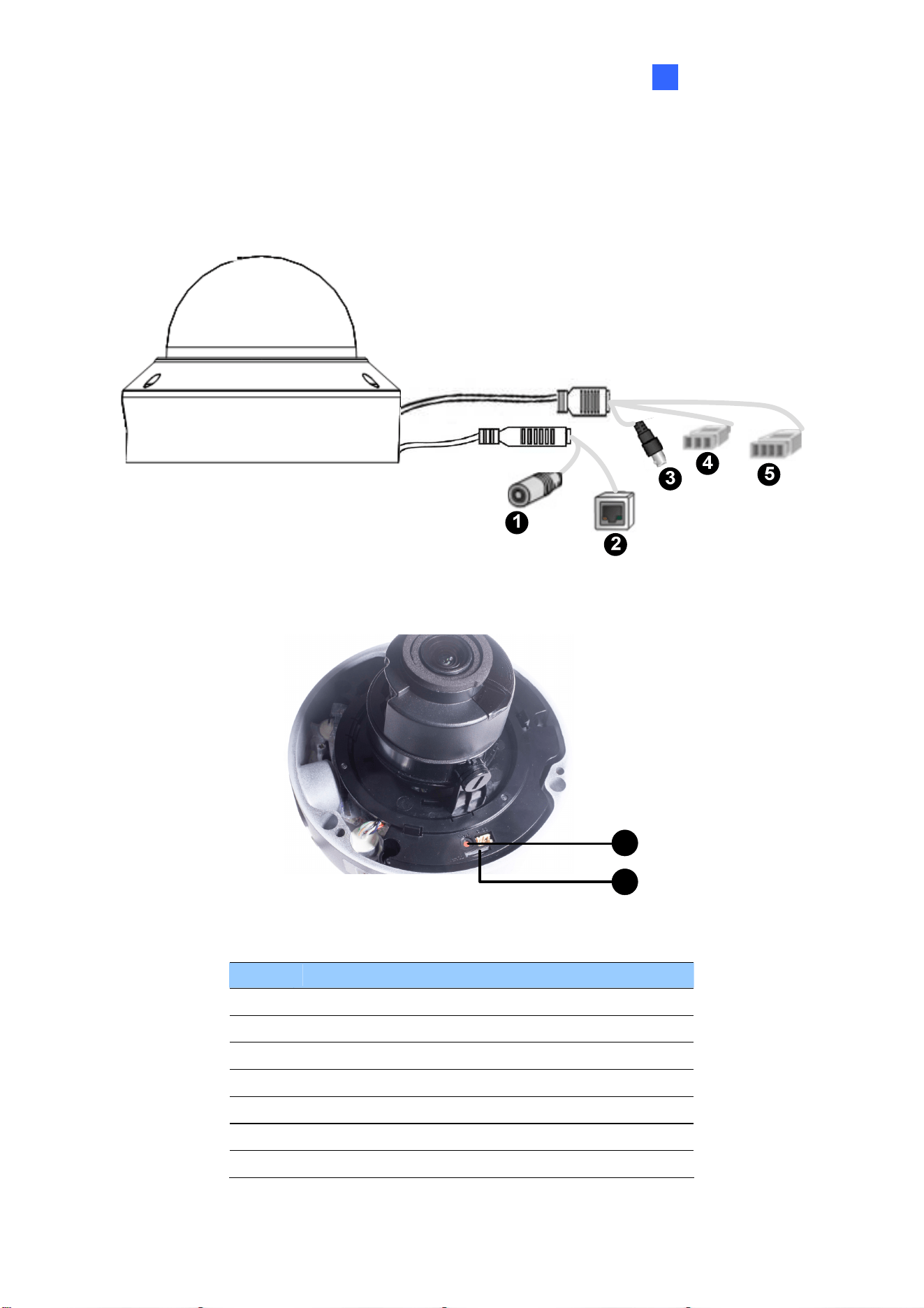

1.4.3 Overview
Figure 1-70
6
7
Figure 1-71
No. Description
1 Power connector (DC 12 V)
2 Ethernet connector / PoE
3 Video output
4 Audio input / Audio output / GND
5 Alarm input (IN,GND) / Alarm output (N,P)
6 Default button
7 Micro SD card slot
54
1.4.4 Installation
The Target Vandal Proof Dome is designed for outdoors. With the standard package, you
can install the camera on the ceiling. Alternatively you can purchase optional mounting
accessories to mount the camera on a wall.
Below are the instructions for Ceiling Mount. There are two kinds of Ceiling Mount:
Concealed Installation and Open Installation. In Concealed Installation, the cables are
hidden in the ceiling. In Open Installation, the cables are led out from the open slot on the
camera base.
For Concealed Installation
1. Stick the drill template paster to the ceiling, and then drill three holes according to the drill
template.
Figure 1-72
2. Insert the screw anchors.
Figure 1-73
3. Unscrew the transparent dome cover with the supplied torx wrench.
Introduction
55
1

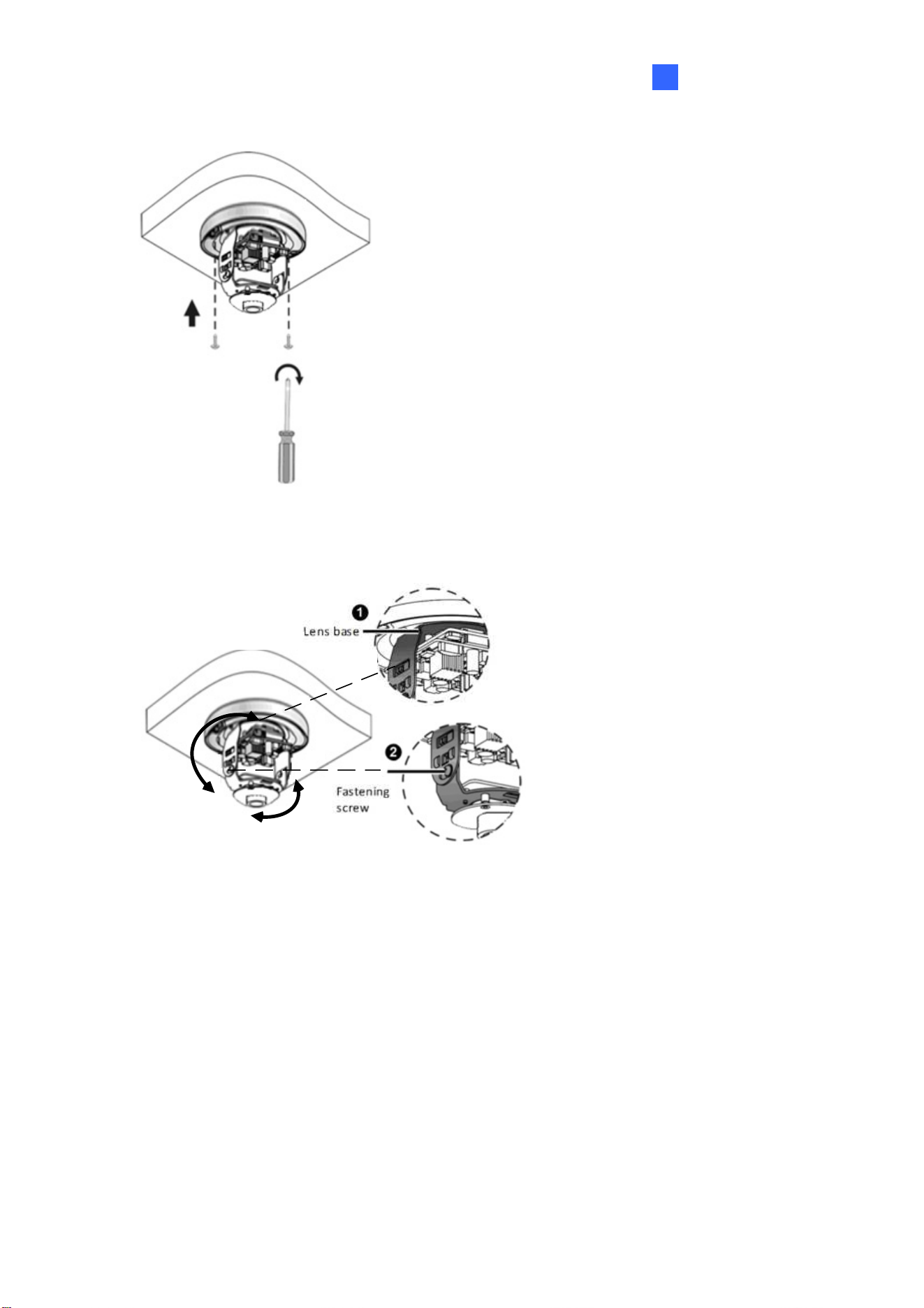

4. Connect the camera cables and secure the camera.
Figure 1-74
5. Insert a SD card into the slot.
6. Adjust the monitoring direction and tighten the screws after vertically adjusting the lens.
Figure 1-75
7. Secure the transparent dome cover with the supplied torx wrench.
For Open Installation
Lead the cables out from the open slot on the camera base before screwing the camera to
the ceiling as shown in Figure 1-74.
56
1.4.5 Optional Installation
1.4.5.1 GV-Mount211-2
Figure 1-76
GV-Mount211-2 Packing List
GV-Mount211-2 Wall Mount Bracket
Long Screw x 5
Short Screw x 4
Screw Anchor x 5
Plastic PG21 Conduit Connector
Drill Template Paster
Introduction
57
1

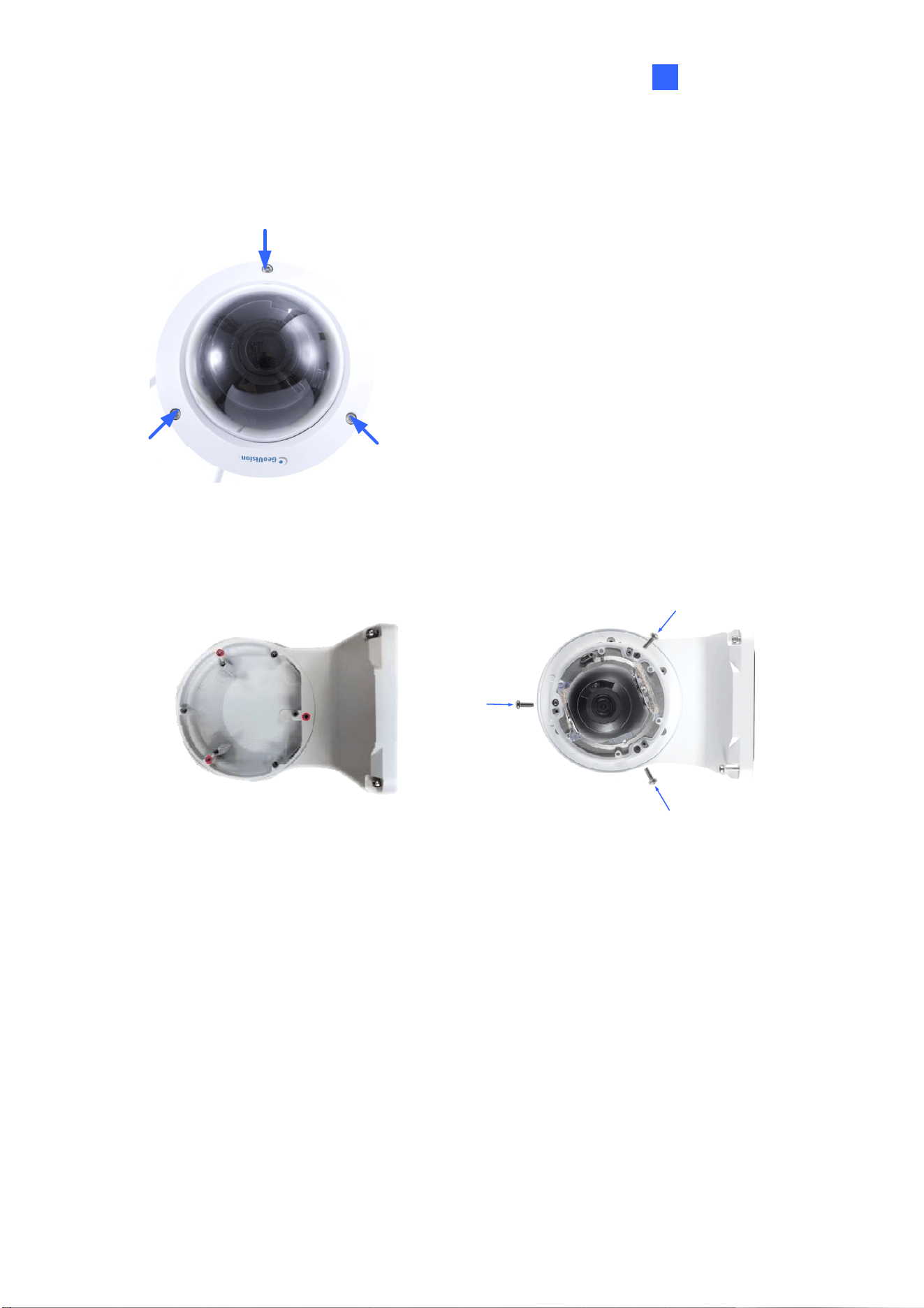

1. To install the power box from the wall mount bracket on the wall, follow steps 1 to 5 in
1.1.5.1 GV-Mount211P.
2. Unscrew the transparent dome cover with the supplied torx wrench.
Figure 1-77
3. Optionally insert a SD card into the slot.
4. Thread the camera cables through the bracket.
5. Secure the camera to the wall mount bracket with the provided short screws.
Figure 1-78
58
6. Thread the Ethernet cable through the PG21 conduit connector and the power box as
shown in No 6, Figure 1-78.
7. Rotate the plastic ring to secure the conduit connector to the power box. Screw in the cap
shown in No 7, Figure 1-78.
8. Plug the Ethernet cable to the RJ-45 connector of the camera
9. Screw the wall mount bracket to the power box as shown in Figure 1-78.
Figure 1-79
Introduction
59
1
1.4.5.2 GV-Mount212-2
GV-Mount212-2
Figure 1-80
GV-Mount212-2 Packing List
GV-Mount212-2 Wall Box Mount
Long Screw x 3
Short Screw x 3
Screw Anchor x 3
60
1. Attach the wall box to the wall and use a marker to mark the location for the center socket
and the screws. Make sure the knob points down.
Screw Location
This knob points down
Figure 1-81
2. Drill 3 holes according to the screw location. Then, drill a bigger hole at the center socket
location for the Ethernet cable.
3. Insert 3 screw anchors to the screw location and secure the wall box to the wall with 3
long screws.
4. Thread the Ethernet cable through the center socket, connect other wires and fit the
camera cable into the wall box. See 1.6 Waterproofing the Cable.
Figure 1-82
5. Unscrew the transparent dome cover with the supplied torx wrench.
Introduction
61
1
6. Secure the camera to the wall box.
Figure 1-83
Note: In addition to the Standard Installation, you can also choose to run the Ethernet
cable through a corrugated tube. To do this, see Figure 1-33 and its related Note.
62
1.5 System Requirements
CPU Intel Core i5-4670, 3.40 GHz
Memory DDR3 8 GB RAM
On Board Graphics Intel HD Graphics 4600 (Versions of driver from year 2014 or later
required)
Web Browsers Internet Explorer 11.0 or above
Mozilla Firefox
Safari
Note: Some functions are not available on non-IE browsers.
Introduction
63
1
1.6 Waterproofing the Cable
Waterproof the Ethernet cable by using the supplied waterproof rubber set.

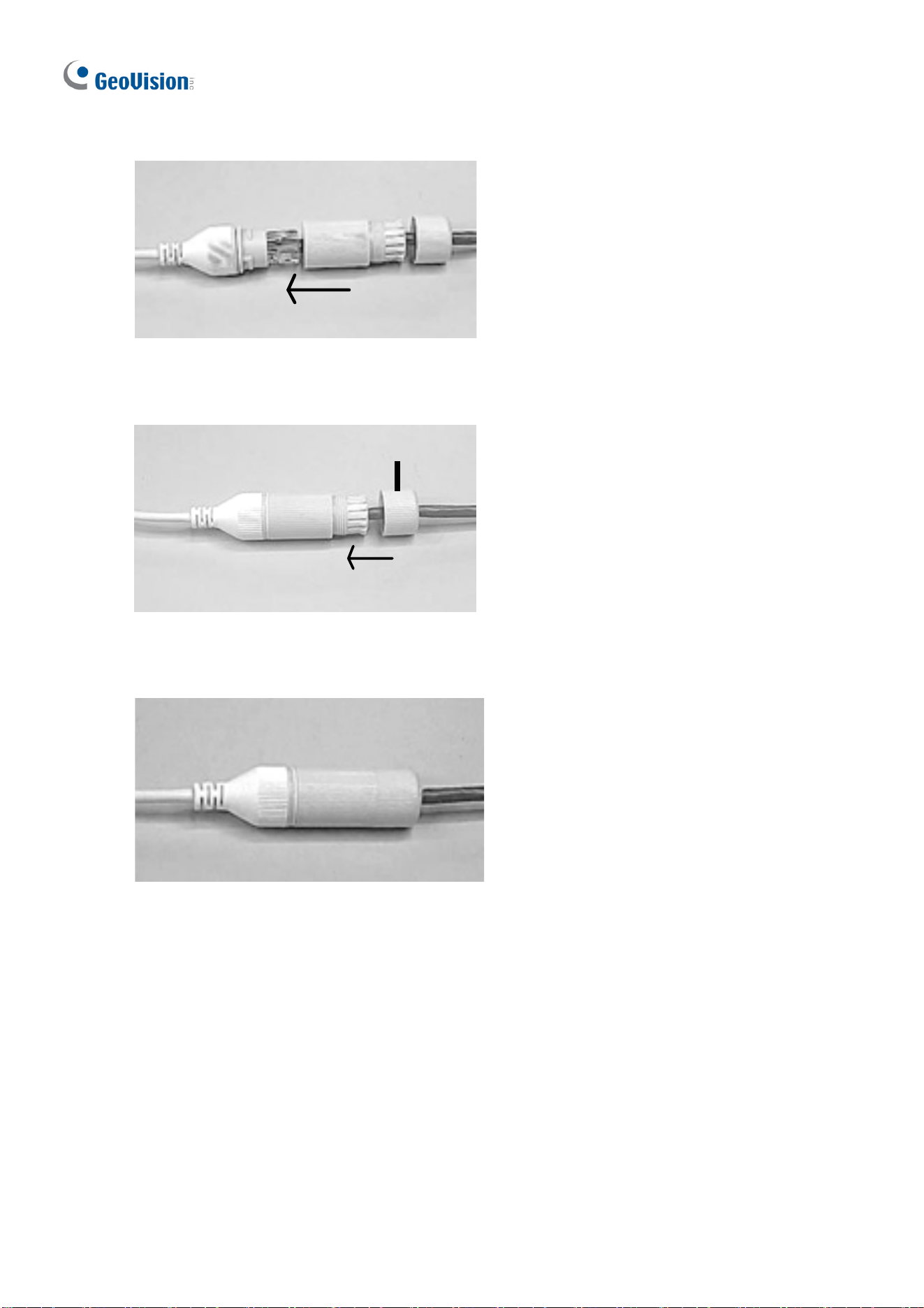

1. Attach the seal ring to the RJ-45 plug.
Sealring
Figure 1-84
2. Insert the waterproof components through the Ethernet cable as shown below.
3
2
Insertinorder
Figure 1-85
3. Insert the cylindrical waterproof ring into waterproof bolt.
Cylindricalwaterproofring
Water
p
roofbolt
Figure 1-86
64
4. Insert the cable into the RJ-45 plug and screw the waterproof bolt in.
Figure 1-87
5. Screw in the waterproof bolt lid.
Bolt lid
Figure 1-88
6. Finish the waterproof installation.
Figure 1-89
65
Chapter 2 Accessing the Camera
Once installed, the IP camera is accessible on a network. Follow these steps to configure the
network settings and access your surveillance images.
2.1 Installing on a Network
These instructions describe the basic connections to install the camera on the network.
1. Using a standard network cable, connect the camera to your network.
2. Connect to power using one of the following methods:
Use the optional power adapter to connect to power.
Use the Power over Ethernet (PoE) function in which power is supplied over the
network cable.
3. You can now access the Web interface of the camera.
If the camera is installed in a LAN with DHCP server, use GV-IP Device Utility to look
up the camera’s dynamic IP address. See 2.1.1 Checking the Dynamic IP Address.
If the camera is installed in a LAN without DHCP server, the default IP address
192.168.0.10 is applied. To assign a different static IP address, see 2.1.2 Assigning
an IP Address.
Note: You must set your browser to allow ActiveX Control and perform a one-time
installation of the ActiveX component onto your computer upon your first login.
66
2.1.1 Checking the Dynamic IP Address
Follow the steps below to look up the IP address and access the Web interface.
1. Download and install the GV-IP Device Utility program from the company
website.
Note: The PC installed with GV-IP Device Utility must be under the same LAN as the
camera you wish to configure.

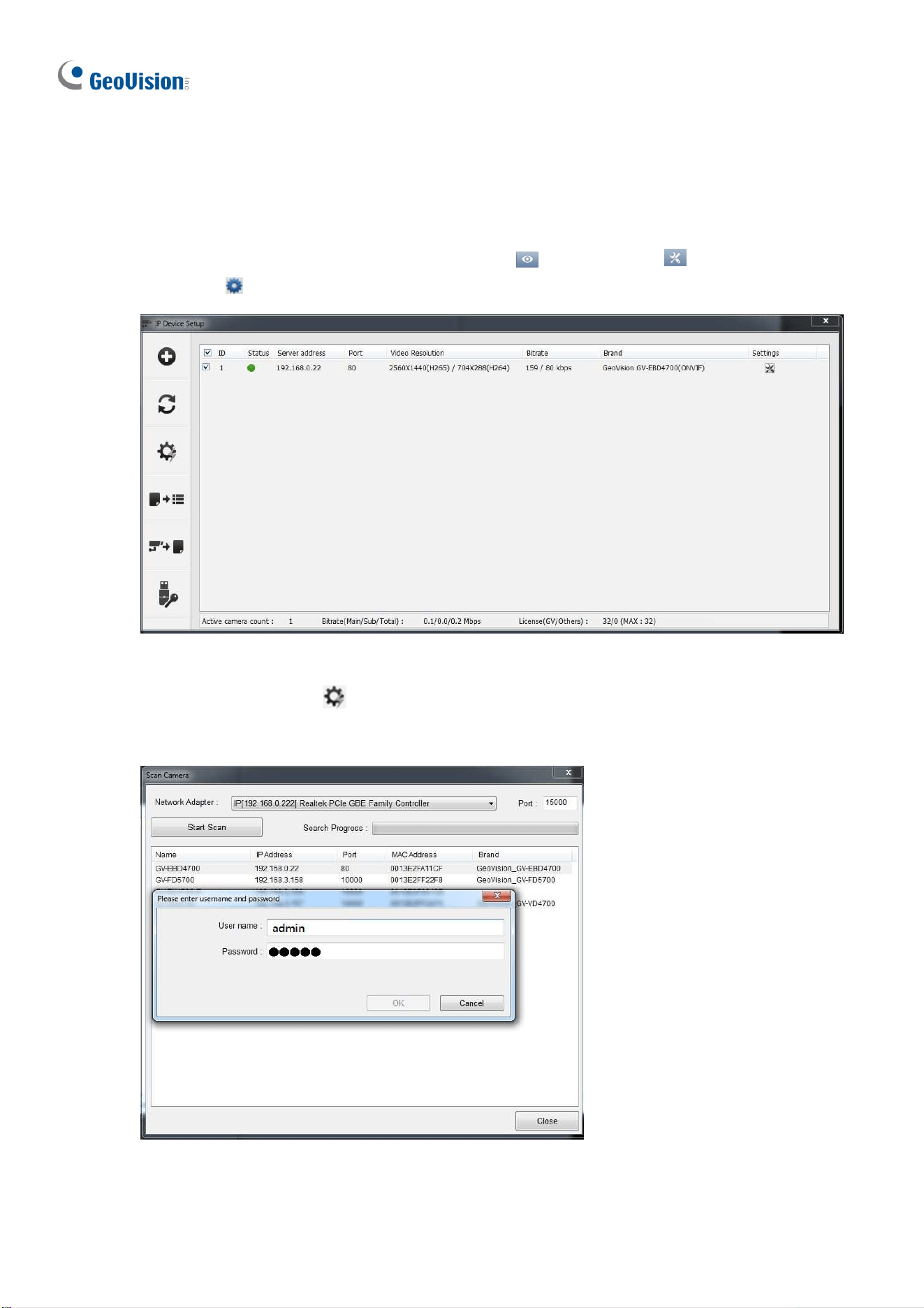

2. On the GV-IP Utility window, click the button to search for the IP devices connected
in the same LAN. Click the Name or Mac Address column to sort.

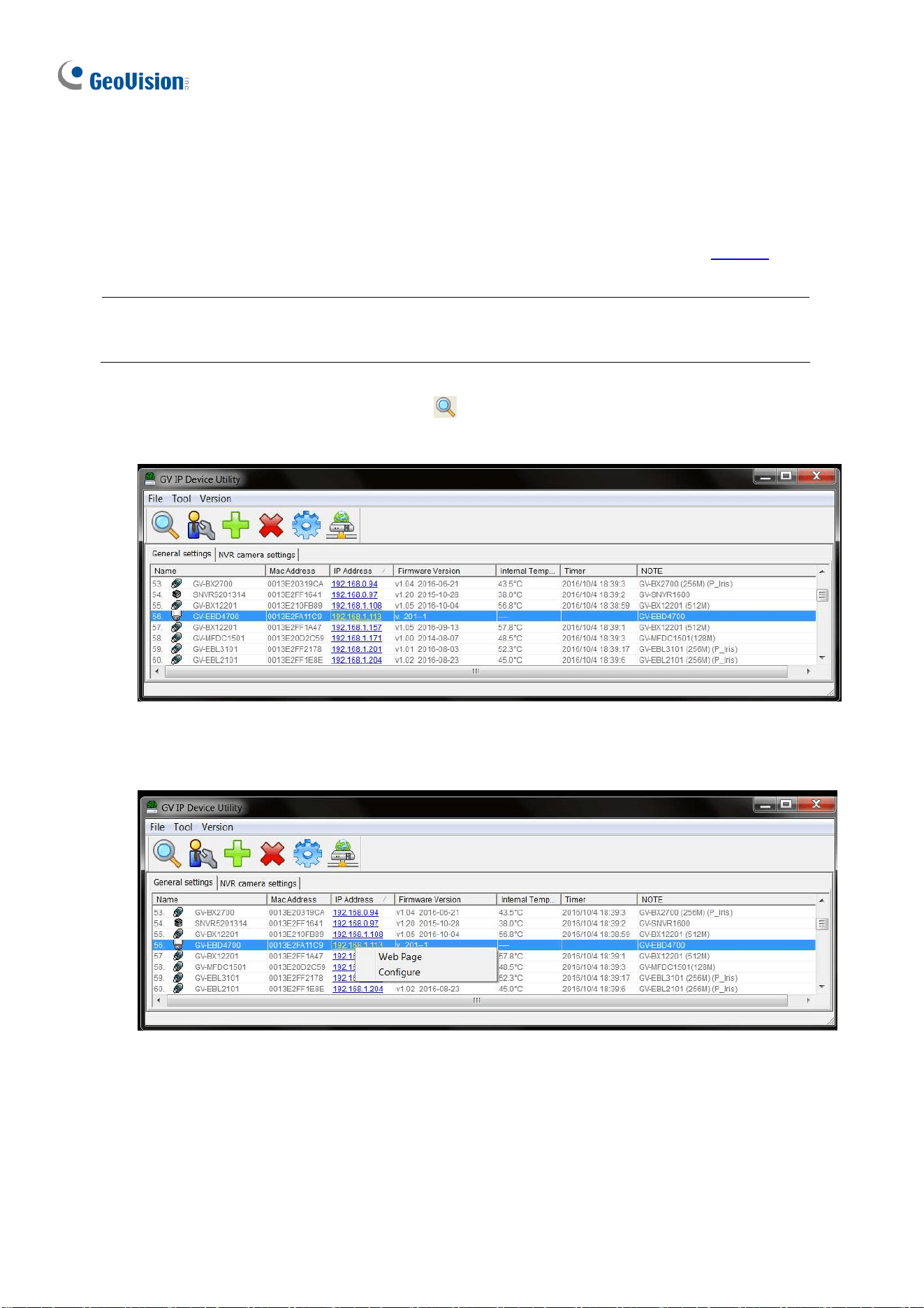

Figure 2-1
3. Find the camera with its Mac Address, click on its IP address and select Web Page.
Figure 2-2
Accessing the Camera
67
2

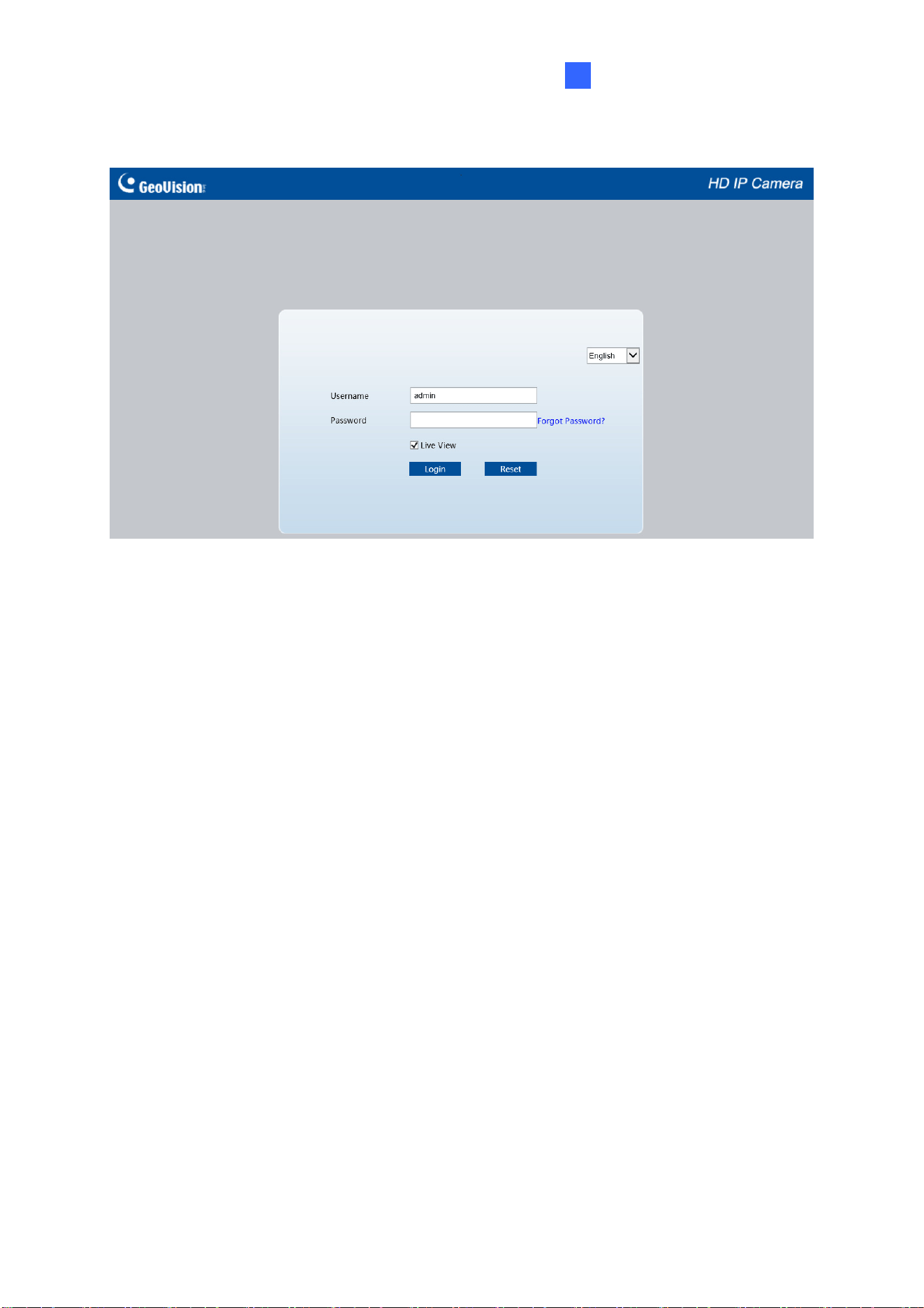

4. The login page appears.
Figure 2-3
5. For first-time accessing of the Web interface, download and install the plug-in.
6. Type the default ID and password admin and click Login.
68
2.1.2 Assigning an IP Address
To assign a new static IP address, log in the Web interface and access the network setting
page. The following instructions are illustrated using GV-EBD4711.
Note: If your router does not support DHCP, the default IP address is set as
192.168.0.10. In this case, it is strongly suggested that you modify the IP address to
avoid IP address conflicts with other GV-IP devices on the same LAN.
1. Open your Web browser and type the default IP address 192.168.0.10.
2. Type the default username and password admin. Click Login.
3. Click Setup, select Common in the left menu and select Ethernet.

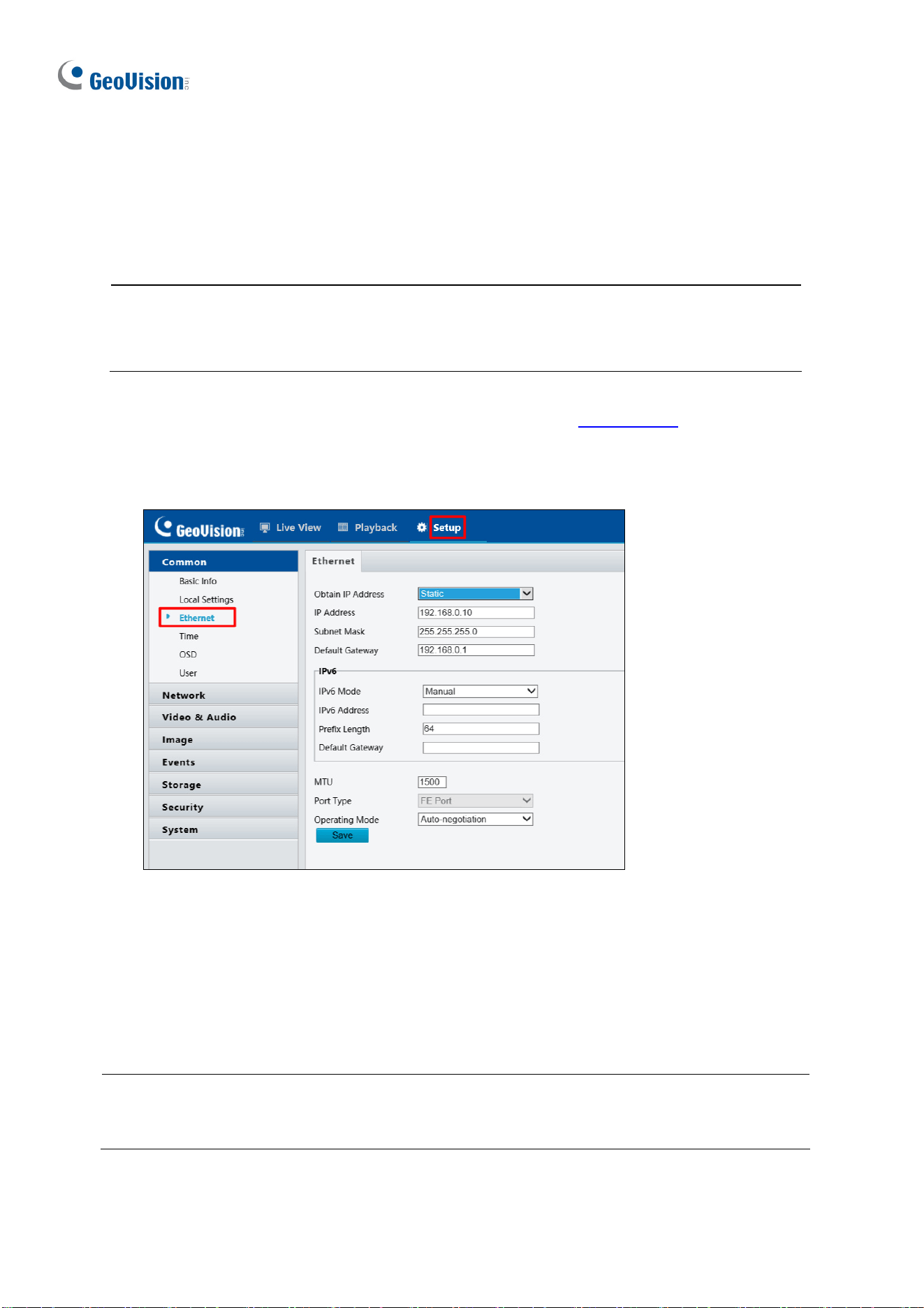

Figure 2-4
4. Select Static IP from the Obtain IP Address drop-down list.
5. Enter the IP address, subnet mask, and default gateway address. Make sure that the IP
address of the camera is unique in the network.
6. Click Save.
Note: When you are changing the network segment through the Web interface or GV-IP
Device Utility (V8.7.1.0), it is required that you change the default gateway too to complete
the IP address change successfully.
Accessing the Camera
69
2
2.2 Accessing Live View
After logging into the camera, you will see the Home page as shown below:

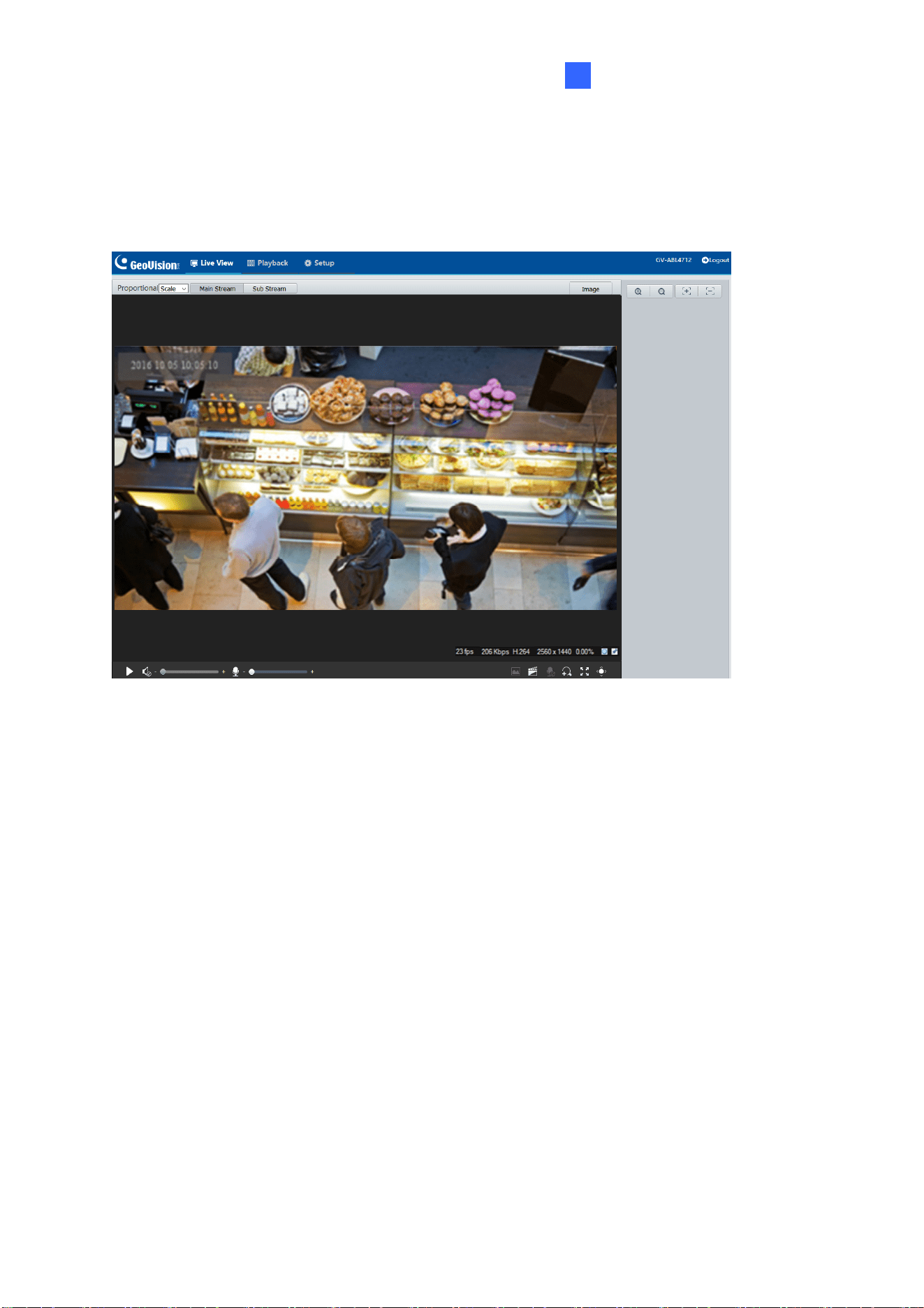

Figure 2-5
70
2.2.1 The Live View Window
1 2
4
16
15
5
17
3
6
7
8
9
10
11 12
13
14
15

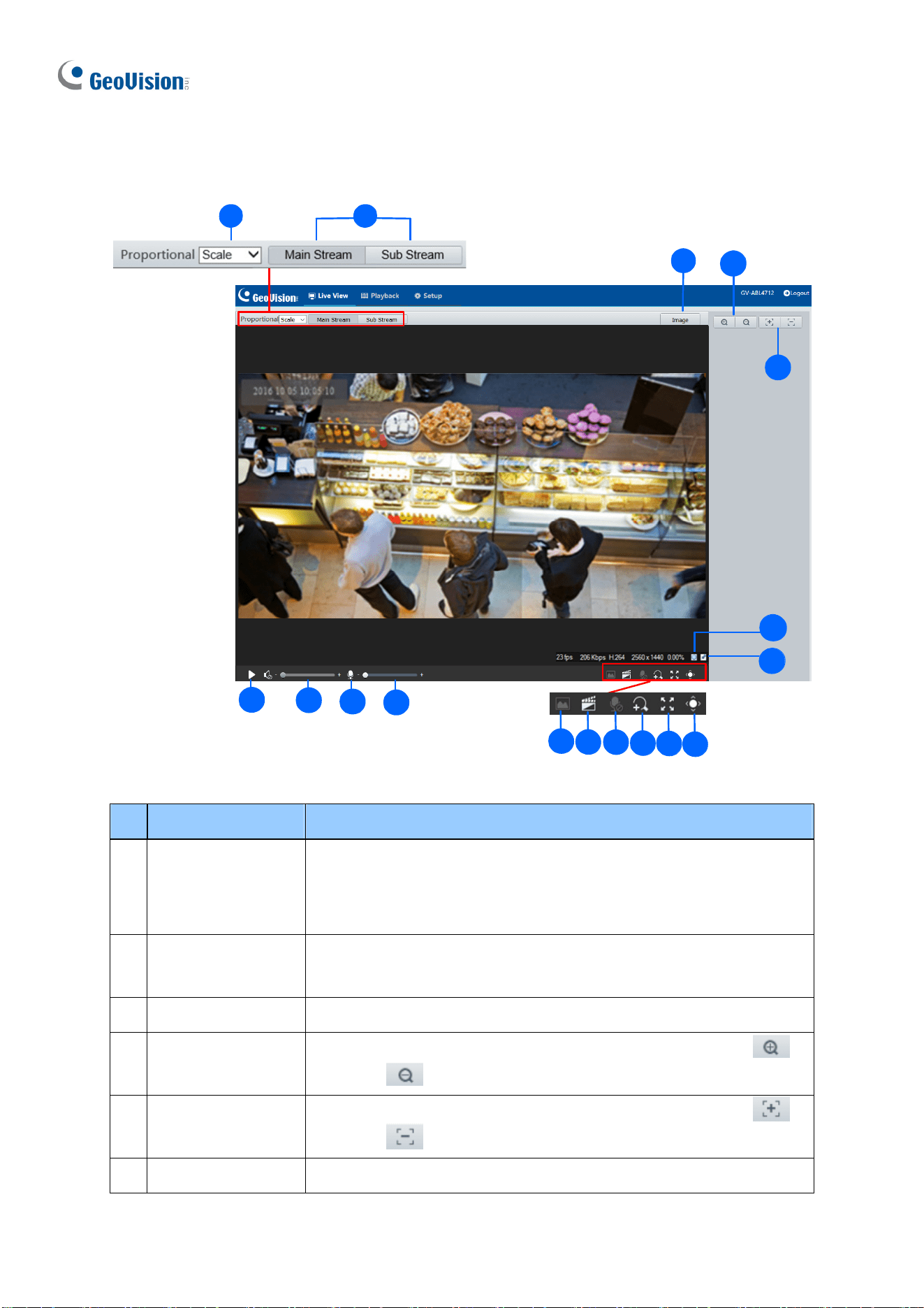

Figure 2-6
No. Name Function
1 Proportional
Set the display ratio of the image.
Scale: display images by 16:9.
Stretch: display images by window size.
Original: display images in its original size.
2 Live Stream
Select a live video stream: main stream, sub stream or third
stream (when enabled).
3 Image Open the image setting page. – See 3.4.1 Image.
4 Zoom +/-
Only for models with motorized varifocal lens, increase
or
decrease
the camera’s optical zoom.
5 Focus +/-
Only for models with motorized varifocal lens, increase
or
decrease
the camera focus.
6 Play/Stop Play or stop live video.
Accessing the Camera
71
2
7 Video Volume
Only for the audio-supporting models, adjust the audio output
volume on the PC.
8
Microphone
Only for audio-supporting models, enable
or disable
microphone.
9
Microphone
Volume
Only for audio-supporting models, adjust the microphone
volume on the PC during audio communication between the PC
and the camera.
10 Snapshot Take a snapshot of the current image displayed on the PC.
11 Local Recording Start or stop local recording.
12 Two-way Audio
Only for two-way-audio-supporting models, start
or stop
two-way audio.
13 Digital Zoom
Enable
or disable digital zoom. – See 2.2.1.1 Digital
Zoom.
14 Full Screen Display in full screen mode.
15 Control Panel
Only for models with motorized varifocal lens , hide or show
the camera’s optical zoom and focus functions.
16 Reset the packet loss rate to zero.
17
Click to always display packet loss rate and bit rate information at
the bottom. Click again to restore to only displaying the
information for 3 seconds when the mouse cursor is moved onto
the live view.
Note:
1. The paths for saving snapshots and local recordings are set in Local Settings. See 3.12
Local Settings.
2. The No. 16 and 17 buttons will appear on the floating toolbar when you move the
mouse cursor onto the live view.
72
2.2.1.1 Digital Zoom
To use the digital zoom function, follow these steps:
1. Click
(No. 10, Figure 2-6) on the toolbar.
2. Click and drag the mouse button in any direction to specify an area.
3. To restore the original image size, right click on the enlarged area.
4. To exit, click
(No. 10, Figure 2-6) on the toolbar.
Accessing the Camera
73
2
2.3 Playing Back Recorded Videos
Note this function is only applicable to GV-EBD4711 / 8711, GV-ABL4712 / 8712,
GV-AVD4710 / 8710.
To play back recorded videos from the camera’s local storage, click Playback at the top of
the Web interface.

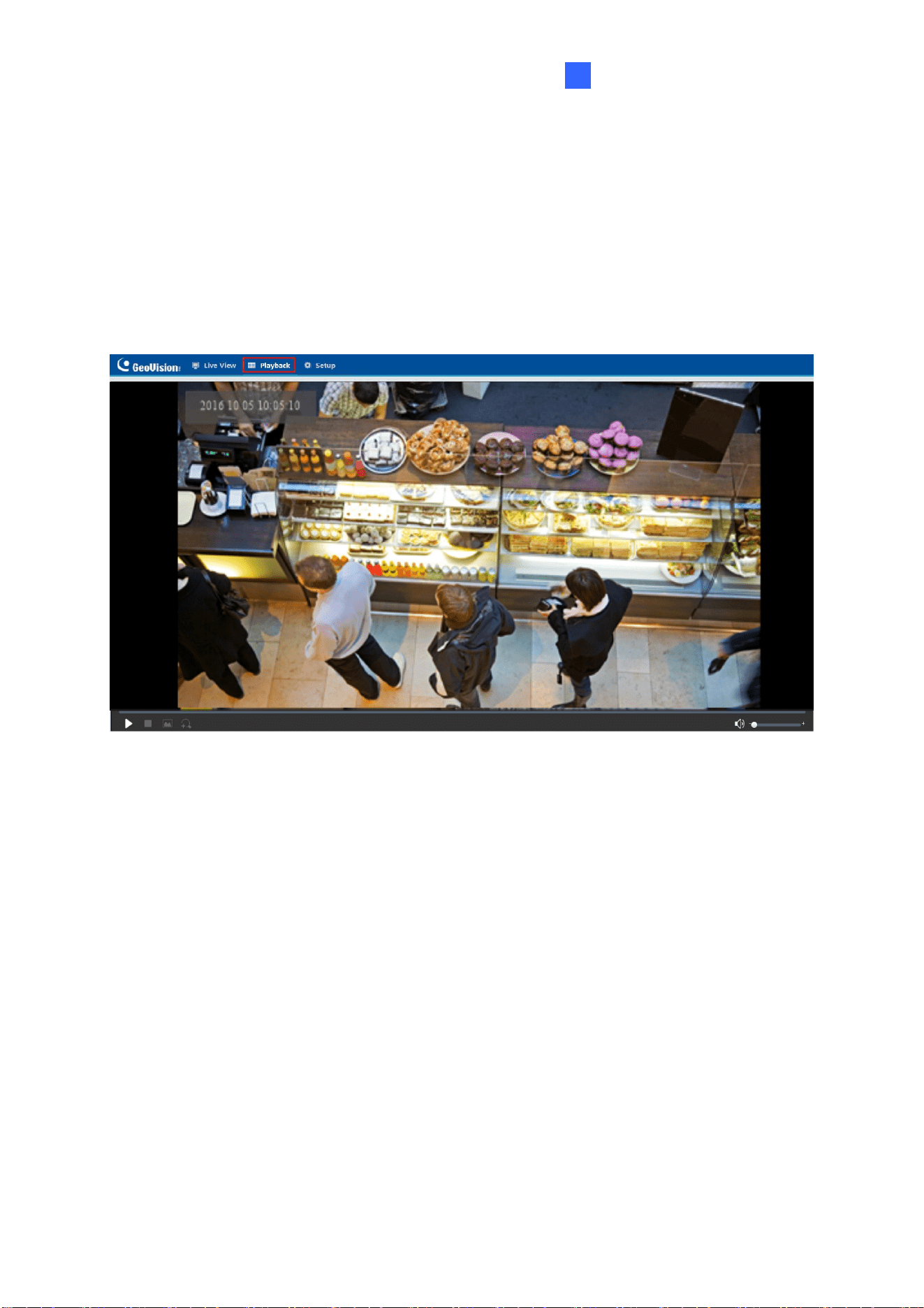

Figure 2-7
74

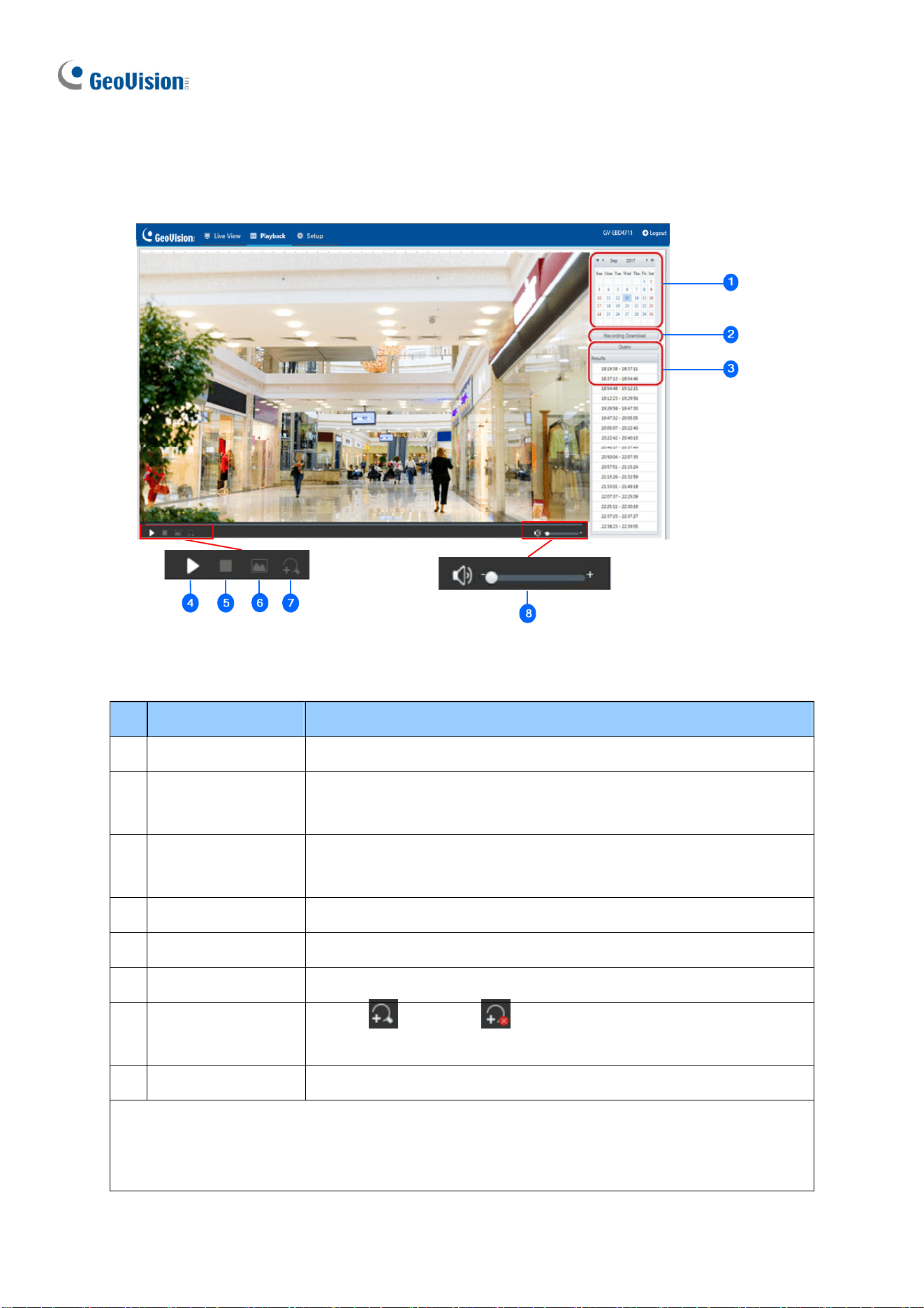

2.3.1 The Playback Window
Figure 2-8
No. Name Function
1 Date
Select the date of the video to playback.
2
Recording
Download
Select to download a recorded video from the camera’s local
storage. See 2.3.1.1 Recording Download for details.
3 Query
Click Query to show the list of recorded videos of the date
specified.
4 Playback Play back the recorded video selected.
5 Stop Stop playback of the recorded video selected.
6 Snapshot Take a snapshot of the current playback image displayed.
7 Digital Zoom
Enable
or disable digital zoom. – See 2.2.1.1 Digital
Zoom.
8 Volume Adjust the audio output volume on the PC.
Note: To store and play back recorded videos to and from the camera’s local storage, make
sure
to configure the storage settings in Storage. For more detailed instructions, refer to
3.6.1 Storage.
Accessing the Camera
75
2
2.3.1.1 Recording Download
To download recorded videos from the local storage, follow the steps below:
1. Click Recording Download (No. 2, Figure 2-8) on the right of the Playback window.
Figure 2-9

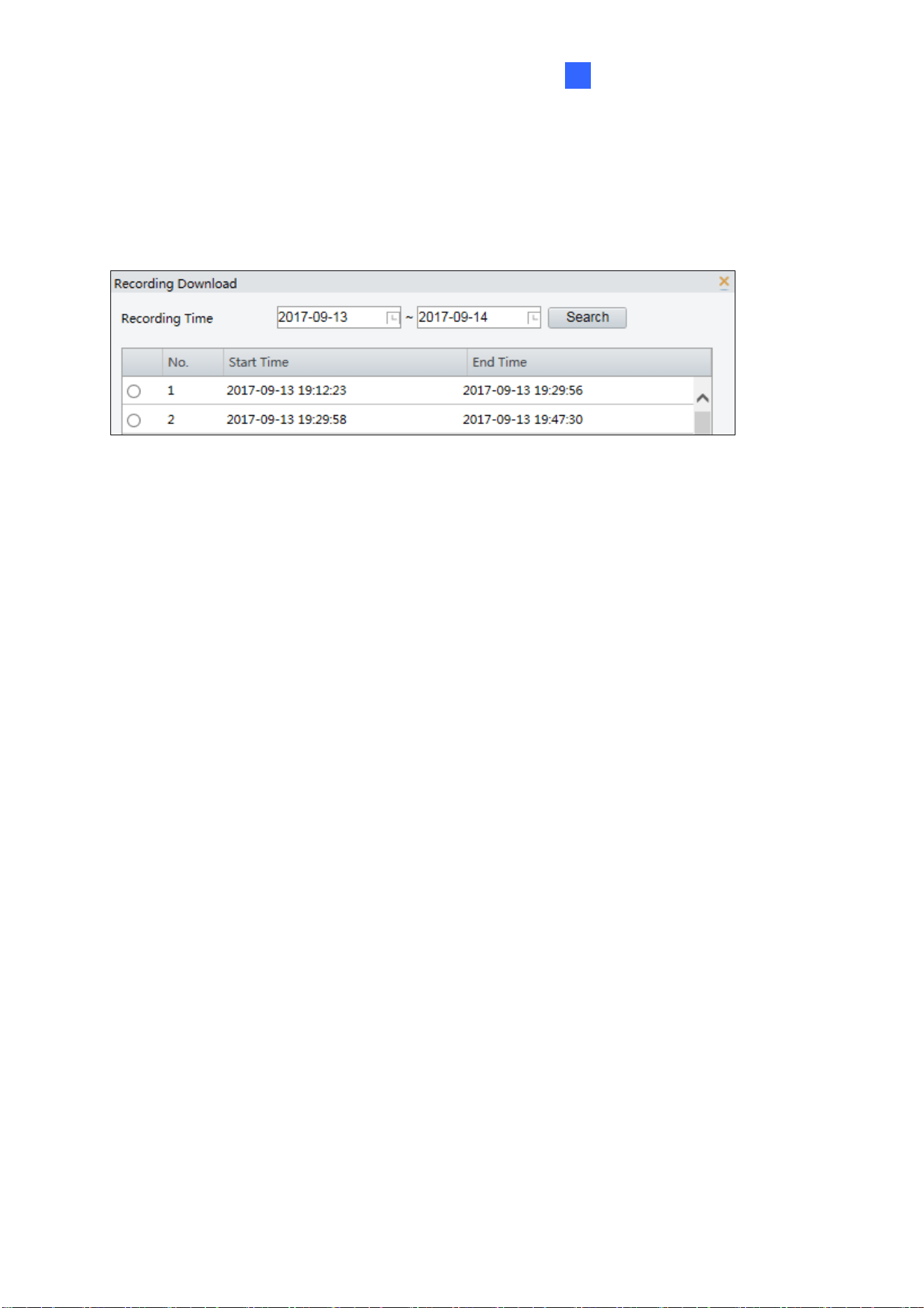

2. Search for video within a specified time period. The results are shown in a list.
3. Select your video and click Download to download a video to your local path from the
local storage.
4. Click Open to show the folder in which the downloaded videos are saved.
76
Chapter 3 Administrator Mode
The Administrator can access and configure the GV-IP Camera through the network. Click
Setup at the top of the Web interface to access the following eight configuration tabs:
Common, Network, Video & Audio, Image, Events, Storage, Security and System.
Figure 3-1
Administrator Mode
77
3
List of Options
See the table below for the settings available on the Web interface. Find the topic of interest
by referring to the section number prefixed to each option.
Note: The available options may vary among camera models and firmware versions.
3.1 Common
3.1.1 Basic Info
3.1.2 Local Settings
3.2 Network
3.2.1 Ethernet
3.2.2 DNS
3.2.3 Port
3.2.4 DDNS
3.2.5 E-mail
3.2.6 802.1x
3.3 Video & Audio
3.3.1 Video
3.3.2 Snapshot
3.3.3 Audio
3.3.4 ROI
3.3.5 Media Stream
3.4 Image
3.4.1 Image
3.4.2 OSD
3.4.3 Privacy Mask
3.5 Events
3.5.1 Motion Detection

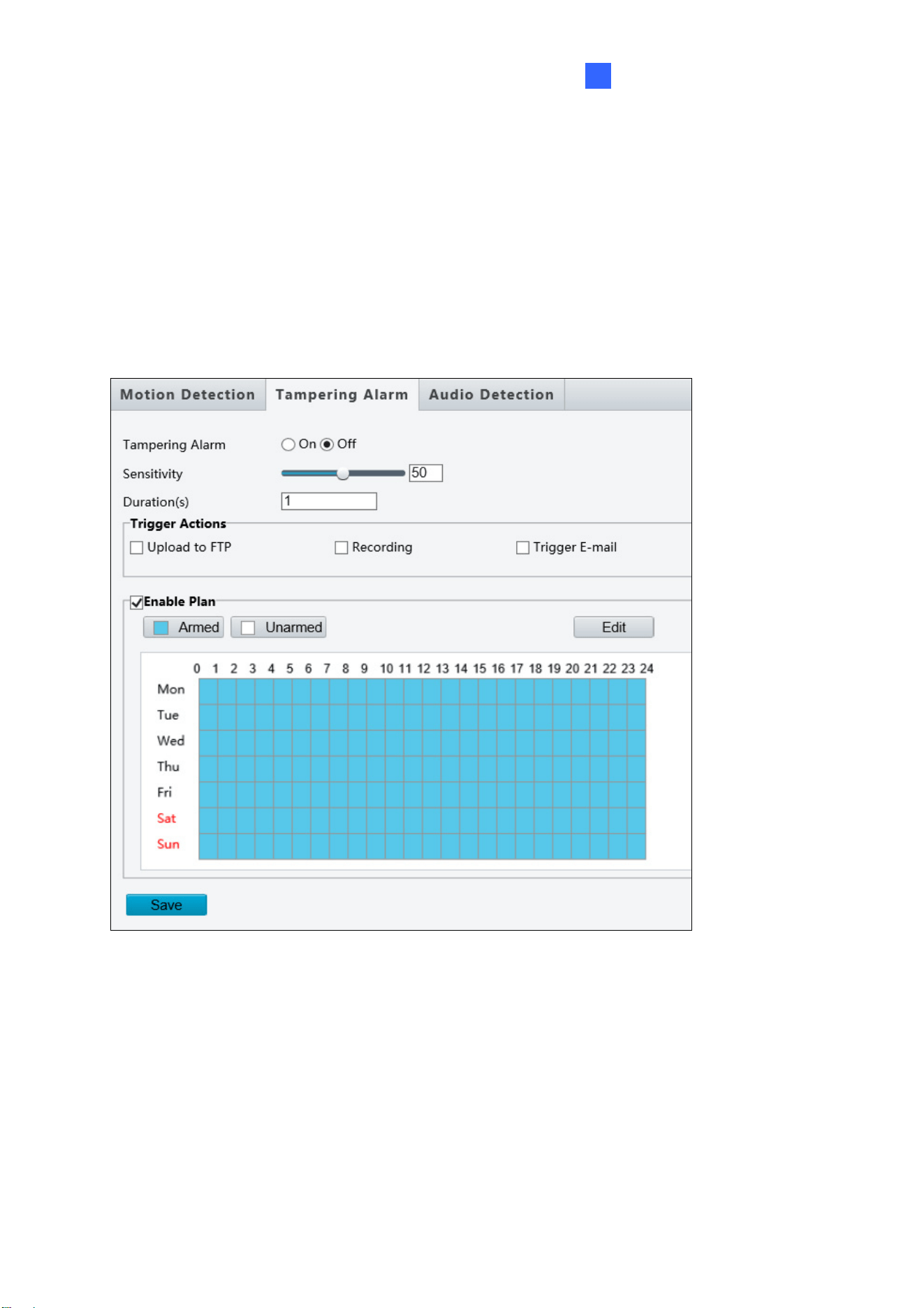

3.5.2 Tampering Alarm
3.5.3 Audio Detection
3.6 Storage
3.6.1 Storage
3.6.2 FTP
3.7 Security
3.7.1 User
3.7.2 Network Security
3.8 System

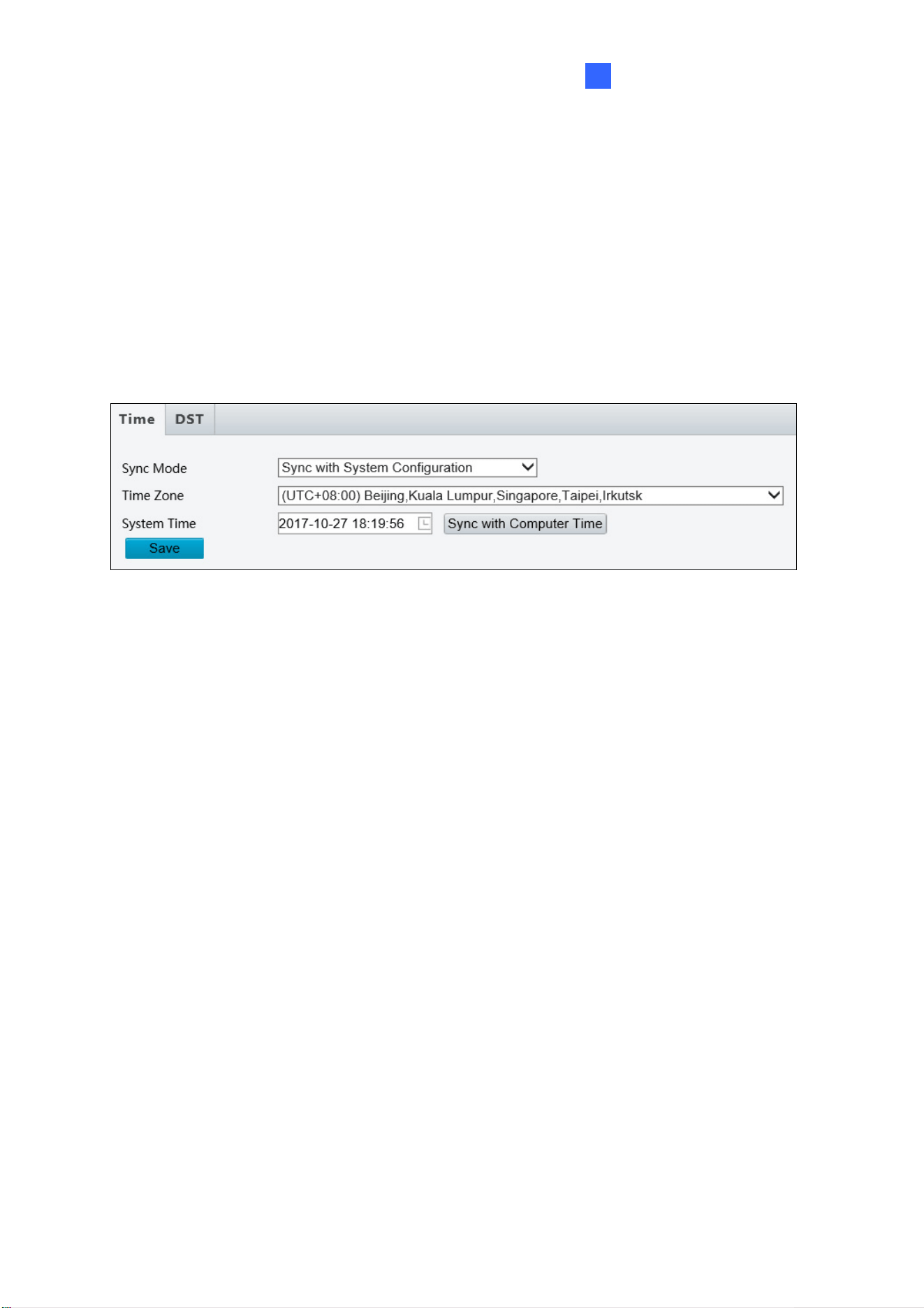

3.8.1 Time
3.8.2 Maintenance
78
3.1 Common
Under the Common tab, the Administrator can find the general settings of the camera, as
well as shortcuts to the following setting pages.
Ethernet: See 3.2.1 Ethernet for details.
Time: See 3.8.1 Time for details.
OSD: See 3.4.2 OSD for details
User: See 3.7.1 User for details
3.1.1 Basic Info

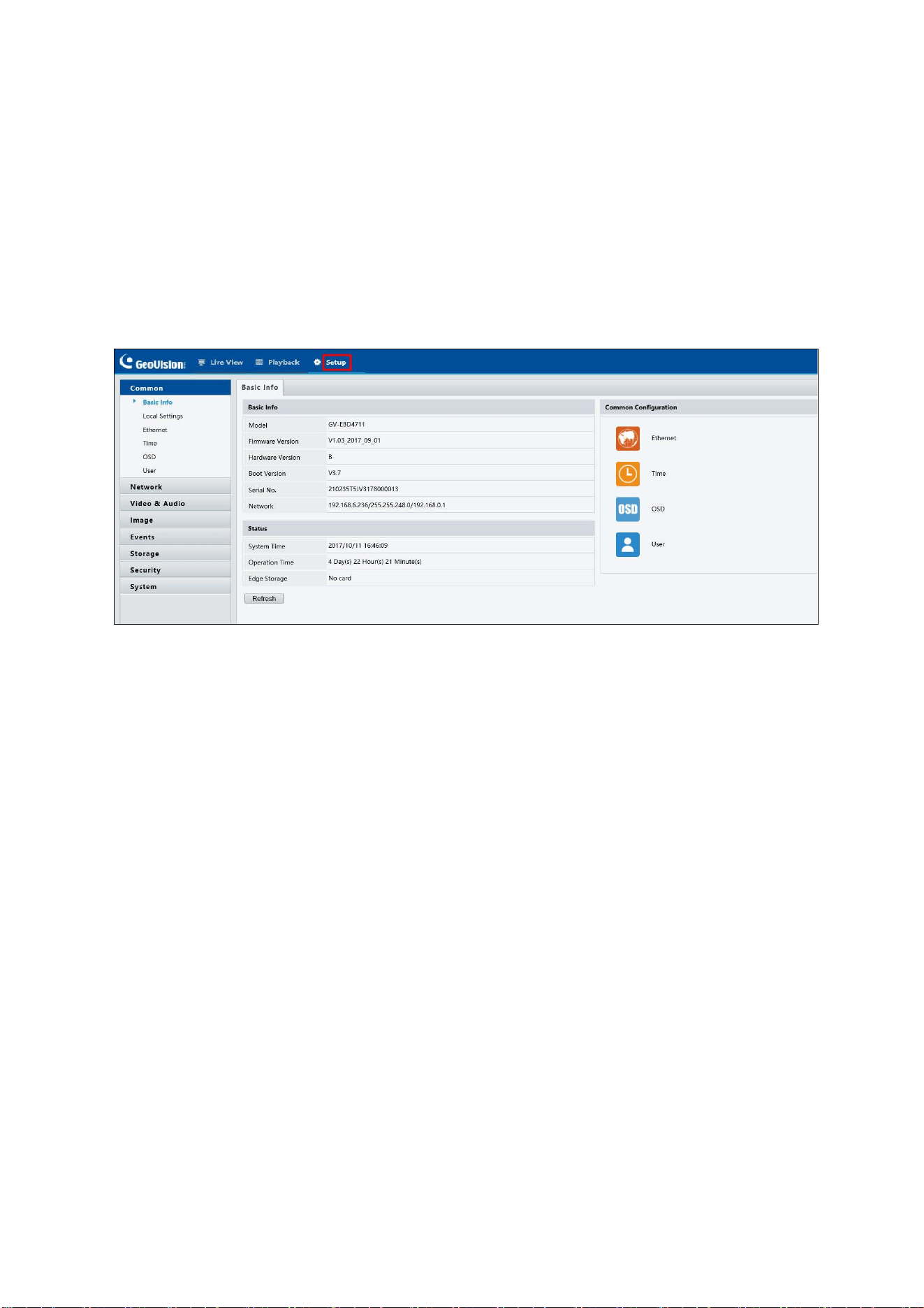

You can view the current status of your camera. Click Refresh for the latest status
information. Under Common Configuration on the right, you can click on the icons to
quickly access the corresponding configuration pages.

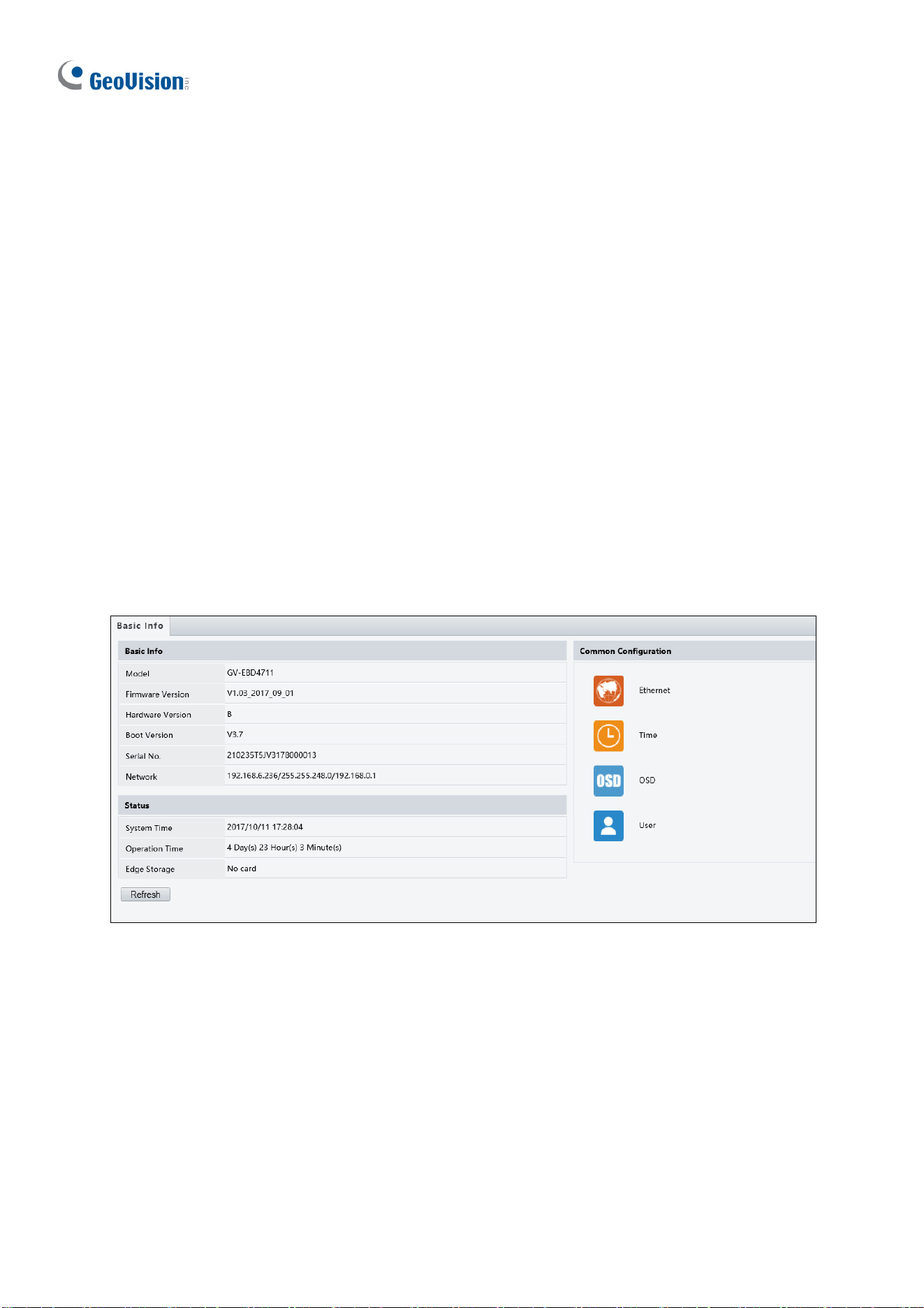

Figure 3-2
Administrator Mode
79
3
3.1.2 Local Settings
You can set the local parameters for your PC.

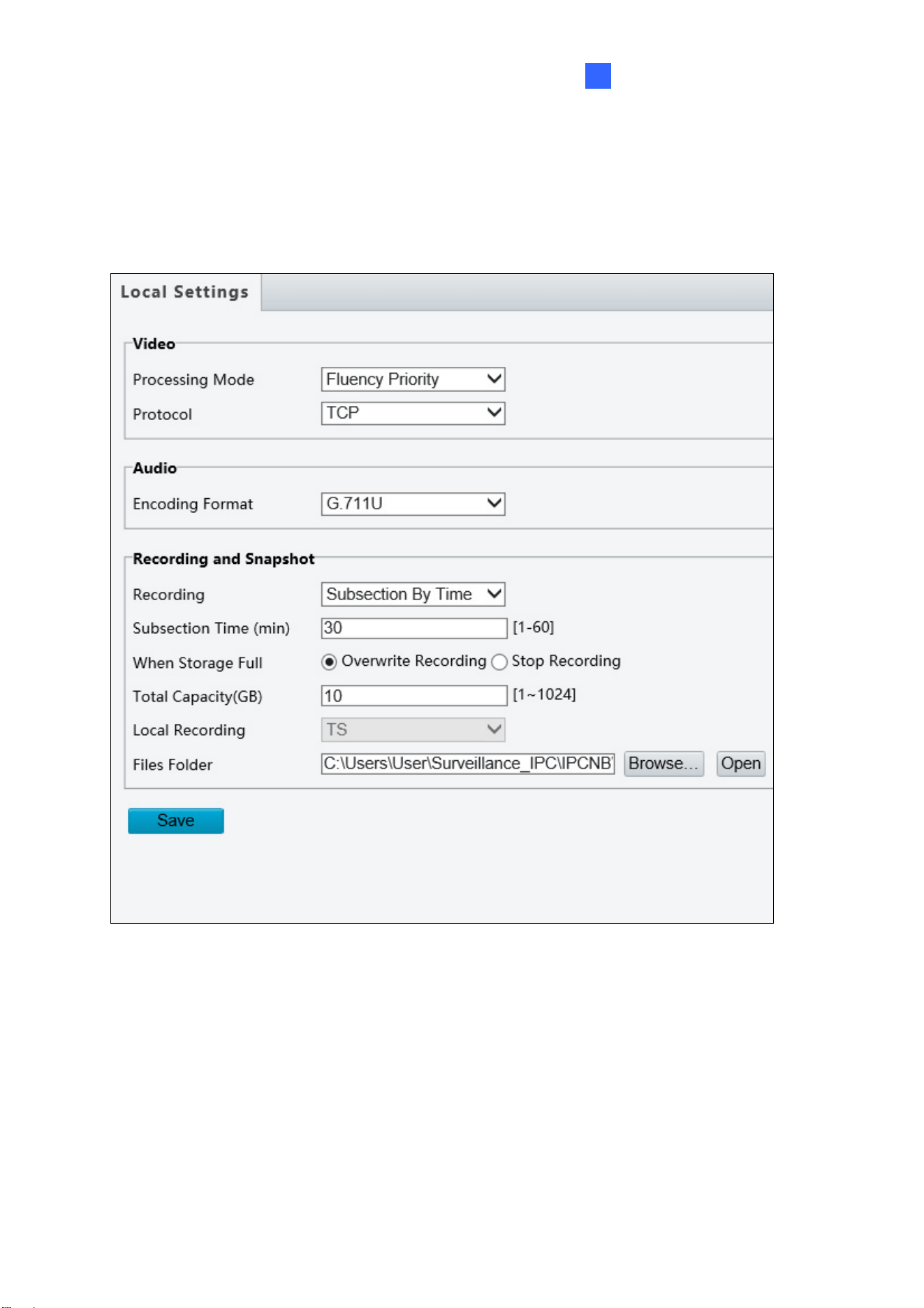

Figure 3-3
[Video]
Processing Mode
Real-Time Priority: Select this if the network is in good condition.
Fluency Priority: Select this if you want short time lag for live video.
Ultra-low Latency: Select this if you want the minimum time lag for live video.
Protocol: Select the protocol used to transmit media streams to be decoded by the PC.
80
[Audio] This function is only applicable to GV-EBD2702 / 4711 / 8711, GV-ABL2702 / 4712 /
8712, GV-AVD2700 / 4710 / 8710.
Encoding Format: Select the format used to encode audio.
[Recording and Snapshot]
Recording
Subsection By Time: Set a maximum time length of each recording file. If you
select 5 minutes, a 30-minute event will be chopped into six 5-minute event files.
Subsection by Size: Set a maximum size limit of each recording file.
When Storage Full
Overwrite Recording: When the assigned storage space on the computer is used
up, the camera deletes the existing recording files to make room for the new
recording file.
Stop Recording: When the assigned storage space on the computer is full,
recording stops automatically.
Total Capacity: Set a capacity limit to the assigned storage space on the computer.
Files Folder: Click Browse to set a folder to store the recorded videos and captured
snapshots at your local computer.
Administrator Mode
81
3
3.2 Network
The network section allows you to configure the network settings, modify ports, configure
FTP server, and set up e-mail for notification.
3.2.1 Ethernet

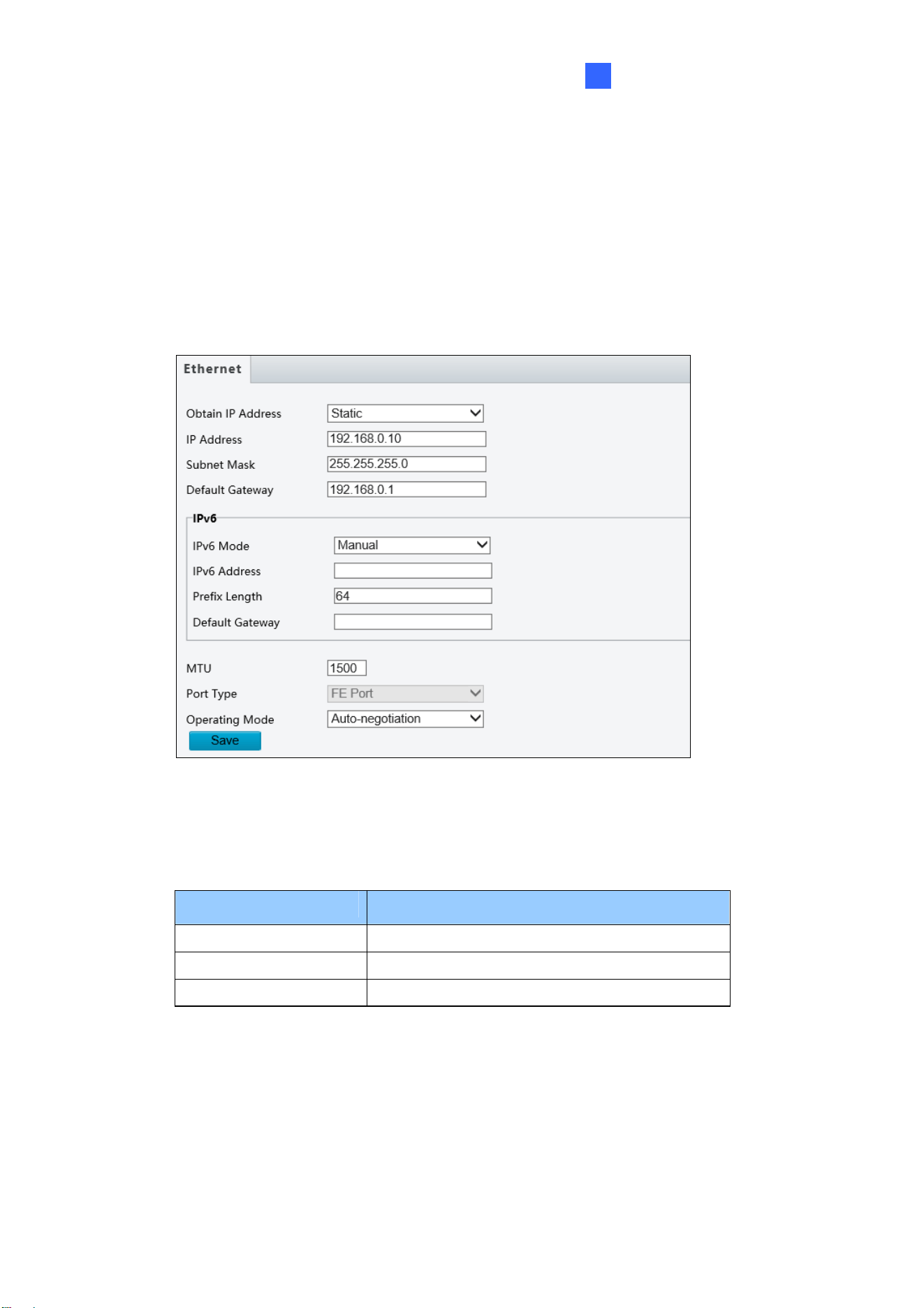

Figure 3-4
Obtain IP Address: Select Static IP or DHCP according to your network environment.
Static IP address: Assign a static IP or fixed IP to the camera. Type the camera’s IP
address, Subnet Mask and Router/Gateway.
Parameters Default
IP address 192.168.0.10
Subnet Mask 255.255.255.0
Router/Gateway 192.168.0.1
PPPoE: The network environment is xDSL connection. Type the Username and
Password provided by ISP to establish the connection. If you use the xDSL
connection with dynamic IP addresses, first use the DDNS function to obtain a
domain name linking to the camera’s changing IP address. Note this function is only
applicable to GV-ABL2701 / 4712, GV-AVD4710, GV-ADR2701 firmware V1.01 or
later and GV-ABL4701, GV-EBD4700 / 4711, GV-ADR4701 V1.05 or later.
82
DHCP: The network environment has a DHCP server which will automatically assign
a dynamic IP address to the camera. You can look up the current IP address using
GV-IP Device Utility.
IPv6: Type the camera’s IPv6 Address and Default Gateway. Optionally change the
Prefix Length according to your network settings.
Operating Mode: Select a mode to control the bandwidth.
Note:
1. To enable IPv6, make sure your network environment used support IPv6.
2. MTU is not functional.
3.2.2 DNS
Type the camera’s Preferred DNS Server and Alternate DNS Server.

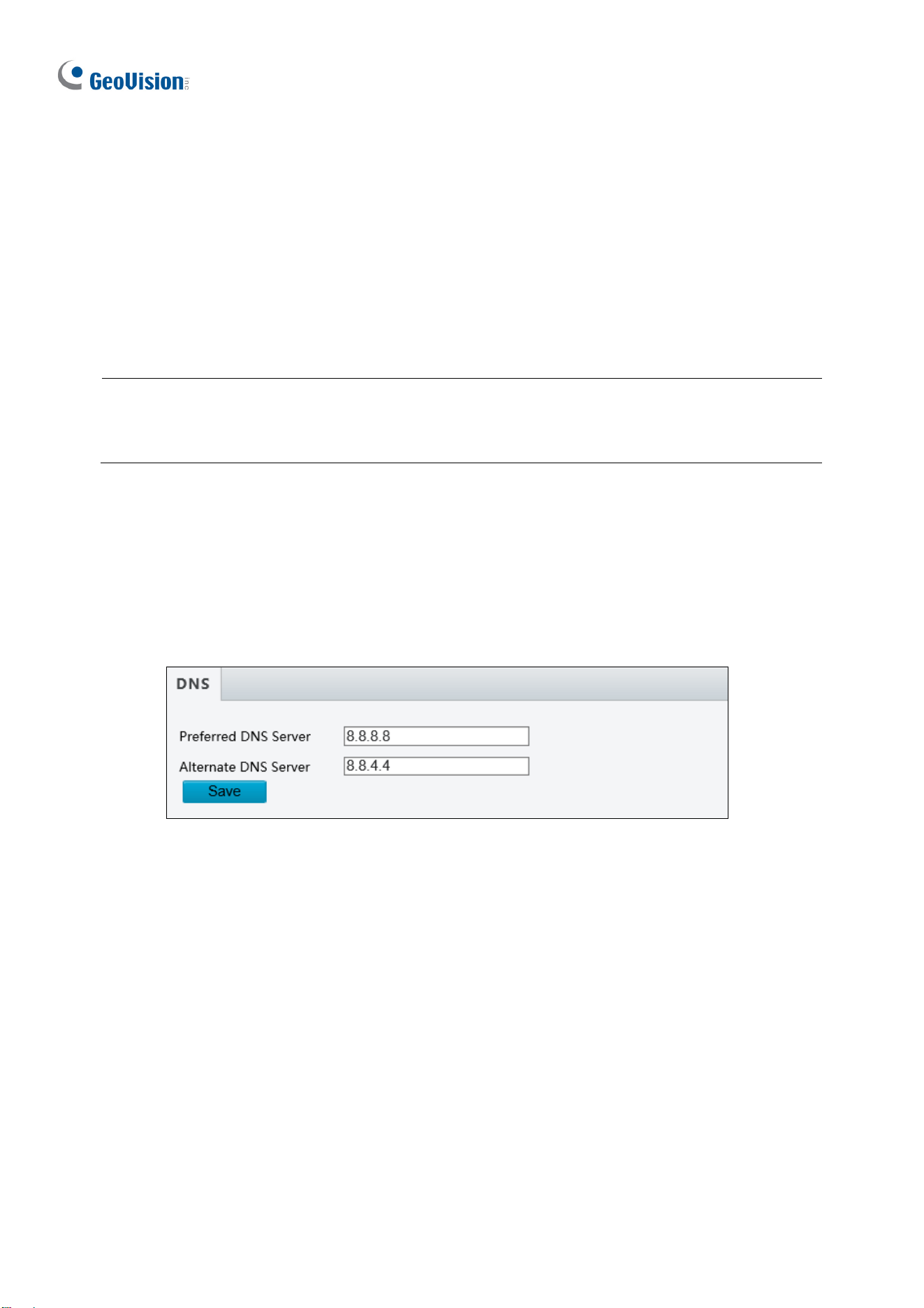

Figure 3-5
Administrator Mode
83
3
3.2.3 Port
Port
You can modify the default HTTP port, HTTPS port and RTSP port if necessary.

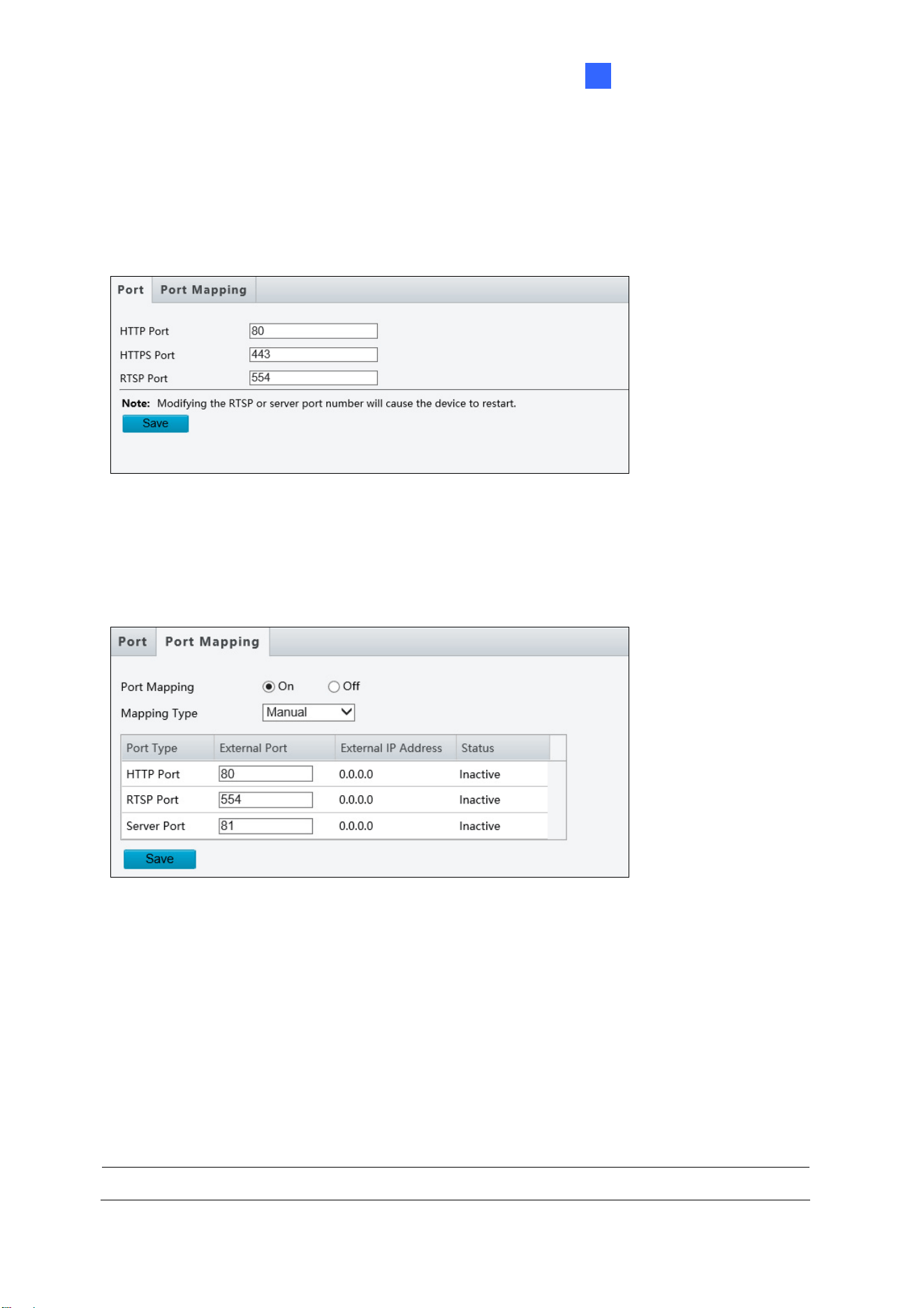

Figure 3-6
Port Mapping
This function can automatically forward and open certain ports on your router, allowing
connection to your camera from the Internet.
Figure 3-7
1. Enable Port Mapping, and select Mapping Type.
If you select Automatic, external ports will be automatically configured by the
router.
If you select Manual, configure external ports. External IP is applied to the camera
automatically. If the configured port is occupied, the Status will show inactive.
2. Click Save.
Note: For this function, your router needs to support port forwarding.
84
3.2.4 DDNS
DDNS (Dynamic Domain Name System) provides a convenient way of accessing the camera
when using a dynamic IP. DDNS assigns a domain name to the camera, so that the
Administrator does not need to go through the trouble of checking if the IP address assigned
by DHCP Server or ISP (in xDSL connection) has changed.

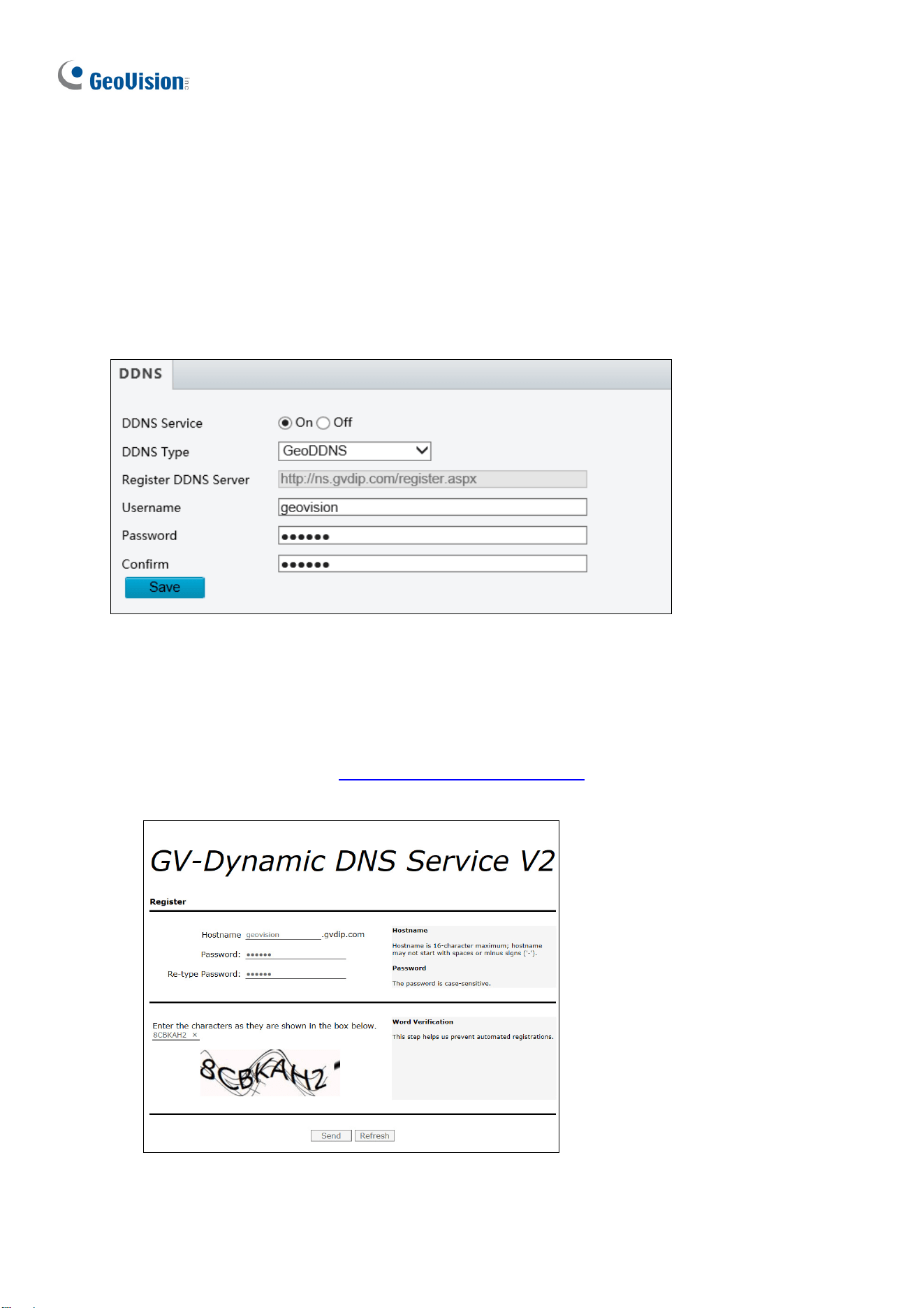

Figure 3-8
1. Click On to enable DDNS Service.
2. Select the DDNS service provider you have registered with. If you chose DynDNS, skip to
Step 5.
3. Copy the website address
http://ns.gvdip.com/register.aspx
to a browser to access
Geovision DDNS service.
Figure 3-9
Administrator Mode
85
3
4. In the Geovision DDNS Server page, type a desired Hostname and Password. Re-type
Password and type the verification letters shown in the image. Click Send.
5. In the Web interface of your camera, type Username. The username is the hostname
registered in DDNS Server.
6. Type Password, and Confirm Password.
7. Click Save.
After the DDNS is successfully configured, a notification bar will be displayed as shown in
Figure 3-10. Next time when you log in the camera, type the domain name like this:
(hostname).gvdip.com; for example, geovision.gvdip.com.

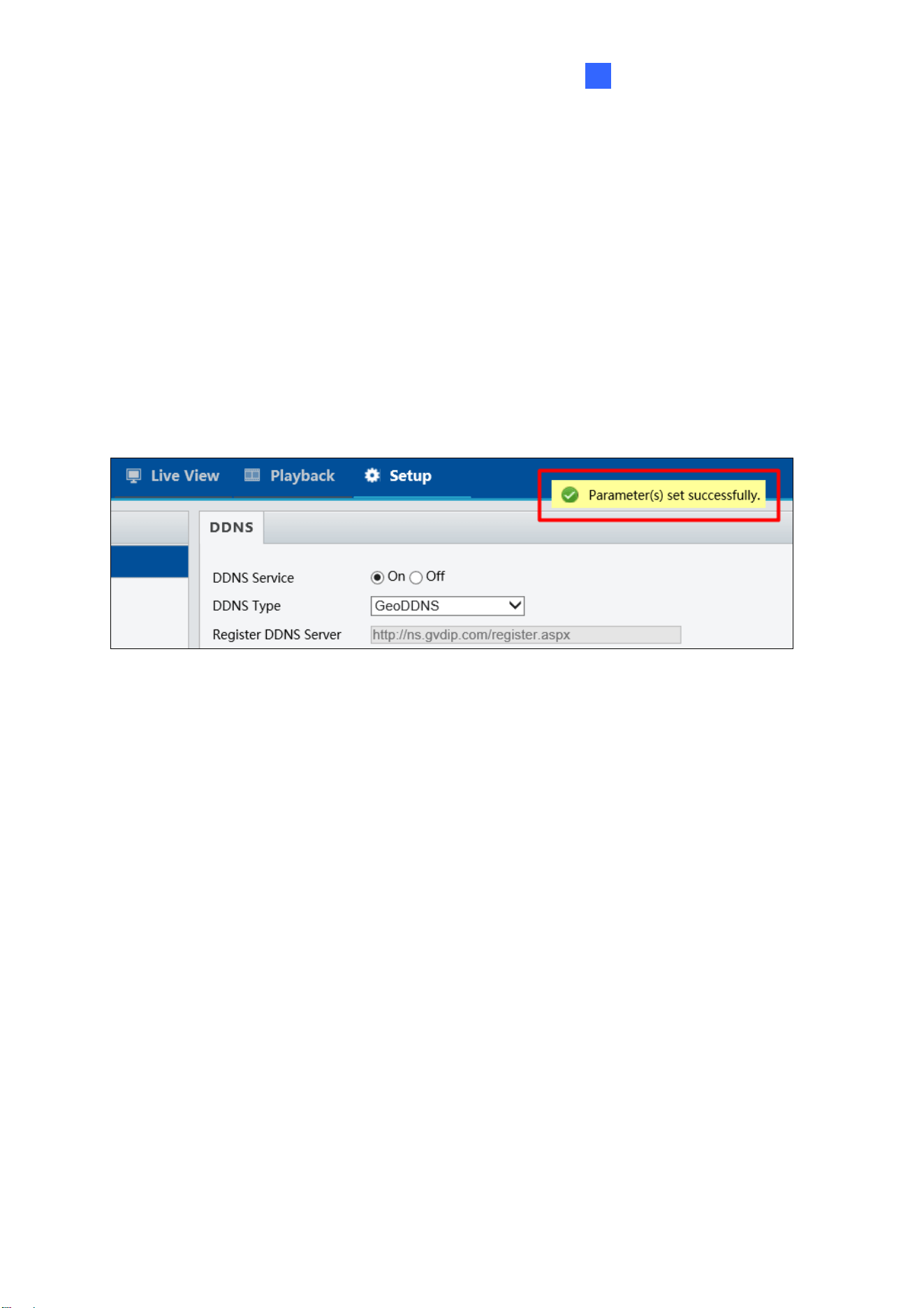

Figure 3-10
86
3.2.5 E-mail
After the configuration of E-mail, you will be able to send messages to the specified E-mail
address(s) when alarms are triggered.

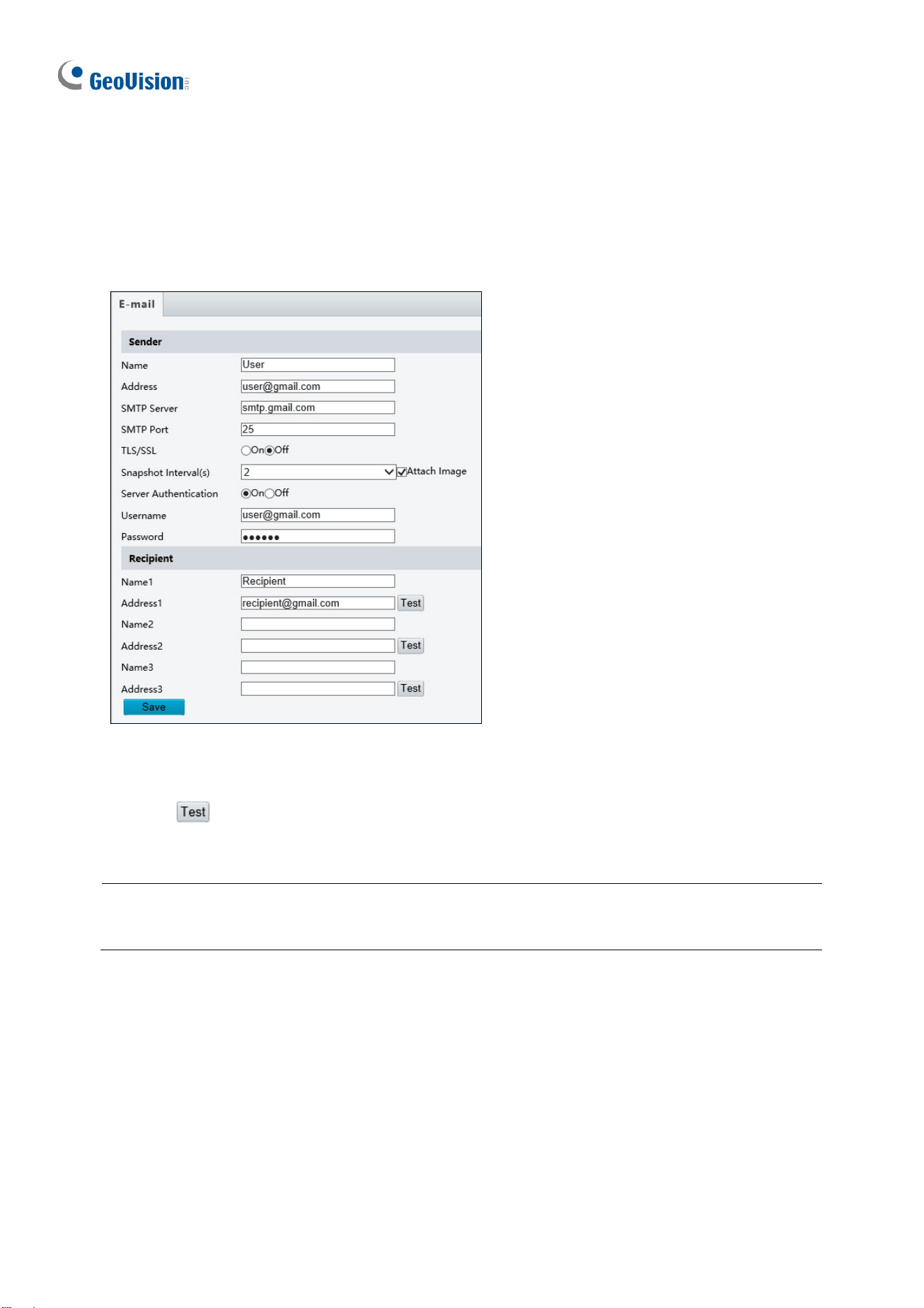

Figure 3-11
1. Type the Name and Address of the
sender.
2. Type the SMTP Server.
3. Type the SMTP Port number.
4. To send the e-mail through TLS /
SSL encryption, enable TLS/SSL.
5. Enable Attach Image to include 3
instant snapshots as attachment in
the e-mail according to the
Snapshot Interval specified.
6. If the SMTP Server needs
authentication, enable Server
Authentication and type a valid
username and password to log in the
SMTP server.
7. Type the name(s) and e-mail
address(s) of the Recipient(s).
8. Click Save.
For GV-EBD2702 / 4711 / 8711, GV-ABL2702 / 4712 / 8712, GV-AVD2700 / 4710 / 8710,
click the
button next to the address of a Recipient to Test for the validity of the e-mail
address.
Note: To send snapshots to the specified E-mail address(s), make sure to enable the
Snapshot function. For more detailed instructions, refer to 3.3.2 Snapshot.
Administrator Mode
87
3
3.2.6 802.1x
IEEE 802.1x is an IEEE standard for port-based Network Access Control. It provides an
authentication mechanism to devices wishing to attach to a LAN or WLAN. Note this function
is only applicable to GV-EBD2702 / 4700 / 4711 / 8711, GV-ABL2702 / 4712 / 8712, and
GV-AVD2700 / 4710 / 8710.

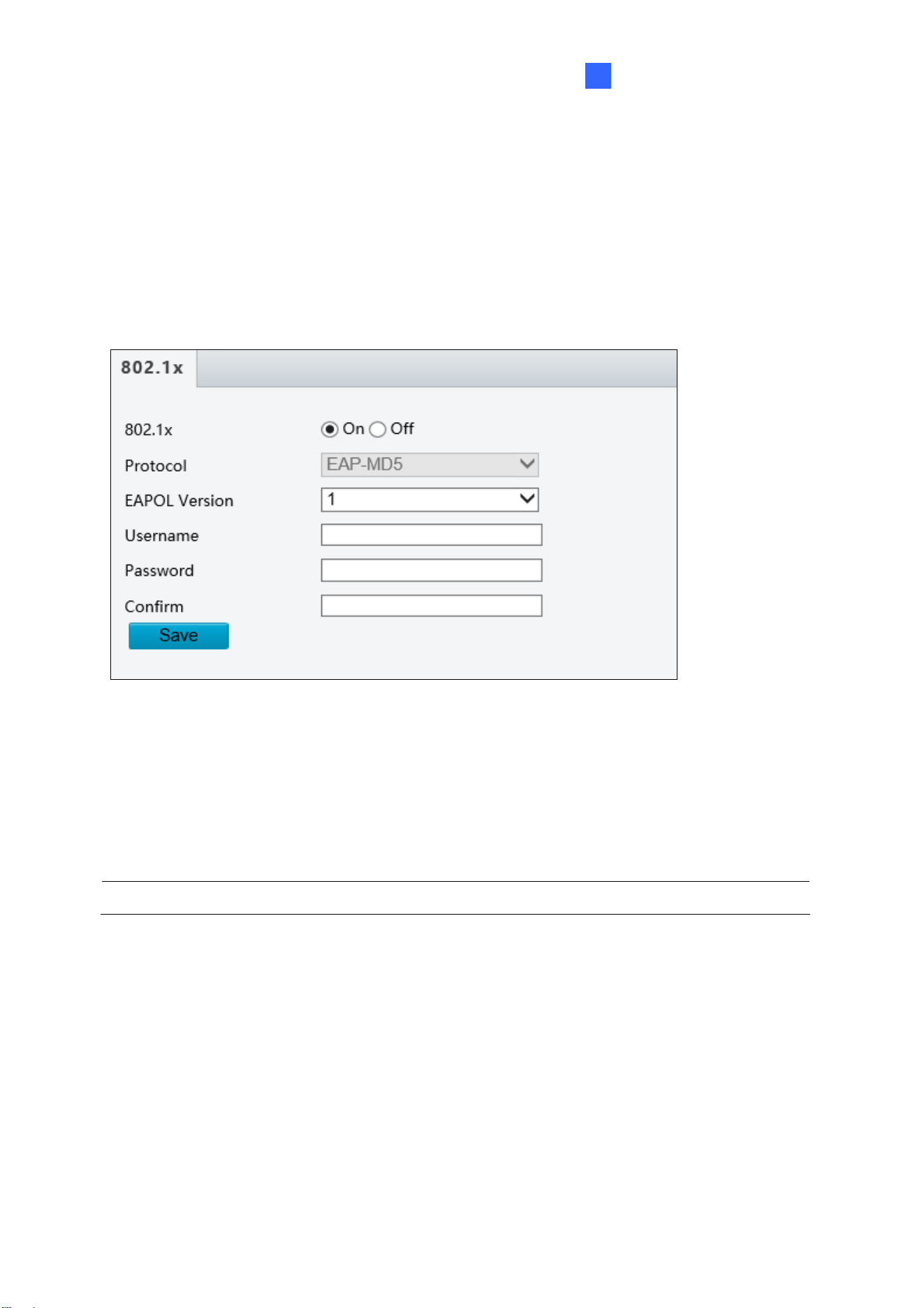

Figure 3-12
1. Enable IEEE 802.1x.
2. Type the Username and Password. Type the password again for confirmation.
3. Click Save.
Note: For this function, your network environment needs to support 802.1x.
88
3.3 Video & Audio
This section allows you to configure the three video streams and audio input. The audio
function is only applicable to GV-EBD2702 / 4711 / 8711, GV-ABL2702 / 4712 / 8712 and
GV-AVD2700 / 4710 / 8710.
3.3.1 Video
You can set video parameters that your camera supports. You may also enable the sub-
stream and third stream as needed. The third stream is disabled by default.

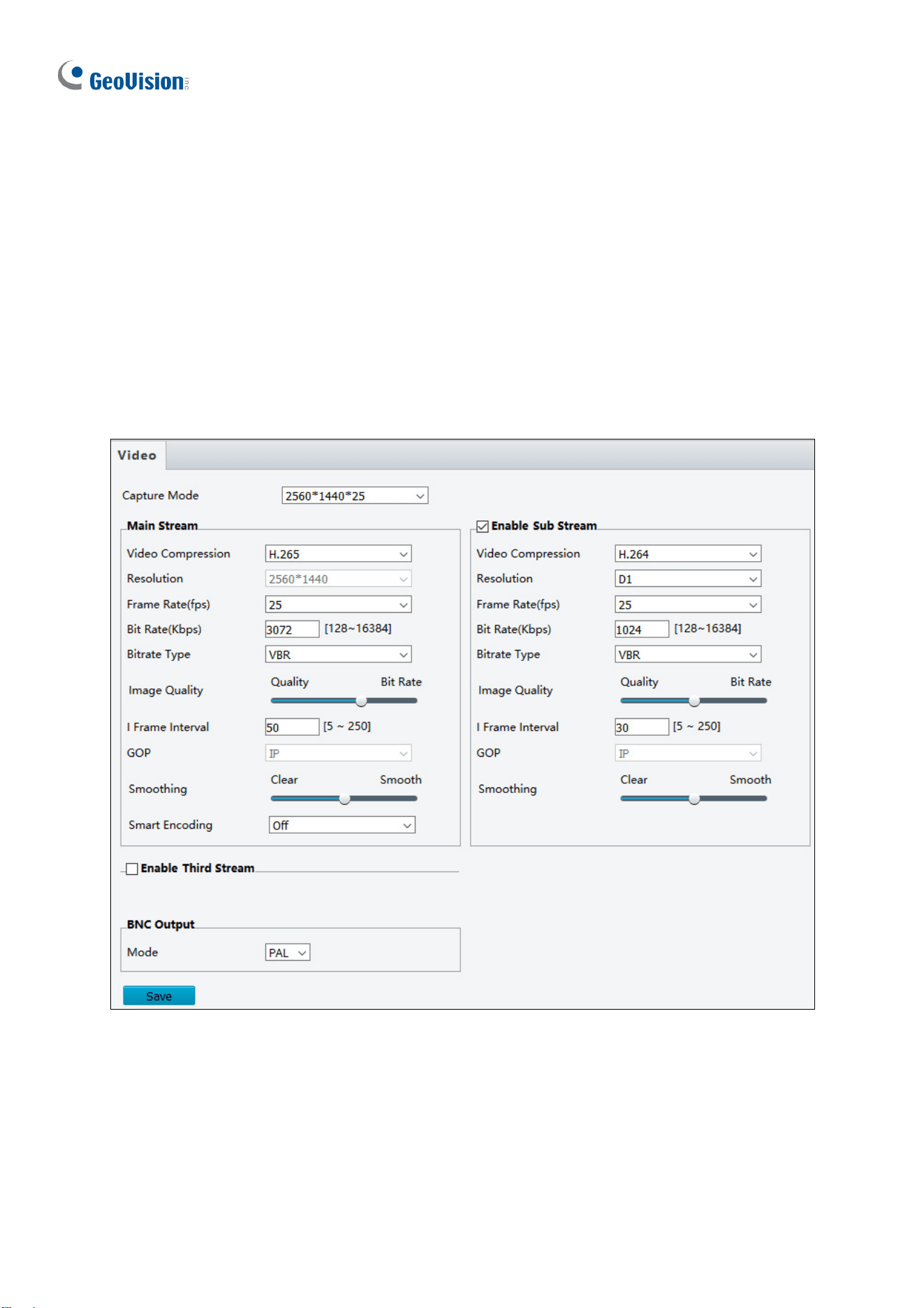

Figure 3-13
Capture Mode: Sets the maximum resolution and frame rate.
The following options are available for the main, sub and third streams.
Video Compression: Set the codec type to H.265, H.264 or MJPEG.
Resolution: You may select the different resolutions for each stream.
Administrator Mode
89
3
Frame Rate: Select a frame rate for encoding images. The unit is frame per second.
Bit Rate:
CBR: The camera transmits data at a constant data rate by varying the quality of the
video stream
VBR: The quality of the video stream is kept as constant as possible at the cost of a
varying bitrate.
Image Quality: When VBR is selected for the encoding mode, you can move the slider
to adjust the desired quality level the for images. Moving the slider toward Bit Rate
decreases the bit rate and may affect image quality. Moving the slider toward Quality
increases the bit rate and improves image quality.
I Frame Interval: Set the number of frames between each I frame (key frame). This
option is only available when H.265 or H.264 is selected as the codec.
Smoothing: Set the extent of smoothing. Choosing Clear means disabling Smoothing.
Moving the slider toward Smooth increases the level of smoothing but will affect image
quality.
[BNC Output] Only for GV-AVD2700 / 4710 / 8710 and GV-ABL8712, The status of the
BNC device is shown.
Mode: Set the signal format of the video output to either NTSC or PAL.
90
3.3.2 Snapshot
Using the Snapshot function, when an alarm is triggered, the camera will automatically
upload the captured snapshots to the FTP server and/or send snapshots to the specified e-
mail address(s).

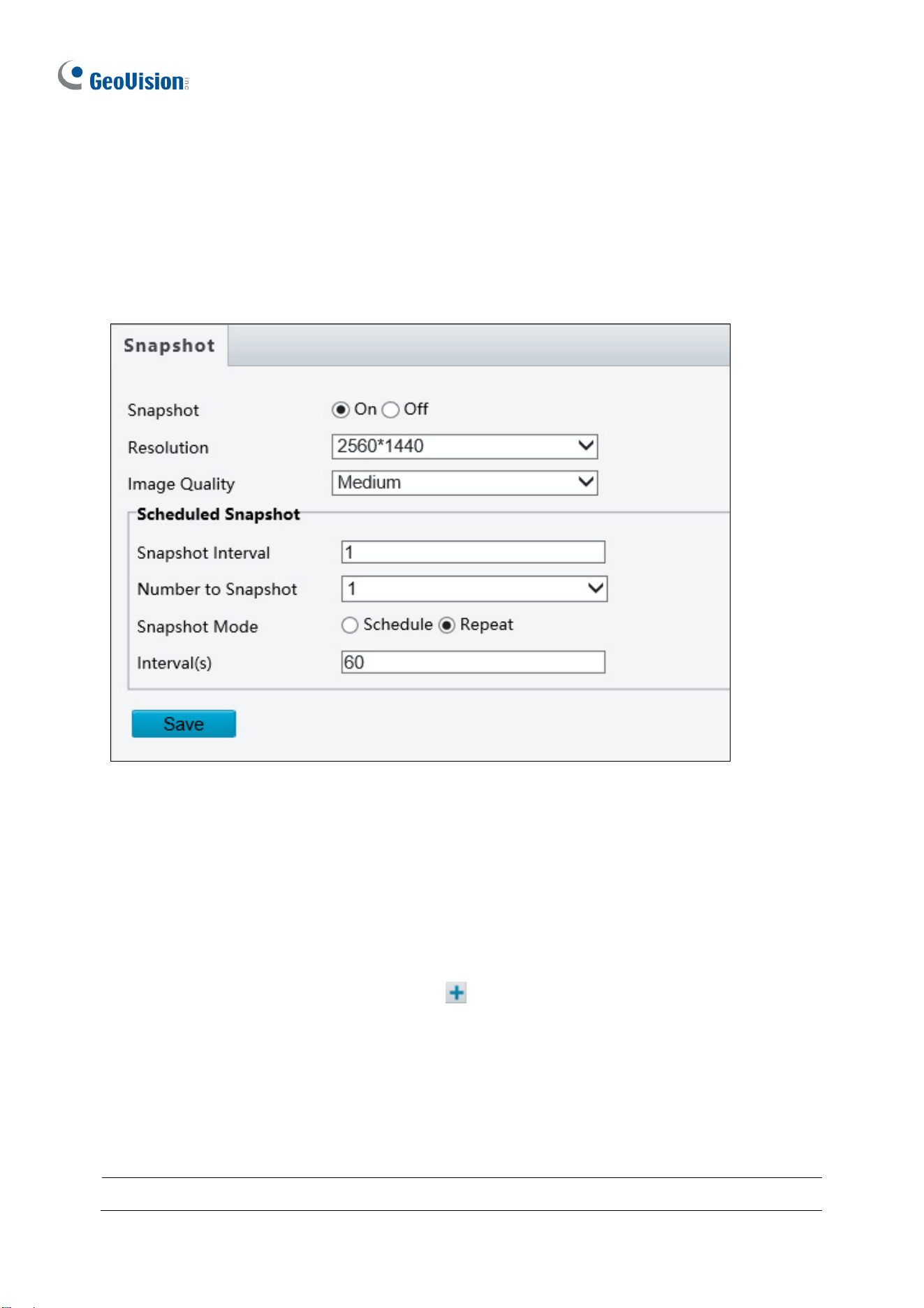

Figure 3-14
1. Select On to enable Snapshot.
2. Select Resolution.
3. Choose the Image Quality.
4. Choose the Number of Snapshot to capture upon alarm trigger.
5. Select Schedule mode or Repeat mode to set up the Scheduled Snapshot.
If you select Schedule mode, click
to specify the desired time(s) to take a
snapshot.
If you select Repeat mode, type the interval, from 1 to 86400 seconds, to take
snapshots at the interval specified.
6. Click Save.
Note: Snapshot Interval(s) is not functional.
Administrator Mode
91
3
3.3.3 Audio
Note this function is only applicable to GV-EBD2702 / 4711 / 8711, GV-ABL2702 / 4712 /
8712, and GV-AVD2700 / 4710 / 8710.
You can configure the audio settings of the camera.

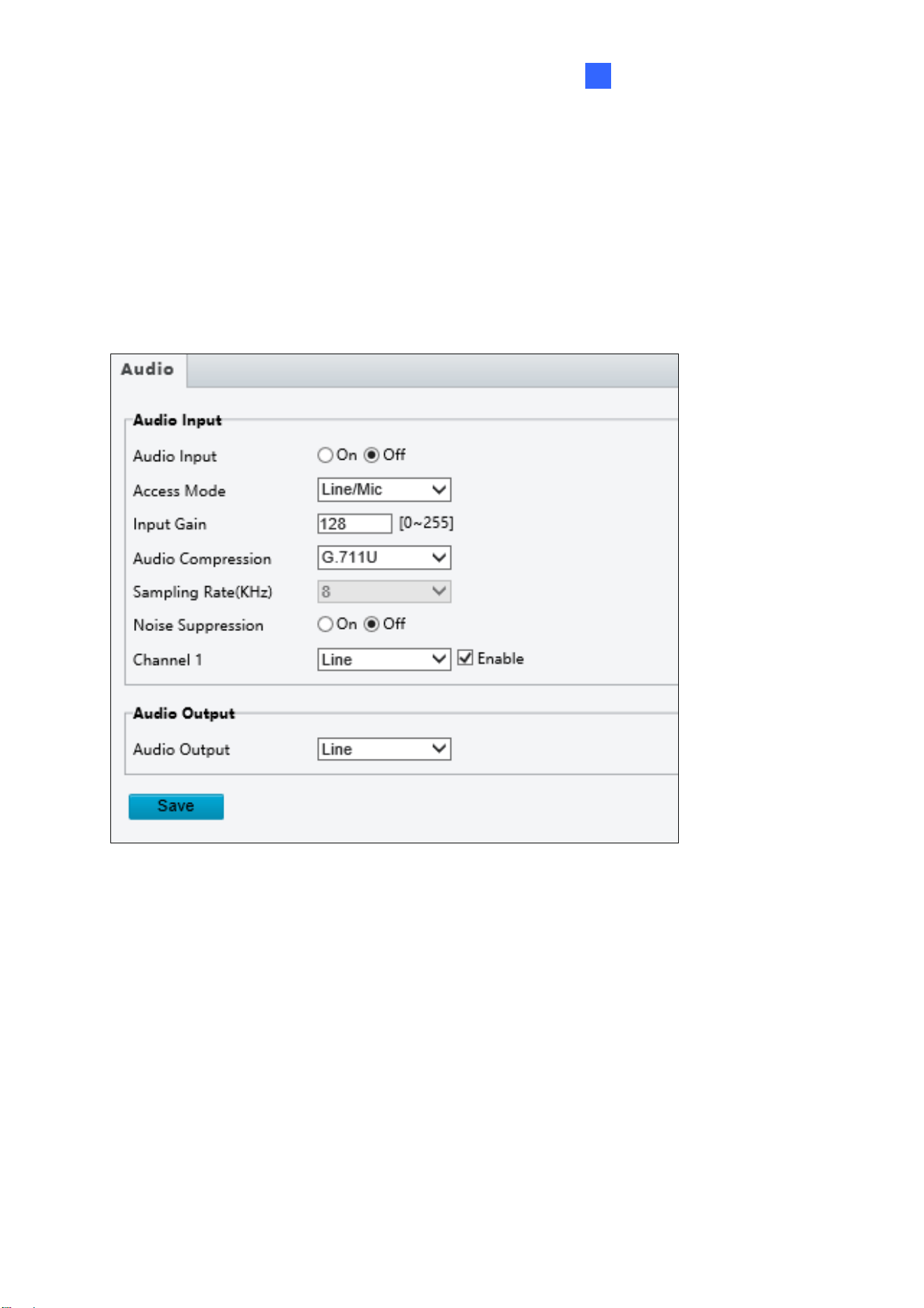

Figure 3-15
Audio Input: Select On to enable audio input.
Input Gain: Set the audio signal amplification for sampling. The greater the gain, the
greater amplification.
Audio Compression: Select an audio codec.
Noise Suppression: Select On to reduce the noise of the audio.
Channel 1: Click Enable to enable audio in through the camera’s built-in microphone.
Audio Output: Select the source of audio output.
92
3.3.4 ROI
When Region of Interest (ROI) is enabled, the system ensures image quality for ROI first if
the bit rate is insufficient.

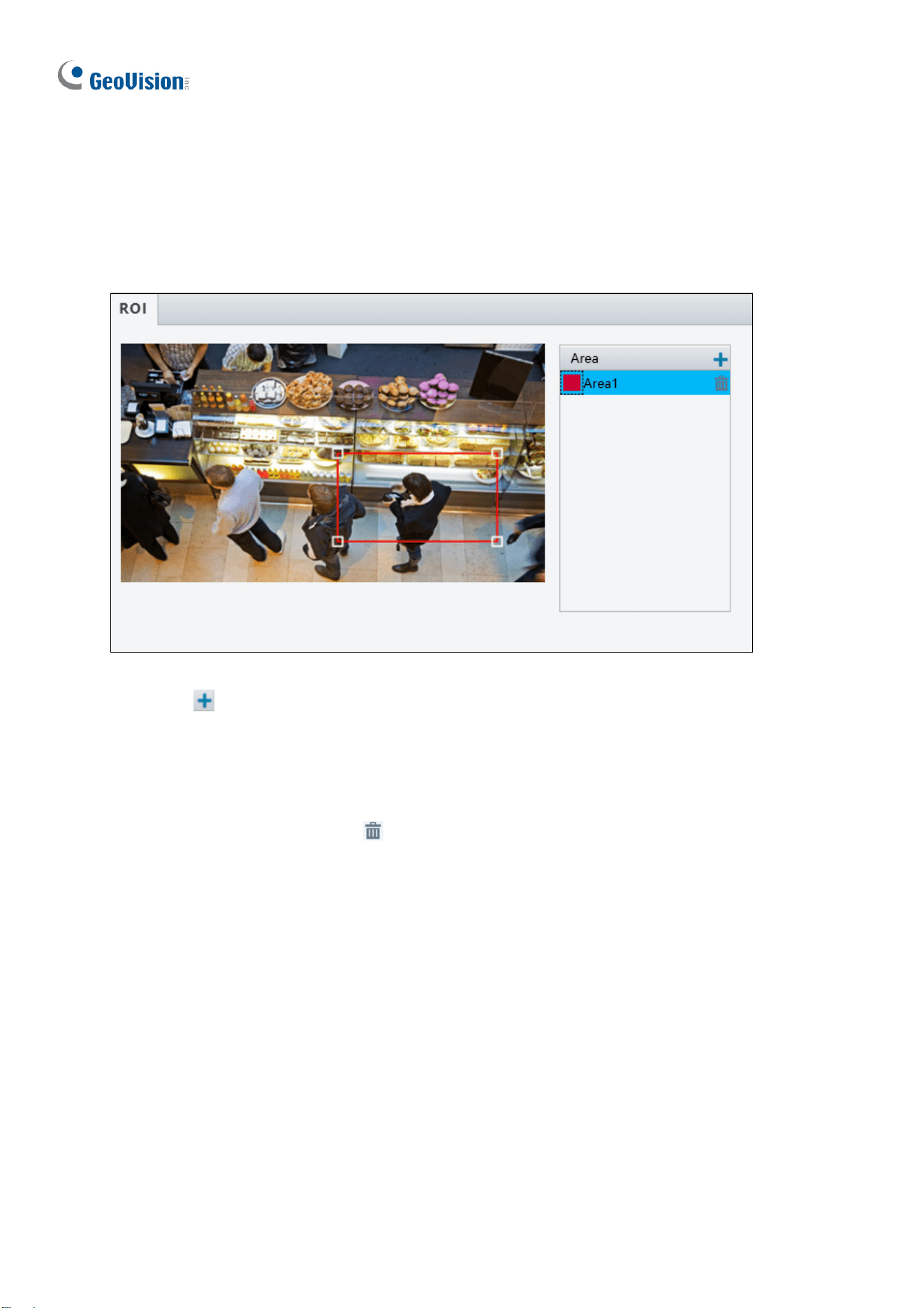

Figure 3-16
1. Click
to enable and add ROI.
2. Click and drag on the image to specify an area.
3. To add additional ROI areas, repeat steps 1 and 2. Up to eight ROI areas can be
specified.
4. To delete an ROI area, click
.
Administrator Mode
93
3
3.3.5 Media Stream
Media Stream
By configuring media stream, you can set the camera to transmit code streams by UDP or
TCP protocol to a specified IP address and port number. The settings can be saved and take
effect after the camera is rebooted.

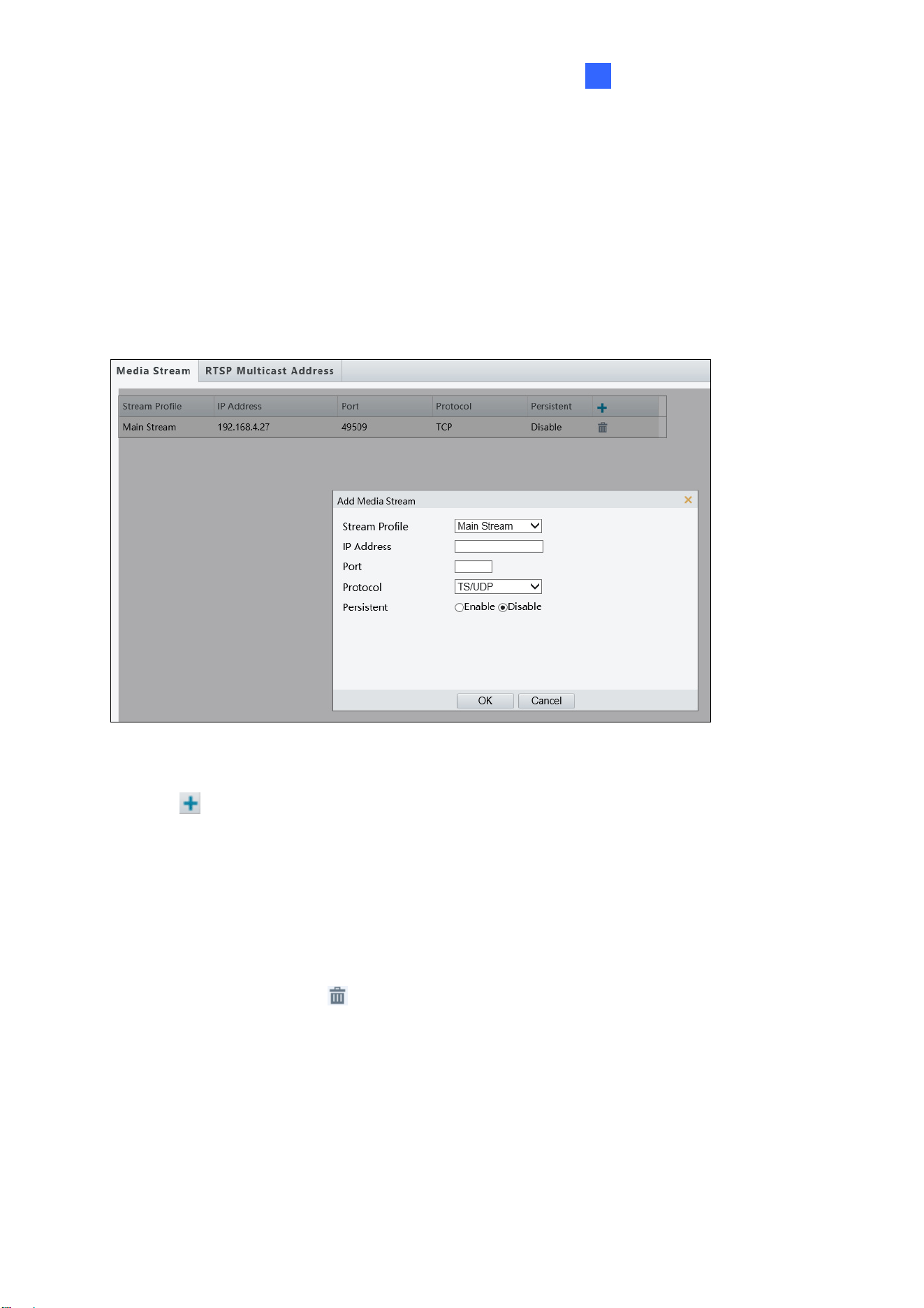

Figure 3-17
1. Click and select a stream from the Stream Profile drop-down list.
2. Type the IP Address and Port number of the unicast or multicast group for the decoding
device that receives video streams from the camera.
3. Select a Protocol type for the media stream.
4. If you want the device to automatically establish the media stream that has been
previously configured after the restart, Enable Persistent.
5. To delete a stream, click
.
6. Click OK to complete the settings.
94
RTSP Multicast Address
After an RTSP multicast address is configured, the third-party player can request for the
RTSP multicast media stream from the camera through RTSP protocol.

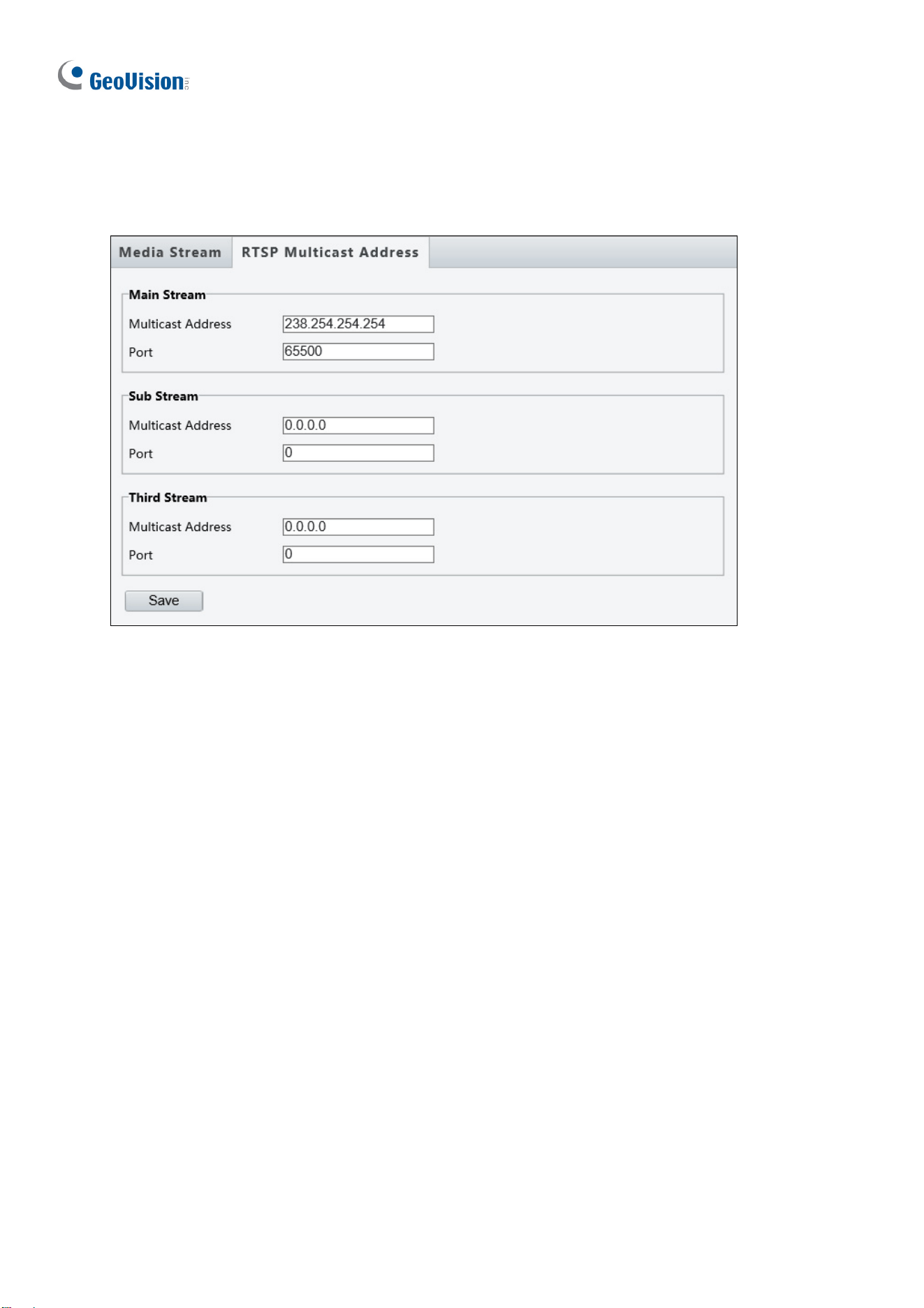

Figure 3-18
1. Type the Multicast Address (224.0.0.0 to 239.255.255.255) and Port number (0 to
65535).
2. Click Save.
For RTSP Multicast command, see Appendix A.
Administrator Mode
95
3
3.4 Image
This section introduces the Image Settings, On-screen Display and Privacy Mask.
3.4.1 Image
This page allows you to adjust image settings such as brightness, exposure, IR illumination
and white balance.

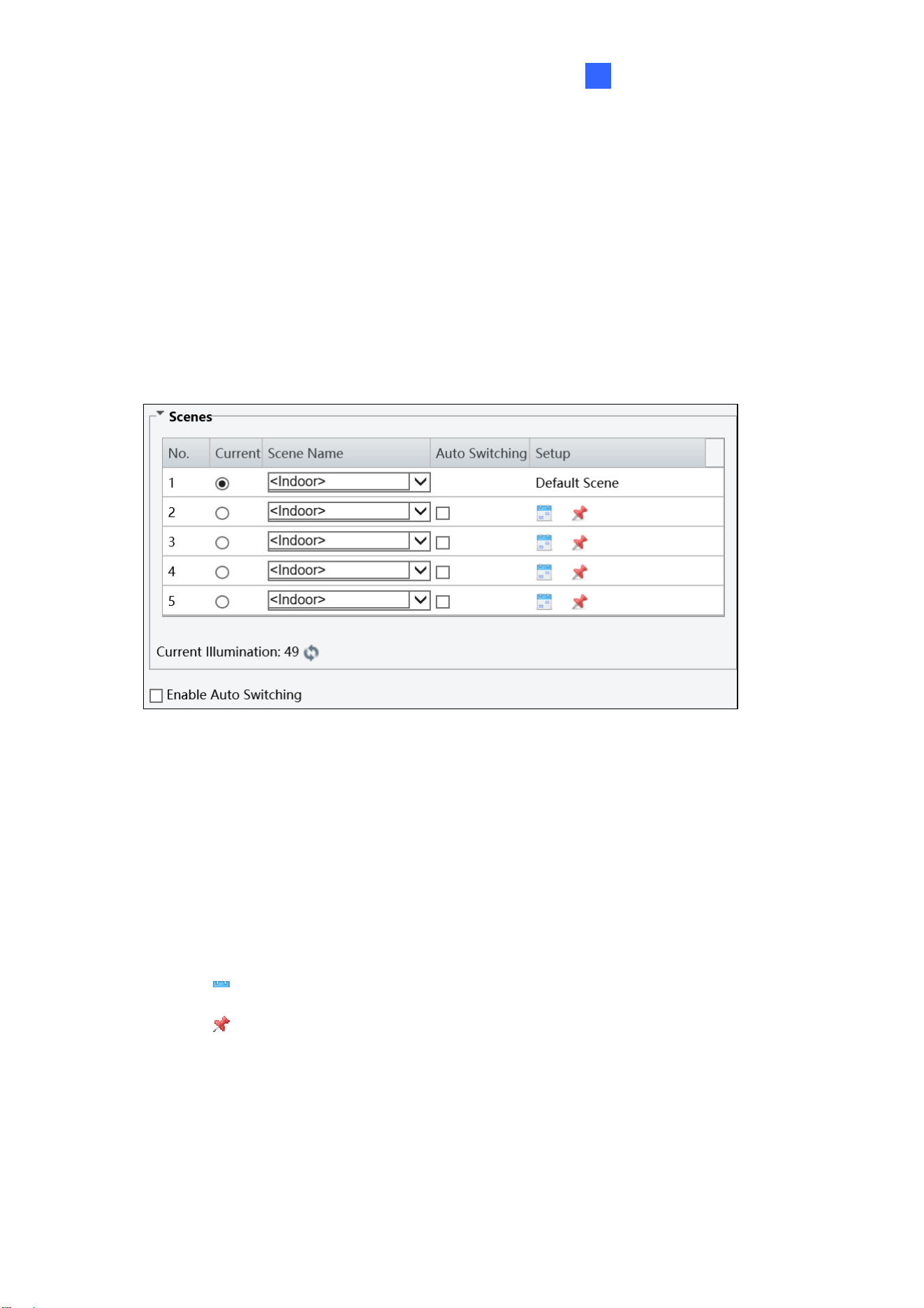

Figure 3-19
[Scene]
Current: Indicates the scene that is being used.
Screen Name: When you select a scene, the corresponding image parameters are
displayed. You can adjust the image settings according to actual needs.
Auto Switching: Indicates whether to add a scene to the auto-switching list.
Setup:
Click
to set a schedule for illumination.
Click
to set a scene as the default scene.
Enable Auto Switching: Allow the camera to switch to the scene automatically when
the condition for switching to a non-default scene is met.
96

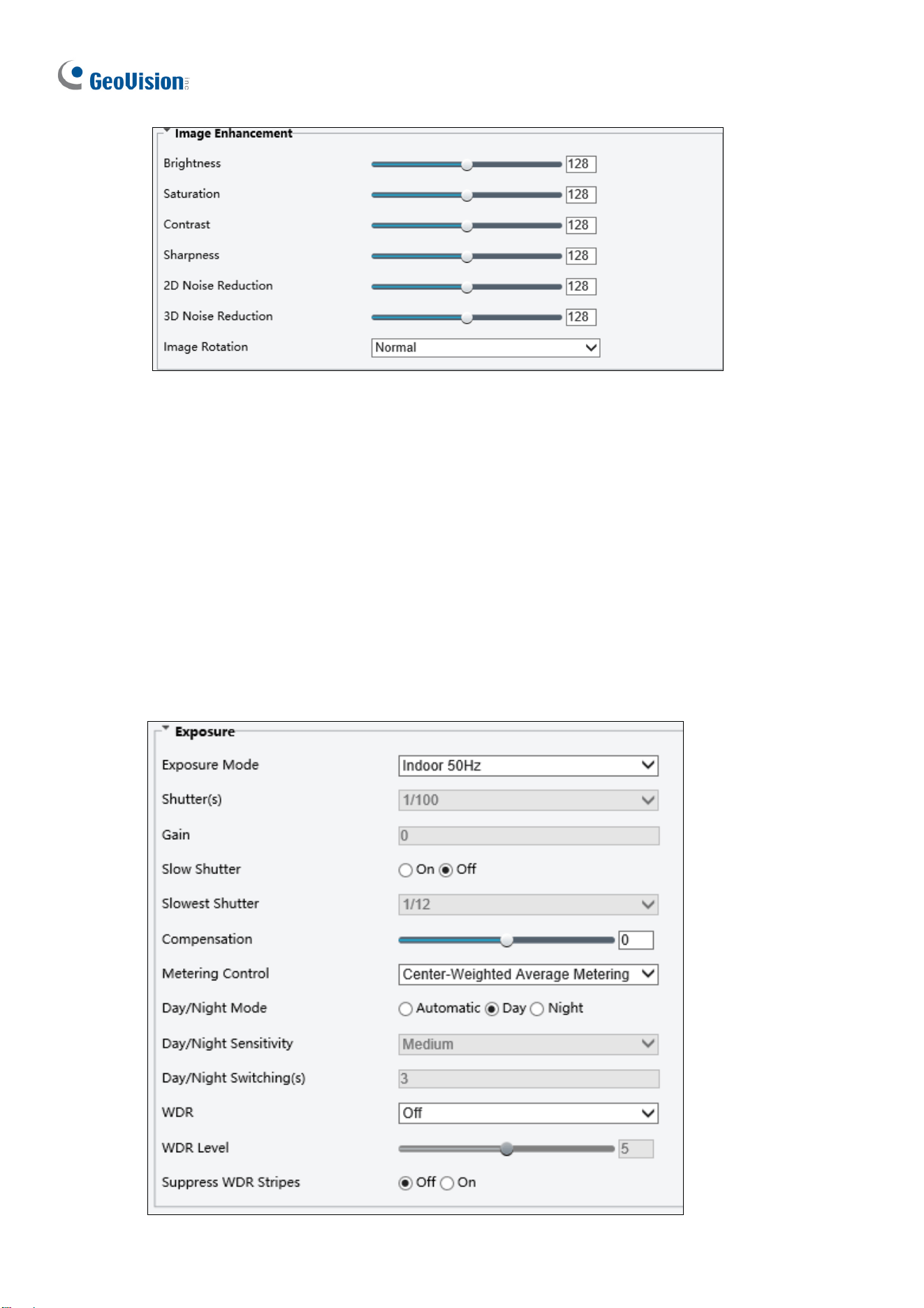

Figure 3-20
[Image Enhancement]
Brightness: Adjust the degree of brightness of the image.
Saturation: Adjust the amount of hue contained in a color.
Contrast: Set the degree of difference between the blackest pixel and the whitest pixel.
Sharpness: Adjust the sharpness of the image.
2D / 3D Noise Reduction: Reduce the noise of the image.
Image Rotation: Change the rotation of the image.
Administrator Mode
97
3
Figure 3-21
[Exposure]
Exposure Mode: Select the correct exposure mode to achieve the desired exposure
effect. The default setting is Outdoor.
Low Motion Blur: Improve image quality by reducing motion blur in low light
conditions.
Shutter(s): The length of time that allows light to enter into the lens. You can set a
shutter speed when Exposure Mode is set to Manual (Custom).
Note: If Slow Shutter is set to Off, the reciprocal of the shutter speed must be greater than
the frame rate.
Gain: Control image signals so that the camera outputs standard video signals
according to the light condition. You can set this parameter only when Exposure Mode
is set to Manual (Custom).
Slow Shutter: Improve image brightness in low light conditions.
Slowest Shutter: Set the slowest shutter speed that the camera can use during
exposure.
Compensation: Adjust the compensation value as required to achieve the desired
effects. You can set this parameter only when Exposure Mode is not set to Manual
(Custom).
Metering Control: Set the way the camera measures the intensity of light. You can only
set this parameter when Exposure Mode is not set to Manual (Custom).
Center-Weighted Average Metering: Measure light mainly in the central part of the
images.
Evaluative Metering (BLC): Measure light in the customized area of the images.
Face Metering: Measure light where facial recognition is established.
Spot Metering: Measure light spot(s) in the specified area of the images.
Day/Night Mode: Select Automatic for automatic switch between day mode and night
mode depending on the amount of light detected. Select Night to produce high-quality
black and white images using the existing light. Select Day to produce high-quality color
images using the existing light.
98
Day/Night Sensitivity: Set the light threshold for switching between day mode and
night mode. A higher sensitivity means that the camera is more sensitive to the change
of light and becomes more easily to switch between day mode and night mode.
Day/Night Switching(s): Set the length of time before the camera switches between
day mode and night mode after the conditions for switching are met.
WDR: Enable WDR to distinguish the bright and dark areas in the same image.
WDR Level: After enabling the WDR function, you can improve the image by adjusting
the WDR level.
Suppress WDR Stripes: Enable Suppress WDR Stripes to automatically adjust shutter
frequency based on the frequency of light measured.
Administrator Mode
99
3

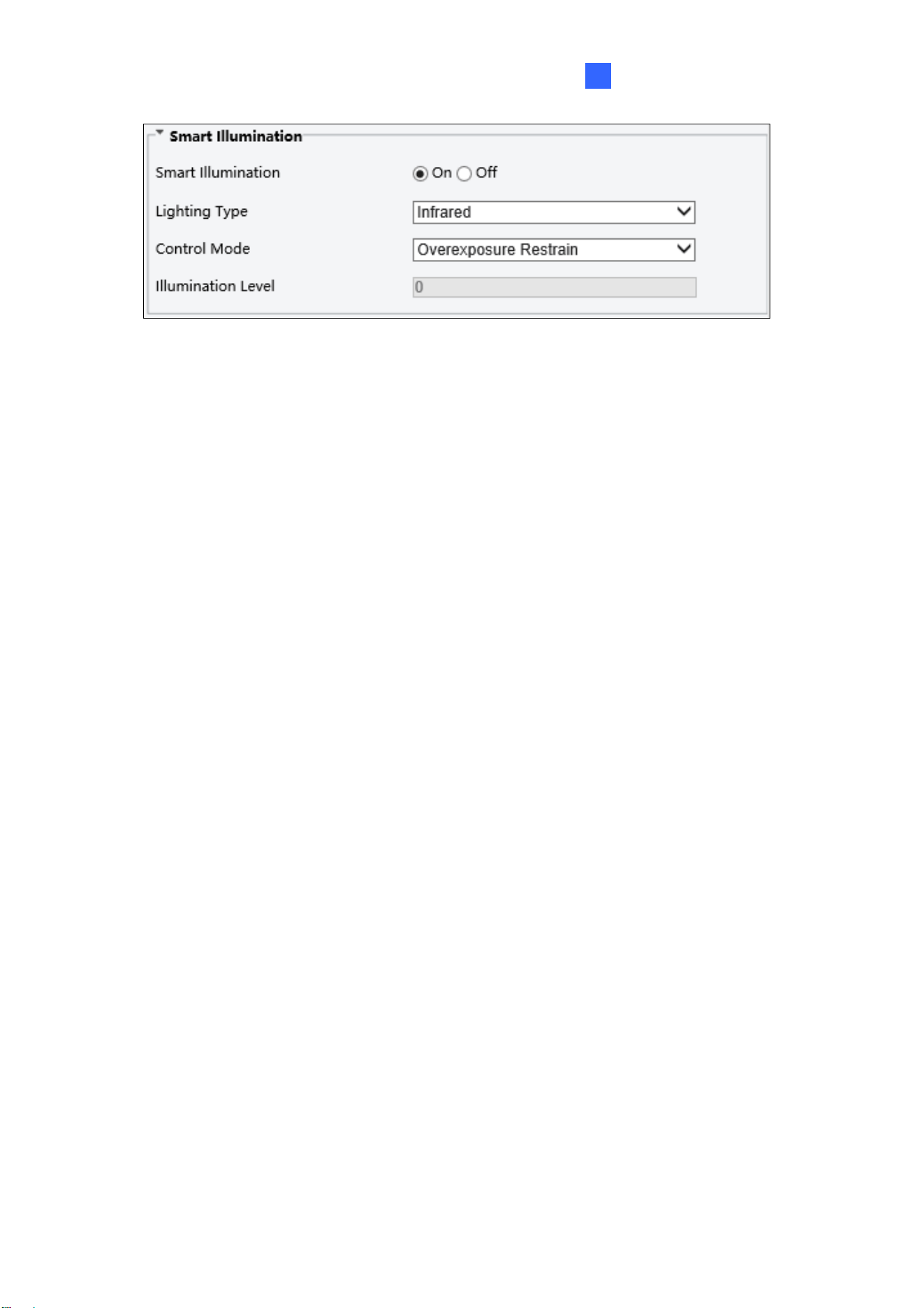

Figure 3-22
[Smart Illumination]
Smart Illumination: Select On to adjust the IR illumination settings.
Control Mode:
Global Mode: Adjust IR illumination and exposure to achieve balanced image
effects. Some areas might be overexposed if you select this option. This option is
recommended if monitored range and image brightness are your first priority.
Overexposure Restrain: Adjust IR illumination and exposure to avoid regional
overexposure. Some areas might be dark if you select this option. This option is
recommended if clarity of the central part of the image and overexposure control are
your first priority.
Manual: Allow you to manually control the intensity of IR illumination.
Illumination Level: Set the intensity level of the IR light. The greater the value, the
higher the intensity. 0 means that the IR light is turned off. You can only set the intensity
level of the IR light when Control Mode is set to Manual.
100

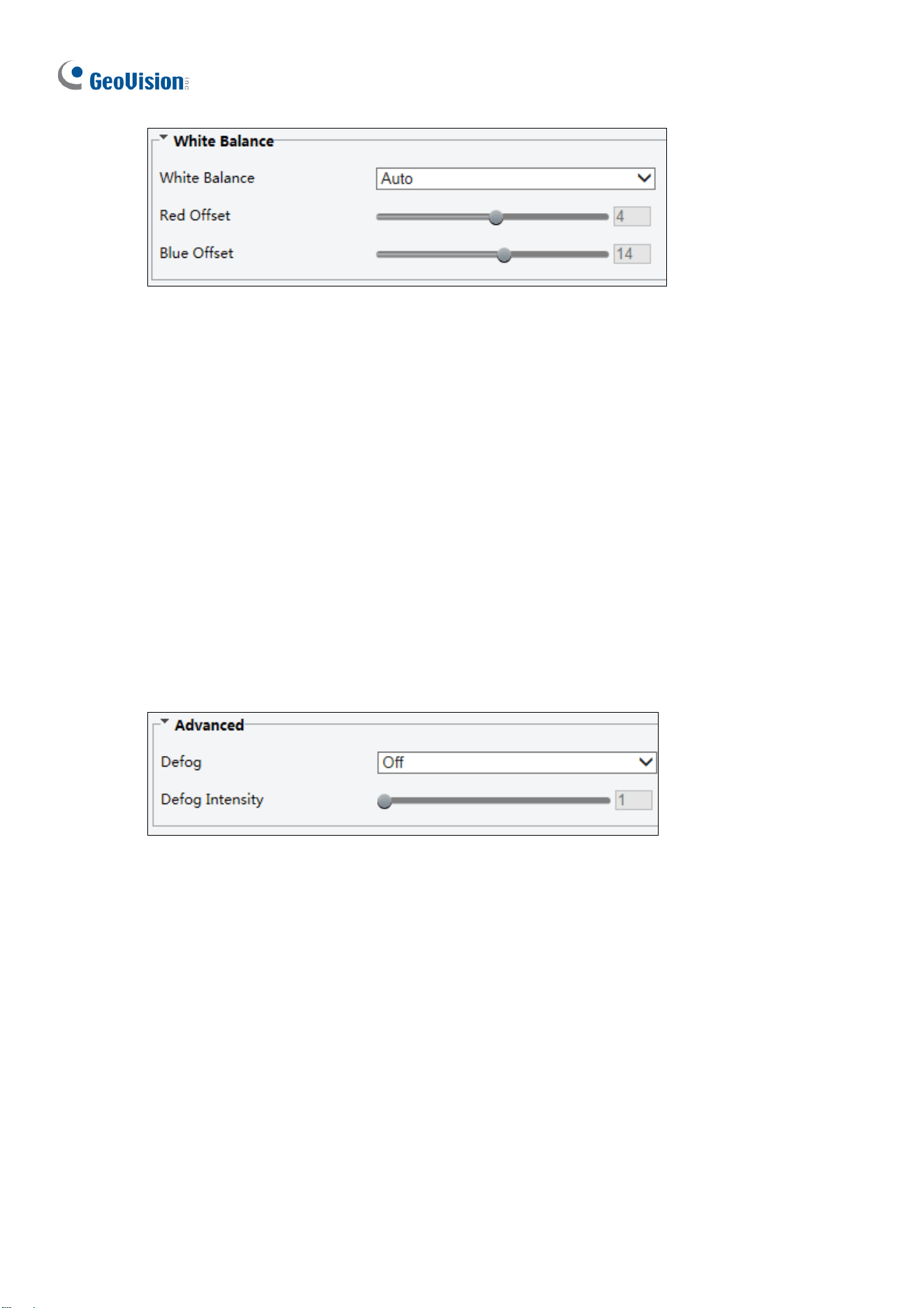

Figure 3-23
[White Balance]
White Balance: Adjust the red or blue offset of the image.
Auto: Adjust the red and blue offset automatically according to the light condition
(the color tends to be blue).
Outdoor: It is recommended for outdoor scenes with a wide range of color
temperature variation.
Fine tune: Allow you to adjust the red and blue offset manually.
Sodium Lamp: Adjust the red and blue offset automatically according to the light
condition (the color tends to be red).
Locked: Lock the current color temperature settings without adjustment.
Figure 3-24
[Advanced]
Defog: Select On to activate the slider for adjusting the defog intensity of the image.
Or select Automatic for the camera to adjust the defog intensity automatically.
Administrator Mode
101
3
3.4.2 OSD
On Screen Display (OSD) is the text displayed on the screen of video images and may
include the date and time and other customized contents.
3.4.2.1 For all models except GV-EBD2702
Figure 3-25
1. Enable a No. to select an area #, and click Overlay OSD Content to select the content to
display on the screen.
2. Adjust the position of the Area 1/2/3 boxes either by dragging them directly on the live
view or by specifying the coordinates under X-Axis / Y-Axis column.
3. Under Display Style, customize the text style and date/time format and use Min. Margin,
to adjust the minimum margin between the OSD and the image’s border.
102

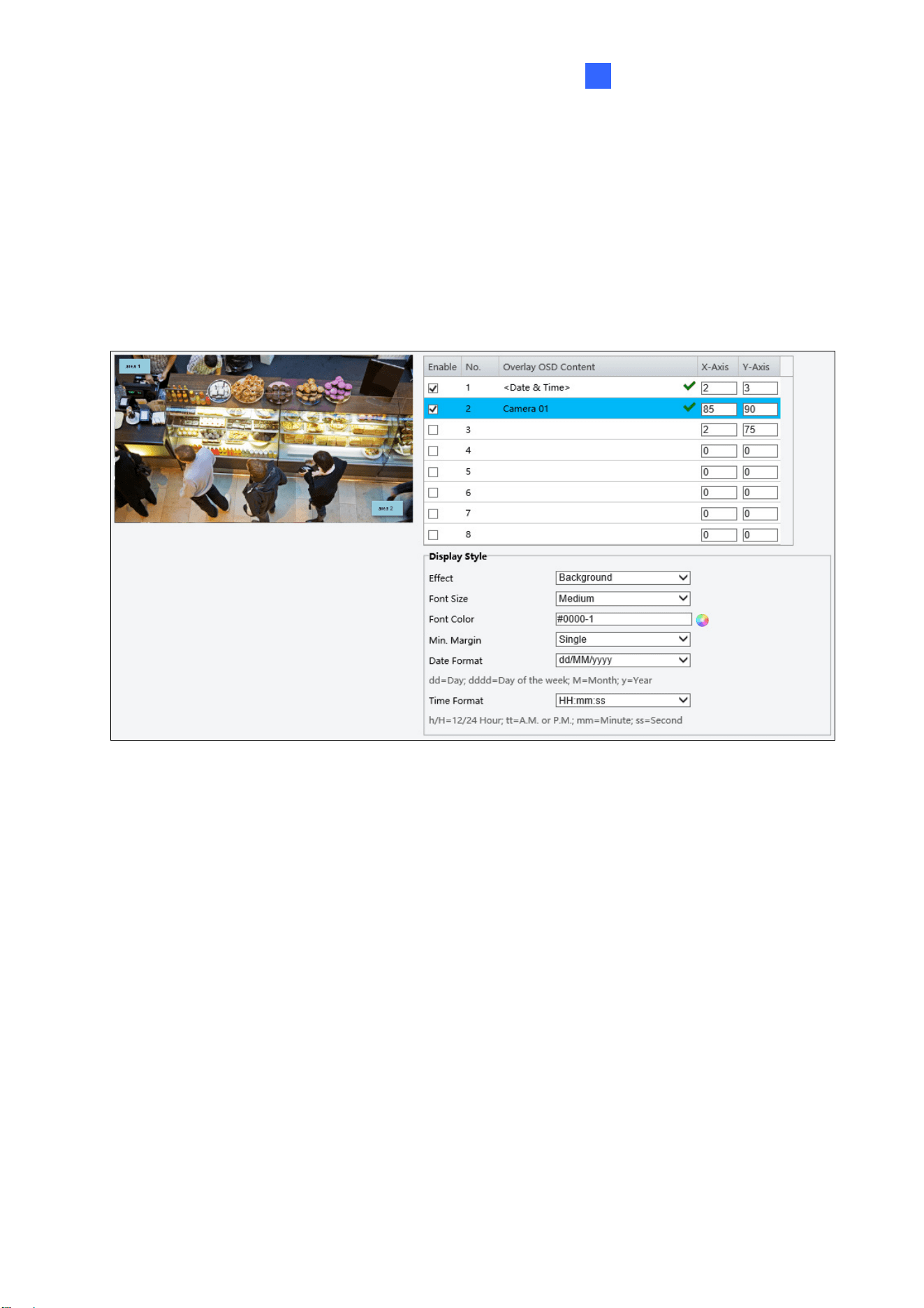

3.4.2.2 For GV-EBD2702

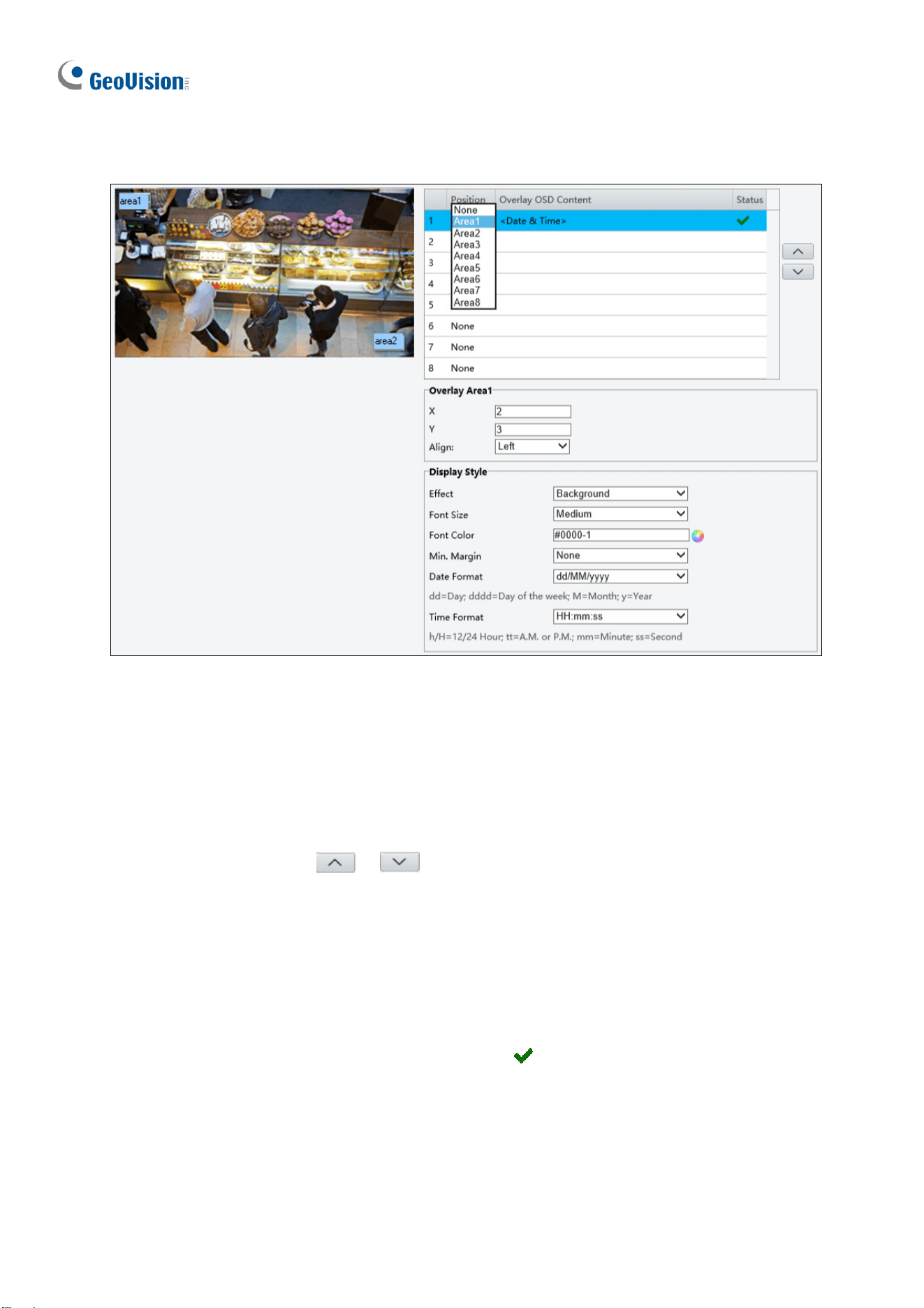

Figure 3-26
1. Click Overlay OSD Content to select the content or type a self-defined text to be
displayed on the screen.
2. Click Position and select from Areas 1 to 8 to specify the position of the OSD on the
image. If more than one OSD are specified to one Area #, they are displayed at the same
position in numerical order, as accorded to the number column.
3. Click the arrow buttons
or to adjust the order of the OSD displayed.
4. Adjust the position of the Area 1/2/3 boxes either by dragging them directly on the live
view or by specifying the coordinates under X-Axis / Y-Axis column.
5. Under Display Style, customize the text style and date/time format and use Min. Margin,
to adjust the minimum margin between the OSD and the image’s border.
After you have set the position and OSD content, the
symbol appears in the Status
column, which means that the OSD is set successfully.
Administrator Mode
103
3
3.4.3 Privacy Mask
On certain occasions, you may need to set a mask area to block out parts of the camera
image to protect privacy, for example, the keyboard of an ATM machine. When PTZ changes
its position or zooms, the Privacy Mask will be adjusted accordingly to protect the area all
along.
Figure 3-27
1. Click
to add and enable privacy mask.
2. Drag the Mask box to the intended position and adjust the size of the box. Alternatively,
you can also use the mouse to draw a box on the area you want to mask.
3. Repeat steps 1 and 2 to add and specify additional Mask areas. Up to eight mask areas
can be defined.
4. To delete a mask, click
.
104
3.5 Events
You can set the camera to generate an alarm upon motion detection, tampering alarm and
audio detection.
3.5.1 Motion Detection
Motion detection is used to generate an alarm whenever movement occurs in the specified
area.

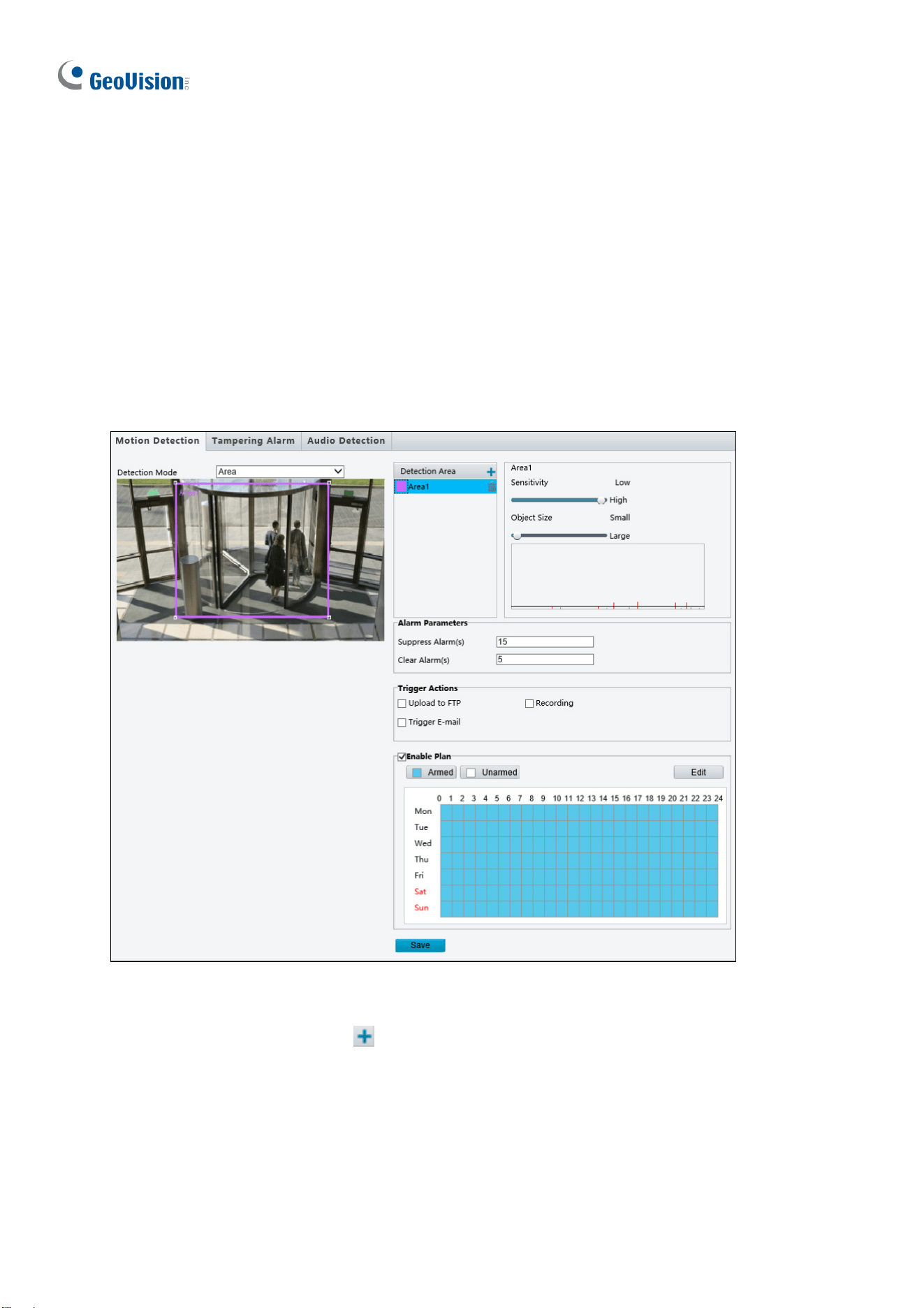

Figure 3-28
1. In the Detection Area, click to add a new detection area.
2. Click and drag the detection area to a desired location.
3. Alternatively, select Grid as the Detection Mode to specify the area for detection.
Administrator Mode
105
3
4. You can use the following functions to reduce false alarm.
Sensitivity: Move the slider to the right increases detection sensitivity.
Object Size: When the extent of motion within the detection area exceeds the set
object size, motion detection alarm is triggered.
[Alarm Parameters]
Suppress alarm: After an alarm is triggered, the same alarm will not be reported within
the set time.
Clear alarm: After an alarm is triggered,
If the same alarm is not triggered within the set time, the alarm will be cleared and
the same alarm can be reported again.
If the same alarm is triggered within the set time, the alarm will not be cleared until
the suppress alarm time expires. Then the same alarm can be reported again.
[Trigger Action]
Upload to FTP: Select to automatically upload snapshots to the specified FTP server
upon motion detection.
Recording: (only for GV-EBD2702 / 4711 / 8711, GV-AVD2700 / 4710 / 8710,
GV-ABL2702 / 4712 / 8712) Select to automatically start recording videos to the
camera’s local storage upon motion detection. Recording is selected on default.
Trigger E-mail: Select to automatically send snapshots to the specified e-mail
address(s) upon motion detection.
Note:
1. For the Upload to FTP function, make sure to configure the settings in 3.6.2 FTP and
3.3.2 Snapshot first.
2. For the Trigger E-mail function, make sure to configure the settings in 3.2.5 E-mail and
3.3.2 Snapshot first.
106
[Enable Plan]
Select this option to set the start and end times during which motion detection alarm is
enabled. You can directly drag the mouse to draw a plan or click Edit to edit time periods in
the table. You can set up to four periods for each day, and the time periods cannot overlap.
The camera reports alarms during the specified period(s) only.

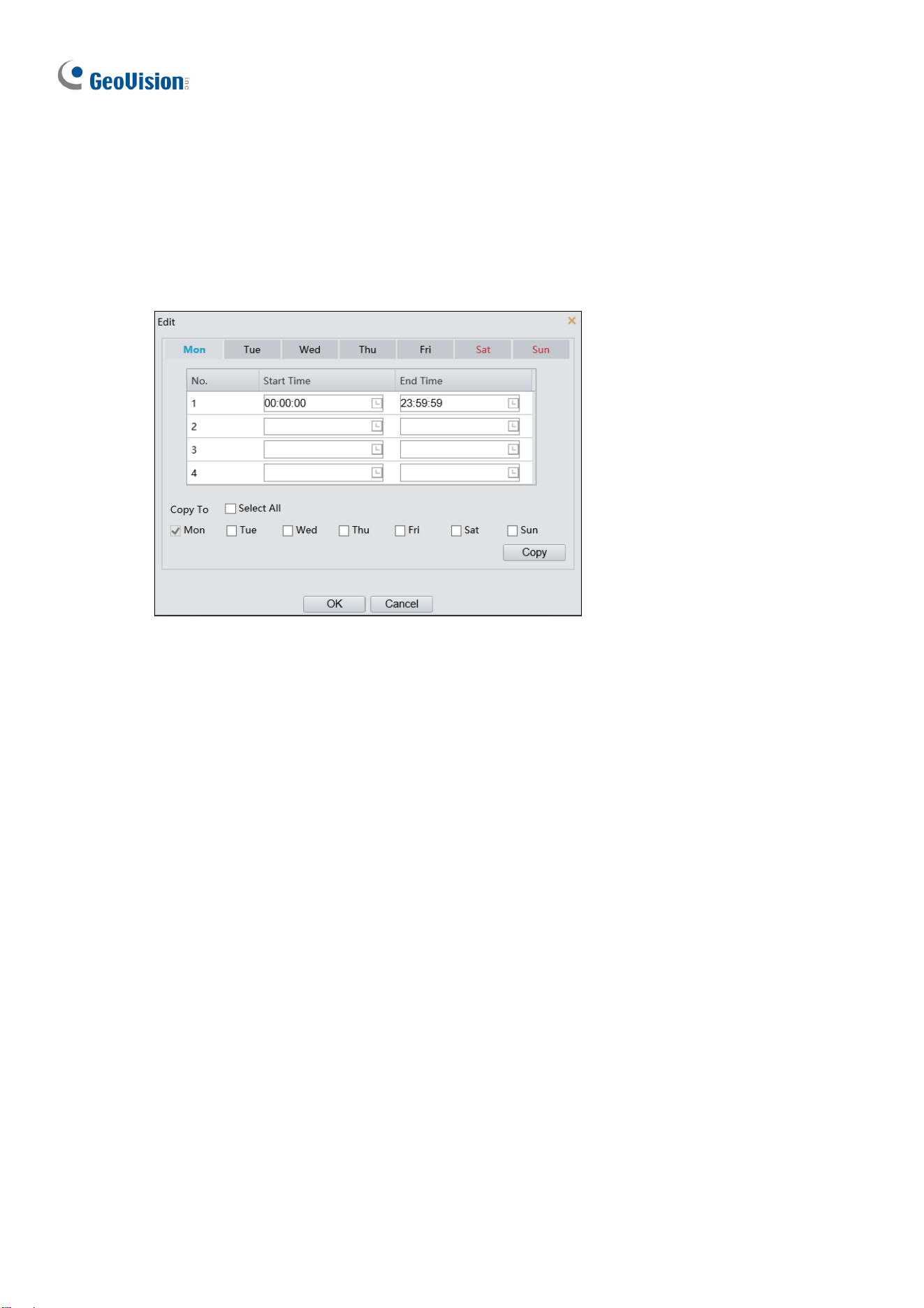

Figure 3-29
Administrator Mode
107
3
3.5.2 Tampering Alarm
Note this function is only applicable to GV-EBD2702 / 4700 / 4711 / 8711, GV-ABL2702 /
4712 / 8712 and GV-AVD2700 / 4710 / 8710.
Tampering alarm is used to detect when the camera is being physically tampered with. An
alarm can be generated when the camera is moved, covered up, or out of focus.
Figure 3-30
1. Select On to enable Tampering Alarm.
2. You can use the following functions to adjust the alarm settings.
Sensitivity: Move the slider to increase or decrease detection sensitivity.
Duration: Specify the duration of the alarm after which the triggered output device
will be turned off.
3. Select the actions to be triggered by a tampering alarm and set a schedule plan if needed.
Refer to 3.5.1 Motion Detection for detailed instructions.
108
3.5.3 Audio Detection
Note this function is only applicable to GV-EBD2702 / 4711 / 8711, GV-ABL2702 / 4712 /
8712 and GV-AVD2700 / 4710 / 8710.
Audio detection is used to detect abnormal audio volume. When the rise, fall, or change of
volume exceeds the set limit, or when the input volume reaches the set threshold, an alarm
is generated. Make sure audio input is enabled.

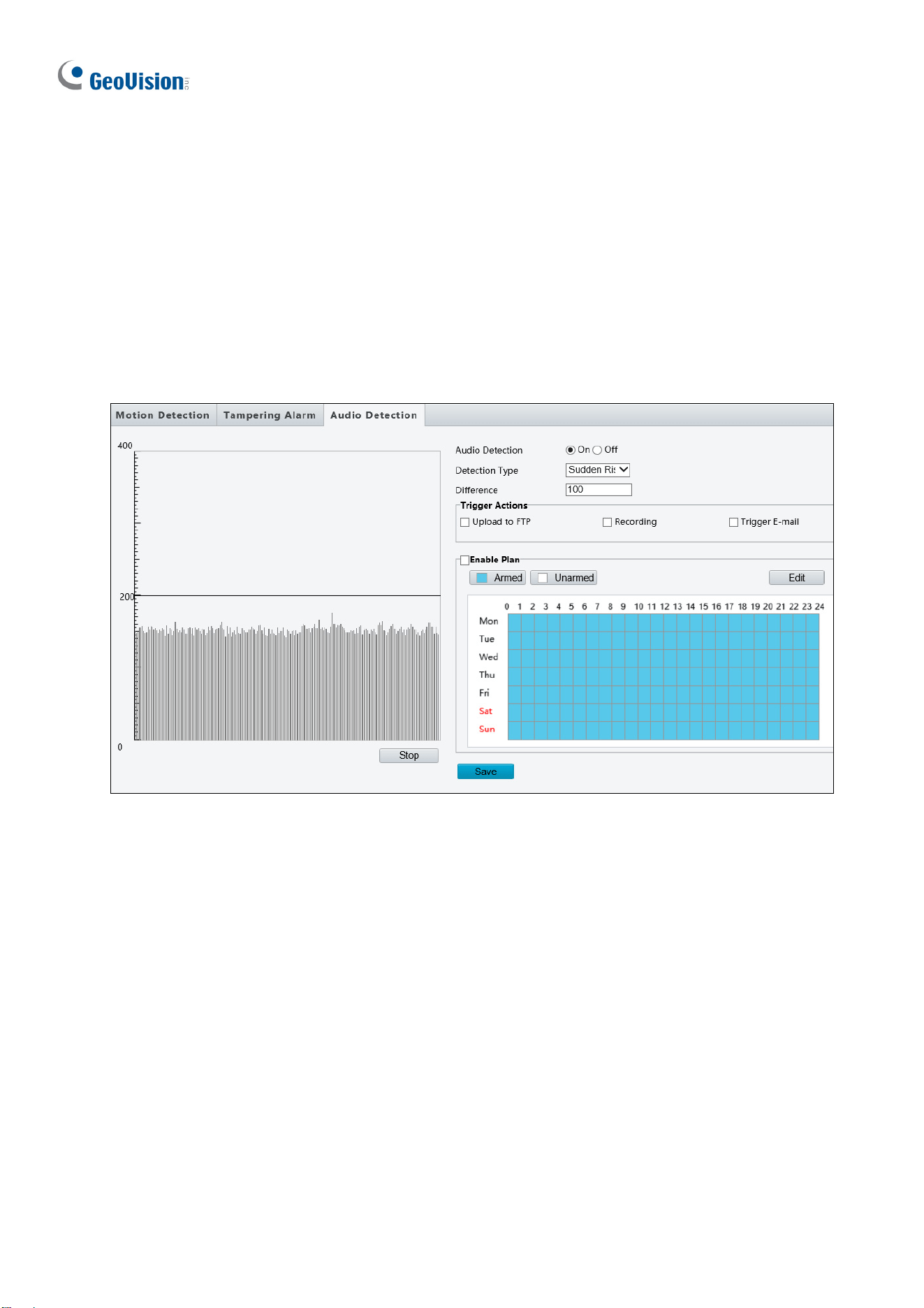

Figure 3-31
1. Select On to activate Audio Detection.
2. Select a Detection Type.
Sudden Rises: .An alarm is reported when the rise of volume exceeds the set
Difference.
Sudden Fall: An alarm is reported when the fall of volume exceeds the set
Difference.
Sudden Change: An alarm is reported when the rise or fall of volume exceeds the
set Difference.
Threshold: An alarm is reported when the volume exceeds the set Threshold.
3. Set a Difference or Threshold.
Select the actions to be triggered by an audio alarm and set a schedule plan if needed. Refer
to 3.5.1 Motion Detection for detailed instructions. Alarm Input
Administrator Mode
109
3
The camera can receive alarm information from an input device.

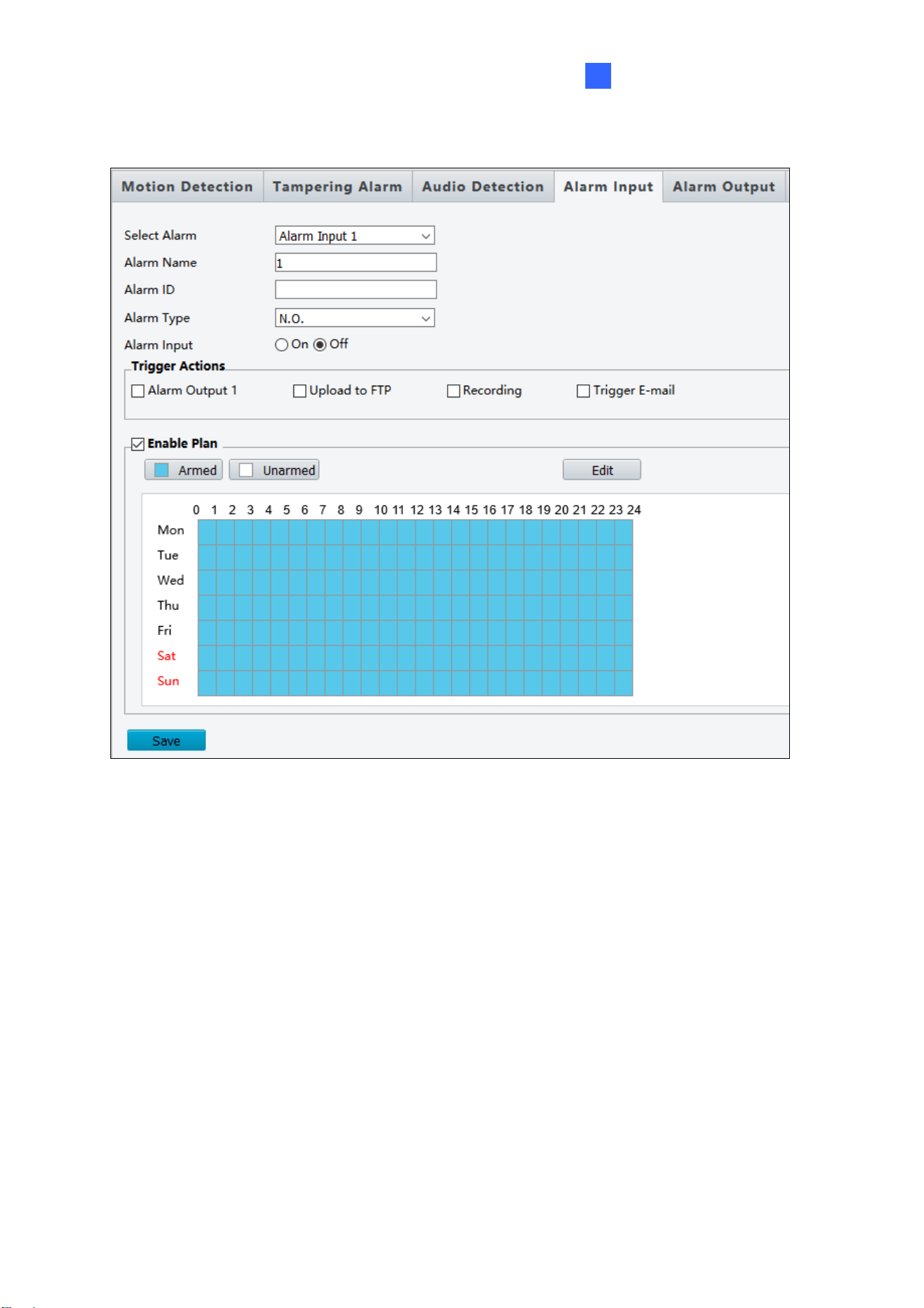

Figure 3-32
1. Select Alarm Input 1 or Alarm Input 2 from the drop-down list.
2. Type an Alarm Name, and set an alarm ID.
3. Select Normally Open or Normally Closed according to the type of the alarm input
device.
4. Select Enable next to Alarm Input.
5. Select the actions to be triggered by an input alarm and set a schedule plan if needed.
Refer to 4.6.1 Motion Detection for detailed instructions.
6. Click Save.
110
3.5.5 Alarm Output
After alarm output is triggered by a motion detection alarm, temperature alarm or input alarm,
the camera can trigger an output device.

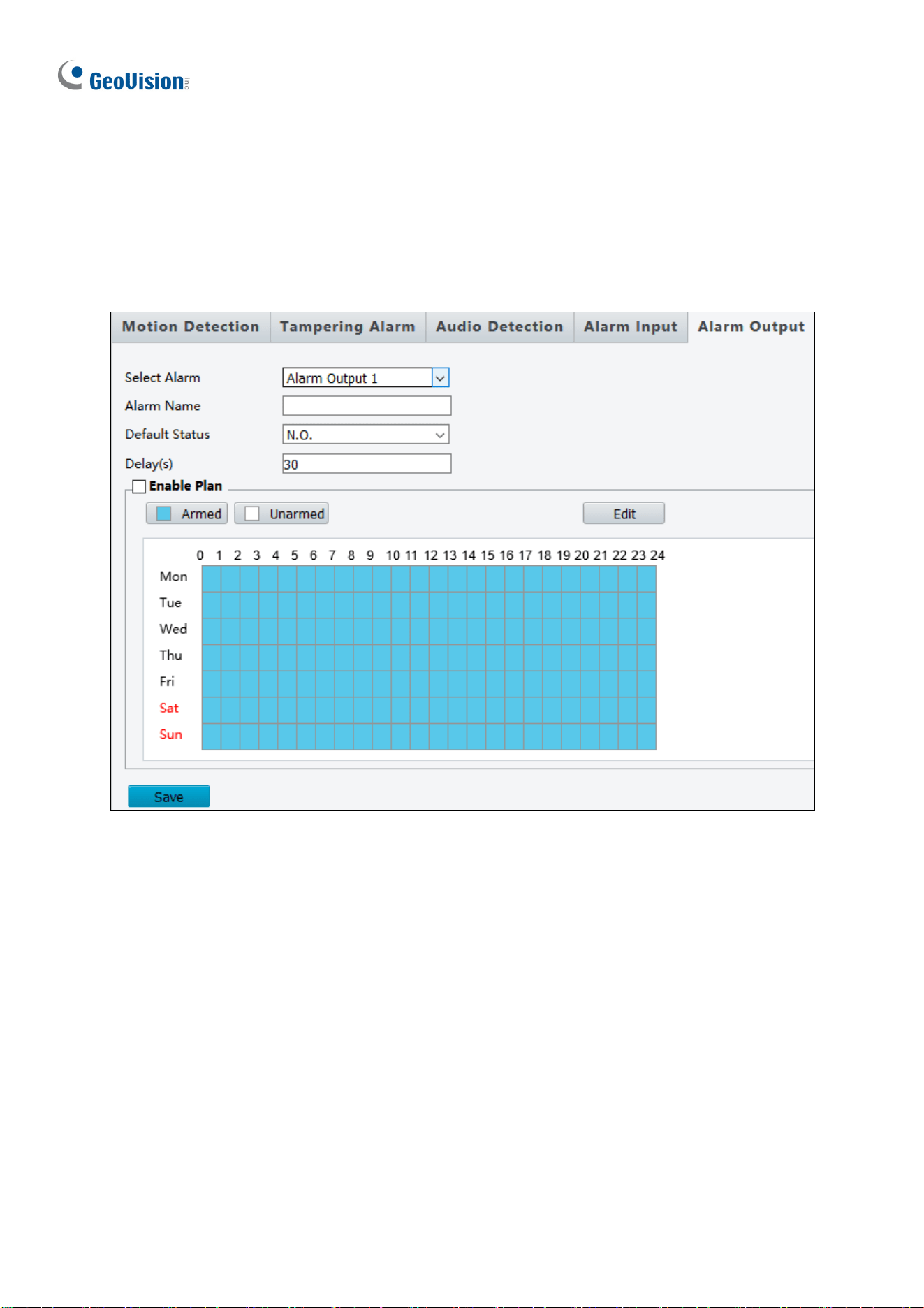

Figure 3-33
1. Type and Alarm Name for the output device.
2. Set the status to Normally Open (default setting).
3. Set the alarm duration.
4. Set a schedule plan if needed. Refer to 4.6.1 Motion Detection for detailed instructions.
5. Click Save.
Administrator Mode
111
3
3.6 Storage
This section allows you to configure storage related settings and set up FTP server.
3.6.1 Storage
Note this function is only applicable to GV-EBD2702 / 4711 / 8711, GV-ABL2702 / 4712 /
8712 and GV-AVD2700 / 4710 / 8710.
After inserting a memory card, you need to reboot the camera and refresh the Web interface.
You can configure the storage settings on the Storage page.

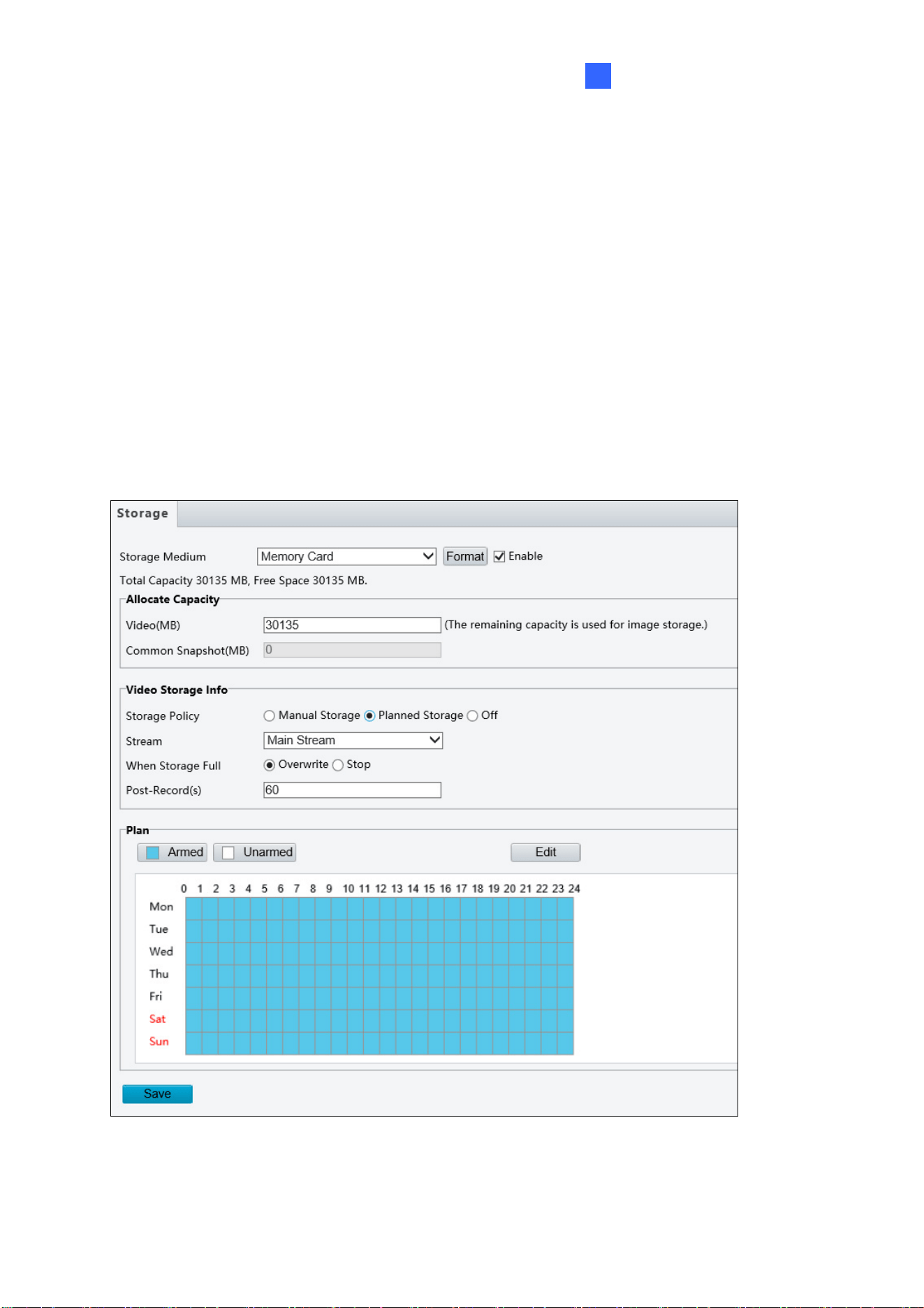

Figure 3-34
112
Storage Medium: Click the Format button to format the memory card before you start
recording and Enable the memory card.
[Allocate Capacity]
Video: Set the storage capacity used to store recorded videos. The remaining capacity
is used for captured snapshots.
Common Snapshot: The storage capacity used to store captured snapshots.
[Video Storage Info]
Storage Policy: Choose the Storage Policy from the three options.
Manual Storage: Manually start recording.
Planned Storage: Start recording by schedule. For detailed instructions, refer to
Enable Plan section, 3.5.1 Motion Detection.
Off: Stop recording.
Stream: Select the stream you want to use for recording.
When Storage Full:
Overwrite: If there is no free space in the memory card, new data will overwrite the
existing date repeatedly.
Stop: If there is no free space in the memory card, new data will not be saved to the
memory card.
Post Record: When an alarm is raised, the camera is triggered to record live video and
continues recording for the specified post-record time after the alarm is cleared.
Enable Plan: You can set a schedule plan to enable round-the-clock recording. Refer to
Enable Plan section, 3.5.1 Motion Detection for detailed instructions.
Administrator Mode
113
3
3.6.2 FTP
After the configuration of FTP, you will be able to upload snapshots from the camera to the
specified FTP server.

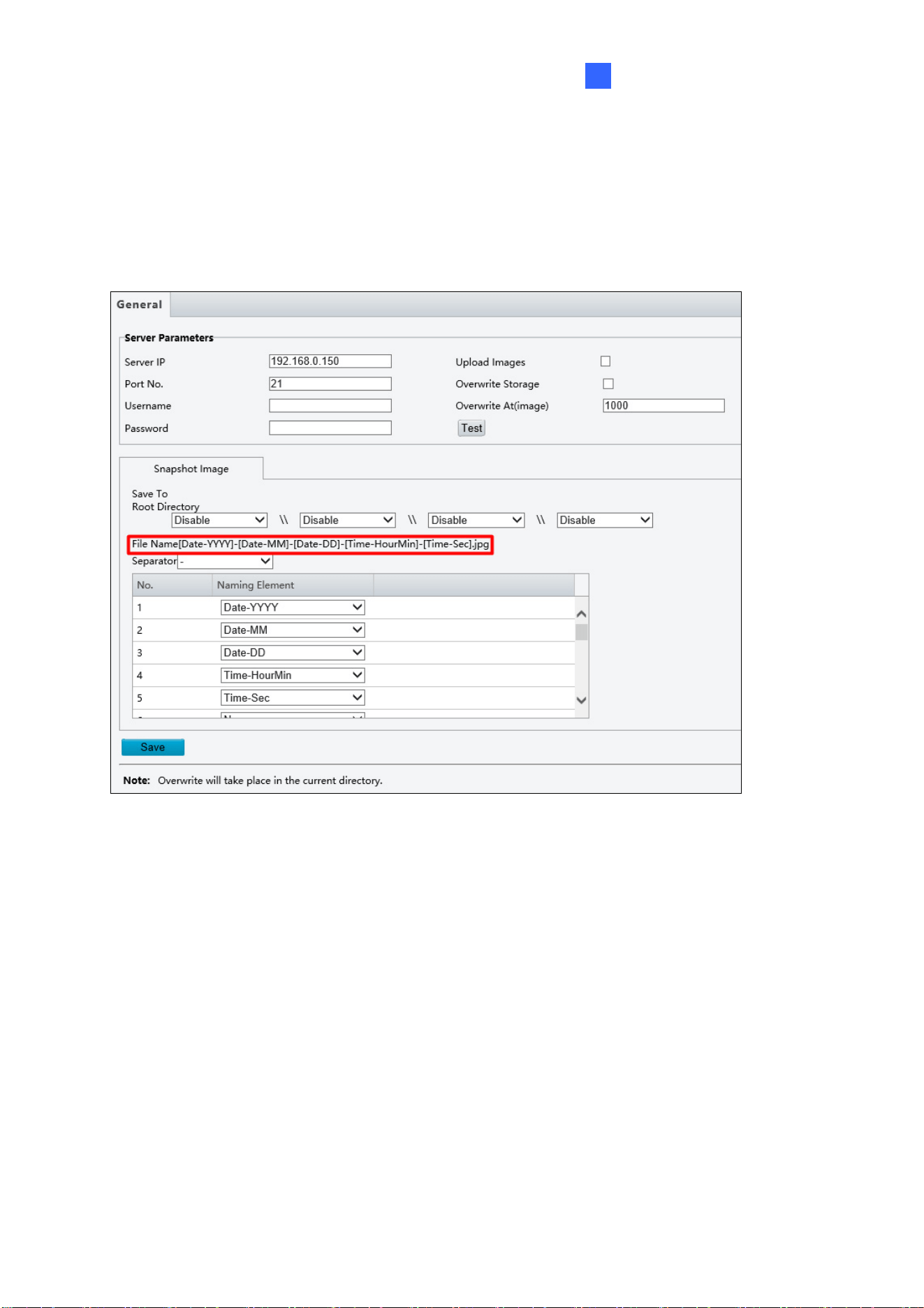

Figure 3-35
1. Type the Server IP address.
2. Change the Port No. of the FTP server if needed.
3. Type the Username and Password of the upload account.
4. Enable Upload Images.
5. Select Overwrite Storage to overwrite the oldest images when the storage is full. You
can set the maximum number of images allowed in Overwrite At (Image). When the
defined image threshold is reached, the oldest image is overwritten.
6. Save To Root Directory: Select a directory in which to save the images, or select
Custom to name a storage folder on the FTP server.
7. Under File Name, select a Separator and a combination of Naming Element(s) to name
the snapshots captured. A template of the file name is shown.
8. Click Save.
114
For GV-EBD2702 / EBD4711 / EBD8711, GV-ABL2702 / 4712 / ABL8712 and
GV-AVD2700 / 4710 / 8710 only, click the
button under Server Parameters to Test for
the connection to the FTP server.
Note:
1. To upload snapshots, make sure to enable the Snapshot function. For more detailed
instructions, refer to 3.3.2 Snapshot.
2. If Overwrite Storage is not selected and the storage is full, snapshots can no longer be
taken.
Administrator Mode
115
3
3.7 Security
This section allows you to create user accounts and set the network security settings.
3.7.1 User
There are two types of accounts: Administrator and Common User.
Administrator: The default name of the administrator is admin, which cannot be
modified. Admin has full permission and can manage all users and devices. Only one
admin account is allowed in the system.
Common Users: The user only has permission to play live and recorded video. Up to
31 common users are allowed in the system.
The administrator can create new accounts for common users. After the user is added
successfully, the administrator can change the password by entering the new password or
delete the user by clearing the username.

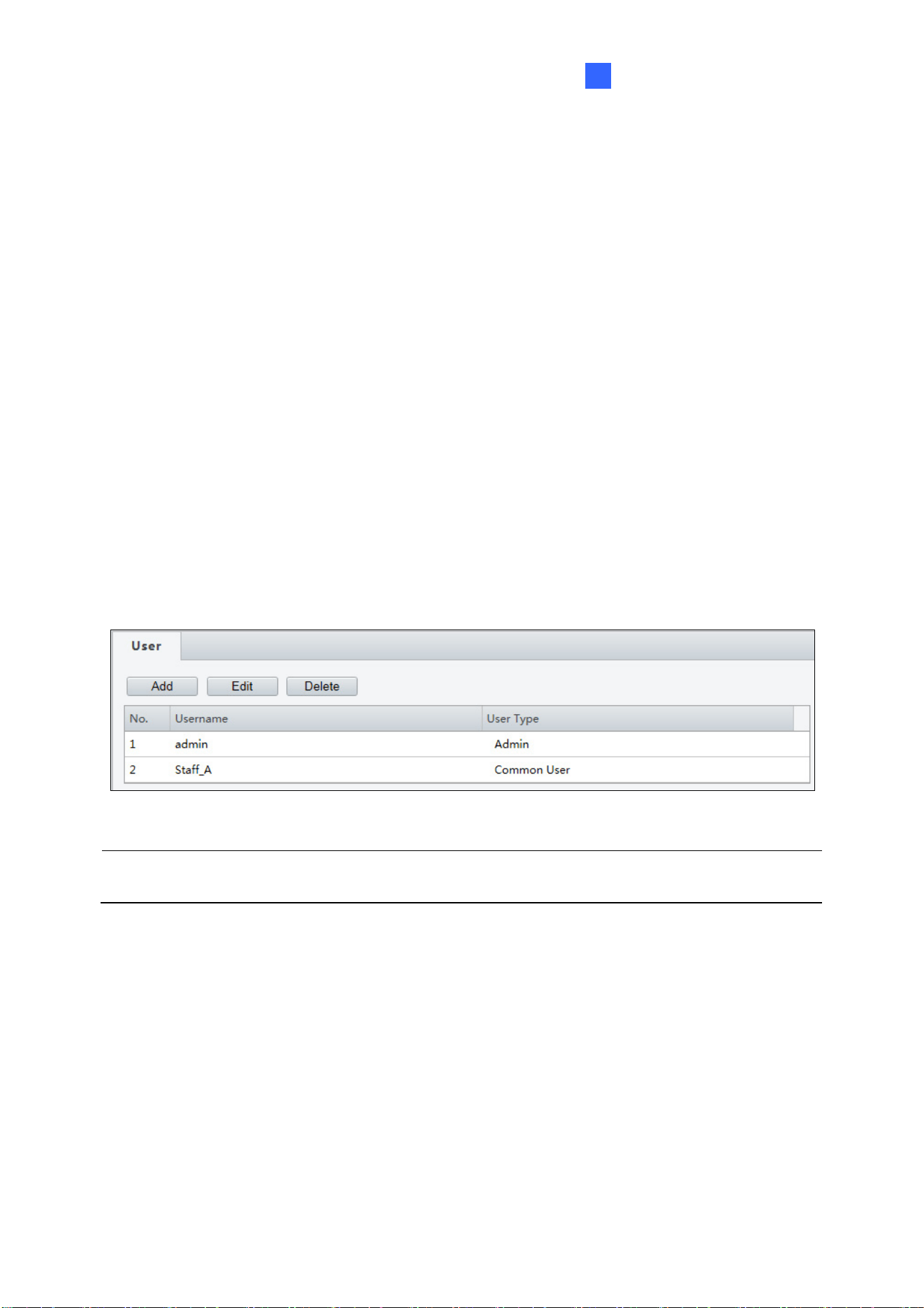

Figure 3-36
Note: Changing the username or password of a user while the user is logged in will force the
user to log out. The user must use the new username or password to log in.
116
3.7.2 Network Security
There are five types of network security settings: HTTPS, Authentication, ARP Protection,
IP Address Filtering and Access Policy.
HTTPS
You can enable the Hypertext Transfer Protocol Secure (HTTPS) settings to access the
camera through a secure protocol. Click On to enable and click Save.

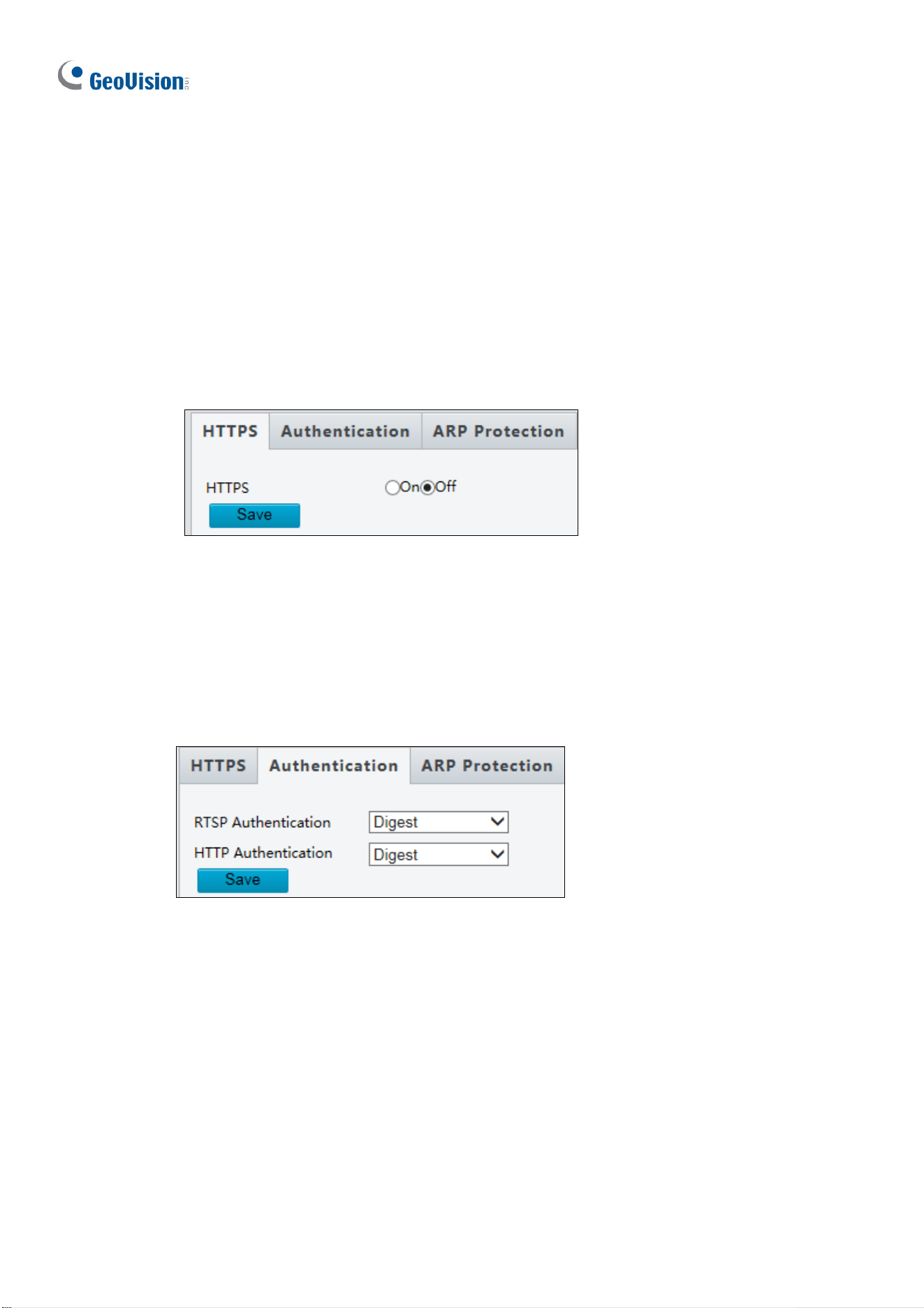

Figure 3-37
Authentication
RTSP (Real Time Streaming Protocol) and HTTP (Hypertext Transfer Protocol) are different
application layer protocols for transmitting video. Set the Authentication mode for RTSP
streaming or HTTP streaming.
Figure 3-38
For RTSP command, see Appendix B.
For HTTP command, see Appendix C.
Administrator Mode
117
3
ARP Protection
This function can protect the camera from ARP attacks. When the camera visits an IP of
another network segment via a gateway, it can only communicate with the MAC address
binding to the gateway address in the same segment.

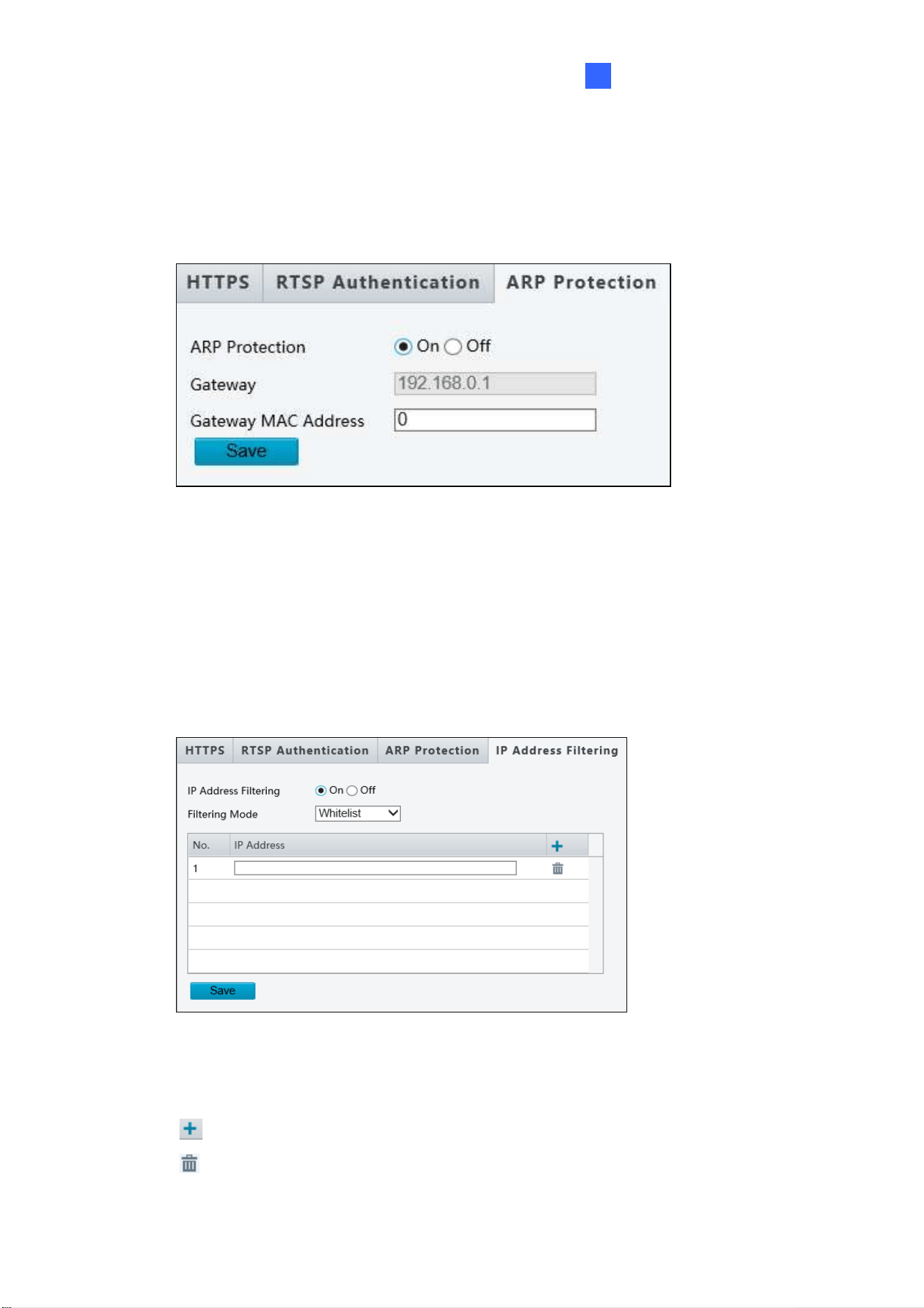

Figure 3-39
1. Select On to enable ARP Protection.
2. Type Gateway MAC Address.
3. Click Save.
IP Address Filtering
Figure 3-40
1. Select On to enable IP Address Filtering.
2. Choose a Filtering Mode: Whitelist or Deny Access.
3. Click
to add an IP address.
4. Click
to delete an IP address.
5. Click Save.
118
Access Policy
Access Policy measures the strength of account passwords upon login.

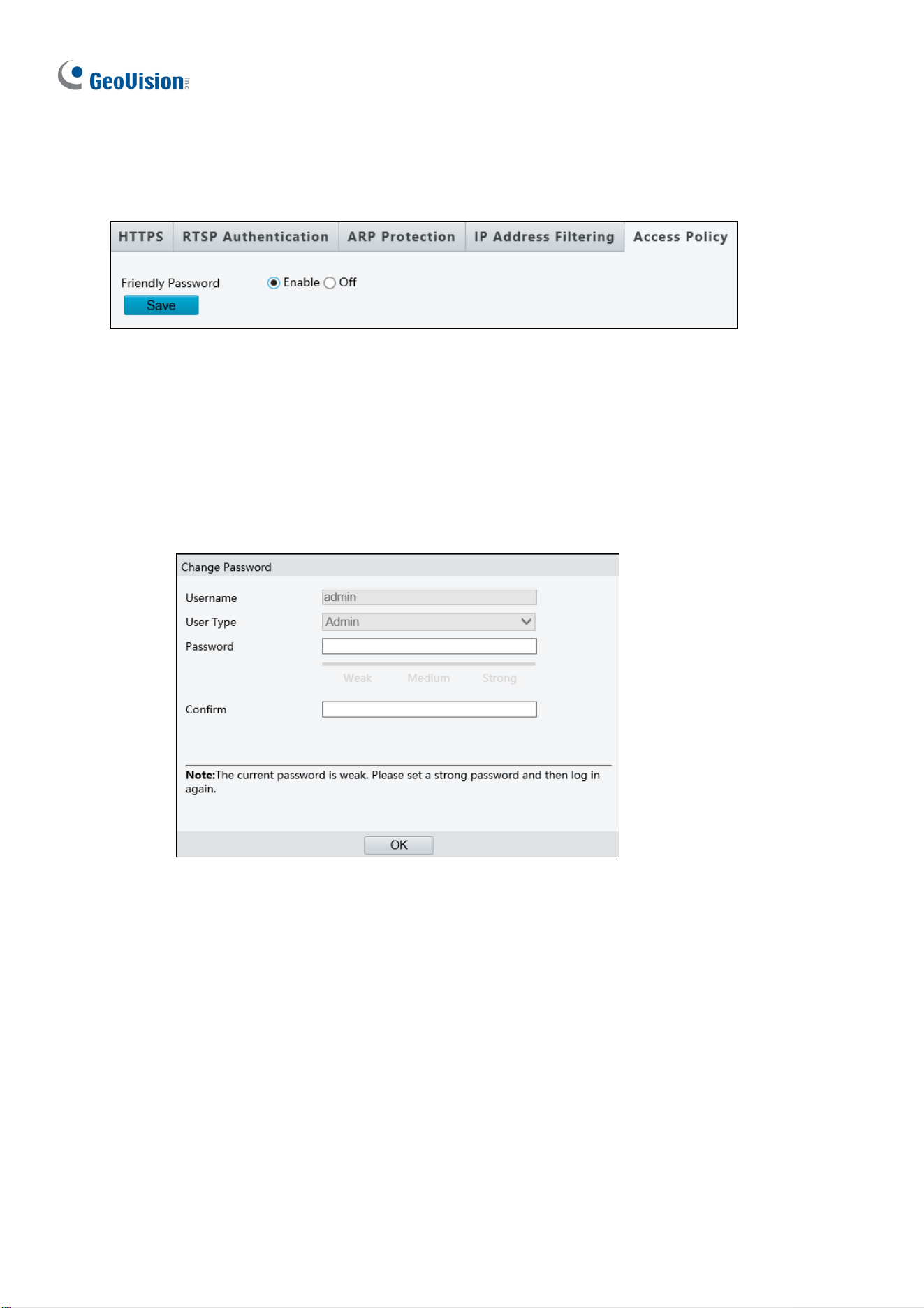

Figure 3-41
By enabling Friendly Password, the camera measures the strength of account passwords
upon login but do not force users to change the passwords when they are determined as
weak. Friendly Password is enabled by default. When Friendly Password is turned Off and
the account password is measured as weak, the camera will prompt you to change the
password.
Figure 3-42
Administrator Mode
119
3
3.8 System
This section allows you to set the camera time and update the firmware.
3.8.1 Time
You can use the following methods to adjust the system time of your camera.
Time
Figure 3-43
1. Select a Sync Mode.
Sync with System Configuration: Select a Time Zone, manually set a time by
clicking on the System Time, or synchronize with the computer time.
Sync with NTP Server: To synchronize with a network time server, type the IP
address of the network time server next to NTP Server Address and specify the
Update Interval.
Sync with Management Server (ONVIF): The device time is synchronized with
Management Server (ONVIF).
Sync with Latest Server Time: The device time is synchronized with the latest
updated time, either on ONVIF or the Web interface.
2. Select a Time Zone.
3. Next to System Time, manually set the camera’s time or click Sync with Computer
Time to synchronize with the time of your PC.
4. Click Save.
120
DST
To adjust the camera’s time for daylight saving time:
1. Click the DST tab at the top.

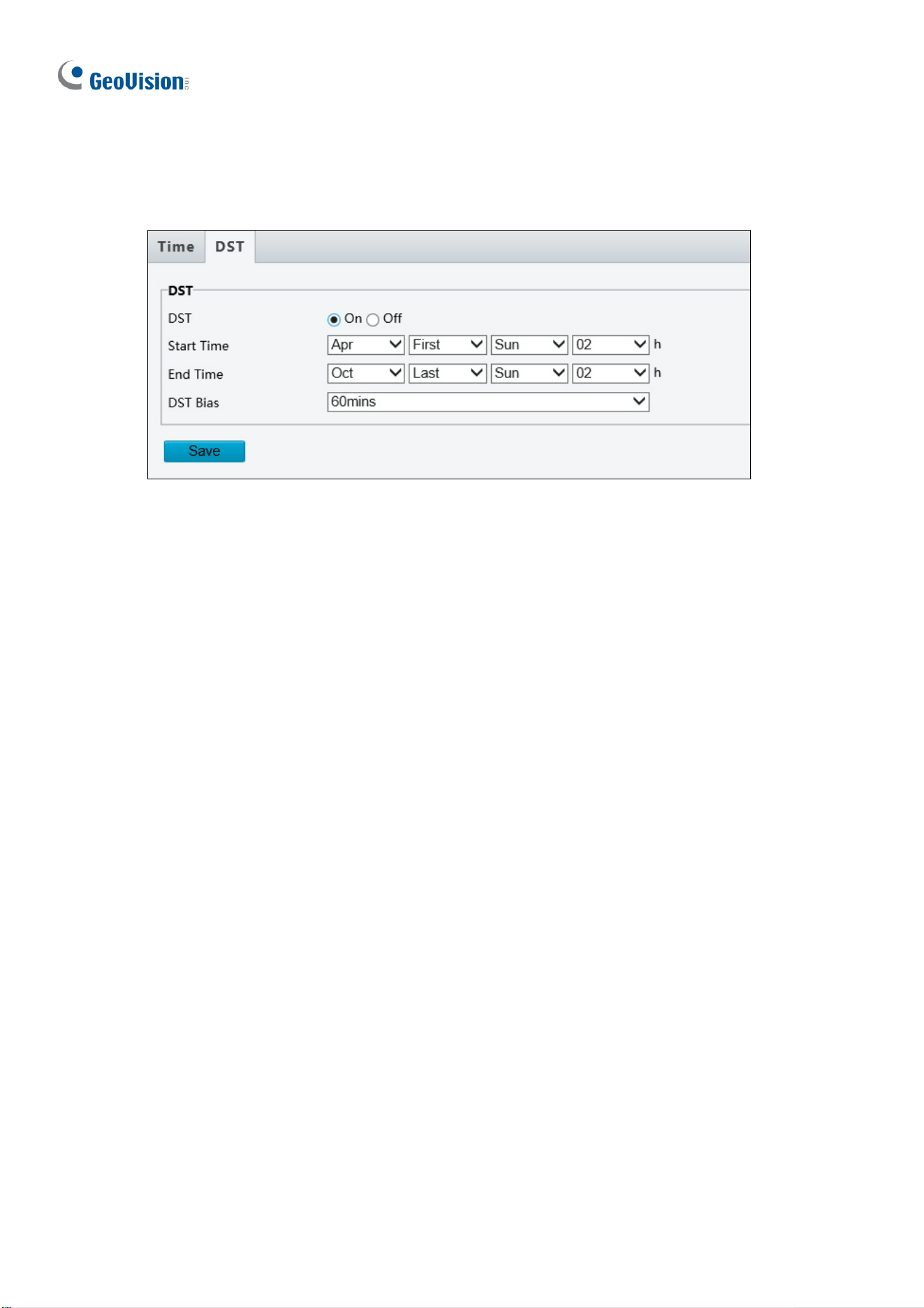

Figure 3-42
2. Select On to enable DST.
3. Set a Start Time and End Time for the daylight saving time.
4. Select a time period for DST Bias.
5. Click Save.
Administrator Mode
121
3
3.8.2 Maintenance
This section allows you to upgrade the firmware, restart the camera, and backup/import
camera configurations.

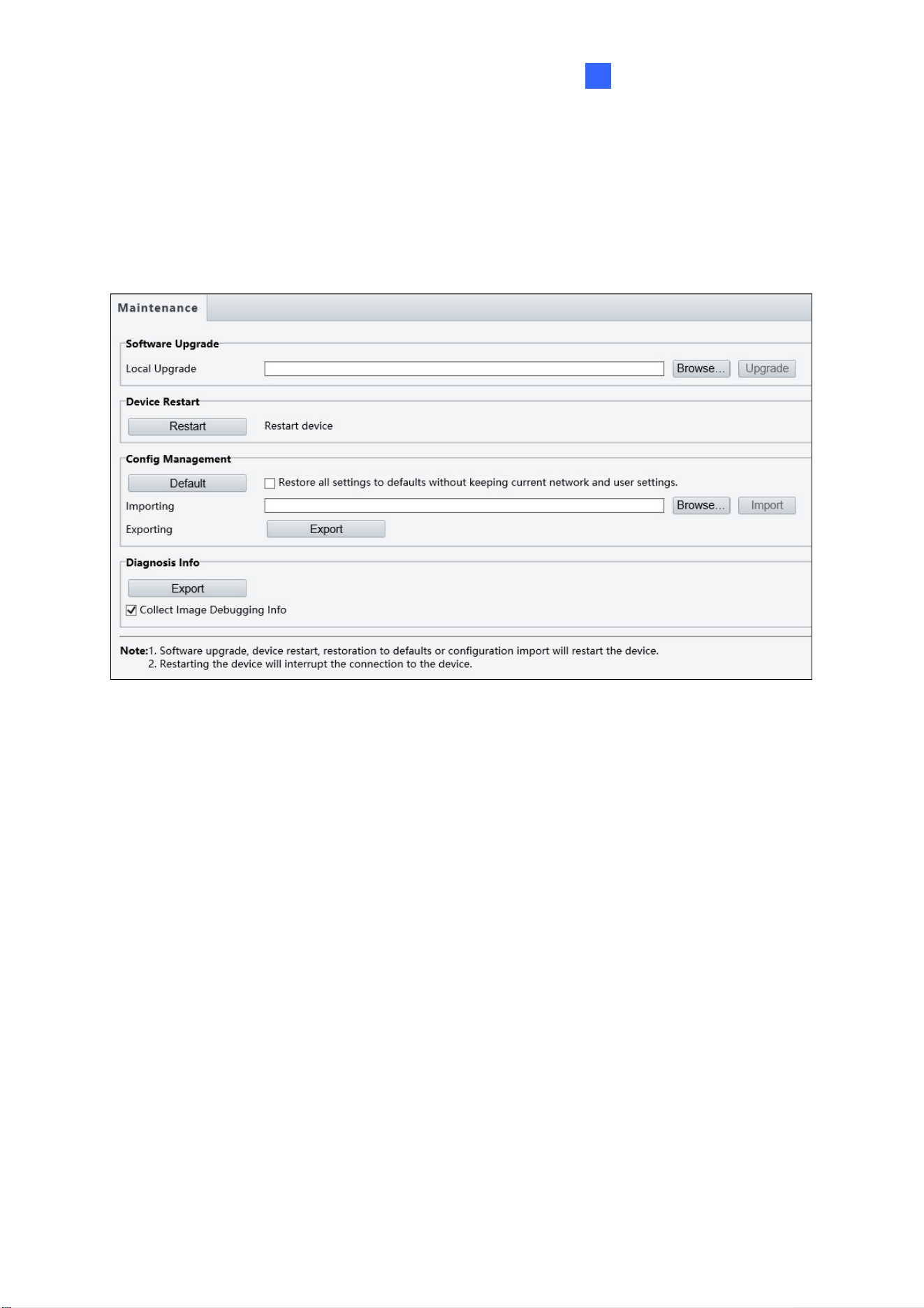

Figure 3-43
[Software Upgrade]
For detailed instructions, refer to 4.1 Upgrading System Firmware and 4.1.1 Using the Web
Interface.
[Device Restart] Click Restart to restart the device after you confirm the operation.
[Config Management] Export the current configurations of the camera and save them to the
PC or an external storage medium. You can also quickly restore configurations by importing
backup configurations stored on the PC or an external storage medium back to the camera.
[Diagnosis Info] Includes logs and system configurations. Click Export to save diagnostic
information to a destination folder on your PC.
122
Chapter 4 Advanced Applications
This chapter introduces more advanced applications.
4.1 Upgrading System Firmware
GeoVision periodically releases updated firmware on the company website. The new
firmware can be loaded into the camera using the Web interface or GV-IP Device Utility.
Important Notes before You Start
Before you start updating the firmware, please read these important notes:
1. If you use GV-IP Device Utility for firmware upgrade, the computer used to upgrade
firmware must be under the same network as the camera.
2. Stop monitoring on the camera.
3. Stop the camera’s connection to GV-VMS / DVR / NVR and all remote connections.
4. While the firmware is being updated, the power supply must not be interrupted.
WARNING: The interruption of power supply during updating causes not only update
failures but also damages to your camera. In this case, please contact our sales
representatives and send your device back to GeoVision for repair.
5. Do not turn the power off within 10 minutes after the firmware is updated.
6. If firmware upgrade fails, you will need to restore the camera back to its default settings.
For details, see 4.2 Restoring to Factory Default Settings.
Advanced Applications
123
4
4.1.1 Using the Web Interface
Log into the Web interface and follow the steps below to update the firmware.
1. At the top, click Setup.
2. In the left menu, select System and select Maintenance. This page appears.

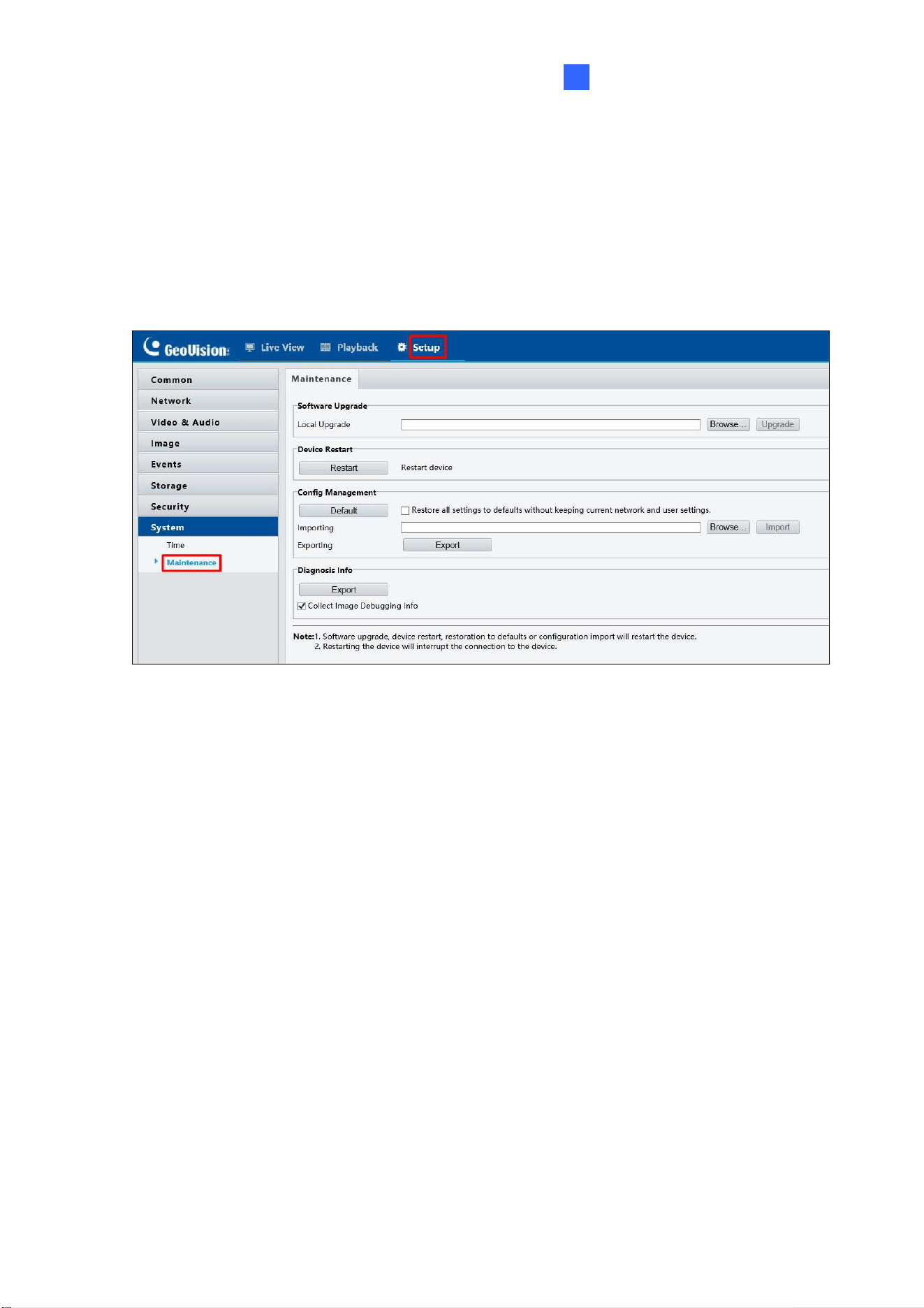

Figure 4-1
3. Click Browse under Software Upgrade to locate the firmware file (.zip) saved at your
local computer.
4. Click Upgrade to process the upgrade.
124
4.1.2 Using GV-IP Device Utility
You can upgrade the camera firmware using GV-IP Device Utility. Note the computer used to
upgrade firmware must be under the same network as the camera.
1. Download GV-IP Device Utility from
the company website
. Then follow the onscreen
instructions to install the program.
2. Double-click the GV IP Device Utility icon created on your desktop.
3. Click the camera in the list and select Configure.

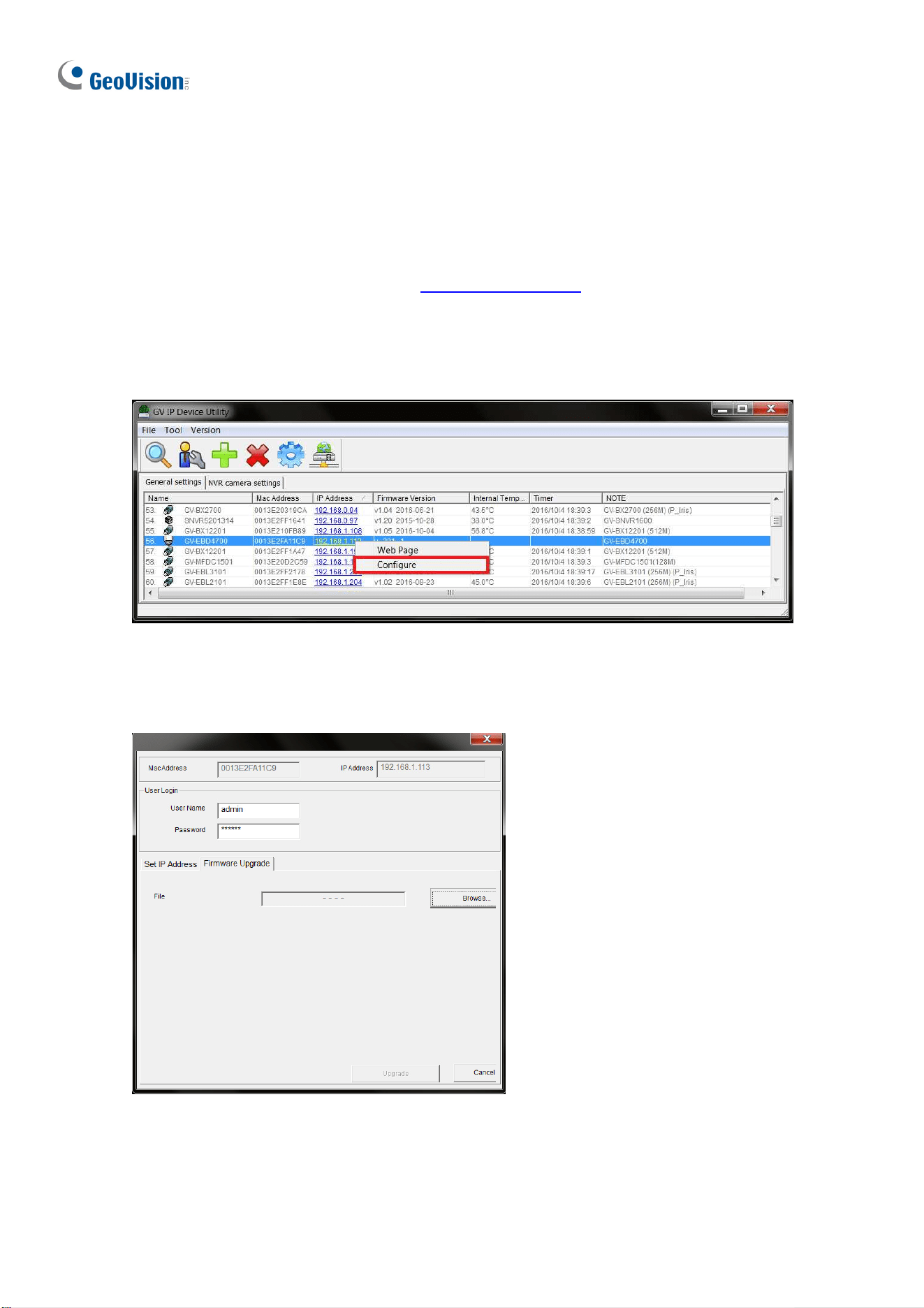

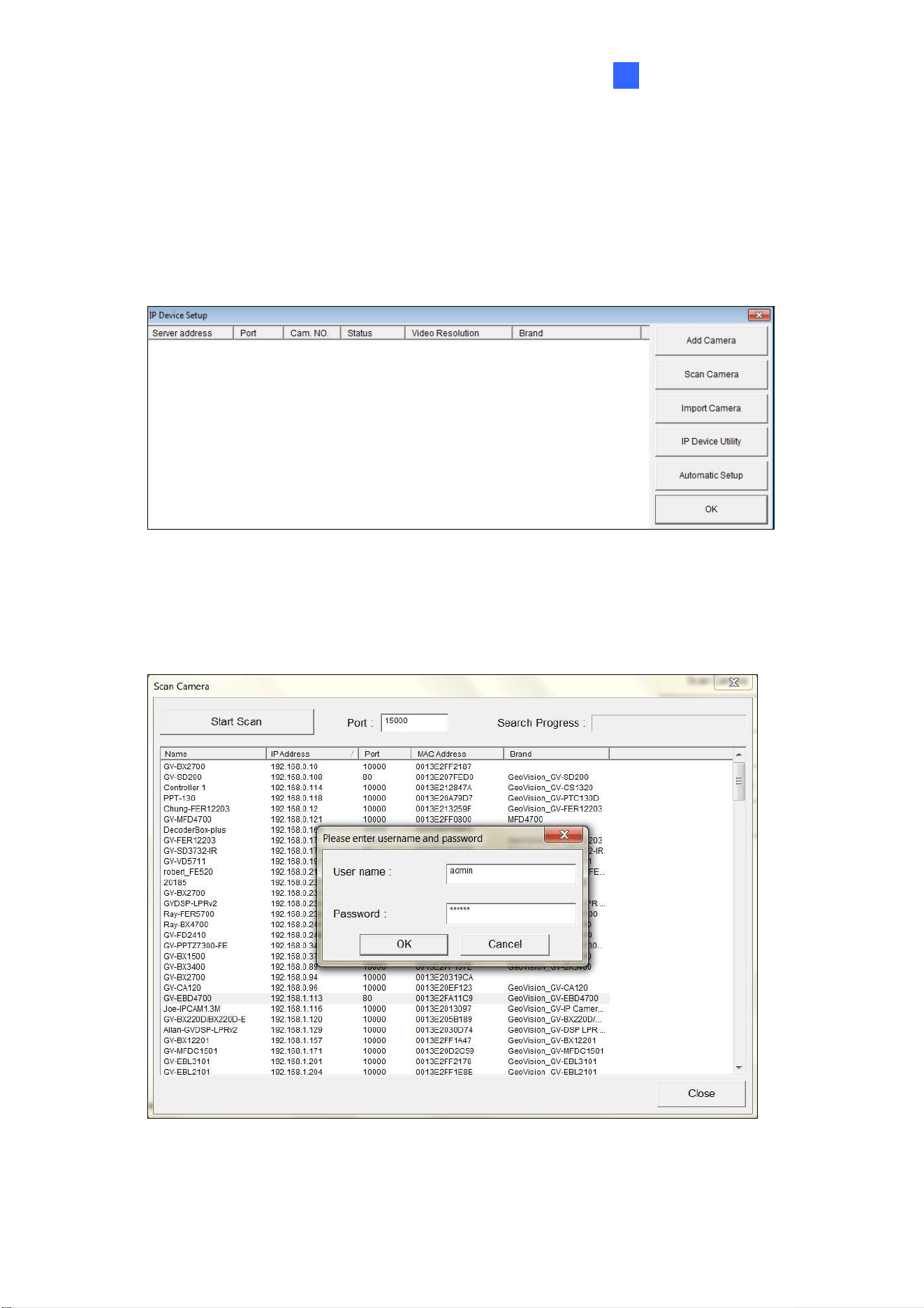

Figure 4-2
5. Type the camera’s user name and password to log in.
6. Click the Firmware Upgrade tab. This dialog box appears.
Figure 4-3
7. Click Browse to locate the firmware file (.zip) saved at your local computer.
8. Click Upgrade to start upgrading the firmware.
Advanced Applications
125
4
4.2 Restoring to Factory Default Settings
If for any reason the camera is not responding correctly, you can restore the camera back to
its factory default settings using the Web interface or the Default Button.
Note: Only GV-EBD4711 / 8711 and GV-AVD2700 / 4710 / 8710 support a default button.
For the default button of GV-EBD4711 / 8711, see 1.1.3.2 GV-EBD4711 / 8711 (No.8). For
GV-AVD2700 / 4710 / 8710, see 1.4.3 Overview (No.6).
1. In the Web interface, click Setup.
2. In the left menu, select System and select Maintenance.
3. Under the Config Management section, click Default.

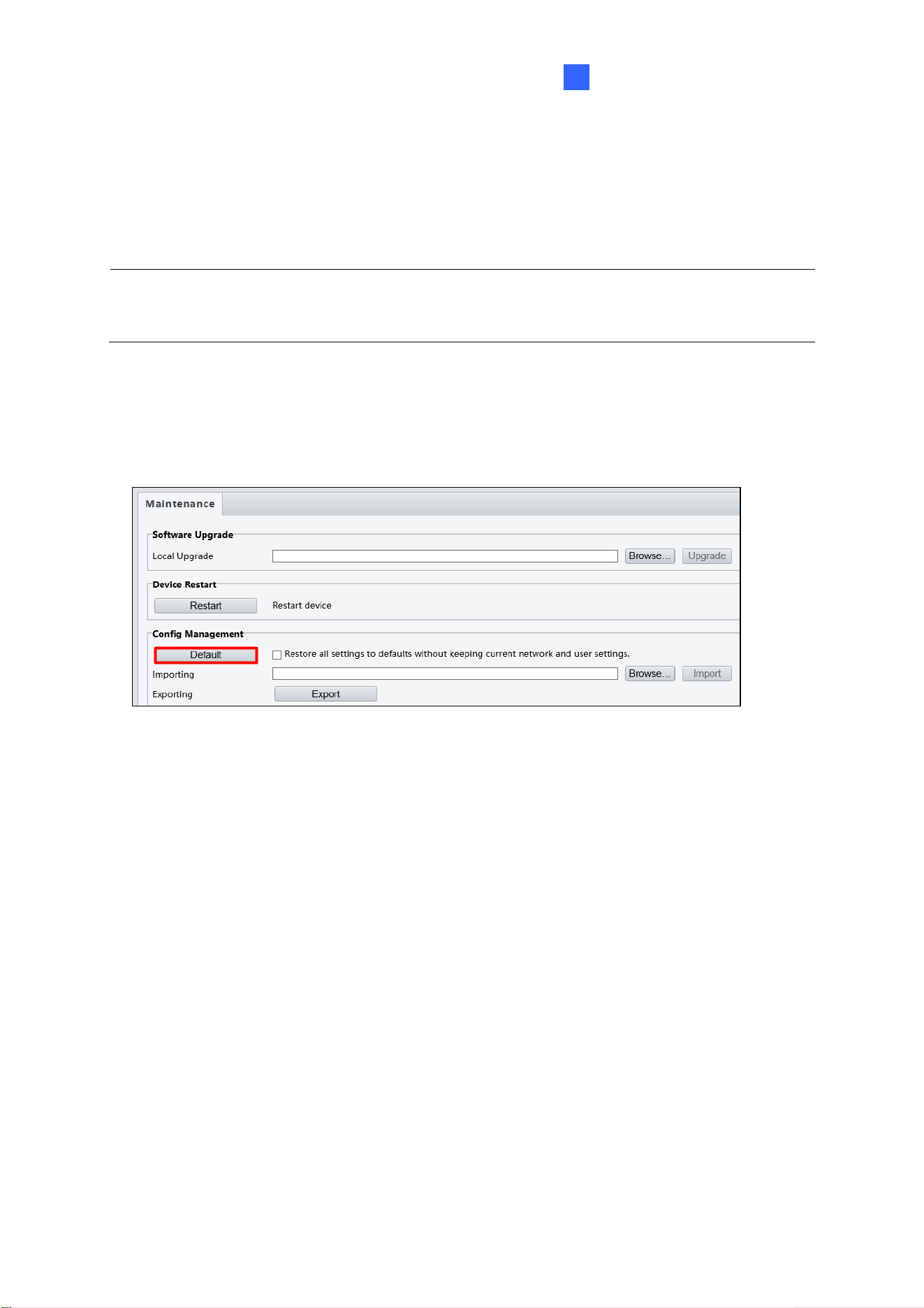

Figure 4-4
126

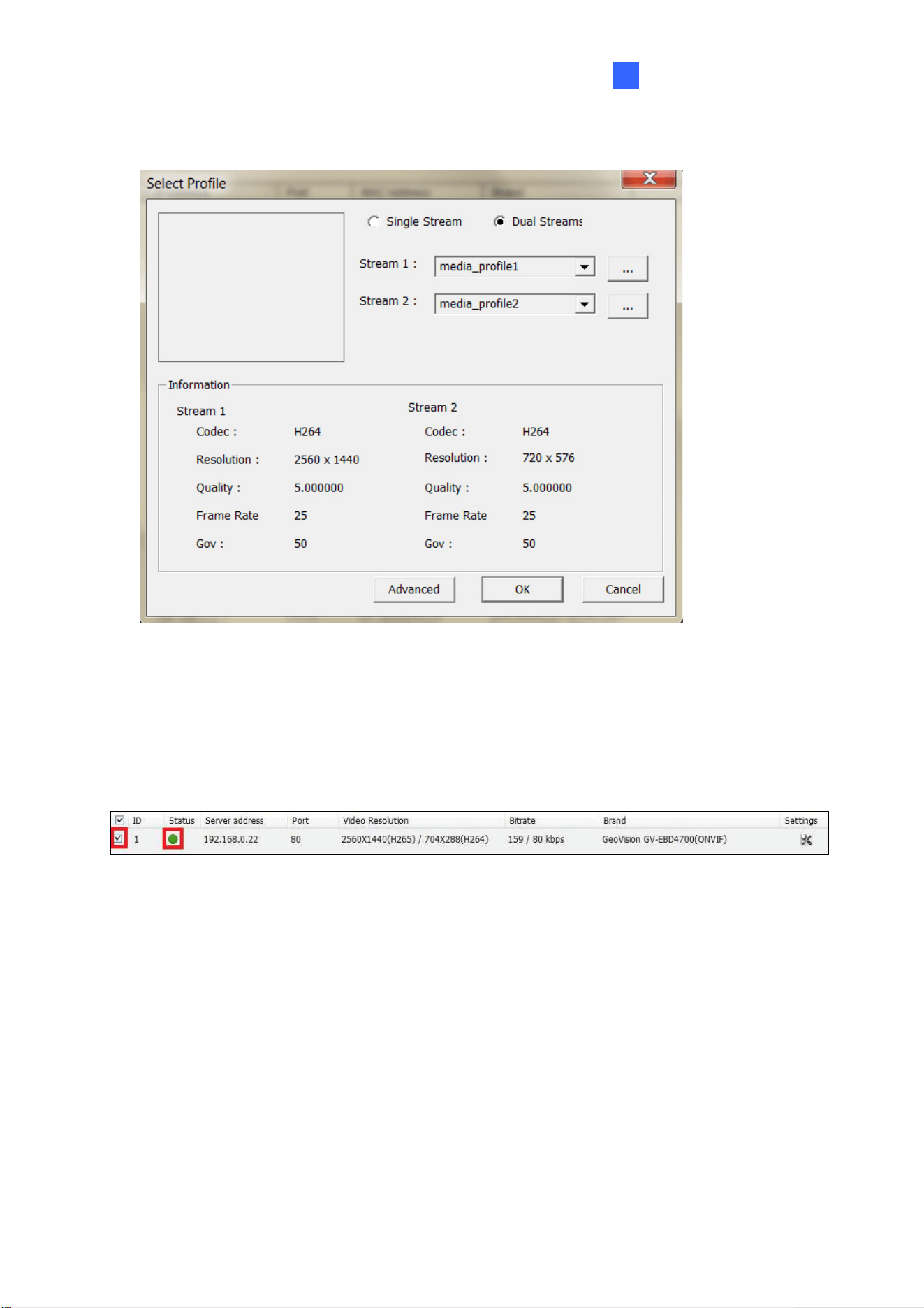

Chapter 5 DVR / NVR / VMS
The GV-VMS / DVR / NVR provides a full range of video management functions and features,
such as video viewing, recording, playback, alert settings, and more. The following is a list of
related integration specifications:
The compatible versions of GV-VMS / DVR / NVR are listed below:
Camera Model Compatible GV-DVR / NVR Compatible GV-VMS
GV-EBD2702 V8.7.4.0 with patch files or later V17.1 with patch files or later
GV-EBD4700 V8.7.3.0 with patch files or later
GV-EBD4711
V16.11.0.0 with patch files or later
GV-EBD8711 V17.1 with patch files or later
GV-ABL2701 V16.11.0.0 with patch files or later
GV-ABL2702 V17.1 with patch files or later
GV-ABL4701
GV-ABL4712
V16.11.0.0 with patch files or later
GV-ABL8712 V17.1 with patch files or later
GV-ADR2701
GV-ADR4701
V16.11.0.0 with patch files or later
GV-AVD2700 V17.1 with patch files or later
GV-AVD4710 V16.11.0.0 with patch files or later
GV-AVD8710
V8.7.4.0 with patch files or later
V17.1 with patch files or later
The maximum number of streams supported by an IP camera when connecting to other
applications is 8.
When an IP camera is connected to IE browser or any GeoVision CMS application, it
takes up 1 stream; when it is connected to GV-VMS / DVR / NVR, it takes up 2 streams.
DVR /NVR / VMS
127
5
5.1 Setting Up IP Cameras on GV-DVR / NVR
To set up the camera on GV-DVR / NVR, follow these steps:
1. On the main screen, click the Configure button, select System Configure, select
Camera Install and click IP Camera Install. This dialog box appears.
Figure 5-1
2. To automatically set up the camera, click Scan Camera to detect any camera on the
LAN.
3. Double-click your camera and type the camera’s User name and Password.
Figure 5-2
128
4. Click OK. This dialog box appears.

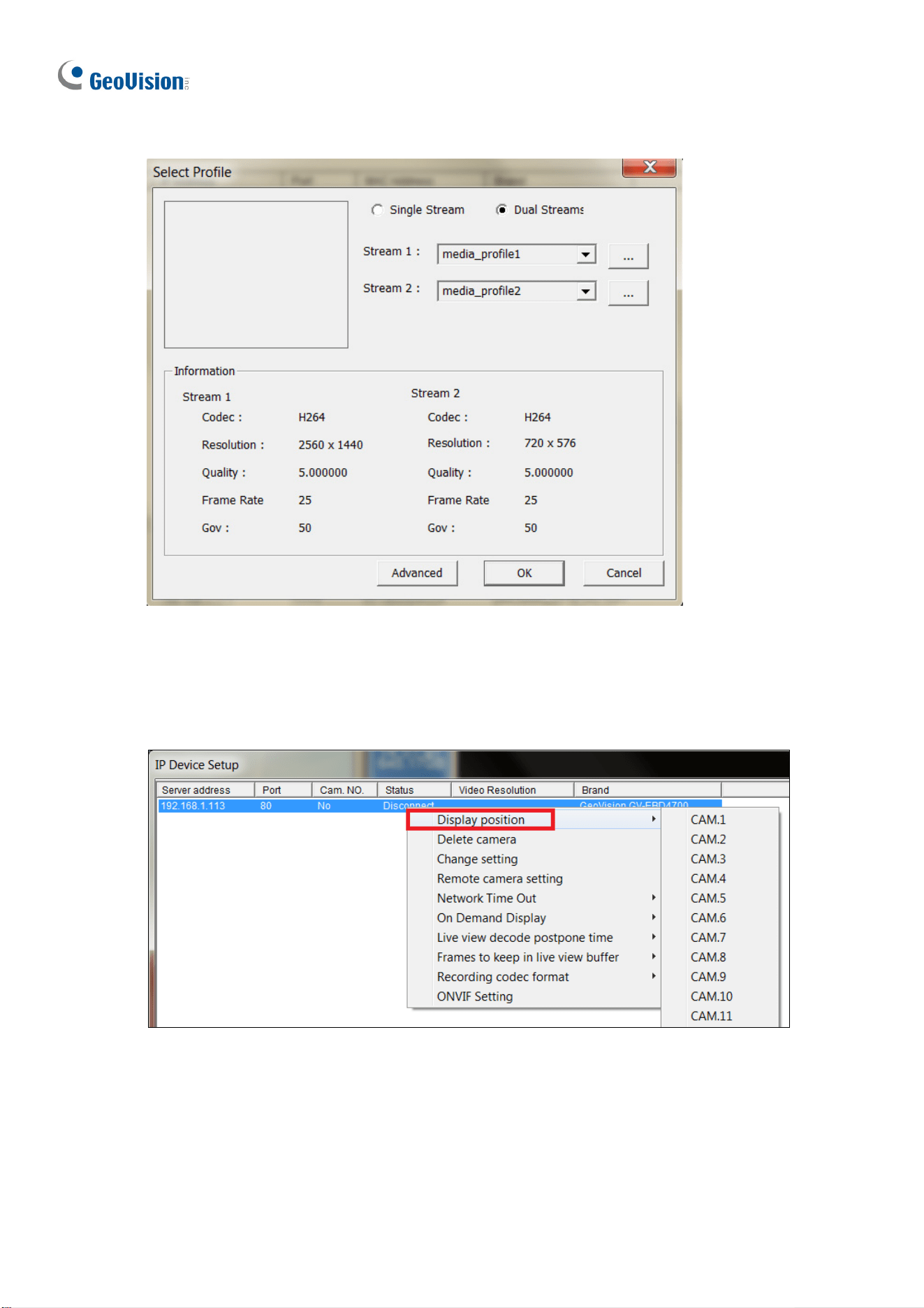

Figure 5-3
5. Click OK. The IP camera is added to the connection list.
6. Click the listed camera and select Display position to map the IP camera to a channel
on the GV-DVR / NVR.
Figure 5-4
7. The Statue column should display “Connected”. Click OK.
DVR /NVR / VMS
129
5
5.1.1 Customizing the Basic Settings on GV-DVR / NVR
After the camera is connected and assigned with a display position, you can configure the
camera’s settings, such as frame rate, codec type and resolution. Right-click the desired
camera to see the following list of options:

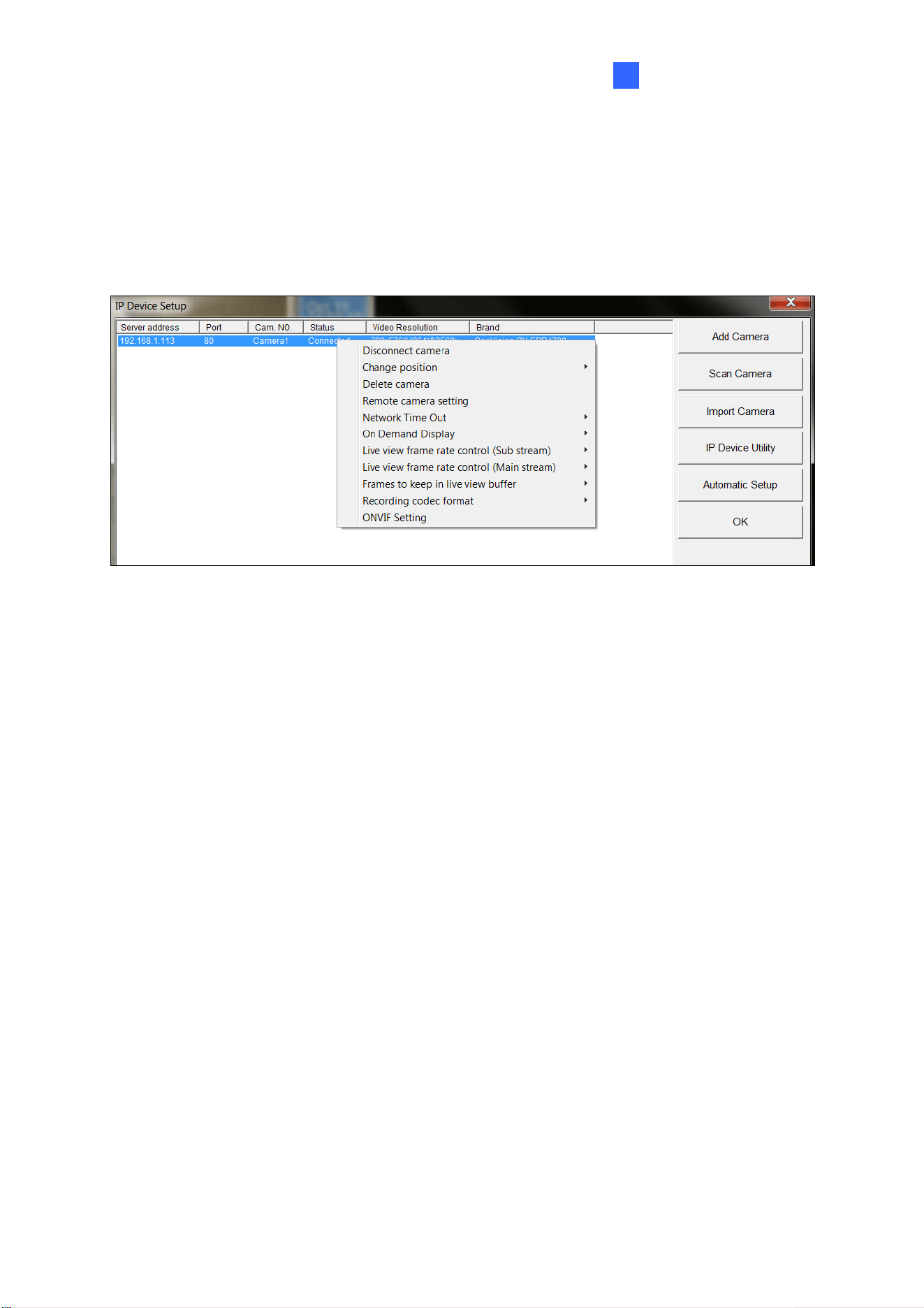

Figure 5-5
Network Time Out: When network disconnection exceeds the specified time period, the
camera status displayed as Connection Lost.
On-Demand Display: Enable automatic switching between main stream and sub
stream based on the size of camera image on screen.
Live-view frame rate control (Sub / Main): Set the frame rate of the stream to help
reduce the CPU usage. If the codec is set as MJPEG, select the number of frames to
allow in a second. If the codec is H.265 or H.264, select one of the following options:
Maximum Live-view Frame Rate: View the video at the maximum frame rate
possible.
Live-view Key Frame only: You can choose to view the key frames of the videos
only instead of all frames on the live view. This option is related to the GOP setting
of the IP camera. For example, if the GOP value is set to 30, there is only one key
frame in every 30 frames.
Frames to keep in live view buffer: Specify the number of frames to keep in the live
view buffer.
Recording Codec Format: Select the codec to record in.
130
5.2 Setting Up IP Cameras on GV-VMS
Follow the steps below to manually connect your camera to GV-VMS.
1. To access the IP Device Setup page, click Home
, select Toolbar , click
Configure
and select Camera Install.
Figure5 -6
2. Click Automatic Setup
.
3. Double-click the camera and type the User name and Password of the camera.
Figure 5-7
DVR /NVR / VMS
131
5
4. Click OK. This dialog box appears.
Figure 5-8
5. Click OK to add the camera to the list.
6. To connect the added camera, click the box beside the ID column. Upon successful
connection, the Status icon shows green, with the video resolution and bitrate being
displayed in the correspondent columns.
Figure 5-9
132
Appendix
A. RTSP Multicast Protocol Support
The camera can support RTSP multicast protocol for both video and audio streaming.
You can use the following RTSP multicast command to access the camera image:
Stream 1: rtsp://<IP of the camera>/multicast/video1
Stream 2: rtsp://<IP of the camera>/multicast/video2
For example, rtsp://
192.168.4.115/multicast/video1
Appendix
133
B. RTSP Protocol Support
The camera can support RTSP protocol for both video and audio streaming.
You can use the following RTSP command to access the camera image:
Stream 1: rtsp://<ID>:<Password>@<IP of the camera>/media/video1
Stream 2: rtsp://<ID>:<Password>@<IP of the camera>/media/video2
For example, rtsp://
admin:admin@192.168.3.111/media/video1
Note:
1. See 3.7.2 Network Security for RTSP related settings on the Web interface.
2. Only VLC and QuickTime players are supported for video streaming via RTSP
protocol.
134
C. HTTP Protocol Support
The camera can support HTTP protocol for both video and audio streaming.
To obtain a snapshot of the live view, type following HTTP command into your Web browser:
http://<IP of the camera>/images/snapshot.jpg
For example, http://
192.168.0.10/images/snapshot.jpg
When the Windows Security dialog box appears, type a valid user name and a valid
password of the camera to receive the captured snapshot.
Note: See 3.7.2 Network Security for HTTP related settings on the Web interface.
