UPRIGHT
REFRIGERATORS
AND
FREEZERS
ACR82L
ACR1818
ACRR432L
ACFF436L
ACR261RH
AFG26MLLH
Models:
SCR801G
SCR1802G
SCRR432
SCFF436
SCRR261G
SCFF262GLH
User Manual
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND
OPERATING INSTRUCTIONS
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Ave
Bronx, New York 10474
www.accucold.com
Write Model and Serial Numbers here:
Model
Serial No.
2
TABLE
OF CONTENTS
IMPORTANT SAFEGUARDS ............................................................................ 3
INSTALLATION INSTRUCTIONS...................................................................... 5
Before Using Your Appliance ......................................................................... 5
Locating your Appliance................................................................................ 5
Installing the Leveling Legs .......................................................................... 6
Installing the Shelves .................................................................................... 7
Installing the Pressure Valve ......................................................................... 7
Connecting the Power Supply ...................................................................... 7
Door Reversal ............................................................................................... 8
OPERATING YOUR APPLIANCE
...................................................................... 11
CARE AND MAINTENANCE ............................................................................ 14
TROUBLESHOOTING
CHART ......................................................................... 15
CALIFORNIA
CARB/SNAP
DISCLOSURE
This product uses eco-friendly hydrocarbon refrigerant and fully complies
with California CARB regulations.
However, we are required by California Law to provide the following
disclosure statement in every product sold in California.
"This equipment is prohibited from use in California with any refrigerants on
the 'List of Prohibited Substances' for that specific end-use, in accordance
with California Code of Regulations, title 17, section 95374. This disclosure
statement has been reviewed and approved by Felix Storch, Inc. and Felix
Storch, Inc. attests, under penalty of perjury, that these statements are true
and accurate."
“This product does not use any refrigerants on the 'List of Prohibited
Substances'”
3
IMPORTANT
SAFEGUARDS
Your safety and the safety of others are very important.
We have attached many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential
hazards that can kill or injure you and others. All safety messages
will follow the Safety Alert Symbol and either the words “DANGER”
“WARNING” or “CAUTION”.
DANGER means that failure to heed this safety
WARNING
DANGER
statement may result in severe personal injury
or death.
WARNING means that failure to heed this safety
statement may result in extensive product
damage, serious personal injury, or death.
CAUTION means that failure to heed this safety
CAUTION
statement may result in minor or moderate
personal injury, or property or equipment
damage.
Safety messages will alert you to what the potential hazard is, tell you how to
reduce the chance of injury, and let you know what can happen if the user does
not follow the instructions.
Before using your refrigerator/freezer, it must be positioned properly
and installed as described in this manual, so read the manual
carefully. To reduce the risk of fire, electrical shock, or injury when
using the refrigerator/freezer, follow basic precautions, including the
following:
DANGER
•
These appliances are CFC and HFC free and contain a small quantity of liquid
propane (R290) which is environmentally friendly, but flammable. It does not
damage the ozone layer or increase the greenhouse effect. Care must be
taken during transportation and while setting up the appliance so that no
cooling system parts are damaged. Leaking refrigerant is combustible and
may damage the eyes.
•
In case of any damage:
o Avoid open flames and anything that creates a spark
o Disconnect from the power source
o Ventilate the room in which the appliance is in for several minutes and
contact the Service Department for advice
•
The more refrigerant in an appliance, the larger the room it is being
installed in should be. In case of a leakage, if the appliance is in a small room,
there is a greater risk of combustible gases building up. The amount of
refrigerant in the appliance can be found on the rating label on the appliance.
It is hazardous for anyone other than the Authorized Service Person to
conduct servicing or repairs to the appliance.
•
Take serious care when handling, moving, and using the appliance to avoid
damaging the refrigerant tubing and increasing the risk of a leak.
•
Parts replacement and servicing shall be done by factory authorized
service personnel to minimize the risk of ignition due to incorrect parts or
improper service.
4
•
Plug into a grounded 3-prong outlet. Do not remove the grounding prong,
do not use an adapter, and do not use an extension cord.
•
Replace all panels before using the unit.
•
It is recommended that a separate circuit, serving only your
refrigerator/freezer, be provided. Use an electrical outlet that cannot be
turned off by a switch or pull chain.
•
Never clean refrigerator/freezer parts with flammable fluids, these fumes can
create a fire hazard or explosion.
•
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance. The fumes can create a fire hazard or
explosion.
•
Before starting cleaning and maintenance operations, make sure the unit’s
power line is disconnected.
•
Do not connect or disconnect the electric plug when your hands are wet.
•
Make sure to disconnect the unit’s power supply before starting cleaning and
maintenance operations, failure to do so can result in electrical shock or
death.
•
Do not attempt to repair or replace any part of your refrigerator/freezer unless
it is specifically recommended in this material. A qualified technician should
complete all other servicing.
WARNING
This unit is not designed to operate in enclosed spaces. When placing your
unit, make sure you allow adequate airflow on all sides.
•
Use two or more people to move and install the refrigerator/freezer. Failure
to
do so can result in back or other injuries.
•
To ensure proper ventilation for your refrigerator/freezer, the front of the
unit must be completely unobstructed. Choose a well-ventilated area with
temperatures above 59°F (15°C) and below 86°F (30°C). This unit must be
installed in an area protected from the elements, such as wind, rain, water
spray, or sunlight.
•
The refrigerator/freezer should not be installed next to ovens, grills, or other
sources of high heat.
•
The refrigerator/freezer must be installed with all electrical connections in
accordance with state and local codes. This unit uses the standard electrical
supply (115 V AC, 60hz) and must be properly grounded in accordance with
national and local codes and ordinances.
•
Do not kink or pinch the power supply cord of the refrigerator/freezer.
•
The fuse (or circuit breaker) size should be 15 amperes.
•
It is important for the refrigerator/freezer to be leveled in order for it to
function properly. You may need to make several adjustments to level it.
•
Never allow children to use, play with or crawl inside the refrigerator/freezer
•
Do not use solvent-based cleaning agents or abrasives on the interior, these
cleaners may damage or discolor the interior.
•
Keep your fingers out of the “pinch point” areas. Clearances between the door
and cabinets are necessarily small. Be careful closing the door(s) when
children are in the area.
•
Do not use this appliance for anything other than its intended purpose.
DANGER
Risk
of child entrapment
Child entrapment and suffocation are not problems of the past. Junked or
abandoned freezers are still dangerous, even if they will “just sit in the garage
a few days.”
•
Before you throw away your old freezer: Take off the doors. Leave the
shelves in place so that children may not easily climb inside.
•
Never allow children to use, play with, or crawl inside the freezer.
-
SAVE
THESE
INSTRUCTIONS
-
5
INSTALLATION INSTRUCTIONS
Before
Using
Your
Appliance
•
Remove the exterior and interior packing.
•
Check to be sure you have all the following parts:
•
Set of pop-out keys
• 1 instruction manual
• Before connecting the appliance to the power source, let it stand upright
for approximately 2 hours or let the compressor complete three on/off
cycles to assure that the temperature inside is appropriate for the products
before loading them into the appliance. This will reduce the possibility of a
malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
Locating
your
Appliance
• Move the appliance as close as possible to its final location, before
removing the skid.
• Use a screwdriver to remove the screws that fix the skid to the cooler
or metal supports, if applicable.
•
Place the cabinet on a surface solid enough to prevent vibration and strong
enough to support the combined weight of the cabinet and the product
load. Estimate 35 pounds per cubic foot of storage space.
•
Cabinets should never be placed in front of windows or glass doors where
sunlight will be in direct contact with the units. If a cabinet is located near a
window or glass door, provide an adequate shade to block the sun´s rays.
•
Ambient temperature must be between 59°F (15°C) and 86°F (30°C). Low
ambient temperatures below 50° F are as harmful as high ambient
temperatures. Extreme temperatures will affect the performance of the
cabinet.
NOTE:
Failure to properly level the cabinet could hinder proper drainage and
door operation. Leveling legs are provided with the cabinets. Level
the cabinet by adjusting the leveling legs as needed.
•
Leave a space of at least 8in (203mm) between the back, sides, and top of
the cabinet to provide adequate air circulation of the unit compartment.
6
Installing
the
Leveling
Legs
Heavy-duty leveling legs are included so the unit may be leveled
accurately and to allow room to clean beneath the cabinet.
CAUTION: DO NOT attempt to install the level legs by yourself. You are far
less likely to incur injury to yourself or the appliance if you install the
legs with another person.
1.
Installing caster wheels: caster
wheels are included with some
models. Only use genuine caster
wheels or the base of the unit might
suffer damage. When installing the
caster wheels, it is important to
tighten them against the base rail
(see image) The top edge of the
caster wheels must make firm
contact with the base rail. The top
edge of the
caster wheels must be in firm
contact with the base rail.
Caster Handbrake
NOTE: The caster wheels with handbrakes must be placed in FRONT of the unit.
2.
Heavy-duty leveling legs are provided so the unit can be leveled accurately
and to allow room to clean beneath the cabinet.
3.
Tilt the cabinet back just far enough to fit the front legs and place a block of
wood or some similar support under it until both front legs are in. Then tilt the
cabinet forward enough to install the rear legs.
4.
After the legs are installed, level the cabinet by using the adjustable part of the
legs as needed. This is very important to ensure proper draining and door
operation.
To lower, turn
clockwise
To raise, turn
counterclockwise
rail
2"
Leveling leg
7
Installing the Shelves
Shelves and shelf clips (4 clips per shelf) are packed inside the cabinet before
shipment. After choosing the appropriate spacing inside the cabinet, install
shelf clips by inserting the top of the clip inside the pilaster and then press the
lower section of the clip while pushing inwards until it snaps into place. Repeat
until all clips are in the desired location. Place the shelf on clips, checking that
all four corners of the shelf are leveled and supported by all four shelf clips.
Installing
the
Pressure
Valve
1.
Locate the pressure relief valve packed
inside of your appliance.
2.
Locate the hole on the backside. (See
image, right.)
3.
Align the pressure relief valve with the
hole, using the marking as a guide.
4.
Push the pressure relief valve until you
hear a click, this means the valve was
correctly installed.
Connecting the Power Supply
Each unit requires a dedicated circuit to
prevent the malfunction of the compressor
and the electrical components. Each unit
should be connected to its own circuit in
accordance with National Electric Codes and
local ordinances.
NOTE: DO NOT connect the appliance to a wall outlet with other appliances also
plugged in. DO NOT use extension cords to connect the appliance to the
power outlet.
Plug-in electrical power cord: Do not under any circumstance cut or remove
the grounding pin from the power cord. Removal of grounding pin invalidates
product warranty.
8
Door Reversal
APPLY
ONLY
FOR
SINGLE
DOOR
MODELS
(Except
ACR82L/SCR801G)
If you would like to reverse the door swing, follow the steps below.
TOOLS
3/8” NUT DRIVER BIT
PHILLIPS # 2 SCREWDRIVER
INSTRUCTIONS

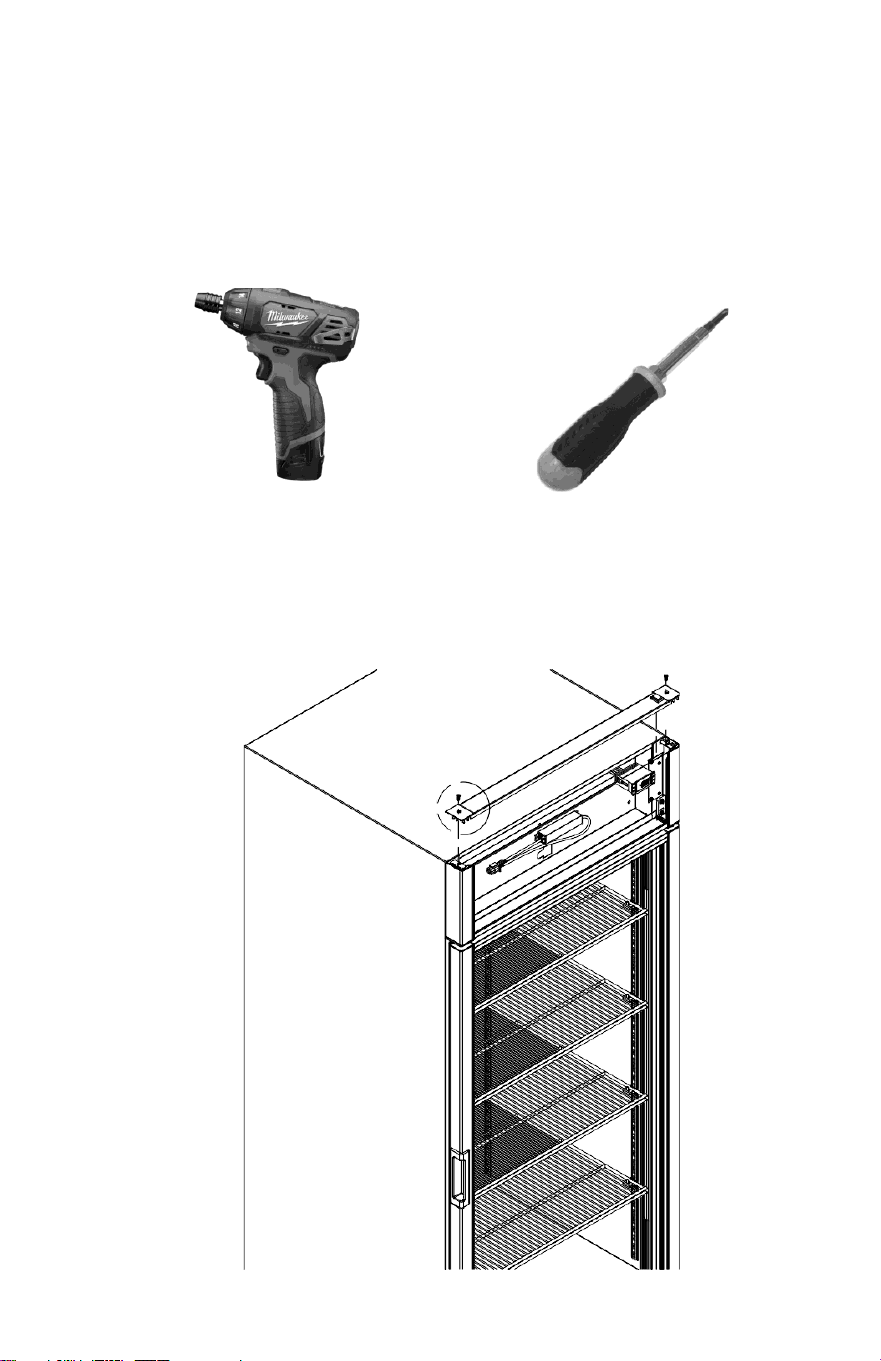

Step 1: Remove the two screws from the top header sign.
9
Step 2: Remove the acrylic header sign and place it on the top of the unit.
Step 3: Remove the four screws from the header sign frame.
10

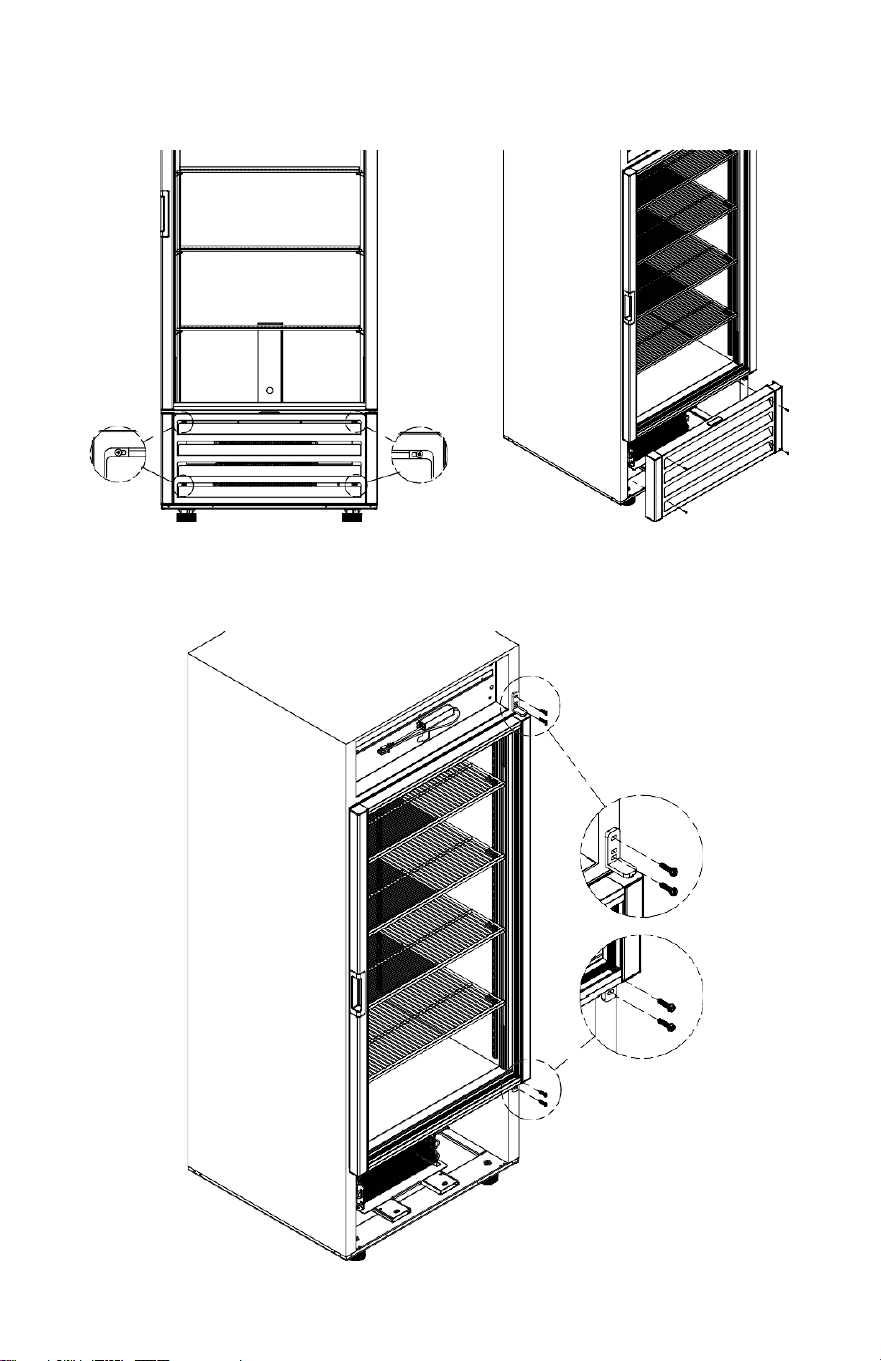

Step 4: Remove the four screws from the front grill, then remove the front
grill from the cooler.
Step 5: Remove the screws of the upper and lower hinge. Hold the door
when you are removing the screws.
11
Step 6:
With the hinges installed on the door, rotate the door 180 degrees.
Step 7:
Install the door on the cooler, header sign, and front grill
according to steps 1 to 5.
OPERATING
YOUR
APPLIANCE
Control
Panel
Your unit is manufactured with a Dixell electronic thermostat to control various
functions of your unit, such as temperature, defrost cycles, alarms ,etc.
12
TEMPERATURE
SELECTION
TYPE
TEMPERATUR
E
RANGE
DEFAUL
T
SET
POINT
CONTROLLE
R
MODEL
REFRIGERATO
R
+2°C to +8°C (+36°F to +46°F)
+5°C
(+41°F)
DIXELL XR40CX
FREEZER
-20.5°C to -15°C (-5°F to +5°F)
-20°C (-
4°F)
DIXELL XR60CX
FRONT PANEL COMMANDS
KEY/BUTTON
FUNCTION
SET
To display the target set point.
In programming mode, it selects a parameter or confirms
an operation
DEF
To start a manual defrost
UP
To see the maximum stored temperature.
In programming mode, it browses the parameter
codes or increases the displayed value
DOWN
To see the minimum stored temperature.
In programming mode, it browses the parameter codes or
decreases the displayed value.
To turn the unit off
Not enabled
DISPLAY
INDICATORS
LED MODE
FUNCTION
ON
Compressor enabled
Flashing
Anti-short cycle delay enabled
ON
Defrost enabled
Flashing
* Drip time in progress
ON
* Fans enabled
Flashing
* Fans delay after defrosting in progress
ON
* An alarm is occurring
* Freezers only
13
KEY COMBINATIONS:
To lock & unlock the keyboard
To enter programming mode
To return to the room temperature display
HOW TO SEE THE SET POINT:
1.
The set point parameter is the temperature at which the compressor cuts
out.
2.
Push and immediately release the SET key: the display will show the set
point value.
3.
Push and immediately release the SET key or wait for 5 seconds to display
the probe value again.
HOW TO CHANGE THE SET POINT:
1.
Push the SET key for more than 5 seconds to change the SET point value.
2.
The value of the set point will be displayed and the “C” or “F” LED starts
blinking.
3.
To change the Set value,’ push the or arrows within 10 seconds.
4.
To memorize the new set point value, push the SET key again or wait for 10
seconds.
HOW TO SEE THE MAXIMUM TEMPERATURE RECORDING
1.
Press and release the ▲ (UP) key.
2.
The “Hi” message will be displayed followed by the maximum temperature
recorded.
3.
By pressing the o key again or by waiting 5s the normal display will be
restored.
HOW TO SEE THE MINIMUM TEMPERATURE RECORDING
1.
Press and release the ▼ (DOWN) key.
2.
The “Hi” message will be displayed followed by the maximum temperature
recorded.
3.
By pressing the o key again or by waiting 5s the normal display will be
restored.
HOW TO RESET THE MAX AND MIN TEMPERATURE RECORDED
1.
Hold and press the SET key for more than 3s, while the max. or min
temperature is displayed. (rSt message will be displayed)
2.
To confirm the operation the “rSt” message starts blinking and the normal
temperature will be displayed
14
HOW TO CHANGE A PARAMETER VALUE
The hidden menu includes all the parameters of the instrument.
HOW TO ENTER THE HIDDEN MENU
1.
Enter the Programming mode by pressing the SET+DOWN keys for 3 seconds
(the “°C” or “°F” LED starts blinking).
2.
Release the keys, then again push the
SET+DOWN
keys for more than 7
seconds. The Pr2 label will be displayed immediately following the HY
parameter.
NOW YOU ARE IN THE HIDDEN MENU.
3.
Select the required parameter.
4.
Press the “SET” key to display its value
5.
Use UP or DOWN to change its value.
6.
Press “
SET
” to store the new value and move to the following
parameter.
To exit: Press SET+UP or wait for 15 seconds without pressing a key.
NOTE 1: If no parameter is present in Pr1, after 3 seconds the “noP”
message is displayed, keep the keys pushed until the Pr2 message is
displayed.
NOTE 2: the set value is stored even when the procedure is halted by waiting
for the time-out to expire.

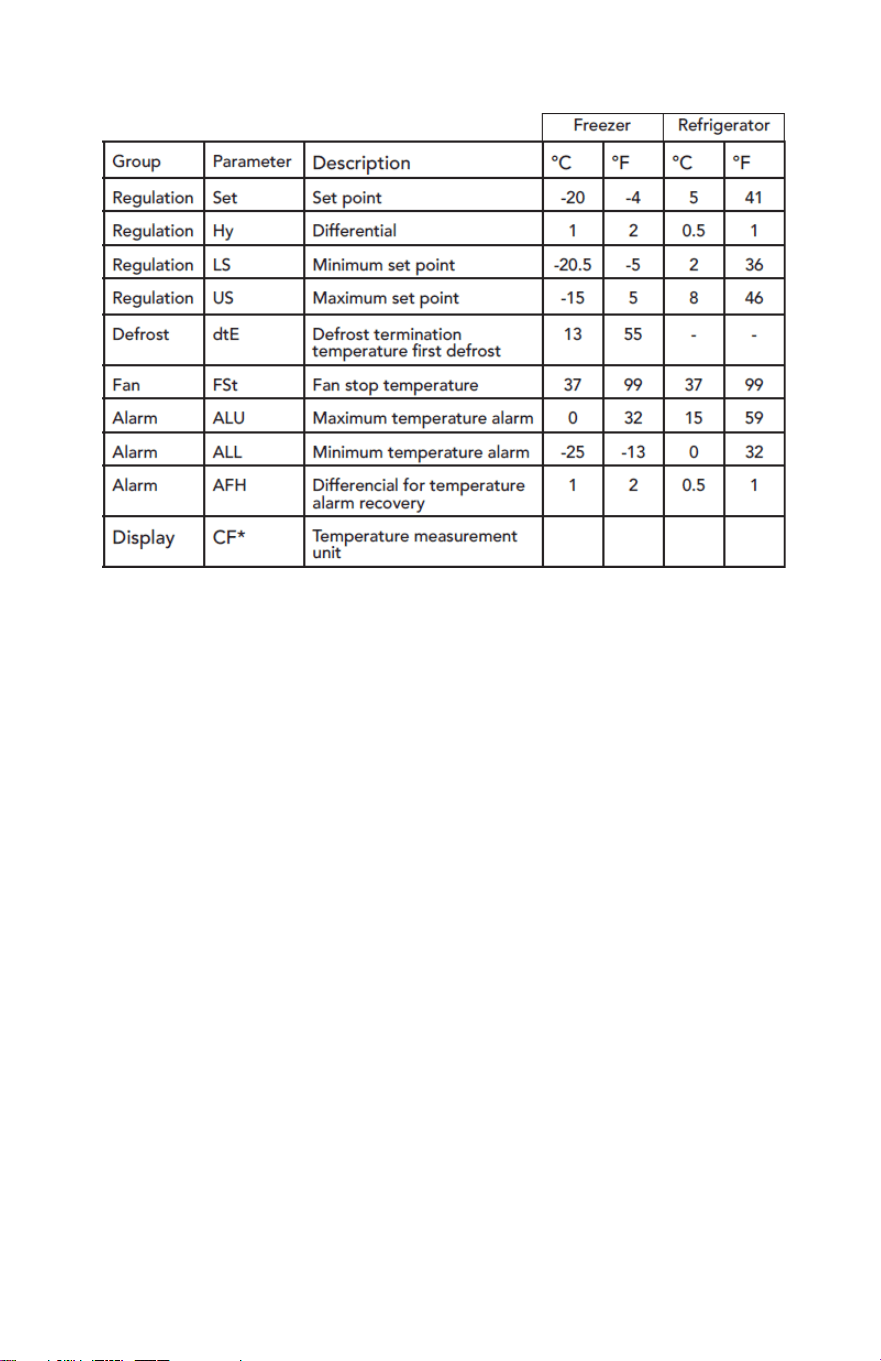

* WARNING: When the measurement unit is changed the SET point and the
values of the following parameters Hy, LS, US, OT, ALU, and ALL must be checked
and modified if necessary.
15
DIXELL ALARM INDICATORS
MESSAGE
CAUSE
COMMENTS
HA
Maximum
temperature alarm
This alarm is
adjustable.
To change the
DEFAULT
VALUES
Refrigerator
values, it is
necessary to enter
15 °C (59 °F)
the hidden menu
Freezer
and change the
parameters.
0°C
(32 °F)
LA
Minimum
temperature alarm
This alarm is
adjustable.
To change the
DEFAULT
VALUES
Refrigerator
values, it is
0°C (32 °F)
necessary to enter
the hidden menu
Freezer
and change the
parameters.
-25°C (-13 °F)
DA
Door alarm
If the door stays open for more than 3
minutes, an audible and visual alarm
will go off on the thermostat
CARE AND MAINTENANCE
Your unit requires little maintenance. However, periodic cleaning can help prolong
product life. Remember to disconnect the power source before cleaning. Remove
all products and place them in another cooler.
1.
Clean the inside and the exterior of your cooler, including the shelves, with a
mild soap solution. Do not use strong detergents. Wipe dry the inside of the
cooler before loading products again.
2.
Plug in your unit and wait 2 hours for the temperature to reach the
appropriate range to store your products in.
16
TROUBLESHOOTING
CHART
You can solve many common freezer problems easily, saving you the cost of a
service call. Try the suggestions below to see if you can solve the problem before
calling the service agent.
Problem
Possible
Causes
Possible
Solutions
The compressor
does not start
or make noise
The power is disconnected.
The appliance is turned off.
Blown fuse or circuit
breaker
Defective or broken wiring
Overloaded outlet Defective
relay
Check the power cord
for proper
connection.
Turn the power ON.
Replace the fuse or
circuit breaker.
Repair or replace wiring
Replace the overloaded
outlet
Replace the relay
Warm storage
temperatures
The appliance is in a
location that is too warm.
Low voltage, compressor
cycling on overload
Relocate the appliance
Check the voltage
supply
The
compressor
runs
continuously/
stored items
are too cold
Defective control feeler
tube.
The control feeler tube
was not installed properly
Call for service
Push the control feeler tube
well into the unit.
P1
Ambient probe failure
Call the service
P2
Evaporator probe failure
Call the service
If you continue to experience issues, contact Accucold’s technical support
department at 1-888-4-MEDLAB (1-888-463-3522).
17
NOTES
LIMITED WARRANTY
ONE-YEAR LIMITED WARRANTY
Within the 48 contiguous United States, for one year from the date of purchase, when this
appliance is operated and maintained according to instructions attached to or furnished with the
product, warrantor will pay for factory-specified parts and repair labor to correct defects in
materials or workmanship. Service must be provided by a designated service company. Outside
the 48 states, all parts are warranted for one year from manufacturing defects. Plastic parts,
shelves and cabinets are warranted to be manufactured to commercially acceptable standards
and are not covered from damage during handling or breakage.
5-YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your
appliance, to replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable
parts (such as filters) are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God,
improper installation, installation not in accordance with electrical or plumbing codes, or
use of products not approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the
appliance.
6. The removal and reinstallation of your appliance if it is installed in an inaccessible location
or is not installed in accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES – LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL
BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE
EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY
FROM STATE TO STATE.
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Ave
Bronx, New York 10474
www.accucold.com
For parts and accessory ordering,
troubleshooting, and helpful hints, visit:
www.summitappliance.com/support
WARNING: This product can expose you to chemicals including Nickel
(Metallic) which is known to the State of California to cause cancer.
For more information go to www.P65Warnings.ca.gov
Note: Nickel is a component in all stainless steel and some other metallic compositions.
R1040722
