MODEL 1PHG5000
OWNER’S MANUAL
CEILING MOUNT HEATER
14" | 5000/4000/3000W 240V
3
SPECIFICATIONS:
Voltage Rating: 240 V (60Hz)
Power Consumption: 5000/4000/3000W
IMPORTANT NOTE:
Read the manual carefully. Make sure to save this manual for
future reference. Illustrations in this manual are for explanatory
purposes only, your actual product may look slightly dierent.
CONTENTS
CONTENTS
SAFETY INFORMATION ........................................................................................... 4
LOCATING HEATER .................................................................................................. 8
INSTALLATION ............................................................................................................ 9

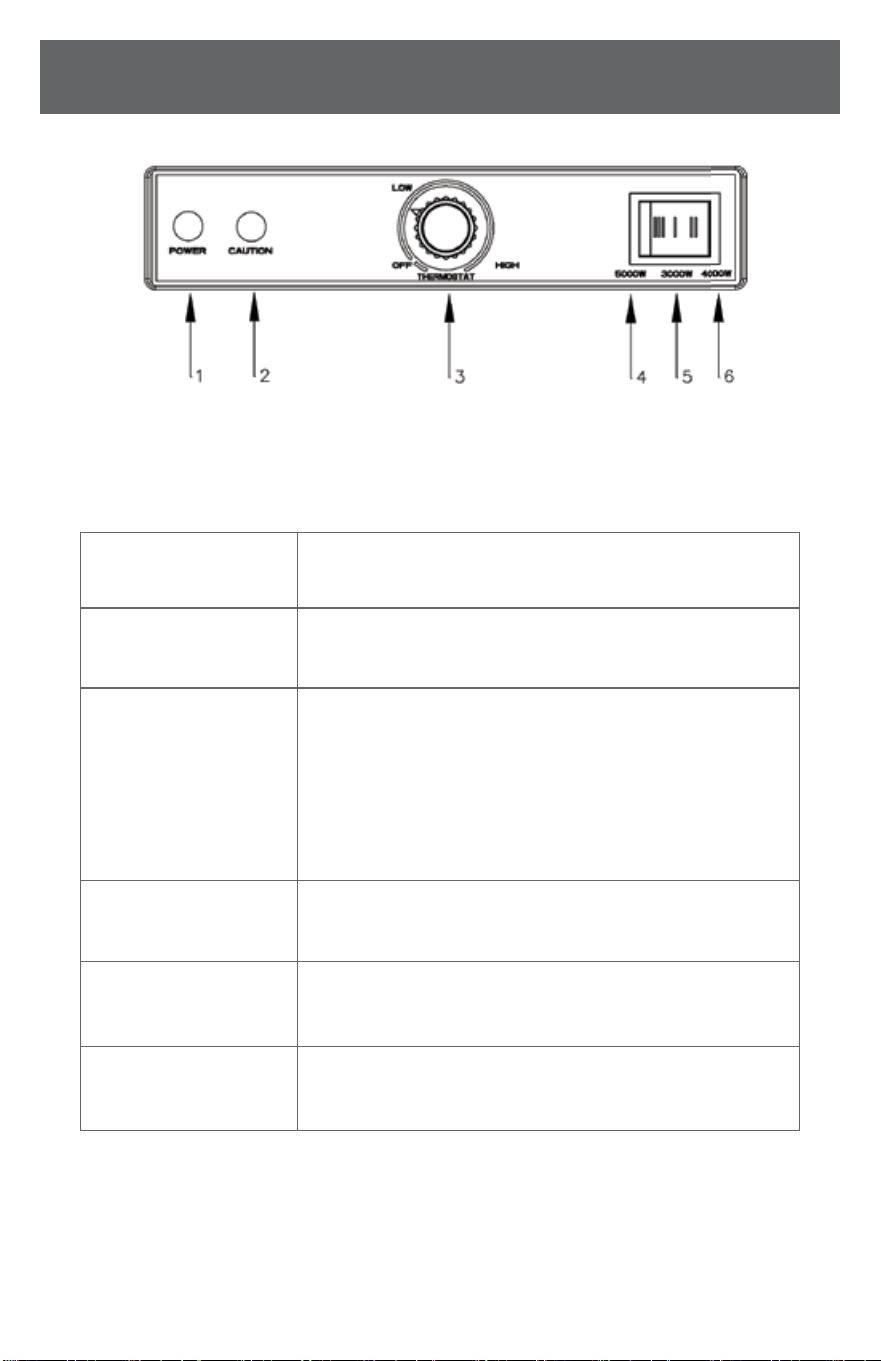

OPERATING INSTRUCTIONS ...............................................................................12
ADJUSTING AIR FLOW DIRECTION ..................................................................13
MAINTENANCE .........................................................................................................14
WARNING
This heater requires hardwire installation (no plug). The installation of this
product must be carried out by a Certied Electrician and in accordance
with all local and national electrical codes.
4
SAFETY & PRECAUTIONS
CONTINUEDCONTINUED
SAFETY INFORMATION
IMPORTANT INSTRUCTIONS
When using this electric unit, basic safety precautions should always be followed to
reduce the risk of re, electric shock, and injury to persons, including the following:
1. Read ALL instructions before using this unit.
2. CAUTION: Risk of Electric Shock. DO NOT open or try to repair the heater
yourself.
3. This heater may get hot when in use. To avoid burns, DO NOT let bare skin
touch hot surfaces. If provided, use handle(s) when moving this heater. DO
NOT place it against walls, furniture, curtains, etc.
4. The output of this heater may vary and its temperature may become intense
enough to burn exposed skin. Use of this heater is not recommended for
persons with reduced sensitivity to heat or an inability to react to avoid burns.
5. Keep combustible materials, such as furniture, pillows, bedding, paper,
clothes, and curtains at least 3 ft from the front of the heater and keep them
away from the sides, top, and rear. DO NOT place towels or other objects on
the heater.
6. Extreme caution is necessary when any heater is used. Do not leave invalids
or children unattended with an operating heater. Do not leave heaters
unattended when in use.
7. Always turn o power to heater when not in use.
8. DO NOT operate any heater with a damaged cord or after the heater
malfunctions, has been dropped, or damaged in any manner. Discard
damaged heater or return heater to authorized service facility for
examination, electrical or mechanical adjustment, or repair.
9. This heater is not intended for use in bathrooms, laundry areas, showers or
swimming pools and similar locations. NEVER locate heater where it may fall
into a bathtub or other water container. To protect against electrical hazards,
DO NOT immerse in water or other liquids.
10. DO NOT touch the control panel or plug with a wet hand.
11. DO NOT insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock or re or damage the heater.
12. To prevent a possible re, DO NOT block the air intakes or exhaust in any
manner. DO NOT use on soft surfaces, like a bed, where openings may
become blocked.
WARNING
Read and understand this entire owner’s manual, including
all safety information, before plugging in or using this product. Failure to do so
could result in re, electric shock, or serious personal injury.
5
(Continued)
SAFETY INFORMATION
13. A heater has hot and arcing or sparking parts inside. DO NOT use in areas
where gasoline, paint, explosive and/or ammable liquids are used or stored.
Keep unit away from heated surfaces and open ames.
14. To prevent overloading a circuit, do not plug the heater into a circuit that
already has other appliances working.
15. To disconnect heater, turn controls to OFF, then remove plug from outlet.
Pull rmly on the plug, DO NOT unplug by pulling on the cord.
16. Always disconnect power source from the unit before moving or cleaning,
or whenever the heater is not in use.
17. Use only for intended household use as described in this manual.
Any other use not recommended by the manufacturer may cause re,
electric shock, or injury to persons. The use of attachments not
recommended or sold by unauthorized dealers may cause hazards.
18. DO NOT use outdoors.
19. WARNING: To reduce the risk of re or electric shock, DO NOT use this unit
with any solid-state speed control device.
20. DO NOT attempt to repair or adjust any electrical or mechanical functions on
this unit. Doing so will void your warranty. The inside of the unit contains no
user serviceable parts.
21. Always use the product in an upright position.
22. This heater cannot achieve accurate temperature control of the environment,
and thus cannot be used as insulation device for storage environment, items,
animals and plants.
23. Use this heater only as described in this manual. Any other use not
recommended by the manufacturer may cause re, electric shock, or injury to
persons.
OVERHEAT SAFETY FEATURE
This heater is equipped with an overheat safety feature. When the heater’s
internal components reach a certain temperature that could cause overheating
and possible re, the heater will automatically shut o. The unit will reset
automatically after it cools down.
6
SAFETY & PRECAUTIONS
CONTINUEDCONTINUED
SAFETY INFORMATION
(Continued)
SAVE THESE INSTRUCTIONS
DESCRIPTION
Electric utility heaters are designed to meet a variety of heating requirements
by switching a few wires located in the base of the unit. Features horizontal and
vertical airow, built-in thermostat and overheating safety thermal cut-out.
TECHNICAL SPECIFICATIONS
GENERAL SAFETY INFORMATION
WARNING
This heater requires hardwire installation (no plug). The
installation of this product must be carried out by a Certied Electrician and in
accordance with all local and national electrical codes.
WARNING
Read and understand all installation & operation
instructions prior to operating this unit. Observe all safety instructions.
1. Use only copper wires rated for at least 167°F.
2. Heater air ow must be directed parallel to or away from adjacent wall.
3. Observe all wall, oor and ceiling clearance requirements.
4. All wiring must be done according to national and local electrical codes.
The heater must be grounded as a precaution against possible electrical
shock. Heater circuit must be protected with proper fuses.
5. The mounting structure and the anchoring hardware must be capable of
supporting the weight of the heater and the mounting bracket (if used).
6. All electrical power must be disconnected at the main service box, which
must be locked before connecting, inspecting, cleaning or servicing the
hater. This is an important precaution to prevent serious electric shock.
RATING POWER SUPPLY BTU/HOUR
5000W 240-1-60 17065
4000W 240-1-60 13651
3000W 240-1-60 11285
7
SAFETY INFORMATION
(Continued)
7. This is heater is not suitable for use in hazardous locations containing
explosive liquids or vapors. This heater has hot or arcing or sparking pads
inside. Do not use it in areas where gasoline, paint or ammable liquids are
used or stored.
8. This heater is not suitable for use in corrosive atmospheres such as marine
greenhouses or chemical storage areas.
9. This heater must be mounted at least 8 feet o the oor. For specic
clearances, please see next page.
WARNING
Improper installation or failure to follow the procedures
outlined in this instruction manual can result in serious electrical shock.
LOCATING HEATER
Install heater away from trac areas, maintaining clearances stated . The air
ow direction should not be restricted (ie. by columns or machinery). The air
ow should wipe exposed walls rather than blowing directly on them. When
more than one heater is used in an area, heaters should be installed so that the
air discharge of each heater supports the air ow of the others, to provide best
warm air circulation as shown.
8
SAFETY & PRECAUTIONS
CONTINUEDCONTINUED

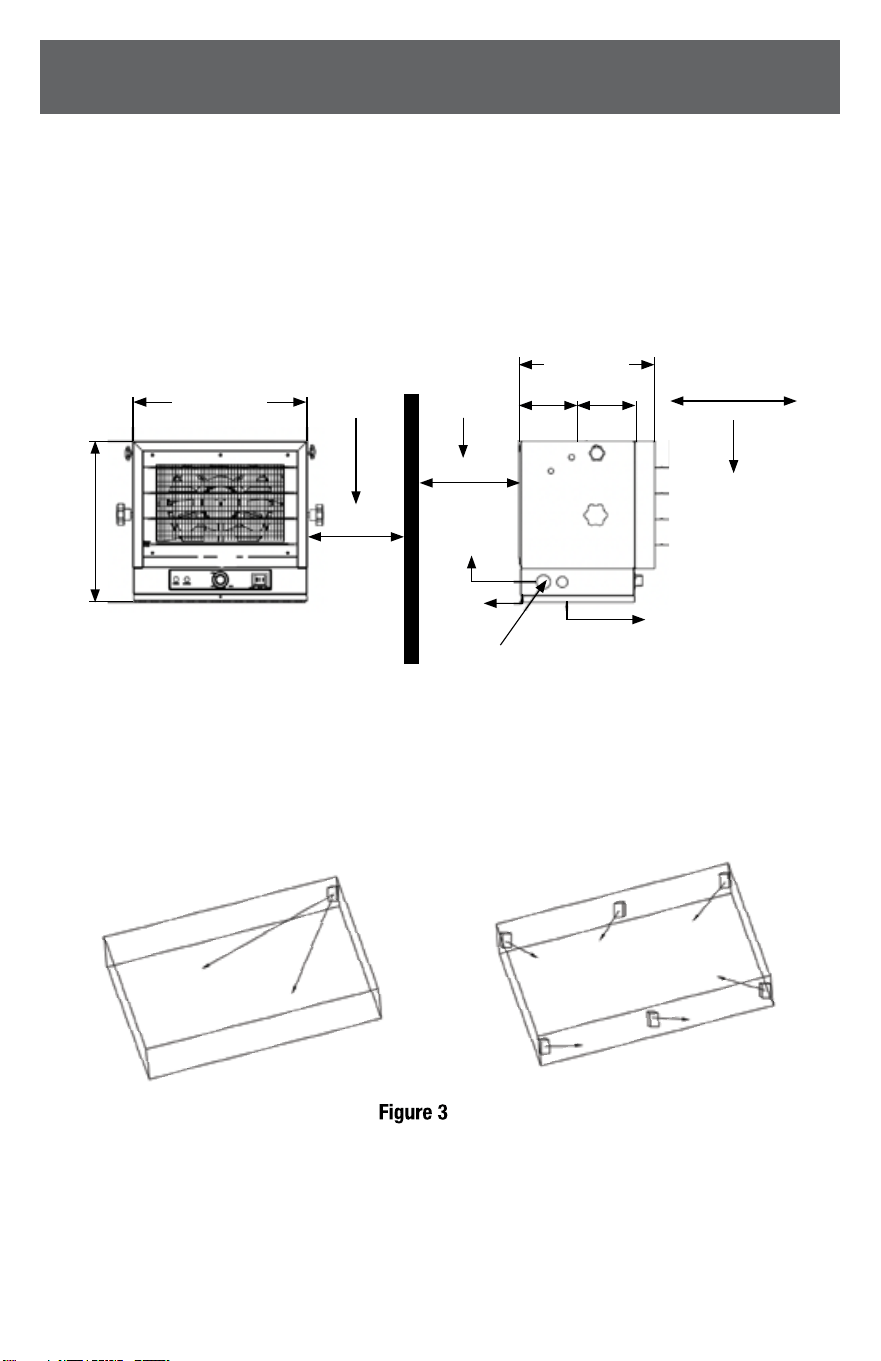

LOCATING HEATER
Install heater away from trac areas, maintaining clearances stated. The air
ow direction should not be restricted (ie. by columns or machinery). The air
ow should wipe exposed walls rather than blowing directly on them. When
more than one heater is used in an area, heaters should be installed so that the
air discharge of each heater supports the air ow of the others, to provide best
warm air circulation as shown.
Note: Minimum clearance to ceiling when
not using mounting brackets is 1 ″ (4.1 cm).
Minimum
Distance
to wall
14″ (35.6 cm)
12 ″
(31.8 cm)
13″
(33 cm)
Minimum Distance
to oor 8″ (2.4 m)
Maximum Mounting Height from:
Vertical air delivery unit = 11″ (3.4 m)
Horizontal air delivery unit = 8″ (2.4 m)
Minimum Distance
from discharge
to any object
4 ″
(11.4 cm)
4 ″
(11.4 cm)
36″
(91.4 cm)
1 ″
(4.4 cm)
9/10″
(28 mm)
″ (21 mm)
Minimum
Distance
to wall
7 ″
(18.7 cm)
10 ″ (26.9 cm)
9
INSTALLATION

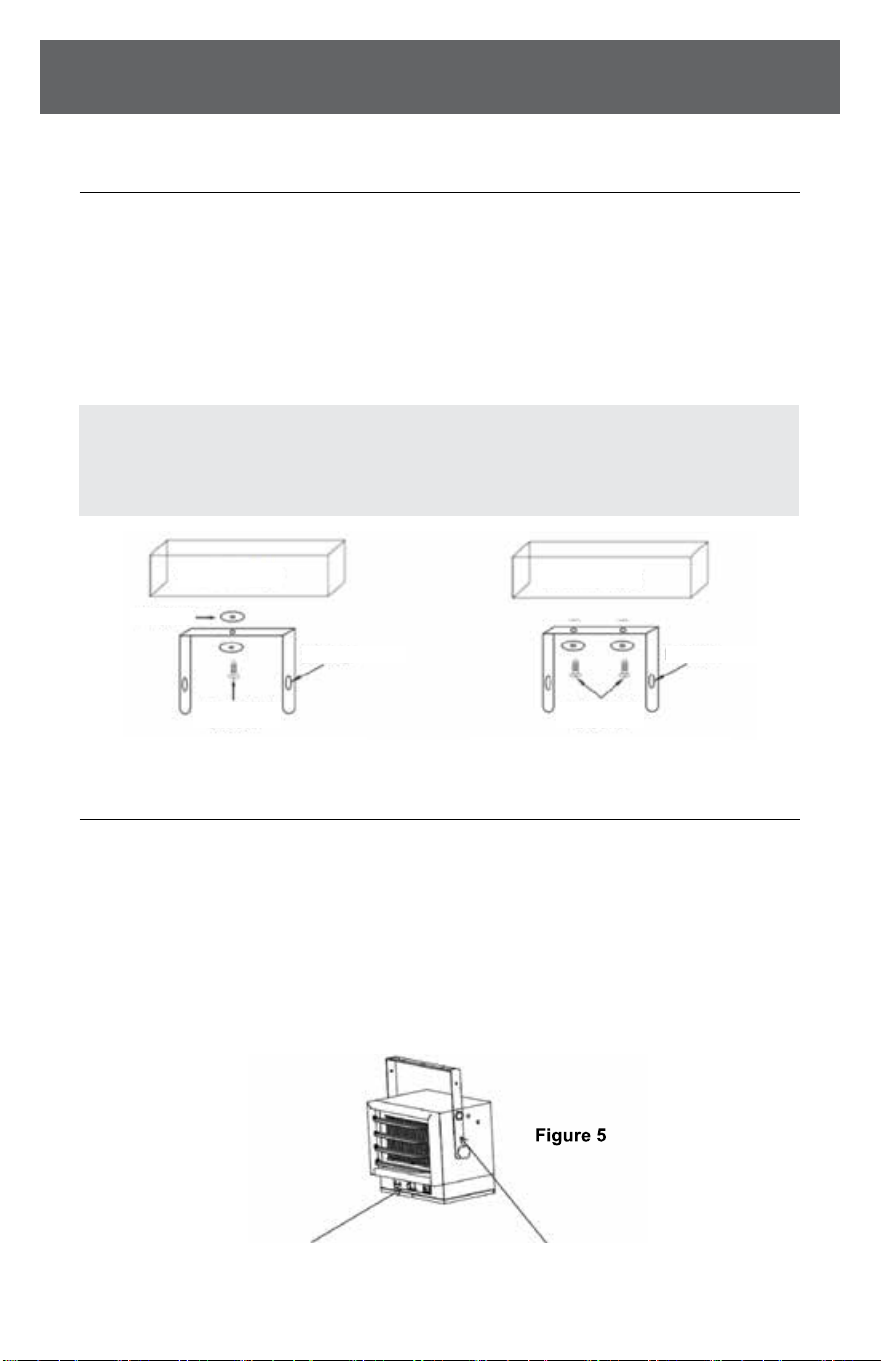

MOUNTING THE BRACKET
1. Locate a wood stud in the wood ceiling joist. If you cannot locate a wood
stud, you have to install a wood piece on the ceiling as the heater must be
securely fastened.
2. Remove the mounting bracket from the heating unit by loosening bracket
screws with a wrench and slipping the handle o over the screw heads.
3. Place a washer on screws before inserting through the holes in the
mounting bracket and screw them securely into a ceiling joist.
NOTE: If you want to swivel the heater either to the right or left adding a
washer to both sides of the bracket is recommended. A longer lag bolt may
be required to properly secure the unit.
HANGING THE HEATER
1. Attach the heating unit to the mounting bracket.
2. Lift the heater up and into the mounting bracket.
3. Align the bracket screws with the keyhole slots in the mounting bracket.
4. If the heater is to be tilted it must be positioned in the keyhole slots.
(See gure 5)
5. Tighten the bracket screws with a wrench so the unit is securely suspended
at horizontal or vertical level.
Wood Ceiling
Figure 4a - Single - Screw Mounting Figure 4b - Double - Screw Mounting
BRACKET
WASHER
″ DIAGONAL
LAG BOLT
″ DIAGONAL
LAG BOLT
BRACKET
Wood Ceiling
Remove screw
to open door
Use top keyhole slots if
heater is to be tilted down
10
SAFETY & PRECAUTIONS
CONTINUEDCONTINUED
(Continued)
INSTALLATION

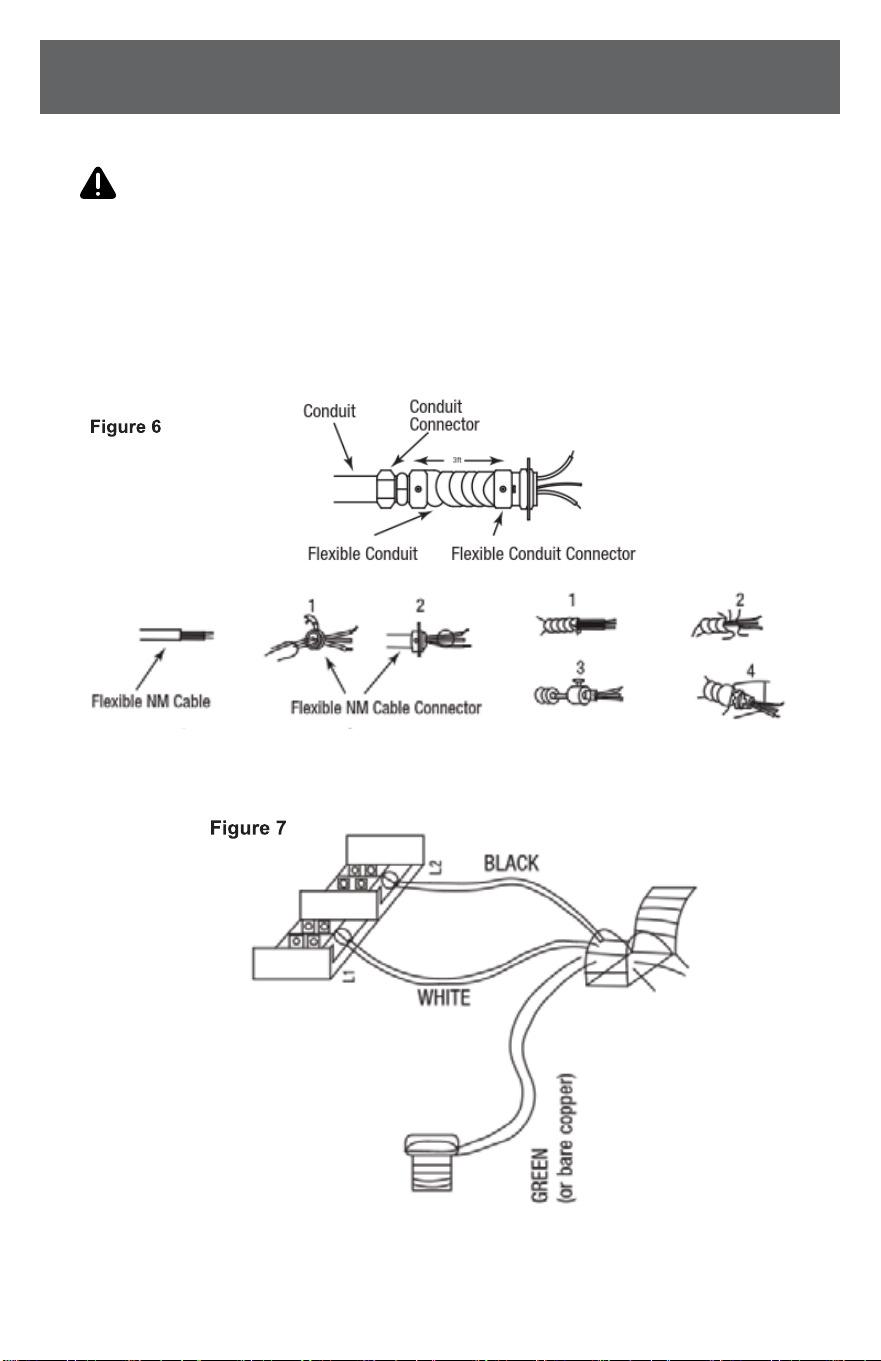

CONNECTING THE POWER
NOTE: All wiring must be accordance to national and local electrical
codes in the United States. For certain applications conduit may be
required (See Figure 6). Check local electrical codes. If you run the wiring
in conduit and wish to be able to turn the heater be sure to purchase
enough exible conduit to allow the heater to be turned.
1. Remove the screw from the front of the unit to connect the power to the
heater.
2. Attach the cable connectors to the unit (See Figure 6)
and slide the 10-gauge wire through the cable connector.
(Continued)
3. Connect the wire to the power block located in the base of the heater.
(See Figure 7)
4. Turn on the power at the main service.
WARNING
This appliance must be grounded.
WARNING
The appliance must connect to a current protection circuit
or device at 50 Amp or less before being connected to power supply.
11

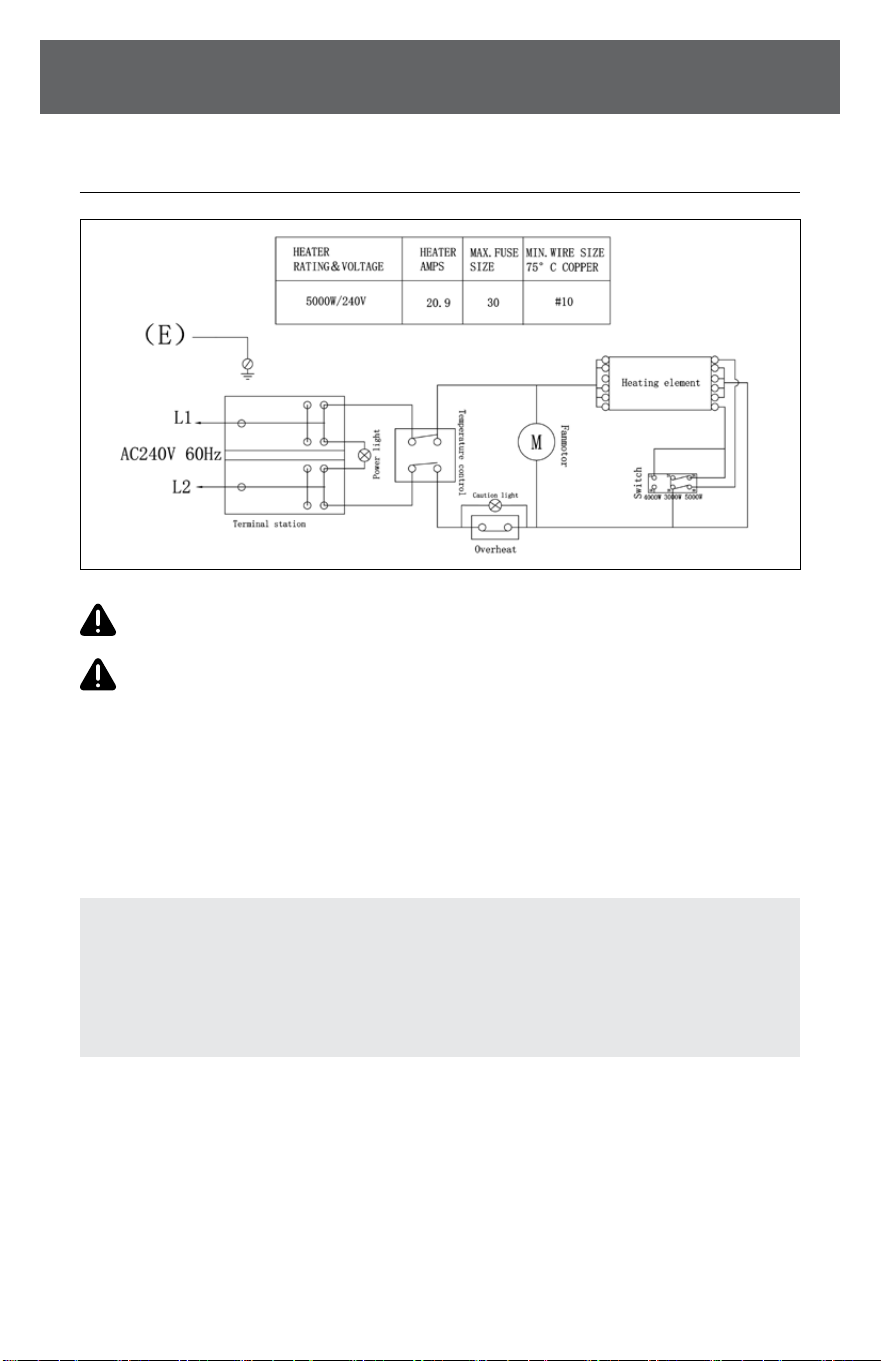

(Continued)
INSTALLATION
(Continued)
CAUTION:
High temperatures - risk of re. Keep ammable materials,
such as furniture, pillows, bedding, papers, clothes and curtains at least 3 ft.
(0.9 m) from the front and top of the heater and keep them away from the sides
and rear.
To reduce the risk of re, do not use it in areas where gasoline, paint or
ammable liquids are used or stored.
Connectors, cable,
and hardware used
to wire the heater
12
SAFETY & PRECAUTIONS
CONTINUEDCONTINUED
1. Power indicator Yellow
2. CAUTION indicator Red
3. Temperature control switch
4. High Power
5. Low Power
6. Medium power
OPERATING INSTRUCTIONS
INSTRUCTIONS IN NORMAL MODE
The CAUTION indicator is on: In this case, immediately turn the heater OFF
and inspect for any objects on or adjacent to the heater that may cause
high temperatures. DO NOT OPERATE THE HEATER WITH THE CAUTION
INDICATOR GLOWING RED.
POWER INDICATOR
YELLOW
The power indicator lights up when the product is powered on.
CAUTION INDICATOR
RED
When the internal temperature of the product is too high and
the temperature limiter is disconnected, the fault lamp lights up
TEMPERATURE
CONTROL SWITCH
Turn the Temperature control KNOB clockwise to the highest setting.
When the room reaches a comfortable temperature, slowly turn the
Temperature control KNOB counterclockwise until the heating element
clicks OFF (the power light will not shut OFF). This is the point where
the thermostat setting equals the room temperature. At this setting,
the thermostat will automatically turn the heater ON and OFF to
maintain the selected temperature.
HIGH POWER
High Power (5000W) is achieved when the switch is pressed to Ill and the
adjustable temperature control is turned on.
LOW POWER
The low power (3000W) is realized when the switch is pressed to I and
the adjustable temperature control is turned on.
MEDIUM POWER
The power (4000W) is realized when the switch is pressed to II and the
adjustable temperature control is turned on.
13
ADJUSTING AIR FLOW DIRECTION
1. To turn the unit when it has been installed with a single lag bolt, simply turn
the entire heater as needed. The unit cannot be turned horizontally if it has
been installed with 2 lag bolts.
2. To tilt the unit vertically, loosen the bracket screws.
NOTE: For the heater to be tilted vertically, it must be mounted in
bottom keyhole slots of mounting brackets to maintain adequate
clearance and prevent possible overheating.
3. Adjust louvers to the desired position.
WARNING
To prevent possible electric shock, disconnect power to the heater at the
main service box before attempting to adjust the heat output of this unit.
14
SAFETY & PRECAUTIONS
CONTINUEDCONTINUED
(Continued)
MAINTENANCE
WARNING
• DO NOT let liquid enter the heater.
• DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough
brushes to clean the heater. This may cause damage or deterio ration to the
surface of the heater.
• DO NOT immerse the heater in water.
1. Before cleaning, make sure the power has been turned o at the circuit
breaker panel.
2. Let the heating element cool completely.
3. To keep the heater clean, the outer shell may be cleaned occasionally
with a dry duster. During the summer months, or at other times when
the appliance is not in use and is completely cold would be the best time
to wipe over with a soft, damp cloth. Do not use any cleaning agents or
detergents.
4. After cleaning, dry the unit with a soft cloth.
5. Wait until the unit is completely dry before use.
6. All other servicing should be performed by qualied service personnel.
DO NOT try to repair the heater yourself.
NOTICE: The product is equipped with an overheat safety feature
protector which will switch o the heater in case of accidental over heating
(ex. Obstruction of air intake and outlet grills, motor turning slowly or not at all).
844-4PA-AIRE | 844-472-2473 | support@perfectaire.us
CANADA SUPPORT 877-997-2473 | supportcanada@perfectaire.us
www.perfectaire.us
5401 Dansher Road
Countryside, IL 60525
Printed in China | 0322_M899
