80K-15
Electronic Air Cleaner Probe
Instructions
The 80K-15 Electronic Air Cleaner Probe (the probe or Product) is a low
energy probe that is able to extend the voltage measuring capability of an
ac/dc voltmeter or multimeter.
Properly connected, the probe is rated to 15 kV dc or 10 kV ac rms. The
use of the probe is restricted to low-energy applications that are energy-
limited circuits such as electrostatic air cleaners.
The probe is a precision 1000:1 voltage divider formed by two matched
resistors. The high input impedance offered by these resistors minimizes
circuit loading and optimizes measurement accuracy.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Safety Information
A Warning identifies conditions and procedures that are dangerous to the
user. A Caution identifies conditions and procedures that can cause
damage to the Product or the equipment under test.
XW Warning
To prevent possible electrical shock, fire, or personal injury:
• Read all safety information before you use the Product.
• Do not use the Product around explosive gas, vapor, or in
damp or wet environments.
• Examine the case before you use the Product. Look for
cracks or missing plastic.
• Do not use test leads if they are damaged. Examine the test
leads for damaged insulation and measure a known voltage.
• Do not alter the Product and use only as specified, or the
protection supplied by the Product can be compromised.
• When you do a measurement, never make body contact with
the probe tip or red portion of the Product. Always hold the
Product by its black handle.
• Do not use this probe to measure high voltages on power
distribution systems.
• Connect the protective earth alligator clip lead to a known
good earth ground.
• Do not apply more than the rated voltage between the
terminals or between each terminal and earth ground.
• Have an approved technician repair the Product.
• Do not use the Product if it is altered or damaged.
• Disable the Product if it is damaged.
Symbols
Symbol Definition
X
WARNING. HAZARDOUS VOLTAGE. Risk of electric
shock.
W
WARNING - RISK OF DANGER. Consult user
documentation.
T
Double Insulated
Earth
P Conforms to European Union directives.
)
Certified by CSA Group to North American safety
standards.
~
This product complies with the WEEE Directive marking
requirements. The affixed label indicates that you must
not discard this electrical/electronic product in domestic
household waste. Product Category: With reference to
the equipment types in the WEEE Directive Annex I,
this product is classed as category 9 "Monitoring and
Control Instrumentation" product. Do not dispose of this
product as unsorted municipal waste.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Operation
Use the probe as follows:
1. Inspect the probe.
2. Connect the ground lead of the probe to earth ground.
3. Connect the probe cable to a compatible voltmeter. Use a shunt resistor
if required.
4. Select the 10 MΩ voltage range (1 V reading for 1000 V probe input).
5. Hold the probe by the black handle and connect the probe tip to the
circuit.
6. Observe the voltmeter reading.

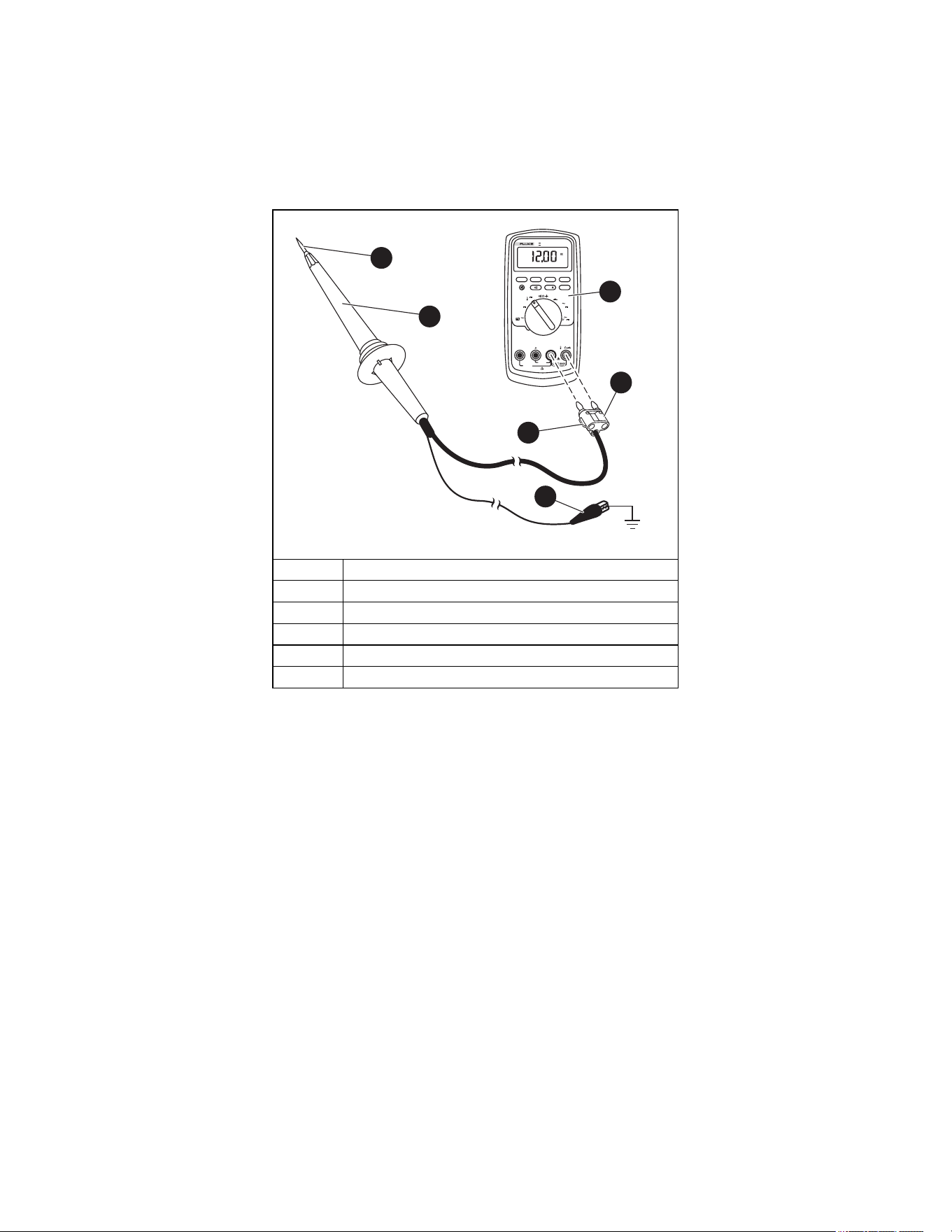

Probe tip
Probe body
Multimeter or voltmeter
Plug
GND tab
Protective earth ground lead clip
MIN MAX
RANGE
REL
Hz %
AutoHOLD
Peak MIN MAX
4½ DIGITS
1 Second
°
C/
°
F
OFF
mA
A
mV
V
V
A
A
mA
COM
V
400mA
FUSED
10A MAX
FUSED
A
TRUE RMS MULTIMETER
87
V
LOLO
6
4
5
1
2
3
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Theory Of Operation
The probe is a passive attenuator. See Table 1. High input impedance,
accuracy, and stability characteristics are achieved with thick-film
resistors. When the probe is connected to a voltmeter with a 10 MΩ input
resistance the probe becomes an accurate 1000:1 divider. This divider
depends on a ground lead to complete the low side of the circuit path. The
connection must always be secure before you do the voltage
measurement. Otherwise, instrument damage or a shock hazard can
result.
Table 1. Schematic Diagram
Voltmeter Compatibility
Accuracy of the meter is not included in the accuracy of the probe and
must be added to the probe accuracy to determine system accuracy.
The probe is mechanically compatible with any ac or dc voltmeter or
multimeter that accepts a standard double banana connector (spaced
0.75" [19 mm]) with standard plugs (0.160" [4 mm]).
The probe is electrically compatible with any ac or dc voltmeter or
multimeter that has an input impedance of 10 MΩ ±1 %.
Voltmeters or multimeters with other input impedances require the use of
an external shunt or a correction factor to obtain an accurate
measurement. Higher impedance voltmeters or multimeters should be
equipped with a shunt, and lower impedance voltmeters or multimeters
should be assigned correction factors.
Probe
Resistor
RA RB
80K-15 999 MΩ 1.11 MΩ
Probe Tip
(Dual Banana Plug)
Protective
Earth Lead
RA
RB
10 MΩ
(Voltmeter)
HI
LO
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Use this formula to determine the value of an external shunt resistor
(meter impedance >10 MΩ):
Where: Rs = Shunt resistance in MΩ
Rm = Voltmeter input impedance in ΜΩ (>10 MΩ)
Example: If Rm = 20 MΩ,
Use this formula to calculate a correction factor (meter impedance
<10 MΩ):
Where: Cf = Correction factor (multiplier for meter reading)
Rm = Voltmeter input impedance in MΩ
Example: If Rm = 1 MΩ,
A meter reading of 0.526 volts represents an input of:
0.526 x 1.901 = 1 or 1 kV
Circuit Loading
The probe represents a load to the circuit of 1000 MΩ , or 1 µA/1 kV.
Maintenance
The probe has no user-serviceable parts.
Use a soft cloth dampened with distilled water to clean the probe. Never
use solvents of abrasive cleaners. Make sure the probes are dry before
use.
Performance Test
Verify the accuracy of the probe with a 15 kV dc (±0.25 %) voltage source.
When used with a compatible dc voltmeter, the probe should measure the
source with ±1 % accuracy. No calibration adjustments are available on
the probe.
Rs
Rm x 10
Rm 10
=
−
Rs
20 10×
20 10–
-------------------
200
10
----------20 MΩ===
Cf
1.11 + Rm
1.11 x Rm
=
Cf
1.11 + 1
1.11 x 1
=
2.11
1.11
= 1.901=
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Specifications
