USER GUIDE
NZ AU
LOW CURRENT INDUCTION COOKTOP
CI604CTPB1 and
CI904CTPB1 models
3
CONTENTS
Registration
To register your product visit our website: fisherpaykel.com/register
Safety and warnings 4
Introduction 9
Choosing the right cookware 10
Using your low current induction cooktop 12
Using multiple cooking zones 17
Locking the controls 18
Using the PowerBoost feature 19
Using the GentleHeat feature 20
Using the timer 21
Cooking guidelines 25
Care and cleaning 27
Troubleshooting 28
Warranty and service 30
4
SAFETY AND WARNINGS
WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electric shock or death.
• Do not cook on a broken or cracked cooktop.
If the cooktop surface should break or crack,
switch the appliance off immediately at the
mains power supply (wall switch) and contact a
qualified technician.
• Switch the appliance off before cleaning
or maintenance.
WARNING!
Fire Hazard
Failure to follow this advice may result in
serious burns or death.
• Unattended cooking on a hob with fat or oil can
be dangerous and may result in fire.
• Cover flame, eg with a lid or fire blanket, or use
dry chemical or foam-type extinguisher.
• Do not store items on cooking surfaces.
5
SAFETY AND WARNINGS
!
WARNING!
Health Hazard
Failure to follow this advice may result
in death.
• This appliance complies with electromagnetic
safety standards. However, persons with cardiac
pacemakers or other electrical implants (such
as insulin pumps) must consult with their doctor
or implant manufacturer before using this
appliance to make sure that their implants will
not be affected by the electromagnetic field.
!
WARNING!
Cut Hazard
Failure to follow this advice may result in
serious burns or death.
• The razor-sharp blade of a cooktop scraper is
exposed when the safety cover is retracted. Use
with extreme care and always store safely and
out of reach of children.
6
SAFETY AND WARNINGS
!
WARNING!
Hot Surface Hazard
Failure to follow this advice may result in
electric shock or death.
• During use, accessible parts of this appliance
will become hot enough to cause burns.
• Do not let body, clothing or any item other than
suitable cookware contact with the ceramic
glass until the surface is cool.
• Never leave metal objects (such as kitchen
utensils) or empty pans on the cooktop as they
can become hot very quickly.
• Beware: magnetisable metal objects worn on
the body may become hot in the vicinity of
the cooktop. Gold or silver jewellery will not
be affected.
• Keep children away.
• Handles of saucepans may be hot to touch.
Check saucepan handles do not overhang other
cooking zones that are on. Keep handles out of
reach of children.
• Failure to follow this advice could result in burns
and scalds.
7
SAFETY AND WARNINGS
READ AND SAVE THIS GUIDE
WARNING!
To reduce the risk of fire, injury to persons or damage when using the appliance, follow
the important safety instructions listed below. Read all the guidance before using
the appliance.
Installation
z
Unpack the packaging materials from the cooktop.
z
Ensure your appliance is properly installed and grounded by a qualified technician.
z
If a drawer is situated under an embedded appliance, ensure the space between the
content of drawer and appliance is large enough (2cm) to provide correct ventilation.
General Use
z
This domestic appliance is exclusively for the cooking of food, to the exclusion of any
other domestic, commercial or industrial use.
z
Remove all labels and self-adhesives from the ceramic glass.
z
Do not change or alter the appliance.
z
Never leave the appliance unattended when in use. Boilover causes smoking and greasy
spillovers that may ignite.
z
Never use your appliance as a work or storage surface.
z
Wear proper apparel — Loose-fitting or hanging garments should never be worn while
using the appliance.
z
Never leave any objects or utensils on the appliance.
z
Do not place or leave any magnetisable objects (eg credit cards, memory cards) or
electronic devices (eg computers, MP3 players) near the appliance, as they may be
affected by its electromagnetic field.
z
We recommend using plastic or wooden kitchen utensils for cooking with your
induction cooktop.
z
Storage on appliance — Flammable materials should not be stored on the cooktop or
near surface units.
z
Do not place or leave aluminum foil on the cooktop.
z
Never use your appliance for warming or heating the room.
z
Do not use water on grease fires – Smother fire or flame or use dry chemical or
foam-type extinguisher.
z
Use only dry potholders — Moist or damp potholders on any hot surfaces may result in
burns from steam. Do not let potholder touch hot heating elements. Do not use a towel
or other bulky cloth.
z
After use, always turn off the cooktop as described in this guide (ie by using the
touchscreen).
z
Do not rely on the pan detection feature to turn off the cooking zones when you
remove the pans.
z
Do not use a steam cleaner to clean your cooktop.
z
Do not place or drop heavy objects on your cooktop.
z
Do not use pans with jagged edges as this can scratch the glass.
z
Do not stand on your cooktop.
z
Do not use scourers or any other harsh/abrasive cleaning agents to clean your cooktop,
as these can scratch the ceramic glass.
z
Do not operate your cooktop by means of an external timer or separate
remote-control system.
8
SAFETY AND WARNINGS
z
Do not cook on a broken cooktop. If cooktop is broken, cleaning solutions and
spillovers may penetrate inside the cooktop and create a risk of electric shock. Contact
a qualified technician immediately.
z
CAUTION: The cooking process has to be supervised. A short term cooking process has
to be supervised continuously.
Child Safety
z
Do not allow children to play with the appliance or sit, stand, or climb on it.
z
Do not store items of interest to children in cabinets above the appliance. Children
climbing on the cooktop could be seriously injured.
z
Do not leave children alone or unattended in the area where the appliance is in
use. Children of less than 8 years old must be kept away from the appliance unless
continuously supervised. This appliance can be used by children aged from 8 years
and above, and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge, if they have been given supervision or
instruction concerning the use of the appliance in a safe way and they understand
the hazards involved. Cleaning and user maintenance shall not be done by children
without supervision.
Cleaning
z
Clean cooktop with caution — If a wet sponge or cloth is used to wipe spills on a hot
cooking area, be careful to avoid steam burn. Some cleaners can produce noxious
fumes if applied to a hot surface.
Servicing
z
Do not repair or replace any part of the appliance unless specifically recommended in
the user guide. All other servicing should be undertaken be a Fisher & Paykel trained
and supported service technician or qualified person.
z
If the power supply cable is damaged, it must only be replaced by a qualified
technician.
z
If the appliance is malfunctioning, it will display an alert code: first note down the alert
code (see section ‘Alert codes’ in this manual), then contact your Authorized Service
Center or Customer Care to arrange for service. Do not use your appliance until it has
been repaired by a Fisher & Paykel authorized technician.
Standard Requirements
z
This induction cooktop generates and uses ISM frequency energy that heats cookware
by using an electromagnetic field. It has been tested and complies with Part 18 of the
FCC Rules for ISM equipment. This induction cooktop meets the FCC requirements to
minimize interference with other devices in residential installation. Induction cooktops
may cause interference with television or radio reception. If interfence occurs, the user
should try to correct the interference by:
z
Relocating the receiving antenna of the radio or television
z
Increasing the distance between the cooktop and the receiver
z
Connecting the receiver into an outlet different than the receiver.
9
INTRODUCTION
Introducing your cooktop
Congratulations on your new purchase. Your Fisher & Paykel induction cooktop is
the ultimate in induction cooking, giving you the speed, precision, and simplicity of
electronic control, and the easy-care elegance of a ceramic glass surface. For more
information, visit our local website listed on the back cover.
A word on induction cooking
Induction cooking is a safe, advanced, efficient, and economical cooking technology.
It works by electromagnetic vibrations generating heat directly in the pan, rather than
indirectly through heating the glass surface. The glass becomes hot only because
the pan eventually warms it up. This technology has a number of advantages over
traditional radiant energy cooking:
z
Heat-up times are much faster.
z
Use is safer as no heating takes place unless a suitable pan is placed on the cooking
zone.
z
As heat is transferred without loss, you save energy.
Before using your new cooktop
z
Read this guide, taking special note of the ‘Safety and warnings’ section.
z
Remove any protective film that may still be on your cooktop.
Using the touch controls
z
The controls respond to touch, so you don’t need to apply any pressure.
z
Use the ball of your finger, not its tip.
z
Make sure the controls are always clean, dry, and there is no object (eg a utensil or
a cloth) covering them. Even a thin film of water may make the controls difficult to
operate.
10
CHOOSING THE RIGHT COOKWARE
To check if cookware is suitable
z
Carry out a magnet test:
z
Move a magnet across the base of the pan.
If the magnet is attracted then the pan is induction suitable.
z
Note: Make sure attraction is consistent across the base of the pan.
If there are gaps, such as an indented manufacturer’s logo,
then the performance of the pan will be impaired.
z
If you do not have a magnet:
1 Put some water in the pan you want to check.
2 Follow the steps under ‘To start cooking’.
3 If does not flash in the display and the water is heating, the pan is suitable.
Quality of cookware
IMPORTANT!
z
The quality of your cookware can affect cooking performance. Only use induction
compatible cookware that has been specifically designed for induction cooking.
Look for the induction symbol on the packaging or the bottom of the pan.
z
Cookware that has a high content of ferromagnetic material that continues up from the
base into the sides of the pan will give the best cooking performance.
See below:
Quickest heating
Performance
High content of
ferromagnetic material.
Heating area is
consistent across the
base and continues up
the sides of pan.
Average heating
Performance
Reduced area of
ferromagnetic material.
Reduced zone of
heating, results in poor
cooking performance
and slower heating.
Slow heating
Performance
Very limited area of
ferromagnetic material.
Results in very slow
heating performance.
Note: This type of
pot is good for very
delicate tasks such as
melting chocolate, as
heating is very slow.
11
CHOOSING THE RIGHT COOKWARE
Cookware guidelines
z
Cookware made from the following materials is suitable:
z
stainless steel with a magnetic base or core
z
aluminium and copper with a magnetic base or core
z
cast iron
z
steel or enamelled steel.
z
Cookware made from the following materials is not suitable:
z
pure stainless steel
z
aluminium or copper without a magnetic base
z
glass
z
wood
z
porcelain
z
ceramic or earthenware.

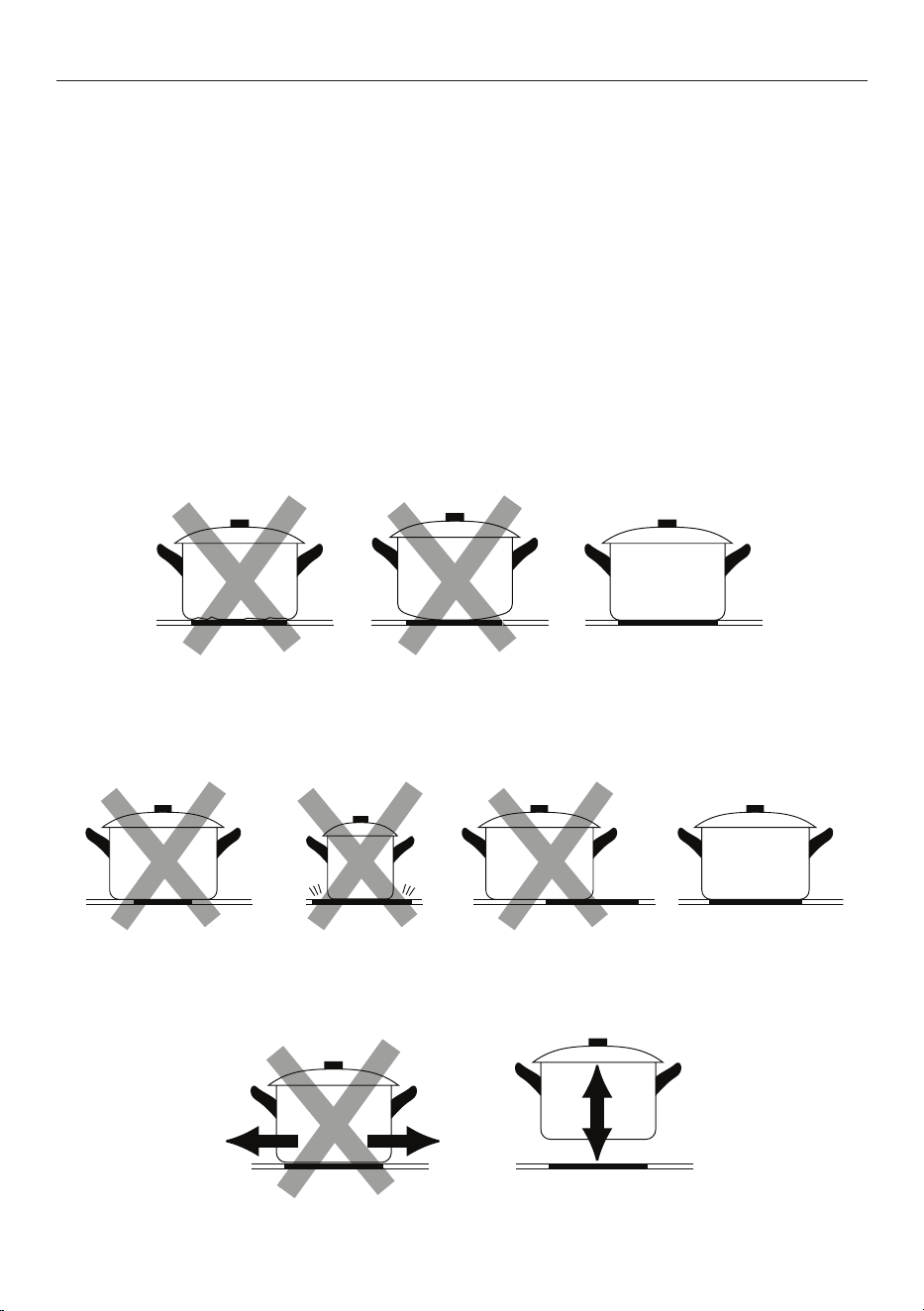

Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and is similar
in size as the cooking zone. A small pot on a large cooking zone may not be detected.
Always centre your pan on the cooking zone.
Always lift pans off the cooktop – do not slide, or they may scratch the glass.
12
USING YOUR LOW CURRENT INDUCTION COOKTOP
* Maximum output when set on PowerBoost.
COOKING
ZONE
ZONE
DIAMETER
POWER POWERBOOST
RECOMMENDED
MINIMUM PAN SIZE
1
160 mm 1200 W 1400 W* 110 mm
2
200 mm 2300 W 3000 W* 145 mm
2
1
1
2
CI904CTPB1 model
CI604CTPB1 model
1
2
2
1
13
USING YOUR LOW CURRENT INDUCTION COOKTOP
Touch controls overview
To select a setting on the selector:
Touch at one point to jump to
a specific setting
OR Slide your finger along the selector.
ON/OFF control
Turns the cooktop
on and off
Keylock control
Locks the
controls
(except ON/
OFF) to prevent
unintended use
GentleHeat selector
Touch to activate
GentleHeat function for
the selected cooking
zone. When GentleHeat
is activated
u will show
in the display of the
selected cooking zone.
Warning!
The cooking
zone is not
in use but
its surface
is still very
hot!
Cooking Zone display
Touch to activate
selected cooking zone
If on:
Controls (except
ON/OFF) are
locked and
unresponsive
If off:
Controls are
responsive
Timer display
z
Shows the
number of
minutes set/
remaining
z
Shows CL
(cleared) if
the timer is
not set
If on:
Cooktop is on
If off:
Cooktop is off
If on:
Cooking zone is
selected and
ready to be set
These indicators show which
cooking zone(s) the timer is
set for:
If flashing:
Timer is selected and ready to
be set
If steadily lit: Timer is set and
counting down
If flashing and beeping:
set time is up
Setting selector
Touch this area or slide
your finger along it to
select the heat or timer
setting. The lights
above the selector
correspond to the
setting levels (0-
u-9)
14
USING YOUR LOW CURRENT INDUCTION COOKTOP
To start cooking
1 Touch and hold the ON/OFF
control for 2 seconds.
z
a red indicator light will glow.
3 Place a suitable pan on the
cooking zone you wish to use.
z
Make sure the bottom of the
pan and the surface of the
cooking zone are clean and
dry.
IMPORTANT!
Always place small pans in the
centre of the cooking zone.
4 Touch the display of the cooking zone you
wish to use.
2
0 will appear in the cooking zone displays.
15
USING YOUR LOW CURRENT INDUCTION COOKTOP
5 Select a heat setting by touching or
sliding the setting selector with your
finger.
z
The setting will appear in the display of
the selected cooking zone.
z
If you don’t choose a heat setting
within 20 seconds, the cooktop will
automatically turn off. Start with step 1
again.
6 You can modify the heat setting at any
time during cooking.
z
Touch the display of the cooking
zone you wish to adjust.
z
Adjust the heat setting by touching
or sliding the setting selector with
your finger.
z
The new heat setting will appear in
the display of the selected cooking
zone.
If a display flashes
alternately with the
heat setting
This means that:
z
you have not placed a pan on the correct
cooking zone or
z
the pan you’re using is not suitable for
induction cooking or
z
the pan is too small or not properly
centred on the
cooking zone.
z
No heating takes place unless there is a
suitable pan
on the cooking zone.
z
The cooktop will automatically turn off
after 10 minutes if no suitable pan is
placed on it.
16
USING YOUR LOW CURRENT INDUCTION COOKTOP
Turning off an individual cooking zone
1 Select the cooking zone you want to
turn off.
2 Decrease its heat setting until the
display shows
0. If the cooking zone
surface is too hot to touch, H will
replace 0 in the display.
1 Touch and hold the ON/OFF control.
Beware of hot surfaces
H will appear in the display of any cooking zone that is too hot to touch. It will remain
on and steadily lit even when the cooktop is turned off. It will disappear when the
surface has cooled down to a safe temperature.
Turning off the whole cooktop
17
USING MULTIPLE COOKING ZONES
Using two or more cooking zones at once can limit the maximum heat setting for each
zone. You may not be able to increase a heat setting or use an additional cooking zone
until you reduce the settings on other zones.
When you reach the maximum available heat setting for a selected zone, the cooktop
will beep twice and the setting will flash in the display.
As an example, with two cooking
zones set to PowerBoost, the
selected cooking zone has a
maximum heat setting of
8 and
will flash if you try to exceed this.
2 Reselect the desired
cooking zone and increase its
heat setting.
1 Select another cooking zone
and reduce its heat setting.
To increase the heat setting
18
LOCKING THE CONTROLS
You can lock the controls to prevent unintended use, such as children accidentally turning
cooking zones on. When the controls are locked, all controls except the ON/OFF
control are disabled.
To lock the controls
1 Make sure that the cooktop is turned on but no cooking zone is in use.
2 Touch and hold the keylock control
for a few seconds. The indicator light above the
control comes on, indicating that the controls are locked.
Note: the cooktop will automatically turn off after 20 seconds, but the controls will still
be locked when you turn the cooktop on again.
If any controls are accidentally touched while the cooktop is locked the white ‘lock’
indicator light will flash and the cooktop will remain locked.
To unlock the controls
1 Make sure the cooktop is turned on.
2 Touch and hold the keylock control for a few seconds. The indicator light above the
control goes out.
3 You can now start using your cooktop.
IMPORTANT!
Do not lock the controls while a cooking zone is in use. If you do, you can always turn
the cooktop off with the ON/OFF control in an emergency.
19
USING THE POWERBOOST FEATURE
This feature enables you to sear meat or bring liquid to the boil very quickly. When
a cooking zone is set for PowerBoost, it uses more than 100% of the power of that
particular cooking zone, resulting in a boost of intense heat.
IMPORTANT!
PowerBoost heats food and liquids very quickly. Do not leave the cooktop unattended
when using this feature. Take extra care when cooking with oil and fat, as these heat
up very quickly. PowerBoost is not recommended for cooking with oil and fat, such as
deep frying.
To set a cooking zone for PowerBoost
When PowerBoost is set
On the large elements
z
The cooking zone will be on PowerBoost (more than 100%) for 5 minutes, P will then
flash for a few seconds before the cooking zone automatically reduces the heat to
setting 9 (100%).
On the smaller elements
z
When PowerBoost is set on the two smaller cooking zones, it will not automatically
reduce after 5 minutes. To turn PowerBoost off on the smaller cooking zones, touch or
slide the setting selector to reduce the heat setting.
To quit the PowerBoost setting
Either touch or slide the setting selector to a new setting or to 0 to turn the cooking
zone off.
2 Touch or slide the setting selector up
to the last setting on the right until
P is
displayed.
1 Select a cooking zone.
5 mins
20
USING THE GENTLEHEAT FEATURE
This heat setting provides continuous gentle heat and is ideal for:
z
delicate cooking tasks such as melting chocolate
z
keeping cooked food warm.
IMPORTANT!
If reheating cooked food from cold, always bring it to the boil on a higher setting
before changing to the GentleHeat setting. For food safety reasons, a cooking zone
set for GentleHeat will automatically turn off after two hours of continuous use.
1 Select a cooking zone.
2 Touch
to activate GentleHeat.
The GentleHeat indicator will glow
and u. will show in the display of the
selected cooking zone.
21
USING THE TIMER
You can use the timer in two ways:
z
as a minute minder
z
as a timer to automatically turn off a cooking zone
IMPORTANT!
Never leave the cooktop unattended when in use, even if you have set the timer to
automatically turn a cooking zone off.
To set the timer as a minute minder
1 Turn the cooktop on.
Do not select a cooking zone.
0 should
show in all cooking zones displays.
3 The timer display will show
0 -
The timer is now ready to be set.
Note: If you do not set the timer within
10 seconds the cooktop will turn off.
4 Set the right-hand digit using the
setting selector.
2 Select the timer.
22
USING THE TIMER
5 After a few seconds the display will
then indicate for you to set the left-
hand digit.
6 Set the left-hand digit using the setting
selector. The timer display will flash for
a few seconds and then remain steadily
lit. The cooking zone displays will turn
off. The timer is now set and
begins counting down.
To use the cooking zone while a minute
minder is set:
7 Press to turn the cooktop back on.
The timer display will flash with the set
timer. You can now select a cooking
zone and start cooking.
When the set time is up
z
The timer display will flash and the timer will beep
(note: if the surface is still hot the display will show H).
z
Touch any control to stop the beeping.
Notes on using the timer
z
Skip the last step (6) if you want to set the timer to less than 10 minutes.
z
To modify or cancel a timer setting, touch the timer display and reset the minutes as
desired, following the steps above.
z
To cancel the timer, touch the timer display. The timer will reset to 00.
Note: You cannot set a timer for an individual cooking zone while the minute minder is
set. To set a timer for an individual cooking zone, cancel the minute minder, then follow
the steps in the following section ‘To set the timer for a cooking zone’.
23
USING THE TIMER
IMPORTANT!
Never leave the cooktop unattended when in use, even if you have set the timer to
automatically turn a cooking zone off.
To set the timer for a cooking zone
1 Select a cooking zone already in use.
3 The flashing indicator in the timer
display means that the timer is ready to
be set for the left rear cooking zone.
As an example, you would like to set
the timer to turn this particular cooking
zone off after 25 minutes.
4 Set the right-hand digit using the
setting selector.
2 Select the timer.
24

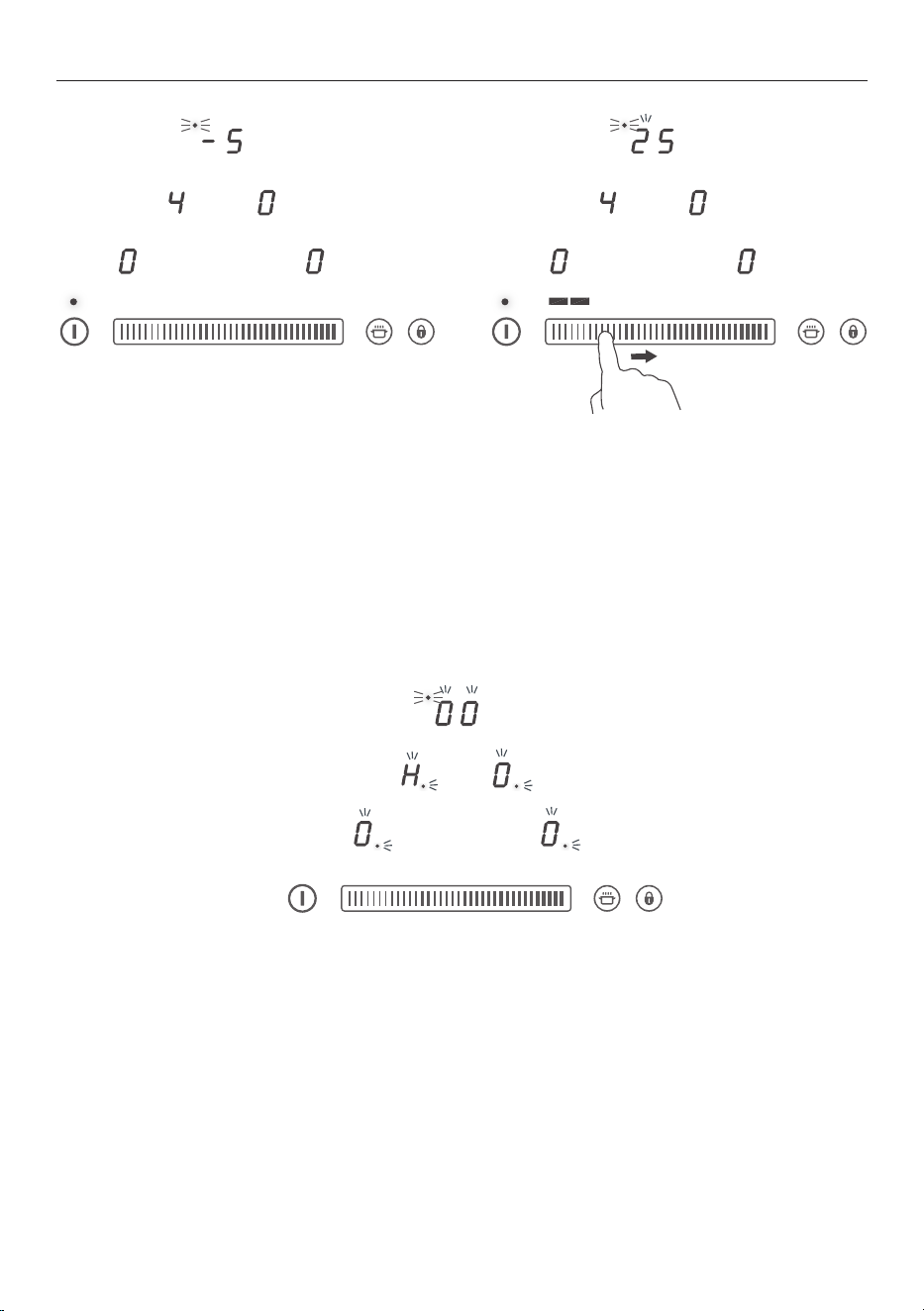

USING THE TIMER
When the set time is up
z
The corresponding indicator in the timer display will flash, the timer will beep, and the
cooking zone will automatically turn off. (note: if the surface is still hot the display will
show H).
z
Touch any control to stop the beeping.
Notes on using the timer
z
Skip the last step (6) if you want to set the timer to less than 10 minutes.
z
To modify or cancel a timer setting, follow steps 1 and 2 under ‘To set the timer for a
cooking zone’. The timer display will reset to 00. Adjust the minutes as desired, or leave
at 00 to cancel the timer.
z
You can also cancel a timer by selecting the cooking zone, and decreasing the heat
setting to 0.
z
Once you have set the timer for one cooking zone, you can then set it for additional
cooking zones. Repeat the steps above to set the timer for each additional cooking zone.
z
When multiple timers are set:
z
The timer display will always revert to showing the setting for the cooking zone with
the shortest remaining time.
z
To check the timer setting for a different cooking zone, simply select the cooking
zone. Its remaining time will briefly appear in the timer display.
5 After a few seconds the display will
then indicate for you to set the left-
hand digit.
6 Set the left-hand digit using the setting
selector. The timer display will flash for
a few seconds and then remain steadily
lit. The timer is now set and begins
counting down.
25
COOKING GUIDELINES
IMPORTANT!
Take care when frying: oil and fat heat up very quickly. At extremely high
termperatures oil and fat will ignite spontaneously and this presents a serious fire risk.
PowerBoost is not recommended for cooking with oil and fat, such as deep frying.
Cooking tips
z
When food comes to the boil, reduce the temperature setting.
z
Using a lid will reduce cooking times and save energy by retaining the heat.
z
Minimise the amount of liquid or fat to reduce cooking times.
z
Start cooking on a high setting and reduce the setting when the food has heated
through.
Simmering, cooking rice
z
Simmering occurs below boiling point, at around 85
O
C, when bubbles are just rising
occasionally to the surface of the cooking liquid. It is the key to delicious soups and
tender stews because the flavours develop without overcooking the food. You should
also cook egg-based and flour-thickened sauces below boiling point.
z
Some tasks, including cooking rice by the absorption method, may require a setting
higher than the lowest setting to ensure the food is cooked properly in the time
recommended.
Searing steak
To cook juicy flavoursome steaks:
1 Stand the meat at room temperature for about 20 minutes before cooking.
2 Heat up a heavy-based frying pan.
3 Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and
then lower the meat onto the hot pan.
4 Turn the steak only once during cooking. The exact cooking time will depend on the
thickness of the steak and how cooked you want it. Times may vary from about 2 – 8
minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more
‘well done’ it will be.
5 Leave the steak to rest on a warm plate for a few minutes to allow it to relax and
become tender before serving.
For stir-frying
When stir-frying be careful to lift the pan clear of the surface if tossing the ingredients.
Sliding the pan across the cooktop surface may scratch it.
1 Choose an induction compatible flat-based wok or a large frying pan.
2 Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking
large quantities, cook the food in several smaller batches.
3 Preheat the pan briefly and add two tablespoons of oil.
4 Cook any meat first, put it aside and keep warm.
5 Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a
lower setting, return the meat to the pan and add your sauce.
6 Stir the ingredients gently to make sure they are heated through.
7 Serve immediately.
26
COOKING GUIDELINES
Heat settings
The settings below are guidelines only. The exact setting will depend on several factors,
including your cookware and the amount you are cooking. Experiment with the cooktop
to find the settings that best suit you.
Percentage of power %
100
80
60
40
20
0
u
1 2 3 4 5 6 7 8 9
P
Heat setting
HEAT SETTING SUITABILITY
u
z
melting chocolate, butter, and foods that burn quickly
z
delicate warming for small amounts of food
1
-
2
z
gentle simmering
z
slow warming
3
-
4
z
reheating
z
rapid simmering
z
cooking rice
5
-
6
z
pancakes
7
-
8
z
sautéing
z
cooking pasta
9
z
stir-frying
z
searing
z
bringing soup to the boil
P
z
boiling water
WHAT? HOW? IMPORTANT!
Everyday soiling
on glass
(fingerprints, marks,
stains left by food or
non-sugary spillovers
on the glass)
1 Switch the power to the
cooktop off at the wall.
2 Apply cooktop cleaner
while the glass is still warm
(but not hot.)
3 Rinse and wipe dry with a
clean cloth or paper towel.
4 Switch the power to the
cooktop back on at the
wall.
z
When the power to the
cooktop is switched off,
there will be no ‘hot
surface’ indication but the
cooking zone may still be
hot. Take extreme care.
z
Heavy-duty scourers, some
nylon scourers and harsh/
abrasive cleaning agents
may scratch the glass.
Always read the label to
check if your cleaner or
scourer is suitable.
z
Never leave cleaning
residue on the cooktop: the
glass may become stained.
Boilovers, melts, and
hot sugary spills on
the glass
Remove these immediately
with a fish slice, palette knife
or razor blade scraper suitable
for ceramic glass cooktops, but
beware of hot cooking zone
surfaces:
1 Switch the power to the
cooktop off at the wall.
2 Hold the blade or utensil
at a 30
o
angle and scrape
the soiling or spill to a cool
area of the cooktop.
3 Clean the soiling or spill up
with a dish cloth or paper
towel.
4 Follow steps 2 to 4 for
‘Everyday soiling on glass’
above.
z
Remove stains left by
melts and sugary food
or spillovers as soon as
possible. If left to cool on
the glass, they may be
difficult to remove or even
permanently damage the
glass surface.
z
Cut hazard: when the safety
cover is retracted, the blade
in a scraper is razor-sharp.
Use with extreme care and
always store safely and out
of reach of children.
Spillover on the
touch controls and
stainless steel strip
1 Switch the power to the
cooktop off at the wall.
2 Soak up the spill.
3 Wipe the touch control
area with a clean damp
sponge or cloth.
4 Wipe the area completely
dry with a paper towel.
5 Switch the power to the
cooktop back on at the
wall.
z
The cooktop may beep and
turn itself off, and the touch
controls may not function
while there is liquid on
them. Make sure you wipe
the touch control area dry
before turning the cooktop
back on.
27
CARE AND CLEANING
WHAT? HOW? IMPORTANT!
Everyday soiling
on glass
(fingerprints, marks,
stains left by food or
non-sugary spillovers
on the glass)
1 Switch the power to the
cooktop off at the wall.
2 Apply cooktop cleaner
while the glass is still warm
(but not hot.)
3 Rinse and wipe dry with a
clean cloth or paper towel.
4 Switch the power to the
cooktop back on at the
wall.
z
When the power to the
cooktop is switched off,
there will be no ‘hot
surface’ indication but the
cooking zone may still be
hot. Take extreme care.
z
Heavy-duty scourers, some
nylon scourers and harsh/
abrasive cleaning agents
may scratch the glass.
Always read the label to
check if your cleaner or
scourer is suitable.
z
Never leave cleaning
residue on the cooktop: the
glass may become stained.
Boilovers, melts, and
hot sugary spills on
the glass
Remove these immediately
with a fish slice, palette knife
or razor blade scraper suitable
for ceramic glass cooktops, but
beware of hot cooking zone
surfaces:
1 Switch the power to the
cooktop off at the wall.
2 Hold the blade or utensil
at a 30
o
angle and scrape
the soiling or spill to a cool
area of the cooktop.
3 Clean the soiling or spill up
with a dish cloth or paper
towel.
4 Follow steps 2 to 4 for
‘Everyday soiling on glass’
above.
z
Remove stains left by
melts and sugary food
or spillovers as soon as
possible. If left to cool on
the glass, they may be
difficult to remove or even
permanently damage the
glass surface.
z
Cut hazard: when the safety
cover is retracted, the blade
in a scraper is razor-sharp.
Use with extreme care and
always store safely and out
of reach of children.
Spillover on the
touch controls and
stainless steel strip
1 Switch the power to the
cooktop off at the wall.
2 Soak up the spill.
3 Wipe the touch control
area with a clean damp
sponge or cloth.
4 Wipe the area completely
dry with a paper towel.
5 Switch the power to the
cooktop back on at the
wall.
z
The cooktop may beep and
turn itself off, and the touch
controls may not function
while there is liquid on
them. Make sure you wipe
the touch control area dry
before turning the cooktop
back on.
28
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES WHAT TO DO
The cooktop cannot
be turned on.
No power. Make sure the cooktop is
connected to the power
supply and that it is switched
on at the wall. Check
whether there is a power
outage in your home or area.
If you’ve checked everything
and the problem persists,
call your Authorised Service
Centre or Customer Care.
The touch controls are
unresponsive.
The controls are locked. Unlock the controls. See
section ‘Using your induction
cooktop’ for instructions.
The touch controls are
difficult to operate.
There may be a slight film of
water over the controls or
you may be using the tip of
your finger when touching the
controls.
Make sure the touch control
area is dry and use the ball
of your finger when touching
the controls.
The glass is being
scratched.
Rough-edged cookware. Use cookware with flat and
smooth bases. See ‘Choosing
the right cookware’.
Unsuitable, abrasive scourer or
cleaning products being used.
See ‘Care and cleaning’.
The display flashes
Er03
and there is a
continuous beep.
Liquid has spilled onto the
touch control area.
Switch the power to the
cooktop off at the wall and
see ‘Care and cleaning’ for
instructions
There are objects (eg utensils)
on the touch control area.
Remove the objects from the
touch control area.
Several touch controls are
registering continuous contact
(eg due to someone resting
their hand or arm on the touch
control area).
Remove the cause of
continuous contact.
Pans do not become
hot. The heat setting
display comes on, but
the
does not flash
when I remove a pan.
-0- shows in the
timer display when I
turn on the cooktop.
The cooktop is in ‘Display
mode’
Contact Customer Care or
your Authorised Service
Centre.
29
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES WHAT TO DO
Some pans make
crackling or clicking
noises.
This may be caused by the
construction of your
cookware (layers of different
metals vibrating differently).
This is normal for induction
cookware and does not
indicate a fault.
The cooktop makes
a low humming noise
when used on a high
heat setting (especially
PowerBoost).
This is caused by the
technology of induction
cooking.
This is normal, but the
noise should quieten down
or disappear completely
when you decrease the
heat setting.
Fan noise coming from
the cooktop.
A cooling fan built into
your cooktop has come on
to prevent the electronics
from overheating. It may
continue to run even after
you’ve turned the cooktop
off.
This is normal and needs
no action. Do not switch
the power to the cooktop
off at the wall while the
fan is running.
The heat setting will not
increase. The display
flashes and the cooktop
beeps when I try to
increase the heat.
Other cooking zones are
in use and cooktop is at
maximum power.
Reduce the heat setting
for other cooking zones.
See section ‘Using multiple
cooking zones.’
Pans do not become hot
and
appears in the
display.
The cooktop cannot detect
the pan because it is not
suitable for induction
cooking.
The cooktop cannot detect
the pan because it is too
small for the cooking zone or
not properly centred on it.
Use cookware suitable for
induction cooking. See
section ‘Choosing the right
cookware’.
Centre the pan and make
sure that its base matches
the size of the cooking
zone.
P flashes in the display
when you are trying to set
PowerBoost.
PowerBoost is temporarily
unavailable because the
cooktop needs to protect
itself from overheating.
Allow the cooktop to cool
down.
The cooktop or a cooking
zone has turned itself off
unexpectedly, a tone
sounds and an error code
is displayed (typically Er
following by two digits).
Technical fault. Please note down the error
letters and numbers,
switch the power to the
cooktop off at the wall, and
contact your Authorised
Service Centre or Customer
Care with the error code
information.
30
WARRANTY AND SERVICE
Before you call for service or assistance
Check the things you can do yourself. Refer to the installation instructions and your user
guide and check that:
1 Your product is correctly installed.
2 You are familiar with its normal operation.
If after checking these points you still need assistance or parts, please refer to the
Service & Warranty book for warranty details and your nearest Authorised Service
Centre, Customer Care, or contact us through our website www.fisherpaykel.com.
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer
Suburb
Town
Country
This cooktop has been designed and constructed in accordance with the following
codes and specifications:
In New Zealand and Australia:
AS/NZS 60335-1:2011 General Requirements for Domestic electrical appliances
AS/NZS 60335-2-6:2014 Particular Requirements for Domestic electrical cooking appliances
AS/NZS CISPR 14.1.2013 Electromagnetic Compatibility Requirements.
NZ AU
431545C 09.23
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2023. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous
product improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
