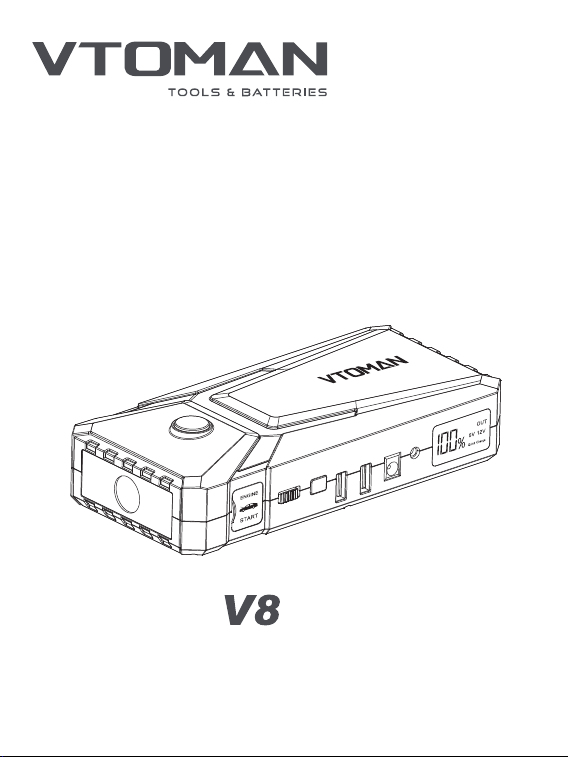

User Manual
Jump Starter
Model No.: Epower-���
Pro
WELCOME
Thank you for choosing VTOMAN V8 Pro Jump Starter. Please
read the user manual carefully before use and keep it for further
reference.
PRODUCT PARTS AND FUNCTIONS DESCRIPTION
1. LED Flashlight (SOS)
2. Red Emergency Light
3. 12V Jump Cable Socket
4. ON/OFF Switch
5. Power Button
6. 5V/9V Quickcharge Output
7. 5V/2.1A Output
8. 12V/10A Output
9. 15V/1A Input
10. LCD Screen
11. Compass
LCD Screen Display
Keep the "ON/OFF" switch "ON" and press the power button,
the LCD screen will show the remain power of the device.
OPERATING INSTRUCTIONS
(Keep the "ON/OFF" switch "ON" before you use the device.)
How to charge VTOMAN V8 Pro With Wall Charger
1.Plug the wall charger into the 15V/1A input port of the device.
2. Plug the wall charger into the universal input socket
(100-240V).
JUMP STARTING A VEHICLE
50%
1.Make sure the unit is over 50% charged
(check the battery indicator> 2 bars).If the
device has not been used for over two
months please charge it first.
2.Attach the intelligent jumper cable to this
device.
3.Connect the jump clamps to the car
battery: attach the red clamp to the positive
terminal (+) and the black clamp to the
negative terminal (-).
4.Start your vehicle. If your vehicle doesn't
start, or if you observe a red light or hear
buzzing, please consult the troubleshooting
section on the next page.
5.After the car is starting, remove the
jumper cable from the battery.
GREEN LIGHT ON: The Connection is correct,
ready to start your car.
Check the indicators on the jumper cable, and operate in
accordance with the instructions below:
RED LIGHT WITH BUZZING：This indicates that
the terminals have been connected to the wrong
polarity of the battery. Please follow step 3 to
reconnect them until the green light is on before
attempting to start the engine.
GREEN LIGHT BLNKING: Indicating that the voltage
of the storage battery is too low. Press the BOOST
button until the green light is on, and start within
30 seconds.
NO LIGHT AND NO BUZZING: Indicating that the
storage battery may have been damaged. Please
ensure that terminals have been connected to the
correct polar, then press the "BOOST" button,and
finish the starting operation within 30 seconds when
the green light is on.
CHARGING THE DIVICES
How To Use VTOMAN V8 Pro To Charger The Cell Phone And
Tablet:
1.Keep the "ON/OFF" stitch "ON" and check the remain power of
the device with LCD screen.
2.Connect the cell phone and device with USB cable.
3.Press the power button to charge your cell phone.
How To Use VTOMAN V8 Pro To Power Other 12V Car
Equipments:
1.Plug the cigarette adapter into the 12V output port.
2.Connect the other 12V Vehicle Electronics with the cigarette
adapter.
3. Press the power button to power the 12V Vehicle Electronics.
*Note: Cigarette adapter is not included.
How To Turn On The LED Flash Light:
Press the power button for a few moments to turn the LED flashlight
on.
Press one more to change the modes of the LED flashlight. (Normal,
Strobe, SOS, OFF)
Press the power button twice to turn the red emergency light ON.
Press one more to turn it OFF.
PACKAGE & CONTENTS
V8 Pro Jump Starter x1
User Manual x1
EVA box x1
Intelligent Jumper Cable x�
USB Charging Cable x1
Wall Charger x1
SPECIFICATIONS
FAQ
Size: 185*87*40mm
Weight: 550g
Battery Capacity: 55.5Wh
Output: 5V/9V; 5V2.1A; 12V 10A; 12V Jumping Socket
Input: 15V 1AFull charging time: 4.5h
Starting current: 500A(3s), 300A (5s)
Peak current:3000A
perating temperature: -4°F ~ 140°F （ -20°C~60℃）
1. How to turn off the device?
After using, push the "ON/OFF" Switch to OFF, The product has
intelligent detection function, once there is no load, or electronic
products charging is end, it will automatically shout down to save
power.
2. How long will it take to full charge the device?
About 4.5 hours with the 15V/1A input.
3. How many times can this device charge the cell phone?
Take iPhone 6 as an example, this device can charge it about 7 times
from 0% to 100%.
4. How many times can this device start the car when it is fully
charged?
It can start car up to 30 times but we only suggest to start car up to
4 times for once use.
5. What's the lifetime of V8 Pro?
Usually 3-5years in normal condition.
6. How long does VTOMAN V8 Pro can hold charge and still can
start the car?
The design of VTOMAN V8 Pro is very scientific, it can hold a charge
up to 12 months. But we suggest to charge it every three months to
extend battery service life.
WARNING
1. Read the instruction carefully before using the device.
2. Leave the device far from children.
3. Do not place the product in an environment where the tempera-
ture exceeds 60℃.
4. Do not shower dip the product in water.
5. Do not place the product in an extremely hot environment or fire.
6. Do not operate the product in an explosive environment, such as
in the flammable liquids, gases or dust environment.
7. Do not use the device as a toy.
8. Do not use this device for charging a car.
9. Do not drop the product. If the product is impacted or damaged,
it must be repaired by a qualified technician.
10. Do not use damaged or modified battery packs. Damage or
modification of batteries may have unpredictable consequences,
increasing the risk of fire, explosion, and injury.
11. To reduce the risk, keep away from children when using the
device.
12. Make sure someone is nearby nearby when you are using
thedevice.
13. Please remove metal accessories such as rings, bracelets and
necklaces before using the product to prevent the metal from falling
into the hole and cause short circuit.
14. Please make sure that the power is above 75% when you use it
to start your car.
15. The product is only suitable for starting 12V gasoline and diesel
vehicles. It may be dangerous if used for other purposes. Do not use
it on equipment such as airplanes and ships.
16. This device can not power all 12V automotive products.
Currently,it can only power some small automotive electronics, such
as portable tire air pumps.
17. Please ensure that the blue end of the smart jump clamps is fully
inserted into the product 12V car start port when you use it to start
your car, otherwise the blue end may melt.
18. Please use the jump clamps which comes with the device
only.When the battery dip or wire is damaged, please stop using it
to avoid personal injury such as fire and electric shock.
19. Do not use the clamps to power other equipment.Before
starting, make sure there is no rust and foreign matter at the
interface, and tightly connect the device with the jump clamps.
20. Non-tight connection will affect the starting performance of the
device.
21. Do not use the device to start the car while it is being charging.
22. Do not use the device to continuously start the car more than 3
times.It may cause the product to overheat and damage the
product. Each starting should be separated by two minutes.
23. After successfully starting, please remove the product from the
car battery within 30s, otherwise it may cause damage.
24. Do not charge the device immediately after use it to start the car
successfully.
25. Please charge it in the environment temperature between
0C~45C.
26. Please use the comes with wall charger or the same specification
charger to charge the device.
27. In extreme cases, the battery may leak. Do not touch the liquid
directly with your hands or skin. If you accidentally touch it, rinse it
off immediately with soap and water. If you accidentally get into
your eyes, rinse your eyes with cold water for at least 10 minutes and
seek medical attention immediately.
28. If the product battery leaks, please recycle it with the appropriate
equipment immediately.
COMPOSITIONS AND AMOUNT OF TOXIC AND HARMFUL
SUBSTANCES VTOMAN V8 Pro:
29. Lithium battery based products should be disposed according to
local regulationsat at the end of the product's life.
