UNDERCOUNTER NUGGET ICE MAKERS
MODELS:
XOUIMN1585NO, XOUIMN1585NOP
XOUIMN1585NOADA, XOUIMN1585NOPADA
2
UNDERCOUNTER
When buying any XO appliance
you can be confident you have chosen a
high quality, innovative and stylish product
from a company that cares about you!
If you require service or have questions,
Help is only a phone call away -
call: 973-403-8900
Talk to one of our undercounter experts.
CONGRATULATIONS
on purchasing your XO.
Before you proceed, take just
a moment to register your XO at:
Ensuring warranty coverage should you need service
Providing ownership verification for insurance purposes
Let’s XO notify you in the event of product changes or recalls.
www.xoappliance.com/register-your-product/
REGISTRATION HELPS YOU BY -
Before You Get Started
Safety Instructions
Electrical and Grounding Instructions
Care and Cleaning
Stainless Steel
Wash Function
Cleaning
Sanitization
Maintenance Schedule
Trouble Shooting
Before You Call For Service
Warranty
4 - 7
Installation Instructions
S
Plumbing
With & Without Drain Pump
Reversing the Door
Door panel Installation
izes and Installation Dimensions
8 - 19
23 - 28
29 - 31
3
where things are
please read and follow
all safety instructions
It’s for your
own good...
Honest.
Installer Checklist
Find Your Model
Operating Instructions
20 - 22
Features & Specifications
Operating Instructions
4
heres’s ten steps for a quick & easy install
RISK OF CHILD ENTRAPMENT!
An empty refrigerator is a very dangerous attraction to children.
Remove door gaskets, latches, lids, lock and/or doors from unused or discarded appliances,
or take other actions to guarantee them harmless.
Always dispose of old appliances in accordance with local laws and regulations.
1
2
3
4
5
6
7
8
9
10
Inspect cabinet opening for water, drain and electrical connections.
The 1/4” O.D. water supply line must include isolation valve and should include an inline water
filter (consult manual). Do NOT use a self-piecing valve for the supply connection. Water
supply must have a minimum pressure of 20 psi and a maximum of 80 psi. Cold water
should be betw
o
een 50 F and 90 F - N
o
OTE: warmer water will slow ice production.
is strongly recommended.
Drain tubing will be 5/8” ID gravity fed or 3/8” ID for a pump model. All horizontal drain
runs must drop 1/4” per foot. The drain should include an air gap device to prevent
siphoning and a sanitary trap. A restricted or inadequate drain can result in poor ice
production and possible flooding.
Electrical requirement is 15a dedicated, grounded circuit.

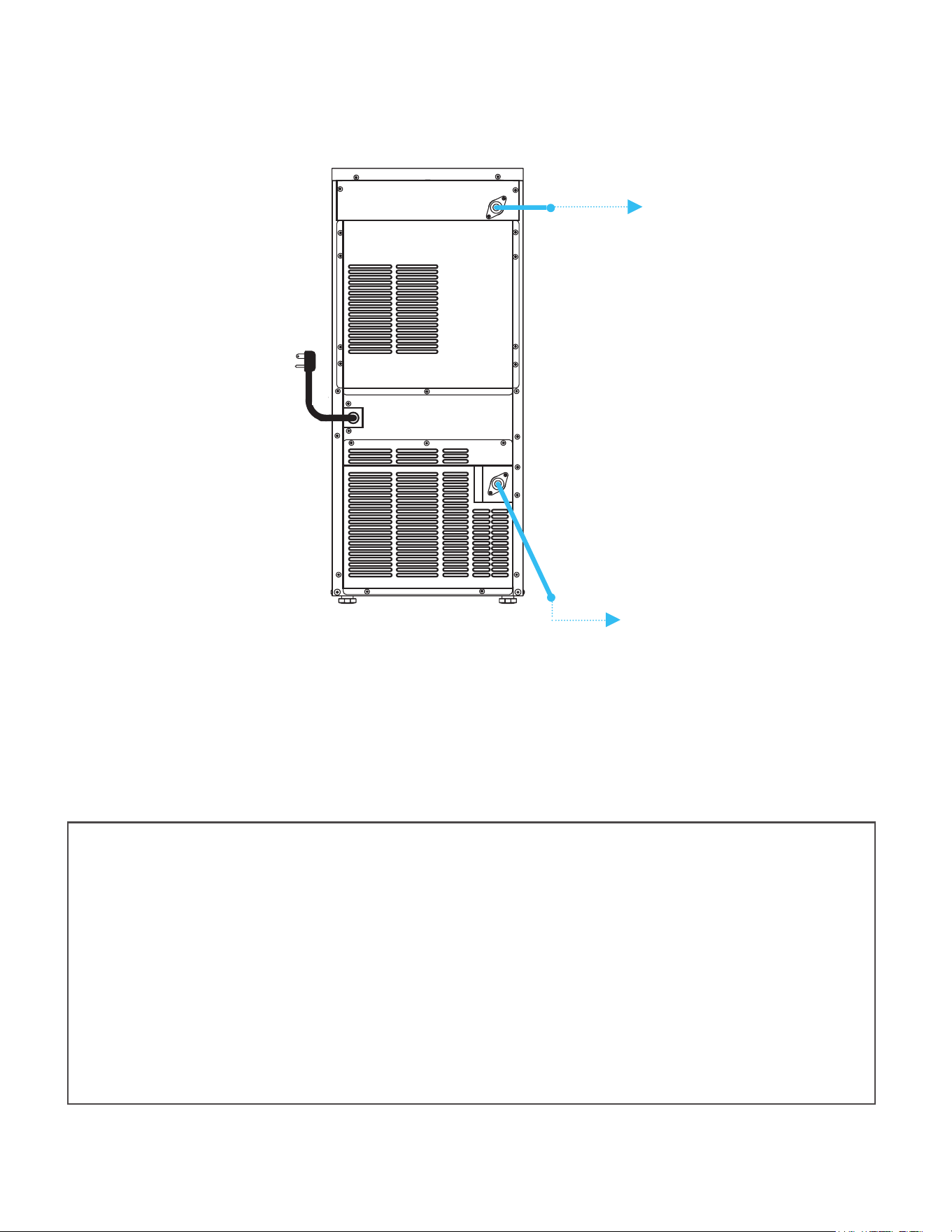

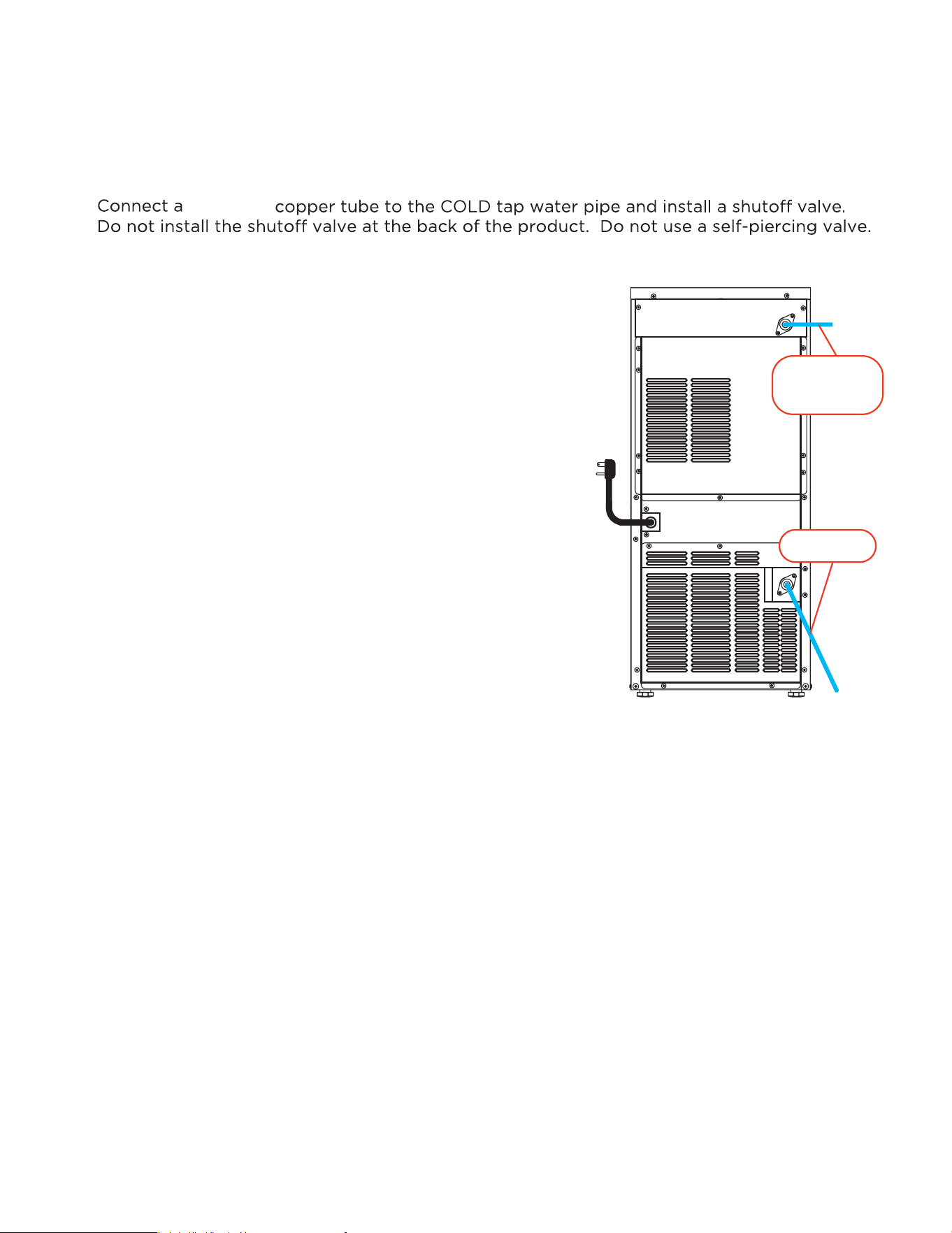

Route water supply tubing to the water inlet located at the rear of the unit.
Connect the drain tubing to either the pump discharge or the barbed gravity fed elbow.
Be sure nothing is kinked, and excess slack is removed.
Be sure the electrical connection is secure into the wall outlet.
Slide the machine into location or cavity being careful not to allow for any kinks to occur
in the water inlet and drain tubing.
Adjust the Ice Maker to level using the leg levelers.
Add approximately 2-3 quarts of water to the bin and make certain it is draining properly
and check for leaks. If water does not drain, stop and verify tubing is not restricted.
Wash down the interior of the machine with a mild detergent solution (consult manual)
Turn the machine on and allow it to make ice for approximately 30-35 minutes to verify
ice is being produced and water is draining freely. Be sure to check the cube size, shape
and clarity. Discard the first batch of ice.
Adjust if needed.
Always do one last check to be sure all water and drain connections are leak free.
5
STANDARD HEIGHT
XOUIMN1585NO & XOUIMN1585NOP
ADA HEIGHT
XOUIMN1585NOA & XOUIMN1585NOPA
2
these are the models
covered in this
book
take a minute to circle your model above
and record your serial number
here in case you need it later
INDOOR NUGGET
GOURMET ICE MAKER
Please read through completely before using your XO Unit
Periodic maintenance is essential for safe operation - the unit must be easily pulled out for full access.
The appliance must be positioned so that the plug and water shutoff are readily accessible.
Empty your XO unit before attempting to move the appliance. Moving while loaded may damage or
distort the frame.
The compressor will get HOT during operation / touching it may cause injury.
During installation follow all safety tips provided in this manual / appropriate safety equipment such as
safety glasses and work gloves should be worn.
Two people should move or lift your XO unit to prevent injury or damage.
Remov
e all interior and exterior packing materials prior to installation and dispose of properly.
Always use only approved cleaning and descaling products to maintain your XO Ice Maker.
For maximum efficiency, keep the door tightly shut unless removing ice.
Before installing, allow your XO unit to sit upright for 2 hours at the install site. This will allow the cooling
system to stabilize after transportation. Failure to follow this step may cause problems.
Location
Your XO unit should be located away from direct sunlight and heat sources (stove, heaters, etc.) which may
increase electrical consumption. High or low ambient temperature may cause units to work improperly.
Optimal operation occurs in the ambient temperatures of 50 - 68 F and water temperature of 50 .
The floor must be strong enough to support your XO unit fully loaded.
Your XO unit must not be installed in areas of where water or e
xcessive moisture are present.
Your XO unit’s final installation must observe the correct minimum air clearances around and behind the
unit to ensure adequate ventilation. In addition, all ventilation openings must be kept clear and free of
obstructions, failure to do so will result in damage to the unit.
WARNING
NEVER use external heat sources to accelerate defrosting
NEVER permit unauthorized service or modifications to your XO unit
NEVER tamper with the sealed refrigerant system - this unit uses R134a Refrigerant.
It should never be used in the vicinity of any flammable or explosive ignition sources.
ALWAYS FOLLOW THE ELECTRICAL SAFETY INSTRUCTIONS OUTLINED IN THIS MANUAL.
6
your safety matters
Never store bottles, cans or perishable food products such as meat or cheese in your XO Ice Maker.
Your XO unit must not be installed near
where flammable, corrosive or hazardous materials are present.
Failure To Follow All Electrical Safety Measures May Result in Serious Injury,
Fire Or Death
All electrical work should only be performed by an
experienced, licensed electrician.
All XO units MUST be grounded for safe operation and
com a htiw deppiuqe e
3 Prong molded cord/plug for that
purpose.
NEVER remove or disable the 3rd prong with an adapter.
NEVER use an extension cord to operate your XO unit.
Your XO unit is built to operate on 115V 60Hz and
should be plugged directly into a dedicated 15 amp
3 prong outlet. If you are uncertain as to the
voltage, amperage capacity or if the 3rd prong is
properly grounded - consult a licensed electrician.
To maximize the depth of the installation recess -
your outlet should be mounted flush with the wall.
Your XO unit should not share the circuit with any other
electrical devices as this may cause overloading,
overheating, blown fuses or tripping circuit breakers.
In a worst case this can pose a fire hazard.
NEVER handle your XO unit in wet conditions as this
can pose a severe danger of electric shock.
Exercise care when moving your XO unit to avoid
damage to the electrical cord. If the electrical cord of
your XO unit becomes worn or damaged it must be
replac
ed immediately by a qualified technician.
NEVER unplug your unit by pulling on the cord.
Unplug by gripping the plug firmly and pull out
straight from the outlet.
FOR INDOOR USE:
rof detar era launam siht ni nwohs srekaM ecI OX
indoor use.
These units are designed to operate in ambient
temperatures between 50 and 100 F.
Avoid installing the unit where it may be exposed to
heat or direct sun, dusty or damp conditions or in a
location where it may be splashed by water.
Never install the unit where flammable or corrosive
chemicals (such as pool chemicals) are present.
Installation in seaside environments where high
concentrations of salt are present will require more
frequent cleaning to avoid corrosion.
Use in any uncontrolled area or otherwise exposed
to the elements is hazardous and voids the warranty.
In regions where high humidity exists (greater than 70%)
condensation may appear on the door and/or door
gaskets. This is normal and will disappear as humidity
drops.
SERVICE 115V - 60 Hz - 1 phase
AMPS 15 Amp Circuit Breaker
Requires a Dedicated Outlet
All electrical work must be performed by
a licensed electrician
7
Serious injury, fire or death...
Okay -
o o
8

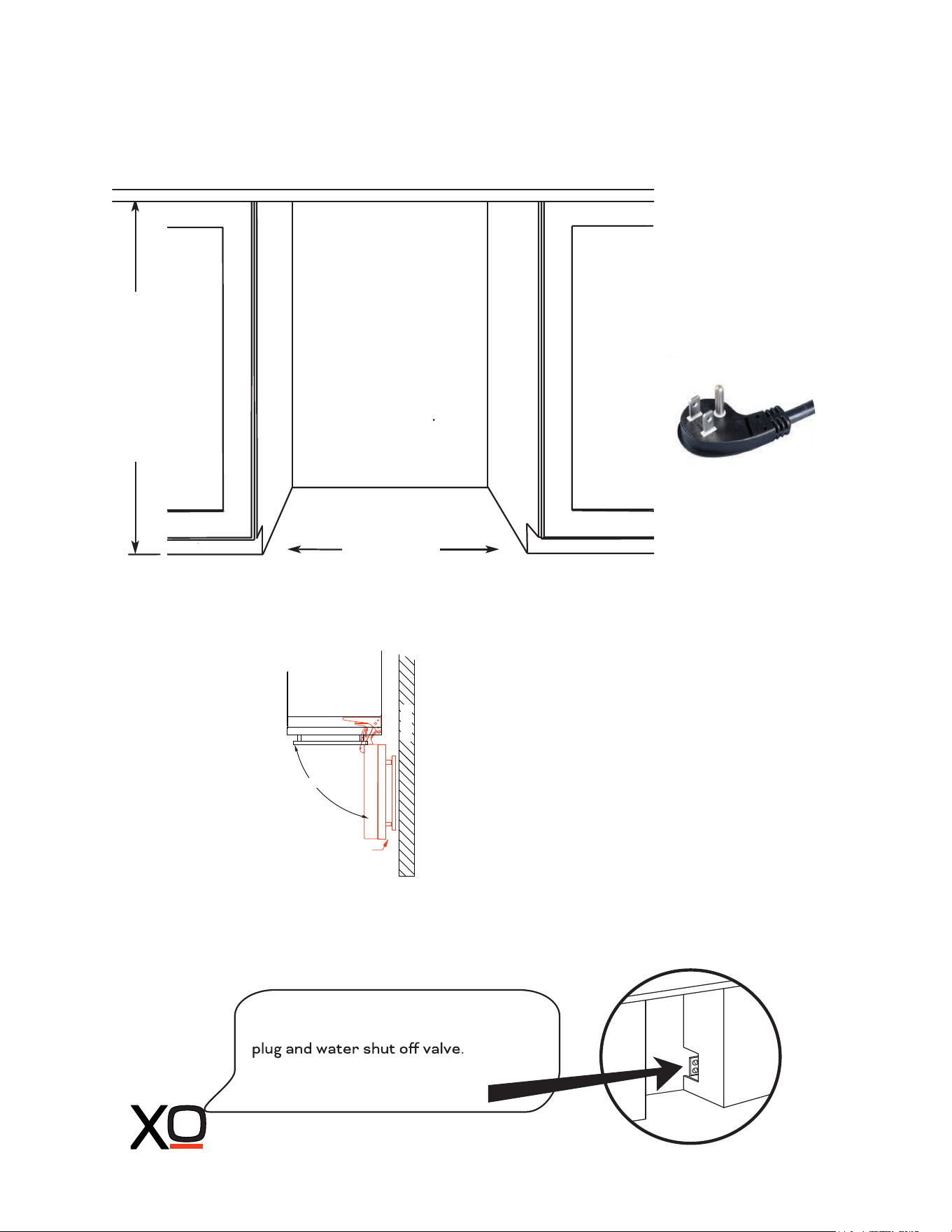

When installing, remember you need
to leave ready access to both the power
Cut access to an adjoining cabinet to
locate outlet and water there.
a perfect fit
install under counter
ALL XO UNDERCOUNTER
UNITS ARRIVE PRE-WIRED
WITH LOW PROFILE PLUGS
FOR EASY INSTALLATION
4"
(100mm)
7"
(178mm)
15”
WHEN INSTALLING WITH
THE HINGE SIDE NEXT TO A WALL -
LEAVE ADEQUATE SPACE FOR
YOUR DOOR HANDLE
DOOR HAS THE ABILITY TO OPEN TO 115
(381mm)
MINIMUM
Standard Height Units
33-3/4” MINIMUM
(853mm)
ADA Height Units
31-7/8” MINIMUM
(808mm)
o
Clearance
Gap
90°
Door Swing
WALL
9
a perfect fit

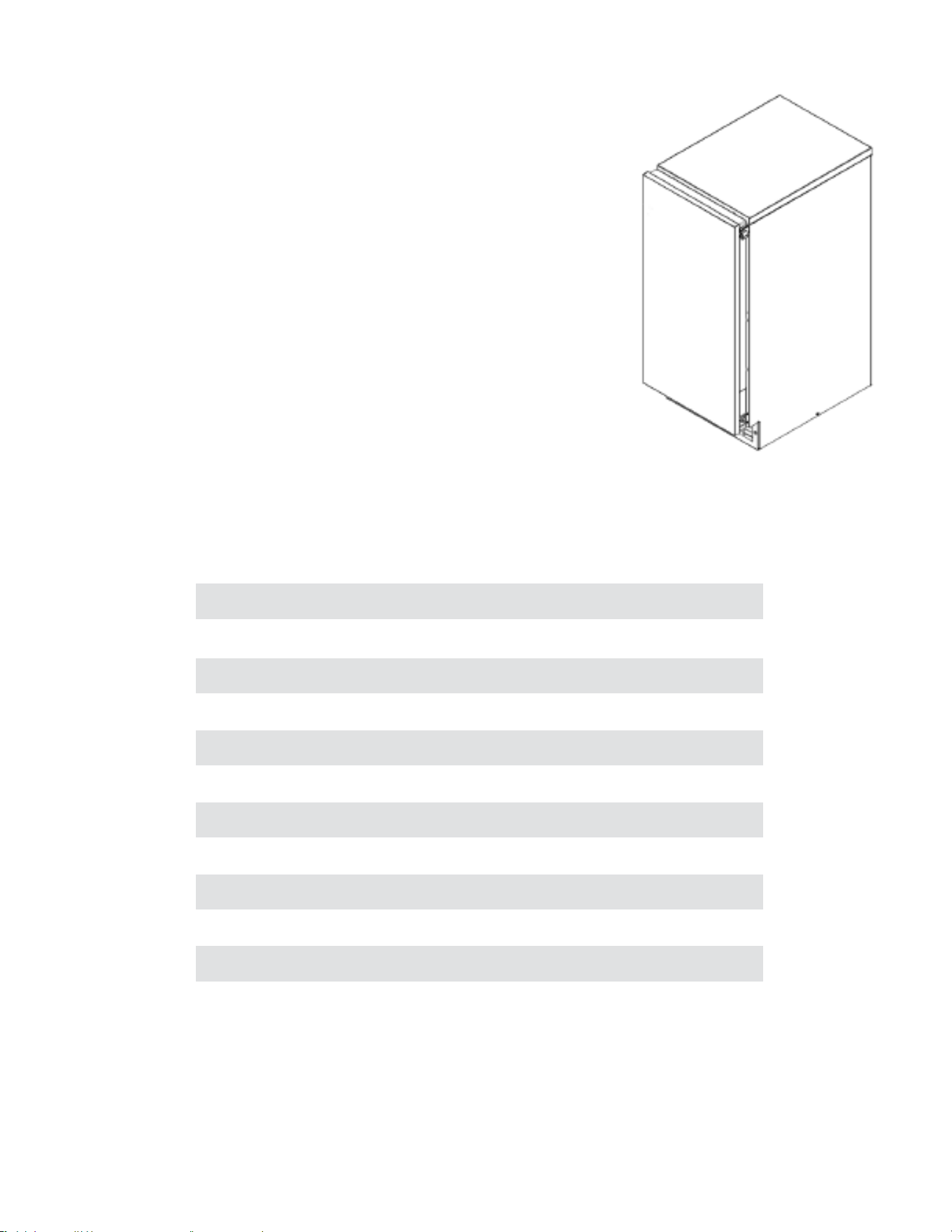

your xo is this big (
or small, as the case would be
)
XOUIMN1585__ & XOUIMN1565__A ICE MAKER
33-
STANDARD HEIGHT
(853mm)
31-13/16”
STANDARD HEIGHT
(808mm)
9/16”
W
H
height & width
depth
22-25/32”
(579mm)
D
THE OVERALL DEPTH SHOWN (22-25/32”) INCLUDES THE DOOR WITH 3/4” PANEL.
THE DEPTH OF THE ICE MAKER CABINET ONLY IS 20-13/32”
14-7/8” WIDE
(378mm)
TOP VIEW
115
90
10
before you install
check a few things
e
Is the installation location COOL, DRY, LEVEL and away from direct sun.
The water supply valve must provide positive shut off capability and be readily accessible.
Does the unit have a dedicated 115V three prong, properly grounded outlet?
The Cold Water supply is 1/4” O.D. tube, it should be 50 to 90 F and be between 20 and 80 psi.
(NOTE: as the inlet water temperature increases - production efficiency goes down.)
YOU WILL NEED -
A few simple hand tools:
Pump pliers, adjustable wrench, #2 Phillips head screwdriver, level, razor knife
AND a few hardware items:
Teflon tape or Pipe dope
5/8” I.D. drain hose and hose clamps (if installing a gravity drain model)
1/4” O.D. water supply hose
Air Gap Device and/or Sanitary Trap (depending on your installation).
Water filter with isolation valve
Depending on your installation you will probably require additional site specific plumbing fittings
Water source tub
Drain hose
o o
120V Outlet
11
All water contains some impurities and minerals.
Your XO Ice Maker is designed to produce chewable, nugget ice. It does this by compressing
ice flakes as they are forming.
PURER WATER YIELDS PURER ICE.
Cubes are formed by cold water spraying against a chilled mold. Pure water freezes faster
than water containing impurities. The spraying action causes the cubes to be built up in layers
as the pure water freezes more quickly and the water containing impurities is washed away by
the spray and falls into the water bin to be diluted and drained away.
The ice maker uses an auger system to take the ice as it is forming in flakes and compresses
them, capturing air in the process to form soft, chewable nuggets of ice.
Periodic maintenance is required to ensure that your ice maker is performing at its best.
See the maintenance section of this book and the Maintenance Schedule.
FILTERS AND WATER TREAMENT
The correct filter is always recommended. It has the ability to remove odors as well as
particulate from water prior to reaching the ice maker.
(consult www.xoappliance.com for more information on which filter is right for you)
Water softeners exchange one mineral for another (salt) which can cause inferior ice quality
such as soft, mushy ice that clumps together. If you are using a water softener, you should
install a bypass to supply untreated water to the ice maker.
Water produced by Reverse Osmosis and deionized water are not recommended. It is more
corrosive than tap water and can cause harm to the equipment over time.
water quality
12
Plan the arrangement of the water supply pipes. You will need both a water supply line and
a drain (see section on installing a gravity drain unit or pump drain unit)
If the tap water has a high level of minerals, an inline filter will be required.
Attach the water supply line to the rear of the unit
with flexible tube to the fitting indicated here.
The tubing must be long enough to permit the
unit to be pulled out for service.
Water supply should be between 20psi and 80psi.
Attach the drain to the connection indicated here
If you are installing an XOUIMN1585NO unit with a
gravity drain, the line must be pitched down
1/4” per ft to ensure correct drainage.
If the drain is positioned at a higher elevation than
the connection on the rear of the unit, a pump
will be required. Use model XOUIMN1586NOP.
This unit comes with a pre-installed drain pump
capable on discharging to a drain up to 8’ above
the unit.
IMPORTANT: The keep drains as short and straight
as possible for optimal performance.
The electric power, water supply pipeline and drain pipeline must be in compliance with all
provisions under the local laws and building regulations.
IMPORTANT: The product is designed for use in a fixed condition but it may be required to
pull the product out for service. Therefore, do not install any material at the front, upper or
lower end of the product which may be an obstacle when pulling the product out.
Once the unit is in place, use the leveling legs to ensure the unit is level.
Each side should have at least 1/16" of space for projection of the screw head near the bottom.
the plumbing
1/4” O.D.
DRAIN
WATER
SUPPLY
13
INSTALLING THE XOUIMN1585 without a drain pump.
Position the ice maker in front of the opening. Level the unit using the leveling legs.
Wash and flush the water supply tube and connect the unit to the cold water isolation valve.
Prepare the drain. The drain must be pitched downward at a drop of 1/4” per foot to drain properly.
Horizontal runs of 5’ or more must be anchored to a wall for support to prevent sagging.
A sanitary trap and air gap must be installed in the line prior to entering the home’s drain system.
The trap prevents sewer gas from flowing back to the ice maker.
The air gap device prevents siphoning drain water back into the ice maker.
Cut the 5/8” ID drain hose (not supplied) to the required length. Immerse the hose in warm water to make
installation easie
hose to the drain using hose clamps.
r, then using a threaded hose barb connection sealed with teflon tape, connect the drain
Turn the water supply on and check to ensure there are no leaks.
If there are no leaks, plug the unit into the electrical outlet.
Press the switch to the “ICE” position. The compressor will run approximately 3 - 5 minutes.
Slide the unit back into it’s final position and recheck to ensure it is level.
REMEMBER to adhere to all local building codes and regulations

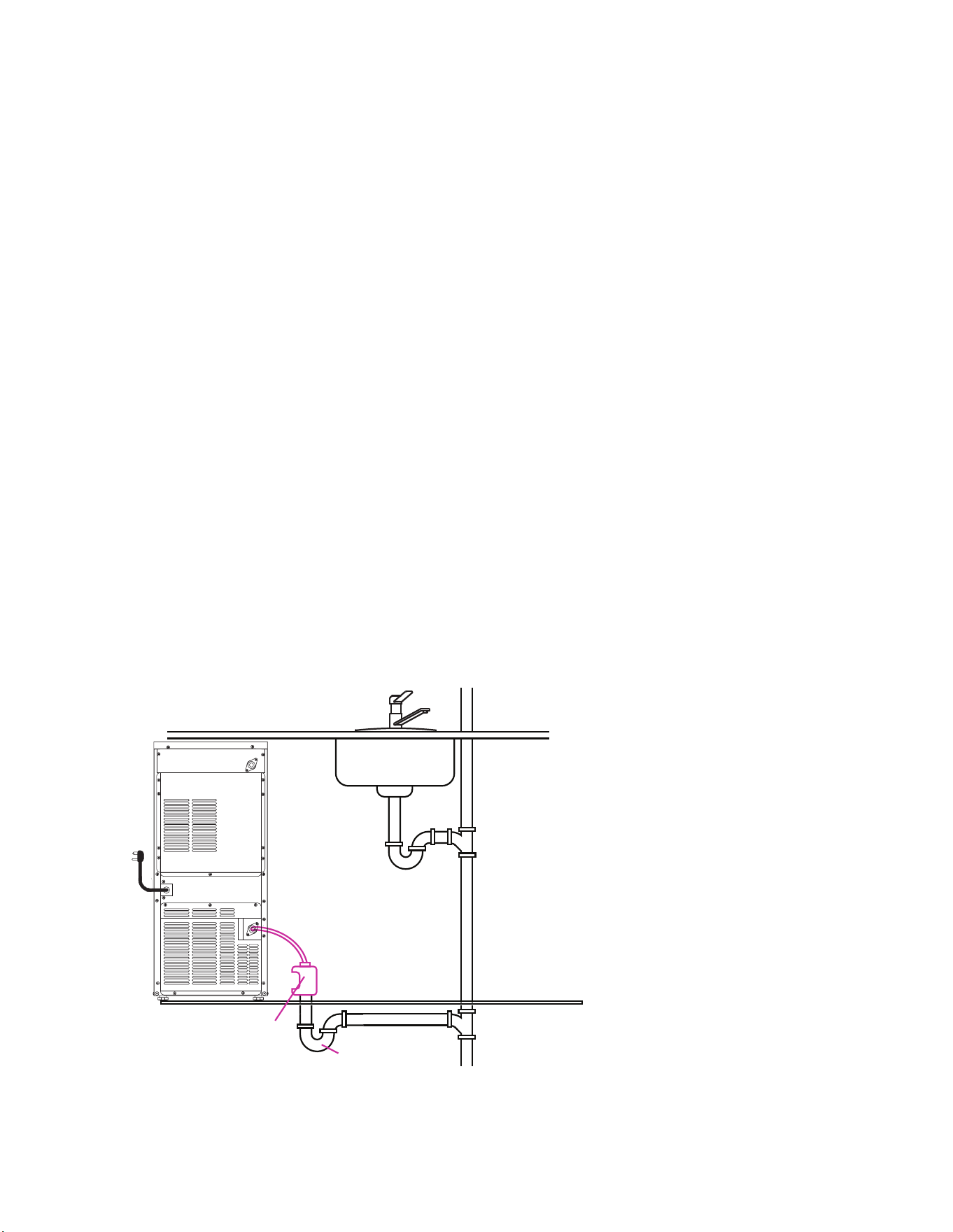

with gravity drain
DRAIN VENT
THE DRAIN POINT
MUST BE LOWER
THAN THE DRAIN
OUTLET OF THE
ICE MAKER
AI
DEVICE
R GAP
SANITARY TRAP
If you purchase a gravity drain unit
and find you need one with a pump
the XOUIMN1585 can easily be
retrofitted with one in the field.
Simply order a XOUIMPUMP from
www.xoappliance.com
14
INSTALLING THE XOUIM1565SP with DRAIN PUMP.
Position the ice maker in front of the opening.
Level the unit using the leveling legs.
Wash and flush the water supply tube and connect the unit to the cold water isolation valve.
Cut the 3/8” diameter drain hose to the required length. Immerse the hose in warm water to make
installation easie
(9’ of 3/8” ID drain hose is included with pump models)
r, then connect the drain hose to the drain using hose clamps.
IMPORTANT: Check local codes to determine if an air gap is required between the drain and the pump.
Turn the water supply on and check to ensure there are no leaks.
If there are no leaks, plug the unit into the electrical outlet.
Fill the ice container with clean tap water approximately 3/4 full. The drain pump should turn on and pump
the water out. Check again for leakage.
Press the switch to the “ICE” position. The compressor will run approximately 3 - 5 minutes.
Fill the ice container to 3/4 full once more. Block the drain tube while the pump is running.
The pump should continue to run.
Slide the unit back into it’s final position and re-check to ensure it is level.
REMEMBER to adhere to all local building codes and regulations

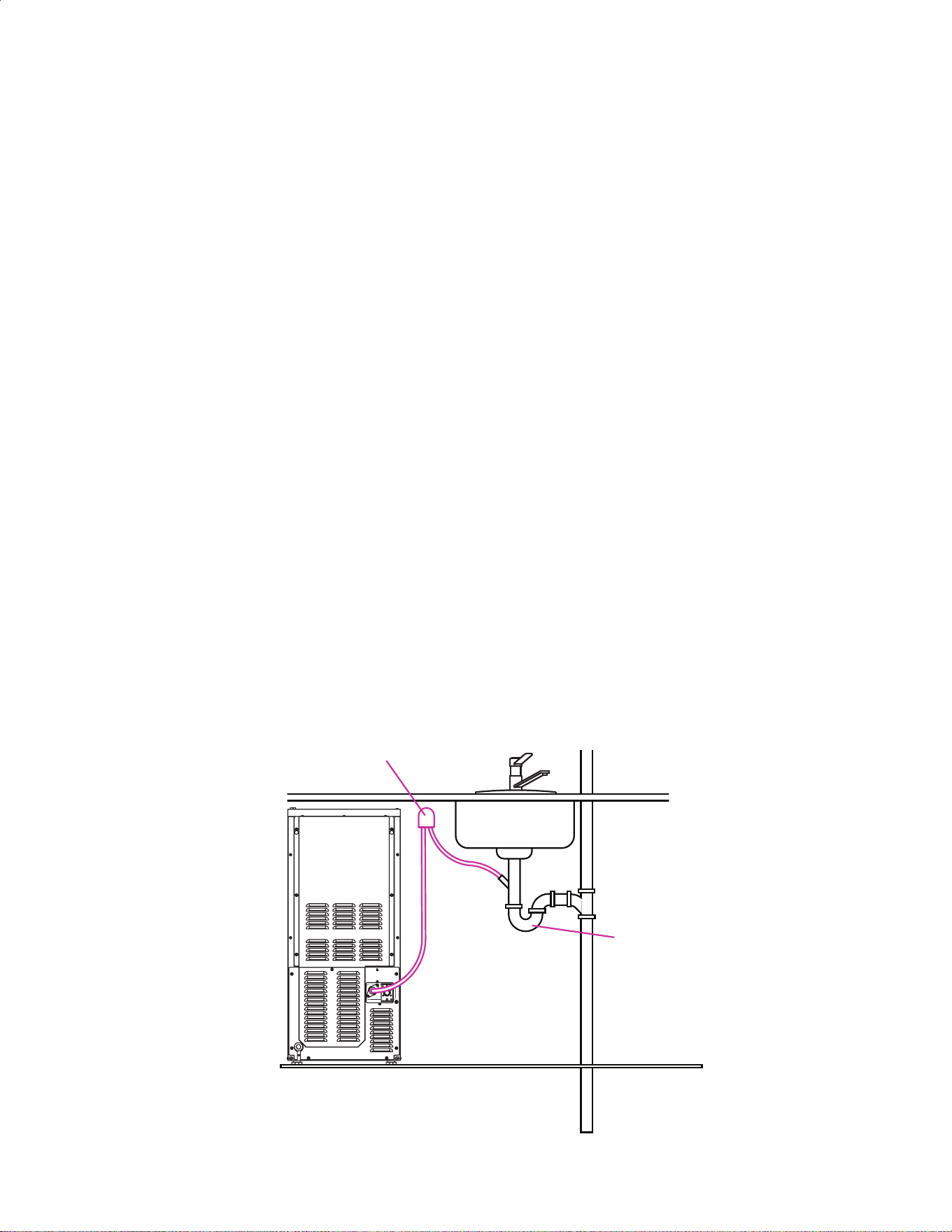

with drain pump
DRAIN VENT
THE DRAIN POINT
MAY BE HIGHER
THAN THE DRAIN
OUTLET OF THE
ICE MAKER
SANITARY TRAP
AIR GAP DEVICE

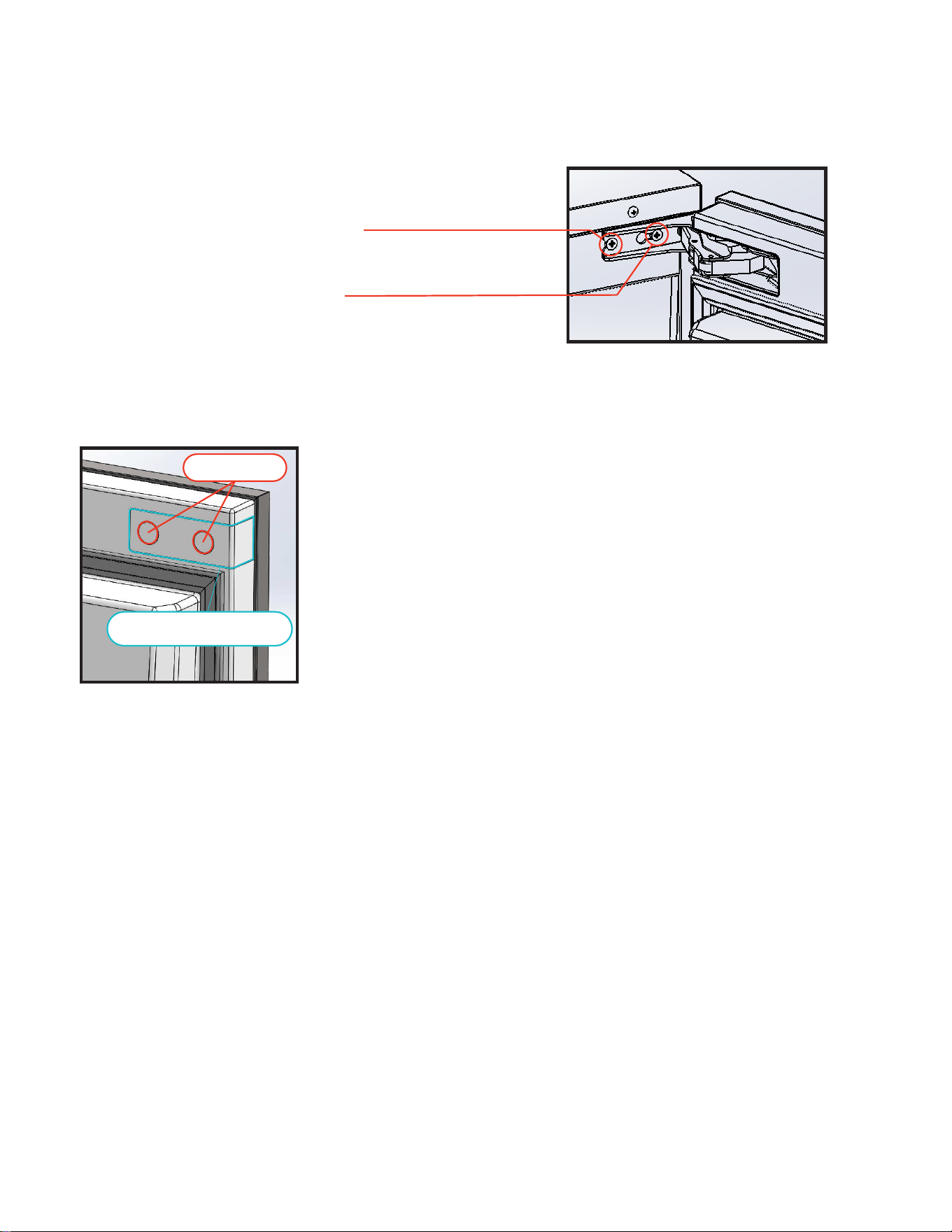

reversing the door
Your XO Ice Maker is shipped with the hinge on the right hand side but it can be easily reversed.
1. Remove the inner most screw holding the top
and bottom hinges (shown here)
2. Loosen the outer screw holding the top and
bottom hinges (as show here)
3. Slide the door and hinges sideways to remove
from the cabinet.
6. Remove the two hinges, rotate them 180 and screw them into place on the left hand side
where the Hinge
Pocket Covers were just removed.
7. Rotate the Hinge Pocket Covers 180 and install them to cover the right hand hinge location.
8. Use the Hole Plugs to hide the screws holding the Hinge Pocket Covers in place.
9. Move the outer screws loosen in Step 2 to the corrosponding hole on th eleft hand side of the
cabinet but do not tihten down yet.
10. Place the door onto the screws installed in Step 9 and side in toward the center of the cabinet
so that second screwhole is visible.
11. Install the screws removed in Step 1. Make certain the door is centered properly and tighten
all four (4) hinge screws.
15
4. On the opposing side of the door, remove the Hole Plugs
and screws from the left hand hinge locations.
5. Remove the
Hinge Pocket Covers from the left hand hinge
locations.
Hinge Pocket Cover
Hole Plugs
16
installing the door panel
The panel is held in place by self tapping screws and/or machine screws.
To install your panel, follow these simple steps:
1. First prepare your custom panel.
The panel must be 14-7/8” wide and no more than 3/4” thick. It cannot weigh more than 20 lbs.
The height of the panel can vary but cannot block the free exchange of air through the toekick.
If you are using one of the optional Stainless Steel door panels (XOUIMN15S or XOUIMN15ADA)
it is ready to install out of the box, simply peel off the protective layer of plastic before installing.
2. If your cabinetry uses a handle, locate and attach it before mounting the panel. Remember to
recess the screw heads.
2. If installing a custom panel, clamp the panel in position on the open door being careful not to
damage the panel or door liner. Use the 14 self tapping screws provided to secure the panel

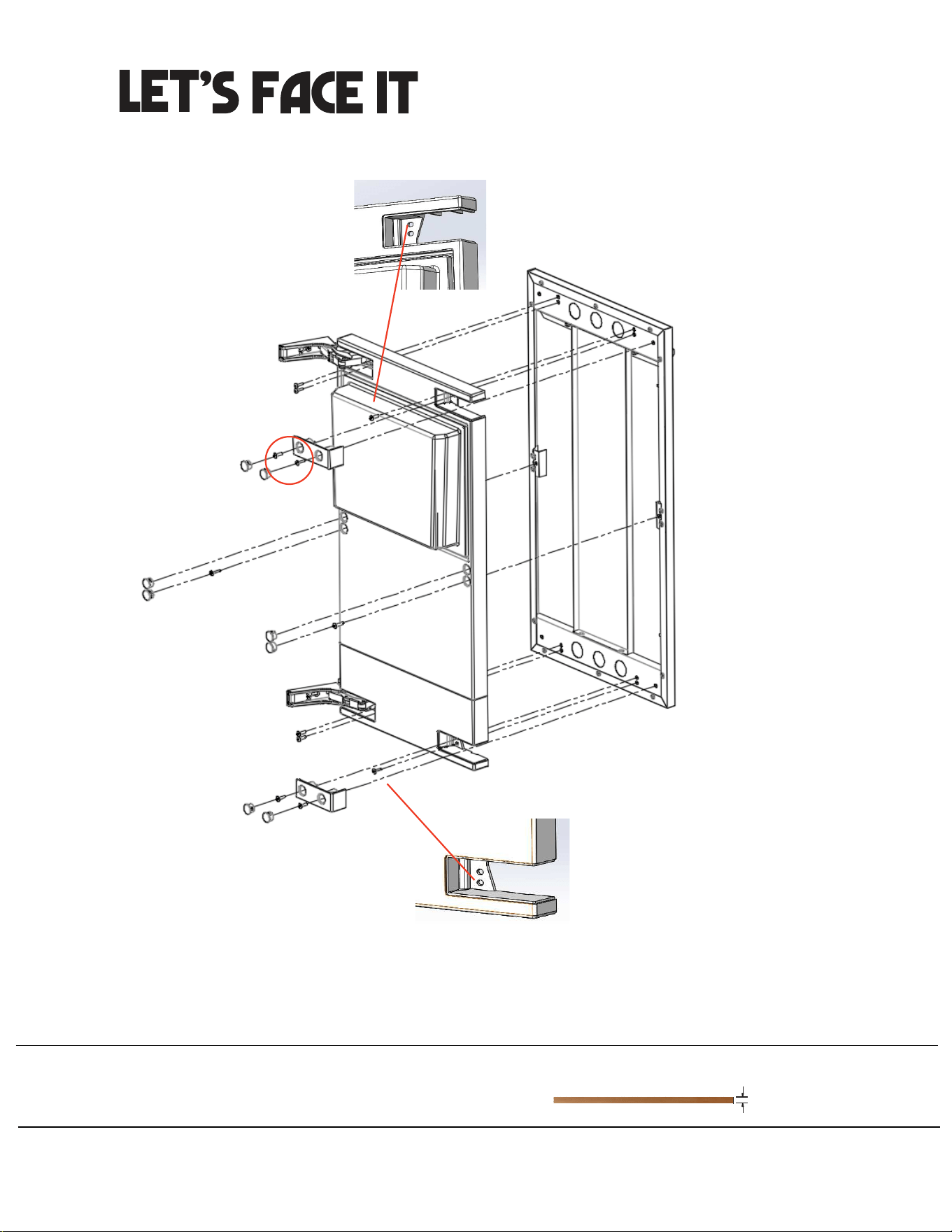

as outlined on the exploded diagram shown on the next page. Check the screw depth if your
panel is less than 3/4” thick to ensure the screw points do not protrude through the panel.
If using one of the optional Stainless Steel door panels, using the machine screws provided,
secure the panel with the 14 machine screws supplied as outlined on the exploded diagram
shown on the next page.
3. Install Hole Covers as required and remove the clamps.
AFTER INSTALLATION UNDERCOUNTER DOOR MUST BE ABLE TO OPEN 90
o
overlay panel dimensions xouimn1585no & xouimn1585nop
14-7/8"
(378mm)
FRONT
TOP
MAXIMUM PANEL THICKNESS 3/4”
PANEL MAXIMUM WEIGHT: 20 lbs.
18
ouimn1585noada & xouimn1585nopadax
Standard Height
29-13/32”
(747mm)
ADA Height
27-5/8”
(702mm)
PANEL HEIGHTS ARE MINIMUMS, PANEL MAY BE TALLER.
PANEL MUST NOT INTERFERE WITH TOEKICK VENTS.
19
the toekick
PANELS MAY EXTEND HIGHER OR LOWER THAN THE DOOR BUT MUST NOT
OBSTRUCT THE FREE EXCHANGE OF AIR THROUGH THE TOEKICK.
20
2
MAXIMUM CAPACITY
ICE SHAPE
INITIAL TIME TO FILL BIN
DIMENSIONS (WxDxH)*
NET WEIGHT
ELECTRICAL
POWER CONSUMPTION
REFRIGERANT
COOLING CAPACITY
INLET WATER TEMP.
INLET WATER PRESS.
AMBIENT TEMP.
* Overall Height for Standard Unit 33-9/16”
Overall Height for ADA Unit 31-13/16”
85 lbs per day
Nugget
10 Hours
14 7/8” x 23 3/8” x see below*
126 lbs empty
115V - 60hz - 3.3 amps
550 Watts
R-134a
723 kcal/hr (2@ 45 F)
50 - 90 F
20 - 80 psi
50 - 100 F
o
o
o
o
features & specs
Produces up to 85lbs of nugget ice per day
Stores 24.3lbs of ice in bin
Chewable, Nugget Ice
Gravity drain and pump drain models available
Reversible Door | Panel Ready (optional SS panel)
Rated for Indoor use (50 - 100 )
o o
Front venting - designed for under counter installation
Automatically pauses ice production when bin is full
o
21
operation

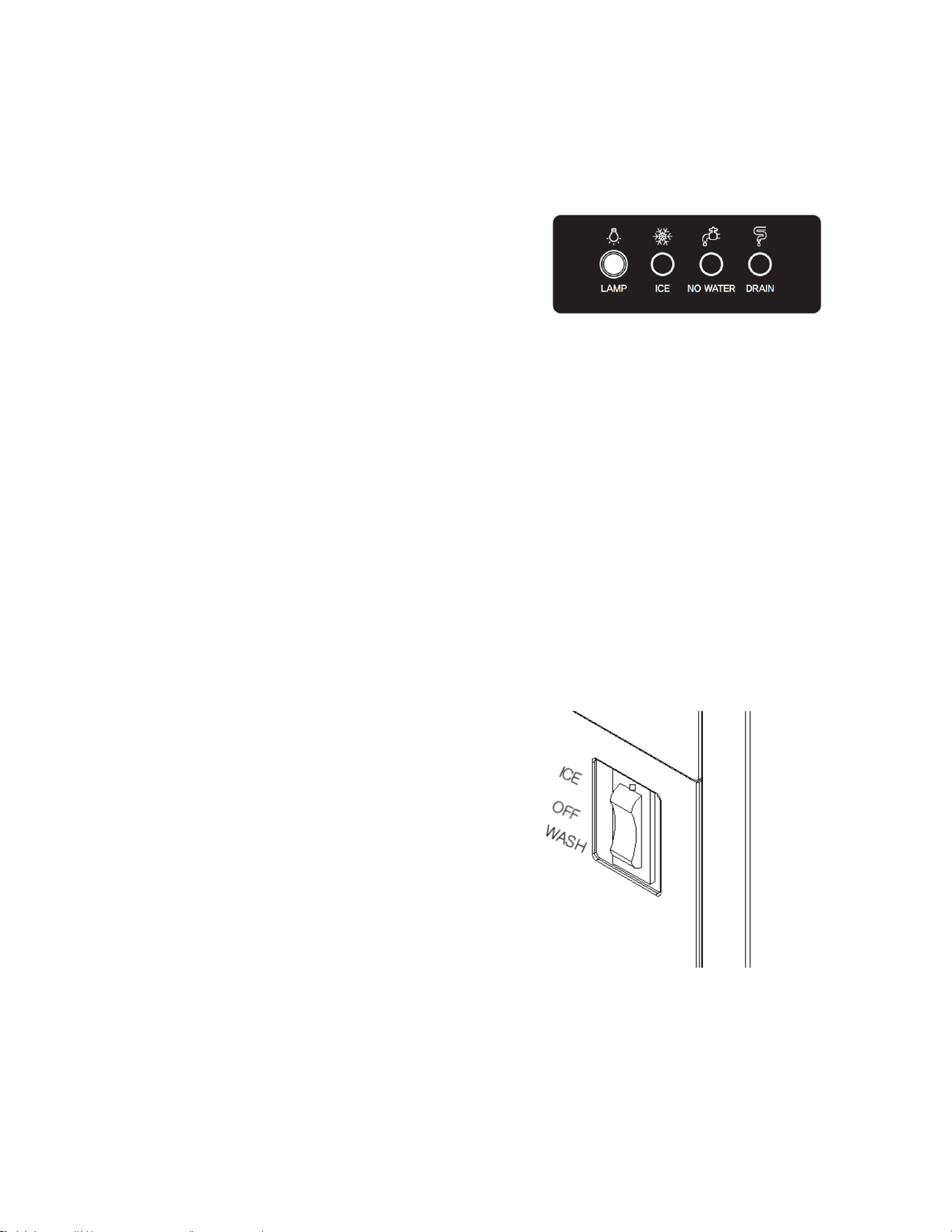

You XO Ice Maker is simple to operate.
When you open the door you will see
the electronic button/display located at
the top center of the appliance.
The first button, LAMP, allows you to cycle through the 5 different
interior LED Light colors (white, Dark Blue, Green, Red and Light Blue).
The ICE light will always come on first when the unit is switched on.
Initially, the unit will automatically fill and drain water three times then,
the ice making cycle will begin.
The NO WATER light will come on to indicate there is a problem with
the water supply.
The DRAIN light will come on when the drain valve is open.
INITIAL OPERATION:
When you open the door, located at
the bottom, right of the face of the
unit is a three position toggle switch.
The center position is OFF.
The top position is ICE.
The bottom position is WASH.
Turn the appliance to ICE, this will start the ice making process.
Always discard the first batch of ice. Good quality ice is produced in
1-2 hours.
operation cont.
DURING OPERATION:
After turning the switch to the ICE position, ice production will begin
and continue until the ice bin has been filled.
Once the bin is filled, production will automatically be paused.
Remove ice using the handy scoop located in a holder in the top left
hand side of the interior.
It takes approximatel 10 hours to fill the ice bin, this time may vary
based on ambient and water temperatures.
22

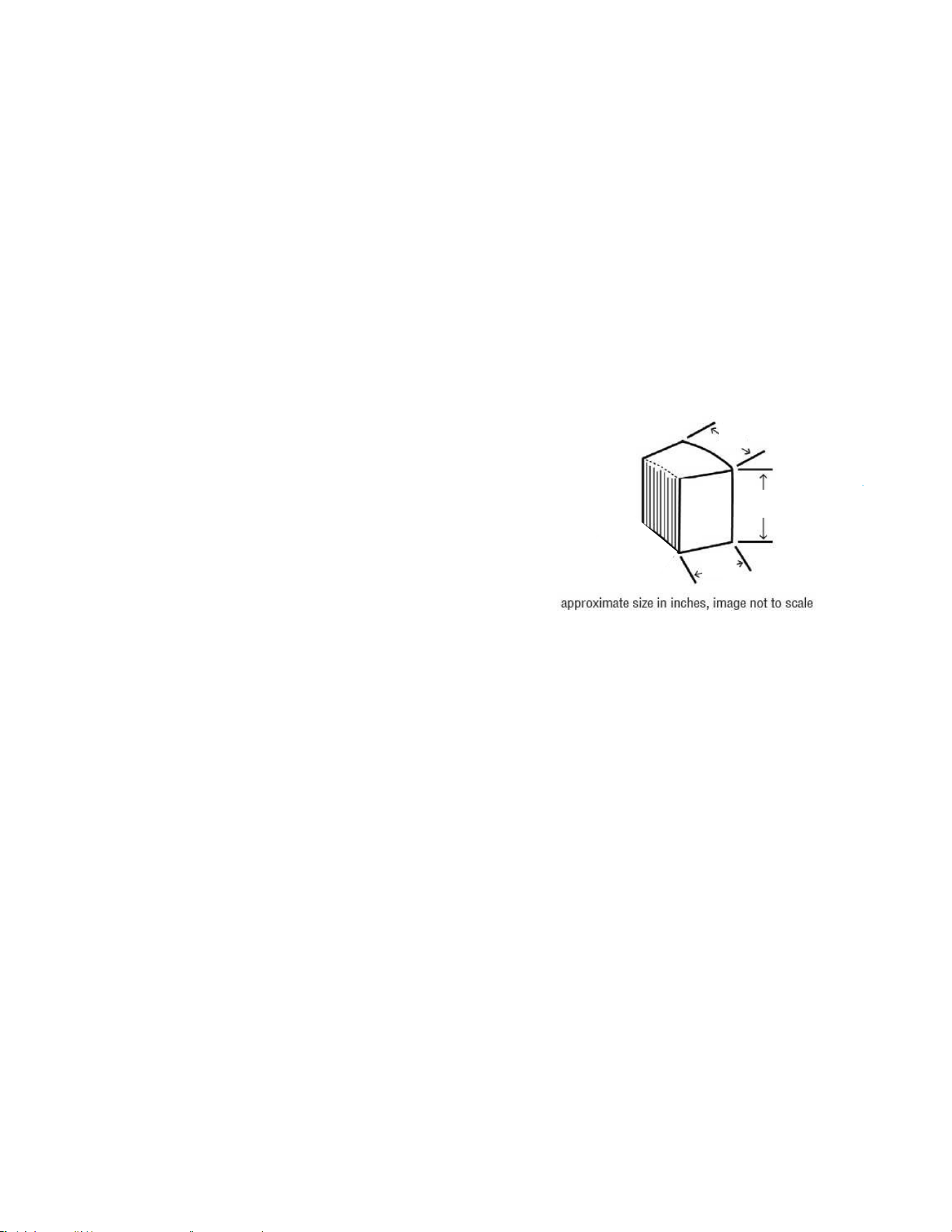

NUGGET ICE:
0.6”
W
Nugget ice is a smaller softer cube
ideal for drinks requiring “Chewable
H
0.5”
Ice”. Ice is formed in layers that are
compressed together by a rotating
D
0.3”
auger and ejected upward.
Impurities sink in the drum and are removed periodically by the drain.
These commonly fracture in smaller pieces creating the “Nuggets”.
NOTE:
As ice melts, the residual water is drained away. This will continue to
occur even when the ice maker is shut off. Models with a drain pump
will cycle automatically to remove collected water periodically when
ice production is shutdown. This is normal. Pump operation is only
a few seconds in duration.
IMPORTANT:
Never store bottles, cans or other items in the ice maker. This can be
unsanitary, contaminating the ice and detached labels or packaging
can block the drain.
23
maintenance
Proper maintenance, cleaning and santizing is essential to ensure your
ice is safe, fresh and odor free.
WASH FEATURE:
Regular maintenance is the key to delicious, wholesome ice.
The WASH feature helps make this easy to perform.
When the WASH Position of the switch is selected, the cleaning process
takes approximately 10 minutes and the following action take place:
BEFORE BEGINNING - REMOVE ALL ICE FROM THE ICE BIN.
1. Water is supplied to the first water tank and the auger operates for
5 minutes.
NOTE: You may optionally add cleaning solution (see CLEANING)
to the ice outlet.
2. After Step 1 is complete, drain and re-fill with water.
3. Operate the Auger for 1 minute.
4. Repeat Steps 2 and 3, twice more for a total of 3 times.
5. Drain and stop the product. When restarting follow the procedures
for an initial start, discarding the first batch of ice.
25
24
maintenance
Proper maintenance, cleaning and santizing is essential to ensure your
ice is safe, fresh and odor free.
CLEANING:
BEFORE BEGINNING - REMOVE ALL ICE FROM THE ICE BIN.
1. Prepare by mixing 0.25ℓ of a non-toxic, nickle-safe Ice Maker cleaning
solution and 5ℓ of water.
2. Open the door and pour approximately 1 liter of cleaning solution into
the ice spout located at the top, rear of the unit.
3. Toggle the lower front mode switch to “WASH”.
The ice maker automatically cleans, drains and supplies water repeatedly,
which takes about 10 minutes.
Use a brush or cloth to clean the inside of the reservoir with the remaining
cleaning solution.
After 10 minutes have elapsed, rinse the inside of the reservoir with clean
water and pour water into the ice spout.
Toggle the mode switch to "WASH" once again.
After about 10 minutes, the cleaning processes will finish.
LAMP ICE NO WATER DRAIN
ICE SPOUT
ICE SCOOP
cont.
25
maintenance
Proper maintenance, cleaning and santizing is essential to ensure your
ice is safe, fresh and odor free.
SANITIZING:
BEFORE BEGINNING - REMOVE ALL ICE FROM THE ICE BIN.
1. Prepare by mixing 0.25ℓ of a Ice Maker sanitizer solution and 5ℓ of water.
WARNING: Observe all safety precautions including the use of
protective eyewear and gloves while using sanitizer.
Read and observe all manufacturers instructions carefully.
2. Open the door and pour approximately 1 liter of cleaning solution into
the ice spout located at the top, rear of the unit.
3. Toggle the lower front mode switch to “WASH”.
The ice maker automatically cleans, drains and supplies water repeatedly,
which takes about 10 minutes.
Use a brush or cloth to clean the inside of the reservoir with the remaining
santizing solution.
After 10 minutes have elapsed, rinse the inside of the reservoir with clean
water and pour water into the ice spout.
Toggle the mode switch to "WASH" once again.
After about 10 minutes, the sanitizing processes will finish.
cont.
stainless steel
cleaning the exterior
Stainless Steel:
Stainless steel does not stain, corrode, or rust as easily as ordinary steel, but it is not stain or
corrosion proof. Stainless steels can discolor or corrode if not maintained properly.
Stainless steels differ from ordinary carbon steels by the amount metals such as chromium and
nickel used in the alloy. It is the chromium which provides an invisible protective film on the
surface called chromium oxide. If the protective chromium oxide film on the surface is damaged
or contaminated, it can result in discoloration, staining, or corrosion of the iron in the steel.
Care & Cleaning:
Routine cleaning of the stainless steel surfaces will serve to greatly extend the life of your
product by removing contaminants.
This is especially important in coastal areas which can expose the stainless to severe contaminants
such as halide salts, (sodium chloride) and also in pool areas where high concentrations of chlorine
are present.
It is strongly recommended to periodically inspect and thoroughly clean crevices, weld points,
under gaskets, rivets, bolt heads, and any locations where small amounts of moisture could collect,
become stagnant, and concentrate contaminates.
Additionally, any mounting hardware that is showing signs of corrosion should be replaced.
The frequency of cleaning depends upon the installation location, environmental factors, and use.
Cleaning Products:
Ultimately, the choice of a proper cleaning product belongs to the consumer, and there are many
products to choose from. Depending upon the type of cleaning and the degree of contamination,
some products are better than others.
Typically the most effective means of routine cleaning for most stainless steel products is to give
the surfaces a brisk rubbing with a soft cloth soaked in warm water with a gentle detergent, or mild
mixture of ammonia.
Rubbing should follow the polish lines of the steel, followed by a thorough rinsing after cleaning.
CAUTION: There are products on the market called "stainless steel cleaners," which may contain
abrasives that could scratch the surface, (compromising the protective chromium oxide coating)
and other products which contain chlorine bleach which will dull, tarnish or discolor the surface if
not completely removed. Such cleaners should be avoided.
26
27
the condenser
improve efficiency & performance
Cleaning the condenser
Remove dust and dirt from the surface of the condenser coils with a
vacuum cleaner
Remove two screws on the front panel
at the center of the inside
Vacuum the condenser coils
Reassemble the panel using the two
screws to after cleaning
28
maintenance schedule
The following maintenance schedule is a guideline.
Maintenance and repairs should be performed more frequently where required by water quality,
equipment usage and local hygiene regulations.
FREQUENCY
DAILY
MONTHLY
6 Months
Annually
Bearing and mechanical seal maintenance must be performed by a qualified service technicial
annually
o
TASK
Clean with neutral cleaner / rinse thoroughly
Check dressure drop / change as needed
Wipe down with clean soft cloth. Use neutral cleaner
on damp cloth to remove oils or dirt. Clean any chlorine
rust stains using a non-abrasive cleanser.
Wipe clean with a clean cloth and warm water
inner door and
ice spout
Clean and sanitize according to the instructions in this
manual.
Wipe down with clean cloth and warm water
.
Check that it is kept clean
Check for leaks around seal
Always replace O-Ring if bolt is removed
Close water supply valve and drain water
Check water hose, clean as necessary
Inspect and clean with brush and vacuum, if dust adhesion
is severe, spray with pin cleaning agent, rinse and dry
Inspect for oil marks, loose components and wire
AREA
Scoop
Water filter
Exterior of unit
Storage bin
inner door and
Ice spout
Ice maker and
Storage bin
Evaporator
Condensate Drain
and Gear Motor
Drain Pan.
Ice maker and
reservoir
Ice exit fixing bolt
Water supply valve
and Drain Valve
Water Hose
Condenser
Ice maker
29
what the control lights mean
PROBLEM
Making Ice
Washing
Bin Full
Draining
Water Supply Error
Drain Error
Evap Temp Error
Evap Temp Error
Ice Full Sensor Error
Evap Temp Sensor
Air Temp Sensor Error
Evap Freezing
POSSIBLE CAUSE
Switch in “ICE” position
Switch in “WASH” position
ICE lamp blinks once per second
ICE lamp blinks every 2 seconds
Drain valve is open
Water level not detected
(for 2 minutes)
Water level lower limit is
undetected after 2 minutes
while drain is open
Evaporator temp is 32 or higher
after 30 minutes with Ice Making ON
Evaporator temp is 32 or higher
after 10 minutes with Ice Making ON
ICE FULL temperature sensor
disconnected of shorted
Evaporator temperature sensor
disconnected of shorted
Air temperature sensor
(front of condensor)
disconnected of shorted
Evaporator outlet temperature drops
below setting for 2 minutes while
ice maker is running
ACTION
Switch in “WASH” position
ICE lamp blinks once per second
Will turn off when sensor detects release
temperature
Water pressure and level check
Start operation after action
Check if draining properly
Replace water level sensor
Call for service
Call for service
Call for service
Sensor disconnected of shorted
Call for service
Sensor disconnected of shorted
Call for service
Sensor disconnected of shorted
Call for service
Occurs when ambient temperature is low.
Increase room temperature above 50 F.
Questions - Need Help...
You can always contact customer service at 973-403-8900
or visit www.xoappliance.com
ICE NO WATER DRAIN
O
B
B
B
B
B
B
O
B
B
B
B
O
O
B
B
B
B
O
O= ON B = BLINKING
o
o
o
30
troubleshooting
PROBLEM
Ice maker not
operating
Cubes too large
Ice quality inconsistent
Sound level has increased
Makes ice but bin does not fill
Ice partially formed
Unit operates but
no ice is produced
POSSIBLE CAUSE
No power
Switch in wrong position
Storage bin full
Drain blocked
Drain pump malfunction
Cube size temp set too low
Not enough water
Scale has formed in drum
Storage bin drain may be restricted
Possible scale in evaporator
Ice stuck in evaporator
Water temperature is too high
Inadequite air flow
Compressor not operating
Low refrigerant
Hot gas valve leaking
ACTION
Unit unplugger / plug in
Breaker thrown / rest breaker
Change switch to ICE position
Operating normally - production ceases when bin is full
Room temp below 50 / raise room temp.
Clear drain tube
Call for service
Call for service
Check filter may be restricting water flow
Check water valve, inlet screen may be restricted
Clean with approved Ice Maker Cleaner
Clean out and check drain
Clean with approved Ice Maker Cleaner
Check water supply - filter may be restricting water flow
Check water valve, inlet screen may be restricted
Call for service
Inlet water valve may be leaking - call for service
Obstructed toe kick vents - clear obstruction
Damaged cooling fan - call for service
Condenser blocked - clean condenser
Call for service
Call for service
Call for service
Questions - Need Help...
You can always contact customer service at 973-403-8900
or visit www.xoappliance.com
o
YEAR
WARRANTY
To obtain service:
31
1 5
YEAR
WARRANTY
PARTS + LABOR COMPRESSOR
Call 973-403-8900 |email [email protected] | or submit a request on our website
www.xoappliance.com
we’ve got your back
90 DAY LOVE IT or LEAVE IT. For 90 Days all our products are backed by our unique Love it or Leave it Guarantee.
ONE-YEAR PARTS & LABOR LIMITED WARRANTY. XO warrants to the original purchaser of every new XO ice maker unit, the cabinet
and all parts thereof, to be free from defects in material or workmanship under normal and proper use and maintenance as specified by XO
and upon proper installation and start-up in accordance with the instruction packet supplied with each XO unit. XO’s obligation under this
warranty is limited to a period of one (1) year from the date of original purchase.
FIVE-YEAR COMPRESSOR LIMITED WARRANTY. XO warrants its compressor to be free from defects in both material and workmanship
under normal and proper use and maintenance service for a period of five (5) years from the date of original purchase. If the compressor
fails during that time period due to a defect in material or workmanship, XO will supply a replacement compressor free of charge. The
consumer will be responsible for all related transporation and labor costs. Product must be registered with XO to qualify for this warranty.
TERMS APPLICABLE TO EACH WARRANTY. Any part covered under the above warranties that is determined by XO to have been
defective within the time frame is limited to the repair or replacement, including labor charges, of defective parts or assemblies. The
labor warranty shall include standard straight time labor charges only and reasonable travel time, as determined by XO.
WARRANTY CLAIMS. All claims for labor or parts must be made directly through XO. All claims should include: model number and
serial number of cabinet, proof of purchase, and date of installation. In case of warranted compressor, the compressor model tag must
be returned to XO along with the above listed information.
WHAT IS NOT COVERED BY THIS WARRANTY. XO’s sole obligation under this warranty is limited to either repair or replacement of
parts, subject to the additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations other
than those expressly covered by this warranty. Open box, factory seconds, scratch and dent, floor models, models with missing, altered
or obscured serial numbers and commercial applications are excluded from these warranties. Consumer shall be responsible for labor
and transportation costs where noted above.
NO CONSEQUENTIAL DAMAGES. XO is not responsible for economic loss, profit loss; or special, indirect or consequential damages,
including without limitation, losses or damages arising from food or product spoilage claims whether or not on account or refrigeration failure.
WARRANTY IS NOT TRANSFERABLE. This warranty is not assignable and applies only in favor of the original purchaser/user at the
original installation location. Any such assignment or transfer shall void the warranties herein made and shall void all warranties,
express or implied, including any warranty or merchantability or fitness for a particular purpose.
IMPROPER USAGE. XO assumes no liability for parts or labor coverage for component failure or other damages resulting from
improper usage or installation or failure to clean and/or maintain product as set forth in the warranty packet provided with the unit.
ALTERATION OR NEGLECT. XO is not responsible for the repair or replacement of any parts that XO determines have been subjected
after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit, improper installation, la ck of scheduled
maintenance as outlined in this manual, fire, flood, or act of God.
SERVICE CONNECTIONS. XO is not responsible for the repair or replacement of failed or damaged components due to water supply, drain
or electrical power failure, high or low pressure, blocked drains, high or low voltage, use of extension cords, or improper grounding of the unit.
YOUR RIGHTS UNDER STATE LAW. This warranty gives you specific legal rights and you may have other rights that vary from state to
state. Some states do not allow the exclusion or limitation of consequential damages or a limitation on how long an implied warranty lasts,
so the above exclusion or limitation may not apply to you.
OUTSIDE U.S. This warranty does not apply to, and XO is not responsible for, any warranty claims made on products sold or used outside
the 48 continental United States.
SEE ALL THE LATEST XO PRODUCTS AND ACCESS PARTS AT:
WWW.XOAPPLIANCE.COM
