Shure BLX24R/SM58-H10 User Manual
Shure BLX24R/SM58-H10 BLX24R/SM58 UHF Wireless Microphone System Perfect for Church, Karaoke,
User Manual
For BLX24R/SM58-H10.
PDF File Manual
,
28 pages
,
Read Online
|
Download pdf file
Table of Contents
BLXWireless System
IMPORTANT SAFETY INSTRUCTIONS
System Components
Quick Start Guide

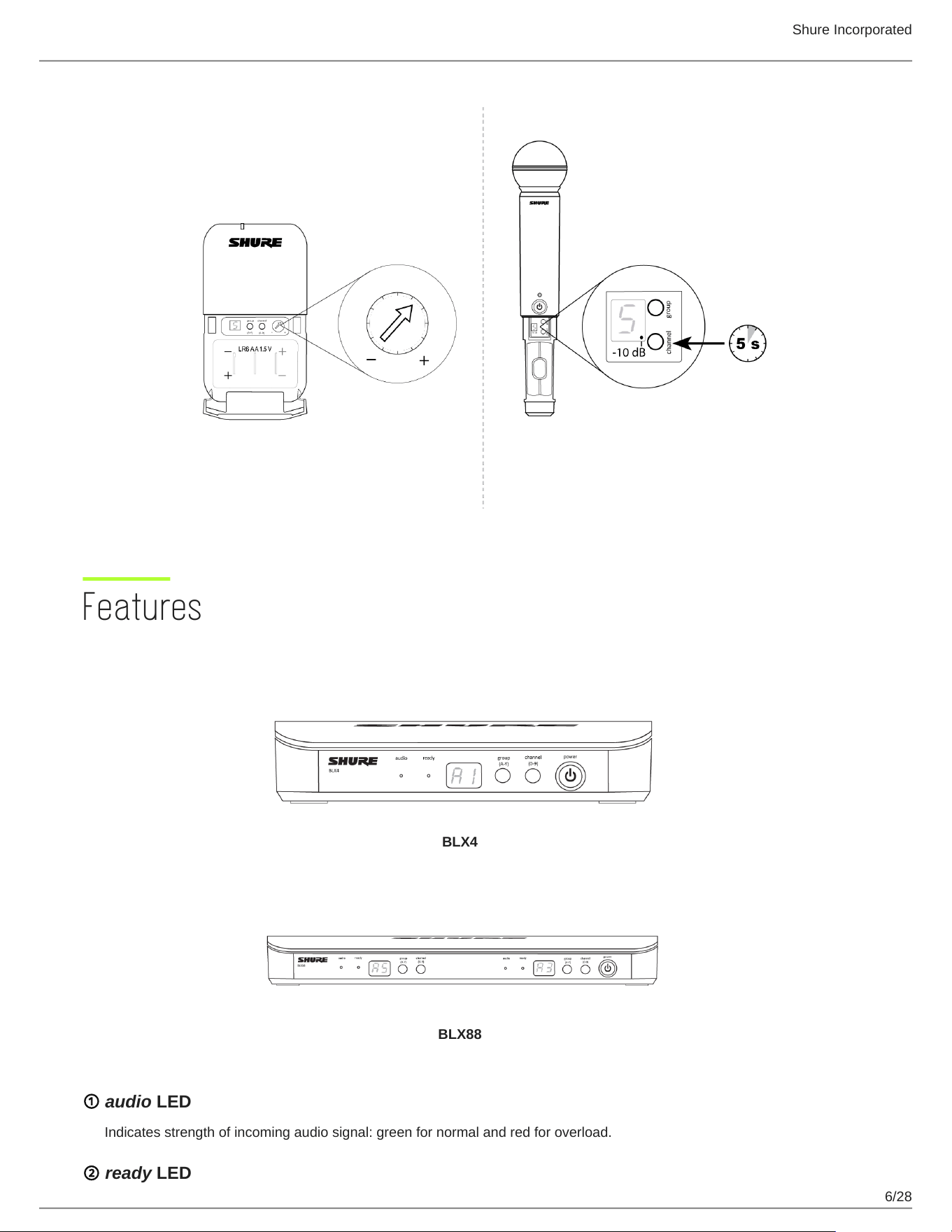

Features
Front Panel

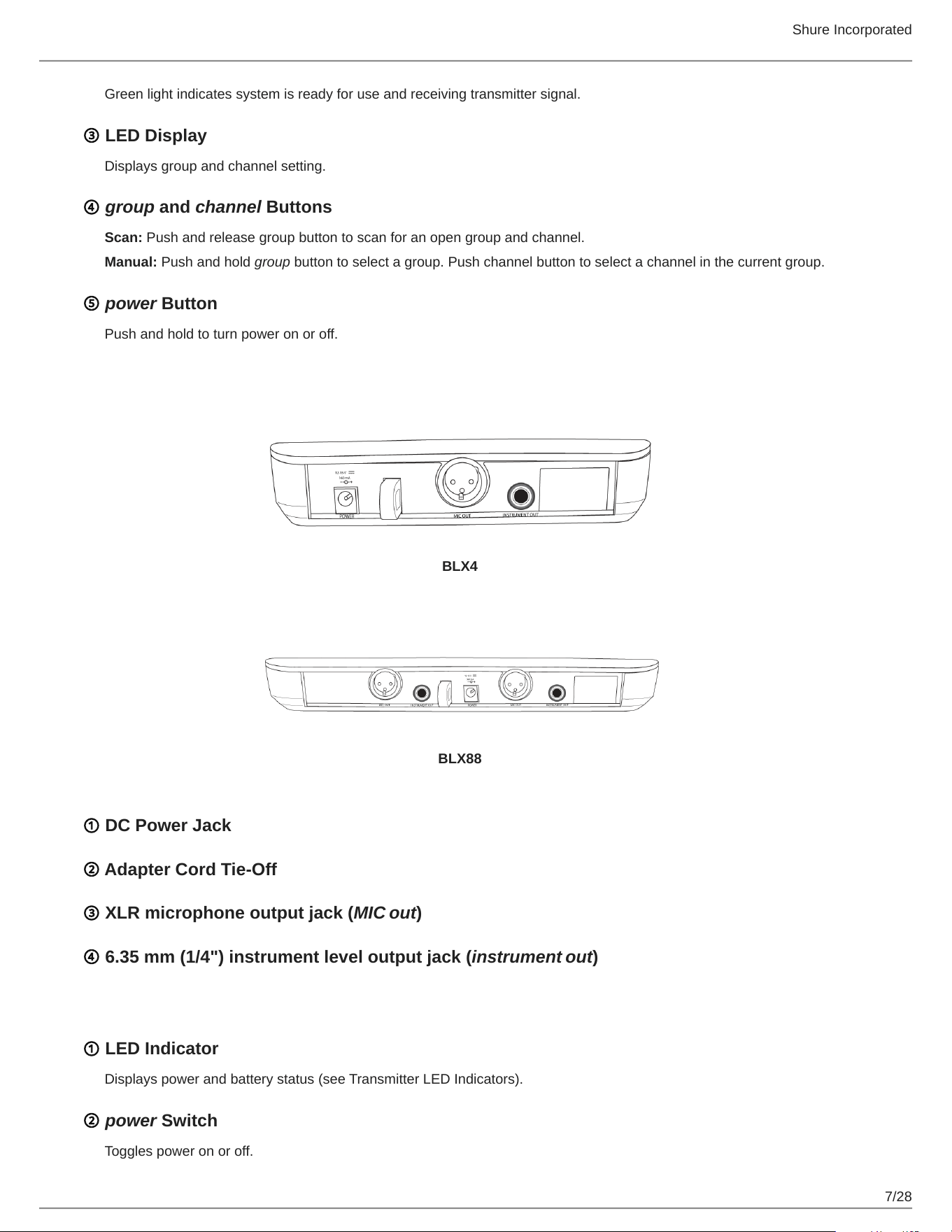

Back Panel
BLX1
BLX2

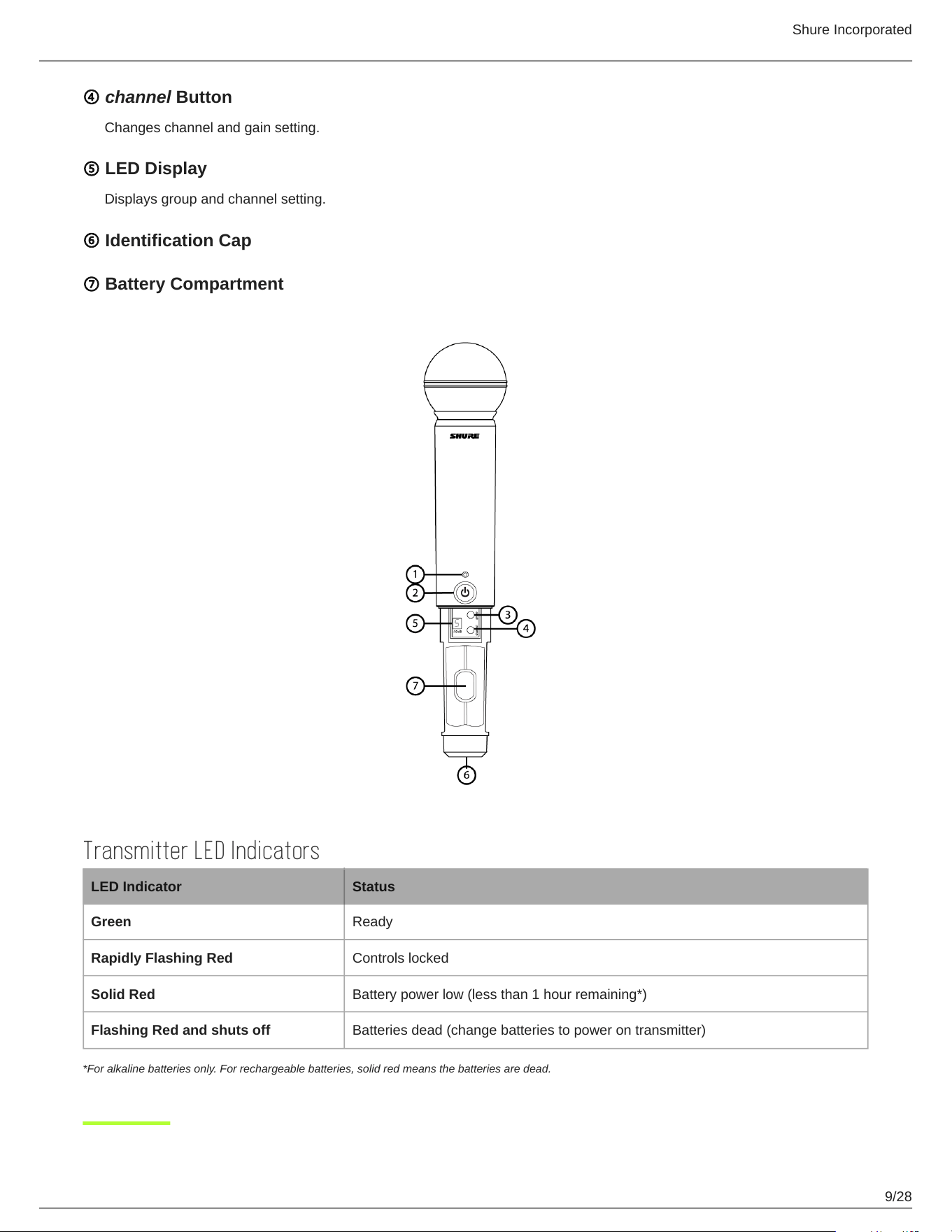

Transmitter LED Indicators

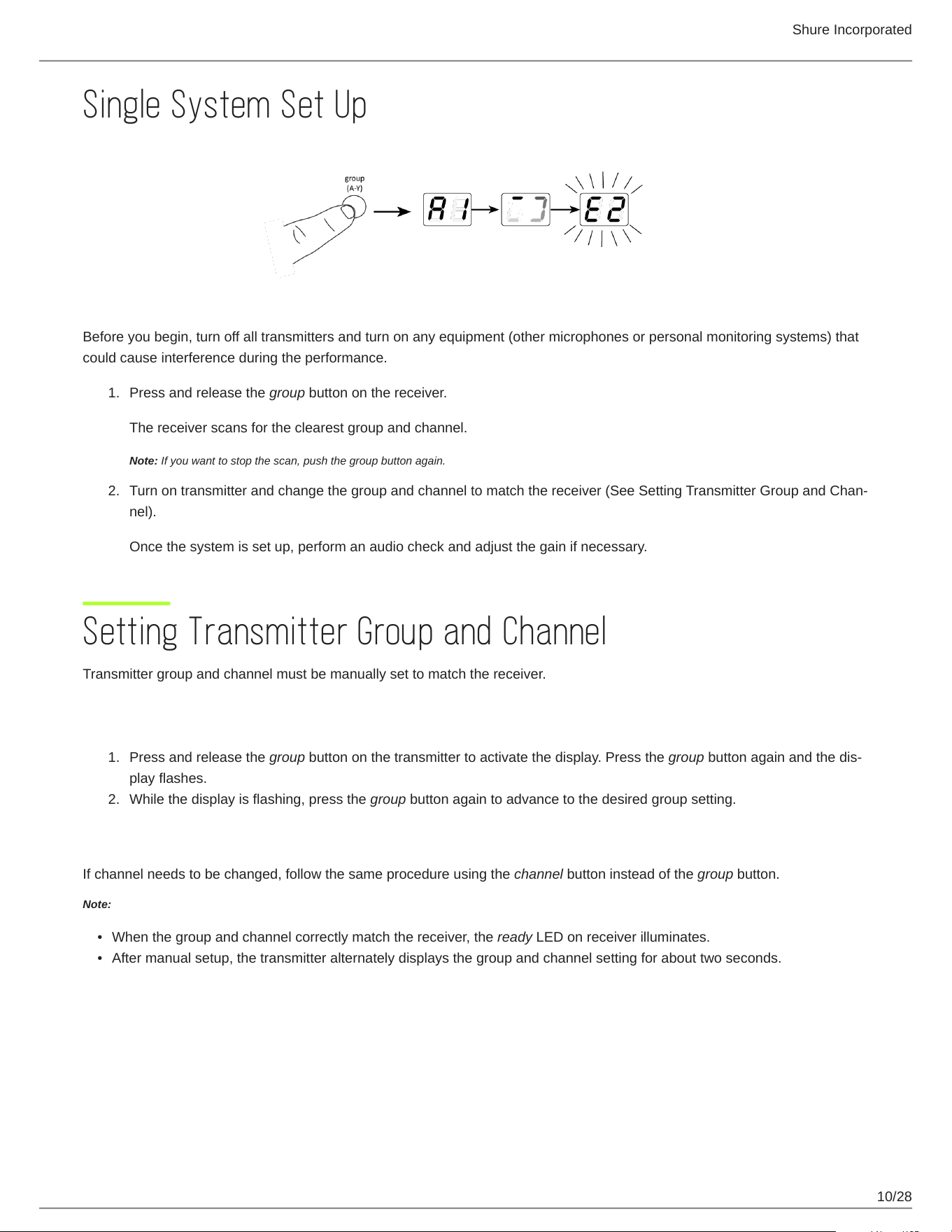

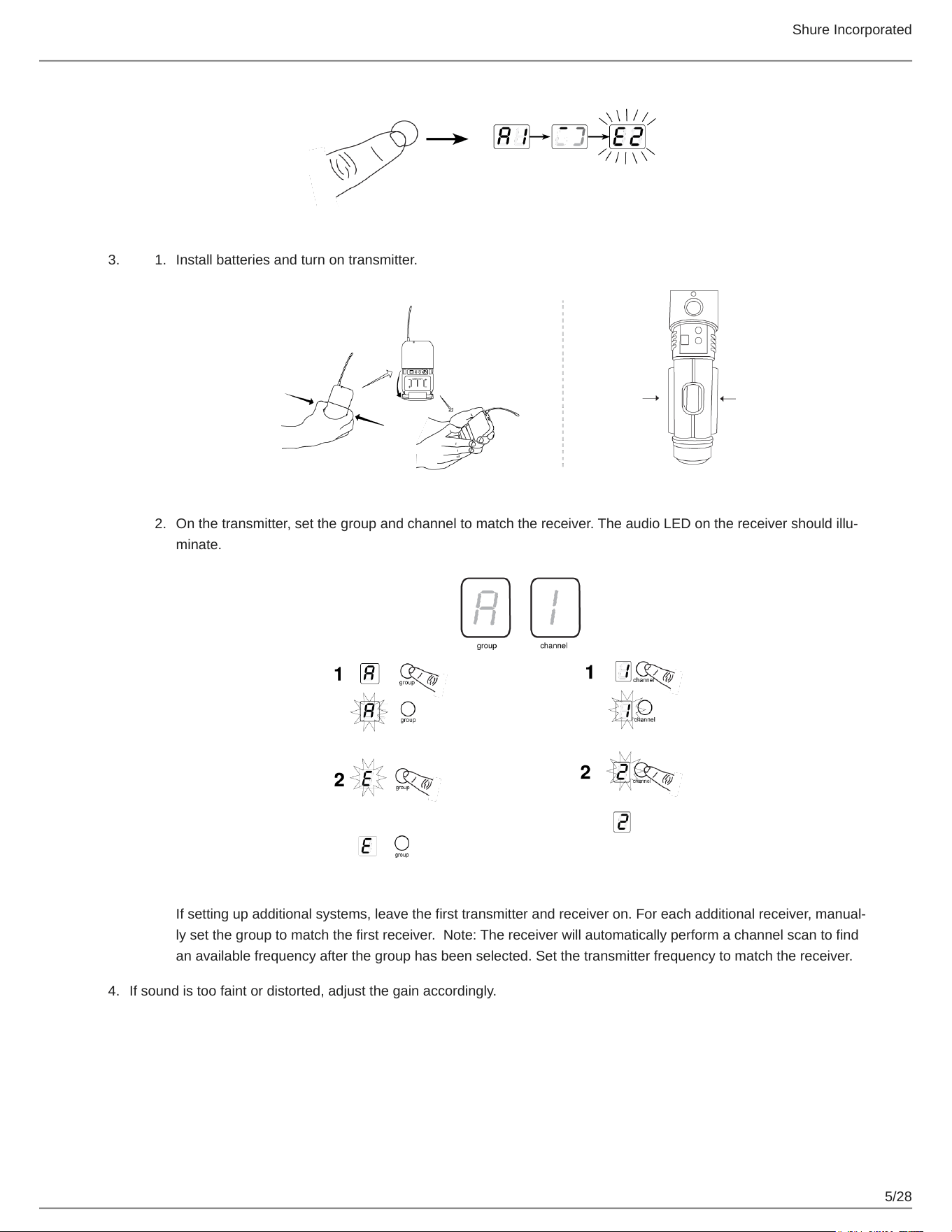

Single System Set Up
Single System Set Up
Setting Transmitter Group and Channel
Group (letter)
Channel (number)

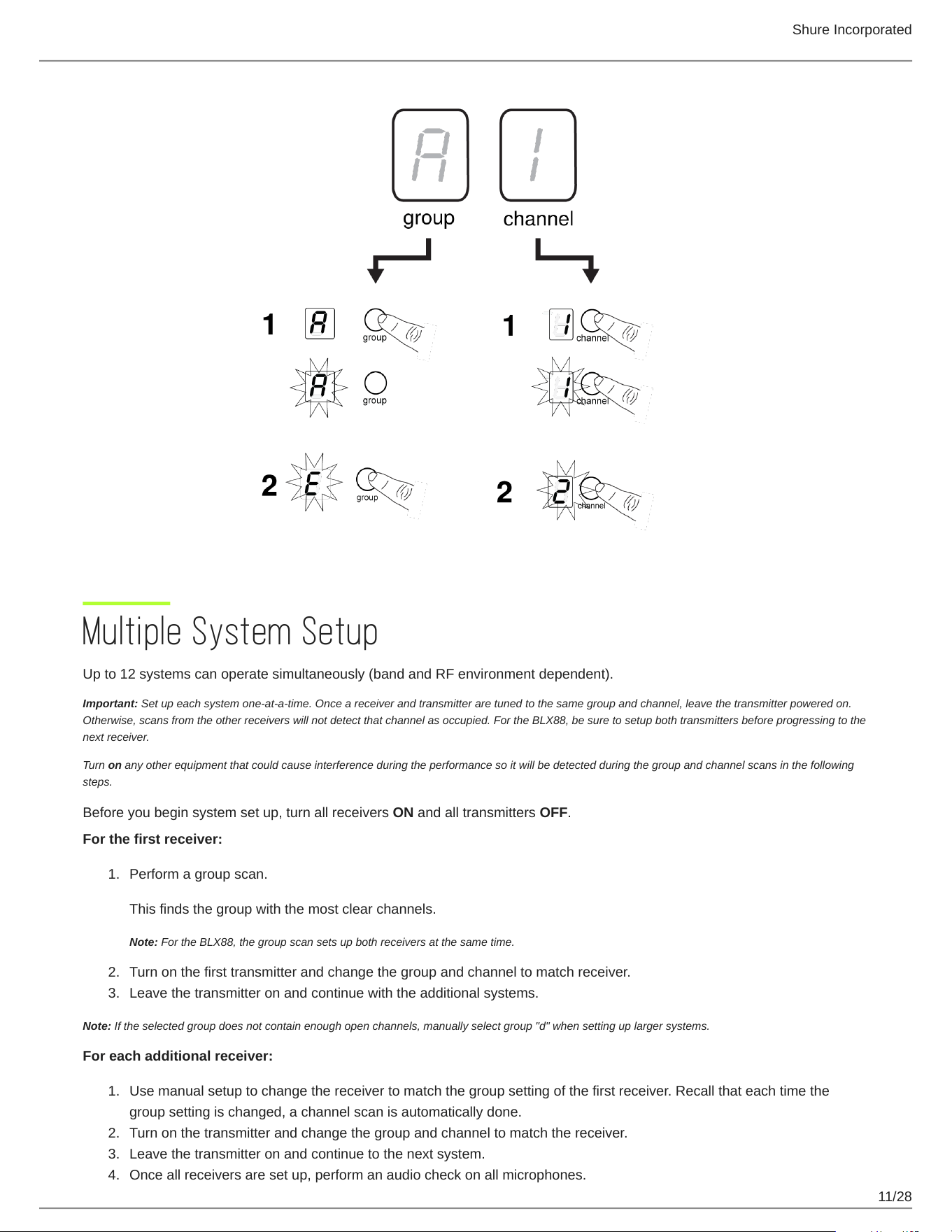

Multiple System Setup

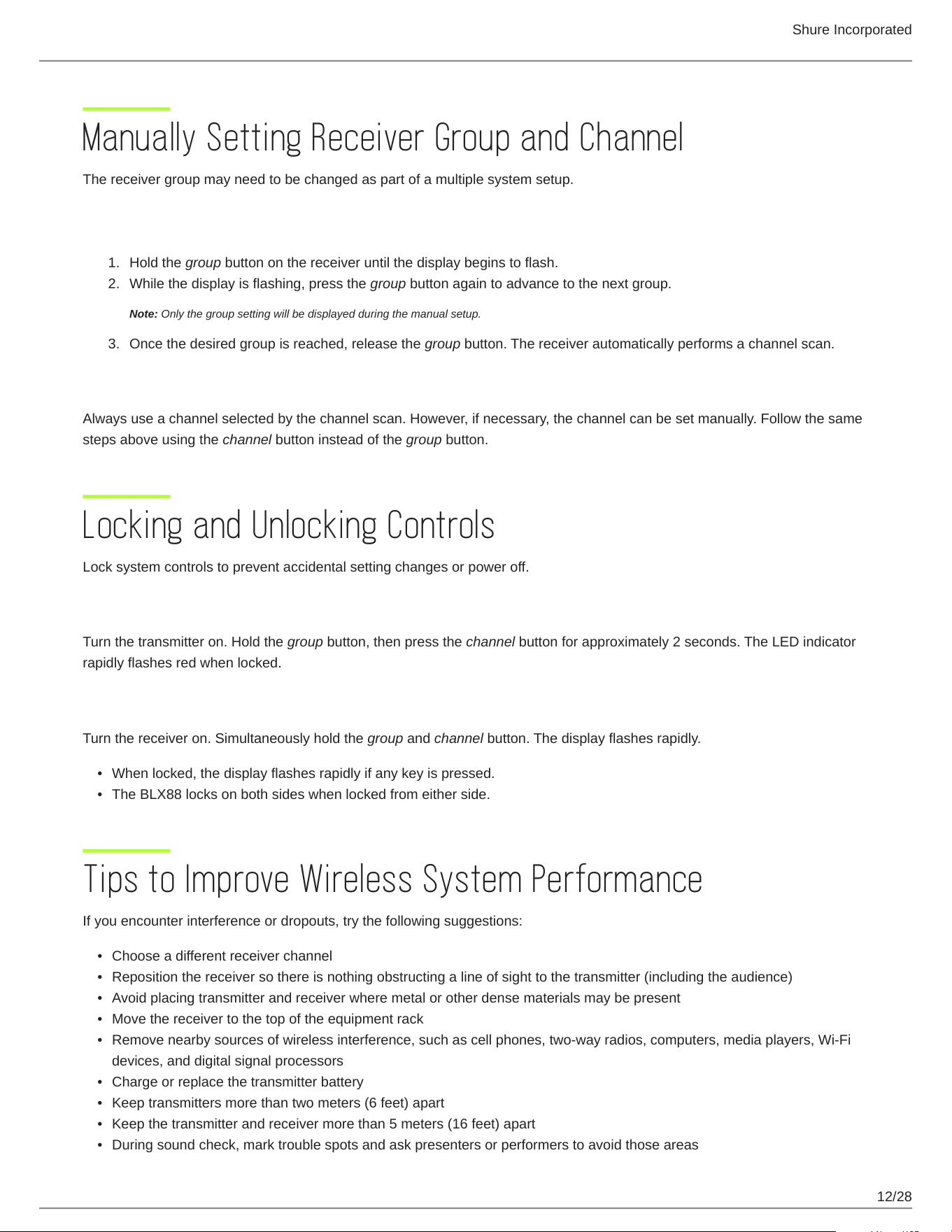

Manually Setting Receiver Group and Channel
Group (letter)
Channel (number)
Locking and Unlocking Controls
Transmitter (lock/unlock)
Receiver (lock/unlock)
Tips to Improve Wireless System Performance

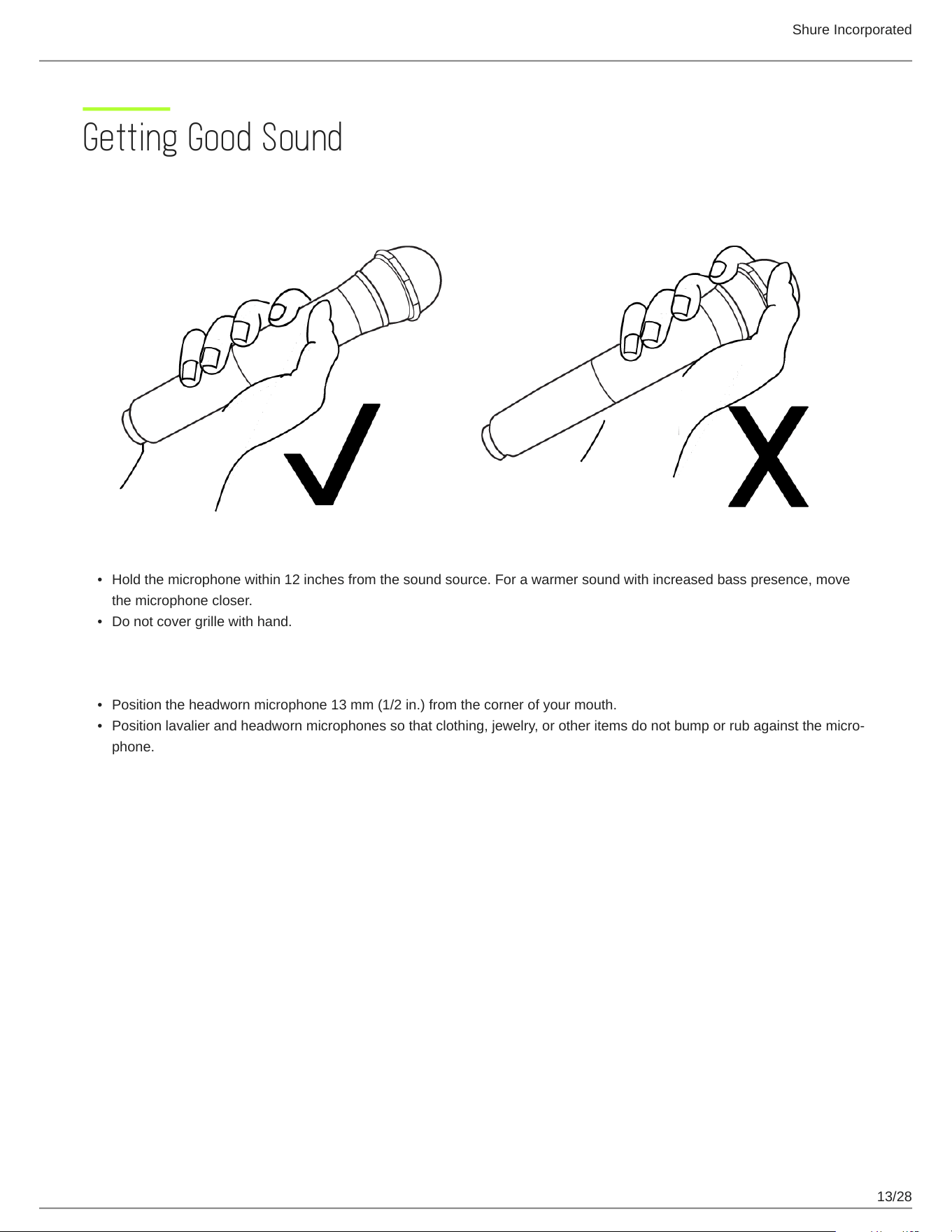

Getting Good Sound
Correct Microphone Placement
Wearing the Headworn Microphone

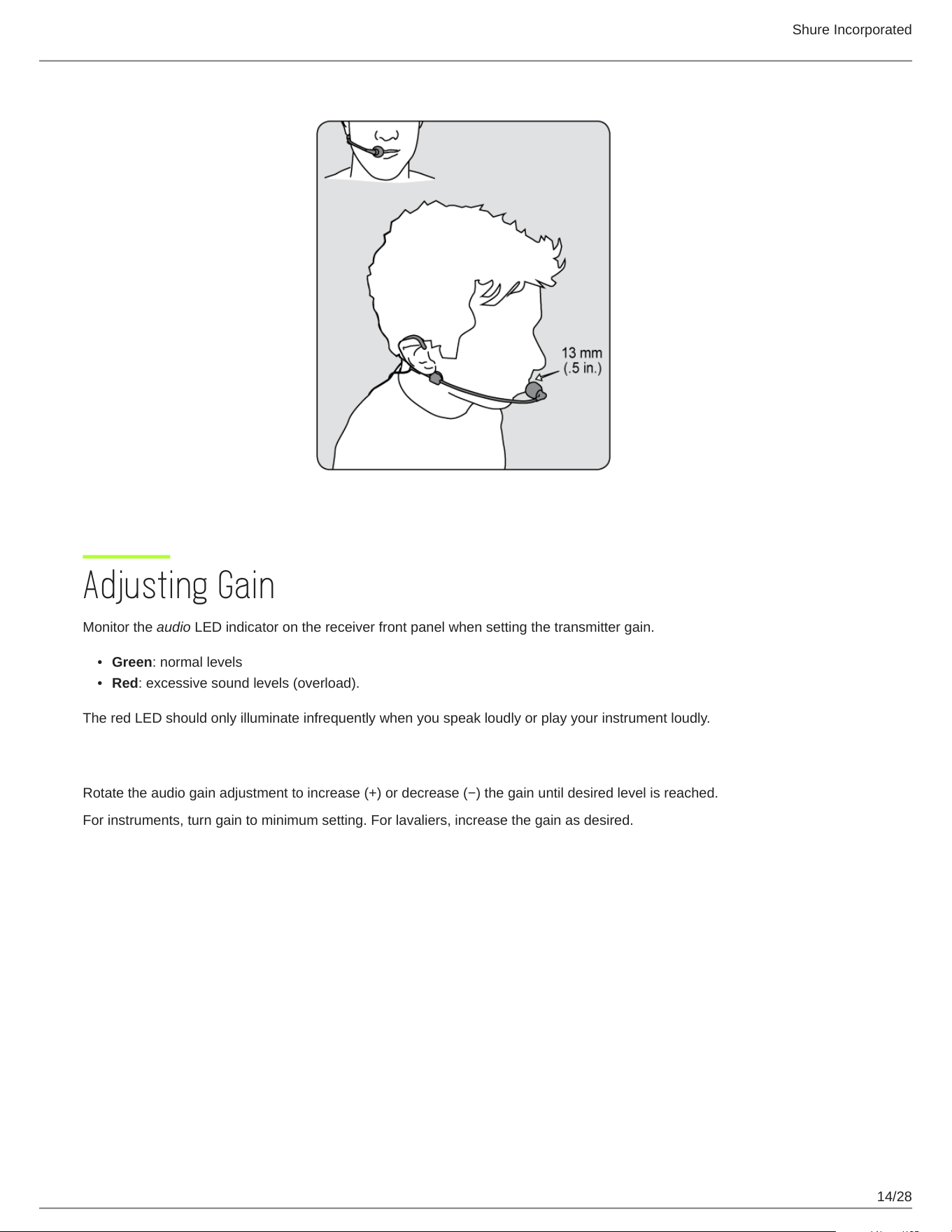

Adjusting Gain
BLX1
BLX2
Batteries

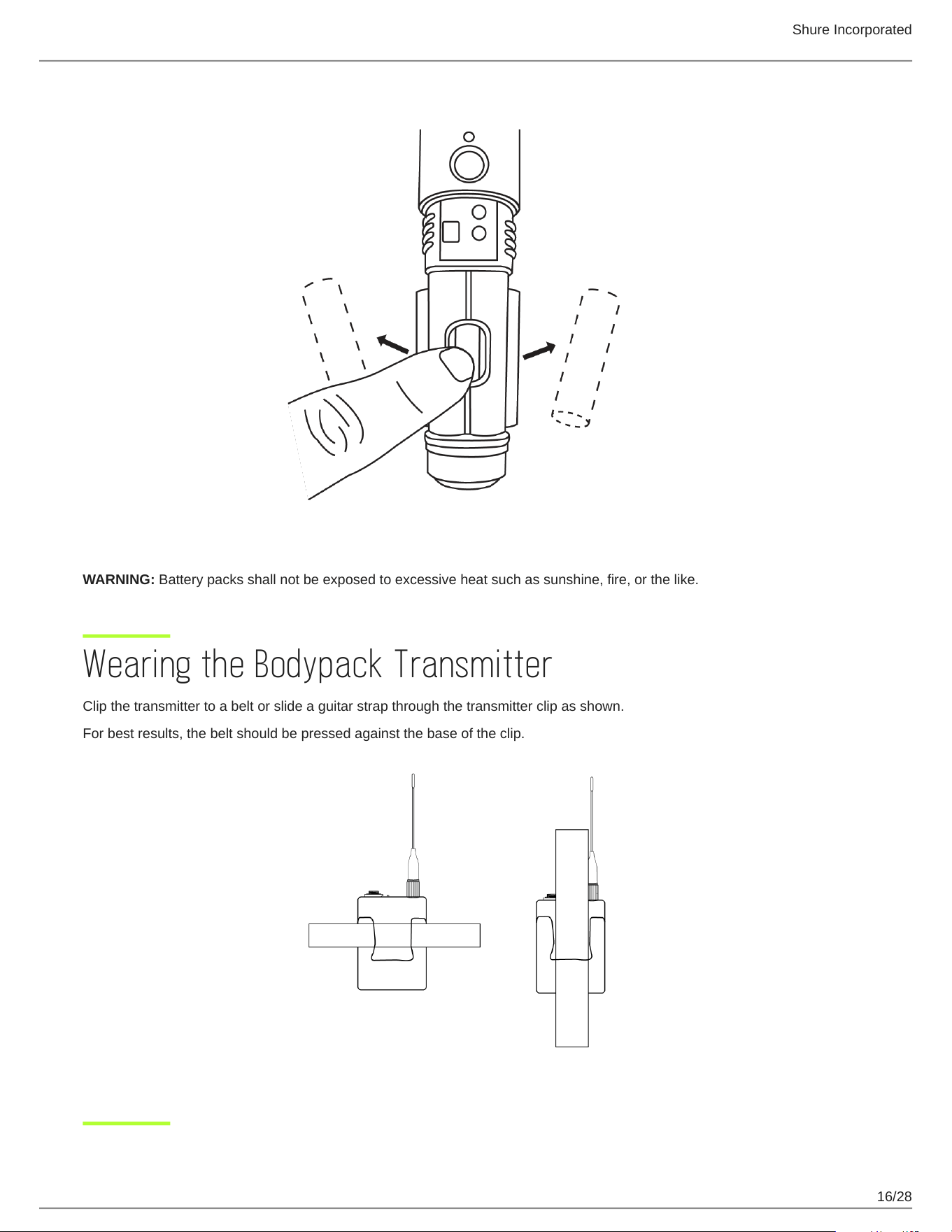

Wearing the Bodypack Transmitter
Power Off
Power Off

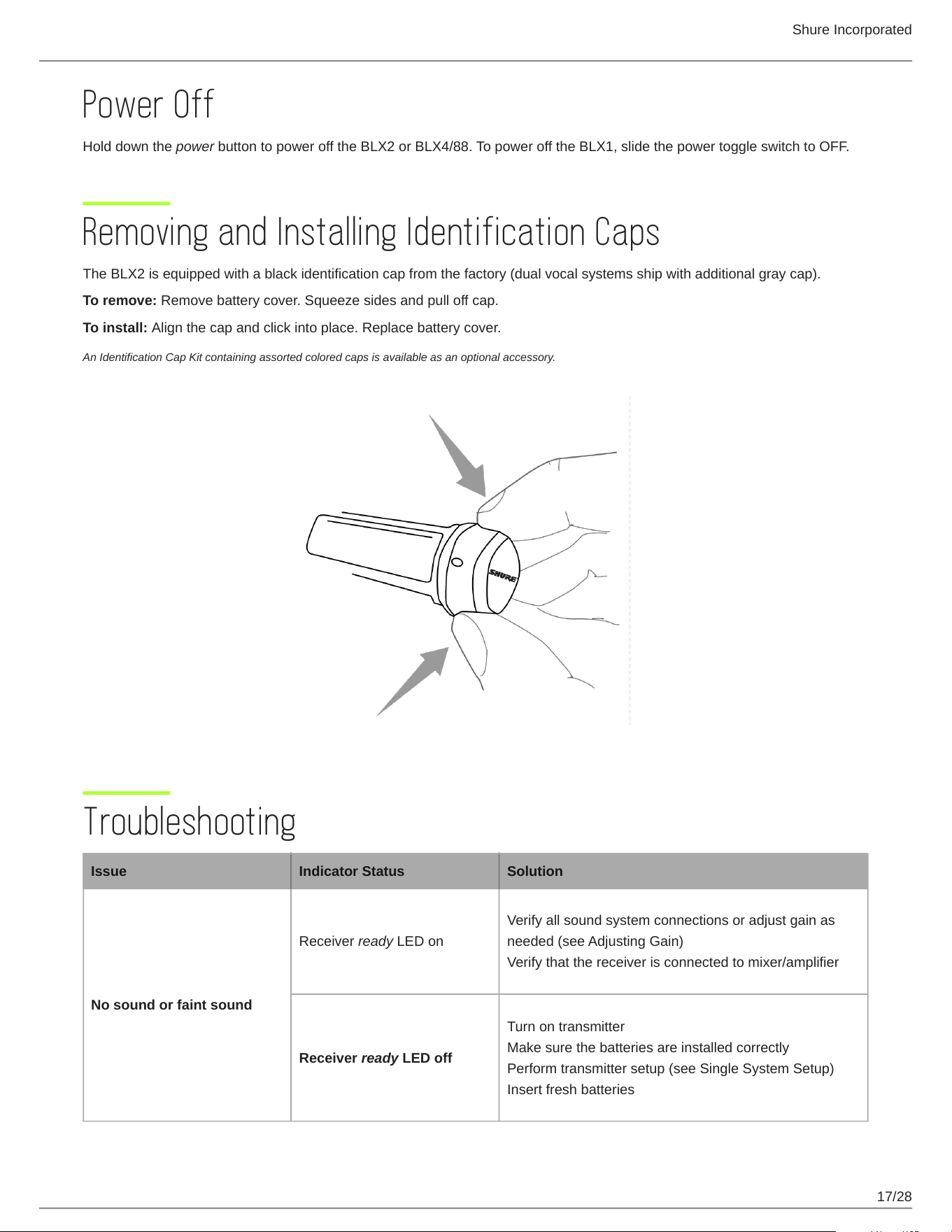

Removing and Installing Identification Caps

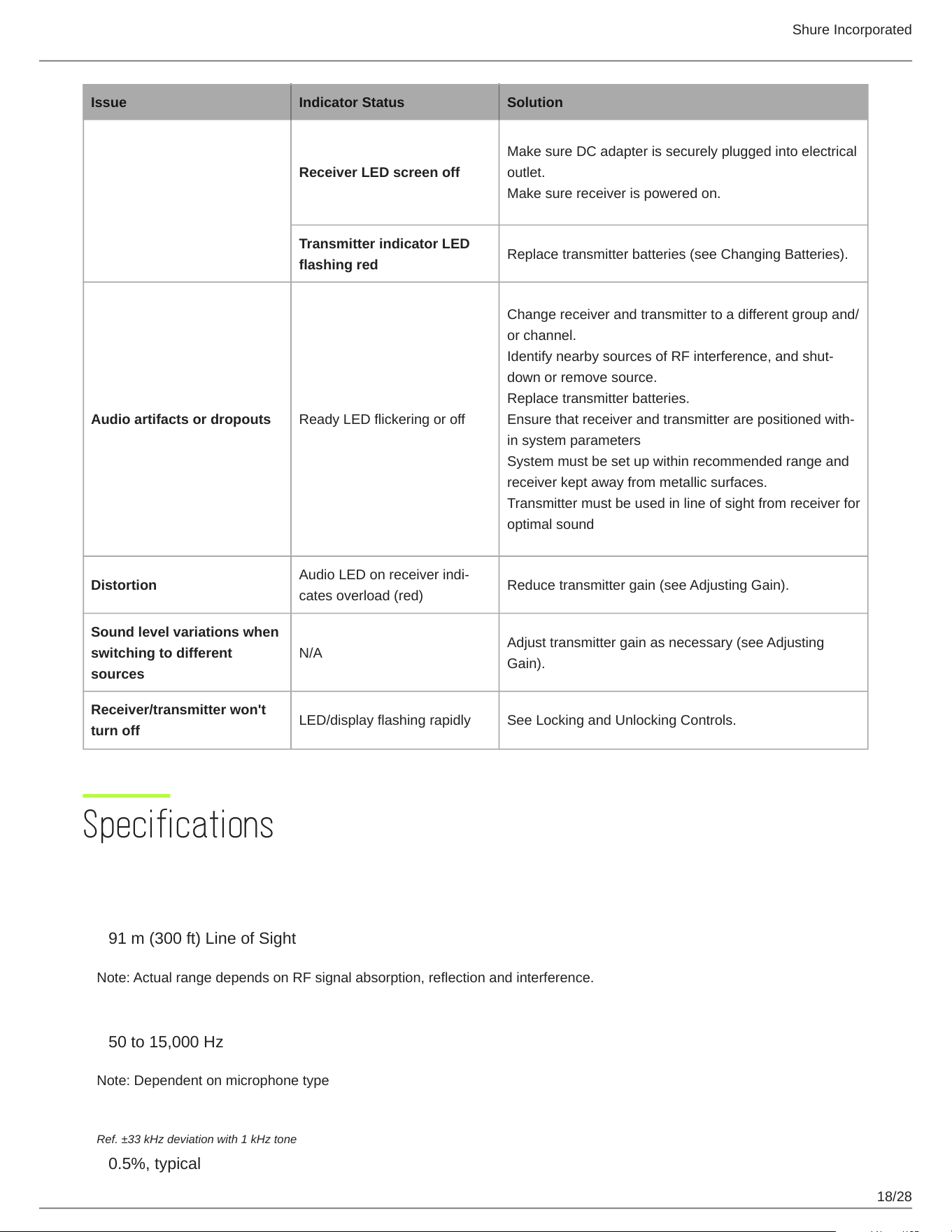

Troubleshooting
Specifications
System
Working Range
Audio Frequency Response
Total Harmonic Distortion
Dynamic Range
Operating Temperature
Polarity

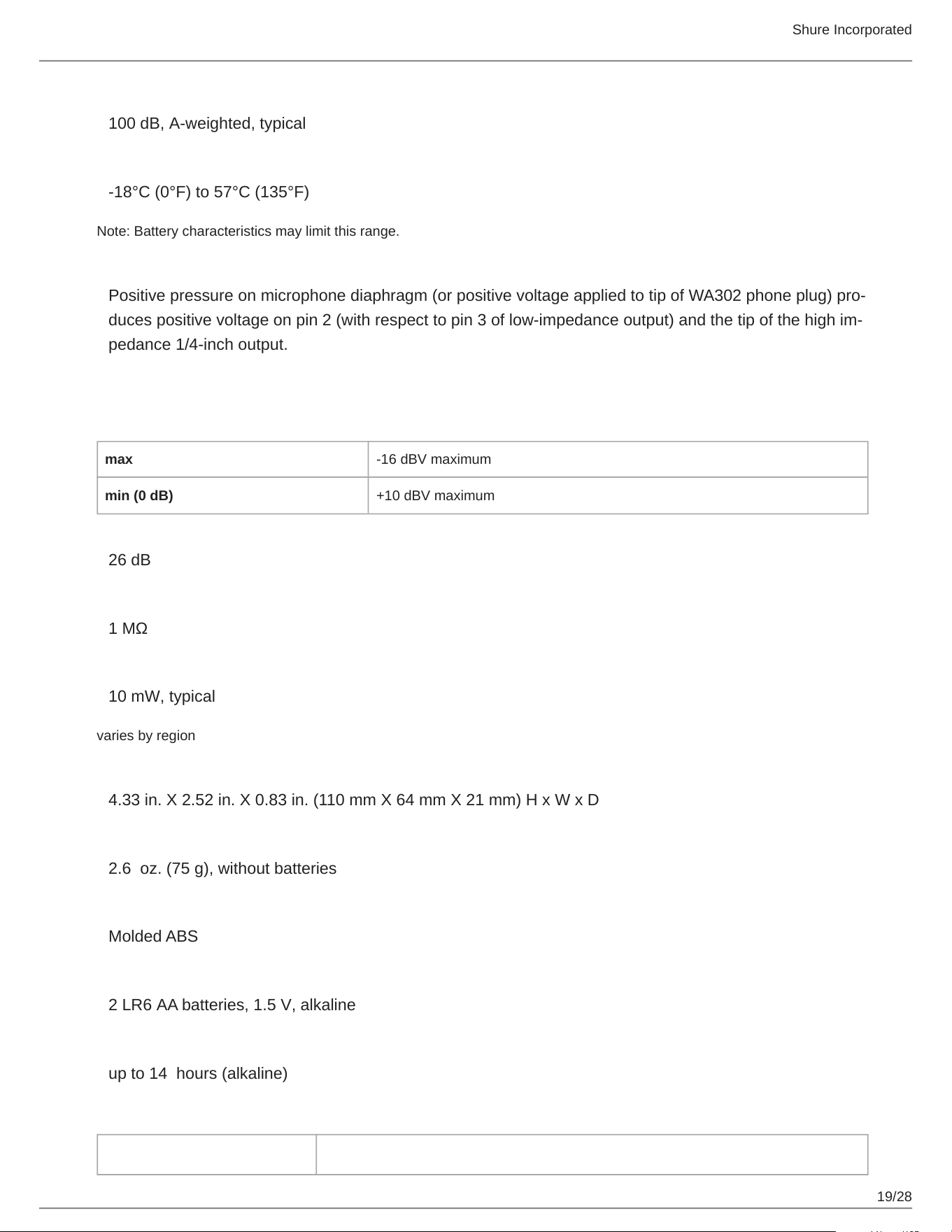

BLX1
Audio Input Level
Gain Adjustment Range
Input Impedance
RF Transmitter Output
Dimensions
Weight
Housing
Power Requirements
Battery Life
Audio Input Level0dB-20Â dBV maximum-10dB-10Â dBV maximumGain Adjustment Range10Â dB RF Transmitter Output10Â mW, typical varies by region Dimensions8.82 in. X 2.09 in. (224Â mm X 53Â mm) L x Dia. Weight7.7Â oz. (218Â g) without batteries HousingMolded ABS Power Requirements2 LR6 AA batteries, 1.5Â V, alkaline Battery Lifeup to 14Â hours (alkaline)
Audio Input Level
Audio Input Level0dB-20Â dBV maximum-10dB-10Â dBV maximumGain Adjustment Range10Â dB RF Transmitter Output10Â mW, typical varies by region Dimensions8.82 in. X 2.09 in. (224Â mm X 53Â mm) L x Dia. Weight7.7Â oz. (218Â g) without batteries HousingMolded ABS Power Requirements2 LR6 AA batteries, 1.5Â V, alkaline Battery Lifeup to 14Â hours (alkaline)
Gain Adjustment Range
RF Transmitter Output
Dimensions
Weight
Housing
Power Requirements
Battery Life
BLX4 & BLX88
Output Impedance
Audio Output Level
RF Sensitivity
Image Rejection
Dimensions
Weight
Housing
Power Requirements
Certifications

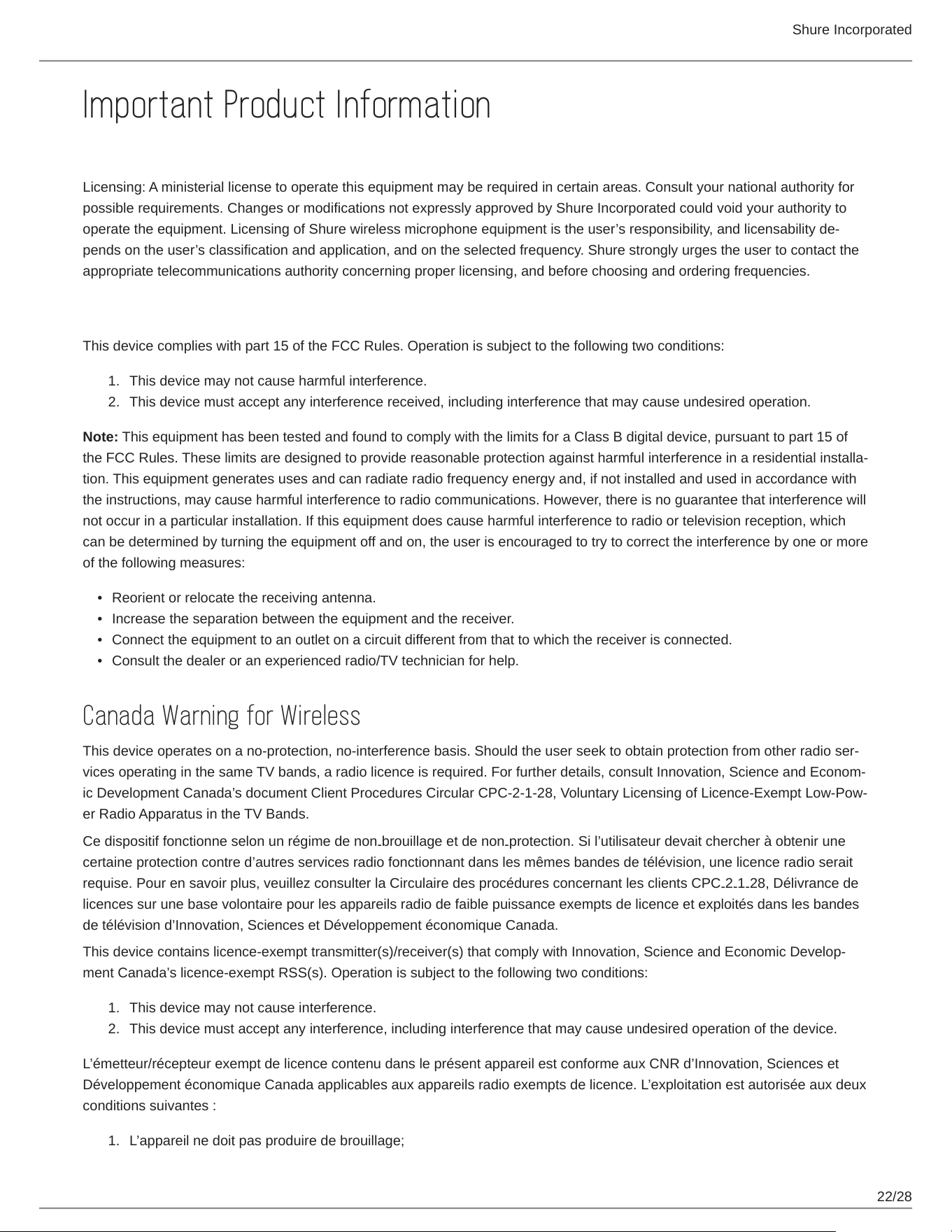

Important Product Information
Important Product Information
LICENSING INFORMATION
Information to the user
Canada Warning for Wireless
Australia Warning for Wireless

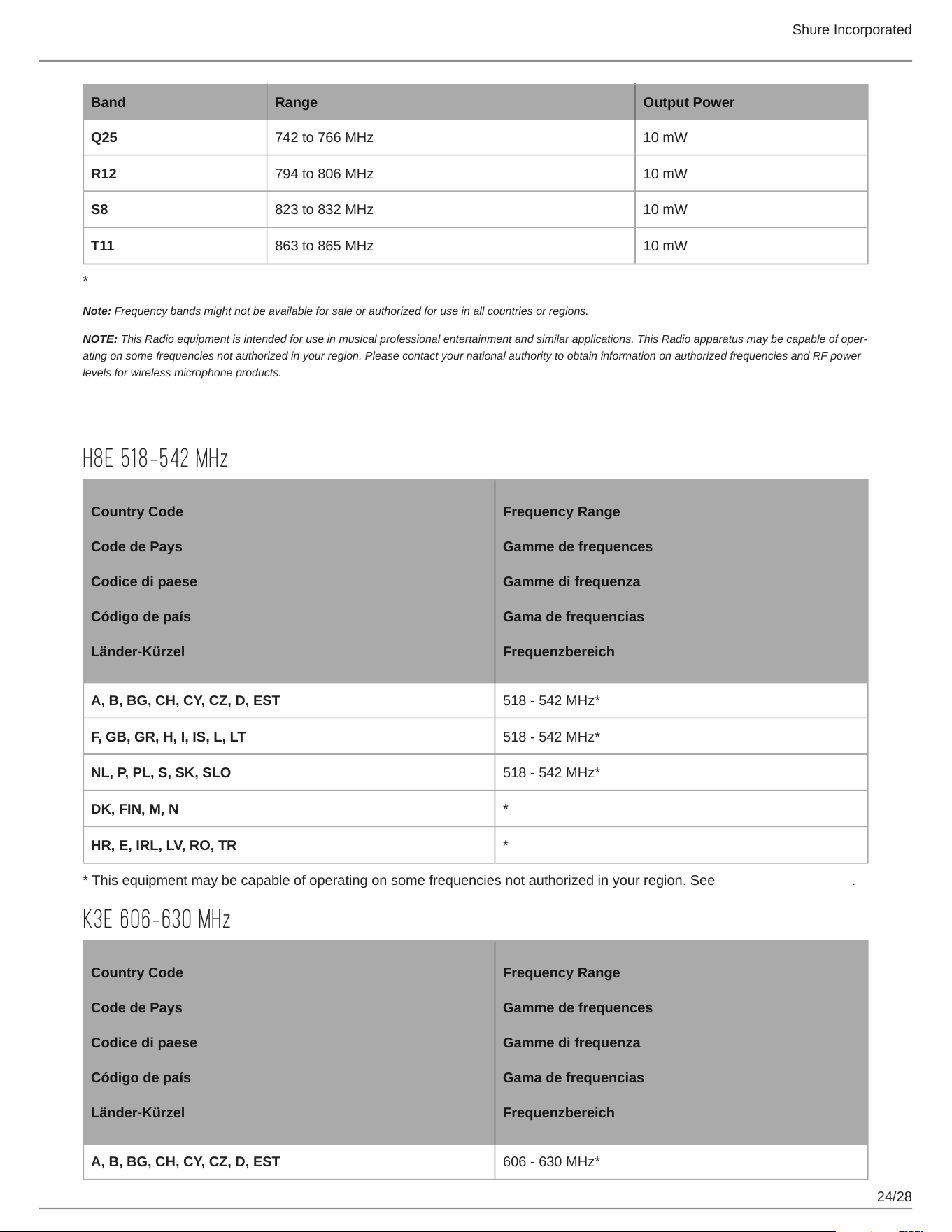

Frequency Range and Transmitter Output Level
Frequencies for European Countries
H8E 518-542 MHz
K3E 606-630 MHz

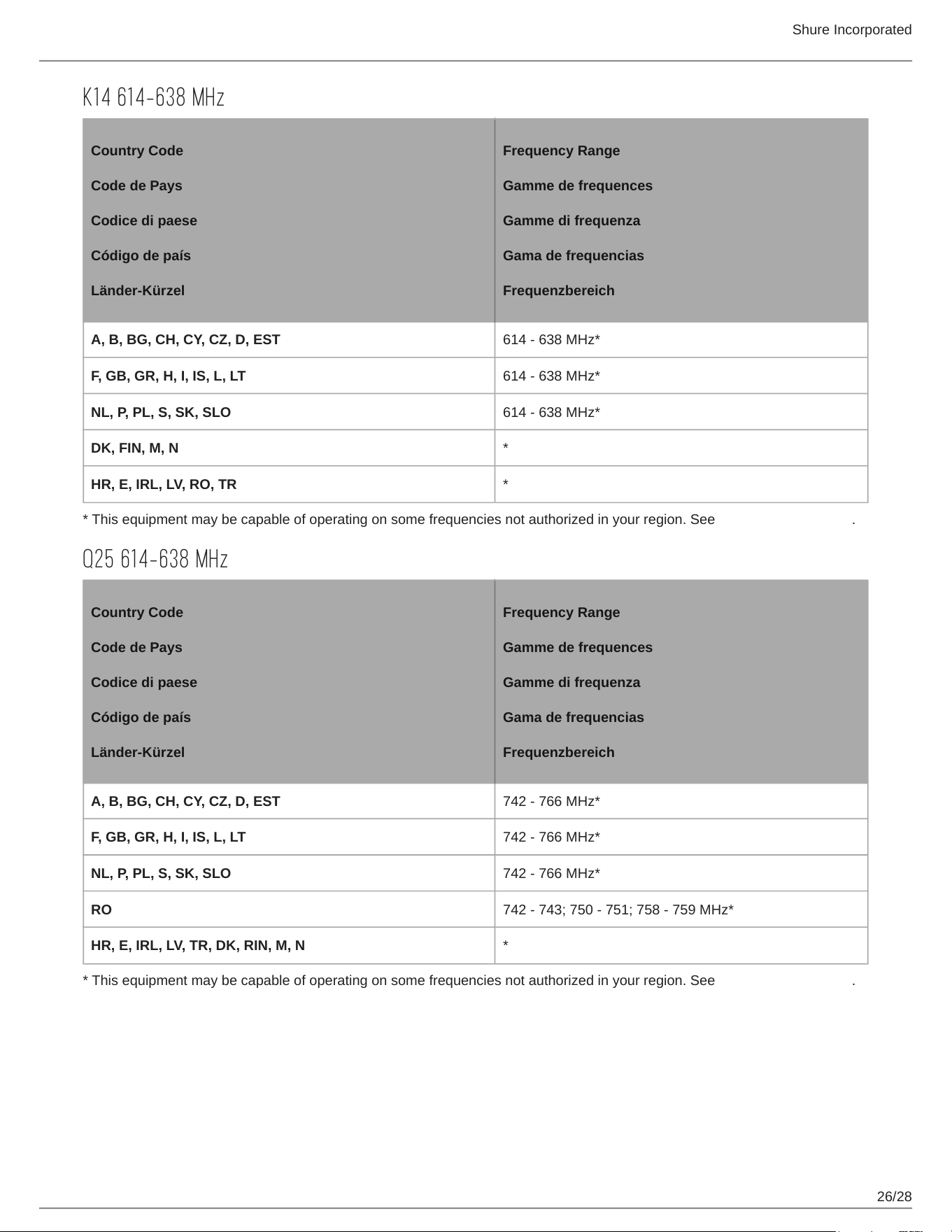

K14 614-638 MHz
K14 614-638 MHz
Q25 614-638 MHz

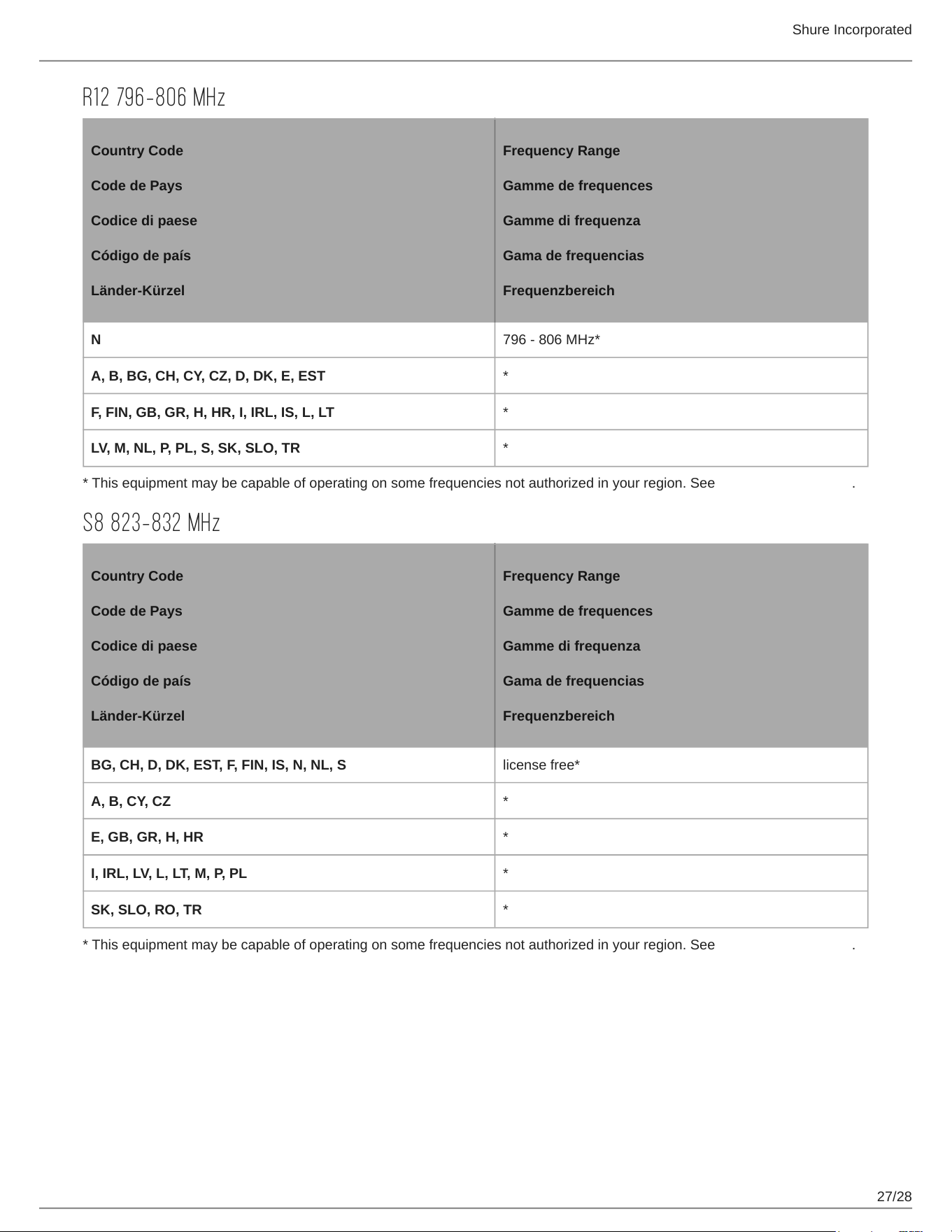

R12 796-806 MHz
S8 823-832 MHz

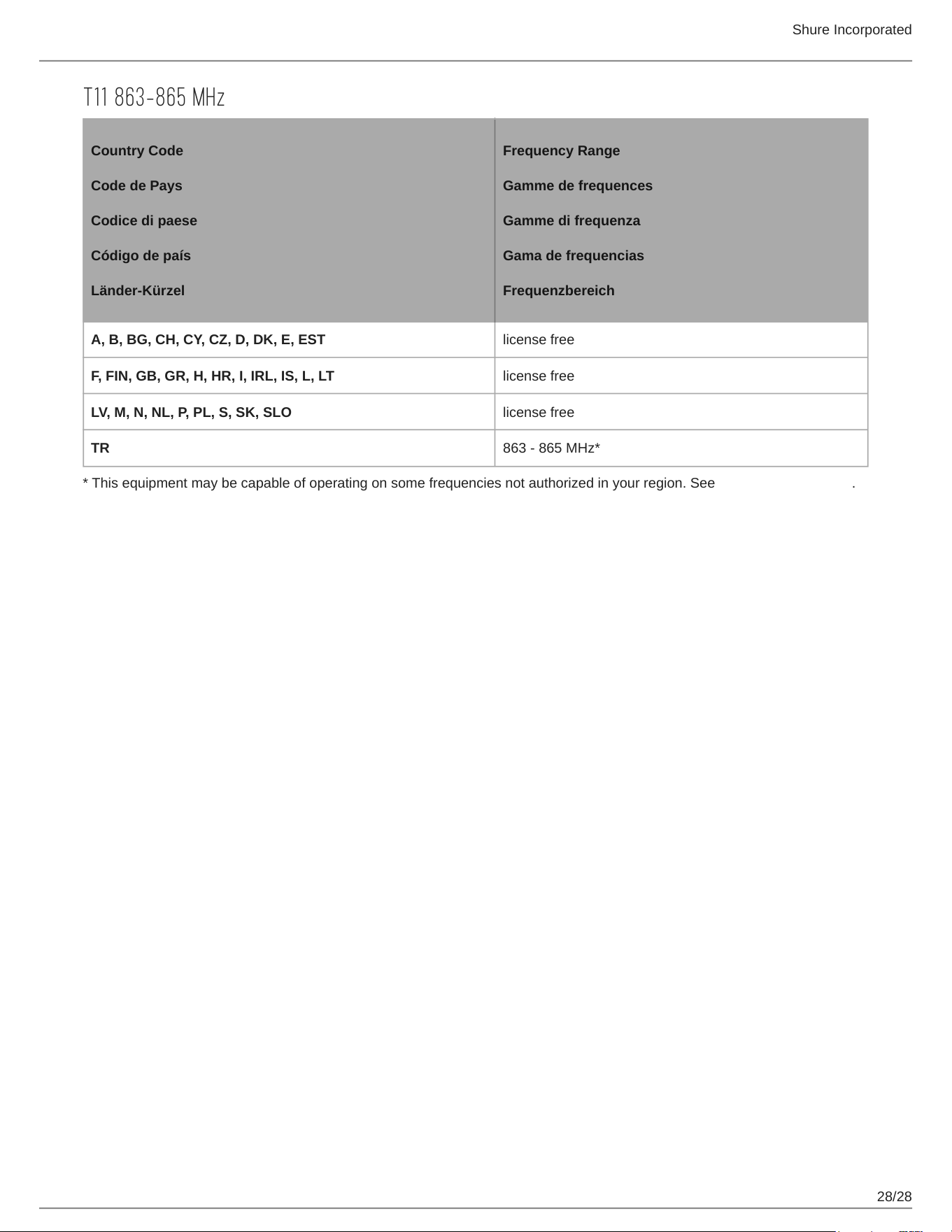

T11 863-865 MHz
