U s e r M a n u a l
X300
This Dashboard Camera (dash cam) is a specialized onboard device that continuously records video while the vehicle is in use.
Some features may not be available depending on installation, driving conditions, and vehicle type. The video quality might vary
for each device as a result of installed rmware.
The device DOES NOT guarantee video recording of all accidents as built-in impact sensor may not be activated due to combina-
tion of user settings and the level of impact during the collision.
ACMA-020RAM103
C o n t e n t s
Before Using THINKWARE DASH CAM
TM
X300 2
FCC Statement 2
Caution 3
Getting Started
1-1. In the Package 4
1-2. Optional Accessories 4
1-3. Product Overview 5
1-4. Inserting a Memory Card 6
1-5. Vehicle Installation 7
Basics
2-1. Turning the Device Power On/O 9
2-2. Date/Time Settings 9
2-3. Connecting External GPS Receiver(Optional Accessories) 10
2-4. Recorded Files 11
2-5. Recording Videos While Driving 12
2-6. [Optional] Recording Videos While Parked 14
2-7. Manual Recording 15
2-8. Capturing Still Images 16
2-9. Formatting MicroSD Card 16
2-10. Upgrading Firmware 16
Touch LCD
3-1. Main Menu 17
3-2. Live View 18
3-3. Video List 19
3-4. Settings > Common 21
3-5. Settings > Continuous Recording Mode 22
3-6. Settings > Parking Surveillance Mode 23
3-7. Settings > Additional Functions 24
3-8. Settings > Dual Save Video 25
PC Application
4-1. Thinkware Dash Cam PC Viewer 26
Device Information
5-1. Specications 31
01
02
03
04
05
2
Before Using THINKWARE DASH CAM
TM
X300
▶
Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent
of THINKWARE.
▶
Every eort has been made to ensure this Guide's accuracy. However, we cannot guarantee the accuracy
of the contents in this document as there may be technical errors, omissions, and/or futures changes.
▶
THINKWARE reserves the right to change or modify the product and the content of this manual at any time
without prior notice for product improvements.
▶
Images contained in this user guide are illustrations for instructional purposes only and may dier from the
actual product.
▶
Users do not reserve the right to use the product for purposes other than as specied in this user guide.
According to the Personal Information Protection Act and other related regulations, the user/owner may
be held liable if the video and/or conversation recorded by the device are distributed without their con-
sent. Thus, special attention should be paid in using this product.
●
The microSD memory card should be tested for errors on a regular basis and as the memory card is a
consumable item, it will need to be replaced periodically.
●
THINKWARE shall NOT be responsible for any problems and/or damages that may occur from not using
genuine or authorized parts and accessories.
●
The device and the recorded videos are intended for personal use and the recorded videos should be
used for reference only.
●
The device does NOT guarantee video recording of all accidents as built-in impact sensor may not be
activated due to combination of user settings and the level of impact during the collision.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter-
ference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
▶
Reorient or relocate the receiving antenna.
▶
Increase the separation between the equipment and receiver.
▶
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
▶
Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: Any changes or modications to the equipment not expressly approved by the party responsi-
ble for compliance could void your authority to operate the equipment.
This Class A digital apparatus complies with Canadian ICES-003.
3
Getting Started
01
Caution
This device is designed to record video while the
vehicle is in operation. The quality of the video
might be aected by weather conditions and the
road environment such as day or night, presence
of street lighting, entering/exiting tunnels, and
surrounding temperatures.
THINKWARE is NOT responsible for the loss of any
recorded video during operation.
Although designed to withstand high impact of
car collision, THINKWARE does NOT guarantee re-
cording of accidents where the impact may cause
the device to be damaged.
Keep the windshield clean for optimal video qual-
ity.
If a foreign substance (e.g. ngerprints) is attached
to the lens, this might reduce the quality of the
recorded videos. Keep the lens clean all the time.
The specied operating temperature of this prod-
uct is -20°C to 65°C (-4°F to 149°F) and storage
temperature is -40°C to 80°C (-40°F to 176°F). En-
sure that the device is kept within these tempera-
ture ranges; otherwise, the device may not func-
tion as designed and at extreme temperatures,
permanent physical damage can result which is
not covered by warranty.
Avoid placing the device under direct sunlight.
Avoid using the Product in extreme conditions
where the Product is exposed to high tempera-
ture and/or humidity.
Only use genuine accessories and peripherals
from THINKWARE or authorized THINKWARE deal-
er. THINKWARE does not warrant the safety and
compatibility from use of peripherals from other
manufacturers Use genuine parts supplied by
THINKWARE.
Do not apply excessive force when pushing the
buttons on the device.
Do not clean the Product using chemical cleaner
or solvents as it may damage plastic components.
Use soft, clean, dry fabric to gently wipe the Prod-
uct.
Do not place or store the device where it can be
accessible by children and pets.
Do not disassemble the Product as it will void
product warranty and may also damage the prod-
uct.
Handle with care. Drop, shock, and mishandling
of the Product may result in malfunction and/or
damage to the device.
Do not operate this device while driving.
Install this device in a location where it has unob-
structed view of the road but does not interfere
with the driver’s view. Check with your local and
regional laws before mounting to windshield.
The device and/or installation parts have moving
parts and may shift in extreme road conditions
such as unpaved road. Check frequently to en-
sure the device is positioned as instructed in this
guide.
Do not operate or handle power cable with wet
hands.
Do not use a damaged power cable.
Keep the power cable away from heaters or other
hot objects.
Check that power cable with correct connector is
used and the connections are secure and rmly in
place.
Do not pull, insert, or bend the power cable using
excessive force.
Do not place heavy objects on the device and the
power cable.
Do not modify or cut the power cable.
THINKWARE does not guarantee that devices or
peripherals not authorized by THINKWARE will be
compatible with its Product.
Do not attempt to insert foreign objects into the
device or power cable.
Do not spill or spray liquid into the device as it
may cause malfunction, re, or electric shock.
This device is intended to be used inside the ve-
hicle only.
4
Hardwiring Cable External GPS Receiver Rear View Camera
MicroSD memory card with adapter
(consumable)
USB MicroSD card
reader
Quick Start Guide/Warranty/
User Manual (stored in the MicroSD card)
1. Getting Started
This unit was tested with shielded cables on the peripheral devices.
Shielded cables must be used with the unit to insure compliance.

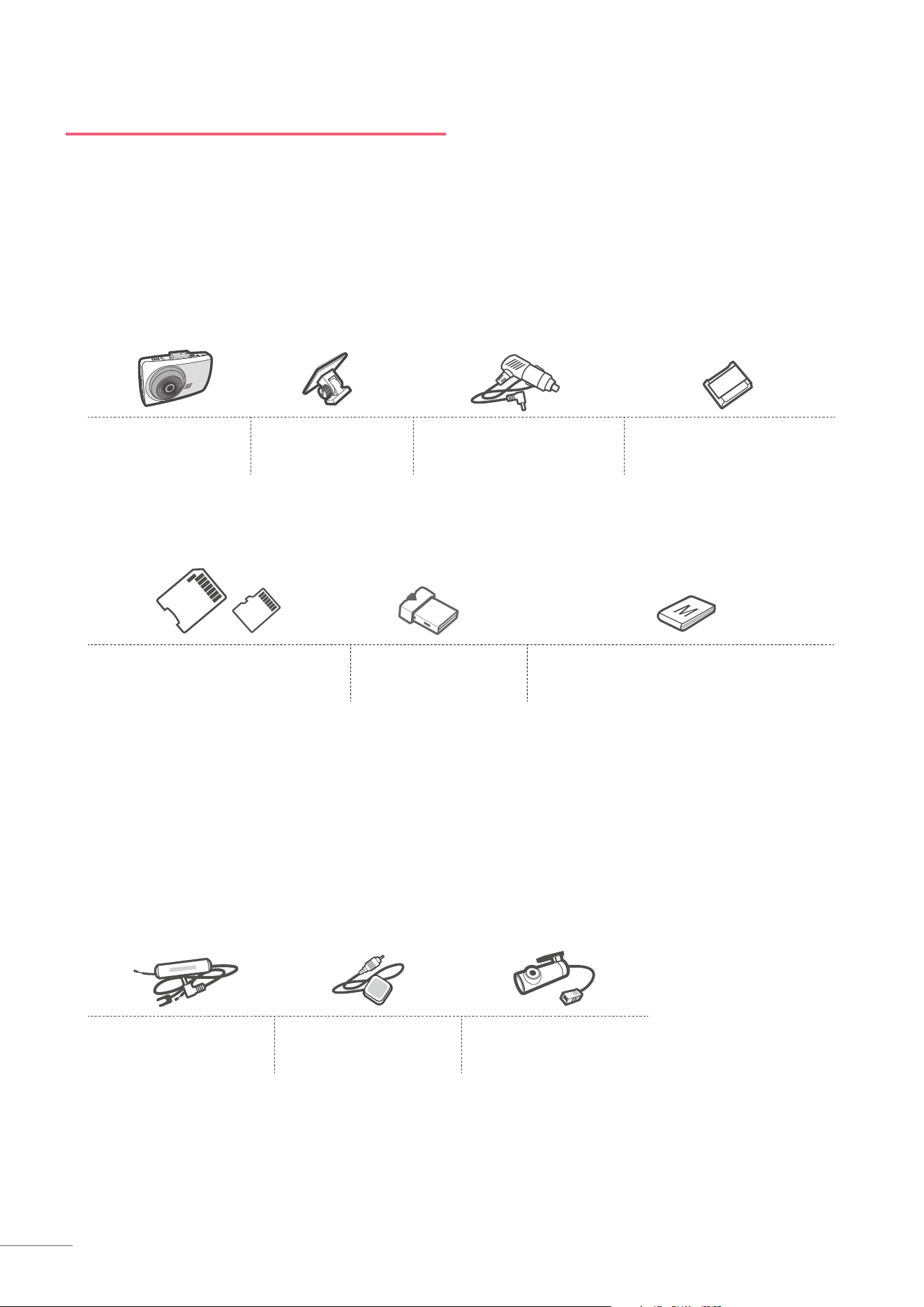

1-1. In the Package
1-2. Optional Accessories
Main Dash Cam Unit
Mount with 3M tape
(1ea)
Car Charger
Adhesive Cable Holder
(5ea)
5
Getting Started
01
GPS
V-IN
DC-IN
Front view
Left/Right
view
Rear view
Top view
6
5
8
72
3
41
Micro SD
9
11
10
No. Name Description
1 Camera Lens Front facing camera for video recording
2 Mount Connector Connects to the windshield mount
3 Security LED
LED light that is used to visually indicate that the vehicle is equipped
with dash cam which is in operation
4 Speaker For voice guidance and alert/notication sounds
5 Operation Status LED Indicates the device operating status
6 Recording Status LED Indicates the device recording status
7 Touch LCD Screen Live view, video playback, and dash cam conguration
8 Microphone Records audio along with video
9 Memory Card Slot Location for the memory card
10 Reset Press to force the device to reboot
11
Power
Button
Press and hold for 3 seconds to turn the device on/o
12 V-IN Socket
Connects to rear view camera. (Optional rear view camera is not includ ed
and requires separate purchase)

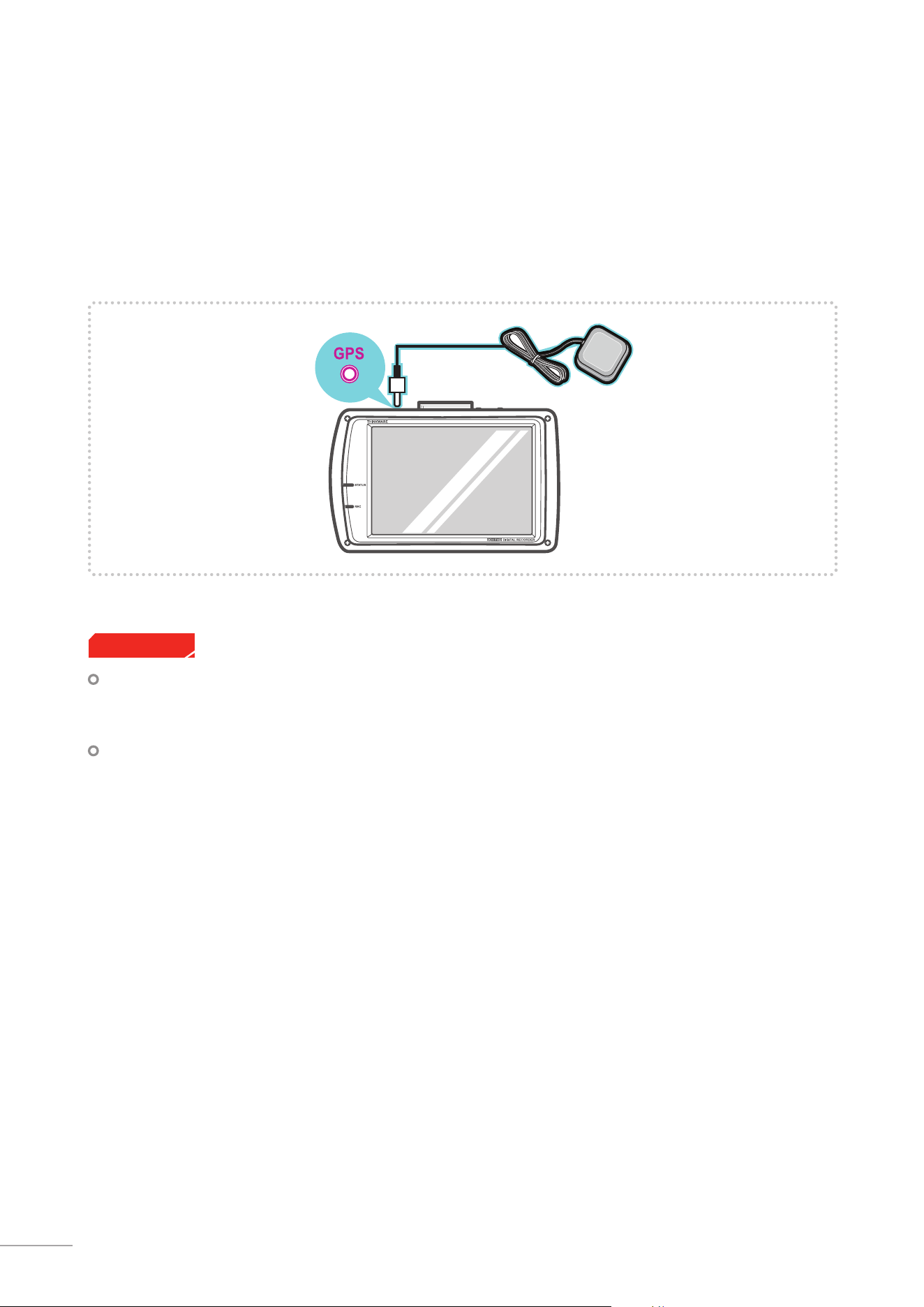

13 GPS Receiver Socket
Connects to external GPS receiver
(optional accessory that requires separate purchase)
14 DC-IN Connects to power cable

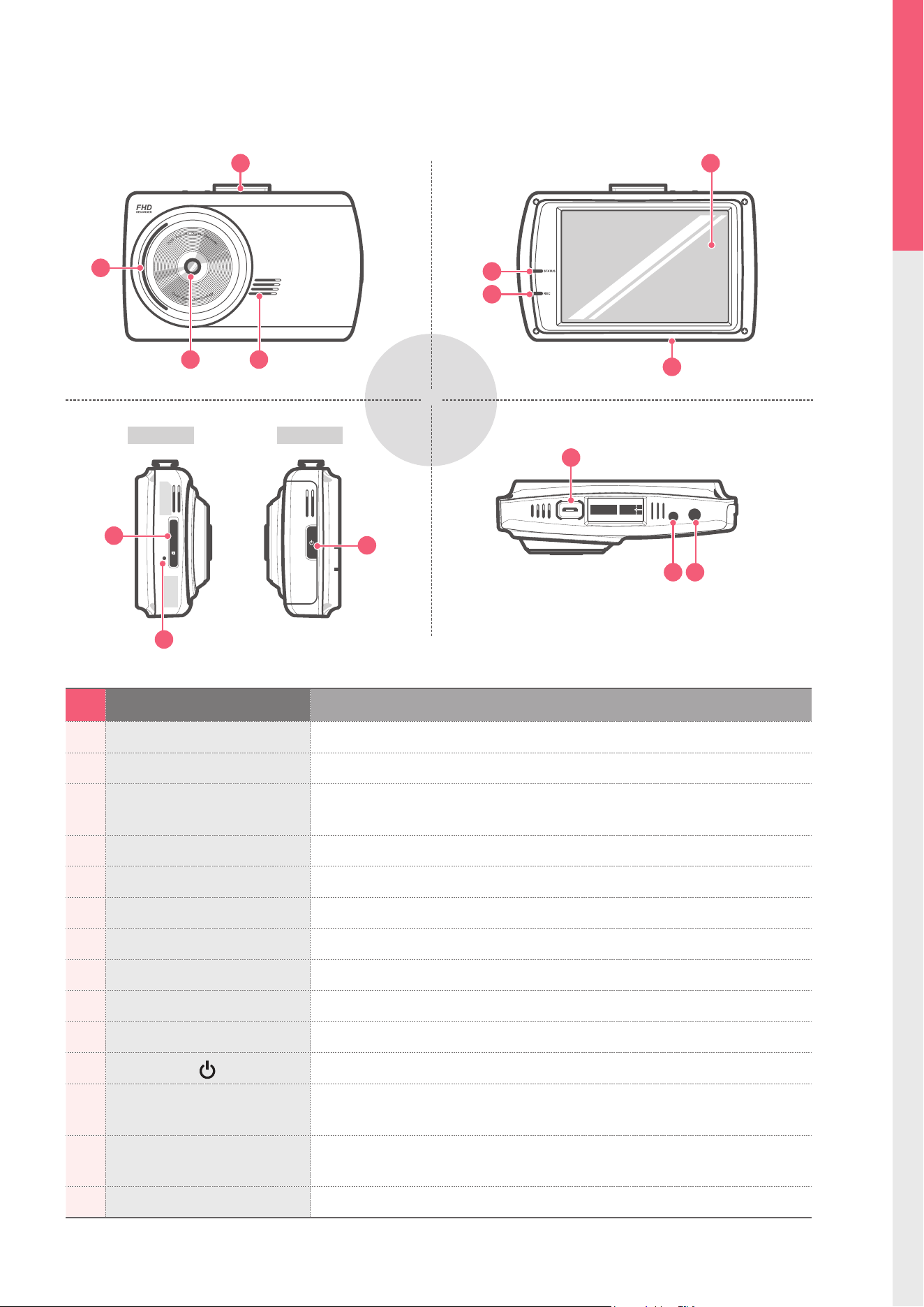

1-3. Product Overview
12
13 14
Left Right
6

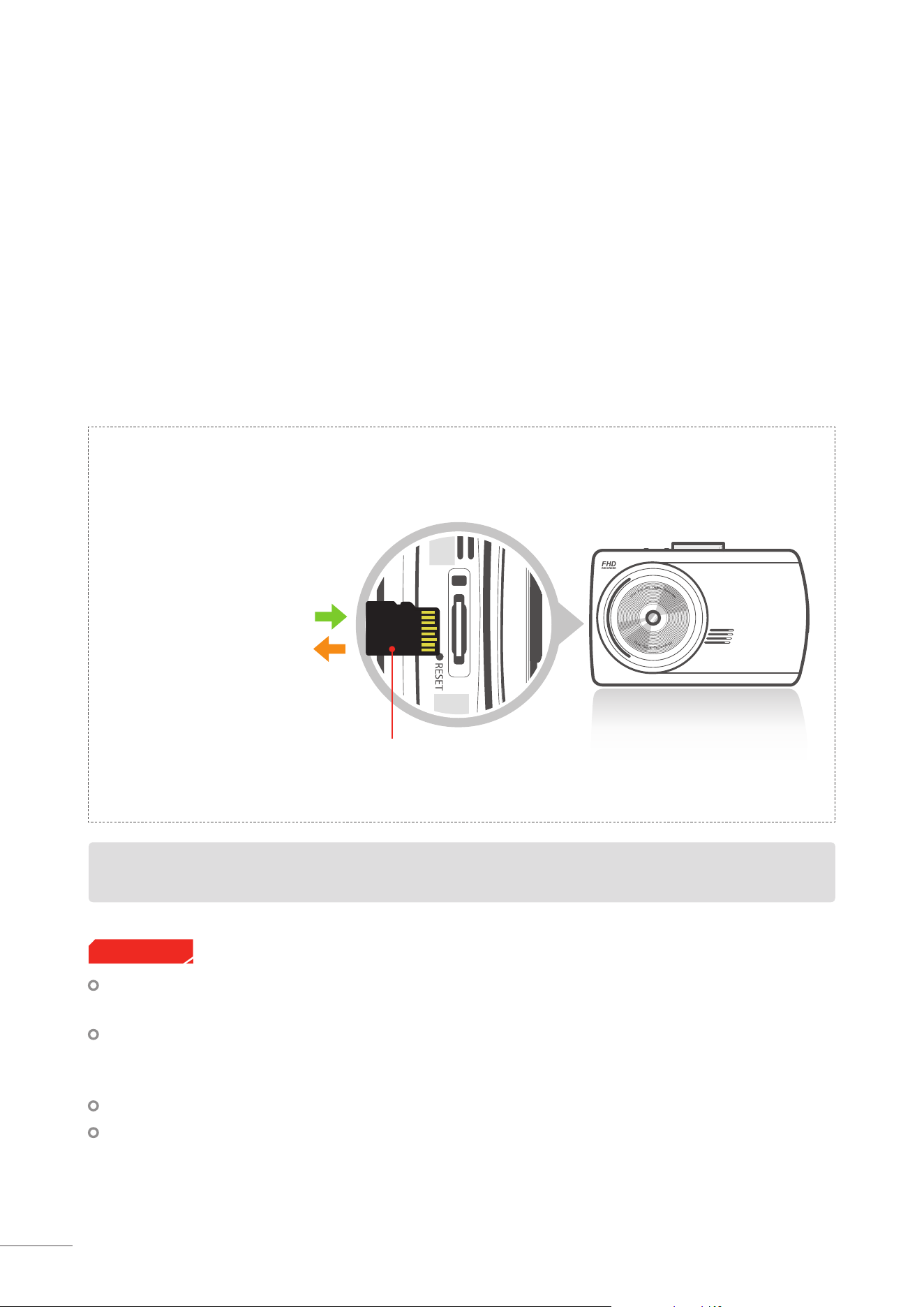

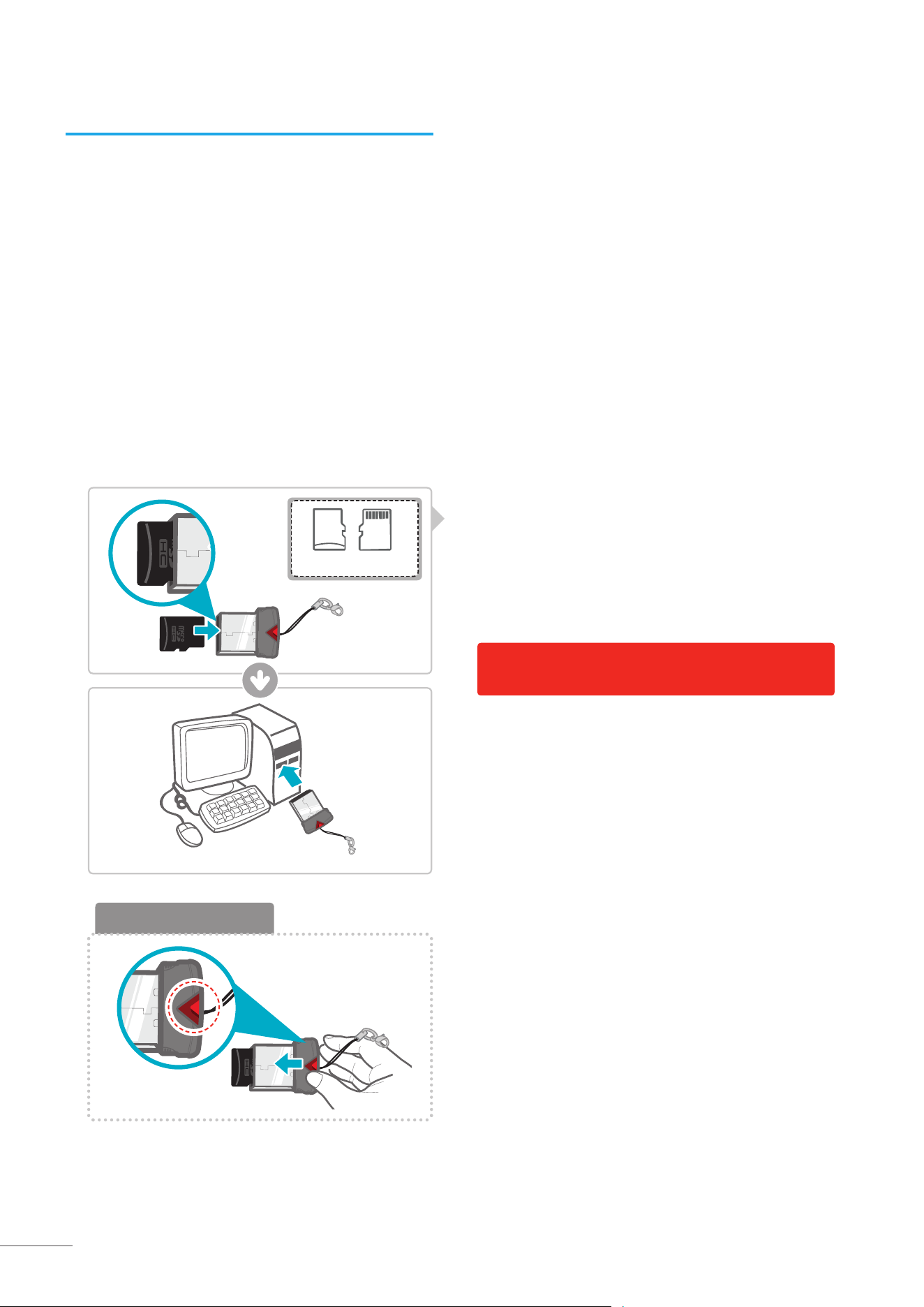

1-4-2. Installing a microSD Card
Do not apply excessive force on the MicroSD card or attempt to insert it in the wrong direction as it may
cause damage the MicroSD card and the card slot.
Inserting the memory card
Open the slot cover and insert
the MicroSD card into the slot
with the metal contacts facing up
toward the mount connector and
push until it locks into place.
Removing the memory card
Press the end of MicroSD card
until it clicks out from the slot. Pull
out the MicroSD card and close
the slot cover.
MicroSD card
1-4. Inserting a Memory Card
1-4-1. About Memory Cards
Class 10 microSD card must be used with a storage capacity of 8GB, 16GB, or 32GB. It is strongly recom-
mended that minimum 16GB memory card is used for full HD recording.
The microSD card should be formatted every 2 weeks to maximize the lifetime of the memory card.
The microSD card should be tested for errors on a regular basis and as the memory card is a consumable
item, it will need to be replaced periodically.
THINKWARE shall NOT be responsible for any problems and/or damages that may occur from not using
genuine or authorized parts and accessories. It is strongly recommended that THINKWARE memory card
is used to minimize memory card error.
Turn the device o completely before removing the microSD card to avoid damages to the memory card.
To prevent loss of important data, frequently copy recorded video from microSD card to another storage
device such as personal computer for back up.
Cautions
7
Getting Started
01
1-5-1. Connecting the Device and the
Mount
①

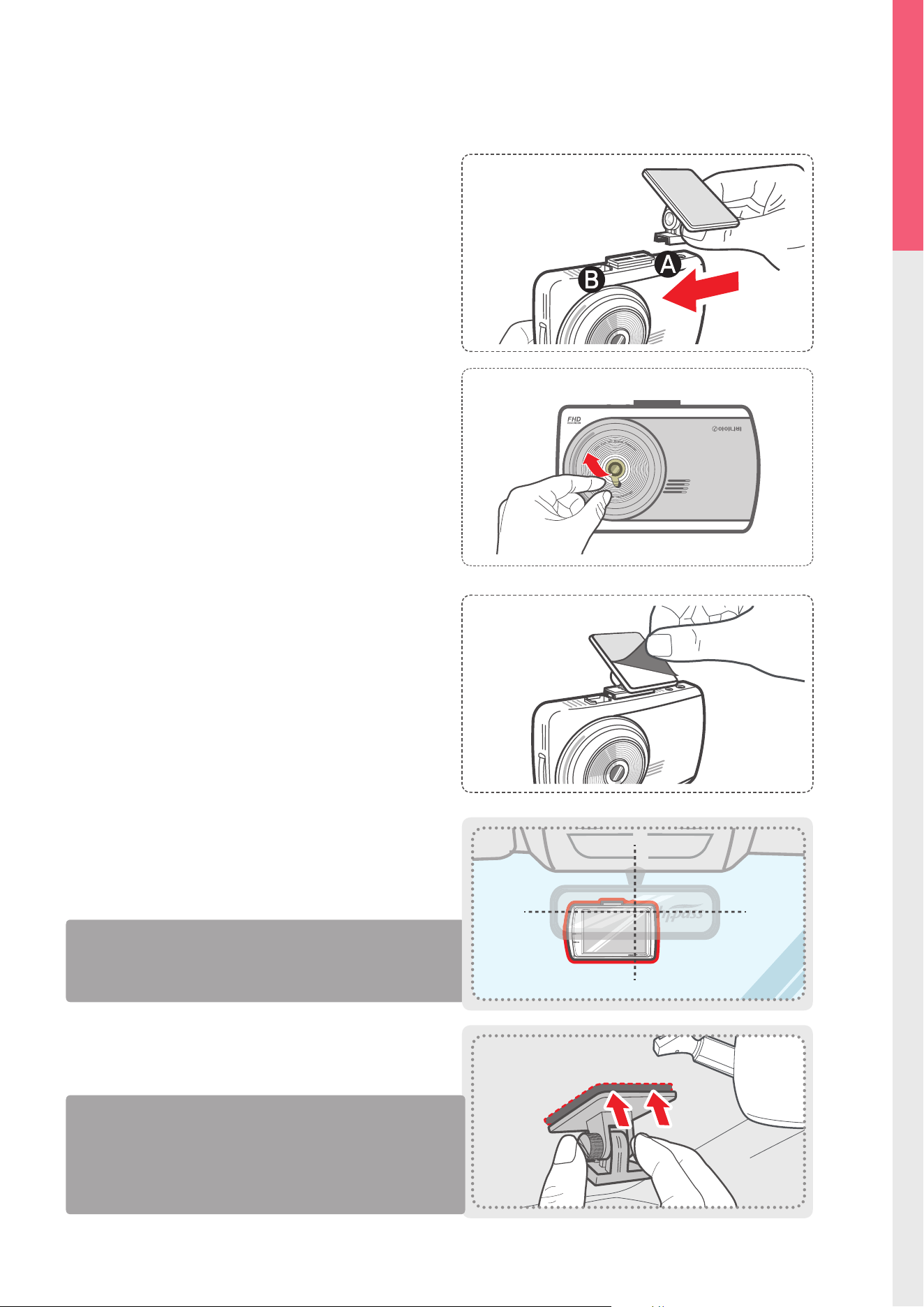

Place the mount so it is aligned with the connector
(A), and push it toward (B) until it clicks into place.
②
Remove the protective lm from the camera lens.
1-5. Vehicle Installation
1-5-2. Installing the Device
① Clean the area on the windshield where the
dash cam will be installed.
② With dash cam main unit still attached to the
mount, remove the protective tape from the
back of the mount.
③ Attach the adhesive side of the mount on the
windshield where it has unobstructed view
of the road but does not interfere with the
driver’s view.
To ensure that the mount is safely secured, it is recommend-
ed that you separate the device from the mount after instal-
lation and press the mount towards windshield for 5 minutes
to maintain pressure. Allow 24 hours until the adhesive on
the mount has set before connecting the dash cam.
TIP
The camera is located on the right side of the main unit so
install the dash cam on the left side of the center behind
the rearview mirror.
TIP
8

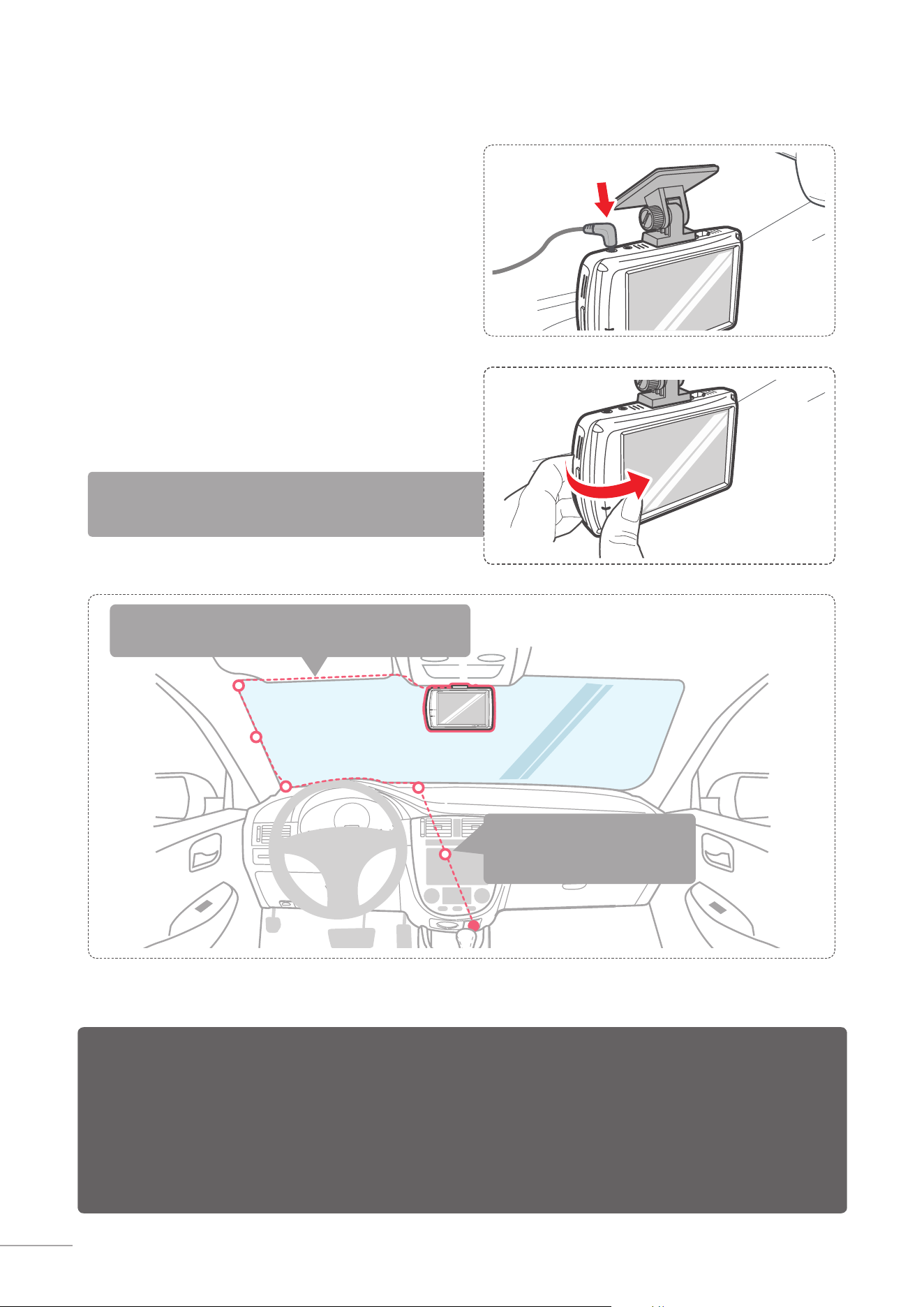

1-5-3. Connecting to power
①
Connect the power cable to DC-IN socket of
the device.
②
Plug the charger adapter end of the power
cable into a 12V DC vehicle power socket.
③ Arrange the wire by using the adhesive cable
holder as shown below.
④
Adjust the camera so that the dash cam is facing
forwarding and level with the vehicle and the road.
After installation, turn on the dash cam and use the live view
on the LCD screen to adjust the camera angle.
TIP
Preventing Vehicle Battery Discharge
■ Depending on the car make and model, the power from the vehicle can be supplied even with
the ignition turned off. In this case, the dash cam stays on as continuous mode and does not
enter parking surveillance mode which will result in vehicle battery discharge.
■ Some vehicles with multiple power sockets might be equipped with at least 1 outlet that does
not shut off the power with the ignition. So, test each power outlet to ensure you connect to an
outlet that shut off with vehicle engine.
For more information on the power cable routing instruction, please visit Thinkware homepage
(http://thinkwaredashcam.com)
Hide the extra wires by placing the wires in the space be-
tween the ceiling of vehicle and the top of the windshield.
Recommended location for ad-
hesive wires clips are illustrated
in the diagram
9
Basic
02
2. Basic Operations

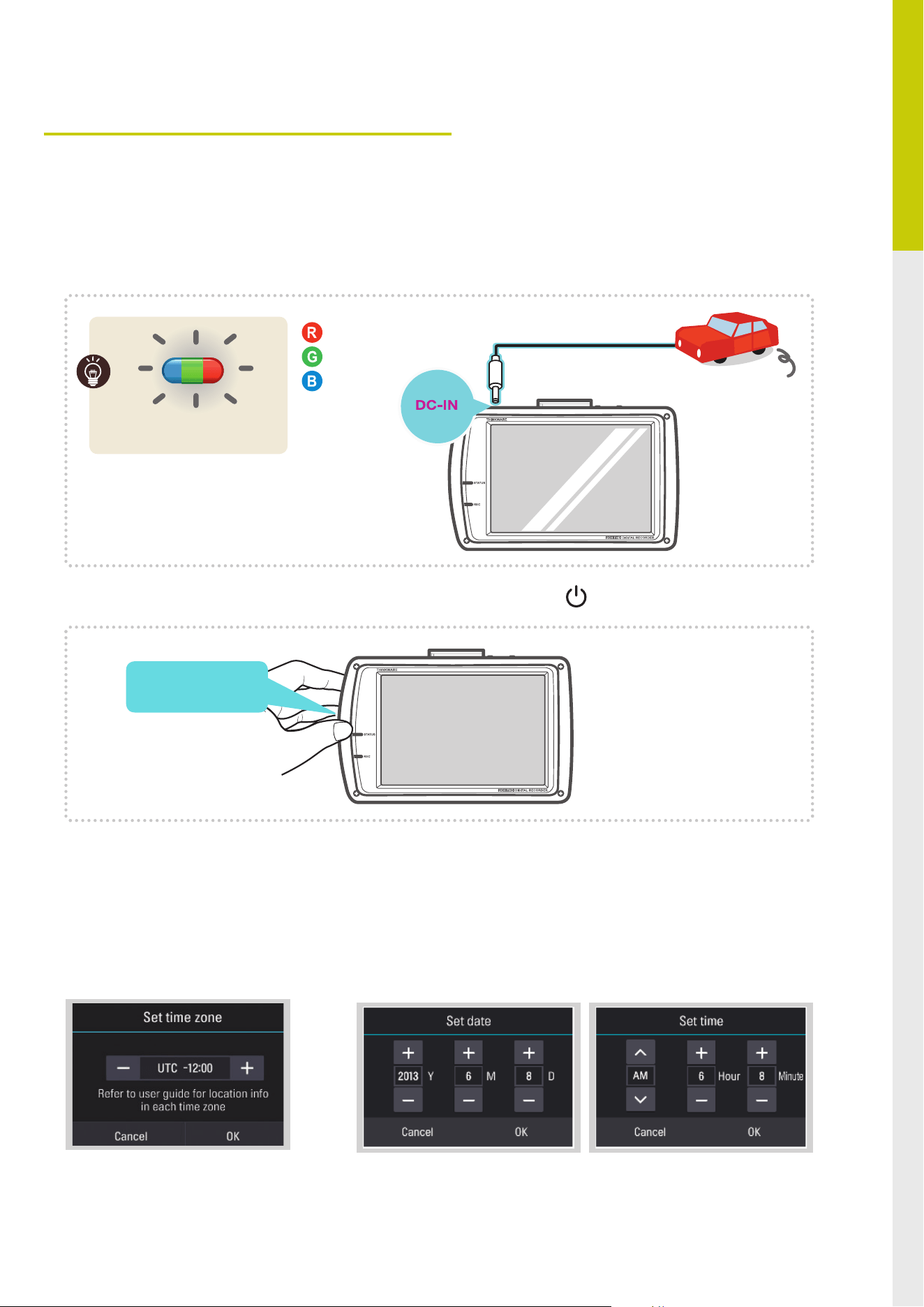

2-1. Turning the Device Power On/O
The device will automatically turn on and o with vehicle ignition.
If the LCD is o, touch the LCD screen to activate the display.
①Go to “Settings” > “Common”
> “Time Zone Setting” to set
the local time zone.
②Go to “Settings” > “ Common” > “Date Setting” / “Time
Setting” to set the local date and time.
2-2. Date/Time Settings
It is strongly recommended to have the date, time, and time zone congured on the device.
: Red
: Green
: Blue
Power cable for vehicle
Blinks in all 3 colors
To manually turn the device on/o, press and hold the Power button ( ) for 3 seconds.
Press and hold for 3
seconds
10
2-3. Connecting External GPS Receiver(Optional Accessories)
THINKWARE shall NOT be responsible for any problems and/or damages that may occur from not using
genuine or authorized parts and accessories. It is strongly recommended that THINKWARE external GPS
receiver is used.
Turn the device o completely before connecting the GPS receiver to avoid damages.
Cautions
External GPS Receiver is available as an optional accessory that can be purchased from Thinkware autho-
rized dealers.
External GPS Receiver enables recording of vehicle locations in the video le for driving route tracking.
┗Connect external GPS Receiver to the GPS port of the dash cam.
11
Basic
02

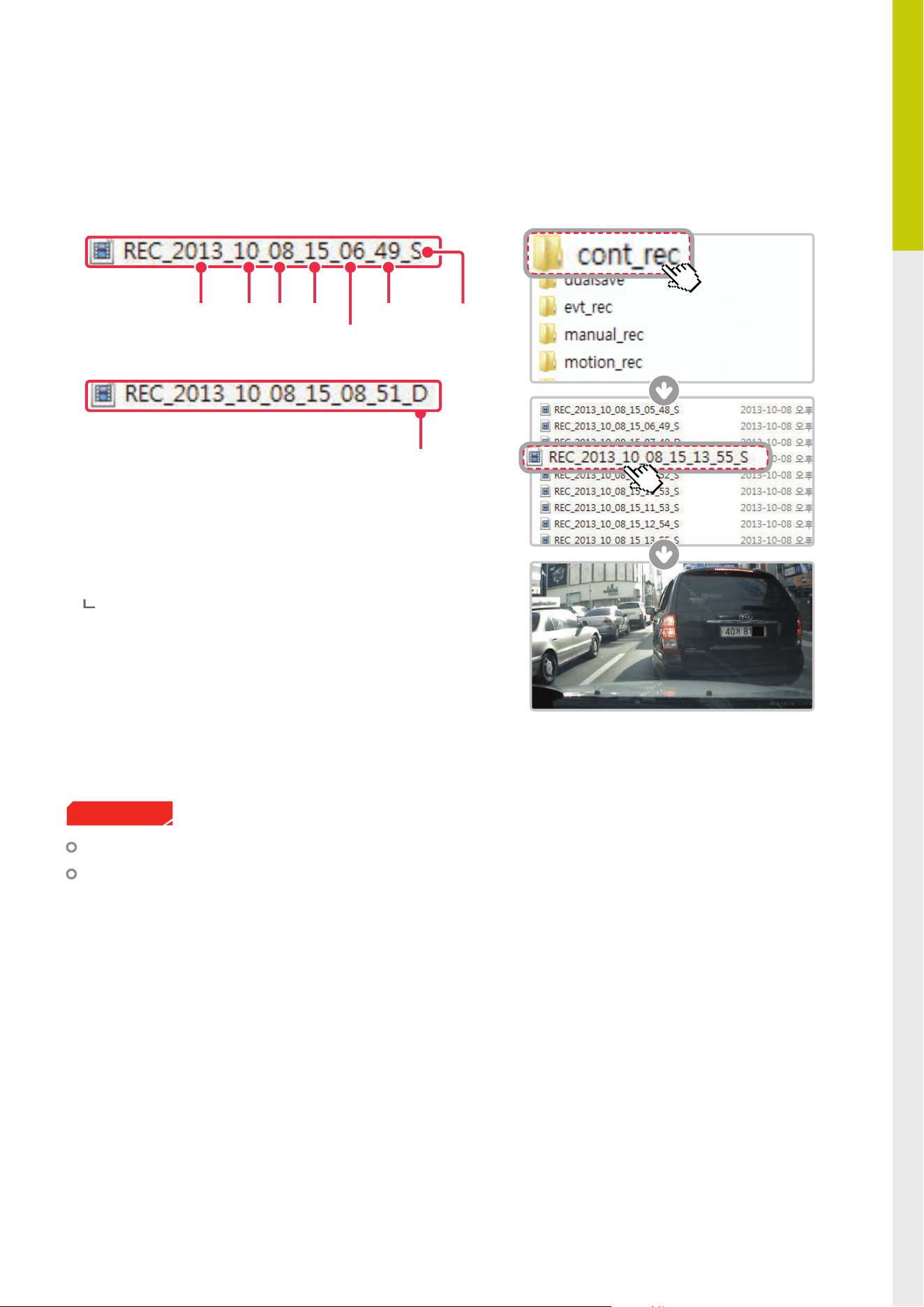

Recorded video les are saved in the folder by date and hour in the microSD card.
┗Files are created based on the time when the videos are recorded.
As a surveillance product, the dash cam will automatically
overwrite oldest le in the memory card once the memory
is full. However, event recording and manual recording
videos are stored in separate location and will be protected
from le overwriting.
2-4. Recorded Files
Front view
recording
Rear view recording
(optional rear view cam-
era must be installed)
Do not use microSD as external storage device.
Do not save or modify saved les in the microSD card.
This may result in unexpected behavior during operation.
Cautions
Year Month Day Hour
Minute
Second
12
2-5-1. Continuous Recording Mode
Videos are recorded in 1 minute segments and saves as les
in the microSD card under folder named “cont_rec”.
2-5. Recording Videos While Driving

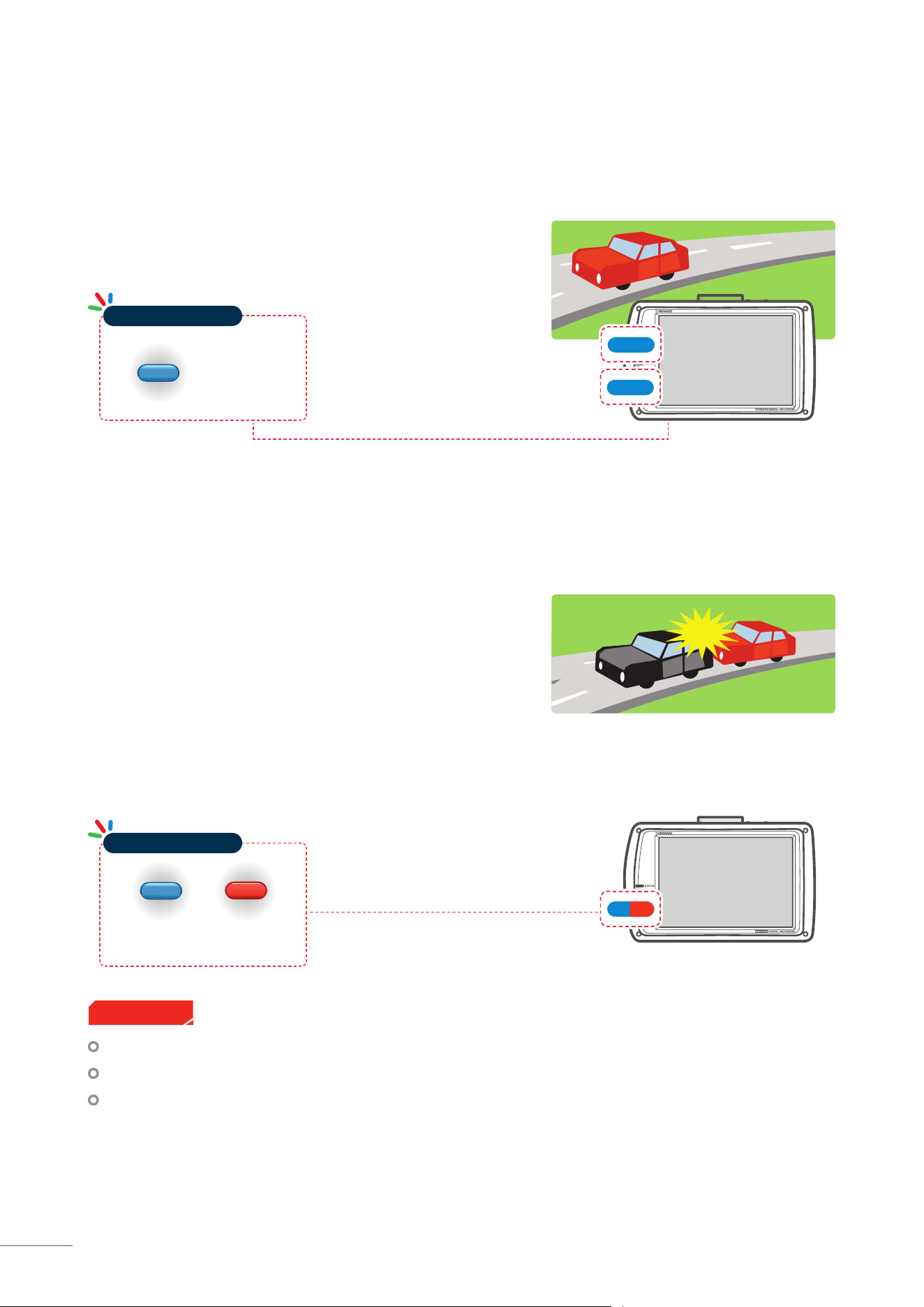

Recording Status LED
Blue light on
LED alternates
between blue and red.
+
Driving over speed bump, manhole, or uneven road at high speed can also be detected as incident.
The device can record up to 1 minute if there are continuous impacts in case of multiple accidents.
The time for which the device records video before and after impact can vary according to the device
setting.
Cautions
2-5-2. Incident Recording in During Continuous Recording Mode
When the dash cam detects impact, it will immediately
store the previous 10 seconds prior to impact and start
recording video for next 10 seconds.
This 20 second video will then be saved in a secure location
on the microSD card under folder named “evt_rec”.
Note that the dash cam will detect impact as incident only if the
level of impact is greater than the sensitivity of the G-sensor
set in the user conguration.
Recording Status LED
13
Basic
02
2-5-3. Dual Save
TM
(Internal Memory Backup)
Dual Save is a Thinkware proprietary technology that utilizes built-in memory as secure backup in addition
to microSD memory card. Dual Save technology guarantees incident video recording using internal memo-
ry in case of an accident that causes damage to the microSD memory card.
┗
In addition to saving incident video les to microSD card at the time of the accident, Dual save stores
another backup copy onto the built-in internal memory in case there has been a damage to either main
unit or microSD card that might result in failure to save incident videos in the microSD card
┗
When Dual Save is activated, it will immediately store the previous 4 seconds prior to impact and start
recording video for next 2 seconds for total of 6 second video clip

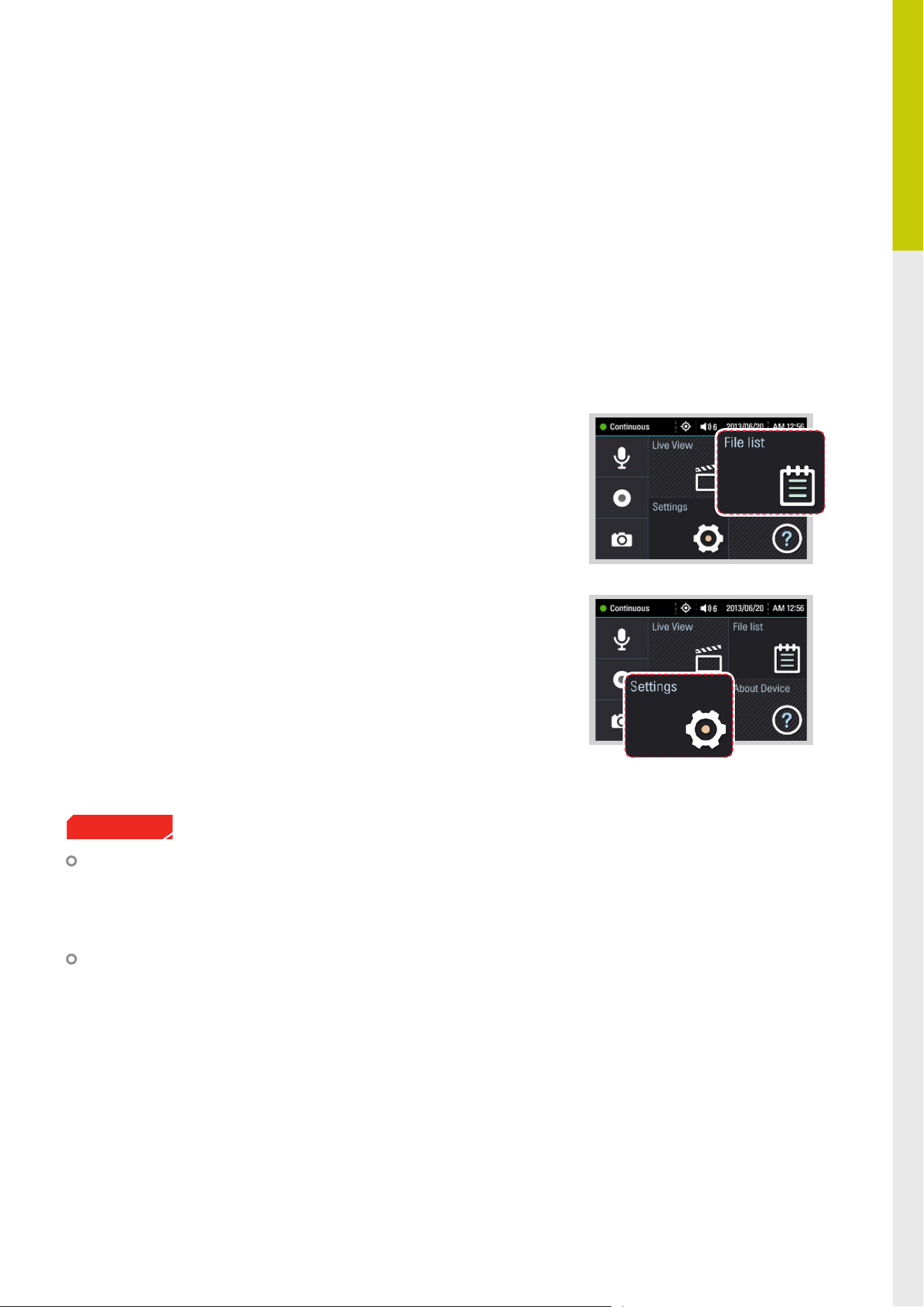

┗ View Dual Save Video Files: Video recorded and stored on the
internal backup memory through Dual Save technology can be
viewed in the list located at “Video List” > “Event : Continuous” >
“Dual Save”.

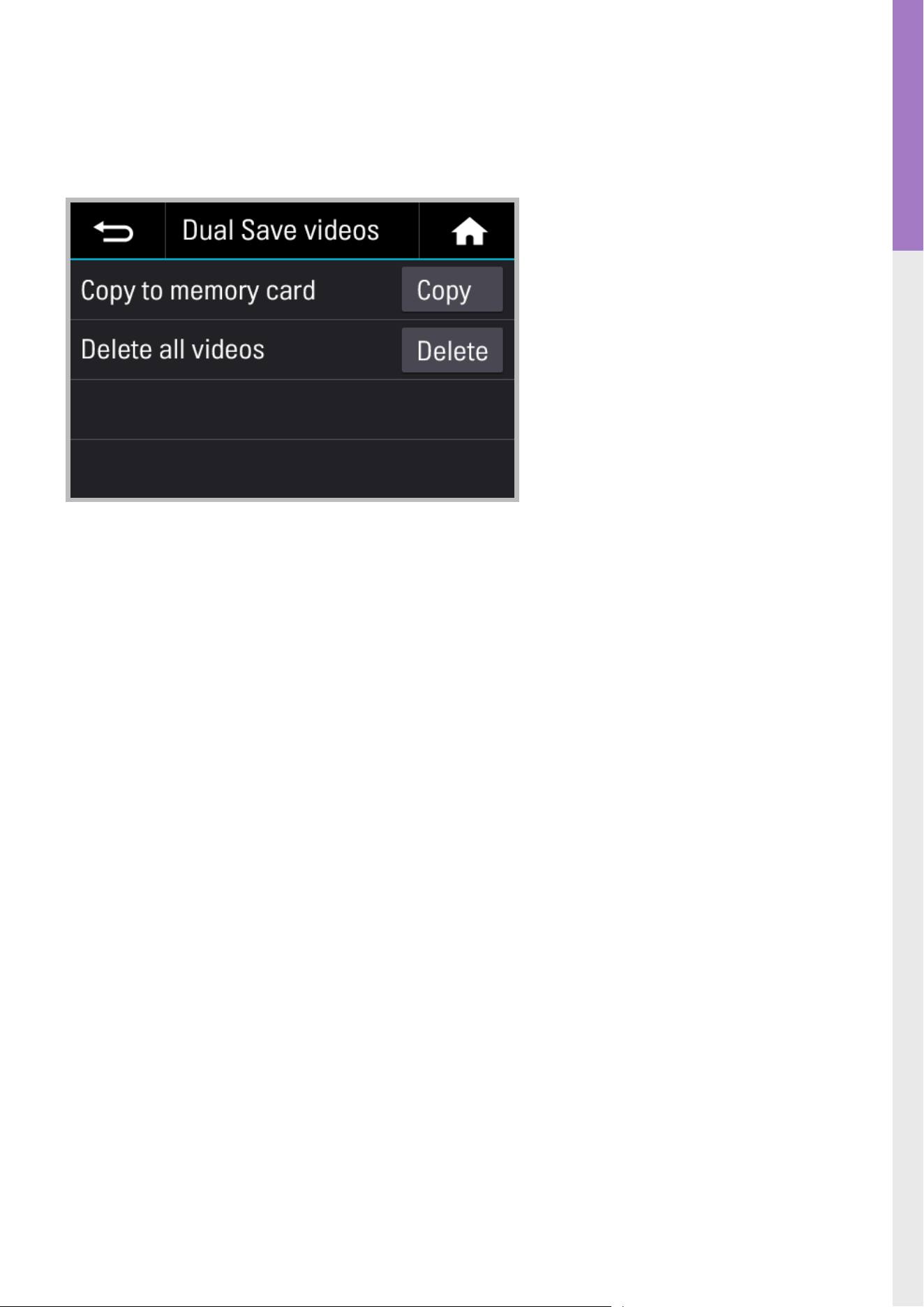

┗ Copy Dual Save Video Files: Video recorded and stored on the
internal backup memory through Dual Save technology can be
copied to microSD card using copy menu located at “Settings” >
“Dual Save Video”. Ensure that a microSD card is present in
the device.
Dual Save technology saves duplicate copy of recorded video for secure backup to the internal memory
so the internal memory life span may be aected by G-sensor user setting, road conditions, and driving
behavior which directly impact frequency of incident recordings.
Driving over speed bump, manhole, or uneven road at high speed can also be detected as incident.
Professional product service is required for replacing internal memory.
Cautions
14
2-6-1. Incident Recording
When the dash cam detects impact while parked, it will imme-
diately store the previous 10 seconds prior to impact and start
recording video for next 10 seconds which is then saved in
a secure location on the microSD card under folder named
“parking_rec”.
2-6-2. Motion Detection Recording
The dash cam and optional rear view camera are both equipped with motion detectors which are used to
detect motion that initiates video recording while the vehicle is parked.
When the dash cam detects impact while parked, it will immediately store the previous 10 seconds prior
to impact and start recording video for next 10 seconds which is then saved in a secure location on the
microSD card under folder named “motion_rec”.

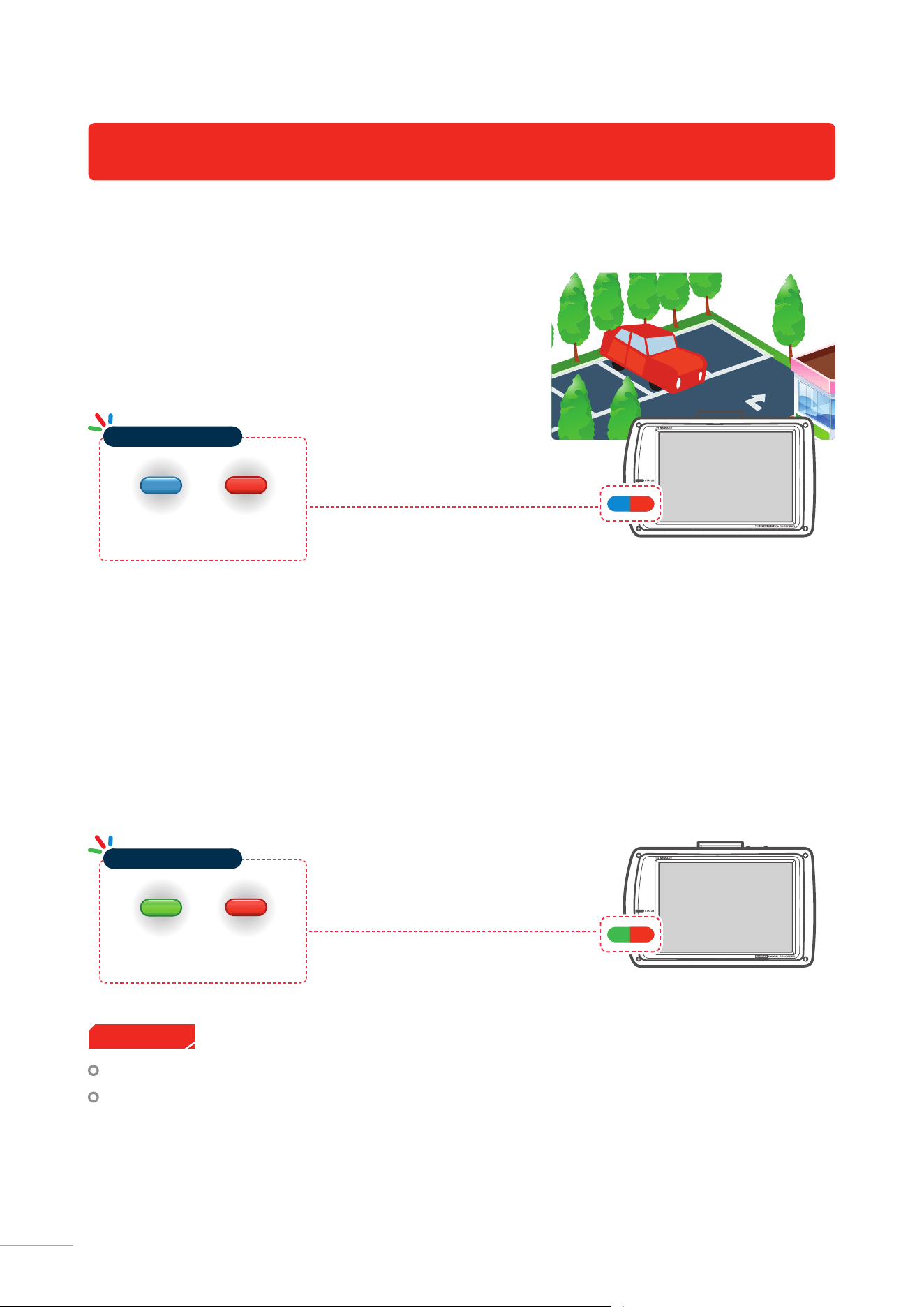

2-6. [Optional] Recording Videos While Parked
This feature is available only when the dash cam has been hardwired direct to the vehicle battery.
Separate purchase is required for the hardwiring cable accessory and installation is required.
LED alternates
between blue and red.
+
LED alternates
between green and red.
+
The device can record up to 1 minute if there are continuous impacts in case of multiple accidents.
The time for which the device records video before and after impact can vary according to the device
setting.
Cautions
Recording Status LED
Recording Status LED
15
Basic
02
When the allocated storage for manual recording videos is full, oldest video le will be replaced by the
new recorded video.
Cautions

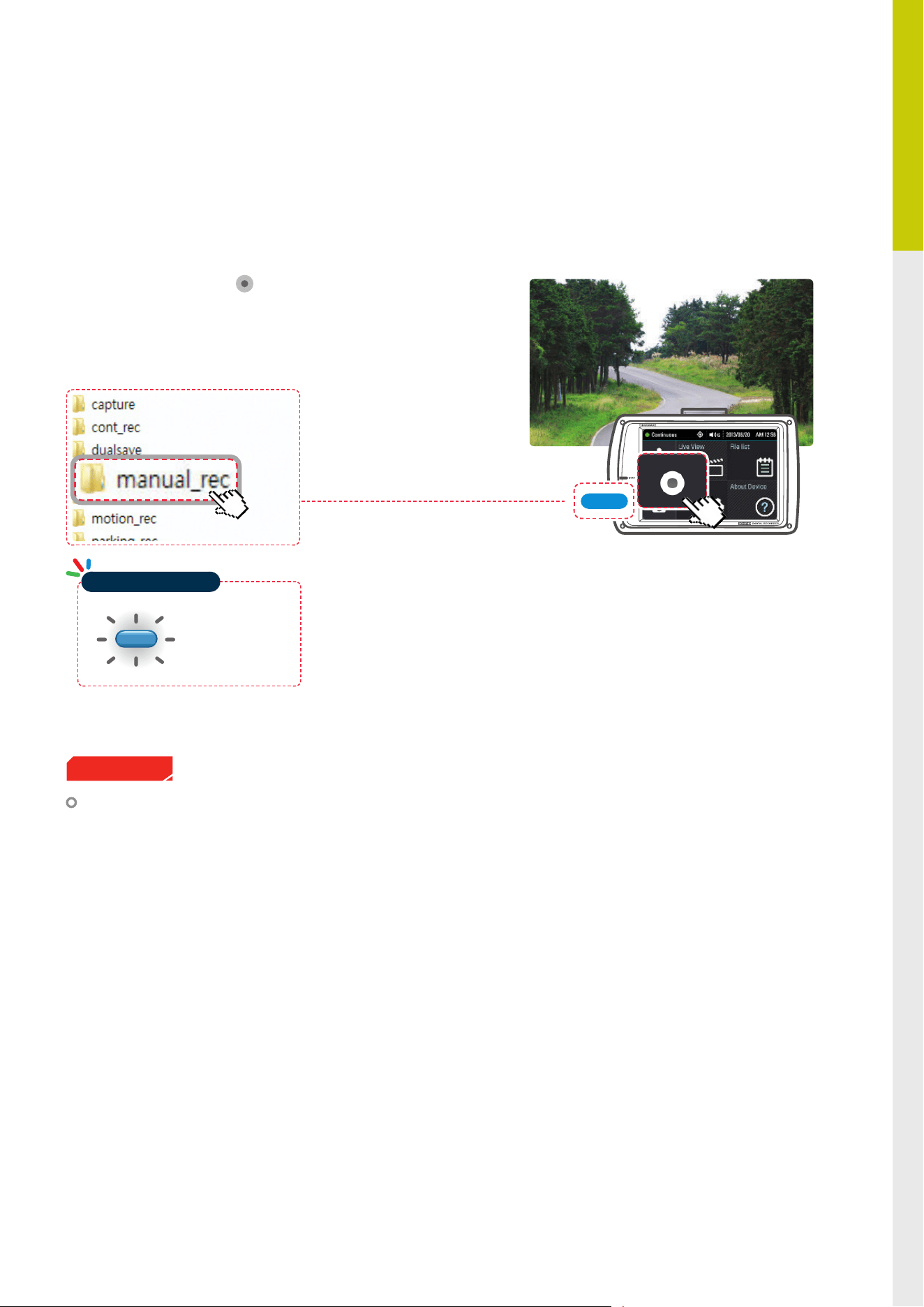

Briey press the REC button to start recording. The de-
vice will record video for 1 minute as of the time when the
button is pressed. The recorded video will be saved under
the “manual_rec” folder.
2-7. Manual Recording
In addition to recording accidents, the dash cam allows the user to initiate manual recording mode to cap-
ture scenery and/or places while driving. This feature can also be used to save video as witness where the
installed vehicle is not directly involved in an accident. Video les saved during manually recording mode are
stored in a separate location on the memory card and will be protected from video overwriting in continuous
recording mode.
Blue Light Blinking
Recording Status LED
16

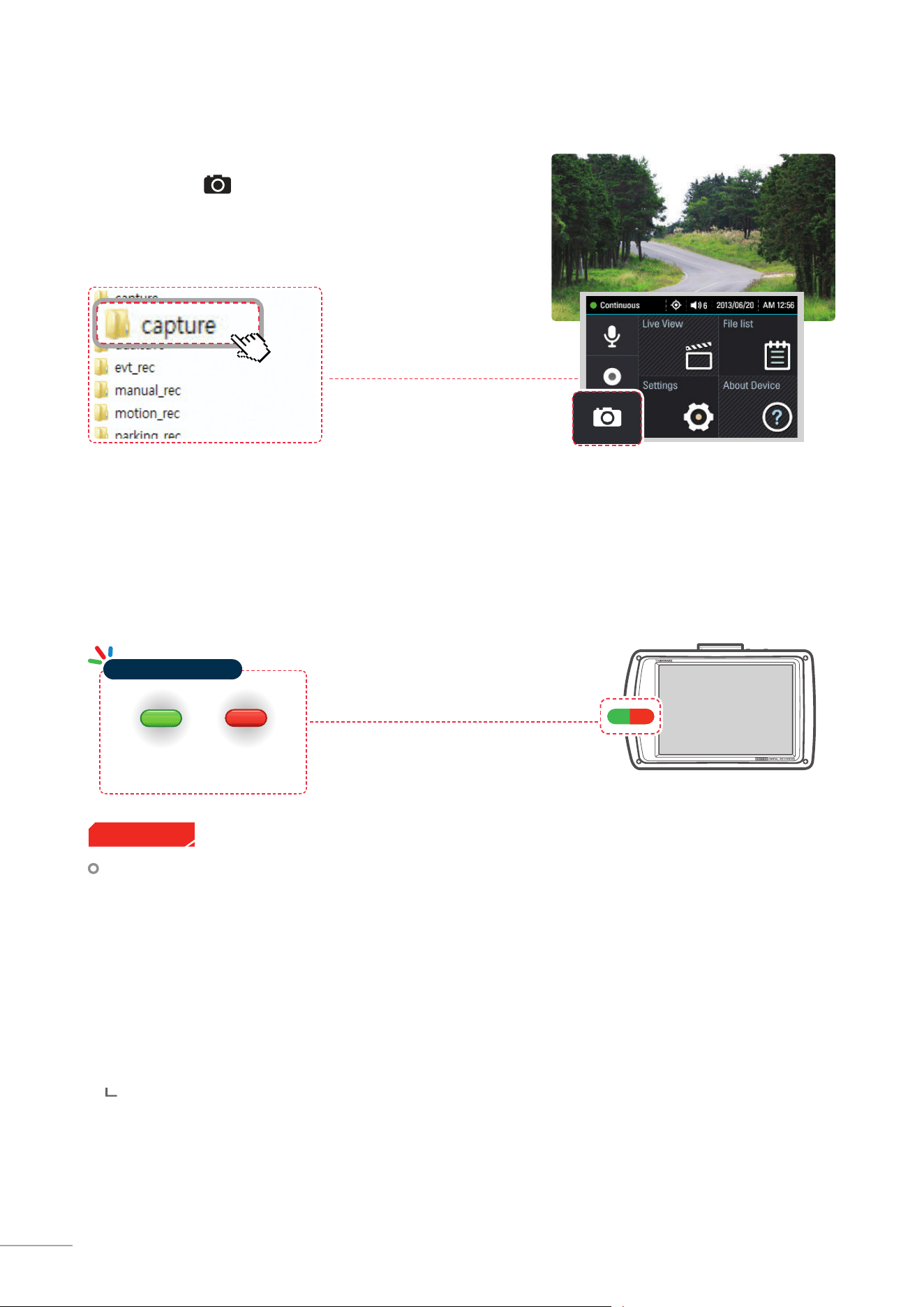

Briey touch anywhere on the LCD to turn on the display
and press the button to take a photo. Buzzer will sound
to indicate that a picture has been successfully taken.
┗ Still images captured are saved in a secure location on the
microSD card under folder named “capture”.
2-8. Capturing Still Images

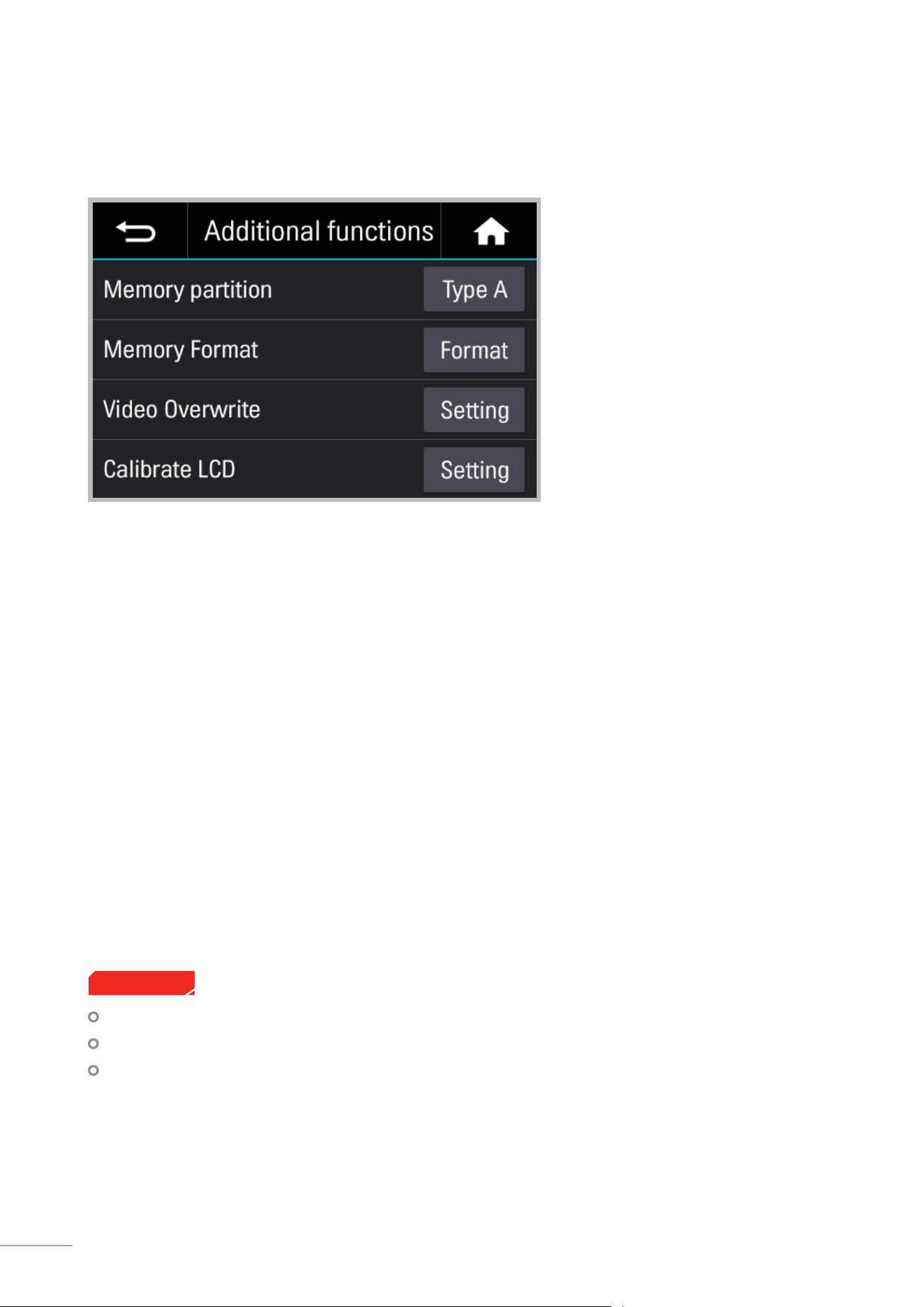

Select “Memory Card Format” menu located at “Settings” > “Additional Functions”
2-9. Formatting MicroSD Card
LED alternates between
green and red.
+
The microSD card should be formatted every 2 weeks to maximize the lifetime of the memory card.
Cautions
The system will automatically be updated if the microSD card contains the rmware upgrade le.
The device restarts automatically after the upgrade has been completed.
Make sure your device is always up to date with latest rmware. Please check back frequently at
THINKWARE website (http://thinkwaredashcam.com) for latest rmware updates.
2-10. Upgrading Firmware
Operational Status LED
17
Basic
02
Indicates external GPS
receiver connection
Indicates audio alert/notication status
Date/Time
Indicates audio
recording status
Indicates current
recording status
Initiates manual
recording
Triggers still image
capture

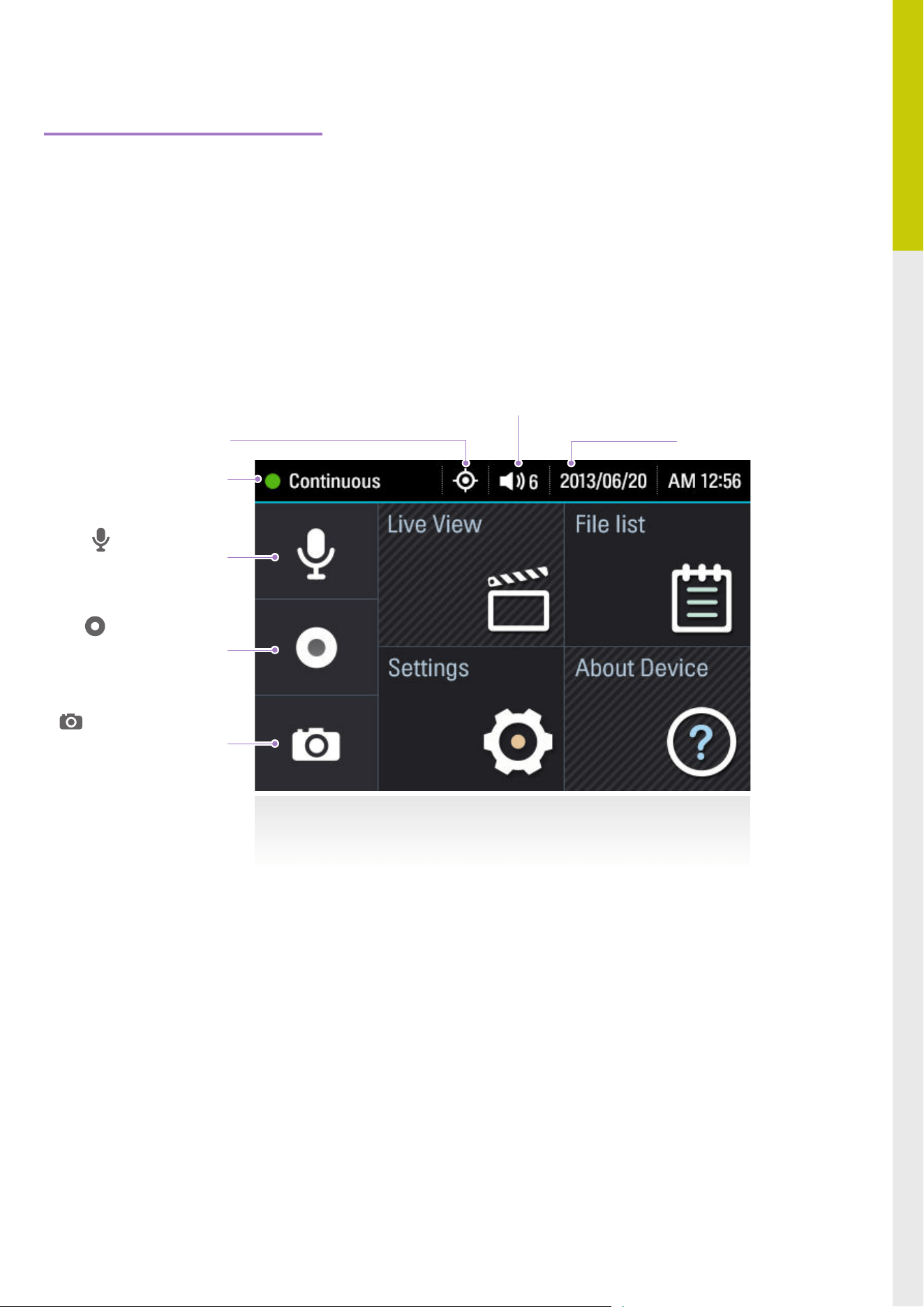

3. Touch LCD
3-1. Main Menu
18
Rearview camera (appears only when
rearview camera is connected)
Back to main menu
Current speed /
Voltage

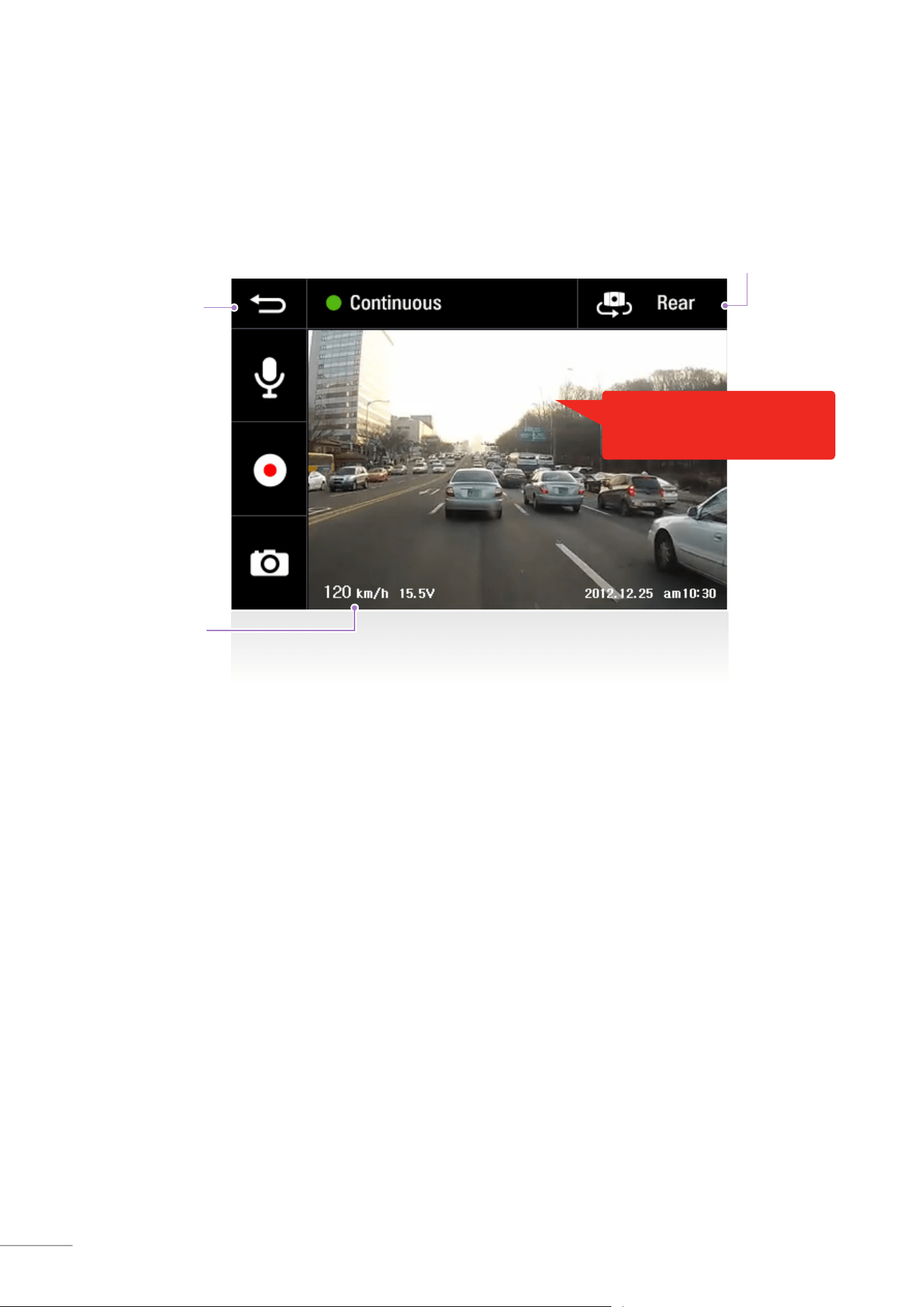

3-2. Live View
LCD screen can be used to verify current recording view.
Touching anywhere in the screen to
hide menu buttons (touch once again
to show the menu buttons)
19
Touch LCD
03
3-3. Video List
Recording will suspend when browsing through video list and settings menu screen. Visual notication
will appear on the screen to conrm the suspension of recording prior to entering these menu screens.

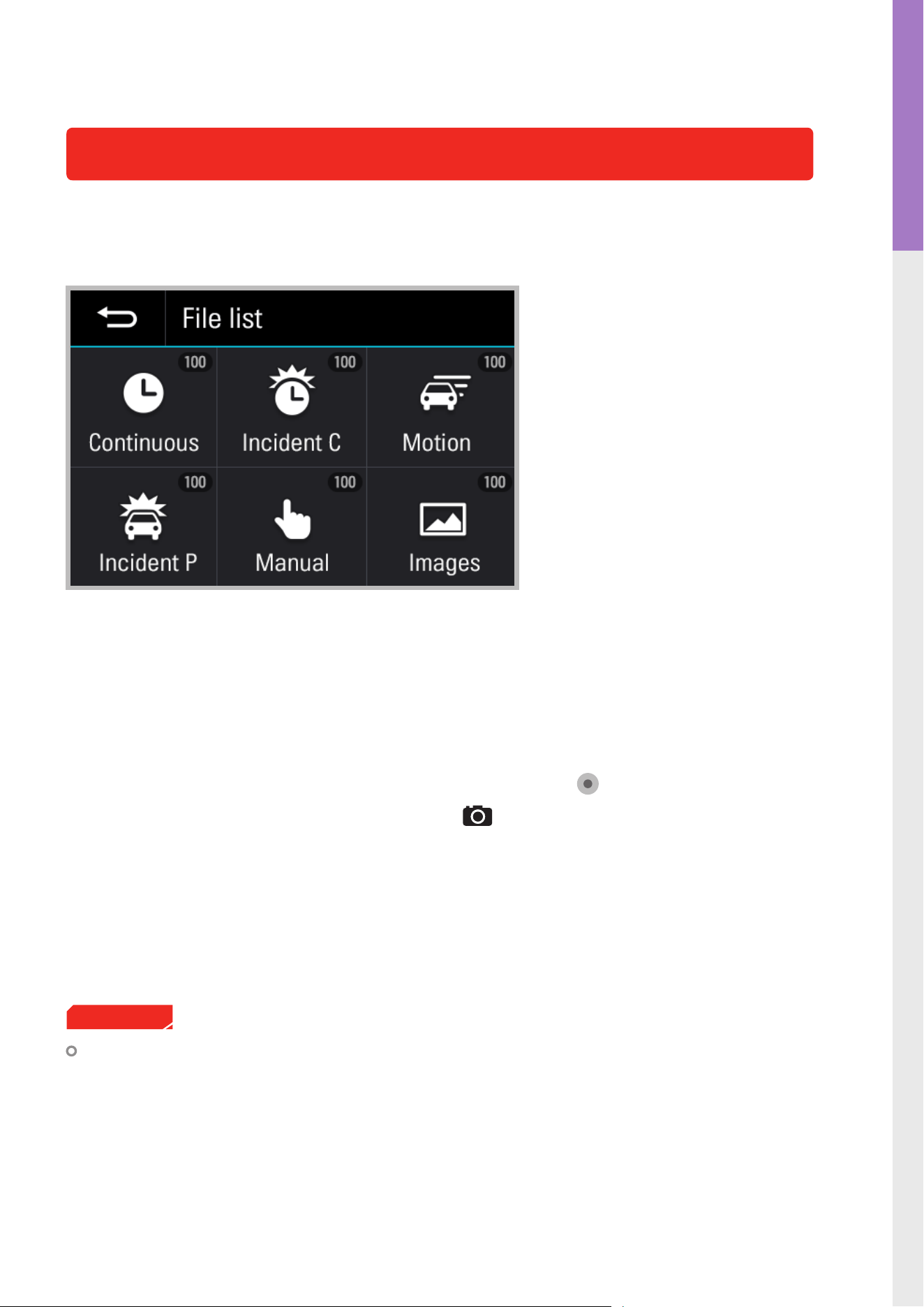

3-3-1. Video List - 1
Continuous Recording: Lists loop recording videos during continuous mode (in 1 minute segments)
Incident in Continuous Mode: Lists incident recording videos during continuous mode
Motion in Parking Mode: Lists motion detection recording videos during parking surveillance mode
Incident in Parking Mode: Lists incident recording videos during parking surveillance mode
Manual Recording: Lists manual recording videos initiated by selecting button
Photo: Lists still images captured initiated by selecting button
The set storage capacity may be dierent from the actual capacity by approximately 30 to 40MB.
Cautions
20
3-3-2. Video List - 2

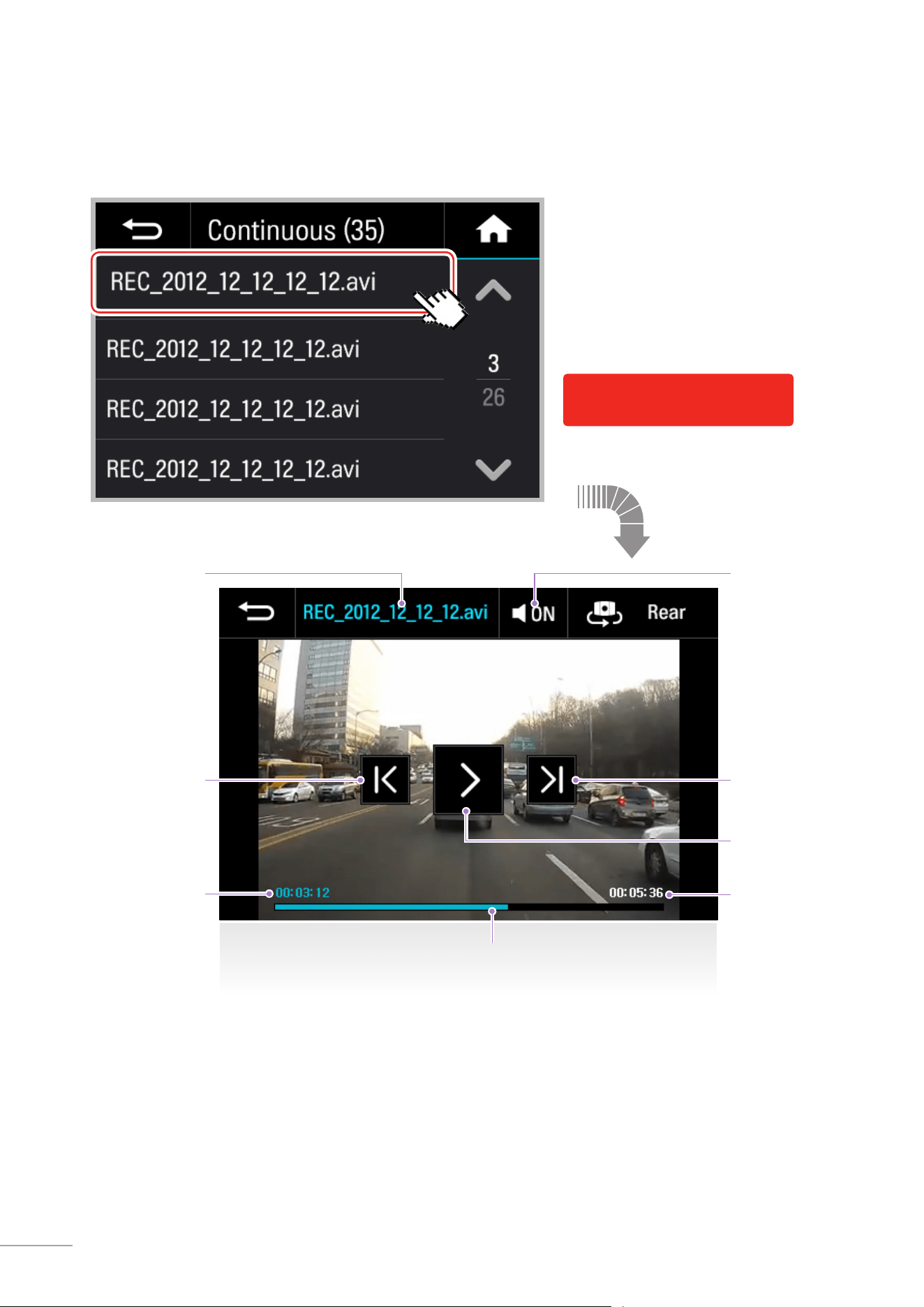

Back to main menu
Current playing time
Video le name
Play Next
Total playing time
Video playback progress bar
Audio On/O
Play/Pause
Recording will stop when
accessing on-screen menu.
21
Touch LCD
03

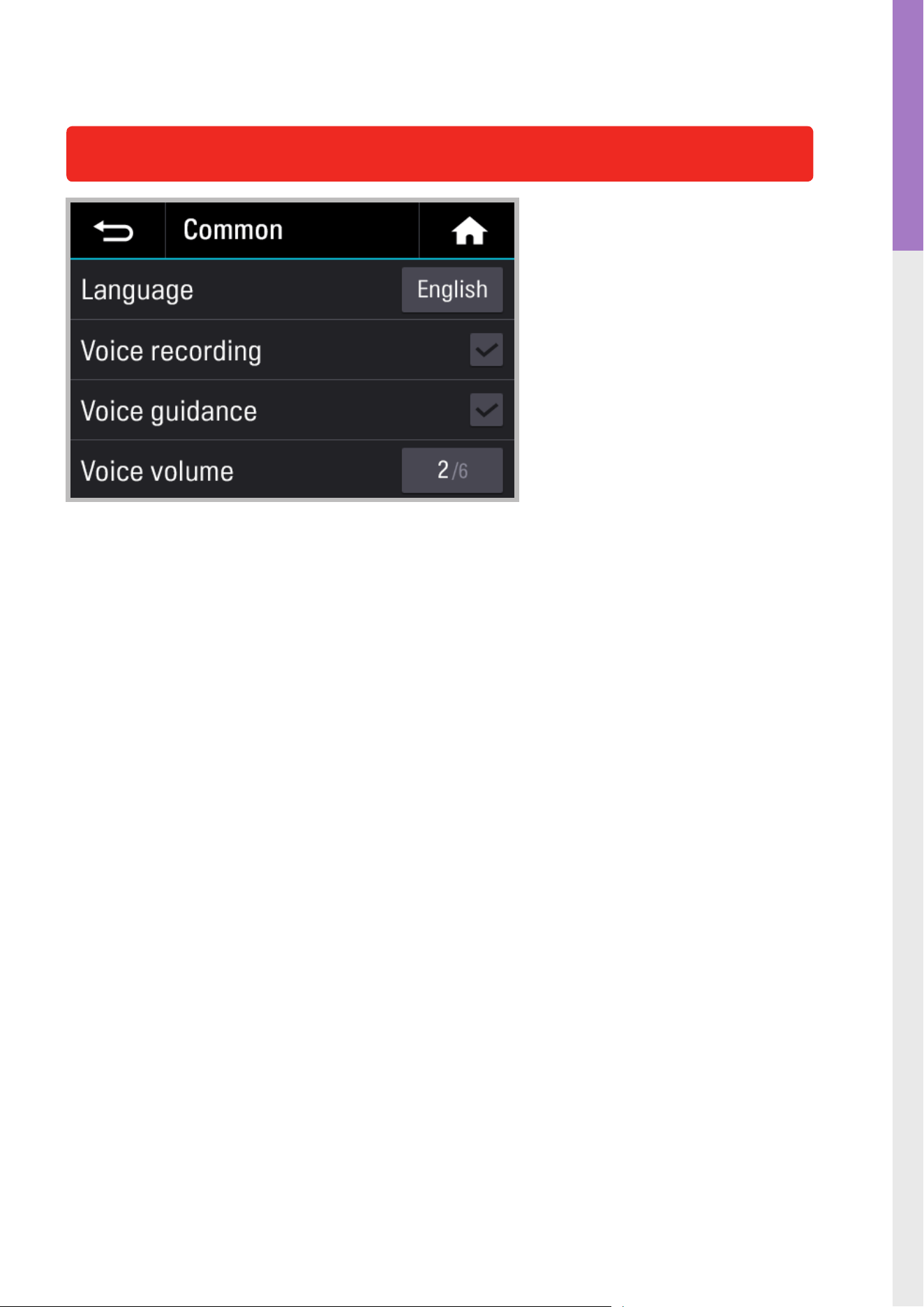

3-4. Settings > Common
Recording will suspend when browsing through video list and settings menu screen. Visual notication
will appear on the screen to conrm the suspension of recording prior to entering these menu screens.
Language : Sets language
Audio Recording: Sets audio recording on/o
Voice guidance: Sets voice guidance on/o
Volume: Sets the volume level
Camera Brightness: Sets the brightness of the camera
LCD Brightness: Sets the brightness of the LCD screen
LCD Auto O: Sets the time for LCD auto shut o
┗ When LCD is o, touching anywhere on the screen will turn it back on
Date/Time Setting: Sets the date/time information
Time Zone: Sets the time zone
Daylight Saving Time (DST): Sets the daylight saving time
Speed Unit: Sets the unit for the vehicle speed
22
3-5. Settings > Continuous Recording Mode

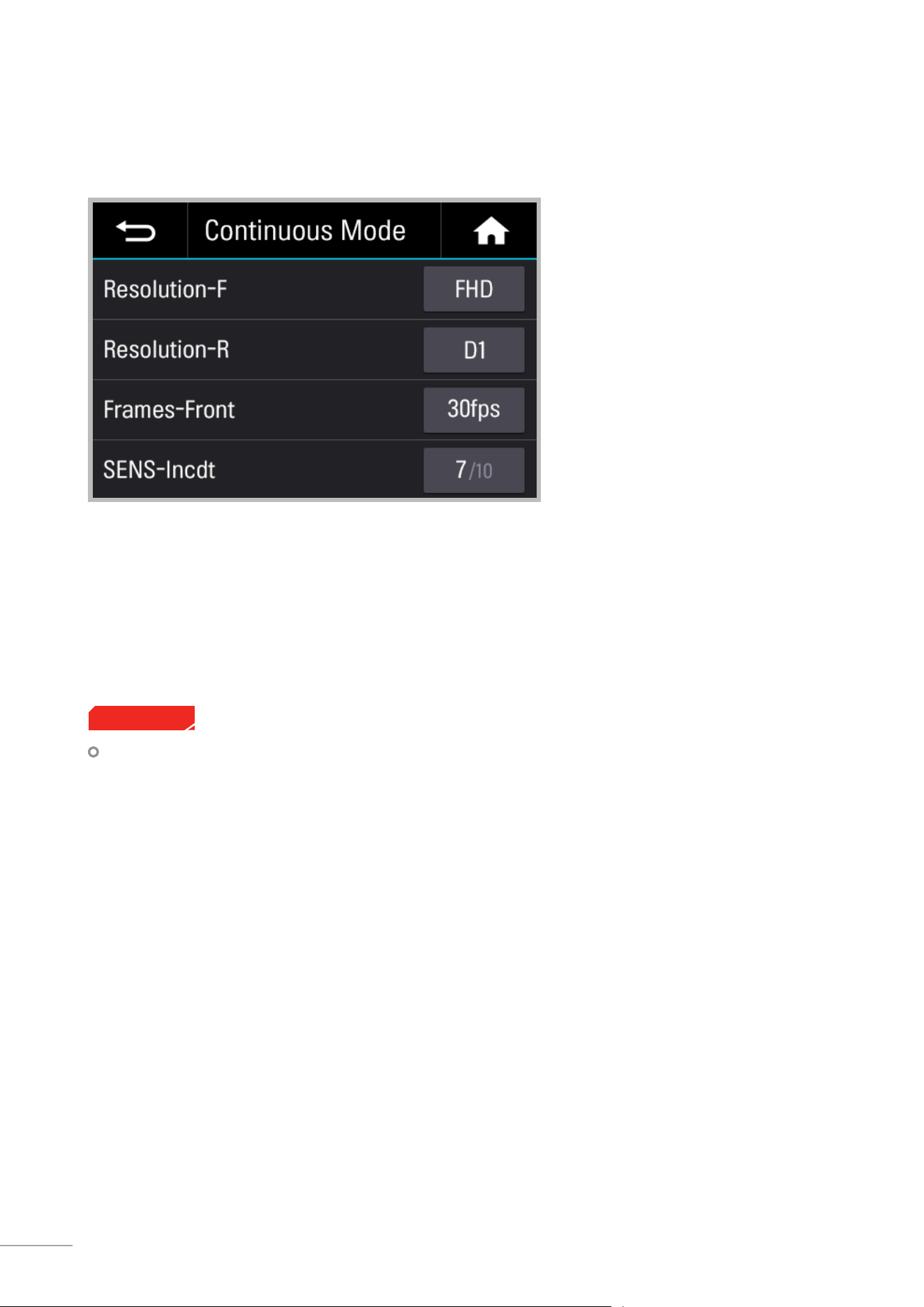

Front/Rear Camera Resolution: Sets the video recording resolution for front camera
Front Camera Frame Rate: Sets the frame rate for video recording
Impact Sensitivity: Sets the impact sensitivity level
Tip on sensitivity
It is recommended that you set the sensitivity according to vehicle type. High sensitivity setting is rec-
ommended for cars with softer ride such as luxury sedans and low sensitivity setting is recommended for
cars such as performance cars, trucks, or SUVs which tends to have stier suspension settings.
Cautions
23
Touch LCD
03

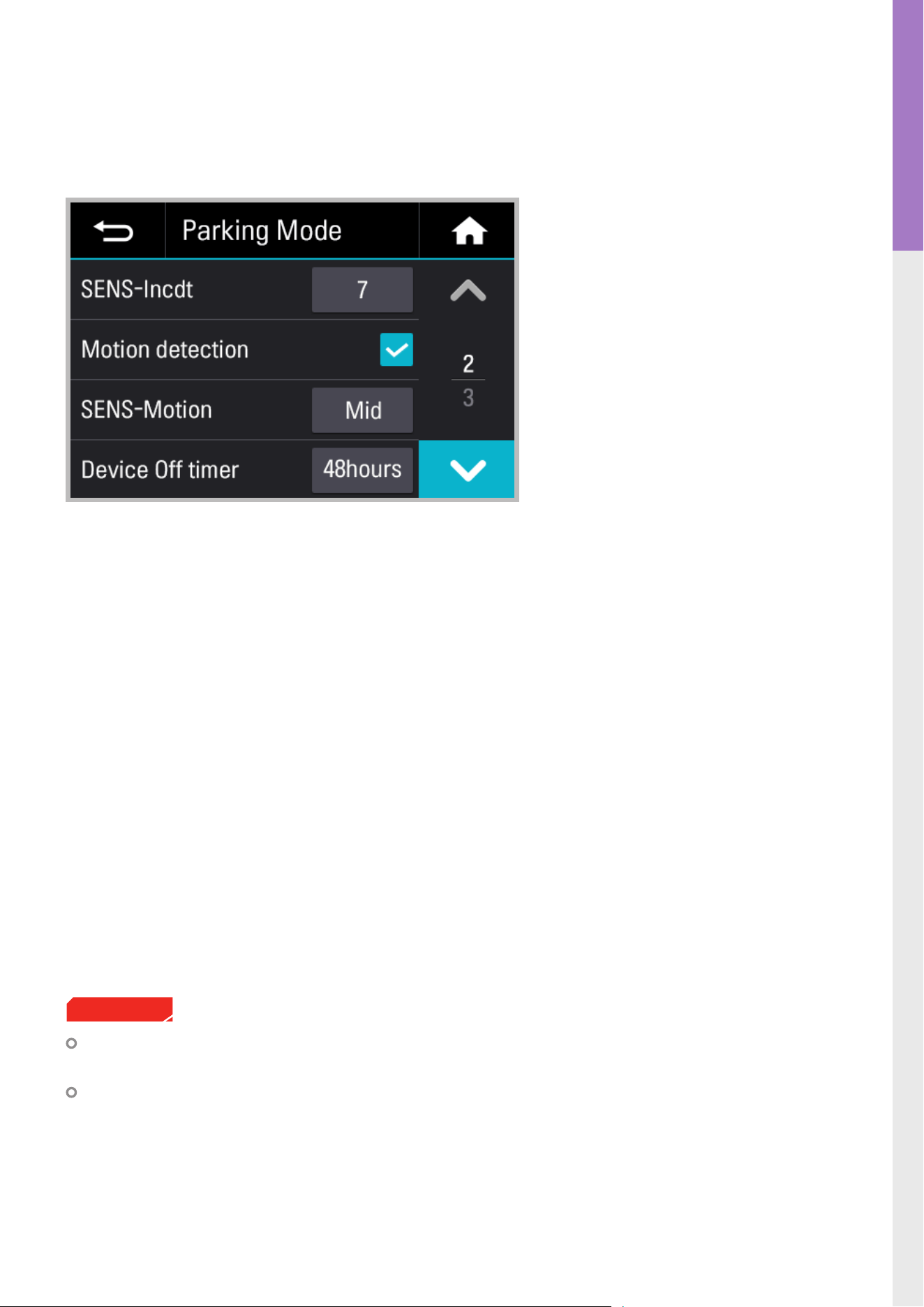

3-6. Settings > Parking Surveillance Mode
Auto Parking Mode: Monitors vehicle ignition status to automatically convert to parking mode when the
vehicle engine is turned o
Front/Rear Camera Resolution: Sets the video recording resolution for front/rear camera in parking mode
Front Camera Frame Rate: Sets the frame rate for video recording in parking mode
Impact Sensitivity: Sets the impact sensitivity level in parking mode
Motion Detection: Sets motion detection recording in parking mode
Motion Detection Sensitivity: Sets the sensitivity of the motion detection sensor
Stop Timer: Sets the timer for the dash cam to automatically shut down in parking mode to prevent from
draining the vehicle battery
Stop Voltage: Sets the voltage level for the dash cam to automatically shut down in order to prevent from
draining the vehicle battery
It is recommended to format the memory card when settings for video resolution and/or frame rate have
been changed.
Be sure to backup important video les before formatting the memory card.
Cautions
24
3-7. Settings > Additional Functions
Memory Partition: Sets how storage space on the memory card will be allotted for each recording mode
┗ Type A (recommended) : Optimized for continuous recording
┗ Type B : Optimized for incident and motion detection during parking surveillance
┗ Type C : Optimized for continuous and incident recording
Format Memory Card: Formats the microSD card
┗Formatting will completely erase all video les stored in the memory card
Video Overwrite Setting: Sets the overwriting option which will allow new video les to overwrite oldest
video in storage reserved for each mode
Calibrate Touch Screen: Calibrate touch screen to ensure accurate touch response
Security LED: Sets the pattern for security LED
Date/Time Setting : Sets the date and time for the device to timestamp the recorded videos
Factory Reset: Restores to factory setting
It is recommended that you back up data before formatting the memory card.
Once you format the memory card, all data will be deleted and cannot be restored.
The method for formatting a microSD card might vary depending on the computer operating system.
Cautions
25
Touch LCD
03
3-8. Settings > Dual Save Video
Copy Dual Save Video to Memory Card: Copy all videos saved on the internal memory to microSD card
Delete All Dual Save Video: Delete all videos saved on the internal memory
26
4. PC Application
4-1. Thinkware Dash Cam PC Viewer
Thinkware Dash Cam PC Viewer for both Windows/MacOS is provided which can be used to watch videos
recorded with the dash cam. The video les recorded by the dash cam are in one minute segments and the
PC viewer allows user to watch the segments in single continuous video.
The setup le for the Thinkware Dash Cam PC Viewer is included in the microSD card in the package.
Please check THINKWARE homepage(http://thinkwaredashcam.com) for latest Dash Cam PC Viewer
application.
4-1-1. Installing Thinkware Dash Cam PC Viewer
①
Insert the microSD card into the USB microSD card
reader (included in the package) with front side
facing up as shown in the illustration.
②
Connect the USB microSD card reader to the PC.
Front Rear
MicroSD card
Ensure that the USB card reader is correctly
oriented when inserting to USB drive on the PC
Removing microSD card
27
PC Application
04

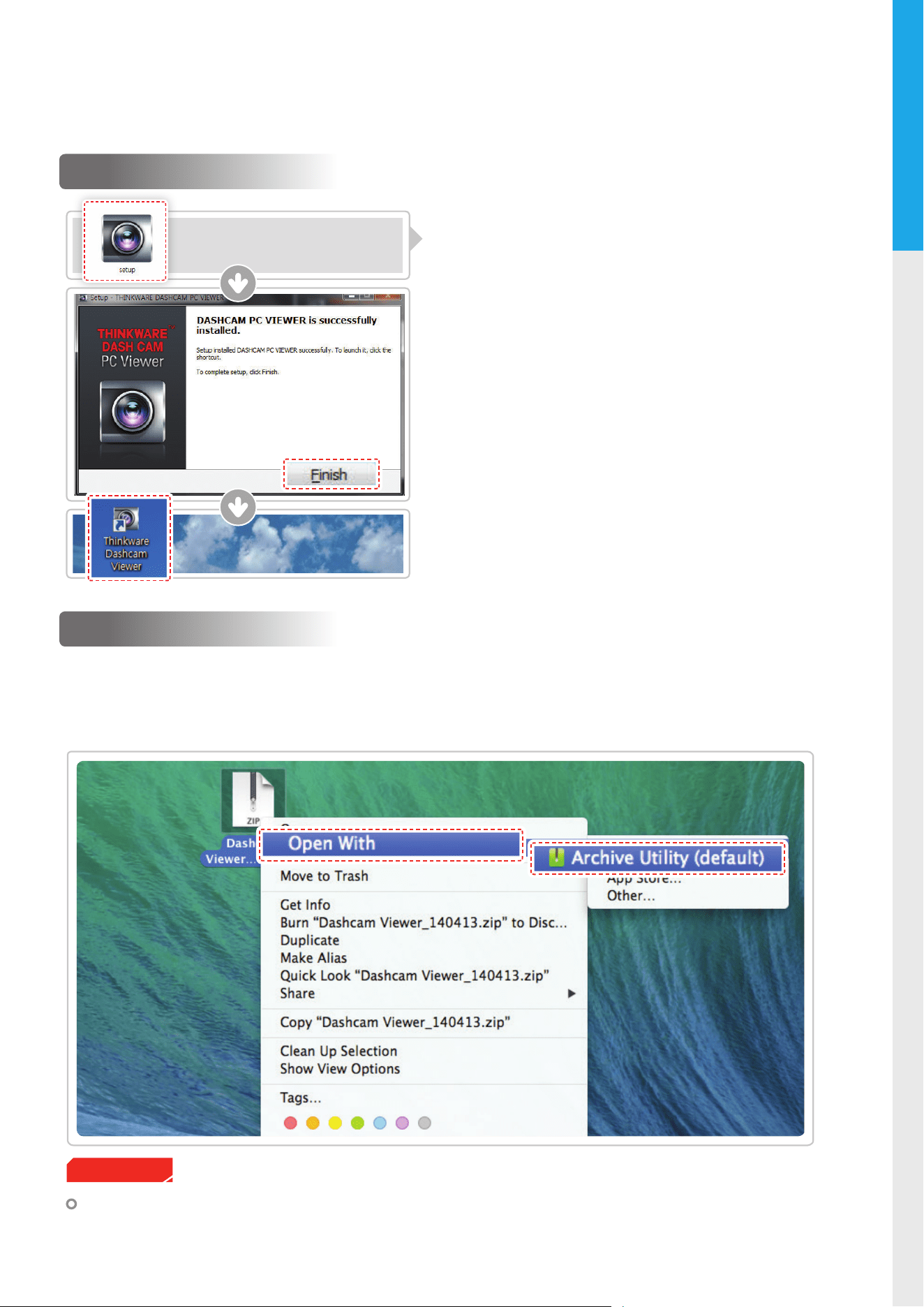

4-1-2. Installing Thinkware Dash Cam Viewer
Windows
①
Double-click the Thinkware Dash Cam Viewer setup
le saved in the microSD card to initiate program
installation.
②
Double-click the application icon once PC Viewer
installation completes and the application main
screen will then appear.
MAC
Mac OS X v10.6.6 or higher required for PC Viewer installation
Cautions
①
Move the le named “Dashcam Viewer.zip” stored in the microSD card to the desktop.
②
Right click on the mouse and select “Open With” > “Archive Utility” to launch the Thinkware Dash cam
viewer application.
28

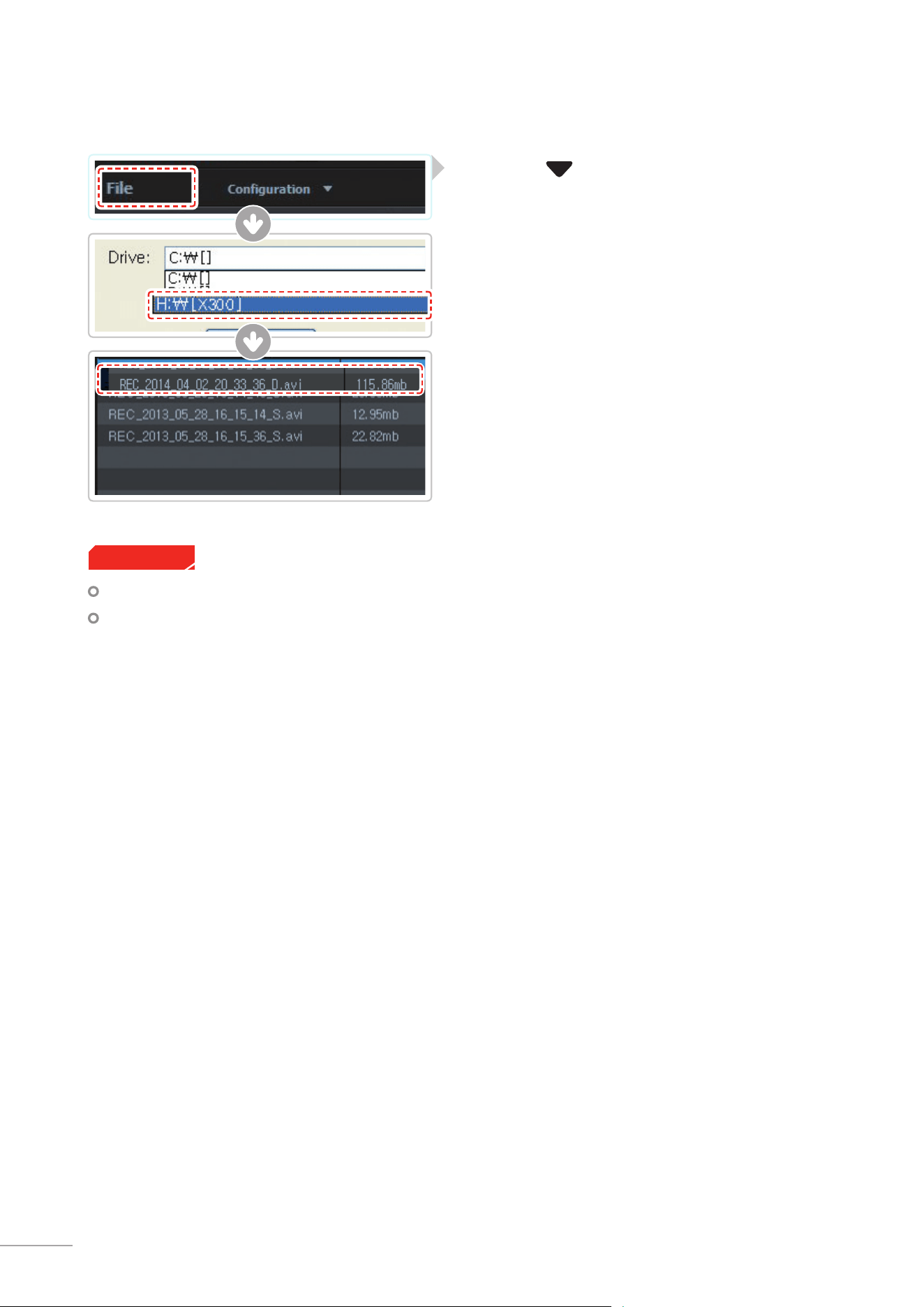

4-1-3. Select the Device Drive for X300
The drive for microSD card will not open if it has not previously been initialized in the dash cam.
Record at least 1 video clip with the microSD card in the dash cam before being able to access full menu
on Thinkware Dash Cam Viewer software.
Cautions
①
Click F ile from menu and select the drive for
the portable storage drive for the connected mi-
croSD card.
②
Select any le from the list to load entire video play-
list in the memory card.
29
PC Application
04
Rear View
(Enabled only if mi-
croSD card contains
video captured
using rear view
camera)
Dash Cam Setting / Information
Full Screen
Switch between Front/Rear View
File Open
Viewing Screen
Playback
Progress
Current Play Time/
Total Play Time
Driving Speed
Impact Sensor Value
Map
Checks the location
of the recorded
video (Enabled only
if video is captured
while connected
using GPS antenna
(optional in some
models) and also
must be connected
to Internet)
Playlist

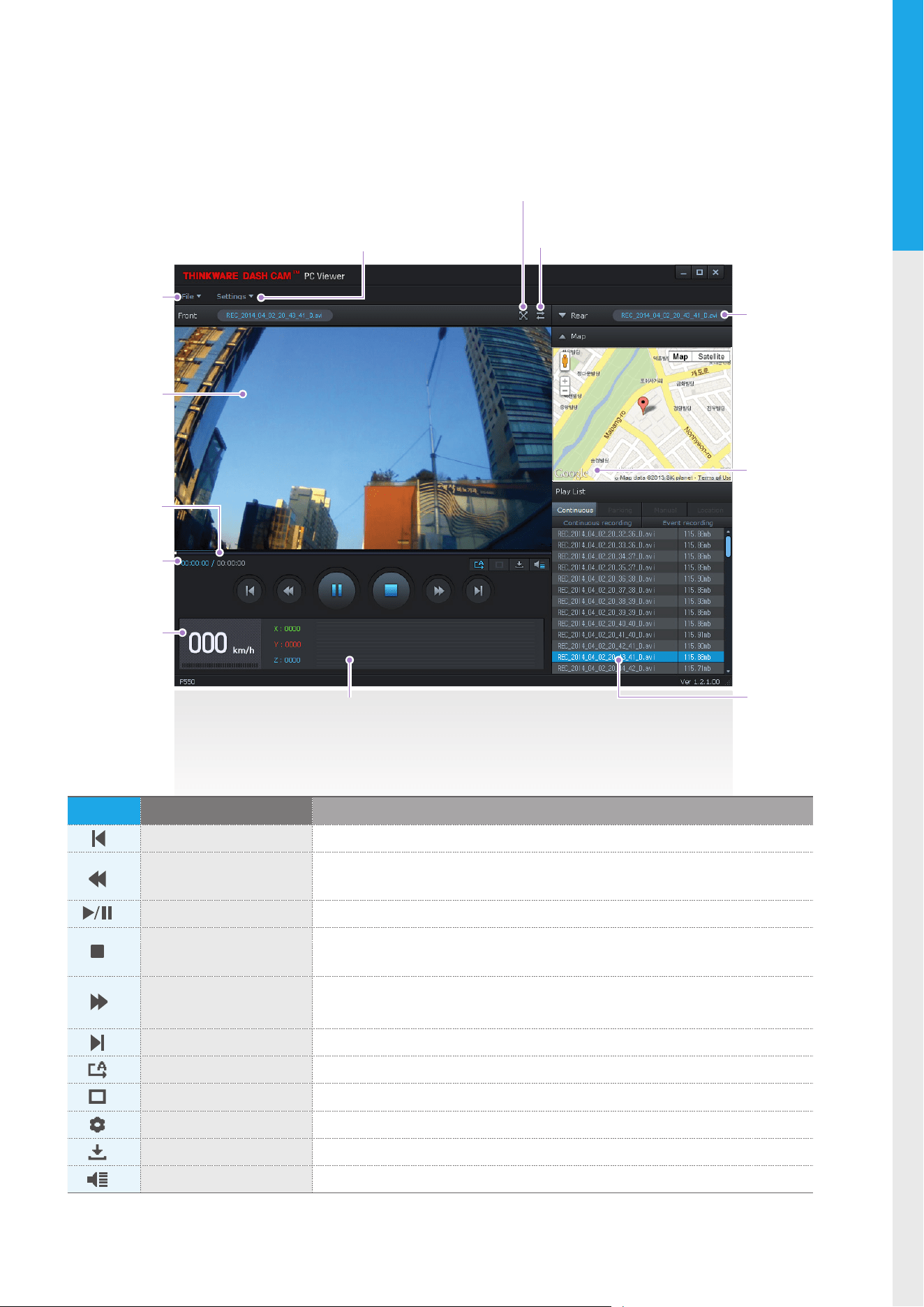

4-1-4. Thinkware Dash Cam Viewer Overview
No. Name Description
Play Previous Plays the previous le before the current le
Rewind by 10 Sec
Rewinds the current le being played by 10 seconds
(If selected, it continues to rewind by 10 seconds)
Play/Pause Plays the recorded le / temporarily pauses playback
Stop
Stops the le being played. The playback status resets to the starting point of
the video.
Fast-forward by 10 Sec
Fast-forwards the current le being played by 10 seconds
(If selected, it continues to fast-forward by 10 seconds)
Play Next Plays the next le after the current le
Auto Play Automatically loops the video back to beginning once the end has reached
Zoom Sets the video expansion ratio (0.5x / 1.0x / 1.5x / 2.0x)
Screen Setting Sets brightness/speed of the video
Save Saves the video in play
Volume Sets the volume of the playback
30

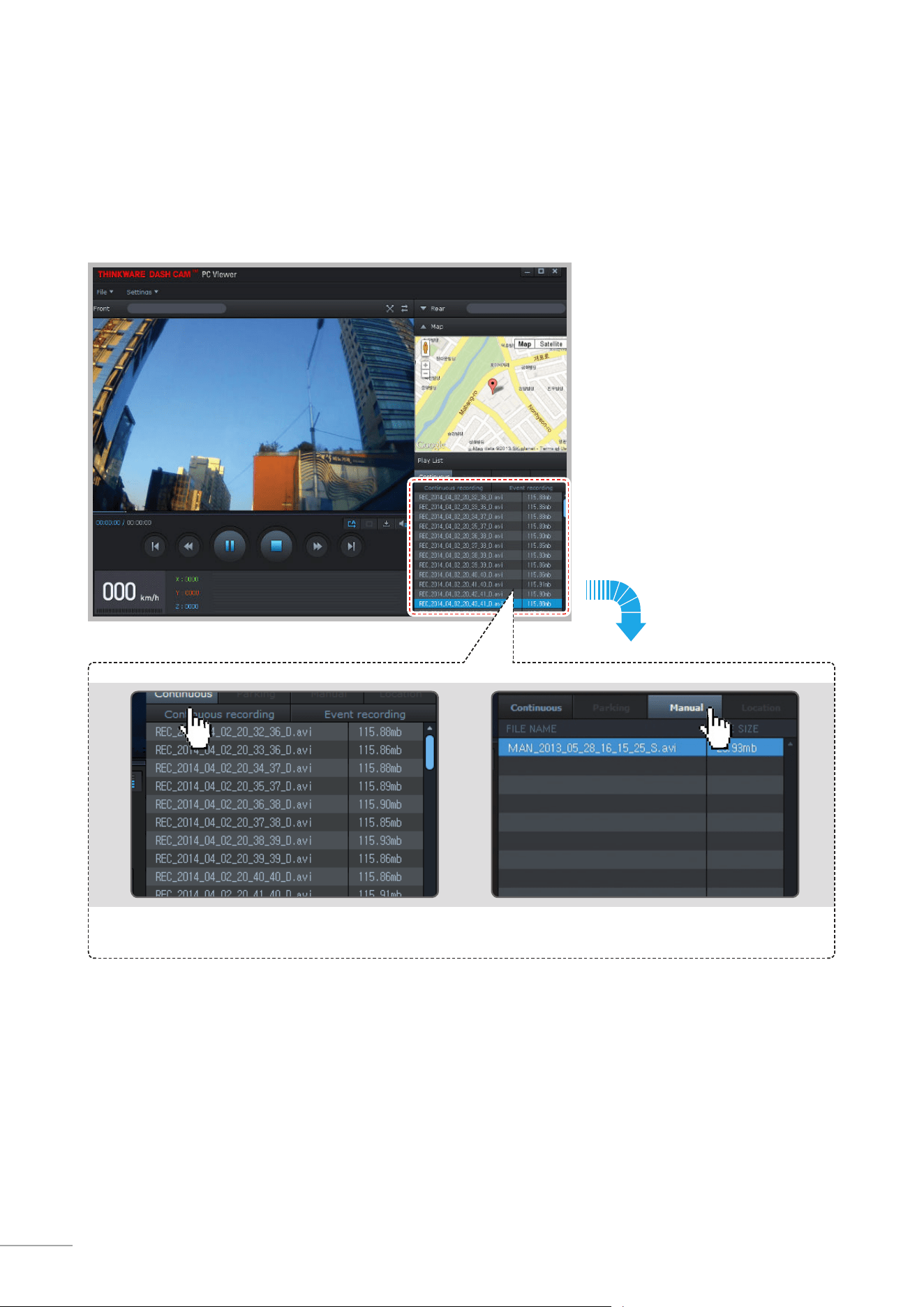

4-1-5. View Video Playlist
Select appropriate folder (Continuous Recording, Incident Recording, Manual Recording, Parking Motion,
Parking Incident) to see the playlist for each recording mode.
Continuous Recording Playlist Manual Recording Playlist
31
Specications
05
5. Specications
5-1. Specications
The specications of this product may change without prior notice for product improvements.
Item Standard Note
Model X300
Size/weight
106.3 x65.8 x 31.4mm / 150g
4.2 x 2.6 x 1.23 inches / 0.33 lbs
Display Panel 3.5"TFT LCD (480x320)
Capacity microSD card 8GB/16GB/32GB Class 10
Recording mode
Continuous Recording Mode Records in 1 minute segment
Incident Recording Mode
Manual Recording Mode
Parking Surveillance Mode
Optional hardwiring cable and installation
are required for continuous supply of power
when vehicle ignition is o.
Capturing Still Image
Audio Recording
Press Voice Recording Button to turn the
audio recording on or o
Video quality
Choose from one of three dierent
modes (low/mid/high)
Total recording time varies depending on the
partition type.
Camera 2.0 Megapixel, 1/2.7" CMOS
Viewing angle Approximately 146° (diagonally)
Video
Full HD
(1920 x 1080/H.264/extension AVI)
HD (1280 x 720/H.264/extension AVI) for rear
view camera when connected
Frame rate 1 channel (Front view) : up to 30 fps 2 channel (Rear view): up to 20 fps
Audio PCM (Pulse code modulation)
Acceleration sensor 3-axis acceleration sensor (3D, ±4G) Ad justable impact sensitivity (10 levels)
Rear camera Support V-IN port
Optional accessory that requires separate
purchase.
GPS External GPS Receiver
Optional accessory that requires separate
purchase
Input power source DC 12/24V Rearview camera: 5V DC
Current consumption 2CH: 5.3W/1CH: 3.5W (mean)
Based on fully charged super capacitor/LCD
o/Excluding external GPS
Auxiliary power unit Supercapacitor
Warning sound Embedded speaker Voice (buzzer sound) guidance
Operation/Storage
Temperature
-20°C to 65°C / -40°C to80°C
-4°F to 149°F / -40°F to 176°F
Connection Interface 1 x V-IN port (microUSB) / 1 x GPS (2.5Ø)
