Your dishwasher
.
The first time the dishwasher is switched on, it is important that you choose the right settings to ensure
good dishwashing results. See the chapter Before washing for the first time.
4

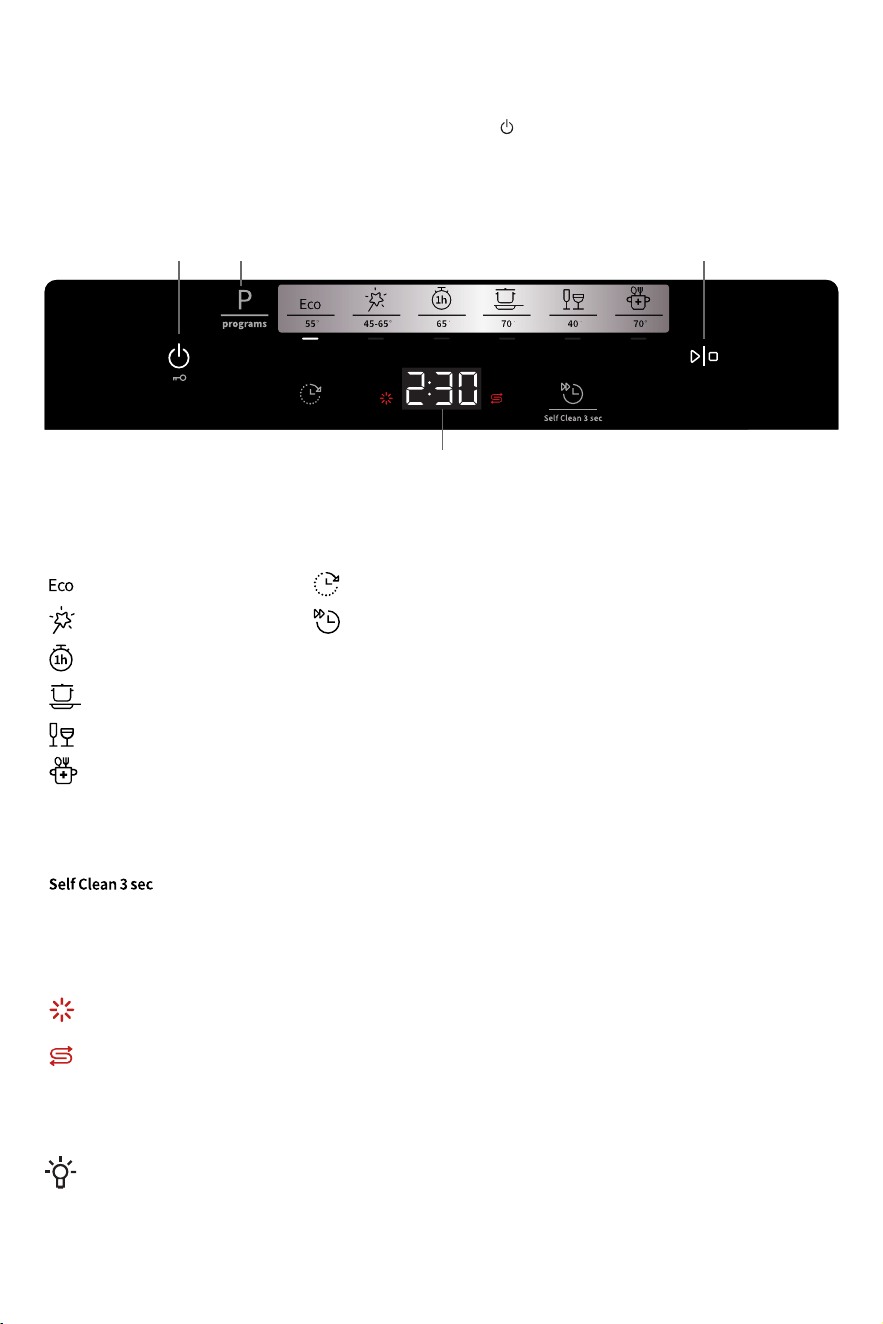

Display
Start/Pause/StopSelect program
On/Off
Program Option
Delayed startEco 55°
Speed washAuto 45-65°
1h 65°
Intensive 70°
Glass 40°
Hygiene 70°
Special program
Self-clean
Information on the display
See the chapter Care and cleaning.
Top up with rinse aid
Top up with salt
CLn Run the Clean (Self-clean) program
NOTE!
The control panel only reacts to use when the door is closed.
Install the dishwasher, see the chapter Installation. Press
5
Safety instructions
• Read the operating instructions and keep them in a safe
place!
• Number of standard place settings: 14
• Never use the dishwasher for any purpose other than that
specified in these operating instructions.
• Do not load the dishwasher door or dishwasher baskets with
anything other than dishes.
• Never leave the dishwasher door open as someone may trip
it. Push the baskets in to avoid risking the dishwasher
over.
• Use only dishwasher detergent!
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Damaged supply cord must only be replaced by the
manufacturer's service centre or someone similarly
professionally qualified.
• Only use the dishwasher in household-type environments for
dishwashing household dishes. All other use is prohibited.
• Never place dishes with solvent residues in the dishwasher due
to the risk of explosion. Nor may dishes that contain ash, wax
or lubricants be washed in the dishwasher.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
on
tipping
WARNING!
Knives and other pointed items must be placed with the
points down in the cutlery basket or horizontally in other
baskets.
WARNING!
Children must be supervised – dishwasher detergent is
corrosive!
Installation
Store the dishwasher above freezing and avoid long transport distances in very cold weather. Transport
the dishwasher upright or laying on its back.
Before transporting a used dishwasher, or before prolonged storage, water must first be removed
from the machine.
Packaging
6
• Children must be watched. Do not allow children to use or play
with the dishwasher. Be especially vigilant when the door is
open. Some detergent may remain inside! After adding
detergent, always start the dishwasher immediately.
The outer packaging protects the product during transport. The packaging material is recyclable.
Separate the different packaging materials to help reduce raw material use and waste. Your dealer
can take the packaging for recycling or direct you to the nearest recycling centre. The packaging is
comprised of:
• Corrugated cardboard made from up to 100% recycled material.
• Expanded polystyrene (EPS) with no added chlorine or fluorine.
• Supports made from untreated wood.
• Protective plastic made from polyethylene (PE).
The overflow guard starts pumping out the machine and turns off the water supply if the water level
in the dishwasher exceeds the normal level. If the overflow guard is triggered, F54 (Overfilling water)
appears on the display. Turn off the water tap and contact your nearest service centre. (To avoid water
leakage outside the dishwasher, do not remove the plug from the wall socket until the water tap on
the supply line has been turned off!)
Winter storage/transport
See the chapter Installation.
Overflow guard function
Disposal
power cable and cut it as short as possible.
Contact your local authority for information about where and how your dishwasher should be correctly
recycled.
The dishwasher is manufactured and labelled for recycling. When the dishwasher has reached the
end of its service life and is to be disposed of, it should immediately be made unusable. Pull out the
Before washing for the first time
Increased consumption during regeneration
The dishwasher's built-in water softener is regularly regenerated to maintain its function. Regeneration
extends the dishwashing program and increases energy and water consumption. Just how often the
dishwasher's water softener is regenerated depends on the selected setting.
that you select the right setting for the water softener! See Water hardness in the chapter Settings.
WARNING!
Hard water leaves a white coating on dishes and inside the dishwasher. It is therefore important
Example: If the Eco 55° program is run with the default water hardness setting ( 04 ), the water
softener is regenerated at regular intervals, energy consumption increases by 0.025 kWh, and water
consumption increases by 2.5 litres, while the program time is extended by 1 minute. Regeneration
takes place during the program’s main wash.
Water hardness is specified using German degrees of water hardness (°dH), French degrees of water
hardness (°fH), English degrees of water hardness (°eH) or millimoles per litre (mmol/l).
In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral
content). Hard water leaves a white coating on dishes and the dishwasher.
Checking water hardness
Water hardness
A water supply with a water hardness in excess of 2.8°dH (5°fH / 3.5°eH / 0.5 mmol/L) must be
Contact the local waterworks to check the water hardness in your area.
Make a note of the water hardness:____________
Recommended settingmmol/L°eH°fH°dH
000.0-0.50-3.50-50-2.8
010.6-1.03.6-7.06-102.9-5.6
021.1-2.07.1-14.011-205.7-11.2
032.1-3.014.1-21.021-3011.3-16.8
04
05
3.1-4.0
21.1-28.0
31-40
16.9-22.4
06
07
4.1-5.0
28.1-35.0
41-50
22.5-28.0
5.1-6.5
35.1-45.5
51-65
28.1-36.4
6.5+
45.5+65+36.4+
If the water hardness exceeds 36.4°dH (65°fH / 45.5°eH / 6.5 mmol/L), we recommend connecting
an external water softener.
This is done automatically with the aid of the built-in water softener. In order for the water
softened.
function properly, its settings must be adjusted to the hardness of the water supply. Once
softener to
adjusted the water softener settings, add detergent and rinse aid in doses suitable for soft
you have
water.
Never run the dishwasher with an empty salt compartment if the water supply has a water
hardness in excess of 2.8°dH (5°fH / 3.5°eH / 0.5 mmol/L).
7
Basic settings
The first time the dishwasher is switched on, it is important that you choose the right settings to ensure
good dishwashing results. See chapter Settings.

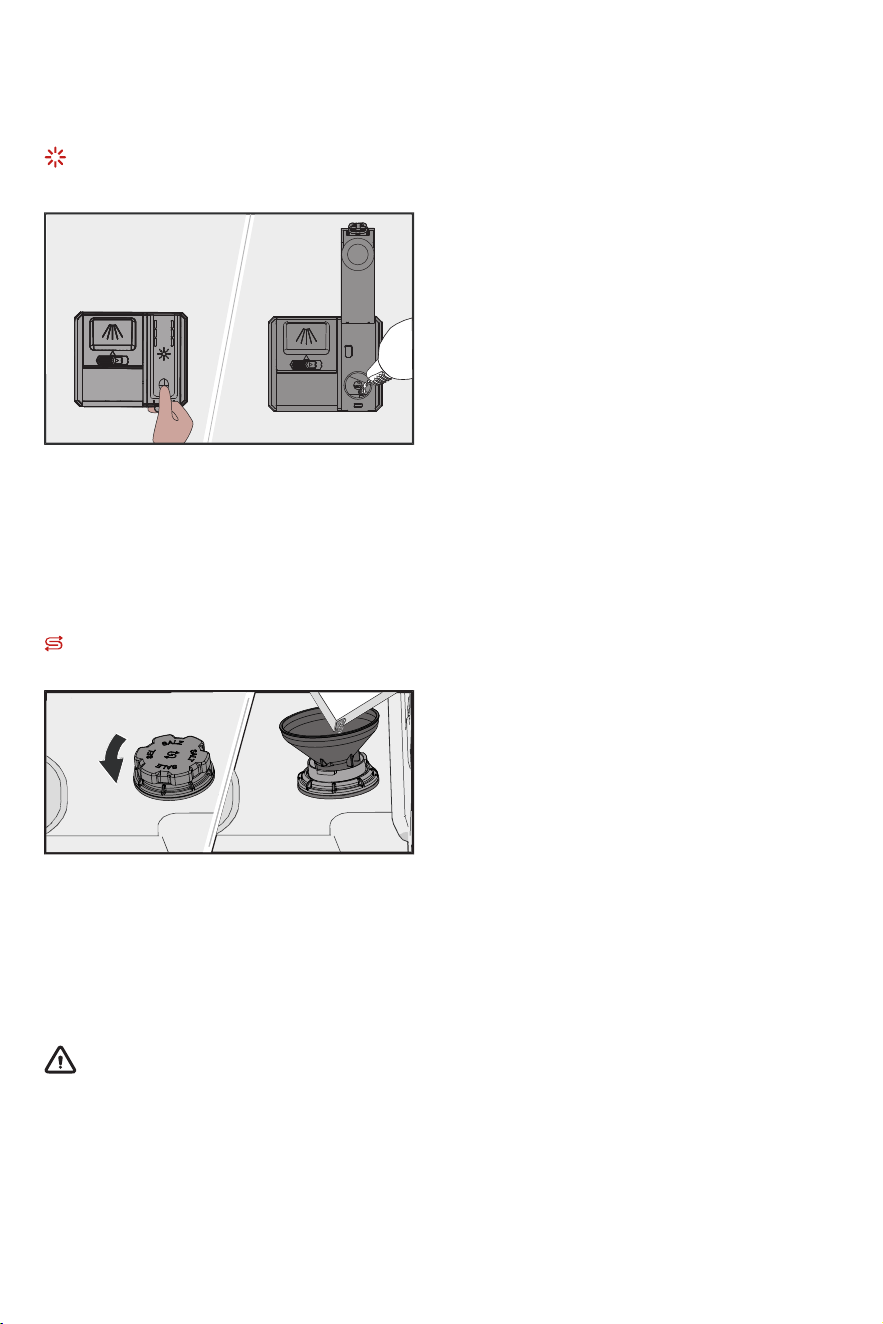

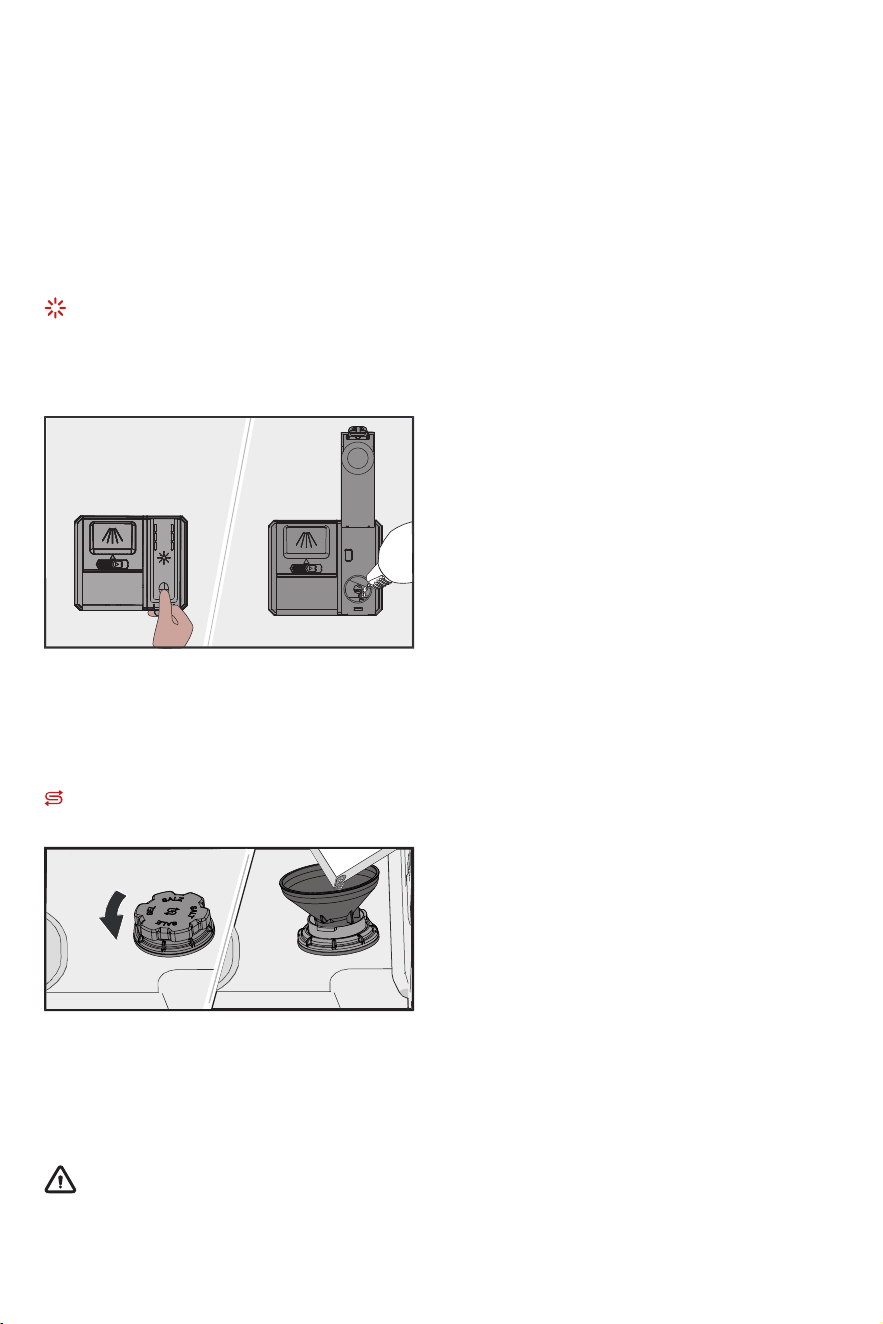

Top up with rinse aid
1. Open the rinse aid compartment lid.
2. Carefully top up with rinse aid to the level marked MAX .
3. Wipe up any splashes of rinse aid around the compartment.
4. Close the lid firmly.
Top up with salt
1. Remove the salt compartment lid by turning it anticlockwise.
2. Place the funnel supplied with the dishwasher in the salt compartment top-up hole. First, pour in
about 1 L of water.
3. Add enough salt to fill the salt compartment (max. 750 gram). Use special dishwasher salt.
4. Wipe up any excess salt so that the lid can be screwed on firmly.
WARNING!
In order to avoid rust stains a dishwashing program must be started immediately after adding
salt.
Press the elliptical protrusion
above the lid while pulling
upwards to open the lid
Drying is faster and a better result is achieved if you use rinse aid. You will also achieve a better
dishwashing result with clear and spotless dishes.
Top up the rinse aid compartment with rinse aid if you have selected Rinse aid 01 - 05.
Add salt to the salt compartment if you have selected Water hardness 01 - 07.
Set up:
• Rinse aid
• Water hardness
• TAB
8
Greener dishwashing
Do not rinse the dishes under running water as this will lead to increased energy and water consumption.
Simply scrape off large food particles before loading the dishwasher.
1h 65° program with the Speed wash option to rinse the
dishes if there are any unpleasant odours.
Run programs at a lower temperature
The dishwashing program is designed for an effective wash using as little energy and water as possible.
Do not exceed the permitted water supply temperature. Certain materials used in some cookware
cannot withstand high heat. See Fragile dishes in the chapter Loading the dishwasher.
The program washes at a low temperature for a long time.
Activate the – Auto Dry setting
When using a dishwasher in a residential setting, less energy and water are generally used compared
to washing the dishes by hand.
Do not rinse under running water
Save energy and water
Save energy and water by waiting until the dishwasher is full before running a program (see number
of standard place settings). Use the
Read the environmental declaration on the packaging!
Too much detergent, rinse aid and salt can result in less effective dishwashing and also entail greater
environmental impact.
Run a fully loaded dishwasher
This program is suitable for washing normally soiled dishes and is the most effective program in terms
of combined energy and water consumption. This program is used to assess compliance with EU
legislation on ecodesign.
If the dishes are only slightly dirty, you can select a program with a low temperature.
Select dishwashing program – Eco 55°
Connect the dishwasher to the hot water supply (max. 60 °C) if the building is heated using an
energy-efficient means such as district heating, solar power or geothermal power. Choosing a hot
water connection reduces the dishwasher's energy consumption.
NOTE!
Connect the dishwasher to the cold water supply if the building is heated using oil, electricity or gas.
Connection to hot water supply
A shorter dishwashing program and better drying results are achieved if you activate the Auto Dry
setting, which automatically opens the dishwasher door. Wait until the dishwasher indicates that the
program has ended and the dishes have cooled before unloading the dishwasher. (If the dishwasher
is built-in, the surrounding furnishings must be resistant to any condensation from the dishwasher.)
Connect to cold water
Choose a green detergent
9
Loading the dishwasher
Load the dishes carefully to ensure the best washing and drying results with the lowest possible energy
and water consumption. Give your dishwasher the best chance to reach and clean all surfaces, as
well as to dry the dishes as thoroughly as possible.
• All dirty surfaces should face inwards and downwards!
• Dishes should not be placed in or on each other.
• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important
for plastic items.
•
Make sure small items cannot fall through the dishwasher basket; place them in the cutlery basket.
NOTE!
Check that the spray arms can rotate freely.
The dishwasher's baskets
Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot
withstand high heat, others can be damaged by dishwasher detergent.
Exercise caution with, for example, handmade items, fragile decoration, crystal/glassware, silver,
copper, tin, aluminium, wood and plastic. Look for the "Dishwasher safe" marking.
Loading affects the results
Fragile dishes

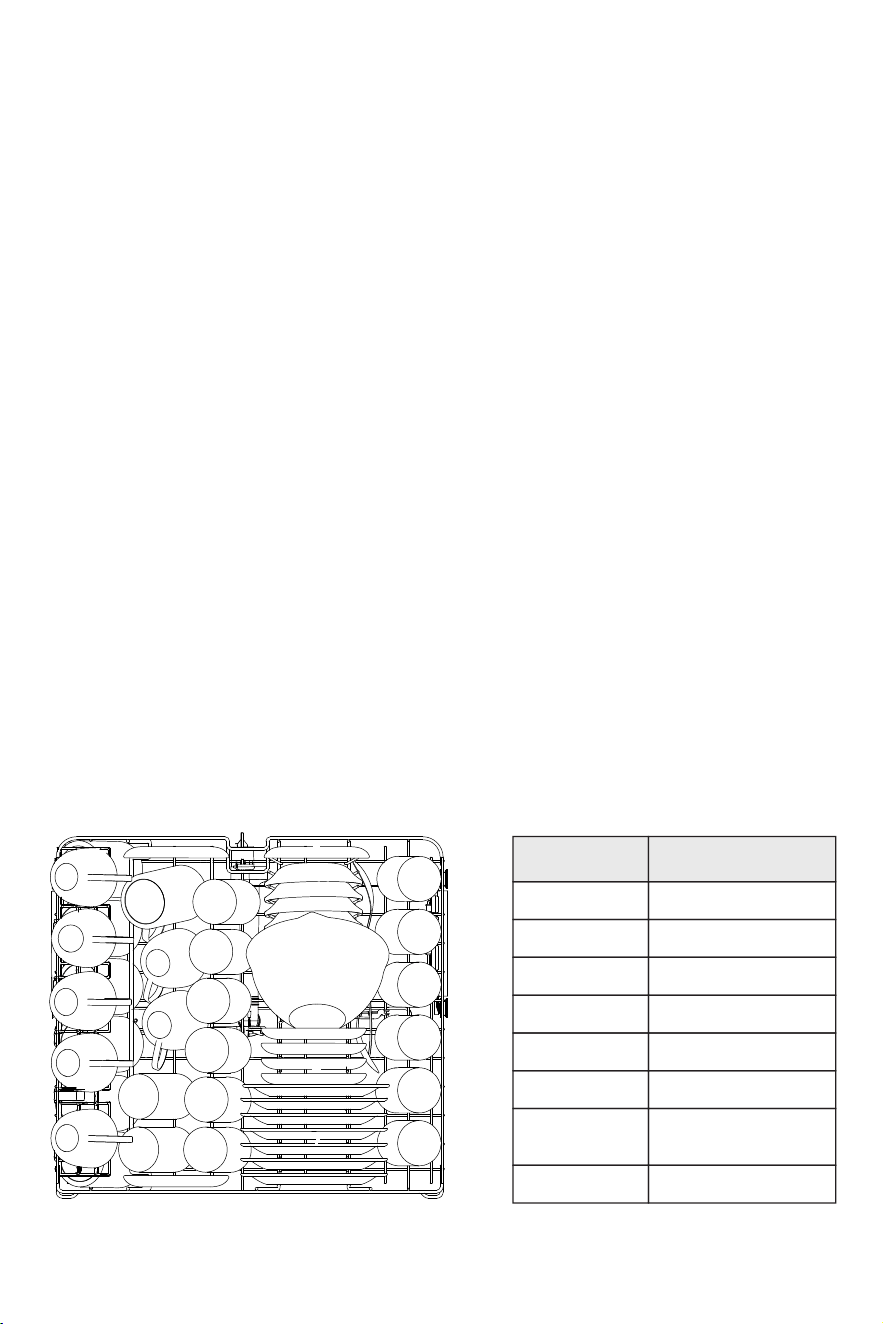

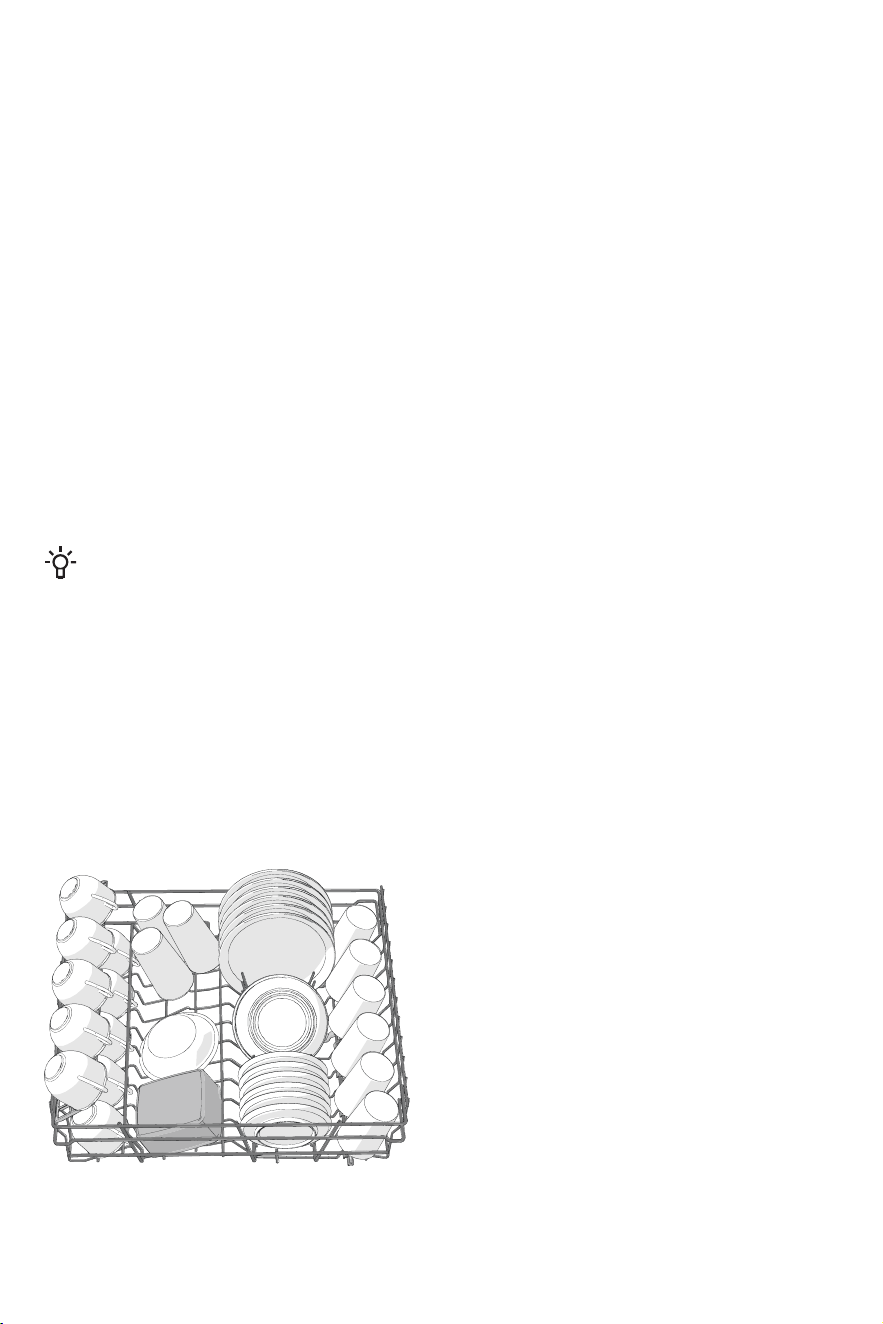

Place glasses, cups, bowls, side plates and saucers in the upper basket. All dirty surfaces should face
inwards and downwards! Wine glasses are placed on the wine glass shelf and knives are placed in
the knife stand on the right.
The dishwasher is equipped with an upper basket and a lower basket with a cutlery basket.
The appearance of the baskets may differ depending on the dishwasher setup.
Upper basket
10
Knife stand
2 positions

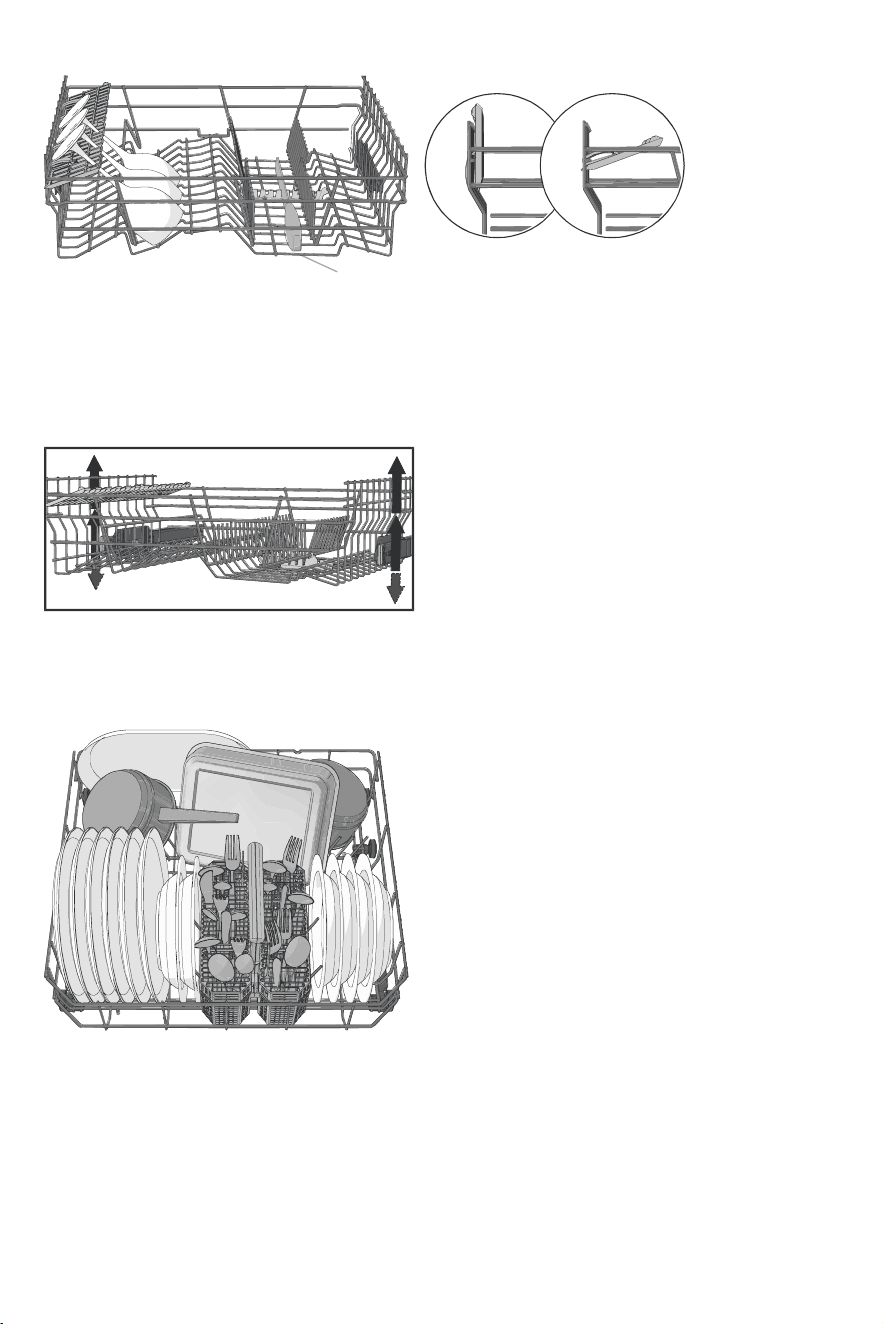

Raising and lowering the upper basket
1. Pull out the upper basket.
2. Grab the sides of the upper basket with both hands and lift it up.
3. If the upper basket is raised while in the top position, it will drop to the bottom position.
Note that both sides of the basket must always be set to the same height.
Lower basket

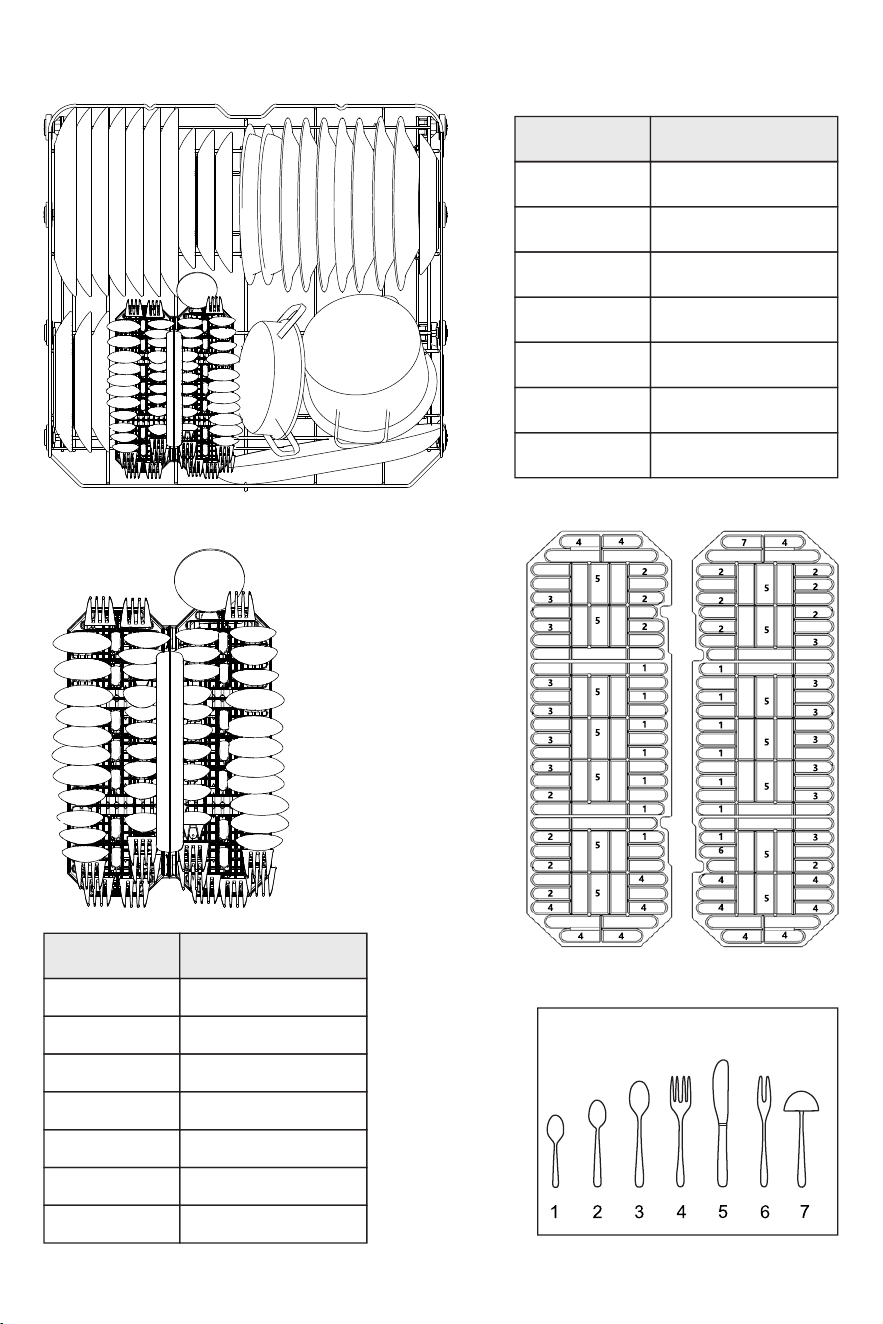

Place plates, side plates, serving dishes, pots and cutlery (in the cutlery basket) in the lower basket.
11
Adjustable plate supports
Cutlery basket
Flexible cutlery basket

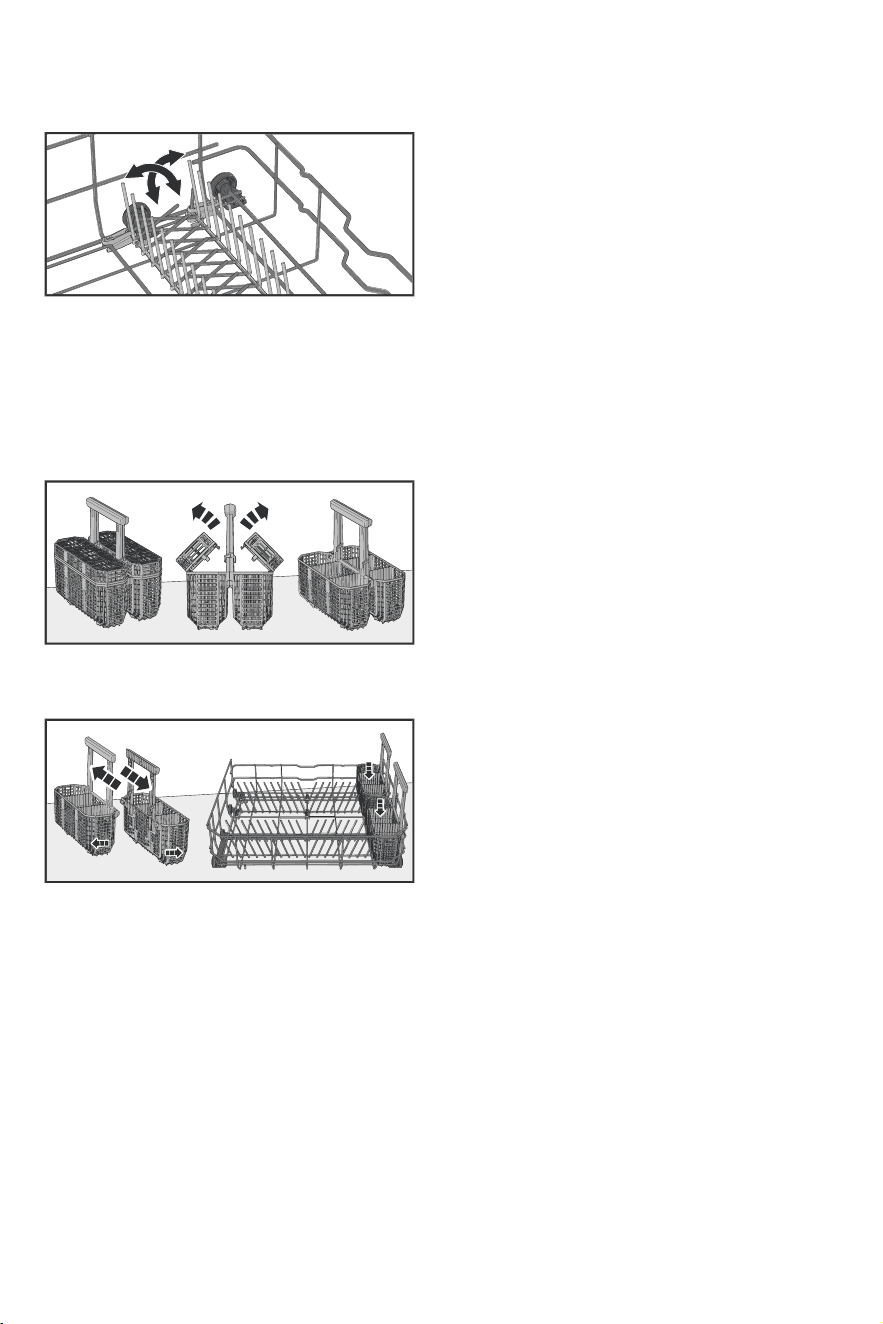

The adjustable plate supports can be folded down to make it easier to load pots and bowls.
The cutlery basket lid can be removed.
The cutlery basket is flexible and can be
separated into two parts, which can then be
attached to the side of the lower basket.
Place cutlery with the handles facing down, except for knives, and spread them out as much as
possible. Ensure that spoons do not stack inside each other.
Place the cutlery basket in the lower basket.
Cutlery basket with lid
12
Using the dishwasher
NOTE!
Use only dishwasher detergent! Washing up liquid must not be used as the foam that forms
prevents the dishwasher from operating effectively.
All-in-one detergent
Contact the detergent manufacturer if you have questions about the detergent.
Prewash detergent
Main wash detergent
Slide to open Slide the lid up and press
to close
The detergent compartment must be dry when adding detergent.
If powder or liquid dishwasher detergent is
used, add a small amount of the detergent to
the compartment for prewash detergent.
Follow the instructions on the detergent packaging. This dishwasher is fitted with a water softener,
so use detergent and rinse aid doses suitable for soft water.
Too much detergent can result in less effective dishwashing and also entails greater environmental
impact.
Detergent compartment
Add detergent
There are many types of all-in-one detergents on the market. Read through the directions for these
products carefully.
Activate the TAB setting when using an all-in-one detergent that contains rinse aid.
Dishwasher tablets are not recommended for short programs (less than 75 minutes). Use powder or
liquid dishwasher detergent instead.
NOTE!
Optimal washing and drying results are achieved by using normal detergent together with
separately dispensed rinse aid and salt.
13
NOTE!
The control panel only reacts to use when the door is closed.
Select program
one or more times until the desired program is activated, which is indicated by an indicator
light.
This program is suitable for washing normally soiled dishes and is the most effective program in terms
of combined energy and water consumption. This program is used to assess compliance with EU
legislation on ecodesign.
You can read more about greener dishwashing in the chapter Greener dishwashing.
The dishwasher can measure how dirty the dishes are and adjust water consumption and temperature
accordingly. When newly installed, the program needs to be run five times before it is fully adapted
and can provide the best results.
A quick program for slightly dried leftovers. (This program is not intended for burnt food, such as on
oven dishes.)
The Auto Dry option is important for ensuring the best drying results.
Select a program to suit the type of dishes and how dirty they are. Eco 55° is always pre-selected.
Eco 55°
Auto 45-65°
1h 65°
Press
For heavily soiled dishes with a lot of grease, a program with higher temperatures should be used.
Display
Start/Pause/StopSelect program
On/Off
On/Off
Close the door properly, otherwise the dishwasher will not start. Press
. Also turn on the water tap
if it is turned off.
Child lock
You can also activate the Automatic child lock setting to prevent children from starting
When the program is not running, press to turn off the dishwasher immediately. If the program
runs, press and hold for five seconds to shut down the dishwasher. Alternatively, press and hold
for three seconds to pause the dishwasher, then press to turn off.
the dishwasher. See the chapter Settings.
To prevent children from stopping the current dishwashing program, you can activate the child lock
function. Once you have started a program, press and hold
for three seconds. CL (Child Lock) will
be shown on the display when pressing the control panel. (To unlock, press and hold for three
seconds.)
14
Intensive 70°
Glass 40°
Hygiene 70°
Self-clean
Press and hold until CLn is shown on the display to select the program.
Select option
, ) to activate them. (The available options vary between programs.)
Delayed start
.
1.
start. Press several times, or hold it in, to set the desired number
of hours. The time for Delayed start is shown on the display.
. The timer counts down and the dishwasher starts after the selected delay.
If you want to cancel the Delayed start option, press and hold
for f ive seconds.
This option shortens the program time, but uses more energy and water.
Press
to activate the option. The program time is updated on the display.
Not available for: Auto 45-65°, Glass 40°, Hygiene 70°, Self-clean
Start/Pause/Stop
. The display starts counting down.
Press once to activate Delayed
A program with a high temperature for dissolving grease on very dirty dishes, such as pans, casserole
dishes and oven dishes. If these dishes do not completely fill the dishwasher, you can add plates and
other dishes.
A gentle dishwashing program with a low temperature for washing fragile items made of crystal/glass.
Remember to use a small amount of detergent and to place items so that they do not touch each
other during the wash. See also Fragile dishes in the chapter Loading the dishwasher. Porcelain that
has just been used without dried leftovers can also be washed using this program.
This program is ideal to use where demands on hygiene are extra high, e.g. for baby bottles and
cutting boards. The temperature is high both in the main wash and in the final rinse.
Self-cleaning program for hygienic cleaning of the dishwasher tub, spray arms and spray pipes.
This program should be run (with no dishes in the machine) using normal dishwasher detergent or
citric acid. Special dishwasher cleaners are also available on the market. For the removal of limescale
Press the options (
When you select Delayed start, the dishwasher will start 1-24 hours after you press
Speed wash
Press
The dishwasher will indicate at regular intervals that Self-clean needs to be run.
deposits, see Dishwasher tub in the chapter Care and cleaning.
Not available for: Self-clean
2.
Press
15
Stopping or changing a program
for three seconds to pause the program. If you want to interrupt or change the
program after starting the dishwasher, press and hold
for another five seconds.
Open the door and top up with new detergent if the lid of the detergent dispenser has opened. Close
the door. Then select a new program and press .
Remaining time
for three seconds to pause the program. Open the door. Add the dishes and close
the door. Press .
Power failure
program continues when power is restored. If the power is cut during drying, the program is interrupted.
Once the program has finished
The dishwasher switches off automatically after the program ends. Shut off the water tap after each
use.
The best drying results
1)
If you want to load more dishes
Once you have chosen a program and options, the total time is displayed.
Once the program has finished, "End" appears on the display. And the dishwasher turns off after the
buzzer makes a sound.
Press and hold
Press and hold
If the dishwasher is turned off due to a power failure when a dishwashing program is running, the
Hot porcelain is more fragile. Leave the dishes to cool in the dishwasher before unloading them.
Unload the lower basket first to avoid any water drops from the upper basket falling onto the dishes
in the lower basket.
1)
You should not load more dishes if the lid of the detergent dispenser has been opened.
• Fully load the dishwasher.
• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important
for plastic items.
• Top up with rinse aid or increase the rinse aid dosage setting.
• Activate the Auto Dry setting. See the chapter Settings.
Check washing times
When the dishwasher is turned on, press and hold and , and the screen will display the number
of times the dishwasher has been washed. Release the button to exit.
• Allow the dishes to cool before unloading the dishwasher.
Unloading the dishwasher
16
Program chart
Consumption values
1)
Final
rinse
Number
of rinses
Main washNumber
of pre-
washes
OptionDetergent
(g)
Program
Water
cons. (liter)
Energy
(approx.
kWh)
Dishwash-
ing time
(approx.
hrs:min)
11.00.833:1049 °C255 °C22
Eco 55°
2)
12.0-19.00.9-1.42:10-3:1060 °C2-345-65 °C1-225
Auto 45-65°
13.01.11:0065 °C365 °C
25
1h 65°
15.51.62:5070 °C270 °C225
Intensive 70°
10.00.71:4050 °C240 °C20
Glass 40°
9.51.31:0570 °C270 °C25
Hygiene 70°
1)
Consumption values vary depending on the temperature of the incoming water, room temperature, load size, selected additional functions and
more. The values for the Eco 55° program are accurate, others are indicative only.
2)
This program is suitable for washing normally soiled dishes and is the most effective program in terms of combined energy and water consumption.
This program is used to assess compliance with EU legislation on ecodesign.
Auto Dry
Auto Dry
Auto Dry
17
Settings
.
2.
To open the dishwasher's settings menu, press and hold
until SEt is shown on the
display.
3.
Press
to step through the settings menu.
4.
Press
to step through the alternatives.
5.
Confirm the selected setting by pressing
.
6.
To exit the menu, step through it or press
.
and
Confirm / Next settingSelect
alternative
Open the dishwasher's settings menu
1.
Press
AlternativesSettings
You can activate the Automatic child lock setting to pre-
vent children from starting the dishwasher.
00 (Off)
01 (On)
Automatic child
lock
1
temporarily deactivate or activate thethree seconds to
A beep confirms that the control panel has been pressed.00 - 03Sounds2
A beep indicates when a dishwashing program has
ended.
Error messages are always indicated by a loud buzzer.
Setting for rinse aid dosage. The rinse aid dispenser can
be adjusted between 00 (Off) and 05 (High dosage).
00 - 05Rinse aid3
Increase the rinse aid dosage:
• If the dishes have water marks.
Decrease the rinse aid dosage:
• If the dishes have a sticky white/blue film.
• If the dishes are streaked.
• Build-up of foam. If you have very soft water, the
rinse aid can be diluted 50:50 with water.
Pre-selected at factory: 03
Adjusting the water softener. Select a setting depending
on the hardness of the water supply. It is important that
this setting is correct!
00 - 07Water hardness4
Once you have started a program,
press and hold for
Automatic child lock setting.
18
Settings Alternatives
This setting reduces the rinse aid dosage and affects how
often the dishwasher's built-in softener is regenerated.
Pre-selected at factory: 00
The dishwasher door opens automatically, which shortens
the program time and improves the drying results. Wait
until the dishwasher indicates that the program has ended
6 Auto Dry 00 (Off)
01 (On)
and the dishes have cooled before unloading the dish-
washer. (If the dishwasher is built-in the surrounding fur-
nishings must be resistant to any condensation from the
dishwasher.)
Not available for: Hygiene 70°, Self-clean
To exit the dishwasher's settings menu, select End and
press or wait for three seconds.
ExitEnd
, Intensive 70° ,
Glass 40°
F--
When contacting the service department, you may be
asked to provide the most recent error messages.
rSt Restore factory defaults Restores all settings to the factory defaults.
Select rSt and press .
Error readout
Any error messages.
5
TAB
00 (Off)
01 (On)
Activate this setting when using an all-in-one detergent
that contains rinse aid.
3.5°eH / 0.5 mmol/l), select 00. The water softener is
deactivated and no salt needs to be added.
Pre-selected at factory: 04
See Water hardness in the chapter Before washing for
the first time.
For a water supply with a hardness below 2.8°dH (5°fH /
19
Care and cleaning
Top up with rinse aid
1. Open the rinse aid compartment lid.
2. Carefully top up with rinse aid to the level marked MAX.
Top up with salt
1. Remove the salt compartment lid by turning it anticlockwise.
2. Place the funnel supplied with the dishwasher in the salt compartment top-up hole. (Water is only
needed the first time.)
3. Add enough salt to fill the salt compartment (max. 750 gram). Use special dishwasher salt.
4. Wipe up any excess salt so that the lid can be screwed on firmly.
After topping up, it may take a while before the symbol goes out.
WARNING!
In order to avoid rust stains a dishwashing program must be started immediately after adding
salt.
Never pour dishwasher detergent into the salt compartment. This destroys the water softener!
Press the elliptical protrusion
above the lid while pulling
upwards to open the lid
When the salt needs topping up, the above symbol lights on the display.
When the rinse aid needs topping up, the above symbol lights on the display.
3. Wipe up any splashes of rinse aid around the compartment.
4. Close the lid firmly.
After topping up, it may take a while before the symbol goes out.
20
Clean the filter
1. Turn the locking ring anticlockwise and lift the filter straight up.
2. Empty and clean the filter.
3. Refit the filter and turn the locking ring clockwise to its stop position. Check that the edges seal
properly.
NOTE!
Dishwashing results may be affected if the filter is fitted incorrectly. The dishwasher must not be
used without the filter in place!
Check that the yellow
drainage pump stop (on the
right in the bottom drain) is in
place.
Cleaning the spray arms
To facilitate cleaning you can remove the spray arms. Remember to fit them firmly back into place
afterwards.
The filter traps larger food particles, which cannot get past the drainage pump. Empty the filter when
necessary. It should be cleaned at regular intervals depending on how often the dishwasher is used.
Holes and bearings can sometimes become blocked. Remove any debris using a pin or the like. The
spray arms also have holes underneath.

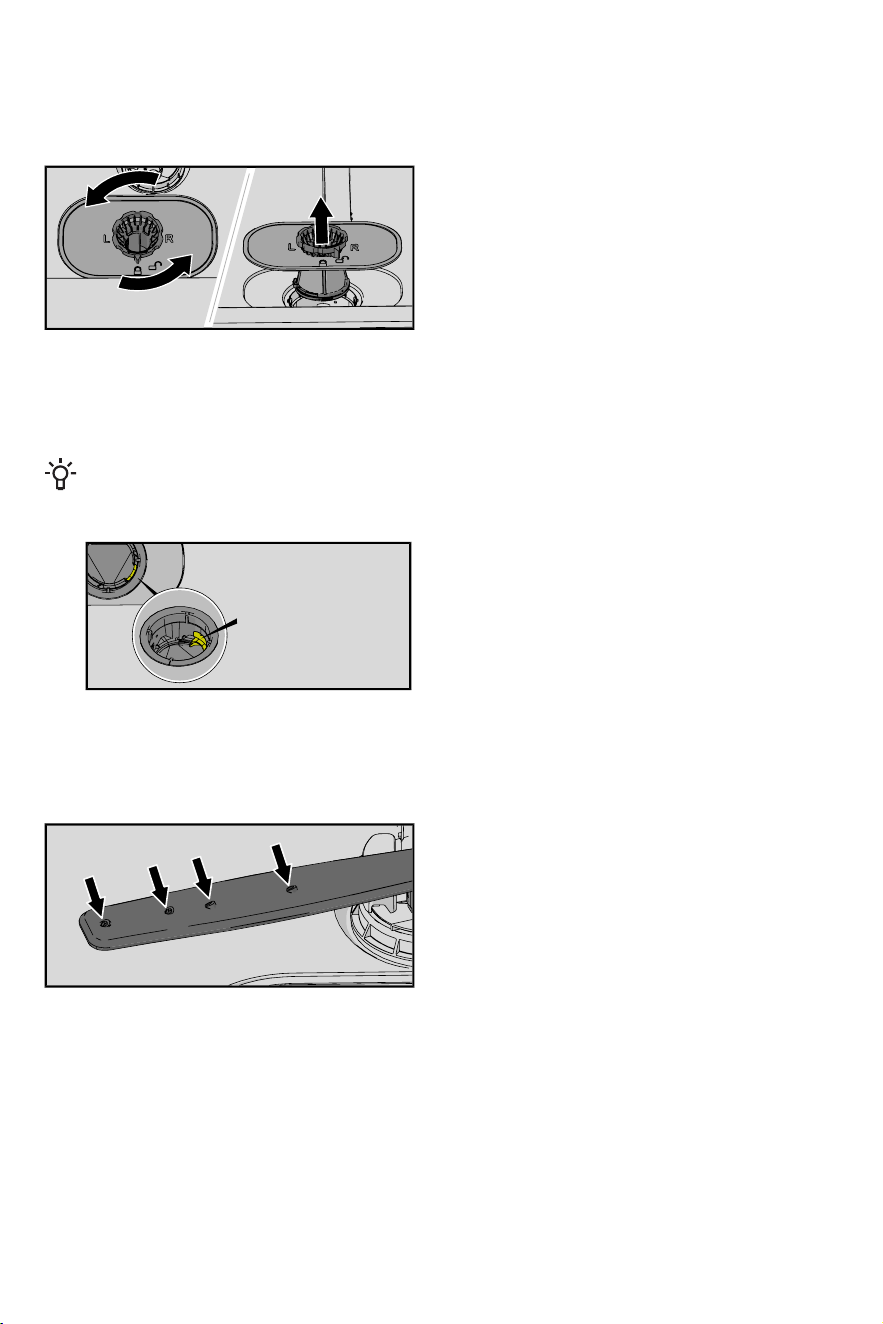

Upper spray arm
• Pull out the upper basket.
• Unscrew the spray arm bearings anticlockwise to remove the spray arm from the upper basket.
21

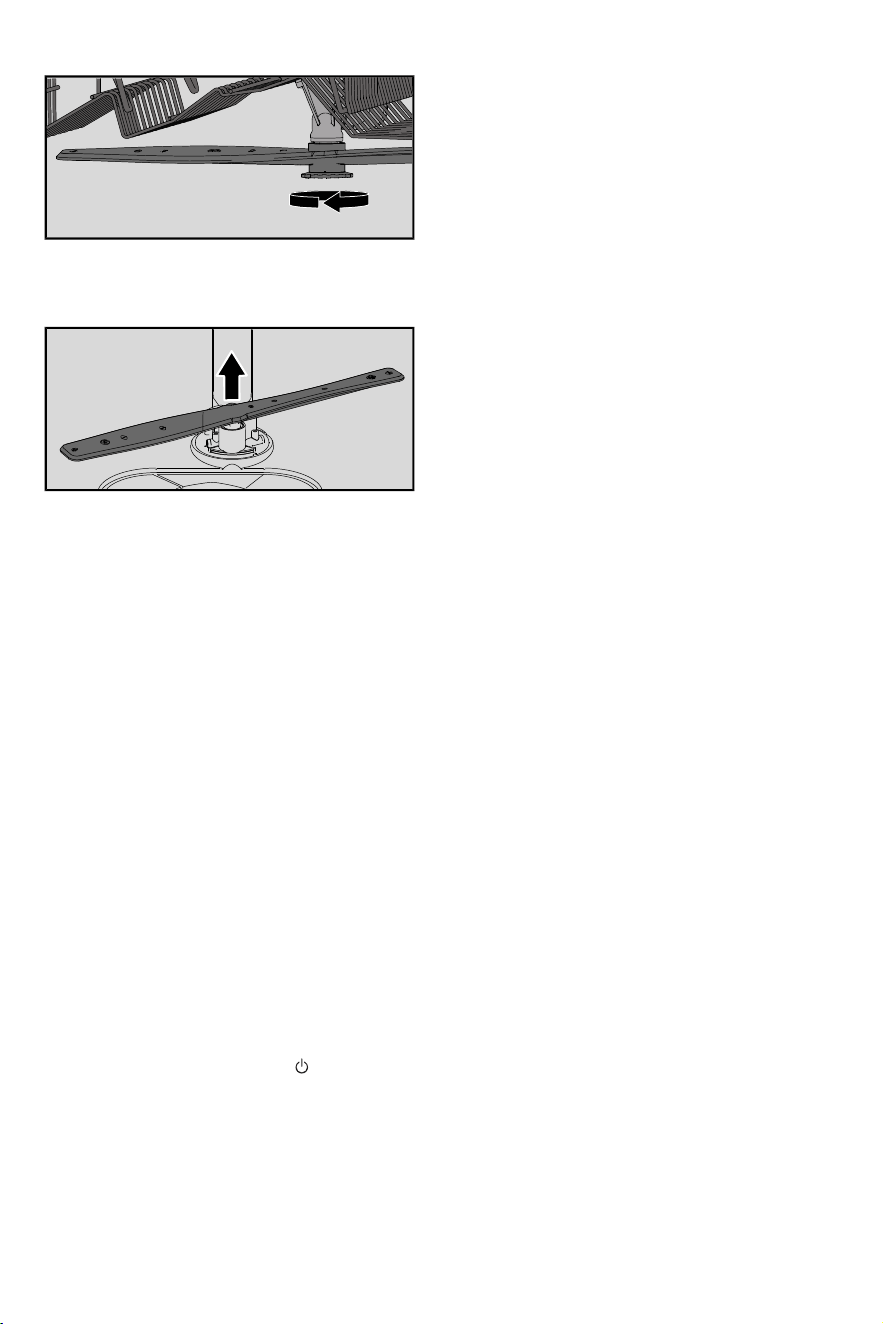

Lower spray arm
Clean the outside of the dishwasher
and remove the plug from the wall socket.
2. Remove the filter.
3. Scoop out the water from the dishwasher tub.

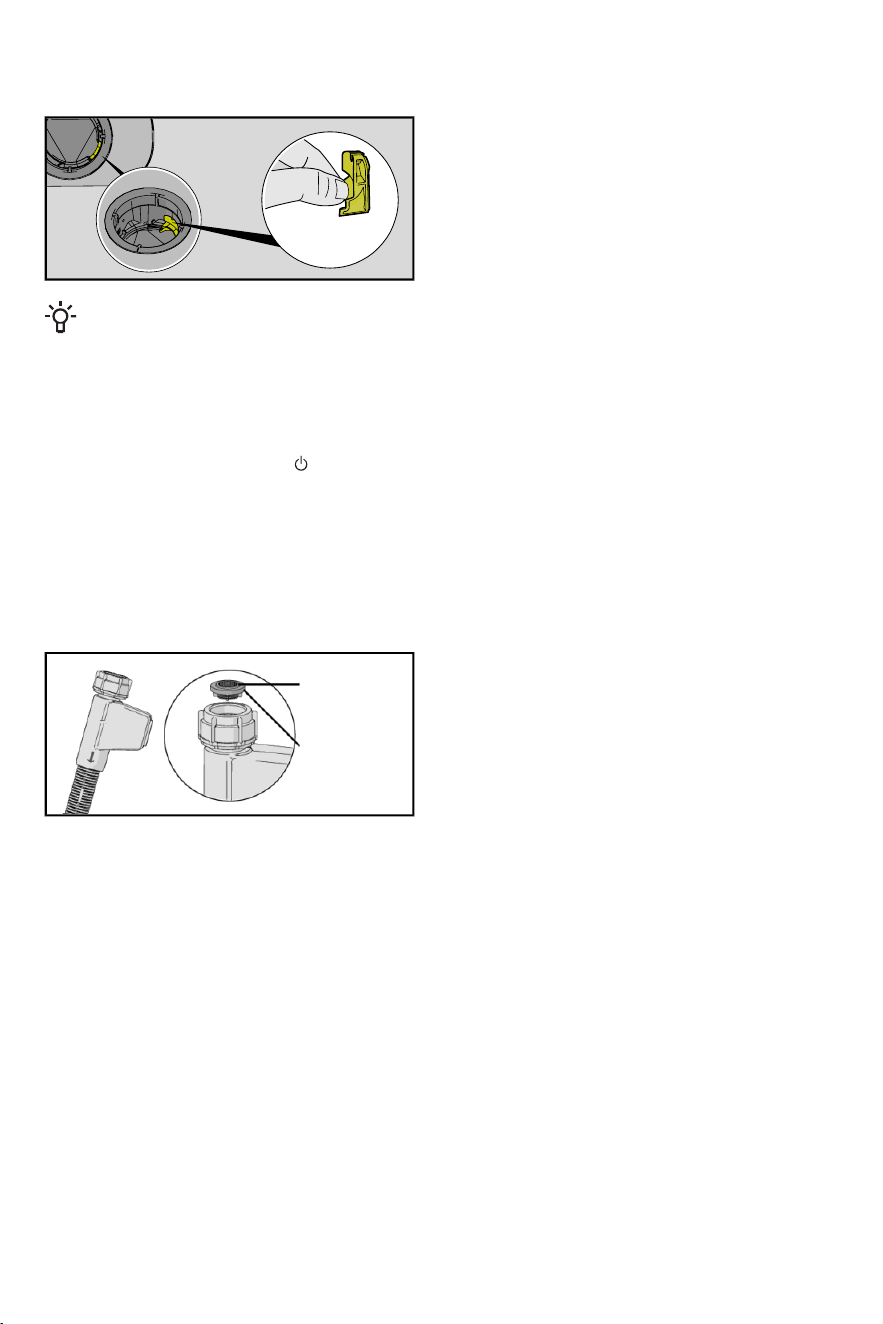

4. In order to inspect the drainage pump, remove the yellow drainage pump stop on the right in the
bottom drain. (Use a pair of pliers if necessary.)
5. Turn the pump wheel located behind the drainage pump stop by hand. Carefully remove any sharp
items, such as glass.
6. Refit the drainage pump stop. Refit the filter.
• Pull the lower spray arm straight up to release it.
If the dishwasher still contains water after the program has finished, something may be blocking the
drainage pump, which results in the Water outlet fault error message.
1.
Turn off the machine using
Unblocking the drainage pump
Remove blockages
The dishwasher tub is made of stainless steel and is kept clean through normal use (when used
regularly).
If you have hard water, limescale deposits may build up in the dishwasher. If this happens, run the
Self-clean program with two tablespoons of citric acid in the detergent compartment (with no dishes
in the machine). Special dishwasher cleaners are also available on the market.
Dishwasher tub
CLn - Run the Self-clean program
Keep the control panel clean. If necessary, wipe it with a dry or slightly damp cloth. Never use cleaning
products – they may scratch the surface.
Control panel
Open the door. Clean the sides of the door and the door seal regularly with a slightly damp cloth.
Clean the door seal at the lower front edge of the dishwasher with a washing-up brush.
Door and door seal
22
7. Plug the machine in again.
Drainage pump
stop
NOTE!
Do not forget to refit the drainage pump stop.
If the water supply contains small particles, the outer filter on the inlet hose may become blocked,
which results in the Water inlet fault error message.
1.
Turn off the machine using
and remove the plug from the wall socket.
2. Turn off the water tap.
3. Unscrew the inlet hose.
4. Carefully remove the outer filter from the inlet hose and clean it.
5. Refit the filter and check that the gasket is correctly positioned.
6. Screw the inlet hose firmly into place.
7. Plug the machine into the wall socket and turn on the water tap. Allow the pressure to settle for
a while and check that the connection is watertight.
Outer filter on
inlet hose
Gasket
Unblocking the inlet hose filter
23
Troubleshooting
Problem
The control panel does not react
when pressed.
The door is open. The control panel only reacts to
use when the door is closed.
See the chapter Using the
Press to clear the error message except for F54. After the dishwasher appears F54 error, it can
only be turned off when the error is cleared.
ActionError messages
Check that the water tap is on. Check that the outer filter on the
inlet hose is not blocked. S e e Unblocking the inlet hose filt e r in
the chapter Care and cleaning . If the problem persists, contact
your nearest service centre.
Water inlet faultF12
Turn off the water tap and contact your nearest service centre.Inlet valve leakageF40
Turn off the water tap. Remove the plug from the wall socket and
contact your nearest service centre.
Heater faultF41
Turn off the water tap and contact your nearest service centre.Overfilling waterF54
To avoid water leakage outside the dishwasher, do not remove
the plug from the wall socket until the water tap on the supply line
has been turned off!
Contact your nearest centre.Communication faultF60
Turn off the water tap and contact your nearest service centre.NTC faultF42
Contact your nearest service centre.F18
Diverter fault
F11
Water outlet fault
See Water remains in the dishwasher in the table Problem below.
If the problem persists, contact your nearest service centre.
F13
Water level fault Turn off the water tap and contact your nearest service centre.
Cannot close door. The baskets are not correctly
positioned.
Check that the dishes are not
blocking the baskets from slid-
ing properly into place.
Dirt on the control panel.
Clean with a dry or slightly
damp cloth.
Check that the baskets are cor-
rectly positioned horizontally.
Child lock or Automatic child
lock is activated.
dishwasher.
You have pressed the control
panel too soon after closing the
door.
Wait a moment then try again.
ActionPossible causes
24
. The display starts
counting down.
The dishwasher does not start.
has not been pressed.
The door is not properly closed. Check.
Close the door and press
.
You have opened the dishwash-
er to add more dishes while a
program is in progress.
Check whether the Delayed
for
start option has been selecte
d
.
seconds if you want to cancel
the Delayed start option.
The plug is not plugged into the Check.
wall socket.
A fuse/circuit breaker has been Check.
tripped.
The dishes are not clean. The spray arms do not rotate. Check that the dishes are not
blocking the spray arms.
Spray arm holes or bearings Clean the spray arms. See the
blocked. chapter Care and cleaning.
Unsuitable dishwashing pro- Select a program with a high
gram. temperature to dissolve grease
on very dirty dishes, such as In-
tensive 70°.
Incorrect detergent dosage. Dose according to water hard-
ness. Far too much or far too
little detergent results in poorer
dishwashing results.
Old detergent. Detergent is a Avoid large packages.
perishable product.
five
Press
Press and hold
Problem ActionPossible causes
Dishes loaded incorrectly. Do not cover porcelain with
large bowls or the like. Avoid
placing very tall glasses in the
corners of the baskets. See the
chapter Loading the dishwash-
er.
Glasses and cups have toppled Place dishes to sit steady.
over during the program.
The filter is clogged. Clean the filter.
The filter is not fitted correctly. Check that the filter is fitted
correctly. See the chapter Care
and cleaning.
Drainage pump stop missing. Check that the yellow drainage
pump stop (on the right in the
bottom drain) is in place. See
the chapter Care and cleaning.
25
Some foodstuffs, such as mus- Rinse off these types of food-
stuffs if not starting the dish-
washer immediately. Consider
using 1h 65° with the Speed
wash option.
tard, mayonnaise, lemon, vineg-
Spots on stainless steel or sil-
ver.
ar, salt and dressings, can
cause spots on stainless steel
ifl eft for too long.
All stainless steel can cause In order to avoid marks and tar-
spots on silver if they come into nishing, separate dishes made
contact during dishwashing. from different metals, such as
silver, stainless steel and alu-
minium.
Aluminium can also cause spots
on dishes.
Spots or films on the dishes. Incorrect rinse aid dosage set- See the chapter Settings.
ting.
Switch all-in-one detergents or
deactivate the TAB setting and
top up with salt and separate
rinse aid. See Rinse aid in the
chapter Settings.
The setting TAB is activated and
all-in-one detergent with insuffi-
cient drying effect is being used.
Salt compartment empty. Top up with salt. See the
chapter Before washing for the
first time.
See Water hardness in the
chapter Settings.
Incorrect water softener setting.
The water softener is leaking Check that the salt compart-
salt. ment lid is properly tightened.
Otherwise contact your nearest
service centre.
Too high temperature and/or Wash crystal at a low temperat-
too much detergent can cause ure and with a conservative
etching on crystal. Unfortu- amount of detergent. Contact
nately, this cannot be repaired, the detergent manufacturer.
only prevented.
The dishes are not correctly
placed or the spray arms are not
Water remains in the dishwash- The filter is clogged. Clean the filter.
er.
The filter is not fitted correctly. Check that the filter is fitted
correctly. See the chapter Care
and cleaning.
Debris in the drainage pump. Clean the drainage pump. See
the chapter Care and cleaning.
Drainage pump stop missing. Check that the yellow drainage
pump stop (on the right in the
bottom drain) is in place. See
the chapter Care and cleaning.
Check that the hose is free fromKink in drainage hose.
kinks and sharp bends.
Disconnect the drainage hose
where it connects to the sink
unit's water trap. Check that no
debris has fastened and that the
connection has an inner diamet-
Blocked drainage hose.
er of at least 14 mm.
Bad odour in dishwasher. Dirt around the seals and in Clean with washing-up brush
corners. and low foaming cleaner.
Run a program with a high tem-
perature once or twice a month.
Low temperature programs
have been selected for a pro-
longed period. Or run a self-cleaning program.
See Self-clean in the chapter
Using the dishwasher.
Rattling sound when dishwash-
ing.
rotating.
Problem ActionPossible causes
Select a program with a high
temperature to dissolve grease
on very dirty dishes, such as In-
tensive 70°. Or run a self-clean-
ing program. See Self-clean in
the chapter Using the dishwash-
Grease deposits in the dish- Low temperature programs
washer. have been selected for a pro-
longed period.
er.
The setting TAB is activated and
all-in-one detergent with insuffi-
cient drying effect is being used.
The dishwasher is not fully
loaded.
Rinse aid needs topping up or Top up with rinse aid or in-
dosage is set too low. crease the rinse aid dosage
setting.
Switch all-in-one detergents or
deactivate the TAB setting and
top up with salt and separate
rinse aid. See Rinse aid in the
chapter Settings.
Fully load the dishwasher.
The dishes are not dry enough. The Auto Dry setting has not
been activated.
Activate the Au to Dry setting.
See the chapter Settings.
Check that the dishes are
placed securely. Spin the spray
arms to make sure they can ro-
tate.
27
Installation
[mm]
Nominal dimensions. Actual measurements may vary.
• Connections to electricity, water and drainage must be performed by a qualified professional.
• Always follow applicable regulations for water, drainage and electricity.
• Take care during installation! Wear protective gloves! There must always be two people!
• Place a drip tray on the floor beneath the dishwasher to prevent damage from any water leaks.
• Before screwing the dishwasher into place, test the dishwasher by running the 1h 65° program
with the Speed wash option. Check that the dishwasher fills with water and drains. Check also
that none of the connections leak.
WARNING!
Turn off the water supply when installing the dishwasher!
Do not forget to remove the transport protection for the door when unpacking the dishwasher.
28

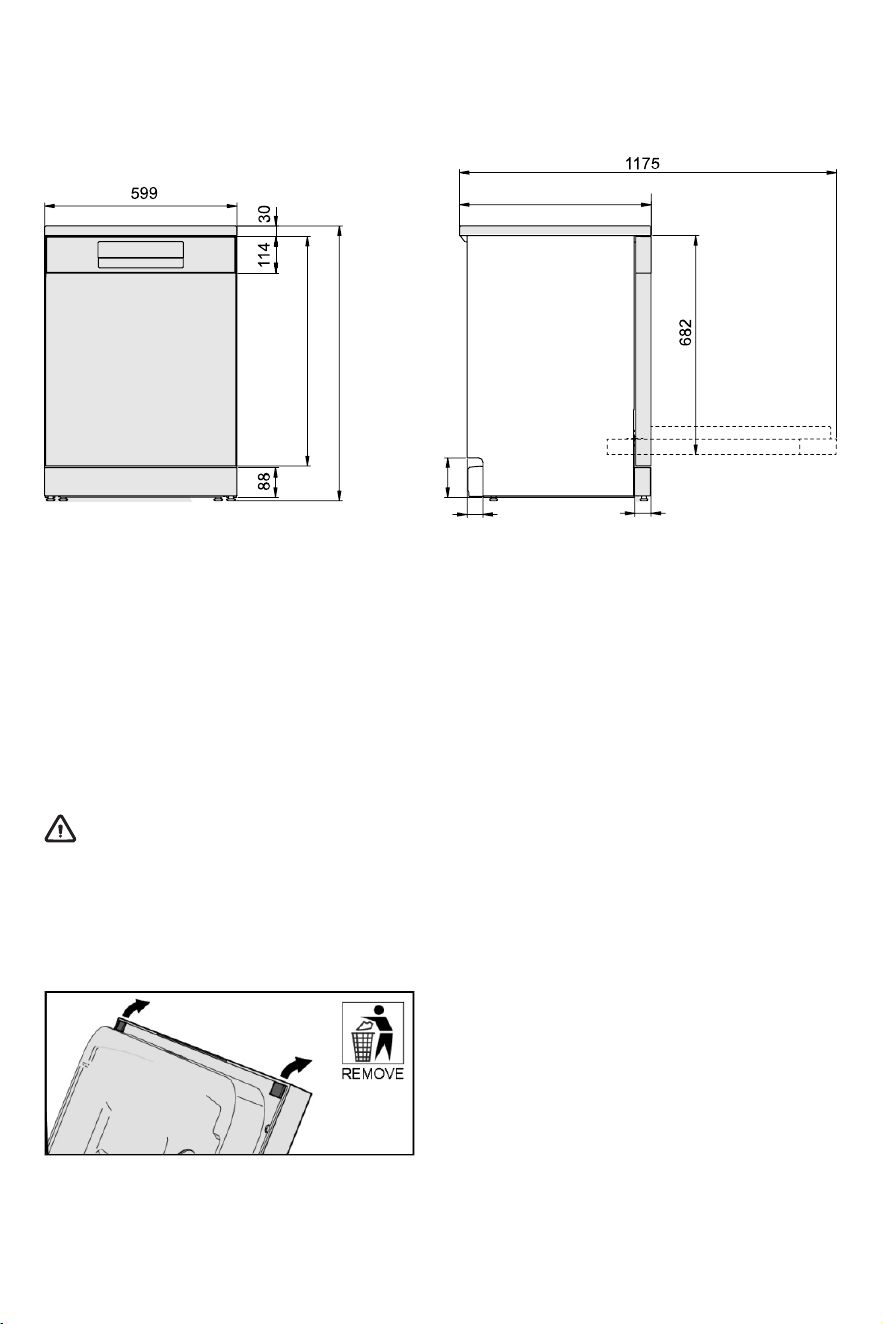

845 - 885
718
90
50 50
597
The plug must be disconnected or power to the socket turned off while the work is carried out!
Safety instructions
Transport protection for the door
604
585
50
>90
820-860
【mm】
815-855
573
599
29
24 mm
Adjust the height and slide the dishwasher into place
Ÿ When the dishwasher is installed with its worktop, the build-in measurements are shown in the
illustration.
845-885
599
597
604
600
50
>90
850-890
【mm】
Ÿ When the dishwasher is installed in a recess without its worktop, the build-in measurements are
shown in the illustration.

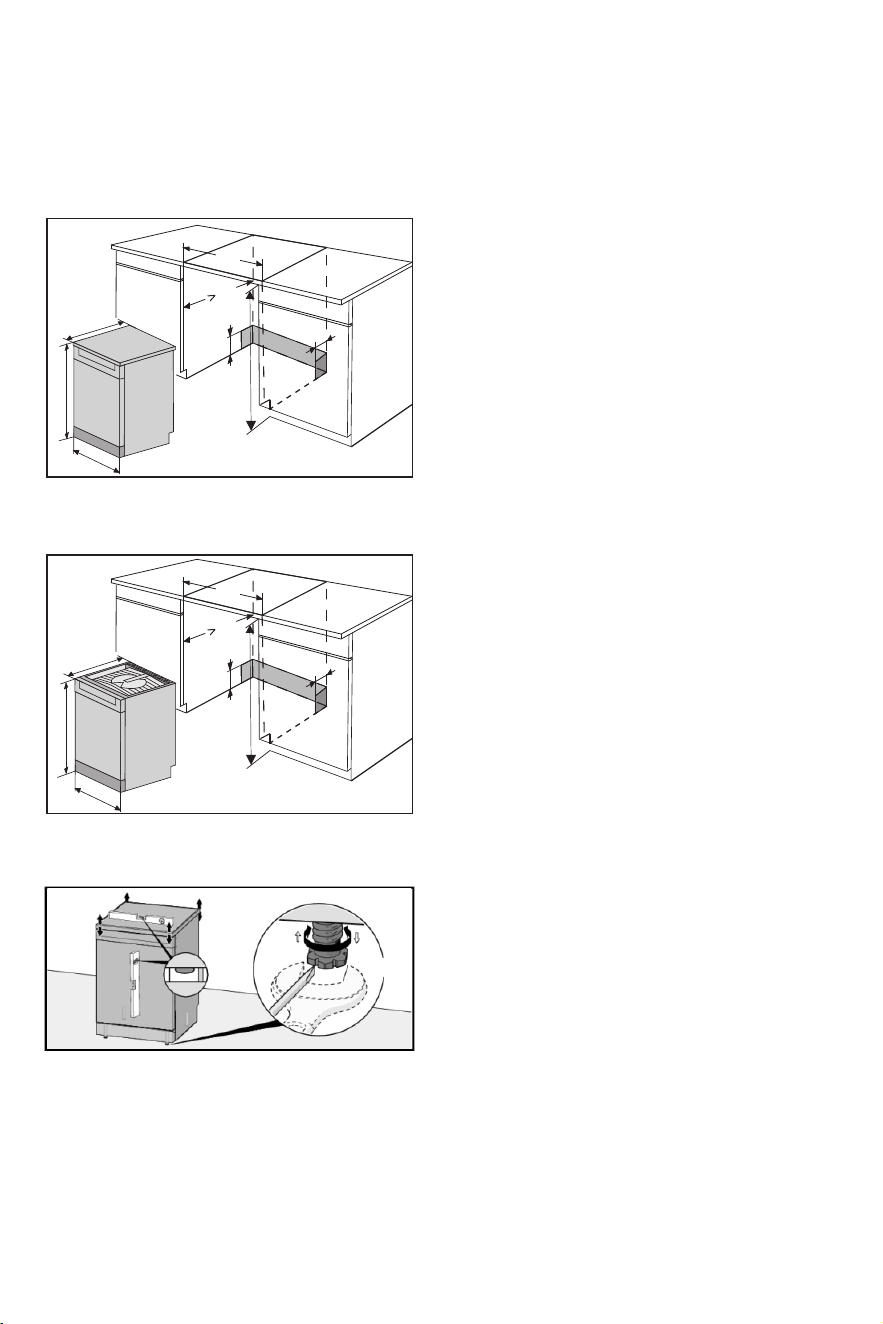

The dishwasher can be installed under a worktop or freestanding. Make sure the area on which the
dishwasher is to be installed is firm.
Placing the dishwasher
30
• Check that the machine is installed such that the door opens freely, otherwise door lock
functionality may be disrupted.
6. Make any final adjustments to the front feet (the dishwasher may lean no more than 5 mm).
The dishwasher can also be installed in a recess without its worktop. See Remove dishwasher worktop.
5. Slide the dishwasher into place.

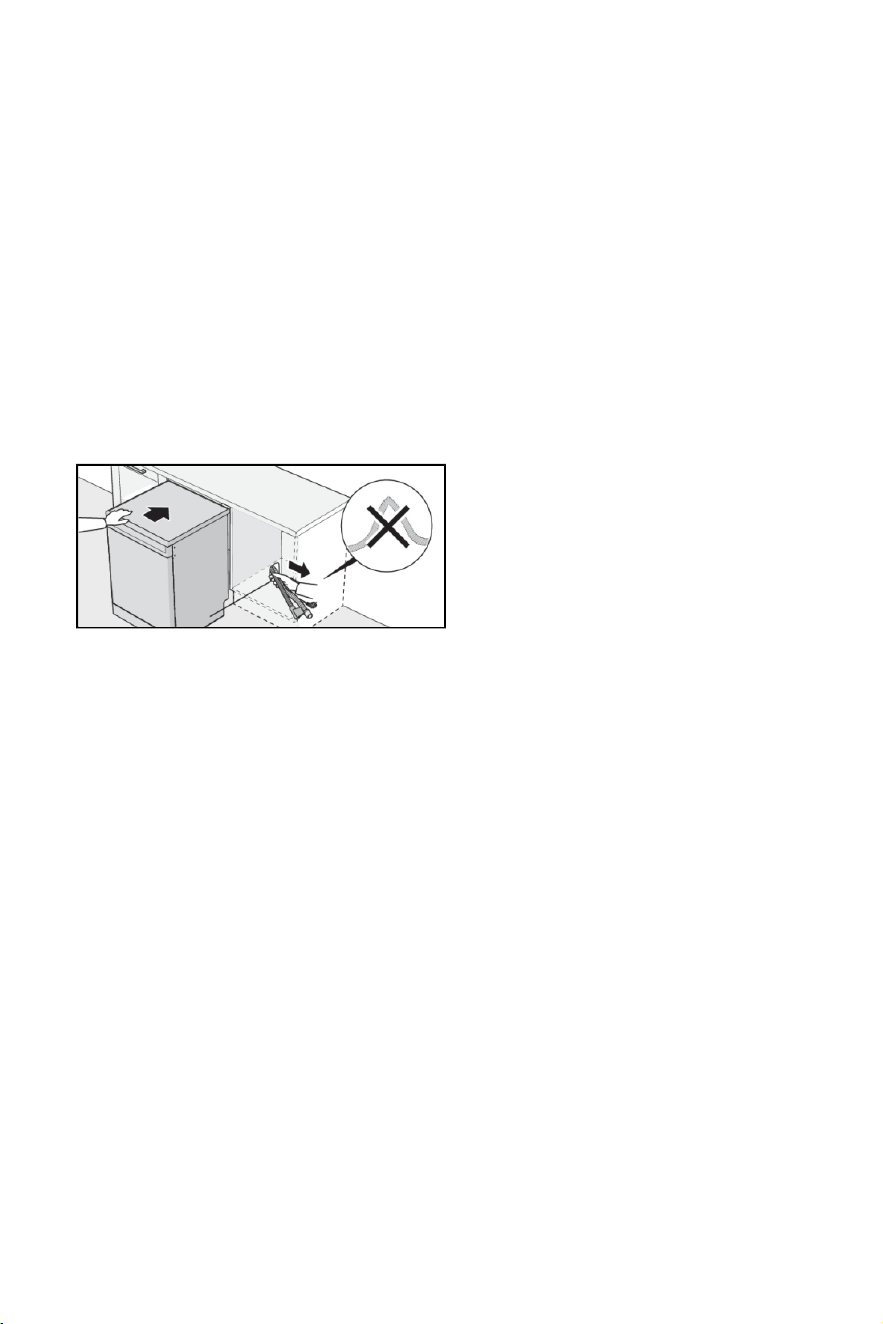

• Pull through the drainage and supply hoses when the machine is slid into place.
• Check that the hoses have no kinks or sharp bends, and check that there is nothing that can
damage the hoses.
• Make sure the area on which the dishwasher is to be installed is firm. Adjust the dishwasher's
height using the four feet so that the dishwasher is level. The dishwasher may lean no more than
5 mm.
Freestanding
Built-in
1. Start by measuring the height from the floor to the bottom edge of the worktop.
2. Measure the height from the floor to the top edge of the dishwasher.
3. Adjust the dishwasher's feet by turning them clockwise to raise or anticlockwise to lower the
machine.
4. Check that there is an air gap of at least 3 mm between the underside of the worktop and the top
edge of the dishwasher.
This dishwasher is suitable for installing in a raised recess (to attain an ergonomic working height).
This means that the dishwasher can be placed so that the drainage hose runs to a lower level than
the bottom of the dishwasher, such as by routing it directly to a floor drain. The dishwasher is fitted
with an integrated anti-siphon device to prevent the machine from being emptied of water during the
wash cycle.

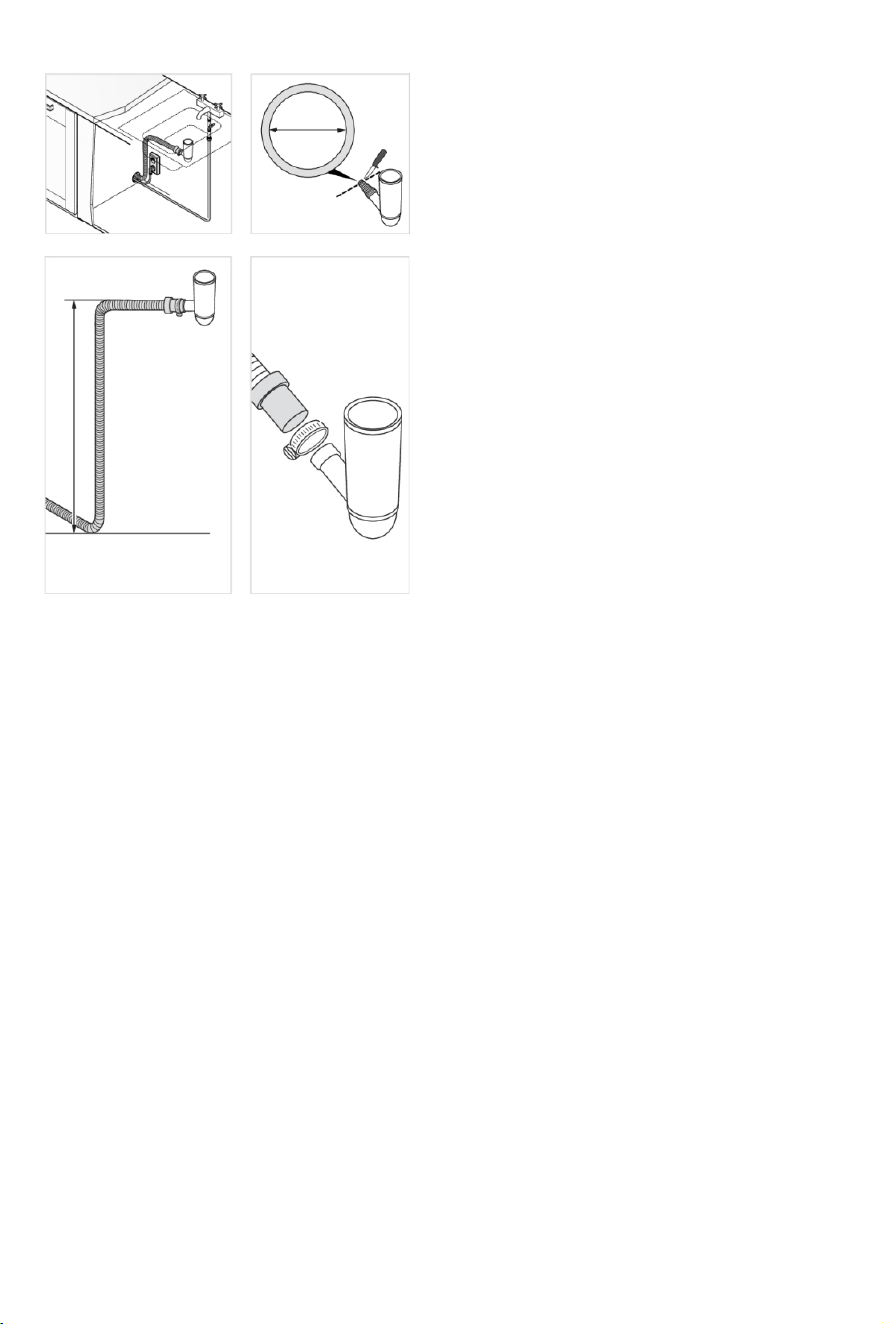

Drainage connection
The drainage hose can also be connected to a connection nipple on the sink unit's water trap. The
connection nipple must have an internal diameter of at least 14 mm.
31
The drainage hose may be extended by a maximum of 3 m (the total length of the drainage hose must
not exceed 4.5 m). Any joins and connecting pipes must have an internal diameter of at least 14 mm.
However, the drainage hose should ideally be replaced with a new hose without joins.
No part of the drainage hose may be more than 950 mm above the bottom of the dishwasher.
Connect the dishwasher to the cold water supply if the building is heated using oil, electricity or gas.
Connection to cold water supply
Use only the inlet hose supplied with the dishwasher. Do not re-use old or other spare hoses.
The supply pipe must be fitted with a water tap (stopcock). The water tap must be easily accessible,
so that the water can be shut off if the dishwasher has to be moved.
Once the installation is complete, turn on the water tap and allow the pressure to settle for a while.
Check that all connections are watertight.
Attach the drainage hose with a hose clamp. Ensure that the drainage hose has no kinks.
Connection to water supply
min.
14 mm
Max. 950 mm
Electrical connection
Remove dishwasher worktop
The dishwasher can be installed in a recess without its worktop. If the dishwasher's worktop is removed,
the dishwasher must be installed under a separate worktop.
Information about the electrical connection can be found on the serial number plate. This specification
must match the electricity supply.
The dishwasher must be connected to an earthed socket.
The electric wall socket must be placed outside of the installation area to be easily accessible after
installing the dishwasher. Do not use an extension cord!
NOTE!
Do not exceed the permitted water supply temperature. Certain materials used in some cookware
cannot withstand high heat. See Fragile dishes in the chapter Loading the dishwasher.
Connection to hot water supply
Connect the dishwasher to the hot water supply (max. 60 °C) if the building is heated using an
energy-efficient means such as district heating, solar power or geothermal power. Choosing a hot
water connection reduces the dishwasher's energy consumption.
32
Service
1
2
Art. Nr.
Ser. Nr.
When making contact, provide the details on the serial number plate. Include the article number (1)
and the serial number (2).
Please note that non-professional repairs may risk user safety and affect the warranty.
Our website also has information about spare part availability and what you
can repair yourself.
Read the chapter Troubleshooting before contacting the service centre. If you have encountered a
problem that you cannot resolve, please contact your nearest service centre for professional help,
see www.hisense.com.
33
Height: 845-885 mm
Width: 599 mm
Depth: 597 mm
1)
43 kg
1)
Weight can vary due to different specifications.
2)
In accordance with the EN 60436 standard.
220-240V~ 50Hz
1900 W
Rated power:
Rated voltage:
1. Upper baskets:
Information for comparability tests in accordance with EN 60436
Capacity: 14 place settings
Position of the upper basket: lower position
Program: Eco
Rinse aid setting: 05
Powdered detergent quantities: 4g prewash + 18g main wash
Number Item
1
2
3
4
5
6
7
Cup
Glass
Mug
Glass bowl
Dessert bowl
Saucer
Melamine dessert
plate
8
Serving spoon
1
3
3
1
2
6
4
5
2
8
6
6
7
Technical data and energy labelling
Technical data
Information for test institute
Information for consumers
Information about your product can be found at global.hisense.com,
Number of standard place settings:
Water pressure: 0.03-1.0 MPa
2)
14
Weight:
34
the European Product Database for Energy Labelling, EPREL. Or else visit https://eprel.ec.europa.eu
directly. Follow the instructions to search by model name.
See the information on the serial number plate. Make a note of the model name (3).
where you will also find a link to
2. Lower baskets:
Number Item
1
2
3
4
5
6
Dinner plate
Dessert plate
Melamine bowl
Soup plate
Small pot
Oven pot
7
Oval platter
3. Cutlery baskets:
Number Item
1
2
3
4
5
6
7
Tea spoons
Dessert spoons
Soup spoons
Gravy ladle
Serving fork
Forks
Knives
1 2
3
4 2
2
5
6
7
35
We reserve the right to make changes.
12222203-A
