ECF9214X
ECF9214K
ECF6214X
ECF6214K
ECF9214B
ECF6214B
Table of Contents
1
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
There is a fire risk if cleaning is not carried out in accordance with the instructions;
CAUTION: Accessible parts may become hot when used with cooking appliances.
the air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels
regulations concerning the discharge of air have to be fulfilled.
Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
DESCRIPTION
Ref Q'ty Components
1 1 Air outlet base Ass
2 1 Hood body Ass
3 1 Wind housing Ass
4 1 LED lamp
5 1 Transparent lamp board
6 2 Charcoal filter
7 2 or 3
2 Alu filters for 60cm model
3 Alu filters for 90cm model
2
Dimension(mm)
3
50
DESCRIPTION

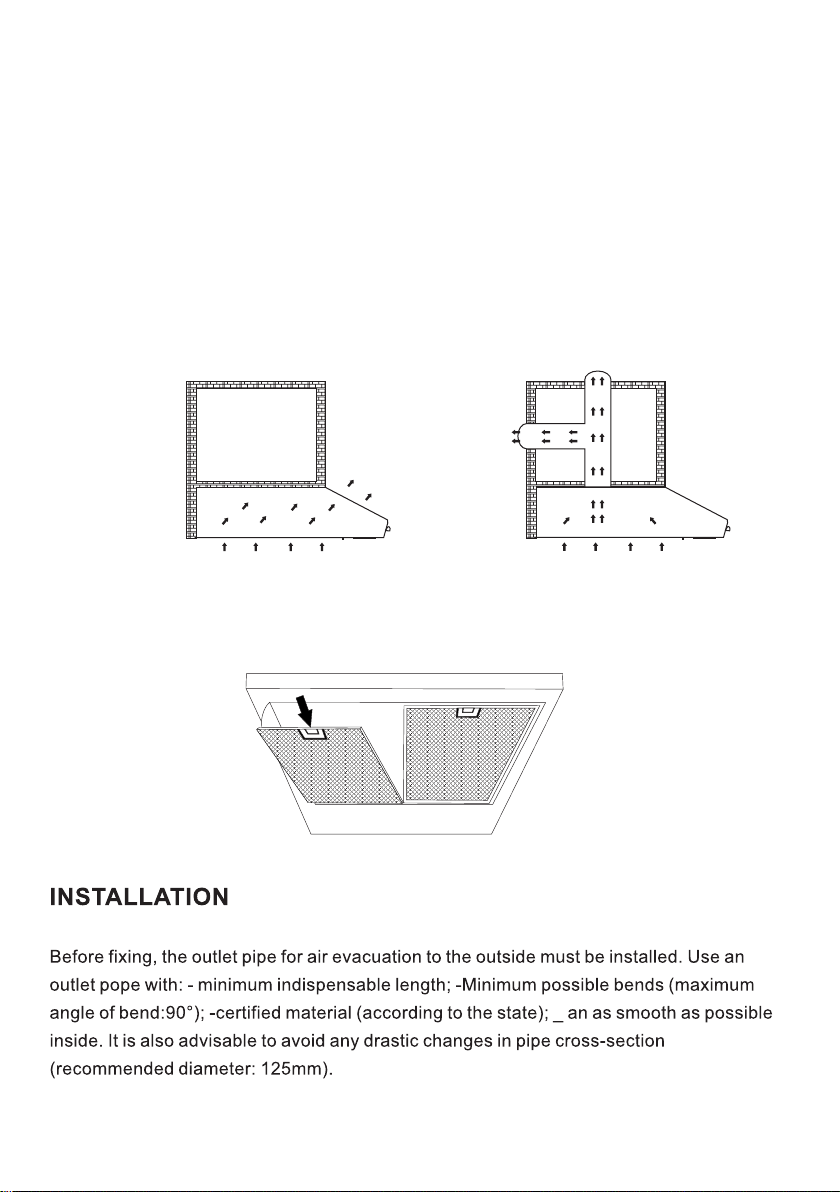

The hood may be installed in the filtering or the ducting version.
Filtering version (Fig.1): The hood aspirates the kitchen air saturated with fumes and
odour. Purifies it through the grease filters and charcoal filters and returns clean air into the
room. For constant efficiency, the carbon filters must be replaced periodically.
Ducting version (Fig.2): The hood aspirates the kitchen air saturated with fumes and
odour, passes it through the grease filters and expels it to the outside through an outlet
pipe. With this version the carbon filters are not required.
Decide from the outset on the type of installation (filtering or ducting). For greater
efficiency, we recommend you install the hood in the ducting version (if possible).
1 2
INSTALLATION
Before beginning installation, to remove the metal filter/s (Fig.3), in line with the handle,
push the stop inwards and pull the filter down.
3
4
4
5
6
5
6

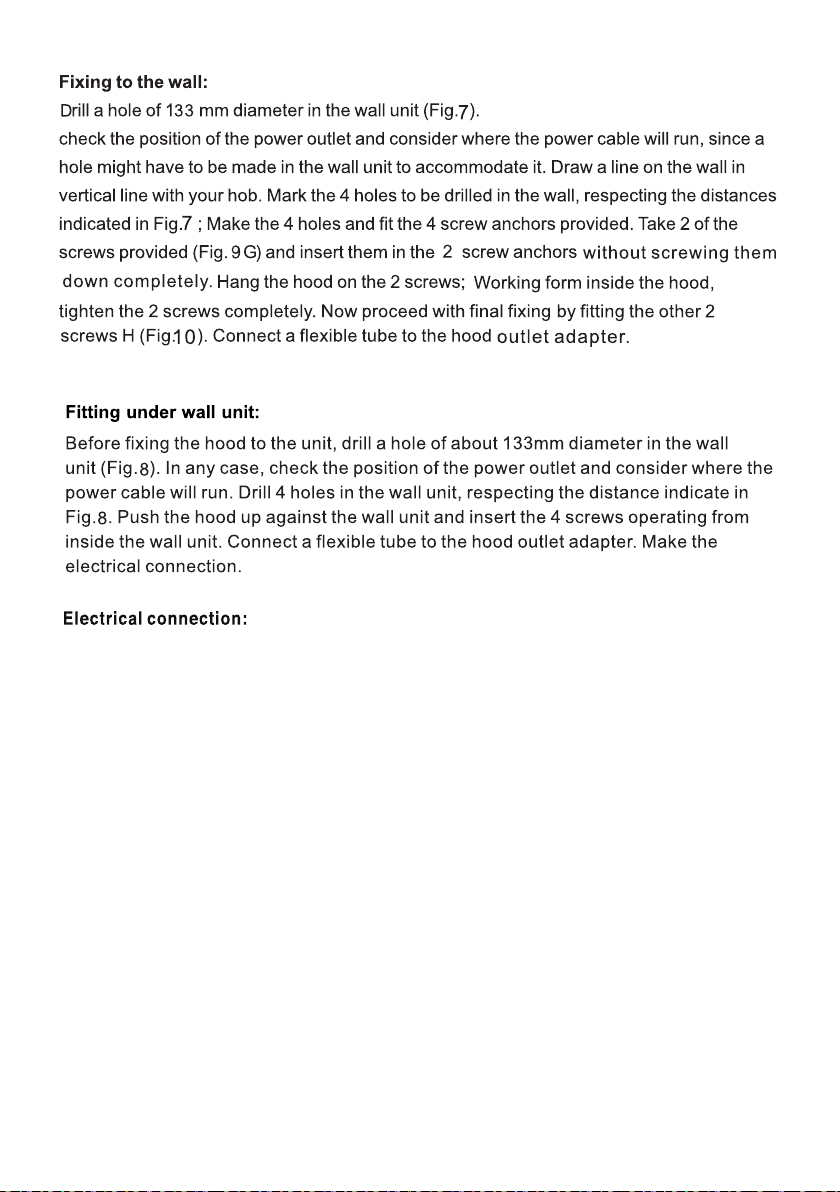

Electrical wiring must be done by a qualified person(s) in accordance with all
applicable codes and standards. Turn off electrical power at service entrance
before wiring.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
Do not use the plug and an extension cord other than the ones initially supplied
with the hood.
The earthing of this hood is compulsory. Do not remove ground prong of the plug.

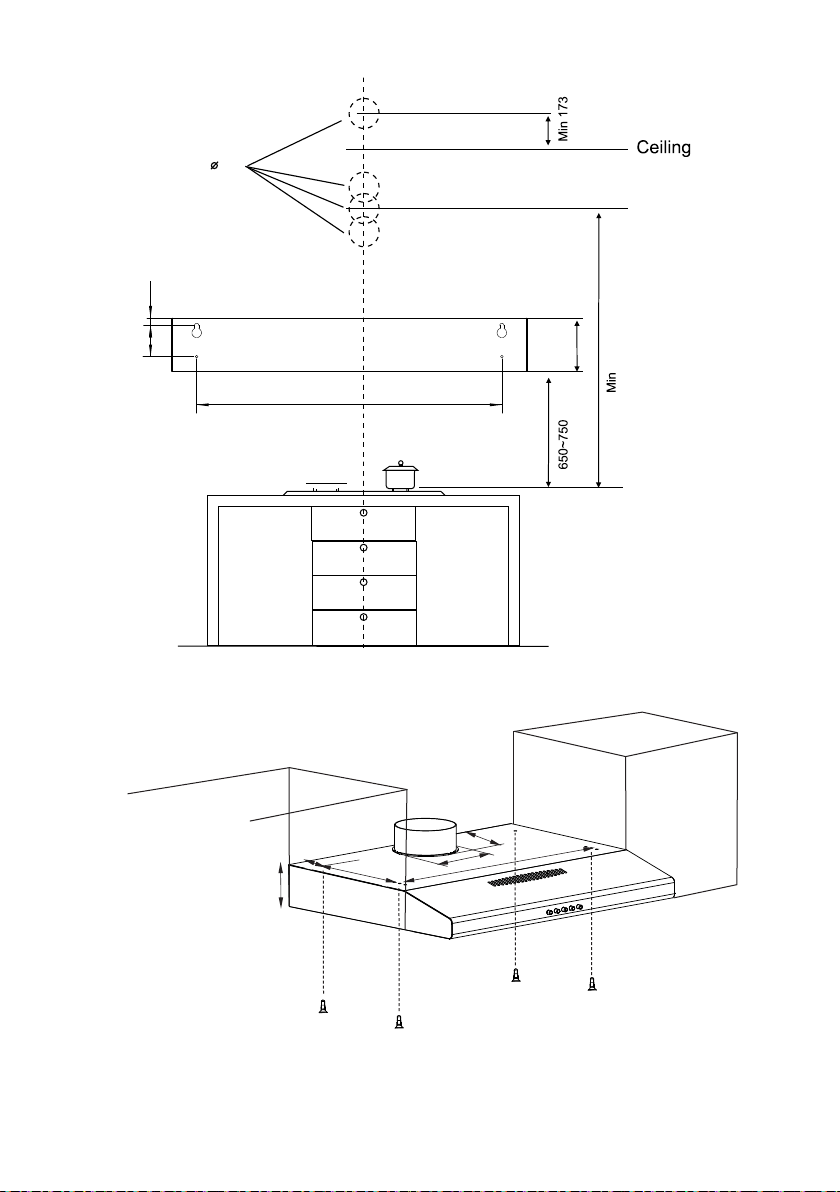

Make the electrical connection
8
7
90
5
12 f
o
r
60
c
m
8
12 f
or
90
cm
5
8
13
6
1
2
5
20
7
7
7
90
920
133
512 for 60cm model
812 for 90cm model
1
2.5
5
2
.5
8
9
10
LED LAMPS
This range hood require LED lamps
*Max wattage： 2W
Voltage range: 220-240V
Dimensions: diameter 98mm
This LED lamp should be replaced with qualified person.
Controls as
11
AA
B
C
D
E
LED lamp.
hands.
MAINTENANCE AND CLEANING
They are metal grid filters (as shown in Fig.3): the filters must be periodically cleaned,
depending on extent of operation ( at least every four weeks).
Wash the filter with neutral detergent.
To remove the filters, first of all push down the filters.
Aluminum type metal filter
3
The carbon filters must be periodically replaced depending on extent
of operation-on average every 6 months. To remove the carbon filters,
proceed as follows.
Charcoal filter
Close
Loosen
6
